LG LDE3031ST User manual

Life's Good
;@_i;i
iiili
Please read this guide thoroughly before operating
and keep it hand}/for reference at a[[ ?imes_
LDE3031ST
MFL63291206

2 TABLEOFCONTENTS
TABLE OF CONTENTS
3 IMPORTANT SAFETY INSTRUCTIONS
10 OVERVIEW
10 Range overview
11 Control panel overview
12 FEATURES
12 Settings
12 Clock
12 Timer on/off
13 Oven temperature adjustment
13 Preheating alarm light
13 Beeper volume
13 Fahrenheit or celsius
14 Oven light
14 Lockout
14 Start time
15 Cook time
1 6 USING THE COOKTOP
16 Cooking areas
16 Using the cooktop elements
17 Using the proper cookware
18 USING THE OVEN
18 Before using the oven
19 Oven vent
18 Using oven racks
18 Sabbath mode
19 Bake
19 Pizza
20 Recommended baking and roasting guide
21 Broil
22 Recommended broiling guide
23 Warm
23 Proof
24 CARE AND CLEANING
24 Cleaning the glass/ceramic cooktop
25 Self clean
28 EasyClean TM
30 Cleaning the exterior
30 Changing the oven light
31 Removing & replacing the lift-off oven door
32 Door care instructions
33 FAQs
35 TROUBLESHOOTING
39 WARRANTY

iMPORTANT SAFETY iNFORMATiON 3
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all instructions before using your oven to prevent the risk of fire,
electric shock, personal injury, or damage when using the range. This guide does not
cover all possible conditions that may occur. Always contact your service agent or
manufacturer about problems that you do not understand.
Download this owner's manual at: http://www.lg.com.
This is the safety alert symbol. This symbol alerts you to potential hazards
that can result in property damage and/or serious bodily harm or death.
All safety messages will follow the safety alert symbol and either the word
WARNING or CAUTION. These words mean:
WARNING
Indicates a hazardous situation which, if not avoided, could result in death or serious
injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
ANTI-TIP SAFETY PRECAUTIONS
_- WARNING
. It is possible for a child or adult to tip the range and be killed.
.Verify that the anti-tip device has been properly installed
and engaged to the floor or wall and engaged to the leveling
leg of the range.
. Ensure the anti-tip device is reengaged when the range is
moved.
. To check that the anti-tip bracket is properly installed: Grasp
the top rear edge of the range back guard and carefully
attempt to tilt it forward. Verify that the anti-tip devices are
engaged.
. Do not operate the range without the anti-tip device in
placeand engaged.
. Failure to follow these instructions can result in death or
serious burns to children or adults.
Anti-tip
bracket leg

4iMPORTANT SAFETY iNFORMATiON
approximately'
0.65"(16.5mm),
Anti-tip Wall plate
bracket
Screw must
enter wood
or concrete
. To check that the anti-tip brackets are properly installed, remove any items on the
cooktop. Grasp the top rear edge of the range back guard and carefully attempt to
tilt it forward. Verify that the anti-tip devices are engaged.
. Be certain that your appliance is properly installed and grounded by a qualified
technician.
. Do not repair or replace any part of the appliance unless specifically recommended
in the manual. All other servicing should be performed by a qualified technician.
. Always disconnect power from the appliance before servicing.
SAFETY PRECAUTIONS
WARNING: This product contains chemicals known to the State of California to
cause cancer. Wash hands after handling,
• DO NOT TOUCH HEATING ELEMENTS OR INTERIOR SURFACES OF THE OVEN.
Heating elements may be hot even though they are dark in color. Interior surfaces
of an oven become hot enough to cause burns. During and after use, do not touch
or let clothing or other flammable materials contact heating elements or interior
surfaces of oven until they have had sufficient time to cool. Other surfaces, such as
oven vent openings and surfaces near these openings, oven doors, and windows of
oven doors, also get hot and may cause burns if not cooled.
•Use care when opening the oven door. Let hot air or steam escape from the oven
before removing or replacing food in the oven.
•DO NOT heat unopened food containers. Pressure in the containers may cause
them burst which may result in injury.
•Be certain that all packing materials are removed from the appliance before
operating. Keep plastic, clothes, and paper away from parts of the appliance that
may become hot.
•DO NOT force the door open. This can damage the automatic door locking
system. Use care when opening the oven door after the self cleaning cycle. Stand
to the side of the oven when opening the door to allow hot air or steam to escape.
The oven may still beVERY HOT.
•DO NOT use harsh etching, abrasive cleaners or sharp metal scrapers to clean
the oven door glass since they can scratch the surface. Scratches may cause the
glass to shatter.
•Be careful when removing and lifting the door.
•DO NOT lift the door by the handle. The door is very heavy.
•DO NOT use the oven for drying clothes. Only use the oven for its intended
purpose.

iMPORTANT SAFETY iNFORMATiON .'.5
• DO NOT use utensils for removing refuse (ash, food etc.)
. Refer to the installation manual for proper anti-tip bracket installation.
. Never remove the oven legs.The range will not be secured to the anti-tip brackets if
the legs are removed.
CAUTION
•DO NOT line the oven walls, racks, bottom, or any other part of the oven with
aluminum foil or any other material. Doing so will disrupt heat distribution,
produce poor baking results and cause permanent damage to the oven interior
(aluminum foil will melt to the interior surface of the oven).
. Never attempt to dry a pet in the oven.
. Do not leave metal objects, such as cans, around the burner.
WARNING
•DO NOT step or sit on the oven door. Install the anti-tip brackets packed with range.
-The range could be tipped and injury might result from spilled hot liquid, food, or
the range itself.
- If the range is pulled away from the wall for cleaning, service, or any other reason,
ensure that the anti-tip brackets are properly re-engage when the range is
pushed back against the wall.
•NEVER use your appliance for warming or heating the room.
•Keep children and pets away from the oven.
• DO NOT use water on grease fires. Should an oven fire occur, leave the oven
door closed and turn the oven off. If the fire continues, throw baking soda on
the fire or use a fire extinguisher.
• Only use dry pot holders. Moist or damp pot holders on hot surfaces may result
in burns from steam. Do not let the pot holder touch hot heating elements. Do
not use a towel or other bulky cloth to remove food.
•Do not store items in or on the range. Flammable materials should not be
stored in or near the range.
• Wear proper apparel. Loose-fitting or hanging garments should never be
worn while using the range.
•Never pour COLD WATER over a hot oven for cleaning.
• Do not use the range if it is damaged.
•Do not operate the oven without the charcoal heater mesh.
•Do not allow anyone to climb, stand or hang on the door, storage drawer or
cooktop. They could damage the range and even tip it over, causing severe
personal injury.
ELECTRICAL SAFETY
•Protective Liners. Do not use aluminum foil or any other material to line the oven
bottoms. Improper installation of these liners may result in a risk of electric shock
orfire.

,6 iMPORTANT SAFETY iNFORMATiON
• De Net allow aluminum foil or the temperature probe to contact heating elements.
• Before replacing your oven light bulb, switch off the electrical power to the
oven at the main fuse or circuit breaker panel. Failure to do so can result in
severe personal injury, death, or electrical shock.
PAN PLACEMENT
• Do not place food or cookware on the bottom of the oven cavity. Doing so will
cause permanent damage to the oven bottom finish.
•Never place plastic, paper, canned foods or combustible material in the oven.
• When cooking food in the warming drawer, always use a baking sheet or pan
with 4raised sides.This will prevent food from sliding off.
DEEP FAT FRYERS
. Use extreme caution when moving or disposing of hot grease.
. Always heat fat slowly, and watch as it heats.
. If frying combinations of oils and fats, stir together before heating.
. Use a deep fat thermometer, if possible, to prevent overheating fat beyond the
smoking point.
. Use the least possible amount of fat for effective shallow or deep-fat frying. Filling
the pan with too much fat can cause spillovers when food is added.
SAFETY DURING USE
. Do not touch the oven racks while they are hot.
.If the rack must be moved while the oven is hot, do not let the potholder
contact the hot heating element in oven.
.Always use pot holders or oven mitts when removing food from the oven or
the center warming element. Cookware will be hot.
.Always use an oven mitt to remove the temperature probe after cooking.
. Use caution with the TIMED BAKE or DELAYED TIMED BAKE features. Use the
automatic timer when cooking cured or frozen meats and most fruits and vegetables.
Foods that can easily spoil, such as milk, eggs, fish, meat or poultry, should be chilled
in the refrigerator first. Even when chilled, they should not stand in the oven for more
than 1 hour before cooking begins, and should be removed promptly when cooking
iscomplete. Eating spoiled food can result in sickness from food poisoning.

iMPORTANT SAFETY iNFORMATiON 7
•Should an oven fire occur, leave the oven door closed and turn the oven off. If
the fire continues, throw baking soda on the fire or use a fire extinguisher.
•Should an oven fire occur, DO NOT put water or flour on the fire. Flour may be
explosive and water can cause a grease fire to spread and cause personal injury.
• DO NOT use the broiler pan without the grid. DO NOT cover the grid with
aluminum foil.
•Do not use plastic to cover food. Use foil or oven resistant lids only.
•If the oven is heavily soiled with oil, self clean the oven before using the oven
again. It could cause arisk of fire.
. Wipe up heavy soil on the oven bottom of the oven before using the Self Clean
function.
•Use proper pan sizes. For smaller pots and pans, use the smaller heating elements.
For larger pots and pans, use the larger heating elements. Select utensils that have
flat bottoms large enough to cover the heating elements. The use of undersized
utensils will expose a portion of the heating element to direct contact and may
result in ignition of clothing.
•Never leave surface units unattended at high heat settings. Boil overs cause
smoking and greasy spillovers that may ignite.
•Glazed cooking utensils. Only certain types of glass, glass/ceramic, ceramic,
earthenware, or other glazed utensils are suitable for a range-top service without
breaking due to the sudden change in temperature.
• Utensil handles should be turned inward and not extend over adjacent surface
units.To reduce the risk of burns, ignition of flammable materials, and spillage due to
unintentional contact with the utensil, the handle of a utensil should be positioned
so that it is turned inward, and does not extend over adjacent surface units.
CHILD SAFETY
WARNING
• Keep children away from the oven.
• Accessible parts may become hot when the grill is in use.
• During normal operation (self-clean cycle, bake, etc.)DO NOT touch the hot
surface between the bottom of the oven door and the top of the drawer on the
front of the oven. Doing so is aburn hazard and will cause injury.
•Never let a child hang on the oven door.
•Do not allow children crawl into the oven.
CAUTION
• DO NOT leave small children unattended near the oven.
•During the self clean cycle, the outside of the oven can become very hot to the
touch.
•NEVER leave children alone or unsupervised near the appliance when it is in
use or is still hot. Children should never be allowed to sit or stand on any part
of the appliance as they could be injured or burned.

8 iMPORTANT SAFETY iNFORMATiON
• NEVER store items of interest to children in cabinets above the range. Children
climbing on the range or on the oven door to reach items could be seriously
injured.
• Let hot utensils cool in asafe place, out of reach of small children.
• Children should not be allowed to play with controls or other parts of the
appliance.
GLASS/CERAMIC COOKING SURFACES
Stand to the side of the range when opening the oven door. The hot air and steam
that escape can cause burns to hands, face and eyes.
WARNING
• DO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS.
•Surface units may be hot even though they are dark in color. Areas near surface
units may become hot enough to cause burns. During and after use, do not touch,
or let clothing or other flammable materials contact surface units or areas near
units until they have had sufficient time to cool. This includes the cooktop and the
area above the oven door.
•Do not cook on abroken cooktop. If the cooktop should break, cleaning
solutions and spillovers may penetrate the broken cooktop and create a risk of
electric shock. Contact a qualified technician immediately.
•Clean cooktop with Caution. Do not use sponges or cloth to wipe spills on a hot
cooking area. Use a proper metal scraper.
•DO NOT use the glass cooktop surface as a cutting board.
•DO NOT place or store items that can melt or catch fire on the glass cooktop, even
when it is not being used.
• Always turn the surface units on after placing cookware.
•DO NOT store heavy items above the cooktop surface that could fall and damage it.
• DO NOT place aluminum foil or plastic items such as salt and pepper shakers, spoon
holders, or plastic wrappings or any other material on the range when it is in use.
•Be sure you know which control pads operate each surface unit. Make sure you
turned on the correct surface unit.
•NEVER cook directly on the glass. Always use cookware.
• Always place the pan in the center of the surface unit you are cooking on.
NEVER leave surface units unattended at high heat setting. Proper contact of
utensil to burner will also improve efficiency.
-Boil overs cause smoking and greasy spillovers that may catch on fire.
• Always turn the surface units off before removing cookware.
•DO NOT use plastic wrap to cover food.
- Plastic may melt onto the surface and be very difficult to remove.
•DO NOT touch surface units until it has cooled down.
.The surface elements may still be hot and burns may occur if the glass surface is
touched before it has cooled down sufficiently.

iMPORTANT SAFETY iNFORMATiON 9
•Immediately clean the spills on cooking area to prevent a tough cleaning chore later.
•If cabinet storage is provided directly above cooking surface, limit it to items that are
infrequently used and can be safely stored in an area subjected to heat. Temperatures
may be unsafe for items such as volatile liquids, cleaners or aerosol sprays.
•When warming foods do not use containers that seal. Allow venting for heated air
to escape.
•Some cleaners can produce dangerous fumes if applied to a hot surface.
• DO NOT use a steel-wool pad.
- It will scratch the surface.
• DO NOT use scrub pads or abrasive cleaning pads.
-They may damage your glass cooktop surface.
• Cookware with rough or bottoms can mark or scratch the cooktop surface.
• Do not slide anything metal or glass across the cooktop.
• Do not use cookware with dirt or dirt built-up on the bottom.
SAFETY WHEN CLEANING
CAUTION
• Open window or turn on a ventilation fan or hood before self cleaning.
• Do Not Use Oven Cleaners. No commercial oven cleaner or oven liner protective
coating of any kind should be used in or around any part of the oven.
• Before self cleaning the oven. Remove broiler pan, all oven racks, meat probe and
any other utensils from the oven cavity.
•Never keep pet birds in the kitchen. The health of birds is extremely sensitive to
the fumes released during an oven self clean cycle. Fumes may be harmful or fatal
to birds. Move birds to well-ventilated room.
•Clean in the self clean cycle only parts listed in this manual. Before self clean the
oven, remove the broiler pan and any utensils of foods from the oven.
•It is normal for the cooktop of the range to become hot during a self clean cycle.
Therefore, touching the cooktop during a clean cycle should be avoided.
•Important Instruction. In the event the self clean error code F is displayed, and three
long beeps sound, the oven is malfunctioning in the self clean mode. Switch off the
electrical power to the main fuse or breaker and have serviced by a qualified technician.
• Make sure oven lights are cool before cleaning,
•Never pour water on the oven. Doing so may cause oven malfunction.
COOK MEAT AND POULTRY THOROUGHLY
To protect against food borne illnesses, cook meat and poultry thoroughly. The USDA
has indicated the following as safe minimum internal temperatures for consumption:
.Ground beef, veal, pork, or lamb: 160 °F
.Poultry: 165 °F
.Beef, veal, pork, or lamb: 145 °F
.Fish/seafood: 145°F

10 OVERVIEW
OVERVIEW

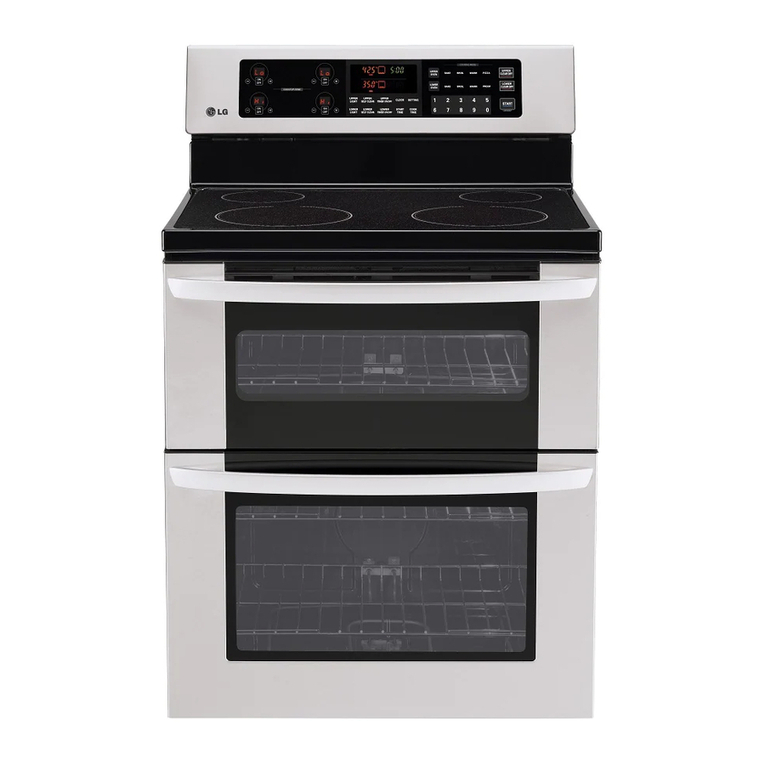

RANGE OVERVIEW
Singl
Singl
Ceramic<
Name & Ratine
Anti-tip
Single element
Single element
Automatic oven light switch
Gasket
Racks
Warning label
Upper oven door
Racks
Lower oven door
fAccessories for installation
Template Anti-tip brackets (lea)
e===_ @===_
Screws (6ea) Anchors (6ea)
Accessories for cooking
Standard rack (3ea) Owner's manual Installation manual
Accessories for deanin 9
Spray bottle (1ea) Plastic Scraper (lea) Sponge (lea) Non-scratch
Scouring Pad (lea) EasyClean TM Quick
Reference Guide

OVERVIEW 11
CONTROL PANEL OVERVIEW
Cooktop Element Control Features Oven Controls
off
Button
Lockout
Button
Number Buttons
Single Elements
......@ NOTE
Cooktop Element Controls are set up in the sameorder as the corresponding elements.
HS (Hot Surface) Indicator
The HSindicator will appear in the display once the element is turned off or during the selfcleancycle.The HSindicator
will stay on until the surface hascooled to approximately 150°F/66°Cor when the self clean cycle ends.
PF (Power Failure) /Flashing Time
Depending on the model of your range, the display will either show"PF"or a flashing dock.This means that the product
has just been plugged in, or that it has experienced a power interruption. To clear the"PF" message, press the"On/Off" key
on the cooktop controls and the"Clear/Off" key on the oven controls. If your oven displays a flashing clock, then press the
"Clock" key and reset the time, or press any key to stop flashing.

12 FEATURES
FEATURES
SETTINGS
Use the SETTING button to to adjust oven temperature,
Preheating Alarm Light, Beeper Volume and to switch
temperature scale between Fahrenheit and Celsius.
CLOCK
The clock must be set to the correct time of the day in
order for the automatic oven timing functions to work
properly.
1. Press CLOCK.
2. Press the number buttons to enter the time. For
example, to set the clock for 10:30, press the
numbers: 1,0, :3and 0.
3. Press START.
F @ NOTE
.The time of the day cannot be changed during a
Timed Baking or Self Clean cycle.
.To check the time of the day when the display
is showing other information, simply press the
CLOCK button.
. If no buttons are pressed within 25 seconds of
pressing the CLOCK button, the display will revert
to its original setting.
. If the display time is blinking, you may have
experienced a power failure. Reset the time.
Setting the hour mode on the clock
(12 or 24 hour.)
Your control isset to use a 12-hour clock. Ifyou would
prefer to have a 24-hour time clock, follow the steps
below.
1. Press and hold the CLOCK button for three seconds.
Display will change into CLO.
2. You can change 12H or24H by pressing the number
1 button.
3. Press START button to accept the desired change.
Minimum & Maximum default settings
All of the features listed have a minimum and a maximum
time or temperature setting that may be entered into the
control. An entry acceptance beep will sound each time a
control key is pressed.
An entry error tone (two short tones) will sound if the
entry of the temperature or time is below the minimum
or above the maximum setting for the feature.
MIN.TEMP. MAX'TEMP.
/TIME /TIME
1:00Hr./Min. 12:59Hr./Min.
0:00Hr./Min. 23:59Hr./Min.
0:01Min. 11:59Hr./Min.
0:01Min. 11:59Hr./Min
0:01Min. 11:59Hr./Min
0:01Min. 11:59Hr./Min
Lo- 400°F Hi- 500°F
170°F/75°C 550°F/285°C
170°F/75°C,
3hours
3Hr. 5Hr.
FEATURE
12Hr.
CLOCK 24Hr.
12Hr.
TIMER 24Hr.
12Hr.
COOKTIME --
24Hr.
BROIL
BAKE
PROOF
WARM
SELFCLEAN
iDefault
[3Hr.
[ 12Hr.
TIMER ON/OFF
The UPPER or LOWER TIMER ON/OFF serves as an extra
timer in the kitchen that will beep when the set time has
run out. It does not start or stop cooking.
The UPPER or LOWER TIMER ON/OFF feature can be
used during any of the other oven control functions.
The UPPER and LOWER TIMER can be operated
independently of each other.
To set the Timer (example to set 5 minutes):
1. PressUPPERTIMER ON/OFF or LOWERTIMER ON/
OFF twice.
O:OOand HRinside will appear and TIMER will flash
in the display.
2. Press5in the number button.
0:05 will appear in the display.
3. PressTIMER to start the Timer.The remaining time
countdown will appear in the display.

......@ NOTE
If UPPER TIMER ON/OFF or LOWER TIMER ON/OFF
is not pressed, the timer will return to the time of day.
4. When the set time has run out, End will show in
the display. The indicator tones will sound every
15 seconds until UPPER TIMER ON/OFF or LOWER
TIMER ON/OFF is touched.
_-@ NOTE
If the remaining time is not in the display, recall the
remaining time by touching the UPPER TIMER ON/
OFF or LOWER TIMER ON/OFF.
r @ NOTE
, If you press UPPER TIMER ON/OFF or LOWER
TIMER ON/OFF once, it allows you to set the time in
seconds.
,If you press UPPER TIMER ON/OFF or LOWER
TIMER ON/OFF twice, it allows you to set the time
in minutes.
To cancel the Timer before the set time has run
our:
1. Press UPPERTIMER ON/OFF or LOWERTIMER ON/
OFF once.
The display will return to the time of day
OVEN TEMPERATURE
ADJUSTMENT
You may find that your new oven cooks differently than
the one it replaced. Use your new oven for a few weeks
to become more familiar with it before changing the
temperature settings. If after familiarizing yourself with
the new oven, and you still think that it is too hot or too
cold, you can adjust the oven temperature yourself.
Adjusting the oven femperafure
1. Press the SETTING button once for lower oven or
twice for upper oven."L-AJ" or"U-AJ"will appear in
the display
2. Using the number buttons, enter the amount of
degrees that you wish to adjust the oven.
FEATURES 13
3. Press the SETTING button repeatedly to toggle
between plus (+) or minus (-) to adjust the
temperature either up or down.
4. Press the START button to accept the change.
_-@ NOTE
,This adjustment will not affect the broiling or
Self Clean temperatures. The adjustment will be
retained in memory after a power failure. The oven
temperature can be increased (+) or decreased (-)
as much as 35°F or 19°C.
, Once the temperature is increased or decreased,
the display will show the adjusted temperature
until it readjusts.
PREHEATING ALARM LIGHT
When the oven reaches its set-temperature, the
preheating alarm light will flash until the oven door is
opened.
You can activate or deactivate the preheating alarm light.
1. Press the SETTING button three times."PrE"will
appear in the display.
2. You can change ON or OFF by pressing the number 1
button.
3. Press the START button to accept the change.
BEEPER VOLUME
1. Press the SETTING button four times and"BEEP"will
appear in the display.
2. You can change Hi or Lo, OFF by pressing the number
1 button.
3. Press the START button to accept the change.
FAHRENHEIT OR CELSIUS
The oven temperature settings can either be set to
Fahrenheit or Celsius.The oven defaults to Fahrenheit
unless changed by the user.
1. Press the SETTING button five times."UNIT"will
appear in the display.
2. You can change F (Fahrenheit) or C (Celsius) by
pressing the number 1 button.
3. Press the START button to accept the change.

14 FEATURES
OVEN LIGHT
The interior oven light automatically turns ON when the
door isopened.The oven light may also be manually
turned ON or OFFby pressing the OVEN LIGHT button.
F @ NOTE
The oven light cannot be turned on if the Self Clean
function isactive.
LOCKOUT
The Lockout feature automatically locks the oven door
and prevents most oven and cooktop controls from being
turned on. It does not disable the clock, timer or the
interior oven light.
1. Press and hold the START button for three seconds.
2. The lock melody will sound, Lec will appear in the
display and the lock Icon _ will flicker in the display.
3. Once the oven door is locked, the the lock Icon
indicator will stop flickering and remain on.
4. To deactivate the Lockout feature, pressand hold
the STARTbutton for three seconds.The unlock
melody will sound and lock Icon (_) will flicker in
the display until the controls are unlocked.
START TIME (Delayed timed COOK)
The automatic timer of the DELAYEDTIMED COOK
function will turn the oven ON and OFFat the time you
select.This feature can only be used with the: BAKEmode.
To set the oven for Delayed Start (example, to
BAKE at 300°F and start operating the bake
mode at 4:30):
Make sure that the clock is setfor the correct time of day.
1. Pressthe BAKEbutton. 3SO°Fwill appear in the
display.
2. Use the oven buttons to set the temperature: Press3,
Oand O.
3. Pressthe STARTTIME button.
4. Set the start time: Press4, :3and 0 for 4:30.
5. Pressthe STARTbutton. A short beep will sound and
the oven will begin baking.
,,,,-@ NOTE
, To cancel the DELAYEDTIMED COOKfunction, press
the CLEAROFF button at any time.
,To change the cooking time, repeat steps 3-4 and
pressthe STARTbutton.
, Ifyour oven clock is set asa 12 hour clock, you can
delay the cook time for 12 hours. If your oven clock
is set as a 24 hour clock, you can delay the cook
time for 24 hours.
The oven will continue to cook for the set amount of time
and then turn off automatically. When the cooking time
has elapsed:
,END and the time of day will show in the display.
, The cook end indicator tone will sound every 60
seconds until the (:LEAR OFF button is pressed.
, When WARM is set,the warming function isactivated
after cooking for the set time.
_---- CAUTION
, Use the automatic timer when cooking cured or
frozen meats and most fruits and vegetables. Foods
that can easily spoil, such as milk, eggs, fish, meat
or poultry, should be chilled in the refrigerator.
Even when chilled, they should not stand in the
oven for more than 1 hour before cooking begins,
and should be removed promptly when cooking is
completed.
, Eating spoiled food can result in sicknessfrom food
poisoning.

FEATURES 15
COOK TiME (TIMED COOK)
TheTIMED COOKfeature allows you to setthe oven to
cook for a specific length of time.This feature can only be
used with the BAKEmode.
Setting the TIMED COOK function (example,
BAKE at 3OO°F for 30 minutes):
Make sure that the clock is setto the correct time of day.
1. Pressthe BAKEbutton. 350°F will appear in the
display.
2. Use the number buttons to set the temperature.
Press3, 0 and O.
3. Pressthe COOKTIME button. TIMED will flash.
BAKE,0:00 and 300°F will appear in the display.
4. Set the baking time: Press3and 0 (for 30 minutes).
The baking time can be setfor any amount of time
between 1minute and 11 hours and 59 minutes.
5. Pressthe STARTbutton.The display will show the
cooking time countdown.
,,,,_----@ NOTE
To set the WARM function to engage at the end of
the timed cook cycle, repeat steps 1-4 and then
press the WARM button. WARM will appear in
the display. (Refer to the "WARM" section on the
previous page.
The oven will continue to cook for the set amount of time
and then turn offautomatically. When the cooking time
has elapsed:
,END and the time of day will show in the display.
,The cook end indicator tone will sound every 60
seconds until the CLEAROFF button is pressed.
,When WARMis set,the warming function isactivated
after cooking for the set time.
To change the cook time while operating the
oven (example, to change the cook time from
30 minutes to 1 hour and 30 minutes):
1. Press the COOK TiME button.
2. Press the number keys to change the baking time:
1,3,0.
3. Press the START button to accept the change.

16 USING THE COOKTOP
USING THE COOKTOP
COOKING AREAS
The cooking areas on your range are identified by
permanent circles on the glass cooktop surface. For the
most efficient cooking, fit the pan size to the element
size.
Pans should not extend more than 1/2 to 1=inch
beyond the cooking area.
When a control is turned on, a glow can be seen through
the glass cooktop surface. The element will cycle on and
off to maintain the preset heat setting, even on Hi.
,--- Single element
USING THE COOKTOP ELEMENTS
To turn on a SINGLE element :
1. Press the ON/OFF button that controls the element
that you would like to use (refer to the below
cooktop element control image).
2.
3.
4.
Press the + button once to adjust the element
temperature to Hi, or the - button once to adjust the
element temperature to Lo.
Use the - /+ buttons to adjust the element
temperature settings. The element temperature
settings are adjustable at all times.
To turn off the element after cooking, press the ON/
OFF button once.
Single element
................................ _,___
', controls
1
Hot surface inclicafor
HS (Hot Surface) will appear in the display once the
element is turned off or during the self clean cycle. The
HS indicator will stay on until the surface has cooled to
approximately 150°F (66°C) or when the self clean cycle
ends.
-.- CAUTION
It is normal for the surface elements to cycle on and
off during cooking, even on higher settings. This
will happen more frequently if cooking on a lower
temperature setting.
Single element controls
----_ NOTE
.Hi is the highest temperature available.
.Lo is the lowest temperature available.
.Press and hold the + or - buttons to quickly scroll
through the temperature settings
.NEVER leave food on the cooktop unattended.
Spillovers can cause smoke. Greasy spillovers may
catch on fire.
.The oven surface element may appear to have
cooled after it has been turned OFF. The element
may still be hot and burn may occur if this element
is touched before it has cooled sufficiently.

USINGTHECOOKTOP17
Recommended surface cooking
settings
Element
Single
Temp: Rec0mme"dedUse..................
8.5-Hi .Bring liquid to a boil
.Start cooking
5.5-8.0 ,Hold a rapid boil, frying, deep fat fry
,Quickly brown or sear food
3.5-5.0 ,Maintain a slow boil
,Fry or saute foods
,Cook soups, sauces and gravies
2.2-3.0 ,Stew or steam food
,Simmer
LO-2.0 ,Keep food warm
,Melt chocolate or butter
USING THE PROPER COOKWARE
Using the proper cookware can prevent many problems,
such as food taking longer to cook or achieving
inconsistent results. Proper pans will reduce cooking
times and cook food more evenly. Stainless steel is
recommended.
Check pans for fiat boffoms by using a straight
edge or ruler
1. Place a ruler across the bottom of the pan.
2. Hold it up to the light.
3. No light should be visible under the ruler.
Home canning tips
Be sure that the canner is centered over the surface
unit and flat on the bottom.
,The base must not be more than 1 inch larger than
the element. Use of water bath canners with rippled
bottoms may extend the time required to bring the
water to a boil and cooktops may be damaged.
,Some canners are designed with smaller bases for use
on smooth top surfaces.
,Use the high heat setting only until the water comes to
a boil or pressure is reached in the canner.
,Reduce to the lowest heat setting that maintains the
boil, or pressure. If the heat is not turned down, the
cooktop may be damaged.
y NOTE
.Do not use a small pan on a large element. Not
only does this waste energy, but it can also result in
spillovers burning onto the cooking area.
,Only use flat bottomed cookware. Do not use
cookware that is oversized or uneven such as
round bottom woks, rippled bottom cookware, or
oversized canners and griddles.
,Do not use foil or foil-type containers. Foil may
melt onto the glass. Do not use the cooktop if
metal has melted on it. Call an authorized Servicer.
Recommended
c0okware
Flat bottom and straight
sides.
oo"otuse
Curved, grooved, or warped
_anbottoms. Panswith
uneven bottoms do not cook
efficiently and sometimes
may not boil liquid.
Heavy-gauge pans. Very thin-gauge metal or
glass pans.
Pansizesthat match the Pansthat aresmaller or larger
amount of food to be than the element.
prepared and the size of
the surface element.
Weight of handle does Cookware with loose or
not tilt pan. Panis well broken handles. Heavy
balanced, handles that tilt the pan.
Tight-fitting lids. Loose-fitting lids.
Flatbottom woks. Woks with aring-stand
bottom.

18 USING THE OVEN
USING THE OVEN
BEFORE USING THE OVEN
.......@ NOTE
,When using an oven thermometer in the oven
cavity, the temperature may differ from the actual
set oven temperature.
OVEN VENT
Areas near the vent may become hot during operation
and may cause burns. Do not block the vent opening.
Avoid placing plastics near the vent as heat may distort or
melt the plastic.
It is normal for steam to be visible when cooking foods
with high moisture.
Oven vent .......::=: ..............................................................
USING OVEN RACKS
The racks havea turned-up back edge that prevents the
racks from pulling out of the oven cavity.
To remove racks:
1. Pull the rack straight out until it stops.
2. Lift up the front of the rack and pull it out.
To replace racks.
1. Placethe end of the rack on the support.
2. Tilt the front end up and push the rack in.
.... CAUTION
. Replace oven racks before turning the oven on to
prevent burns.
. DO NOT cover the racks with aluminum foil, or any
other material, or place anything on the bottom of
the oven. Doing so will result in poor baking and
may damage the oven bottom.
. Only arrange oven rackswhen the oven is cool.
OVEN CONTROLS
SABBATH MODE
Sabbath mode is typically used on the Jewish Sabbath
and Holidays. When the SABBATH mode is activated,
the oven does not turn off until the SABBATH mode is
deactivated. In SABBATH mode, all function buttons,
except for the CLEAR OFF is inactive. Sb will appear in
both the cooktop and oven displays.
F NOTE
If the oven light is turned ON and the SABBATH
mode is active, the oven light will remain ON until
the SABBATH mode is turned OFF. If the oven light
needs to be OFF, be sure to turn the oven light OFF
before activating the SABBATH mode. SABBATH
mode can only be used while baking (BAKE mode).
Setting the SABBATH mode
1. Pressthe BAKE button.
2. Pressthe number buttons to enter the bake
temperature.
3. Pressthe STARTbutton.
4. Pressand hold the SETTING button for three
seconds. SBand [_ will appear in the display when
the Sabbath mode isactivated.
5. To cancel the Sabbath mode, pressand hold the
SETTINGbutton for three seconds. Tocancel the Bake
function, pressthe CLEAROFF button at any time.
Changing the temperature while in SABBATH
mode
1. Pressthe BAKE button. (No tones will sound and the
display will not change.)
2. Set the temperature using the number buttons.
3. Pressthe STARTbutton.
@NOTE
There is a 15 second delay before the oven will
recognize the temperature change.

USING THE OVEN 19
BAKE
BAKE is used to prepare foods such as pastries, breads,
casseroles. The oven can be programmed to bake at any
temperature from 170°F (77°C) to 550°F (288°C). The
default temperature is 350°F (177°C).
Setting the BAKE function (example, 375°F):
1. Press the BAKE button.
2. Set the oven temperature using the number buttons:
Press 3, 7 and 5.
3. Press the START button. The oven will start to
preheat.
As the oven preheats, the temperature is displayed and
rises in 5 degree increments. Once the oven reaches the
set temperature, a tone will sound and the oven light will
blink on and off.
4. When cooking is complete, press the CLEAR OFF
button.
5. Remove food from the oven.
Baking Tips
. Baking time and temperature will vary depending on
the ingredients, size, and shaped of the baking pan
used.
,Check for food doneness at the minimum recipe time.
,Use metal bakeware (with or without a nonstick finish),
heatproof glass-ceramic, ceramic or other ba keware
recommended for oven use.
,Dark metal pans or nonstick coatings will cook food
faster with more browning. Insulated bakeware will
slightly lengthen the cooking time for most foods.
_-.... NOTE
The oven bottom has a porcelain-enamel finish.
To make cleaning easier, protect the oven bottom
from excessive spillovers by placing a cookie sheet
on the rack below the rack you are cooking on. This
is particularly important when baking a fruit pie
or other foods with a high acid content. Hot fruit
fillings or other foods are highly acidic may cause
pitting and damage to the porcelain-enamel surface
and should be wiped up immediately.
PIZZA (For the Upper oven only)
Pizza is used when cooking pizza especially. Pizza
adds the oven from top to bottom to give more evenly
browned foods.
This is designed to give the most optimum cooking
performance for the pizza selected by automatic
combination of broil and bake heating system.
When using this function, there is no need to preheat the
oven prior to cooking.
By using smaller space than lower oven, it also provides
heating efficiency.
r_ NOTE
This function is offered only for the UPPER OVEN.
You can use PIZZA function through the UPPER OVEN.
Setting the PIZZA function
1. Press PIZZA once. P1, P2 will appear in the display.
Whenever you touch PIZZA one more time, the
display will appear P1, P2, P1, P2.... in order.
2. Press START. PIZZA function will be started
operating.
3. Press UPPER CLEAR OFF to cancel PIZZA at any time.
Pizza Chart
Dis# Food ,Recomme"
Mode quantity
PI Frozenpizza, 12"
Regular crust
P2 Frozenpizza, 12"
Rising crust
, This chart is only for reference.
Recomme"ded
positiontim (minutes)
_-- 13-18
_-- 18-20
Adjust cook time according to your preference.

20 USINGTHEOVEN
RECOMMENDED BAKING AND
ROASTING GUIDE
Baking results will be better if baking pans are centered
in the oven as much as possible, If cooking on multiple
racks, place the oven racks in positions AS SHOWN
BELOW FIGURE.
Rack and Pan Placemenf
Standard rack (Position 'D') Standard rack (Position 'B')
Multiple rack baking
Standard rack
Single rack baking Rack
Baking rack guide
upper[Lower
Cakes Layer cakes [ A [ C
Cookie Sugar [ A [ C
Chocolate chips I A I C
Pizza Fresh [ A [ B
Pastry Scratch [ A [ B
Crust
Breads Biscuit, canned [ A [ C
Biscuit, scratch [ A [ B
Desserts Fruit crisps and cobblers, [ A [ C
scratch [ [
Pies, scratch, 2 crust furit
Roasfing rack guide
Shelf position
Food Lower Oven
Beef [
Pork [
Rib Rare
Medium
Well done
Boneless rib, Rare
top, sirloin Medium
Well done
Beef Rare
tenderloin Medium
Rib
Bone-in, sirloin
Ham, cooked
Whole chicken
Chicken pieces
Turkey
B
B
B
B
B
B
B
B
B
B
B
B
B
A
