LG LRE3061ST User manual

CAUTION
BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
LRE3061ST
LRE3061BD
P/NO : MFL37118352 March 2016
Printed in Korea
MODEL:
30” Freestanding Electric Range
SERVICE MANUAL
Internal Use Only

-2-
This LG Service Manual, “30” Freestanding Self-Cleaning Electric Range,” provides the technician with information on the operation
and service of the Freestanding Self-Cleaning Electric Range. It is to be used as a training Service Manual. For specific information
on the model being serviced, refer to the “Owner’s Manual” or “Tech Sheet” provided with the electric range.
SAFETY PRECAUTIONS
• Repairs of the appliance should be carried out by a licensed technician only. Incorrect repairs may result in dangerous situations. If
you need repairs, contact an LG Service Center or your dealer.
• If the power cord is defective, it must be replaced by a qualified service agent with a UL listed range cord.
• Electrical leads and cables should not be allowed to touch the oven.
• Rating plate is located on the left side of warming drawer.
• The power supply of the appliance should be turned off when it is being repaired.
LG Electronics assumes no responsibility for any repairs made on our products by anyone other than Authorized Service Technicians.
FORWARD
• DISCONNECT power supply cord from the outlet before servicing.
• Replace all panels and parts before operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal injury, death or electrical shock.
• DO NOT Touch when the oven operates.
- The interior parts will be very hot.
WARNING

-3-
(Page)
GENERAL ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ 1-1 ~ 1-5
• Important safety instructions -------------------------------------------------------------------------------------------------------------------------------------------------------------------- 1-1 ~ 1-3
• Model & Serial number label and tech sheet locations ---------------------------------------------------------------------------------------------------------------------------------------- 1-4
• Specifications ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 1-5
USING YOUR RANGE -------------------------------------------------------------------------------------------------------------------------------------------------------------- 2-1~ 2-4
• General information ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 2-1
• Control panel features ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 2-2~ 2-5
- To turn on a single surface unit (Right Front, Right Rear, Left Rear)
- To turn on a dual surface unit (Left Front))
- To set the warming zone control
- Setting the Clock
- Start, Clear/Off and On/Off pad
- To turn On/Off the oven light
- Timer On/Off
- Setting pad: 6 types of category
1) Convection auto conversion
2) Thermostat adjustment
3) Language selection (English or Spanish or French)
4) Preheating alarm light On/Off
5) Beeper volume
6) Temperature unit (°F or °C)
- Bake, Timed Bake, Delayed timed Bake
- Broil
- Warm
- Key lockout
- Changing hour mode on clock (12HR, 24HR)
- Easy Clean
- Smart Diagnosis
COMPONENT ACCESS -------------------------------------------------------------------------------------------------------------------------------------------------------- 3-1 ~ 3-15
• Component Locations ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 3-1

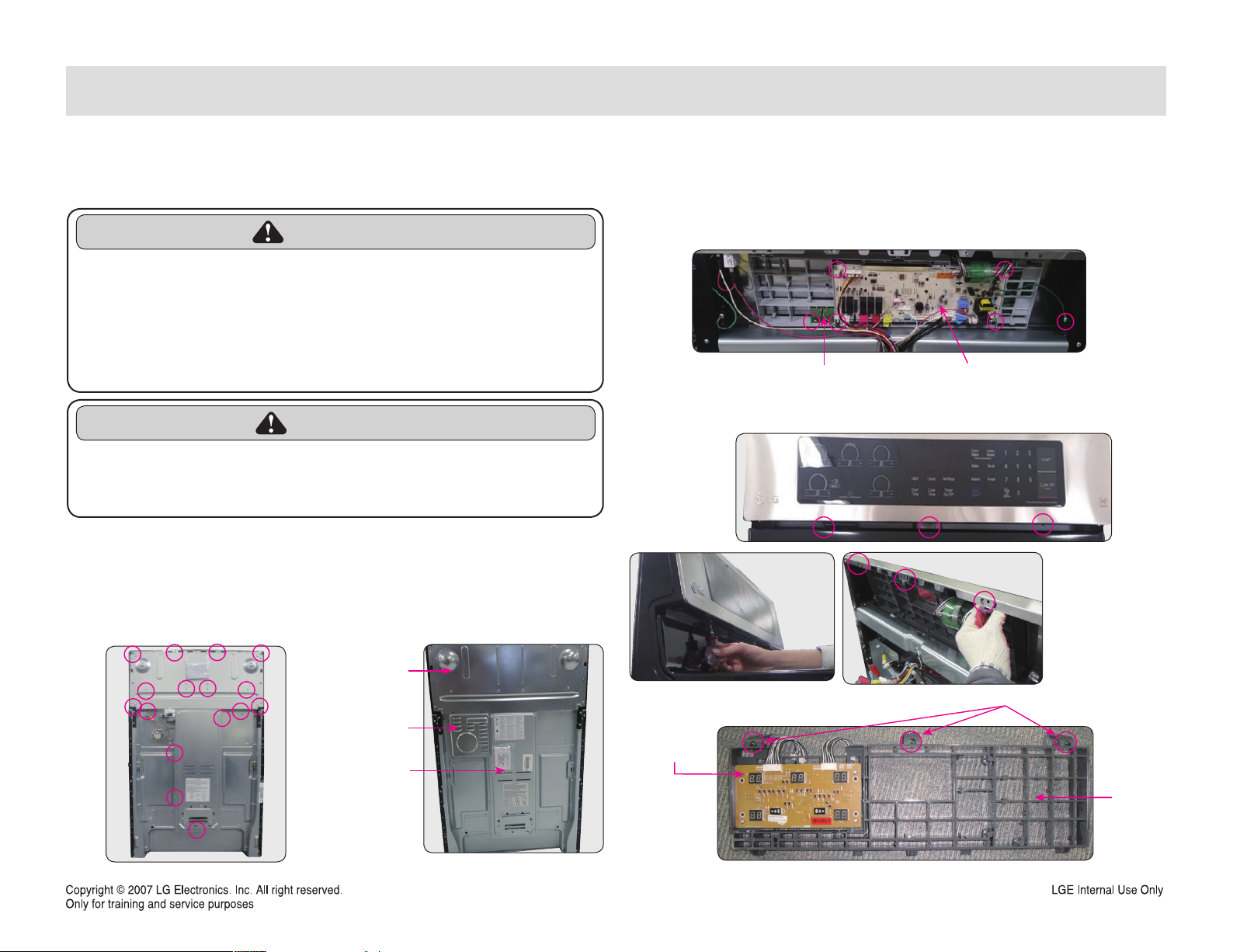

• Removing The Lamp, Controller, Back Cover and Controller Assembly(Membrane, Pcb, Support) ------------------------------------------------------------------ 3-2 ~ 3-3
TABLE OF CONTENTS

-4-
GENERAL
(Page)
COMPONENT ACCESS -------------------------------------------------------------------------------------------------------------------------------------------------------- 3-1 ~ 3-15
• Removing Pcbs (Main Pcb and Relay Pcb) ------------------------------------------------------------------------------------------------------------------------------------------------------- 3-4
• Removing the Surface Element and the Ceramic Glass Cooktop ------------------------------------------------------------------------------------------------------------------------ 3-5
• Removing the Door Latch and the Door Switch -------------------------------------------------------------------------------------------------------------------------------------------------- 3-6
• Removing the Broil Element ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 3-7
• Removing the CONVECTION Fan blade and Fan motor ------------------------------------------------------------------------------------------------------------------------------------ 3-8
• Removing the Oven light & Socket assembly ---------------------------------------------------------------------------------------------------------------------------------------------------- 3-9
• Removing the Oven temperature Sensor ------------------------------------------------------------------------------------------------------------------------------------------------------- 3-10
• Removing & Replacing the Lift-off Oven Door ------------------------------------------------------------------------------------------------------------------------------------------------- 3-11
• Removing the Oven Door Handle ------------------------------------------------------------------------------------------------------------------------------------------------------------------ 3-12
• Removing the Oven Door’s Inner Glass --------------------------------------------------------------------------------------------------------------------------------------------------------- 3-13
• Removing the Oven Door Gasket ------------------------------------------------------------------------------------------------------------------------------------------------------------------ 3-14
• Removing the Side Panel ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 3-15
COMPONENT ACCESS ---------------------------------------------------------------------------------------------------------------------------------------------------------- 4-1 ~ 4-7
• Convection Motor ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ 4-1
• Oven Sensor ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4-2
• Conv. heater -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4-2
• Door switch ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4-3
• Oven lamp ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4-3
• Broil heater --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4-3
• Single surface unit(LR, RR) ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4-4
• Single surface unit(RF) ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4-5
• Dual surface unit(LF) -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4-6
• Center Rear(CR): Warming Zone -------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4-7
COMPOSITION OF CONTROL ------------------------------------------------------------------------------------------------------------------------------------------------ 5-1 ~ 5-5
• Wiring Diagram ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 5-1
• Key Matrix ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 5-2
• Main PCB ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 5-4
• Oven Relay PCB -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 5-4
• Cook top display PCB ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ 5-5
• Key Pad --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 5-5

-5-
GENERAL
(Page)
CHECK THE FAILURE CODE ---------------------------------------------------------------------------------------------------------------------------------------------------------- 6-1
FAILURE CODE SUMMARY
------------------------------------------------------------------------------------------------------------------------------------------------------------ 7-1
BASIC CHECK SUMMARY
-------------------------------------------------------------------------------------------------------------------------------------------------------------- 8-1
CHECKING FLOW CHART BY FAILURE
------------------------------------------------------------------------------------------------------------------------------- 9-1 ~ 9-16
• Power Failed(Dead), No display? ------------------------------------------------------------------------------------------------------------------------------------------------------------ 9-1 ~ 9-3
• No heating, F9? ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 9-4 ~ 9-6
• Cook top No heating? ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 9-7 ~ 9-9
• Sensing Fail, F1, F2? -------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 9-10 ~ 9-11
• Oven hot, F6? ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 9-12 ~ 9-14
• Keypad Failure, F3 error? ------------------------------------------------------------------------------------------------------------------------------------------------------------------- 9-15 ~ 9-16
APPENDIX ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ 10-1
TROUBLE SHOOTING
--------------------------------------------------------------------------------------------------------------------------------------------------------- 11-1 ~ 11-3
SCHEMATIC DIAGRAM
------------------------------------------------------------------------------------------------------------------------------------------------------ 12-1 ~ 12-4
• STRIP CIRCUITS -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 12-2~12-4
EXPLODED VIEW ---------------------------------------------------------------------------------------------------------------------------------------------------------------- 11-1 ~ 11-3

-1-1-
GENERALGENERAL
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, injury to person, or damage when using the range. This guide don’t
cover all possible conditions that may occur. For further assistance contact your service agent or manufacturer.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hunt you and others. All safety messages will follow
the safety alert symbol and either the word “WARNING” or “CAUTION”. These word means :
This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.
WARNING
This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.
CAUTION
• DO NOT step or sit on the door and install the Anti-Tip Bracket packed with range.
- The range could be tipped and injury might result from spilled hot liquid, food, or the range itself.
- If the range is pulled away from the wall for cleaning, service, or any other reason, ensure that the Anti-Tip Device is properly reengaged when the range is
pushed back against the wall.
• DISCONNECT power supply cord from the outlet before servicing.
• Replace all panels and parts before operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal injury, death or electrical shock.
• DO NOT touch heating elements or interior surfaces of oven.
-Heating element may be hot even though they are dark in color.
-Interior surfaces of an oven become hot enough to cause burns.
• During and after use, do not touch, or let clothing or other flammable materials contact heating elements or interior
surfaces of oven until they have had sufficient time to cool.
-Other surfaces of the appliance may become hot enough to cause burns among these surfaces are oven vent openings and surfaces near these openings,
oven doors, and windows of oven doors.
• DO NOT store items of interest to children in cabinets above a range or on the back guard of a range.
- Children climbing on the range to reach items could be seriously injured.
WARNING

-1-2-
GENERAL
• Always use Pot Holders or oven mitts when removing food from the Warming Drawer.
- You can be burned as cookware and plates will be hot.
• Be careful when you work on the electric range handling the sheet metal part.
- Sharp edge may be present and you can cut yourself.
• Be careful not to bend the fan blade
- Failure to do so can result in vibration, noise, and poor performance of convection when operating.
• Be careful not to scratch or chip the oven liner paint when you remove the oven light socket in the next step.
• Turn power OFF before removing the Warming Drawer.
• Be careful when removing and lifting the door.
• DO NOT lift the door by the handle.
- Failure to do so can result in personal injury as the door is very heavy.
CAUTION
GENERAL
IMPORTANT SAFETY INSTRUCTIONS

-1-3-
GENERAL
• Be sure your appliance is properly installed and grounded by a qualified technician.
• Do not repair or replace any part of the appliance unless specifically recommended in the
manual.
All other servicing should be referred to a qualified technician.
• Always disconnect power to appliance before servicing by removing the fuse or switching off
the circuit breaker
To reduce the risk of tipping of the range, the range must be secured by properly installed anti-tip
devices. To check if the bracket is installed properly,
- Warming drawer : grasp the top rear edge of the Range and carefully attempt to tilt it forward.
verify that the anti-tip devices are engaged.
- Storage drawer : Remove drawer and verify leveling leg is inserted into and fully secured by
the anti-tip devices.
Refer to the installation manual for proper anti-tip bracket installation. • Do Not Leave Children Alone - Children should not be left alone or unattended in area where
appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
• Never Use Your Appliance for Warming or Heating the Room.
• Storage in or on Appliance – Flammable materials should not be stored in an oven or near
surface units. Be sure all packing materials are removed from the appliance before operating it.
Keep plastics, clothes and paper away from parts of the appliance that may become hot
• Wear Proper Apparel – Loose-fitting or hanging garments should never be worn while using
the appliance.
• Do Not Use Water on Grease Fires – Turn off oven to avoid spreading the flame. Smother
the fire or flame by closing the door or use dry chemical, baking soda or foam- type
extinguisher.
• Use Only Dry Potholders – Moist or damp potholders on hot surfaces may result in burns
from steam.
Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.
IMPORTANT SAFETY INSTRUCTIONS
• DO NOT step or sit on the door and install the
Anti-Tip Bracket packed with range.
- The range could be tipped and injury might result from spilled
hot liquid, food, or the range itself.
- If the range is pulled away from the wall for cleaning, service,
or any other reason, ensure that the Anti-Tip Device is properly
reengaged when the range is pushed back against the wall.
WARNING
• DO NOT touch heating elements or interior surfaces of
oven.
-Heating element may be hot even though they are dark in color.
-Interior surfaces of an oven become hot enough to cause burns.
• During and after use, do not touch, or let clothing or
other flammable materials contact heating elements or
interior surfaces of oven until they have had sufficient
time to cool.
-
Other surfaces of the appliance may become hot enough to cause burns
among these surfaces are oven vent openings and surfaces near these
openings, oven doors, and windows of oven doors.
WARNING
• DO NOT store items of interest to children in cabinets
above a range or on the back guard of a range.
- Children climbing on the range to reach items could be seriously injured.
WARNING

-1-4-
GENERAL
SURFACE COOKING UNITS
• Use Proper Pan Size – This appliance is equipped with one or more surface units of different
sizes. Select utensils having flat bottoms large enough to cover the surface unit heating
element. The use of undersized utensils will expose a portion of the heating element to direct
contact and may result in ignition of clothing. Proper relationship of utensil to burner will also
improve efficiency.
• Never Leave Surface Units Unattended at High Heat Settings – Boil overs may cause
smoking and greasy spillovers may ignite.
• Make Sure Reflector Pans or Drip Bowls Are in Place – Absence of these pans or bowls
during cooking may subject wiring or components underneath to damage.
• Protective Liners – Do not use aluminum foil to line surface unit drip bowls or oven bottoms,
except as suggested in the manual. Improper installation of these liners may result in a risk of
electric shock, or fire.
• Glazed Cooking Utensils – Only certain types of glass, glass/ceramic, ceramic, earthenware,
or other glazed utensils are suitable for range-top service without breaking due to the sudden
change in temperature.
• Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units
– To reduce the risk of burns, ignition of flammable materials, and spillage due to unintentional
contact with the utensil, the handle of a utensil should be positioned so that it is turned inward,
and does not extend over adjacent surface units.
• Do Not Soak Removable Heating Elements – Heating elements should never be immersed
in water.
• Be sure you know which control pads operate each surface unit.
Make sure you turned on the correct surface unit.
SELF-CLEAN OVENS
• Do Not Clean Door Gasket – The door gasket is essential for a good seal. Care should be
taken not to rub, damage, or move the gasket.
• Do Not Use Oven Cleaners – No commercial oven cleaner or oven liner protective coating of
any kind should be used in or around any part of the oven.
• Clean in the self-clean cycle only parts listed in this manual. Before self-cleaning the oven,
remove the broiler pan and any utensils from the oven.
• Never keep pet birds in the kitchen – the health of birds is extremely sensitive to the fumes
released during an oven self-clean cycle. Fumes may be harmful or fatal to birds. Move birds to
well-ventilated room.
• Important Instruction – In the event the self-clean mode “F” code goes on, or three long
beeps sound, oven is malfunctioning in the self-clean mode. Turn off or disconnect appliance
from power supply and have serviced by a qualified technician.
VENTILATING HOODS:
• Clean Ventilating Hoods Frequently – Grease should not be allowed to accumulate
on hood or filter.
• When flaming foods under the hood, turn the fan on.
OVEN
• Use Care When Opening Door – Let hot air or steam escape before you remove or replace
food in the oven
• Do Not Heat Unopened Food Containers – Build-up of pressure may cause container to burst
and result in injury.
• Keep Oven Vent Ducts Unobstructed – the oven vent is located above the left rear surface
unit. this area could become hot during oven use. Never block this vent and never place plastic
or heat-sensitive items on vent
• Placement of Oven Racks – Always place oven racks in desired location while oven is cool. If
rack must be moved while oven is hot, do not let potholder contact hot heating element in oven.
• Do Not allow aluminum foil or meat probe to contact heating elements.
GLASS/CERAMIC COOKING SURFACES
• Do Not Cook on Broken Cook-Top – If cook-top should break, cleaning solutions and
spillovers may penetrate the broken cook-top and create a risk of electric shock. Contact a
qualified technician immediately.
• Clean Cook-Top With Caution – If a wet sponge or cloth is used to wipe spills on a hot cooking
area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a
hot surface.
DEEP FAT FRYERS:
• Use extreme caution when moving the grease kettle or disposing of hot grease.
IMPORTANT SAFETY INSTRUCTIONS
• DISCONNECT power supply cord from the outlet before
servicing.
• Replace all panels and parts before operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal injury, death or electrical shock.
WARNING
GENERAL

-1-5-
GENERAL
MODEL & SERIAL NUMBER LABEL AND TECH SHEET LOCATIONS
The Model/Serial Number label and Tech Sheet locations are shown below.
Model & Serial
Number Location
Tech card location
on rear cover

-1-6-
GENERAL
SPECIFICATIONS
Model Number LRE3061ST / LRE3061BD
Category Convection
Overall Width
30"
Installation type Freestanding
Color availability STS, Black, Diamond STS
Control Oven Keypad(Membrane)
Cooktop Keypad(Membrane)
Display Scroll VFD
Electronic clock & timer Yes
Control lock capability Yes
Audible preheat signal Yes
Special function Option(6 categories)
1. Convection auto conversion 0n/0ff
2. Thermostat Adjustment
3. Language -English, Spanish, French
4. Preheating alarm light On/Off
5. Beeper Volume(normal, mute)
6. Temperature unit (˚F / ˚C)
Cooktop Material Ceramic glass
# of element 5
Power LR 6"-1,200
RR 6"-1,200
CR warming zone
LF Dual(6”/9”-1,400/3,200 watts)
RF 9"-2,500

-1-7-
GENERAL
SPECIFICATIONS
Model Number LRE3061ST / LRE3061BD
Oven Capacity(cu.ft)
6.3
Broil element 4200 watts
Convection element 2000 watts
Convection System Yes
-Convection element Yes
# of Racks 2 standard
Interior oven light 120V, 40Watts
Proof Yes
Cook & warm Yes
Favorites No
Easy clean Yes
Door lockout No
Broiler pan No
Drawer Type Storage drawer
Element No
Dimensions (inch) Oven Interior(W x H x D) 24 1/2x 20 1/4x 19 3/8
Exterior - Width 29 7/8
Exterior - Height 36 (cooktop), 47 7/16 (backguard top)
Exterior - Depth 26 1/2 (Door), 28 (with handle)
Net weight: Lbs (Kg) 147.7 lbs (67kg)
Power Rating 120/240V: 14.5kW, 120/208V: 9.8kW

-2-1-
USING YOUR RANGE
GENERAL INFORMATION
Rating Label
Model numbers are recorded on the rating label. Rating label is located on
the lower front left corner of the oven frame. It can be seen by opening the
storage drawer or warming drawer. Before ordering parts, write down the
correct model and serial number from rating label. This avoids incorrect
shipments and delays. Please refer to parts reference material when
ordering replacement parts.
Functional Operation
Bake Mode
Top(broil) element, convection element and fan operate during bake. Bake
can be used to cook foods which are normally baked. Oven must be
preheated.
Broil Mode
Top element operates during broil. Broil can be used to cook foods which
are normally broiled. All foods should be turned at least once except fish,
which does not need to be turned.
Convection Bake / Roast Mode
Top(broil) element, convection element and fan operate during convection
bake. Convection bake should be used for cooking casseroles and
roasting meats. Oven should be preheated for best results when using
convection bake. Pans do not need to be staggered. Cooks approximately
25% quicker than bake.
Cooking Guide
Refer to the owners manual for recommendations of times and
temperatures. Times, rack position, and temperatures may vary depending
on conditions and food type. For best results, always check food at
minimum time. When roasting, choose rack position based on size of food
item.
Broil element
Broil element
Broil element
Convection
element

-2-2-
USING YOUR RANGE
CONTROL PANEL FEATURES
1. BAKE PAD: Press to select the bake function.
2. BROIL PAD: Press to select the broil function.
3. CONVECTION BAKE PAD: Press to select baking with the convection
function.
4. CONVECTION ROAST PAD: Press to select roasting with the
convection function.
5. NUMBER PADS: Use to set any function requiring numbers such as the
time of day on the clock, the timer, the oven temperature, the start time
and length of operation for timed baking.
6. START PAD: Must be pressed to start any cooking or cleaning function.
7. CLEAR/OFF PAD: Press to cancel all oven operations except the clock
and timer.
8. LIGHT PAD: Press to turn the light on or off.
9. START TIME PAD: Use along with BAKE, CONV. BAKE, CONV. ROAST,
COOK TIME and SELF CLEAN pads to set the oven to start and stop
automatically at a time you set.
10. CLOCK PAD: Press before setting the time of day.
11. COOK TIME PAD: Press and then use the number pads to set the amount
of time you want your food to cook. The oven will shut off when the cooking
time has run out.
12. TIMER ON/OFF PAD: Press to select the timer feature.
13. SETTING: Press to set 6 types of option category.
14. WARM
• Press to keep cooked foods warm.
• Press to select a warm environment useful for rising yeast-leavened
produts.
15. EASY CLEAN: Use to select the Easy Clean.
16. PROOF PAD: Press to select a warm environment useful for rising
yeast-leavened products.
17. Smart Diagnosis: Press and hold START 3 seconds to operate Smart
Diagnosis. For detailed information, refer to 2-5 page for Smart Diagnosis
18. DISPLAY
ASingle surface unit
: Right Front, Right Rear, Left Rear

-2-3-
GENERAL
B Dual surface unit : Left Front
C Warming Zone : Center Rear
A
To turn on a single surface unit (Right Front,
Right Rear, Left Rear)
1. Press ON/OFF pad for the desired element.
2. Press ( + / – ) pad to choose the desired setting.
B
To turn on a dual surface unit (Left Front)
1. Press ON/OFF pad
2. Press the SELECT pad as needed to select the desired burner size.
When first selected, 9” size is on. The light above the SELECT pad
indicates which size surface unit is on.
3. Press ( + / – ) pad to choose the desired setting.
Note:
• Each time a pad is pressed a beep will sound.
• The power level decreases or increases by 0.5 from 9.0 through 3.0. (by 0.2 from 3.0
through 1.0)
• Lo is the lowest power level available.
• “HS” will appear when the unit is hot to touch
C
To set the warming zone control
1. Press ON/OFF pad for the desired element.
2. Press ( + / – ) pad to choose the desired setting.
Note:
• Each time a pad is pressed a beep will sound.
• The controls for the warming zone allow for 5 different heat settings : Lo~Hi
• “HS” will appear when the unit is hot to touch.
1. SETTING THE CLOCK
2. START, CLEAR/OFF AND ON/OFF PAD
1. Touch START pad to start oven.
2. Touch CLEAR/OFF pad to cancel a program during cooking or
Erase during programming.
3. Touch ON/OFF pad to start or cancel the surface unit.
3. TO TURN ON/OFF THE OVEN LIGHT
The oven light automatically turns ON when the door is opened. The
oven light may also be manually turned ON or OFF by pressing the
OVEN LIGHT pad
Note: The oven light cannot be turned on if self-clean feature is active.
4. TIMER ON/OFF
To cancel timer at any time, touch TIMER ON/OFF pad.
Note:
1. If you press TIMER ON/OFF pad once, this allows you to select "minutes"
(for example: if you press “5” and “6”, it means 56 minutes)
2. If you press TIMER ON/OFF pad twice, this allows you to select "seconds"
(for example: if you press “5” and “6”, it means 56 seconds)
5. SETTING PAD: 6 types of category
1) CONVECTION AUTO CONVERSION
1. Press SETTING pad once
2. Press “1” pad for ENABLE
or “2” pad for DISABLE
3. Press START pad.
2) THERMOSTAT ADJUSTMENT
The oven temperature can be adjusted from -35°F (-19°C) to 35°F
(19°C).
Note: The thermostat adjustments made with this feature will just change Bake,
Convection Bake and Convection Roast temperature.
USING YOUR RANGE
CLEAR /OFF CLOCK Desired Time START
TIMER ON/
OFF Desired time TIMER ON/ OFF

-2-4-
GENERAL GENERALUSING YOUR RANGE
To increase the oven temperature:
1. Press SETTING pad twice
2. Press the desired temperature
3. Press START pad.
To decrease the oven temperature:
1. Press SETTING pad twice
2. Press the desired temperature
3. Press the SETTING pad once
4. Press START pad
3) LANGUAGE SELECTION (English or Spanish or French)
1. Press SETTING pad 3 times
2. Press “1” pad for ENGLISH
or “2” pad for SPANISH
or “3” pad for FRENCH
3. Press START pad
4) PREHEATING ALARM LIGHT ON/OFF
1. Press SETTING pad 4 times
2. Press “1” pad for ON
or “2” pad for OFF
3. Press START pad
5) BEEPER VOLUME
1. Press SETTING pad 5 times
2. Press “1” pad for normal level,
“2” pad for mute level,
3. Press START pad
6) TEMPERATURE UNIT (°F or °C)
1. Press SETTING pad 6 times
2. Press “1” pad for °F
or “2” pad for °C
3. Press START pad
6. BAKE, TIMED BAKE, DELAYED TIMED BAKE
* This feature can also be used with the:
CONVECTION BAKE and CONVECTION ROAST modes.
7. BROIL
8 WARM
10. KEY LOCKOUT
11. CHANGING HOUR MODE ON CLOCK (12HR, 24HR)
13. Easy Clean'
BAKE Desired temperature START
COOK TIME Desired time START
START
START TIME Desired start time
START BROIL
START
WARM
Press and hold the CLEAR/OFF pad for 3 seconds (to activate or
reactivate LOCKOUT)
Press and hold the CLOCK pad for 3 seconds
Press “1” pad for 12-hour,
“2” pad for 24-hour. START
EASY CLEAN START

-2-5-
14. SMART DIAGNOSIS
SMART DIAGNOSIS™ USING YOUR SMART PHONE
Smart Diagnosis™ Using Your Smart Phone
1. Download the LG Smart ThinQ application on your smart phone by
searching for LG Smart ThinQ at Play Store.
2. Open the LG Smart ThinQ application on your smart phone. Press
Smart Diagnosis™ button to advance to the next screen.
3. Follow directions of the application. The application will show how to
use Audible Diagnosis.
4. Press [ ] in the LG Smart ThinQ application for a more detailed guide
on how to use the Smart Diagnosis function.
Smart Diagnosis™ Through the Call Center
1. Call the LG call center at: (LG U.S.) 1-800-243-0000 (LG Canada)
1-888-542-2623.
2. When instructed to do so by the call center agent, hold the
mouthpiece of your phone over the Smart Diagnosis™ logo on the
machine. Hold the phone no more than one inch from (but not
pressing) the machine.
3. Press and hold the Start button for three seconds.
4. Keep the phone in place until the tone transmission has finished.
This takes about 6 seconds and the display will count down the time.
5. Once the countdown is over and the tones have stopped, resume
your conversation with the call center agent, who will then be able to
assist you in using the information transmitted for analysis.
USING YOUR RANGE
• Call quality differences by region may affect the function.
•Use the home telephone for better communication performance,
resulting in better service.
• Bad call quality may result in poor data transmission from your
phone to the machine, which could cause Smart Diagnosis™ to
malfunction.
NOTE
Do not press any other buttons or icons on the display screen.
NOTE
•For best results, do not move the phone while the tones are
being transmitted.
•If the call center agent is not able to get an accurate recording of
the data, you may be asked to try again.
NOTE

-3-1-
This section instructs you on how to service each component inside the range. The components and their locations are shown below.
COMPONENT ACCESS
Oven Light
Door Switch
Surface Elements
Main PCB
Buzzer PCB
Hinge Hanger
Oven Sensor
Convection Motor
Relay PCB
Broil Heater
Cook Top
Display PCB

-3-2-
1. Turn off the electrical supply going to the range.
2. Pull the range away from the wall so that you can access the rear panel.
3. Remove 2 screws from the lamp cover and remove the lamp cover.
4. Remove 12 screws from the controller cover and remove the controller
cover.
5. Remove the 4 screws from the back cover and remove the back cover.
6. Remove 6 screws and wiring from Main PCB and Buzzer PCB. The
PCBs can be detached from the support assembly
7. Remove the 3 screws from controller's lower side and pull the support
assembly out of the controller by using the same method such as below
pictures.
COMPONENT ACCESS
REMOVING THE LAMP, CONTROLLER, BACK COVER AND CONTROLLER
ASSEMBLY(MEMBRANE, PCB, SUPPORT)
• DISCONNECT power supply cord from the outlet
before servicing.
• Replace all panels and parts before operating.
•
RECONNECT all grounding devices.
- Failure to do so can result in severe personal injury, death or
electrical shock.
WARNING
• Be careful when you work on the electric range handling the
sheet metal part.
- Sharp edge may be present and you can cut yourself.
CAUTION
Control Cover
Lamp Cover
Back Cover
Buzzer PCB Main PCB
Pull 3 hooks out
of the controller
and the PCB
support can be
detached easily.
3 hooks
Cooktop
Display PCB
PCB
support

-3-3-
COMPONENT ACCESS
8. Remove 4 screws from Cooktop Display PCB and the PCB can be
detached from the support.
9. Remove a cooktop plate assembly (See the page
3-6) and remove 4 screws from side panel.
10. Remove 4 screws from the controller assembly (back guard R/L)
11. Remove 6 screws from the controller assembly.
12. For serving the KEY Membrane, the controller sub assembly should be
separated in whole. Both Control-panel and KEY Membrane are 1 service
part.
