LG GC-B22FTLPL User manual

www.lg.com
Read this owner's manual thoroughly before operating the appliance and keep it handy for
reference at all times.
OWNER'S MANUAL
FRIDGE&
FREEZER
Copyright © 2019-2020 LG Electronics Inc. All Rights Reserved
EN ENGLISH AR ةيبرعلا

TABLE OF CONTENTS
This manual may contain images or content
different from the model you purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS ............................................................3
IMPORTANT SAFETY INSTRUCTIONS ..........................................................3
INSTALLATION ...........................................................................10
Before Installation ...........................................................................................10
Removing/Assembling the Doors.................................................................... 11
Leveling...........................................................................................................12
Door Alignment................................................................................................12
Connecting the Appliance ...............................................................................14
Moving the Appliance......................................................................................14
OPERATION ................................................................................15
Parts and Functions ........................................................................................15
Notes for Operation.........................................................................................18
Using Control Panel ........................................................................................20
Door Mullion....................................................................................................21
Door in Door* ..................................................................................................22
Icemaker .........................................................................................................22
Using the Folding Shelf*..................................................................................22
InstaView Function* ........................................................................................23
Other Functions...............................................................................................23
SMART FUNCTIONS ..................................................................24
LG ThinQ Application ......................................................................................24
Smart Diagnosis..............................................................................................25
MAINTENANCE...........................................................................27
Notes for Cleaning ..........................................................................................27
Cleaning the Condenser Cover.......................................................................27
Cleaning the Fridge Shelf................................................................................28
Cleaning the Folding Shelf*.............................................................................28
Cleaning the Vegetable Drawer ......................................................................29
Cleaning the Door Basket ...............................................................................29
Cleaning the Freezer Drawer..........................................................................30
TROUBLESHOOTING ................................................................31
Information ......................................................................................................35

3
EN
SAFETY INSTRUCTIONS
The following safety guidelines are intended to prevent unforeseen risks
or damage from unsafe or incorrect operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as
described below.
This symbol is displayed to indicate matters and operations
that can cause risk. Read the part with this symbol carefully
and follow the instructions in order to avoid risk.
WARNING
This indicates that the failure to follow the instructions can cause
serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can cause the
minor injury or damage to the product.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, fire, death, electric shock,
injury or scalding to persons when using this product, follow
basic precautions, including the following:
Children in the Household
•This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
•If the appliance is equipped with a lock (some models only), keep the
key out of reach of children.

4
EN
Installation
•This appliance should only be transported by two or more people
holding the appliance securely.
•Ensure that the socket outlet is properly grounded, and that the earth
pin on the power cord is not damaged or removed from the power
plug. For more details on grounding, inquire at an LG Electronics
customer information centre.
•This appliance is equipped with a power cord having an equipment-
grounding conductor and a grounding power plug. The power plug
must be plugged into an appropriate socket outlet that is installed and
grounded in accordance with all local codes and ordinances.
•If the power cord is damaged or the hole of the socket outlet is loose,
do not use the power cord and contact an authorized service centre.
•Do not plug the appliance into a multi socket adapter which does not
have a power cable (mounted).
•Do not modify or extend the power cable.
•The appliance should be connected to a dedicated power line which
is separately fused.
•Do not use a multi socket outlet which is not properly grounded
(portable). In case of using a properly-grounded multi socket outlet
(portable), use the multi socket outlet with the current capacity of the
power code rating or higher and use the multi socket outlet only for
the appliance.
•Install the appliance in a place where is easy to unplug the power
plug of the appliance.
•Be careful not to point the power plug up or let the appliance lean
against the power plug.
•Install the appliance on a firm and level floor.
•Do not install the appliance in a damp and dusty place. Do not
install or store the appliance in any outdoor area, or any area that is
subject to weathering conditions such as direct sunlight, wind, rain, or
temperatures below freezing.
•Do not place the appliance in direct sunlight or expose it to the heat
from heating appliances such as stoves or heaters.

5
EN
•Be careful not to expose the rear of the appliance when installing.
•Be careful not to let the appliance door fall during assembly or
disassembly.
•Be careful not to pinch, crush, or damage the power cable during
assembly or disassembly of the appliance door.
•Do not connect a plug adapter or other accessories to the power
plug.
Operation
•Do not use the appliance for any purpose (storage of medical
or experimental materials or shipping) other than any domestic
household food storage use.
•Unplug the power plug during a severe thunderstorm or lightening or
when not in use for a long period of time.
•Do not touch the power plug or the appliance controls with wet hands.
•Do not bend the power cable excessively or place a heavy object on
it.
•If water penetrates electrical parts of the appliance, disconnect power
plug and contact an LG Electronics customer information centre.
•Do not place hands or metallic objects inside the area emitting the
cold air, cover or heat releasing grille on the back.
•Do not apply excessive force or impact to the back cover of the
appliance.
•Do not put animals, such as pets into the appliance.
•Be careful of nearby children when you open or close the appliance
door. The door may bump the child and cause injury.
•Avoid the danger of children getting trapped inside the appliance. A
child trapped inside the appliance can cause suffocation.
•Do not place heavy or fragile objects, containers filled with liquid,
combustible substances, flammable objects (such candles, lamps,
etc.), or heating devices (such as stoves, heaters, etc.) on the
appliance.

6
EN
•If there is a gas leakage (isobutane, propane, natural gas,
etc.), do not touch the appliance or power plug and ventilate
the area immediately. This appliance uses a refrigerant gas
(isobutane,R600a). Although it uses a small amount of the gas, it
is still combustible gas. Gas leakage during appliance transport,
installation or operation can cause fire, explosion or injury if sparks
are caused.
•Do not use or store flammable or combustible substances (ether,
benzene, alcohol, chemical, LPG, combustible spray, insecticide, air
freshener, cosmetics, etc.) near the appliance.
•Immediately unplug the power plug and contact an LG Electronics
customer information centre if you detect a strange sound, odour, or
smoke coming from the appliance.
•Fill with potable water only into icemaker or dispenser water tank.
•Do not damage the refrigerant circuit.
•Do not place any electronic appliance (such as heater and mobile
phone) inside the appliance.
Maintenance
•Disconnect the power cord before cleaning the appliance or replacing
the inside lamp (where fitted).
•Securely plug the power plug in the socket outlet after completely
removing any moisture and dust.
•Never unplug the appliance by pulling on the power cable. Always
grip the power plug firmly and pull straight out from the socket outlet.
•Do not spray water or inflammable substances (toothpaste, alcohol,
thinner, benzene, flammable liquid, abrasive, etc.) over the interior or
exterior of the appliance to clean it.
•Do not clean the appliance with brushes, cloths or sponges with
rough surfaces or which are made of metallic material.
•Only qualified service personnel from LG Electronics service centre
should disassemble, repair, or modify the appliance. Contact an LG
Electronics customer information centre if you move and install the
appliance in a different location.

7
EN
•Do not use a hair drier to dry the inside of the appliance or place a
candle inside to remove the odours.
•Do not use mechanical devices or other means to accelerate the
defrosting process.
•Connect the water supply line (for plumbed models only) to a potable
water source only. Otherwise, impurities in the water may cause
illness.
Disposal
•When discarding the appliance, remove the door gasket while leaving
the shelves and baskets in place and keep children away from the
appliance.
•Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can cause
suffocation.
Technical Safety
•Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
•Do not use electrical appliances inside the refrigerator.
•The refrigerant and insulation blowing gas used in the appliance
require special disposal procedures. Consult with service agent or a
similarly qualified person before disposing of them.
•Refrigerant leaking out of the pipes could ignite or cause an
explosion.
•The amount of refrigerant in your particular appliance is shown on the
identification plate inside the appliance.
•Never start up an appliance showing any signs of damage. If in
doubt, consult your dealer.
•This appliance is intended to be used in household and similar
applications only. It should not be used for commercial, or catering
purposes, or in any mobile application such as a caravan or boat.
•Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.

8
EN
Risk of Fire and Flammable Materials
This symbol alerts you to flammable materials that can
ignite and cause a fire if you do not take care.
•This appliance contains a small amount of isobutane refrigerant
(R600a), but it is also combustible. When transporting and installing
the appliance, care should be taken to ensure that no parts of the
refrigerating circuit are damaged.
•If a leak is detected, avoid any naked flames or potential sources
of ignition and air the room in which the appliance is standing for
several minutes. In order to avoid the creation of a flammable gas
air mixture if a leak in the refrigerating circuit occurs, the size of the
room in which the appliance is used should correspond to the amount
of refrigerant used. The room must be 1 m² in size for every 8 g of
R600a refrigerant inside the appliance.
•When positioning the appliance, ensure the supply cord is not
trapped or damaged.
•Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
CAUTION
To reduce the risk of minor injury to persons, malfunction, or
damage to the product or property when using this product, follow
basic precautions, including the following:
Installation
•Do not tilt the appliance to pull or push it when transporting.
•Make sure not to get a body part such as a hand or foot stuck while
moving the appliance.
Operation
•Do not touch frozen food or the metal parts in the freezer
compartment with wet or damp hands. It may cause frostbite.

9
EN
•Do not place glass containers, bottles or cans (especially those
containing carbonated drinks) in the freezer compartment, shelves or
ice bin that will be exposed to temperatures below freezing.
•The tempered glass on the front side of the appliance door or the
shelves can be damaged by an impact. If it is broken, do not touch it
with hands.
•Do not place heavy objects on top of the door in door.
•Do not use the door in door as a chopping board and ensure it is not
scratched by a sharp tool, as this may cause appliance damage.
•Do not hang from the appliance door, storage room, shelf or fridge
door in door or climb up into it.
•Do not store an excessive amount of water bottles or containers for
side dishes on the door baskets.
•Prevent animals from nibbling on the power cable or water hose.
•Do not open or close the appliance door with excessive force.
•If the hinge of the appliance door is damaged or operates improperly,
stop using the appliance and contact an authorized service centre.
•Do not clean glass shelves or covers with warm water when they are
cold.
•Never eat frozen foods immediately after they have been taken out in
the freezer compartment.
•Make sure not to get a hand or foot stuck upon opening or closing the
appliance door or door in door.
•Do not open the door of the appliance with the door in door open, or
do not open the door in door while the door of the appliance is open.
The door in door may be struck by the edge of the appliance and
damaged.
Maintenance
•Do not insert the shelves upside down. The shelves may fall.
•To remove frost from the appliance, contact an LG Electronics
customer information centre.
•Dispose of the ice inside the ice bin in the freezer compartment
during an extended power outage.

10
EN
INSTALLATION
Before Installation
Dimensions and Clearances
•Too small of a distance from adjacent items may
result in the degradation of freezing capability
and increased electricity costs. Allow over 50
mm of clearance from each adjacent wall when
installing the appliance.
A
C
B
H
DE
F
G
- Size (mm)
A 835
B 1787
C 734
D 617
E 688
F 734
G 1065
H 1562
Ambient Temperature
•The appliance is designed to operate within
a limited range of ambient temperatures,
depending on the climate zone.
•The internal temperature could be affected
by the location of the appliance, the ambient
temperature, the frequency of door opening and
so on.
•The climate class can be found on the rating
label.
Climate Class Ambient Temperature
Range ºC
SN (Extended
Temperate) +10 - +32
N (Temperate) +16 - +32
ST (Subtropical) +16 - +38
T (Tropical) +16 - +43 / +10 - +43*
*Australia, India, Kenya
NOTE
•The appliances rated from SN to T are intended
to be used at an ambient temperature between
10 ºC and 43 ºC.
Accessories
*1:This feature is only available on some models.
a Spanner*1
b C-Clip (Snap Ring)*1

11
EN
Removing/Assembling the
Doors
•When it is necessary to move the appliance
through a narrow opening, removing the doors
is the recommended procedure.
WARNING
•Disconnect the power cord, house fuse or
circuit breaker before installing or servicing the
appliance. Failure to follow these instructions
may result in death, fire or electric shock.
Removing the Fridge Doors
1 Remove the screw of the hinge cover
on top of the appliance by rotating it
counterclockwise.
2 Remove the connector by pulling it in both
directions by pressing down on the hook of
the wire harness connector.
3 Rotate the hinge lever counterclockwise. Lift
the top hinge free of the hinge lever latch.
Hinge Lever Latch
CAUTION
•It is recommended that two or more people
carry out the door removal and refitting.
•When removing the upper hinge, be careful that
the door does not fall forward.
4 Lift the door off of the middle hinge pin and
remove the door.
CAUTION
•Place the door on a non-scratching surface with
the inner side facing up.
Refitting the Fridge Doors
Mount the doors in the reverse sequence of their
removal once the appliance has been passed
through all access doors.

12
EN
Removing the Freezer Doors
1 Remove the two hinge bolts.
2 Twist the hinge to raise the pivoting end so
that the door can be lifted off. Lift the door off
the lower hinge pin and remove it.
3 Remove the door by lifting it off the lower
hinge pin.
Lower Hinge
Refitting the Freezer Doors
Mount the doors in the reverse sequence of their
removal once the appliance has been passed
through all access doors.
Leveling
If the appliance seems unsteady, or the doors do
not close easily, adjust the appliance’s tilt.
Leveling the appliance
Open the freezer doors and adjust the height by
turning the nut above the foot with the spanner
a.
Door Alignment
If the gap between the doors is uneven, follow the
instructions below to align the doors evenly.
Adjusting the Height of the
Freezer Door
1 Turn the keeper nut clockwise using the
spanner a.

13
EN
2 Turn the adjustment hinge pin clockwise or
counterclockwise using the spanner b.
To lower the door, turn the adjustment hinge
pin clockwise. To raise the door, turn the
adjustment hinge pin counterclockwise.
3 Fasten the keeper nut by turning it
counterclockwise.
CAUTION
•Do not adjust the height of the appliance door
more than 3 mm.
Adjusting the Height of the Left
Fridge Door
If the left door is lower, lift the left door, and turn
the hinge bolt using the spanner cas in the
drawing.
Adjusting the Height of the Right
Fridge Door
<Type1>
If the right door is lower, lift the right door, and use
the spanner cto turn the keeper nut clockwise
until the heights are balanced.

14
EN
<Type2>
If the right door is lower, lift the right door, and use
a pair of long nose pliers to additionally insert a
snap ring until the heights are balanced.
Connecting the Appliance
After installing the appliance, connect the power
plug into a socket outlet.
NOTE
•After connecting the power supply cord (or plug)
to the outlet, wait 2 or 3 hours before you put
food into the appliance. If you add food before
the appliance has cooled completely, your food
may spoil.
Moving the Appliance
1 Remove all food from inside the appliance.
2 Pull the power plug out, insert and fix it into
the power plug hook at the rear or on top of
the appliance.
3 Tape parts such as shelves and the door
handle to prevent from falling off while moving
the appliance.
4 Move the appliance with more than two
people carefully. When transporting the
appliance over a long distance, keep the
appliance upright.
5 After installing the appliance, connect the
power plug into a socket out to switch on the
appliance.

15
EN
OPERATION
Parts and Functions
* means that this feature varies depending on the model purchased.
Exterior
aControl Panel
To set the freezer and fridge temperatures.
bDoor-in-Door*
The Door-in-Door is a double layered door system. It can be opened individually or together with the
main door. You can conveniently locate and access your favourite snacks or food items.
cDoor-in-Door Lever*
You can open the Door-in-Door by pulling the lever at the bottom of the door.
dInstaView Door in Door*
The InstaView Door in Door compartment allows for easy access to commonly used food items.
NOTE
•The appearance or components of the appliance may differ from model to model.

16
EN

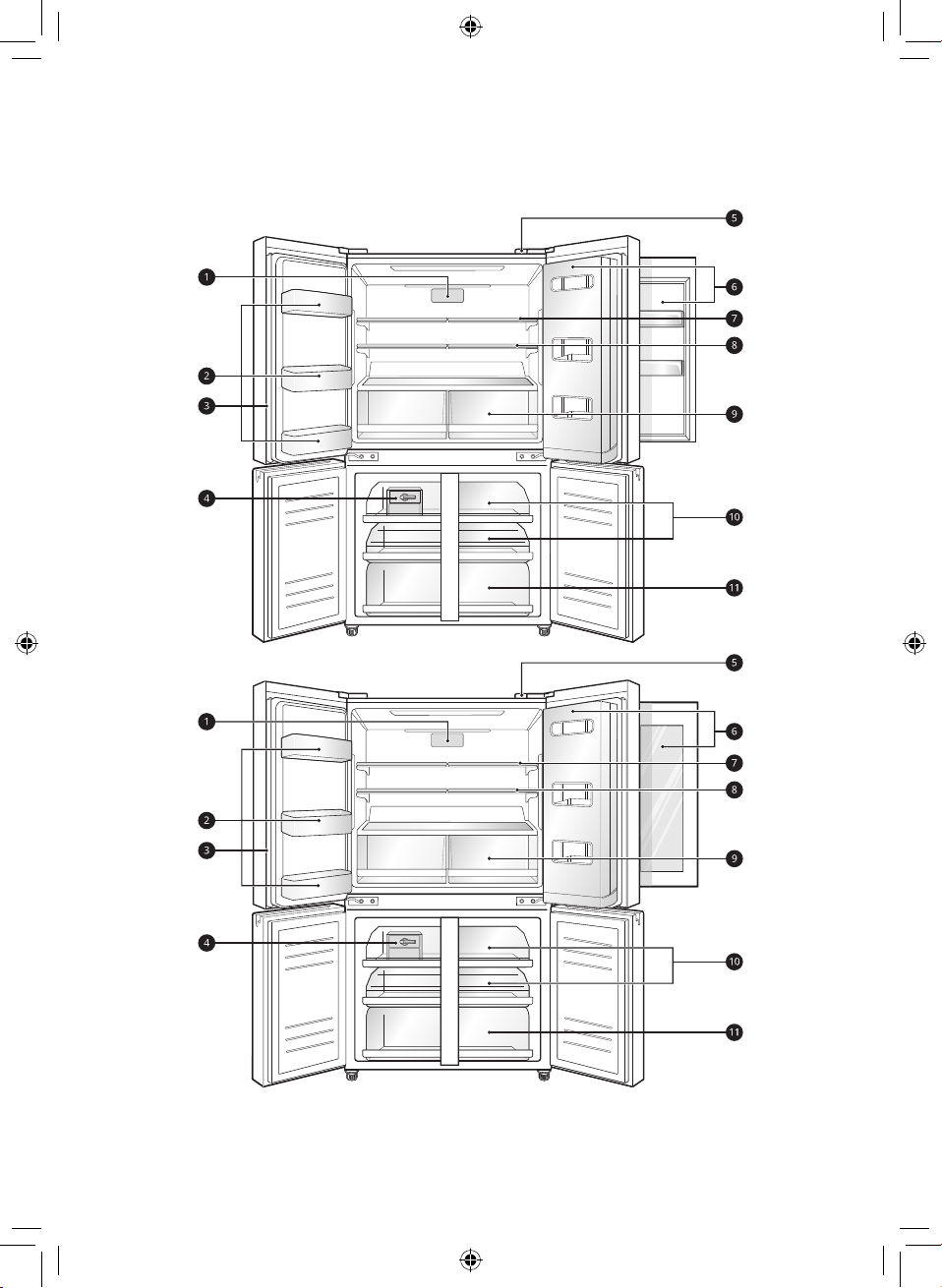

Interior

17
EN
aHygiene Fresh*
This function minimizes bacteria and odor inside the appliance.
bFridge Door Basket
This is where small packages of refrigerated foods, drinks and sauce containers are stored.
cDoor Mullion
This blocks the cold air of the fridge from leaking.
CAUTION
•To reduce the risk of scratching the door or breaking the center door mullion, make sure that the
fridge door mullion is always folded in.
•The door alarm will sound every 30 seconds if the door remains open longer than one minute.
Ensure that the folding mullion is folded in before closing the left-hand door.
dMoving Ice Maker
This is where ice is produced and stored.
eSmart Diagnosis Unit
Use this function when contacting LG Electronics customer information centre to help make an
accurate diagnosis when the appliance operates abnormally or a failure occurs.
fDoor-in-Door*
A convenient storage area for frequently-used items that require easy access.
gAdjustable Fridge Shelf
Shelves are adjustable to meet individual storage needs.
hFolding Shelf*
Shelf is adjustable to meet individual storage needs.
iVegetable Drawer
This is where fruits and vegetables are stored to remain fresh for as long as possible.
jFreezer Tray
This is where frozen foods such as meat, fish, and ice cream can be stored.
•The sliding trays allow easy access and convenience of use.
kFreezer Drawer
This is for long-term storage of frozen items.
•Preserve small packaged frozen food or frequently-taken out foods. To use larger space, remove
drawers.

18
EN
Notes for Operation
•Users should keep in mind that frost can form. If
the door is not closed completely, if the humidity
is high during the summer, or if the freezer door
is opened frequently.
•Ensure there is sufficient space between food
stored on the shelf or door basket to allow the
door to close completely.
•Opening the door lets warm air enter the
appliance, and may cause the internal
temperature to rise.
•If you are leaving the appliance turned off for an
extended period of time, remove all food and
unplug the power cord. Clean the interior, and
leave the doors slightly ajar to prevent mold
from growing in the appliance.
Suggestion for Energy Saving
•Ensure there is sufficient space between stored
foods. This allows cold air to be circulated
evenly and lowers electricity bills.
•Store hot food only after it has cooled in order to
prevent dew or frost.
•When storing food in the freezer compartment,
set the freezer temperature lower than the
temperature indicated on the food.
•Do not put food near the temperature sensor of
the fridge compartment. Keep a distance of at
least 3 cm from the sensor.
•Note that a temperature rise after defrosting
has a permissible range in the appliance
specifications. If you wish to minimise the
impact this may have on the food storage due to
a temperature rise, seal or wrap the stored food
in several layers.
•The automatic defrosting system in the
appliance ensures that the compartment
remains free of ice buildup under normal
operating conditions.

19
EN
Storing Foods Effectively
•Store frozen food or refrigerated food inside
sealed containers.
•Check the expiration date and label (storage
instructions) before storing food in the
appliance.
•Do not store food for a long period of time
(more than four weeks) if it spoils easily at a low
temperature.
•Place the refrigerated food or frozen food in
each fridge or freezer compartment immediately
after purchasing.
•Avoid refreezing any food which has been
completely thawed. Freezing any food which
has been completely thawed again will lower its
taste and nutrition.
•Do not wrap and store vegetables with
newspaper. Printing material of newspaper
or other foreign substances may smear and
contaminate food.
•Do not overfill the appliance. Cold air can not
circulate properly if the appliance is overfilled.
•If you set an excessively low temperature
for food, it may become frozen. Do not
set a temperature lower than the required
temperature for the food to be stored correctly.
•If there are chill compartments in the appliance,
do not store vegetables and fruits with higher
moisture content in the chill compartments as
they may freeze due to the lower temperature.
Max Freezing Capacity
•The Express Freeze function will allow the
freezer to its maximum freezing capacity. This
generally takes up to 24 hours, however, it will
automatically turn off after a given time and can
also be turned off manually at any given time.
•To get better air circulation, insert all inner parts
like baskets, drawers, and shelves.
Maximum Storage
•To get better air circulation, insert all drawers.
•If large quantities of food are to be stored,
all the freezer drawers shall be taken out of
the appliance except the bottom one and the
food shall be stacked directly on the freezer
compartment.
NOTE
•To remove the drawers, first pick the food out of
drawers. Then use the handle of drawers, pull
out the drawers carefully. It may cause injury.
•The shape of each drawer may be different,
insert in the right position.

20
EN
Using Control Panel
Units and Functions
Fridge Temperature
•This sets the fridge target temperature.
Freezer Temperature
•This sets the freezer target temperature.
* Wi-Fi
•This sets the appliance to connect to your home’s Wi-Fi network.
Express Freeze
•This sets Express Freeze functions.
* Lock
•This locks the buttons on the control panel.
NOTE
•The actual control panel may differ from model to model.
•The control panel will turn off automatically for energy saving.
•If there is any finger or skin contacts to the control panel while cleaning it, the button function may
operate.
