WARNINGS AND PRECAUTIONS FOR SAFETY
Please observe the following safety precautions in order to
use safely and correctly the refrigerator and to prevent
accident and danger during repair.
1.13e care of an electric shock. Disconnect power cord
from wall outlet and wait for more than three minutes
before replacing PWB parts. Shut off the power
whenever replacing and repairing electric components.
2, When connecting power cord, please wait for more than
five minutes after power cord was disconnected from the
wall outlet.
3. Please check if the power plug is pressed down by the
refrigerator against the wall. If the power plug was
damaged, it may cause fire or electric shock.
4. If the wall outlet is over loaded, it may cause fire. Please
use its own individual electrical outlet for the refrigerator.
5. Please make sure the outlet is propedy earthed,
particularly in wet or damp area.
6. Use standard electrical components when replacing
them.
7, Make sure the hook is correctly engaged.
Remove dust and foreign materials from the housing
and connecting parts.
8. Do not fray, damage, machine, heavily bend, pull out,
or twist the power cord.
Please check the evidence of moisture intrusion in the
electrical components. Replace the parts or mask it
with insulation tapes if moisture intrusion was
confirmed.
10. Do not touch the icemaker with hands or tools to
confirm the operation of geared motor.
11. Do not let the customers repair, disassemble, and
reconstruct the refrigerator for themselves. It may
cause accident, electdc shock, or fire.
12. Do not store flammable materials such as ether,
benzene, alcohol, chemicals, gas, or medicine in the
refrigerator.
13. Do not put flower vase, cup, cosmetics, chemicals,
etc., or container with full of water on the top of the
refrigerator.
14. Do not put glass bottles with full of water into the
freezer. The contents shall freeze and break the glass
bottles.
15. When you scrap the refrigerator, plesse disconnect the
door gasket first and scrap it where children are not
accessible.
-3-

PARTS IDENTIFICATION
3. Ref No. : GR-L247ER, GR-L207ER
Dispenser Lain
Dispenser Button
Cover Hinge CoverPWB
\
o o
_ El! II_l_
> Water Tube
Freezer Refrigerator
Compartment Compartment
Automatic
ice maker
Lamp-
Shelf
Door rack
Box
(optional)
Sheff.
(Steel.
T/Glass)
or Shelf
(optional)
Shelf
rrack
Door
Lower Cover Conversion Switch
(MeatsNegetables) Humidity Switch
drawer/Meat drawer
-14-

HOW TO INSTALL REFRIGERATOR

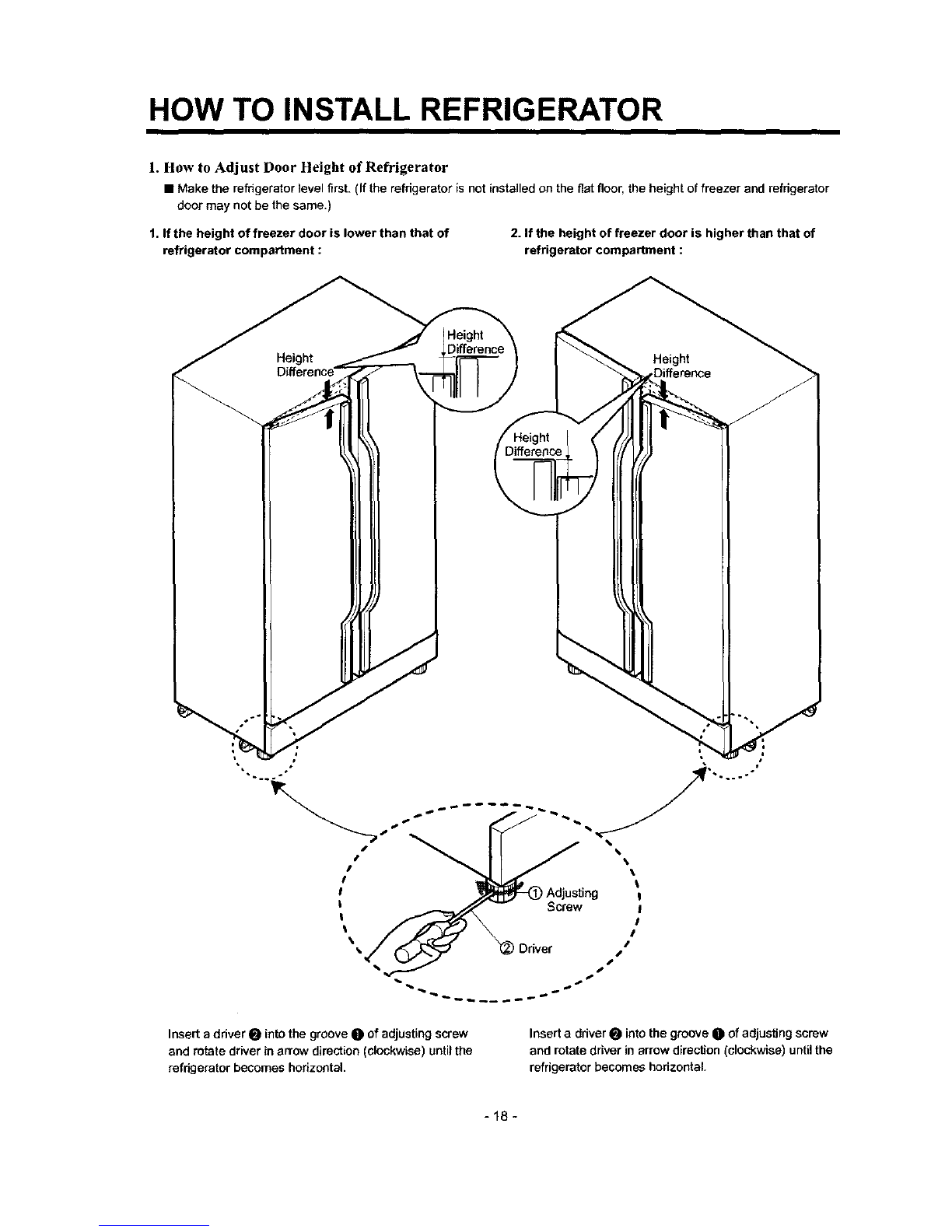

1. How to Adjust Door Height of Refrigerator
•Make the refrigerator levelfirst. (If the refrigerator isnot installed on the flatfloor, the heightoffreezer end refrigerator
door may not be the same.)
1. If the height of freezer door is lower than that of
refrigerator compartment : 2. If the height of freezer door is higher than that of refrigerator compartment :
Height
Difference
Insert a driver _ into the groove 0of adjusting screw
and rotate driver in arrow direction (clockwise) until the
refrigerator becomes horizontal.
Insert a driver _ into the groove Oof adjusting screw
and rotate driver in arrow direction (clockwise) until the
refrigerator becomes horizontal.
-18-

HOW TO INSTALL REFRIGERATOR

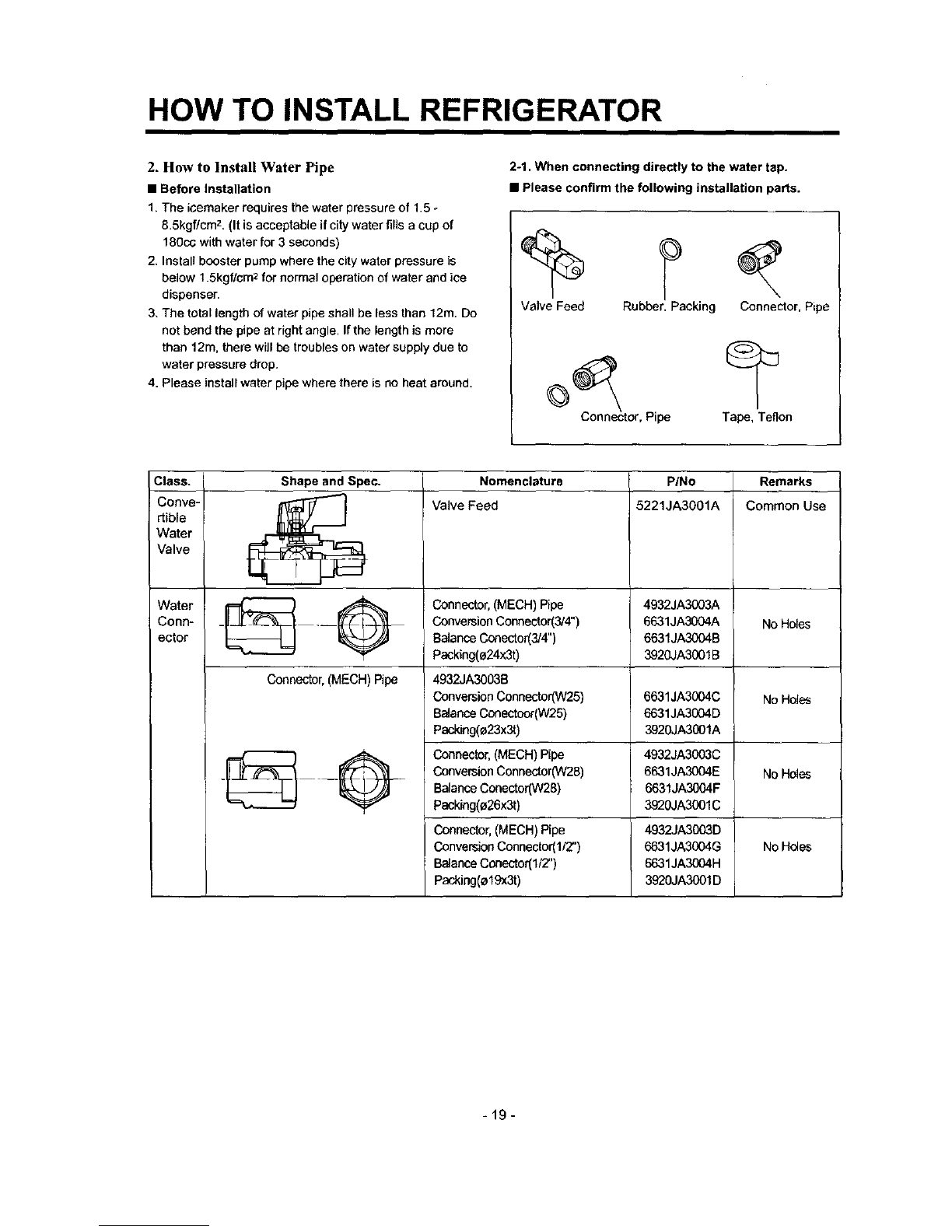

2. How to Install Water Pipe
•Before Installation
1. The icemaker requires the water pressure of 1.5 o
8.5kgf/cm 2. (It is acceptable if city water fills a cup of
180c_ with water for 3 seconds)
2. Install booster pump where the city water pressure is
below 1.5kgf/cm; for normal operation of water and ice
dispenser.
3, The total length of water pipe shall be less than 12m. Do
not bend the pipe at right angle. If the length is more
than 12m, there will be troubles on water supply due to
water pressure drop.
4. Please install water pipe where there is no heat around.
2-1. When connecting directly to the water tap.
•Please confirm the following installation parts,
Valve Feed Rubber. Packing Connector, Pipe
_ Co_nnec_or, Pipe Tape, Teflon
Class.
Conve-
_ible
Water
Valve
Water
Conn-
ector
Shape and Spec.
.-®
Connector,(MECH)Pipe
Nomenclature
Valve Feed
Connector,(MECH)Pipe
ConversionConnector(3/4")
BalanceCenector(3/4")
Packing(e24x3t)
4932JA30038
ConversionConnector(W25)
BalanceConectoor(W25)
Packing(_23x3t)
Connector,(MECH)Pipe
ConversionConnector(W28)
BalanceConector(W28)
Packing(_26x3t)
Connector,(MECH)Pipe
ConversionConnector(112")
BalanceConector(l/Z')
Packing(_19x3t)
P/No
5221JA3001A
4932JA3003A
6631JA3004A
6631JA3004B
3920JA3001B
6631JA3004C
6631JA3004D
3920JA3001A
4932JA3003C
6631JA3004E
6631JA3004F
3920JA3001C
4932JA3003D
6631JA3004G
6631JA3004H
3920JA3001D
Remarks
Common U_
No Holes
No Holes
No Hales
NoH_es
-19-

HOW TO INSTALL REFRIGERATOR
1. Connection of Pipe Connector A and B.
1) Turn off main valve of water pipe.
2) Disconnect water tap from piping by loosening nuts.
3) Connect pipe connector A and B to piping after sealing
the pipe connector with sealing tapes.
4) Connect feed valve to pipe connector A.
5) If there is only one tap water pipe, connect pipe
connector A only and install feed pipe.
Caution : • Feed pipe should be connected to cold water
line. If it is connected to hot water line, trouble
may occur.
• Please check rubber packing when connecting
feed pipe.
Pipe Connector B
\Valve
\
How to wind
Sealing Tapes.
Single Lever Type Faucet
(general) General Type
Two Hands Type Faucet
Feed
Valve
Single Lever Type Faucet (one
hole, tech type and hand spray)
Feed
Valve
2. Water Supply
1) After the installation of feed water, plug the refrigerator
to the earthered well outlet, press the water dispenser
button for 2 - 3 minutes, and confirm that the water
comes Out.
2) Check leakage at connecfing part, then arrange water
tube and locate the refrigerator at its regular place if
them is no leaking.
Water Tube
Water Tube
-20-

HOW TO INSTALL REFRIGERATOR
3. When customer uses bottled water.
"If customer wants to use bottled water, extra pump should be installed as shown below.
1. The pump system should not be on the floor (it may cause noise and vibration). Securely fasten the inlet and outlet
nuts of pump.
2. If there is any leakage after installation, cut the water tube at right angle and reassemble.
3. When put the water tube end into the bottle, leave a clearance between bottle bottom and water tube end.
4 Check water coming out and any leakage.
Caution :, If feed tube is more than 4m. less water will come out doe to pressure drops.
•Use standard feed tube to prevent leaking.
• Outternal Filter
t. Filter Fixation
1) Connect feed tube to the filter outlet and water valve connecting tube.
2) Fix the rifler at proper place around the sink where it is easy to replace the filter and to receive the cleaning water.
Please consider the length of tube shaft be less than 12m when locating filter.
3) When fixing the filter, use fixing plate and cable depending on the surrounding conditions.
Water Tube
FixingPlate
Fixing CaDI_
Fixing Plate
2. Filter Cleaning
1) Connect feed tube to the inlet of feed valve and filter.
2) Clean the main valve and feed valve with water for at
least one minute until clean water comes out. Filter Inlet
HotWater
Cold Water
Feed Valve
Water..
-21 -

HOW TO INSTALL REFRIGERATOR

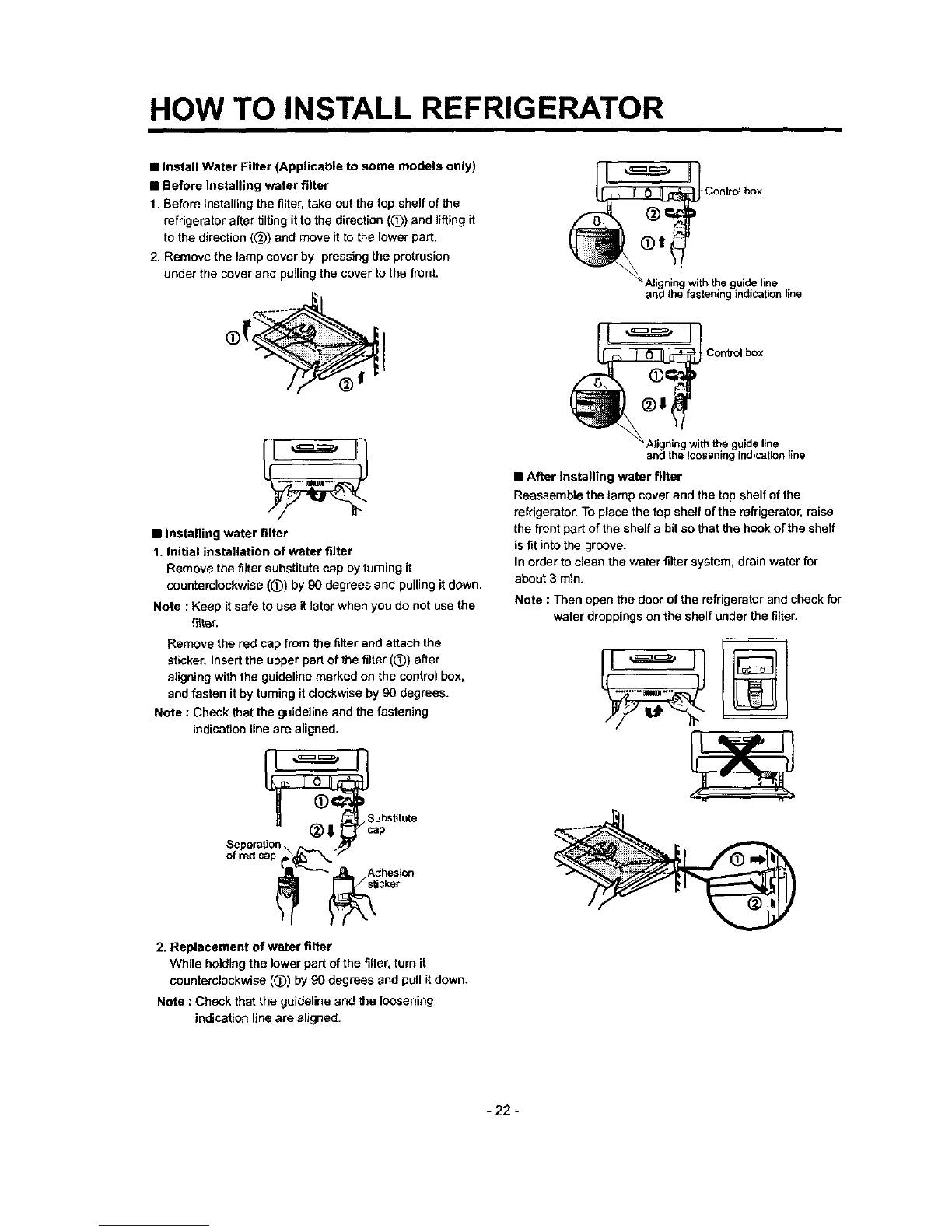

•Install Water Fitter (Applicable to some models only)
•Before Installing water filter
1. Before installing the filter, take out the top shelf of the
refrigerator after tilting it to the direction (O) and lifting it
to the direction (_)) and move it to the lower part.
2, Remove the lamp cover by pressing the protrusion
under the cover and pulling the cover to the front.
Control box
and the fastening indication line
-Controlbox
•Installing water filter
1. Initial installation of water filter
Remove the filler substitute cap by turning it
counterclockwise ((_) by 90 degrees end pulling it down.
Note : Keep it safe to use it later when you do not use the
filte_
Remove the red cap from the filler and attach the
sticker, Insert the upper part of the filter (O) after
aligning with the guideline marked on the control box,
and fasten it by turning it clockwise by 90 degrees.
Note :Check that the guideline and the fastening
indication line ere aligned.
Jubstitute
cap
°n ---.
2. Replacement of water filter
While holding the lower part of the filter, turn it
counterclockwise ((_) by 90 degrees and pull II down.
Note : Check that the guideline end the loosening
indication line are aligned.
ningwiththe guideline
the loosening indicationline
•After installing water filter
Reassemble the lamp cover and the top shelf of the
refi'EJeretor.To place the top shelf of the refrigerator, raise
the front part of the shelf a bit so that the hook of the shelf
is fit into the groove.
In order to clean the water filter system, drain water for
about 3 min.
Note : Then open the door of the refrigerator and check for
water droppings on the shelf under the tilter.
- 22 -

HOW TO INSTALL REFRIGERATOR
3. How to Control the Amount of'Water Supplied to Icemaker.
3-1. Confirm the amount of water supplied to the icemaker.
1. Pull outthe ice bank in the upper part of the freezer compartment.
Caution : •Do not put hands or tools into the chute to confirm
the operation of geared motor.
it may damage refrigerator or hurt hands.)
•Check the operation of motor with its operation
noise.
2. Apply electricity after connecting water pipe.
1) Press test switch under the icemaker for two seconds as shown below.
2) The bell tings(ding-dong) and ice tray rotates and water comes out from the icemaker water tube,
3) The water shall be supplied two or three times into the tray, The amount of water supplied for each time is small.
Put a water container under the ice tray and press test switch.
4) When ice tray rotates, the water in it will spill. Collect the spilt water and throw away intothe sink.
5) When ice tray has finished rotation, water comes out fTom the water tube. Confirm the amounts of water in the ice tray.
(refer to fig. The opSmum amount of water is 110cc)
Confirm theamount
ofwater
Test Switch
Ice maker
*It [sacceptable if the adjusted level of water is a bit smaller than optimum level.
-23 -

HOW TO INSTALL REFRIGERATOR
3-2. Control the amount of water supplied to the
icemaker.
Caution : • Please unplug the power cord from the wall
outlet and wait for more than three micutes
before disconnecting PWB cover as 310V is
applied in the control panel.
1. Disconnect PWB cover from the upper part of the
refrigerator.
(+) Ddver
2. Adjust the amount of water supplied by using DIP
switch.
•Water Supplying Time Control (_
SWITCH NO
S/W1 S/W2 SAN3
OFF OFF OFF
ON OFF OFF
OFF ON OFF
ON ON OFF
OFF OFF ON
_tion
Water Suppling
Time
6.5 Sea,
5.5 Sec.
6 Sec.
7set.
7.sSec.
ON OFF ON 8 Sec.
oFF ON ON 9 Sec.
ON ON ON 10 Sec.
1) The water supplying time is set at five seconds when the
refrigerator is delivered.
2) The amount of water supplied depends on the setting
time and water pressure (city water pressure).
3) If ice cube is too small, increase the water supplying
time. This happens when too small water is supplied into
the ice tray.
4) If ice cube sticks together, decrease the water supplying
time. This happens when too much water is supplied
into the ice tray.
Caution : When adjusting the amount of water supplied,
adjust step by step. Otherwise the water may
spill over.
Switch ON __
Switch OFF
3. When adjustment of control switch for the amount of
water supplied is complete, check the level of water in
the ice tray.
Confirm the amount
of water
::: _---_ Optimum level
- 24 -

MICOM FUNCTION
I, Monitor Panel
1-1. GR-P247, GR-P207, GR-L247, GR-L207 1-2. GR-C247, GR-C207, GR-B247, GR-B207
Function Monitor
C] (:30 O (3 D D D D
Freezer corn ar_nent Refrigerator compartment Dispensersete_onbuttcn
tempera[we Control Buttol_ temperature con#ol Button
2. Description of Function
2-1. Funnction of Temperature Selection
Division
Change of
IndicatJonLamp
Temperature
Control
Freezer
Con_oi
Refrigeration
Con#ol
Power Initially On
Medium
-19 °C
(-18 =C)
<-19 °C>
3°C
_2 °C>
1st Press 2nd Press 3th Press 4th Press
ni--t--i n m,-- e-- ,m_, i_--e--_ i_--o--_,
i
I--i--i
@@
Medium Max
-22*C
(-20.5°C)
<-20.5 °C>
i--
,il --s_-- ,i_
@@
Max
-23 °C
(-22 °C)
<-22 °C>
0"C
<0 °C>
m --o_1-- u
@@
Min
-15 °C
<-16.5 °C>
6 °C
(7 *C)
=>
<4.5 C
1.5°C
<1 °C>
i--)--i
Medium Min
-17 °C
<-18 °C>
4.5 °C
<3 °C>
"The lemperatm_ can vary. !:3 °C depending on the load condition. *( '1:12TVi60Hz, 110_115Vi60IIz, I15Vi601-lz Rating ONLY.
*< >:TAIBEI
1. When power is initially applied or reapplied after power cut, "Medium" is automatically selected.
2. When the temperature selection switch in the freezer and refrigerator compartments is pressed, the light is on in the
following sequence:
"Medium" --_"Medium Max" -, "Max" --* "Min" _" "Medium Min" _ "Medium"
3. The temperature setting condition of freezer and refdgerator compartments shall not be indicate in the standard model
(GR-P247, GR-P207, GR-L247, GR-L207, GR-C247, GR-C207, GR-B247, GR-B207) when refhgerator or home bar
door is closed,
- 25 -
