LG GSJ470DIDV User manual

www.lg.com
OWNER'S MANUAL
FRIDGE&
FREEZER
Read this owner's manual thoroughly before operating the appliance and keep
it handy for reference at all times.
MFL67447823
Rev.01_111417 Copyright © 2017 LG Electronics Inc. All Rights Reserved.
EN ENGLISH ES ESPAÑOL IT ITALIANO PL POLSKI SR SRPSKI
BG БЪЛГАРСКИ ET EESTI LT LIETUVIŲ PT PORTUGUÊS SV SVENSKA
CZ ČEŠTINA FI SUOMI LV LATVIEŠU RO ROMÂNĂ
DA DANSK FR FRANÇAIS MK МАКЕДОНСКИ SK SLOVENČINA
DE DEUTSCH HR HRVATSKI NL NEDERLANDS SL SLOVENŠČINA
EL ΕΛΛΗΝΙΚΆ HU MAGYAR NO NORSK SQ SHQIP

TABLE OF CONTENTS This manual may contain images or
content different from the model you
purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS .......................................................3
IMPORTANT SAFETY INSTRUCTIONS.................................................... 3
Disposal of Your Old Appliance ................................................................ 12
INSTALLATION ......................................................................13
Compartments.......................................................................................... 13
Notes for Movement and Transport.......................................................... 14
Notes for Installation................................................................................. 14
Dimensions and Clearances..................................................................... 14
Ambient Temperature ............................................................................... 15
Removing the Door................................................................................... 15
Refitting the Door...................................................................................... 16
Adjusting the Height of the Door............................................................... 16
Connecting the Water Line (For Plumbed models Only) .......................... 18
OPERATION ...........................................................................20
Parts and Functions.................................................................................. 20
Notes for Operation .................................................................................. 24
Using Control Panel.................................................................................. 26
Water Dispenser Tank (Non plumbed models only) ................................. 28
Water and Ice Dispenser .......................................................................... 29
Automatic Icemaker.................................................................................. 29
Door in Door (Optional) ............................................................................ 31
Fresh Vegetable Drawer (Optional).......................................................... 32
Other Functions........................................................................................ 33
SMART FUNCTIONS.............................................................34
Using LG SmartThinQ Application............................................................ 34
Using Smart Diagnosis™ ......................................................................... 37
MAINTENANCE......................................................................38
Notes for Cleaning.................................................................................... 38
Replacing the Pure N Fresh Filter (Optional) ........................................... 38
Cleaning the Door Basket......................................................................... 39
Cleaning the Shelf .................................................................................... 40
Cleaning the Vegetable Drawer................................................................ 40
Cleaning the Water Dispenser.................................................................. 41
Replacing the Water Filter (For Plumbed models Only) ........................... 41
TROUBLESHOOTING ...........................................................42

3
SAFETY INSTRUCTIONS EN
The following safety guidelines are intended to prevent
unforeseen risks or damage from unsafe or incorrect
operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’
as described below.
This symbol is displayed to indicate matters and
operations that can cause risk. Read the part with this
symbol carefully and follow the instructions in order to
avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, fire, death, electric shock,
injury or scalding to persons when using this product,
follow basic precautions, including the following:
Children in the Household
•This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.

4
EN
•If the appliance is equipped with a lock (some countries only),
keep the key out of reach of children.
For use in Europe:
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
Installation
•This appliance should only be transported by two or more people
holding the appliance securely.
•Ensure that the socket outlet is properly grounded, and that the
earth pin on the power cord is not damaged or removed from the
power plug. For more details on grounding, inquire at an LG
Electronics customer information centre.
•This appliance is equipped with a power cord having an
equipment-grounding conductor and a grounding power plug. The
power plug must be plugged into an appropriate socket outlet that
is installed and grounded in accordance with all local codes and
ordinances.
•If the power cord is damaged or the hole of the socket outlet is
loose, do not use the power cord and contact an authorized
service centre.
•Do not plug the appliance into a multi socket adapter which does
not have a power cable(mounted).
•Do not modify or extend the power cable.

5
EN
•Avoid using any extension cords or double adaptor. The appliance
should be connected to a dedicated power line which is separately
fused.
•Do not use a multi socket outlet which is not properly
grounded(portable). Upon using a properly-grounded multi socket
outlet (portable), use a product with the current capacity of the
power code rating or higher. Failure to do so may result in electric
shock or fire due to the heat of multi socket outlet. The power may
be shut off when the circuit breaker is operated.
•Install the appliance in a place where is easy to unplug the power
plug of the appliance.
•Be careful not to point the power plug up or let the appliance lean
against the power plug.
•Install the appliance on a firm and level floor.
•Do not install the appliance in a damp and dusty place. Do not
install or store the appliance in any outdoor area, or any area that
is subject to weathering conditions such as direct sunlight, wind,
or rain or temperatures below freezing.
•Do not place the appliance in direct sunlight or expose it to the
heat from heating appliances such as stoves or heaters.
•Be careful not to expose the rear of the appliance when installing.
•Be careful not to let the appliance door fall during assembly or
disassembly.
•Be careful not to pinch, crush, or damage the power cable during
assembly or disassembly of the appliance door.
•Do not connect a plug adapter or other accessories to the power
plug.

6
EN
Operation
•Do not use the appliance for any purpose (storage of medical or
experimental materials or shipping) other than any domestic
household food storage use.
•In case of flood, disconnect the power plug and contact the LG
Electronics customer information centre.
•Unplug the power plug during a severe thunderstorm or lightening
or when not in use for a long period of time.
•Do not touch the power plug or the appliance controls with wet
hands.
•Do not bend the power cable excessively or place a heavy object
on it.
•If water penetrates electrical parts of the appliance, disconnect
power plug and contact an LG Electronics customer information
centre.
•Do not place hands or metallic objects inside the area emitting the
cold air, cover or heat releasing grille on the back.
•Do not apply excessive force or impact to the back cover of the
appliance.
•Do not put animals, such as pets into the appliance.
•Be careful of nearby children when you open or close the
appliance door. The door may bump the child and cause injury.
•Avoid the danger of children getting trapped inside the appliance.
A child trapped inside the appliance can cause suffocation.
•Do not place heavy or fragile objects, containers filled with liquid,
combustible substances, flammable objects(such candles, lamps,
etc.), or heating devices(such as stoves, heaters, etc.) on the
appliance.

7
EN
•If there is a gas leakage (isobutane, propane, natural gas, etc.),
do not touch the appliance or power plug and ventilate the area
immediately. This appliance uses a very eco-friendly gas
(isobutane, R600a) as the refrigerant. Although it uses a small
amount of the gas, it is still combustible gas. Gas leakage during
appliance transport, installation or operation can cause fire,
explosion or injury if sparks are caused.
•Do not use or store flammable or combustible substances (ether,
benzene, alcohol, chemical, LPG, combustible spray, insecticide,
air freshener, cosmetics, etc.) near the appliance.
•Immediately unplug the power plug and contact an LG Electronics
customer information centre if you detect a strange sound, odour,
or smoke coming from the appliance.
•Fill with potable water only into icemaker or dispenser water tank.
Maintenance
•Disconnect the power cord before cleaning the appliance or
replacing the inside lamp (where fitted).
•Securely plug the power plug in the socket outlet after completely
removing any moisture and dust.
•Never unplug the appliance by pulling on the power cable. Always
grip the power plug firmly and pull straight out from the socket
outlet.
•Do not spray water or inflammable substances(toothpaste, alcohol,
thinner, benzene, flammable liquid, abrasive, etc.) over the interior
or exterior of the appliance to clean it.
•Do not clean the appliance with brushes, cloths or sponges with
rough surfaces or which are made of metallic material.

8
EN
•Only qualified service personnel from LG Electronics service
centre should disassemble, repair, or modify the appliance.
Contact an LG Electronics customer information centre if you
move and install the appliance in a different location.
•Do not use a hair drier to dry the inside of the appliance or place
a candle inside to remove the odours.
•Do not use mechanical devices or other means to accelerate the
defrosting process.
Disposal
•When discarding the appliance, remove the door gasket while
leaving the shelves and baskets in place and keep children away
from the appliance.
•Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can
cause suffocation.
Technical Safety
•Keep ventilation openings, in the appliance enclosure or in the
built-in structure, clear of obstruction.
•Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
•The refrigerant and insulation blowing gas used in the appliance
require special disposal procedures. Consult with service agent or
a similarly qualified person before disposing of them.

9
EN
•This appliance contains a small amount of isobutane refrigerant
(R600a), natural gas with high environmental compatibility, but it is
also combustible. When transporting and installing the appliance,
care should be taken to ensure that no parts of the refrigerating
circuit are damaged.
•Refrigerant leaking out of the pipes could ignite or cause an
explosion.
•If a leak is detected, avoid any naked flames or potential sources
of ignition and air the room in which the appliance is standing for
several minutes. In order to avoid the creation of a flammable gas
air mixture if a leak in the refrigerating circuit occurs, the size of
the room in which the appliance is used should correspond to the
amount of refrigerant used. The room must be 1 m² in size for
every 8 g of R600a refrigerant inside the appliance.
•The amount of refrigerant in your particular appliance is shown on
the identification plate inside the appliance.
•Never start up an appliance showing any signs of damage. If in
doubt, consult your dealer.
•This appliance is intended to be used in household and similar
applications only. It should not be used for commercial, or catering
purposes, or in any mobile application such as a caravan or boat.
•Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.

10
EN
CAUTION
To reduce the risk of minor injury to persons, malfunction,
or damage to the product or property when using this
product, follow basic precautions, including the following:
Installation
•Do not tilt the appliance to pull or push it when transporting.
•Make sure not to get a body part such as a hand or foot stuck
while moving the appliance.
Operation
•Do not touch frozen food or the metal parts in the freezer
compartment with wet or damp hands. It may cause frostbite.
•Do not place glass containers, bottles or cans (especially those
containing carbonated drinks) in the freezer compartment, shelves
or ice bin that will be exposed to temperatures below freezing.
•The tempered glass on the front side of the appliance door or the
shelves can be damaged by an impact. If it is broken, do not
touch it with wet hands, as this may result in injury.
•Do not place heavy objects on top of the door in door.
•Do not use the door in door as a chopping board and ensure it is
not scratched by a sharp tool, as this may cause appliance
damage.
•Do not hang from the appliance door, storage room, shelf or fridge
door in door or climb up into it.
•Do not store an excessive amount of water bottles or containers
for side dishes on the door baskets. The basket may break or
your hand may bump into the surrounding structure, causing
injury.

11
EN
•Keep food organized inside the appliance.
•Prevent animals from nibbling on the power cable or water hose.
•Do not open or close the appliance door with excessive force.
•If the hinge of the appliance door is damaged or operates
improperly, stop using the appliance and contact an authorized
service centre.
•Do not damage the refrigerant circuit.
•Do not place any electronic appliance (such as heater and mobile
phone) inside the appliance.
•Do not clean glass shelves or covers with warm water when they
are cold. They may break if exposed to sudden temperature
changes.
•Never eat frozen foods immediately after they have been taken
out in the freezer compartment.
•Do not insert your hands into the mechanical part of the automatic
icemaker such as the ice bin or the ice dispenser.
•Do not use a thin crystal cup or chinaware when dispensing.
•Do not remove the cover of the automatic icemaker. Touching any
mechanical part of the automatic icemaker. It may result in injury.
•Make sure not to get a hand or foot stuck upon opening or closing
the appliance door.
•Do not open the door of the appliance with the door in door open,
or do not open the door in door while the door of the appliance is
open. The door in door may be struck by the edge of the
appliance and damaged.

12
EN
Maintenance
•Do not insert the shelves upside down. The shelves may fall,
causing injury.
•To remove frost from the appliance, contact an LG Electronics
customer information centre.
•Dispose of the ice inside the ice bin in the freezer compartment
during an extended power outage.
•Connect the water supply line (for plumbed models only) to a
potable water source only. Otherwise, impurities in the water may
cause illness.
Disposal of Your Old Appliance
•This crossed-out wheeled bin symbol indicates that waste electrical and electronic
products (WEEE) should be disposed of separately from the municipal waste
stream.
•Old electrical products can contain hazardous substances so correct disposal of
your old appliance will help prevent potential negative consequences for the
environment and human health. Your old appliance may contain reusable parts that
could be used to repair other products, and other valuable materials that can be
recycled to conserve limited resources.
•You can take your appliance either to the shop where you purchased the product, or
contact your local government waste office for details of your nearest authorised
WEEE collection point. For the most up to date information for your country please
see www.lg.com/global/recycling.

13
INSTALLATION EN
Compartments
Movable Egg Box (Optional) Freezer Basket Owner's Manual
Spanner Ring Sheet
•The appearance or components of the appliance may differ from model to model.

14
EN
Notes for Movement and
Transport
•Remove all food from inside the appliance.
Then, transport the appliance only after fixing
fragile parts such as shelves and the door
handle with tape. Failure to do so may cause
appliance damage.
•Pull the power plug out, insert and fix it into
the power plug hook at the rear or on top of
the appliance. Failure to do so may cause
damage to the power plug or floor scratch.
•When transporting the appliance, more than
two people should transport the appliance
carefully. Dropping the appliance, which is
extremely heavy, may cause personal injury or
appliance failure.
•When transporting the appliance over a long
distance, keep the appliance upright. The
appliance may fall over, causing malfunctions.
Never transport the appliance laying down as
it can cause a refrigerant circulation
malfunction when it is turned back on again.
Notes for Installation
•Install the appliance on a solid and flat area.
−If the appliance is installed on an uneven
floor, it can cause vibration and noise
causing the appliance to fall resulting in
injury. It could also cause the doors not to
close correctly and introduce moisture inside
the unit during operation.
−If the appliance front or rear is not level,
adjust the front feet so that it can be
corrected. Severe cases may need the floor
to be packed out with strips of thin timber.
•Avoid placing the unit near heat sources,
direct sunlight or moisture.
•Connect the power supply cord (or plug) to
the outlet. Don't double up with other
appliances on the same outlet.
•After connecting the power supply cord (or
plug) to the outlet, Wait two or three hours
before you put food into the appliance. If you
add food before the appliance has cooled
completely, your food may spoil.
•After installing the appliance, connect the
power plug into a socket outlet. Before moving
and discarding the appliance, disconnect the
plug from the socket outlet.

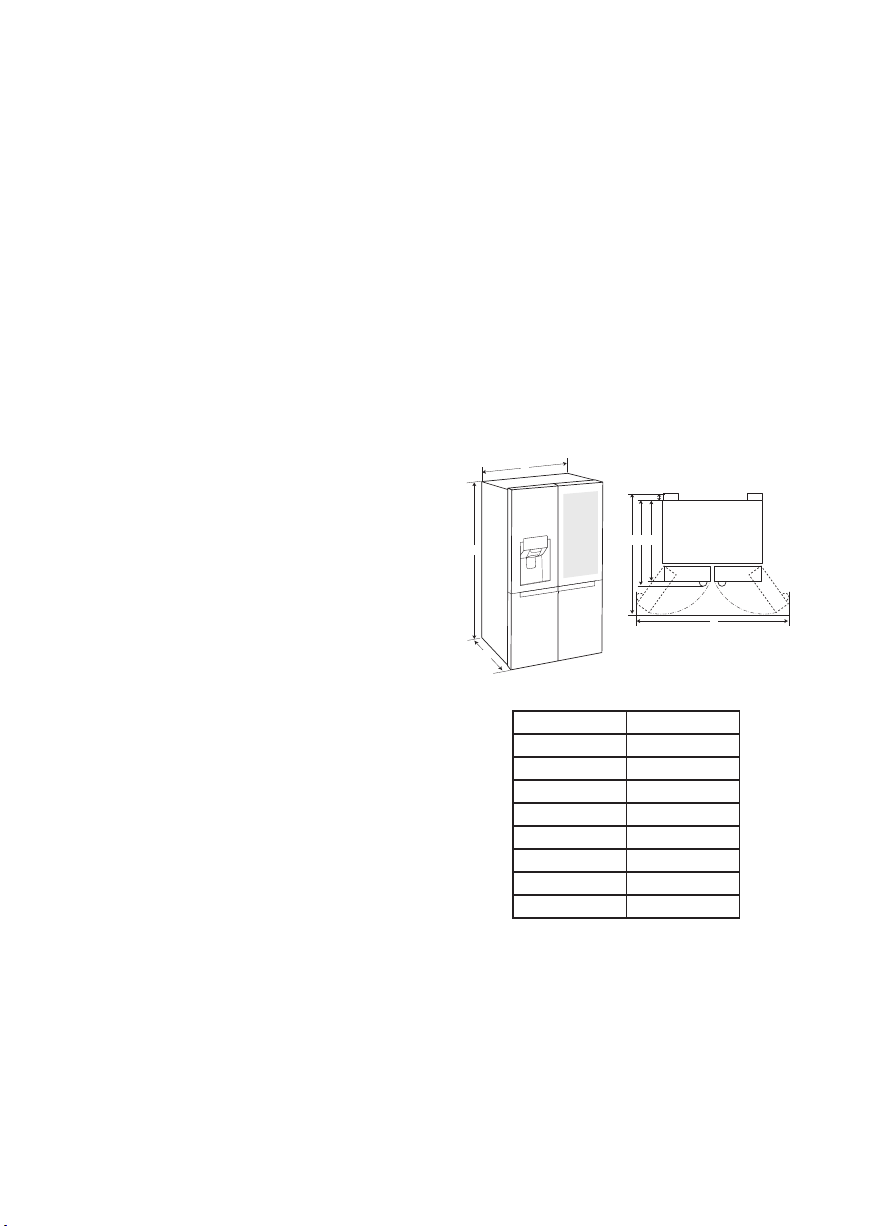

Dimensions and Clearances
Too small of a distance from adjacent items
may result in the degradation of freezing
capability and increased electricity costs. Allow
over 50 mm of clearance from each adjacent
wall when installing the appliance.
A
C
E
H
FG
B
D
- Size
A912 mm
B1790 mm
C738 mm
D10 mm
E718 mm
F728 mm
G1180 mm
H1750 mm

15
EN
Ambient Temperature
The appliance is designed to operate within a
limited range of ambient temperatures,
depending on the climate zone. Do not use the
appliance at a temperature exceeding the limit.
The internal temperature could be affected by
the location of the appliance, the ambient
temperature, the frequency of door opening and
so on.
The climate class can be found on the rating
label.
Climate Class Ambient Temperature
Range ºC
SN +10 - +32
N+16 - +32
ST +16 - +38
T+16 - +43
NOTE
•SN: Extended Temperate
•N: Temperate
•ST: Subtropical
•T: Tropical
Removing the Door
When it is necessary to move the appliance
through a narrow opening, removing the doors
are the recommended procedure.
WARNING
•Disconnect the power cord, house fuse or
circuit breaker before installing or servicing the
appliance. Failure to follow these instructions
may result in death, fire or electric shock.
If your entrance door is too narrow for the
appliance to pass through, remove the
appliance doors and pass the appliance
laterally.
[For freezer door only]
1Hold the 2 tube connectors at the bottom of
the appliance with your fingers and pull
them out so that the hoses can then be
carefully removed by following the
instructions in step 2.
2While pressing the collet part of the tube
connector, remove the connected water
tube.
Tube connector
Collet
Water tube
[For both freezer and fridge]
3Remove the screw of the hinge cover on
top of the appliance by rotating it
counterclockwise.

16
EN
4While pressing (1) hook of the link of the
electrical connectors, remove the link by
pulling it in both directions.
5Remove the hinge lever by tapping the end
of it toward the outside edge of the cabinet.
CAUTION
•When removing the upper hinge, be sure to
support the door as it will fall forwards. It is
recommended that two or more people carry
out the door removal and refitting.
6Lift the upper hinge fixed between the
appliance and the appliance door and then
remove it.
Upper hinge
Door
7Remove the freezer and fridge compartment
door by lifting it upward. At this time, the
door should be lifted enough for the steel
pipe to be completely pulled out.
NOTE
•When moving the freezer door, be careful not
to damage the water tubes. The doors should
be laid down on a blanket in a safe area once
they have been removed.
•If the water tube end is damaged, it should be
trimmed to ensure it does not leak when
refitted.
Not straight
Damaged
Stretched
Refitting the Door
Mount them in the reverse sequence of removal
after the appliance is passed through the
access door.
Adjusting the Height of the
Door
If the door of the appliance is not level, adjust
the difference in the height of appliance door
using the following method.
NOTE
•Because the hinge pin may falll out, do not
adjust the height of the appliance door more
than 5 cm.

17
EN
[Method1]
*Reference
Spanner
Keeper nut
Adjustment hinge pin
1Loosen the keeper nut by rotating it
counterclockwise using a 19 mm spanner.
To loosen the nut
2Adjust the difference in the height of the
appliance door by rotating the adjustment
hinge pin clockwise or counterclockwise
with an 8 mm spanner.
Up
Down
3After adjusting the difference in the height
of the appliance door, fasten the keeper nut
by rotating it clockwise.
To tighten the nut
If it is impossible to adjust the height of the
appliance door through the above method, level
the door according to the following guide.
[Method2]
1When the appliance door is removed,
loosen the screw at the bottom of the lower
hinge.
2Insert the appropriate number of ring sheets
between the lower hinge and the lower
bracket. (Total number of ring sheets: 4)
Ring sheet
Lower
hinge
Lower
bracket
3Resecure the bracket screw after fitting the
ring sheets before refitting the door. When
the door is refitted, steps 1,2 and 3 of
adjusting the height of the door can then be
repeated.
CAUTION
•When tilting the appliance backward to loosen
the screw at the bottom of the appliance, two
or more people should hold the handles at the
bottom and rear top side of the appliance.

18
EN
Connecting the Water Line
(For Plumbed models Only)
Accessories
Water Filter Water Tube
Tube Connector Clip
Water Supply Requirements
A cold water supply with water pressure
between 138 kPa and 827 kPa (1.4-8.4 kgf/cm²)
is requried to operate the water dispenser. If the
refrigerator is installed in an area with low water
pressure (below 138 kPa), you can install a
booster pump to compensate for the low
pressure.
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs
to be a minimum of 138 kPa to 827 kPa
(1.4-8.4 kgf/cm²)
WARNING
•Unplug the appliance before carrying out any
work on connecting the water line. Failure to
do so may cause electric shock.
•Only connect the water line to a cold water
supply. Failure to do so may cause the water
filter to malfuction. Water hammer (water
banging in the pipes) in house plumbing can
cause damage to appliance parts and can
lead to water leakage or flooding.
•Connecting the water line must only be
installed by a qualified plumber and in
accordance with local legislation and
regulations governing water quality.
NOTE
•This water line installation is not covered by
the appliance warranty.
Connecting to the Appliance
1Unscrew the metal threaded collar nut at
the back of the appliance and place it over
one end of the water tube.
2Firmly push the water tube onto the water
inlet valve and tighten up the collar nut.
Connecting to the Water Filter
There are two types of filters. The methods of
connection are different. One has a threaded
plastic nut fitting and the other uses a self
locking push fit connectors. The filter is marked
with the direction of the water flow from the
water tap to the appliance.
<Nut Type>
1Unscrew the threaded connector and place
it over the end of the cut section of pipe
coming from the appliance. Push the pipe
over the end of the filter that the flow arrow
points to and tighten up the threaded
connector.
2Repeat the same process on the other end
of the filter using the remainder of the water
tube.

19
EN

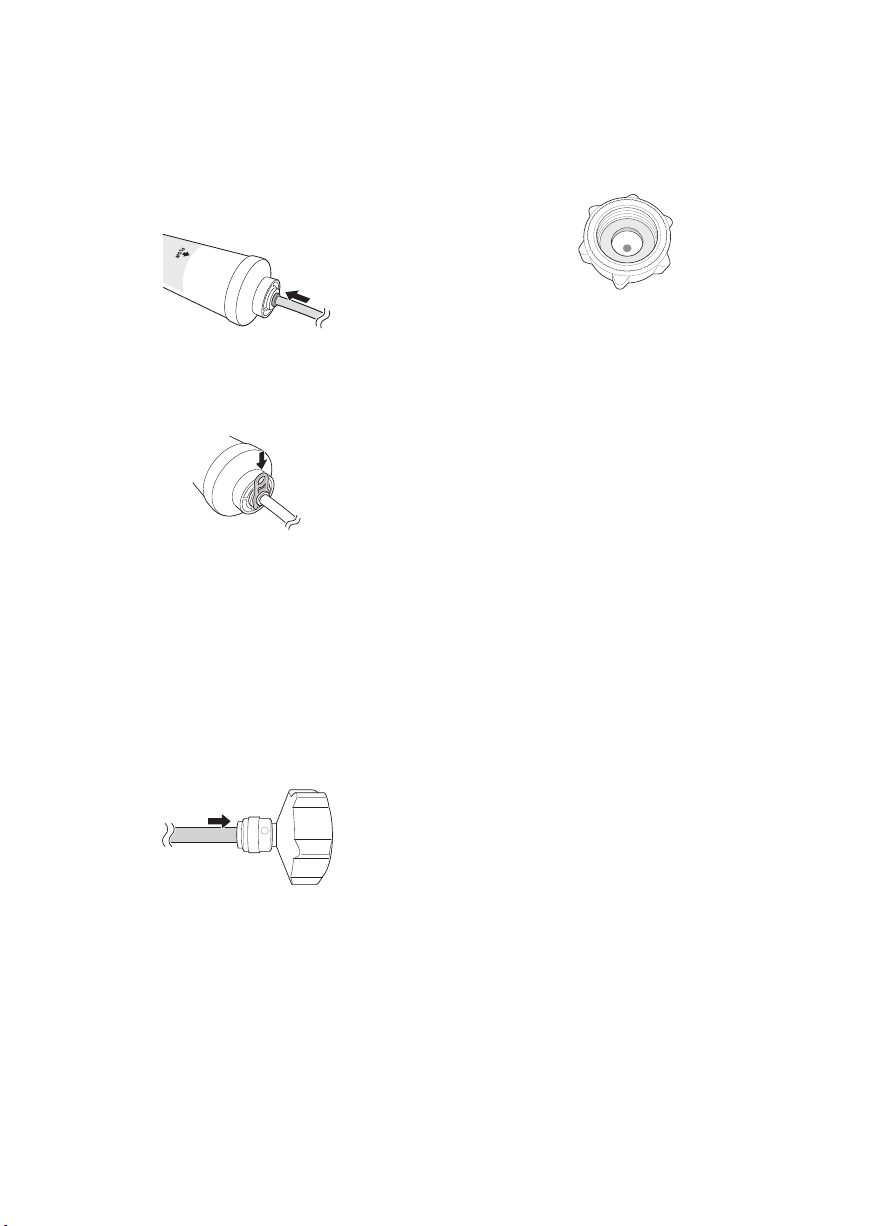

<Push fit Connector Type>
1Firmly push the water tube connected from
the appliance into the end that has the
arrow pointing outward. Push the tube all
the way in (approx. 10-12 mm).
2After inserting the tube securely into the
filter, fit the locking clip into position under
the pull up collar.
3Repeat on the other end of the filter using
the remainder of the water tube.
Connecting to the Water Tap
1Push the water tube into the hole of the tap
connector supplied in the accessories. The
pipe should be held firmly whilst the
connector is pushed onto the pipe.
2Ensure that the rubber washer is fitted
inside to the inside of the tap connector
before screwing it onto the tap.
Checking the Water Connection
1Turn on the water supply and switch on the
appliance. Carefully check all fittings for
possible leaks due to poorly fitted hoses.
2Press and hold the Water Filter button for
three seconds. That resets the Replacement
Filter icon. The new water filter has been
activated.
3Place a cup under the water dispenser to
verify that water is flowing throughthe
appliance.
4Check the connecting tube and joints for
leaks once again.
5The water filter should be fixed at a
appropriate place where it is easy to reach
for replacement purposes.

20
OPERATION EN
Parts and Functions
Control Panel
To set the freezer and fridge temperatures.
Door in Door (Optional)
The Door in Door is a double layered door system. It can be opened individually or together with
the main door. You can conveniently locate and access your favourite snacks or food items.
Door in Door Lever (Optional)
This lever opens Door in Door.
•The appearance or components of the appliance may differ from model to model.
1
2
3
