OWNER’S MANUAL
SXS
REFRIGERATOR
Please read this owner's manual thoroughly before
operating and keep it handy for reference at all times.
www.lg.com
P/No. : MFL68029533
ENGLISH
ESPAÑOL
SVENSKA
POLSKI
ROMÂNĂ
FRANÇAIS
ΕΛΛΗΝΙΚΆ
SUOMI
SLOVENČINA
SPRSKI
SHQIP
DEUTSCH
PORTUGUESE
NORSK
ČESKÝ
БЪЛГАРСКИ
HRAVATSKI
ITALIANO
NEDERLANDS
DANSK
MAGYAR
SLOVENŠČINA
МАКЕДОНСКИ

Electrical Connections
1
ENGLISH
The wires in this mains lead are coloured in accordance with the following code:
As the colours of the wires in the mains lead of this apparatus may not correspond
with the coloured markings identifying the terminals in your plug, proceed as
follows:
The wire which is coloured Green and Yellow must be connected to the terminal in
the plug which is marked with the letter E or by the earth symbol(
) or coloured
Green or Green and Yellow.
The wire which is coloured Blue must be connected to the terminal which is marked
with the letter N or coloured Black.
The wire which is coloured Brown must be connected to the terminal which is
marked with the letter L or coloured Red.
If a 13 amp(BS 1363) plug is used, fit a 13 amp BS 1362 fuse.
GREEN AND YELLOW : EARTH
BLUE : NEUTRAL
BROWN : LIVE
This appliance must be earthed.
Important
(In the UK Only)
Green and Yellow(Earth)
Brown(Live)
Blue(Neutral)
Fuse
Cord grip
1_MFL67795101_Eng.indd 1 2013.4.15 9:5:43 AM
ENGLISH

2
Entry
Important safety instructions
Identification of parts
Where to Install
Feed water pipe installation
Auto ice maker
Freezer Compartment (Applicable to some models only)
Two stars section (Applicable to some models only)
General information
Suggestion for energy saving
Cleaning
Smart Diagnosis
Disposal of your old appliance
Table of contents
3
3
6
7
8
9
10
8
10
11
11
12
13
1_MFL67795101_Eng.indd 2 2013.4.15 9:5:43 AM
Viewing the owner’s manual.
The owner’s manual in a PDF file format is supplied on a CD.
Install the Adobe Acrobat Reader to view the owner’s manual on your PC.
1. Insert the supplied CD.
The web page appears automatically.
2. Click Owner’s Manual on the web page.
3. View the owner’s manual.
If the web page does not appear automatically, access My computer and then click
LG and index.htm to view the owner’s manual.
ADDITIONAL INFORMATION OF THE MANUAL
ENGLISH

Introduction
3
Entry
The model and serial numbers are found on the inner case on the back or one side
of the refrigerator compartment of this unit. These numbers are unique to this
unit and are not available to others. You should record requested information here
and retain this guide as a permanent record of your purchase. Staple your receipt
here.
Date of purchase :
Dealer purchased from :
Dealer address :
Dealer phone no. :
Model no. :
Serial no. :
Important safety instructions
Before it is used, this refrigerator must be properly installed and located in accordance
with the installation instructions in this document. This Refrigerator is intended for
Domestic indoor use only.
Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and
pull it straight out from the outlet.
When moving your appliance away from the wall, be careful not to roll over the power
cord or to damage it in any way.
After your refrigerator is in operation, do not touch the cold surfaces in the freezer
compartment, particularly when your hands are damp or wet. Skin could adhere to these
extremely cold surfaces.
Unplug the power cord from the power outlet for cleaning or other maintenance. Never
touch the appliance with wet hands as you may receive an electric shock or injure
yourself.
Never damage, press, severely bend, pull or twist the power cord as damage to the cord
may cause a fire or electric shock. Naver touch the cord if you are uncertaim if the
appliance is correctly earthed.
The fuse on the refrigerator must be changed by a qualified technician or service
company.
- Failing to do so may result in electric shock or personal injury.
Never place glass items in the freezer as they may break due to expansion of their
contents on freezing.
Never put your hands into the storage bin of the automatic ice maker as you could be
injured during its operation.
The appliance is not intended for use by young children or infirm persons without
supervision.
Young children should be supervised to ensure that they do not play with the appliance.
Never allow anyone to climb, sit, stand or hang on the refreshment centre door. These
actions may damage the refrigerator and even tip it over, causing severe personal injury.
Child entrapment
WARNING
1_MFL67795101_Eng.indd 3 2013.4.15 9:5:43 AM
ENGLISH

Introduction
4
DANGER: Risk of child entrapment.
Before you dispose of your old refrigerator please remove doors but leave the shelves in
place so that children cannot climb inside.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not store or use gasoline or other flammable vapour and liquids in the vicinity of this
or any other appliance.
In the event of an electric short circuit, grounding (earthing) reduces the risk of electric
shock by providing an escape wire for the electric current.
In order to prevent possible electric shock this appliance must be earthed. Improper
connection of the earthing plug can cause electric shock. Consult a qualified electrician
or service engineer if the earthing instructions are not completely understood, or if you
have doubts as to whether the appliance is properly earthed.
Do not move refrigerator while the refrigerator is operating.
Compressor may occur a temporary rattling noise.
(This is normal and will not impact on the performance or the life of the compressor.
The rattling will stop after the refrigerator comes to a rest.)
It is advised that this appliance should be connected through an independent power
socket to prevent it and other appliances from overloading the circuit and causing a
power outage.
The appliance should be positioned so that the supply plug is easily accessible for quick
disconnection should an accident occur.
If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
Do not modify or extend the Power Cord length. It may cause electric shock or fire.
Connect the power plug in proper position with the cord hanging down.
-
If you connect the power plug upside down, wire can get cut off and cause fire or
electric shock.
Make sure that the power plug is not squashed or damaged by the back of the
refrigerator.
Child entrapment
Don’t store
Grounding
(Earthing)
Don’t use an
extension cord
WARNING
WARNING
WARNING
WARNING
Accessibility of
Supply Plug
Supply Cord
Replacement
1_MFL67795101_Eng.indd 4 2013.4.15 9:5:44 AM
ENGLISH

Introduction
5
•
Keep ventilation openings in the room where the appliance is installed clear of
obstruction.
•
Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
•
Do not damage the refrigerant circuit.
•
Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
•
Disposal procedures. If disposing of this appliance, please consult with a service
agent or a similarly qualified person for more details.
•
Do not store explosive substances such as aerosol cans with a flammable propellant
in this appliance.
•
Do not use aerosols near the refrigerator.
- Aerosols used near the refrigerator may cause an explosion or fire.
This appliance may contain (Check the rating/comliance label for the refriger-ant type
and amount. Applicable to some models only) a small amount of isobutane refrigerant
(R600a), natural gas with high environmental compatibility, but it is also combustible.
When transporting and installing the appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes
could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or
potential sources of ignition and air the room in which the appliance is standing for
several minutes.
In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating
circuit occurs, the size of the room in which the appliance may be sited depends on the
amount of refrigerant used. The room must be 1m2in size for every 8g of R600a
refrigerant inside the appliance. The amount of refriger-ant in your particular appliance is
shown on the Identification plate inside the appliance. Never start up an appliance
showing any signs of damage. If in doubt, consult your dealer.
WARNING
1_MFL67795101_Eng.indd 5 2013.4.15 9:5:44 AM
ENGLISH

Introduction
6
1_MFL67795101_Eng.indd 6 2013.4.15 9:5:45 AM
Freezer
Compartment
Refrigerator
Compartment
Lower cover
Dairy Corner
Filter
LED Panel
Shelf
Refreshment Centre
(Optional)
No Plumbing
Ice & Water (Optional)
Shelf
Door rack
Door rack
Door rack
Egg Tray
LED Panel
Vegetable drawer
Space plus
Door rack
Automatic
ice maker
Door rack Vegetable drawer
Identification of parts
Parts,features, and options vary by model. Your model may not include every option.
NOTE
Freezer
Compartment
Refrigerator
Compartment
Automatic Icemaker
Extra
door rack (Optional)
Shelf
LED Lamp
Door rack
Drawer (2)
Door rack
Shelf
Wine rack (Optional)
Shelf
Egg Box (Optional)
Refreshment center
(Optional)
No Plumbing Ice &
Water (Optional)
LED Lamp
Dairy Corner
Door Rack
Door Rack
Door Rack
Vegetable drawer
Process of freezing
occurs the fastest
on the marked shelf
Process of freezing
occurs the fastest
on the marked shelf
Model: GSL54*****, GSP54*****, GWL31****, GWP31****
Model: GSL32*****, GSP32*****, GWL27****, GWP27****
ENGLISH

Installation
7

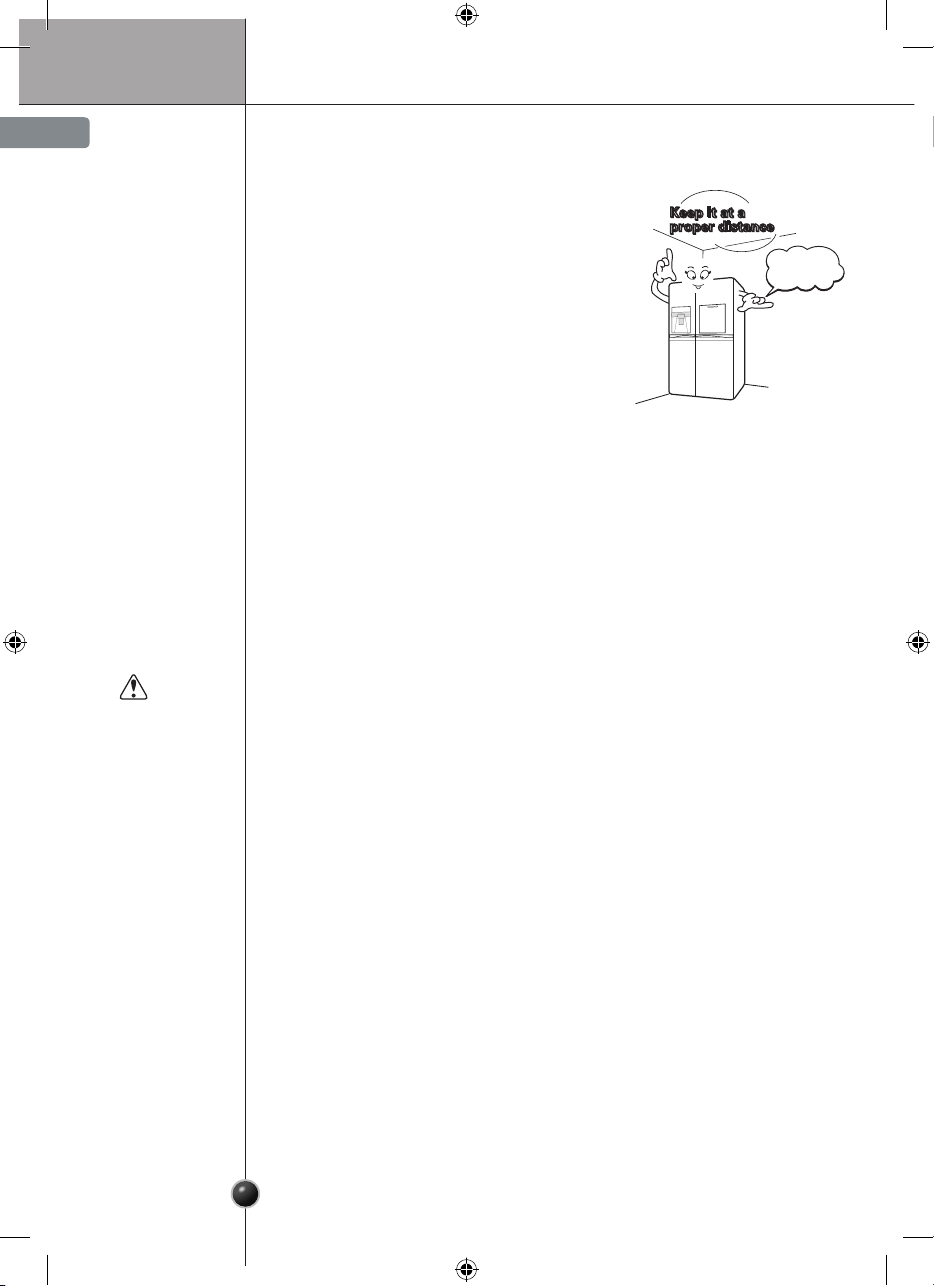

1. Place your appliance where it is easy to use.
2. Avoid placing the unit near heat sources, di-rect
sunlight or moisture. Do not operate the appliance
outdoors where it can be exposed directly, or
indirectly to sun, wind and rain.
3. To ensure proper air circulation around the
fridge-fteezer, please maintain sufficient space
on both the sides as well as top and maintain at
least 2 inches (5 cm) from the rear wall.
4. To avoid vibrations, the appliance must be levelled.
5.
Do not install the appliance in temperatures of less than 5°C as the
performance may be affected.
Select a good
location
Where to Install
Disposal of the
old appliance
Before
Installation
Appliance
usage range
This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials
which are reusable and/or recyclable.
All the packaging materials should be sent to the collection centre for recycling. For
details of your local recycling centre, please contact your local council.
Ensure that none of the pipes on the back of the appliance are damaged prior to
disposal.
The appliance must be positioned so that the plug is accessible after installation.
Never use gas pipes, telephone lines or other potential lightening rods as ground.
- Improper use of the ground plug can result in electric shock.
If the appliance generates a strange noise, a burning or smell or smoke, unplug the
power plug immediately and contact your nearest service center.
If any dust or water is in refrigerator, pull out power plug and contact your LG Electronics
service center.
- There is a risk of fire.
The water supply to this refrigerator must only be installed/connected by a suitably
qualified person and connect to a potable water supply only.
Use only the ice maker provided with the refrigerator.
When installing, servicing or cleaning behind the refrigerator, be sure to pull the unit
straight out and push back in straight after finishing.
After unpacking, keep the packing materials out of reach of children.
- There is a risk of death from suffocation if children put them over their head.
This appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.
More than
5 cm to back
WARNING
Keep it at a
proper distance
Keep it at a
proper distance
1_MFL67795101_Eng.indd 7 2013.4.15 9:5:45 AM
ENGLISH

Instalacja
8
2-MFL67788701_POLISH.indd 8 2013.5.3 1:51:33 PM
Feed water pipe installation
/fgk5.8~5.1(aPk438~741foerusserpretawsdeennoitareporekamecicitamotuA
cm2) (The pressure is correct when an instant papercup (180 cc) is in 3 sec.).
mc/fgk5.1(aPk741gnitarehthcaertonseoderusserpretawfI 2) or below, it is
necessary to purchase a separate pressure pump for normal automatic icing and cool
water feed.
Keep the total length of the feed water pipe tube within 8 m and be careful that the
tube does not bend. If the tube is 8 m or longer it may cause water feed problems
owing to the drain water pressure.
Install the feed water pipe tube at a place free from heat.
Connectto drinking water supply only.
.noitallatsniroftikretlifretawhtiwsnoitcurtsniotrefeR
.ruolocemashctamebutretawehttahtluferaceB
.denimaxeebdluohssecalpesehtniegakaeleht,desugnieberofeB
.NOITALLATSNIENILRETAWrevoctonseodytnarraWGL
The cost of connection to a water supply is at the customer expense, unless included
in the delivery charge (refer to the delivery agreementwiththe seller)
.dedeenfinoitallatsniehtrofrellatsnIdesirorhtuarorebmulPtcatnocesaelP
.rellatsnitcatnocesaelP,noitallatsnireporpmioteudsruccoegakaelretaWfI
•
Connect to potable water supply only. (for Plumbing Type)
•
Fill with potable water only. (for Non-Plumbing Type)
WARNING
Before
Installation
Auto Ice maker
Precautions
when using the
dispenser
(on some model)
To get cold water
The dispensed water will not be icy cold, but just cool or cold. If you want colder water,
dispense ice before dispensing water.
If you have difficulty in replacing the ice storage bin
Rotate the rotary gear in 1/4 cycle as shown in the illustration and then push it back.
•
Figure depends on model.
NOTE
󰴤󰴥
•
Do not put your hands into the Ice maker during operation. You may injure yourself.
•
Do not store ice (cubes) for longer than two weeks., they can cause the dispenser to
malfunction as the ice cubes clump together.
WARNING
ENGLISH

9
Po ustawieniu
wysokoci drzwi
OSTRONIE
2-MFL67788701_POLISH.indd 9 2013.5.3 1:51:34 PM
•
Naver insert your hand or any other object into the ice chute as this may damage
dispenser parts or cause injury to the hand.
•
If ice is discoloured, stop using the dispenser and call the service centre.
•
Do not touch the blade
฀
a
฀ as it may injure
the hand.
•
Naver insert your hands into the ice maker
during operation. It may cause injury
 .
•
Do not allow your children to hang off the ice
dispenser or the ice storage bin. This could
cause injury.
When the ice dispenser will not operate properly
It is normal that the ice maker will not operate correctly when there is only a small
amount of ice left in the storage bin. Allow approximately one day for the ice maker to
restock.
If the ice forms into a solid lump and interrupts the operation of the automatic ice maker
mechanism, remove the ice storage bin, separate the ice, discard the inseparable ice,
and put the usable ice pieces back into the bin. The intermittent dispensing of ice is
normal. However, since ice may get stuck and block the ice chute, regularly check the
ice chute and clear any obstacles.
WARNING
•
Figure depends on model.
NOTE
󰴤󰴥
Freezer Compartment (Applicable tosome models only)
If a large quantityof food is to be placed in the freezer
compartment:
The middle drawer of freezer compartment shall be taken out of
the appliance and food shall be stacked directlyon the wire shelf.
Freezer compartment provides wire shelf on default to maximize
food storage capacity. And also the drawer is provided to
convenient usage for watery meat or half-liquid state food.
If there is already food in the compartment, please set freezer to
the coldest condition (depends of type: -23/-24°C) and press on
"Express frz" button several hours before placing fresh produce
in the freezer compartment to get maximum capacity.
As a rule 4hours is adequate.
Max Freezing
capacity
Operation
ENGLISH
