LG LDN20718 Series User manual

P/No. MFL61944101
BOTTOM FREEZER
REFRIGERATOR
Please read this guide thoroughly
before operating and keep it handy for
reference at all times.
Models / Modèles
CONGÉLATEUR
INFÉRIEUR
RÉFRIGÉRATEUR
Veuillez lire ce manuel en entier avant de mettre
en marche l’unité et conservez-le à portée de la
main pour le consulter à tout moment.
LDN20718**, LDC22738**
Owner’s Manual
Manuel d’utilisateur
LBN20517**, LBN20518**

2
TABLE OF CONTENTS
English Version 2
Warranty (CANADA) 3
Safety Instructions 5 -6
Grounding Requirements 6
Parts and Features 7 - 9
Refrigerator Installation 10-17
Unpacking Your Refrigerator 10
Installation 10
Base Grille 10
Removing, Reversing and Replacing
Your Refrigerator Doors 11 -17
Door Closing and Alignment 17
Using Your Refrigerator 18 -25
Ensuring Proper Air Circulation 18
Multi Flow
Door Alarm
18
18
Setting the Controls 18 -19
Adjusting Control Settings 19
Food Storage Guide 20
Storing Frozen Food 20
Refrigerator Shelves 21
Chef Fresh / Snack Pan 22
Crisper Humidity Control 22
Optibin Crisper 22
Crisper cover with lattice on inner surface 23
Door Racks 23
Design-A-Door 23
Dairy Bin 24
Ice Bin 24
DuraBase 24
Tilting Door 25
Wire Durabase 25
DuraBase Divider 24
Frezzer Shelf 25
Care and Cleaning 26 -27
General Cleaning Tips 26
Outside 26
Inside Walls 26
Door Liner and Gaskets 26
Plastic Parts 26
Condenser Coils 26
Light Bulb Replacement 26 -27
Power Interruptions 27
When you go on vacation 27
About the Custom Cube Icemaker 28
Connecting the Water Line 29 -31
Troubleshooting Guide 32 -35
French Version 36
Guide-Out Drawer Basket 25

3
visit our web site/http://www.lg.ca LG Electronics
LIMITED WARRANTY
CANADA
LG Electronics will repair or at its option replace, without charge, your product which proves to be defective
in material or workmanship under normal use during the warranty period listed below from the date of
original purchase.
This warranty is good only to the original purchaser of the product during the warranty period as long as it is
in Canada.
WARRANTY PERIOD:
REFRIGERATOR/FREEZER
LABOR: One Year from the Date of Purchase.
PARTS: One Year from the Date of Purchase.
SEALED SYSTEM (Compressor, Condenser, and Evaporator)
LABOR: One Year from the Date of Purchase.
PARTS: Seven years from the Date of Purchase.
Replacement Units and Repair Parts are warranted for the remaining portion of the original unit’s warranty
period.
No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES.
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF
THE EXPRESS WARRANTY HEREIN. LG ELECTRONICS SHALL NOT BE LIABLE FOR THE LOSS OF
USE OF THE PRODUCT, INCONVIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR
CONSEQUENTIAL, ARISING OUT OF THE USE OF OR INABILITY TO USE, THIS PRODUCT OR FOR
ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY
OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT.
Some States do not allow the exclusion or limitation of incidental or consequential damages or limitations on how
long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you
specific legal rights and you may also have other rights which vary from state to state.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
• Service trips to your home to deliver, pick up, and/or install the product, instruct, or replace house fuses or correct
wiring, or correction of unauthorized repairs.
• Damages or operating problems that result from misuse, abuse, operation outside environmental specifications or
contrary to the requirements of precautions in the Operating Guide, accident, vermin, fire, flood, improper installation,
acts of God, unauthorized modification or alteration, incorrect electrical current or voltage, or commercial use, or use
for other than intended purpose.
• Repairs when your LG refrigerator is used in other than normal, single-family household use.
• Damages caused during and/or after delivery.
• Display, discount, or refurbished units purchased with scratches, dents, or defects.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
Proof of purchase is required and must be provided to LG in order to validate warranty.
CUSTOMER ASSISTANCE NUMBERS:
To obtain Warranty Coverage: Retain your Bill of Sale to prove date of purchase.
A Copy of your Sales Receipt must be submitted at the time
warranty service is provided.
To obtain Product or Customer Call 1-888-542-2623
Service Assistance: Press the appropriate menu option, and have your product type
(Refrigerator), model number, serial number, and ZIP/Postal
Code ready.
To obtain the nearest Call 1-888-542-2623
Authorized Service Center: Press the appropriate option, and have your product type
(Refrigerator), model number, serial number, and ZIP/Postal
Code ready.

4
Visiter notre site internet /http : //www.lg.ca LG Electronics
GARANTIE LIMITÉE
CANADA
LG Electronics réparera ou remplacera à sa convenance, sans charge aucune, votre appareil après constatation d’un
défaut de fabrication ou d’un défaut matèriel sous les conditions normales d’usage durant la période de couverture de
la garantie mentionnée ci-dessous à partir de la date originale d’achat.
Cette garanti ne s’applique qu’au Canada et ne protège que l’acheteur original du produit pour la période spécifiée.
PÉRIODE DE GARANTIE:
RÉFRIGÉRATEUR/CONGÉLATEUR
MAIN D'OEUVRE: Un an à partir de la date d'achat.
PIÈCES: Un an à partir de la date d'achat.
SYSTÈME SCELLÉ (Compresseur, condenseur et évaporateur)
MAIN D'OEUVRE: Un an à partir de la date d'achat.
PIÈCES: Sept ans à partir de la date d'achat.
Les pièces de rechange ou réparées sont garanties pour la période de temps restant sur la période de garantie
originale de l'unité.
Aucune autre forme de garantie ne peut être appliquée à ce produit. La durée d’une supposee garantie incluant la
supposée garantie commerciale, est limitée à la seule durée mentionnée dans ce document. LG Electronics ne peut en
aucun cas être tenu responsable de la perte d’utilisation ou des dommages directs ou conséquents survenant en
dehors des conditions normales d’usage.
Certains Etats ne permettent pas l’exclusion ou la limitation secondaire ou les dommages conséquents ou restrictions
sur la durée supposée d’une garantie ; ces restrictions ou exclusions ne devraient pas vous être applicables. Cette
garantie vous donne des droits bien précis et vous devriez aussi bénéficier d’autres droits qui varient d’Etat à Etat.
CETTE GARANTIE LIMITÉE NE S'APPLIQUE PAS:
• Aux déplacements du service technique vers votre maison pour livrer, retirer et/ou installer le produit, pour vous
instruire, pour remplacer les fusibles de la maison ou effectuer un câblage correct ou pour la correction de réparations
non autorisées;
• Aux dommages ou aux problèmes de fonctionnement résultant d'une mauvaise utilisation, d'un emploi abusif, de la
mise en marche de l'unité en dehors des spécifications d'ambiance ou dans des conditions contraires aux conditions
requises ou aux précautions indiquées dans le Mode d'Emploi, d'un accident, de la vermine, d'un incendie, d'une
inondation, d'une installation incorrecte, des cas de force majeure, d'une modification ou altération non autorisée, d'un
courant électrique ou tension incorrects, d'une utilisation commerciale ou de tout usage différent de celui pour lequel
l'unité a été conçue;
• Aux réparations effectuées lorsque votre réfrigérateur LG subi une utilisation autre que l'utilisation normale par un
ménage unifamilial.
• Dommages causés pendant ou après la livraison.
• Affichage, remise ou les appareils soldés achetés avec des rayures, des marques ou des défauts.
Les coûts des réparations ou des remplacements sous ces circonstances exclues seront supportés par le consommateur.
Une preuve d’achat est exigée et doit être fournie à LG pour valider la garantie.
ASSISTANCE A LA CLIENTÈLE
Pour l’obtention des informations Conserver votre facture pour témoigner de la date d’achat.
sur la garantie : Une copie de votre facture d’achat devra être soumise lorsque
le service sous garantie sera rendu.
Pour l’obtention du produit ou Appeler au 1-888-542-2623
l’assistance clientèle : choisir l’option appropriée et tenir à votre disposition le type
de produit (Réfrigérateur), le numéro de modèle, de série et
votre code postal.
Pour l’obtention du Centre de Appeler au 1-888-542-2623
Service Autorisé le plus proche: choisir l’option appropriée et tenir à votre disposition le type
de produit (Réfrigérateur), le numéro de modèle, de série et
votre code postal.

This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you
of hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word DANGER, WARNING, CAUTION. These words mean:
All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if
the instructions are not followed.
SAFETY MESSAGES
WARNING
To reduce the risk of fire, electric shock, or injury
to persons when using your product, basic safety
precautions should be followed, including the following:
NEVER unplug your refrigerator by pulling on the power cord.
Always grip the plug firmly and pull it straight out from the
outlet.
Repair or replace immediately all electric service cords that
have become frayed or otherwise damaged. Do not use a cord
that shows cracks or abrasion damage along its length or at
either the plug or connector end.
When moving your refrigerator away from the wall,
be careful not to roll over or damage the power cord.
DO NOT store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
DO NOT allow children to climb, stand or hang on the
refrigerator doors or shelves in the refrigerator. They could
damage the refrigerator and seriously injure themselves.
Keep fingers out of “pinch point” areas; clearances between
Unplug your refrigerator before cleaning or making any repairs.
NOTE: We strongly recommend that any servicing be
performed by a qualified individual.
Before replacing a burned-out light bulb, unplug the
refrigerator or turn off power at the circuit breaker or fuse box
in order to avoid contact with a live wire filament. (A burned-
out light bulb may break when being replaced.) NOTE: Setting
either or both controls to the OFF position does not remove
power to the light circuit.
Read all instructions before using this appliance.
Use this appliance only for its intended purpose as described
in this use and care guide.
After your refrigerator is in operation, do not touch the cold
surfaces in the freezer compartment when hands are damp or
wet. Skin may adhere to the extremely cold surfaces.
In refrigerators with automatic icemakers, avoid contact with
the moving parts of the ejector mechanism, or with the heating
element that releases the cubes. DO NOT place fingers or
hands on the automatic icemaking mechanism while the
refrigerator is plugged in.
DO NOT refreeze frozen foods which have thawed completely.
The United States Department of Agriculture in Home and
Garden Bulletin No. 69 says:
“...You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold below
40°F (4°C).”
“...Thawed ground meats, poultry, or fish that have any off-odor
or off-color should not be refrozen and should not be eaten.
Thawed ice cream should be discarded. If the odor or color of
any food is poor or questionable, get rid of it. The food may be
dangerous to eat.”
“Even partial thawing and refreezing reduces the eating quality
of foods, particularly fruits, vegetables and prepared foods.
The eating quality of red meats is affected less than that of
many other foods. Use refrozen foods as soon as possible to
save as much of their quality as you can.”
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
5
the doors and cabinet are necessarily small. Be careful
when you open the doors when children are in the area.
For personal safety, this appliance must be properly grounded.
Have the wall outlet and the circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
Do not store bottles in the freezer compartment - they may
break when frozen, causing damage.
WARNING
CAUTION
You can be killed or seriously injured if you don’t follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
may result in minor or moderate injury, or product damage only.
DANGER You will be killed or seriously injured if you don’t follow instructions.

Your old refrigerator may have a cooling system that used If you are throwing away your old refrigerator, make sure
CFCs (chlorofluorocarbons). CFCs are believed to harm the CFC refrigerant is removed for proper disposal by a
stratospheric ozone. qualified servicer. If you intentionally release this CFC
refrigerant, you can be subject to fines and imprisonment
under provisions of environmental legislation.
DANGER: RISK OF CHILD ENTRAPMENT
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER
Take off the doors.
Leave the shelves in place so that
children may not easily climb inside.
CFC DISPOSAL
GROUNDING REQUIREMENTS
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous... even if they will sit for “just a few days”. If
you are getting rid of your old refrigerator, please follow
the instructions at right to help prevent accidents.
6
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires. It is recommended that a
separate circuit serving only this appliance be provided.
Use a receptacle which cannot be turned off with a switch
or pull chain. Do not use an extension cord.
WARNING
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be
properly grounded. Have the wall outlet and the
circuit checked by a qualified electrician to make sure
the outlet is properly grounded.
Ensure proper
ground exists
before use.
3-prong
grounding
plug
3-prong
grounding type
wall receptacle
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have it
replaced with a properly grounded three-prong wall outlet.
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turn the control
(Thermostat, Refrigerator Control or Freezer Control,
depending on the model) to OFF and then disconnect the
refrigerator from the electrical source. When you are
finished, reconnect the refrigerator to the electrical source
and reset the control (Thermostat, Refrigerator Control or
Freezer Control, depending on the model) to the desired
setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, we strongly recommend against the use of
an extension cord.
WARNING
POWER CORD REPLACEMENT
If the power cord is damaged, it must be replaced
by the manufacturer, by our service center or by
qualified personal by LG Electronics, to avoid some
risk.
However, if you still elect to use
an extension cord, it is absolutely necessary that it be
a UL-listed (in the United States) or ACNOR (Canada),
3-wire grounding type appliance extension cord having a
grounding type plug and outlet, and that the electrical rating
of the cord be 15 amperes (minimum) and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.

Ice Bin
Durabase
Divider
Egg Box
Refrigerator Door Rack
Freezer Light
Pull out Drawer
*on some models
7
B
C
D
A
F
E
Use this section to become more familiar with the parts and features.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some
or all of the items listed below. The locations of the features shown below may not match your model.
PARTS AND FEATURES
G
H
I
J
K
M
N
L
O
P
Q
R
A
B
C
D
E
F
G
H
J
L
N
O
P
K
M
I
Q
R

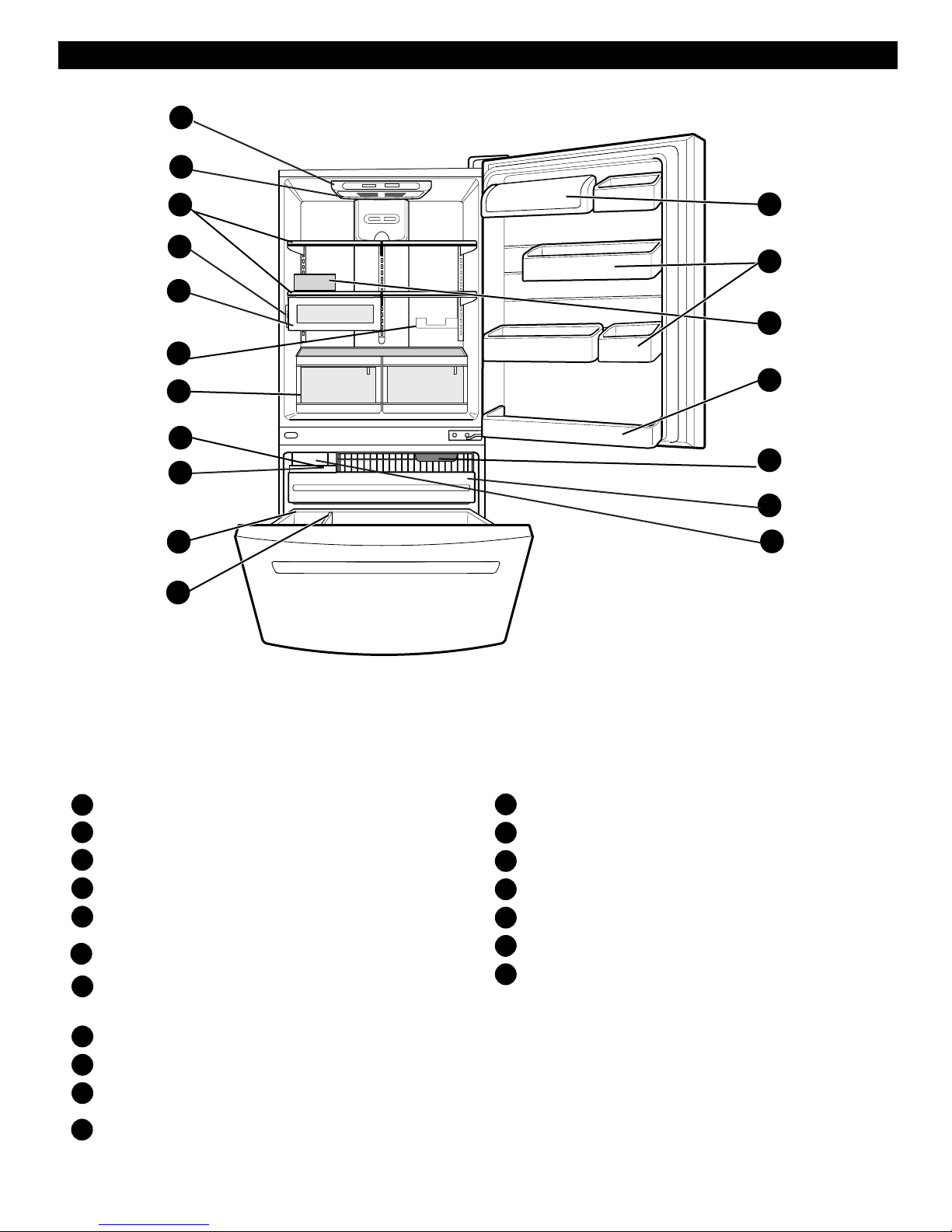

Ice Tray (Inside of H)*
Optibin Crisper
Keeps fruits and vegetable fresh and crisper
Chef Fresh / Snack Pan
Can Dispenser*
Temperature Control*
Shelves
Refrigerator Light
Digital Sensor Control
Dairy Bin
Design-A-Door
Customcube Icemaker*

A
B
C
D
E
J
K
N
M
L
F
G
HH
I
N
O
Ice Bin
Durabase
Divider
Refrigerator Door Rack
Freezer Light
Pull out Drawer
*on some models
B
C
D
A
F
E
Use this section to become more familiar with the parts and features.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some
or all of the items listed below. The locations of the features shown below may not match your model.
G
H
I
J
K
M
N
L
O
Ice Tray (Inside of F)*
Optibin Crisper
Keeps fruits and vegetable fresh and crisper
Chef Fresh / Snack Pan
Shelves
Refrigerator Light
Digital Sensor Control
Dairy Bin
Design-A-Door
Customcube Icemaker*
8
PARTS AND FEATURES

Use this section to become more familiar with the parts and features.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some
or all of the items listed below. The locations of the features shown below may not match your model.
PARTS AND FEATURES
Digital Sensor Control
Refrigerator Light
Shelves
Snack Pan
Optibin Crisper
Keeps fruits and vegetable fresh and crisp
Ice Trays*
Ice Bin
Wire Durabase
Dairy Bin
Design-A-Door
Wire Freezer Shelf
Refrigerator Door Rack
Freezer Light
Freezer Door Rack
B
C
D
A
F
E
G
H
I
J
L
M
K
N
A
B
C
D
E
F
G
H
I
J
M
N
L
K
9
*on some models

10
UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning-
type labels, the model and serial number label, or the
TechSheet that is attached to back wall of the refrigerator.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also be
easily removed by rubbing a small amount of liquid dish
soap over the adhesive with your fingers. Wipe with warm
water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see the Important Safety Instructions
section.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual
storage needs.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator when
trying to move it, as floor damage could occur.
INSTALLATION
1. Avoid placing the unit near heat sources, direct sunlight,
or moisture.

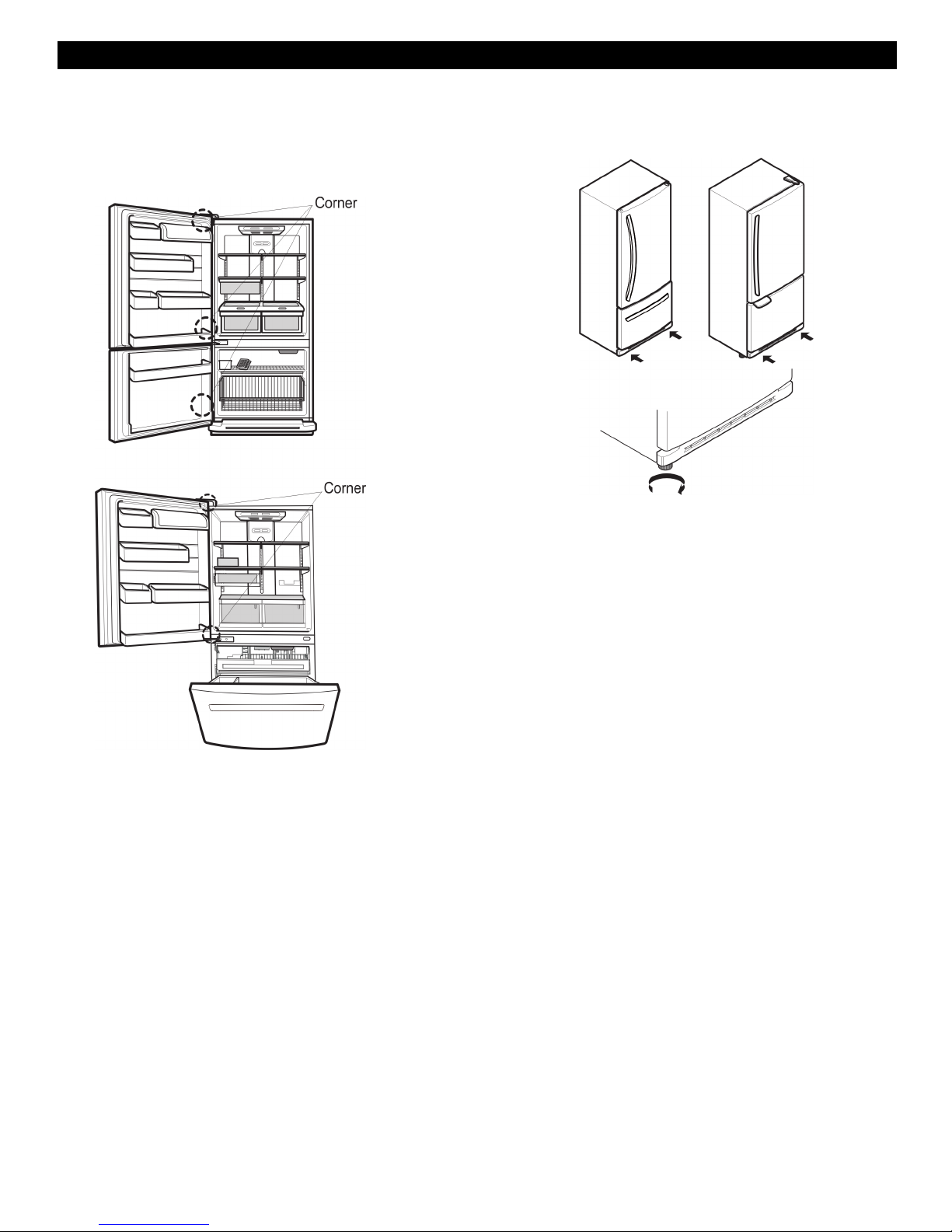

2. To avoid vibration, the unit must be level. If required,
adjust the leveling screws to compensate for
unevenness of the floor. The front should be slightly
higher than the rear to aid in door closing. Leveling
screws can be turned easily by tipping the cabinet
slightly. Turn the leveling screws clockwise ( ) to
raise the unit, counterclockwise ( ) to lower it.
3. Install this appliance in an area where the temperature
is between 55°F (13°C) and 110°F (43°C.) If the
temperature around the appliance is too low or high,
cooling ability may be adversely affected.
NEXT
1. Clean your refrigerator thoroughly and wipe off all dust
accumulated during shipping.
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
3. Let your refrigerator run for 2 or 3 hours before putting
food in it. Check the flow of cold air in the freezer
compartment to ensure proper cooling. Your refrigerator
is now ready for use.
WARNING:
Be careful when you work with hinge, base grille,
stopper etc. You may be injured.
Do not put hands or metal sticks into air vents, base
grille or bottom of refrigerator. You may be injured or
receive an electrical shock.
BASE GRILLE
To remove the base grille:
1. Grasp the grille with both hands.
2. Pull the grille toward yourself.
To install the base grille:
1. Place clips in openings in the metal panel.
2. Push the grille toward the refrigerator until it snaps
into place.

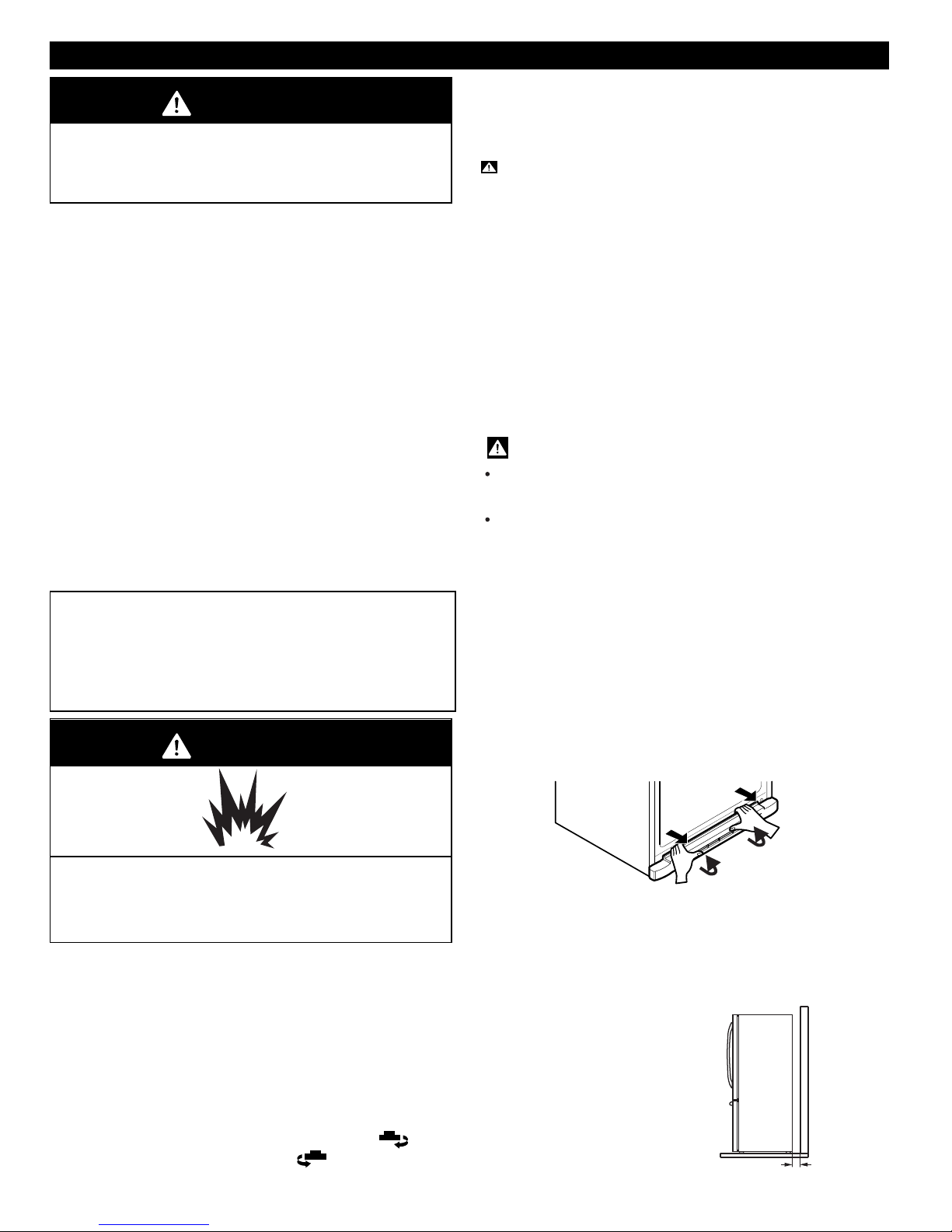

REFRIGERATOR INSTALLATION
WARNING
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
WARNING
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion or fire.
CAUTION: Avoid placing the unit near heat sources,
direct sunlight or moisture.
Explosion Hazard
A proper distance from adjacent items
Please keep the refrigerator at a proper distance from other
things. Too small a distance from adjacent items may result
in lowered freezing capability and increased electricity
charge consumption.
(5.08 cm) 2”

REFRIGERATOR INSTALLATION
T O O L S Y O U M A Y N E E D
Hex head socket wrench Phillips screwdriver Flat head screwdriver Allen wrench
10 mm
1/4 in
3/8 in
1/4 in
3/32 in

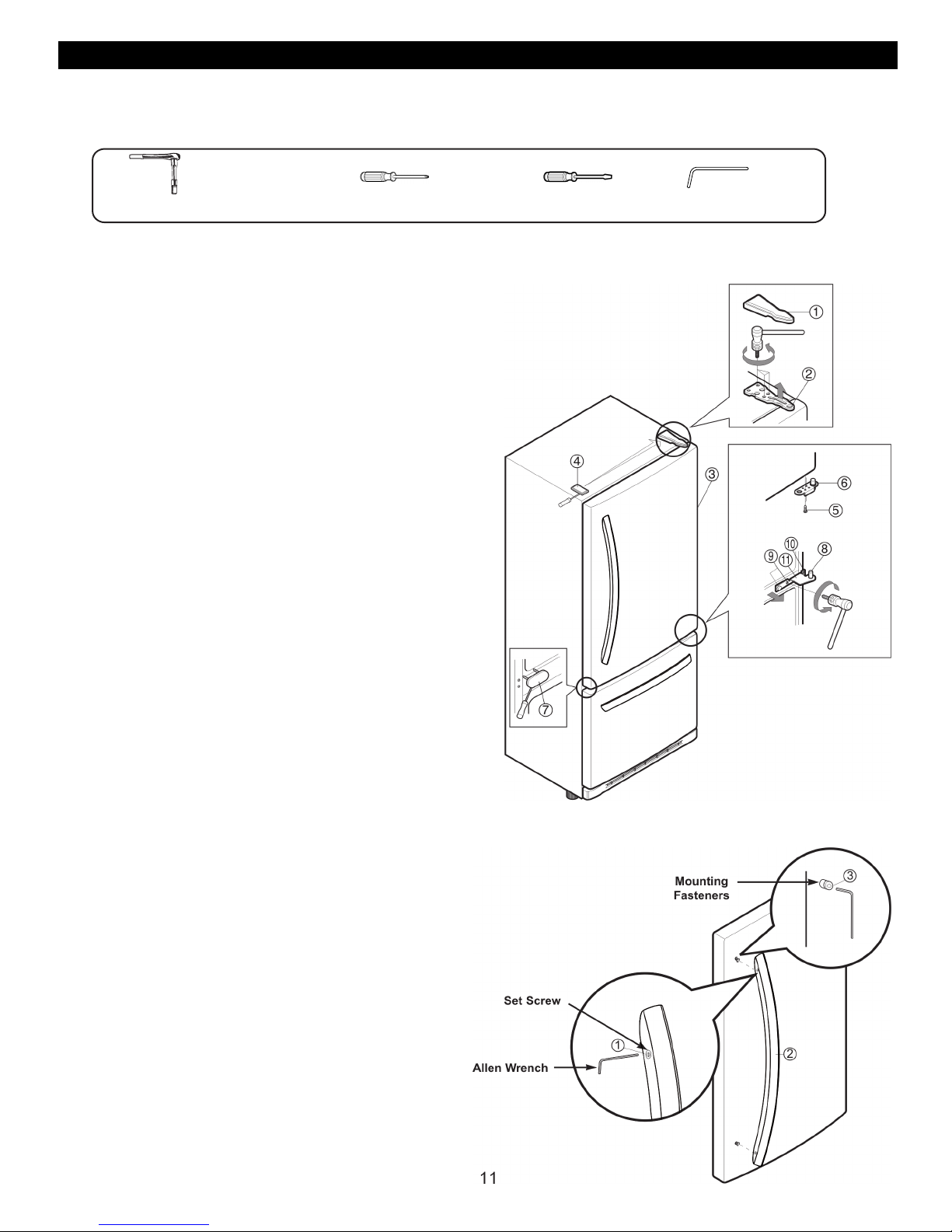

HOW TO REMOVE DOOR HANDLES
IMPORTANT: Before you begin, turn the refrigerator OFF
and unplug it. Remove food and any adjustable door or
utility bins from doors.
HOW TO REVERSE DOOR OPENING DIRECTION
(when converting from the left-opening type to right-
opening type)
1. Removing Refrigerator Door
Remove the top hinge cover (1).
Remove the 3 screws and lift off the top hinge (2).
Lift the Refrigerator door (3) slightly and remove it.
Use a flat tip screwdriver to pry off top hole cover (4)
and attach it on the right.
Loosen the screw (5), remove the stoppers (6), and
attach them on the left (on the opposite side).
Loosen the pin (8) and remove it.
Loosen the 2 screws (9) and the 2 screws (10), and
lift off the middle hinge (11).
Use a flat tip screwdriver to pry off bottom hole cover
(7) and attach it on the right.
•
•
•
•
•
•
•
•
HOW TO REMOVE DOOR HANDLES
NOTE: Handle appearance may vary from illustrations on this page.

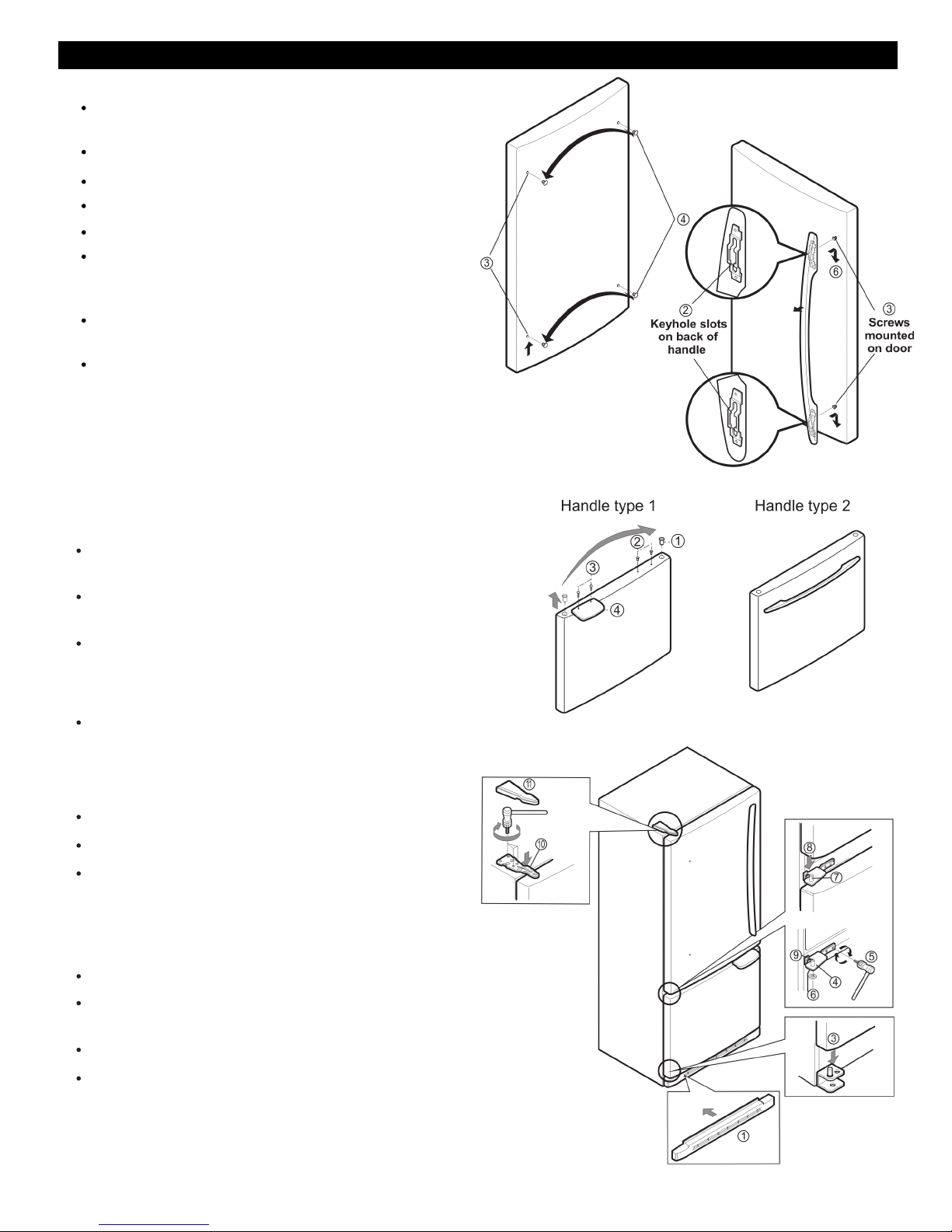

2.. Removing Refrigerator Handle
•
•
•
•
•
Loosen the set screws (1) with the 3/32” Allen
Loosen the handle mounting fasteners (3)
wrench and remove the handle (2).
with the 1/4” Allen wrench.
Carefully pry off the plug buttons (4).
Install the plug buttons (4) on the left side.
Install the handle mounting fasteners (3)
on the right side.

12
3. Replacing Refrigerator Handle
•
•
Place the handle (2) on the door by adjusting handle
Turn handle upside down (5)
footprints to fit mounting fastners and tighten the set
screws (1) with the 3/32” Allen wrench.
REFRIGERATOR INSTALLATION

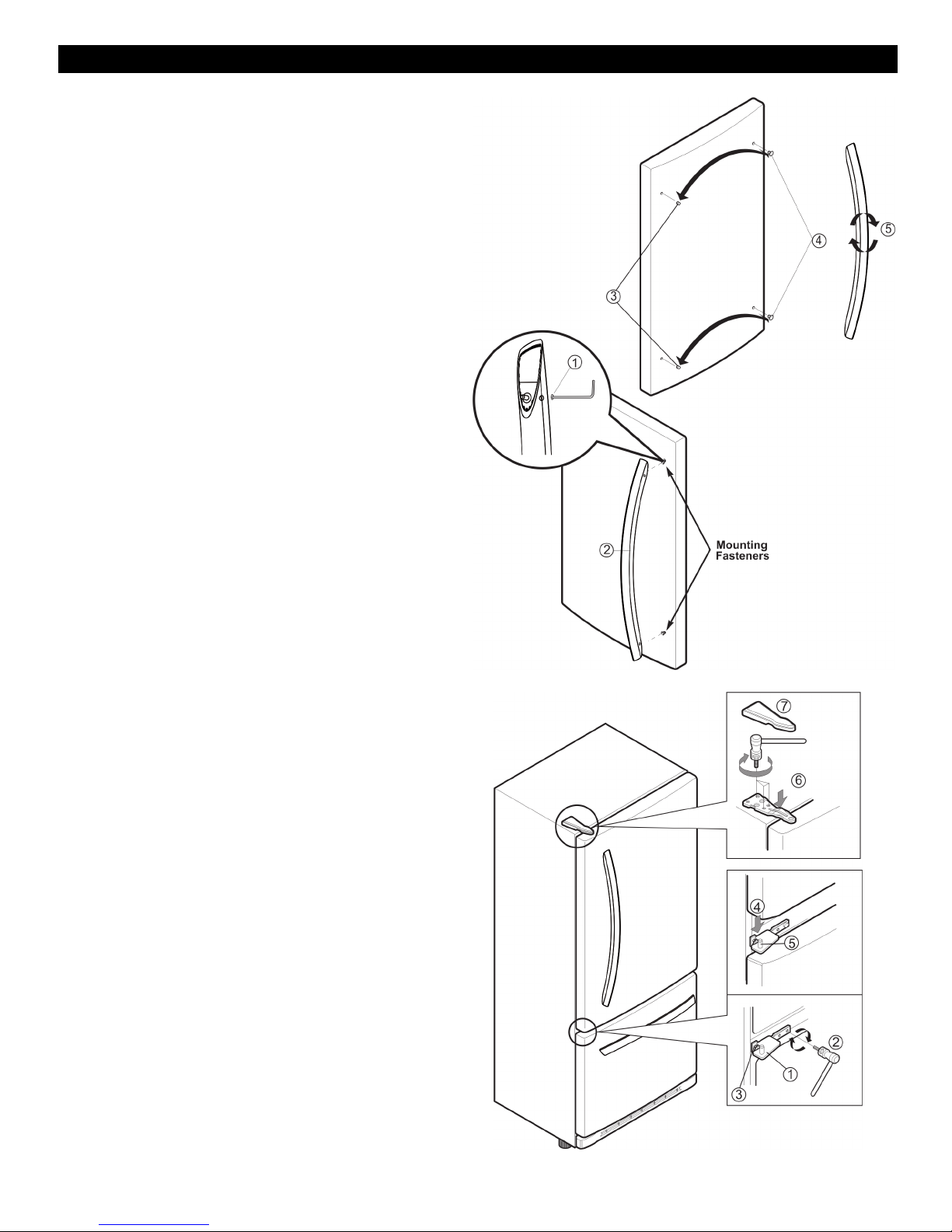

4. Installing Refrigerator Door
Install the middle hinge (1) on the opposite side with the
screws (2), and the screw (3).
Install the door (4) so that it fits onto the middle hinge
pin (5).
Install the top hinge (6) with screws.
Reinstall top hinge cover (7).
•
•
•
•

REFRIGERATOR INSTALLATION
13

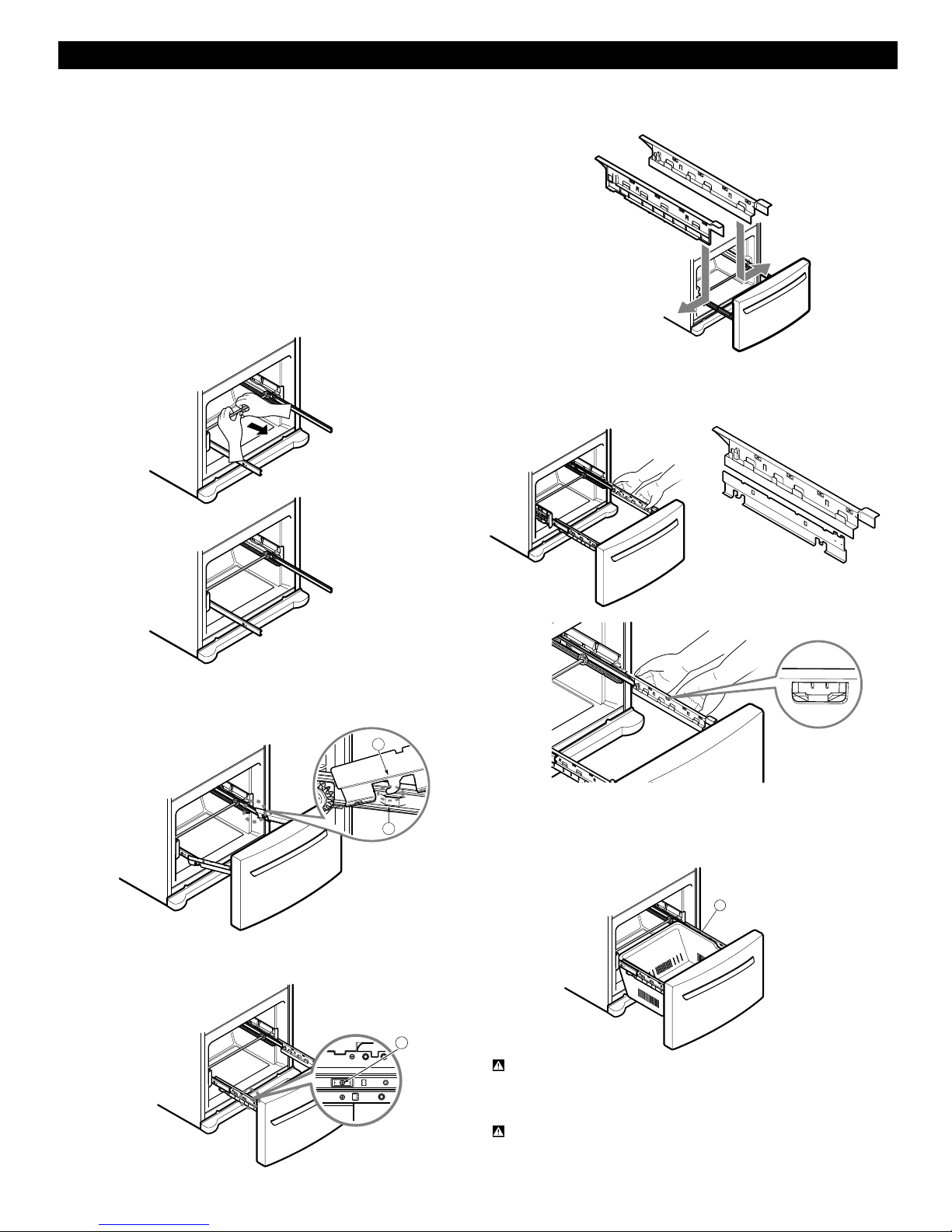

CAUTION: When you remove the drawer, do not hold
handle. If it comes off, it could cause personal injury.
CAUTION: When laying down the drawer, be careful
not to damage the floor or hurt your feet by the sharp
edges on hinge side.
HOW TO REMOVE AND INSTALL THE
PULLOUT DRAWER
IMPORTANT: To avoid possible injury, product or property
damage, you will need two people to perform the following
instructions.
1. Removing Pullout Drawer
•Pull the drawer open to full lower extension. Remove the
lower basket (1) by lifting basket from rail system.
•Press both hangers with yours thumbs to lift it up.
•Separate the left and right rail cover
•Remove the screws(2) of the rail on both sides.
•With both hands, hold both sides of the door and pull it
up to separate it from the rails.
•With both hands, hold the center of the bar and push it
in to let both rails fitted simultaneously.
1
2

14
HOW TO REMOVE AND INSTALL THE
PULL OUT DRAWER
IMPORTANT: To avoid possible injur or product or property
damage, you will need two people to perform the following
instructions.
2. Installing Pullout Drawer
•With both hands, hold the center of the bar and pull it
out to let both rails out to full extension simultaneously.
•Hook door supports (1) into rail tabes (2) .
•Lower door into final position and tighten the screws (3)
•Make sure you have a right rail cover for each side.
•Align the top holes of the rail cover with the top holes of
the door supports to assemble the rail cover.
•With the drawer pulled out to full extension, insert the
lower basket (4) in the rail assembly.
WARNING: To prevent accidental child and pet
entrapment or suffocation risk. DO NOT allow them to
play inside of drawer.
WARNING: DO NOT step or sit down on Freezer Door.
4
1
2
3
REFRIGERATOR INSTALLATION
Right
Rail cover
Left
Rail cover
Verify the hole’s assembly

REFRIGERATOR INSTALLATION
REMOVING, REVERSING AND REPLACING
REFRIGERATOR DOORS (OPTIONAL)
TOOLS NEEDED: 10mm hex-head socket wrench,
No. 2 Phillips screwdriver, flat-head screwdriver, 10mm
open-end wrench, flat 2-inch putty knife.
IMPORTANT: Before you begin, turn the refrigerator OFF
and unplug it. Remove food and any adjustable door or
utility bins from doors.
HOW TO REVERSE DOOR OPENING DIRECTION
(when converting from the left-opening type to right-
opening type)
1. Removing Refrigerator Door
Remove the top hinge cover (1).
Remove the 3 screws and lift off the top hinge (2).
Lift the Refrigerator door (3) slightly and remove it.
Pry off the cover (4) using a slotted screwdriver and
attach it on the right.
Loosen the screw (5), remove the stoppers (6) and
attach them on the left (on the opposite side).
Loosen the pin (7) and remove it.
Lift off the washer (8).
Pry off the cover (9) using a slotted screwdriver and
attach it on the right.
2. Removing Freezer Door
Lift the door (10) slightly and remove it.
Loosen the 2 screws (11), the 2 screws (12), and lift
off the middle hinge (13).
Take off the base grille (14).
Remove the cap (15) and attach it on the right.
Loosen the 2 screws (16), remove the bottom hinge
(17), and attach on the left.
Loosen the 2 screws (18) and attach the stopper (19)
on the left side of the base.
NOTE: See the Parts and Features section
to match your model.
3. Removing Refrigerator Handle
NOTE: To assist in installing the handle on the right
side, place a small piece of masking tape near the
top of the handle before removing.
Grasp the handle tightly with both hands and slide the
handle up (1)(this may require some force).
The keyhole slots (2) on the back of the handle allow
the handle to separate from the mounting screws (3).

REFRIGERATOR INSTALLATION
16
Use an adjustable wrench to remove the handle
mounting screws (3).
Carefully pry off the plug buttons (4).
Install the plug buttons (4) on left side.
Install the handle mounting screw (3) on the right side
Hold the handle so the masking tape is at the bottom.
Align keyhole slots (2) on the top and bottom of the
back of the handle with the screws (3) mounted on
the front of the door.
Press the handle against the door front, making sure
that the screws (3) go into the keyhole slots (2).
Grasping the handle with both hands, press it firmly
against the front of the door and slide the handle
down (6). This may require some force.
4. Removing Freezer Handle
Remove the cap (1) and the 2 caps (2) using a slotted
screwdriver.
Loosen the 2 screws (3), take off the handle (4), and
install it on the right.
Attach the caps you removed earlier [figures (1) and
(2)].
NOTE: Before start, check handle type in your model.
Handle Type 1
Handle Type 2
For this handle type is not neccesary remove it.
5. Installing Freezer Door
Install the base grille (1).
Install the door (3) onto the bottom hinge pin.
Install the middle hinge (4) on the opposite side with the
screw (5) and the screws (9).
6. Installing Refrigerator Door
Place the washer (6) on the middle hinge pin (7).
Install the door (8) so that it fits onto the middle hinge
pin (7).
Install the top hinge (10) with screws.
Reinstall top hinge cover (11).

17
REFRIGERATOR INSTALLATION
Open both doors again and check to make sure that
they close easily. If not, tilt the refrigerator slightly more
to the rear by turning both leveling screws clockwise. It
may take several more turns, and you should turn both
leveling screws the same amount.
DOOR CLOSING AND ALIGNMENT
Door Closing
Your refrigerator has two front leveling screws one on
the right and one on the left. If your refrigerator seems
unsteady or you want the doors to close easier, adjust
the refrigerator tilt using the instructions below:
1. Plug the refrigerator power cord into a 3-prong
grounded outlet. Move the refrigerator into its final
position.
2. Use a screwdriver to adjust the leveling screws. Turn
the leveling screw clockwise to raise that side of the
refrigerator or counterclockwise to lower it. It may take
several turns of the leveling screw to adjust the tilt of
the refrigerator.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws.
This makes it easier to adjust the screws.
3.
4. Check, using a level.
5. Replace the base grille.
Door Alignment
If the space between your doors is uneven, follow the
instructions below to align the doors:
1. Pry off the top hinge cover.
2. Loosen the top hinge screws using a 10 mm socket
or wrench.
3. Have someone hold the door in place or put a
spacer between the doors while you tighten the
top hinge screws.
4. Replace the top hinge cover.
AFTER COMPLETING THE JOB
Make sure that the four corners of the door gasket are
not folded over. To ensure a good seal, apply a small
amount of silicon grease on the gasket.

18
ENSURING PROPER AIR CIRCULATION
In order to ensure proper temperatures, air must flow
between the refrigerator and freezer sections. As shown
in the illustration below, cool air enters through the bottom
of the freezer section and moves up. Most of the air then
flows through the freezer section vents and recirculates
under the freezer floor. The rest of the air enters the
refrigerator section through the top vent.
MULTI FLOW
The cooling fan operates more powerful and effective
If water or foreign substances enter the cool air vent
while cleaning, efficiency will be lowered. In addition, if
gasket is damaged, efficiency may be lowered because
of escaping cool air.
Do not block any of these vents with food packages. If
the vents are blocked, airflow will be interrupted and
temperature and moisture problems may occur.
IMPORTANT:
DOOR ALARM
Because air circulates between both
sections, any odors formed in one section will transfer to
the other. You must thoroughly clean both sections to
eliminate odors. To prevent odor transfer and drying out of
food, wrap or cover foods tightly. (See the Food Storage
Guide section for details.)
SETTING THE CONTROLS
Your refrigerator has two controls that let you regulate
the temperature in the freezer and refrigerator
compartments.
Initially set the REFRIGERATOR CONTROL at 37°F
(3°C) and the FREEZER CONTROL at 0°F ( -18°C).
Leave it at this setting for 24 hours (one day) to
stabilize. Then adjust the compartment temperature
as desired.
Refrigerator control: 32°F to 47°F (0°C to 8°C)
The lower the number setting, the colder the refrigerator
compartment will become.
Freezer control: - 6°F to 9°F (- 21°C to - 13°C)
When the setting is at a lower number, the freezer
compartment becomes colder.
NOTE: To change °F/°C press and HOLD COLDER key
co f freezer and COLDER key of refrigerator over 1 sec. at
the same time.
USING YOUR REFRIGERATOR
than in normal operation. This is specially noticeable
when new food is placed in the refrigerator compartment.
Ice Plus:
Press the Ice Plus key and the LED will turn
on. This function will remain activated for 24 hours and
intensify the cooling speed of freezer and increase the
amount of ice.
With this feature you´ll listen a alarm when the freezer or
refrigerator door is not closed within 1 minute after it is
opened. These tones repeat every 30 seconds.
The alarm is cancelled when the freezer or the refrigerator
is closed correctly.
Identify your control type

Refrigerator control: position 1 to 7
(32°F to 47°F or 0°C to 8°C)
The higher the number setting, the colder the refrigerator
compartment will become.
Freezer control: position 1 to 7
(-6°F to 8°F or -21°C to -13°C)
When the setting is at a higher number, the freezer
compartment becomes colder.
ADJUSTING CONTROL SETTINGS
Give the refrigerator time to cool down completely before
adding food. It is best to wait 24 hours before you put
food into the refrigerator. The mid-settings indicated in the
previous section should be correct for normal household
refrigerator usage. The controls are set correctly when
milk or juice is as cold as you like and when ice cream
is firm.
The refrigerator control functions as the thermostat for the
entire appliance (refrigerator and freezer sections.) The
higher the number setting, the longer the compressor will
run to keep the temperature colder. The freezer control
adjusts the cold air flow from the freezer to the
refrigerator. Setting the freezer control to a lower
temperature keeps more cold air in the Freezer
compartment to make it colder.
If you need to adjust temperatures in the refrigerator or
freezer, start by adjusting the refrigerator first. Wait 24
hours after the refrigerator adjustment to check the
freezer temperature. If it is too warm or too cold, then
adjust the freezer control as well.
Use the settings listed in the chart below as a guide.
Always remember to wait at least 24 hours between
adjustments.
RECOMMENDED
CONDITION/REASON: ADJUSTMENT:
REFRIGERATOR section Turn
too warm REFRIGERATOR
Door opened often control to next
Large amount of food added higher number,
Room temperature very warm wait 24 hours,
then re-check
FREEZER section too warm/ Turn FREEZER
ice not made fast enough control to next
Door opened often higher number,
Large amount of food added wait 24 hours,
Very cold room temperature Then re-check
(can’t cycle often enough)
Heavy ice usage
Air vents blocked by items Move items out of
airstream
REFRIGERATOR section too Turn
cold REFRIGERATOR
Controls not set correctly for control to next
your conditions lower number,
wait 24 hours,
then re-check
FREEZER section too cold Turn FREEZER
Controls not set correctly for control to next
your conditions lower number,
wait 24 hours,
then re-check
USING YOUR REFRIGERATOR
19
WARMER
ADJUST
REFRIGERATOR TEMP
4 IS RECOMMENDED
FREEZER TEMP
WARMER ADJUST
4 IS RECOMMENDED COLDER
Press the Ice Plus key and the LED will turn
on. This function will remain activated for 24 hours and
intensify the cooling speed of freezer and increase the
amount of ice.
Ice Plus
Identifier your control type

FOOD STORAGE GUIDE
Storing Fresh Food
Wrap or store food in the refrigerator in airtight and
moisture-proof material unless otherwise noted. This
prevents food odor and taste transfer throughout the
refrigerator. For dated products, check date code to
ensure freshness.
Butter or margarine
Keep opened butter in a covered dish or closed
compartment. When storing an extra supply, wrap
in freezer packaging and freeze.
Cheese
Store in the original wrapping until you are ready to
use it. Once opened, rewrap tightly in plastic wrap or
aluminum foil.
Milk
Wipe milk cartons. For best storage, place milk on interior
shelf, not on door shelf.
Eggs
Store in original carton on interior shelf, not on door shelf.
Fruit
Wash, let dry, and store in refrigerator in plastic bags or in
the crisper. Do not wash or hull berries until you are ready
to use them. Sort and keep berries in their original
container in a crisper, or store in a loosely closed paper
bag on a refrigerator shelf.
Leafy vegetables
Remove store wrapping and trim or tear off bruised and
discolored areas. Wash in cold water and drain. Place in a
plastic bag or plastic container and store in the crisper.
Vegetables with skins (carrots, peppers)
Place in plastic bags or plastic container and store
in crisper.
Fish
Chef fresh
Store most chef fresh in original wrapping as long as it is
airtight and moisture-proof. Rewrap if necessary.
Leftovers
Cover leftovers with plastic wrap or aluminum foil. Plastic
containers with tight lids can also be used.
STORING FROZEN FOOD
NOTE: For further information about preparing food for
freezing or food storage times, check a freezer guide or a
reliable cookbook.
Packaging
Successful freezing depends on correct packaging. When
you close and seal the package, it must not allow air or
moisture in or out. If you do, you could have food odor
and taste transfer throughout the refrigerator and also dry
out frozen food.
Packaging recommendations:
Rigid plastic containers with tight-fitting lids
Straight-sided canning/freezing jars
Heavy-duty aluminum foil
Plastic-coated paper
Non-permeable plastic wraps
Specified freezer-grade self-sealing plastic bags
Follow package or container instructions for proper
freezing methods.
Do not use:
Bread wrappers
Non-polyethylene plastic containers
Containers without tight lids
Wax paper or wax-coated freezer wrap
Thin, semi-permeable wrap
Freezing
Your freezer will not quick-freeze any large quantity of
food. Do not put more unfrozen food into the freezer than
will freeze within 24 hours (no more than 2 to 3 lbs of food
per cubic foot of freezer space). Leave enough space in
the freezer for air to circulate around packages. Be careful
to leave enough room at the front so the door can close
tightly.
Storage times will vary according to the quality and type
of food, the type of packaging or wrap used (airtight and
moisture-proof) and the storage temperature. Ice crystals
inside a sealed package are normal. This simply means
that moisture in the food and air inside the package have
condensed, creating ice crystals.
NOTE: Allow hot foods to cool at room temperature for
30 minutes, then package and freeze. Cooling hot foods
before freezing saves energy.
NOTE: Do not store food near the sensor; it may cause
the sensor to malfunction.
USING YOUR REFRIGERATOR
20
WARNING
Suffocation Hazard
When using dry ice, provide adequate ventilation.
Dry ice is frozen carbon dioxide (CO )
2. When it
vaporizes, it can displace oxygen, causing dizziness,
light-headedness, unconsciousness and death by
suffocation. Open a window and do not breathe
the vapors.
Use fresh fish and shellfish the same day purchased.
IMPORTANT: Do not store bottles in the freezer
compartment - they may break when frozen,
causing damage.
