LG LSC26905SB User manual

website:http'.//us.lge.com
1-800-243-0000
24 HOURSA DAY, 7DAYSA WEEK FOR LGCUSTOMER SERVICE
para el Servicio LG(Atenci6nal Cliente) 24 horasa[ dfa, 7 dias a la semana
LSC26905"*
_i!_!!iiii!i!_iii'i!i!ii!!i!i_
REFRIGERATOR
Please read this __ide thoroughly
before operating and keep it handy for
reference at all times.
Manual de Usuario
Lea detenidamente estas instrucciones
antes utilizar el refrigerador y gu£rdelas
como referencia para et futuro.
%MFL33759904

Table of Contents
Introduction
Installation
Operation
Suggestion on
Food Storage
Care and
Maintenance
Entry
Important Safety Instruction
Identification of Parts
Where to Locate
Door Removal
Door Replacement
Water Pipe Installation
Water Connection Instruction Guide
Operation Instruction Guide
Height Adjustment
Starting
Adjusting the Temperatures and functions
(Dispenser/Automatic Icemaker)
Shelf
Location of Foods
Storing Foods
How to Dismantle Parts
General Information
Cleaning
Troubleshooting
O
O
®
®

Important safety
Instructions
[] WARNING

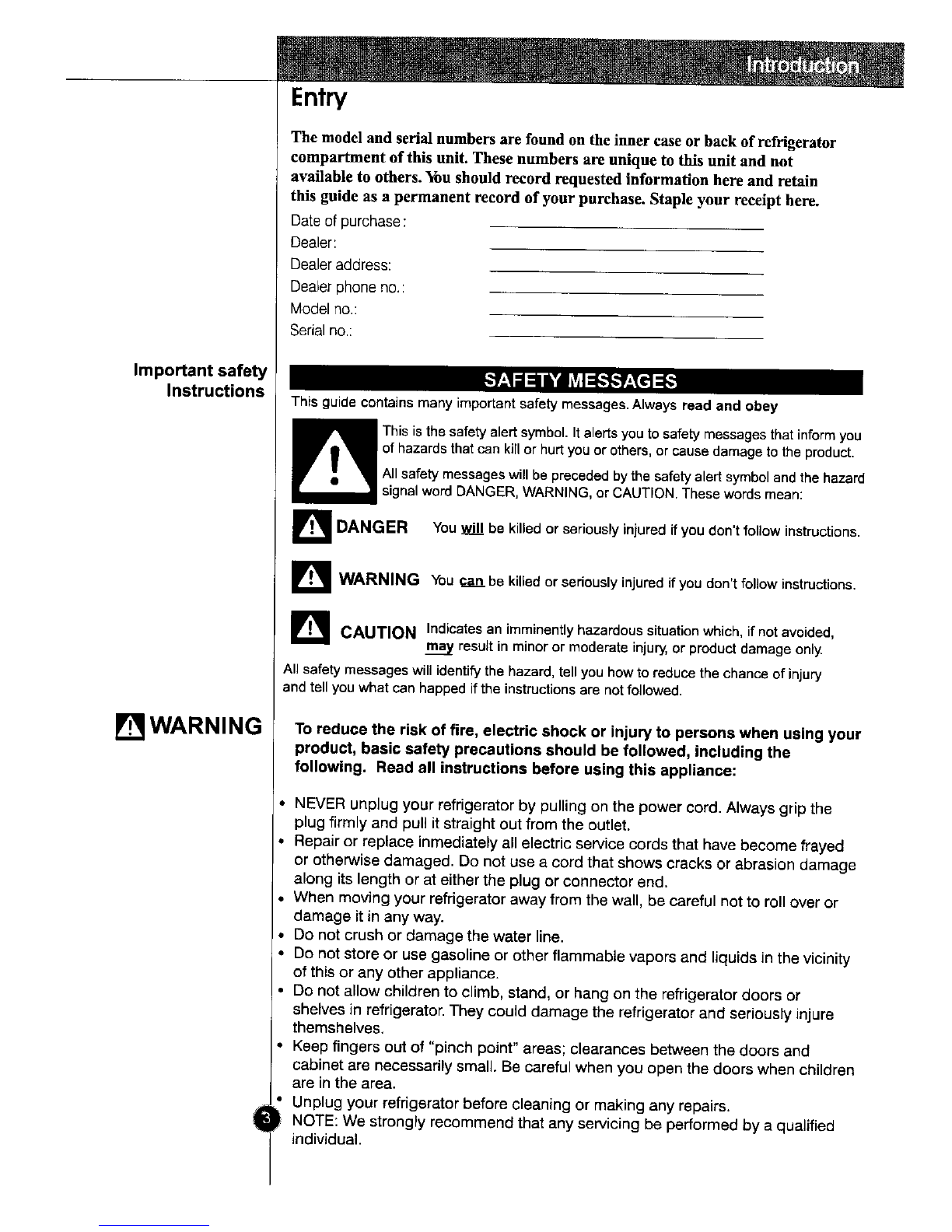

Entry
The model and serial numbers are found on the inner case or back of refrigerator
compartment of this unlL These numbers are unique to this unit and not
available to others. You should record requested information here and retain
this guide as a permanent record of your purchase. Staple your receipt here.
Date of purchase :
Dealer:
Dealer address:
Dealer phone no.:
Model no.:
Serial no,:
This guidecontainsmanyimportant safety messages.Always read and obey
Thisisthesafety alertsymbol.Italertsyoutosafety messagesthatinformyou
ofhazardsthatcankillorhurtyou orothers,orcausedamageto theproduct,
All safety messages willbe precededbythe safetya_ertsymboland the hazard
signalword DANGER,WARNING,or CAUTION.These words mean:
_DANGER Youwill be kilted seriously it don'tfollow instructions.
or injured you
]WARNING You can be kilted or seriously injured ffyou don't follow instructions.
Indicates hazardous situation which,if notavoided,CAUTION an imminently
result in minor or moderate injury,or product damage only
All safety messages will identify the hazard, tell you how to reduce the chance of injury
and tell you what can happed if the instructions are not followed.
To reduce the risk of fire, electric shock or injury to persons when using your
product, basic safety precautions should be followed, including the
following. Read all instructions before using this appliance:
• NEVER unplug your refrigerator by pulling on the power cord. Always grip the
plug firmly and pull it straight out from the outlet.
• Repair or replace inmediately all electric service cords that have become frayed
or otherwise damaged. Do not use a cord that shows cracks or abrasion damage
along its length or at either the plug or connector end.
• When moving your refrigerator away from the wall, be careful not to roll over or
damage it in any way.
• Do not crush or damage the water line.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
•Do not allow children to climb, stand, or hang on the refrigerator doors or
shelves in refrigerator. They could damage the refrigerator and seriously injure
themshelves.
•Keep fingers out of "pinch point" areas; clearances between the doors and
cabinet are necessarily small. Be careful when you open the doors when children
are in the area.
Unplug your refrigerator before cleaning or making any repairs.
NOTE: We strongly recommend that any servicing be performed by a qualified
individual.

I DANGER
Risk of child
entrapment
CFC DISPOSAL
• Before replacing a burned-out light bulb, unplug the refrigerator or turn off power
at the circuit breaker or fuse box in order to avoid contact with a live wire filament.
(A burned-out light bulb may break when being replaced). NOTE: Setting either or
both controls to the OFF position does not remove power to the light circuit.
•Do not store bottles in the freezer compartment they may break when frozen,
causing damage.
• The refrigerator-freezer should be so positioned that the supply plug is accessible
for quick disconnection when accident happens.
• For personal safety, this appliance must be properly grounded. Have the wall
outlet and the circuit checked by a qualified electrician to make sure the outlet is
properly grounded.
•This refrigerator must be properly installed in accordance with the Attention
Installer Instructions that were taped to the front of the refrigerator.
• After your refrigerator is in operation, do not touch the cold surfaces in the freezer
compartment when hands are damp or wet. Skin may adhere to the extremely cold
surfaces.
• In refrigerators with automatic icemakers, avoid contact with the moving parts of
the ejector mechanism, or with the heating element that releases the cubes. DO
NOT place fingers or hands on the automatic icemaking mechanism while the
refrigerator is plugged in.
• DO NOT refreeze frozen foods which have thawed completely. The United States
Department of Agriculture in Home and Garden Bulletin No. 69 says:
"...You may safely refreeze frozen foods that have thawed if they still contain ice
crystals or if they are still cold below 40° (4°C)._
"...Thawed ground meats, poultry, or fish that have any off-odor or off-color should
not be frozen and should not be eaten. Thawed ice cream should be discarded. If
the odor or color of any food is poor or questionable, get rid of it. The food may be
dangerous to eat."
"Even partial thawing and refreezing reduces the eating quality of foods,
particularly fruits, vegetables and prepared foods.
The eating quality of red meats is affected less than that of many other foods. Use
refrozen foods as soon as possible to save as much of their quality as you can."
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous.., even if they will sit for "just a few days".
BEFOREYOUTHROWAWAYYOUROLDREFRIGERATORORFREEZER
•Take off the doors.
• Leave the shelves in place so that
children may not easily climb inside.
P
Your old refrigerator may have a cooling system that used CFCs
(chlorofuorocarbons). CFCs are believed to harm stratospheric ozone.
If you are throwing away your old refrigerator, make sure the CFC refrigerant is
removed for proper disposal by a qualified servicer. If you intentionally release
this CFC refrigerant, you can be subject to fines and imprisonment under
provisions of environmental legislation.
This appliance contains fluid (refrigerant, lubricant), is made of parts and
materials which are reusable and /or recyclable. All the important materials
should be sent to the collection center of waste material and can be reused
after rework (recycling). For take back, please contact with the local agency.

C

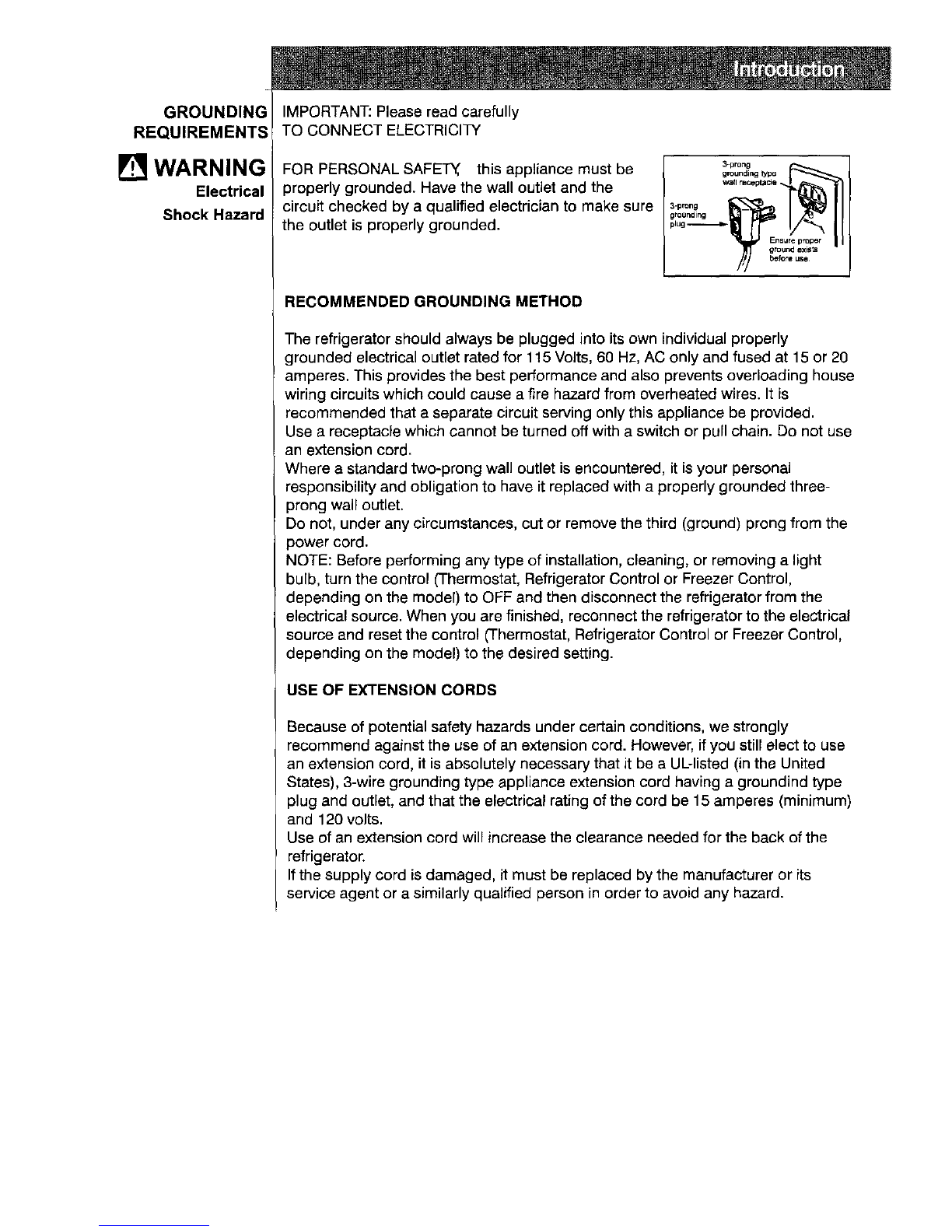

REQUIREMENT_
WARNINC
Electrical
Shock Hazard
IMPORTANT: Please read carefully
TO CONNECT ELECTRICITY
FOR PERSONAL SAFETY this appliance must be
properly grounded. Have the wall outlet and the
circuit checked by a qualified electrician to make sure
the outlet is properly grounded.
3=prong
grounding type
Watl _es_pt_e
grounding
plug
g/_/)i_lurid exis
lore use
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into its own individual properly
grounded electrical outlet rated for 115 Volts, 60 Hz, AC only and fused at 15 or 20
amperes. This provides the best performance and also prevents overloading house
wiring circuits which could cause a fire hazard from overheated wires. It is
recommended that a separate circuit serving only this appliance be provided.
Use a receptacle which cannot be turned off with a switch or pull chain. Do not use
an extension cord.
Where a standard two-prong wall outlet is encountered, it is your personal
responsibility and obligation to have it replaced with a properly grounded three-
prong wall outlet.
Do not, under any circumstances, cut or remove the third (ground) prong from the
power cord.
NOTE: Before performing any type of installation, cleaning, or removing a light
bulb, turn the control (Thermostat, Refrigerator Control or Freezer Control,
depending on the model) to OFF and then disconnect the refrigerator from the
electrical source. When you are finished, reconnect the refrigerator to the electrical
source and reset the control (Thermostat, Refrigerator Control or Freezer Control,
depending on the model) to the desired setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain conditions, we strongly
recommend against the use of an extension cord. However, if you still elect to use
an extension cord, it is absolutely necessary that it be a UL-listed (in the United
States), 3-wire grounding type appliance extension cord having a groundind type
plug and outlet, and that the electrical rating of the cord be 15 amperes (minimum)
and 120 volts.
Use of an extension cord will increase the clearance needed for the back of the
refrigerator.
If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid any hazard.

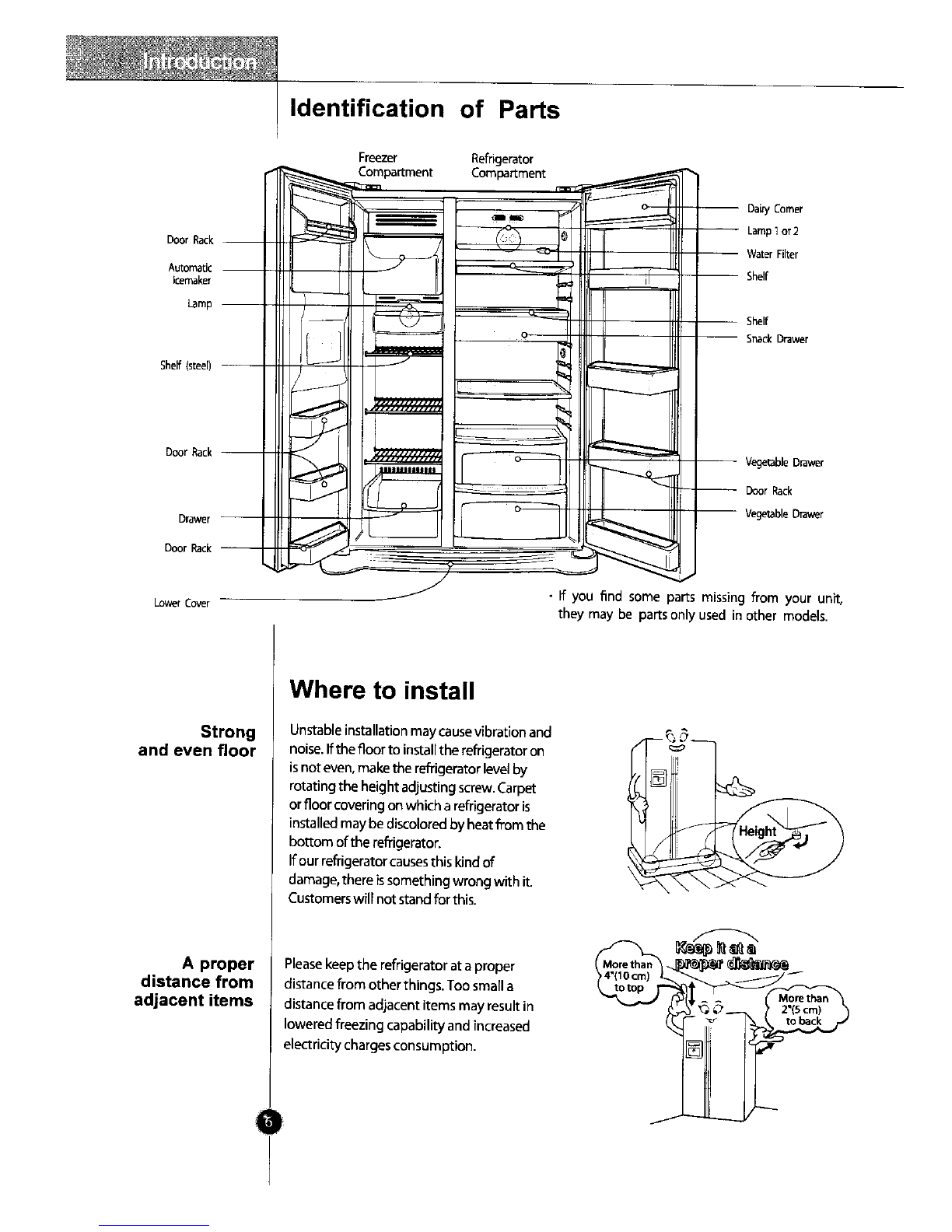

Identification of Parts
Door Rack --
Automatic
icemaker
Lamp
Shelf(steel)
Door Rack --
Drawer
Door Rack --
Lower Cover
Freezer
Compartment Refrigerator Compartment
-- Dai_yComer
-- Lamp1or 2
WaterFilter
Shelf
Shelf
SnackDrawer
-- VegetableDrawer
-- Door Rack
VegetableD_wer
• If you find some parts missing from your unit,
they may be parts only used in other models.
Strong
and even floor
A proper
distance from
adjacent items
Where to install
Unstable installation may cause vibration and
noise. Ifthe floorto install the refrigerator on
isnot even, make the refTigetatorleve{by
rotating the height adjusting screw. Carpet
or floor covering on which a refrigerator is
installed may be discolored by heat from the
bottom of the refrigerator.
Ifour refrigerator causesthis kind of
damage, there is something wrong with it.
Customers will not stand for this.
Pleasekeep the refrigerator at a proper
distance from other things. Too small a
distance from adjacent items may result in
lowered freezing capability and increased
electricity charges consumption.
f
f

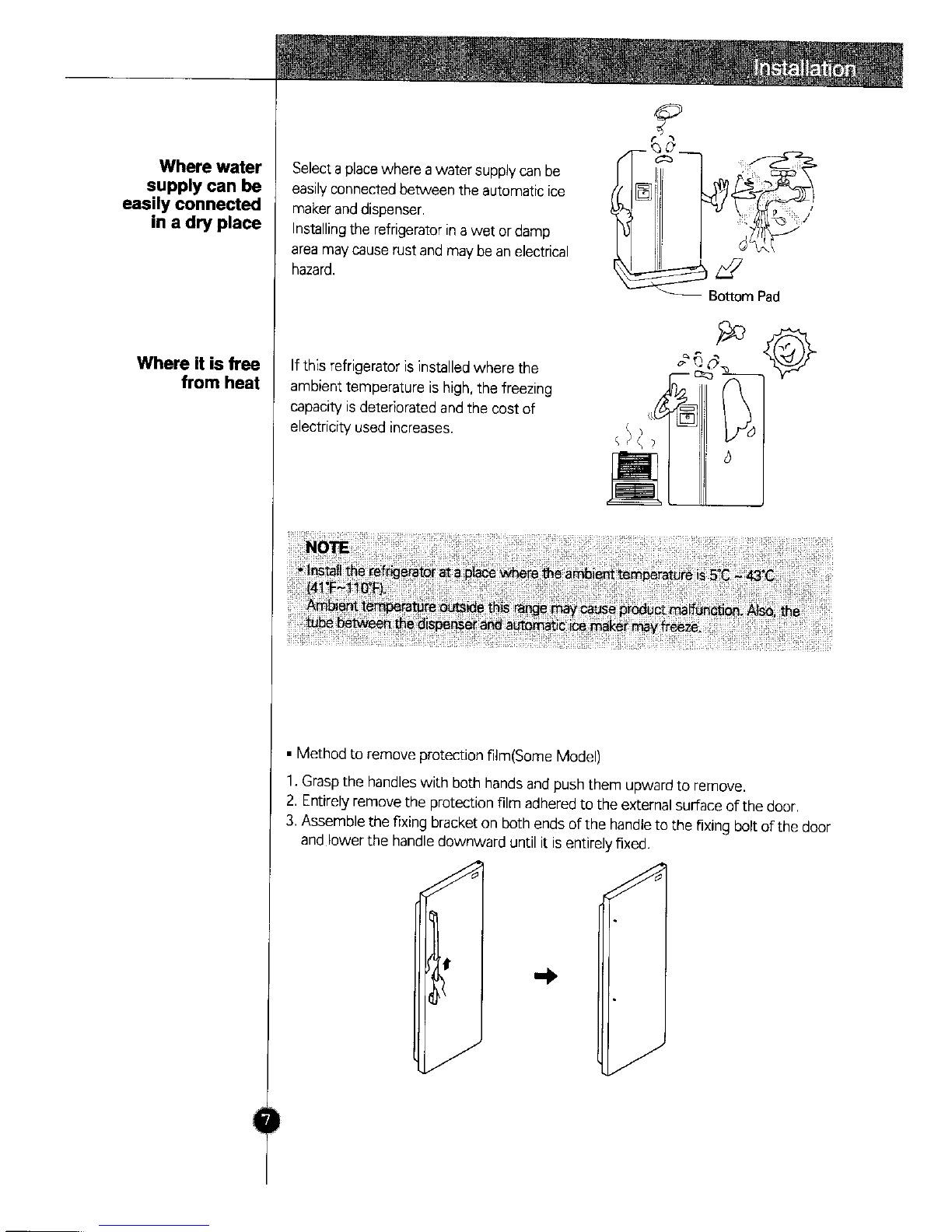

Where water
supply can be
easily connected
in a dry place
Where it is free
from heat
q
Select a placewhere awater supply can be
easily connected between the automatic ice
maker and dispenser.
Installingthe refrigerator in a wet or damp
area may cause rust and may be an electrical
hazard.
If this refrigerator is installed where the
ambient temperature is high,the freezing
capacity isdeteriorated and the cost of
electricity used increases.
•Method to remove protection film(Some Model)
1. Graspthe handleswil.h both handsand push them upward to remove.
2. Entirely remove the protection film adhered to the external surface of the door.
3. Assemble the fixing bracket on both ends of the handle to the fixing bolt of the door
and lower the handle downward until it is entirely fixed.

[]Warning
Remove Lower
Cover and
Water Feed Tube
Remove the
Freezer
Compartment
Door
Remove the
Refrigerator
Door
Door removal
ElectricShock Hazard
Disconnectelectricalsupplyto refrigerator beforeinstalling.
Failureto do socouldresult indeathor seriousinjury,J! )_1 _L___JJJ
Ifyour entrance door istoo narrow for the _r
refrigerator to passthrouah, remove the _ . _ _ _ -
refrigeratordoor and passe.herefrigeratorlaterally. _--_ _ -- I_,_F_L_ _,_,_ow
Removethe lowercoverby liftingupward,and _ _l_A_ 7
thenpull upthewater feedtubewhile pressing J _\ _ I
area_) shown inthe figureto theright. WaterFeedTube
MHingeIne _-_
1)Remove the hinge cover bv_loosennn=the _/ c°vger _ _1_ wC°nnecti°nes
screws. Disconnect all connections except _1._._"
thegroundline. _ \_.
Upper Hinge I_ _ EarthLine
2) Removethe keeperbyrotating itcounter Keepefr_l__PKeeperUpperHinge
clockwise d) andthen lifting the upper ¢.._._
hinge up@.
3) Removethe freezercompartmentdoorby
lifting itupward,Thistime,the doorshould
be liftedenoughfor thewater feedtube to
be completelypulledout.
1)Loosenthe hingecoverscrews andremove
the cover.Removeconnectionwire.
2) Removekeeperbyrotating it clockwise d)
andthen removethe upper hingebylifting
itup @,
3) Removethe refrigeratorcompartment door
by lifting it up.
Upper Hinge Keeper
Lower Hinge

Move the Push the refrigerator sideways through the
Refrigerator entrance door as shown in the right picture.
Before
Installation
P Warning
Connecting
the Refrigerator
to a Water Source
Tools Required
Screwdriver
Electric drill
zz_
Adjustable wrenches
Door replacement
Mount the doors in the reverse order of
removal after the refrigerator is brought to
the installation area.
Feed water tube installation
•Automatic icemaker operation needs water pressure of 21.3~121psi(ib/inch z) {That
is, a 7o= paper cup will be filled within 3 sec.).
• If water pressure does not reach the rated 21.3psi(Ib/inch 2) or below, it is necessary
to purchase a separate pressure pump for normal automatic icemaking and coo]
water feed.
• Keep the total length of the water feed tube within 40 feet and be careful not to
bend or kink the tube. if the tube is longer than 40 feet, the icemaker and water
dispenser will not operate properly.
• Install the water feed tube at a place free from heat.
Water Connection Instruction Guide
Read all directions carefully before you begin.
• Standard screwdriver
• 7/16-inch and 1/2-inch open-end wrenches or two adjustable wrenches
• 1/4-inch nut driver
• 1/4-inch drill bit
• Hand drill or electric drill (properly grounded)

Connect
the Tubing to
Water Line
Connect the Tubing
to the Refrigerator
1. Unplug refrigerator or disconnect power.
2, Turn OFF main water supply. Turn on the nearest faucet to relieve the pressureon the
line. It may help to open an outside faucet to allow the water to drain from the line in
the house.
3. Finda 1/2-inch to 1-1/4-inch vertical COLD water pipe near the refrigerator.
he pkeep from d ii:.
4. To determine the length of copper tubing you will need, measure from the connection
on the lower left rear of the refrigerator to the water pipe. Add 7 feet (2.1m) to allow
for moving refrigerator for cleaning. Use 1/4-inch O.D, (outside diameter) copper
tubing. Be sure both ends of copper tubing are cut square.
5. Using a drill, drill a 1/4-inch hole in the cold water pipe you have selected.
6. Fasten shut-off valve to cold water pipe with pipe clamp. Be sure outlet end is solidly
in the 1/4-inch drilled hole in the water pipe and that the washer is under the pipe
clamp. Tighten packing nut. Tighten the pipe clamp screws carefully and evenly so
washer makes a watertight seal. Do net overtighten or you may crush the cooper
tubing, especially if soft (coiled) copper tubing is used. Now you are ready to connect
copper tubing.
7. Slip compression sleeve and compression nut on copper tubing as shown. Insert end
of tubing into outlet end squarely as far as it will go, Screw compression nut onto
outlet end with adjustable wrench. Do not over tighten.
8. Place the free end of the tubing into a container or zinc, and turn ON main water
supply and flush out tubing until water is clear. Turn OFF shutoff valve on the water
pipe, Coil the copper tubing as shown below.
ColdWaterPipe
NLIPpe Camp
PackingNut\ I_1,,_
_.,,.,.-,J__.___'_ CoilofPolyethyleneor
ShutOffValve_
CompressionSlee'Je C_mpressienNut_
Operation Instruction Guide
Before making the connection to the refrigerator, be sure the refrigerator
power cord is not plugged into the wall outlet.
•If your refrigerator does not
have a water filter, we
recommend installingone. If
your water supply has sand or
particles that could clog the
screen of the refrigerator's
water valve. Install the filter in
the water line near the
refrigerator.
1, Remove the plastic flexible
cap from the water valve.
2. Place the compression nut and
ferrule (sleeve) onto the end of
Ferrde
Coil of Polyethylene or
_- 1/4" Cooper Tubing
the tubing as shown.
3. Inser_the end of the copper tubing into the connection as far as possible. While
holding the tubing, tighten the fitting.

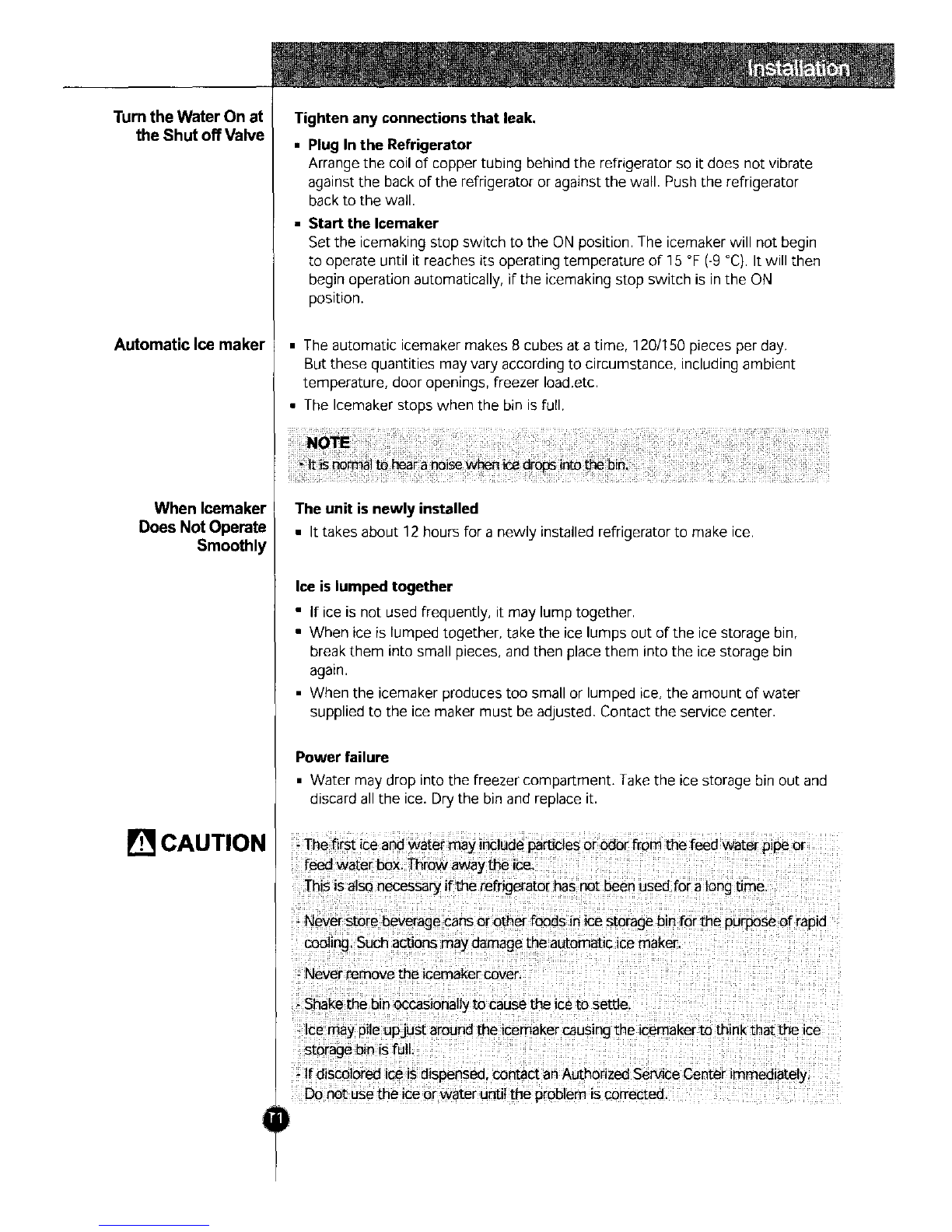

Turn the Water On at
the Shut off Valve
Automatic Ice maker
When Icemaker
Does Not Operate
Smoothly
[] CAUTION
Tighten any connections that leak.
• Plug In the Refrigerator
Arrange the coil of copper tubing behind the refrigerator so it does not vibrate
against the back of the refrigerator or against the wall. Push the refrigerator
back to the wall.
• Start the Icemaker
Set the icemaking stop switch to the ON position. The icemaker will not begin
to operate until it reaches its operating temperature of 15 °F (-9 °C). It will then
begin operation automatically, if the icemaking stop switch is in the ON
position.
• The automatic icemaker makes 8 cubes at a time, 120/150 pieces per day.
But these quantities may vary according to circumstance, including ambient
temperature, door openings, freezer load.etc.
• The Icemaker stops when the bin is full.
The unit is newly installed
• It takes about 12 hours for a newly installed refrigerator to make ice.
Ice is lumped together
• If ice is not used frequently, it may lump together.
• When ice is lumped together, take the ice lumps out of the ice storage bin,
break them into small pieces, and then place them into the ice storage bin
again.
• When the icemaker produces too small or lumped ice, the amount of water
supplied to the ice maker must be adjusted. Contact the service center.
Power failure
• Water may drop into the freezer compartment. Take the ice storage bin out and
discard all the ice. Dry the bin and replace it.
- The first ice and water may include pardctesor odor from the feed water pipe or
feed water box. Throw away the ice,
This is also necessary ifthe refrigerator has not been used for along time
- Nev_ store beverage cans or other foods in ice storage bin for the purpose of rapid
coo_ing,Such actions may damage the automatic ice maker,
- Neverremove the icemaker cover.
- Ice may pile upjust around the cemaker causing the icernakerto think _hatthe ice
storage :binisfull.
- tf discolored ¢eis dispensed contact an Authorized Service Center immediately
Do not use the ice er water until the problem iscorrected.

Ifthe freezer
compartment door
islower than the
refrigerator
compartment door
If the freezer
compartment door
is higher than the
refrigerator
compar'onent door
-first method
If the freezer
comparlment door
is higher than the
refrigerator
comparlment door
-second method
[] CAUTION
After leveling the
door height
Height adjustment
Makethem levelby inserting fiat (- type) driver into the groove ofthe left height adjusting
screw and rotating it clockwise (_ ). Heightdifference
Makethem levelby inserting fiat I- type} driverinto the grooveofthe right height
adjusting screwand rotating itd ockwise((_).
Height difference Right height
adjustment screw
Adjust the level when the refrigerator door is lower than the freezer door dudng the
use of the refrigerator, Heightdifference
.___ _(1_Keeper nut
! Toolror
-- stment
.... _j_t _ Up
hinge_n _
Down _
__ • 7_
1. Using the wide side of the tool for adjustment ®, turn the keeper nut _) (_--_')
clockwise to loosen the keeper nut.
2. Using the narrow side of the tool for adjustment, turn the adjustment hinge pin
@ ( _.J" ) clockwise or (,_.,_) counterclockwise to level the refrigerator and
freezer door.
3.After setting the levelofthe door,turn the keepernut(...j 4)counterclockwiseto
tighten.
Donotforce too hardto levelthe height.Thehingepincanbe pulledout.
(Adjustablerangeof height isa maximum of 1/2" (!,27 cm))
The refrigerator door will close smoothly by raising the front side by adjusting the
height adjusting screw. If the door does not close properly because it isimproperly
adjusted, the performance of the refrigerator will be affected.

Starting
When your refrigerator is first installed, allow it to stabilize at normal operating
temperatures for 2-3 hours prior to filling it with fresh or frozen foods.
If operation is interrupted, wait 5 minutes before restarting,
Adjusting the Temperatures and Functions
Water/Ice Output --
I \
I \
!\\
Dispenser Push Switch
Dispenser Lamp
-- (Bottom ceiling of
funct_bndisplay board)
.._ Function display board
tl
I
I
|
|
|
EXPRESSFRZDISPENSER FREEZER REFRIGERATOR
...... ® oispl.yPowerSavingMod_
0Buzzer sound
mute Mode
RLTEPal.IGHTLOCK
FIUERILIGHT LOCK

How to adjust the
temperature in
the h_ezer
compartment
How to adjust the
temperature in
the refrigerator
compartment
Dispenser
selection
1,
2,
Buzzer sound mute Mode
The buzzer sound is set to OFF.
it activates by sounding the recognition sound of "Ding-" after pressing and
holding "Express FRZ" button more than 5 seconds,
It inactivates when resetting the mode power.
Display Power saving Mode
It places display in standby mode until door is opened.
Press "Freezer" and "Express FRZ" buttons simultaneously to turn all leds ON and
then OFFwith the recognition sound of "Ding-" after 5 seconds.
Once the mode activates, the display isOFF. Until door isopened or display button
is pressed. When 30 seconds has elapsed after closing door or pressing button,
the display turns OFF.
To deactivate this mode is same as the activation methods. The mode inactivates
when resetting the power.

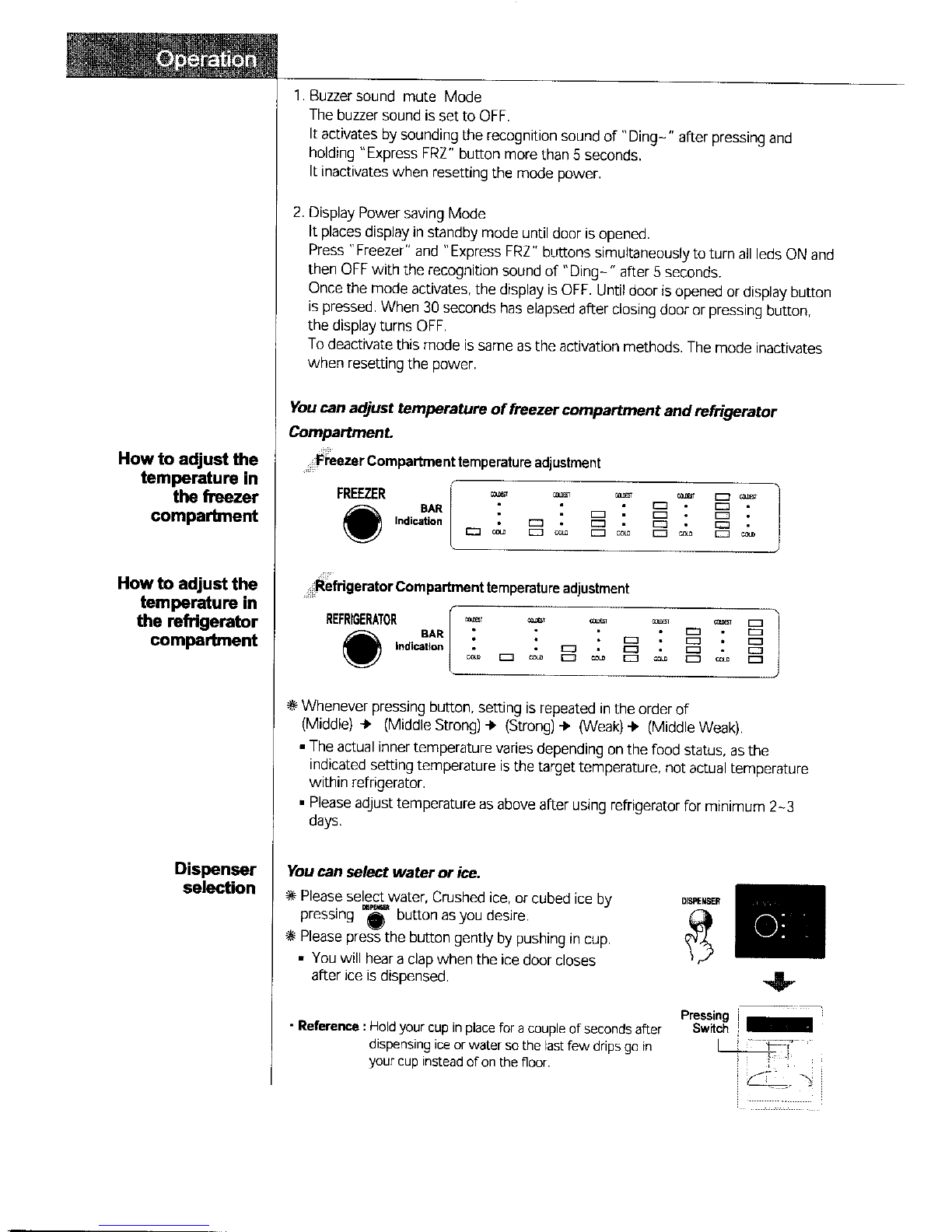

You can adjust temperature of freezer compartment and refrigerator
Compartment.
F_ezer Compartmenttemperatureadjustment
FREEZER BAR
Indication
_ _ _ EZ] CaLb_t |
E:3 E:3
•E:3 •E:3 • [:::3 •E;3 •
Refrigerator Compartmenttemperatureadjustment
REFRIGERATOR [" _,_T _
BAR l [C3
indication . . E3 .E3
[Z3
EZ_ E_
•[_] - C3
#_Whenever pressing button, setting is repeated inthe order of
(Middle) + (Middle Strong)-_ (Strong)÷ (Weak) ÷ (Middle Weak).
• The actual inner temperature varies depending on the food status, as the
indicated setting temperature is the target temperature, not actual temperature
within refrigerator.
• Please adjust temperature as above after using refrigerator for minimum 2~3
days.
You can select water or ice.
Pleaseselect water, Crushed ice, or cubed ice by _-_
pressing _ button asyou desire.
Please press the button gently by pushing in cup.
• You will hear a clapwhen the ice door closes
after ice is dispensed.
• Reference :Hold your cup in place for a couple of seconds after
dispensing ice or water so the last few drips ge in
your cup instead of on the floor.
4,-
Pressingi
sw_chI

Automatic
Icemaker
When ice maker
does not operate
smoothly
Express Freezer
Lock
•The automatic icemaker canautomatically make 8 cubes at a time,
120-150 pieces per day, This quantity may vary by circumstance, including ambient
temperature, door opening, freezer load, etc,
•Icemaking stops when the ice storage bin is full.
•If you don't want to useautomatic icemaker, turn the icemaker switch to OFF,
If you want to useautomatic ice-makeragain,changethe switch to ON. Toswitch ON/OFF
follow steps 1 & 2 in the picture.
The unit isnewly installed
•It takes about 12 hours for a newly installed refrigerator to make ice.
Ice is lumped together
If ice is not used frequently, it may lump together.
• If the ice lumps together, take it out, break it apart, and put it back into the storage
bin.
• When the ice maker producestoo small or lumped together ice, the amount of
water supplied to the ice maker needs to adjusted. Contact the service center.
Power failure
• Ice may drop into the freezer compartment. Take the ice storage bin out and discard
allthe ice then dry it and place it back, After the machine is powered again,crushed
ice will be automatically selected,
Please select this function for prompt freezer.
•"OFF-_ ON-_ OFF" rs_repeated
whenever pressing _ button.
• The arrow mark graphic remains at the
On status after flickering 4 times when
selecting Special Refrigeration On
• Prompt freezer function automatically
turns off after a fixed time passes.
EXPRESSFRZ
Ex) Inseledmg Ex) Inselecting
On Off
This button stops operation of different
button and dispenser function. LOCK
• Locking or Release is repeated
whenever the _ is pressed more than 3
seconds,
• If you use the LOCKbutton, none of the other
buttons will work until you unlock them. Ex) Inselecting Ex)Inselecling
LOCK UNLOCK

The Other
Functions
How IcelCold
Water is Supplied
How to Use
Dispenser
Filter Condition
(filter replacement
cycle) Display
Function
Door open warning
•A warning tone will sound 3 times atthirty-second intervalsif the refrigeratoror freezer
door isleft[open for more than sixty seconds,
•Pleasecontact the localservice center ifwarning tone continues to sound evenafter
closing the door.
Diagnosis (failure detection) function
•Diagnosisfunction automatically detects failureduring the normal use of refrigerator.
" If Y_ refrigerator fai]si _ not _n off the pow_ ]_ _n_a _1 _ized
Sewi_ _enter 0r catl_r supp_ linefoe_i_e; Turningoff th& a_liance wili
_ke i_more difficult for_he_i_
Water is cooled while stored in the water tank in freezer door, and then sent to the
dispenser.
Ice is made in the automatic icemaker and sent to the dispenser divided into crushed
or cubed ice,
• Select among crushed ice, water, and cubed ice and press the push switch with a
glass or other container.
Water
Light the water lamp
by pressing the
selection button.
• Water will be dispensed
by pressing the push
switch with a glass.
Crushed Ice
Light the crushed ice
lamp by pressing the
selection button.
• Crushed icewill be
dispensedbypressingthe
pushswitchwith aglass.
Cubed Ice
Light the cubed ice
lamp by pressing
the selection
button.
•Cubedicewillbedispensed
by pressing the push
switch with a glass.
DISPENSER DISPENSER
•Reference :Hold your cup in place for a couple of seconds after dispensing ice or
water so the last few drips go inyour cup instead of on the floor.
LED
• There isa replacement indicator light for the
water filter cartridge on the dispenser.
• Water filter needsreplacement once every six
months,
• Filter light comes on to letyou know when to
replacefilter.
Classification [ --Ininitial_OeIRR•rRESETtl --R_lllaceladlcilkXlighten
Filteratat.s _R_el_e _SET_
Display tl(_sr_ _ |HO_I_.S
• After replacingthe filter, press and hold the lock button more than 3seconds.
FILTERRESET,HOLD 3 SECStext turn offfilter light.

[ Cautions
Shelf Height
Adjustment
Throw away the ice(about 20 pieces)and water (about 7 glasses)first made after
refrigerator installation.
This is alsonecessary when the refrigerator hasnot been usedfor a long time.
Keep children away from the dispenser.
Childrenmay playwith or damage the controls.
Be carefulthat food does not block the ice passage.
If foods are placedatthe entrance of icepassage,the
dispenser may malfunction. The passagemay alsobecome
blocked with frost if onlycrushed ice is used. Remove the
frost that accumulates.
Storing cars or other items in the icebin may damage
the icemaker or the container may burst.
Never usethin crystal glassor crockeryto collect ice.
Suchglassesor containersmay break.
Put icefirst into a glass beforefilling water or other beverages.
Water may be splashedif iceis added to existing liquidin a glass.
Keepyour hands and tools out of the ice door and passage.
You might breaksomething or injure yourself.
Never remove the icemaker cover.
Shake the ice bin occasionallyto level the ice in it.
Sometimes the ice piles upnearthe icemaker,causingthe icemakerto misreadthe bin
leveland stop producing ice.
Ifdiscolored iceor water isdispensed,contact an Authorized servicecenter
immediately and discontinue useuntil the problem iscorrected,
Never usetoo narrow or shallow glass.
Ice may bejammed in ice passageand,thus, the ice maker may fail.
Keep the glassat a properdistance from ice outlet.
A glass too close to the outlet may hinder ice from coming out.
Shelf
The refrigerator compartment shelf is adjustable so that you can place it at a height
according to space requirement of foods.
•SlideShelf
Pullthe shelf ahead andtake it out while
lifting both front and rear part.
•FixShelf
Lightly lift up the front partof shelf to pull it
ahead and then take itout while lifting the
rearpart of shelf.

Snack Drawer
Freezer
Compartment
Shelf
Freezer
Compartment
Door Rack
Freezer
Compartment
Drawer
Milk Product
Corner
Refreshment
Center
Refrigerator
Compartment
Shelf
Refrigerator
Compartment
Door Rack
Vegetable Drawer
Location of Foods
(Refer to Identification of Parts)
Store small foods such as bread, snacks, etc.
Storevarious frozen foods such as meat, fish,
icecream,frozen snacks,etc.
• Store small packed frozen food,
• Temperature is likely to increase as door
opens. So,do not store long-term food such
as ice cream, etc.
• Store meat, fish, chicken, etc. after
wrapping them with foil.
• Storedry.
Store milk products such as butter, cheese,
etc.
Storefoods of frequent use such asbeverage,
etc.
Store side dishes or other foods.
Store small packed food or beverages such
as milk,juice, beer, etc.
Store vegetables or fruits.

Freezer
Compartment
Refrigerator
Compartment
Storing Foods
•Storefresh food in the refrigerator compartment. How food isfrozen and thawed is an
important factor in maintaining its freshness and flavor.
•Do not store food, which spoils easily, at low temperatures, such as bananasand
melons.
• Allow hot food to cool prior to storing, placing hot food in the refrigerator could spoil
other food, and leadto higher energyconsumption.
•When storing the food, cover it with vinyl wrap or store in a container with a lid.This
prevents moisture from evaporating,and helpsfood to keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator
temperatures even.
• Do not open the door frequently. Openingthe door letswarm airenter the refrigerator,
and cause temperatures to rise.
•Never keep too much food in door rack becausethey may be pushed against the innerracks
and the door would not be fully closed.
•Do not store bottles in the freezer compartment- they may breakwhen frozen.
• Do not refreeze food that has been thawed. This causes loss of taste and nutrient.
• When storing frozen food like ice cream for a long period, placeit on the freezer
shelf, not in the door rack.
• Do not touch the cold foods or containers- especially made of metal -,with wet
hands and placeglass products in the freezer compartment.
-That's why you may havechilblainsand they may be brokenwhen their inner matters
are frozen,causing personalinjury.
• Avoid placing moist food in top refrigerator shelves, it could freeze from direct
contact with chilled air.
• Always clean food prior to refrigeration.Vegetables and fruits should be washed and
wiped, and packed food should be wiped, to prevent adjacent food from spoiling.
• When storing eggs in their storage rack or box, ensure that they are fresh, and always
store them in an upright position, which keeps them flesh longer.
ii!!iiii!

Freezer
Compartment
Lamp
ii!l-. --
Dispenser Lamp
Freezer
Comparbnent
Shelf
Door Rack and
Support
Ice Storage Bin
After Dispenser
Is Used
How to Dismantle Parts
Remove cover by pressing upward on bottom
d) and rotating outward@.
Turn the bulb counterclockwise. Marc 40 Wbulb
for refrigerator is used and can be purchased at
a service center.
Seperate the lamp by pulling it out, and then
remove the lamp. Max. 15 W bulb for
refrigerator is used and can be purchased at a
service center.
To remove a shelf, Lift the left par[ of the
shelf a bit. Lift it to the direction •, push the
right par[ to the direction_, and take it out.
Lift the door rack holding both sides(Dand
pull it out to_ direction.
Lift the ice sheJf as shown in the right figure
and pull it out@
Hold the ice storage bin as shown in the right
figure and pull it out whileslightly lifting it.
To assemblethe ice storage bin, push it;A',
whileslightly "" " s"liftingit
•It is recommended not to dismantle the ice
storage bin unless it is necessary.
•Use both hands to remove the ice bin to avoid
dropping it.
•If the ice bin does not slide into place easily,
twist the drive device slightly.
The water collector has no self-draining
function. It should be cleaned regularly.
Removethe cover by pulling the front side of
water collector cover and dry it with a cloth.
Drive
_=__ice
