LG LDNS22220 Series User manual

OWNER'S MANUAL
BOTTOM FREEZER
REFRIGERATOR
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times.
ENGLISH
LDNS22220* / LRDNS2200* / LRDCS2603* / LDN22470** / LDC22370** /
LDCS22220*
MFL67851408
Rev.05_112723
www.lg.com
Copyright © 2019-2023 LG Electronics Inc. All Rights Reserved.
Scan to see the online manual.

TABLE OF CONTENTS
2
3 IMPORTANT SAFETY
INSTRUCTIONS
3 READ ALL INSTRUCTIONS BEFORE USE
3WARNING
6CAUTION
7 PRODUCT OVERVIEW
7 Product Features
10 INSTALLATION
10 Before Installing

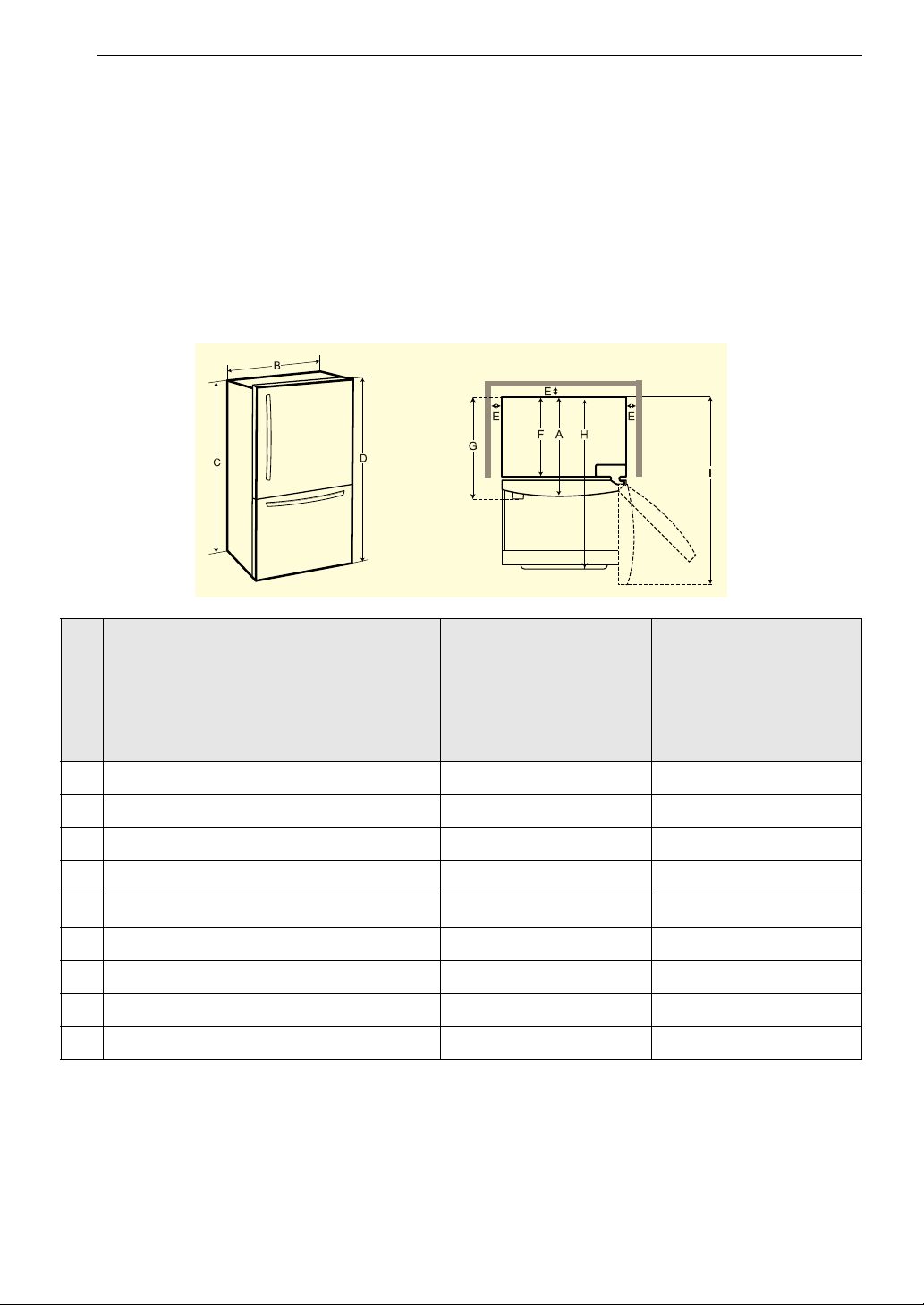

11 Choosing the Proper Location
13 Removing/Assembling Handles

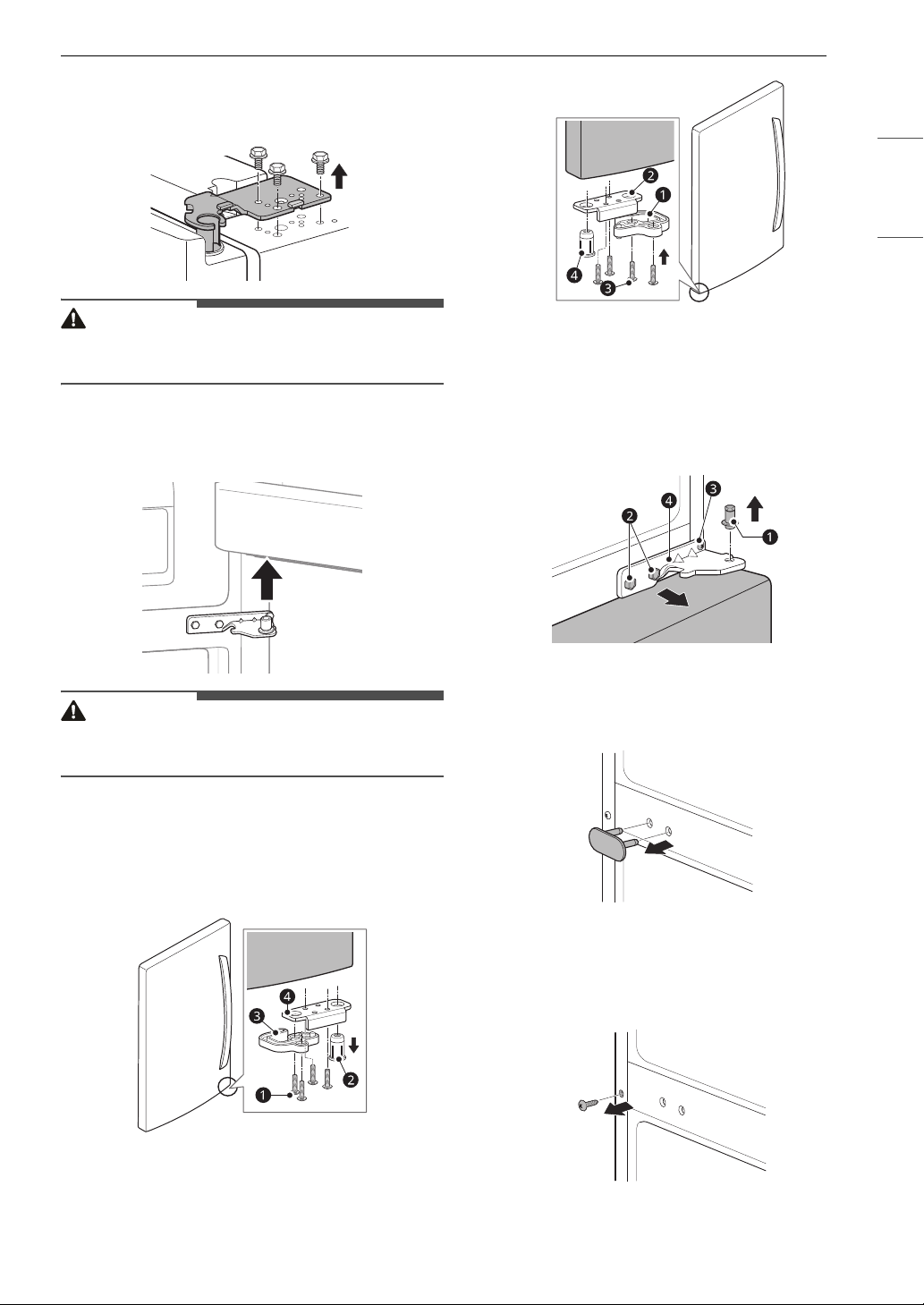

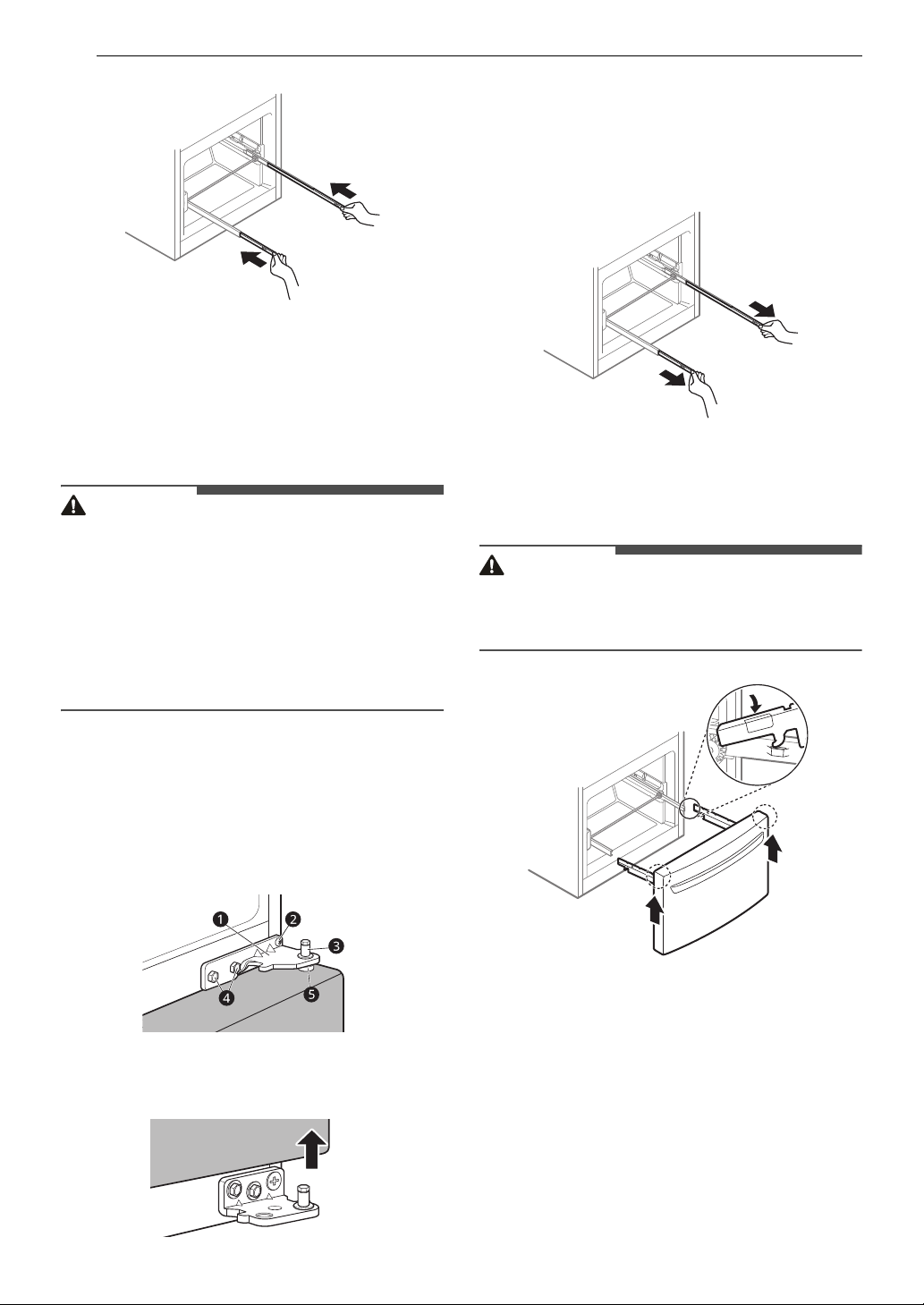

14 Removing/Assembling Doors and Drawers

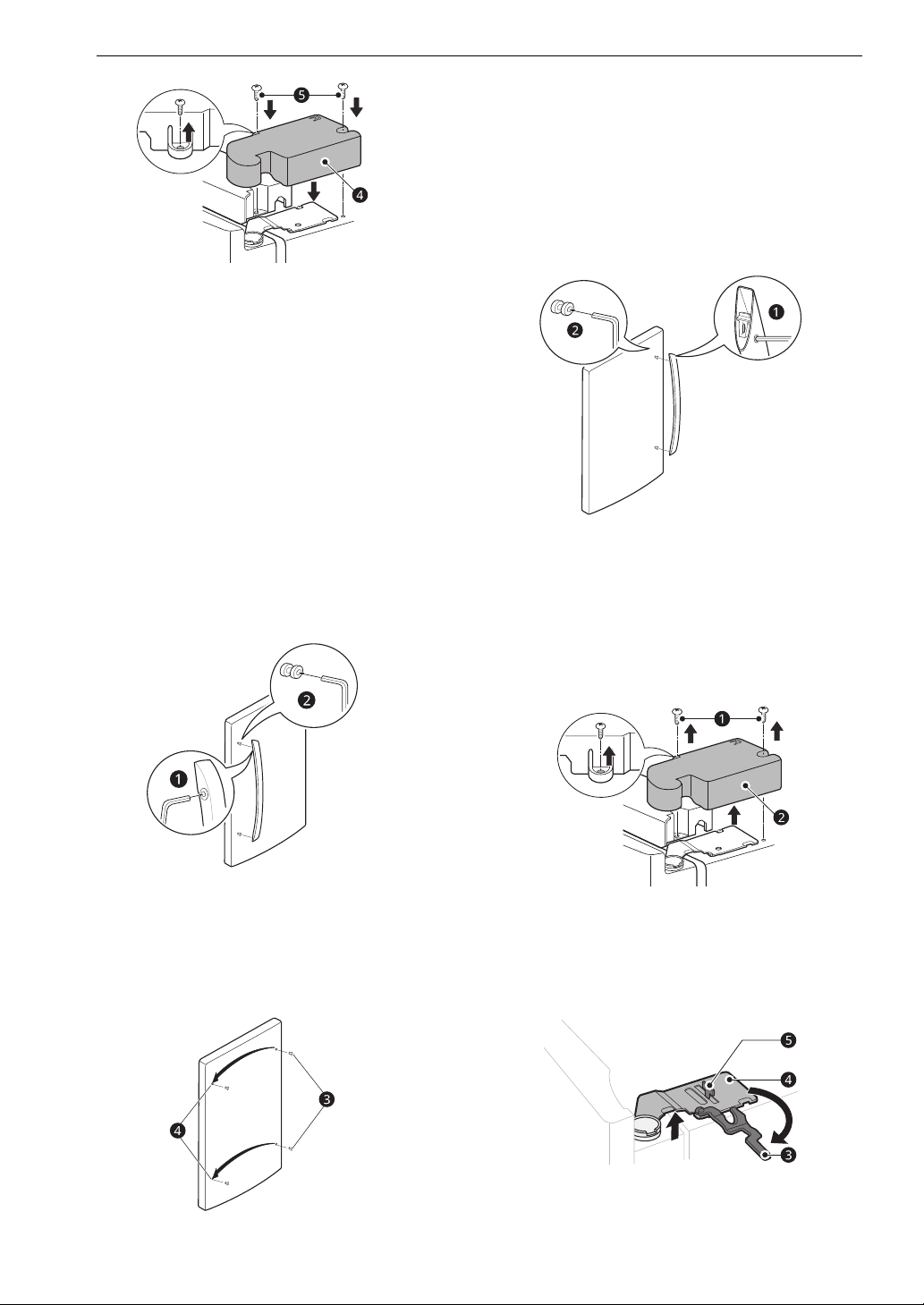

18 Reversing Handles/Doors
21 Connecting Refrigerator to Water Supply
23 Leveling
23 Turning on the Power
24 OPERATION
24 Before Use
25 Control Panel
26 Sabbath Mode
27 Automatic Icemaker
27 Storing Food
29 Crisper Drawers
30 Glide‘N’Serve
30 Refrigerator Shelves
31 Door Bins
31 Durabase
33 SMART FUNCTIONS
33 LG ThinQ Application
33 Smart DiagnosisTM Feature
34 MAINTENANCE
34 Cleaning
34 Water Filter
39 TROUBLESHOOTING
39 FAQs
40 Before Calling for Service
47 LIMITED WARRANTY
47 USA
51 Canada

3IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
Safety Messages
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
follow all safety messages.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,
and tell you what may happen if the instructions are not followed.
WARNING
WARNING
• To reduce the risk of explosion, fire, death, electric shock, scalding or injury to persons when using this
product, follow basic precautions, including the following:
Installation
• To reduce the risk of injury to persons, adhere to all industry recommended safety procedures including
the use of long-sleeved gloves and safety glasses.
• Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has
missing or broken parts, including a damaged cord or plug.
• Only connect this product to a dedicated grounded electrical outlet rated for use with this product (115
V, 60 Hz, AC only). It is the user’s responsibility to replace a standard 2-prong wall outlet with a standard
3-prong wall outlet.
• Do not use an outlet that can be turned off with a switch. Do not use an extension cord.
• The appliance must be positioned for easy access to a power source.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
• Contact an authorized service center when installing or relocating the refrigerator.
• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
• Keep packing materials out of the reach of children. Packaging material can be dangerous for children.
There is a risk of suffocation.
• Do not install the refrigerator in a damp or dusty place where insulation on electrical parts may
deteriorate.
• Do not place the refrigerator in direct sunlight or expose it to the heat from heating appliances such as
stoves or heaters.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages
will follow the safety alert symbol and either the word WARNING or CAUTION.
These words mean:
WARNING
You may be killed or seriously injured if you do not follow instructions.
CAUTION
You may be injured or cause damage to the product if you do not follow instructions.

4IMPORTANT SAFETY INSTRUCTIONS
• Do not bend or pinch the power cord excessively or place heavy objects on it.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
Operation
• This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
• This product is not to be used for special purposes such as the storage of medicine or test materials or
for use on ships, etc.
• DO NOT allow children to climb, stand, or hang on the refrigerator doors or on the shelves in the
refrigerator. They could damage the refrigerator and seriously injure themselves.
• Do not allow children to climb into the refrigerator. They could be trapped and suffocated.
• Children should be supervised to ensure that they do not play with the refrigerator.
• Keep fingers out of pinch point areas; clearances between the doors and cabinets are necessarily small.
Be careful closing doors when children are nearby.
• Do not touch frozen food or the metal parts in the freezer compartment with wet or damp hands. Doing
so may cause frostbite.
• Do not refreeze frozen food that has thawed completely. Doing so may result in a serious health hazard.
• Do not use an adapter plug or plug the power plug into a multi-outlet extension cord.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
• Do not operate the refrigerator or touch the power cord with wet hands.
• Do not modify or extend the power cord.
• Do not use an uncertified power outlet. Do not plug appliance into a damaged wall outlet.
• Do not put hands, feet or other objects into the air vents or bottom of the refrigerator. Doing so could
result in personal injury or electric shock.
• In the event of a gas leak (propane/LPG), ensure the area is adequately ventilated and contact an
authorized service center before resuming use. Do not touch the refrigerator or power cord of the
refrigerator.
• Disconnect the power cord immediately and contact an authorized service center if there is a strange
noise, odor, or smoke coming from the appliance.
• Do not use any fuse (such as copper, steel wire, etc.) other than a standard fuse.
• Do not put animals inside the appliance.
• Do not place heavy or fragile objects, liquid filled containers, combustible substances, or flammable
objects (such as candles and lamps) on the appliance.
• If connected to a circuit protected by fuses, use time delay fuse.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are
of the type recommended by the manufacturer.

5IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not damage the refrigerant circuit.
• This appliance incorporates an earth connection for functional purposes.
• Connect to potable water supply only.
- If connected to a water supply, connect to a potable water supply only.
• Fill with potable water only.
- If using an icemaker or dispenser water tank, make sure to fill it with potable water only.
Maintenance
• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not light a candle to remove odors in the refrigerator.
• In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure the area is
adequately ventilated and contact an authorized service center.
• Keep flammable materials and vapors, such as gasoline, away from the refrigerator.
• Unplug the power plug before cleaning or repairing the refrigerator.
• The refrigerator and freezer compartment lights are interior LED lighting, and service should be
performed by a qualified technician.
• Unplug the power plug immediately in the event of a blackout or thunderstorm.
• Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.
• Do not store glass containers or soda in the freezer compartment. Contents may expand when frozen,
break the container and cause injury.
• Do not store, disassemble or repair the appliance yourself or allow unqualified personnel to do so.
Disposal
• Risk of child entrapment. Junked or abandoned refrigerators are dangerous, even if they are sitting for
only a few days. When disposing of the refrigerator, remove the packing materials from the door or take
off the doors but leave the shelves in place so that children may not easily climb inside.
• If disposing of a refrigerator, make sure the refrigerant and insulation foam are removed for proper
disposal by a qualified servicer. If you release the refrigerant or throw away the insulation foam, you
may be fined or imprisoned in accordance with the relevant environmental law. Insulation foam contains
flammable blowing gas.
• When discarding the appliance, remove the door gasket while leaving the shelves and bins in place, and
keep children away from the appliance.
Grounding Instructions
• Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check
with a qualified electrician or service personnel if you are in doubt whether the appliance is properly
grounded. Do not modify the plug provided with the appliance; if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
• Have a certified electrician check the wall outlet and wiring for proper grounding.
• Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight
out from the outlet. Failure to do so may damage the power cord, resulting in a risk of fire and electric
shock.

6IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Risk of Fire and Flammable Materials
CAUTION
CAUTION
• To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or
property when using this product, follow basic precautions, including the following:
Installation
• Do not install the refrigerator where there may be a danger of the unit falling.
• The refrigerator must be properly installed in accordance with the Installation Instructions.
• This appliance does not require changes in installation or use based on altitude.
Operation
• Do not use aerosols near the refrigerator.
• This appliance is intended to be used only in domestic and similar applications.
• Do not strike or apply excessive force to any glass surface. Do not touch glass surfaces if they are
cracked or broken. You may be injured.
• Do not overfill or pack items too tightly into door bins. Doing so may cause damage to the bin or
personal injury if items are removed with excessive force.
Maintenance
• Do not use strong detergents like wax or thinners for cleaning. Clean with a soft cloth.
• Remove foreign objects (such as dust and water) off the prongs of the power plug and contact areas. Do
not use a wet or damp cloth when cleaning the plug.
• Do not spray water directly on the inside or outside of the refrigerator.
• Do not clean glass shelves or covers with warm water when they are cold. They may break if exposed to
sudden temperature changes.
This symbol alerts you to flammable materials that can ignite and cause a fire if you do not
take care.
This appliance contains a small amount of isobutane refrigerant (R600a), which is combustible.
When transporting and installing the appliance, care should be taken to ensure that no parts
of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or
cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of
ignition and air out the room in which the appliance is standing for several minutes.
In order to avoid the creation of a flammable gas air mixture if a leak in the refrigerating
circuit occurs, the size of the room in which the appliance may be sited depends on the
amount of refrigerant used. The room must be 10.8 square feet (1 square meter) in size for
every 8g of R600a refrigerant inside the appliance. The amount of refrigerant in your
particular appliance is shown on the identification plate inside the appliance. Never start up an
appliance showing any signs of damage. If in doubt, consult your dealer.

7PRODUCT OVERVIEW
ENGLISH
PRODUCT OVERVIEW
Product Features
The images in this guide may be different from the actual components and accessories, which are subject
to change by the manufacturer without prior notice for product improvement purposes.
Exterior
† This feature is only available on some models.
aRefrigerator
Fresh food compartment
bRefrigerator Handle
Opens and closes the refrigerator door.
cFreezer Handle
Opens and closes the freezer drawer.
dFreezer
Frozen food compartment

8PRODUCT OVERVIEW
Interior
† This feature is only available on some models.
aLED Interior Lighting
Lights up the inside of the refrigerator.
bWater Filter†
Purifies water. Replace the water filter every six months. See the Replacing the Water Filter section in
this manual for details.
cAdjustable Refrigerator Shelf
The refrigerator shelves are adjustable to meet individual storage needs.
dHumidity Controlled Crisper
Helps vegetables and fruit to stay crisp and controls humidity.
eGlide'N'Serve
Stores large party trays, deli items, and beverages.
fAutomatic Icemaker (Freezer)†
Produces ice automatically.
gIce Bin†
Stores ice from the freezer icemaker.
hDairy Bin†
Dairy Bin is specially designed for cheese, butter and condiment storage.

9PRODUCT OVERVIEW
ENGLISH
iFold-Up Bin
Can be folded up when tall storage is needed in the Door Bin.
jDoor Bin
Interchangeable bins can be arranged to suit storage needs.
kAuto-Closing Hinge†
The refrigerator doors and freezer drawers close automatically when pushed slightly. (The door only
closes automatically when it is open at an angle of less than 30°.)
lPullout Drawer
Provides extra storage within the freezer compartment.
mDurabase and Durabase Divider
Provides storage for large frozen food items.
Product Specifications
The appearance and specifications listed in this manual may vary due to constant product improvements.
Electrical requirements: 115 V, 60 Hz
Min. / Max. water pressure: 20 - 120 psi (138 - 827 kPa)
Model Description Net weight
LRDCS2603* Standard-depth, Bottom Freezer 225 lb (102 kg)
LDNS22220*
LRDNS2200*
LDCS22220*
LDN22470**
LDC22370**
Standard-depth, Bottom Freezer 230.8 lb (104 kg)

10 INSTALLATION
INSTALLATION
Before Installing
Installation Overview
Please read the following installation instructions first after purchasing this product or transporting it to
another location.
aUnpacking the Refrigerator
bChoosing the Proper Location
cDisassembling/Assembling
dConnecting the Water Line
eLeveling and Door Alignment
WARNING
• Connect to potable water supply only.

11INSTALLATION
ENGLISH
Unpacking the Refrigerator
WARNING
• Use two or more people to move and install the
refrigerator. Failure to do so can result in back
injury or other injury.
• The refrigerator is heavy. Protect the floor when
moving the refrigerator for cleaning or service.
Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator
when trying to move it, as floor damage could
occur.
• Keep flammable materials and vapors, such as
gasoline, away from the refrigerator. Failure to
do so can result in fire, explosion, or death.
NOTE
• Remove tape and any temporary labels from
your refrigerator before using. Do not remove
any warning labels, the model and serial number
label, or the Tech Sheet that is located under the
front of the refrigerator.
• To remove any remaining tape or glue, rub the
area briskly with your thumb. Tape or glue
residue can also be easily removed by rubbing a
small amount of liquid dish soap over the
adhesive with your fingers. Wipe with warm
water and dry.
• Do not use sharp instruments, rubbing alcohol,
flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your refrigerator.
• Reinstall or adjust shelves as needed.
Refrigerator shelves are installed in the shipping
position. Reinstall shelves according to your
individual storage needs.
Choosing the Proper
Location
Water
The refrigerator must be located where a water
supply can be connected for the automatic
icemaker.
NOTE
• The water pressure must be 20 - 120 psi (138 -
827 kPa). If the refrigerator is installed in an area
with low water pressure (below 20 psi or 138
kPa), you can install a booster pump to
compensate for the low pressure.
Electricity
Use an individual, grounded outlet:115 Volts, 60
Hz, AC, 15 amps minimum.
WARNING
• Do not overload house wiring and cause a fire
hazard by plugging in multiple appliances in the
same outlet with the refrigerator.
• To reduce the risk of electric shock, do not install
the refrigerator in a wet or damp area.
Flooring
To avoid noise and vibration, the unit must be
installed and leveled on a solidly constructed floor.
If required, adjust the leveling legs to compensate
for the unevenness of the floor.
NOTE
• Installing on carpeting, soft tile surfaces, a
platform or weakly supported structure is not
recommended.
Ambient Temperature
Install this appliance in an area where the
temperature is between 55 °F (13 °C) and 110 °F
(43 °C).
If the temperature around the appliance is too low
or high, cooling ability may be adversely affected.
The internal temperatures could be affected by the
location of the appliance, the ambient
temperature, the frequency of door opening and
other factors.

12 INSTALLATION
Dimensions and Clearances
• Check the dimensions of the appliance and the installation path to ensure there is sufficient room to
move the refrigerator through doors or narrow openings.
• If an opening is too narrow to fit the refrigerator through, remove the refrigerator doors. See Removing/
Assembling Doors and Drawers in this manual.
• The installation location chosen for the refrigerator should allow space behind the unit for connections
and airflow and space in front to open the doors and drawers.
• Too small of a distance from adjacent items may result in lowered freezing capability and increased
electricity consumption charges. Allow at least 2 inches (50 mm) between the back of the refrigerator
and the wall.
• Remember to allow enough room in front of the refrigerator to fully open the doors and drawers.
-Dimensions/Clearances LRDCS2603*
LDNS22220*
LRDNS2200*
LDN22470**
LDC22370**
LDCS22220*
A Depth without Handle 34" (864 mm) 32 1/2" (825 mm)
B Width 32 3/4" (833 mm) 29 3/4" (756 mm)
C Height to Top of Case 68 1/2" (1740 mm) 67 1/8" (1705 mm)
D Height to Top of Hinge 69 7/8" (1774 mm) 68 1/2" (1740 mm)
E Back Clearance 2" (50 mm) 2" (50 mm)
F Depth without Door 29 7/16" (748 mm) 29 1/8" (740 mm)
G Depth with Handle 35" (889 mm) 35 1/2" (901 mm)
H Depth (Total with Freezer Drawer Open) 53 3/8" (1355 mm) 56 1/4" (1440 mm)
I Depth (Total with Door Open 90°) 63 1/4" (1606 mm) 59" (1500 mm)

13INSTALLATION
ENGLISH
Removing/Assembling
Handles
These instructions are for models which ship with
the handles assembled. For models shipped with
the handles disassembled, follow the instructions
included in the handle package.
• Tools Needed
- Units shipped with disassembled handles:
3/32" and 1/4" Allen wrenches only
- Units shipped with assembled handles:
3/32", 1/8" and 1/4" Allen wrenches
When moving the refrigerator through a narrow
opening, removing the doors is preferred. If you
must remove the handles, be very careful not to
scratch the doors.
The appearance of the handles may vary from
what is shown.
CAUTION
• When assembling or disassembling the
refrigerator handles, grasp the handle firmly to
avoid dropping it.
• Do not swing the handle into nearby people or
animals.
• Make sure that the set screws are in place and
the handle footprints at the ends of the handles
are aligned correctly over the mounting
fasteners on the doors. The set screws should be
loose enough to allow the handle footprints to
slide down into place over the mounting
fasteners on the door.
• Make sure that there is not a gap between the
door and handle after assembling the handle.
Removing Refrigerator Handles
1 Loosen the set screws awith a 3/32 in. Allen
wrench and remove the handle.
2 If needed, loosen the mounting fasteners b
that connect the refrigerator door and handle
using a 1/4 in. Allen wrench, and remove the
mounting fasteners.
Assembling Refrigerator Handles
1 If needed, reassemble the mounting
fasteners aon the door with a 1/4 in. Allen
wrench.
2 Place the handle on the door by fitting the
handle footprints over the mounting
fasteners and tightening the set screws b
with a 3/32 in. Allen wrench.
Removing Freezer Drawer Handles
This feature is only available on some models.
1 Loosen the set screws alocated on the lower
side of the handle with a 1/8 in. Allen wrench
and remove the handle.
2 Loosen the mounting fasteners bwith a 1/4
in. Allen wrench, and remove the mounting
fasteners.
Assembling Freezer Drawer
Handles
This feature is only available on some models.
1 Assemble the mounting fasteners aat both
ends of the handle with a 1/4 in. Allen wrench.
2 Place the handle on the door by fitting the
handle footprints over the mounting

14 INSTALLATION
fasteners and tightening the set screws b
with a 1/8 in. Allen wrench.
Removing/Assembling
Doors and Drawers
If the entrance door is too narrow for the
refrigerator to pass through, remove the
refrigerator doors and move the refrigerator
sideways through the doorway.
WARNING
• Use two or more people to remove and install
the refrigerator doors and freezer drawer.
• Disconnect the electrical supply to the
refrigerator before installing.
• Do not put hands, feet or other objects into the
air vents or bottom of the refrigerator.
• Be careful when handling the hinge and hinge
lever.
• Remove food and bins before detaching the
doors and drawer.
• Do not hold the handle when removing or
replacing the doors and drawer as the handle
may come off.
• Tools Needed
- Phillips screwdriver
- Flat-head screwdriver
Removing the Refrigerator Door
1 Remove the top hinge cover screws a. Lift the
hook (not visible), located at the bottom of the
cover bwith a flat-head screwdriver.
2 Type A
• Rotate the hinge lever cclockwise. Lift the
top hinge dfree of the hinge lever latch e.
Type B
• Remove the three bolts using a 13/32 in. (10
mm) socket wrench and lift off the top
hinge. Set parts aside.
CAUTION
• When lifting the hinge, be careful that the door
does not fall forward.
3 Lift the door from the middle hinge pin and
remove the door.

15INSTALLATION
ENGLISH
CAUTION
• Place the door, inside facing up, on a non-
scratching surface.
Removing Freezer Drawers
This feature is only available on some models.
WARNING
• To prevent accidents, keep children and pets
away from the drawer. Do not leave the drawer
open. If the Durabase storage bin is removed
from the freezer drawer, there is sufficient space
for a small child or pet to crawl inside.
• Do not sit or stand on the freezer drawer.
CAUTION
• Use two or more people to remove and install
refrigerator doors and freezer drawers.
• Be careful of sharp hinges on both sides of the
drawer.
• When you lay the drawer down, be careful not to
damage the floor.
1 Pull the drawer open to full extension.
2 Gently lift and pull out the ice bin.
3 Lift the front of the drawer up, then pull it
straight out.
4 Remove the Durabase basket from the rails.
Remove the screws from the rails at both
ends.
5 Grip both sides of the drawer and pull it up to
remove it from the rails.
CAUTION
• Do not hold the handle when removing or
replacing the drawer. The handle may come off,
causing personal injury.
6 Hold both rails and push them in
simultaneously.

16 INSTALLATION
Removing Freezer Door
This feature is only available on some models.
Before beginning, make sure you completely
remove the refrigerator door. See Removing the
Refrigerator Door.
WARNING
• Use two or more people to remove and install
the freezer door. Failure to do so can result in
back or other injury.
• When you lay the door down, be careful not to
damage the floor.
• Do not sit or stand on the freezer door.
• To prevent accidents, keep children and pets
away from the door. Do not leave the door open.
1 Use a 1/4 in. (6.35 mm) hex socket wrench to
loosen and remove the hinge pin cfrom the
middle hinge bracket a. Use a 13/32 in. (10
mm) socket wrench to remove the two bolts
d. Remove the screw band the washer e,
and set the middle hinge and other parts
aside.
2 Carefully lift up the freezer door. Remove and
place it on a non-scratching surface.
Assembling Freezer Drawers
This feature is only available on some models.
1 Pull out both rails simultaneously until they
are fully extended.
2 Grasp the drawer on each side and hook the
drawer supports into the rail tabs located on
both sides.
CAUTION
• Do not hold the handle when removing or
replacing the drawer. The handle may come off,
causing personal injury.
3 Lower the door into its final position and
insert the screws in the rails on both sides.

17INSTALLATION
ENGLISH
4 Insert the Durabase basket in the rail
assembly.
5 Insert the drawer into the frame, and push
the drawer back until it clicks into place.
Replace the ice bin in the drawer.
Assembling Freezer Door
This feature is only available on some models.
1 Place the freezer door down on the bottom
hinge pin a.
2 Put the washer ebetween the freezer door
and the middle hinge. Attach the middle
hinge awith the previously removed two
bolts dand screw b. Reattach the middle
hinge pin cusing a 1/4 in. (6.35 mm) hex
socket wrench.
Assembling the Refrigerator Door
1 Make sure that the hinge pin sleeve is
inserted in the bottom of the door. Lower the
door onto the middle hinge pin.
2 Align the door with the cabinet.
3 Type A
• Fit the hinge aover the hinge lever latch b
and slot it into place. Rotate the lever c
counterclockwise to secure the hinge.
Type B
• Line up the top hinge with the holes in the
top of the refrigerator. Use the three bolts
to replace the hinge. Tighten the bolts.
4 Replace the hinge cover d. Insert and tighten
the cover screws e.

18 INSTALLATION
Reversing Handles/Doors
Door reversal must be done by an authorized
installer or service person. If it is not, the doors will
not be covered by the warranty.
Reversing the Refrigerator Handle
1 Loosen the set screws awith a 3/32 in. (2.5
mm) Allen wrench, and remove the handle.
2 Loosen the mounting fasteners bthat
connect to the refrigerator door and handle
using a 1/4 in. (6.35 mm) Allen wrench, and
remove the mounting fasteners.
3 Carefully rotate the decorative screw covers
ccounterclockwise with your fingers until
they loosen and fall out. Once they're
removed, install the covers in the screw holes
don the opposite side.
4 Attach the mounting fasteners bto the
opposite side of the door using a 1/4 in. (6.35
mm) Allen wrench.
5 Place the handle on the door by fitting the
handle footprints over the mounting
fasteners band tightening the set screws a
with a 3/32 in. (2.5 mm) Allen wrench.
Reversing Doors
1 Remove the top hinge cover screws a. Use a
flat-head screwdriver to release the tabs
inside the front of the cover at the bottom b.
Remove the cover.
2 Type A
• Rotate the hinge lever cclockwise. Lift the
top hinge dfree of the hinge lever latch e.
Type B

19INSTALLATION
ENGLISH
• Remove the three bolts using a 13/32 in. (10
mm) socket wrench and lift off the top
hinge. Set parts aside.
CAUTION
• When lifting the hinge, be careful that the door
does not fall forward.
3 Lift the door from the middle hinge pin and
remove the door.
CAUTION
• Place the door, inside facing up, on a non-
scratching surface.
4 Remove the four screws a, the hinge pin
sleeve b, the hinge lever cand hinge
bracket dfrom the bottom right side of the
door.
5 Turn the hinge lever aover and install it, the
hinge bracket b, screws c, and hinge pin
sleeve don the bottom left side of the door.
6 Use a 1/4 in. (6.35 mm) hex socket wrench to
loosen the hinge pin aand remove it. Use a
3/16 in. (5 mm) Allen wrench and a Phillips
screwdriver to remove the two Allen-head b
and one Phillips-head cscrews. Remove the
hinge d.
7 With a flat-head screwdriver, carefully pry off
and remove the cover over the bolt holes on
the left side of the refrigerator.
8 Remove the outer lower decorative screw
from the flange on the frame between the
freezer and refrigerator doors. (You will need
this hole for the middle hinge.)

20 INSTALLATION
9 Flip the middle hinge bracket aand position
it on the left side of refrigerator. Insert two
Allen-head screws cand the Phillips-head
screw b.
10 Insert the hinge pin ausing a 1/4 in. (6.35
mm) socket wrench.
NOTE
• The bracket bhas been flipped, but the hinge
pin astays in the same orientation with its
hexagonal end facing upward.
11 Insert the decorative screw ainto the outer
hole on the flange along the right front side.
Insert the cover bover the 2 open bolt holes
on the right side. The cover is force-fitted.
12 Loosen the two screws and remove the left
hinge cap.
13 Place the refrigerator door down over the
hinge pin on the middle hinge pin bracket.
NOTE
• The left top hinge, right hinge cap, and left hinge
cover are provided for reversing doors.
14 Type A
• Fit the hinge aover the hinge lever latch b
and slot it into place. Rotate the lever c
clockwise to secure the hinge. Assemble the
left hinge cover with the two screws d.
Type B
• Line up the left top hinge with the holes in
the top of the refrigerator. Use the three
bolts to replace the hinge. Assemble the left
hinge cover with the two screws.
15 Assemble the right hinge cap with the two
screws.
