LG LFX28968SW User manual

Life'sGood
/VV _',¢b t'{il c A b,_ _............> M UAL
F's s_
FRE CH DOOR
REFRIGERATOR
Please read this owner's manual thoroughly before
operating and keep i1 handy for reference at all times.
LFX28968**
P/No. : MFL63264230

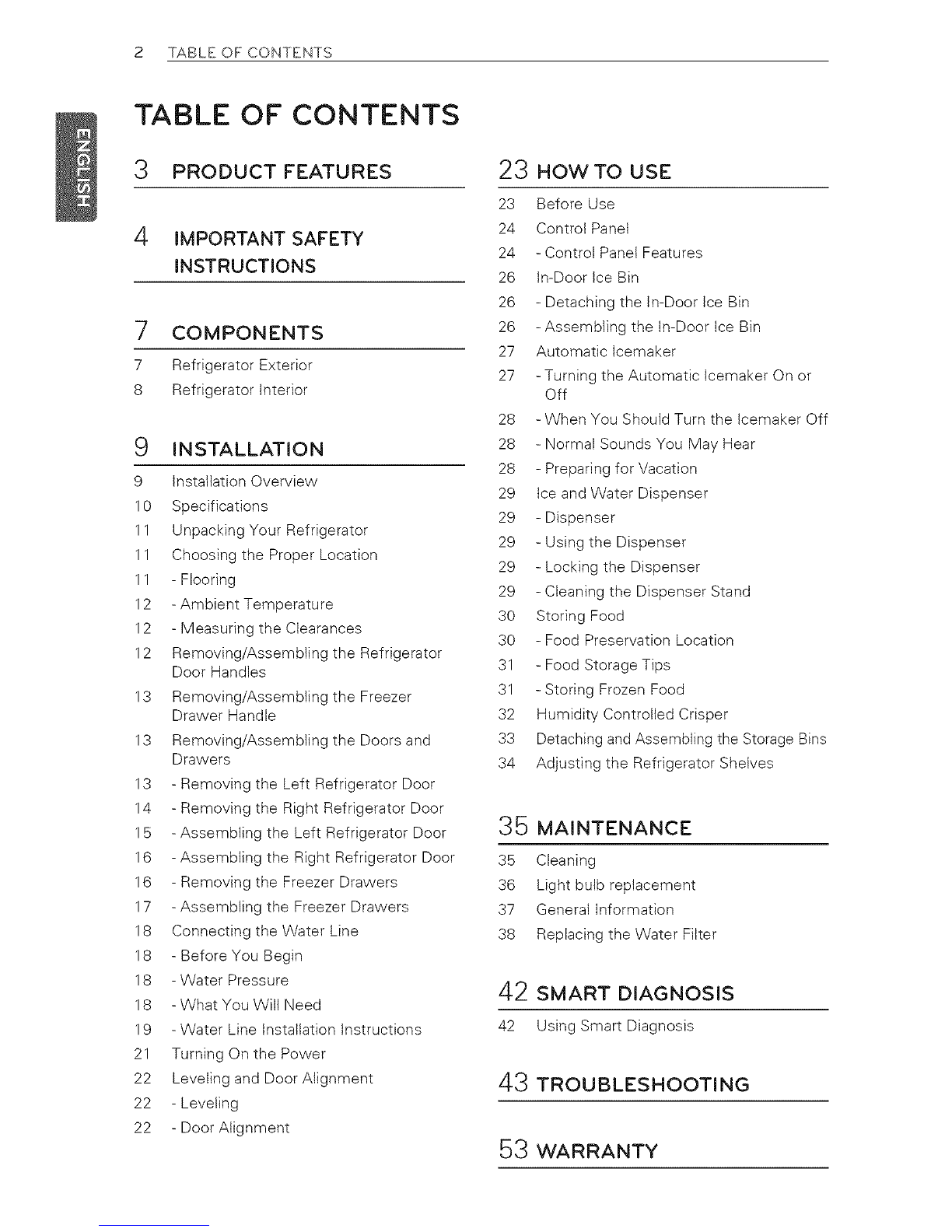

2 TABLEOFCONTENTS
TABLE OF CONTENTS
3 PRODUCT FEATURES
4IMPORTANT SAFETY
INSTRUCTIONS
7 COMPONENTS
7 Refrigerator Exterior
8 Refrigerator interior
9
9
0
1
1
1
2
2
2
3
4
5
6
6
7
8
8
8
8
9
21
22
22
22
INSTALLATION
Installation Overview

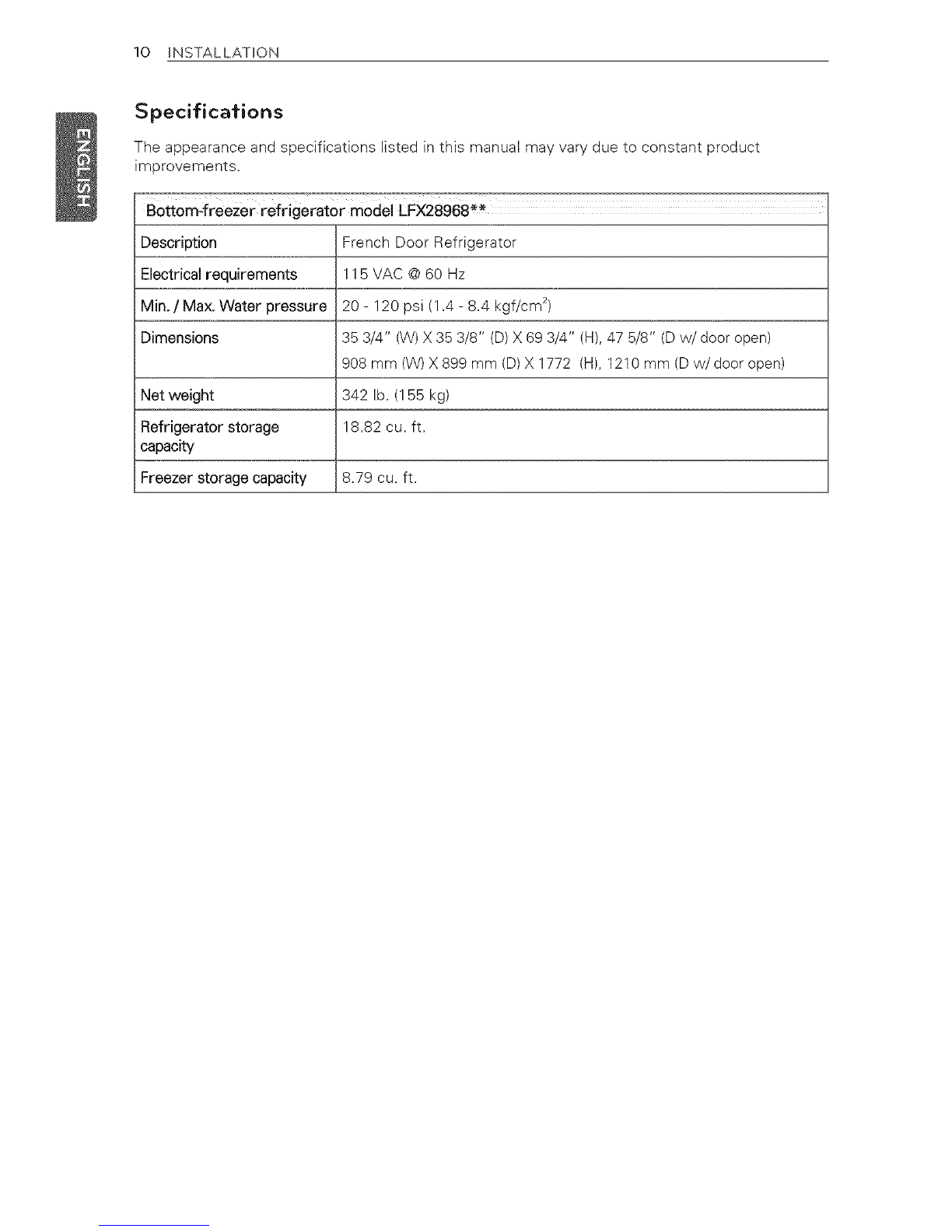

Specifications
Unpacking Your Refrigerator
Choosing the Proper Location
- Flooring
- Ambient Temperature
- Measuring the Clearances
Removing/Assembling the Refrigerator
Door Handles
Removing/Assembling the Freezer
Drawer Handle
Removing/Assembling the Doors and
Drawers
- Removing the Left Refrigerator Door
- Removing the Right Refrigerator Door
- Assembling the Left Refrigerator Door
- Assembling the Right Refrigerator Door
- Removing the Freezer Drawers
- Assembling the Freezer Drawers
Connecting the Water Line
- Before You Begin
- Water Pressure
- What You Will Need
- Water Line Installation Instructions
Turning On the Power
Leveling and Door Alignment
- Leveling
- Door Alignment
23 HOW TO USE
23 Before Use
24 Control Panel
24 - Control Panet Features
26 In-Door ice Bin
26 - Detaching the In-Door ice Bin
26 - Assembling the In-Door ice Bin
27 Automatic icemaker
27 - Turning the Automatic icemaker On or
Off
28 - When You Should Turn the icemaker Off
28 - Normal Sounds You May Hear
28 - Preparing for Vacation
29 ice and Water Dispenser
29 - Dispenser
29 - Using the Dispenser
29 - Locking the Dispenser
29 - Cleaning the Dispenser Stand
30 Storing Food
30 - Food Preservation Location
31 - Food Storage Tips
31 -Storing Frozen Food
32 Humidity Controlled Crisper
33 Detaching and Assembling the Storage Bins
34 Adjusting the Refrigerator Shelves
35 MAINTENANCE
35 Cleaning
36 Light bulb replacement
37 General Information
38 Replacing the Water Filter
42 SMART DIAGNOSIS
42 Using Smart Diagnosis
43 TROUBLESHOOTING
53 WARRANTY

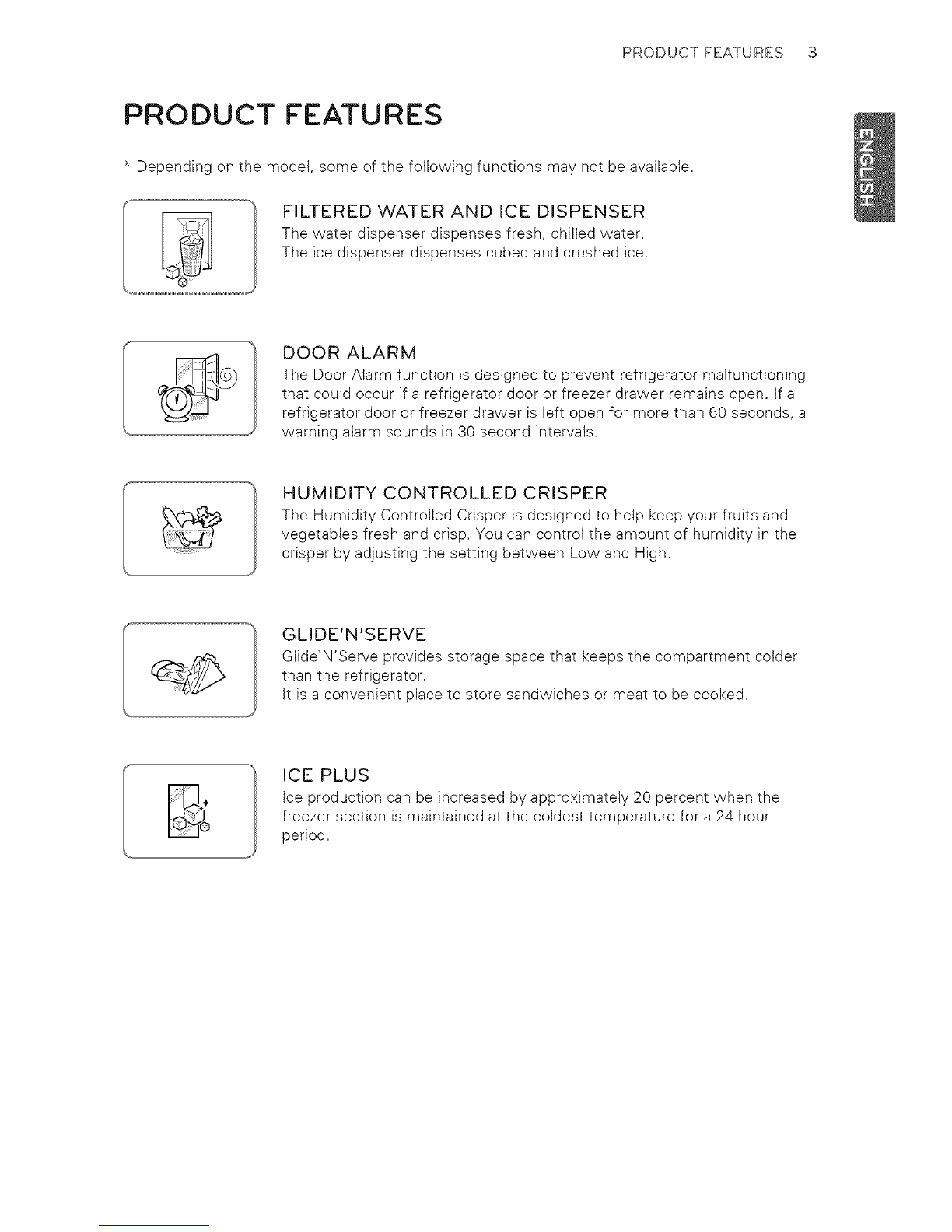

PRODUCT FEATURES 3
PRODUCT FEATURES
* Depending on the model, some of the following functions may not be available.
FILTERED WATER AND ICE DISPENSER
The water dispenser dispenses fresh, chilled water.
The ice dispenser dispenses cubed and crushed ice.
DOOR ALARM
The Door Alarm function is designed to prevent refrigerator malfunctioning
that could occur if a refrigerator door or freezer drawer remains open. If a
refrigerator door or freezer drawer is left open for more than 60 seconds, a
warning alarm sounds in 30 second intervals.
HUMIDITY CONTROLLED CRISPER
The Humidity Controlled Crisper is designed to help keep your fruits and
vegetables fresh and crisp. You can control the amount of humidity in the
crisper by adjusting the setting between Low and High.
GLIDE'N'SERVE
Glide'N'Serve provides storage space that keeps the compartment colder
than the refrigerator.
It is a convenient place to store sandwiches or meat to be cooked.
ICE PLUS
Ice production can be increased by approximately 20 percent when the
freezer section is maintained at the coldest temperature for a 24-hour
period.

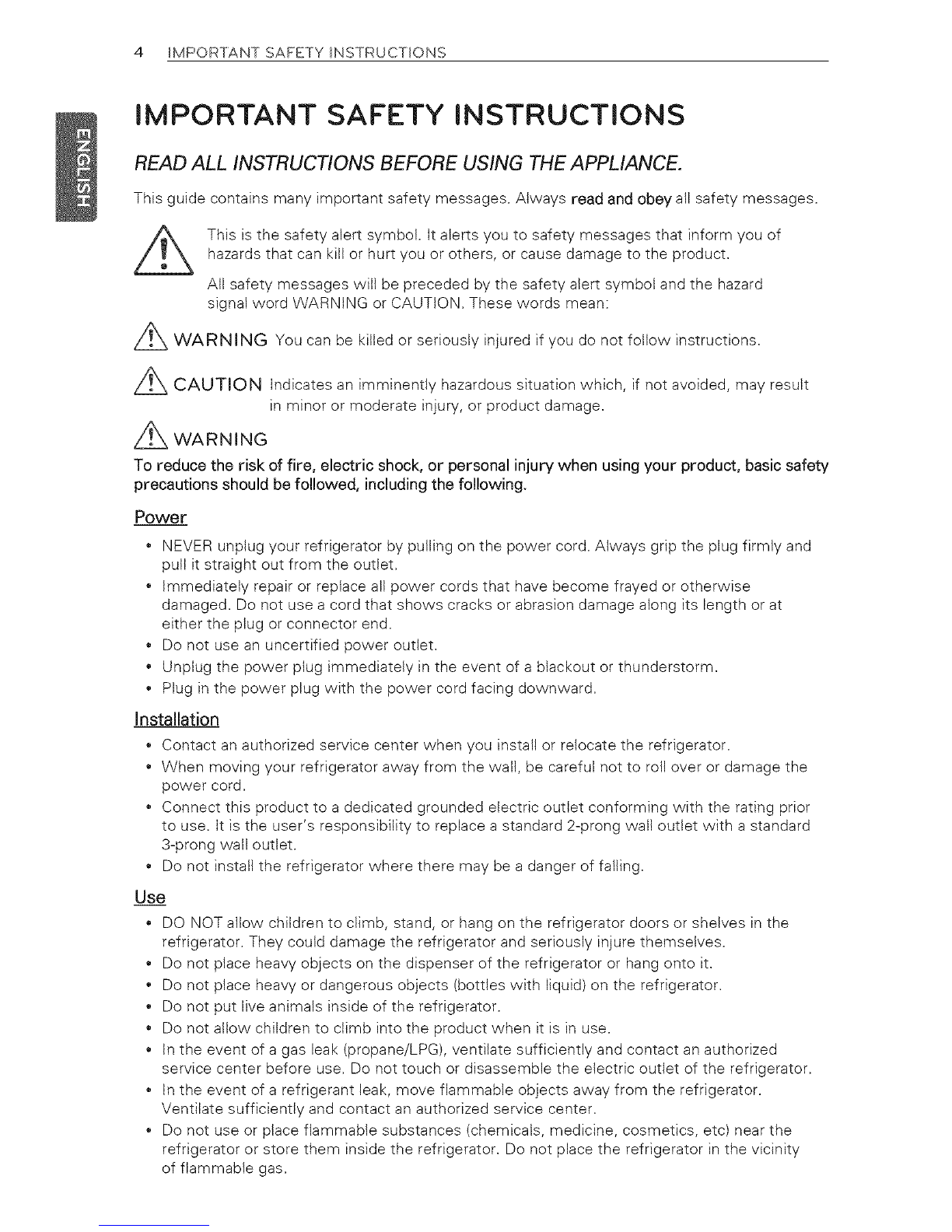

4 IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of
hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word WARNING or CAUTION. These words mean:
Z_ WARNING You can be killed or seriously injured if you do not follow instructions.
Z_ CAUTION indicates an imminently hazardous situation which, if not avoided, may result
in minor or moderate injury, or product damage.
Z_X WARNING
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following.
Power
• NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and
pull it straight out from the outlet.
• immediately repair or replace all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at
either the plug or connector end.
• Do not use an uncertified power outlet.
• Unplug the power plug immediately in the event of a blackout or thunderstorm.
• Plug in the power plug with the power cord facing downward.
Installation
• Contact an authorized service center when you install or relocate the refrigerator.
• When moving your refrigerator away from the wall, be careful not to roll over or damage the
power cord.
• Connect this product to a dedicated grounded electric outlet conforming with the rating prior
to use. it is the user's responsibility to replace a standard 2-prong wan outlet with a standard
3-prong wan outlet.
• Do not install the refrigerator where there may be a danger of falling.
Use
• DO NOT allow children to climb, stand, or hang on the refrigerator doors or shelves in the
refrigerator. They could damage the refrigerator and seriously injure themselves.
• Do not place heavy objects on the dispenser of the refrigerator or hang onto it.
• Do not place heavy or dangerous objects (bottles with liquid) on the refrigerator.
• Do not put live animals inside of the refrigerator.
• Do not allow children to climb into the product when it is in use.
• in the event of a gas leak (propane/LPG), ventilate sufficiently and contact an authorized
service center before use. Do not touch or disassemble the electric outlet of the refrigerator.
• in the event of a refrigerant leak, move flammable objects away from the refrigerator.
Ventilate sufficiently and contact an authorized service center.
• Do not use or place flammable substances (chemicals, medicine, cosmetics, etc) near the
refrigerator or store them inside the refrigerator. Do not place the refrigerator in the vicinity
of flammable gas.

IMPORTANT SAFETY INSTRUCTIONS 5
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following.
• Do not use this product for special purposes (storage of medicine or test materials or for ships,
etc)
• Unplug the power plug before cleaning or repairing the refrigerator.
• When you replace the light bulb in the refrigerator, unplug the refrigerator or turn off the power
• Do not modify or extend the power cord
• Do not use a dryer to dry the interior. Do not light a candle to remove the interior odor.
• For your safety, this appliance must be properly grounded. Have the wall outlet and the circuit
checked by a qualified electrician to make sure the outlet is properly grounded.
• Do not use an outlet that can be turned off with a switch. Do not use an extension cord. It is the
user's responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet
• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord
• Do not use an adapter plug and plug the power plug into a multi-outlet extension cord.
• Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect
smoke.
• Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.
• Do not disassemble or modify the refrigerator.
• Do not put hands, feet, or metal objects below or behind the refrigerator.
• Do not operate the refrigerator or touch the power cord with wet hands
• In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector
mechanism or with the heating element that releases the cubes. Do not place fingers or hands
on the automatic ice-making mechanism while the refrigerator is plugged in.
• When dispensing ice from the dispenser, do not use crystal ceramics.
• Do not touch the cold surfaces in the freezer compartment with wet or damp hands, when your
refrigerator is in operation.
• Do not put glass containers, glass bottles or soda in the freezer
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their
safety.
• Do not refreeze frozen food that have thawed completely It may result in a serious health issue.
• If you are throwing away your old refrigerator, make sure the CFC coolant is removed for proper
disposal by a qualified servicer If you release CFC coolant, you may be fined or imprisoned in
accordance with the relevant environmental law
• Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days
When disposing the refrigerator, remove the packing materials from the door or take off the
doors but leave the shelves in place so that children may not easily climb inside

6 IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following.
_ CAUTION
Installation
• The refrigerator must be properly installed in accordance with the Installer Instructions that
were taped to the front of the refrigerator.
• Be careful when you unpack and install the refrigerator. Immediately dispose of packing
materials (plastic) out of reach of children.
Use
• Close the door carefully when children are around.
• Keep fingers out of pinch point areas; clearances between the doors and cabinets are
necessarily small. Be careful closing doors when children are in the area.
• If you store food properly, beware that it may fan and cause injury.
Maintenance
• Do not use strong detergents like wax or thinners for cleaning. Clean with a soft fabric.
• Wipe foreign objects (dust, water, etc) off the prongs of the power plug and contact areas
regularly.
SAVE THESE INSTUCTIONS

COMPONENTS 7
COMPONENTS
Use this page to become more familiar with the parts and features of your refrigerator.
Page references are included for your convenience.
*The appearance and specifications of the actual product may differ depending on the model.
Refrigerafor Exferior
LED Display
Displays the refrigerator and
freezer temperature, the water
filter condition and the dispenser
status.
Ice Plus
When this feature is activated,
the freezer section will run at the
coldest temperature for a 24-hour
period to increase ice production.
Door Alarm
A warning alarm sounds at 30-
second intervals when the
refrigerator or freezer door is left
open for more than 60 seconds.
Filtered Water and
Ice Dispenser
Dispenses fresh, chilled,
filtered water through
the door. The ice
dispenser offers cubed
or crushed ice.
Ez Handle
Easily opens the freezer
door.

8 COMPONENTS
Refrigerafor Inferior
LED Interior Lamps
The interior lamps light up the
inside of the refrigerator.
Water Filter
SpacePlus Ice System --
Automatically produces
80-130 ice cubes in a
24-hour period.
Fixed Door Bins
Mullion I
Folds in when the
left door is opened.
Can Storage Bin
Used to preserve chilled
food or drinks.
Glide'N'Serve
Allows you to store food items
at a different temperature than
the regular refrigerator area.
Removable Ice Storage Bin
The ice storage bin can be
removed to fill ice buckets,
coolers, or pitchers.
Diagnosis Speaker
Hold your phone to this speaker when
activating Smart Diagnosis. Refer to the
Smart Diagnosis section for more details.
Fixed Door Bin
Refrigerator Shelves
The shelves in your
refrigerator are adjustable
to meet your individual
storage needs.
-- Modular Door Bin
Fixed Door Bin
Crispers
Controls humidity and
helps vegetables and
fruit to stay crisp.
Pullout Drawer
Durabase
Durabase Divider

INSTALLATION9

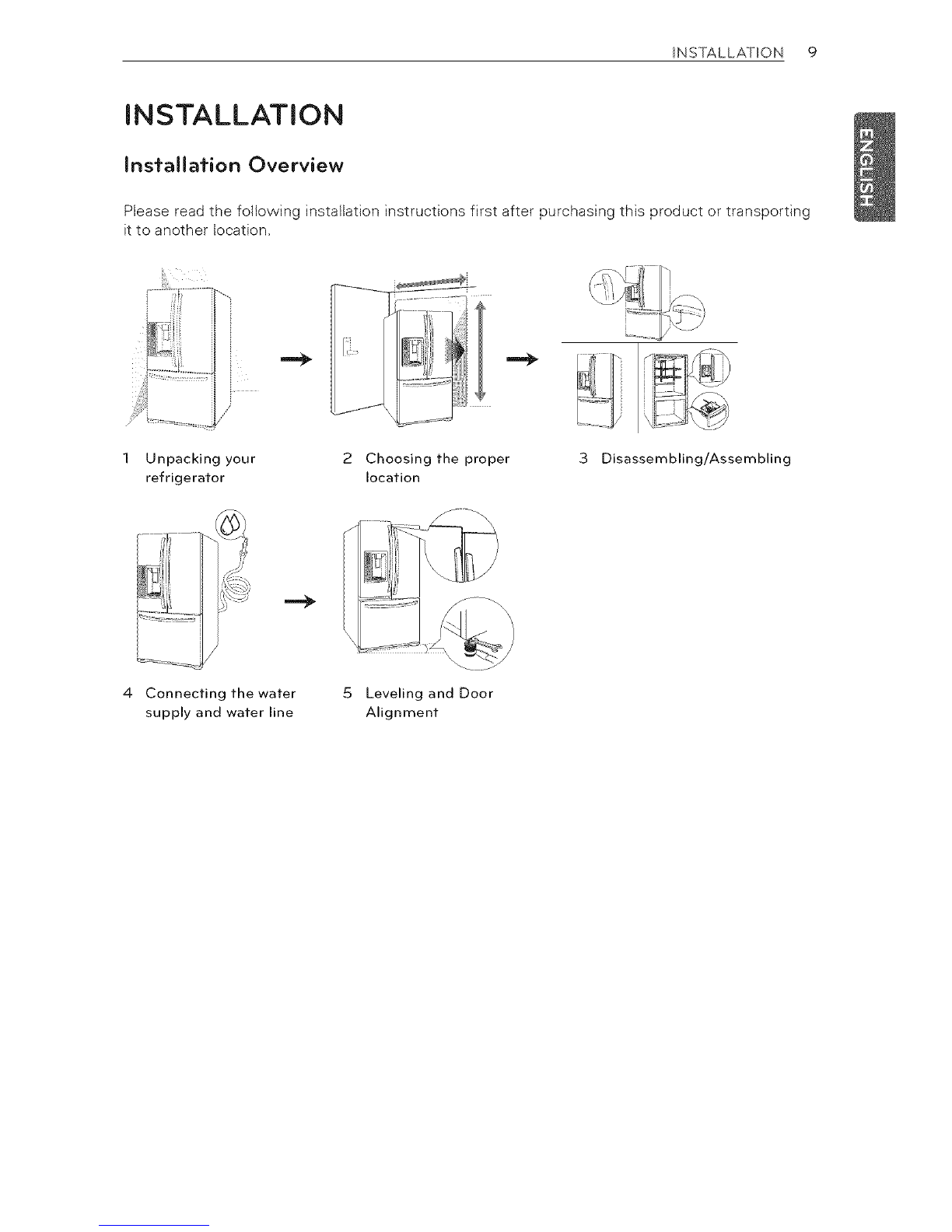

INSTALLATION
Insfallafion Overview
Please read the following installation instructions first after purchasing this product or transporting
it to another location.
)
Unpacking your
refrigerator
Choosing the proper
location 3 Disassembling/Assembling
4 Connecting the water
supply and water line
5 Leveling and Door
Alignment

10 INSTALLATION
Specificafions
The appearance and specifications listed in this manual may vary due to constant product
improvements.
B0ttom4reezer refrigerator model LFX28968 _
Description French Door Refrigerator
Electrical requirements 115 VAC @ 60 Hz
Min./Max. Water pressure 20 - 120 psi (1.4 - 8.4 kgf/cm 2)
Dimensions 35 3/4" (W) X35 3/8" (D)X 69 3/4" (H), 47 5/8" (D w/door open)
908 mm (W) X899 mm (D)X 1772 (H), 1210 mm (D w/door open)
Net weight 342 lb. (155 kg)
Refrigerator storage 18.82 cu. ft.
capacity
Freezer storage capacity 8.79 cu. ft.

INSTALLATION 11
Unpacking Your Refrigerator
z_ WARNING
Use two or more people to move and
install the refrigerator. Failure to do so
can result in back or other injury.
Your refrigerator is heavy. When moving
the refrigerator for cleaning or service,
be sure to protect the floor. Always pull
the refrigerator straight out when moving
it. Do not wiggle or walk the refrigerator
when trying to move it, as floor damage
could occur.
Keep flammable materials and vapors,
such as gasoline, away from the
refrigerator. Failure to do so can result in
fire, explosion, or death.
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any
warning-type labels, the model and serial number
label, or the Tech Sheet that is located under the
front of the refrigerator.
To remove any remaining tape or glue, rub the
area briskly with your thumb. Tape or glue residue
can also be easily removed by rubbing a small
amount of liquid dish soap over the adhesive with
your fingers. Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol,
flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your refrigerator.
Refrigerator shelves are installed in the shipping
position. Please reinstall shelves according to
your individual storage needs.
Choosing the Proper Location
Select a place where a water supply can
be easily connected for the automatic
icemaker.
- _) NOTE -,,
J The water pressure must be between
20 and 120 psi on models without a
water filter and between 40 and 120 psi
The refrigerator should always be plugged
into its own individual properly grounded
electrical outlet rated for 115 Volts, 60 Hz,
AC only, and fused at 15 or 20 amperes.
This provides the best performance
and also prevents overloading house
wiring circuits which could cause a fire
hazard from overheated wires. It is
recommended that a separate circuit
serving only this appliance be provided.
FZ_ WARNING -_
be reduce the risk of electric shock, do not
_install the refrigerator in a wet or damp
Flooring
To avoid noise and vibration, the unit must be
leveled and installed on a solidly constructed
floor. If required, adjust the leveling legs to
compensate for unevenness of the floor. The
front should be slightly higher than the rear to
aid in door closing. Leveling legs can be turned
easily by tipping the cabinet slightly. Turn the
leveling legs to the left to raise the unit or to
the right to lower it. (See Leveling and door
Alignment.)
- _ NOTE
Installing on carpeting, soft tile surfaces
a platform or weakly supported structur_

12 INSTALLATION
Ambient Temperature
Install this appliance in an area where the
temperature is between 55°F (13°C) and 110°F
(43°C). If the temperature around the appliance
is too low or high, cooling ability may be
adversely affected.
Measuring the Clearances
Too small of a distance from adjacent items
may result in lowered freezing capability and
increased electricity consumption charges.
Allow at least 24 inches (61 cm) in front of
the refrigerator to open the doors, and at
least 2 inches (5 cm) between the back of the
refrigerator and the wall.
24" (61 cm)
i
i
I
i
i
i
_- 2" (5 cm)
Removing/Assembling the
Refrigerator Door Handles
-i_ NOTE
emoving the doors is always
ecommended when it is necessary to
ove the refrigerator through a narrow
pening. If it is necessary to remove the
andles, follow the directions below.
Removing the Handles
Loosen the set screws D with a 3/32 in.
Allen wrench and remove the handle.
Loosen the mounting fasteners _ that
connect to the refrigerator door and handle
using a _/_in. Allen wrench, remove the
mounting fasteners.
Assembling the Handles
1Assemble the mounting fasteners D at
both ends of the handle using a/4 in.
Allen wrench.
2Place the handle on the door by fitting
the handle footprints over the mounting
fasteners and tightening the set screws
with a 3/32in. Allen wrench.

INSTALLATION 13
Removing/Assembling fhe
Freezer Drawer Handle
Removing "the Handles
1Loosen the set screws D located on the
lower side of the handle with a 1/sin. Atlen
wrench and remove the handle.
Loosen the mounting fasteners _ that
connect to the freezer drawer and handle
using a//4 in. Allen wrench, and remove
the mounting fasteners.
Assembling "the Handles
1Assemble the mounting fasteners D at
both ends of the handle using a//4 in. Atlen
wrench.
Place the handle on the door by fitting
the handle footprints over the mounting
fasteners and tightening the set screws
with a//g in. Allen wrench.
Removing/Assembling fhe
Doors and Drawers
Removing the doors is always recommended
when it is necessary to move the refrigerator
through a narrow opening.
rz_ WARNING
• If your entrance door is too narrow for the
refrigerator to pass through, remove the
refrigerator doors and move the refrigerator
sideways through the doorway.
• Use two or more people to remove and
install the refrigerator doors. Failure to do
so can result in back or other injury.
• Disconnect the electrical supply to the
refrigerator before installing. Failure to do
so could result in serious injury or death.
• Do net put hands, feet or other objects into
the air vents or bottom of the refrigerator.
You may be injured or receive an electrical
shock.
• Be careful when handling the hinge and
stopper. It may result in injury.
• Remove food and bins from the doors and
drawers before detaching.
\
Removing the Left Refdgerafor Door
The water supply is connected to the
upper right part of the rear surface of the
refrigerator. Remove the ring in the joint
area. Hold the water supply connection
and gently push the Collet to detach the
water supply line as shown in O and _.
I__ NOTE -'I
Detachment of the water supply line is
applicable only when detaching the left

14 INSTALLATION
2
3
4
5
6
7
8
9
(3) _/'_.
(7)" (4 "
i::::'- (4)
//
Open the left door. Remove the top hinge
cover screw (1), Lift up the cover (2),
Remove the cover.
Pull out the tube (3),
Disconnect all wire harnesses (4).
Remove the grounding screw (5).
Rotate the hinge lever (6)
counterclockwise. Lift the top hinge (7)
free of the hinge lever latch (8).
Lift the door from the middle hinge pin and
remove the door.
Place the door, inside facing up, on a non-
scratching surface.
Removing the Right Refrigerafor Door
1Open the door. Remove the top hinge
cover screw (1). Lift up the cover (2).
2Remove the cover.
:3 Rotate the hinge lever (3) clockwise. Lift
the top hinge (4) free of the hinge lever
latch (5).
4Lift the door from the middle hinge pin and
remove the door.
5 Place the door, inside facing up, on a non-
scratching surface.
- CAUTiO. '1
When lifting the hinge free of the latch, be /
careful that the door does not fall forward J
J
l, CAUTiO.
When lifting the hinge free of the latch, be I
careful that the door does not fall forward, l/

INSTALLATION 15
Assembling the Left Refrigerator
Door
Install the left refrigerator door after the right
door is installed.
1Lower the door onto the middle hinge pin.
(3)\- L.
(6)J"
"(7) _
(1)
F:::::-(4)
)/
2Fit the top hinge (7) over the hinge lever
latch (8) and into place.
:3 Rotate the lever (6)clockwise to secure
the hinge.
4Install the grounding screws (5) and
connect the two wire harnesses (4).
5 Push the water tube (3) located at the top
of the left door into the hole beside the left
hinge on the top of the cabinet until it exits
through the back,
6 Insert the water supply tube (3) into the
connector until you see only one scale
mark, Fully insert the tub cover (15 ram).
7 Hook the tabs on the left side of the hinge
cover (1) under the edge of the top hinge (7)
and position the cover in place,
8 Insert and tighten the cover screw (1).
9 Insert the water supply tube at least 5/8 in,
(15 ram) into the connector,
10 Hook the tab on the door switch side
of the cover under the edge of the wire
opening in the cabinet top.
11 Position the cover into place, Insert and
tighten the cover screw,
"-_i_) NOTE
1) Gently press the Collet and insert the
tube until only one line shows on the
tube.
(Correct)
(Incorrect)
2) Pullthe tube to make sure that the
tube is tightly fastened and then insert
the clip.

16 INSTALLATION

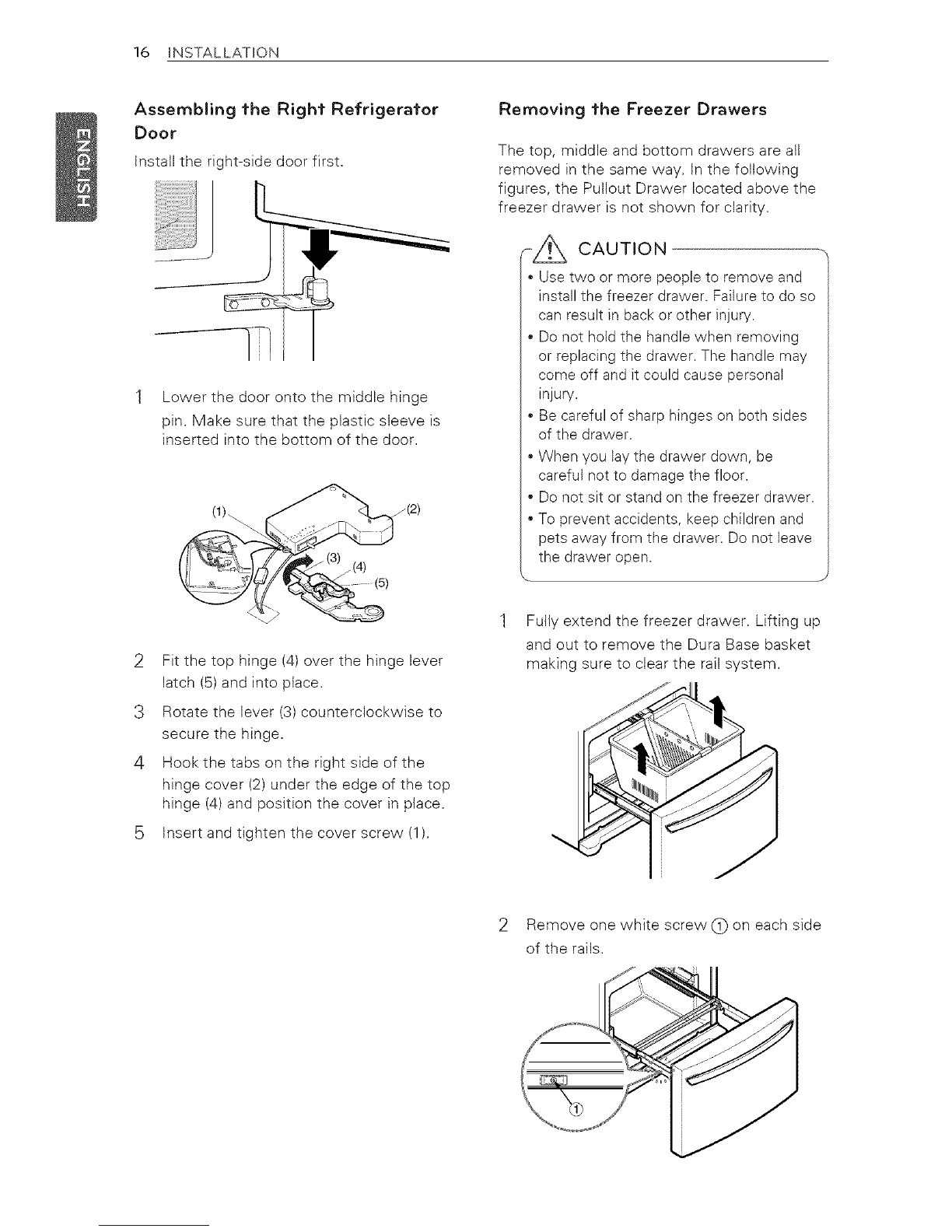

Assembling fhe Righf Refrigerator
Door
Install the right-side door first.
1Lower the door onto the middle hinge
pin. Make sure that the piastic sleeve is
inserted into the bottom of the door.
(1)_ _(2)
2Fit the top hinge (4) over the hinge lever
latch (5) and into piace.
:3 Rotate the lever (3) counterclockwise to
secure the hinge.
4Hook the tabs on the right side of the
hinge cover (2) under the edge of the top
hinge (4) and position the cover in place.
5 Insert and tighten the cover screw (1).
Removing the Freezer Drawers
The top, middle and bottom drawers are ail
removed in the same way. In the following
figures, the Putiout Drawer located above the
freezer drawer is not shown for clarity.
....Z_ CAUTION
* Use two or more people to remove and
install the freezer drawer. Failure to do so
can result in back or other injury.
* Do not hold the handle when removing
or replacing the drawer. The handle may
come off and it could cause personal
injury.
* Be careful of sharp hinges on both sides
of the drawer.
* When you lay the drawer down, be
careful not to damage the floor.
* Do not sit or stand on the freezer drawer.
* To prevent accidents, keep children and
pets away from the drawer. Do not leave
the drawer open.
\
Fully extend the freezer drawer. Lifting up
and out to remove the Dura Base basket
making sure to clear the rail system.
2Remove one white screw(_) on each side
of the rails.

INSTALLATION 17
4
Holding both sides of the door pull up to
separate the door from the rails.
With both hands, hold each rail and push it in
to allow both rails to slide in simultaneously.
-A c u ,oN
Do not hold the handle when removing
or replacing the drawer. The handle may
come off and it could cause personal
injury.
2
3
Hook door supports (_) into rail tabs (_).
Lower door into final position and tighten the
screws.
4With the drawer pulled out to full extension,
insert the lower basket in the rail assembly.
Assembling fhe Freezer Drawer
1With both hands, pull out each rail
simultaneously until both rails are fully
extended.
®
,_ WARNING
o If the Durabase divider is removed, there is
enough open space for children or pets to
crawl inside. To prevent accidental child and
pet entrapment or suffocation risk, DO NOT
allow them to touch or go near the freezer
drawer.
DO NOT step or sit down on freezer
drawer.

18 INSTALLATION
Connecfing fhe Wafer Line
Before You Begin
This water line installation is not covered by the
refrigerator warranty. Follow these instructions
carefully to minimize the risk of expensive water
damage.
Water hammer (water banging in the pipes) in
house plumbing can cause damage to refrigerator
parts and can lead to water leakage or flooding.
Call a qualified plumber to correct water hammer
before installing the water supply line to the
refrigerator.
" Z_ CAUTION
To prevent burns and product damange,
only connect the refrigerator water line to
a cold water supply.
If you use your refrigerator before connecting
the water line, make sure the icemaker power
switch is in the OFF (O) position.
Z_ CAUTION
-Do not install the icemaker tubing in
areas where temperatures fan below
freezing.
Wafer Pressure
A cold water supply. The water pressure must
be between 20 and 120 psi on models without
awater filter and between 40 and 120 psi on
models with a water filter.
If a reverse osmosis water filtration system is
connected to your cold water supply, this water
line installation is not covered by the refrigerator
warranty. Follow the following instructions
carefully to minimize the risk of expensive water
damage.
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to
be a minimum of 40 to 60 psi (2.8 kgf/cm_~ 4.2
kgf/cm2,less than 2.0~3.0 sec. to fill a cup of 7 oz
capacity).
..-_ CAUTION -.
Wear eye protection during installation /
to prevent injury. J
If the water pressure from the reverse osmosis
system is less than 21 psi or 1.5 kgf/cm2(takes
more than 4.0 sec to fill a cup of 7 oz capacity):
•Check to see if the sediment filter in
the reverse osmosis system is blocked.
Replace the filter if necessary.
Allow the storage tank on the reverse
usage.
If the issue concerning water pressure
from reverse osmosis remains, call a
licensed, qualified ptumber.
Atl installations must be in accordance
with local plumbing code requirements.
Whaf You Will Need
®
®
Copper Tubing, 1A in, outer diameter, to
connect the refrigerator to the water
supply. Be sure both ends of the tubing
are cut square.
To determine how _"
much tubing you need:
measure the distance
from the water valve on the back of the
refrigerator to the water supply pipe.
Then, add 8 feet
(2.4 m). Be sure there is sufficient extra
tubing (about 8 feet [2.4 m] coiled into 3
turns of about 10 in. [25 cm] diameter)
to allow the refrigerator to move out
from the wan after installation.
Powerdrill.
1/2in. or adjustable
wrench.
®
®
Flaf bmade and PhiHips
head screwdrivers.
Two 1/t in. oufer
diamefer compression
nufs and 2ferrumes (sleeves) to connect the
copper tubing to the shutoff valve and
the refrigerator water valve.

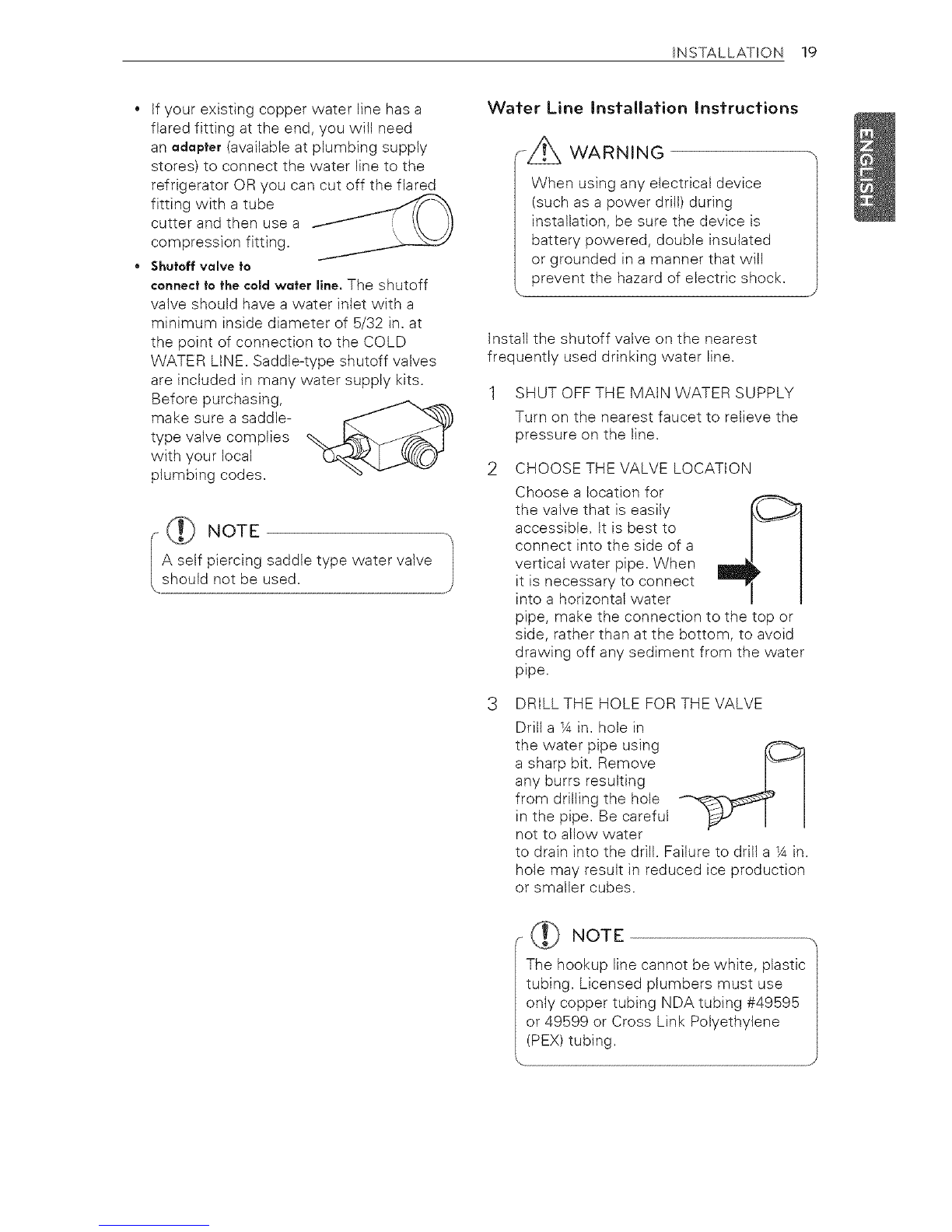

INSTALLATION 19
• If your existing copper water line has a
flared fitting at the end, you will need
an adapter (available at plumbing suppty
stores) to connect the water line to the
refrigerator OR you can cut off the flared
fitting with a tube
cutter and then use a
compression fitting.
®Sha|off valve |o
connect to the cold water line, The shutoff
valve should have a water inlet with a
minimum inside diameter of 5/32 in. at
the point of connection to the COLD
WATER LINE. Saddle-type shutoff valves
are included in many water supply kits.
Before purchasing,
make sure a saddle-
type valve complies
with your local
plumbing codes.
,- _ NOTE
A self piercing saddle type water valve
should not be used.
Water Line Insfallafion Insfrucfions
"Z_ WARNING
When using any electrical device
(such as a power drill) during
installation, be sure the device is
battery powered, double insulated
or grounded in a manner that will
prevent the hazard of electric shock.
Install the shutoff valve on the nearest
frequently used drinking water line.
1SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the
pressure on the line.
2CHOOSE THE VALVE LOCATION
Choose a location for
the valve that is easily _(,_
accessible. It is best to
connect into the side of a
vertical water pipe. When
it is necessary to connect
into a horizontal water
pipe, make the connection to the top or
side, rather than at the bottom, to avoid
drawing off any sediment from the water
pipe.
3DRILL THE HOLE FOR THE VALVE
Drill a _Ain. hole in
the water pipe using ¢_
a sharp bit. Remove
any burrs resulting
from drilling the hole
in the pipe. Be careful
not to allow water
to drain into the drill. Failure to drill a _Ain.
hole may result in reduced ice production
or smaller cubes.
_ NOTE ...................................
The hookup line cannot be white, plastic /
_tubing. Licensed plumbers must use I
[onty copper tubing NDA tubing #49595 I
_or 49599 .or Cross Link Polyethylene I

20 INSTALLATION
4
6
FASTEN THE SHUTOFF VALVE 7
Fasten the shutoff valve to the cold water
pipe with the pipe clamp.
Pipe Clamp_
Saddle-Type _ _ _Vertical Cold
Shutoff Valve _ I Water Pipe
NOTE "/
Commonwealth of Massachusetts J
Plumbing Codes 248CMR shall be
adhered to. Saddle valves are illegal and I
use is not permitted in Massachusetts._ 8
Consult with your licensed plumber. ]
TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing
washer begins to swell.
NOTE,. Do not overfighten clamp or
you may crush the tubing.
Pipe Clamp _,
Clamp Screw
Washer
t Inlet End
ROUTE THE TUBING
Route the tubing between the cold water
line and the refrigerator.
Route the tubing through a hole drilled in
the wall or floor (behind the refrigerator or
adjacent base cabinet) as close to the wan
as possible.
,-_ NOTE
Be sure there is sufficient extra tubing
(about 8 feet coiled into 3 turns of
about 10 in. diameter) to allow the
refrigerator to move out from the wan
after installation.
CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule
(sleeve) for copper tubing onto the end of
the tubing and connect it to the shutoff
valve. Make sure the tubing is fully inserted
into the valve. Tighten the compression
nut securely.
Saddle-Type
Shutoff Valve _
PackingNut_
OutletValve.........................../
Compression
Nut
\................Ferrule (sleeve)
FLUSH OUT THE TUBING
Turn the main water
supply on and flush out
the tubing until the water
is clear.
Shut the water off at the
water valve after about
one quart of water has
been flushed through the tubing.
9CONNECT THE TUBING TO THE
REFRIGERATOR
NOTE: Before making the connection
to the refrigerator, be sure that the
refrigerator power cord is not plugged into
the wall outlet.
a. Remove the plastic flexible cap from
the water valve.
b. Place the compression nut and ferrule
(sleeve) onto the end of the tubing as
shown.
c. Insert the end of the copper tubing into
the connection as far as possible. While
holding the tubing, tighten the fitting.
Tubing Clamp _ ¼ in. Tubing
Compression_ fl 1_/It tl;I
Nut ....___ (( (! (!)) /
_sle eve_
k__ Refrigerator
.... : ;:;: - --- Connection
