LG LFX31995ST User manual

OWNER’S MANUAL
FRENCH DOOR
REFRIGERATOR
lease read this owner's manual thoroughly before
operating and keep it handy for reference at all times.
LFX31995**
P/No. : MFL62184433 www.lg.com
ENGLISH FRANÇAIS ESPAÑOL

2TABLE OF CONTENTS
ENGLISH
TABLE OF CONTENTS
4 PRODUCT FEATURES
5 IMPORTANT SAFETY
INSTRUCTIONS
8 COMPONENTS

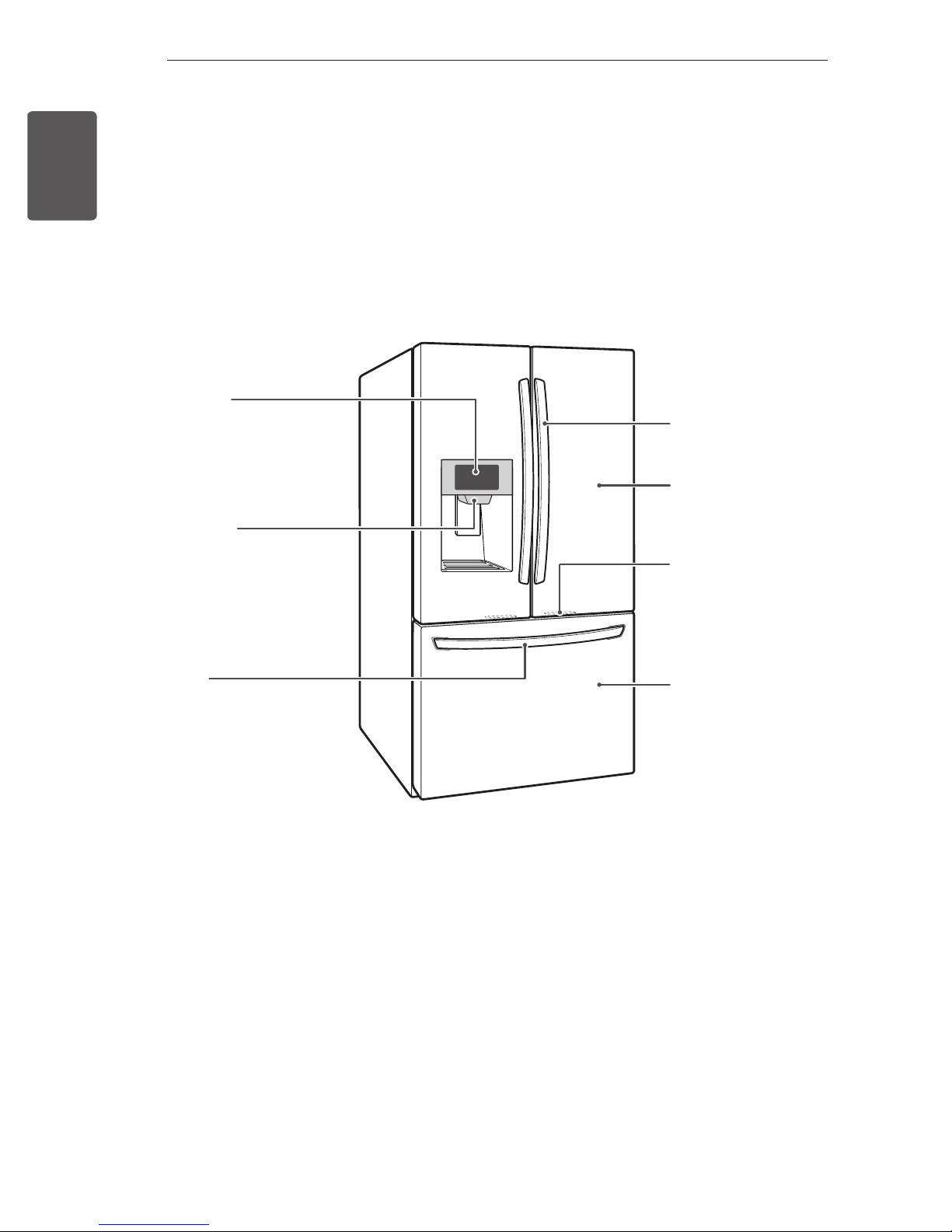

8 Refrigerator Exterior

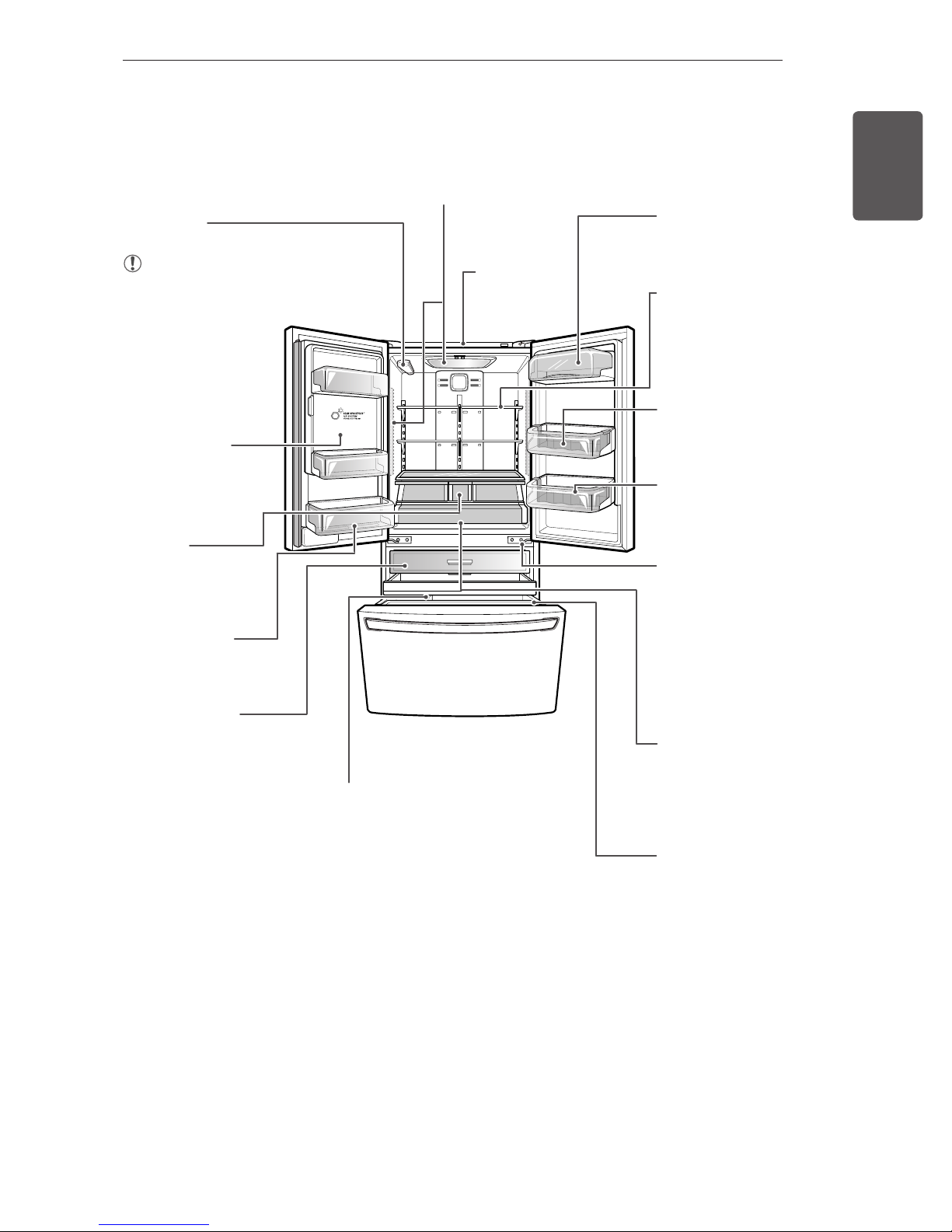

9 Refrigerator Interior
10 INSTALLATION
10 Installation Overview
10 Specifications
11 - LCD Display
11 - Modem FCC / IC Certification
12 Unpacking Your Refrigerator
12 Choosing the Proper Location
12 - Flooring
13 - Ambient Temperature
13 - Measuring the Clearances
13 Removing/Assembling the Refrigerator
Door Handles
14 Removing/Assembling the Freezer
Drawer Handle
14 Removing/Assembling the Doors and
Drawers
14 - Removing the Left Refrigerator Door
16 - Removing the Right Refrigerator Door
17 - Assembling the Right Refrigerator Door
18 - Assembling the Left Refrigerator Door
19 - Removing the Freezer Drawers
21 - Assembling the Freezer Drawers
22 Connecting the Water Line
22 - Before You Begin
22 - Water Pressure
22 - What You Will Need
23 - Water Line Installation Instructions
25 Turning on the Power
26 Leveling and Door Alignment
26 - Leveling
26 - Door Alignment
27 HOW TO USE
27 Before Use
28 Control Panel
30 In-Door Ice Bin
30 - Detaching the In-Door Ice Bin
30 - Assembling the In-Door Ice Bin
31 Automatic Icemaker
31
- Turning the Automatic Icemaker ON or
OFF
32 - When You Should Turn the Icemaker
OFF
32 - Normal Sounds You May Hear
32 - Preparing for Vacation
33 Ice and Water Dispenser
33 - Dispenser
33 - Using the Dispenser
33 - Locking the Dispenser
33 - Cleaning the Dispenser Stand
34 Storing Food
34 - Food Preservation Location
35 - Food Storage Tips
35 - Storing Frozen Food
36 Humidity Controlled Crisper and
Glide’N’Serve
37
Detaching and Assembling the Storage Bins
38 Adjusting the Refrigerator Shelves

3
TABLE OF CONTENTS
ENGLISH
39 SMART REFRIGERATOR
DISPLAY SCREEN
39 Before Use
39 - Smart Refrigerator Display Screen
39 - Touch Button Function
39 - Necessary Installation Parts
40 - Note Before Using
41 - Downloading The Smart Phone
Application
41 - Turning the Touch Screen ON or OFF.
42 Home Screen
43 Basic Buttons
44 Food Manager
45 - Food Manager by Category
46 - Frequently used Items
47 - Food Manager using Keypad
49 - Function Menu
51 - Send Food List to Phone
53 Recipes
54 - Recipes Search
55 - Food in Refrigerator
56 - LG Smart Range Recipes
57 Grocery
57 - Add New Food
59 - To Add Food to the Grocery List using a
Keypad
59 - To Add the Grocery Items to the Food
Manager
60 - To Delete Groceries from the List
60 - Phone
63 Memo
64 - Creating a Memo
67 - Delete a Memo
68 - Save Memo to Home Screen
69 Google Calendar
69 - Log In to Your Google Account
71 - View Events
72 Photo Album
75 - View Photos
76 - Saving Photo to Home Screen
76 - Deleting Photo to Home Screen
77 REF Manager
77 Smart Saving
77 - Demand Response Functionality
80 - Delay Defrost Capability
81 Settings
81 - REF Information
82 - Smart Diagnosis
83 - Wi-Fi
85 - Date & Time
86 - Brightness
86 - Volume
87 - Zigbee
88 - Update
89 - Edit Homescreen
89 - Screen Saver
89 - Freshness Tracker Alert
90 - Log In
91 - Factory Reset
91 - Demo Mode
93 Using the Widgets
97 MAINTENANCE
97 Cleaning
98 Replacing the Fresh Air Filter
99 Replacing the Water Filter
103 SMART DIAGNOSIS
103 Audible Diagnosis (through call center)
104 Wi-Fi Diagnosis
104 Self Diagnosis using Smart Phone
(Audible, Wi-Fi)
105 TROUBLESHOOTING
115 WARRANTY
119 OPEN SOURCE SOFTWARE
NOTICE

4PRODUCT FEATURES
ENGLISH
PRODUCT FEATURES
* Depending on the model, some of the following functions may not be available.
FILTERED WATER AND ICE DISPENSER
The water dispenser dispenses fresh, chilled water.
The ice dispenser dispenses cubed and crushed ice.
DOOR ALARM
The Door Alarm function is designed to prevent refrigerator malfunctioning
that could occur if a refrigerator door or freezer drawer remains open. If a
refrigerator door or freezer drawer is left open for more than 60 seconds, a
warning alarm sounds in 30 second intervals.
HUMIDITY CONTROLLED CRISPER
The Humidity Controlled Crisper is designed to help keep your fruits and
vegetables fresh and crisp. You can control the amount of humidity in the
crisper by adjusting the setting between Low and High.
LIDE‘N’SERVE
Glide‘N’Serve provides storage space with a variable temperature control
that keeps the compartment colder than the refrigerator. It is a convenient
place to store sandwiches or meat to be cooked.
AUTO CLOSIN HIN E
The refrigerator doors and freezer drawers close automatically with a slight
push. (The door only closes automatically when it is open at an angle less
than 30°.)
ICE PLUS
Ice production can be increased by approximately 20 percent when the
freezer section is maintained at the coldest temperature for a 24-hour
period.

5
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
This guide contains many important safety messages. Always read and obey all safety messages.
WARNIN You can be killed or seriously injured if you do not follow instructions.
CAUTION
Indicates an imminently hazardous situation which, if not avoided, may result
in minor or moderate injury, or product damage.
WARNIN
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following.
Power
NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and
y
pull it straight out from the outlet.
Immediately repair or replace all power cords that have become frayed or otherwise
y
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at
either the plug or connector end.
Do not use an uncertified power outlet.
y
Unplug the power plug immediately in the event of a blackout or thunderstorm.
y
Plug in the power plug with the power cord facing downward.
y
Installation
Contact an authorized service center when you install or relocate the refrigerator.
y
When moving your refrigerator away from the wall, be careful not to roll over or damage the
y
power cord.
Connect this product to a dedicated grounded electric outlet conforming with the rating prior
y
to use. It is the user’s responsibility to replace a standard 2-prong wall outlet with a standard
3-prong wall outlet.
Do not install the refrigerator where there may be a danger of falling.
y
Use
DO NOT allow children to climb, stand, or hang on the refrigerator doors or shelves in the
y
refrigerator. They could damage the refrigerator and seriously injure themselves.
Do not place heavy objects on the dispenser of the refrigerator or hang onto it.
y
Do not place heavy or dangerous objects (bottles with liquid) on the refrigerator.
y
Do not put live animals inside of the refrigerator.
y
Do not allow children to climb into the product when it is in use.
y
In the event of a gas leak (propane/LPG), ventilate sufficiently and contact an authorized
y
service center before use. Do not touch or disassemble the electric outlet of the refrigerator.
In the event of a refrigerant leak, move flammable objects away from the refrigerator.
y
Ventilate sufficiently and contact an authorized service center.
Do not use or place flammable substances (chemicals, medicine, cosmetics, etc) near the
y
refrigerator or store them inside the refrigerator. Do not place the refrigerator in the vicinity
of flammable gas.
This is the safety alert symbol. It alerts you to safety messages that inform you of
hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word WARNING or CAUTION. These words mean:

6IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
Do not use this product for special purposes (storage of medicine or test materials or for ships,
y
etc).
Unplug the power plug before cleaning or repairing the refrigerator.
y
When you replace the light bulb in the refrigerator, unplug the refrigerator or turn off the power.
y
Do not modify or extend the power cord.
y
Do not use a dryer to dry the interior. Do not light a candle to remove the interior odor.
y
For your safety, this appliance must be properly grounded. Have the wall outlet and the circuit
y
checked by a qualified electrician to make sure the outlet is properly grounded.
Do not use an outlet that can be turned off with a switch. Do not use an extension cord. It is the
y
user’s responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
y
Do not use an adapter plug and plug the power plug into a multi-outlet extension cord.
y
Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect
y
smoke.
Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.
y
Do not disassemble or modify the refrigerator.
y
Do not put hands, feet, or metal objects below or behind the refrigerator.
y
Do not operate the refrigerator or touch the power cord with wet hands.
y
In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector
y
mechanism or with the heating element that releases the cubes. Do not place fingers or hands
on the automatic ice-making mechanism while the refrigerator is plugged in.
When dispensing ice from the dispenser, do not use crystal ceramics.
y
Do not touch the cold surfaces in the freezer compartment with wet or damp hands, when your
y
refrigerator is in operation.
Do not put glass containers, glass bottles or soda in the freezer.
y
This appliance is not intended for use by persons (including children) with reduced physical,
y
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their
safety.
Do not refreeze frozen food that have thawed completely. It may result in a serious health issue.
y
If you are throwing away your old refrigerator, make sure the CFC coolant is removed for proper
y
disposal by a qualified servicer. If you release CFC coolant, you may be fined or imprisoned in
accordance with the relevant environmental law.
Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days.
y
When disposing the refrigerator, remove the packing materials from the door or take off the
doors but leave the shelves in place so that children may not easily climb inside.
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following.

7
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
CAUTION
Installation
The refrigerator must be properly installed in accordance with the Installer Instructions that
y
were taped to the front of the refrigerator.
Be careful when you unpack and install the refrigerator. Immediately dispose of packing
y
materials (plastic) out of reach of children.
Use
Close the door carefully when children are around.
y
Keep fingers out of pinch point areas; clearances between the doors and cabinets are
y
necessarily small. Be careful closing doors when children are in the area.
If you store food properly, beware that it may fall and cause injury.
y
Maintenance
Do not use strong detergents like wax or thinners for cleaning. Clean with a soft fabric.
y
Wipe foreign objects (dust, water, etc) off the prongs of the power plug and contact areas
y
regularly.
WARNIN
Warning when setting the Wi-Fi network
LG Electronics is not responsible for any network connection problems or any faults,
y
malfunctions, or errors caused by network connection.
Network connection may not work properly depending odn Internet service provider.
y
Wireless network can experience interference from other devices with 2.4 GHz frequency
y
(wireless phone, Bluetooth device, or microwave oven). Interference may also be caused by
devices with 5 GHz frequency, the same as any other Wi-Fi devices.
The surrounding wireless environment can make wireless network service run slowly.
y
Failure to turn off all local home networks may cause excessive traffic on some devices.
y
Invalid settings of network devices (wired/wireless line sharer, hub) can cause the appliance
y
to operate slowly or not operate properly. Install the devices correctly according to the
appropriate manual and set network.
Certain connected features (such as Program Update) will operate slowly if the Wi-Fi
y
connection strength is not strong. To improve the Wi-Fi signal strength, it is recommended
to purchase a Wi-Fi repeater.
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following.
SAVE THESE INSTUCTIONS

8COMPONENTS
ENGLISH
COMPONENTS
Use this page to become more familiar with the parts and features of your refrigerator.
Page references are included for your convenience.
*The appearance and specifications of the actual product may differ depending on the model.
Refrigerator E terior
Filtered Water and
Ice Dispenser
Dispenses purified water and ice.
LCD Display
You can enjoy various
experiences by conveniently and
simply operating the refrigerator
functions.
Handle
Opens and closes
the door.
Refrigerator
Preserves food.
Freezer
Preserves frozen food.
Ez Handle
Easily opens the freezer
door.
LED Light
LED lights up under
the refrigerator door.

9
COMPONENTS
ENGLISH
Refrigerator Interior
Water filter
Purifies water.
NOTE
The filter should be replaced every
6 months. Please refer to the “Replacing
the filter” section in this
manual for details.
* This function may
not be available,
depending on the
model.
Indoor Ice Bin
Ice cubes are
automatically produced.
Crisper
Controls humidity and
helps vegetables and
fruit to stay crisp.
Pullout Drawer
Used for extra storage within
the freezer compartment.
Fixed Door Bin
Used to preserve
chilled food or drinks.
Durabase® and Durabase® Divider
The Durabase is a storage space
recommended for the preservation of large
food items. The Durabase Divider is used
to organize the Durabase area into sections.
It can be adjusted from side to side to
accommodate items of different sizes.
Dairy Product Bin
Used to preserve dairy
products.
Adjustable
Refrigerator Shelf
The shelves in your
refrigerator are adjustable
to meet your individual
storage needs.
uide Divider
The Guide Divider can be
used to organize the drink
or pitcher area.
Modular Door Bin
Interchangeable bins can
be arranged to suit your
storage needs.
Auto Closing Hinge
The refrigerator doors
and freezer drawers
close automatically when
you push them slightly.
(The door only closes
automatically when it is
open at an angle of less
than 30°.)
lide‘N’Serve
Allows you to store food
items at a different
temperature than the
regular refrigerator area.
F-Basket
Area in the freezer that
allows you to fill smaller
items for quick cooling.
LED interior lamps
The interior lamps light up the
inside of the refrigerator.
Holder cover

10 INSTALLATION
ENGLISH
INSTALLATION
Installation Overview
Please read the following installation instructions first after purchasing this product or transporting
it to another location.
1 Unpacking your
refrigerator
2 Choosing the proper
location
3 Disassembling/Assembling
4 Connecting the water
supply and water line
5 Leveling and Door
Alignment
Specifications
The appearance and specifications listed in this manual may vary due to constant product
improvements.
Bottom-freezer refrigerator model
Dimensions
35 3/4" (W) X 36 1/4" (D) X 70 1/4" (H), 48 1/8" (D w/ door open)
908 mm (W) X 921 mm (D) X 1782 mm (H), 1221 mm (D w/ door open)
Net weight 337 lb. (153 kg)
Refrigerator storage capacity 20.7 cu. ft.
Freezer storage capacity 10.0 cu. ft.

11
INSTALLATION
ENGLISH
WLAN (Wi-Fi) ZigBee
Model LGHA-WNA1105 LGHA-ZNA1105
Frequency Range 2412 ~ 2462 MHz 2405 ~ 2475 MHz
RF Max Power 802.11b(22.88 dBm)/802.11g(21.65dBm)/
802.11n(20.67dBm) 18.91dBm
Channel 11 15
Modulation type CCK/DSSS/OFDM DSSS
Processor Telechips (Cortex)
ROM 4GB
RAM 512MB
LCD 8” TFT-LCD(800 x 480)
Network 802.11 b/g/n
LCD Display
Modem FCC / IC Certification
- U.S. Regulatory Wireless Notice
This products emits radio frequency energy,
but the radiated output power of this device is
far below the FCC radio frequency exposure
limits. Nevertheless, the device should be
used in such a manner that the potential for
human contact with the antenna during normal
operation is minimized.
- FCC WARNING:
This equipment may generate or use radio
frequency energy. Changes or modifications
to this equipment may cause harmful
interference unless the modifications are
expressly approved in the instruction manual.
The user could lose the authority to operate
this equipment if an unauthorized change or
modification is made.
- Product Specification
NOTE
This device complies with part 15 of the
FCC rules.
Operation is subject to the following two
conditions :
(1) This device may not cause harmful
interference, and
(2) This device must accept any interference
received, including interference that may
cause undesired operation.
This device complies with RSS-210 of the
Industry Canada Rules.
Operation is subject to the following two
conditions:
(1) This device may not cause interference
and
(2) This device must accept any
interference, including interference that
may cause undesired operation of the
device.

12 INSTALLATION
ENGLISH
Choosing the Proper Location
Select a place where a water supply can
y
be easily connected for the automatic
icemaker.
Unpacking Your Refrigerator
WARNIN
Use two or more people to move and
y
install the refrigerator. Failure to do so
can result in back or other injury.
Your refrigerator is heavy. When moving
y
the refrigerator for cleaning or service,
be sure to protect the floor. Always pull
the refrigerator straight out when moving
it. Do not wiggle or walk the refrigerator
when trying to move it, as floor damage
could occur.
Keep flammable materials and vapors,
y
such as gasoline, away from the
refrigerator. Failure to do so can result in
fire, explosion, or death.
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any
warning-type labels, the model and serial number
label, or the Tech Sheet that is located under the
front of the refrigerator.
To remove any remaining tape or glue, rub the
area briskly with your thumb. Tape or glue residue
can also be easily removed by rubbing a small
amount of liquid dish soap over the adhesive with
your fingers. Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol,
flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your refrigerator.
Refrigerator shelves are installed in the shipping
position. Please reinstall shelves according to
your individual storage needs.
Flooring
To avoid noise and vibration, the unit must be
leveled and installed on a solidly constructed
floor. If required, adjust the leveling legs to
compensate for unevenness of the floor. The
front should be slightly higher than the rear to
aid in door closing. Leveling legs can be turned
easily by tipping the cabinet slightly. Turn the
leveling legs to the left to raise the unit or to
the right to lower it. (See Leveling and door
AlIgnment.)
NOTE
Installing on carpeting, soft tile surfaces,
a platform or weakly supported structure
is not recommended.
The refrigerator should always be plugged
y
into its own individual properly grounded
electrical outlet rated for 115 Volts, 60 Hz,
AC only, and fused at 15 or 20 amperes.
This provides the best performance
and also prevents overloading house
wiring circuits which could cause a fire
hazard from overheated wires. It is
recommended that a separate circuit
serving only this appliance be provided.
WARNIN
To reduce the risk of electric shock, do not
install the refrigerator in a wet or damp
area.
NOTE
The water pressure must be between
20 and 120 psi on models without a
water filter and between 40 and 120 psi
on models with a water filter.

13
INSTALLATION
ENGLISH
Ambient Temperature
Install this appliance in an area where the
temperature is between 55°F (13°C) and 110°F
(43°C). If the temperature around the appliance
is too low or high, cooling ability may be
adversely affected.
Measuring the Clearances
Too small of a distance from adjacent items
may result in lowered freezing capability and
increased electricity consumption charges.
Allow at least 24 inches (61 cm) in front of the
refrigerator to open the doors, and at least
2 inches (5.08 cm) between the back of the
refrigerator and the wall.
2” (5.08 cm)
24” (61 cm)
Removing/Assembling the
Refrigerator Door Handles
Removing the Handles
1Loosen the set screws with a 3/32 in.
Allen wrench and remove the handle.
2Loosen the mounting fasteners that
connect to the refrigerator door and handle
using a 1/4in. Allen wrench, remove the
mounting fasteners.
Assembling the Handles
1Assemble the mounting fasteners at
both ends of the handle using a 1/4in.
Allen wrench.
2Place the handle on the door by fitting
the handle footprints over the mounting
fasteners and tightening the set screws
with a 3/32 in. Allen wrench.
NOTE
Removing the doors is always
recommended when it is necessary to
move the refrigerator through a narrow
opening. If it is necessary to remove the
handles, follow the directions below.

14 INSTALLATION
ENGLISH
Removing/Assembling the
Freezer Drawer Handle
Removing the Handles
1Loosen the set screws located on the
lower side of the handle with a 1/8in. Allen
wrench and remove the handle.
2Loosen the mounting fasteners that
connect to the
freezer drawer
and handle
using a 1/4in.
Allen wrench,
and remove
the mounting
fasteners.
Assembling the Handles
1Assemble the mounting fasteners at
both ends of the handle using a 1/4in. Allen
wrench.
2Place the handle on the door by fitting
the handle
footprints over
the mounting
fasteners and
tightening the
set screws
with a 1/8in.
Allen wrench.

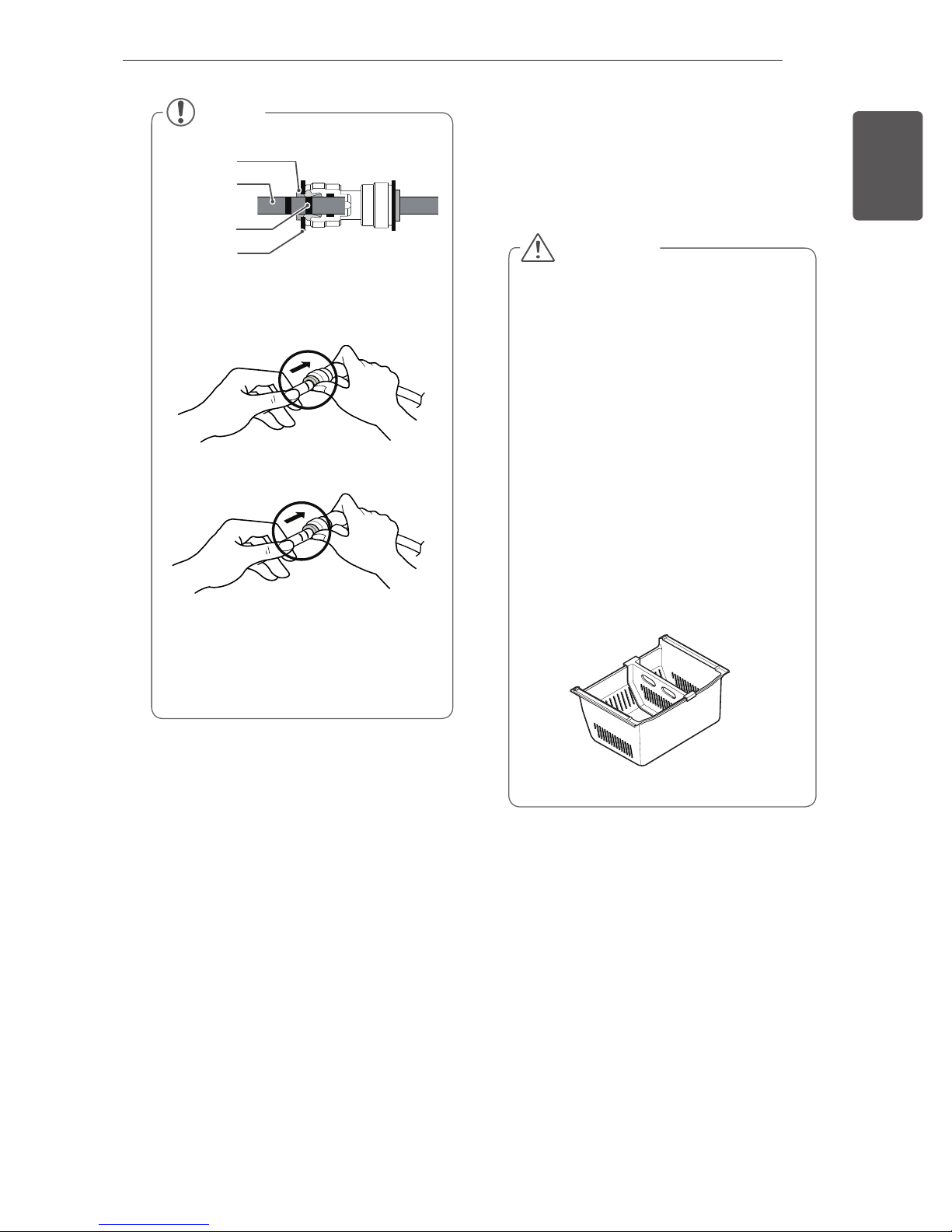

Removing the Left Refrigerator Door
1The water supply is connected to the
upper right part of the rear surface of the
refrigerator. Remove the ring in the joint
area. Hold the water supply connection
and gently push the Collet to detach the
water supply line as shown in and .
NOTE
Detachment of the water supply line is
applicable only when detaching the left
refrigerator door.
WARNIN
If your entrance door is too narrow for the
y
refrigerator to pass through, remove the
refrigerator doors and move the refrigerator
sideways through the doorway.
Use two or more people to remove and
y
install the refrigerator doors. Failure to do
so can result in back or other injury.
Disconnect the electrical supply to the
y
refrigerator before installing. Failure to do
so could result in serious injury or death.
Do not put hands, feet or other objects into
y
the air vents or bottom of the refrigerator.
You may be injured or receive an electrical
shock.
Be careful when handling the hinge and
y
stopper. It may result in injury.
Remove food and bins from the doors and
y
drawers before detaching.
Collet
Removing/Assembling the
Doors and Drawers
Removing the doors is always recommended
when it is necessary to move the refrigerator
through a narrow opening.
WARNIN
When the customer takes apart the handle
or assemble it from a refrigerator, please be
cautious of following things.
Hold the handle with your own hand to
y
make sure not to drop the handle to the
floor or instep while taking apart the handle
from a refrigerator.
Do not swing the handle towards people or
y
animals after taking apart the handle.
Insert the bracket hole of the handle into the
y
stopper bolt of the door exactly, and then
assemble the set screws to fix the handle.
Check if there’s any gap between the door
y
and handle after fixing the handle.

15
INSTALLATION
ENGLISH
2Remove the screw from the hinge cover
at the top of the refrigerator. Lift the hook
(not visible), located at the bottom of the
front side of the cover with a flat-head
screwdriver.
3Remove the cover and pull out the tube .
Disconnect all wire harnesses .
4Rotate the hinge lever counterclockwise
. Lift the top hinge free of the hinge
lever latch.
CAUTION
When lifting the hinge free of the latch, be
careful that the door does not fall forward.
Hinge Lever Latch
5Lift the door from the middle hinge pin and
remove the door.
CAUTION
Place the door, inside facing up, on a
non-scratching surface.

16 INSTALLATION
ENGLISH
Removing the Right Refrigerator
Door
1Remove the top hinge cover screw .
Lift the hook (not visible), located at the
bottom of the front side of the cover ,
with a flat-head screwdriver.
2Detach the wire harness .
CAUTION
When lifting the hinge free of the hinge
lever latch, be careful that the door
does not fall forward.
Hinge Lever Latch
3Rotate the hinge lever clockwise.
Lift the top hinge free of the hinge
lever latch.
4Lift the door from the middle hinge pin and
remove the door.
CAUTION
Place the door on the floor, inside
facing up, on a non-scratching surface.

17
INSTALLATION
ENGLISH
Install the right-side door first.
1Make sure that the plastic sleeve is
inserted in the bottom of the door. Lower
the door onto the middle hinge pin as
shown in the figure.
2Fit the hinge over the hinge lever latch
and slot it into place. Rotate the lever
counterclockwise to secure the hinge.
3Connect the wire harness .
Assembling the Right Refrigerator Door
Hinge Lever Latch
4Make sure that the door-switch located
inside the cover is tightly connected.
Position the cover in its place. Insert and
tighten the cover screw .

18 INSTALLATION
ENGLISH
Assembling the Left Refrigerator
Door
Install the left refrigerator door after the right
door is installed.
1Make sure that the plastic sleeve is
inserted in the bottom of the door. Install
the refrigerator door onto the middle hinge.
2Fit the hinge over the hinge lever latch
and slot it into place. Rotate the lever
clockwise and fasten the hinge.
3Connect all the wire harnesses.
Hinge Lever Latch
4Push the water supply tube into the hole
on the top case and pull it through the
backplate.
5Hold the water supply connection and
gently push in the collet to connect the
water supply line as shown in and
. Insert the tube at least 5/8inch (15 mm)
into the connector. Assemble the clip to
the joint part for fastening.
6Make sure that the door-switch located
inside the cover is tightly connected. Place
the cover in its position and tighten the
cover screw .
Collet

19
INSTALLATION
ENGLISH
CAUTION
Use two or more people to remove and
y
install the freezer drawer. Failure to do so
can result in back or other injury.
Do not hold the handle when removing
y
or replacing the drawer. The handle may
come off and it could cause personal
injury.
Be careful of sharp hinges on both sides
y
of the drawer.
When you lay the drawer down, be
y
careful not to damage the floor.
Do not sit or stand on the freezer drawer.
y
To prevent accidents, keep children
y
and pets away from the drawer. Do not
leave the drawer open. If the Durabase®
storage bin is removed from the freezer
drawer, there is sufficient space inside
for a small child or a pet to get into.
NOTE
1) Gently press the Collet and insert the
tube until only one line shows on the
tube.
(Correct)
(Incorrect)
2) Pull the tube to make sure that the
tube is tightly fastened and then insert
the clip.
Removing the Freezer Drawers
The top, middle and bottom drawers are all
removed in the same way. In the following
figures, the Pullout Drawer located above the
freezer drawer is not shown for clarity.
Collet
Tube
Insert Line
Clip
(Durabase®)

20 INSTALLATION
ENGLISH
1Pull the drawer open to full extension.
2Gently lift and pull out the ice bin. (Images
in the figure below may differ from the
actual drawers of the refrigerator.)
On the left rail, use a flat blade screwdriver
to push in on the tab to release the drawer
from the rail, as shown below. Once the
left side is loose, push the tab on the right
side with your finger to release the drawer.
Lift the front of the drawer up, then pull it
straight out.
3
Remove the screws from the rails at both
ends.
4
With both hands, grip both sides of the
drawer and pull it up to remove it from the
rails.
5
With both hands, hold each rail and push it in
to allow both rails to slide in simultaneously.
CAUTION
Do not hold the handle when removing
or replacing the drawer. The handle may
come off and it could cause personal
injury.
