LG LRDN2272 Series User manual

BOTTOM FREEZER
REFRIGERATOR
User’s Guide
Please read this guide thoroughly
before operating and keep it handy for
reference at all times.
Models
LRDN2272#** LRDC2273#** LRDC2274#**
LRDN2072#** LRDC2073#**
P/No. 3828JL8019E
LRDN2271#**
LRBN2251#** LRBN2252#** LRDN2273#**
LRBN2051#** LRBN2052#** LRDN2073#**
LRBC2254#**
LRBC2054#**
LRBC2252#**

2
TABLE OF CONTENTS
English Version 2
Warranty (U.S.A.) 3 -4
Warranty (CANADA) 5 -6
Safety Instructions 7 -8
Grounding Requirements 8

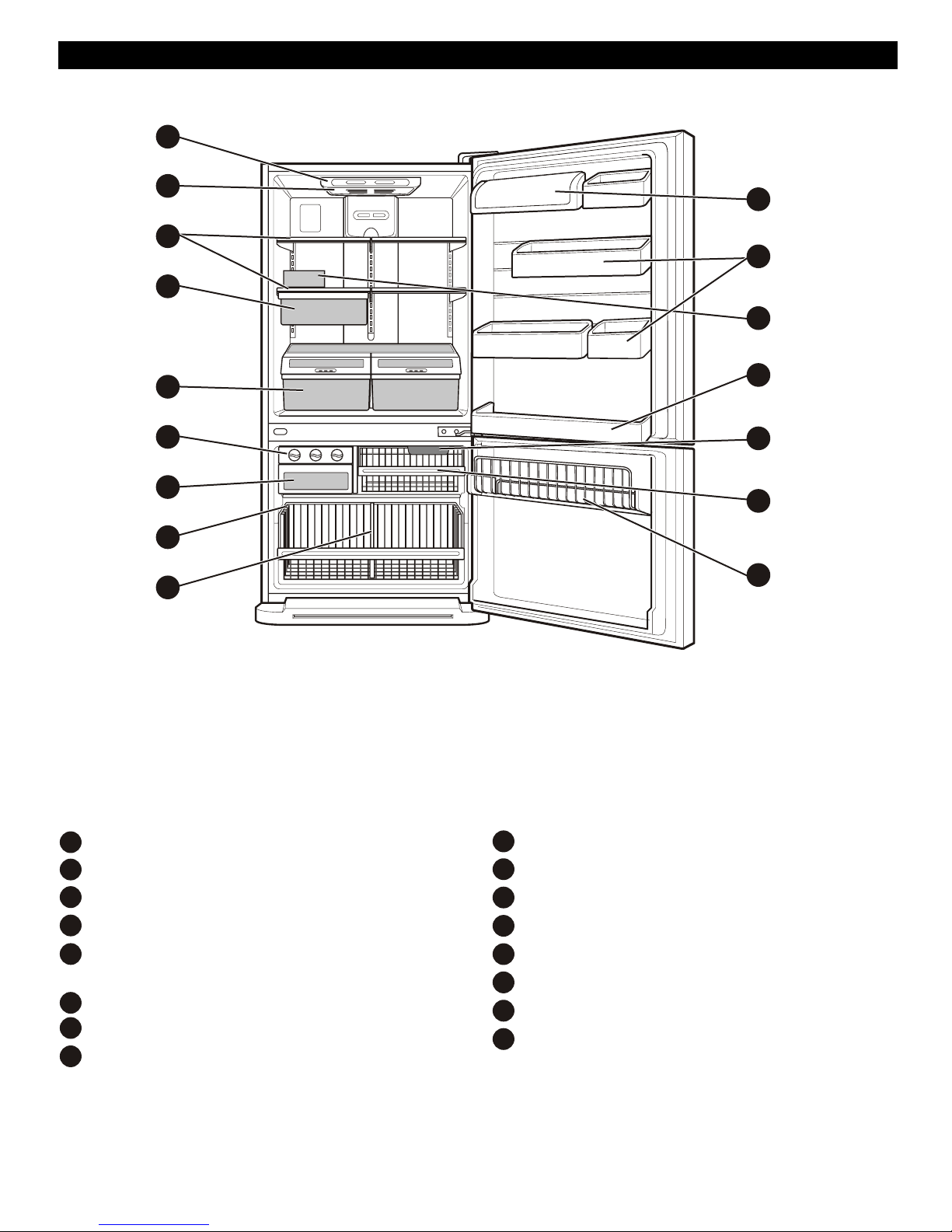

Parts and Features 9 - 11
Refrigerator Installation 12-22
Unpacking Your Refrigerator 12
Installation 12

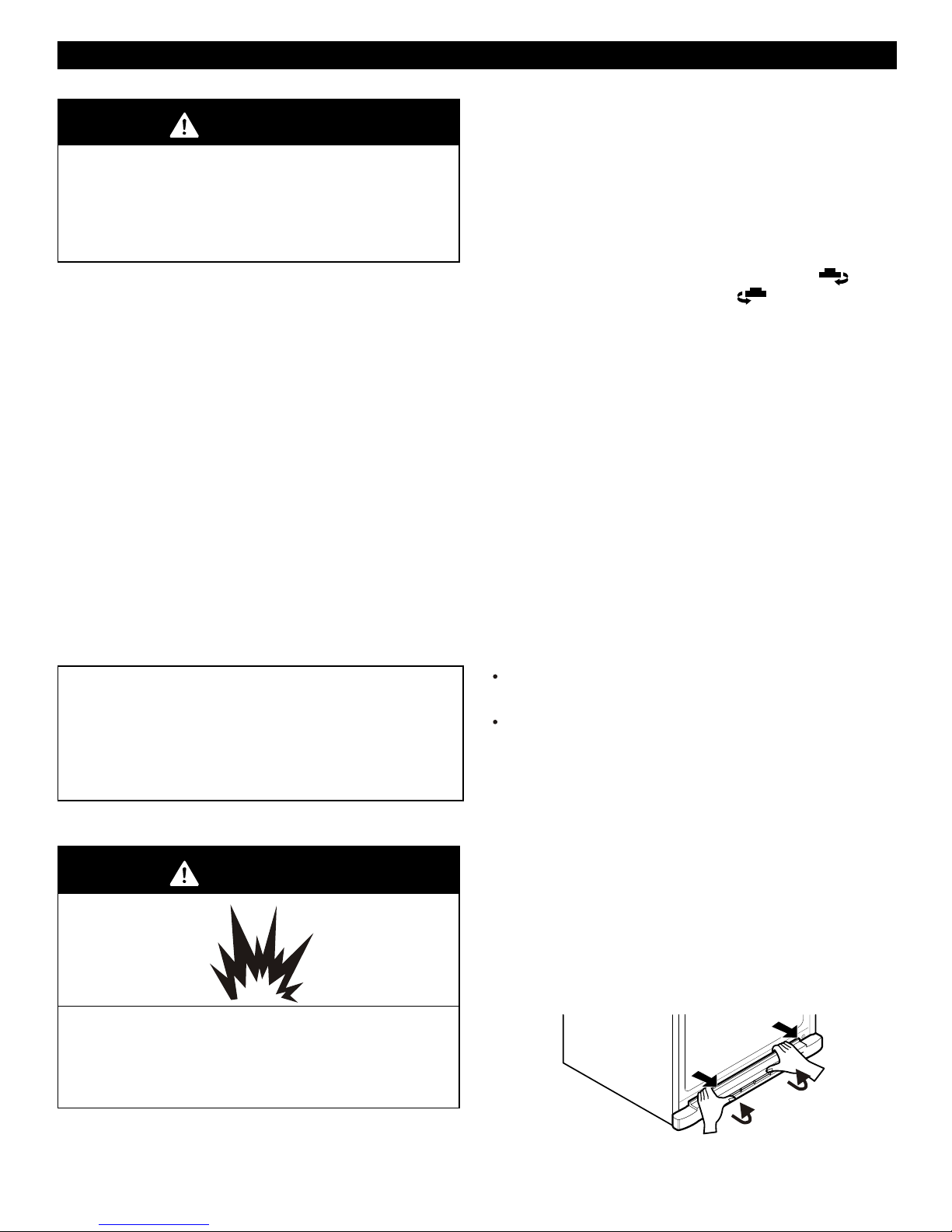

Base Grille 12
Removing, Reversing and Replacing
Your Refrigerator Doors 13-19

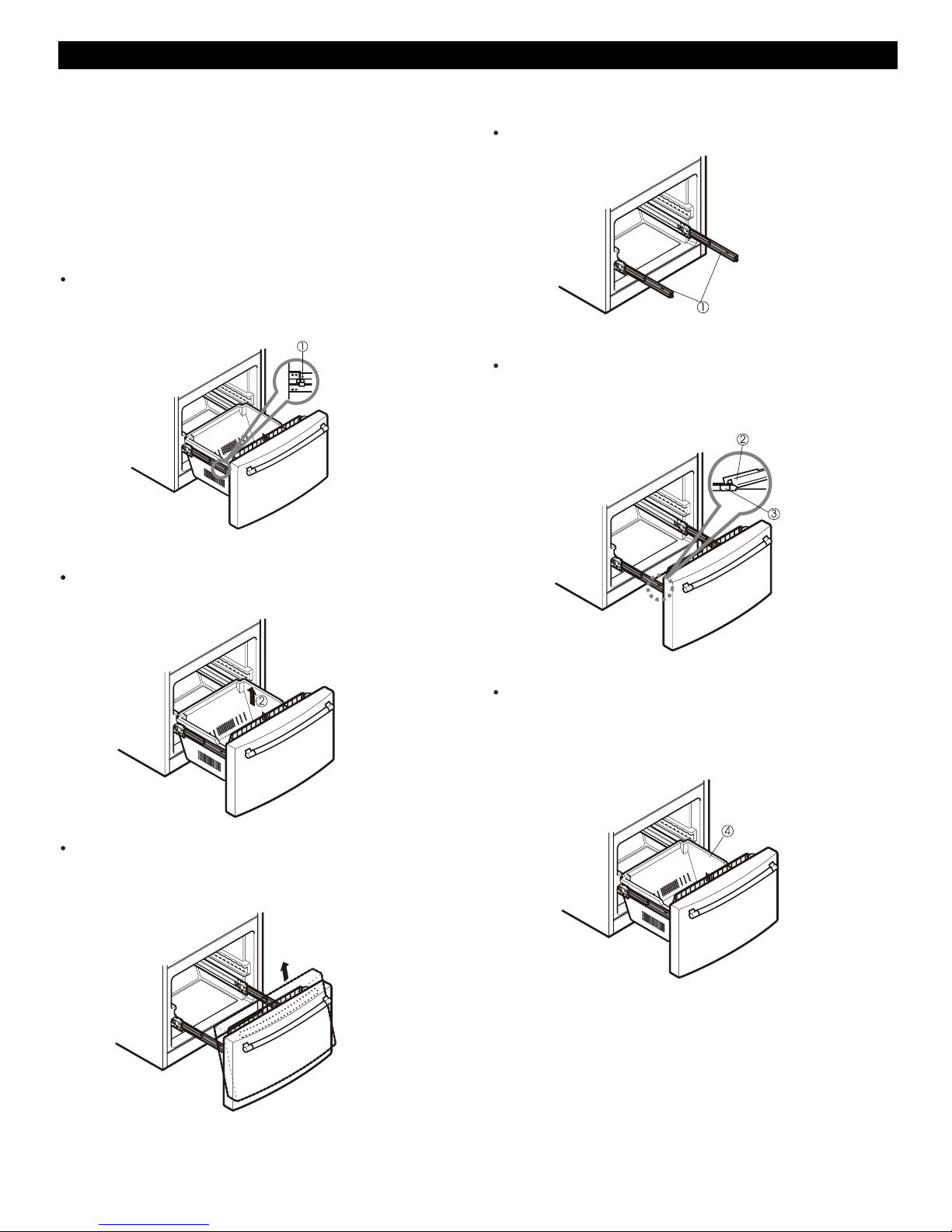

Pull out Drawer 15
Door Closing and Alignment 19
Using Your Refrigerator 20 -29

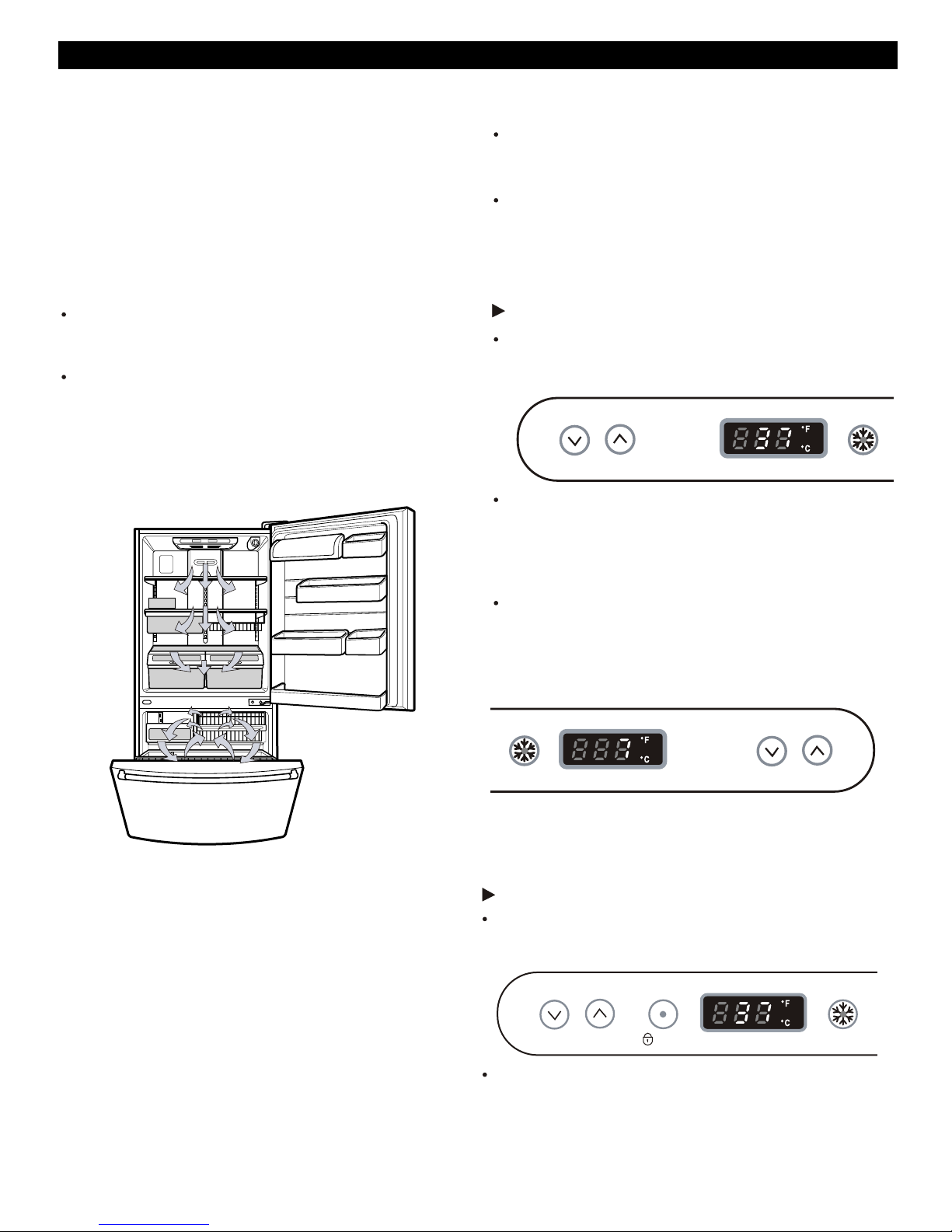

Ensuring Proper Air Circulation 20
Multi Flow 20
Setting the Controls 20 -21
Adjusting Control Settings 21
Food Storage Guide 22
Storing Frozen Food 22
Refrigerator Shelves 23
Chef Fresh / Snack Pan 24
Crisper Humidity Control 24
Optibin Crisper 24
Crisper cover with lattice on inner surface 25
Door Racks 25
Design-A-Door 25
Dairy Bin 26
Freezer Wire Door Racks 26
Ice Bin 26
DuraBase 26
Tilting Door 27
Pull out Drawer Basket 27
DuraBase Divider 27
Can Dispenser 28
Triple Twist Ice Tray 28
Filter 29
Care and Cleaning 30 -31
General Cleaning Tips 30
Outside 30
Inside Walls 30
Door Liner and Gaskets 30
Plastic Parts 30
Condenser Coils 30
Light Bulb Replacement 30 -31
Power Interruptions 31
When you go on vacation 31
About the Custom Cube Icemaker 32
Connecting the Water Line 33 -35
Troubleshooting Guide 36 -39
French Version 40
Spanish Version 74
Drawer Tray 27
Freezer Shelf 28

3
visit our web site/http://www.lgservice.com LG Electronics
United States of America
LG Electronics will repair or at its option replace, without charge, your product which proves to be defective
in material or workmanship under normal use during the warranty period listed below from the date of
original purchase.
This warranty is good only to the original purchaser of the product during the warranty period as long as it is
in the U.S. including Alaska, Hawaii, and U.S. Territories.
LG Refrigerator / Freezer Warranty Period
Product Parts Labor
Refrigerator / Freezer 1 year 1 year [In-Home Service (Except Model GR-051)]
Sealed System 7 years 1 year [In-Home Service (Except Model GR-051)]
(Compressor, Condenser, Evaporator)
No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES.
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, IS LIMITED TO THE DURATION OF
THE EXPRESS WARRANTY HEREIN. LG ELECTRONICS SHALL NOT BE LIABLE FOR THE LOSS OF
USE OF THE PRODUCT, INCONVIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR
CONSEQUENTIAL, ARISING OUT OF THE USE OF OR INABILITY TO USE, THIS PRODUCT OR FOR
ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY
OF MERCHANTABILITY APPLICABLE TO THIS PRODUCT.
Some States do not allow the exclusion or limitation of incidental or consequential damages or limitations on how
long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you
specific legal rights and you may also have other rights which vary from state to state.
THE ABOVE WARRANTY DOES NOT APPLY TO:
1. Service trips to your home to deliver and pickup, install, instruct, or replace house fuses or correct house wiring or
plumbing, or correction of unauthorized repairs.
2. Damage to the product caused by accident, pests, fire, floods, or acts of God.
3. Repairs when your LG product is used in other than normal, single-family household use.
4. Damage resulting from accident, alteration, misuse, abuse, or improper installation.
Therefore, these costs are paid by the consumer.
If the product is installed outside the normal service area, any cost of transportation involved in the repair of the product, or the
replacement of defective parts, shall be borne by the owner.
CUSTOMER ASSISTANCE NUMBERS:
To obtain Warranty Coverage: Retain your Bill of Sale to prove date of purchase.
A Copy of your Sales Receipt must be submitted at the time
warranty service is provided.
To obtain Product or Customer Call 1-877-714-7486
(24 hrs a day, 7 days per week, 365 days per year)
Service Assistance: Press the appropriate menu option, and have your product type
(Refrigerator), model number, serial number, and ZIP/Postal
Code ready.
To obtain the nearest Call 1-877-714-7486
Authorized Service Center:
Press the appropriate option, and have your product type
(Refrigerator), model number, serial number, and ZIP/Postal
Code ready.
LIMITED WARRANTY
(24 hrs a day, 7 days per week, 365 days per year)

4
Visite nuestro sitio web/http://www.lgservice.com
GARANTÍA LIMITADA
Estados Unidos de América
Refrigerador/Congelador 1 año 1 año [Servicio a domicilio (Excepto Modelo GR-051)]
Sistema Sellado 7 años 1 año [Servicio a domicilio (Excepto Modelo GR-051)]
LA GARANTIA ANTERIOR NO APLICA A :
1.
2.
3.
4.
Por lo tanto, estos costos serán pagados por el consumidor.
NÚMEROS DE ASISTENCIA AL CLIENTE:
Para obtener cobertaura de la Garantía: Conserve su factura para comprobar la fecha de
compra.
Una copia de su recibo de compra debe ser entregada
cuando se le proporcione el servicio de garantía.
Para obtener información:
Llame al
Servicio de Asistencia:
Para obtener el Centro de Servicio Autorizado
más cercano:
Llame al
Presione la opción adecuada, y tenga su tipo de
producto(Refrigerador), número de modelo, número
de serie, y ZIP /código Postal listos.
LG Electronics reparará o en su defecto reemplazará sin cargo, el producto defectuoso en material o mano de
obra bajo uso normal durante el periodo de garantía que se menciona a continuación desde la fecha original de
compra.
Esta garantía es válida solo para el comprador original del producto durante el periodo de garantía mientras
permanezca en los E.E. U.U. Incluyendo Alaska, Hawaii y otros territorios de E.E.U.U.
Producto Partes Mano de Obra
No se aplicará otro tipo de garantía a este producto. LA DURACION DE OTRAS GARANTIAS ,
INCLUYENDO LA DE COMPRA, ESTAN LIMITADAS A LA DURACION DE ESTA GARANTIA. LG
ELECTRONICS NO SE HACE RESPONSABLE POR LA PERDIDA EN EL USO DEL PRODUCTO,
POR INCONVENIENCIA O CUALQUIER OTRO DAÑO DIRECTO O CONSECUENTE QUE PROVENGA
DEL USO Y/O NO USO DE ESTE PRODUCTO O POR ALGUNA VIOLACION A LAS GARANTIAS
IMPLEMENTADAS INCLUYENDO LA GARANTIA DE COMPRA APLICADA A ESTE PRODUCTO.
Algunos estados no permiten la exclusión o limitación de daños incidentales o consecuenciales o limitaciones
en cuanto al tiempo que dura una garantía implícita; por lo que algunas de estas limitaciones o exclusiones
pueden no aplicarse a usted. Esta garantía le otorga derechos legales específicos y usted puede además tener
otros derechos los cuales varían de Estado a Estado.
Servicio a su casa para entregar, recoger, instalar o reemplazar fusibles caseros, corregir cableado casero o
plomería corrección de reparaciones no autorizadas.
Daño al producto causado por accidente, plagas, incendios, inundaciones o actos por naturaleza.
Reparaciones cuando su producto LG sea usado diferente a lo normal.
Daño resultante de accidente, alteración, mal uso o instalación inadecuada.
Si el producto es instalado fuera del área normal de servicio, cualquier costo de transportación relacionado en la
reparación del producto, o el reemplazo de partes defectuosas, serán cargados al propietario.
Presione la opción de menú apropiado, y tenga su tipo de
producto (Refrigerador), número de modelo, número de
serie, y ZIP Código Postal listos.
LG Electronics
(Compresor, Condensador, Evaporador)
Período de Garantía del refrigerador/Congelador LG
1-877-714-7486
(24 hrs al día, 7 días por semana, 365 días al año)
1-877-714-7486
(24 hrs al día, 7 días por semana, 365 días al año)

LG Electronics réparera ou remplacera, à sa discrétion, sans frais, le produit présentant des défauts de matériaux ou de
fabrication, dans des conditions normales d’utilisation pendant la période de garantie indiquée ci-dessous à partir de la
date d’achat d’origine.
Cette garantie est valide pour seulement l’acheteur d’origine du produit pendant la période de garantie en autant que cela
soit aux É.-U., incluant Alaska, Hawaii, territoires américains et toutes les provinces canadiennes.
Période de garantie du refrigérateur/congélateur LG
Produit Pièces Main-d’œuv r e
Réfrigérateur/congélateur 2 ans 2 ans (service à domicile, sauf modèle GR-051)
Système scellé
(compresseur, condensateur,
évaporateur)
5 ans 2 ans (service à domicile, sauf modèle GR-0 51)
Aucune autre garantie expresse est applicable à ce produit. LA DURÉ DE TOUTE GARANTIE IMPLICITE, INCLUANT LA
GARANTIE IMPLICITE DE COMMERCIALISATION, EST LIMITÉ À LA DURÉE DE LA GARANTIE EXPRESSE. LG
ELECTRONICS NE POURRA ÊTRE TENUE RESPONSABLE POUR TOUTE PERTE OU UTILISATION DE CE
PRODUIT, INCONVÉNIENT, PERTE OU TOUT AUTRE DOMMAGE, INDIRECT OU ACCESSOIRE, SURVENANT DE
L’UTILISATION OU DE L’INHABILITÉ À UTILISER CE PRODUIT OU POUR TOUT BRIS DE GARANTIE EXPRESSE
OU IMPLICITE, INCLUANT LA GARANTIE IMPLICITE DE COMMERCIALISATION APPLICABLE À CE PRODUIT.
Certains états ne permettent pas l’exclusion ou la limitation de dommages accessoires ou indirects ou les limitations sur
la durée d’une garantie implicite, par conséquent ces limitations ou exclusions peuvent ne pas s’appliquer. Cette garantie
donne des droits légaux et l’on peut en avoir d’autres qui varient d’un état à un autre ou d’une province à une autre.
LA GARANTIE CI-DESSUS NE´S APPLIQUE PAS :
1. Les déplacements de service à domicile pour la livraison ou la cueillette, l’installation, le remplacement de fusibles ou
de câblage résidentiel approprié, plomberie ou correction de réparations non autorisées.
2. Dommage au produit causé par accident, parasites, incendie, inondation ou actes de Dieu.
3. Réparations lorsque le produit LG est utilisé à d’autres fins qu’une utilisation domestique unifamiliale normale.
4. Dommage résultant d’accidents, de modifications, de mauvaise utilisation, d’abus ou d’une installation inadéquate.
Si ce produit est installé à l’extérieur d’une zone de service normale, tous frais de déplacement requis pour la réparation
du produit ou le remplacement de pièces défectueuses seront imputés au propriétaire.
NUMÉROS D’E AIDE LA CLIENTÈLE
À
Conserver la facture comme preuve de la date d’achat
Un exemplaire de la facture doit être présenté au moment où un service sous
garantie est fourni.
Téléphoner au 1-888-542-2623 (lun. au ven. 7 h à 20 h Central)
(sam. 8 h à 17 h Central)
Presser l’option du menu appropriée et avoir le type de produit (réfrigérateur),
numéro de modèle, numéro de série et code postal.
Téléphoner au 1-888-542-2623 (24 heures par jour, 7 jours par semaine)
Presser l’option du menu appropriée et avoir le type de produit (réfrigérateur),
numéro de modèle, numéro de série et code postal.
À
Par conséquent, les frais encourus sont imputés au consommateur.
LG Electronics
GARANTIE LIMITÉE
Canada
5
Visiter notre site web:http://www.lgservice.com
Pour obtenir une garantie
Pour obtenir un produit ou
de l’aide
Pour obtenir le centre de service
le plus proche

LG Electronics will repair or at its option replace, witouth charge, your product which proves to be defective in
material or workmanship under normal use, during the warranty period listed below from the date of original
purchase. This warranty is good only to the original purchaser of the product during the warranty period as
long as it is in any Canadian Province.
WARRANTYPERIOD
MODEL# : LABOR : 2 Years PARTS :2 Years
SERIAL NUMBER :
SEALED SYSTEM : 5 Years (Compressor, condenser, and evaporator)
HOW SERVICE IS HANDLED : Call 1-888-542-2623(1-888-LG-CANADA) and choose the appropriate
prompt. Please have product type (refrigerator) and ZIP Code ready.
See our website at http://www.lg.ca
This warranty provides in-home service.
No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES,
INCLUDING THE IMPLIED WARRANTYOF MERCHANTABILITY, IS LIMITED TO THE
DURATION OF THE EXPRESS WARRANTYHEREIN. LG ELECTRONICS USA, INC. SHALLNOT
BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVIENCE, LOSS OR ANY
OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, ARISING OUT OF THE USE OF, OR
INABILITYTO USE, THIS PRODUCTOR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED
WARRANTY, INCLUDING THE IMPLIED WARRANTYOF MERCHANTABILITYAPPLICABLE TO
THIS PRODUCT.
Some provinces do not allow the exclusion or limitation of incidental or consequential damages or limitations on
how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives
you specific legal rights and you may also have other rights which vary from province to province.
THE ABOVE WARRANTYDOES NOTAPPLY TO:
1. Service trips to your home to deliver and pickup, install, instruct, or replace house fuses or correct wiring, plumbing,
or correction of unauthorized repairs.
2. Damage to the product caused by accident, vermin, fire, flood, alteration, misues, abuse, improper installation, or acts
of God.
3. Commercial use or use for other than the intended purpose.
Therefore, these costs are the responsibility of the consumer.
CUSTOMER ASSISTANCE NUMBERS:
Retain your Sales Receipt to prove date of purchase.
A copy of your Sales Receipt must be submitted at the time
warranty service is provided.
Call 1-888-542-2623(1-888-LG-CANADA) and choose the
appropriate prompt.
http://www.lg.ca
Call 1-888-542-2623(1-888-LG-CANADA) and choose the
appropriate prompt. Please have your product type
(refrigerator) and ZIP Code ready.
http://www.lg.ca
To Prove Warranty Coverage:
To Obtain Product, Customer, or
Service Assistance by phone:
or by Internet:
To Obtain Nearest Authorized
Service Center, Parts Distributor,
or Sales Dealer by phone:
or by Internet:
LIMITED WARRANTY
LG Electronics
Canada
6
Visiter notre site web:http://www.lgservice.com

This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you
of hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word DANGER, WARNING, CAUTION. These words mean:
WARNING
CAUTION
You can be killed or seriously injured if you don’t follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
may result in minor or moderate injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury and tell you what can happen if
the instructions are not followed.
SAFETY MESSAGES
WARNING
To reduce the risk of fire, electric shock, or injury
to persons when using your product, basic safety
precautions should be followed, including the following:
NEVER unplug your refrigerator by pulling on the power cord.
Always grip the plug firmly and pull it straight out from the
outlet.
Repair or replace immediately all electric service cords that
have become frayed or otherwise damaged. Do not use a cord
that shows cracks or abrasion damage along its length or at
either the plug or connector end.
When moving your refrigerator away from the wall,
be careful not to roll over or damage the power cord.
DO NOT store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
DO NOT allow children to climb, stand or hang on the
refrigerator doors or shelves in the refrigerator. They could
damage the refrigerator and seriously injure themselves.
Keep fingers out of “pinch point” areas; clearances between
Unplug your refrigerator before cleaning or making any repairs.
NOTE: We strongly recommend that any servicing be
performed by a qualified individual.
Before replacing a burned-out light bulb, unplug the
refrigerator or turn off power at the circuit breaker or fuse box
in order to avoid contact with a live wire filament. (A burned-
out light bulb may break when being replaced.) NOTE: Setting
either or both controls to the OFF position does not remove
power to the light circuit.
Read all instructions before using this appliance.
Use this appliance only for its intended purpose as described
in this use and care guide.
After your refrigerator is in operation, do not touch the cold
surfaces in the freezer compartment when hands are damp or
wet. Skin may adhere to the extremely cold surfaces.
In refrigerators with automatic icemakers, avoid contact with
the moving parts of the ejector mechanism, or with the heating
element that releases the cubes. DO NOT place fingers or
hands on the automatic icemaking mechanism while the
refrigerator is plugged in.
DO NOT refreeze frozen foods which have thawed completely.
The United States Department of Agriculture in Home and
Garden Bulletin No. 69 says:
“...You may safely refreeze frozen foods that have thawed if
they still contain ice crystals or if they are still cold below
40°F (4°C).”
“...Thawed ground meats, poultry, or fish that have any off-odor
or off-color should not be refrozen and should not be eaten.
Thawed ice cream should be discarded. If the odor or color of
any food is poor or questionable, get rid of it. The food may be
dangerous to eat.”
“Even partial thawing and refreezing reduces the eating quality
of foods, particularly fruits, vegetables and prepared foods.
The eating quality of red meats is affected less than that of
many other foods. Use refrozen foods as soon as possible to
save as much of their quality as you can.”
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
7
the doors and cabinet are necessarily small. Be careful
when you open the doors when children are in the area.
For personal safety, this appliance must be properly grounded.
Have the wall outlet and the circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
Do not store bottles in the freezer compartment - they may
break when frozen, causing damage.

IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
RECOMMENDED GROUNDING METHOD
separate circuit serving only this appliance be provided.
Use a receptacle which cannot be turned off with a switch
or pull chain. Do not use an extension cord.
Where a standard two-prong wall outlet is encountered,
it is your personal responsibility and obligation to have it
replaced with a properly grounded three-prong wall outlet.
The refrigerator should always be plugged into its own
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 amperes.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires. It is recommended that a
Do not, under any circumstances, cut or remove the
third (ground) prong from the power cord.
NOTE: Before performing any type of installation,
cleaning, or removing a light bulb, turn the control
(Thermostat, Refrigerator Control or Freezer Control,
depending on the model) to OFF and then disconnect the
refrigerator from the electrical source. When you are
finished, reconnect the refrigerator to the electrical source
and reset the control (Thermostat, Refrigerator Control or
Freezer Control, depending on the model) to the desired
setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain
conditions, we strongly recommend against the use of
an extension cord. However, if you still elect to use
an extension cord, it is absolutely necessary that it be
a UL-listed (in the United States), 3-wire grounding type
appliance extension cord having a grounding type plug
and outlet, and that the electrical rating of the cord be 15
amperes (minimum) and 120 volts.
Use of an extension cord will increase the clearance
needed for the back of the refrigerator.
WARNING
Electrical Shock Hazard
FOR PERSONAL SAFETY, this appliance must be
properly grounded. Have the wall outlet and the
circuit checked by a qualified electrician to make sure
the outlet is properly grounded.
Ensure proper
ground exists
before use.
3-prong
grounding
plug
3-prong
grounding type
wall receptacle
Your old refrigerator may have a cooling system that used If you are throwing away your old refrigerator, make sure
CFCs (chlorofluorocarbons). CFCs are believed to harm the CFC refrigerant is removed for proper disposal by a
stratospheric ozone. qualified servicer. If you intentionally release this CFC
refrigerant, you can be subject to fines and imprisonment
under provisions of environmental legislation.
DANGER: RISK OF CHILD ENTRAPMENT
BEFORE YOU THROW AWAY
YOUR OLD REFRIGERATOR
OR FREEZER
Take off the doors.
Leave the shelves in place so that
children may not easily climb inside.
CFC DISPOSAL
GROUNDING REQUIREMENTS
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous... even if they will sit for “just a few days”. If
you are getting rid of your old refrigerator, please follow
the instructions at right to help prevent accidents.
8

A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
Digital Sensor Control
Refrigerator Light
Shelves
Chef Fresh / Snack Pan*
Can Dispenser*
Optibin Crisper
Keeps fruits and vegetable fresh and crisper
Customcube Icemaker
Ice Bin
Durabase
Divider
Filter (inside)*
Dairy Bin
Design-A-Door
Egg Box
Refrigerator Door Rack
Freezer Light
Wire Basket
Freezer Door Rack (Tilting*)
*on some models
9
B
C
D
A
F
E
Use this section to become more familiar with the parts and features.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some
or all of the items listed below. The locations of the features shown below may not match your model.
PARTS AND FEATURES
G
H
I
J
K
M
N
L
O
P
Q
R

10
Use this section to become more familiar with the parts and features.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some
or all of the items listed below. The locations of the features shown below may not match your model.
PARTS AND FEATURES
A
B
C
D
E
F
G
H
I
J
K
L
M
N
P
O
Digital Sensor Control
Refrigerator Light
Shelves
Snack Pan
Optibin Crisper
Keeps fruits and vegetable fresh and crisp
Triple Twist Ice Tray
Ice Bin
Wire Durabase
Divider
Dairy Bin
Design-A-Door
Egg Box
Refrigerator Door Rack
Freezer Light
Wire Basket
Freezer Wire Door Rack
B
C
D
A
F
E
G
H
I
J
L
M
K
N
O
P

Use this section to become more familiar with the parts and features.
NOTE: This guide covers several different models. The refrigerator you have purchased may have some
or all of the items listed below. The locations of the features shown below may not match your model.
PARTS AND FEATURES
Digital Sensor Control
Refrigerator Light
Shelves
Snack Pan
Optibin Crisper
Keeps fruits and vegetable fresh and crisp
Ice Trays
Ice Bin
Wire Durabase
Dairy Bin
Design-A-Door
Wire Freezer Shelf
Refrigerator Door Rack
Freezer Light
Freezer Door Rack
B
C
D
A
F
E
G
H
I
J
L
M
K
N
A
B
C
D
E
F
G
H
I
J
M
N
L
K
11

UNPACKING YOUR REFRIGERATOR
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any warning-
type labels, the model and serial number label, or the
TechSheet that is attached to back wall of the refrigerator.
To remove any remaining tape or glue, rub the area
briskly with your thumb. Tape or glue residue can also be
easily removed by rubbing a small amount of liquid dish
soap over the adhesive with your fingers. Wipe with warm
water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator. For
more information, see the Important Safety Instructions
section.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual
storage needs.
When Moving Your Refrigerator:
Your refrigerator is heavy. When moving the
refrigerator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out when
moving it. Do not wiggle or walk the refrigerator when
trying to move it, as floor damage could occur.
INSTALLATION
1. Avoid placing the unit near heat sources, direct sunlight,
or moisture.
2. To avoid vibration, the unit must be level. If required,
adjust the leveling screws to compensate for
unevenness of the floor. The front should be slightly
higher than the rear to aid in door closing. Leveling
screws can be turned easily by tipping the cabinet
slightly. Turn the leveling screws clockwise ( ) to
raise the unit, counterclockwise ( ) to lower it.
3. Install this appliance in an area where the temperature
is between 55°F (13°C) and 110°F (43°C.) If the
temperature around the appliance is too low or high,
cooling ability may be adversely affected.
NEXT
1. Clean your refrigerator thoroughly and wipe off all dust
accumulated during shipping.
2. Install accessories such as ice cube bin, drawers,
shelves, etc., in their proper places. They are packed
together to prevent possible damage during shipment.
3. Let your refrigerator run for 2 or 3 hours before putting
food in it. Check the flow of cold air in the freezer
compartment to ensure proper cooling. Your refrigerator
is now ready for use.
CAUTION:
Be careful when you work with hinge, base grille,
stopper etc. You may be injured.
Do not put hands or metal sticks into air vents, base
grille or bottom of refrigerator. You may be injured or
receive an electrical shock.
BASE GRILLE
To remove the base grille:
1. Grasp the grille with both hands.
2. Pull the grille toward yourself.
To install the base grille:
1. Place clips in openings in the metal panel.
2. Push the grille toward the refrigerator until it snaps
into place.
REFRIGERATOR INSTALLATION
WARNING
Excessive Weight Hazard
Use two or more people to move and install
refrigerator.
Failure to do so can result in back or other injury.
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion or fire.
12

REMOVING, REVERSING AND REPLACING
REFRIGERATOR DOORS (OPTIONAL)
TOOLS NEEDED: 10mm hex-head socket wrench,
No. 2 Phillips screwdriver, flat-head screwdriver,10mm
open-end wrench, flat 2-inch putty knife.
IMPORTANT: Before you begin, turn the refrigerator OFF
and unplug it. Remove food and any adjustable door or
utility bins from doors.
HOW TO REVERSE DOOR OPENING DIRECTION
(when converting from the left-opening type to right-
opening type)
1. Removing Refrigerator Door
Remove the top hinge cover (1).
Remove the 3 screws and lift off the top hinge (2).
Lift the Refrigerator door (3) slightly and remove it.
Pry off the cover (4) using a slotted screwdriver and
attach it on the right.
Loosen the screw (5), remove the stoppers (6), and
attach them on the left (on the opposite side).
Loosen the pin (8) and remove it.
Loosen the 2 screws (9) and the 2 screws (10), and
lift off the middle hinge (11).
2. Removing Refrigerator Handle
Remove the cap (1) by using a slotted screwdriver.
Loosen the 4 screws (2), take off the handle (3), and
install it on the right.
Attach the removed the cap (1) on the left.
REFRIGERATOR INSTALLATION
13
Pry off the cover (7) using a slotted screwdriver and
attach it on the right.
Turn the handle upside down and assemble it in the
opposite side of the refrigerator door (4).
NOTE: See the Parts and Features section on pages 9-10
to match your model.
NOTE: Reversing the refrigerator door is not possible on
water dispenser models

3. Installing Refrigerator Door
Install the middle hinge (1) on the opposite side with the
screws (2) and the screws (3).
Install the door (4) so that it fits onto the middle hinge
pin (5).
Install the top hinge (6) with screws.
Reinstall top hinge cover (7).
4. After Completing the Job
Make sure that the four corners of the door gasket are
not folded over. To ensure a good seal, apply a small
amount of silicon grease on the gasket.
REFRIGERATOR INSTALLATION
14

IMPORTANT: To avoid possible injury, product or property
damage, you will need two people to perform the following
instructions.
1. Removing Pullout Drawer
Pull the drawer open to full extension. Remove the
screw (1) from each side of rail system.
Remove the lower basket (2) by lifting basket from rail
system.
2. Installing Pullout Drawer
Lift the top of door to unhook door supports from rail
system. Lift door out to remove.
Pull both rails (1) out to full extension.
Hook the door supports (2) into the rail tabs (3), as
illustrated, and lower door into final position.
With the drawer pulled out to full extension, insert the
lower basket (4) in rail assembly.
REFRIGERATOR INSTALLATION
15
HOW TO REMOVE AND INSTALL THE
RELEASE DRAWER

REFRIGERATOR INSTALLATION
16
REMOVING, REVERSING AND REPLACING
REFRIGERATOR DOORS (OPTIONAL)
TOOLS NEEDED: 10mm hex-head socket wrench,
No. 2 Phillips screwdriver, flat-head screwdriver, 10mm
open-end wrench, flat 2-inch putty knife.
IMPORTANT: Before you begin, turn the refrigerator OFF
and unplug it. Remove food and any adjustable door or
utility bins from doors.
HOW TO REVERSE DOOR OPENING DIRECTION
(when converting from the left-opening type to right-
opening type)
1. Removing Refrigerator Door
Remove the top hinge cover (1).
Remove the 3 screws and lift of f the top hinge (2).
Lift the Refrigerator door (3) slightly and remove it.
Pry off the cover (4) using a slotted screwdriver and
attach it on the right.
Loosen the screw (5), remove the stoppers (6) and
attach them on the left (on the opposite side).
Loosen the pin (8) and remove it.
Lift off the washer (9).
Pry off the cover (7) using a slotted screwdriver and
attach it on the right.
2. Removing Freezer Door
Lift the door (10) slightly and remove it.
Loosen the 2 screws (11), the 2 screws (12), and lift
off the middle hinge (13).
Take off the base grille (14).
Remove the cap (15) and attach it on the right.
Loosen the 2 screws (16), remove the bottom hinge
(17), and attach on the right.
Loosen the 2 screws (18), remove the bottom hinge
(19), and attach on the left.
Loosen the 2 screws (20) and attach the stopper (21)
on the left side of the base.
NOTE: See the Parts and Features section on pages 9-10
to match your model.

3. Removing Refrigerator Handle
NOTE: To assist in installing the handle on the right
side, place a small piece of masking tape near the
top of the handle before removing.
Grasp the handle tightly with both hands and slide the
handle up (1)(this may require some force).
The keyhole slots (2) on the back of the handle allow
the handle to separate from the mounting screws (3).
Use an adjustable wrench to remove the handle
mounting screws (3).
Carefully pry off the plug buttons (4).
Remove a layer of adhesive and backing to expose
new adhesive.
Install the plug buttons (4) on left side.
Install the handle mounting screw (3) on the right side
Hold the handle so the masking tape is at the bottom.
Align keyhole slots (2) on the top and bottom of the
back of the handle with the screws (3) mounted on
the front of the door.
Press the handle against the door front, making sure
that the screws (3) go into the keyhole slots (2).
Grasping the handle with both hands, press it firmly
against the front of the door and slide the handle
down (6). This may require some force.
17
REFRIGERATOR INSTALLATIONREFRIGERATOR INSTALLATION

18
4. Removing Freezer Handle
Remove the cap (1) and the 2 caps (2) using a slotted
screwdriver.
Loosen the 2 screws (3), take of f the handle (4), and
install it on the right.
Attach the caps you removed earlier [figures (1) and
(2)].
5. Installing Freezer Door
Install the base grille (1).
Install the door (3) onto the bottom hinge pin.
Install the middle hinge (4) on the opposite side with the
screw (5) and the screws (9).
6. Installing Refrigerator Door
Place the washer (6) on the middle hinge pin (7).
Install the door (8) so that it fits onto the middle hinge
pin (7).
Install the top hinge (10) with serews.
Reinstall top hinge cover (11).
REFRIGERATOR INSTALLATION
NOTE: Before start, check handle type in your model.
Handle Type 1
Handle Type 2
For this handle type is not neccesary remove it.

Open both doors again and check to make sure that
they close easily. If not, tilt the refrigerator slightly more
to the rear by turning both leveling screws clockwise. It
may take several more turns, and you should turn both
leveling screws the same amount.
DOOR CLOSING AND ALIGNMENT
Door Closing
Your refrigerator has two front leveling screws one on
the right and one on the left. If your refrigerator seems
unsteady or you want the doors to close easier, adjust the
refrigerator tilt using the instructions below:
1. Plug the refrigerator power cord into a 3-prong
grounded outlet. Move the refrigerator into its final
position.
2. Use a screwdriver to adjust the leveling screws. Turn
the leveling screw clockwise to raise that side of the
refrigerator or counterclockwise to lower it. It may take
several turns of the leveling screw to adjust the tilt of
the refrigerator.
NOTE: Having someone push against the top of the
refrigerator takes some weight off the leveling screws.
This makes it easier to adjust the screws.
3.
4. Check, using a level.
5. Replace the base grille.
Door Alignment
If the space between your doors is uneven, follow the
instructions below to align the doors:
1. Pry off the top hinge cover.
2. Loosen the top hinge screws using a 10 mm socket
or wrench.
3. Have someone hold the door in place or put a
spacer between the doors while you tighten the
top hinge screws.
4. Replace the top hinge cover.
REFRIGERATOR INSTALLATION
19
7. After Completing the Job
Make sure that the four corners of the door gasket are
not folded over. To ensure a good seal, apply a small
amount of silicon grease on the gasket.

20
ENSURING PROPER AIR CIRCULATION
In order to ensure proper temperatures, air must flow
between the refrigerator and freezer sections. As shown
in the illustration below, cool air enters through the bottom
of the freezer section and moves up. Most of the air then
flows through the freezer section vents and recirculates
under the freezer floor. The rest of the air enters the
refrigerator section through the top vent.
MULTI FLOW
The cooling fan operates more powerful and effective
If water or foreign substances enter the cool air vent
while cleaning, efficiency will be lowered. In addition, if
gasket is damaged, efficiency may be lowered because
of escaping cool air.
Do not block any of these vents with food packages. If
the vents are blocked, airflow will be interrupted and
temperature and moisture problems may occur.
IMPORTANT: Because air circulates between both
sections, any odors formed in one section will transfer to
the other. You must thoroughly clean both sections to
eliminate odors. To prevent odor transfer and drying out of
food, wrap or cover foods tightly. (See the Food Storage
Guide section for details.)
SETTING THE CONTROLS
Your refrigerator has two controls that let you regulate
the temperature in the freezer and refrigerator
compartments.
Initially set the REFRIGERATOR CONTROL at 37°F
(3°C) and the FREEZER CONTROL at 0°F ( -18°C).
Leave it at this setting for 24 hours (one day) to
stabilize. Then adjust the compartment temperature
as desired.
Premium Model
Refrigerator control: 32°F to 46°F (0°C to 8°C)
The lower the number setting, the colder the refrigerator
compartment will become.
Freezer control: - 6°F to 9°F (- 21°C to - 13°C)
When the setting is at a lower number, the freezer
compartment becomes colder. But the refrigerator
compartment becomes warmer because less cold air
flows into the refrigerator.
NOTE: To change °F/°C press and HOLD COLDER key
co f freezer and COLDER key of refrigerator over 1 sec. at
the same time.
USING YOUR REFRIGERATOR
REFRIGERATOR TEMP
COLDER WARMER F IS3 R7 ECOMMENDED
EXPRESS
FREEZING
0 F IS RECOMMENDED
FREEZER TEMP
COLDER WARMER
EXPRESS
FREEZING
than in normal operation. This is specially noticeable
when new food is placed in the refrigerator compartment.
Express Freezing:
Press the Express Freezing key and the LED will turn
on. This function will remain activated for 24 hours and
intensify the cooling speed of freezer and increase the
amount of ice.
Dispenser Model
Refrigerator control: 32°F to 46°F (0°C to 8°C)
The lower the number setting, the colder the refrigerator
compartment will become.
Freezer control: -6°F to 9°F (- 21°C to - 13°C)
When the setting is at a lower number, the freezer
compartment becomes colder. But the refrigerator
compartment becomes warmer because less cold air
flows into the refrigerator.
REFRIGERATOR TEMP
COLDER WARMER LOCK F IS3 R7 ECOMMENDED
DISPENSER EXPRESS
FREEZING
