IMPORTANT SAFETY INFORMATION .............. 3
INSTALLATION ................................................... 14
INNER PARTS .................................................... 16
OPERATIONS ..................................................... 17
Starting
Before Setting The Temperature
Door Alarm
Self Test
Controls For Refrigerator Compartment
Express Freeze
Lock
Wi-Fi
Controls For Freezer Compartment
Ice Making
Fresh Room Drawer
Vegetable Drawer
Water Dispenser
SUGGESTIONS ON FOOD STORAGE ............ 21
CLEANING .......................................................... 22
SMART DIAGNOSIS .......................................... 24
SMART FUNCTIONS ......................................... 25
GENERAL INFORMATION ............................... 27
wWARNING ....................................................... 28
BEFORE CALLING FOR SERVICE .................. 29
CONTENTS

IMPORTANT SAFETY INFORMATION
3
ENGLISH
wWARNING
w Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
w Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
w Do not damage the refrigerant circuit.
w Do not use electrical appliances inside the food storage compartments
of the appliance, unless they are of the type recommended by the
manufacturer.
w Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
w The refrigerant and insulation blowing gas used in the appliance require
special disposal procedures. When disposal, please consult with service
agent or a similarly qualified person.
This appliance contains a small amount of isobutane refrigerant (R600a), natural gas with high environmental compatibility, but it is
also combustible. When transporting and installing the appliance, care
should be taken to ensure that no parts of the refrigerating circuit are
damaged.
Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a
leak is detected, avoid any naked flames or potential sources of ignition and
air the room in which the appliance is standing for several minutes.
In order to avoid the creation of a flammable gas air mixture if a leak in the
refrigerating circuit occurs, the size of the room in which the appliance may
be sited depends on the amount of refrigerant used. The room must be 1
in size for every 8g of R600a refrigerant inside the appliance. The amount of
refrigerant in your particular appliance is shown on the identification plate
inside the appliance.
Never start up an appliance showing any signs of damage. If in doubt,
consult your dealer.

IMPORTANT SAFETY INFORMATION
4
This guide contains many important safety messages. Always read and obey all
safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you
of hazards that can kill or hurt you or others or cause damage to the product. All
safety messages will be preceded by the safety alert symbol and the hazard signal
word WARNING, or CAUTION. These words mean:
All safety messages will identify the hazard, tell you how to reduce the chance of
injury, and tell you what can happen if the instructions are not followed.
BASIC SAFETY PRECAUTIONS
You can be killed or seriously injured if you don’t follow
instructions.
Indicates an imminently hazardous situation which, if not
avoided, may result in minor or moderate injury, or product
damage only.
WARNING
CAUTION

IMPORTANT SAFETY INFORMATION
5
ENGLISH

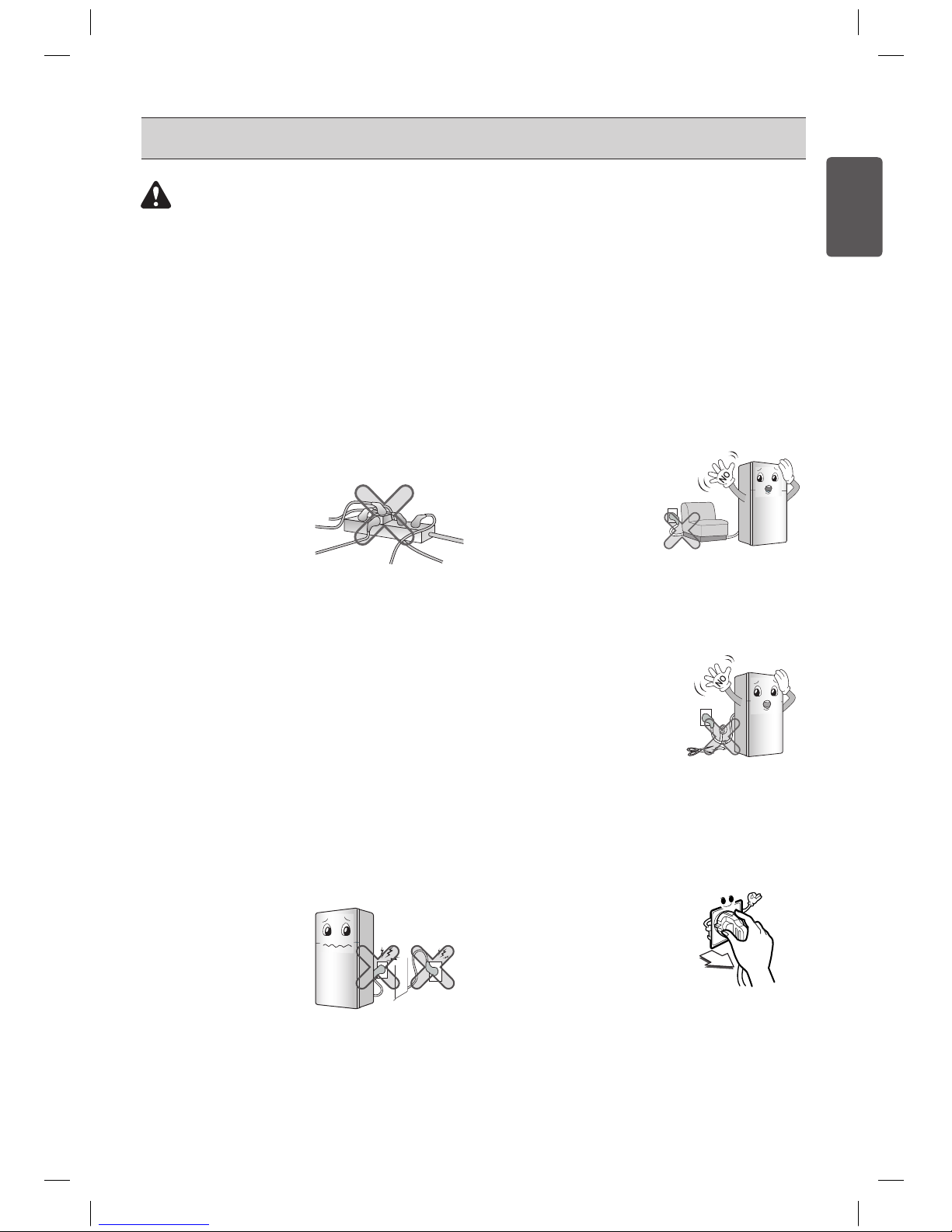

1. When connecting the power
To reduce the risk of fire, electric shock, or injury to persons when using your
product, basic safety precautions should be followed, including the following.
Read all instructions before using this appliance.
WARNING
The dedicated outlet should be used.
• Using several devices at one outlet
may cause fire.
• The electric leakage breaker may
damage food and
the dispenser may
be leaked.
Do not allow the power plug to face
upward or to be squeezed at the
back of the refrigerator.
Water may be flown
into or the plug may
be damaged, which
causes fire or
electric shock.
Prevent the power cord from being
squeezed or imprinted if the
refrigerator is pushed in after the
power plug is extracted during the
installation.
It becomes the cause of fire or electric
shock.
Do not allow the power cord bent or
pressed by the heavy object to be
damaged.
It may damage the
power cord to cause
fire or electric shock.
Pull out the power plug not by
grasping the cord but the plug of its
end.
It may cause electric
shock or short circuit
to fire.
Do not extend or modify the length
of the power plug.
It causes electric
shock or fire by the
electric damage of the
power cord or others.

IMPORTANT SAFETY INFORMATION
6
1. When connecting the power
Unplug the power plug when
cleaning, handling or replacing the
interior lamp of the refrigerator.
• It may cause electric shock or injury.
• When replacing the interior lamp of
the refrigerator, make sure that the
rubber ring for preventing the electric
spark within the
socket is not taken off.
Do not pull out the cord or touch the
power plug with wet hands.
It may cause electric
shock or injury.
Remove water or dust from the
power plug and insert it with the
ends of the pins securely connected.
Dust, water or unstable
connection may fire or
electric shock.
Make sure of grounding.
The incorrect
grounding may
cause breakdown
and electric
shock.
When the power cord or the power
plug is damaged or the holes of the
outlet are loosed, do not use them.
It may cause electric
shock or short circuit to
make fire.
Make sure to ground for safety.
Do not ground to gas pipe, plastic water
pipe, or telephone line.
If there is no ground in the power
outlet in the customer's house,
separately ground to Compressor
base.
Ground
Wire
Copper
Flat
More than
30 inches
Be sure to use grounded exclusive
proper voltage consent for the
power plug.
Be sure to use grounded extension
consents when extension consents
are used.
It becomes the cause of fire.
Wait for 5 minutes or longer when
reconnecting the
plug.
It may cause the
operation of the freezer
to fail.

IMPORTANT SAFETY INFORMATION
7
ENGLISH
2. When using the refrigerator
Do not install the refrigerator in the
wet place or the place which water
or rain splashes.
Deterioration of
insulation of electric
parts may cause
electric leakage.
Prevent children from entering the
product.
It may endanger the
life of a child if the child
enters the refrigerator.
Opening and closing the door of the
refrigerator vigorously may cause
the stored food in the refrigerator
basket to fall by shock and hurt the
foot, so take precautions.
(For CENELEC countries) This
appliance can be used by children
aged from 8 years and above and
persons with reduced physical,
sensory or mental capabilities or
lack of experience and knowledge if
they have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
* CENELEC countries: AT, BE, BG,
HR, CY, CZ, DK, EE, FI, MK, FR, DE,
GR, HU, IS, IE, IT, LV, LT, LU, MT, NL,
NO, PL, PT, RO, SK, SI, ES, SE, CH,
TR, GB
(For IEC countries) This appliance is
not intended for use by persons
(including children) with reduced
physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
Children shall not play with the
appliance.
Do not place the heavy object or the
dangerous object (container with
liquid) on the refrigerator.
It may be dropped to
cause injury, fire or
electric shock when
opening or closing the
door.

IMPORTANT SAFETY INFORMATION
8

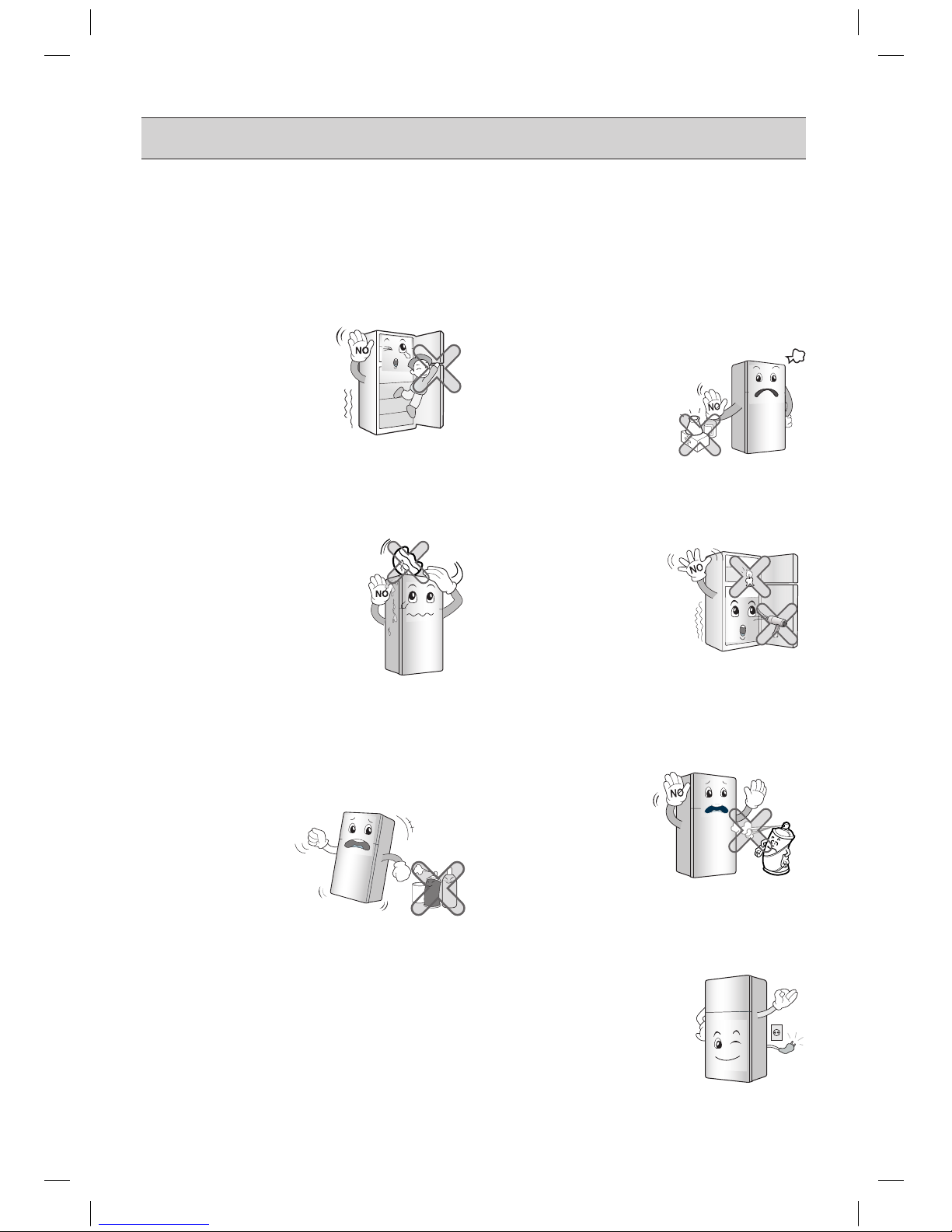

In case of thunder and lightning, or
not in use for a long
period of time, detach
the power plug.
There is a danger of
electric shock or fire.
Do not use drier to dry the inside,
nor light a candle to remove odor.
It may cause
explosion or fire.
Do not use the combustible spray
near the refrigerator.
It may cause fire.
Do not use or store inflammable
materials ether, benzene, alcohol,
medicine, LP gas, spray or
cosmetics near
or in the
refrigerator.
It may cause
explosion or fire.
Benzene
Ether
Thinner
Do not store the medicine or the
academic materials at the
refrigerator.
When the material with the strict
temperature control is stored, it may be
deteriorated or it may
make an unexpected
reaction to cause any
risk.
The Academic
Medicine
The Medicine
Do not cling to the door or the
shelves of the door or the cool
chamber.
It may make the refrigerator fallen down
or damage the hands.
Especially, do not
allow the children to
do the above.
Do not place flower vase, cup,
cosmetics, medicine or
any container with water
on the refrigerator.
It may cause fire, electric
shock or injury by
dropping down.
2. When using the refrigerator

IMPORTANT SAFETY INFORMATION
9
ENGLISH
2. When using the refrigerator
Do not spray water at the outside or
the inside of the refrigerator or do
not clean it with benzene or thinner.
Deterioration of
insulation of electric
parts may cause
electric shock or fire.
Thinner
When gas is leaked, do not touch the
refrigerator or the outlet and
ventilate the room immediately.
• The explosion by spark may cause fire
or burn.
• Because this refrigerator uses natural
gas (isobutene, R600a) as the
environment-friendly refrigerant, even
a small amount (80~90g) is
combustible. When the gas is leaked
by the severe damage during
delivering, installing or using the
refrigerator,
any spark may
cause fire or
burn.
Install in places away from the fire
such as the place where flammable
gas is leaked.
It may cause
fire.
Use the submerged refrigerator after
checking it.
It may cause
electric shock or
fire.
Do not store explosive substances
such as aerosol cans with a
flammable propellant in this
appliance.
Do not allow any person except the
qualified engineer to disassemble,
repair or alter the refrigerator.
It may cause
injury, electric
shock or fire.
When disposing the refrigerator,
remove the packing materials from
the door.
It may cause to lock
out the child.

IMPORTANT SAFETY INFORMATION
10
2. When using the refrigerator

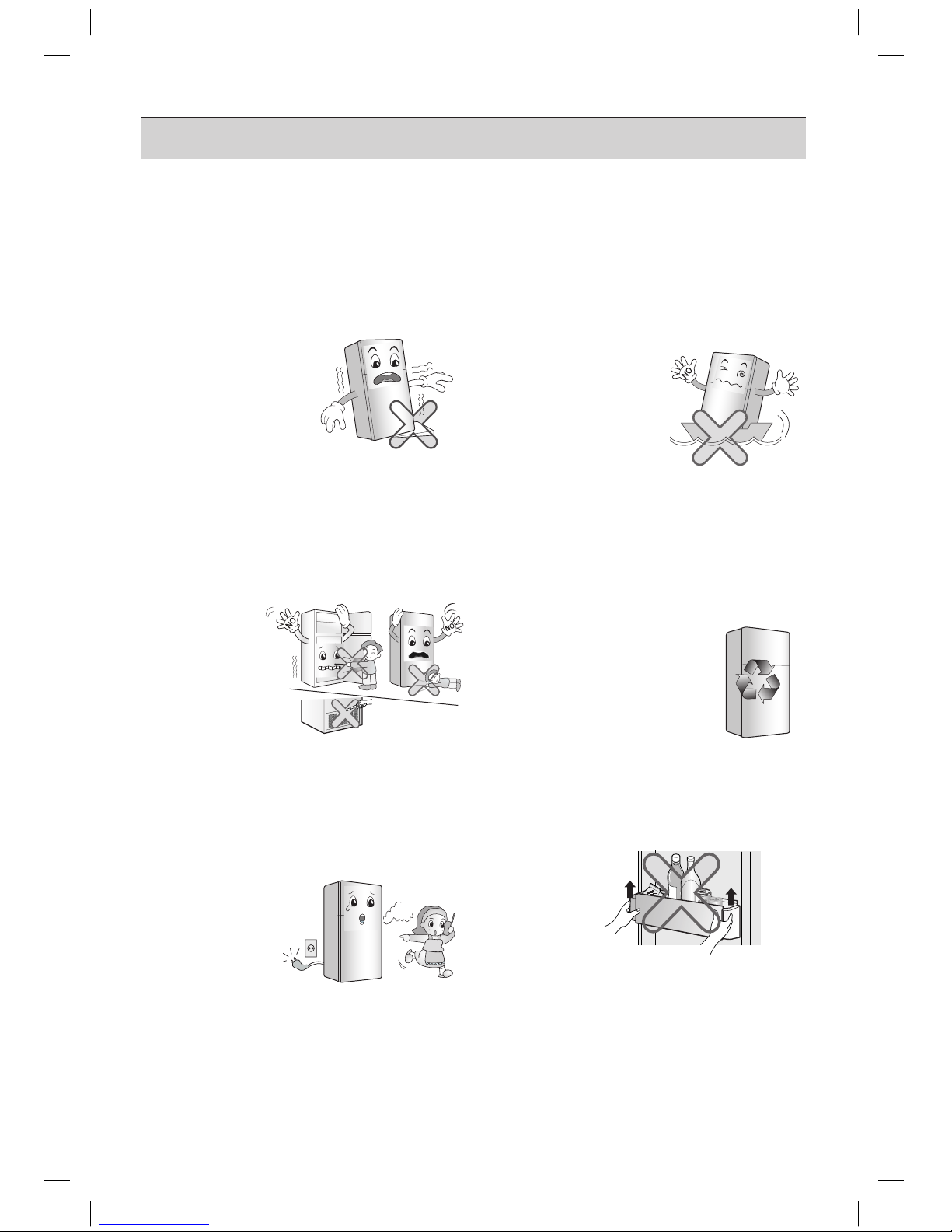

Do not insert the hands or the metal
stick into the exit of cool air, the
cover, the bottom of the refrigerator,
the heatproof grill (exhaust hole) at
the backside.
It may cause
electric shock
or injury.
Completely empty inside before
taking out the container from the
door.
What to do with your old refrigerator.
Your refrigerator contains liquids
(refrigerant, lubricant) made of
recyclable materials. Allthese materials
must be sent to a recyclingwaste
disposal site as they can be
reused aftera specific
recycling process. Contact
localauthorities.
When any strange smell or smoke is
detected from the refrigerator,
disconnect the power plug
immediately and contact to the
service center.
It may cause
fire.
Service
center
Do not use the refrigerator for non-
domestic purpose (storing medicine
or testing material, using at the ship,
etc.).
It may cause an unexpected risk such
as fire, electric
shock, deterioration
of stored material or
chemical reaction.
Install the refrigerator on the solid
and level floor.
Installing it on the unstable place may
cause death by falling down the
refrigerator when
opening or closing
the door.

IMPORTANT SAFETY INFORMATION
11
ENGLISH
2. When using the refrigerator
Place all the components in the right
places before
connecting the
power.
OK
Do not use an
Adapter.
Violating this direction may cause injury or damage house or furniture.
Always be careful, please.
Carry the refrigerator with the handle
bar at the bottom of the front and
the top of the rear.
Otherwise, your hands may be slipped
to cause injury. Because the product is
heavy, carrying it
alone may hurt
people or accidents
may occur.
Do not put bottle in the freezer.
It may freeze the
contents to break the
bottle to cause injury.
Do not touch food or containers at
the freezer with wet hands.
It may cause
frostbite.
Do not remove the
cover on the back.
Never leave lit candles or incense on
the fridge, at risk
of causing fire or
product damage.
CAUTION

IMPORTANT SAFETY INFORMATION
12

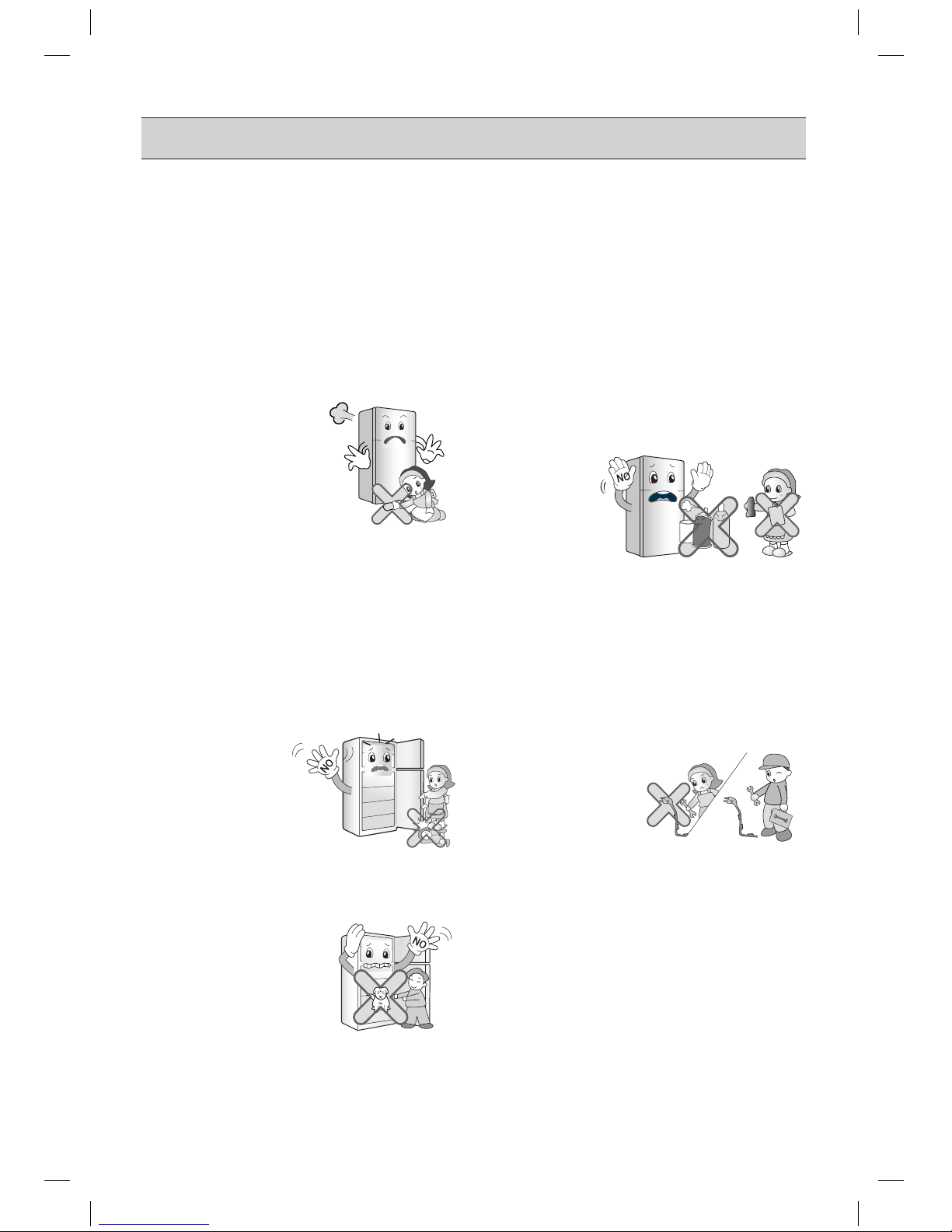

Do not insert the hands into the
bottom of the refrigerator.
The iron plate of the
bottom may cause
injury.
Because opening or closing the door
or the home bar of the refrigerator
may cause injury to the person
around it, be careful, please.
Opening or closing the door may cause
feet or hands to be caught in the chink
in door or the
child to be get
hurt by the
corner.
Do not put any living animal in the
refrigerator.
Avoid the contact of oil or fat on
the plastic parts. They may cause
damage.
When the power cord is damaged,
let a technician to replace it to
remove the
danger of an
accident.
Supply cord replacement
If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or a similarly qualified
persons in order to avoid a hazard.
Technician
Do not use products such as
grinding sponge, brush, iron, or even
special products to clean stainless
steel, soap products such as
alcohol, kerosene, gasoline, wax, or
solvent, or strong chemicals such as
chlorine, detergent, or vinegar, for
the purpose of gloss. These
products may damage the protective
lacquer, and they may cause risk or
stain on the
surface of
the
refrigerator.
Products
for steel
Strong
Chemicals
Do not place the food in disorder
inside the refrigerator.
The food may fall during opening and
closing the door of the refrigerator and
hurt people.

IMPORTANT SAFETY INFORMATION
13
ENGLISH
Do not lean on the doors. Hinges
may deregulate themselves, harming
seal cooler and
compromising
performance.
Do not use the carbonated water.
The gas pressure
may cause
leakage.
Water Tank
Carbonated
Water
Do not apply oil in the door
connection part in any
circumstances.
It may cause
damage to the
plastic parts.
oiloil
Use only water. If any other liquid is
used, the operation of the system
may be deteriorated. If a problem
occurs by using any liquid other than
water, the
manufacturer will
not be
responsible.
Appliance usage range
This appliance is intended to be used in
household and similar applications such
as
– staff kitchen areas in shops, offices
and other working environments
– farm houses and by clients in hotels,
motels and other residential type
environments
– bed and breakfast type environments
– catering and similar non-retail
applications.
Only water
Water Tank
Clean the water tank according to
the instruction before using the Ice
Maker. Throw away the initial ice
cubes. These may be the ice made
of the water contacted parts before
cleaning.
Water Tank
WARING : fill with potable water
only.
WARNING
Please do not use a dishwasher to clean the lower drawers; the high temperature
may cause damage to the baskets which make them unusable.

INSTALLATION
14
1. Select a good location. Place your refrigerator where it is easy to use.
2. Avoid placing the unit near heat sources, direct sunlight or moisture.
3. To ensure proper air circulation around the fridge -freezer, please maintain
sufficient space on both the sides as well as top and maintain at least 2 inches
(5 cm) from the rear wall.
4. Don't install this appliance below 5 °C. It may cause the debasement of the
refrigerator.
5. To avoid vibrations, the unit must be level. If required, adjust the leveling screws
to compensate for unevenness of the floor.
The front should be slightly higher
than the rear to aid in door closing.
Leveling screws can be turned easily
by tipping the cabinet slightly.
Turn the leveling screws
clockwise( ) to raise the unit,
counterclockwise( ) to lower it.
THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE,
AND UTILIZES THE LATEST IN TECHNOLOGY.
WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH
IT'S PERFORMANCE AND RELIABILITY.
BEFORE YOU START YOUR REFRIGERATOR, PLEASE READ THIS
BOOKLET CAREFULLY.
IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION,
OPERATION AND MAINTENANCE, AND ALSO SUPPLIES SOME
USEFUL HINTS.

INSTALLATION
15
ENGLISH
NEXT
1. Clean your refrigerator thoroughly and wipe off all dust accumulated during
shipping.
2. Install accessories such as ice cube box, etc., in their proper places.They are
packed together to prevent possible damage during shipment.
3. You have a model with bar-type handle, assemble the handle according to
instruction card.
4. Connect the power supply cord (or plug) to the outlet. Don't double up with
other appliances on the same outlet.
5. Prior to storing food, leave your refrigerator on for 2 or 3 hours.
Check the flow of cold air in the freezer compartment to ensure proper cooling.
Your refrigerator is now ready for use.

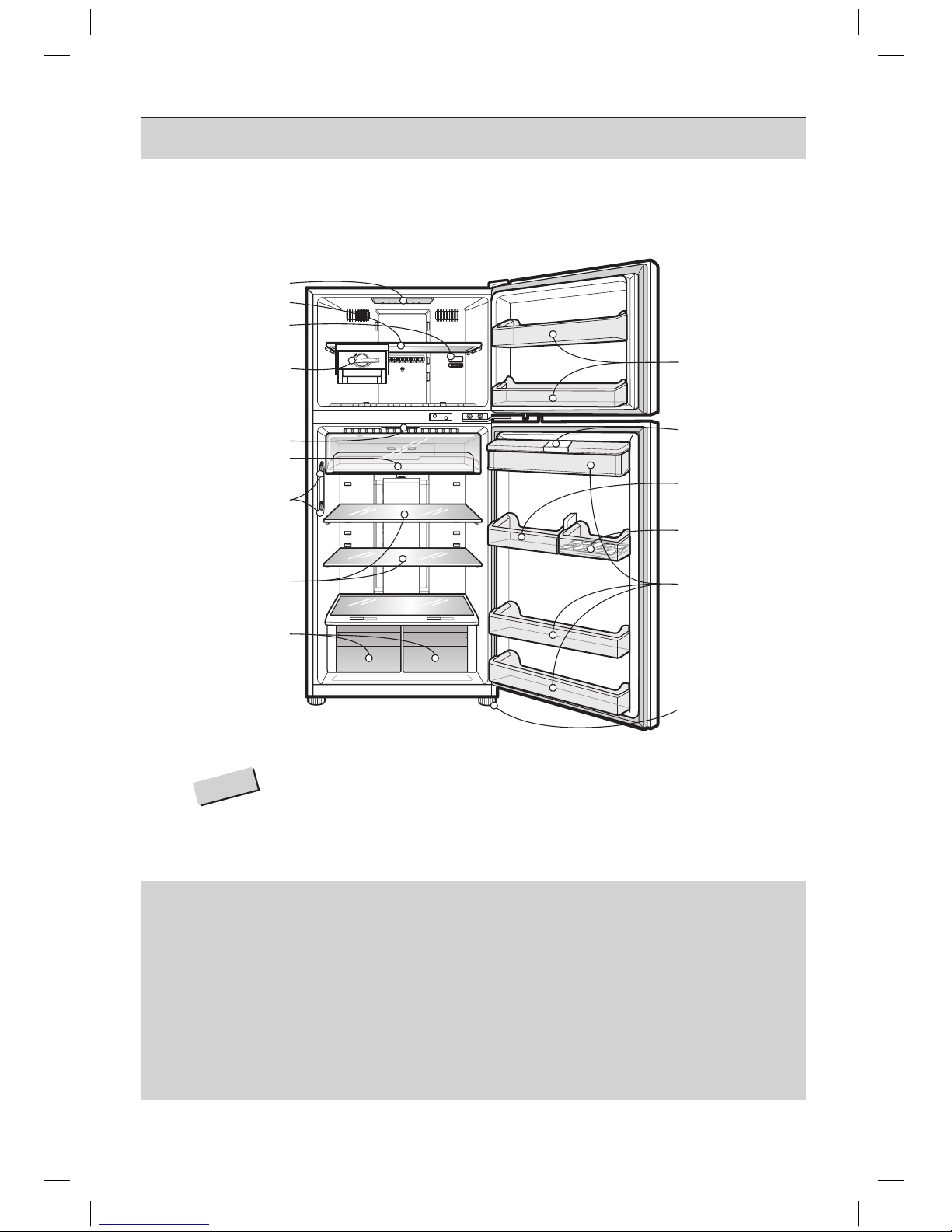

INNER PARTS
16
SUGGESTION FOR ENERGY SAVING
• Please do not keep the door open for a long time, close door in the shortest time.
• Too much food are not advised to be put in. Enough space should be kept for cool air circulating freely.
• Do not set the temperature of refrigerator lower than needed. Do not put the food near the temperature
sensor.
• Allow hot food to cool prior to storing. Placing hot food in the fridge-freezer could spoil other food, and
lead to higher electric bills.
• Do not block air vents with food. Smooth circulation of cold air keeps fridge-freezer temperature even.
• Do not open the door frequently. Opening the door lets warm air enter the fridge-freezer, and cause
temperature to rise.
FREEZER
COMPARTMENT
REFRIGERATOR
COMPARTMENT
Lamp
Freezer
Door Rack(**)
Water Tank
Leveling Screw
Refrigerator
Door Rack
Refrigerator
Door Rack
Vegetable Drawer
Shelf
Freezer Temperature
Control Dial
Twisting Ice Serve
Type Ice Making
Fresh Room Drawer
Door Cooling+
Lamp
Shelf
Egg Tray
• This guide covers several different models. The refrigerator you have
purchased may have some or all of the features shown above.
• To keep a position of inner parts like as racks, drawers and shelves
supplied by manufacturer is the most efficient usage for energy saving.
NOTE

OPERATIONS
17
ENGLISH
STARTING
When your refrigerator is first installed, allow it 2-3 hours to stabilize at normal operating temperatures
prior to filling it with fresh or frozen foods.
If operation is interrupted, wait 5 minutes before restarting.
BEFORE SETTING THE TEMPERATURE
●The temperature of the refrigerator is kept constant regardless of changes in room temperature.
It is recommended that, once set, the temperature settings(the controls for the refrigerator and
freezer compartments) not be changed unless necessary.
●This refrigerator has one temperature control button for the refrigerator compartment and one
temperature control dial for the freezer compartment.
●The default setting of the temperature control button for the refrigerator compartment is ‘3°C’.
●The default setting of the temperature control dial for the freezer compartment is '5'.
●This refrigerator has a temperature sensor in the refrigerator compartment. It will start and stop the
compressor automatically as needed.
DOOR ALARM
When the door of the refrigerator or the freezer is open for 1 minute, an alarm will sound three times.
It the door remains open, the alarm will repeat every 30 seconds.
SELF TEST
●
Your refrigerator contains a built in diagnostic capability. If it develops a malfunction in certain areas, it will
display an error code to assist the repair technician. While an error code is displayed, other control and
display functions will not operate.
●If an error code is displayed, contact a service center. Do not disconnect the power cord from the outlet.
CONTROLS FOR REFRIGERATOR COMPARTMENT
●
Press 'Fridge' button to control fridge
temperature.
●
You can select the desired setting point
seven steps, from '0°C' to '6°C'.
●
The number showing up on the LED
luminesce indicate the temperature of
refrigerator compartment.
●
Whenever pressing the button, the LED emits light.

OPERATIONS
18
CONTROLS FOR FREEZER COMPARTMENT
●
To lower the temperature in the freezer, turn the knob right
and set to a higher number.
To raise the temperature in the freezer, turn the knob left and
set to a smaller number.
●
Over freezing at 6~ 8is a function that maintain a low
temperature in the freezer. But, Refrigerator's cooling speed
will be slowed down. Once using 6~ 8levels, return the
knob to recommended position in normal time.
243
EXPRESS FREEZE
●
The Express Freeze feature operates
when the refrigerator is first turned on.
The compressor and circulating fan
operate at maximum cooling capacity to
quickly lower the refrigerator temperature.
It shuts off automatically.
●
If warm food is placed into the refrigerator, Express Freeze can be started with the button on the control
panel.
Express Freeze will shut off when the temperature reaches the proper level or it can be shut off manually by
pressing the Express Freeze button.
●

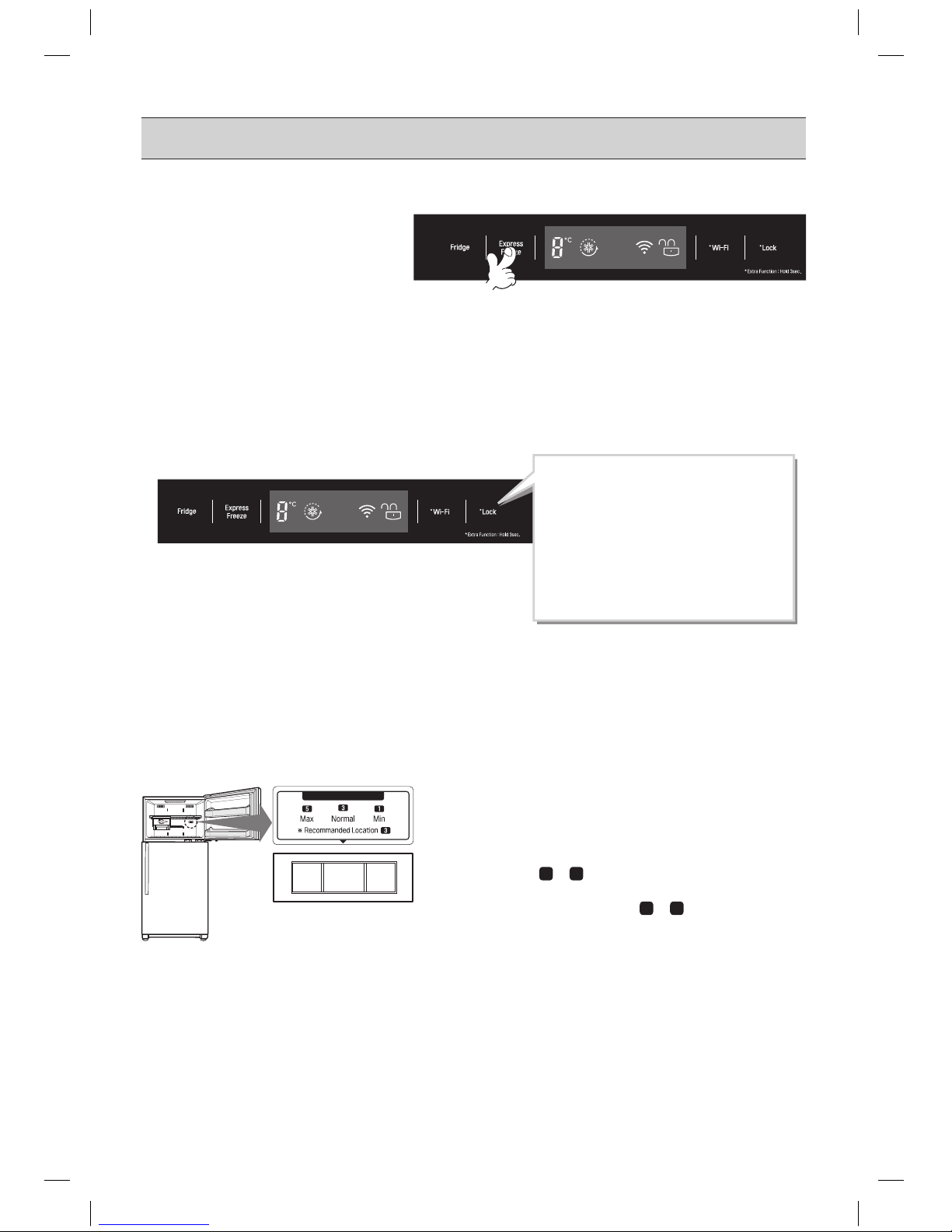

LOCK
Press and hold the Lock button for
3 seconds to lock the child lock.
When it is locked, the Lock LED will be
on and the other button will not
operate.
To unlock, press and hold the Lock
button for 3 seconds again.
LOCK
Wi-Fi
This sets the refrigerator to connect to your home’s Wi-Fi network.

OPERATIONS
19
ENGLISH

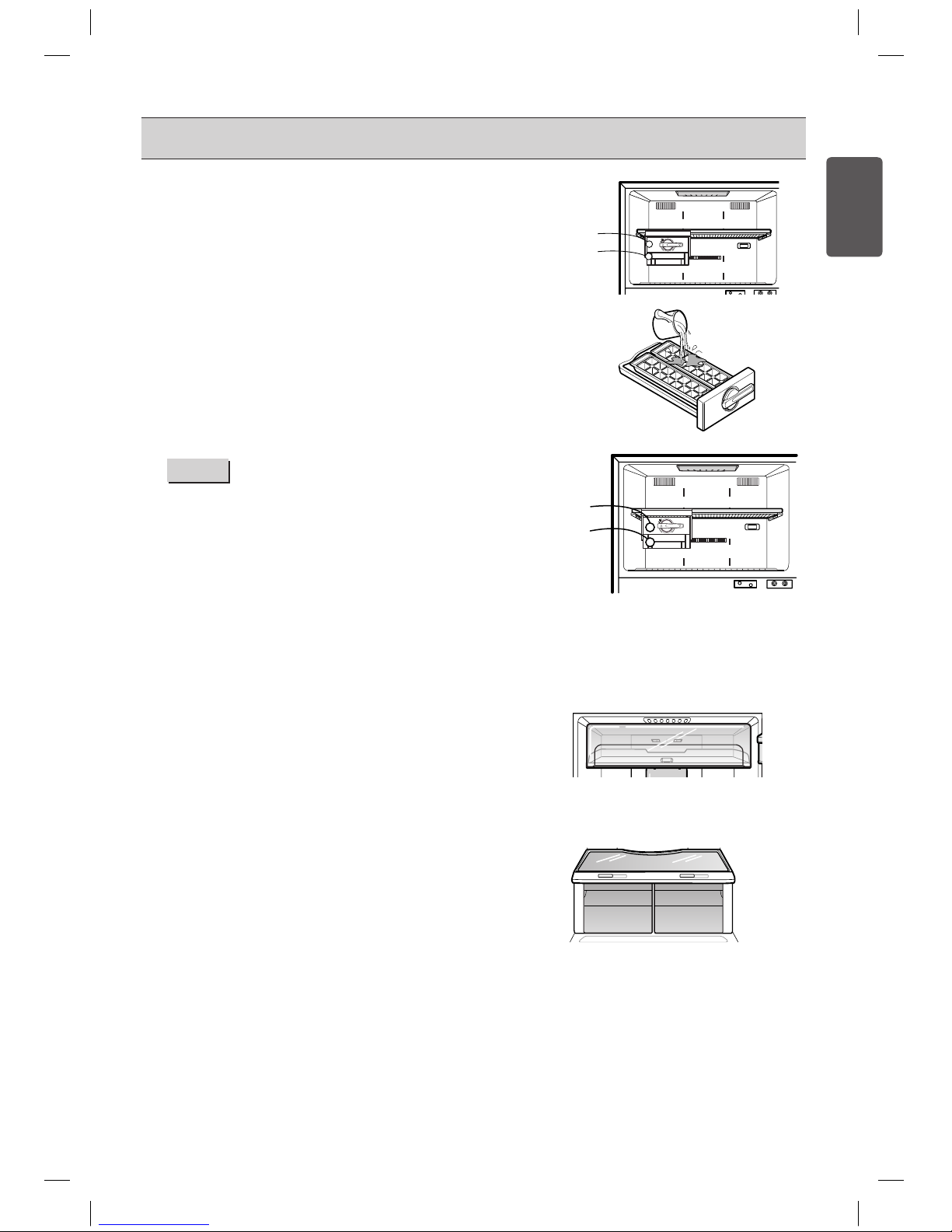

ICE MAKING
VEGETABLE DRAWER
How to use
• Vegetable drawer can be used through the control of knob.
• Check the position of knob prior to store the food.
• Do not locate the knob on the middle point.
FRESH ROOM DRAWER
How to use
• Fresh Drawer keeps the compartment colder than refrigerator.
• It is a convenient place to store sandwiches or meats to be
cooked.
• Do not store food with high moisture content.
Twisting Ice Serve Type
●To make ice cubes, fill the ice tray with potable
water and insert in its position.
●To remove ice cubes, hold the lever of the tray
and pull turn gently. Then, ice cubes drop in to
the ice cube box.

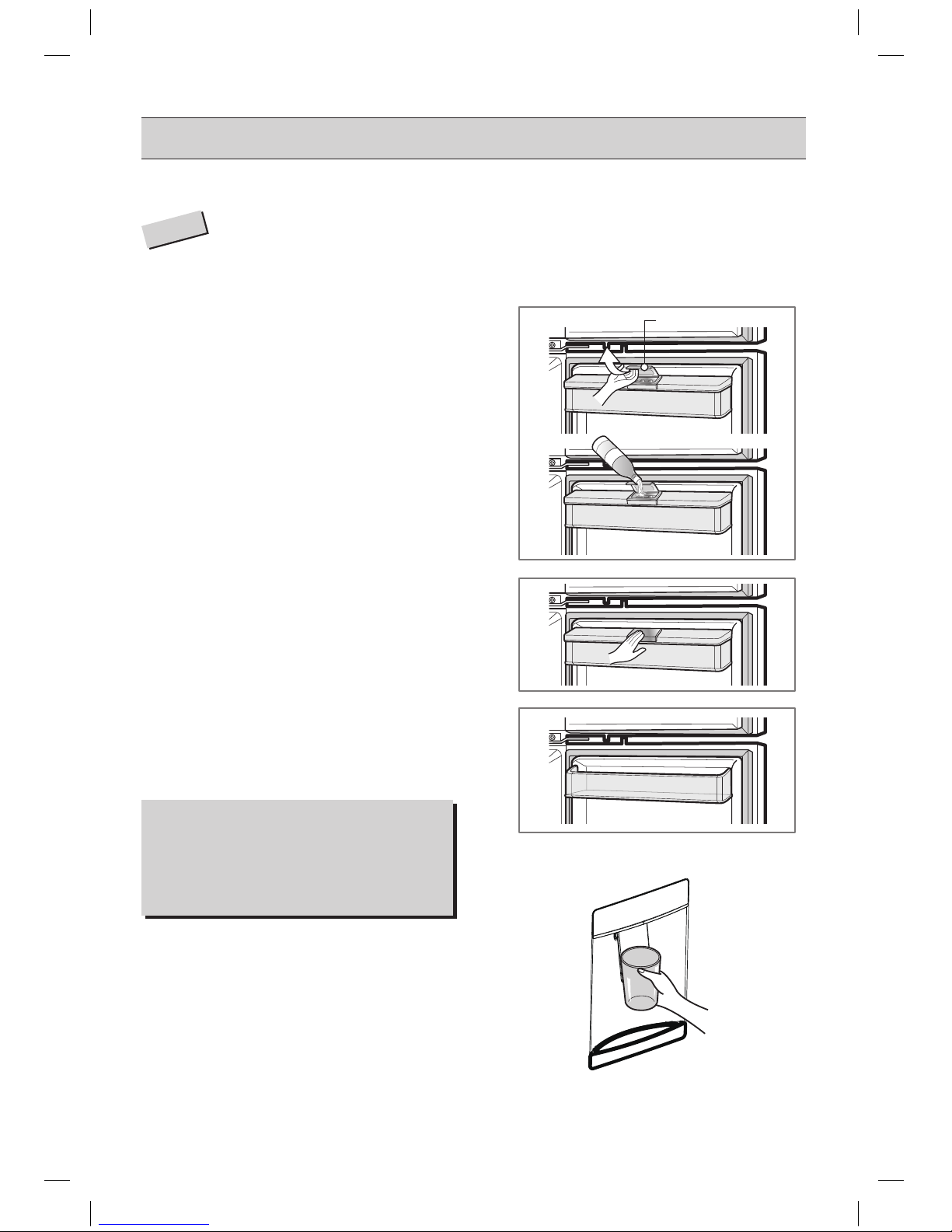

Ice Cube Box
Ice Trays
You can disassemble the Ice Maker
to secure space in the freezer.
• Twisting Ice Serve Type: Remove 1 and 2.
1. Ice Tray
2. Ice Cube Box.
NOTE
1
2
<Twisting Ice Serve Type>
• Do not use anything other than water.
• Fill the water up to the marked line.
wWARNING

OPERATIONS
20
WATER DISPENSER
●
Drinking
1. Press the dispenser pad with cup.
2. The water is released when the dispenser pad is
pressed. The pad returns to its original position when
the cup is removed and the water stops its flow.
wCAUTION
Do not use anything other than water including.
Hot water needs to be cooled before being put
in the water tank.
●Put water after the water tank being in position. Necessarily separate the water tank to
clean it or not to use it.
●When the water tank is not in position after filling it with water, water can leak out by the
valve pushed.
NOTE
Cover Cap
●
Putting water in the water tank
1. Open the cover cap and pour water into the
water tank.
2. Close the cover cap.
3. You can use the upper basket after removing
the water tank cover if you want to have more
space. Inner case capacity marked is available
volume when water tank cover is removed.
