OWNER'S MANUAL
FRIDGE & FREEZER
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
MFL67527919
Rev.00_062123
www.lg.com
Copyright © 2023 LG Electronics Inc. All Rights Reserved.

TABLE OF CONTENTS
This manual may contain images or
content that may be different from the
model you purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE...........................................................3
WARNING............................................................................................................3
CAUTION .............................................................................................................9
CARING FOR THE ENVIRONMENT..................................................................11
INSTALLATION
Before Installation ...........................................................................................12
Removing/Assembling Doors.........................................................................13
Reversing Doors...............................................................................................14
Levelling the Appliance ...................................................................................20
Turning on the Power......................................................................................21
Moving the Appliance for Relocation ............................................................21
OPERATION
Before Use ........................................................................................................22
Product Features..............................................................................................24
Control Panel ....................................................................................................26
Refrigerator Crispers .......................................................................................26
Refrigerator Shelves ........................................................................................27
Door Bins...........................................................................................................28
Dairy Bin............................................................................................................29
MAINTENANCE
Cleaning ............................................................................................................30
TROUBLESHOOTING
Before Calling for Service................................................................................31

3
SAFETY INSTRUCTIONS
ENGLISH
SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
The following safety guidelines are intended to prevent unforeseen
risks or damage from unsafe or incorrect operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as
described below.
Safety Messages
WARNING
WARNING
• To reduce the risk of explosion, fire, death, electric shock, injury or
scalding to persons when using this product, follow basic
precautions, including the following:
Technical Safety
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
This symbol is displayed to indicate matters and operations
that can cause risk. Read the part with this symbol carefully
and follow the instructions in order to avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.

4
SAFETY INSTRUCTIONS
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
• Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances.
• This appliance is intended to be used in household and similar
applications such as:
- staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other residential
type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
• This refrigerating appliance is not intended to be used as a built-in
appliance.
•
• This appliance contains a small amount of isobutane refrigerant
(R600a), but it is also combustible. When transporting and installing
the appliance, care should be taken to ensure that no parts of the
refrigerating circuit are damaged.
• The refrigerant and insulation blowing gas used in the appliance
require special disposal procedures. Consult with service agent or a
similarly qualified person before disposing of them.
• Do not damage the refrigerant circuit.
• If the power cord is damaged or the hole of the outlet socket is loose,
do not use the power cord and contact an authorized service centre.
This symbol alerts you to flammable materials that can
ignite and cause a fire if you do not take care.

5
SAFETY INSTRUCTIONS
ENGLISH
• Do not locate multiple portable outlet sockets or portable power
supplies at the rear of the appliance.
• Securely plug the power plug in the outlet socket after completely
removing any moisture and dust.
• Never unplug the appliance from the power supply by pulling on the
power cable. Always grip the power plug firmly and pull straight out
from the outlet socket.
• Keep ventilation openings, in the appliance enclosure or in the built-
in structure, clear of obstruction.
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
• Transport the appliance upright only and do not tilt it.
• When positioning the appliance, ensure the supply cord is not
trapped or damaged.
• Do not use mechanical devices or other means to accelerate the
defrosting process.
• Do not use a hair drier to dry the inside of the appliance or place a
candle inside to remove the odours.
• Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
• Make sure not to get a body part such as a hand or foot stuck while
moving the appliance.
• Disconnect the power cord before cleaning the appliance interior or
exterior.
• Do not spray water or inflammable substances (toothpaste, alcohol,
thinner, benzene, flammable liquid, abrasive, etc.) over the interior or
exterior of the appliance to clean it.
• Do not clean the appliance with brushes, cloths or sponges with
rough surfaces or which are made of metallic material.
• Only qualified service personnel from LG Electronics service centre
should disassemble or repair the appliance.

6
SAFETY INSTRUCTIONS
Risk of Fire and Flammable Materials
• If a leak is detected, avoid any naked flames or potential sources of
ignition and air the room in which the appliance is standing for
several minutes. In order to avoid the creation of a flammable gas air
mixture if a leak in the refrigerating circuit occurs, the size of the
room in which the appliance is used should correspond to the
amount of refrigerant used. The room must be 1 m² in size for every
8 g of R600a refrigerant inside the appliance.
• Refrigerant leaking out of the pipes could ignite or cause an
explosion.
• The amount of refrigerant in your particular appliance is shown on
the identification plate inside the appliance.
Installation
• This appliance should only be transported by two or more people
holding the appliance securely.
• Install the appliance on a firm and level floor.
• Do not install the appliance in a damp and dusty place. Do not install
or store the appliance in any outdoor area, or any area that is subject
to weathering conditions such as direct sunlight, wind, rain, or
temperatures below freezing.
• Do not place the appliance in direct sunlight or expose it to the heat
from heating appliances such as stoves or heaters.
• Be careful not to expose the rear of the appliance when installing.
• Install the appliance in a place where it is easy to unplug the power
plug of the appliance.
• Be careful not to let the appliance door fall during assembly or
disassembly.
• Be careful not to pinch, crush, or damage the power cable during
assembly or disassembly of the appliance door.
• Be careful not to point the power plug up or let the appliance lean
against the power plug.
• Do not modify or extend the power cable.

7
SAFETY INSTRUCTIONS
ENGLISH
• Ensure that the outlet socket is properly grounded, and that the earth
pin on the power cord is not damaged or removed from the power
plug. For more details on grounding, inquire at an LG Electronics
customer information centre.
• This appliance is equipped with a power cord having an equipment-
grounding conductor and a grounding power plug. The power plug
must be plugged into an appropriate outlet socket that is installed
and grounded in accordance with all local codes and ordinances.
• Never start up an appliance showing any signs of damage. If in doubt,
consult your dealer.
• Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can cause
suffocation.
• Do not plug the appliance into a multi socket adapter which does not
have a power cable (mounted).
• The appliance should be connected to a dedicated power line which
is separately fused.
• Do not use a multi-socket outlet which is not properly grounded
(portable). It must comply with the technical specifications of the
appliance and may only be used for the appliance.
Operation
• Do not use the appliance for any purpose (storage of medical or
experimental materials or shipping) other than any domestic
household food storage use.
• If water penetrates electrical parts of the appliance, disconnect
power plug and contact an LG Electronics customer information
centre.
• Unplug the power plug during a severe thunderstorm or lightening
or when not in use for a long period of time.
• Do not touch the power plug or the appliance controls with wet
hands.
• Do not bend the power cable excessively or place a heavy object on it.

8
SAFETY INSTRUCTIONS
• Immediately unplug the power plug and contact an LG Electronics
customer information centre if you detect a strange sound, odour, or
smoke coming from the appliance.
• Do not place hands or metallic objects inside the area emitting the
cold air, cover or heat releasing grille on the back.
• Do not apply excessive force or impact to the back cover of the
appliance.
• Be careful of nearby children when you open or close the appliance
door. The door may bump the child and cause injury.
• Avoid the danger of children getting trapped inside the appliance. A
child trapped inside the appliance can cause suffocation.
• Do not put animals, such as pets into the appliance.
• Do not place heavy or fragile objects, containers filled with liquid,
combustible substances, flammable objects (such as candles, lamps,
etc.), or heating devices (such as stoves, heaters, etc.) on the
appliance.
• Do not place any electronic appliance (such as heater and mobile
phone) inside the appliance.
• If there is a gas leakage (isobutane, propane, natural gas, etc.), do not
touch the appliance or power plug and ventilate the area
immediately. This appliance uses a refrigerant gas (isobutane,
R600a). Although it uses a small amount of the gas, it is still
combustible gas. Gas leakage during appliance transport, installation
or operation can cause fire, explosion or injury if sparks are caused.
• Do not use or store flammable or combustible substances (ether,
benzene, alcohol, chemical, LPG, combustible spray, insecticide, air
freshener, cosmetics, etc.) near the appliance.
• This appliance incorporates an earth connection for functional
purposes.
• Connect to potable water supply only.
- If connected to a water supply, connect to a potable water supply
only.
• Fill with potable water only.

9
SAFETY INSTRUCTIONS
ENGLISH
- If using an icemaker or dispenser water tank, make sure to fill it with
potable water only.
Disposal
• When discarding the appliance, remove the door gasket while leaving
the shelves and baskets in place and keep children away from the
appliance.
CAUTION
CAUTION
• To reduce the risk of minor injury to persons, malfunction, or damage
to the product or property when using this product, follow basic
precautions, including the following:
Installation
• After unpacking, check the appliance for any damage that may have
occurred during transit.
• Wait for at least 3 to 4 hours in order to ensure the refrigerant circuit
is fully efficient.
Operation
• Do not touch frozen food or the metal parts in the freezer
compartment with wet or damp hands. It may cause frostbite.
• Do not place glass containers, bottles or cans (especially those
containing carbonated drinks) in the freezer compartment, shelves or
ice bin that will be exposed to temperatures below freezing. Contents
may expand when frozen, break the container and cause injury.
• The tempered glass on the front side of the appliance door or the
shelves can be damaged by an impact. If it is broken, do not touch it
with hands.
• Do not hang from the appliance doors, storage room, shelf or climb
up into it.

10
SAFETY INSTRUCTIONS
• Do not store an excessive amount of water bottles or containers for
side dishes on the door baskets.
• Do not open or close the appliance door with excessive force.
• If the hinge of the appliance door is damaged or operates
improperly, stop using the appliance and contact an authorized
service centre.
• Prevent animals from nibbling on the power cable or water hose.
• Never eat frozen foods immediately after they have been taken out in
the freezer compartment. There is a risk of freezing or the formation
of frost blisters. FIRST AID: Immediately hold it under cold running
water. Do not pull it away.
• Make sure not to get a hand or foot stuck upon opening or closing the
appliance door or door in door.
Maintenance
• This appliance is equipped with maintenance-free LED interior light.
Do not remove cover or LED lamp in any attempt to repair or change
it. Contact an LG Electronics customer information centre.
• Do not clean glass shelves or covers with warm water when they are
cold. They may shatter if exposed to sudden temperature changes.
• Do not insert the shelves upside down. The shelves may fall.
• If ice forms in the freezer compartment, please contact LG Electronics
customer service. Do not use sharp-edged objects to remove any
frost or ice build-up. Do not use sprays, electric heating devices such
as fan heaters, hair dryers, steam cleaners or other heat sources for
defrosting. Plastic parts could deform.
• Dispose of the ice inside the ice bin in the freezer compartment
during an extended power outage.

11
SAFETY INSTRUCTIONS
ENGLISH
CARING FOR THE ENVIRONMENT
Disposal of Your Old Appliance
• This crossed-out wheeled bin symbol indicates that waste
electrical and electronic products (WEEE) should be
disposed of separately from the municipal waste stream.
• Old electrical products can contain hazardous
substances so correct disposal of your old appliance will
help prevent potential negative consequences for the
environment and human health. Your old appliance may
contain reusable parts that could be used to repair other
products, and other valuable materials that can be
recycled to conserve limited resources.
• You can take your appliance either to the shop where you
purchased the product, or contact your local government
waste office for details of your nearest authorised WEEE
collection point. For the most up to date information for
your country please see www.lg.com/global/recycling.

12
INSTALLATION
INSTALLATION
Before Installation
Dimensions and Clearances
• Check the dimensions of the appliance and the installation path to ensure there is sufficient room to
move the refrigerator through doors or narrow openings.
• If an opening is too narrow to fit the refrigerator through, remove the refrigerator doors. See Removing/
Assembling Doors and Crispers in this manual.
• The installation location chosen for the refrigerator should allow space behind the unit for connections
and airflow and space in front to open the doors and drawers.
• Too small of a distance from adjacent items may result in lowered freezing capability and increased
electricity consumption charges. Allow at least 2 inches (50 mm) between the back of the refrigerator
and the wall.
• Remember to allow enough room in front of the refrigerator to fully open the doors.

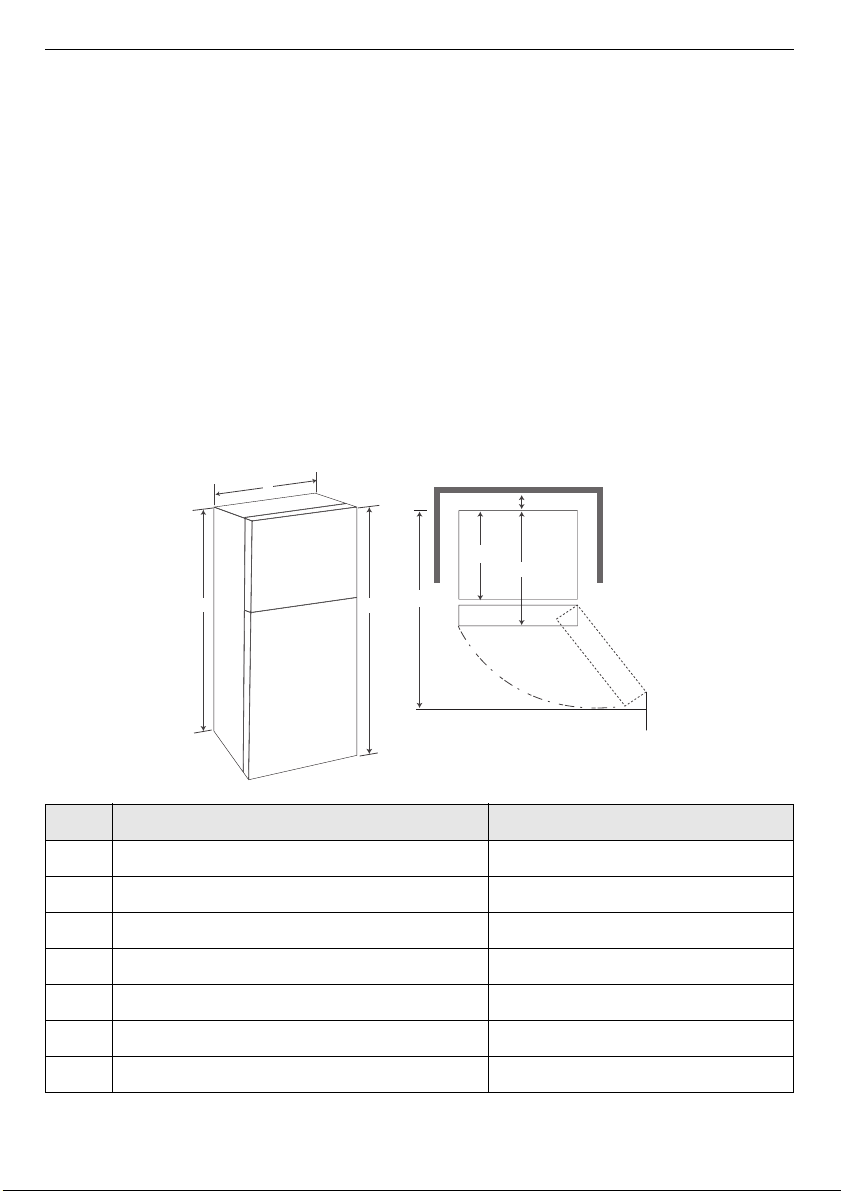

-Dimensions/Clearances 20 cu. ft. model
A Depth without Handle 33 3/4" (856 mm)
B Width 30" (760 mm)
C Height to Top of Case 65 1/2" (1 660 mm)
D Height to Top of Hinge 66" (1 676 mm)
E Back Clearance 2" (50 mm)
F Depth without Door 29 1/2" (748 mm)
G Depth (Total with Door Open 90°) 60 1/4" (1 530 mm)
A
F
E
B
CDG

13
INSTALLATION
ENGLISH
Ambient Temperature
• The appliance is designed to operate within a
limited range of ambient temperatures,
depending on the climate zone.
• The internal temperatures could be affected by
the location of the appliance, the ambient
temperature, the frequency of door opening and
so on.
• The climate class can be found on the rating
label.
* Australia, India, Kenya
** Argentina
NOTE
• The appliances rated from SN to T are intended
to be used at an ambient temperature between
10 ºC and 43 ºC (50 °F and 109 °F).
Removing/Assembling
Doors
If the entrance door is too narrow for the
refrigerator to pass through, remove the
refrigerator doors and move the refrigerator
sideways through the doorway.
WARNING
• Use two or more people to remove and install
the refrigerator doors.
• Disconnect the electrical supply to the
refrigerator before installing.
• Do not put hands, feet or other objects into the
air vents or bottom of the refrigerator.
• Be careful when handling the hinge and hinge
lever.
• Remove food and bins before detaching the
doors.
• Do not hold the handle when removing or
replacing the doors as the handle may come off.
• Tools Needed
- Flat-head screwdriver
- Phillips screwdriver
- Adjustable wrench
- 1/4 in. Hex socket wrench
- 3/8 in. Hex socket wrench
- 10 mm Hex socket wrench
Removing the Refrigerator
Door
1 Loosen and remove the two bolts a and the
screw
b from the middle hinge bracket c and
remove it from the refrigerator housing. Set
parts aside.
Climate Class Ambient Temperature
Range ºC (°F)
SN (Extended
Temperate)
+10 - +32 (+50 - +90)
N (Temperate) +16 - +32 (+61 - +90)
ST (Subtropical) +16 - +38 / +18 - +38**
(+61 - +100 / +64 - +100**)
T (Tropical) +10 - +43* / +16 - +43 /
+18 - +43** (+50 - +109* /
+61 - +109 / +64 - +109**)

14
INSTALLATION

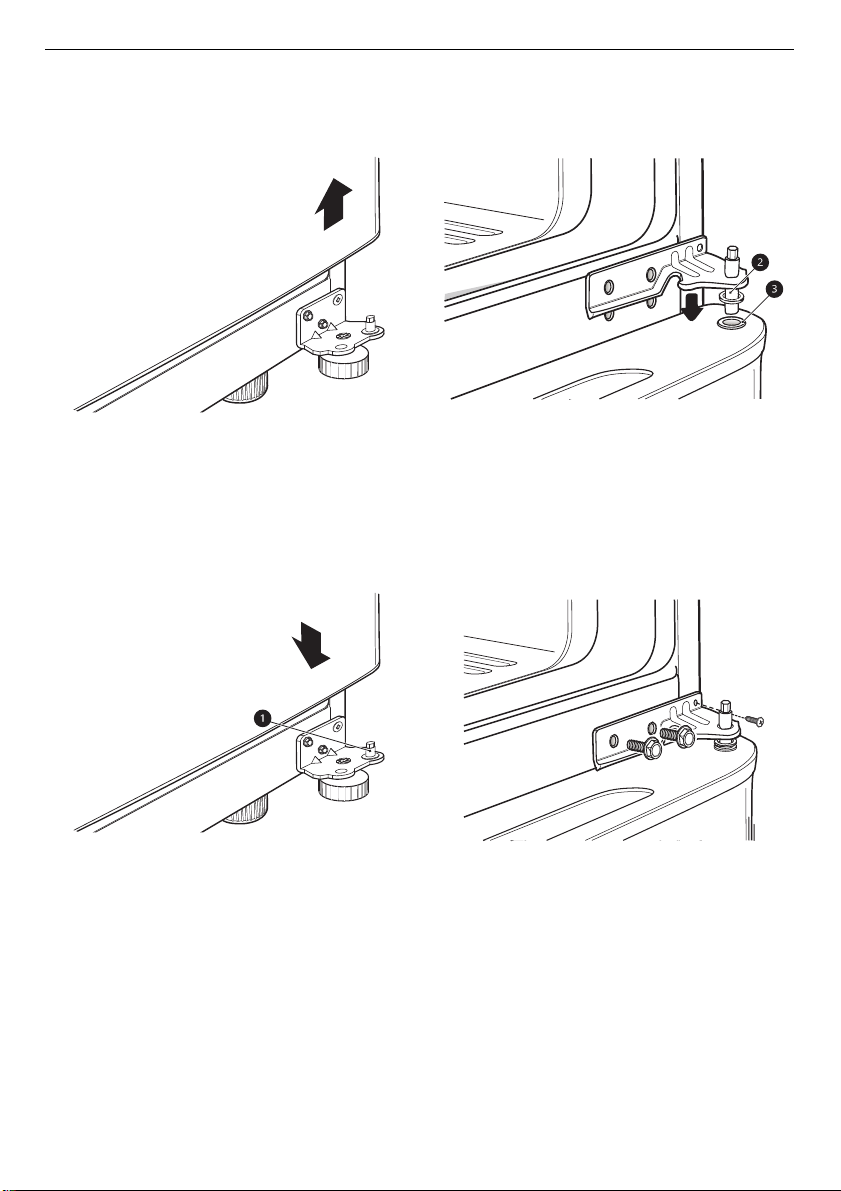

2 Lift up the refrigerator door slightly and
remove it. Set the door aside on a non-
scratching surface.
Assembling the Refrigerator
Door
1 Set the refrigerator door on the bottom hinge
pin
a .
2 Place the middle hinge pin b inside the hinge
pin sleeve
c on the top of the refrigerator
door.
3 Hold the door in place and line up the hinge
with the holes in the refrigerator housing.
4 Use the two bolts and the screw to reattach the
middle hinge bracket to the refrigerator
housing.
Reversing Doors
Reversing Doors
This feature is only available on some models.
Your appliance is designed with reversible doors
which can be assembled to open from either the
left or right side to suit your kitchen design.
Door reversal must be done by an authorized
installer or service person. If it is not, any damage
caused by improperly installed doors will not be
covered by the warranty.

15
INSTALLATION
ENGLISH
WARNING
• Use two or more people to remove and install
the refrigerator doors.
• Disconnect the electrical supply to the
refrigerator before installing.
CAUTION
• Be careful when handling the hinge and hinge
lever.
• Remove food and bins before detaching the
doors.
• Do not hold the handle when removing or
replacing the doors as the handle may come off.
•
Tools Needed
- Flat-head screwdriver
- Phillips screwdriver
- 1/4 in. Hex socket wrench
- 3/8 in. Hex socket wrench
Removing the Freezer Door
1 Gently pry off the top hinge cover a with a flat-
head screwdriver and remove it.
2 Using 10 mm or 3/8 inch socket wrench,
remove the three bolts and lift off the top hinge
b . Set parts aside.
3 Lift freezer door slightly and remove it.
4 Turn the freezer door upside down on a non-
scratching surface. Loosen the screw to
remove the hinge lever and hinge pin sleeve.
5 Move the middle hinge bracket to the other
side of the door, keeping the same orientation.
6 Move the hinge pin sleeve c into the hole on
the left side of the bracket
d .

16
INSTALLATION
7 Reverse the hinge lever e by flipping it over.
Place it on top of the bracket and tighten both
down with the screw.
8 Set the freezer door to the side.

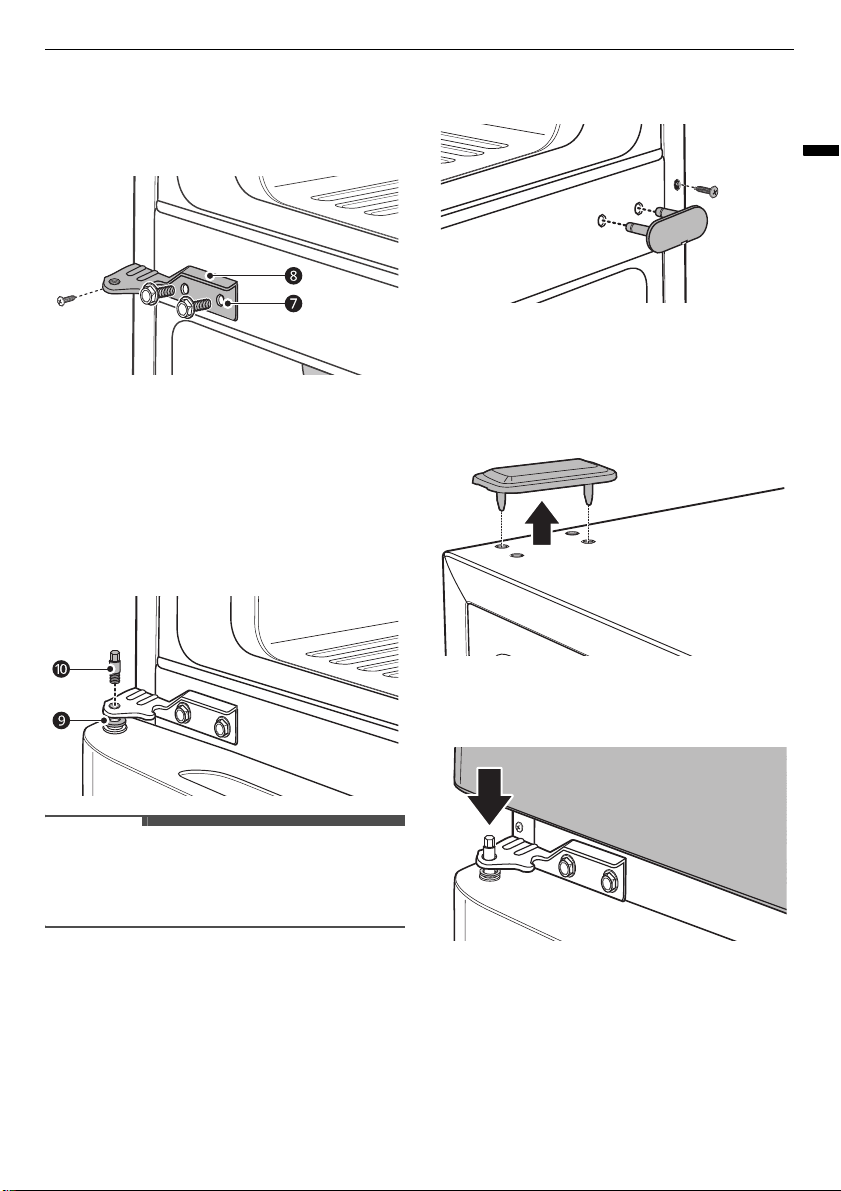

Removing the Refrigerator Door
1 Using a 1/4 in. socket wrench, loosen and
remove the middle hinge pin
a from the
middle hinge bracket
b . Remove the washer
c underneath the middle hinge and set the
parts aside.
CAUTION
• When lifting the hinge pin, be careful that the
door does not fall forward.
2 Slightly lift the refrigerator door and remove it.
3 Loosen the 2 bolts and the Phillips head screw
and remove the middle hinge bracket from the
refrigerator housing. Set the parts aside.
4 Using a 1/4 in. socket wrench, loosen and
remove the bottom hinge pin
d from the
bottom hinge bracket
e . Remove the washer
from the bottom hinge pin and set it aside.

17
INSTALLATION
ENGLISH

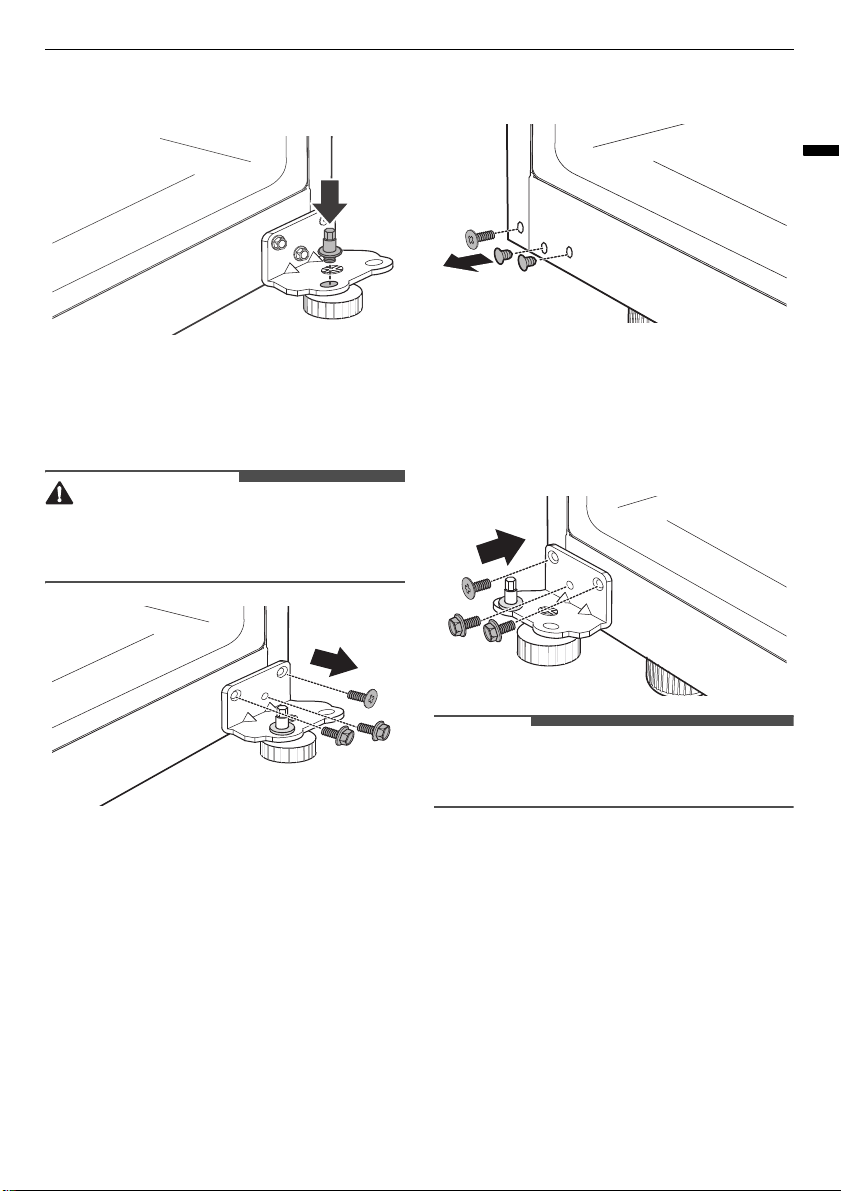

5 Reattach the bottom hinge pin to the opposite
side of the bottom hinge bracket.
6 Using a 3/8 in. socket wrench with a 2-inch
extension, loosen the 2 bolts on the bottom
hinge bracket. Use a Phillips screwdriver to
loosen the screw.
CAUTION
• Be careful that the refrigerator does not fall
forward if the model purchased has the leveler
attached to the bottom hinge bracket.
7 Remove the bottom hinge bracket from the
right side of the housing.
8 Remove the decorative screws on the bottom
left of the refrigerator housing and set them
aside. You will need these holes for the bottom
hinge bracket.
Assembling the Reversed
Refrigerator Door
1 Move the bottom hinge bracket to the left side
of the housing, keeping the same orientation,
and reattach with the two bolts and one screw.
NOTE
• The flat screw must be placed on the exterior
side of the hinge.
2 To move the leveler a to the opposite side, lift
the front of the refrigerator. Remove the
leveler by turning it clockwise and attach it to

18
INSTALLATION
the opposite side by turning it
counterclockwise.
NOTE
• The leveler is only present on some models.
3 Move the decorative screws to the holes on the
bottom right side of the housing.
4 Turn the refrigerator door upside down on a
non-scratching surface.
5 Loosen the three screws to remove the bracket
b and the hinge pin sleeve c .
6 Move the bracket to the opposite side of the
door and insert the hinge pin sleeve. Reverse
the hinge lever
d by flipping it over. Place it on
top of the bracket, and tighten both down with
the screw. Then insert the remaining 2 screws
to tighten the bracket to the refrigerator door.
NOTE
• The hinge lever is only present on some models.
7 With a flat-head screwdriver, carefully pry off
and remove the decorative cover
e over the
screw holes on the left side of the refrigerator
housing.
8 Remove the decorative screw f located on the
housing between the freezer and refrigerator
doors. (You will need this hole for the middle
hinge bracket.)

19
INSTALLATION
ENGLISH
9 Flip the middle hinge bracket g . (The flange h
will now be on top.) Position it on the left side
of the refrigerator and reattach it with two
bolts and a Phillips-head screw.
10 Place the refrigerator door down over the
bottom hinge pin on the bottom hinge bracket.
11 Place the washer i between the refrigerator
door and the middle hinge bracket and
reattach the middle hinge pin
j to the middle
hinge bracket with a 1/4 in. socket wrench.
NOTE
• The bracket has been flipped, but the middle
hinge pin stays in the same orientation with its
hexagonal end facing upward.
12 Insert the decorative screw into the outer hole
on the right side of the housing. Attach the
decorative cover on the right side. Cover is
force-fitted.
Assembling the Reversed Freezer
Door
1 Pry off the decorative cover on the top left side
of the refrigerator to uncover the screw holes.
2 Place the freezer door down over the middle
hinge pin on the middle hinge bracket.
3 Place the top hinge on top of the freezer door
and line up the top hinge with the holes on top

20
INSTALLATION
of the refrigerator. Use the three bolts to
attach the hinge.
4 Force-fit the top hinge cover over the top
hinge.
5 Insert the decorative cover on the top right of
the cabinet to cover the holes. Cover is force-
fitted.
NOTE
• After changing doors, make sure that the
corners of the door gaskets are not folded over.
To ensure a good seal, apply a small amount of
silicon grease on the corners
a of the gaskets.
Levelling the Appliance
Adjusting the Levelling Leg
If the appliance seems unsteady, or the doors do
not close easily, adjust the appliance’s tilt using the
instructions below.
1 Turn the levelling leg clockwise to raise that
side of the appliance or counterclockwise to
lower it.
2 Open the doors and check to make sure that
they close easily.
NOTE
• Leveling the doors may not be possible when the
floor is not leveled, or is of weak or poor
construction.
• The refrigerator is heavy and should be installed
on a rigid and solid surface.
