LG MFL62184416 User manual

Life'sGood
FRE CH DOOR
REFRIGERATOR
Please read this owner's manual thoroughly before
operating and keep it handy for reference at all times.
P/No : MFL62184416

2 TABLE OF CONTENTS
TABLE OF CONTENTS
3 PRODUCT FEATURES
4IMPORTANT SAFETY
INSTRUCTIONS
7 COMPONENTS
7 Refrigerator Exterior
8 Refrigerator interior
9
9
0
1
1
1
2
2
2
3
5
6
7
8
9
21
21
21
21
22
24
25
25
25
INSTALLATION
Installation Overview
Specifications
Unpacking Your Refrigerator
Choosing the Proper Location
- Flooring
- Ambient Temperature
- Measuring the Clearances
Removing/Assembling the Refrigerator
Door Handles
Removing/Assembling the Freezer
Drawer Handle
Removing/Assembling the Doors and
Drawers
- Removing the Left Refrigerator Door
- Removing the Right Refrigerator Door
- Assembling the Right Refrigerator Door
- Assembling the Left Refrigerator Door
- Removing the Freezer Drawers
- Assembling the Freezer Drawers
Connecting the Water Line
- Before You Begin
- Water Pressure
- What You Will Need
- Water Line Installation Instructions
Turning On the Power
Leveling and Door Alignment
- Leveling
- Door Alignment
26 HOW TO USE
26 Before Use
27 Control Panel
27 - Control Panet Features
29 In-Door ice Bin
29 - Detaching the In-Door ice Bin
29 - Assembling the In-Door ice Bin
30 Automatic icemaker
30 - Turning the Automatic Icemaker On or Off
31 - When You Should Turn the icemaker Off
31 - Normal Sounds You May Hear
31 - Preparing for Vacation
32 ice and Water Dispenser
32 - Dispenser
32 - Using the Dispenser
32 - Locking the Dispenser
32 - Cleaning the Dispenser Stand
33 Storing Food
33 - Food Preservation Location
34 - Food Storage Tips
34 - Storing Frozen Food
35 Humidity Controlled Crisper and
Glide'N'Serve
36 Detaching and Assembling the Storage Bins
37 Adjusting the Refrigerator Shelves
38 MAINTENANCE
38 Cleaning
39 Replacing the Fresh Air Filter
40 Replacing the Water Filter
44 SMART DIAGNOSIS
44 Using Smart Diagnosis
45 TROUBLESHOOTING
55 WARRANTY

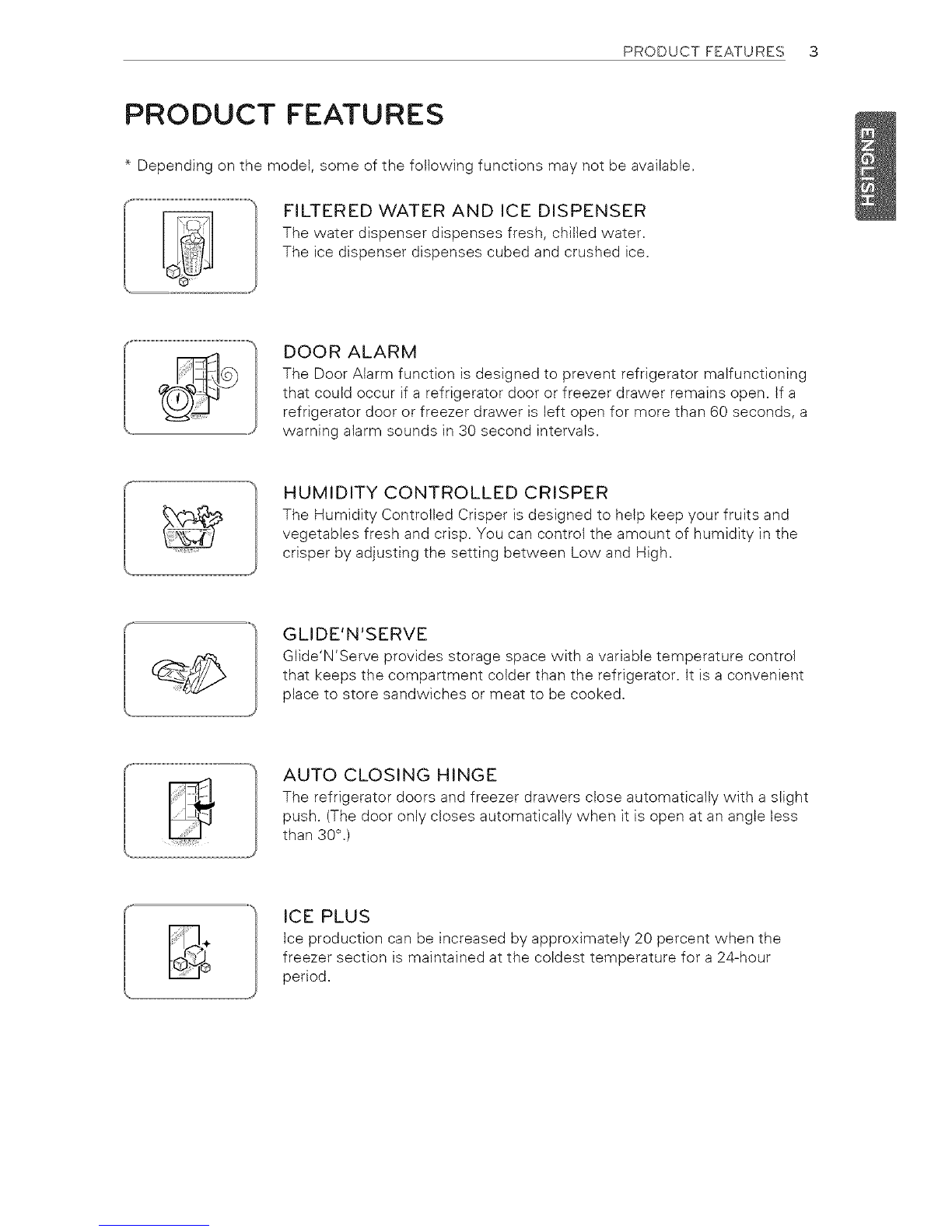

PRODUCT FEATURES 3
PRODUCT FEATURES
* Depending on the model, some of the following functions may not be available.
FILTERED WATER AND ICE DISPENSER
The water dispenser dispenses fresh, chilled water.
The ice dispenser dispenses cubed and crushed ice.
DOOR ALARM
The Door Alarm function is designed to prevent refrigerator malfunctioning
that could occur if a refrigerator door or freezer drawer remains open, If a
refrigerator door or freezer drawer is left open for more than 60 seconds, a
warning alarm sounds in 30 second intervals,
HUMIDITY CONTROLLED CRISPER
The Humidity Controlled Crisper is designed to help keep your fruits and
vegetables fresh and crisp, You can control the amount of humidity in the
crisper by adjusting the setting between Low and High,
GLIDE'N'SERVE
Glide'N'Serve provides storage space with a variable temperature control
that keeps the compartment colder than the refrigerator, It is a convenient
place to store sandwiches or meat to be cooked,
AUTO CLOSING HINGE
The refrigerator doors and freezer drawers close automatically with a slight
push, (The door only closes automatically when it is open at an angle less
than 30°,)
ICE PLUS
Ice production can be increased by approximately 20 percent when the
freezer section is maintained at the coldest temperature for a 24-hour
period,

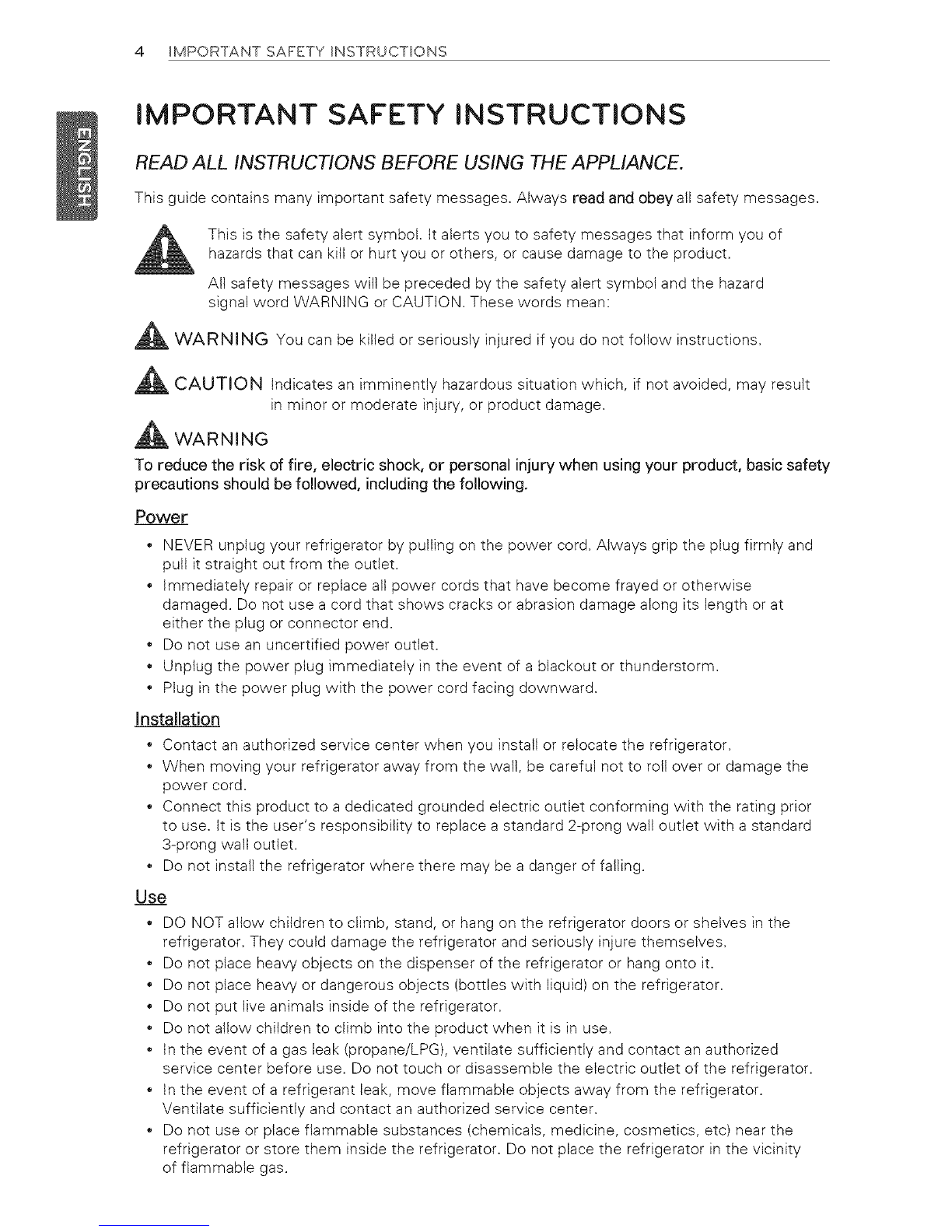

4 IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
This guide contains many important safety messages. Always read and obey all safety messages.
This is the safety alert symbol. It alerts you to safety messages that inform you of
hazards that can kill or hurt you or others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word WARNING or CAUTION. These words mean:
_ WARNING You can be killed or seriously injured if you do not follow instructions.
_ CAUTION indicates an imminently hazardous situation which, if not avoided, may result
in minor or moderate injury, or product damage.
_ WARNING
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following.
Power
• NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and
pull it straight out from the outlet.
• Immediately repair or replace all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at
either the plug or connector end.
• Do not use an uncertified power outlet.
• Unplug the power ptug immediately in the event of a blackout or thunderstorm.
• Plug in the power plug with the power cord facing downward.
Installation
• Contact an authorized service center when you install or relocate the refrigerator.
• When moving your refrigerator away from the wall, be careful not to roll over or damage the
power cord.
• Connect this product to a dedicated grounded electric outlet conforming with the rating prior
to use. It is the user's responsibility to replace a standard 2-prong wan outlet with a standard
3-prong wan outlet.
• Do not install the refrigerator where there may be a danger of falling.
Use
• DO NOT allow children to climb, stand, or hang on the refrigerator doors or shelves in the
refrigerator. They could damage the refrigerator and seriously injure themselves.
• Do not place heavy objects on the dispenser of the refrigerator or hang onto it.
• Do not place heavy or dangerous objects (bottles with liquid) on the refrigerator.
• Do not put live animals inside of the refrigerator.
• Do not allow children to climb into the product when it is in use.
• In the event of a gas leak (propane/LPG), ventilate sufficiently and contact an authorized
service center before use. Do not touch or disassemble the electric outlet of the refrigerator.
• In the event of a refrigerant leak, move flammable objects away from the refrigerator.
Ventilate sufficiently and contact an authorized service center.
• Do not use or place flammable substances (chemicals, medicine, cosmetics, etc) near the
refrigerator or store them inside the refrigerator. Do not place the refrigerator in the vicinity
of flammable gas.

IMPORTANT SAFETY INSTRUCTIONS 5

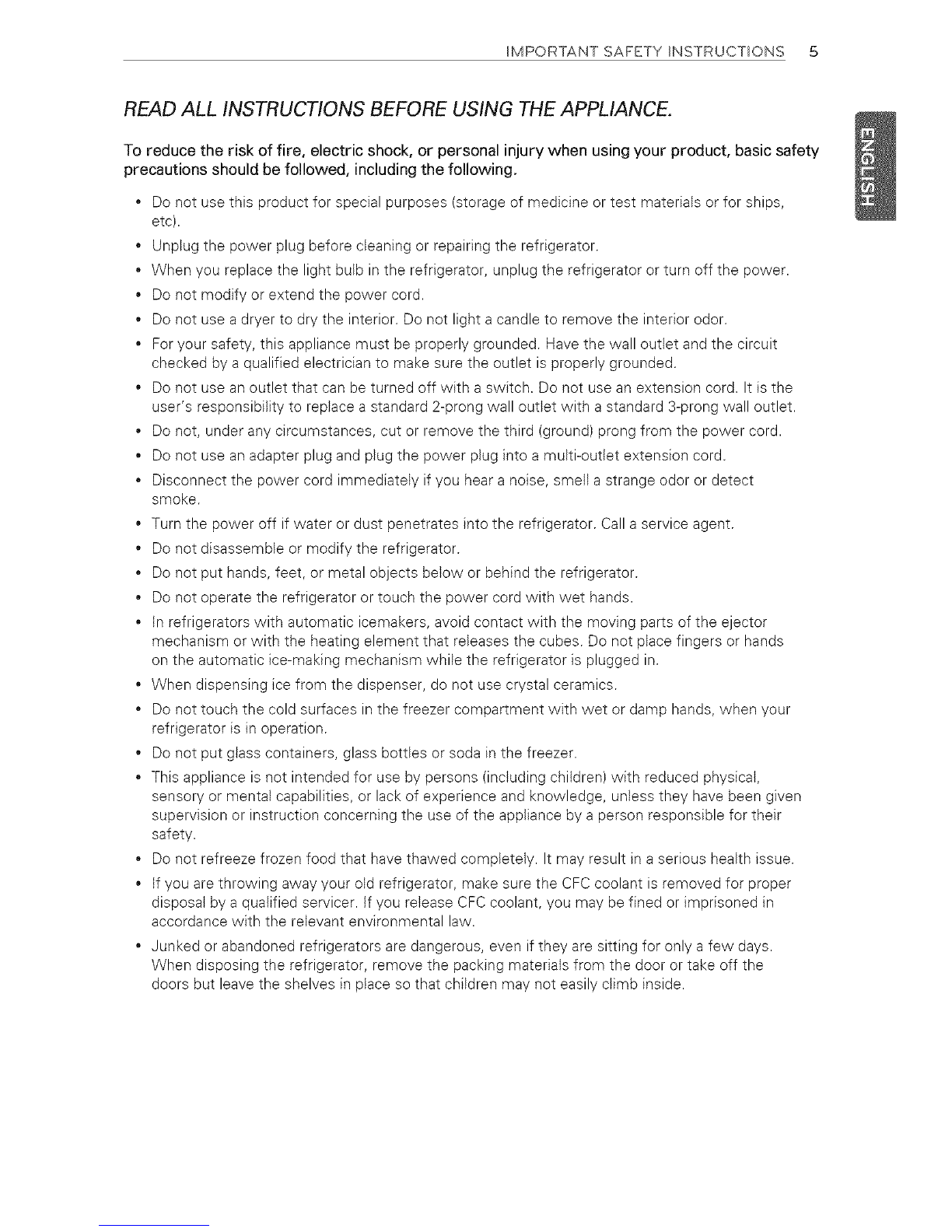

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following.
• Do not use this product for special purposes (storage of medicine or test materials or for ships,
etc)
• Unplug the power plug before cleaning or repairing the refrigerator.
• When you replace the light bulb in the refrigerator, unplug the refrigerator or turn off the power
• Do not modify or extend the power cord
• Do not use a dryer to dry the interior. Do not light a candle to remove the interior odor.
• For your safety, this appliance must be properly grounded. Have the wall outlet and the circuit
checked by a qualified electrician to make sure the outlet is properly grounded.
• Do not use an outlet that can be turned off with a switch. Do not use an extension cord. It is the
user's responsibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet
• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord
• Do not use an adapter plug and plug the power plug into a multi-outlet extension cord.
• Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect
smoke.
• Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.
• Do not disassemble or modify the refrigerator.
• Do not put hands, feet, or metal objects below or behind the refrigerator.
• Do not operate the refrigerator or touch the power cord with wet hands
• In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector
mechanism or with the heating element that releases the cubes. Do not place fingers or hands
on the automatic ice-making mechanism while the refrigerator is plugged in.
• When dispensing ice from the dispenser, do not use crystal ceramics.
• Do not touch the cold surfaces in the freezer compartment with wet or damp hands, when your
refrigerator is in operation.
• Do not put glass containers, glass bottles or soda in the freezer
• This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance by a person responsible for their
safety.
• Do not refreeze frozen food that have thawed completely It may result in a serious health issue.
• If you are throwing away your old refrigerator, make sure the CFC coolant is removed for proper
disposal by a qualified servicer If you release CFC coolant, you may be fined or imprisoned in
accordance with the relevant environmental law
• Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days
When disposing the refrigerator, remove the packing materials from the door or take off the
doors but leave the shelves in place so that children may not easily climb inside

6 IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety
precautions should be followed, including the following.
_b, CAUTION
Installation
The refrigerator must be properly installed in accordance with the Installer Instructions that
were taped to the front of the refrigerator.
Be careful when you unpack and install the refrigerator, immediately dispose of packing
materials (plastic) out of reach of children.
Use
Close the door carefully when children are around.
Keep fingers out of pinch point areas; clearances between the doors and cabinets are
necessarily small. Be careful closing doors when children are in the area.
If you store food properly, beware that it may fan and cause injury.
Maintenance
Do not use strong detergents like wax or thinners for cleaning. Clean with a soft fabric.
Wipe foreign objects (dust, water, etc) off the prongs of the power plug and contact areas
regularly.
SAVE THESE INSTUCTIONS

COMPONENTS 7
COMPONENTS
Use this page to become more familiar with the parts and features of your refrigerator.
Page references are included for your convenience.
*The appearance and specifications of the actual product may differ depending on the model.
Refrigerafor Exferior
Filtered Water and
Ice Dispenser
Dispenses purified water and ice.
LED Display
Displays the refrigerator and
freezer temperature, the water
filter condition and the dispenser
status.
Control Panel
Handle
I Opens and doses
the door.
_---i-- Refrigerator
Preserves food.
Sets the refrigerator and freezer
temperatures, the water filter
condition and the dispenser mode.
Ez Handle
EasiJy opens the freezer
door.
LED Light
LED lights up under
the refrigerator door.
Freezer
Preserves frozen food.

8 COMPONENTS

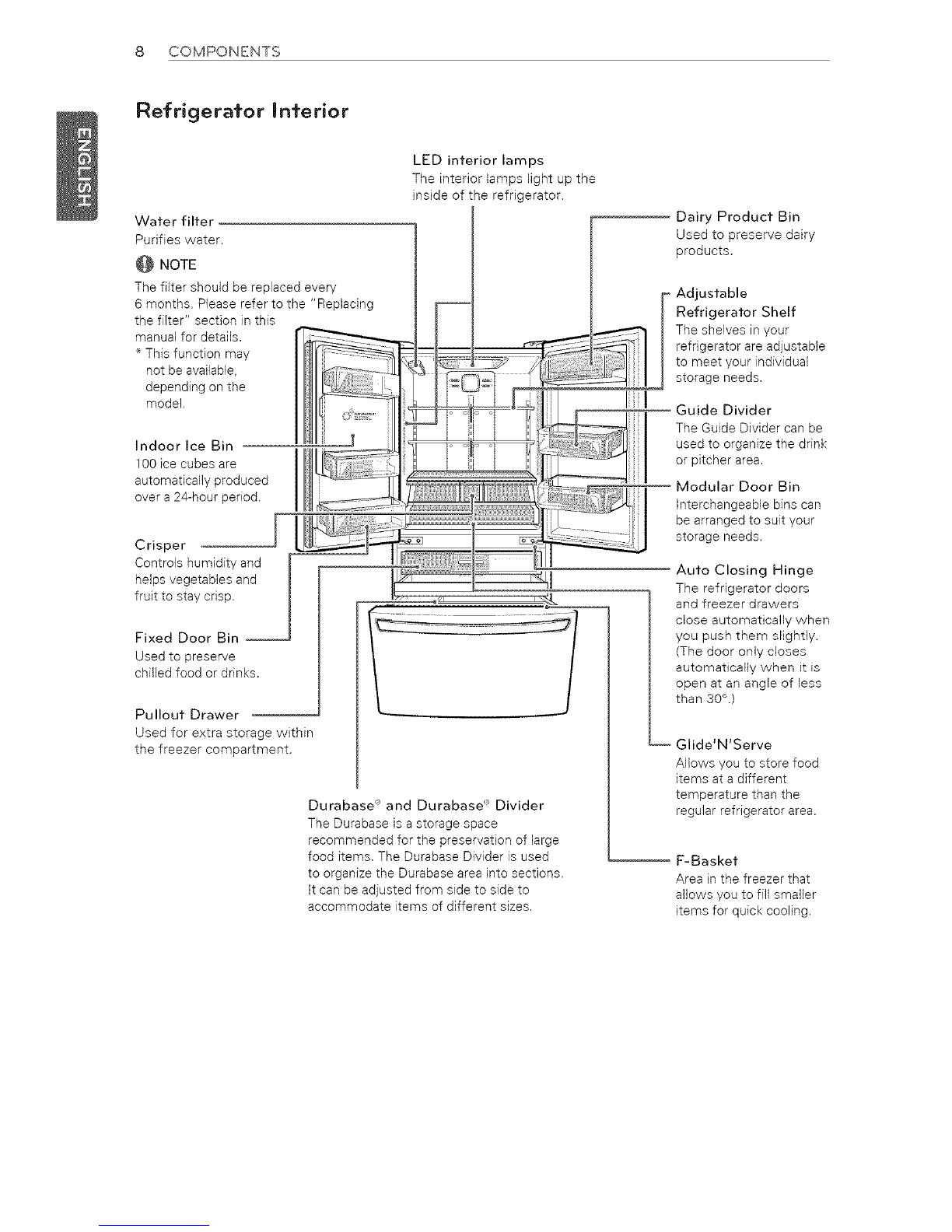

Refrigerafor Inferior
LED interior lamps
The interior lamps light up the
inside of the refrigerator.
Water filter --
Purifies water.
NOTE
The filter should be replaced every
6 months. Please refer to the "Replacing
the filter" section in this
manual for details ...................... iiii ii::::;_::
This function may _
not be available, _ _ I
depending on the , ___ ,
model.
I/I
II j_,I
m
H l'
Fixed Door Bin __l _ "
Used to preserve
chilled food or drinks.
Pullout Drawer
Used for extra storage within
the freezer compartment.
indoor ice Bin
100 ice cubes are
automatically produced
over a 24-hour period.
Crisper __1
Controls humidity and
helps vegetables and
fruit to stay crisp.
Durabase <_and Durabase <_Divider
The Durabase is a storage space
recommended for the preservation of large
food items. The Durabase Divider is used
to organize the Durabase area into sections.
It can be adjusted from side to side to
accommodate items of different sizes.
Dairy Product Bin
Used to preserve dairy
products.
Adjustable
Refrigerator Shelf
The shelves in your
refrigerator are adjustable
to meet your individual
storage needs.
Guide Divider
The Guide Divider can be
used to organize the drink
or pitcher area.
Modular Door Bin
Interchangeable bins can
be arranged to suit your
storage needs.
Auto Closing Hinge
The refrigerator doors
and freezer drawers
close automatically when
you push them slightly.
(The door only closes
automatically when it is
open at an angle of less
than 30°.)
Glide'N'Serve
Allows you to store food
items at a different
temperature than the
regular refrigerator area.
F-Basket
Area in the freezer that
allows you to fill smaller
items for quick cooling.

INSTALLATION9
INSTALLATION
Insfallafion Overview
Please read the following installation instructions first after purchasing this product or transporting
it to another location.
1 Unpacking your 2 Choosing the proper 3 Disassembling/Assembling
refrigerator location
4 Connecting the water 5 Leveling and Door
supply and water line Alignment

10 INSTALLATION

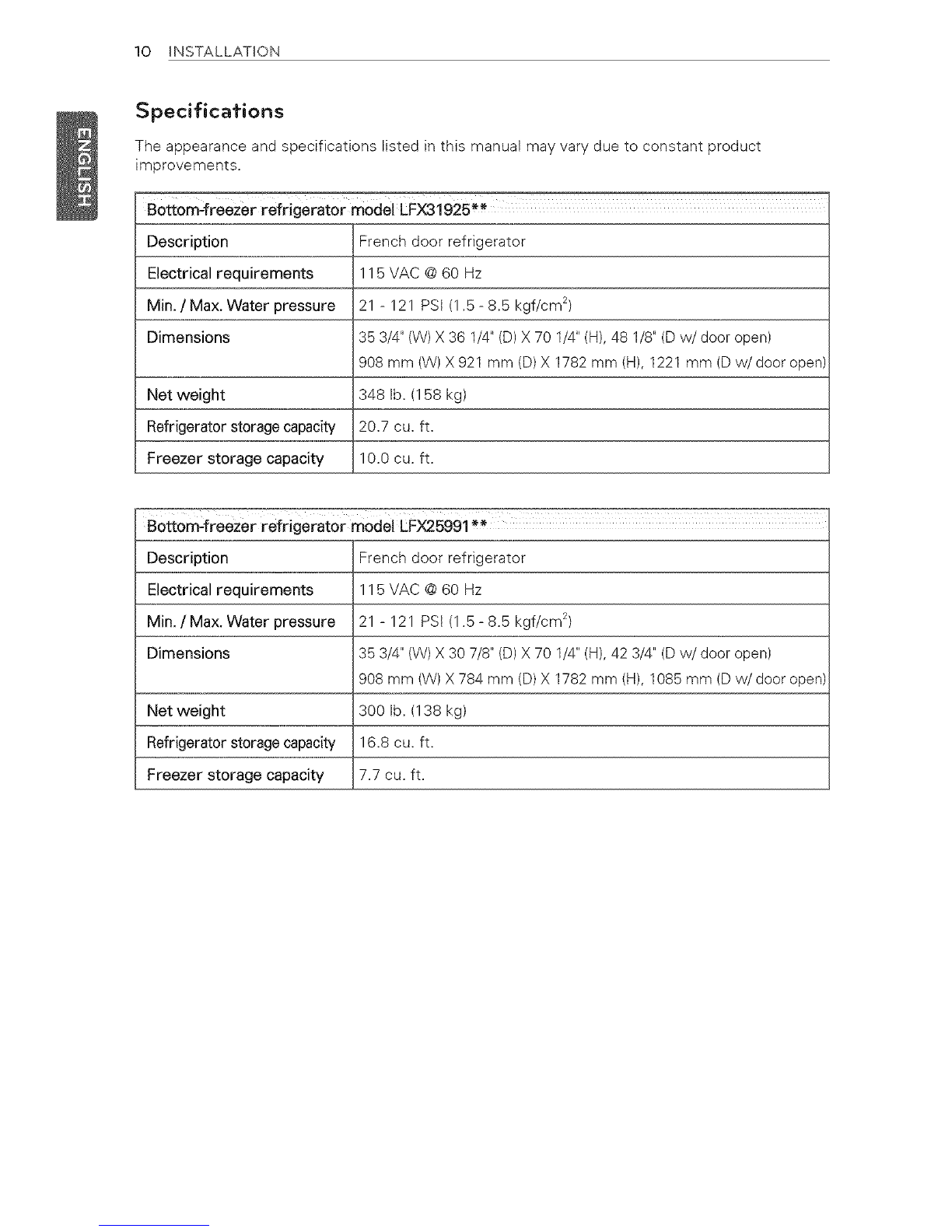

Specificafions
The appearance and specifications listed in this manual may vary due to constant product
improvements.
Bottom4reezer refrigerator model LFX31925**
Description French door refrigerator
Electrical requirements 15 VAC @ 60 Hz
Min. /Max. Water pressure 21 - 121 PSi (1.5 - 8.5 kgf/cm 2)
Dimensions 35 3/4" (W) X 36 1/4" (D) X 70 1/4" (H),48 1/8" (D w/door open)
908 mm (W) X 921 mm (D) X 1782 mm (H), 1221 mm (D w/door open)
Net weight 348 lb. (158 kg)
Refrigerator storage capacity 20.7 cu. ft.
Freezer storage capacity 0.0 cu. ft.
Bottom4reezer refrigerator model LFX25991**
Description French door refrigerator
Electrical requirements 15 VAC @ 60 Hz
Min. /Max. Water pressure 21 - 121 PSt (1.5-8.5 kgf/cm 2)
Dimensions 35 3/4" (W) X 30 7/8" (D) X 70 1/4" (H),42 3/4" (D w/door open)
908 mm (W) X 784 mm (D) X 1782 mm (H), 1085 mm (D w/door open)
Net weight 300 lb. (138 kg)
Refrigerator storage capacity 6.8 cu. ft.
Freezer storage capacity 7.7 cu. ft.

INSTALLATION 11
Unpacking Your Refrigerator
_- Z_ WARNING
Use two or more people to move and
install the refrigerator. Failure to do so
can result in back or other injury.
Your refrigerator is heavy. When moving
the refrigerator for cleaning or service,
be sure to protect the floor. Always pull
the refrigerator straight out when moving
it. Do not wiggle or walk the refrigerator
when trying to move it, as floor damage
could occur.
Keep flammable materials and vapors,
such as gasoline, away from the
refrigerator. Failure to do so can result in
fire, explosion, or death.
Remove tape and any temporary labels from your
refrigerator before using. Do not remove any
warning-type labels, the model and serial number
label, or the Tech Sheet that is located under the
front of the refrigerator.
To remove any remaining tape or glue, rub the
area briskly with your thumb. Tape or glue residue
can also be easily removed by rubbing a small
amount of liquid dish soap over the adhesive with
your fingers. Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol,
flammable fluids, or abrasive cleaners to remove
tape or glue. These products can damage the
surface of your refrigerator.
Refrigerator shelves are installed in the shipping
position. Please reinstall shelves according to
your individual storage needs.

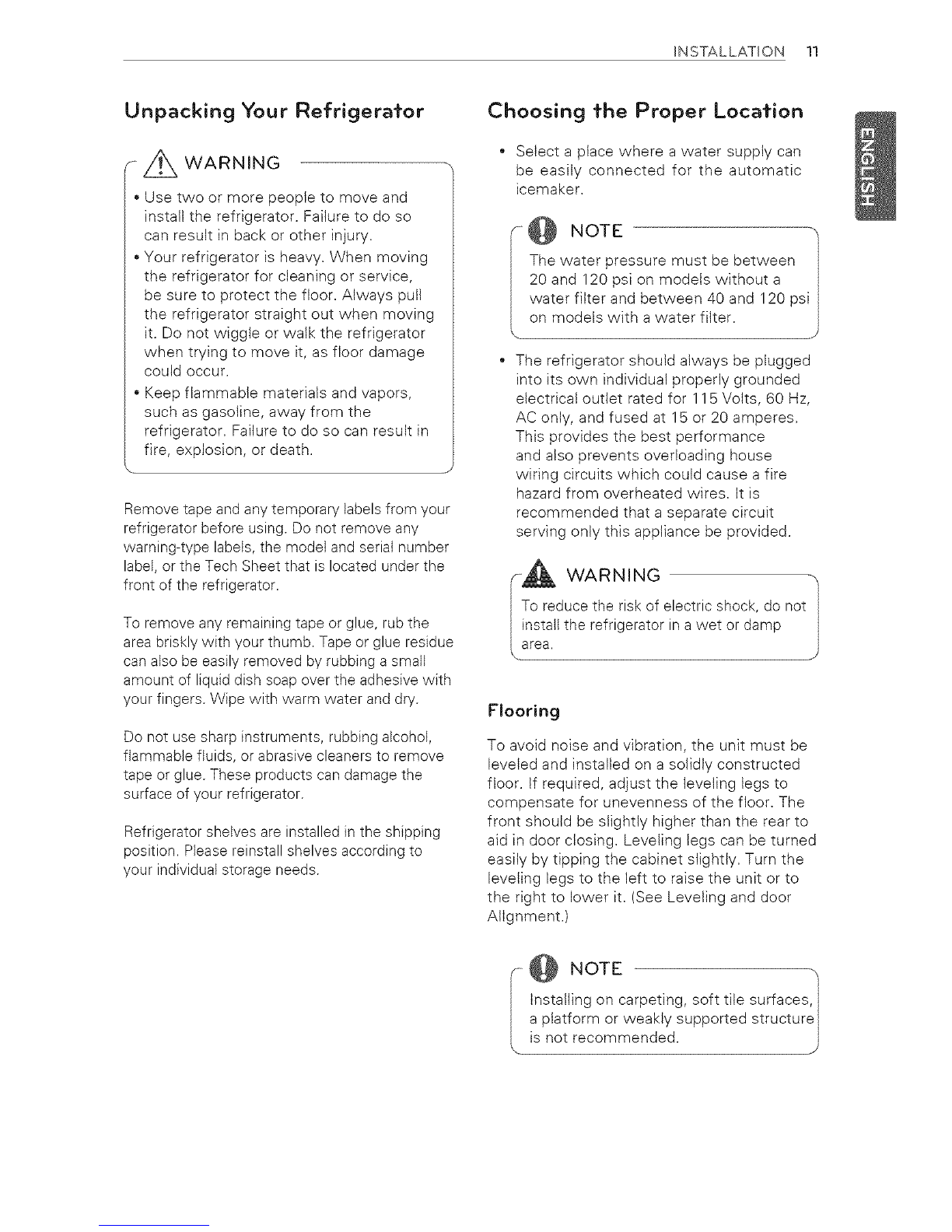

Choosing the Proper Location
Select a place where a water supply can
be easily connected for the automatic
icemaker.
NOTE "/
The water pressure must be between
20 and 120 psi on models without a
water filter and between 40 and 120 psi I
on models with a water filter.
The refrigerator should always be plugged
into its own individual properly grounded
electrical outlet rated for 115 Volts, 60 Hz,
AC only, and fused at 15 or 20 amperes.
This provides the best performance
and also prevents overloading house
wiring circuits which could cause a fire
hazard from overheated wires. It is
recommended that a separate circuit
serving only this appliance be provided.
i WARNING "/
ITo reduce the risk of electric shock, do not
_install the refrigerator in a wet or damp
Flooring
To avoid noise and vibration, the unit must be
leveled and installed on a solidly constructed
floor. If required, adjust the leveling legs to
compensate for unevenness of the floor. The
front should be slightly higher than the rear to
aid in door closing. Leveling legs can be turned
easily by tipping the cabinet slightly. Turn the
leveling legs to the left to raise the unit or to
the right to lower it. (See Leveling and door
Alignment.)
--@ NOTE
Installing on carpeting, soft tile surfaces
a platform or weakly supported structur_

12 INSTALLATION

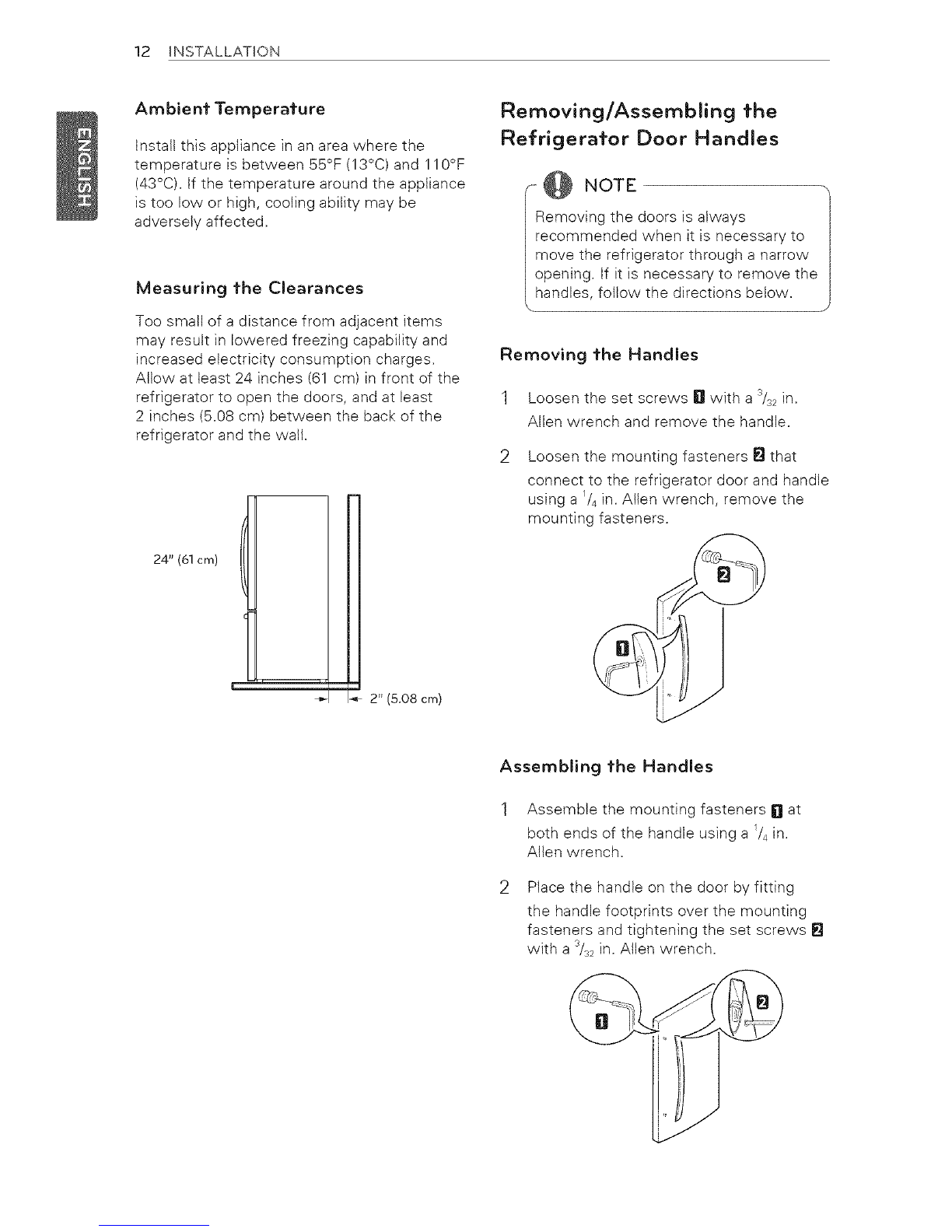

Ambient Temperature
Install this appliance in an area where the
temperature is between 55°F (13°C) and 110°F
(43°C). If the temperature around the appliance
is too low or high, cooling ability may be
adversely affected.
Measuring the Clearances
Too small of a distance from adjacent items
may result in lowered freezing capability and
increased electricity consumption charges.
Allow at least 24 inches (61 cm) in front of the
refrigerator to open the doors, and at least
2 inches (5.08 cm) between the back of the
refrigerator and the wall.
24" (61 cm)
m-_ 2" (5.08 cm)
Removing/Assembling the
Refrigerator Door Handles
'h@ NOTE
Removing the doors is always
recommended when it is necessary to
move the refrigerator through a narrow
pening. If it is necessary to remove the
andles, follow the directions below
Removing the Handles
Loosen the set screws D with a s/s2 in.
Allen wrench and remove the handle.
Loosen the mounting fasteners _ that
connect to the refrigerator door and handle
using a//4 in. Allen wrench, remove the
mounting fasteners.
Assembling the Handles
1Assemble the mounting fasteners D at
both ends of the handle using a/4 in.
Allen wrench.
2Place the handle on the door by fitting
the handle footprints over the mounting
fasteners and tightening the set screws
with a s/s2in. Allen wrench.

INSTALLATION 13

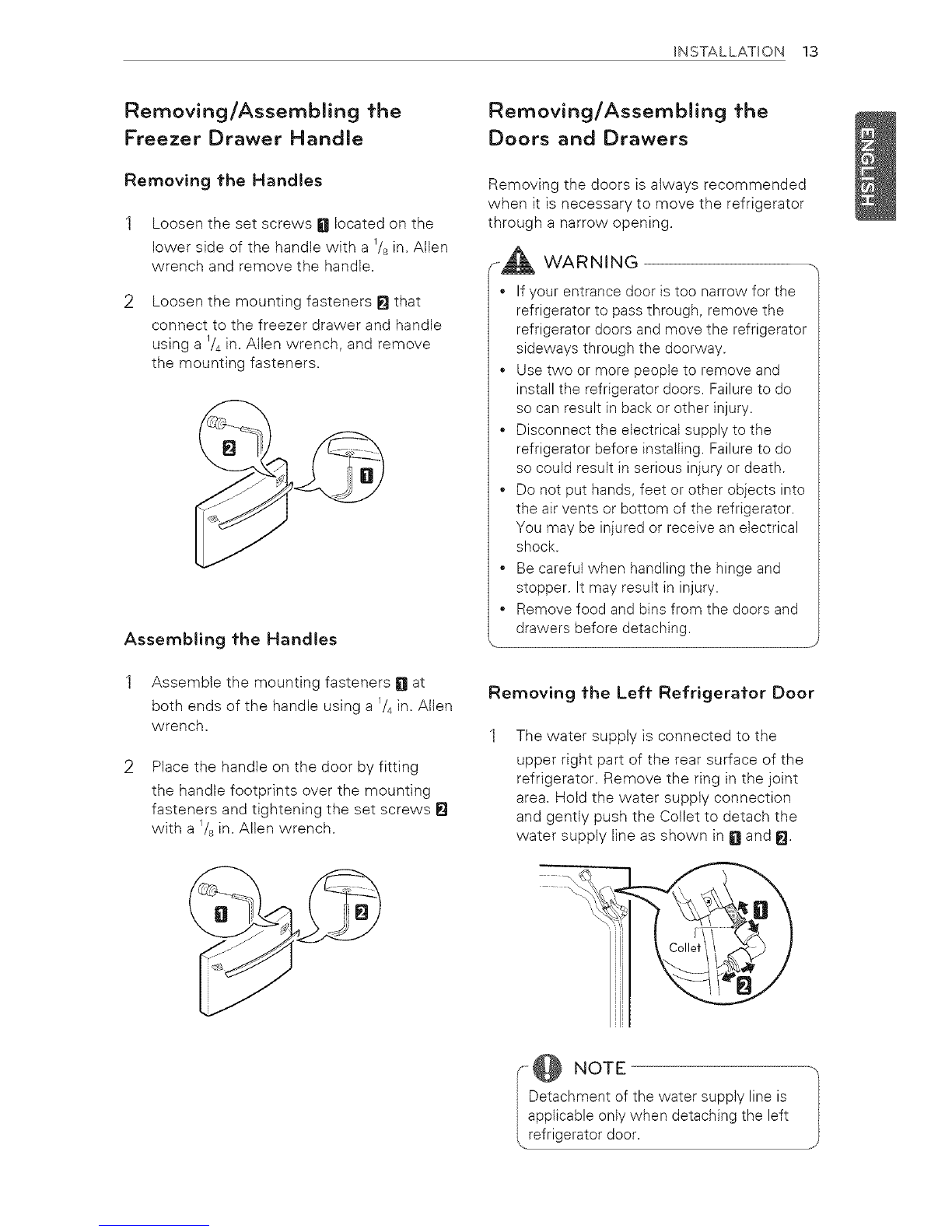

Removing/Assembling the
Freezer Drawer Handle
Removing the Handles
1Loosen the set screws D located on the
lower side of the handle with a 1/sin. Atlen
wrench and remove the handle.
Loosen the mounting fasteners _ that
connect to the freezer drawer and handle
using a//4 in. Allen wrench, and remove
the mounting fasteners.
Assembling the Handles
1Assemble the mounting fasteners D at
both ends of the handle using a//4 in. Atlen
wrench.
Place the handle on the door by fitting
the handle footprints over the mounting
fasteners and tightening the set screws _1
with a//g in. Allen wrench.
Removing/Assembling the
Doors and Drawers
Removing the doors is always recommended
when it is necessary to move the refrigerator
through a narrow opening.
F_ WARNING
• If your entrance door is too narrow for the
refrigerator to pass through, remove the
refrigerator doors and move the refrigerator
sideways through the doorway.
• Use two or more people to remove and
install the refrigerator doors, Failure to do
so can result in back or other injury.
• Disconnect the electrical supply to the
refrigerator before installing. Failure to do
so could result in serious injury or death.
• Do net put hands, feet or other objects into
the air vents or bottom of the refrigerator.
You may be injured or receive an electrical
shock.
• Be careful when handling the hinge and
stopper. It may result in injury.
• Remove food and bins from the doors and
drawers before detaching.
Removing the Left Refrigerator Door
The water supply is connected to the
upper right part of the rear surface of the
refrigerator. Remove the ring in the joint
area. Hold the water supply connection
and gently push the Collet to detach the
water supply line as shown in li_and El.
"@ NOTE
Detachment of the water supply line is
applicable only when detaching the left
refrigerator door.

14 INSTALLATION
2Remove the D screw from the hinge cover
at the top of the refrigerator. Lift the hook
(not visible), located at the bottom of the
front side of the cover _ with a flat-head
screwdriver,
5 Lift the door from the middle hinge pin and
remove the door.
3Remove the cover and pull out the tube D.
Disconnect all wire harnesses _.
Place the door, inside facing up, on a
non-scratching surface. )
4Rotate the hinge lever counterclockwise
D. Lift the top hinge _ free of the hinge
lever latch.
Hinge Lever Latch ................\\\
D ,,
Z_h CAUTION ....
en lifting the hinge free of the latch, be
forward.
_ careful that the door does not fall

INSTALLATION 15
Removing the Right Refrigerator
Door
Remove the top hinge cover screw Jl.
Lift the hook (not visible), located at the
bottom of the front side of the cover [],
with a flat-head screwdriver.
4Lift the door from the middle hinge pin and
remove the door.
.....Z_ CAUTION
Place the door on the floor, inside
facing up, on a non-scratching surface.
2Detach the wire harness I[!.
3Rotate the hinge lever mlclockwise.
Lift the top hinge [] free of the hinge
lever latch.
Hinge Lever Latch
D
Z_ CAUTION
When lifting the hinge free of the hinge
lever latch, be careful that the door J
does not fan forward.

16 INSTALLATION

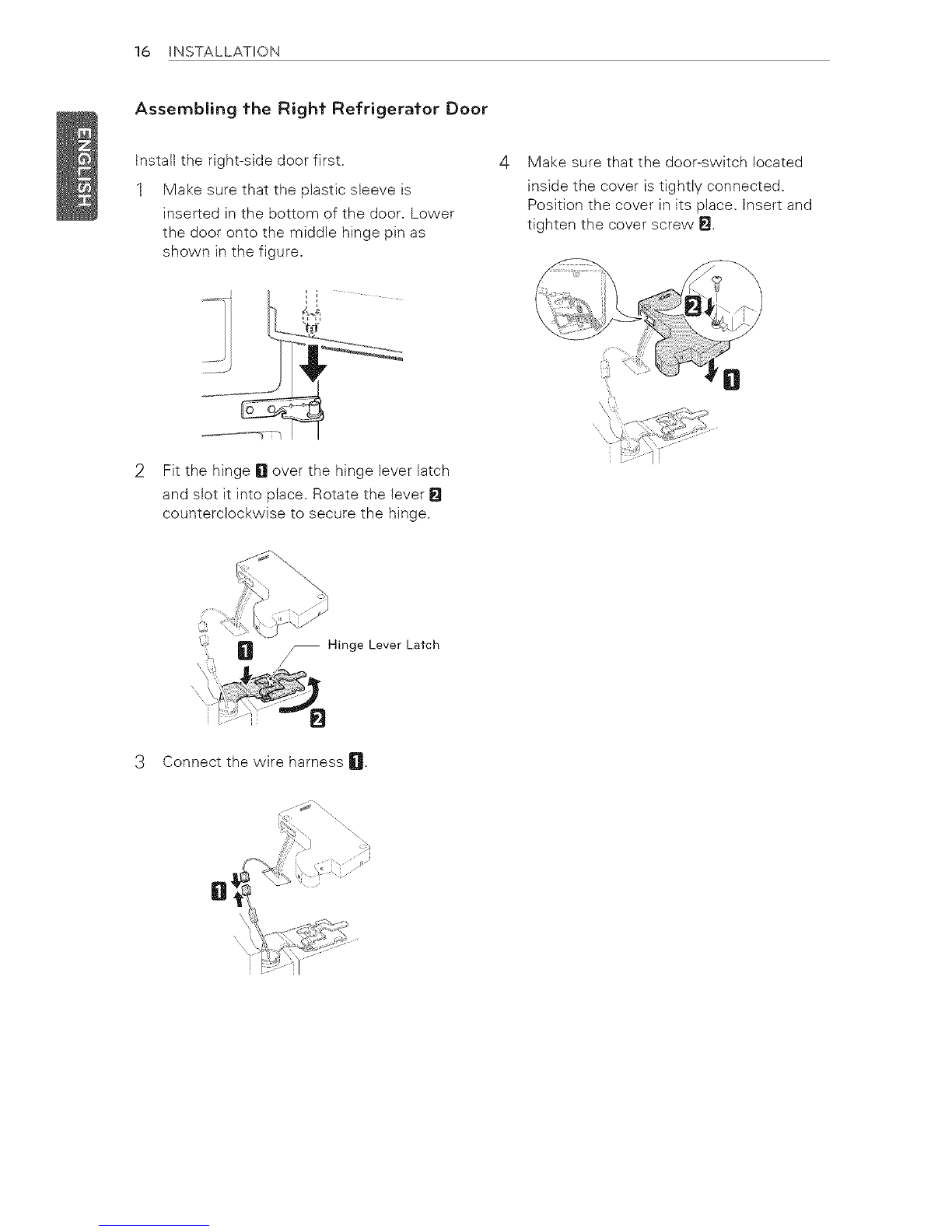

Assembling "the Right Refrigerator Door
Install the right-side door first.
1Make sure that the plastic sleeve is
inserted in the bottom of the door. Lower
the door onto the middle hinge pin as
shown in the figure.
4Make sure that the door-switch located
inside the cover is tightly connected.
Position the cover in its place. Insert and
tighten the cover screw _.
2Fit the hinge D over the hinge lever latch
and slot it into place. Rotate the lever
counterclockwise to secure the hinge.
3Connect the wire harness D.
D

INSTALLATION 17
Assembling "the Left Refrigerator
Door
Install the left refrigerator door after the right
door is installed.
1Make sure that the plastic sleeve is
inserted in the bottom of the door. Install
the refrigerator door onto the middle hinge.
4Push the water supply tube into the hole
on the top case and pull it through the
backptate.
Fit the hinge D over the hinge lever latch
and slot it into place. Rotate the lever
clockwise _ and fasten the hinge.
Hinge Lever Latch
/
3 Connect all the wire harnesses•
Hold the water supply connection and
gently push in the coitet to connect the
water supply line as shown in D and
• insert the tube at least 5/sinch (15 mm)
into the connector• Assemble the clip to
the joint part for fastening•
6Make sure that the door-switch located
inside the cover is tightly connected• Place
the cover j] in its position and tighten the
cover screw _.

18 INSTALLATION
_-@ NOTE
) Gently press the Collet and insert the
tube until only one line shows on the
tube.
(Correct)
(Incorrect)
2) Pull the tube to make sure that the
tube is tightly fastened and then insert
the clip.

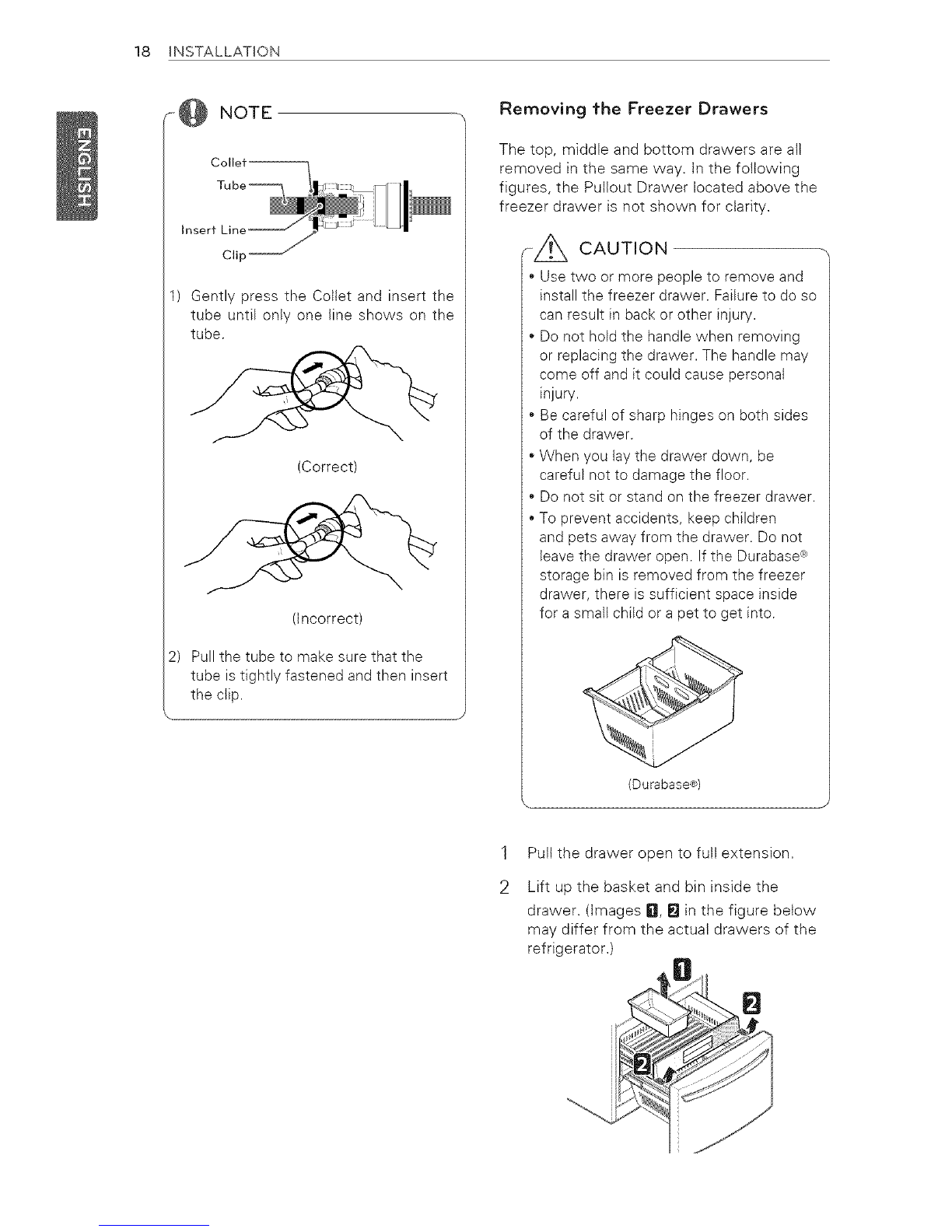

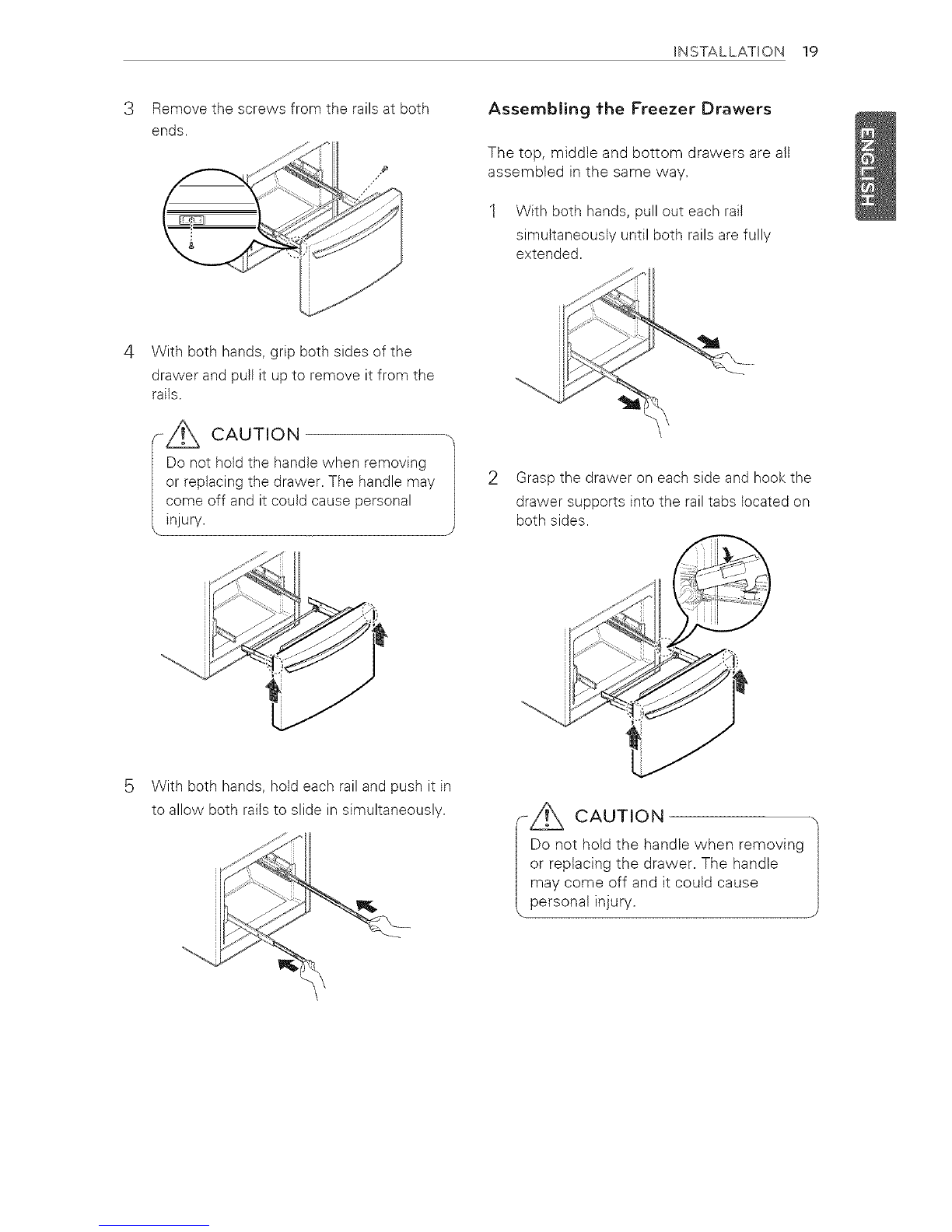

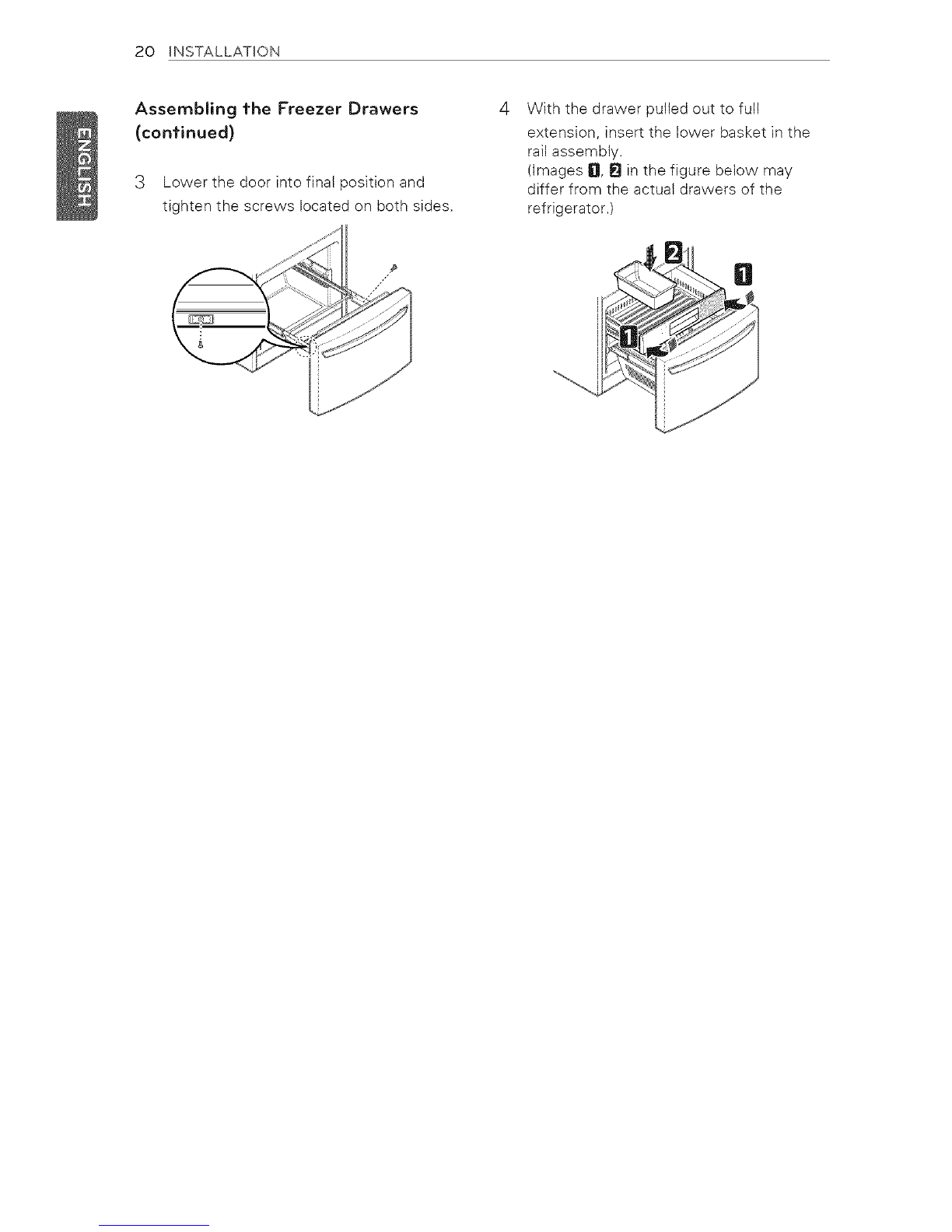

Removing fhe Freezer Drawers
The top, middle and bottom drawers are all
removed in the same way. In the following
figures, the Pullout Drawer located above the
freezer drawer is not shown for clarity.
_//_ CAUTION
*Use two or more people to remove and
install the freezer drawer. Failure to do so
can result in back or other injury.
*Do not hold the handle when removing
or replacing the drawer. The handle may
come off and it could cause personal
injury.
*Be careful of sharp hinges on both sides
of the drawer.
*When you lay the drawer down, be
careful not to damage the floor.
*Do not sit or stand on the freezer drawer.
* To prevent accidents, keep children
and pets away from the drawer. Do not
leave the drawer open. If the Durabase ®
storage bin is removed from the freezer
drawer, there is sufficient space inside
for a small child or a pet to get into.
(Durabase®)
1
2
Pull the drawer open to full extension.
Lift up the basket and bin inside the
drawer. (Images D, _ in the figure below
may differ from the actual drawers of the
refrigerator.)

INSTALLATION 19
Remove the screws from the rails at both
ends. Assembling fhe Freezer Drawers
The top, middle and bottom drawers are all
assembled in the same way.
1With both hands, pull out each rail
simultaneously until both rails are fully
extended.
4With both hands, grip both sides of the
drawer and pull it up to remove it from the
rails.
-Z_ CAUTION
Do not hold the handle when removing
or replacing the drawer. The handle may
come off and it could cause personal
injury.
2Grasp the drawer on each side and hook the
drawer supports into the rail tabs located on
both sides.
With both hands, hold each rail and push in
to allow both rails to slide in simultaneously. "-Z_ CAUTION
Do not hold the handle when removing
or replacing the drawer. The handle
may come off and it could cause

20 INSTALLATION
Assembling the Freezer Drawers
(continued)
3 Lower the door into final position and
tighten the screws located on both sides.
4With the drawer pulled out to full
extension, insert the lower basket in the
rail assembly.
(images D, _ in the figure below may
differ from the actual drawers of the
refrigerator.)
