LG 29FS2RKE User manual

COLOR TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : MC-049D
MODEL:29FS2RKE/RKQ/RL/RLE/RLX
MODEL:29F2RKE/RKQ/RL/RLE/RLX-TR
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html
All manuals and user guides at all-guides.com

- 2 -

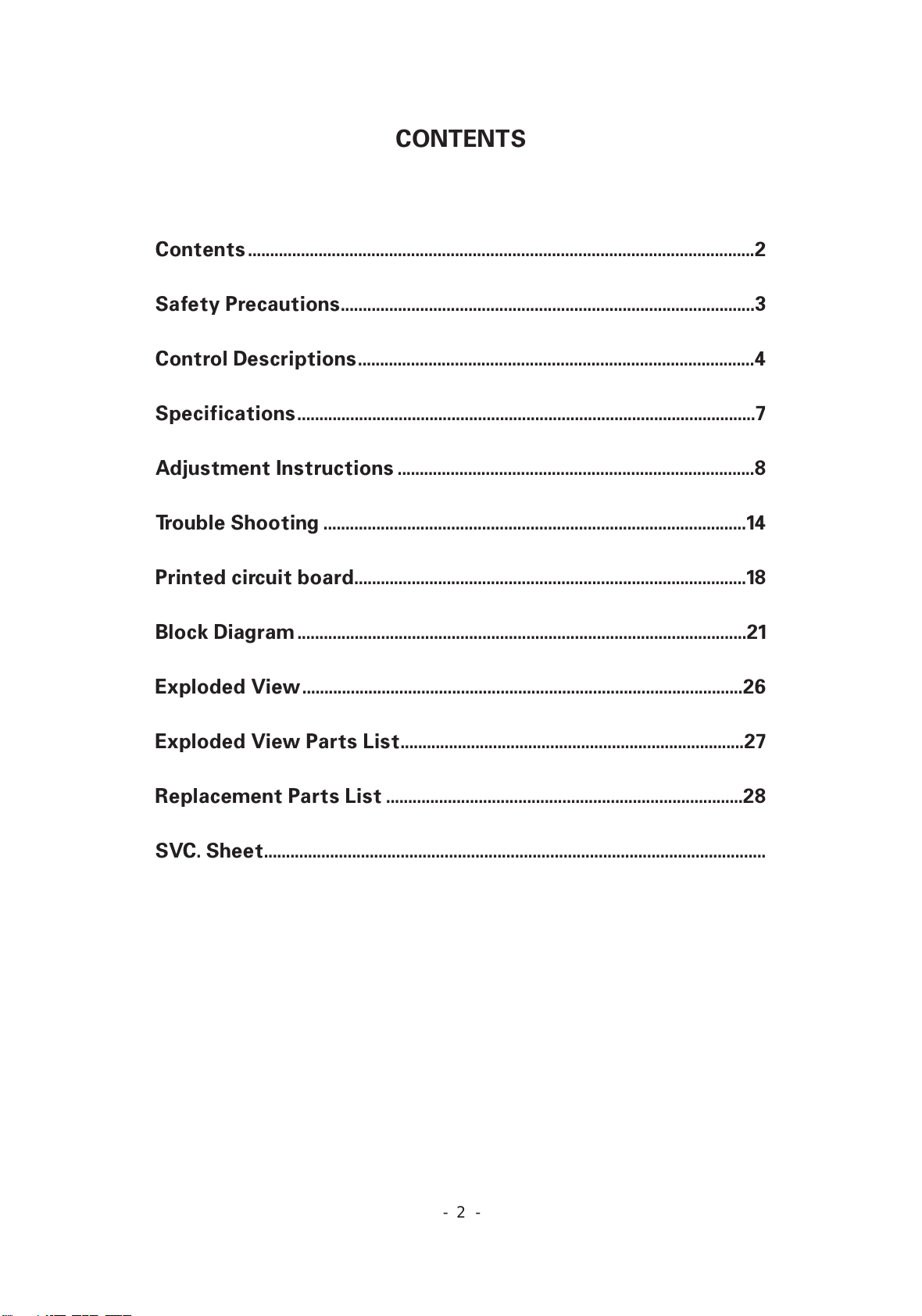

CONTENTS
Contents...................................................................................................................2
Safety Precautions..............................................................................................3
Control Descriptions..........................................................................................4
Specifications........................................................................................................7
Adjustment Instructions .................................................................................8
Trouble Shooting ................................................................................................14
Printed circuit board.........................................................................................18
Block Diagram ......................................................................................................21
Exploded View....................................................................................................26
Exploded View Parts List..............................................................................27
Replacement Parts List .................................................................................28
SVC. Sheet..................................................................................................................
All manuals and user guides at all-guides.com

- 3 -

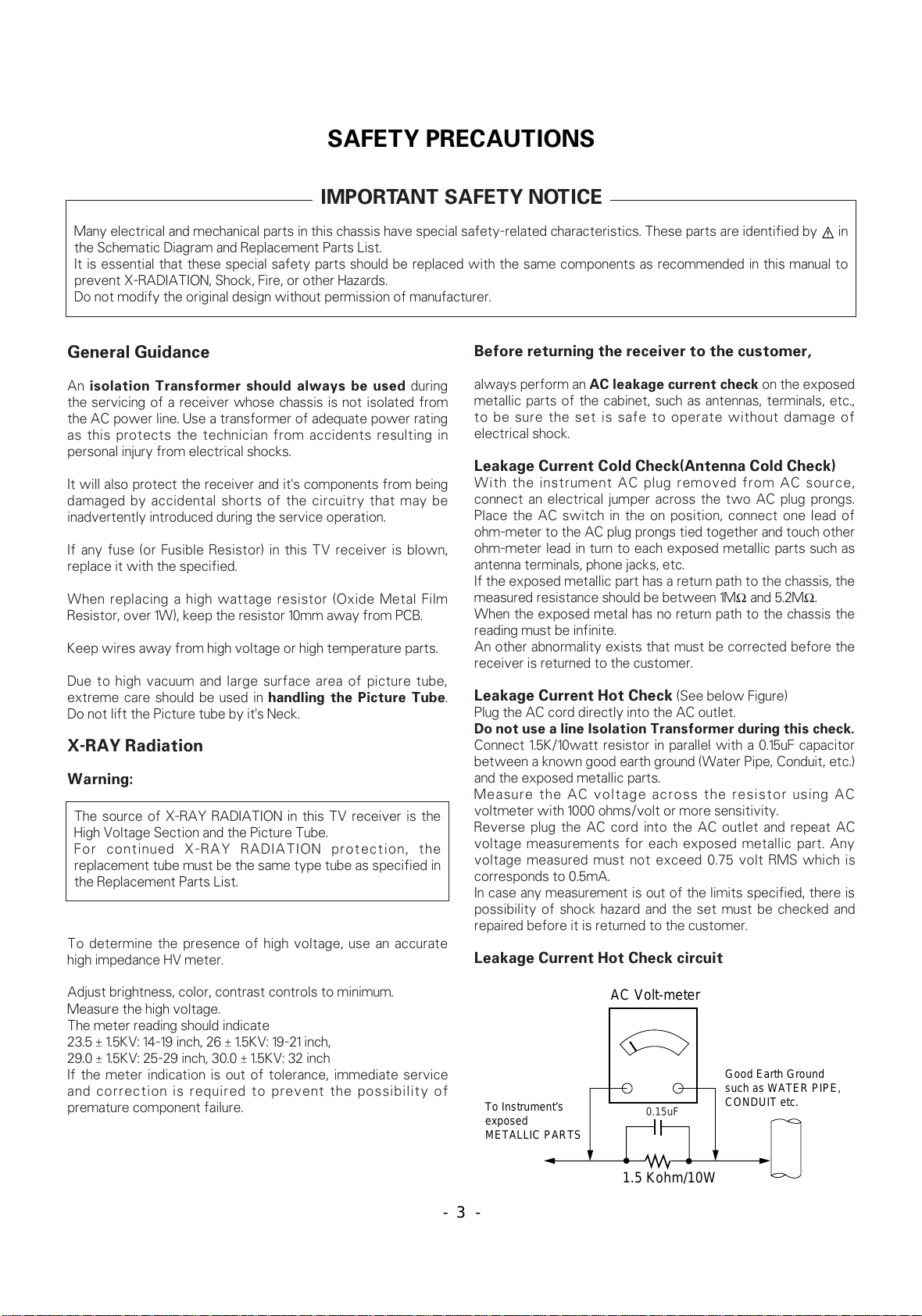

SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in
the Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to
prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during
the servicing of a receiver whose chassis is not isolated from
the AC power line. Use a transformer of adequate power rating
as this protects the technician from accidents resulting in
personal injury from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film
Resistor, over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Due to high vacuum and large surface area of picture tube,
extreme care should be used in handling the Picture Tube.
Do not lift the Picture tube by it's Neck.
X-RAY Radiation
Warning:
To determine the presence of high voltage, use an accurate
high impedance HV meter.
Adjust brightness, color, contrast controls to minimum.
Measure the high voltage.
The meter reading should indicate
23.5 ± 1.5KV: 14-19 inch, 26 ± 1.5KV: 19-21 inch,
29.0 ± 1.5KV: 25-29 inch, 30.0 ± 1.5KV: 32 inch
If the meter indication is out of tolerance, immediate service
and correction is required to prevent the possibility of
premature component failure.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc.,
to be sure the set is safe to operate without damage of
electrical shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source,
connect an electrical jumper across the two AC plug prongs.
Place the AC switch in the on position, connect one lead of
ohm-meter to the AC plug prongs tied together and touch other
ohm-meter lead in turn to each exposed metallic parts such as
antenna terminals, phone jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC
voltmeter with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC
voltage measurements for each exposed metallic part. Any
voltage measured must not exceed 0.75 volt RMS which is
corresponds to 0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
The source of X-RAY RADIATION in this TV receiver is the
High Voltage Section and the Picture Tube.
For continued X-RAY RADIATION protection, the
replacement tube must be the same type tube as specified in
the Replacement Parts List.
1.5 Kohm/10W
To Instrument’s
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF
All manuals and user guides at all-guides.com

- 4 -

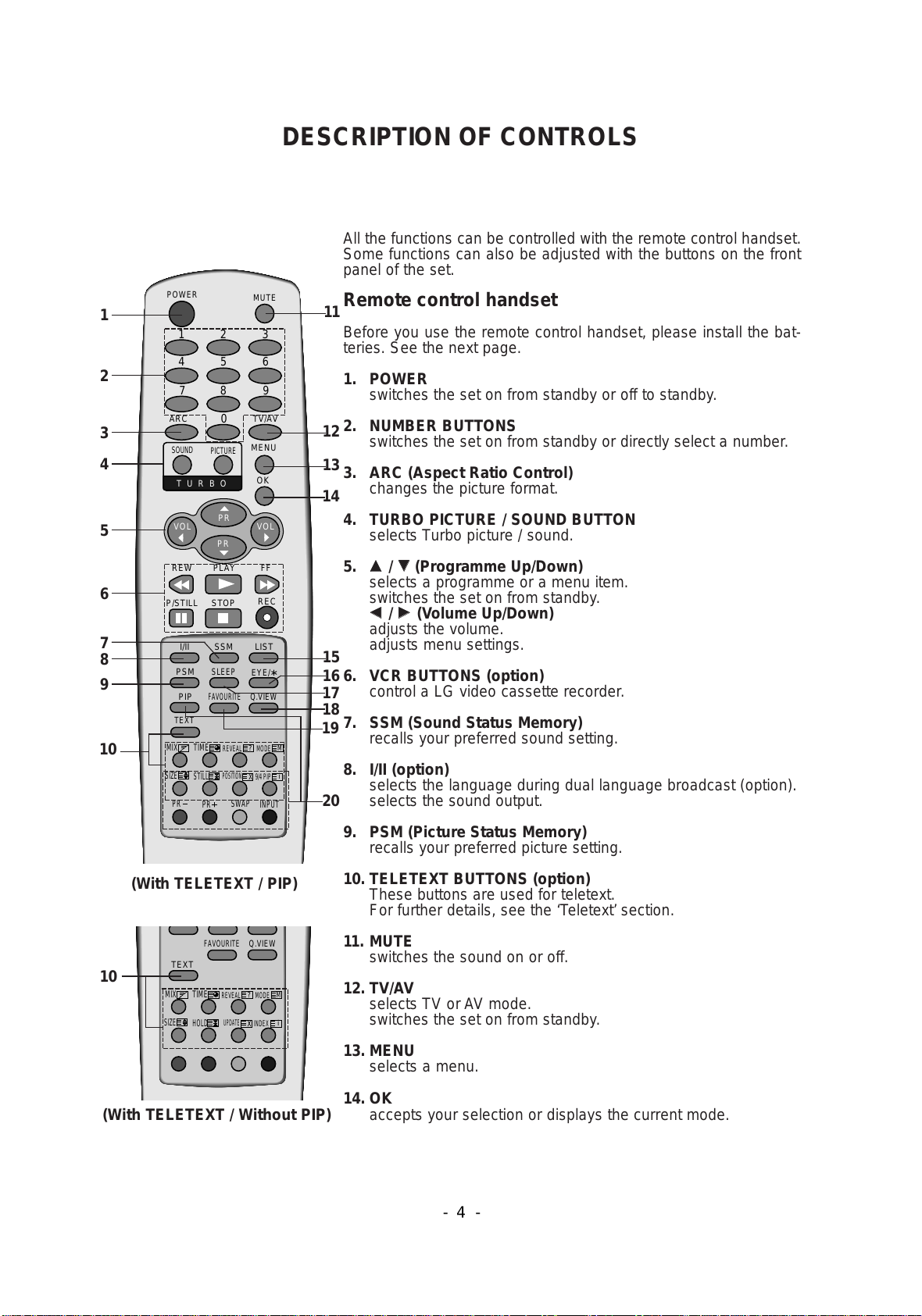

DESCRIPTION OF CONTROLS
All the functions can be controlled with the remote control handset.
Some functions can also be adjusted with the buttons on the front
panel of the set.
Remote control handset
Before you use the remote control handset, please install the bat-
teries. See the next page.
1. POWER
switches the set on from standby or off to standby.
2. NUMBER BUTTONS
switches the set on from standby or directly select a number.
3. ARC (Aspect Ratio Control)
changes the picture format.
4. TURBO PICTURE / SOUND BUTTON
selects Turbo picture / sound.
5. DD/ EE(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
FF/ GG(Volume Up/Down)
adjusts the volume.
adjusts menu settings.
6. VCR BUTTONS (option)
control a LG video cassette recorder.
7. SSM (Sound Status Memory)
recalls your preferred sound setting.
8. I/II (option)
selects the language during dual language broadcast (option).
selects the sound output.
9. PSM (Picture Status Memory)
recalls your preferred picture setting.
10. TELETEXT BUTTONS (option)
These buttons are used for teletext.
For further details, see the ‘Teletext’ section.
11. MUTE
switches the sound on or off.
12. TV/AV
selects TV or AV mode.
switches the set on from standby.
13. MENU
selects a menu.
14. OK
accepts your selection or displays the current mode.
OK
PR
VOL PR VOL
PLAY
P/STILL STOP REC
REW FF
I/II SSM LIST
PSM
SLEEP
PIP Q.VIEW
?
MIX TIME
SWAP INPUT
REVEAL MODE
SIZE STILL POSITION
9/4 PIP
i
M
0
ARC TV/AV
MENU
SOUND
12 3
45 6
78 9
POWER MUTE
TEXT
PR
PR
T U R B O
EYE/
FAVOURITE
TEXT
Q.VIEW
?
MIX TIME
REVEAL MODE
SIZE HOLD UPDATE
INDEX
i
M
FAVOURITE
(With TELETEXT / Without PIP)
(With TELETEXT / PIP)
2
1
3
5
6
8
4
9
7
11
12
15
16
13
18
14
17
20
10 19
10
All manuals and user guides at all-guides.com

- 5 -
OK
PR
VOL PR VOL
PLAY
P/STILL STOP REC
REW FF
I/II SSM LIST
PSM
SLEEP
Q.VIEW
0
ARC TV/AV
MENU
SOUND
12 3
45 6
78 9
POWER MUTE
T U R B O
EYE/
FAVOURITE
15. LIST
displays the programme table.
16. EYE/*(option)
switches the eye function on or off.
17. SLEEP
sets the sleep timer.
18. Q.VIEW
returns to the previously viewed programme.
19. FAVOURITE
selects a favorite programme.
20. PIP BUTTONS (option)
PIP
switches the sub picture on or off.
PR +/-
selects a programme for the sub picture.
SWAP
alternates between main and sub picture.
INPUT
selects the input mode for the sub picture.
SIZE
adjusts the sub picture size.
STILL
freezes motion of the sub picture.
POSITION
relocates the sub picture in clockwise direction.
9/4 PIP
switches on or off the programme scan mode through 4 or 9
sub pictures.
COLOURED BUTTONS
These buttons are used for teletext (only TELETEXT models) or
programme edit.
FAVOURITE
Q.VIEW
SWAP INPUT
SIZE STILL POSITION
9/4 PIP
PR
PR
EYE/
PIP
(Without TELETEXT / With PIP)
(Without TELETEXT / PIP)
2
1
3
5
6
8
4
9
7
11
12
15
16
13
18
14
17
19
20
All manuals and user guides at all-guides.com

- 6 -

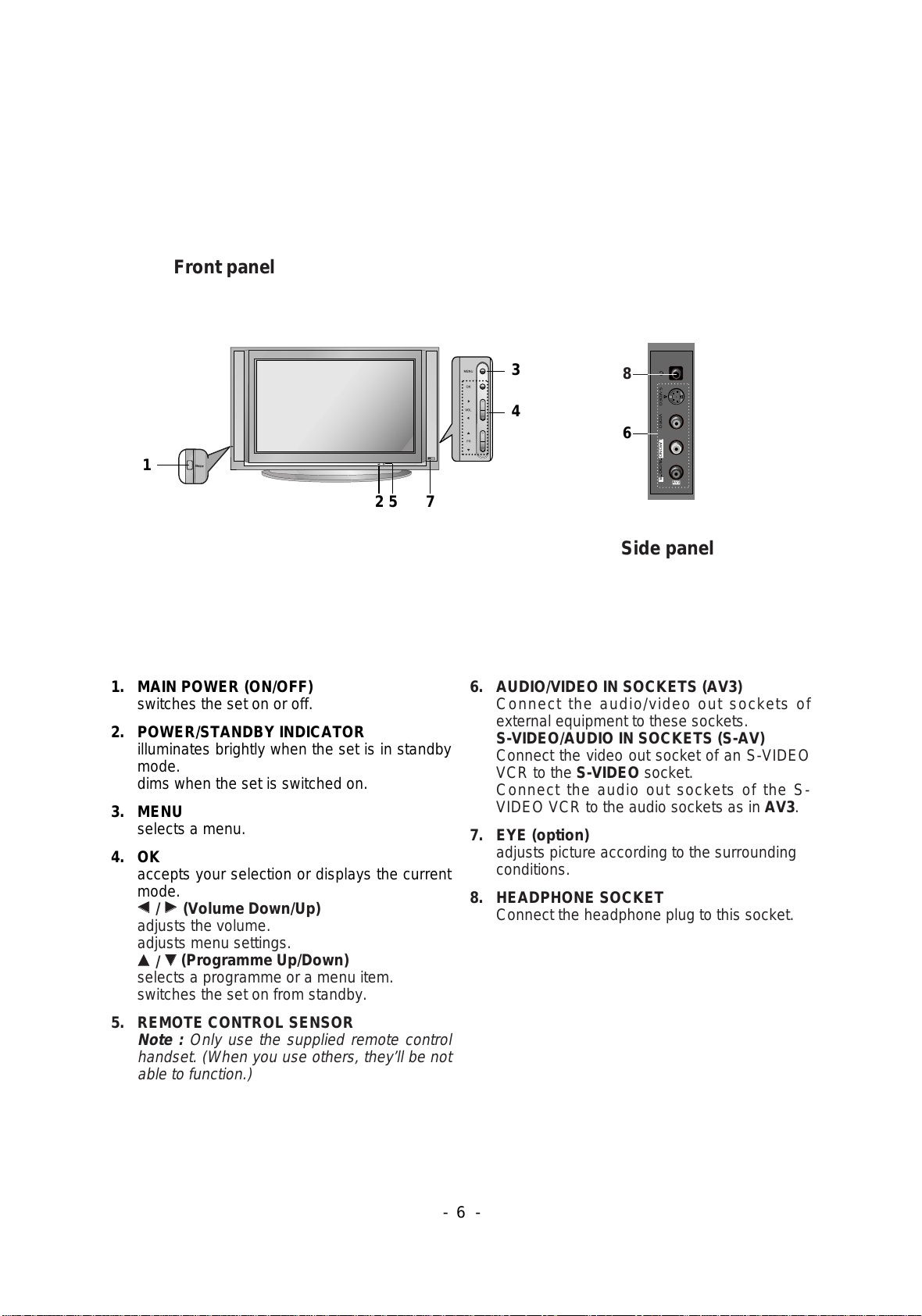

1. MAIN POWER (ON/OFF)
switches the set on or off.
2. POWER/STANDBY INDICATOR
illuminates brightly when the set is in standby
mode.
dims when the set is switched on.
3. MENU
selects a menu.
4. OK
accepts your selection or displays the current
mode.
FF/ GG(Volume Down/Up)
adjusts the volume.
adjusts menu settings.
DD/ EE(Programme Up/Down)
selects a programme or a menu item.
switches the set on from standby.
5. REMOTE CONTROL SENSOR
Note : Only use the supplied remote control
handset. (When you use others, they’ll be not
able to function.)
6. AUDIO/VIDEO IN SOCKETS (AV3)
Connect the audio/video out sockets of
external equipment to these sockets.
S-VIDEO/AUDIO IN SOCKETS (S-AV)
Connect the video out socket of an S-VIDEO
VCR to the S-VIDEO socket.
Connect the audio out sockets of the S-
VIDEO VCR to the audio sockets as in AV3.
7. EYE (option)
adjusts picture according to the surrounding
conditions.
8. HEADPHONE SOCKET
Connect the headphone plug to this socket.
Front panel
Side panel
S-VIDEO VIDEO L/MONO RAUDIO
AV3
8
6
ON/OFFON/OFF
1
27 5
3
4
All manuals and user guides at all-guides.com

- 7 -
SPECIFICATIONS
Note : Specification and others are subject to change without notice for improvement.
FScope
This specification can be applied to all the television related to
MC-049D Chassis.
FTest and Inspection Method
1) performance : Follow the Standard of LG TV test
2) Standards of Etc. requirement
- Safety: IEC60065
- EMC: EN55020,EN55013
FTest Condition
1) Temperature : 20 ±5°C(CST : 40 ±5°C)
2) Relative Humidity : 65 ±10%
3) Power voltage : 110-240V~, 50/60Hz
4) Follow each drawing or spec for spec and performance of
parts,based upon P/N of B.O.M
5) Warm up TV set for more than 20min. before the
measurement.
No
1
2
3
4
5
6
7
8
Item
Receiving System
Available Channel
Input Voltage
Market
Screen Size
Tuning System
Operating Environment
Storage Environment
Remark
For EU/ For Non EU
OPTION
Non EU
EU
200 PR. (W/O TXT)
Specification
PAL,SECAM BG
PAL/SECAM DK
PAL-I/I
NTSC M
NTSC 4.43(AV)
SECAM-L/L’
NTSC M/ PAL M/N
VHF : E2 ~ E12
UHF : E21 ~ E69
CATV : S1 ~ S20
HYPER : S21 ~ S41
AC 110-240V, 50/60Hz
AC 230V, 50/60Hz
EU,CIS, China, Asia, Africa
Flat 29”
FVS 100Program
1) Temp : 0 ~ 45 deg
2) Humidity: 85% under
1) Temp : -20 ~ 60 deg
2) Humidity: 85% under
FGeneral Specification
All manuals and user guides at all-guides.com

1. Application Object
These instructions are applied to all of the color TV, MC-049A.
2. Notes
(1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.But the
adjustment can be changed by consideration of mass
production.
(3) The adjustment must be performed in the circumstance of
25±5°C of temperature and 65±10% of relative humidity if
there is no specific designation.
(4) The input AC voltage of the receiver must keep rating
voltage in adjusting.
(5) The receiver must be operated for about 15 minutes prior
to the adjustment.
(6) Signal: Received, the standard color signal.(65dB±1dB uV)
LG standard signal means the digital pattern PAL-
EU(05CH)
3. Focus adjustment
(1) Receive the Cross-Hatch Pattern(Fig 1).
(2) Set the picture condition on “DYNAMIC(CLEAR)” mode.
(3) Adjust the Focus volume of FBT for the best focus of (A) &
(B).
4. Purity & Convergence adjustment
Adjustment should be operated when using the CPT(without
ITC from CPT manufacturing place)
This adjustment must be done in the order of the following
flowchart.
4.1. Color purity adjustment
(1) It makes CPT or CABINET enough to demagnetization.
(2) Receive the signal of red raster.
(3) Loosen fixed screw of DY and closely to CPT funnel part.
(4) Check the center of screen that PURITY MAGNET of CPT
by crossing adjustment. At this time, 4 & 6 pole magnet is
located to magnet of nothing.
(5) Move the DY to make equal red on whole screen and it
does not to make the DY by fixed screw after check a
simple color of Red/Green/Blue and white raster whether or
not it is a pollution of color.
(At this time, take care raster of screen and DY must fixing
in the condition which maintains a horizontality.)
(6) Check the TV set by move direction.
4.2. Convergence adjustment
These adjustments can the best condition of focus after
finished purity adjustment.
(1) Receive the signal of cross hatch that BACK RASTER is
black.
(2) Adjust brightness and luminosity till dot appear 9 ~12.
(3) Open angle of the two tab of 4 pole MAGNET by isogonic
angle and accord with vertical line of red and blue color in
the middle of screen.
(4) Maintain as angle of (3) and rotate the tab to accord with
vertical line of Red and Blue color in the middle of screen.
- 8 -
ADJUSTMENT INSTRUCTIONS
AB
<Fig 1. PAL Digital Pattern(EU05CH)>
Assembling DY to
CPT
CPT Assembling
As preparatory operations before
assembling CPT, wind cotton Tape for
protecting to CPT NECK and DY, CPT
connection parts. At this moment, end
of tape should be over-lapped and
wound in direct route to the NECK.
Let the screen Standard condition.
Operate Heat-Run at least 15
minutes.
Torque is to be 9-11 kg f.cm when
fixing DY.
Fix the Magnet to the position as
shown picture below. Be careful not to
make CPT neck shadow while
adjusting DY.
HEAT RUN
Degaussing
STC Pre-Adjustment
PURITY Adjustment
DY Fixing
SCREEN Voltage adj.
W/B Fixing
FOCUS not yet ADJ.
STC not yet ADJ.
DYC not yet ADJ.
Convergence Magnet
15 ~ 20mm
¢‚
¢‚
6Pole 42
All manuals and user guides at all-guides.com

(5) Open angle of the two tab of 6 pole magnet by isogonic
angle and accord with vertical line of Red/Blue and Green.
(6) Maintain as angle of (5) and rotate the tab to accord with
horizontal line. In case of twisted horizontal line,repeat
adjustment of (3) ~ (5) remembering the movement of
Red/Green/Blue color.
(7) Move the DY to best condition of convergence and attach
the CPT to a rubber-chock for fixing DY.
5. Screen voltage adjustment
(1) Receive the PAL or SECAM(NTSC) signal into RF mode
(regardless of channel).
(2) If you press the “ADJ”button in LINE SVC mode(IN-START
button),the LINE SVC mode changes to screen adjustment
mode.
(3) Turn the Screen Volume of FBT to change luminance of
White signal center as shown below.
(4) Press the TV/AV button to exit SVC mode.

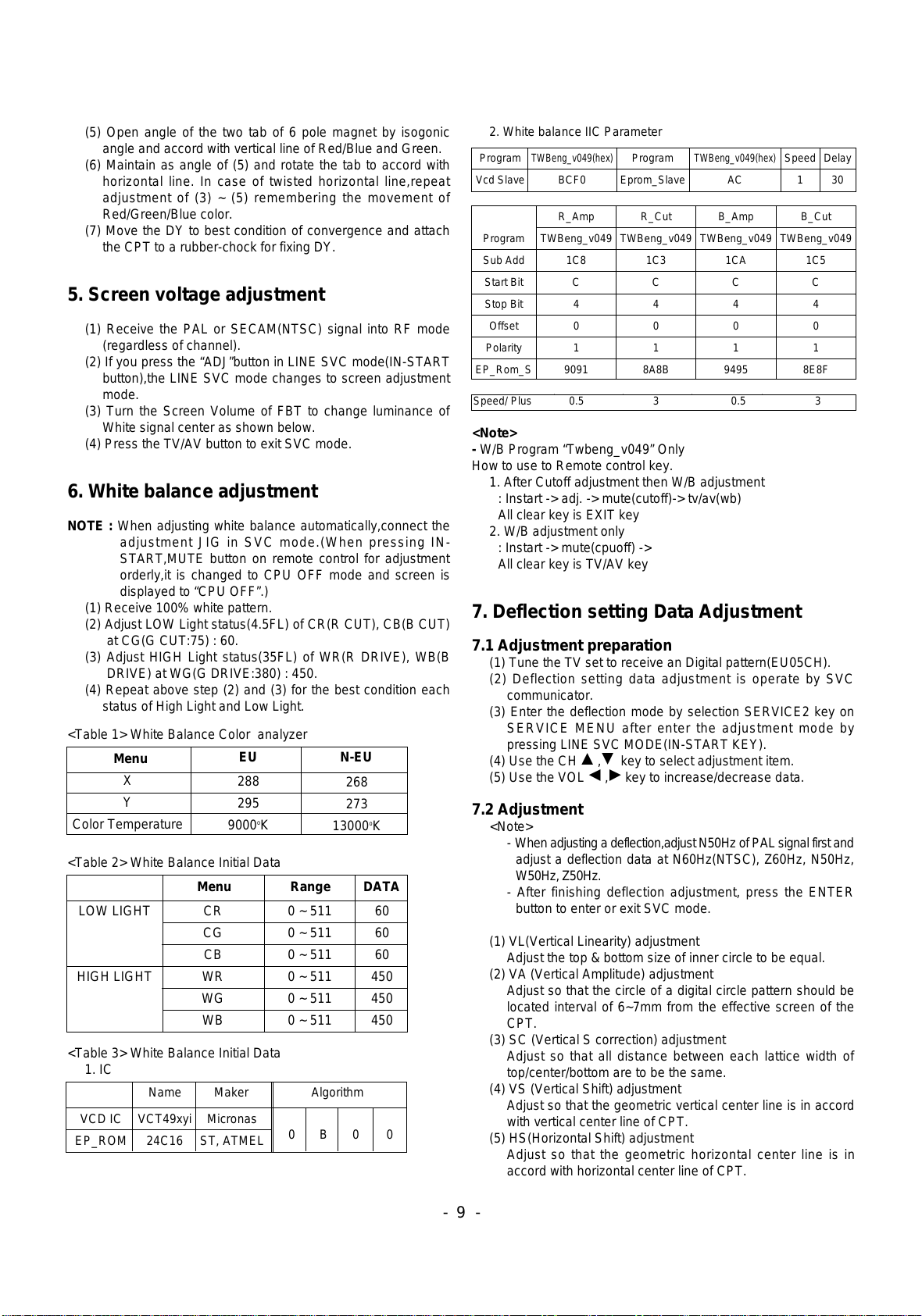

6. White balance adjustment
NOTE : When adjusting white balance automatically,connect the
adjustment JIG in SVC mode.(When pressing IN-
START,MUTE button on remote control for adjustment
orderly,it is changed to CPU OFF mode and screen is
displayed to “CPU OFF”.)
(1) Receive 100% white pattern.
(2) Adjust LOW Light status(4.5FL) of CR(R CUT), CB(B CUT)
at CG(G CUT:75) : 60.
(3) Adjust HIGH Light status(35FL) of WR(R DRIVE), WB(B
DRIVE) at WG(G DRIVE:380) : 450.
(4) Repeat above step (2) and (3) for the best condition each
status of High Light and Low Light.
<Note>
- W/B Program “Twbeng_v049” Only
How to use to Remote control key.
1. After Cutoff adjustment then W/B adjustment
: Instart -> adj. -> mute(cutoff)-> tv/av(wb)
All clear key is EXIT key
2. W/B adjustment only
: Instart -> mute(cpuoff) ->
All clear key is TV/AV key
7. Deflection setting Data Adjustment
7.1 Adjustment preparation
(1) Tune the TV set to receive an Digital pattern(EU05CH).
(2) Deflection setting data adjustment is operate by SVC
communicator.
(3) Enter the deflection mode by selection SERVICE2 key on
SERVICE MENU after enter the adjustment mode by
pressing LINE SVC MODE(IN-START KEY).
(4) Use the CH D,E key to select adjustment item.
(5) Use the VOL F,Gkey to increase/decrease data.
7.2 Adjustment
<Note>
- When adjusting a deflection,adjust N50Hz of PAL signal first and
adjust a deflection data at N60Hz(NTSC), Z60Hz, N50Hz,
W50Hz, Z50Hz.
- After finishing deflection adjustment, press the ENTER
button to enter or exit SVC mode.
(1) VL(Vertical Linearity) adjustment
Adjust the top & bottom size of inner circle to be equal.
(2) VA (Vertical Amplitude) adjustment
Adjust so that the circle of a digital circle pattern should be
located interval of 6~7mm from the effective screen of the
CPT.
(3) SC (Vertical S correction) adjustment
Adjust so that all distance between each lattice width of
top/center/bottom are to be the same.
(4) VS (Vertical Shift) adjustment
Adjust so that the geometric vertical center line is in accord
with vertical center line of CPT.
(5) HS(Horizontal Shift) adjustment
Adjust so that the geometric horizontal center line is in
accord with horizontal center line of CPT.
2. White balance IIC Parameter
Program
Sub Add
Start Bit
Stop Bit
Offset
Polarity
EP_Rom_S
R_Amp
TWBeng_v049
1C8
C
4
0
1
9091
R_Cut
TWBeng_v049
1C3
C
4
0
1
8A8B
B_Amp
TWBeng_v049
1CA
C
4
0
1
9495
- 9 -
Menu
X
Y
Color Temperature
288
295
9000
o
K
268
273
13000
o
K
EU N-EU
<Table 1> White Balance Color analyzer
Menu
CR
CG
CB
WR
WG
WB
LOW LIGHT
HIGH LIGHT
0 ~ 511
0 ~ 511
0 ~ 511
0 ~ 511
0 ~ 511
0 ~ 511
60
60
60
450
450
450
Range DATA
<Table 2> White Balance Initial Data
<Table 3> White Balance Initial Data
1. IC
VCD IC
EP_ROM
VCT49xyi
24C16
Micronas
ST, ATMEL 0 B 0 0
Name Maker Algorithm
Program
Vcd Slave
TWBeng_v049(hex)
BCF0
Program
Eprom_Slave
TWBeng_v049(hex)
AC
Speed
1
Delay
30
B_Cut
TWBeng_v049
1C5
C
4
0
1
8E8F
Speed/ Plus 0.5 3 0.5 3
All manuals and user guides at all-guides.com

(6) EW(East-West Width) adjustment
Adjust until the outmost left and right lattice of received
pattern is accord with 25% of other lattice width.
(7) ET(Trapezoidal) adjustment
Adjust to make the length of top horizontal line same with it
of the bottom horizontal line.
(8) EP(Pin Cushion) adjustment
Adjust so that middle portion of the outermost left and right
vertical line look like parallel with vertical lines of the CPT.
(9) ANGLE adjustment
When you adjust the angle, adjust correctly raster of
left/right screen.
(10) BOW adjustment
A standard is not changing the default value.
(11) UPCOR/LOCOR adjustment:
After finished cushion adjustment, adjust vertical line of left-
top, right-top, left-bottom, right-bottom of screen to the best
straight line.
(12) PIP_H(PIP H Position) adjustment
Adjust until the distance between PIP and main picture
becomes about 1~2mm by using VOL +/- key.
8. Deflection setting initial data
<Table 4> Deflection setting initial data (SERVICE 2)
* Fix : Don’t change data
- After finishing deflection adjustment at PAL 50Hz, NTSC 60Hz
is applied deflection compensation value. But recheck condition
of adjustment at NTSC system and adjust deflection data if
necessary.
9. Service adjustment data table
<Table 5> Picture setting service data1 (SERVICE 1)
- 10 -
<Fig. 2>PAL Digital pattern (EU05CH)
<Fig. 4> PIP H Position
Item
VL
VA
SC
VS
HS
EW
ET
EP
CRNU
CRNL
BOW
ANGLE
CRNU6
CRNU6
HBSO
HBST
EHTTH
EHTS
EHTV1
EGTV2
EGTH1
EGTH2
EHT F
EHTP1
EHTP2
OSD P
PIP H
PIP V
Vert. Linearity
Vert. Amplitude
S--Correction
Vert.Position
Hor. Position
Hor.Width
Trapezoidal
Pin Cushion
Upper Corner
Lower Corner
Bow
Angle
Upper Corner(6th)
Lower Corner(6th)
Horizontal Blanking Stop
Horizontal Blanking Start
EHT Compen. Threshold
EHT Static Time constant
Static V Comp.(1st Gain)
Static V Comp.(2nd Gain)
Dynamic H Comp.(1st Gain)
Dynamic H Comp,(2nd Gain)
EHT Dynamic Time constant
1st Gain for Dynamic H Phase
2nd Gain for Dynamic H Phase
OSD Position
PIP H Position
PIP V Position
-50
80
170
1
140
-10
-15
-130
40
40
0
0
0
0
185
1250
150
100
70
-70
-3
-10
1
0
0
Adjust
Adjust
Recommend
Adjust
Adjust
Adjust
Adjust
Adjust
Adjust
Adjust
Recommend
Recommend
Adjust
Adjust
Fix
Fix
Fix
Fix
Fix
Fix
Fix
Fix
Fix
Fix
Fix
Fix
Only PIP model
Description 29” Adjust or Fix
<Fig. 3> Cross-Hatch Pattern(E-7CH)
CRNU
CRNL
CRNU6
EP
CRNL6
SUB--BRI
YC DELAY
EXT CON
EXT BRI
ITEM DESCRIPTION
Sub Bright
YC Delay
External Contrast
External Bright
29” LPD
0
-3
0
All manuals and user guides at all-guides.com

<Table 6> Picture setting service data2 (SERVICE 3)
<Table 7> Picture setting service data3 (SERVICE 4)
10. How to inspect condition of a
transmission and reception in FM
TRANSMISSION MODEL
- FM TRANSMITTER’s efficiency inspections is executed to a
finished in a final inspection phase.
- FM TRANSMITTER is a function which receives voice-
signal by an exclusive remote control and Earphone, transmits
a FM through transmitter of inner part in MICOM BOARD to
TV sound(MONITOR OUTPUT)
1) Execute in channel generating voice-signal
2) Select a transmitted frequency in MENU OSD.
3) A received frequency in an exclusive remote control or
received FM Radio is tuned by 87.7MHz(107.7MHz) which
is same as frequency in OSD.
4) Check out whether a signal generating to MAIN SPEAKER
generates in earphone or receiver or not.
5) There is no alternation and setting of adjusted DATA in the
process of inspecting FM TX.
11.OPTION Adjustment
1) This option adjustment decides function in accordance with
model. Press the SVC TX adjustment button(IN-START
button) at SVC mode, then adjust the option at OPTION1
mode.
2) Mark the option adjustment data like [112,68,164,32,8] in
BOM.
- 11 -
IBRM
WDRM
CGAIN
WGAIN
MWDR
BCLTH
BCLTC
BCLGA
BCLC
SVM D
SVM L
SVM G
VBSO
VBST
TML
PWL-L
ITEM DESCRIPTION
Internal Brightness for Measurement
White Drive Current Measurement
Gain for Cutoff Control Loop
Gain for White Drive Control Loop
BCL Threshold Current
BCL Time Constant
BCL Loop Gain
BCL Minimum Contrast
SVM Delay
SVM Limit
SVM Gain
Vertical Blanking Stop
Vertical Blanking Start
Start Line for Tube Measurement
Peak White Limit - Level
29” LPD
420
507
480
200
4
10
20
312
100
VID-PEAK
TOP-SET
FP
NP
SP
S1VOL
S2VOL
AGC-L
M-STR
M-HMC
M-HP
M-LP
M-LIM
THRSEL
SLLTHD
SLLTHDVP
SLLTHDV
PLLTC
SATNR
LUMAOFST
ITEM DESCRIPTION
Freq. Resp Video peak Filter
Tuner Take-Over-point
FM PRE-SCALER
NICAM PRE-SCALER
SCART PRE-SCALER
SCART1 PRE-SCALER
SCART2 PRE-SCALER
AUTO GAIN CONT. LIMIT
Bass Effect Strength
Bass Harmon Cont
Bass HP Corner Freq
Bass LP Corner Freq
Bass Ampl-Limit
H Slicing Level threshold
Slicing Level Threshold Offset H
Vertical Slicing Level Threshold Polarity
Slicing Level Threshold V
Time Constant HPLL
Noise Reduction of Satellite
Luma Offset
29” LPD
1
6
28
60
24
117
117
670
45
25
252
0
0
0
6
[112,68,164,32,8]
OPTION 1
OPTION 2
OPTION 3
OPTION 4
OPTION 5
* Mark of BOM
LEVEL PART NO. SPECIFICATION DESCRIPTION
1. 3141VMN382A MAIN CHASSIS ASSY [112,68,164,32,8]
In this model, the OPTION1 data is 112, OPTION2 data is 68, the
OPTION3 data is 164,the OPTION 4 data is 32, OPTION 5 data
is 8.
All manuals and user guides at all-guides.com

11.1. OPTION1 Function
11.2. OPTION2 Function
11.3. OPTION3 Function
- 12 -
Remark
China, Australia
INCH
SYS
SOUND
CH + AU
Option Code
0
1
2
3
4
5
6
7
0
1
2
3
0
1
2
3
0
1
Function
21A
21B
21C
29F/ 25F
28WF/ 32FW
28N
34F
29N/ 25N
BG/I/DK
BG/I/DK/L
BG/I/DK/M
BG/L
RF STEREO
AV STEREO
MONO
MONO DUAL
Without D/K CHINA or BB SYSTEM
With D/K CHINA or BB SYSTEM
Option Code
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
Function
LOW BAND FM TX
HIGH BAND FM TX
WITHOUT FM TX
WITH FM TX
PHONE JACK ONLY
SCART + PHONE JACK
WITHOUT GAME
WITH GAME (PACK)
WITHOUT EYE
WITH EYE
LARGE
SMALL
6,8 KEY
4 KEY
WITHOUT DEGAUSSING
WITH DEGAUSSING
FM LH
FM TX
1SCRT
GAME
EYE
TX
KEY
DEGAU
Remark
EU
NON EU
TEXT
TOP
ACMS
I II SV
VOL
TSEAR
T P-S
HDECV
Option Code
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
Function
200RP(WITHOUT TEXT)
100PR(WITH TEXT)
FLOP TXT
TOP TXT
WITHOUT ACMS FUNCTION
WITH ACMS FUNCTION
NO SAVE DUAL SOUND CONDITION
SAVE DUAL SOUND CONDITION
NORMAL VOLUME CURVE
RUSHED VOLUME CURVE
WITHOUT TURBO SEARCH
WITH TURBO SEARCH
WITHOUT TURBO PICTURE/SOUND
WITH TURBO PICTURE/SOUND
WITHOUT HIGH DEVIATION OPTION
WITH HIGH DEVIATION OPTION
All manuals and user guides at all-guides.com

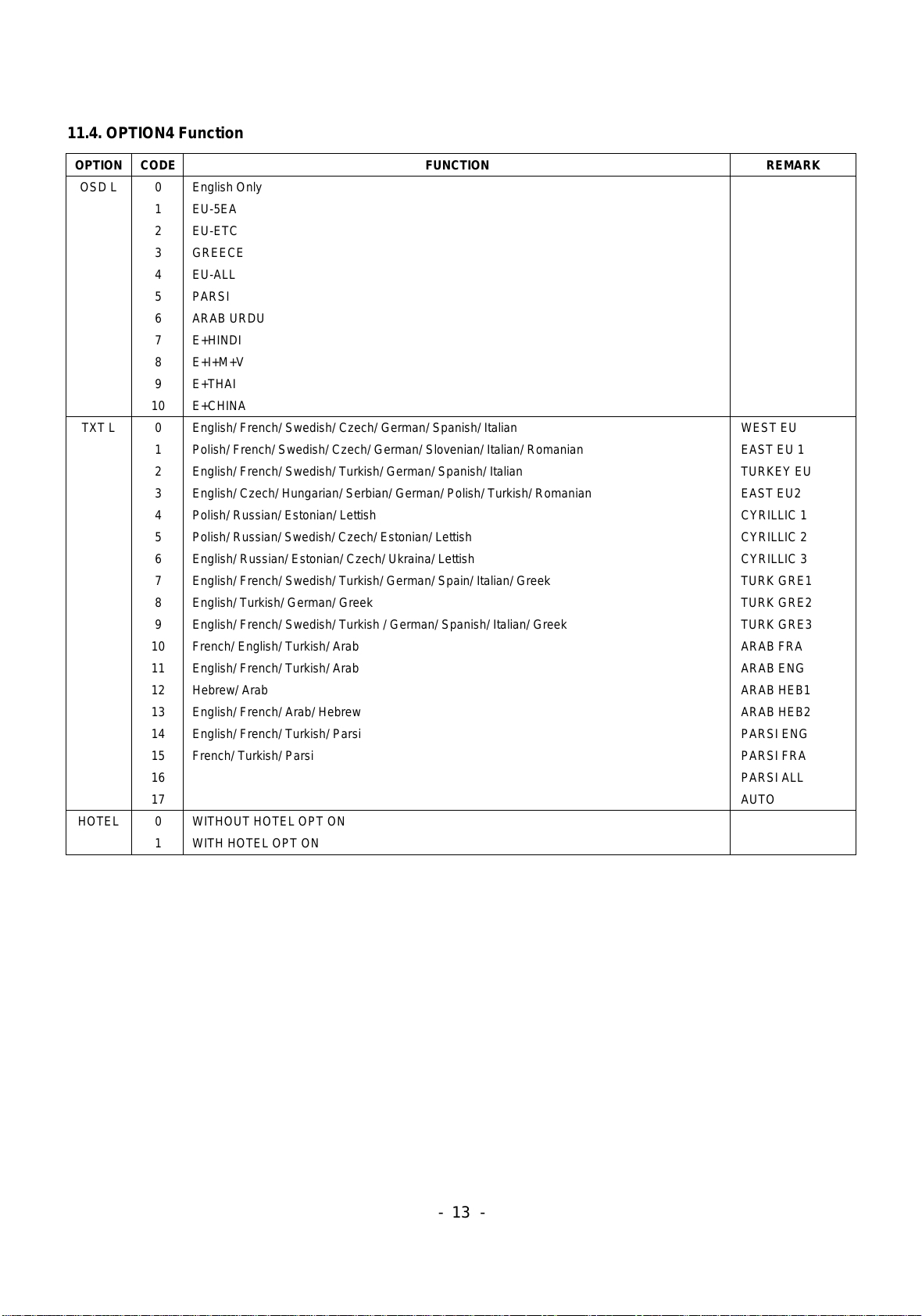

11.4. OPTION4 Function
- 13 -
CODE
0
1
2
3
4
5
6
7
8
9
10
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
0
1
OPTION
OSD L
TXT L
HOTEL
FUNCTION
English Only
EU-5EA
EU-ETC
GREECE
EU-ALL
PARSI
ARAB URDU
E+HINDI
E+I+M+V
E+THAI
E+CHINA
English/ French/ Swedish/ Czech/ German/ Spanish/ Italian
Polish/ French/ Swedish/ Czech/ German/ Slovenian/ Italian/ Romanian
English/ French/ Swedish/ Turkish/ German/ Spanish/ Italian
English/ Czech/ Hungarian/ Serbian/ German/ Polish/ Turkish/ Romanian
Polish/ Russian/ Estonian/ Lettish
Polish/ Russian/ Swedish/ Czech/ Estonian/ Lettish
English/ Russian/ Estonian/ Czech/ Ukraina/ Lettish
English/ French/ Swedish/ Turkish/ German/ Spain/ Italian/ Greek
English/ Turkish/ German/ Greek
English/ French/ Swedish/ Turkish / German/ Spanish/ Italian/ Greek
French/ English/ Turkish/ Arab
English/ French/ Turkish/ Arab
Hebrew/ Arab
English/ French/ Arab/ Hebrew
English/ French/ Turkish/ Parsi
French/ Turkish/ Parsi
WITHOUT HOTEL OPT ON
WITH HOTEL OPT ON
REMARK
WEST EU
EAST EU 1
TURKEY EU
EAST EU2
CYRILLIC 1
CYRILLIC 2
CYRILLIC 3
TURK GRE1
TURK GRE2
TURK GRE3
ARAB FRA
ARAB ENG
ARAB HEB1
ARAB HEB2
PARSI ENG
PARSI FRA
PARSI ALL
AUTO
All manuals and user guides at all-guides.com

TROUBLE SHOOTING
- 14 -
RF- STEREO
Selected correct system
In menu
Check the waveform
IF 1 of TU101
Check the waveform
At pin 4, 5 of IC11
Check the waveform
At pin 2, 4 of IC601
Check the Voltage
At pin 6 of IC601
Check the waveform
At pin 8, 9, 11, 12 of IC601
Check the Voltage
At pin 5, 6 of IC602
NO Check / Replace
TU 101
NO
NO
NO
Check The Voltage
At pin 2, 19, 20, 21, 24 of IIC11
Check / Replace Q601
Check / Replace
F806, D828(D805)
Check / Replace
C821, IC822, Q807
Check The voltage
At pin of IC821, IC822, Q807
NO
OK
OK
OK
OK
OK
OK
NO
No Raster / Sound OK
Check the
Heater voltage of CPT
(6 ~ 6.5Vrms)
Check
HV, Screen Voltage of
CPT
Check
R, G, B out of
CPT Board
Check the
Heater pulse of FBT
T402
Check 200V line of
CPT Board
& if no problem
check and Replace
Check
FR901, P402A
P402B, FR 401
Check
FBT T402
Check
FBT T402 Check
IC901, P903A
OK
OK OK NO
NO
NONO
All manuals and user guides at all-guides.com

- 15 -
NO RASTER
CHECK B+
At D829 cathode
Is the voltage at
each pin voltage of IC11 Check
Fuse of AC line
Check / Replace
Fuse
Check the Voltage
Of C803
Check the Voltage
Pin 4 of IC801
Check / Replace
IC801, IC802, IC826
Check / Replace
DB801
Check pin 60
Of IC11(H - Out)
Check Q402
Collector waveform
Check T401
& each pin voltage
Check Q401
Collector waveform
Check the
In/out of
regulator
Check Fuse and Rectifition Diode of
secondary Load of SMPS trans(T803)
Check / Replace
IC11
Check &
Replace
IC11
Check &
Replace
Q402
Check &
Replace
T401
Normal Abnormal
Ok
140 ~ 310V
Open
No
No
No
No
No
Yes
Yes
Yes
Yes
(IC821, IC822
IC823, IC824
IC825) Ok
18 ~ 20V
Ok Check / Replace
Fuse IC801
Ok
Check & Replace
T402
Yes
Check &
Replace
Q401
No
No
No
All manuals and user guides at all-guides.com

- 16 -
No Picture / No Sound
Is any OSD displayed?
Check receiving system in MENU
& execute Auto - Program.
Does the auto - Program
Operate properly.
Store on manual - program MENU
Check / Replace
CPT Board component
Go to
No Sound /
Picture OK
Check IC11 pin71,72,73
(R,G,B out)
No
No OK
OK OK
OK
Check pin40(V out 1)
1Vp-p
Check 1.8V, 3.3V,
5V DC Voltage
No Check SMPS Trans
Secondary Voltage
Q501, Q503, Q504
(R, G, B out of IC11)
No
No
Check pin18
Reset Voltage
OK
Check IC13
(Reset IC)
No
Check pin57, 58
SCL, SDA
OK
Check IC12(EEPROM)
& SCL, SDA, Line
No
Relace IC11
OK
3.3V swing
3.3V DC
All manuals and user guides at all-guides.com

- 17 -

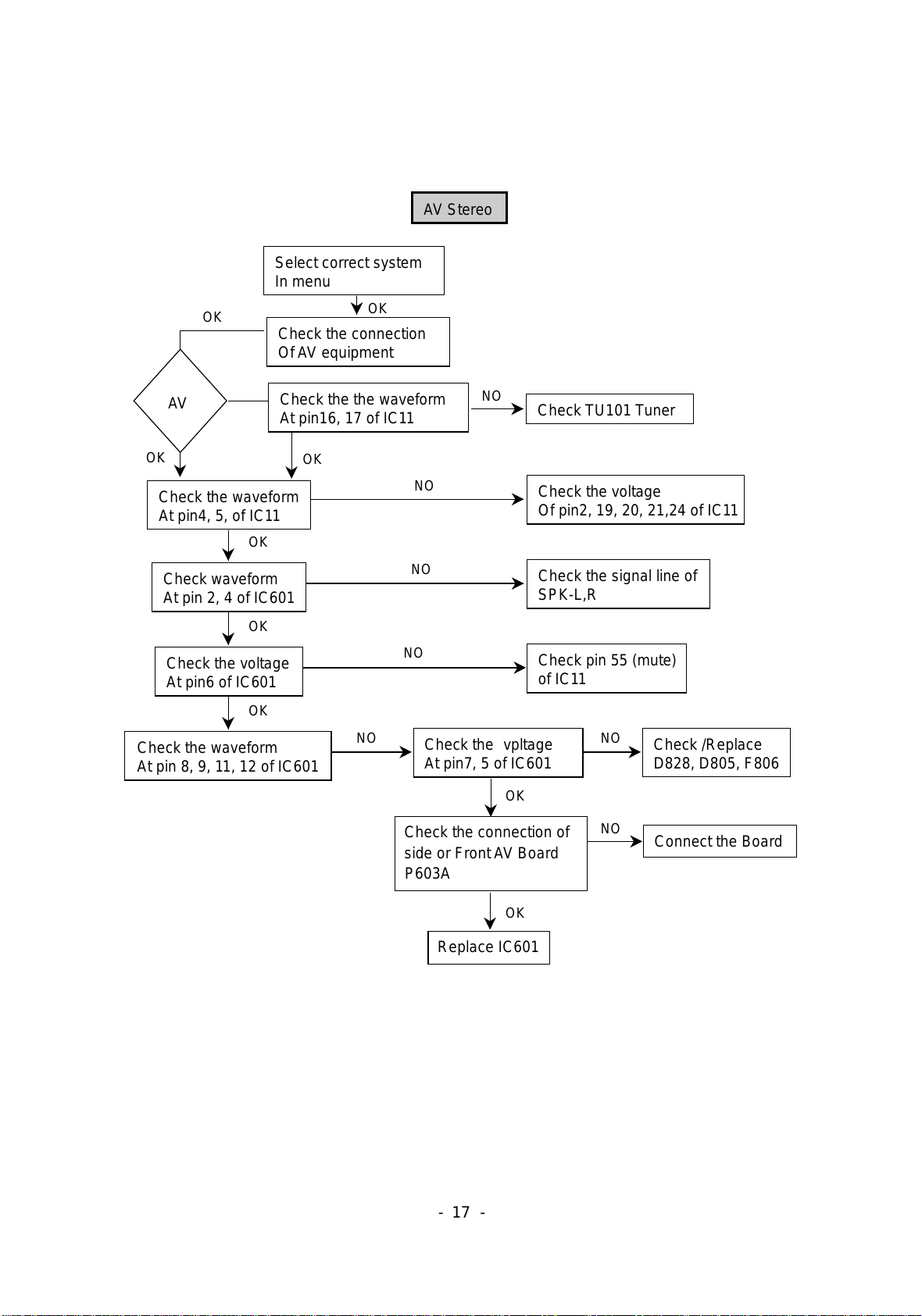

AV Stereo
Select correct system
In menu
Check the connection
Of AV equipment
Check the the waveform
At pin16, 17 of IC11 Check TU101 Tuner
Check the waveform
At pin4, 5, of IC11
Check waveform
At pin 2, 4 of IC601
Check the voltage
At pin6 of IC601
Check the waveform
At pin 8, 9, 11, 12 of IC601
Check the voltage
Of pin2, 19, 20, 21,24 of IC11
Check the signal line of
SPK-L,R
Check pin 55 (mute)
of IC11
Check the vpltage
At pin7, 5 of IC601 Check /Replace
D828, D805, F806
OK
AV
OK OK
OK
OK
OK
OK
NONO
NO
NO
NO
NO
OK
Check the connection of
side or Front AV Board NO Connect the Board
OK
Replace IC601
P603A
All manuals and user guides at all-guides.com

- 18 -

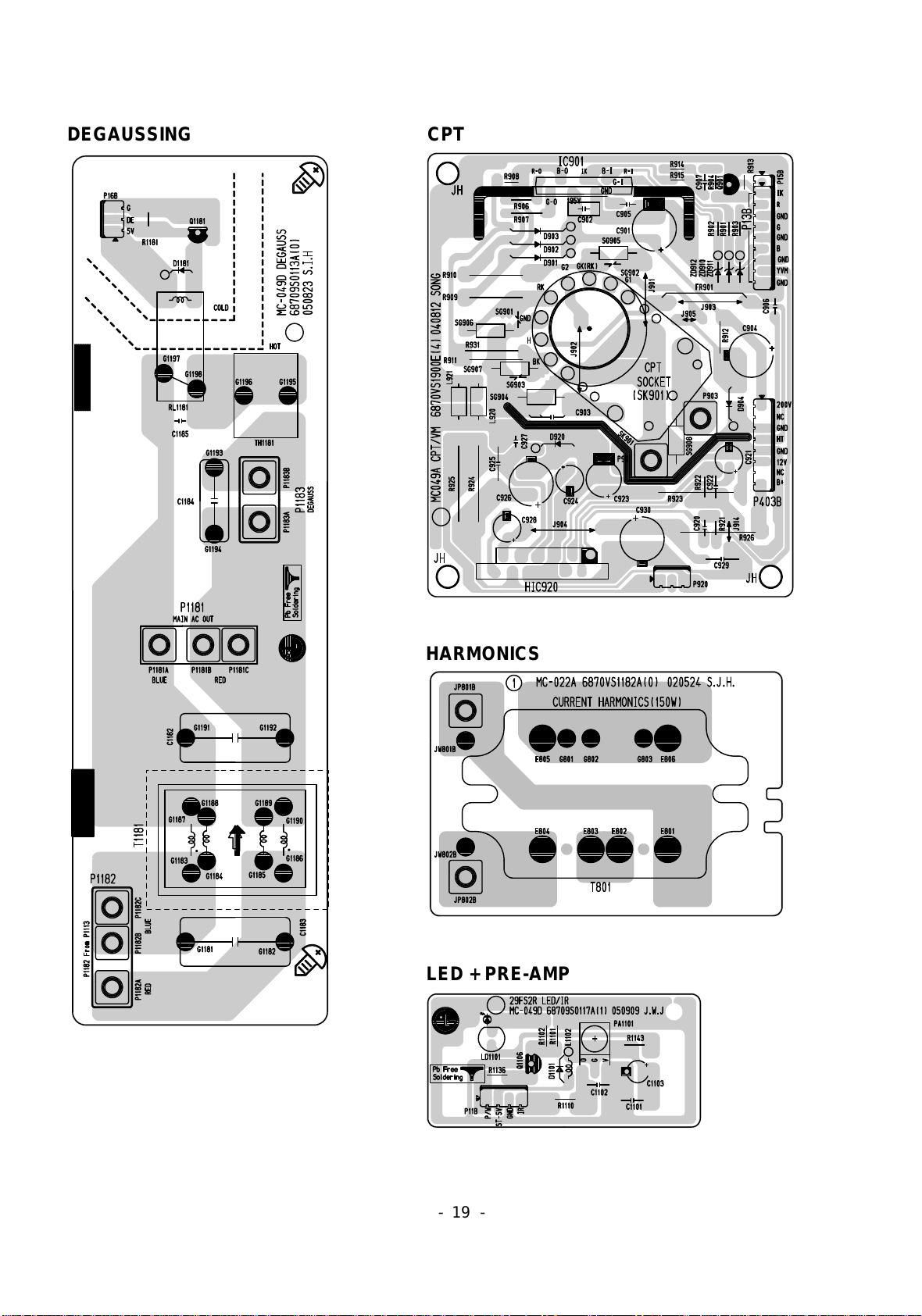

PRINTED CIRCUIT BOARD
MAIN
All manuals and user guides at all-guides.com

CPT
- 19 -
DEGAUSSING
LED + PRE-AMP
HARMONICS
All manuals and user guides at all-guides.com

- 20 -
SIDE-A/V
CONTROLPOWER
All manuals and user guides at all-guides.com
