LG 55EA8800 User manual

Printed in KoreaP/NO : MFL67692214 (1311-REV00)
CHASSIS : EB34D
MODEL : 55EA8800 55EA8800-TC
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
OLED TV
SERVICE MANUAL
North/Latin America http://aic.lgservice.com
Europe/Africa http://eic.lgservice.com
Asia/Oceania http://biz.lgservice.com
Internal Use Only

- 2 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
CONTENTS
CONTENTS .............................................................................................. 2
SAFETY PRECAUTIONS ........................................................................ 3
SERVICING PRECAUTIONS .................................................................... 4
SPECIFICATION ....................................................................................... 6
ADJUSTMENT INSTRUCTION .............................................................. 13

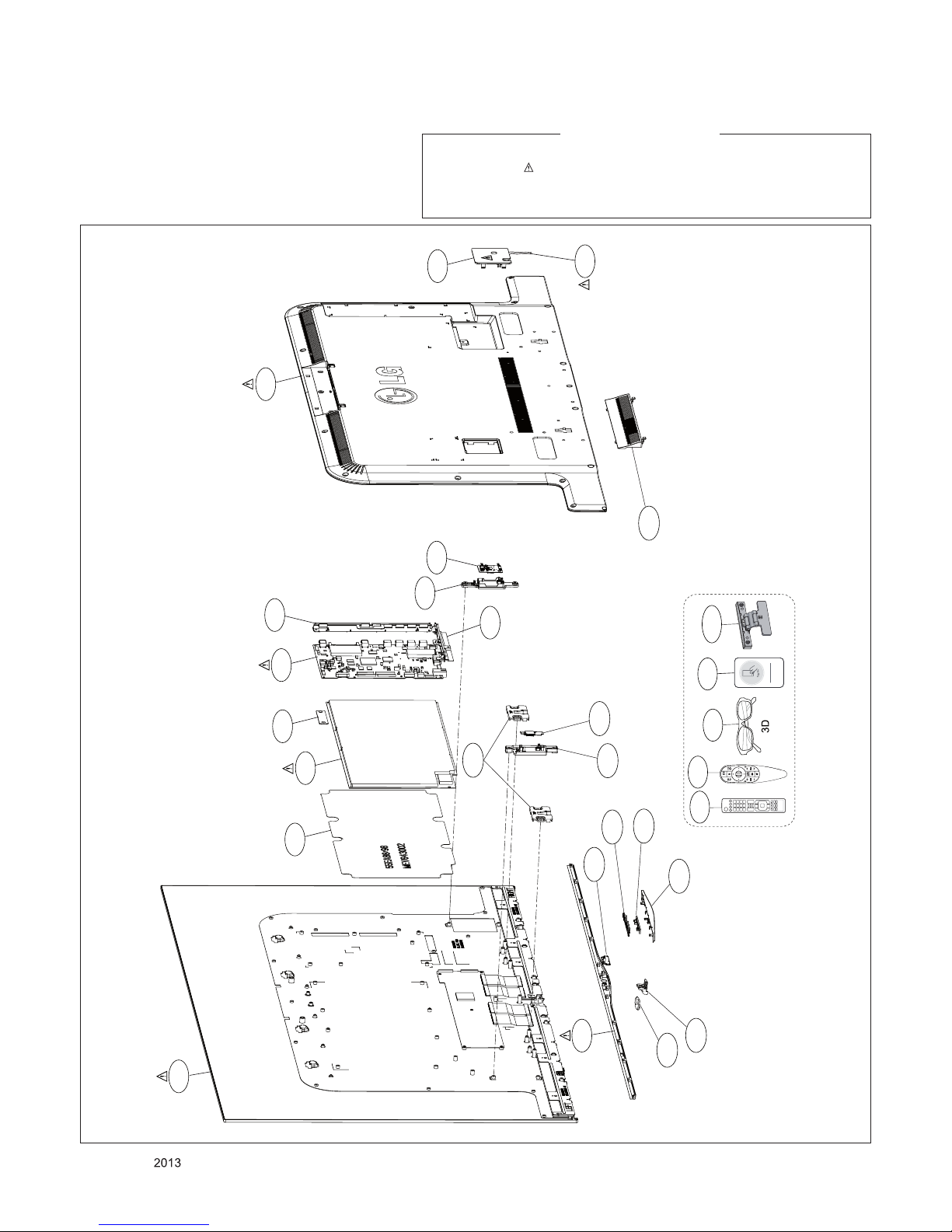

EXPLODED VIEW .................................................................................. 20
SCHEMATIC CIRCUIT DIAGRAM ..............................................................

- 3 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Exploded View.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1 W), keep the resistor 10 mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1 MΩ and 5.2 MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5 mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

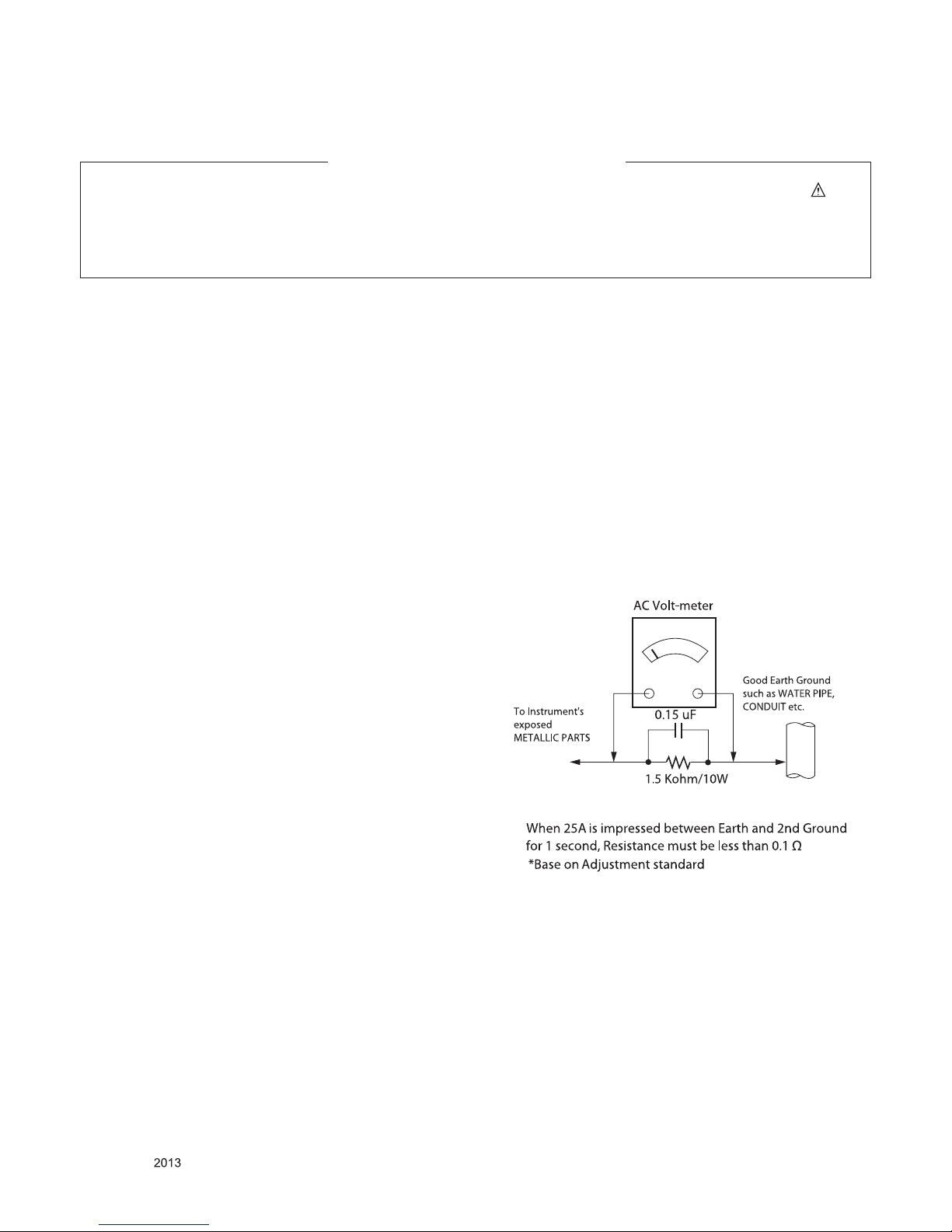

Leakage Current Hot Check circuit
IMPORTANT SAFETY NOTICE
SAFETY PRECAUTIONS

- 4 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SERVICING PRECAUTIONS
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conict between the
following servicing precautions and any of the safety precautions
on page 3 of this publication, always follow the safety precau-
tions. Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug
or other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an explo-
sion hazard.
2. Test high voltage only by measuring it with an appropriate
high voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specied otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10 % (by volume) Acetone and 90 %
(by volume) isopropyl alcohol (90 % - 99 % strength)
CAUTION: This is a ammable mixture.
Unless specied otherwise in this service manual, lubrication
of contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks
are correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test xtures specied in this
service manual.
CAUTION: Do not connect the test xture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged eas-
ily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some eld-effect transistors
and semiconductor “chip” components. The following techniques
should be used to help reduce the incidence of component dam-
age caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground. Alter-
natively, obtain and wear a commercially available discharg-
ing wrist strap device, which should be removed to prevent
potential shock reasons prior to applying power to the unit
under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or expo-
sure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder
ES devices.
4. Use only an anti-static type solder removal device. Some sol-
der removal devices not classied as “anti-static” can generate
electrical charges sufcient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufcient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads elec-
trically shorted together by conductive foam, aluminum foil or
comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective mate-
rial to the chassis or circuit assembly into which the device will
be installed.
CAUTION: Be sure no power is applied to the chassis or cir-
cuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replace-
ment ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your
foot from a carpeted oor can generate static electricity suf-
cient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropri-
ate tip size and shape that will maintain tip temperature within
the range or 500 °F to 600 °F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25 cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500 °F to 600 °F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500 °F to 600 °F)
b. First, hold the soldering iron tip and solder the strand
against the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder ows onto and around both the compo-
nent lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.

- 5 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent at against the cir-
cuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by
gently prying up on the lead with the soldering iron tip as the
solder melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing
the IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close
as possible to the component body.
2. Bend into a "U" shape the end of each of three leads remain-
ing on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as pos-
sible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and
if necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed when-
ever this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC connec-
tions).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the
good copper pattern. Solder the overlapped area and clip off
any excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly con-
nected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the
lead of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

- 6 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
1. Application range
This specification is applied to the OLED TV with EB34D
chassis.
2. Requirement for Test
Each part is tested as below without special appointment.
1) Temperature: 25 °C ± 5 °C(77 °F ± 9 °F), CST: 40 °C ± 5 °C
2) Relative Humidity: 65 % ± 10 %
3) Power Voltage
: Standard input voltage (AC 100-240 V~, 50/60 Hz)
* Standard Voltage of each products is marked by models.
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 5 minutes prior to
the adjustment.
3. Test method
1) Performance: LGE TV test method followed
2) Demanded other specification
- Safety : UL, CSA, CE, IEC specification
- EMC : FCC, ICES, CE, IEC specificat ion
- Wireless : Wireless HD Specification (Option)
4. Model General Specification
No. Item Specication Remarks
1 Market Asia, Oceania, Africa,
Middle East (PAL/DVB Market)
2 Broadcasting system
Digital : DVB-T
Analog : PAL-BG, DK, I/I’, SECAM-
DK/BG/I
* Australia/India : only PAL-BG(B)
3 Receiving system Digital : COFDM, QAM
Analog : Upper Heterodyne
► DVB-T
- Guard Interval(Bitrate_Mbit/s)
1/4, 1/8, 1/16, 1/32
- Modulation : Code Rate
QPSK : 1/2, 2/3, 3/4, 5/6, 7/8
16-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
64-QAM : 1/2, 2/3, 3/4, 5/6, 7/8
4 Input Voltage AC100 ~ 240V, 50/60Hz
5 Screen Size 55 inch Wide(1920 × 1080)
6 Aspect Ratio 16:9
7 Operating Environment 1) Temp : 0 ~ 40 deg
2) Humidity : ~ 80 %
8 Storage Environment 1) Temp : -20 ~ 60 deg
2) Humidity : ~ 85 %

- 7 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5. External Input Support Format
5.1. 2D Mode
(1) Component (Y, CB/PB, CR/PR)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock Proposed
1. 720*480i 15.63 59.94 13.500 SDTV, DVD 480I(525I)
2 720*480i 15.73 60.00 13.514 SDTV, DVD 480I(525I)
3. 720*480p 31.47 59.94 27.000 SDTV 480P
4 720*480p 31.50 60.00 27.027 SDTV 480P
5 720*576i 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz
6 720*576p 31.25 50.00 27.000 SDTV 576P 50Hz
7 1280*720 44.96 59.94 74.176 HDTV 720P
8 1280*720 45.00 50.00 74.250 HDTV 720P
9 1280*720 45.00 60.00 74.25 HDTV 720P 50Hz
10 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz,
11 1920*1080 33.72 59.94 74.176 HDTV 1080I
12 1920*1080 33.75 60.00 74.25 HDTV 1080I
13 1920*1080 56.25 50 148.5 HDTV 1080P
14 1920*1080 67.5 60.00 148.5 HDTV 1080P

- 8 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
(2) HDMI Input(PC/DTV)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed
HDMI-PC DDC
1 720*400 31.469 70.08 28.32 DOS Х
2 640*480 31.469 59.94 25.17 VESA(VGA) O
3 800*600 37.879 60.317 40 VESA(SVGA) O
4 1024*768 48.363 60.004 65 VESA(XGA) O
5 1360*768 47.712 60.015 84.75 VESA(WXGA) O
6 1152*864 54.348 60.053 80 VESA O
7 1280*1024 63.981 60.02 109.00 SXGA O
8 1920*1080 67.5 60 158.40 WUXGA(Reduced Blanking) O
HDMI-DTV
1 720*480 15.73 59.94 13.500
Spec. out but display.2 720*480 15.75 60.00 13.514
3 720*576 15.625 50.00 13.500
4 640*480 31.47 59.94 24.175
5 640*480 31.5 60.00 25.2
6 720*480 31.47 59.94 27 SDTV 480P
7 720*480 31.5 60.00 27.027 SDTV 480P
8 720*576 31.25 50.00 27 SDTV 576P
9 1280*720 44.96 59.94 74.176 HDTV 720P
10 1280*720 45 60.00 74.25 HDTV 720P
11 1280*720 37.5 50.00 74.25 HDTV 720P
12 1920*1080 28.125 50.00 74.25 HDTV 1080I
13 1920*1080 33.72 59.94 74.176 HDTV 1080I
14 1920*1080 33.75 60.00 74.25 HDTV 1080I
15 1920*1080 26.97 23.976 63.296 HDTV 1080P
16 1920*1080 27.00 24.000 63.36 HDTV 1080P
17 1920*1080 33.71 29.97 79.120 HDTV 1080P
18 1920*1080 33.75 30.00 79.20 HDTV 1080P
19 1920*1080 56.25 50.00 148.5 HDTV 1080P
20 1920*1080 67.432 59.94 148.350 HDTV 1080P
21 1920*1080 67.5 60 158.40 HDTV 1080P

- 9 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
(2) HDMI Input
1) HDMI 1.3 (3D Supported mode manually)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1280*720 45.00 60.00 74.25 HDTV 720P
2D to 3D
Side by Side(half),Top & Bottom,
Single Frame Sequential
2 1280*720 37.500 50 74.25 HDTV 720P
2D to 3D
Side by Side(half),Top & Bottom,
Single Frame Sequential
3 1920*1080 33.75 60.00 74.25 HDTV 1080I 2D to 3D
Side by Side(half),Top & Bottom,
4 1920*1080 28.125 50.00 74.25 HDTV 1080I 2D to 3D
Side by Side(half),Top & Bottom,
5 1920*1080 27.00 24.00 74.25 HDTV 1080P 2D to 3D,
Side by Side(half), Top & Bottom, Checkerboard
6 1920*1080 28.12 25.00 74.25 HDTV 1080P 2D to 3D,
Side by Side(half), Top & Bottom, Checkerboard
7 1920*1080 33.75 30.00 74.25 HDTV 1080P 2D to 3D,
Side by Side(half), Top & Bottom, Checkerboard
8 1920*1080 67.50 60.00 148.5 HDTV 1080P
2D to 3D,
Side by Side(half), Top & Bottom, Checkerboard,
Single Frame Sequential, Row Interleaving,
Column Interleaving
9 1920*1080 56.250 50.00 148.5 HDTV 1080P
2D to 3D
Side by Side(half), Top & Bottom, Checkerboard,
Single Frame Sequential, Row Interleaving,
Column Interleaving
5.2. 3D Mode
(1) RF Input
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remarks
1 1920*1080 45.00 60 74.25 HDTV 1080I Side by Side, Top & Bottom
2 1280*720 45.00 60 74.25 HDTV 720P Side by Side, Top & Bottom

- 10 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
2) HDMI 1.4b (3D Supported mode automatically)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) VIC 3D input proposed mode Proposed
1 640*480 31.469 / 31.5 59.94/ 60 25.125 1
Frame packing
Line alternative
Side-by-side(Full)
Top-and-Bottom
Side-by-side(half)
Secondary(SDTV 480P)
(SDTV 480P)
(SDTV 480P)
Secondary(SDTV 480P)
Secondary(SDTV 480P)
2 720*480 31.469 / 31.5 59.94 / 60 27.00/27.03 2,3
Frame packing
Line alternative
Side-by-side(Full)
Top-and-Bottom
Side-by-side(half)
Secondary(SDTV 480P)
(SDTV 480P)
(SDTV 480P)
Secondary(SDTV 480P)
Secondary(SDTV 480P)
3 720*576 31.25 50 27 17,18
Frame packing
Line alternative
Side-by-side(Full)
Top-and-Bottom
Side-by-side(half)
Secondary(SDTV 576P)
(SDTV 576P)
(SDTV 576P)
Secondary(SDTV 576P)
Secondary(SDTV 576P)
4 720*576 15.625 50 27 21
Frame packing
Line alternative
Side-by-side(Full)
Top-and-Bottom
Side-by-side(half)
Secondary(SDTV 576I)
(SDTV 576I
(SDTV 576I
Secondary(SDTV 576I)
Secondary(SDTV 576I)
5 1280*720 37.500 50 74.25 19
Top-and-Bottom
Side-by-side(half)
Side-by-side(Full)
Primary(HDTV 720P)
Primary(HDTV 720P)
6 1280*720 44.96 / 45 59.94 / 60 74.17/74.25 4
Top-and-Bottom
Side-by-side(half)
Side-by-side(Full)
Primary(HDTV 720P)
Primary(HDTV 720P)
7 1280*720 75 50 148.5 19 Frame packing
Line alternative
Primary(HDTV 720P)
(HDTV 720P)
(HDTV 720P)
8 1280*720 90 59.94 / 60 148.5 4 Frame packing
Line alternative
Primary(HDTV 720P)
(HDTV 720P)
(HDTV 720P)
9 1920*1080 28.125 50.00 74.25 20
Top-and-Bottom
Side-by-side(half)
Side-by-side(Full)
Secondary(HDTV 1080I)
Primary(HDTV 1080I)
10 1920*1080 33.72 / 33.75 59.94 / 60 74.17/74.25 5
Top-and-Bottom
Side-by-side(half)
Side-by-side(Full)
Secondary(HDTV 1080I)
Primary(HDTV 1080I)
11 1920*1080 56.25 50.00 148.5 20 Frame packing
Line alternative
Primary(HDTV 1080I)
(HDTV 1080I)
(HDTV 1080I)
12 1920*1080 67.437/67.50 59.94 / 60 148.5 5 Frame packing
Field alternative
Primary(HDTV 1080I)
(HDTV 1080I)
(HDTV 1080I)
13 1920*1080 26.97 / 27 23.97 / 24 74.17/74.25 32
Top-and-Bottom
Side-by-side(half)
Side-by-side(Full)
Primary(HDTV 1080P)
Primary(HDTV 1080P)
14 1920*1080 28.125 25 74.17/74.25 33
Top-and-Bottom
Side-by-side(half)
Side-by-side(Full)
Secondary(HDTV 1080P)
Secondary(HDTV 1080P)
15 1920*1080 33.716 / 33.75 29.976 / 30.00 74.25 34
Top-and-Bottom
Side-by-side(half)
Side-by-side(Full)
(HDTV 1080P)
Secondary(HDTV 1080P)
16 1920*1080 43.94/54 23.97 / 24 148.5 32 Frame packing
Field alternative
Primary(HDTV 1080P)
(HDTV 1080P)
(HDTV 1080P)
17 1920*1080 56.25 25 148.5 33 Frame packing
Field alternative
Secondary(HDTV 1080P)
(HDTV 1080P)
(HDTV 1080P)
18 1920*1080 67.432/67.5 29.976 / 30.00 148.5 34 Frame packing
Field alternative
(HDTV 1080P)
(HDTV 1080P)
(HDTV 1080P)
19 1920*1080 56.250 50 148.5 31 Top-and-Bottom
Side-by-side(half)
Primary(HDTV 1080P)
Secondary(HDTV 1080P)
20 1920*1080 67.43 / 67.5 59.94 / 60 148.35/148.50 16 Top-and-Bottom
Side-by-side(half)
Primary(HDTV 1080P)
Secondary(HDTV 1080P)

- 11 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
2) DLNA Input (3D Supported mode manually)
(5) DLNA Input
1) DLNA Input (3D Supported mode automatically)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1920*1080 33.75 30.000 74.25 HDTV 1080P
Side by Side, Top & Bottom
Checkerboard, Single Frame Sequential,
Row Interleaving, Column Interleaving
(Photo : Side by Side, Top & Bottom)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1920*1080 33.75 30.000 74.25 HDTV 1080P Side by Side, Top & Bottom,
Checkerboard, MPO (Photo)
(3) HDMI-PC Input (3D Supported mode manually)
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1024*768 48.363 60.004 65.000 HDTV 768P Side by Side, Top & Bottom
2 1360*768 47.712 60.015 85.500 HDTV 768P Side by Side, Top & Bottom
3 1920*1080 67.50 60.00 148.50 HDTV 1080P
Side by Side , Top & Bottom
Checkerboard, Single Frame Sequential
Row Interleaving, Column Interleaving
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1920*1080 33.75 30.000 74.25 HDTV 1080P
Side by Side, Top & Bottom
Checkerboard, Single Frame Sequential,
Row Interleaving, Column Interleaving
(Photo : Side by Side, Top & Bottom)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1920*1080 33.75 30.000 74.25 HDTV 1080P Side by Side, Top & Bottom,
Checkerboard, MPO (Photo)
(4) USB Input
1) USB Input (3D Supported mode automatically)
(2) USB Input (3D Supported mode manually)

- 12 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

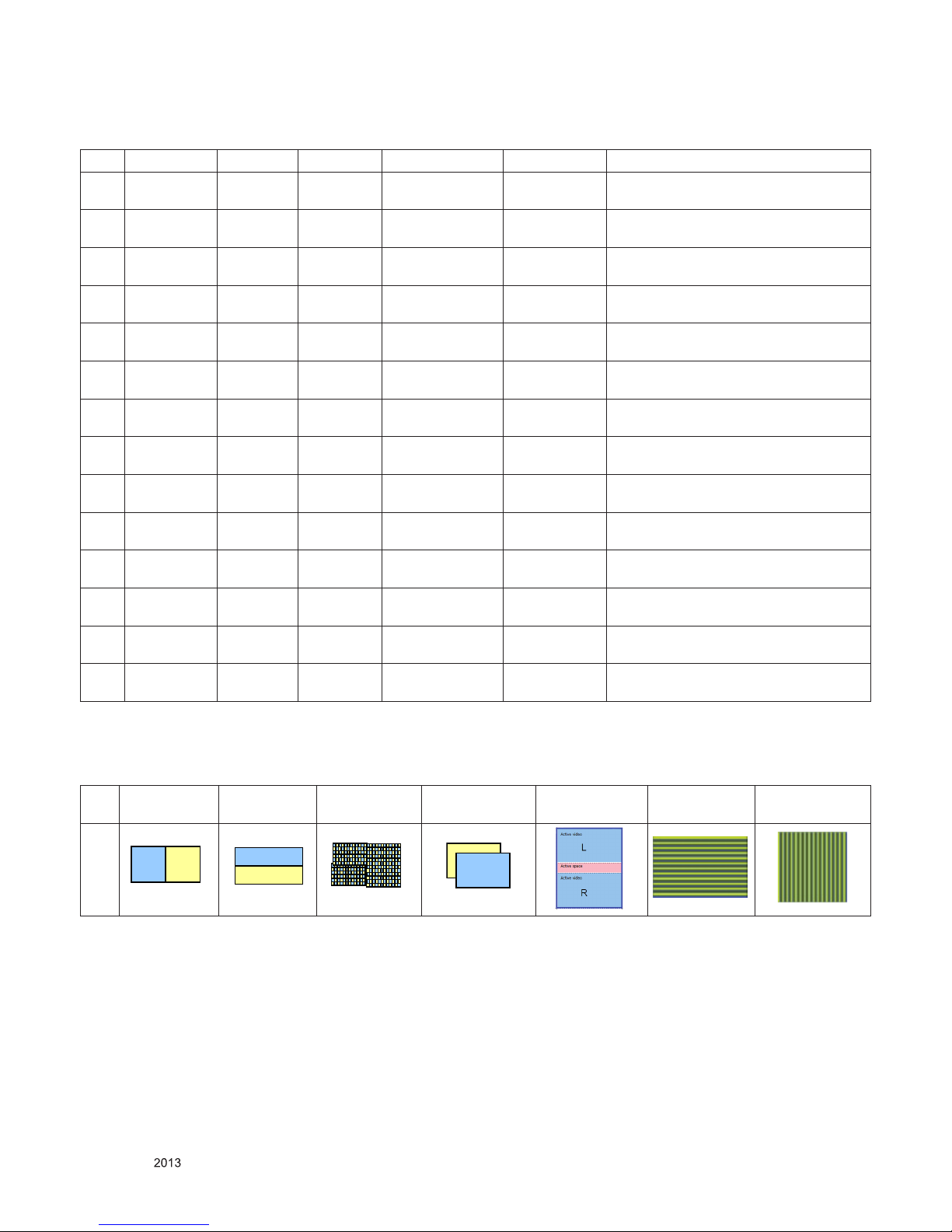

■ Remark: 3D Input mode
No. Side by Side Top & Bottom Checker board Single Frame
Sequential Frame Packing Line Interleaving
Column
Interleaving
1
R
L
R
LLLLL
L
R
L
(6) Component Input
No. Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed 3D input proposed mode
1 1280*720 37.5 50 74.25 HDTV 720P 2D to 3D,
Side by Side(half), Top & Bottom
2 1280*720 45.00 60.00 74.25 HDTV 720P 2D to 3D,
Side by Side(half), Top & Bottom
3 1280*720 44.96 59.94 74.176 HDTV 720P 2D to 3D,
Side by Side(half), Top & Bottom
4 1920*1080 33.75 60.00 74.25 HDTV 1080I 2D to 3D,
Side by Side(half), Top & Bottom
5 1920*1080 33.72 59.94 74.176 HDTV 1080I 2D to 3D,
Side by Side(half), Top & Bottom
6 1920*1080 28.12 50 74.25 HDTV 1080I 2D to 3D,
Side by Side(half), Top & Bottom
7 1920*1080 67.500 60 148.50 HDTV 1080P 2D to 3D,
Side by Side(half), Top & Bottom
8 1920*1080 67.432 59.94 148.352 HDTV 1080P 2D to 3D,
Side by Side(half), Top & Bottom
9 1920*1080 27.000 24.000 74.25 HDTV 1080P 2D to 3D,
Side by Side(half), Top & Bottom
10 1920*1080 28.12 25 74.25 HDTV 1080P 2D to 3D,
Side by Side(half), Top & Bottom
11 1920*1080 56.25 50 74.25 HDTV 1080P 2D to 3D,
Side by Side(half), Top & Bottom
12 1920*1080 26.97 23.976 74.176 HDTV 1080P 2D to 3D,
Side by Side(half), Top & Bottom
13 1920*1080 33.75 30.000 74.25 HDTV 1080P 2D to 3D,
Side by Side(half), Top & Bottom
14 1920*1080 33.71 29.97 74.176 HDTV 1080P 2D to 3D,
Side by Side(half), Top & Bottom

- 13 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
ADJUSTMENT INSTRUCTION
1. Application Range
This specification sheet is applied to EB34D Chassis applied
OLED TV all models manufactured in TV factory.
2. Designation
(1) Because this is not a hot chassis, it is not necessary to
use an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25 °C ± 5 °C of temperature and 65 % ± 10 % of relative
humidity if there is no specific designation.
(4) The input voltage of the receiver must keep AC 100-240
V~, 50/60 Hz.
(5) The receiver must be operated for about 5 minutes prior to
the adjustment when module is in the circumstance of over
15 °C.
In case of keeping module is in the circumstance of 0 °C, it
should be placed in the circumstance of above 15 °C for 2
hours.
In case of keeping module is in the circumstance of below
-20 °C, it should be placed in the circumstance of above 15
°C for 3 hours.
[Caution]
When still image is displayed for a period of 20 minutes or
longer (Especially where W/B scale is strong. Digital pattern
13ch and/or Cross hatch pattern 09ch), there can some
afterimage in the black level area.
3. MAIN PCBA Adjustments
3.1. ADC Calibration
- An ADC calibration is not necessary because MAIN SoC
(LGExxxx) is already calibrated from IC Maker
- If it needs to adjust manually, refer to appendix
3.2. MAC Address, ESN, Widevine, HDCP2.0
key download
(1) Equipment & Condition
1) Play file: keydownload.exe
(2) Communication Port connection
1) Key Write: Com 1,2,3,4 and 115200 (Baudrate)
2) Barcode: Com 1,2,3,4 and 9600 (Baudrate)
(3) Download process
1) Select the download items.
2) Mode check: Online Only
3) Check the test process : DETECT → MAC_WRITE →
WIDEVINE_WRITE
4) Play: START
5) Check of result: Ready, Test, OK or NG
6) Printer out (MAC Address Label)
(4) Communication Port connection
1) Connect
: PCBA Jig → RS-232C Port == PC → RS-232C Port
(5) Download
1) AJ/JA/IL models (13Y_H13)
- MAC+ Widevine + ESN + HDCP 2.0
(6) Inspection
- In INSTART menu, check these keys.
3.3. LAN Inspection(Ping Test)
3.3.1. Equipment setting
(1) Play the LAN Port Test PROGRAM.
(2) Input IP set up for an inspection to Test Program.
*IP Number : 12.12.2.2
Connect SET → LAN Port == PC → LAN Port
3.3.2. LAN PORT inspection(PING TEST)
(1) Play the LAN Port Test Program.
(2) Connect each other LAN Port Jack.
(3) Play Test (F9) button and confirm OK Message.
(4) Remove LAN cable.
SET PC

- 14 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
3.4. EDID download
3.4.1. Overview
It is a VESA regulation. A PC or a MNT will display an optimal
resolution through information sharing without any necessity
of user input. It is a realization of "Plug and Play".
3.4.2. Equipment
(1) Since embedded EDID data is used, EDID download JIG,
HDMI cable are not need.
(2) Adjustment remote control
3.4.3. Download method
(1) Press Adj. key on the Adjustment remote control
(2) Select EDID D/L menu.
(3) By pressing Enter key, EDID download will begin
(4) If Download is successful, OK is display, but If Download is
failure, NG is displayed.
(5) If Download is failure, Re-try downloads.
Caution) When EDID Download, must remove HDMI Cable.
3.4.4. EDID DATA
# HDMI1 (C/S: E8 71)
EDID Block 0, Bytes 0-127 [00H-7FH]
EDID Block 1, Bytes 128-255 [80H-FFH]
* Checksum (HDMI 1/2/3/4)
4. Final Assembly Adjustment
4.1. White Balance Adjustment
4.1.1. Overview
(1) W/B adj. Objective & How-it-works
1) Objective: To reduce each Panel's W/B deviation
2) How-it-works : When R/G/B gain in the OSD is at 192, it
means the panel is at its Full Dynamic Range. In order
to prevent saturation of Full Dynamic range and data,
one of R/G/B is fixed at 192, and the other two is
lowered to find the desired value.
3) Adjustment condition : normal temperature
① Surrounding Temperature : 25 °C ± 5 °C
② Warm-up time: About 5 Min
③ Surrounding Humidity : 20 % ~ 80 %
④ Before White balance adjustment, Keep power on
status, don’t power off
(2) Adj. condition and cautionary items
1) Lighting condition in surrounding area surrounding
lighting should be lower 10 lux. Try to isolate adj. area
into dark surrounding.
2) Probe location: Color Analyzer(CA-210) probe should be
within 10 cm and perpendicular of the module surface
(80°~ 100°)
3) Aging time
① After Aging Start, Keep the Power ON status during 5
Minutes.
② In case of LCD, Back-light on should be checked
using no signal or Full-white pattern.
4.1.2. Equipment
(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH 12 / LED:
CH 14 / ALEF: CH 18 / OLED: CH 17)
(2) Adjustment Computer(During auto adj., RS-232C protocol
is needed)
(3) Adjustment Remote control
(4) Video Signal Generator MSPG-925F 720p/204-Gray
(Model: 217, Pattern: 49)
* Color Analyzer Matrix should be calibrated using CS-1000.
4.1.3. Equipment connection
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 00 FF FF FF FF FF FF 00 1E 6D 01 00 01 01 01 01
10 01 17 01 03 80 A0 5A 78 0A EE 91 A3 54 4C 99 26
20 0F 50 54 A1 8 00 31 40 45 40 61 40 71 40 81 80
30 01 01 01 01 01 01 02 3A 80 18 71 38 2D 40 58 2C
40 45 00 40 84 63 00 00 1E 66 21 50 B0 51 00 1B 30
50 40 70 36 00 40 84 63 00 00 1E 00 00 00 FD 00 3A
60 3E 1E 53 10 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 XX
0 1 2 3 4 5 6 7 8 9 A B C D E F
0 02 03 3A F1 4E 10 9F 04 13 05 14 03 02 12 20 21
10 22 15 01 29 3D 06 C0 15 07 50 09 57 07 78 03 0C
20 00 10 00 B8 2D 20 C0 0E 01 4F 3F FC 08 10 18 10
30 06 10 16 10 28 10 E3 05 03 01 02 3A 80 18 71 38
40 2D 40 58 2C 45 00 40 84 63 00 00 1E 01 1D 80 18
50 71 1C 16 20 58 2C 25 00 40 84 63 00 00 9E 01 1D
60 00 72 51 D0 1E 20 6E 28 55 00 40 84 63 00 00 1E
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 XX
Input FFh (Checksum)
HDMI1 E8 81
HDMI2 E8 71
HDMI3 E8 61
HDMI4 E8 51
Co lo r An alyzer
Co mp ut er
Pat tern Generat or
RS -2 32C
RS-2 32C
RS-2 32C
Probe
Signal Source
* If TV internal pattern is used, not needed

- 15 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.1.4. Adj. Command (Protocol)
▪ RS-232C Command used during auto-adjustment.
▪ Adj. Map
4.1.5. Adjustment method
(1) Auto WB calibration
1) Set TV in ADJ mode using P-ONLY key(or POWER
ONLY key).
2) Place optical probe on the center of the display
- It need to check probe condition of zero calibration
before adjustment
3) Connect RS-232C Cable
4) Select mode in ADJ Program and begin a adjustment.
5) When WB adjustment is completed with OK message,
check adjustment status of pre-set mode(Cool, Medium,
Warm)
6) Remove probe and RS-232C cable.
▪ W/B Adj. must begin as start command “wb 00 00” , and
finish as end command “wb 00 ff”, and Adj. offset if need
(2) LED White balance table
1) Cool Mode
- Purpose : Especially G-gain fix adjust leads to the
luminance enhancement. Adjust the color temperature
to reduce the deviation of the module color temperature.
- Principle : To adjust the white balance without the
saturation, Adjust the G gain more than 172 ( If R gain
or G gain is more than 255 , G gain can adjust less than
172 ) and change the others ( R/B Gain ).
- Adjustment mode : mode - Cool
2) Medium / Warm Mode
- Purpose : Adjust the color temperature to reduce the
deviation of the module color temperature.
- Principle : To adjust the white balance without the
saturation, Fix the one of R/G/B gain to 192 (default
data) and decrease the others.
- Adjustment mode : Two modes - Medium / Warm
4.1.6. Reference (White balance Adj. coordinate and
color temperature)
▪ Luminance : 204 Gray, 80IRE
▪ Standard color coordinate and temperature using CS-1000
(over 26 inch)
▪ Standard color coordinate and temperature using CA-210(CH-14)
4.2. Tool Option setting & Inspection per
countries
4.2.1. Overview
(1) Tool option selection is only done for models in Non-USA
North America due to rating
(2) Applied model: LA02D and LA02E Chassis applied to
CANADA and MEXICO
4.2.2. Country Group selection
(1) Press ADJ key on the Adj. R/C, and then select Country
Group Menu
(2) Depending on destination, select KR or US, then on the
lower Country option, select US, CA, MX. Selection is
done using +, - KEY
4.2.3. Tool Option Inspection
(1) Press Adj. key on the Adj. R/C, and then check Tool option.
4.3. Magic Motion remote control Check
4.3.1. Required Instruments
(1) RF-remote control for check, IR-KEY-CODE remote
control.
(2) Check AA battery before test. A recommendation is that a
tester change battery every lots.
4.3.2. Test procedures
(1) Make pairing with TV set by pressing “Start key(Wheel
key)” on RCU.
(2) Check a cursor on screen by pressing "Wheel key" of RCU.
(3) Stop paring with TV set by pressing “Back+ Home” key of
RCU.
RS-232C COMMAND Explanation
CMD DATA ID
Wb 00 00 Begin White Balance adj.
Wb 00 ff End White Balance adj.(internal pattern disappears)
Adj. item
Command
(lower case ASCII)
Data Range
(Hex.) Default
(Decimal)
CMD1 CMD2 MIN MAX
Cool
R Gain j g 00 C0
G Gain j h 00 C0
B Gain j i 00 C0
R Cut
G Cut
B Cut
Medium
R Gain j a 00 C0
G Gain j b 00 C0
B Gain j c 00 C0
R Cut
G Cut
B Cut
Warm
R Gain j d 00 C0
G Gain j e 00 C0
B Gain j f 00 C0
R Cut
G Cut
Mode Coordinate Temp ∆uv
x y
Cool 0.276 0.283 11,000 K 0.0000
Medium 0.285 0.293 9,300 K 0.0000
Warm 0.313 0.329 6,500 K +0.0030
Mode Coordinate Temp ∆uv
x y
Cool 0.276±0.002 0.283±0.002 11,000 K 0.0000
Medium 0.285±0.002 0.293±0.002 9,300 K 0.0000
Warm 0.313±0.002 0.329±0.002 6,500 K +0.0030

- 16 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
4.4. WIFI MAC ADDRESS CHECK
a. Using RS232
b. check the menu on in-start
4.5. 3D pattern test(Only for 3D models)
4.5.1. Test equipment
(1) Pattern Generator MSHG-600 or MSPG-6100 (HDMI 1.4
support)
(2) Pattern: HDMI mode (model No. 872, pattern No. 83)
4.5.2. Test method
(1) Input 3D test signal as below.
(2) Press ‘OK” key as a 3D input OSD is shown.
(3) Check pattern as Fig2 without 3D glasses. (3D mode
without 3D glasses)
4.6. EYE-Q function check
(1) Turn on TV.
(2) Press EYE key of Adjustment remote control.
(3) Cover the Eye Q sensor on the front of the set using your
hand and wait for 6 seconds.
(4) Confirm that value is lower than 100 of the “Sensor Data”.
If the value is not lower than 100 after 6 seconds, replace
Eye Q sensor.
(5) Remove3 your hand from the Eye Q sensor and wait 6
seconds.
(6) Confirm that “ok” pop up. If change is not seen, replace
Eye Q sensor
4.7. Speaker Inspection
(1) Input “Check-S" key of adjust remote control to inspect
speaker.
1) When you click the first, the output volume of left &right
main speakers must be 50.
2) When you click the second, the output volume of left
&right main speakers must be 80.
3) When you click the third, the output volume of left &right
main speakers must be 100.
4) When you click the fourth, the output volume of left main
speaker must be 50.
5) When you click the fifth, the output volume of right main
speaker must be 50.
6) When you click the sixth, the output volume of left sub
speaker must be 100.
7) When you click the seventh, the output volume of right
sub speaker must be 100.
8) When you click the eighth, the output volume of all
speakers(left &right main speaker and left &right sub
speaker) must be 30.
Command Set ACK
Transmission [A][I][][Set ID][][20][Cr] [O][K][X] or [NG]
<Fig.1> HDMI Model No.872, Pattern No. 83
<Fig.2> OK in 3D mode without
3D glasses
<Fig.3> NG in 3D mode without
3D glasses

- 17 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

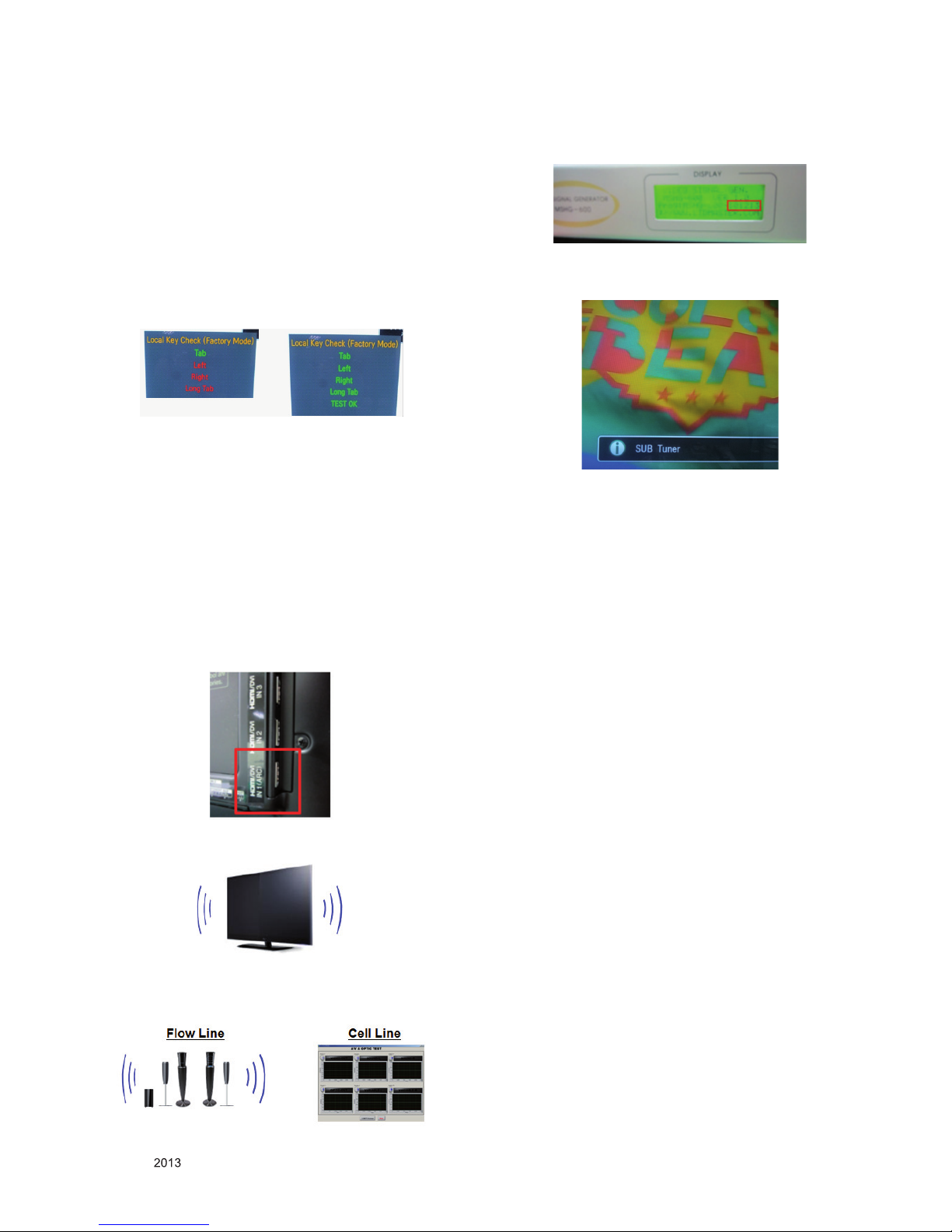

4.8. Control PCB Inspection
** Before you start a test, you must run a “Power-only mode”
After you touch soft touch key of set, local key check
display will start.
(1) Tab test
: Touch Soft touch key of set quickly
(2) Left test
: Touch Soft touch key of set to the left side
(3) Right test
: Touch Soft touch key of set to the right side
(4) Long tab test
: Touch Soft touch key of SET long
** The picture on your left side will pop up while tab test is
progressed. The color of passed test will be changed green.
‘TEST OK’ will pop up the very bottom if you pass all test.
4.9. HDMI ARC Function Inspection
4.9.1. Test equipment
- Optic Receiver Speaker
- MSHG-600 (SW: 1220 ↑)
- HDMI Cable (for 1.4 version)
4.9.2. Test method
(1) Insert the HDMI Cable to the HDMI ARC port from the
master equipment (HDMI1)
(2) Check the sound from the TV Set
(3) Check the Sound from the Speaker or using AV & Optic
TEST program (It’s connected to MSHG-600)
* Remark: Inspect in Power Only Mode and check SW version
in master equipment
4.10. PIP/ W&R Function Inspection
(1) Objective : To check the connection between sub tuner
and PCBA, and their Function
(2) Test Method : This Inspection is available only Power-Only
Status.
1) Press exit key of the Adj. R/C and Press PIP key.
2) Check that the SUB TUNER pop up window on the TV
Set.
3) Check that the normal operation (picture, sound) of DTV
on the TV Set.
4.11. Ship-out mode check (In-stop)
▪ After final inspection, press In-Stop key of the Adj. R/C and
check that the unit goes to Stand-by mode.

- 18 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
5. AUDIO output check
5.1. AUDIO output check
(1) RF input: Mono, 1 KHz sine wave signal, 100 % Modulation
(2) CVBS, Component: 1 KHz sine wave signal (0.5 Vrms)
5.2. Specification
6. GND and HI-POT Test
6.1. GND & HI-POT auto-check preparation
- Check the POWER cable and SIGNAL cable insertion
condition
6.2. GND & HI-POT auto-check
(1) Pallet moves in the station. (POWER CORD / AV CORD is
tightly inserted)
(2) Connect the AV JACK Tester.
(3) Controller (GWS103-4) on.
(4) GND Test (Auto)
- If Test is failed, Buzzer operates.
- If Test is passed, execute next process (Hi-pot test).
(Remove A/V CORD from A/V JACK BOX)
(5) HI-POT test (Auto)
- If Test is failed, Buzzer operates.
- If Test is passed, GOOD Lamp on and move to next
process automatically.
6.3. Checkpoint
(1) Test voltage
- GND: 1.5 KV/min at 100 mA
- SIGNAL: 3 KV/min at 100 mA
(2) TEST time: 1 second
(3) TEST POINT
- GND Test = POWER CORD GND and SIGNAL CABLE
GND.
- Hi-pot Test = POWER CORD GND and LIVE &
NEUTRAL.
(4) LEAKAGE CURRENT: At 0.5 mArms

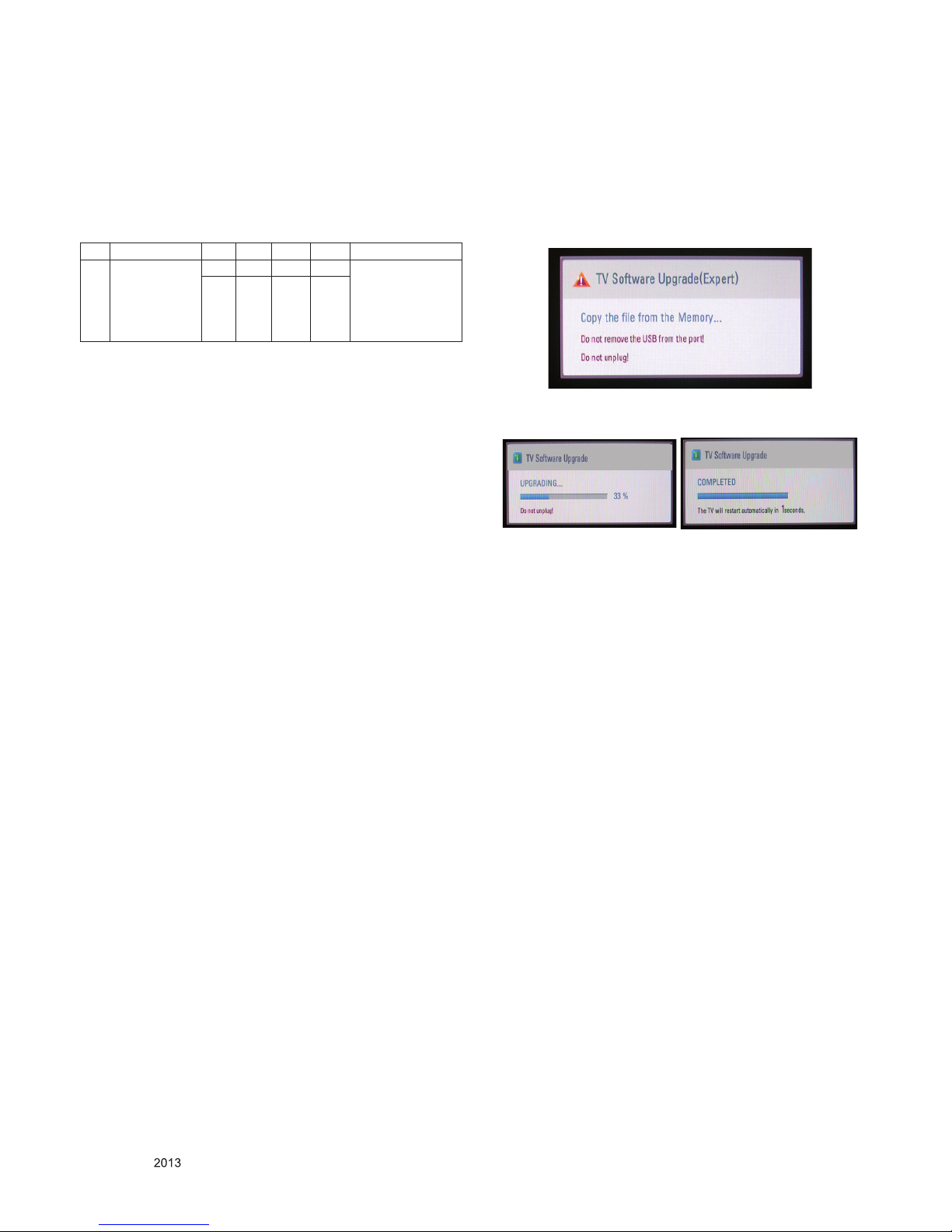

7. USB S/W download(Service only)
(1) Put the USB Stick to the USB socket.
(2) Automatically detecting update file in USB Stick.
- If your downloaded program version in USB Stick is Low,
it didn't work. But your downloaded version is High, USB
data is automatically detecting.
(3) Show the message "Copying files from memory".
(4) Updating is starting.
(5) Updating Completed, The TV will restart automatically.
(6) If your TV is turned on, check your updated version and
Tool option. (explain the Tool option, next stage)
* If downloading version is more high than your TV have,
TV can lost all channel data. In this case, you have to
channel recover. if all channel data is cleared, you didn't
have a DTV/ATV test on production line.
* After downloading, have to adjust TOOL OPTION again.
1) Push "IN-START" key in service remote control.
2) Select "Tool Option 1" and push "OK" key.
3) Punch in the number. (Each model has their number.)
No. Item Min Typ Max Unit Remark
1
Audio practical
max Output, L/R
(Distortion=10%
max Output)
9.0 10.0 12.0 W (1) Measurement
condition
- EQ/AVL/Clear
Voice: Off
(2) Speaker (8Ω
Impedance)
8.5 8.9 9.9 Vrms

- 19 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
8. Optional adjustments
8.1. Manual ADC Calibration
8.1.1. Equipment & Condition
(1) Adjustment Remote control
(2) 801GF (802B, 802F, 802R) or MSPG925FA Pattern
Generator
- Resolution: 480i Comp1 (MSPG-925FA: model-209,
pattern-65)
- Resolution: 1080p Comp1 (MSPG-925FA: model-225,
pattern-65)
- Resolution : 1080p RGB (MSPG-925FA: model-225,
pattern-65)
- Pattern : Horizontal 100% Color Bar Pattern
- Pattern level: 0.7±0.1 Vp-p
8.1.2. Adjust method
(1) Check connected condition of Comp cable to the
equipment
(2) Give a 480i Mode, Horizontal 100% Color Bar Pattern to
Comp1. (MSPG-925FA → Model: 209, Pattern: 65)
(3) Change input mode as Component1 and picture mode as
“Standard”
(4) Press the In-start key on the ADJ remote control after at
least 1 min of signal reception. Then, select 7.External
ADC. And Press OK or Right key for going to sub menu.
(5) Press OK in Comp 480i menu
(6) Give a 1080p Mode, Horizontal 100% Color Bar Pattern to
Comp1. (MSPG-925FA → Model: 225, Pattern: 65)
(7) Press OK in Comp 1080p menu
(8) If ADC Comp is successful, “ADC Component Success” is
displayed.
(9) If ADC calibration is failure, “ADC Component Fail” is
displayed.
(10) If ADC calibration is failure, after rechecking ADC pattern
or condition, retry calibration
(11) If ADC calibration is failure, after recheck ADC pattern or
condition, retry calibration
8.2. Manual White balance Adjustment
8.2.1. Adj. condition and cautionary items
(1) Lighting condition in surrounding area surrounding lighting
should be lower 10 lux. Try to isolate adj. area into dark
surrounding.
(2) Probe location: Color Analyzer (CA-210) probe should be
within 10cm and perpendicular of the module surface
(80°~ 100°)
(3) Aging time
1) After Aging Start, Keep the Power ON status during 5
Minutes.
2) In case of LCD, Back-light on should be checked using
no signal or Full-white pattern.
8.2.2. Equipment
(1) Color Analyzer: CA-210 (NCG: CH 9 / WCG: CH12 / LED:
CH14)
(2) Adj. Computer (During auto adj., RS-232C protocol is
needed)
(3) Adjust Remote control
(4) Video Signal Generator MSPG-925F 720p/216-Gray
(Model: 217, Pattern: 78)
8.2.3. Adjustment
(1) Set TV in Adj. mode using POWER ON
(2) Zero Calibrate the probe of Color Analyzer, then place it on
the center of LCD module within 10cm of the surface.
(3) Press ADJ key → EZ adjust using adj. R/C → 6. White-
Balance then press the cursor to the right (KEY►). When
KEY(►) is pressed 216 Gray internal pattern will be
displayed.
(4) One of R Gain / G Gain / B Gain should be fixed at 192,
and the rest will be lowered to meet the desired value.
(5) Adj. is performed in COOL, MEDIUM, WARM 3 modes of
color temperature.
▪ If internal pattern is not available, use RF input. In EZ Adj.
menu 6.White Balance, you can select one of 2 Test-pattern:
ON, OFF. Default is inner(ON). By selecting OFF, you can
adjust using RF signal in 216 Gray pattern

- 20 - LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes
501
512
500
580
561 560
830
810
511
510
200
300
540
570
521
571
522
400
700
710
530
590
820
A22
A2 AT1
AG1 CAM1
Option
EXPLODED VIEW
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These
parts are identified by in the Schematic Diagram and EXPLODED VIEW.
It is essential that these special safety parts should be replaced with the same components as
recommended in this manual to prevent X-RADIATION, Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
