LG 43UV770M User manual

LG First Use Wizard
pages 17 – 18
Custom Master TV Setup
pages 55 – 57
Cloning Procedures
pages 58 – 64
EXPERIENCED INSTALLER
Commercial Mode Setup Guide
Note: Selected features shown in this guide may not be available on all models.
Hospital Grade Interactive Pro:Centric ®TVs
© Copyright 2017 LG Electronics U.S.A., Inc. P/N: 206-4324 (Rev A)
43UV770M
49UV770M
55UV770M

2206-4324
© Copyright 2017 LG Electronics U.S.A., Inc.
MODEL and SERIAL NUMBER
The model and serial numbers of this TV are located on the
back of the cabinet. For future reference, LG suggests that you
record those numbers here:
Model No._________________ Serial No._______________
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
WARNING:
This product contains chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
POWER CORD POLARIZATION:
This product is equipped with a 3-wire grounding-type alternating current power plug. This plug will fit into the power
outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, contact your electrician
to replace your obsolete outlet. Do not defeat the safety purpose of the 3-wire grounding-type plug.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electrical Code
(U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point of the cable entry as practical.
REGULATORY INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics U.S.A., Inc.
Unauthorized modification could void the user’s authority to operate this product.
COMPLIANCE:
The responsible party for this product’s compliance is: LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632, USA • Phone: [phone]
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
For Customer Support/Service, please call:
1-888-865-3026
The latest product information and documentation is
available online at:
www.lg.com/us/business
Marketed and Distributed in the United States by LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632

3
206-4324
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accor-
dance with the manufacturer’s instructions.
8. Do not install near any heat sources, such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the
point where it exits from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination in order to avoid injury from
tip-over.
13. Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
14. Never touch this apparatus or antenna during a thunder or
lightning storm.
15. Do not apply pressure on or scratch the TV panel during
handling. Do not press against the TV panel with your hand
or a sharp object such as a nail, pencil, or pen.
16. Power Cord
Caution: Check the TV specifications in the Owner’s
Manual to determine power requirements.
Periodically examine the cord of your appliance, and if its
appearance indicates damage or deterioration, unplug it,
discontinue use of the appliance, and have the cord replaced
with an exact replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse,
such as twisting, kinking, or pinching or being closed in a
door or walked upon. Pay particular attention to plugs, wall
outlets, and the point where the cord exits the appliance.
Do not use a damaged or loose power cord. Be sure to grasp
the plug when unplugging the power cord. Do not pull on the
power cord to unplug the TV.
Do not stick metal objects or any other conductive material
into the power cord. Do not touch the end of the power cord
while it is plugged in.
17. Overloading
Do not connect too many appliances to the same AC power
outlet as this could result in fire or electric shock. Do not
overload wall outlets. Overloaded wall outlets, loose or
damaged wall outlets, extension cords, frayed power cords,
or damaged or cracked wire insulation are dangerous. Any of
these conditions could result in re or electric shock.
18. Outdoor Use/Wet Location
Warning: To reduce the risk of re or electrical
shock, do not expose this product to rain,
moisture or other liquids.
Do not touch the TV with wet hands. Do not install this product
near ammable objects such as gasoline or candles or expose
the TV to direct air conditioning.
Do not expose to dripping or splashing and do not place
objects lled with liquids, such as vases, cups, etc., on or over
the apparatus (e.g., on shelves above the unit).
19. Grounding
Ensure that you connect the earth ground wire to prevent
possible electric shock (i.e., a TV with a three-prong grounded
AC plug must be connected to a three-prong grounded AC
outlet). If grounding methods are not possible, have a qualied
electrician install a separate circuit breaker. Do not try to
ground the unit by connecting it to telephone wires, lightning
rods, or gas pipes.
20. Disconnect Device
The power plug is the disconnecting device. The power plug
must remain readily accessible.
As long as this unit is connected to the AC wall outlet, it is not
disconnected from the AC power source even if the unit is
turned off.
(Continued on next page)
IMPORTANT SAFETY INSTRUCTIONS
PORTABLE CART WARNING

4206-4324
(Continued from previous page)
21. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the
product, follow the precautions below.
An outdoor antenna system should not be located in the
vicinity of overhead power lines or other electric light or power
circuits or where it can come into contact with such power
lines or circuits as death or serious injury can occur.
Be sure the antenna system is grounded so as to provide
some protection against voltage surges and built-up static
charges.
Article 810 of the National Electrical Code (NEC) in the U.S.A.
provides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in wire
to an antenna-discharge unit, size of grounding conductors,
location of antenna-discharge unit, connection to grounding
electrodes, and requirements for the grounding electrode.

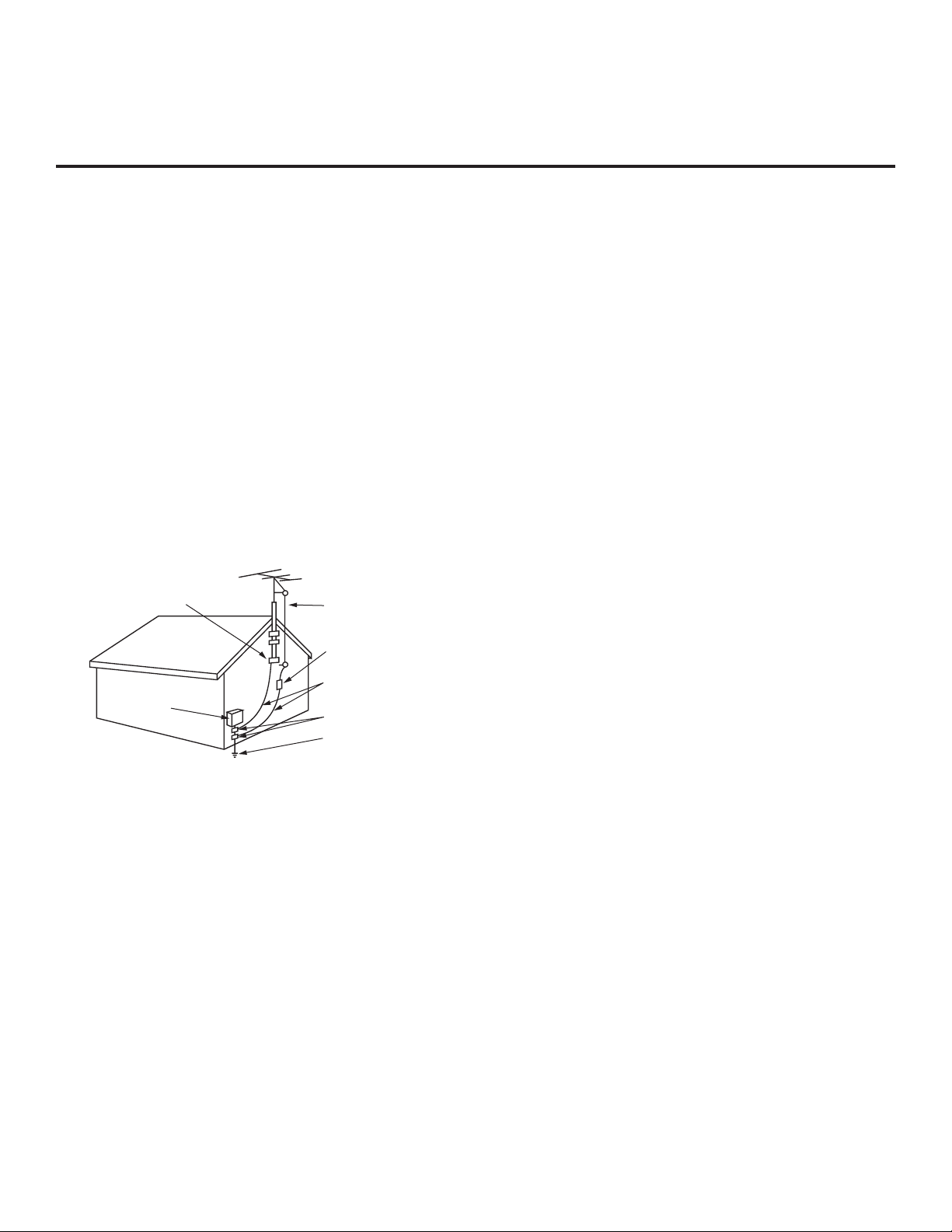

Antenna Grounding According to NEC, ANSI/NFPA 70
22. Cleaning
When cleaning, unplug the power cord and wipe gently with
a soft cloth to prevent scratching. Do not spray water or other
liquids directly on the TV as electric shock may occur. Do not
clean with chemicals such as alcohol, thinners or benzene.
23. Transporting Product
Make sure the TV is turned off and unplugged and that all
cables have been removed. It may take two or more people
to carry larger TVs. Do not press against or put stress on the
front panel of the TV.
24. Ventilation
Install the TV where there is proper ventilation. Do not install
in a conned space such as a bookcase. Do not cover the TV
with cloth or other materials (e.g., plastic) while it is plugged
in. Do not install in excessively dusty places.
25. If you smell smoke or other odors coming from the TV or
hear strange sounds, unplug the power cord, and contact an
authorized service center.
26. Keep the product away from direct sunlight.
27. When mounting a TV on the wall, make sure that none of the
electrical cabling bears any of the weight of the TV. Install in
accordance with the manufacturer’s instructions.
28. Do not install this product on a wall if it could be exposed to
oil or oil mist. This may damage the product and cause it to
fall.
29. Do not allow an impact shock or any objects to fall into the
product, and do not drop objects onto the screen.
30. Do not touch the ventilation openings, as they may become
hot while the TV is operating. This does not affect the perfor-
mance of the product or cause defects in the product.
31. Do not use high voltage electrical equipment near the TV
(e.g., a bug zapper). This may result in product malfunction.
32. Dot Defect
This panel is an advanced product that contains millions of
pixels. In a very few cases, you could see ne dots on the
screen while you are viewing the TV. Those dots are deacti-
vated pixels and do not affect the performance and reliability
of the TV.
33. Generated Sound
“Cracking”: A cracking noise that occurs while the TV is
on or when it is turned off is generated by plastic thermal
contraction due to temperature and humidity. This noise is
common for products where thermal deformation is required.
Electrical circuit humming/panel buzzing: A low level noise is
generated from a high-speed switching circuit, which supplies
a large amount of current to operate a product. It varies
depending on the product. This generated sound does not
affect the performance and reliability of the product.
34. If the TV feels cold to the touch, there may be a small “icker”
when it is turned on. This is normal; there is nothing wrong
with the TV. Some minute dot defects may be visible on the
screen, appearing as tiny red, green, or blue spots. However,
they have no adverse effect on the TV’s performance. Avoid
touching the screen or holding your nger(s) against it for
long periods of time. Doing so may produce some temporary
distortion effects on the screen.
35. Displaying a still image for a prolonged period of time may
cause image burn-in. Avoid displaying a xed image on the
TV screen for an extended length of time.
IMPORTANT SAFETY INSTRUCTIONS
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System (NEC
Art 250, Part H)
Ground Clamp
Electric Service
Equipment

5
206-4324
Table of Contents
Notes
• Installer Menu content is intended for use primarily by qualied TV electronics technicians.
• Refer to the applicable Owner’s Manual and/or Easy Setup Guide for additional information on TV installation, specications, maintenance,
and safety instructions.
• Design and specications subject to change without prior notice. This document provides examples of typical TV displays. Your displays
may vary from those shown in this document.
Safety Warnings .................................. 2
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . 3 – 4
Table of Contents ...............................5 – 6
Commercial Mode Overview ....................7 – 11
Setup Checklist ................................. 7
Pass-through Mode.............................. 7
FTG Mode..................................... 8
Application Tuning Mode / Pro:Centric Direct......... 10
Determining the TV Operating Mode ................ 11
Pro:Centric Operation ........................12 – 16
Interactive Menu Features ....................... 12
Interactive Menu Navigation ...................... 12
Pro:Centric Java Application Setup ................ 14
Pro:Centric HTML Application Setup ............... 15
LG First Use Wizard ..........................17 – 18
Before You Begin .............................. 17
Initiate Configuration or Exit the LG First Use Wizard .. 18
EZ-Manager Wizard ..........................19 – 27
Initiate the EZ-Manager Wizard ................... 19
TV Configuration Options . . . . . . . . . . . . . . . . . . . . . . . . 20
Zones and Room Number Assignments............. 20
Configure Pro:Centric Settings .................... 22
USB Configuration ............................. 26
Express Script ..............................28 – 38
Initiate the Express Script ........................ 28
Configure Pro:Centric Settings .................... 28
Complete the TV Configuration ................... 31
Channel Banks Overview . . . . . . . . . . . . . . . . . . . . . . . . 36
Ez Download Utility ..........................39 – 42
Before You Begin .............................. 39
Accessing and Using the Ez Download Utility ........ 39
Installer Menu ...............................43 – 54
Accessing the Installer Menu ..................... 43
Navigating Within the Installer Menu ............... 44
Modifying Installer Menu Settings.................. 44
Exiting the Installer Menu and Activating Settings ..... 44
Detailed Descriptions of Installer Menu Items ........ 47
Custom Master TV Setup......................55 – 57
Before You Begin .............................. 55
Clonable TV Setup Menu Features ................ 55
Custom Master TV Setup Procedure ............... 56
Cloning Procedures ..........................58 – 64
Exporting a Clone File .......................... 58
Importing a Clone File........................... 60
Cloud Configuration Tool Overview .............65 – 71
Creating an FTG Configuration File ................ 65
File Manager Web Page Overview................. 68
Channel Map Web Page Overview................. 69
Installer Menu Web Page Overview ................ 71
IP Environment Setup ........................72 – 81
Accessing the IP Environment Menu ............... 72
Network Configuration .......................... 72
Pro:Centric Setup .............................. 76
Media Share Setup ............................. 79
Pre-loaded Applications ......................... 81
References
Updating TV/PTC Software using a USB Memory
Device......................................82 – 83
Downloading a Splash Screen Image using a USB
Memory Device...............................84 – 85
Downloading Background Images using a USB
Memory Device...............................86 – 87
Power Consumption Settings....................... 88
TV Aux Input Configuration ........................ 89
b-LAN Setup & Overview .......................... 90
FTG Mode via EBL (Local Configuration) ..........91 – 92
Auto Input(s) Sensing Feature ...................93 – 94
UV770M Hospital Operations....................95 – 96
Restoring Factory Defaults on the TV(s) .............. 97
Using the TV’s Zoning Features.................98 – 101
Using Media Share Features ..................102 – 105
UV770M Rear and Side Jack Panels................ 106
Installer Remote Control Typical Key Functions ....... 107
LG Pro:Centric Patient Remote and Pillow
Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 – 109

6206-4324
Table of Contents (Cont.)
Pillow Speaker Setup .............................110
VESA Standard TV Mounts ........................111
TLM Communication Parameters............... 112 – 117
Troubleshooting ............................118 – 120
General Troubleshooting.........................118
Commercial Mode Check / FTG Operation
Troubleshooting ...............................119
Channel Banks Setup Troubleshooting ............ 120
Glossary of Terms .............................. 121
Document Revision History / Open Source Software
Notice ........................................ 122
Back Cover.................................... 123

7
206-4324
Commercial Mode Overview
This document describes how to set up UV770M Pro:Centric ®TVs for Commercial Mode operation.
LG commercial TV functionality is based on “ownership” of the Channel Map; that is, the Channel Map
resides in the TV’s CPU, Protocol Translation Controller (PTC), or embedded b-LAN™ (EBL) module, or
it resides in a Pro:Centric application or an external device from the solution provider.
These TV models support several different operational modes: LG’s Free-To-Guest (FTG) Mode via the
TV CPU, FTG Mode via the TV’s EBL module, Application Tuning Mode (ATM) with Pro:Centric application,
or Pass-through Mode (default). When in Pass-through Mode, these TV models can also be externally
controlled via Multiple Protocol Interface (MPI) or TV-Link Monitor (TLM) interface.
Setup Checklist
Note: This document provides information specific to Commercial Mode operation. Refer to the Owner’s
Manual and/or Easy Setup Guide for information on TV installation and hardware and cable connections.
Installation
__ Unpack TV and all accessories.
__ Install batteries in the Installer Remote.
__ Install TV on VESA mount or stand.
Note: It may be advisable to make all cable
connections before installing on VESA mount
or stand, as appropriate.
Hardware Connections
__ Install any additional hardware as
appropriate to your institution, LAN, etc.
Cable Connections
__ Make all rear jack panel connections, as
appropriate.
Commercial Mode Setup
__ Complete appropriate procedures as described
in this document for Commercial Mode operation.
Pass-through Mode
This mode allows you to configure individual TVs for Pro:Centric and/or FTG Mode via CPU operation
or create a Master TV Setup for cloning purposes. This mode also allows external control via the GAME
CONTROL/MPI port or the TLM (CONTROL & SERVICE) port on the TV rear jack panel.
There are three methods for configuring individual TVs that are currently in Pass-through Mode: using
one of the two LG First Use Wizard options or using the Custom Master TV Setup procedure.
LG First Use Wizard Conguration
When the TV is in a factory default state, the LG First Use Wizard provides the following two conguration
options. See “LG First Use Wizard” on pages 17 to 18 for further information.
• The EZ-Manager Wizard provides automated or manual options for conguring Pro:Centric operation
and also provides the option to congure the TV using a USB memory device.
• The Express Script provides streamlined conguration of the TV for FTG Mode via CPU operation with
Hospital Mode features (including pillow speaker setup) and also provides the option to congure the TV
for Pro:Centric operation.
Custom Master TV Setup
Unlike the guided process above, the Custom Master TV Setup procedure enables you to create a
customized Master TV Setup for cloning purposes for TVs that are to remain in Pass-through Mode. Use
the Installer Remote to congure Installer Menu items as required for TV operation and set up TV features
(Picture, Sound, Channels, etc.). See “Custom Master TV Setup” on pages 55 to 57 for detailed information.

8206-4324
TV Setup Menus (Advanced Settings)
TV Setup Menus (Quick Settings)
X
Sound
Channels
General
Safety
Accessibility
Smart Picture Mode
Picture Mode Settings
Aspect Ratio Settings
16:9
PTC INSTALLER MENU
xxUV770M
CPU -CTV
000 INSTALLER SEQ 000
UPN 000-000-000-000 SW 5331 7F60
PTC V#.##.### CPU V#.##.##.##
Commercial Mode Overview (Cont.)
Installer Menu
To create a Master TV Setup, you will need to know how to access
the commercial controller (PTC) Installer Menu and make changes to
the default values as required. If necessary, familiarize yourself with
the Installer Menu and how to make and save changes. See pages
43 to 54 for information on accessing the Installer Menu and for
detailed descriptions of the Installer Menu items.
TV Setup Menus
On-screen setup menus control the features of the TV. Use the
Installer Remote to access the TV setup menus, and set the TV
features to the desired configuration for the end user.
Cloning
Cloning refers to the process of using a Master TV Setup to configure
a Target TV. The Master TV’s clonable setup menu features should
be configured as part of the Master TV Setup. If there are features in
the Master TV’s setup—channel icons or labels, digital font options,
etc.—that are not set or that are set incorrectly, those features also
will not be set or will be set incorrectly in the Target TVs. See pages
58 to 64 for detailed information on Clone (.tlx) les and cloning
requirements and procedures.
External MPI or TLM Control
To control the TV using an external MPI control device, you must
use the TV’s GAME CONTROL/MPI port for communication purposes.
In these TVs, Installer Menu item 118 POWER SAVINGS controls the
power circuitry for both the embedded b-LAN module and the GAME
CONTROL/MPI port; therefore, to ensure that the GAME CONTROL/
MPI port circuitry is powered, thus enabling MPI communication,
Installer Menu item 118 POWER SAVINGS must be set appropriately.
See Installer Menu item descriptions as well as Reference section,
“b-LAN Setup & Overview,” for further information.
To control the TV using an external TLM control device, you must use
the TV’s CONTROL & SERVICE port for communication purposes.
See Reference section, “TLM Communication Parameters,” for further
information.
FTG Mode
In this mode, an FTG Channel Map enables the decryption of each
Pro:Idiom ®encrypted channel. The FTG Channel Map also provides
logical channel mapping of physical RF channels (digital and analog),
IP streams, and Aux inputs. The method for creating the FTG
Channel Map is ultimately determined by which element of the TV
will “own” the FTG Channel Map—the CPU or the EBL.
For these TV models, there are two FTG Modes—FTG Mode via CPU
and FTG Mode via EBL—which are separate and distinct FTG Modes
of operation, each with its own unique advantages and requirements,
as outlined on the following page.
Typical Installer Menu

9
206-4324
Commercial Mode Overview (Cont.)
When the TV CPU is configured with an FTG Channel Map, the CPU controls and restricts the tuning
operation of the TV, and when the EBL is configured with an FTG Channel Map, the EBL controls and
restricts the tuning operation of the TV. In these models, depending on the types of channels included in
the FTG Channel Map, FTG Mode via CPU also provides the option to select either logical or physical
tuning (see notes at the top of the following page) during configuration. You must determine which element
of the TV will own the FTG Channel Map before you can begin configuration.
FTG Mode via CPU
This mode provides the following features:
• Logical or physical channel tuning of physical RF
channels and Aux inputs.
• Logical channel tuning of IP streams.
• Mapping of RF channels with minor (program) numbers
up to 999.
• FTG Channel Map of up to 600 channels.
• Start Channel set for RF, Aux input, or IP delivered
content.
• Pro:Centric data delivery over RF or IP.
• TV Zoning (including channel restrictions by Zone) and
Wi-Fi Zoning options for location-specic congurations.
LG’s Cloud Conguration Tool enables you to create
an FTG Conguration (.tlx) le, which may be used to
congure the CPU for FTG Mode. You can also create a
Clone (.tlx) le from a Master TV Setup that may be used
to congure the CPU for FTG Mode.
Note: TV Zoning and Wi-Fi Zoning features are
supported via “.tlx” le. See Reference section, “Using
the TV’s Zoning Features,” for further information.
In this mode, the CPU is the owner of the FTG Channel
Map and must be congured with an FTG Channel Map
and FTG Installer Menu settings using one of the following
processes:
• Local: Congure an individual UV770M TV via its USB
port using a USB memory device / “.tlx” le. The le
may be either a Clone le (see “Cloning Procedures” on
pages 58 to 64) or an FTG Conguration le (see “Cloud
Conguration Tool Overview” on pages 65 to 71).
• Remote: Congure all UV770M TVs at the site using
a Pro:Centric server head end device (Example:
PCS200S). Refer to the Pro:Centric Server Admin
Client User Guide for further information.
FTG Mode via EBL
This mode provides the following features:
• Logical channel tuning of physical RF channels and
Aux inputs.
• Mapping of RF channels with minor (program) numbers
up to 255.
• FTG Channel Map of up to 141 logical channels.
• Start Channel set for RF or Aux input delivered content.
• Pro:Centric data delivery over RF.
LG’s FTG Device Conguration Application PC software
is required to congure the EBL. In this mode, the EBL
is the owner of the FTG Channel Map and must be
congured with an FTG Channel Map and FTG Installer
Menu settings using one of the following processes:
Note: In order to create an FMA Conguration (.fma)
le for these models that can be used for remote
management of FTG Installer Menu settings, you will
need to “Read” FTG Installer Menu settings from a
Master TV. See Reference section, “FTG Mode via EBL
(Local Conguration),” for further information.
• Local: Congure an individual UV770M TV’s EBL
via its TV-LINK CFG jack using a direct PC-to-TV
(EBL) connection and the FTG Device Conguration
Application. See Reference section, “FTG Mode via
EBL (Local Conguration),” for information on the
“Write” process for an FTG Channel Map and FTG
Installer Menu settings.
• Remote: Congure all UV770M TV EBLs at the site
using a Free-To-Guest Management Appliance (FMA)
head end device (Example: FMA-LG102). Refer to
the Free-To-Guest (FTG) Device Configuration
Application User Guide and/or the Installation &
Conguration Guide for the FMA device for further
information.

10 206-4324
Commercial Mode Overview (Cont.)
Note: Logical channel mapping of physical RF channels eliminates dash tuning; for example, physical
19-3 can be mapped to logical channel 9. It also allows physical RF channels, IP streams, and Aux inputs
to be listed in any order, not only in physical numeric ascending order. Physical channel tuning requires
that you include the dash when direct entering RF channel numbers and Aux inputs (the latter designated
by 130-0 through 137-0).
Note: Physical channel tuning is not available when IP channels are included in the FTG Channel Map.
While the TV is in FTG Mode:
• Users can still access the Installer Menu using an LG Installer Remote; however, all Installer Menu
items will be read-only.
• FTG Mode via CPU conguration changes must be made using a “.tlx” le (typically edited in the Cloud
Conguration Tool), while FTG Mode via EBL conguration changes must be made using the FTG Device
Conguration Application. Channel Map and Installer Menu conguration utilities in both applications
enable you to make changes, respectively, to the FTG Channel Map and FTG Installer Menu settings as
necessary. Based on the initial method used to congure the TV for FTG Mode operation (via CPU or
EBL), all subsequent changes must be transferred to either the TV CPU or the EBL via a process that is
in accordance or compatible with that method (see information on local conguration in this document or
refer to documentation for the head end device/server for information on remote management).
• If it becomes necessary to restore the TV to Pass-through Mode, there are several options that will enable
you to do so. See Reference section, “Restoring Factory Defaults on the TV(s),” for further information.
Pages 65 to 71 provide overviews of the utilities that comprise the Cloud Conguration Too. Refer to
the Cloud Configuration Tool User Guide for further information on the Cloud Conguration Tool. Refer
to the Free-To-Guest (FTG) Device Configuration Application User Guide for information on the FTG
Device Configuration Application.
Remote Management in FTG Mode
When the TV is configured for FTG Mode via CPU, remote management of the FTG Channel Map and FTG
Installer Menu settings is provided by a Pro:Centric server, via a Clone/Configuration (.tlx) file loaded on the
Pro:Centric Admin Client. See the Pro:Centric Server Admin Client User Guide for further information.
When the TV is configured for FTG Mode via EBL, the b-LAN module, which is internal to the TV, allows
hospital/institution head end equipment (for example, an FMA-LG102) with b-LAN technology to provide
remote management of the FTG Channel Map and FTG Installer Menu settings. See Reference section,
“b-LAN Setup & Overview,” for further information.
Application Tuning Mode / Pro:Centric Direct
In Application Tuning Mode, the TV’s Channel Map resides in an application, such as LG’s Pro:Centric
Direct HTML application. With Pro:Centric Direct, the Channel Map is created in the Pro:Centric server’s
Admin Client web editor, and the tuning operation of the TV is controlled and restricted based on this
Pro:Centric Direct Channel Map.
Application Tuning Mode with the Pro:Centric Direct HTML application provides the following features:
• Decryption of each Pro:Idiom ®encrypted channel.
• Logical channel tuning of physical RF channels (digital and analog) and IP streams.
• Mapping of RF channels with minor (program) numbers up to 999.

11
206-4324
Commercial Mode Overview (Cont.)
• Start Channel set for RF or IP delivered content.
• Pro:Centric data delivery over RF or IP.
• TV Zoning (Installer Menu items only) and Wi-Fi Zoning options for location-specic congurations.
You must use the Pro:Centric Direct Admin Client / Channel Map conguration utility to create the
Pro:Centric Direct Channel Map, dene channel attributes, and set the Start Channel. Refer to the
Pro:Centric Direct Admin Client User Guide for further information.
Note: TV Zoning and Wi-Fi Zoning features are supported via “.tlx” le—typically a Clone (.tlx) le that has
been created from a Master TV Setup. See Reference section, “Using the TV’s Zoning Features,” for further
information.
While the TV is in Application Tuning Mode:
• Users can still access the Installer Menu using an LG Installer Remote; however, all Installer Menu
items will be read-only.
• While it is possible to update a TV’s Installer Menu and/or Setup Menu settings locally using a USB
memory device / Clone (.tlx) le, any Pro:Centric Direct conguration changes are typically made
remotely via the Pro:Centric server / Pro:Centric Direct Admin Client. The Admin Client’s Channel Map
conguration utility enables you to create and edit the Pro:Centric Direct Channel Map, while the TV
Conguration utility (in conjunction with a Clone [.tlx] le loaded on a server carousel) enables you to
make changes to TV Installer Menu and/or Setup Menu settings.
• If it becomes necessary to restore the TV to Pass-through Mode, it is possible to do so. See Reference
section, “Restoring Factory Defaults on the TV(s),” for further information.
Refer to the Pro:Centric Direct Admin Client User Guide for further information on conguration and
management via the Pro:Centric Direct Admin Client.
Determining the TV Operating Mode
To determine the operating mode of the TV, press MENU on the Installer Remote. The menu displayed
depends on the operating mode. See examples below.
If the Function Menu appears, the TV is in a mode (FTG, ATM, PPV, etc.) that does not allow the end
user to change the fundamental TV setup. If the TV setup menus (Quick Settings) appear, the TV is in
Pass-through Mode.
Function Menu
Indicates the TV is not in
Pass-through Mode. While
the TV is in this mode,
Installer Menu settings can
be accessed as read-only.
TV Setup Menus
Shows that the TV is in
Pass-through Mode.
Aspect Ratio
Sound Out
Audio Mode
General
Safety
Accessibility
Aspect Ratio
16:9
Just Scan
O
ASPECT RATIO
^
X

12 206-4324
These TV models support LG’s Pro:Centric Java application, as well as the Pro:Centric Direct HTML
application. Only one application may be implemented at a time. The following sections provide an overview
of the application features and functionality.
Interactive Menu Features
Both the Pro:Centric Java application and the Pro:Centric Direct HTML application enable patients
and visitors to locate and select television entertainment, check the daily weather, view hospital and
surrounding amenities, etc. via custom portal interactive menus. The Pro:Centric Java application provides
multiple templates for portal interactive menus, while the Pro:Centric Direct HTML application, in addition
to providing multiple templates for portal interactive menus, also enables you to custom-create portal and
application content.
Pro:Centric application features include:
• Portal and information screens/pages (including a “Welcome” page) that include branding logos.
• An optional customized user interface (custom “skins”).
• Billboards and points-of-interest maps, which can be customized to focus on hospital amenities, local
attractions and businesses, hotels, restaurants, news, events, etc.
• An optional Weather billboard that includes a local radar map, current conditions, and a four day
forecast.
• An interactive channel guide that provides a channel list with channel icons. An electronic program
guide (EPG) is an optional feature that displays up to three days of programming information viewable
by channel and time.
• Video spooling that enables the hospital to deliver a video le to patient and visitor TVs for promotion
and information purposes.
In addition to the those indicated above, the Pro:Centric Direct HTML application also offers the following
features:
• Optional messaging features, including notices, ticker text, and ad banners.
• Additional media support, specically music accompaniment, for portal displays.
• An optional ight information display.
For each Pro:Centric application, an Admin Client web editor/content wizard is provided for customer
conguration of portal content. The Pro:Centric Direct Admin Client features the Pro:Centric Direct Project
Editor, which provides design tools (including templates) that enable customization of all portal pages.
Please contact your LG service representative for further information.
Note: Customized content is typically dened by the service integrator and/or hospital administrators. LG
does not provide hospital-specic content.
Interactive Menu Navigation
LG’s Pro:Centric pillow speaker provides access to both interactive menus and regular TV features.
Press PORTAL on the Pro:Centric pillow speaker to access the interactive menus.
Interactive menu options may vary, depending on Pro:Centric features enabled for the site and/or
customized content. The following examples show typical portal interactive menus.
Pro:Centric Operation

13
206-4324
Pro:Centric Operation (Cont.)
Example: Pro:Centric Java Application Portal
Example: Pro:Centric Direct HTML Application Portal

14 206-4324
Pro:Centric Operation (Cont.)
Pro:Centric Java Application Setup
The Pro:Centric Java application operates in conjunction with FTG and PPV Modes. This section
provides an overview of the setup required for the Pro:Centric features. Administration and management
options for the Pro:Centric server are described in detail in the Pro:Centric Server Admin Client
User Guide. This document describes only those settings that must be specied on the TVs to enable
Pro:Centric remote management and/or the Pro:Centric Java application.
• Remote management (TV E-Z Installation): The Pro:Centric Admin Client provides remote management
facilities for downloading splash screen image and software/firmware updates as well as facilities for
downloading a Clone/Conguration (.tlx) file for FTG Mode via CPU configuration.
• Pro:Centric Java application: The application comprises the Pro:Centric interactive menus/features
described on page 12. Pro:Centric application settings are managed via the Pro:Centric Admin Client
for the Java application.
The Pro:Centric remote management facilities and application download are based on Installer Menu
item settings that are used to set up the TV’s Pro:Centric features. The Installer Menu / Pro:Centric server
settings can be congured using one of the methods described below.
Note: If using a Pro:Centric pillow speaker, also set Installer Menu item 027 HOSPITAL MODE to the
required value.
TV in Factory Default State
When the TV is in a factory default state, LG’s First Use Wizard (see pages 17 to 18) provides automated
or manual options for conguring the Pro:Centric server settings. The EZ-Manager branch of the First Use
Wizard also provides a USB conguration option that enables you to congure a TV for FTG Mode via
CPU using a Clone/Conguration (.tlx) le stored on a USB memory device. The “.tlx” le incorporates FTG
Installer Menu settings, including Installer Menu items 098 PRO:CENTRIC and 119 DATA CHANNEL, which
are used to set up the TV’s Pro:Centric features.
Note: If Pro:Centric data delivery will be over IP, there is a Domain Name System (DNS) server at the
site, and you intend to use the EZ-Manager Wizard to set up the TV, you can create a “procentric.local”
DNS entry for the Pro:Centric server that will enable automated Pro:Centric IP conguration via the
EZ-Manager. If there is no DNS entry for procentric.local, you will need to manually enter the Pro:Centric
server IP address and port number during conguration.
TV in Pass-through Mode
If the EZ-Manager Wizard has been exited and the TV is in Pass-through Mode, either:
• Set Installer Menu items 098 PRO:CENTRIC and 119 DATA CHANNEL to the appropriate values.
See Installer Menu information on pages 43 to 54 for further details. Also, as necessary, refer to
“Custom Master TV Setup” on pages 55 to 57 and/or cloning information on pages 58 to 64.
• Congure the appropriate Pro:Centric server settings in the IP Environment / Pro:Centric Menu. You
must use this option, in particular, if you wish to congure IP settings for the Pro:Centric server. See
“Accessing the IP Environment Menu” on page 72 and “Pro:Centric Setup” on pages 76 to 78 for further
information.
Note: When the TV is in either Pass-through Mode or FTG Mode via CPU, you can also leave Installer
Menu item 119 DATA CHANNEL set to its default value (255) to enable the TV’s Data Channel Auto
Search feature to set the DATA CHANNEL value. See item 119 description on page 53 for additional
information.

15
206-4324
Pro:Centric Operation (Cont.)
TV in FTG Mode
If the TV is already in FTG Mode (via CPU or EBL), use the appropriate FTG application to update
Installer Menu items #98 Pro:Centric and #119 Data Channel (along with their afliated elds). Then,
transfer the FTG Installer Menu settings to the TV in accordance with the FTG Mode of conguration.
Refer to the FTG Mode overview on pages 8 to 10 for further information on FTG Mode operation and
conguration. Also—for FTG Mode via CPU only—see note above regarding the option to use the TV’s
Data Channel Auto Search feature to set the DATA CHANNEL value.
Pro:Centric Direct HTML Application Setup
The Pro:Centric Direct HTML application operates only in Application Tuning Mode (ATM). This section
provides an overview of the setup required for the Pro:Centric Direct features. Administration and
management options for the Pro:Centric server are described in detail in the Pro:Centric Direct Admin
Client User Guide. This document describes only those settings that must be specied on the TVs to
enable Pro:Centric remote management and/or the Pro:Centric Direct HTML application.
• Remote management (TV E-Z Installation): The Pro:Centric Direct Admin Client provides remote
management facilities for downloading splash screen image and software/firmware updates as well
as facilities for downloading Installer Menu configuration updates via Clone (.tlx) file to the TVs at the
site/institution.
Note: The Pro:Centric Direct Channel Map is created and maintained in the Pro:Centric Direct Admin
Client. Thus, any Clone le that is loaded on the server for remote conguration may only contain Installer
Menu and/or Setup Menu proles.
• Pro:Centric Direct HTML application: The application comprises the Pro:Centric interactive menus/features
described on page 12. Pro:Centric Direct application settings are managed via the Pro:Centric Direct
Admin Client.
The Pro:Centric remote management facilities and application download are based on Installer Menu
item settings that are used to set up the TV’s Pro:Centric features. The Installer Menu / Pro:Centric server
settings can be congured using one of the methods described below.
TV in Factory Default State
When the TV is in a factory default state, LG’s First Use Wizard (see pages 17 to 18) provides automated
or manual options for conguring the Pro:Centric server settings. The EZ-Manager branch of the First Use
Wizard also provides a USB conguration option that enables you to congure the TV’s Installer Menu
settings using a Clone/Configuration (.tlx) le stored on a USB memory device. Installer Menu items 098
PRO:CENTRIC and 119 DATA CHANNEL are used to set up the TV’s Pro:Centric features.
Note: If Pro:Centric data delivery will be over IP, there is a Domain Name System (DNS) server at
the site, and you intend to use the EZ-Manager Wizard to set up the TV, you can create a “procentric.local”
DNS entry for the Pro:Centric server that will enable automated Pro:Centric IP conguration via the
EZ-Manager. If there is no DNS entry for procentric.local, you will need to manually enter the Pro:Centric
server IP address and port number during conguration.
TV in Pass-through Mode
If the EZ-Manager Wizard has been exited and the TV is in Pass-through Mode, either:
• Set Installer Menu items 098 PRO:CENTRIC and 119 DATA CHANNEL to the appropriate values.
See Installer Menu information on pages 43 to 54 for further details. Also, as necessary, refer to
“Custom Master TV Setup” on pages 55 to 57 and/or cloning information on pages 58 to 64.

16 206-4324
Pro:Centric Operation (Cont.)
• Congure the appropriate Pro:Centric server settings in the IP Environment / Pro:Centric Menu. You
must use this option, in particular, if you wish to congure IP settings for the Pro:Centric server. See
“Accessing the IP Environment Menu” on page 72 and “Pro:Centric Setup” on pages 76 to 78 for
further information.
Note: When the TV is in either Pass-through Mode or Application Tuning Mode, you can also leave
Installer Menu item 119 DATA CHANNEL set to its default value (255) to enable the TV’s Data Channel
Auto Search feature to set the DATA CHANNEL value. See item 119 description on page 53 for additional
information.
TV in Application Tuning Mode
If the TV is already in Application Tuning Mode, use a Master TV of the same model to create and
export a Clone (.tlx) le with the desired settings for Installer Menu items 098 PRO:CENTRIC and 119
DATA CHANNEL. Then, transfer (import) the Clone le to the Target TV. Refer to the Application Tuning
Mode / Pro:Centric Direct overview on pages 10 to 11 for further information on Pro:Centric Direct operation
and conguration. To transfer the Clone le remotely, use the appropriate utilities in the Pro:Centric Direct
Admin Client to upload the Clone le to the Pro:Centric server and set up its distribution to the Target
TV(s) at the site. See also note above regarding the option to use the TV’s Data Channel Auto Search
feature to set the DATA CHANNEL value.

17
206-4324
Note: After it is turned ON, the TV begins an initialization process, and it may take several minutes
for the LG First Use Wizard to appear.
The LG First Use Wizard, comprising EZ-Manager Wizard and Express Script configuration
options, will appear on the screen each time the TV is turned ON, until one of its configuration
methods has been completed or the wizard is exited. Use the Installer Remote to make selections
and complete each step.
• The primary purpose of the EZ-Manager Wizard is to guide you through the process (automated
or manual) of conguring the essential Installer Menu items for Pro:Centric operation. However,
while intended primarily for Pro:Centric-related conguration, the EZ-Manager Wizard also offers
Zoning options. UV770M TVs support the TV Zoning and Wi-Fi Zoning features, both of which
enable location-specic congurations (see Reference section, “Using the TV’s Zoning Features,”
for further information). The EZ-Manager Wizard enables you to set the TV Zone # and/or the
Wi-Fi Zone # in the TV as part of the conguration process.
The EZ-Manager Wizard also enables you to access the TV Manager / USB download options
as part of the conguration process, if desired, to perform USB conguration and/or update
functions.
• The Express Script guides you through the process of conguring the TV for FTG Mode via CPU
operation with Hospital Mode features. This includes setting up the pillow speaker, as required,
as well as setting up channel banks (up to four) for tiered channel programming. The Express
Script also enables you to congure the Pro:Centric settings on the TV.
Note that the Express Script uses the TV’s standard RF Auto Tuning feature to create the TV’s
channel lineup; IP channels are not supported.
Caution: Do NOT unplug the TV power cord or remove the antenna cable or, if
applicable, the LAN cable during the conguration process, as doing so will interrupt
the current step and may corrupt the conguration data.
Note: If you do not intend to complete the Express Script, but you wish to enable
Hospital Mode (pillow speaker functionality and also channel banks), you must set
Installer Menu item 027 HOSPITAL MODE appropriately. See the “Installer Menu”
section of this document for further information.
Before You Begin
• If you plan to create a customized Master TV Setup using the procedure described on pages 55
to 57, be sure to exit the LG First Use Wizard in order to avoid setup conicts or setting modes
that may cause the TV to malfunction or restrict the custom setup procedure. See also “Initiate
Conguration or Exit the LG First Use Wizard” on the following page.
• If it has been completed or exited and therefore does not display, the First Use Wizard can be
reactivated; however, this requires that you restore the TV to a factory default condition. See
Reference section, “Restoring Factory Defaults on the TV(s),” for further information.
• If you would like to enable the SoftAP and/or DIAL Media Share features or select pre-loaded/
Smart Launcher applications on a TV that will eventually be congured for FTG Mode, you will
need to use the IP Environment Menu to do so before the TV is congured for FTG Mode. Refer
to “IP Environment Setup” on pages 72 to 81 for information on the IP Environment Menu. See
also “Custom Master TV Setup” on pages 55 to 57.
LG First Use Wizard

18 206-4324
LG First Use Wizard (Cont.)
Initiate Conguration or Exit the LG First Use Wizard
The Welcome screen provides a brief introduction to the LG First Use Wizard.
WELCOME TO THE FIRST USE WIZARD
This wizard features two dierent setup options:
X
EXPRESS SCRIPT EZMANAGER
.
Pro:Centric Configuration
.
USB Configuration
.
FTG Mode Configuration
.
Pillow Speaker Setup
.
Pro:Centric Configuration
Note: Once you proceed with one of the conguration options, it is not possible to return to the
First Use Wizard Welcome screen; however, if you simply wish to exit the EZ-Manager Wizard or
Express Script (depending on your selection from the First Use Wizard Welcome screen), you can
do so by selecting the
X
button from the subsequent screen(s).
From the Welcome screen, you have the following options:
• To proceed with the EZ-Manager Wizard, use the arrow keys on the Installer Remote to select/
highlight EZ-MANAGER,and then press OK. Then, continue to the “EZ-Manager Wizard” section
on pages 19 to 27.
• To proceed with the Express Script, use the arrow keys on the Installer Remote to select/highlight
EXPRESS SCRIPT,and then press OK. Then, continue to the “Express Script” section on pages
28 to 37.
• To exit the First Use Wizard, use the arrow keys on the Installer Remote to select/highlight the
X
button at the top right of the screen, and then press OK. In the conrmation pop-up window,
select EXIT, and then press OK once more on the Installer Remote.
Note: Both the EZ-Manager Wizard and the Express Script enable you to congure Pro:Centric
settings on this TV, even if you do not intend to congure any of the additional settings available.
After you congure the Pro:Centric settings, you will have the option to exit without completing the
remainder of the EZ-Manager Wizard or Express Script (as applicable), if desired.
Note: If you exit the First Use Wizard from this Welcome screen, no conguration will be performed
and all Installer Menu items will retain their default values, including Installer Menu item 119
DATA CHANNEL. The default DATA CHANNEL setting (255) means that the Pro:Centric remote
management feature on this TV will be activated if a Pro:Centric server is installed and the Data
Channel value is set during a Data Channel Auto Search (see item 119 description on page 53
for additional information). If you actually would like to disable the Pro:Centric feature, both the
EZ-Manager Wizard and the Express Script provide an option to do so.

19
206-4324
EZ-Manager Wizard
Initiate the EZ-Manager Wizard
After you select the “EZ-Manager” option from the First Use Wizard Welcome screen, an EZ-
Manager Welcome screen provides a brief introduction to the EZ-Manager Wizard.
Note: Each EZ-Manager Wizard step is allotted a time frame after which the wizard proceeds
without user interaction. If the Pro:Centric server is congured on the system and if no location-
specic settings are required in the TV, for example, TV Zone, Wi-Fi Zone, Label, and/or Room
Number settings, from this point, the wizard can proceed through each of the conguration steps
with no further user interaction.
WELCOME TO THE EZ-MANAGER WIZARD
.
Use the EZ-Manager Wizard to configure the TV for Pro:Centric operation or to configure the TV using
a USB memory device.
.
If a Pro:Centric server will not be installed, you may select NO PRO:CENTRIC below to disable the Pro:Centric
feature of this TV and exit the EZ-Manager Wizard.
.
If you simply wish to exit the EZ-Manager Wizard, select
X
in the top right corner of the screen.
Select NEXT to continue.
This wizard will start automatically in 10 seconds.
X
NOPRO:CENTRIC NEXT
Note: If there is no user action in this screen within 10 seconds, the wizard will proceed to the next
conguration step. Once the wizard has proceeded, it is not possible to return to the EZ-Manager
Welcome screen; however, if you simply wish to exit the wizard, you can do so by selecting the
X
button from the subsequent screen(s).
From the EZ-Manager Welcome screen, you have the following options:
• To proceed with the EZ-Manager Wizard, use the arrow keys on the Installer Remote to select
NEXT, and then press OK. Then, continue to the “TV Conguration Options” section on the
following page.
• To exit the EZ-Manager Wizard, but retain the use of the Pro:Centric remote management
feature on this TV (i.e., Installer Menu item 119 DATA CHANNEL set to 255) in the future, use
the arrow keys on the Installer Remote to select/highlight the
X
button, and then press OK. In the
conrmation pop-up window, select EXIT, and then press OK once more on the Installer Remote.
• If you do not intend to install a Pro:Centric server on this system and you do not wish to use the
wizard’s Zoning or USB conguration options, exit the wizard as follows: Use the arrow keys
on the Installer Remote to select NO PRO:CENTRIC, and then press OK. This will disable the
Pro:Centric feature of this TV (i.e., Installer Menu item 119 DATA CHANNEL will be set to 0) and
exit the wizard. In the conrmation pop-up window, select EXIT, and then press OK once more
on the Installer Remote.

20 206-4324
EZ-Manager Wizard (Cont.)
TV Conguration Options
From the TV Conguration Options screen, you can choose how to proceed with the conguration
of this TV (assuming you do not opt to exit the wizard, which you may also do at any time).
Note: If you intend to use the Zoning feature(s) on the TV for location-specic
conguration purposes, select the “Zones & Room Number” option from this screen
and assign the appropriate TV Zone # and/or the Wi-Fi Zone # in the TV BEFORE you
continue with additional conguration.
TV CONFIGURATION OPTIONS
.
To configure the TV for Pro:Centric operation, select NEXT.
.
To set the optional Zoning features, select ZONES & ROOM NUMBER.
.
To configure the TV using a USB memory device, select USB CONFIGURATION.
This wizard will continue automatically in 60 seconds.
ZONES & ROOM NUMBER
01
X
USB CONFIGURATION
NEXT
Note: If there is no user action in this screen within one minute, the wizard will automatically
continue to the next conguration step.
Use the Left/Right arrow keys on the Installer Remote to navigate between options on this screen.
Each time you select/highlight one of the following options, the screen text and elds will change in
accordance with your selection.
• To continue with Pro:Centric conguration, select NEXT (default) and press OK on the Installer
Remote. Refer to “Congure Pro:Centric Settings” on pages 22 to 26 for additional information.
• To set the Zoning feature(s) on the TV, select ZONES & ROOM NUMBER. See “Zones and
Room Number Assignments” below for further information.
• To access the TV Manager / USB download options, select USB CONFIGURATION. See “USB
Conguration” on pages 26 to 27 for further information.
Note: If you choose to exit the EZ-Manager Wizard from this point on, you will have the option to
save any settings made by selecting SAVE &EXIT in the exit conrmation pop-up window. Or, you
can exit the wizard without saving any settings by simply selecting EXIT in the conrmation pop-up
window.
Zones and Room Number Assignments
You may complete one or more of the elds in the Zones, Label, and Room Number screen or
leave them at their default settings (TV Zone and Wi-Fi Zone) or blank (Label and Room Number),
as desired. However, if you intend to use either of the Zoning features—TV Zoning and/or Wi-Fi
Zoning—on this TV, you MUST specify the appropriate values in the TV Zone and/or Wi-Fi Zone
elds as described on the following page. See also Reference section, “Using the TV’s Zoning
Features,” for further information.
