Owner's Manual
WM2688H*M
☎☎1-800-243-0000
24 HOURS A DAY, 7 DAYS A WEEK FOR LG CUSTOMER SERVICE
Please read this manual carefully. It provides
instructions on safe installation, use, and maintenance.
Retain it for future reference.
Record the model and serial numbers of your machine
and report this information to your dealer if your machine
requires service.
Washing Machine
Designed specially to use only
HE (High Efficiency) detergent

PRODUCT FEATURES
2
CONTENTS
■Ultra Capacity
The Larger drum enables not just h gher head drop and stronger centr fugal force, but also
less tangl ng and wr nkl ng of the laundry. Heav er loads, such as k ng s ze comforters,
blankets, and curta ns, can be washed.
■Direct Drive System
The advanced Brushless DC motor d rectly dr ves the drum w thout
belt and pulley.
■Tilted Drum and Extra Large Door Opening
T lted drum and extra large open ng make t poss ble to load
and unload cloth ng more eas ly.
■Steam Washing and SteamFreshTM
Steam Wash ng features upgraded wash ng performance w th low energy and water
consumpt on. SteamFreshTM cycle removes wr nkles from dry clothes.
■RollerJets
Wash ng ball enhances the wash performance and reduces damage
to the cloth ng. The jets spray and help tumble clothes to enhance
wash ng performance wh le ma nta n ng fabr c care.
■Automatic Wash Load Detection
Automat cally detects the load and opt m zes the wash ng t me.
■Built-in Heater
Internal heater helps to ma nta n water temperature at ts opt mum level for selected cycles.
■Child Lock
The Ch ld lock prevents ch ldren from press ng any button to change the sett ngs dur ng
operat on.
■Using the RLM (Remote Laundry Monitor)
The RLM mon tors status of your washer and/or dryer. You can plug the d splay un t nto any
power outlet n your home.
The RLM D splay Un t can be purchased separately for th s washer.
Important Safety Informat on ...........................................................................................................................................3
Spec f cat ons...................................................................................................................................................................4
Installat on Instruct ons ....................................................................................................................................................5
Preparat on Before Wash ng..........................................................................................................................................10
Us ng the D spenser ......................................................................................................................................................11
Cycles ...........................................................................................................................................................................13
How to Use the Washer.................................................................................................................................................14
Ma ntenance ..................................................................................................................................................................17
Troubleshoot ng Gu de ..................................................................................................................................................20
Warranty ........................................................................................................................................................................23
추가선택, 예약,
추가선택, 예약,

IMPORTANT SAFETY INFORMATION
ENGLISH
3
READ ALL INSTRUCTIONS BEFORE USE
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
IIMMPPOORRTTAANNTTSSAAFFEETTYYIINNSSTTRRUUCCTTIIOONNSS
• Read all instructions before using the washer.
• Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, or other
flammable or explosive substances, as they give
off vapors that could ignite or explode.
• Do not add gasoline, dry cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
• Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not been
used for such a period, before using the washing
machine, turn on all hot water faucets and let the
water flow from each for several minutes. This will
release any accumulated hydrogen gas. As the gas
is flammable, do not smoke or use an open flame
during this time.
• Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children.
• Before the washer is removed from service or
discarded, remove the door to prevent children
from hiding inside.
• Do not install or store the washer where it will be
exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the washer or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or published user-repair instructions
that you understand and have the skills to carry
out.
• See Installation Instructions for grounding
requirements.
• ALWAYS follow the fabric care instructions
supplied by the garment manufacturer.
• Do not place items exposed to cooking oil in your
washer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause
a load to catch fire.
• Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
WARNING : To reduce the r sk of f re, electr c shock, or njury to persons when us ng the washer, follow bas c
precaut ons, nclud ng the follow ng:
SSAAVVEETTHHEESSEEIINNSSTTRRUUCCTTIIOONNSS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric current. This appliance is equipped with
a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Do not use an adapter or extension cord.
• Do not remove ground prong.
• If you don’t have the proper outlet, consult an electrician.
GROUNDING INSTRUCTIONS
WARNING : Improper connect on of the equ pment-ground ng conductor can result n r sk of electr c shock.
Check w th a qual f ed electr c an or serv ceman f you are n doubt as to whether the appl ance s
properly grounded. Do not mod fy the plug prov ded w th the appl ance - f t does not f t the outlet,
have a proper outlet nstalled by a qual f ed electr c an.
!
!
!

for removing shipping bolts
and leveling the washer
& Steam Nozzle
Drum Light
Door Seal
HIGH
WASHING
HIGH
HOT/
COLD
STEAMDOORLOCK
EST.TIME:
REMANING
5%
NORMAL
CHILDLOCKDELAYWASH
1:21
SPECIFICATIONS
4
■

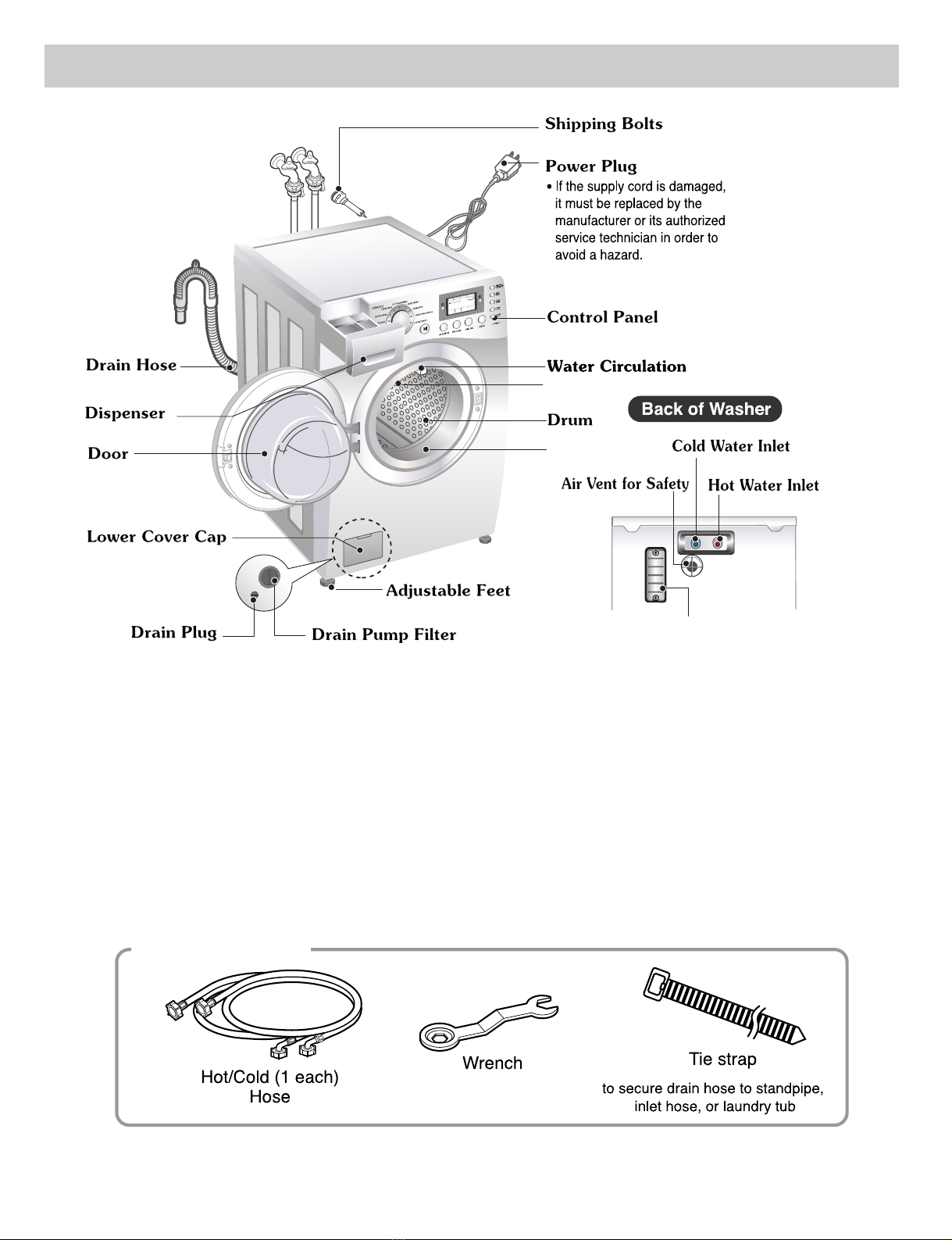

Accessories
■Name: Front-loading Washing Machine
■Power supply: 12 V~ 6 Hz
■Size: 68.6 cm (W) X 75.6 cm (D) X 98.3 cm (H), 129.1 cm (D with door open)
27”(W) X 293/4
”(D) X 3811/16 ”(H), 5 13/16 ”(D with door open)
■Weight: 192 lbs. (87 kg)
■Wash capacity: 3.47 cu. ft. (IEC: 4. cu. ft.)1)
■Spin speed: 132 rpm max.
■Permissible water pressure: 14.5 ~ 116 PSI (1 ~ 8 kPa)
󳢬Specifications subject to change by manufacturer.
1) Per IEC 6 456, washes the equivalent of a 4. cu. ft. agitator washer.
Safety Cover (PLC Modem)

5
INSTALLATION INSTRUCTIONS
1. To prevent internal damage during transport,
4 locking bolts are installed. Before operating
the washer, remove the bolts and braces.
• If they are not removed, it may cause severe
vibration, noise, and malfunction.
3. Take out the 4 bolts and braces by twisting
the braces slightly. Keep the 4 bolts, braces
and the wrench for future use.
• Whenever the appliance is transported, the
shipping bolts and braces must be reinstalled.
2. Unscrew the 4 bolts with the wrench supplied.
Do first lower side to remove easily. One of the
bolts retains the power cord of the washer to
prevent operating without removing bolts.
4. Close the holes with the caps supplied.
The appliance is fitted with shipping bolts to prevent
internal damage during transportation.
Packing and all shipping bolts must be removed
before using the washer.
󳢹When unpacking the base, be sure to remove
the additional packing support in the middle of
the base packing.
: Two or more people may be need to install and move the appliance.
■Shipping bolts
Install or store unit where it will not be exposed to temperatures below freezing or
exposed to outside weather conditions.
Properly ground washer to conform with all governing codes and ordinances.
To reduce the risk of electric shock, do not install the washer in humid spaces.
The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
In countries where there are areas which may be subject to infestation by cockroaches or other vermin, pay
particular attention to keeping the appliance and its surroundings in clean condition at all times.
Damage caused by cockroaches or other vermin will not be covered by the appliance warranty.
■Removing shipping bolts
Wrench
cap
ENGLISH
!
WARNING

INSTALLATION INSTRUCTIONS
6
■Installation clearances
The locat on must be large enough to fully open
the washer door.
■Washer dimensions
• Most nstallat ons requ re a m n mum 4 n.
(10 cm) clearance beh nd the washer.
■Minimum installation spacing for
recessed area installation.
The follow ng d mens ons shown are for the m n mum
spac ng allowed.
Add t onal spac ng should be cons dered for
nstallat on and serv c ng.
• Add t onal clearances m ght be requ red for wall,
door and floor mold ngs.
• Add t onal spac ng of 1 n. (2.5 cm) on all s des of
the washer s recommended to reduce no se
transfer.
Compan on appl ance spac ng should also be
cons dered.
■Level floor
• Allowable slope under ent re washer s 1°.
• To minimize noise and vibration, the washer
MUST be installed on a solidly constructed
floor.
• Carpet ng and soft t le surfaces are not
recommended.
• Never nstall the washer on a platform or weakly
supported structure.
NOTE: A firm, solid floor is even more critical to a
front-loading washer than to a top-loader.
If your floor is wood and/or frame
construction, you may need to reinforce it.
Front-loaders use substantially faster spin
speeds than top-loaders, causing greater
vibration. If the floor is not solid, your washer
will vibrate. You will hear and feel the
vibration throughout your house.
■Power outlet
• Must be w th n 60 n. (1.5 m) of e ther s de of the
washer. Do not overload the outlet w th more
than one appl ance.
• T me-delay fuse or c rcu t breaker s recommended.
NOTE: It is the personal responsibility and obligation
of the customer to have a proper outlet
installed by a qualified electrician.
[Front view]
[Side view]
HIGH
WASHING
HIGH
HOT/
COLD
STEAMDOORLOCK
EST.TIME:
REMANING
5%
NORMAL
CHILDLOCKDELAYWASH
1:21
HIGH
WASHING
HIGHHOT/
COLD
STEAM DOORLOCK
EST.TIME:
REMANING
5%
NORMAL
CHILDLOCK DELAYWASH
1:21

INSTALLATION INSTRUCTIONS
ENGLISH
7
• Water supply pressure must be between
14.5 and 116 PSI (100~800 kPa).
• Do not crossthread when connect ng nlet hose to
the valve.
• If the water supply pressure s more than 116 PSI,
a pressure reduc ng dev ce should be nstalled.
• Two Seal ng washers are suppl ed w th the water
nlet hoses to prevent water leaks.
• Check for leakage of wash ng mach ne connect ons
by turn ng the tap completely on.
• Per od cally check the cond t on of the hose and
replace the hose f necessary.
• Make sure that there s no k nk n the hose and that
t s not crushed.
• Be sure that the two water nput ports are connected
to the correct water faucets. The connector for hot
water s colored red.
■Connecting water supply hose
NOTE: Washing Machine is to be connected to the water mains using new hoses.
Old hoses should not be used.
■Electrical connection
• Do not use an extens on cord or double adapter.
• If the supply cord s damaged, t must be replaced by a qual f ed person n order to avo d a hazard.
• If the mach ne w ll not be used for an extended t me, unplug t and shut off the water supply.
• Connect the mach ne to a grounded outlet n accordance w th current w r ng regulat ons.
• The appl ance must be pos t oned so that the plug s eas ly access ble.
Repairs to the washing machine must only be carried out by qualified personnel. Repairs carried out by
inexperienced persons may cause injury or serious malfunctioning. Contact your local service center.
Do not install your washing machine in a room where temperatures below freezing may occur.
Frozen hoses may burst under pressure. The reliability of the electronic control unit may be impaired
at temperatures below the freezing point.
If the appliance is delivered in the winter months and temperatures are below freezing,
store the washing machine at room temperature for a few hours before putting it into operation.
!
CAUTION! Concerning the Power Cord
Most appl ances recommend they be placed upon a ded cated c rcu t; that s, a s ngle outlet c rcu t wh ch powers only that
appl ance and has no add t onal outlets or branch c rcu ts. Check the spec f cat on page of th s owner's manual to be
certa n.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extens on cords, frayed power cords,
or damaged or cracked w re nsulat on are dangerous. Any of these cond t ons could result n electr c shock or f re.
Per od cally exam ne the cord of your appl ance, and f ts appearance nd cates damage or deter orat on, unplug t,
d scont nue use of the appl ance, and have the cord replaced w th an exact replacement part by an author zed serv cer.
Protect the power cord from phys cal or mechan cal abuse, such as be ng tw sted, k nked, p nched, closed n a door, or
walked upon. Pay part cular attent on to plugs, wall outlets, and the po nt where the cord ex ts the appl ance.

INSTALLATION INSTRUCTIONS
8
■Installation of drain hose
HIGH
WASHING
HIGHHOT/
COLD
STEAM DOORLOCK
EST.TIME:
REMANING
5%
NORMAL
CHILDLOCK DELAYWASH
1:21
HIGH
WASHING
HIGHHOT/
COLD
STEAM DOORLOCK
EST.TIME:
REMANING
5%
NORMAL
CHILDLOCK DELAYWASH
1:21
HIGH
WASHING
HIGHHOT/
COLD
STEAMDOORLOCK
EST.TIME:
REMANING
5%
NORMAL
CHILDLOCKDELAYWASH
1:21
• The dra n hose should not be placed h gher than
96 n. from the bottom of the washer.
• Properly secur ng the dra n hose w ll protect the
floor from damage due to water leakage.
• Place the end of the dra n hose n the hole of the
floor dra n system.
• When nstall ng the dra n hose at a s nk, secure t
so t cannot break away and cause flood ng and
damage.
• Properly secur ng the dra n hose w ll protect the
floor from damage due to water leakage.
This equipment is not designed for maritime use or for mobile installations such as in RV’s, aircraft, etc.
Turn off the faucet if the machine is to be left for an extended period of time (e.g. holiday).
When disposing of the appliance, cut off the power cable, and destroy the plug.
Disable the door lock to prevent young children being trapped inside.
Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk of suffocation! Keep all
packaging from children.

INSTALLATION INSTRUCTIONS
ENGLISH
9
■Level adjustment
• Level ng the wash ng mach ne properly prevents
excess ve no se and v brat on.
Install the appl ance on a sol d and level floor surface,
preferably n a corner of the room.
• If the floor s uneven, adjust the adjustable feet as
requ red. (Do not nsert p eces of wood, etc. under the
feet.)
NOTE: Extend the feet no more than necessary to level
the washer. The more the feet are extended, the
more the washer will vibrate.
• Make sure that all four feet are stable and rest ng on
the floor and then check that the appl ance s perfectly
level (Use a level).
• After the washer s level, t ghten the lock nuts up
aga nst of the base of the washer. All lock nuts must
be t ghtened.
• It s cr t cal to adjust the feet perfectly. Th s must be
done wh le the washer s sp nn ng w th a load. Use the
wrench (suppl ed) to adjust the feet unt l there s no
v brat on. Then t ghten the lock nuts to prevent further
adjustment.
NOTE: If there are vibration and noise during the spin
cycle, re-check the leveling of the washer, adjust
the feet as required, and tighten the lock nuts
securely to prevent changes in adjustment.
Run the washer with a test load to make certain
your washer is properly leveled. Put
approximately 6 pounds of laundry in the
machine. Then, press POWER, RINSE+SPIN, and
START/PAUSE, in that order. When the machine
spins at high speed, verify that it is stable. If not,
adjust the feet accordingly.
• If you nstall the washer and dryer w th pedestals, t s
necessary to level w th the pedestal feet.
󳢬Diagonal Check
When pushing down the edges of the washing machine
top plate diagonally, the machine should not move up
and down at all. (Please, check both directions.)
If the machine rocks when pushing the machine top plate
diagonally, adjust the feet again.
HIGH
WASHING
HIGH
HOT/
COLD
STEAM DOORLOCK
EST.TIME:
REMANING
5%
NORMAL
CHILDLOCKDELAYWASH
1:21
HIGH
WASHING
HIGH
HOT/
COLD
STEAMDOORLOCK
EST.TIME:
REMANING
5%
NORMAL
CHILDLOCKDELAYWASH
1:21
HIGH
WASHING
HIGH
HOT/
COLD
STEAMDOORLOCK
EST.TIME:
REMANING
5%
NORMAL
CHILDLOCKDELAYWASH
1:21
Tighten Tighten

PREPARATION BEFORE WASHING
10
1. Fabric Care Labels
Look for a care label on your clothes. Th s w ll tell you about the fabr c content of your garment and how t should
be washed.
2. Sorting
To get the best results, sort clothes nto loads that can be washed w th the same wash cycle.
D fferent fabr cs need to be washed n d fferent ways.
Always sort dark colors from pale colors and wh tes. Wash separately as dye and l nt transfer can occur caus ng
d scolorat on of wh te cloth ng. If poss ble, do not wash heav ly so led tems w th l ghtly so led ones.
Soil (Heavy, Normal, Light) Separate clothes according to amount of soil.
Color (White, Lights, Darks) Separate white fabrics from colored fabrics.
Lint (Lint Producers, Collectors) Wash lint producers and lint collectors separately.
3. Check before loading
Comb ne large and small tems n a load. Load large tems f rst.
Large tems should not be more than half the total wash load.
Do not wash s ngle tems. Th s may cause an out-of-balance load. Add one or two s m lar tems.
S ngle bulky tems, such as blanket, comforter, or bedspread can be washed separately.
• Check all the pockets to make sure that they are
empty. Th ngs such as cl p, matches, pens,
co ns, and keys can damage both your washer
and your clothes.
• Close z ppers, hooks, and str ngs to make sure
that these tems do not snag on other clothes.
• Pretreat d rt and sta ns by brush ng a l ttle
detergent d ssolved n water onto sta ns l ke
collars and cuffs to help l ft d rt.
WARNING
To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance.
NOTE: Do not wash or spin water-proof clothes.
The washer can be fully loaded, but the drum should not be tightly packed with items. The door of
the washer should close easily.
When unloading items, check under the door seal for small items.

USING THE DISPENSER
ENGLISH
11
The automatic dispenser consists of four compartments which hold 1) liquid chlorine bleach, 2) liquid fabric
softener, 3) liquid or powdered detergent for prewash and 4) liquid or powdered detergent
and color safe bleach for main wash.
All laundry products can be added at once in their respective dispenser compartments.
They will be dispensed at the appropriate time for most effective cleaning. After loading the laundry
additives into the dispenser, close the dispenser drawer.
Add detergent, bleach and fabric softener to the automatic dispenser following these steps:
1. Open the d spenser drawer.
2. Load the laundry products nto the appropr ate compartments.
3. Close the d spenser drawer slowly to avo d early d spens ng of the laundry products.
NOTE: It s normal for small amounts of water to rema n n the d spenser compartments at the end of the cycle.
■About detergent
• Add detergent to th s compartment when us ng
the Prewash opt on. L qu d or powdered
detergent may be used n th s compartment. The
detergent w ll automat cally be d spensed dur ng
Prewash f the Prewash opt on s selected.
• Add 1/2 the recommended amount of detergent
to the Prewash compartment and the
recommended amount of detergent to the ma n
wash compartment.
NOTE : Liquid detergent will drain into the washer
drum as it is added.
1. Prewash Detergent Compartment
L qu d Chlor ne
Bleach
Compartment
L qu d Fabr c
Softener
Compartment
Prewash
Compartment
Ma n Wash
Compartment
Your LG TROMM washer s des gned to use only H gh Eff c ency (HE) detergents.
HE detergents are formulated spec f cally for front load washers and conta n suds reduc ng components.
HE detergents make less suds, mprove wash ng and r ns ng performance, and help to keep the nter or
of your LG TROMM washer clean.
If a regular detergent s used, t may cause oversuds ng and unsat sfactory performance.
For the best wash ng and r ns ng performance, low-suds ng HE detergents are strongly recommended.
Designed specially to use only
HE (High Efficiency) detergent

USING THE DISPENSER
12
• Add measured detergent to th s compartment for
Ma n wash. Detergent s flushed from the
d spenser at the beg nn ng of the cycle. E ther
powdered or l qu d detergent can be used.
• L qu d or powdered color-safe bleach may be
added to the ma n wash compartment along w th
the same type of l qu d or powdered detergent.
• When us ng l qu d detergent, make sure the l qu d
detergent box and nsert are n place. Do not
exceed the max mum f ll l ne.
• For powered detergent, remove both the l qu d
detergent box and nsert.
• Powdered detergent w ll not d spense w th the
l qu d detergent box and nsert n place.
2. Main Wash Detergent Compartment
• Add measured l qu d chlor ne bleach to th s
compartment. The bleach w ll be automat cally
d spensed at the proper t me dur ng the wash
cycle.
• Do not exceed the max mum f ll l ne. Overf ll ng can
cause early d spens ng of the bleach wh ch could
result n damaged clothes.
• Do not pour und luted l qu d chlor ne bleach d rectly
onto the load or nto the drum. Fabr c damage can
occur.
• Do not use powdered bleach n th s compartment.
3. Liquid Bleach Compartment
• Add recommended amount of fabr c softener to
th s compartment.
• D lute concentrated softeners w th warm water to
the f ll l ne.
• Do not exceed the max mum f ll l ne. Overf ll ng can
cause early d spens ng of the fabr c softener wh ch
could result n sta ned clothes.
• Do not pour fabr c softener d rectly on the wash
load.
• The fabr c softener w ll be automat cally d spensed
dur ng the last r nse cycle.
NOTE: Do not place, store, or spill laundry products
(soap, detergent, bleach, softener, etc.) on the
top of your washer or dryer. These products
can damage the finish or controls if left there
too long.
4. Fabric Softener Compartment
L qu d Detergent
Box
Insert
Designed specially to use only
HE (High Efficiency) detergent

CYCLES
ENGLISH
13
NOTE: To protect your garments, not every Wash/Rinse temperature, spin speed, soil level or option is available with
every cycle.
■Select cycles designed for different types of fabric and soil levels.
Cycle
Steam
FreshTM
Dress shirts, blouses
Heavily soiled
underwear, work
clothes, diapers, etc
Extra Hot/Cold High
Extra High
No Spin
Low
Medium
Normal
Heavy
Light
O
OO
O
O
O
OO O
OO
O
O
OOO
OOO
O
O
O
O
O
O
O
O
O
OOOOO
OOO
O
O
O
Normal
Heavy
Light
Normal
Heavy
Light
Normal
Heavy
Light
Normal
Light
Normal
Heavy
Light
Normal
Heavy
Light
Low
Medium
No Spin
Medium
High
No Spin
Low
High
Extra High
No Spin
Low
Medium
Medium
No Spin
Low
Low
Medium
No Spin
High
Extra High
No Spin
Low
Medium
Warm/Cold
Warm/Warm
Hot/Cold
Cold/Cold
Warm/Cold
Warm/Warm
Hot/Cold
Cold/Cold
Warm/Cold
Warm/Warm
Hot/Cold
Cold/Cold
Cold/Cold
Warm/Cold
Warm/Warm
Cold/Cold
Warm/Cold
Warm/Warm
Extra Hot/Cold
Hot/Cold
Large items such as
blankets and comforters
Dress shirts/pants
wrinkle free clothing,
poly/cotton blend
clothing, table cloths
Cotton, linen, towels,
shirts, sheets, jeans,
mixed loads
Dress shirts/blouses
nylons, sheer or lacy
garment
Items labeled "hand
washable"
Lightly soiled
baby wear
Sanitary
Bulky/Large
Perm Press
Cotton/
Normal
Delicates
Hand Wash/
Wool
Baby Wear
Fabric type Wash/Rinse
Temp. Spin Speed Soil Level Pre- Wash
Rinse+
Spin
Water
Plus
Stain
Cycle Steam
Extra
Rinse
Light
Normal
Heavy
Extra High
No Spin
Low
Medium
High
Hot/Cold
Cold/Cold
Warm/Cold
Warm/Warm
Lightly soiled clothing
and small loads
Speed Wash

HOW TO USE THE WASHER
14
• Rotate the Cycle selector knob to select cycle
designed for different types of fabric and soil
levels.
• Each cycle has a preset Water Temperature, Spin
Speed, Soil Level, and Option See page 13).
• The preset settings can be changed anytime
before Start.
NOTE: This front load washer requires longer cycle time
and gets clothes much cleaner, yet is more gentle
on the fabrics, than top load washers. Washing
time can be reduced significantly for small loads
or lightly soiled loads by selecting Speed Wash
cycle and setting the Soil Level button at Light.
NOTE:
- If you do not press the Start/Pause button within 4
minutes of selecting a cycle, the washer automatically
turns off.
- The LCD will darken after 4 minutes and will be
restored when any button is pressed.
2. Cycles
• Use this button to turn the Power On/Off.
1. Power
• Use this button to start/stop the washer.
3. Start/Pause
■ Steam Wash
• For tough stained clothes, underwear, or baby clothes.
• Steam Wash is available with Sanitary,
Bulky/Large, Perm. Press, Cotton/Normal, and
Baby Wear cycles.
• This option features upgraded washing
performance with low energy and water
consumption.
• Do not load delicates such as wool, silk, and
easily discolored clothes.
NOTE:
- Steam wash is a highly concentrated and efficient.
It may seem there is no water inside the drum, but this
is normal.
- Steam spray may not be seen clearly through the door;
however, the washer is spraying steam strongly inside.
- During the steam operation, a spraying sound will be
heard. This is not a malfunction.
CAUTION:
Do not reach into the washer while operating. Steam
can cause severe burns.
5. Steam
• Allows the start of any cycle to be delayed for
1~19 hours.
• Choose the wash cycle for your load, and then
press the Delay button once for one hour or press
the button again to increase the delay wash time
up to 19 hours in one hour increments, and then
press the Start/Pause button.
4. Delay DELAY WASH
STEAM
!

HOW TO USE THE WASHER
ENGLISH
15
■ SteamFreshTM cycle
• For sl ghtly wr nkled clothes wh ch have been stored
for an extended t me. It makes wr nkled clothes
eas er to ron (Do not load wet clothes).
• Wr nkles and odors w ll be reduced.
• To use the SteamFreshTM cycle :
1. Turn on the washer and select the SteamFreshTM cycle.
2. Load 5 tems or less and close the door.
NOTE: W pe the water off the drum.
3. Press the Steam button repeatedly unt l the
correct number of tems s d splayed.
4. Press the Start/Pause button.
• After the SteamFreshTM cycle s complete, the drum
w ll tumble for 30 m nutes to prevent re-wr nkl ng.
Press any button to unload the tems. The Remote
Laundry Mon tor (RLM) w ll d splay “End” for 2
m nutes and then w ll d splay “---” for 28 m nutes.
• After the SteamFreshTM cycle s complete, open the
door and allow t to cool down for best results.
Precautionary Notes:
- The SteamFreshTM cycle is not like other washing or
drying cycles.
- Due to the characteristics of cotton fibers, this cycle is
not recommended for 100% cotton clothing.
- Remove stains from clothing before using the
SteamFreshTM cycle to prevent permanently setting the
stains by high heat.
- Be sure the faucet is open. This cycle uses a little water
to produce steam.
- Be careful not to touch the door. It can be very hot.
- Do not load the following items:
Wool, blankets, leather jackets, silk, wet clothes,
lingerie, foam products, or electric blankets.
- After removing clothes from the SteamFreshTM cycle
they may feel slightly damp. Wait at least 10 minutes
before putting the clothes on.
- Best results are achieved when articles are of similar
size and fabric type. Do not overload.
CAUTION:
- Do not reach into the washer while operating. Steam
can cause severe burns.
- Keep pets away from the washer.
• Press repeatedly to adjust the volume of the
Beeper.
9. Beeper
• Select a water temperature based on the type of
load you are wash ng.
• Follow the fabr c care label and chart below for
best results.
• Warm r nses leave the loads dryer than cold
r nses. Warm r nses ncrease wr nkl ng.
• In cold cl mates, a warm r nse makes the load
more comfortable to handle.
• Cold r nses save energy.
• The Cold r nse temperatures depend on the cold
water at your faucet.
• Th s washer automat cally adjusts the water level
for the type and s ze of wash load for best results.
It may seem there s no water ns de the drum n
some cycles, but th s s normal.
6. Wash/Rinse Temperature
• To change the sp n speed, press the Spin Speed
button repeatedly to cycle through ava lable
opt ons.
• To start Drain/Spin cycle:
1. Press Power button to turn on.
2. Press Spin Speed button only.
3. Press Start/Pause button.
7. Spin speed (Drain/Spin cycle)
• To change the so l level, press the Soil Level
button repeatedly unt l the des red sett ng s on.
8. Soil Level
Suggested Wash Temp. Garment
K tchen towels, sheets,
and baby garments
Wh tes and Heavy
so led color-fast tems
Most loads
Br ghtly colored tems,
washable woolens
Extra Hot
Hot
Warm
Cold
!

HOW TO USE THE WASHER
OPTION
CHILD LOCK
DOOR LOCKED
16
• Use th s opt on for loads that need pretreatment. Adds
16 m nutes prewash and a sp n cycle.
1. Prewash
• D splays whenever the door of the washer s locked.
• The door can be unlocked by press ng the
Start/Pause button to stop the washer.
NOTE: If the water temperature or the level is too high, the
door cannot be unlocked.
Do not try to force the door open when
is displayed.
STATUS INDICATOR
• It shows elapsed t me of the cycle the washer s
operat ng.
EST. TIME REMAINING
• Th s d splay shows the est mated t me rema n ng
n the cycle when operat ng.
• Th s washer automat cally detects the wash load
(we ght) and opt m zes the wash ng t me. After
detect ng, the d splay w ll show the adjusted t me
rema n ng.
• Use th s opt on to prevent unwanted use of the washer.
Press and hold PRE WASH button for 3 seconds to
lock/unlock control.
• When Ch ld lock s set, s d splayed and all
buttons are d sabled except the Power button. You
can lock the washer wh le t s operat ng.
• Adds more t me to the wash and r nse cycles for better
sta n removal.
• Automat cally prov des a r nse.
4. Stain cycle
• Adds extra water to the wash and r nse cycles for
super or results.
5. Water Plus
• The Drum L ght comes on when the Power button s
pressed. It goes off when the door s closed and the
washer starts operat on.
• The Drum L ght rema ns off when the door s locked.
• The Drum L ght can be turned on wh le the washer s n
operat on by press ng the Rinse+Spin button for 3
seconds. The l ght w ll turn off automat cally 4 m nutes
later.
• The Drum L ght comes on when the wash ng cycle s
f n shed and goes off 4 m nutes later.
7. Drum Light
• Engl sh s the default language.
• Language can be changed only when the LCD s on.
• Power On and then press the Water Plus button for 3
seconds unt l the SELECT A LANGUAGE menu s
d splayed.
• Repeated presses of the Water Plus button w ll cycle
through "FRANÇAIS" (French), "ESPAÑOL" (Span sh),
and then back to Engl sh.
6. Language Selection
• Th s opt on prov des an add t onal r nse.
• Use th s opt on to ensure the removal of detergent or
bleach res due from garments.
3. Extra Rinse
• Use th s opt on to r nse and then sp n.
2. Rinse+Spin
DOOR LOCK
CHILD LOCK
CHILD LOCK
DOOR LOCK

ENGLISH
17
MAINTENANCE
2
3
1
■The water inlet filter
• " " error message w ll bl nk on the control panel when water does not enter the d spenser.
• If your water s very hard or conta ns traces of l me depos t, the water nlet f lter may become clogged.
We recommend clean ng t every few months.
Before cleaning the washer interior, unplug the electrical power cord to avoid electrical shock hazards.
When disposing of the appliance, cut off the power cable, destroy the plug, and disable the door lock to prevent
young children from being trapped inside.
1. Turn off the
water tap.
2. Unscrew
the water
nlet hose.
3. Clean the
f lter us ng
a hard
br stle
brush.
4. T ghten
the nlet
hose.
1. Open the lower cover cap 󳡉
w th a tool such as co n.
Turn the dra n plug 󳡊to pull
out the hose.
2. Unplug the dra n plug 󳡊,
allow ng the water to flow out.
At th s t me use a vessel to
prevent water from flow ng
onto the floor. When water does
not flow any more, turn the
pump f lter 󳡋open to the left.
3. Remove any fore gn objects from
the pump f lter 󳡋. After clean ng,
turn the pump f lter 󳡋clockw se
and nsert the dra n plug 󳡊to the
or g nal place. Close the lower
cover cap󳡉.
■The drain pump filter
• The dra n f lter collects threads and small objects left n the laundry.
Check regularly that the f lter s clean to ensure smooth runn ng of your mach ne.
• Allow the water to cool down before clean ng the dra n pump f lter.
CAUTION
Drain, using the drain hose, before opening the pump filter to remove objects.
Be careful when draining if the water is hot.

18
MAINTENANCE
■Cleaning the Dispenser
• The d spenser may need to be cleaned per od cally due to laundry add t ve bu ld-up.
• Run warm water and use a soft brush or cloth on the drawer, l qu d detergent box and nserts to remove any excess
laundry add t ves.
• Clean the drawer open ng us ng water and a small brush.
• Follow the llustrat ons n reverse order to replace the parts to the r proper locat on.
NOTE: Do not use any cleaning substance on the drawer opening other than water because it will drain into the tub.
If this should happen, set the washer for a rinse and spin cycle to remove any cleaning substance from the
washer before doing a load of laundry.
■The washing drum
• Remove tems from the washer as soon as the cycle s completed. Wr nkl ng, color transfer, and odors may be
produced n tems left n the wash ng drum.
• If you l ve n a hard water area, l me scale can cont nuously bu ld up n places where t cannot be seen
and t s not eas ly removed from the drum.
Over t me the bu ld-up of scale clogs appl ances, and f t s not kept n check, these w ll eventually
have to be replaced.
• Although the wash ng drum s made of Sta nless steel, specks of rust can be caused by small metal art cles
(paper cl ps, safety p ns, etc.) wh ch have been left n the drum.
• The wash ng drum should be cleaned from t me to t me.
• If you use descal ng agents, dyes, or bleaches, make sure they are su table for wash ng mach ne use.
• Descaler could conta n components that can damage part of your wash ng mach ne.
• Remove the spots w th a sta nless steel clean ng agent.
• Never use steel wool.
1
SOFTENER
MAX
Pull the d spenser
drawer out unt l t stops.
2
Press down the lock tab
on the bleach nsert.
Remove the drawer.
3
Remove the l qu d detergent
box, softener and bleach
nserts from the r
compartments.
SOFTENER
MAX

ENGLISH
19
MAINTENANCE
■The water circulation & steam nozzle
• Clean the nozzle, f clogged.
■Cleaning your washer
1. Exterior
Proper care of your washer can extend ts l fe.
The outs de of the mach ne can be cleaned w th warm water and a neutral, non-abras ve
household detergent.
Immed ately w pe off any sp lls w th a damp cloth.
Try not to damage the surface w th sharp objects.
󳢬IMPORTANT: Do not use methylated sp r t, solvents or s m lar products.
2. Interior
Dry around the washer door open ng, door seal and door glass. These areas should always be clean to ensure
a water-t ght seal.
TUB CLEAN s a spec al cycle for clean ng the ns de of the washer. Th s cycle uses h gher water level w th
h gher sp n speed. Perform th s cycle regularly.
• To start the TUB CLEAN cycle:
1. Remove any cloth ng or tems from the washer and close the door.
2. Open the d spenser drawer and add l qu d chlor ne bleach to the bleach compartment.
NOTE: Do not add any detergent to the detergent compartments. Excessive suds may be produced and leak
from the washer.
3. Close the d spenser drawer slowly.
4. Power On and then press the Extra Rinse button for 3 seconds. (Prewash opt on w ll be selected.)
5. Press the Start/Pause button to start.
6. After the cycle s complete, leave the door open to dry around the washer door open ng, door seal and
door glass.
CAUTION: If there are small ch ldren n the house, care must be taken so that they can not cl mb nto or
play ns de the washer wh le t s open for dry ng.
NOTE: Remove hard water deposits using only cleaners labeled as safe for washing machines.
■Winterizing instructions
If the washer s stored n an area where freez ng can occur or moved n freez ng temperatures, follow these
w nter z ng nstruct ons to prevent damage to the washer:
1. Turn off water supply tap.
2. D sconnect hoses from water supply and dra n water from hoses.
3. Plug electr cal cord nto a properly grounded electr cal outlet.
4. Add 1 gallon (3.8ℓℓ) nontox c recreat onal veh cle (RV) ant freeze to empty wash drum. Close door.
5. Set sp n cycle and let washer sp n for 1 m nute to dra n out all the water.
Not all of the RV ant freeze w ll be expelled.
6. Unplug electr cal power cord, dry drum nter or, and close door.
7. Remove the two-compartment conta ner from the D spenser. Dra n any water n compartments and dry the
compartments.
8. Store washer n an upr ght pos t on.
9. To remove ant freeze from washer after storage, run empty washer through a complete cycle us ng detergent.
Do not add laundry.
!
