LG WT7600HMA User manual

WASHINGMACHINE
SERVICEMANUAL
READ THISMANUALCAREFULLY TO DIAGNOSE
PROBLEMSCORRECTLY BEFORE SERVICINGTHEUNIT.
CAUTION
MODEL : WT7600HVA / WT7600HWA / WT7600HKA / WT7600HMA
Any reproduction, duplication, distribution (including by way of email, facsimile or other electronic means), publication,
modification, copying or transmission of this Service Manual is STRICTLY PROHIBITED unless you have obtained the prior
written consent of the LG Electronics entity from which you received this Service Manual. The material covered by this
prohibition includes, without limitation, any text, graphics or logos in this Service Manual.
Copyright © 2016 LG Electronics Inc. All rights reserved. Only training and service purposes.
CONFIDENTIAL

SAFETY PRECAUTION!
IMPORTANT SAFETYNOTICE!
2
This service information is intended for individuals possessing adequate backgrounds of
electrical, electronic,and mechanical experience.Any attempt to repair this appliance may result
in personal injury or property damage. The manufacturer or seller can not be responsible for the
interpretation of thisinformation,nor can it assume any liability in connection with its use.
WARNING: To reduce the risk of fire, electric shock,or personal injur y when using this
appliance, follow basic precautions, including the following :
·Weargloveswhen working.
Failure to do this canresult in seriousinjury.
·The appliance is heavy.Two or more people is
required when moving the appliance.
There is a risk of seriousbackinjury or other injuries.
·Certain internal parts are intentionally not
grounded and may present a risk of electric
shock only during servicing. Service personnel -
Do not contact the following partswhile the
appliance isenergized: Pump bracket,rotor,and
heater.
To reduce the risk of fire,electric shock,or personalinjury when using this appliance, follow basicprecautions,
including the following.
·Disconnect thisappliancefrom the power
supply before servicing. Turning the controlsto
the off position does not disconnect this
appliancefrom the power supply.
Failure to do this canresult in shock.
·Reconnect all grounded devicesafter servicing.
Failure to do this canresult in shock.
CONTENTS
1. Specifications...........................................3
2. Installation Instructions
2-1. How toAdjust Level ...........................4
2-2. ConnectingWater Supply Hose........6
2-3. Connect the Drain Hose....................7
3. Operating Instructions
3-1. Identification of Parts........................8
3-2. Before Starting toWash ....................9
3-3. Function of Each BUTTON ............16
3-4.Washing Programs .........................18
3-5. Care and Maintenance....................20
4. Service Information
4-1. Disassembly Instruction..................21
4-2. Wiring Diagram...............................28
4-3.Test Running Without Water ...........29
4-4.Troubleshooting By Common
Washing Problems ..........................30
4-5.Troubleshooting Summary................31
4.6. PCB Picture......................................32
4-7.Troubleshooting with Error Code......33
4-8. OtherTroubleshooting......................38
5. ComponentTesting Information................40
5-1. FilterAssembly (Line Filter)..............40
5-2. Door Lock SwitchAssembly..............41
5-3. StatorAssembly................................43
5-4. Pump MotorAssembly......................44
5-5. InletValve Assembly.........................45
5-6. HeaterAssembly...............................46
5-7.Thermistor Assembly.........................47
6. ExplodedView ........................................49
7. Wiring Diagram .......................................53
Copyright © 2016 LG Electronics Inc. All rights reserved.
Only training and service purposes.

1. SPECIFICATION
3
Model WT7600HVA / WT7600HWA / WT7600HKA / WT7600HMA
Electrical 120VAC@60Hz.
Inner Tub Stainless
Inlet Water Pressure 14.5 ~ 116 psi(100 ~ 800 kPa)
Rating of Fuse 120V/60Hz
Spin Speed 950 ± 50
Weight 146.9 lbs (66.5kg)
Cycles
Normal, Heavy Duty, Bedding, Bright Whites™, Sanitary,
Allergiene™, Tub Clean, Perm. Press, Towels,
SpeedWash, Delicates, Waterproof, Downloaded, Normal Pre Wash+
Time Delay 1 – 19 Hr
Lid Interlock Switch Magnet Sensor
Control Lock Yes

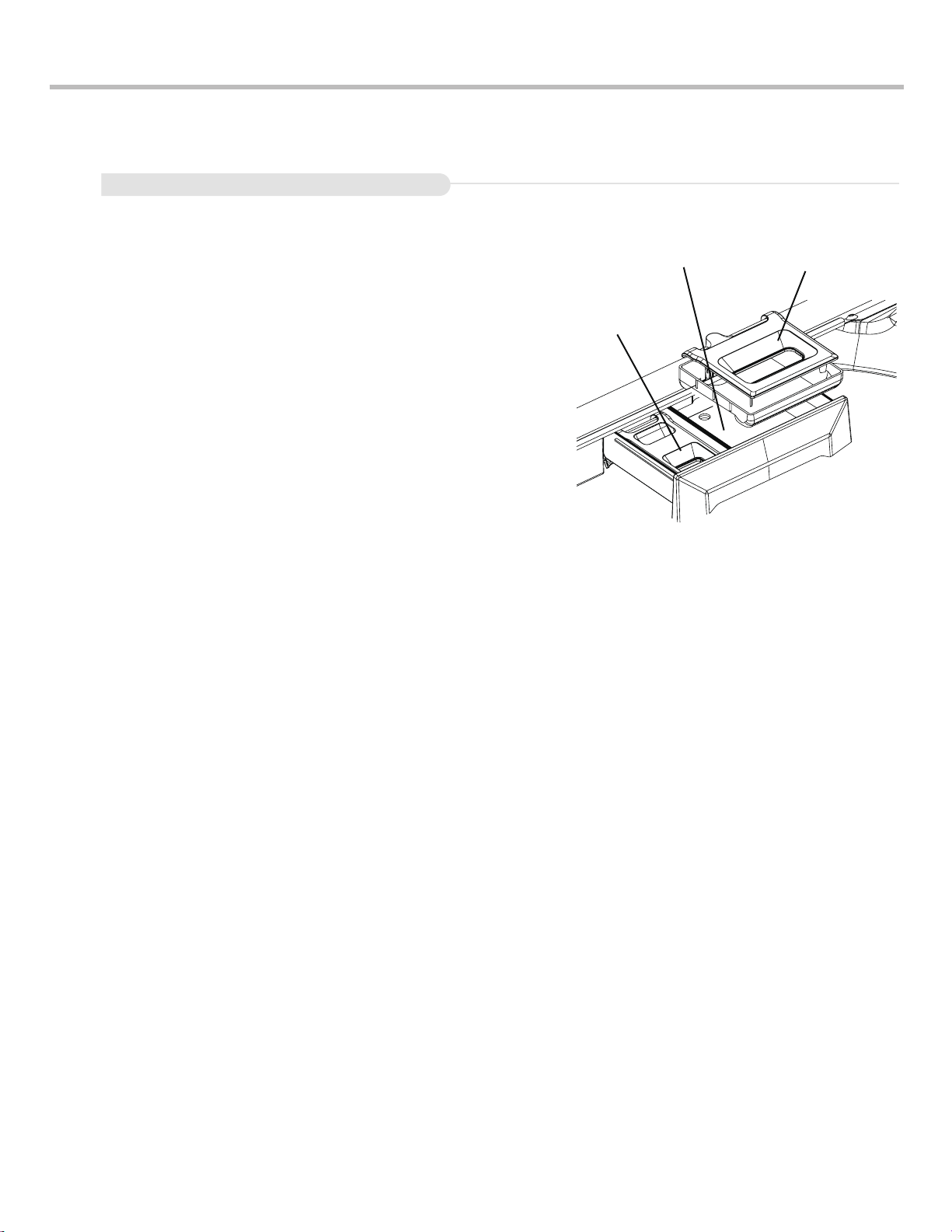

Softener Dispenser Yes
Detergent Dispenser Yes
Bleach Inlet Yes
Auto Power Off Yes
Smart Rinse™with Jet
Spray
Yes
Heater Yes
Color Stainless Silver / Blue White / Black Stainless / Matt Black
Door Lid Glass

4
2. INSTALLATION INSTRUCTIONS
2-1. HOW TO ADJUST LEVEL
4
CAUTION
CAUTION
CAUTION
CAUTION
• The ventilating openings in the base area must not be obstructed by carpeting.
• Install the washing machine on a level and firm surface. There should be no more than 1° of variation.
• Wooden floors may need reinforcing to prevent the normal vibration which occurs
with an unbalanced load.
• Do not install the washer on an inclined floor.
Improper installation of the washer may cause noise and malfunctioning.
1Installation area
• Install the washer on a firm, flat
surface.
• If the washer is installed on an
unsuitable floor, it could make
considerable noise and vibrate.
2
3Checking level
• Open the lid, check if the washer is
correctly leveled by looking down
from the top. If the tub is not
centered in the opening, then the
washer is not level.
WRONG RIGHT
No shims. It would be dangerous. If the
floor is that far from being level, it is a floor
problem and not a washer problem.
Set Leveling feet
• Loosen the locknuts on 2 front leveling
feet until you can turn the feet with the
included wrench. Turn clockwise to
raise the washer or counterclockwise
to lower it.
Checking slope
• If installation surface is tilted, the
washer will vibrate. Do not install
on a sloping floor.

5
26 3/4″
57 1/5″
(68 cm)
1″
(2.5 cm) 1″ (2.5 cm)
3 1/2″
(9 cm)
44 1/2″
(113cm)
(145.3 cm)
(with lid
open)
6
7
5
Lower Raise
Confirming level
• Place the washer in original position,
confirming the level.
Horizontal setting
• Lift the front of the washer and adjust
level by turnings the adjustable legs
clockwise or using the adjusting plate.
Distance between the drain hose
and the wall
• Distance between the drain hose and
the wall should be more than 4 inches
(10 cm,) and the distance between any
other part and the wall should be more
than 1 inches (2.5 cm.)
■ Do not install the washer in the following places.
• Where the washer is exposed to direct sunlight.
• Near a heater or heating appliance.
• Where the washer is exposed to freezing temperatures.
• In damp environments such as bathrooms or harmful environments.
