OWNER'S MANUAL
WASHING
MACHINE
Before beginning installation, read these instructions carefully. This
will simplify installation and ensure that the product is installed
correctly and safely. Leave these instructions near the product after
installation for future reference.
MFL70203829
Rev.00_081717
EN ENGLISH
FH4G1JCH(0-9)N
Copyright © 2017 LG Electronics Inc. All Rights Reserved.

TABLE OF CONTENTS This manual may contain images or
content different from the model you
purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS ....................................................... 4
IMPORTANT SAFETY INSTRUCTIONS.....................................................4
INSTALLATION ...................................................................... 10

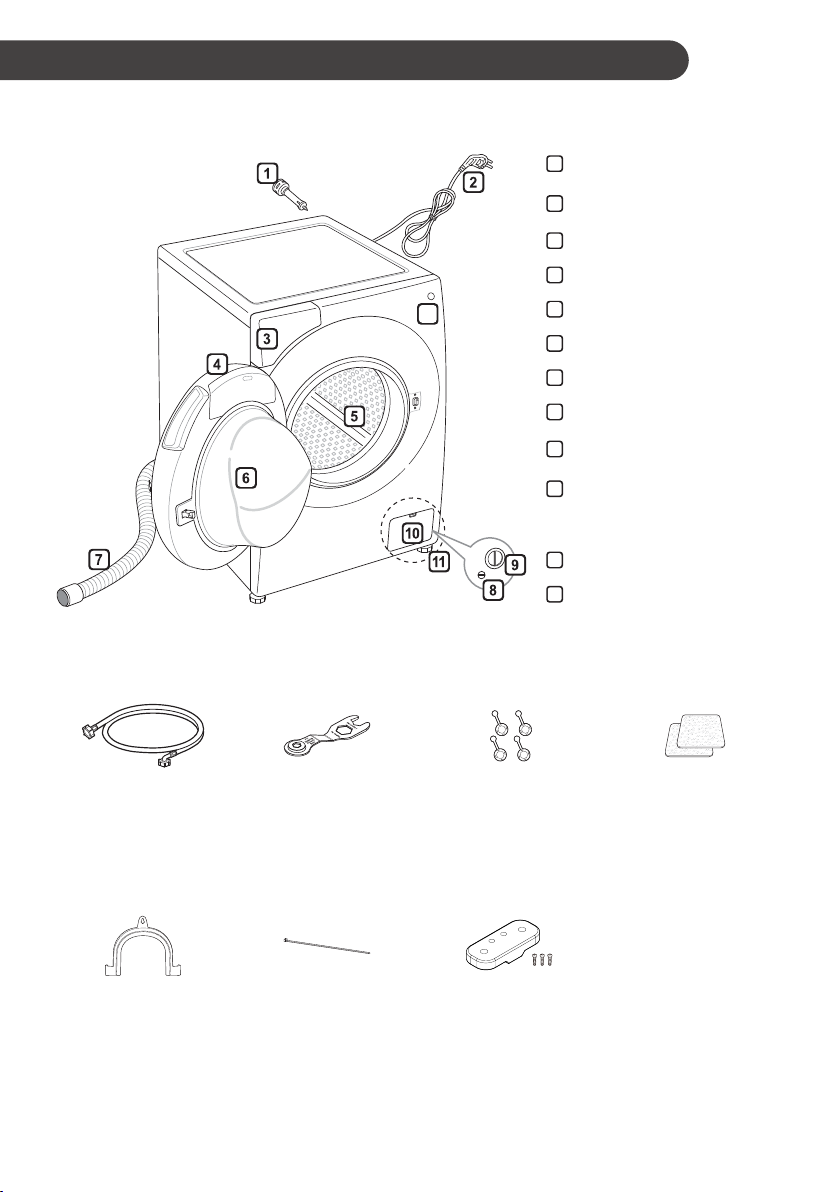

Parts ..........................................................................................................10
Accessories ...............................................................................................10
Specifications ............................................................................................11

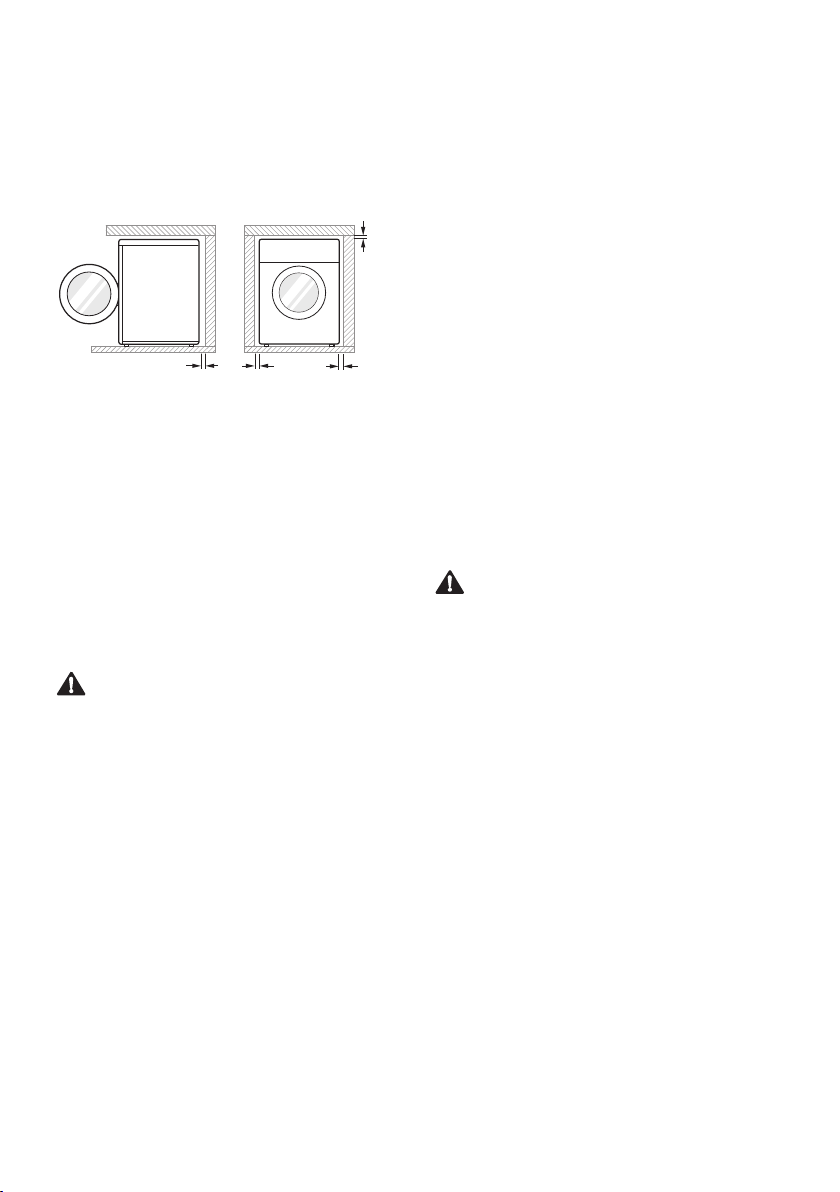

Installation Place Requirements ................................................................12
Unpacking and Removing Transit Bolts.....................................................13
Using Anti-Slip Sheets (Optional) ..............................................................14
Wooden Floors (Suspended Floors)..........................................................14
Leveling the Appliance...............................................................................15

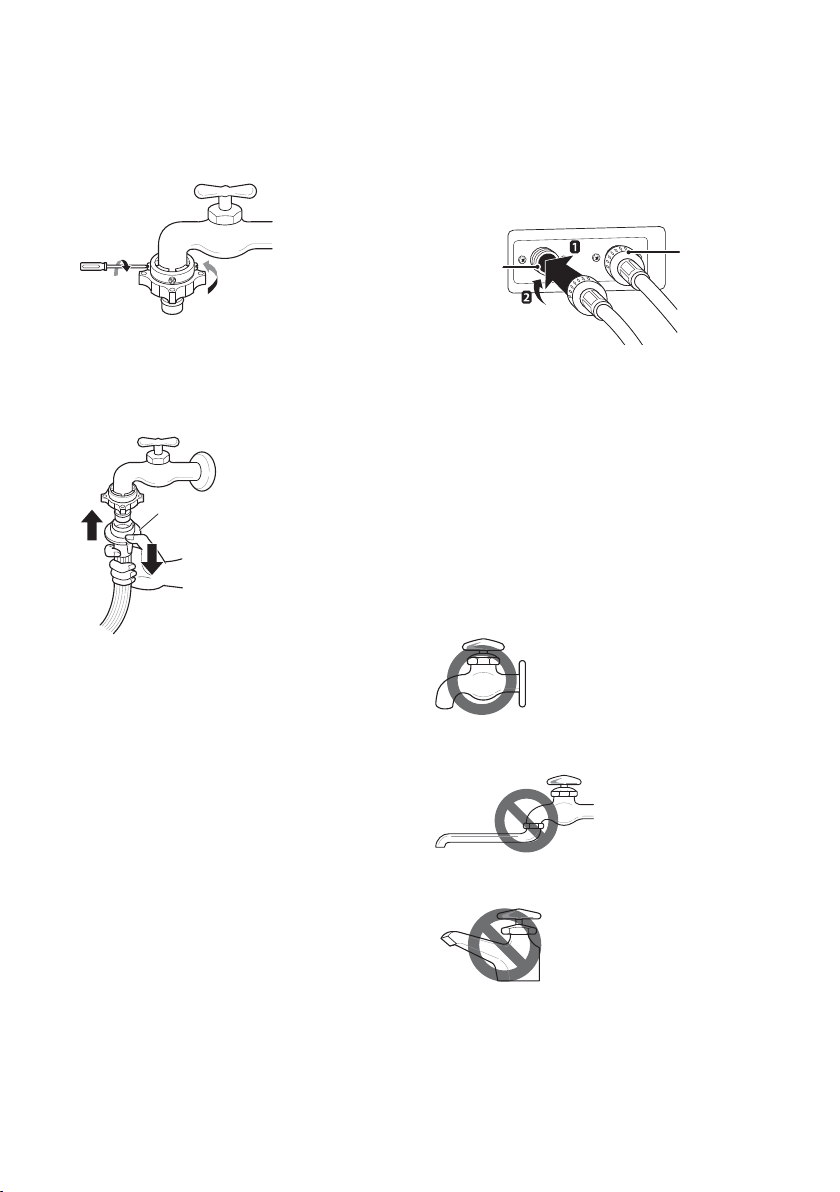

Connecting the Water Supply Hose...........................................................15
Installing the Drain Hose ...........................................................................18
OPERATION ........................................................................... 19

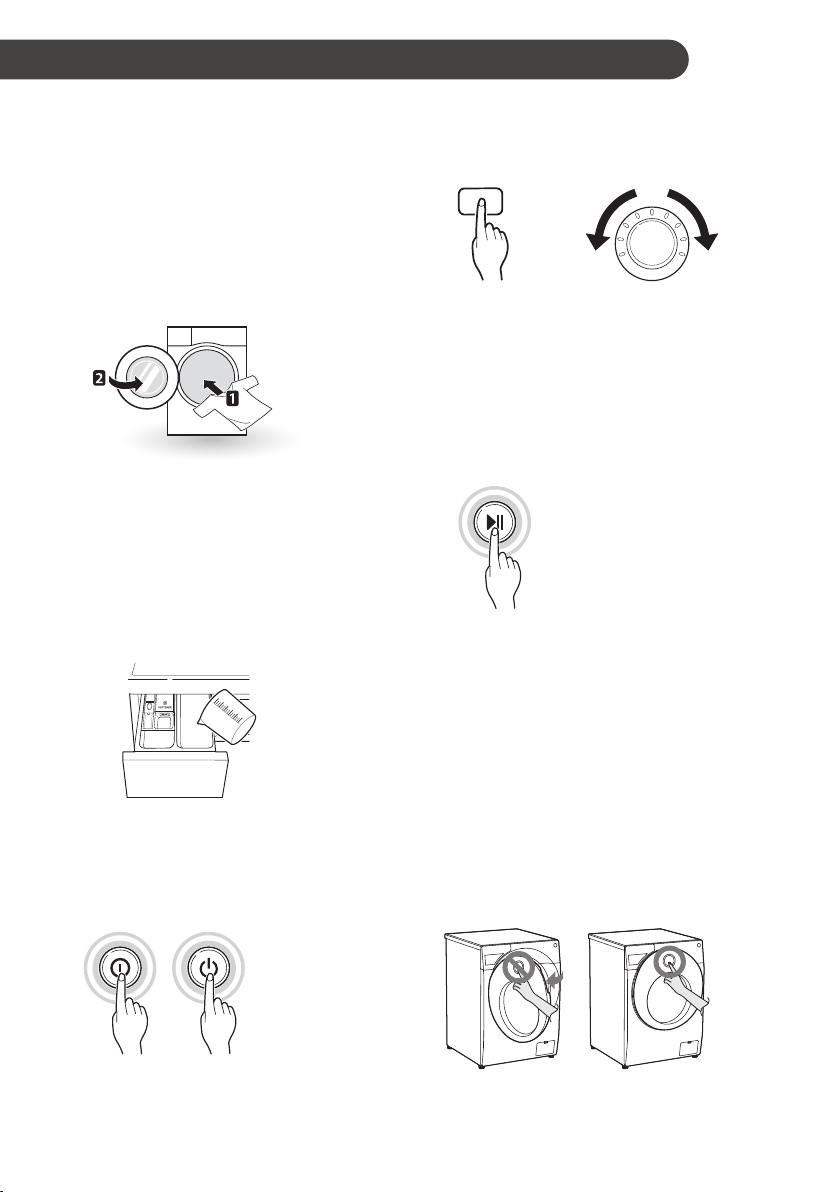

Using the Washing Machine ......................................................................19
Sorting Laundry .........................................................................................20
Adding Cleaning Products .........................................................................21
Control Panel.............................................................................................23
Programme Table ......................................................................................24
Option Programme ....................................................................................29
Dry ( ) ...................................................................................................33

SMART FUNCTIONS .............................................................35
Using Smart ThinQ Application................................................................. 35
Using Smart Diagnosis™ ......................................................................... 37
MAINTENANCE......................................................................38
Cleaning Your Washing Machine.............................................................. 38
Cleaning the Water Inlet Filter .................................................................. 38
Cleaning the Drain Pump Filter ................................................................ 39
Cleaning the Dispenser Drawer................................................................ 40
Tub Clean (Optional) ................................................................................ 40
Caution on Freezing During Winter .......................................................... 41
TROUBLESHOOTING ...........................................................43
Diagnosing Problems ............................................................................... 43
Error Messages ........................................................................................ 46
WARRANTY............................................................................48

4
SAFETY INSTRUCTIONS EN
The following safety guidelines are intended to prevent
unforeseen risks or damage from unsafe or incorrect operation
of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’
as described below.
This symbol is displayed to indicate matters and
operations that can cause risk. Read the part with this
symbol carefully and follow the instructions in order to
avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, re, death, electric shock,
injury or scalding to persons when using this product, follow
basic precautions, including the following:
Children in the Household
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.

5
EN
For use in Europe:
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
Children of less than 3 years should be kept away unless
continuously supervised.
Installation
•Never attempt to operate the appliance if it is damaged,
malfunctioning, partially disassembled, or has missing or broken
parts, including a damaged cord or plug.
•This appliance should only be transported by two or more people
holding the appliance securely.
•Do not install the appliance in a damp and dusty place. Do not
install or store the appliance in any outdoor area, or any area that
is subject to weathering conditions such as direct sunlight, wind, or
rain or temperatures below freezing.
•Tighten the drain hose to avoid separation.
•If the power cord is damaged or the hole of the socket outlet is
loose, do not use the power cord and contact an authorized service
centre.
•Do not plug multiple socket outlets, an extension power cable or
adapter with this appliance.

6
EN
•This appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of
the appliance, in such a way that a full opening of the appliance
door is restricted.
•This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current.
•This appliance is equipped with a power cord having an equipment-
grounding conductor and a grounding power plug. The power plug
must be plugged into an appropriate socket outlet that is installed
and grounded in accordance with all local codes and ordinances.
•Improper connection of the equipment-grounding conductor can
result in risk of electric shock. Check with a qualied electrician or
service personnel if you are in doubt as to whether the appliance is
properly grounded.
•Do not modify the power plug provided with the appliance. If it
does not t the outlet, have a proper outlet installed by a qualied
electrician.
•Do not lay the appliance completely when moving or installing the
appliance. It may cause noise or appliance damage.
Operation
•Do not attempt to separate any panels or disassemble the
appliance. Do not apply any sharp objects to the control panel in
order to operate the appliance.
•Do not repair or replace any part of the appliance. All repairs
and servicing must be performed by qualied service personnel
unless specically recommended in this Owner’s Manual. Use only
authorized factory parts.

7
EN
•Do not put animals, such as pets into the appliance.
•Keep the area underneath and around the appliance free of
combustible materials such as lint, paper, rags, chemicals, etc.
•Do not leave the appliance door open. Children may hang on the
door or crawl inside the appliance, causing damage or injury.
•Use new hose or hose-set supplied with the appliance. Reusing old
hoses can cause a water leak and subsequent property damage.
•Do not put in, wash or dry articles that have been cleaned in,
washed in, soaked in, or spotted with combustible or explosive
substances (such as waxes, wax removers, oil, paint, gasoline,
degreasers, drycleaning solvents, kerosene, petrol, spot removers,
turpentine, vegetable oil, cooking oil, acetone, alcohol, etc.).
Improper use can cause re or explosion.
•Never reach into the appliance while it is operating. Wait until the
drum has completely stopped.
•In case of ood, disconnect the power plug and contact the LG
Electronics customer information centre.
•Do not push down the door excessively, when the appliance door is
open.
•Do not touch the door during a high temperature programme.
•Do not use ammable gas and combustible substances (benzene,
gasoline, thinner, petroleum, alcohol, etc.) near the appliance.
•If the drain hose or inlet hose is frozen during winter, use it only
after thawing.
•Keep all washing detergents, softener and bleach away from
children.

8
EN
•Do not touch the power plug or the appliance controls with wet
hands.
•Do not bend the power cable excessively or place a heavy object
on it.
•Do not wash rugs, mats, shoes or pet blankets, or any other items
other than clothes or sheets, in this machine.
•This appliance must only be used for domestic household purposes
and should not be used in mobile applications.
•If there is a gas leakage (isobutane, propane, natural gas, etc.),
do not touch the appliance or power plug and ventilate the area
immediately.
Technical Safety for Using the Dryer
•Do not dry unwashed items in the appliance.
•Items that have been soiled with substances such as cooking
oil, vegetable oil, acetone, alcohol, petroleum, kerosene, spot
removers, turpentine, waxes and wax removers should be washed
in hot water with an extra amount of detergent before being dried in
the appliance.
•Never stop the appliance before the end of the drying cycle unless
all items are quickly removed and spread out so that the heat is
dissipated.
•Items such as foam rubber (latex foam), shower caps, waterproof
textiles, rubber backed articles and clothes or pillows tted with
foam rubber pads should not be dried in the appliance.
•Fabric softeners, or similar products, should be used as specied
by the fabric softener instructions.
•Remove all objects from pockets such as lighters and matches.
•The appliance is not to be used if industrial chemicals have been
used for cleaning.

9
EN
Maintenance
•Securely plug the power plug in the socket outlet after completely
removing any moisture and dust.
•Disconnect the appliance from the power supply before cleaning
the appliance. Setting the controls to the OFF or stand by position
does not disconnect this appliance from the power supply.
•Do not spray water inside or outside the appliance to clean it.
•Never unplug the appliance by pulling on the power cable. Always
grip the power plug rmly and pull straight out from the socket
outlet.
Disposal
•Before discarding an old appliance, unplug it. Cut off the cable
directly behind the appliance to prevent misuse.
•Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can cause
suffocation.
•Remove the door before disposing of or discarding this appliance to
avoid the danger of children or small animals getting trapped inside.

10
INSTALLATION EN
Parts
12
1
Transit bolts
2
Power plug
3
Drawer
4
Control panel
5
Drum
6
Door
7
Drain hose
8
Drain plug
9
Drain pump lter
10
Cover cap (Location may
vary depending on products)
11
Adjustable feet
12
Power button
Accessories
Cold supply hose (1 EA)
(Option: Hot (1 EA))
Spanner Caps for covering
transit bolt holes
(Optional)
Anti–slip sheets (2 EA)
(Optional)
Elbow bracket for
securing drain hose
(Optional)
Tie strap (Optional) Stacking holder,
Screws (3 EA)
(Optional)*
•* : Save these accessories for future use. These accessories will be used for stacking with Mini
Washer. Refer to the owner’s manual for Mini Washer for Installation.

11
EN
Specications
Model FH4G1JCH(0-9)N
Wash Capacity 10 kg (Wash) / 7 kg (Dry)
Power Supply 220-240 V~, 50 Hz
Size 600 mm (W) x 610 mm (D) x 850 mm (H)
Product Weight 85 kg
Permissible Water pressure 0.1 - 1.0 MPa (1.0 - 10.0 kgf / cm²)
•Appearance and specications may change without notice to improve the quality of the product.
•No further backow protection required for connection to the water supply.

12
EN
Installation Place
Requirements
Location
2 cm
0.5 cm
2 cm10 cm
Level oor : Allowable slope under the entire
appliance is 1°.
Power outlet : Must be within 1 meter of either
side of the location of the appliance.
•Do not overload the outlet with more than one
appliance.
Additional Clearance : For the wall, 10 cm:
rear/2 cm: right & left side
•Do not place or store laundry products on top
of the appliance at any time. These products
may damage the nish or controls.
WARNING
•The plug must be plugged into an appropriate
outlet that is properly installed and grounded
in accordance with all local codes and
ordinances.
Positioning
•Install the appliance on a at hard oor.
•Make sure that air circulation around the
appliance is not impeded by carpets, rugs, etc.
•Never try to correct any unevenness in the
oor with pieces of wood, cardboard or similar
materials under the appliance.
•If it is impossible to avoid positioning the
appliance next to a gas cooker or coal burning
stove, an insulation (85x60 cm) covered with
aluminum foil on the side facing the cooker
or stove must be inserted between the two
appliances.
•Do not install the appliance in rooms where
freezing temperatures may occur. Frozen
hoses may burst under pressure. The reliability
of the electronic control unit may be impaired
at temperatures below freezing point.
•Ensure that when the appliance is installed, it
is easily accessible for an engineer in the event
of a breakdown.
•With the appliance installed, adjust all four
feet using the transit bolt spanner provided to
ensure the appliance is stable, and a clearance
of approximately 5 mm is left between the
top of the appliance and the underside of any
worktop
•If the appliance is delivered in winter and
temperatures are below freezing, place the
appliance at room temperature for a few hours
before putting it into operation.
WARNING
•This equipment is not designed for maritime
use or for use in mobile installations such as
caravans, aircraft etc.
Electrical Connection
•Do not use an extension cord or double
adapter.
•Always unplug the appliance and turn off the
water supply after use.
•Connect the appliance to an earthed socket in
accordance with current wiring regulations.
•The appliance must be positioned so that the
plug is easily accessible.
•Repairs to the appliance must only be carried
out by qualied personnel. Repairs carried out
by inexperienced persons may cause injury
or serious malfunctioning. Contact your local
service centre.

13
EN
Unpacking and Removing
Transit Bolts
1Lift the appliance off the foam base.
•After removing the carton and shipping
material, lift the appliance off the foam
base. Make sure the tub support comes off
with the base and is not stuck to the bottom
of the appliance.
•If you must lay the appliance down to
remove the carton base, always protect the
side of the appliance and lay it carefully on
its side. Do not lay the appliance on its front
or back.
Tub Support
(Optional)
Carton
base
2Remove the bolt assemblies.
•Starting with the bottom two transit
bolts, use the spanner (included) to fully
loosen all transit bolts by turning them
counterclockwise. Remove the bolt
assemblies by wiggling them slightly while
pulling them out.
3Install the hole caps.
•Locate the hole caps included in the
accessory pack or attached on the back.
Cap
NOTE
•Save the bolt assemblies for future use. To
prevent damage to internal components, Do
not transport the washing machine without
reinstalling the transit bolts.
•Failure to remove transit bolts and retainers
may cause severe vibration and noise, which
can lead to permanent damage to the washing
machine. The cord is secured to the back of
the washing machine with a transit bolt to help
prevent operation with transit bolts in place.

14
EN
Using Anti-Slip Sheets
(Optional)
If you install the appliance on a slippery surface,
it may move because of excessive vibration.
Incorrect leveling may cause malfunction
through noise and vibration. If this occurs, install
the anti-slip sheets under the leveling feet and
adjust the level.
1Clean the oor to attach the anti-slip sheets.
•Use a dry rag to remove and clean foreign
objects and moisture. If moisture remains,
the anti-slip sheets may slip.
2Adjust the level after placing the appliance in
the installation area.
3Place the adhesive side of the anti-slip
sheets on the oor.
•It is most effective to install the anti-slip
sheets under the front legs. If it is difcult to
place the pads under the front legs, place
them under the back legs.
This side up
Adhesive side
4Ensure the appliance is level.
•Push or rock the top edges of the appliance
gently to make sure that the appliance does
not rock. If the appliance rocks, level the
appliance again.
NOTE
•You can obtain anti-slip sheets from the LG
Service Centre.
Wooden Floors (Suspended
Floors)
•Wooden oors are particularly susceptible to
vibration.
•To prevent vibration we recommend you place
rubber cups at least 15 mm thick of the each
foot of the appliance, secured to at least two
oor beams with screws.
Rubber Cup
•If possible install the appliance in one of the
corners of the room, where the oor is more
stable.
•Fit the rubber cups to reduce vibration.
NOTE
•Proper placement and leveling of the washing
machine will ensure long, regular, and reliable
operation.
•The washing machine must be 100%
horizontal and stand rmly in position.
•It must not ‘Seesaw’ across corners under the
load.
•The installation surface must be clean, free
from oor wax and other lubricant coatings.
•Do not let the feet of the washing machine get
wet. Failure to do so may cause vibration or
noise.
•You can obtain rubber cups
(p/no.4620ER4002B) from the LG Service
Centre.

15
EN

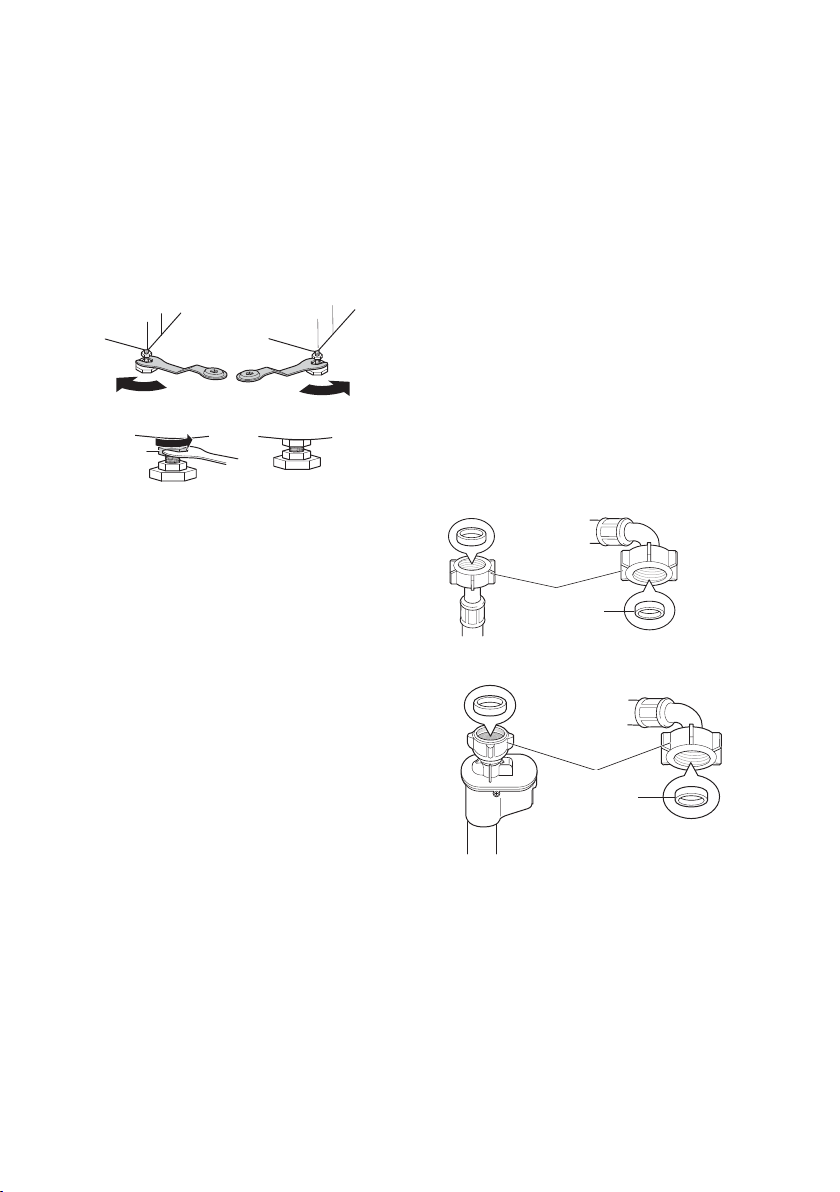

Leveling the Appliance
If the oor is uneven, turn the adjustable feet as
required (Do not insert pieces of wood etc. under
the feet). Make sure that all four feet are stable
and resting on the oor and then check that the
appliance is perfectly level (Use a spirit level).
•Once the appliance is level, tighten the lock
nuts up towards the base of the appliance. All
lock nuts must be tightened.
Raise Lower
Lock nut
Tighten all 4
lock nuts securely
Diagonal Check
•When pushing down the edges of the top plate
diagonally, the appliance should not move up
and down at all (check both directions). If the
appliance rocks when pushing the machine top
plate diagonally, adjust the feet again.
NOTE
•Timber or suspended type ooring may
contribute to excessive vibration and
unbalance.
•If the washing machine is installed on a raised
platform, it must be securely fastened in order
to eliminate the risk of falling off.
Connecting the Water Supply
Hose
•Water pressure must be between 0.1 MPa and
1.0 MPa (1.0‒10.0 kgf/cm2).
•Do not strip or crossthread when connecting
supply hose to the valve.
•If the water pressure is more than 1.0 MPa, a
decompression device should be installed.
•Periodically check the condition of the hose
and replace the hose if necessary.
Checking the Rubber Seal on the
Water Supply Hose
Two rubber seals are supplied with the water
inlet hoses. They are used for preventing water
leaks. Make sure the connection to taps is
sufciently tight.
Hose connector
Rubber seal
Hose connector
Rubber seal

16
EN
Connecting Hose to Water Tap
Connecting Screw-Type Hose to Tap
with Thread
Screw the hose connector onto the water supply
tap.
Connecting Screw-Type Hose to Tap
Without Thread
1Loose the four xing screws.
Upper
connector
Rubber
seal
Fixing screw
2Remove the guide plate if the tap is too large
to t the adapter.
Guide plate
3Push the adapter onto the end of the tap
so that the rubber seal forms a watertight
connection. Tighten the four xing screws.
4Push the supply hose vertically upwards
so that the rubber seal within the hose can
adhere completely to the tap and then tighten
it by screwing it to the right.
Plate
Supply
hose
Connecting One Touch Type Hose to
Tap Without Thread
1Unscrew the adapter ring plate and loose the
four xing screws.
Ring plate
2Remove the guide plate if the tap is too large
to t the adapter.
Guide plate

17
EN
3Push the adapter onto the end of the tap
so that the rubber seal forms a watertight
connection. Tighten the four xing screws
and the adapter ring plate.
4Pull the connector latch plate down, push the
supply hose onto the adapter, and release
the connector latch plate. Make sure the
adapter locks into place.
Latch plate
NOTE
•Before connecting the supply hose to the water
tap, turn on the water tap to ush out foreign
substances (dirt, sand, sawdust, and etc.)
in the water lines. Let the water drain into a
bucket, and check the water temperature.
Connecting Hose to Appliance
Attach the hot water line to the hot water supply
on the back of the washer. Attach the cold water
line to the cold water supply on the back of the
washer.
Cold water
supply
Hot water
supply
NOTE
•After completing connection, if water leaks
from the hose, repeat the same steps. Use
the most conventional type of tap for the water
supply. In case the tap is square or too big,
remove the guide plate before inserting the tap
into the adaptor.
Using the Horizontal Tap
Horizontal tap
Extension tap
Square tap

18
EN
Installing the Drain Hose
•The drain hose should not be placed higher
than 100 cm above the oor. Water in the
appliance may not drain or may drain slowly.
•Securing the drain hose correctly will protect
the oor from damage due to water leakage.
•If the drain hose is too long, do not force
it back into the appliance. This will cause
abnormal noise.
max. 100 cm
~ 100 cm
~ 145 cm
~ 105 cm
•When installing the drain hose to a sink, secure
it tightly with string.
•Securing the drain hose correctly will protect
the oor from damage due to water leakage.
max. 100 cm
max. 100 cm
Laundry tub
Hose retainer
Tie strap

19
OPERATION EN
Using the Washing Machine
Before the rst wash, select a washing
programme, allow the washing machine to wash
without clothing. This will remove residue and
water from the drum that may have been left
during manufacturing.
1Sort laundry and load items.
•Sort laundry by fabric type, soil level, colour
and load size as needed. Open the door
and load items into the washing machine.
2Add cleaning products and/or detergent and
softener.
•Add the proper amount of detergent to the
detergent dispenser drawer. If desired, add
bleach or fabric softener to the appropriate
areas of the dispenser.
3Turn on the washing machine.
•Press the Power button to turn on the
washing machine.
4Choose the desired washing cycle.
•Press the cycle button repeatedly or turn
the cycle selector knob until the desired
cycle is selected.
5Begin cycle.
•Press the Start/Pause button to begin the
cycle. The washing machine will agitate
briey without water to measure the weight
of the load. If the Start/Pause button is
not pressed within 5 minutes, the washing
machine will shut off and all settings will be
lost.
6End of cycle.
•When the cycle is nished, a melody will
sound. Immediately remove your clothing
from the washing machine to reduce
wrinkling. Check around the door seal when
removing the load for small items that may
be caught in the seal.
NOTE
•The button cannot be recognized when the
door is open. Press again after closing the
door.
