www.lg.com
OWNER'S MANUAL
WASHING
MACHINE
Before beginning installation, read these instructions carefully.
This will simplify installation and ensure that the product is
installed correctly and safely. Leave these instructions near the
product after installation for future reference.
MFL70280507
Rev.01_091317 Copyright © 2017 LG Electronics Inc. All Rights Reserved.
EN ENGLISH VI VIETNAMESE
TG2402NTWW

TABLE OF CONTENTS This manual may contain images or
content different from the model you
purchased.
This manual is subject to revision by the
manufacturer.
SAFETY INSTRUCTIONS ...................................................... 4
IMPORTANT SAFETY INSTRUCTIONS....................................................4
INSTALLATION ....................................................................... 9
Parts ...........................................................................................................9
Accessories ..............................................................................................10
Specifications ...........................................................................................10
Installation Place Requirements ............................................................... 11
Stacking Mini Washer ...............................................................................12

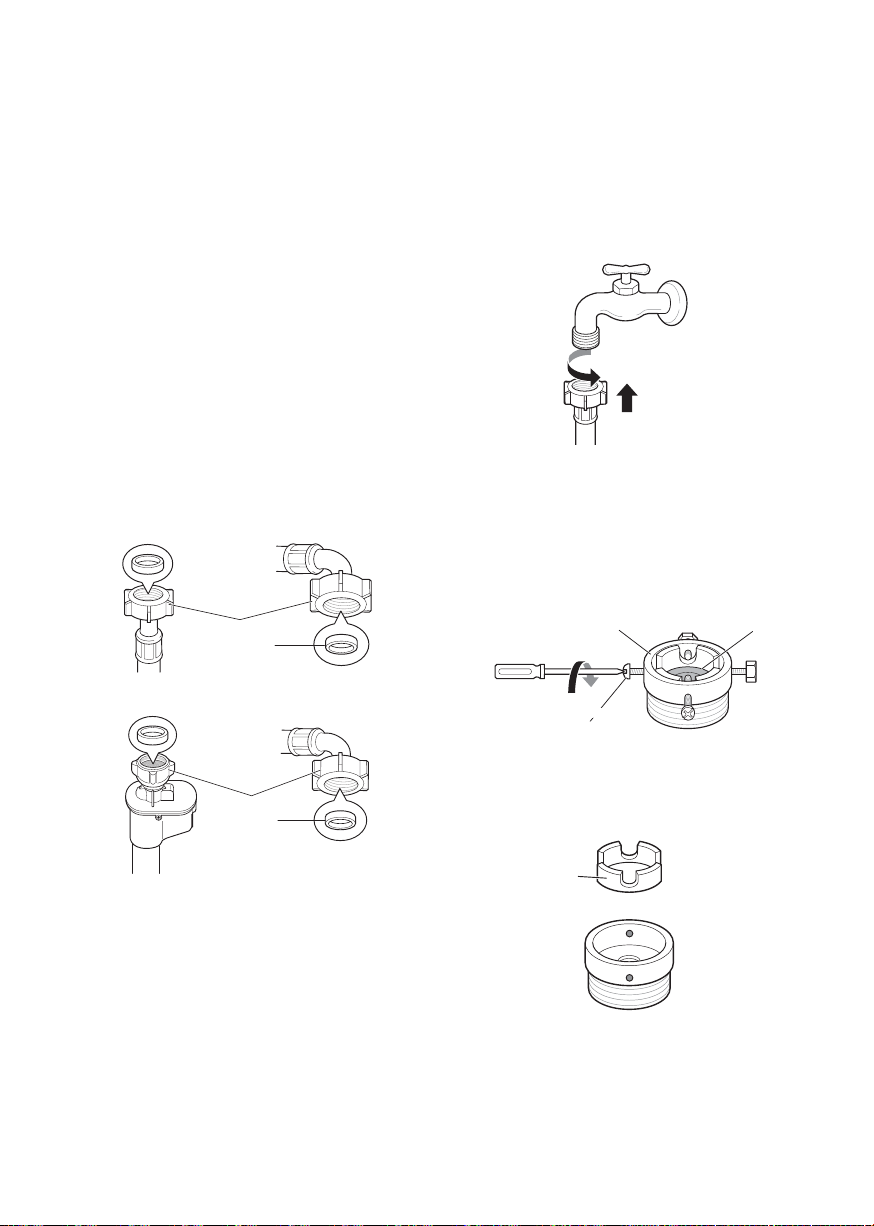

Connecting the Supply Hose ....................................................................14
Installing the Drain Hose ..........................................................................16
OPERATION .......................................................................... 17

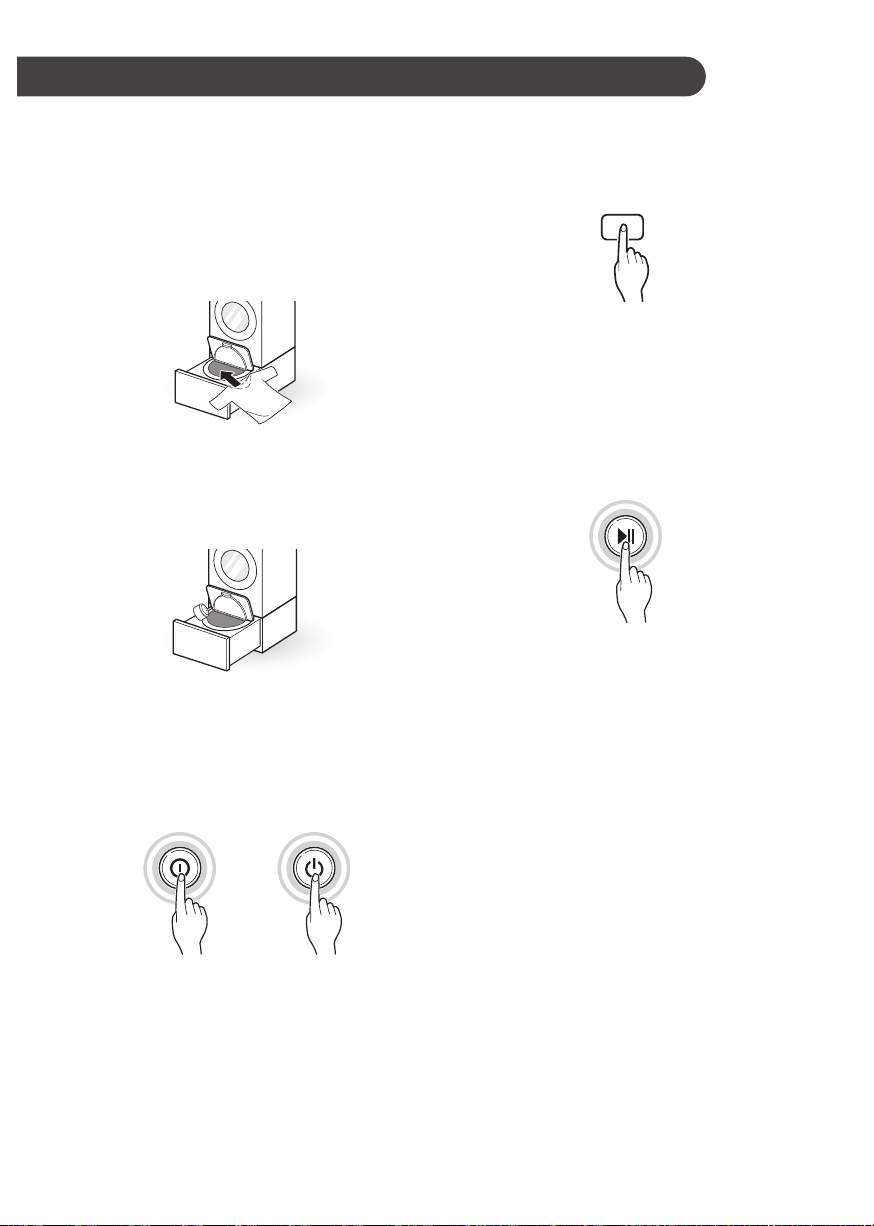

Using the Appliance..................................................................................17
Sorting Laundry ........................................................................................18
Closing the Door and Drawer ...................................................................19
Control Panel............................................................................................21
Programme Table .....................................................................................22
Option Programme ...................................................................................23
SMART FUNCTIONS ............................................................ 24
Using SmartThinQ Application..................................................................24
Using Smart Diagnosis™ .........................................................................26
MAINTENANCE..................................................................... 27
Cleaning the Washing Machine ................................................................27
Cleaning the Drum....................................................................................28
Cleaning the Water Inlet Filter ..................................................................28
Cleaning the Lint Filter..............................................................................29
Caution on Freezing During Winter ..........................................................29
TROUBLESHOOTING .......................................................... 31
Diagnosing Problems ...............................................................................31
Error Messages ........................................................................................35

4
SAFETY INSTRUCTIONS EN
The following safety guidelines are intended to prevent
unforeseen risks or damage from unsafe or incorrect
operation of the appliance.
The guidelines are separated into ‘WARNING’ and ‘CAUTION’
as described below.
This symbol is displayed to indicate matters and
operations that can cause risk. Read the part with this
symbol carefully and follow the instructions in order to
avoid risk.
WARNING
This indicates that the failure to follow the instructions can
cause serious injury or death.
CAUTION
This indicates that the failure to follow the instructions can
cause the minor injury or damage to the product.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of explosion, fire, death, electric shock,
injury or scalding to persons when using this product,
follow basic precautions, including the following:
Children in the Household
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.

5
EN
Installation
•Never attempt to operate the appliance if it is damaged,
malfunctioning, partially disassembled, or has missing or broken
parts, including a damaged cord or plug.
•This appliance should only be installed and transported by two or
more people holding the appliance securely.
•Do not install the appliance in a damp and dusty place. Do not
install or store the appliance in any outdoor area, or any area that
is subject to weathering conditions such as direct sunlight, wind,
or rain or temperatures below freezing.
•Tighten the drain hose to avoid separation.

6
EN
•If the power cord is damaged or the hole of the socket outlet is
loose, do not use the power cord and contact an authorized
service centre.
•This appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of
the appliance, in such a way that a full opening of the appliance
door is restricted.
•This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current.
•This appliance is equipped with a power cord having an
equipment-grounding conductor and a grounding power plug. The
power plug must be plugged into an appropriate socket outlet that
is installed and grounded in accordance with all local codes and
ordinances.
•Improper connection of the equipment-grounding conductor can
result in risk of electric shock. Check with a qualified electrician or
service personnel if you are in doubt as to whether the appliance
is properly grounded.
•Do not modify the power plug provided with the appliance. If it
does not fit the outlet, have a proper outlet installed by a qualified
electrician.

7
EN
Operation
•Do not use a sharp object like drill or pin to press or separate an
operation unit.
•Do not repair or replace any part of the appliance. All repairs and
servicing must be performed by qualified service personnel unless
specifically recommended in this Owner’s Manual. Use only
authorized factory parts.
•Use new hose or hose-set supplied with the appliance. Reusing
old hoses can cause a water leak and subsequent property
damage.
•Do not reach into the appliance if the tub or agitator is moving.
•Keep the area underneath and around the appliance free of
combustible materials such as lint, paper, rags, chemicals, etc.
•Do not put animals, such as pets into the appliance.
•Do not leave the appliance door open. Children may hang on the
door or crawl inside the appliance, causing damage or injury.
•Never reach into the appliance while it is operating. Wait until the
drum has completely stopped.
•Do not put in, wash or dry articles that have been cleaned in,
washed in, soaked in, or spotted with combustible or explosive
substances (such as wax, oil, paint, gasoline, degreasers,
drycleaning solvents, kerosene, vegetable oil, cooking oil, etc.).
Improper use can cause fire or explosion.
•In case of flood, disconnect the power plug and contact the LG
Electronics customer information centre.
•Do not push down the drawer excessively, when the appliance
drawer is open.

8
EN
Maintenance
•Securely plug the power plug in the socket outlet after completely
removing any moisture and dust.
•Disconnect the power cord before cleaning the appliance.
•Never unplug the appliance by pulling on the power cable. Always
grip the power plug firmly and pull straight out from the socket
outlet.
•Do not spray water inside or outside the appliance to clean it.
Disposal
•Before discarding an old appliance, unplug it. Cut off the cable
directly behind the appliance to prevent misuse.
•Dispose of all packaging materials (such as plastic bags and
styrofoam) away from children. The packaging materials can
cause suffocation.
•Remove the door before disposing of or discarding this appliance
to avoid the danger of children or small animals getting trapped
inside.

9
INSTALLATION EN
Parts
7
8
6
5
4
3
2
1
Door
Drum
Control Panel
Drawer
1
2
3
4
Water Supply Hose
Power Plug
Water Drain Hose
Leveling Feet
5
6
7
8
