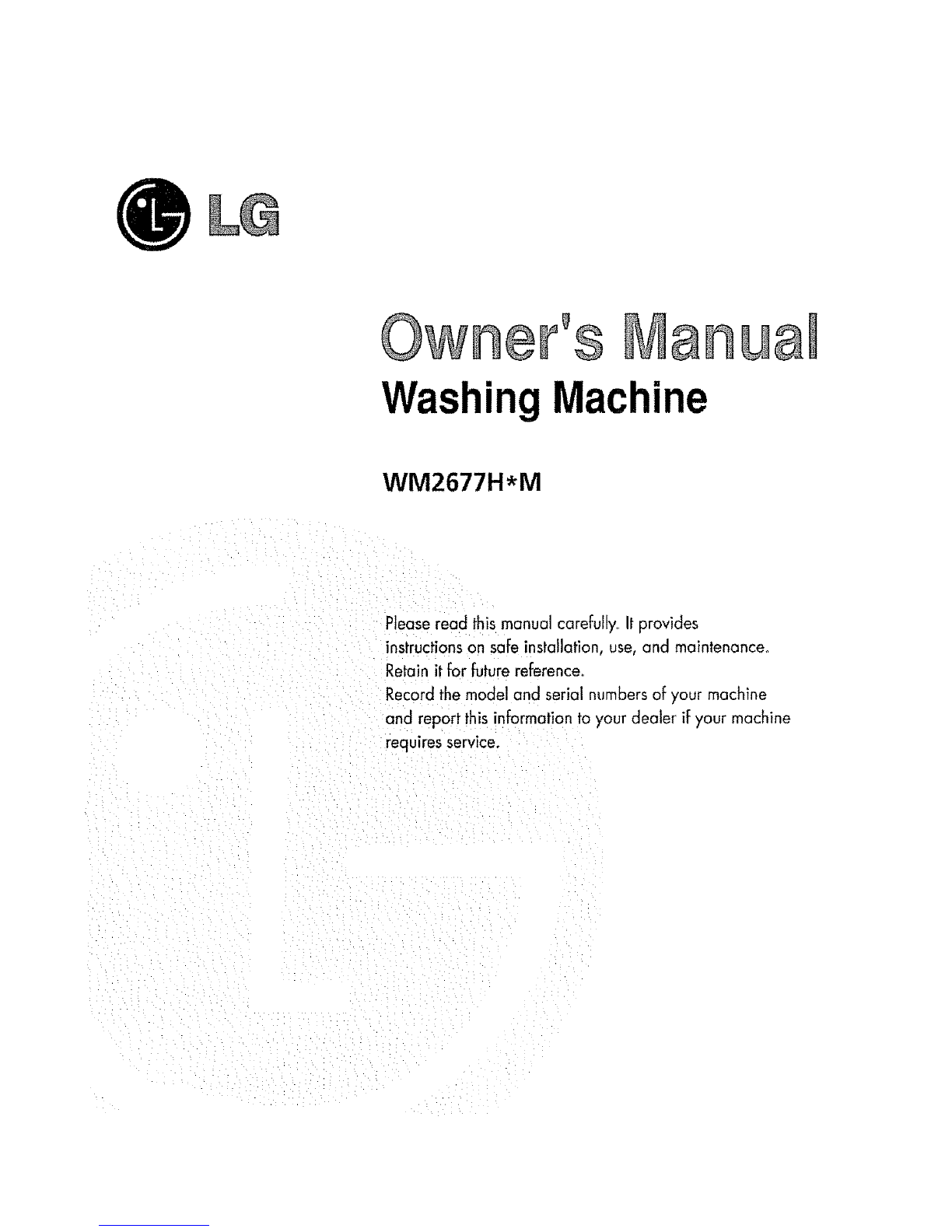

LG WM2677HSM User manual

8
WashingMachine
WM2677H*M
Pleaseread this manual carefully.. It provides
instructions on safe installation, use,and maintenance_
Retainit for future reference_.
Record the model and serial numbers of your machine
and report this information to your dealer iFyour machine
requires service.

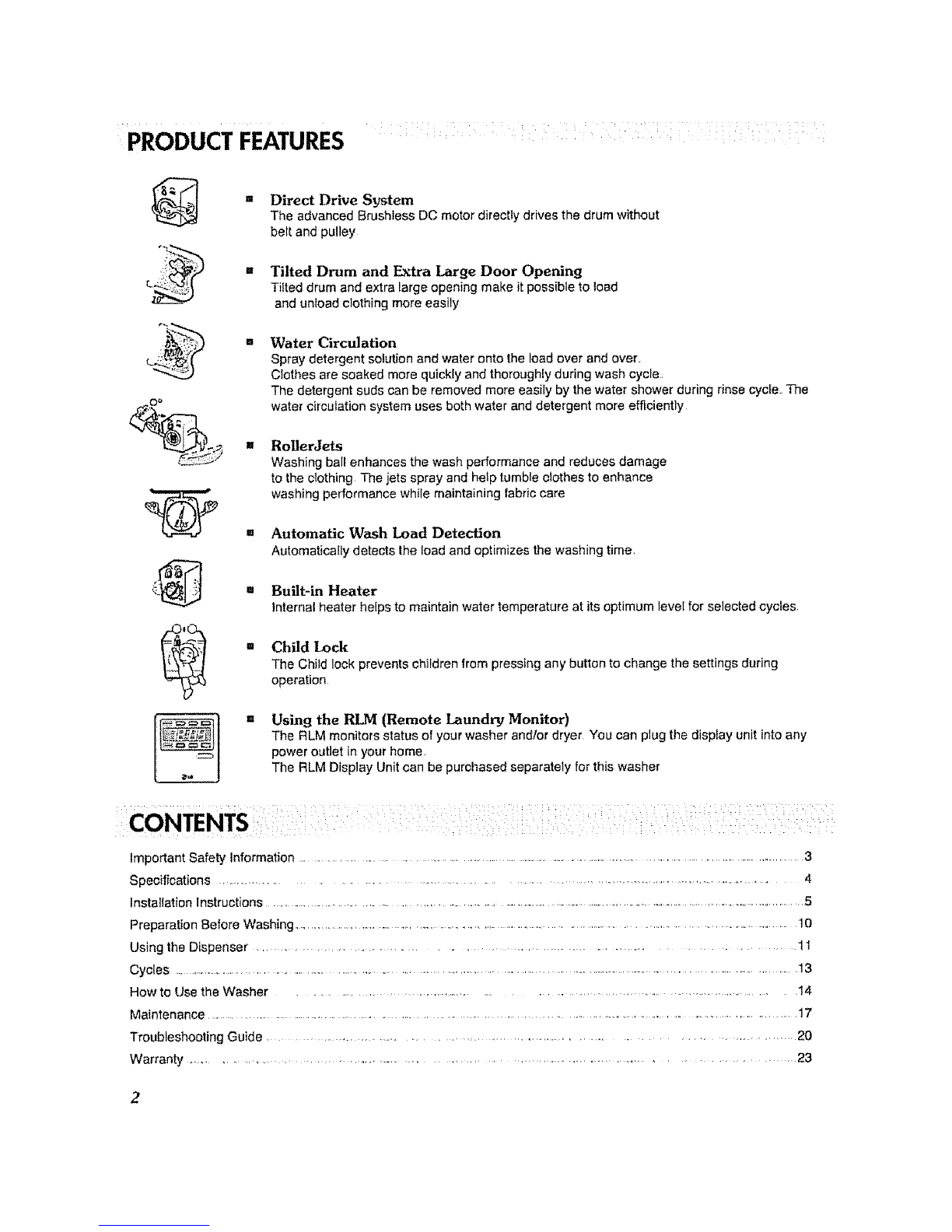

PRODUCT FEATURES
EE
0 _
-- 7¸ I
Direct Drive System
The advanced Brush_ess DC motor directly drives the drum without
belt and pulley
Tilted Drum and Ex_a Large Door Opening
Tilted drum and extra large opening make it possible to toad
and unload clothing more easily
Water Circulation
Spray detergent solution and water onto the load over and over,
Clothes are soaked more quickly and thoroughly during wash cycle
The detergent suds can be removed more easily by the water shower during nnse cycle, The
water circulation system uses both water and detergent more efficiently
RoUerJets
Washing ball enhances the wash performance and reduces damage
to the clothing The jets spray and help tumble clothes to enhance
washing performance while maintaining fabric care
Automatic Wash Load Detection
Automatically detectsthe loadandoptimizes thewashingtime.
Built-in Heater
Internal heater helps to maintain water temperature at its optimum level for selected cycles
Child Lock
The Child lock prevents children from pressing any button to change the settings during
operation
Using the RLM (Remote Laundry Monitor)
The RLM monitors status of your washer andlor dryer You can plug the display unit into any
power outlet in your home,
The RLM Display Unit can be purchased separately for this washer
Important Safety Information ..............................................................................................................................................................3
Specifications .......................................................................................................................... 4
InstallationInstructions .......................................................................................................................................................... 5
Preparation Before Washing ............................................................................................................................................ 10
Using the Dispenser ............................................................................... 11
Cycles .............................................................................................................................................................................................13
How to Use the Washer ..................................................................................................... 14
Maintenance ............................................................................................................................................................ 17
Troubleshooting Guide ....................................................................................... 20
Warranty ................................................................................................... 23

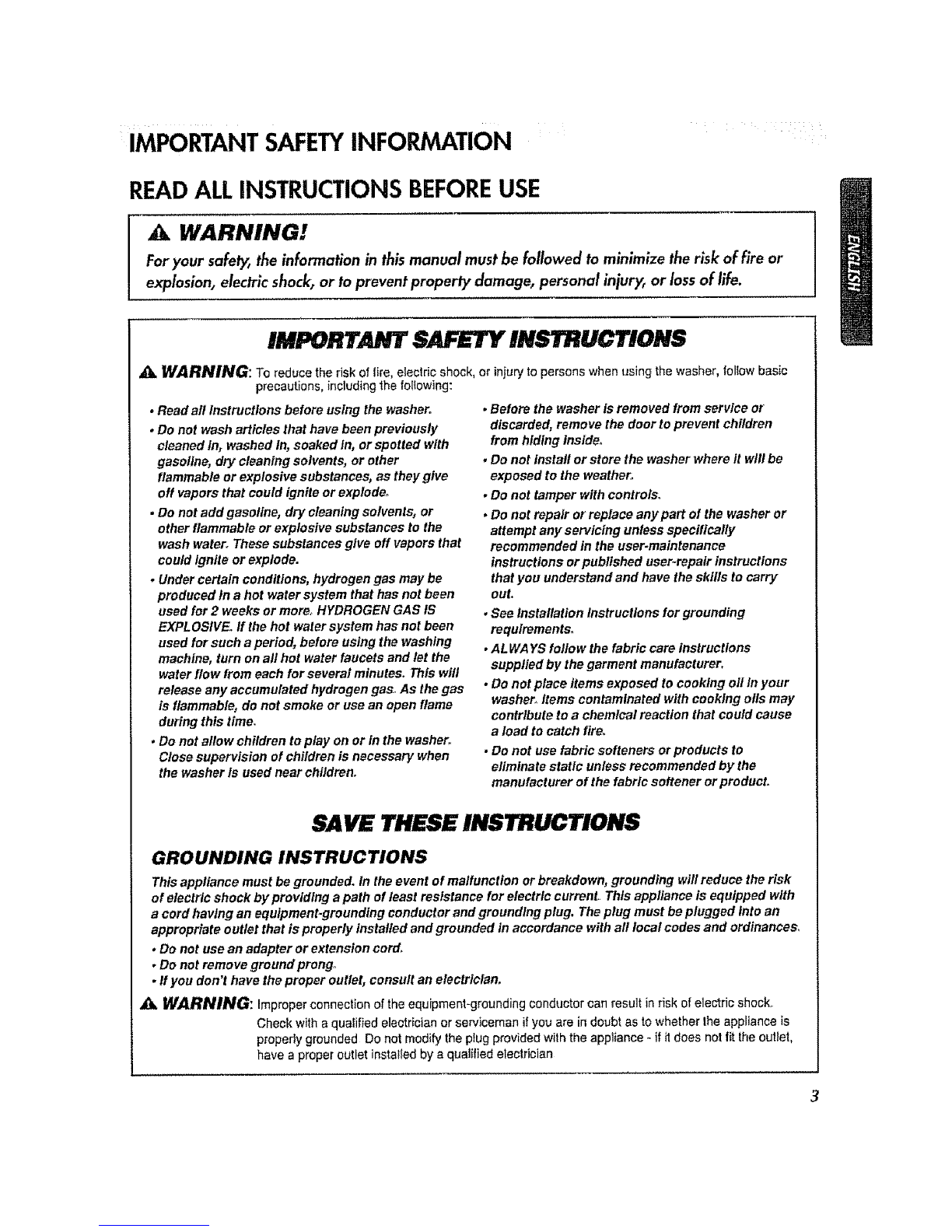

IMPORTANT SAFETYINFORMATION
READ ALLINSTRUCTIONS BEFOREUSE
,A WARNING!
For your safely, the information in this manual must be followed to minimize the risk of fire or
explosion, electricshock, or to prevent property damage, personal injury_or loss of life.
IMPORTANT SAFETY INSTRUCTIONS
,t_ WARNING: To reduce the risk of lire, electric shock, or injury to persons when using the washer, follow basic
precautions, including 1he folfowing:
*Read aft instructions before using the washer.
*Do not wash articles that have been previously
cleaned in_ washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, or other
flammable or explosive substances, as they give
off vapors that could ignite or explode,,
. Do not add gasoline, dry cleaning solvents, or
other flammable or explosive substances to the
wash water,, These substances give off vapors that
could ignite or explode.
,Under certain conditions, hydrogen gas may be
produced tn a hot water system that has not been
used for 2 weeks or more,_ HYDROGEN GAS tS
EXPLOSIVE° ff the hot water system has not been
used for such aperiod, before using the washing
machine, turn on all hot water faucets and let the
water flow from each for several minutes° This will
release any accumulated hydrogen gas,. As the gas
is flammable_ do not smoke or use an open flame
during this time.
*Do not allow children to play on or in the washer.
C!ose supervision of children is necessary when
the washer ts used near children.
•Before the washer is removed from service or
discarded, remove the door to prevent children
from hiding inside,,
, Do not install or store the washer where it will be
exposed to the weather,
•Do not tamper with controls,
•Do not repair or replace anypart of the washer or
attempt any servicing unless specifically
recommended in the user=maintenance
instructions or published user-repair instructions
that you understand and have the skills to carry
ouL
• See Installation Instructions for grounding
requirements.
•AL WAYS follow the fabric care instructions
supplied by the garment manufacturer,
•Do not place items exposed to cooking off !n your
washer, items contaminated with cooking oils may
contribute to a chemical reaction that could cause
a load to catch fire,
•DO not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or producL
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
This appliance must be grounded, in the event of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing apath of least resistance for electric current, This appliance is equipped with
a cord having an equipment=grounding conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with aft local codes and ordinances.
•Do not use an adapter or extension cord.
• Do not remove groundprongo
•ftyou don't have the proper outlet, consult an electrician,
,A WARNING: Improper connection of the equipment_grounding conductor can result in risk of electric shock,
Check with a qualified electrician or serviceman if you are in doubt as to whether Ihe appliance is
properiy grounded Do not modify the plug provided with the appllance - if it does not lit the outlet,
have a proper outlet instated by a qualified electrician
3

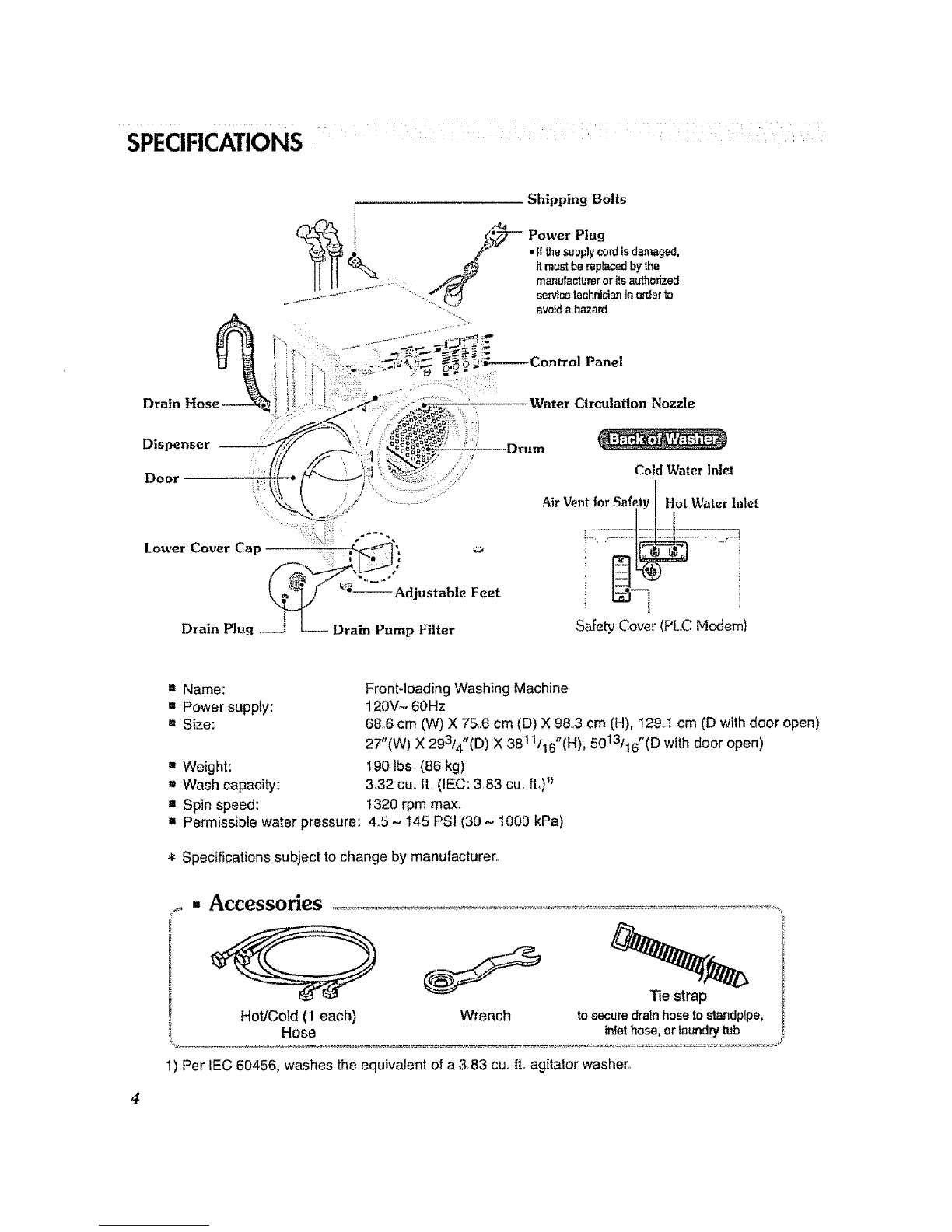

SPECIFICATIONS '
Shipping Bolts
Power Plug
•tf thesupply cordisdamaged,
itmust be replacedby the
manufa_-tureror _ authorized
se_ce technicianin orderto
avoid a hazard
Drain
Dispenser
Door
Panel
Water Circulation Nozzle
Drum
Cold Water Inlet
Air Vent for Safety [Hot Water Inlet
Safety Cover (PLC Modem)
= Name:
mPower suppty:
= Size:
a Weight:
" Wash capacity:
= Spin speed:
Frontqoading Washing Machine
120V-. 60Hz
68,6 cm (W) X 75.6 cm (D) X 98.3 cm (H), 12&1 cm (D with door open)
27"(W) X 293/4"(D) X 38 t 1/16"(H), 5013/16"(D with door open)
190 tbs, (86 kg)
3.32 cu. ft, (IEC: 383 cu. fl,) _
1320 rpm max.
" Permissible water pressure: 4,5 ~ 145 PSI (30 ~ 1000 kPa)
*Specifications subject to change by manufacturer,,
F
Hot/Cold (1 each) Wrench
Hose
Tie strap
to secure drain hose tostandpipe,
tn_ethose, or laundry tub
1) Per IEC 60456, washes the equivalent of a 3.83 cu_ ft. agitator washer,

INSTALLATION INSTRUCTIONS
Install or More unit wlnere it x_ill not be exposed to temperatures below freeTJng or
exposed to ontside weather conditions.
Properly ground washer to conform with all governing codes and ordinances.
To reduce the r'isk of electrlc sht_ck, tlt_not install the washer in humid spaces,
The base opening must not he _tbstructed by carpeting when the washing machine is installed on a carpeted floor:,
In countries where there are areas which may be subject to infeMatlon by cockroaclnes or other vermin, pay
particular attention to keeping the appliance and its surrmnndings in clean c_mdition at all times.
Damage caused by eockr_aches nr other vermin will n_t be covered by the appliance warranty.

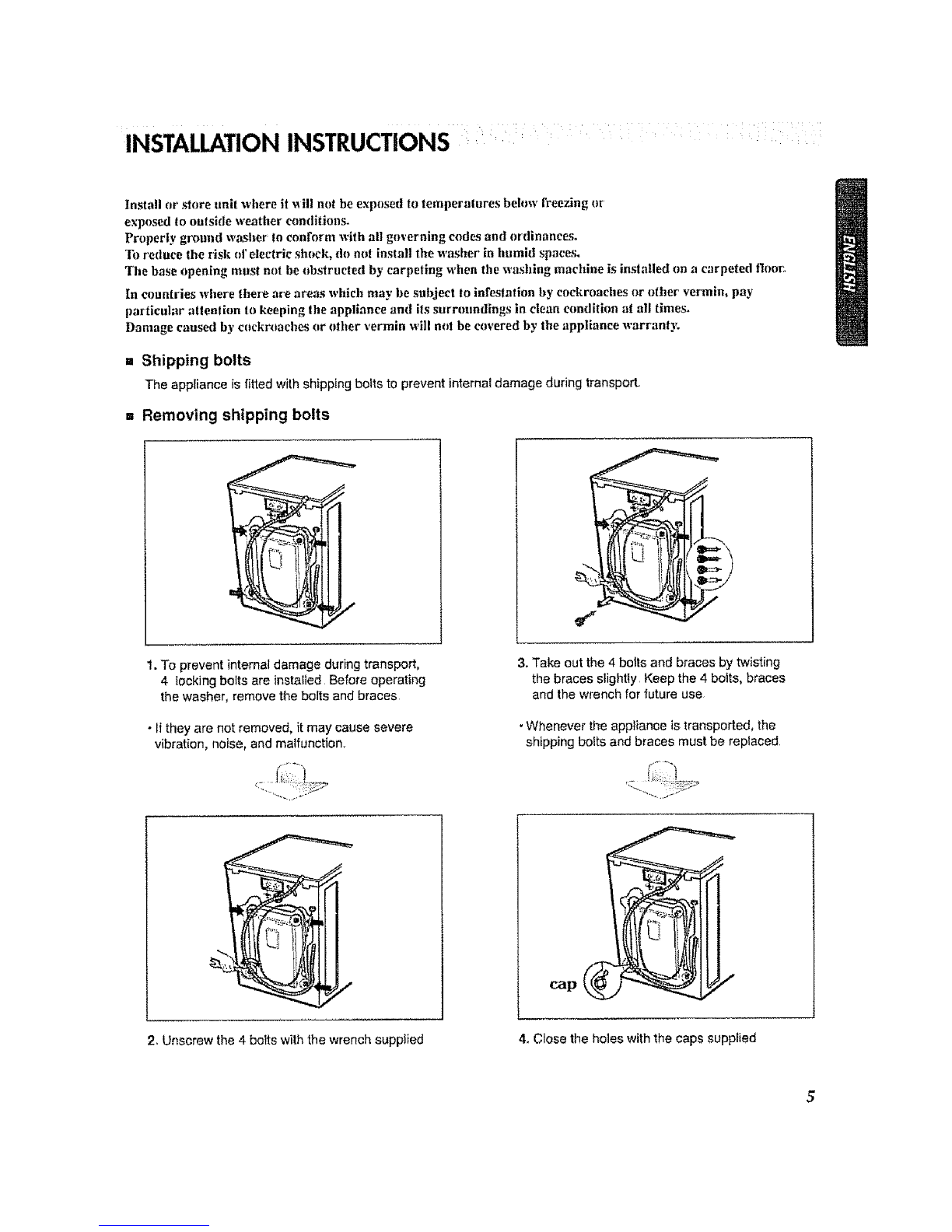

,. Shipping bolts
The appliance is fittedwith shipping bolts to prevent internal damage during transport
=Removing shipping bolts
1.To prevent internal damage during transport,
4 locking bolts are installed Before operating
the washer, remove the bolts and braces
•f! they are not removed, it may cause severe
vibration, noise, and malfunction.
3. Take out the 4 botts and braces by twisting
the braces slightly Keep the 4 bolts, braces
and lhe wrench for future use
•Whenever the appliance istransported, the
shipping boits and braces must be replaced.
2, Unscrew the 4 bolts with the wrench supplied 4oClose the holes with the caps supplied
5

IN%TAll ATI{3N,,...... ___.v.. INSTRUCTIONS
= Installation clearances
The location must be iarge enough to fully open
the washer door.
,. Washer dimensions
•Most installations require aminimum 4 in,
(10 cm) clearance behind the washer
=Minimum installation spacing for
recessed area installation.
The following dimensions shown are for the minimum
spacing altowed
Additional spacing should be considered for
instaIMtionand servicing
.Additional clearances might be required for wall,
door and floor moldings
•Additional spacing of I in. (2 5 cm) on all sides of
the washer is recommended to reduce noise
transfer
Companion appliance spacing should also be
considered
!i _ i i
(756cm) (10 crn)
[Side Vie'.'.,]
(25 cm) (68 Scm) (2 5cry)
(Front view)
= Level floor
•Allowable slope under entire washer is 1°..
• To minimize noise and vibration, the washer
MUST be Installed on a solidly constructed
floor.
• Carpeting and soft tile surfaces are not
recommended.
• Never install the washer on a platlorm or weakly
supported structure
NOTE: A firm_ solid floor is even (gore critical to a
front*leadlng ,._asher than to alop-loader.
Iflyour flour is wood and!or ff'ame
construction, you may need to reinforce il,
Front-loaders use substantially faster spin
speeds than top-loaders, causing greater
vibration. If the floor is not solid, yuur washer
will vibrate, You will hear and feel lhe
vibration throughout your house.
- Power outlet
•Must be within 60 in (1 5m) of either side of the
washer,. Do not overload the outlet with more
than one appliance
• T_me-delay fuse or circuit breaker is recommended
NO]'E: It is the personal t'esponsibility and obligation
of the eu_omer to have aproper outlet
installed by aqualified electrician,
6

INSTALLATION INSTRUCTIONS
=Electrical connection
-Do not use an extension cord or double adapter
• If the supply cord is damaged, it must be replaced by a qualified person in order to avoid a hazard
•If the machine will not be used for an extended time, unplug it and shut off the water supply
• Connect the machine to a grounded outlet in accordance with current wiring regulations
- The appliance must be positioned so that the plug is easily accessible
CAUTION! Concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that
appfiance and has no additianat outlets or branch circuits. Check the specification page of this owner's manual to be
certain,
Do not overload wall cutlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords,
or damaged or cracked wlre insulation are dangerous. Any of these conditions could result in electric shock or fire.
Periodk',allyexamine the cord of your appliance, and if its appearance indicates damage or detedoratJomunplug it,
discontinue use of the appliance, and have the cord repfaced with an exact replacement part by an authorized servicer
Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed [na door, or
walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance,
= Connecting water supply hose
Cold
water
tap
-Water supply pressure must be between
45 and 145 PSI (30-1000 kPa),
Do not crossthread when connecting inlet hose to
the valve.
Ifthe water supply pressure is more than 145 PSI,
a pressure reducing device should be installed
Two Sealing washers are supplied with the water
inlet hoses to prevent water leaks.
Check for leakage of washing machine connections
by turningthe tap completely on
Periodically check the condition of the hose and
replace the hose if necessary
Make sure that there is no kink inthe hose and that
it is not crushed
Be sure that the two water inputports are connected
to the correct water fatJcets..The connector for hot
water iscolored red
NOTE: Washing Machine is to be connected to lhe water mains using new hos_.
Old hoses should eel be used,
Repairs to the washing machine mus! only be carried out by qualified personnel, Repairs carried out by
inexperienced persong may cilllse injury or serious malhmctioning. Contact your local service eentero
i)o net instal! your washing machine in a room where temperatures below freezing may occur°
Frozen hoses may burst antler pressure° The r¢liabillty of the elee|reaic control unit may be impaired
at lemperatures below the freezing point,
If the applinnce is delivered in the winter months and temperatures are below fre_ing_
store |he washing machine at room temperature for a few hours hehwe putting it into operatiom
7

INSTALLATION INSTRUCTIONS ::: .....

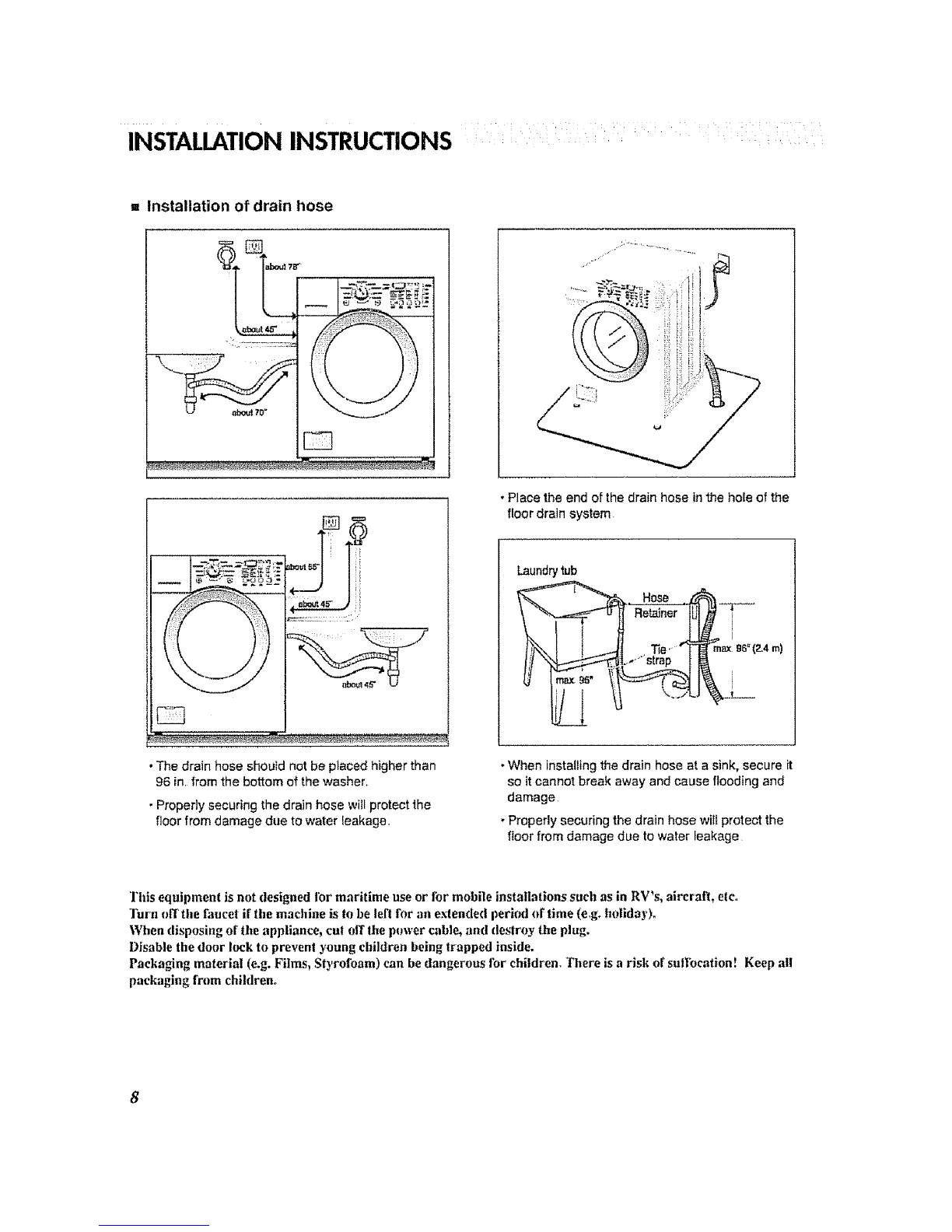

=Installation of drain hose
|
9
_=:.::_::/_ u ¸¸-,' •
•The drain hose shouid not be placed higher than
96 in from the bottom of the washer,
•Properly securing the drain hose wilI protect the
floor from damage due to water leakage,
,Place the end of the drain hose in the hole of the
floor drain system
Laundrytub
Hose
Tie," _ m=i 96(_4m)
\..j'U _._.!........
•When insta!ling the drain hose at asink, secure it
so itcannot break away and cause flooding and
damage
• Properly securing the drain hose will protect the
floor from damage due to water leakage
This equipment is not designed for maritime use or Ibr mobile installations such as in RV's, aircraft, etc.
Turn off tile faucet i[ the machine ksto be left f()r an exlended period or time (e_g. holiday).
When disposing ot'the appliance, cut off the power cable, and desLroy the plug.
Disable the door lock to prevent young children being trapped inside.
Packa_ng material (e.g. Films, Styrofoam) can be dangerous I_r children, There is a risk or"suffocation[ Keep all
packaging from children°
8

INSTALLATION INSTRUCTIONS...............

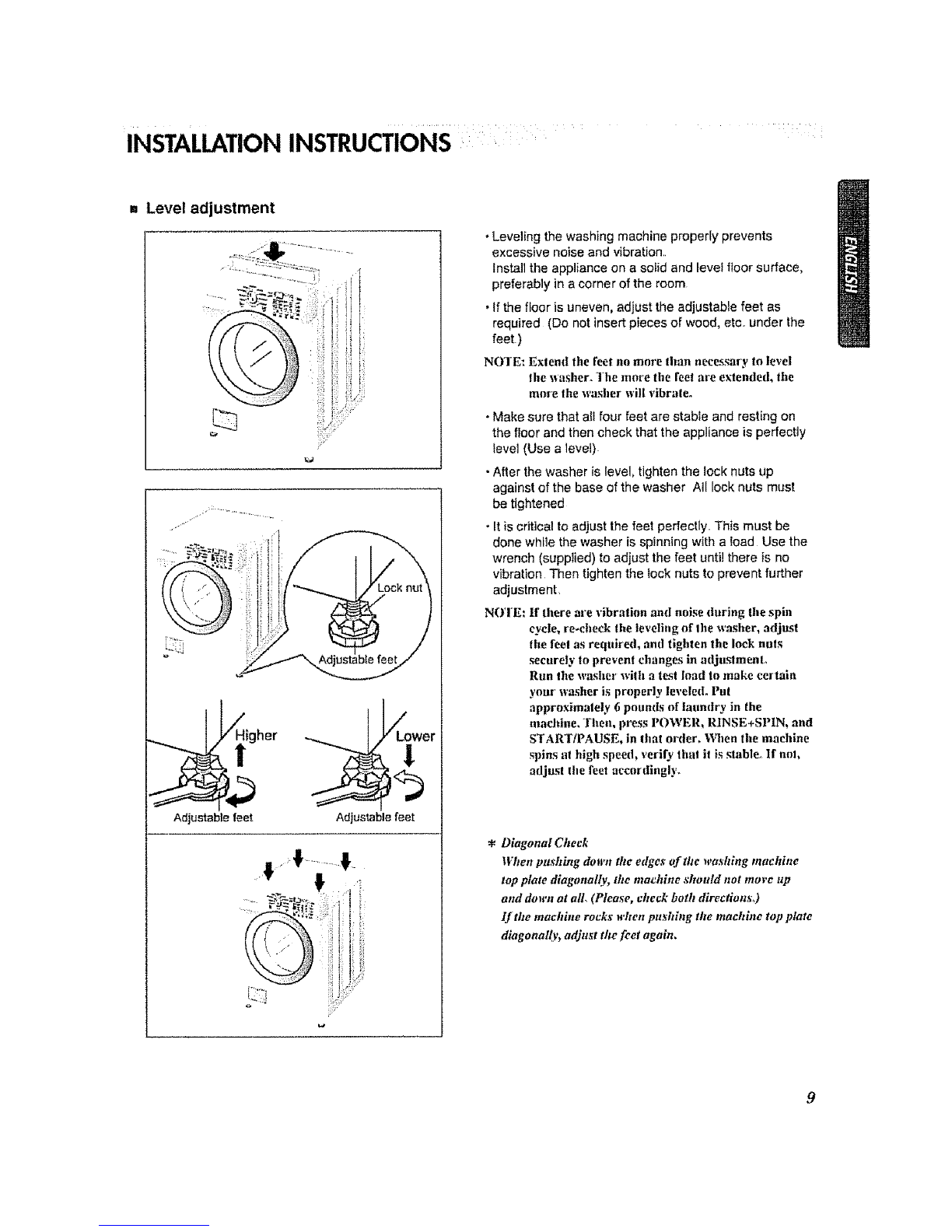

n Level adjustment
_i_ii_
ii:i
ilk
Adjustable feet Adjustable feet
•Leveling the washing machine properly prevents
excessive noise and vibration,,
Install the appliance on a solid and level floor surface,
preferably in a corner of the room
, if the floor is uneven, adjust the adjustable feet as
required (Do not insert pieces of wood, etc, under the
feet.)
NOTE: Exlend tlmefeet no more than a_essary to level
the _asher- The more the feet are extended, the
mnre Ihe wast_er will vibraleo
•Make sure that all four feet are stable and resting on
the floor and then check that the appliance is perfectly
level (Use a level)
•After the washer is level, tighten the lock nuts up
against of the base of the washer All lock nuts must
be tightened
•it is critical to adjust the feet perfectly This must be
done while the washer is spinning with a toad Use the
wrench (supplied) to adjust the feet until there is no
vibration Then tighten the Iock nuts to prevent further
adjustment,
NOTE: If Iltere are vibration and noise during the spin
cycle, re.check the leveling of Ihe washer, adjust
the feel ms req_fired, and lighten the lock nuls
securely to prevent changes in adjuslmenL
Run the washer wilh alest load to make certain
your washer is properly leveled. Pal
appreximalely 6 peomls of taundry in the
machine. Then, press POWER, RINSE+SPIN, and
START/PAUSE, in lhal order. When the machine
spins at high speed, yetiS* thai it is stable. If hal
adjust Ihe feel accordingly.
*Diagonal Check
When pushing do_lw the edges af th¢ washing machine
top plate diagonally, the machine should not move up
attd dowll at all, (Please, elteck both directions,)
If the machine rocks when pushing the machine top plate
diagonal!v, adjust the feet again.
9

PREPARATIONBEFOREWASHING
1. Fabric Care Labels
Look for a care label on your clothes This will tell you about the fabric content of your garment and how it should
be washed
2, Sorting
To get the best res{_lts, sort clothes into loads that can be washed with the same wash cycle,
Different fabrics need to be washed in different ways
Always sort dark colors from pale colors and whites. Wash separately as dye and lint transfer can occur causing
discoloration of white clothing If possible, do not wash heavily soiled items with Iightiy soi}ed ones
Soil (Heavy Normal Lighl) Separale clolhes according lo amount of soil. [
Colnr (White, Lighls, Darks) Separate while fabrlc_ from colored fabrics. ]Lint (Lint Producers, Colleclors) Wash lint producers am! lint coileclors separately,
3. Check before loading
Combine targe and small items in a !oad Load large items first
Large items should not be more than half the total wash load,
Do not wash single items This may cause an out-of-balance load Add one or two similar items
• Check all the pockets to make sure that they are
empty Things such as clip, matches, pens,
coins, and keys can damage both your washer
and your clothes
•Close zippers, hooks, and strings to make sure
thatthese itemsdo not snag on other clothes
•Pretreat dirt and stains by brushing a little
detergent dissolved inwater onto stains like
collars and cuffs to help lift dirt
NO_I E: Do not watCh or spin water-proof clothes°
10

USING THE DISPENSER
The amumatie dispenser censLsts n[ ffmr compartments which h(_lci1) liquid chlorine bleach, 2) liquid fabric
sohener; 3) liquid or powdered detergent h_r prewash and 4) liquid or powdered detergent
and color safe btead_ fi}r main wash°
All laundry products can be added at once in their respective dispenser ¢ompartments_
Tlney will be dispensed at the appropriate time for m(tst effective cleaning. After Inading the laundry
additives into the dispenser, close Ihe dispenser drawer:
Add detergent, bleach and fabric softener to the automatic dispenser following these steps:
1 Open the dispenser drawer
2 Load the _aundryproducts into the appropriate compartments
3 Close the dispenser drawer
,. About detergent
Low sudsing detergent is recommended for this washer_Use the manufacturer's recommended amount
If low sudsing detergent is not available, a reduced amount of regular detergent may be used
Because reducing the amount of detergent may reduce cleaning, it is important to pretreat stains,
sort carefully by color and soil level, and avoid overloading,
Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load.
For best results, avoid using too much detergent
o
LI "-UquidFebr o
//_'\ _U Softener
_k _ "_-_._ompartment
\ " Prewash
Compartment
1. Prewash Detergent Compartment
•Add detergent to this compartment when using
the Prewash option, Liquid or powdered
detergent may be used in this compartment,, The
detergent will automatically be dispensed during
Prewash if the Prewash option is selected,
•Add 112the recommended amount of detergent
to the Prewash compartment and the
recommended amount of detergent to the main
wash compartment
NOTE :Liquid detergent will drain into the wasiner
drum as iI isadded,
11

USING THE DISPENSER i : i
2. Main Wash Detergent Compartment
-Add measured detergent to this compartment for
Main wash. Detergent is flushed from the
dispenser at the beginning of the cycle Either
powdered or liquid detergent can be used
•Liquid or powdered color-safe bleach may be
added to the main wash compartment along with
the same type of liquid or powdered detergent..
, When using liquid detergent, make st_re the liquid
detergent box and insert are in place Do not
exceed the maximum fill line
•For powered detergent, remove both the liquid
detergent box and insert
•Powdered detergent will not dispense with the
liquiddetergent box and insertin place
Insert
4 7 Liquid Detergent
3. Uqutd Bleach Compartment
-Add measured liquid chlorine bleach to this
compartment The bleach willbe automatically
dispensed at the proper time during the wash
cycle.
•Do not exceed the maximum fill line Overfilling can
cause early dispensing of the bleach which could
result in damaged clothes_
•Do not pour undiluted liquid chlorine bleach directly
onto the toad or into the drum Fabric damage can
Occur,
, Do not use powdered bleach in this compartment
4. Fabric Softener Compartment
•Add recommended amount of fabric softener to
this compartment
•Dilute concentrated softeners withwarm water to
the fit[ line
• Do not exceed the maximum fill line, Overfilling can
cause early dispensing of the fabric softener which
could resuft in stained ctothes
-Do not pour _abricsoftener directiy on the wash
toad
• The fabric softener will be automatically dispensed
during the tast rinse cycle
NOTE: Do not place, store, or spill laundry products
(soap, detergent, bleach, softener, etc.) on the
top of your washer or dryer° These products
can damage the finish or controls if left there
too toltg_
12

CYCLES
mSelect cycles designed for different types of fabric and soil levels°
Cycle Fabric type
Heavilysoiled
Sanitary underwear,work
clothes,diapers,
elc
Cotton Cotton, linen,
Towels tewels, shirts,
sheets
Mixedloads,
Normal workclothes,
jeans,shirts
Dressshirts/
pants,wrinklefree
Perm clothing,poly/
Press cottonblend
clothing,tabledoths
Dress shirts/
blouses, nylons,
Delicates sheer or
lacy garment
Woolens, silk
Wool/ identified as
Silk machine
washable
Hand Itemslabeled
Wash "handwashable"
Speed Lightly soiled
Wash clothing
DrainlSpin oniy
Drain+
Spin
Wash/Rinse
Temp.
ExtraHot/Cold High Normal
Extra High
No spin Heavy O
Low Light
Medium
Warm/Cold High Normal
Warm/Warm Extra High
Hot/Cold No spin Heavy O
Cold/Cold Low Light
Medium
Warm!Cold High Normal
Warm/Warm Exlra High
Hot/Cold No spin Heavy O
Cold/Cold Low Light
Medium
Wa'n'n/Cold Medium Normal
Spinspeed
Warm/Warm High Heavy O
Hot/cold Nospin Light
cold/Cold Low
"Cold/cold Medium iNormai '"
Warm/Cold No spin Heavy O
Warm/Warm Low Light
Cold/Cold Low Normal ............
Warm/Cold Medium Light O
Warm/Warm No spin
Cold/Cold Low Normal
Warm/Cold Medium Light O
Warm/Warm No spin
Hot/Cold
Cold/Cold
WarmlCold
WarraNt/arm
Soil Pm-iQuickStainExtra Rinse+Auto_ad
Level Wash CycleCycleRinse Spin Detectlont)_:
O O o
O O O
j , ,
O O
O
O
O
O O
o O
ExlmHigh
No spin
Low
Medium
High
High
Light
Normal
Heavy
O
O
Extra high
No spin
Low
Medium
O
O O O
O O
O
O
O
O
O
1) Automatic wash toad (weight) detection:
Automatically detects the toad and optimizes the washing time After detecting, the estimated time remainlng in
the cycle wilt be displayed,
I3

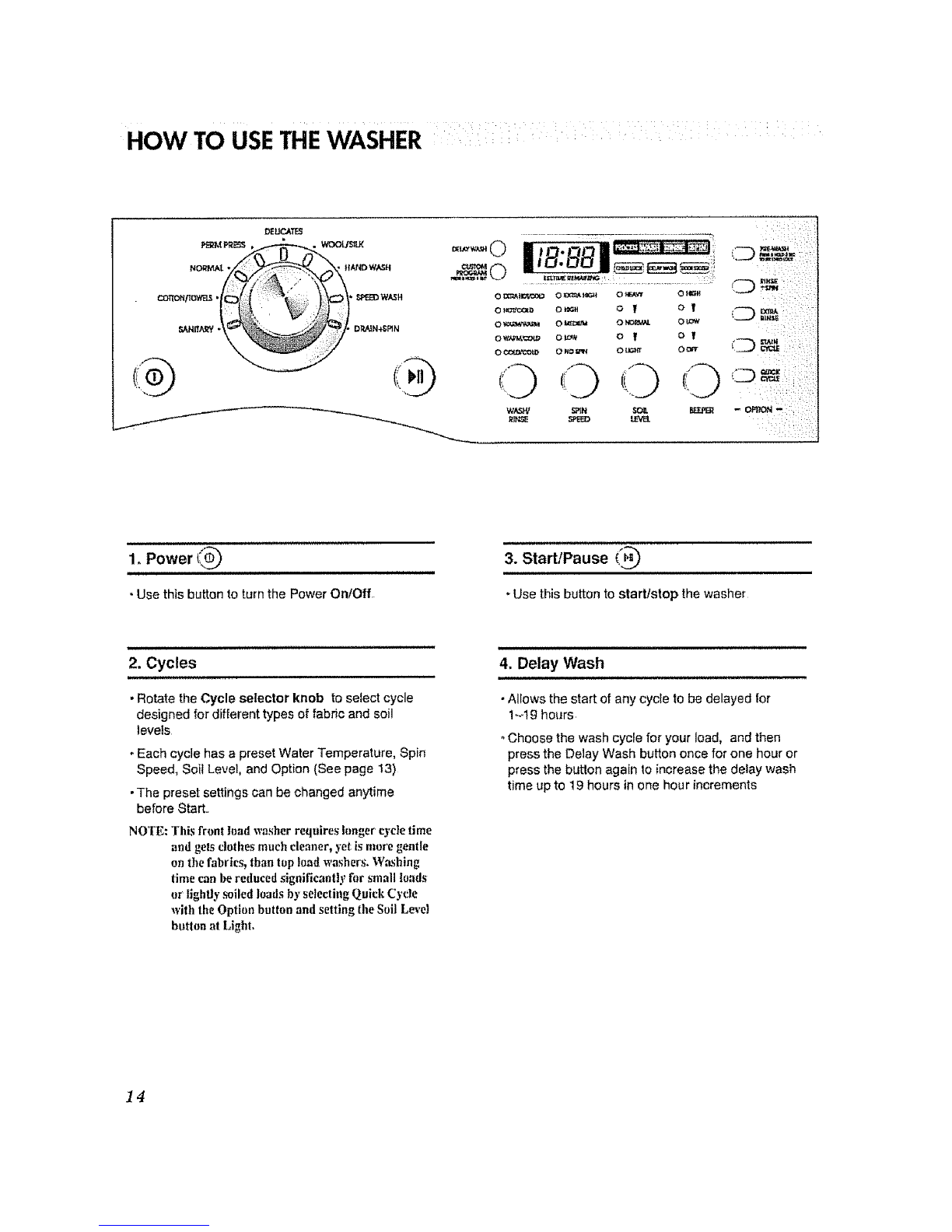

HOW TO USETHEWASHER
DI_UC_TES
• HAND WASH
1_Power (_ lUl.i i1.1
.Use this button to turn the Power OnlOff
3:"Sta_iPause @
-Use this button to start/stop the washer
nlUUl.lUlm
4. Delay Wash
. Rotate the Cycle selector knob to select cycle
designed for different types of fabric and soil
levels
•Each cycle has a preset Water Temperature, Spin
Speed, Soil Level, and Option (See page 13)
•The preset settings can be changed anytime
before Start.
NOTE: This front I, ad washer requires hmger cycle time
and gets dottles much cleaner, yet is more gentle
un the fabrics, than top load washer..;. W_hing
time can be reduced significantly f(}r small leads
ur lightly _iled h;ads by selecting Quick Cycle
with tt_e Option button and setting the Soil Level
button at Light.
•Allows the start of any cycle to be delayed for
1--.19hours
. Choose the wash cycle for your load, and then
press the Delay Wash button once for one hour or
press the button again to increase the delay wash
time up to 19 hours in one hour increments
]4

HOW TO USETHEWASHER
5. Custom Program
•Custom Program allows you to store a customized
wash cycle for future use
•]'0 make a Clls|em |)re,ram:
1 Select a cycle
2 Select WashfRinse Temperature, Spin Speed,
and Soil Level.
3 Select other desired Options
4 Press and hoid Custom Program button 3
seconds (2 beep sounds)
The Custom program isnow stored for future
use, To reuse the program, select Custom
Program and press StartJPause (_
i i, Jlul, ll_
6. Wash/Rinse Temperature
•Select a water temperature based on the type of
load you are washing
• Follow the fabric care label and chart below for
best results
SuggestedWashTemp.
ExtraHot
Hot
Warm
Cold
Garment i:
Kitchentowe_s,sheets,
andbaby garments
WhitesandHeavy :
soiledcolor-fastitems
Mostloads
BdghtlycoloreditemS,i
washablewoolens
•Warm rinses leave the loads dryer than cotd
rinses Warm rinses increase wrinkling.
•In cold climates, a warm rinse makes the foad
more comfortable to handle
.Cold rinses save energy
• The Cold rinse temperatures depend on the cotd
water at your faucet
7. Spin speed i i i iH i ull lull ill IHHHHH"I
•To change the spin speed, press the Spin Speed
button repeatedly to cycle through available
options
8• Soil Level
, To change the soil level, press the Soil Level
button repeatedly until the desired setting is on,
9. Beeper
-Pressrepeatedlytoadjustthevolumeof the
Beeper
15

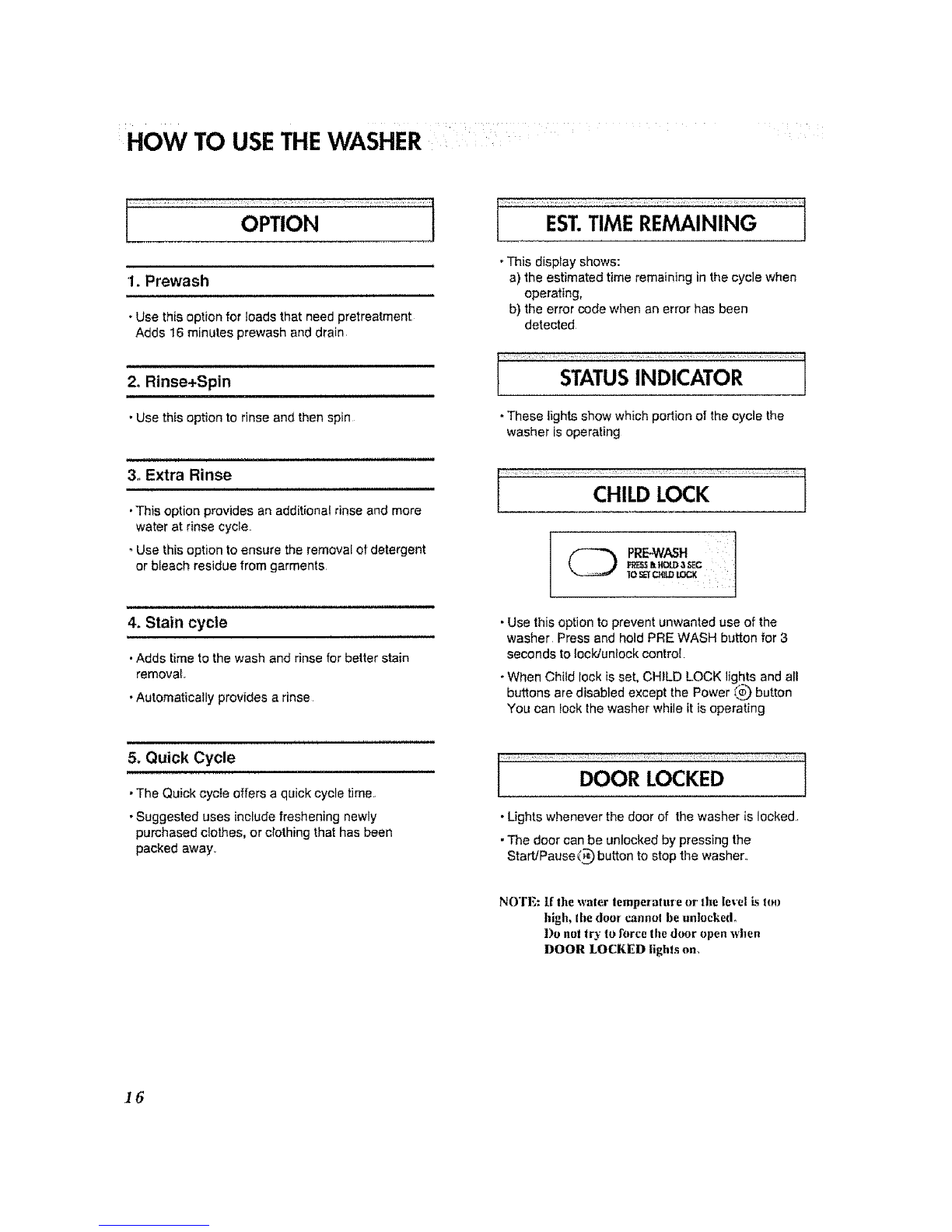

HOW TO USETHEWASHER
I. OPTION
1. Prewash
-Use this option for loads that need pretreatment
Adds 16 minutes prewash and drain.
•This disp}ay shows:
a) the estimated time remaining in the cycle when
operating,
b) the error code when an error has been
detected
2. Rinse+Spin , , ,, ,u,,uH,,,,, 1,,,,,,,,,,, ,,,
• Use this option to rinse and then spin
3. Extra Rinse
•This option provides an additional rinse and more
water at rinse cycle.
. Use this option to ensure the removal of detergent
or bleach residue from garments
4. Stain cycle
.Adds time tothe wash and rinse for better stain
removal
•Automatically provides a rinse
5. Quick Cycle
•The Quick cycle offers a quick cycle time
•Suggested uses include freshening newly
purchased clothes, or clothing that has been
packed away
.These fightsshow whichportion of the cycle the
washer isoperating
I PRE-WASH '
TO_ C_ LOCK
•Use this option to prevent unwanted use of the
washer Press and hold PRE WASH button for 3
seconds to lock/unlock control
•When Child lock is seL CHILD LOCK lights and all
buttons are disabled except the Power _$) button
You can lock the washer while it isoperating
•Lights whenever the door of the washer is locked..
•The door can be unlocked by pressing the
Start/Pause_) button to stop tile washer.
NOTE: [[ the water temperature or the ][eve| is leo
high, Ihe door ,_tnnol be unlockedo
l)o not tO" to h}rce tile door _pen when
DOOR I,OIE:KED lights on,
I6

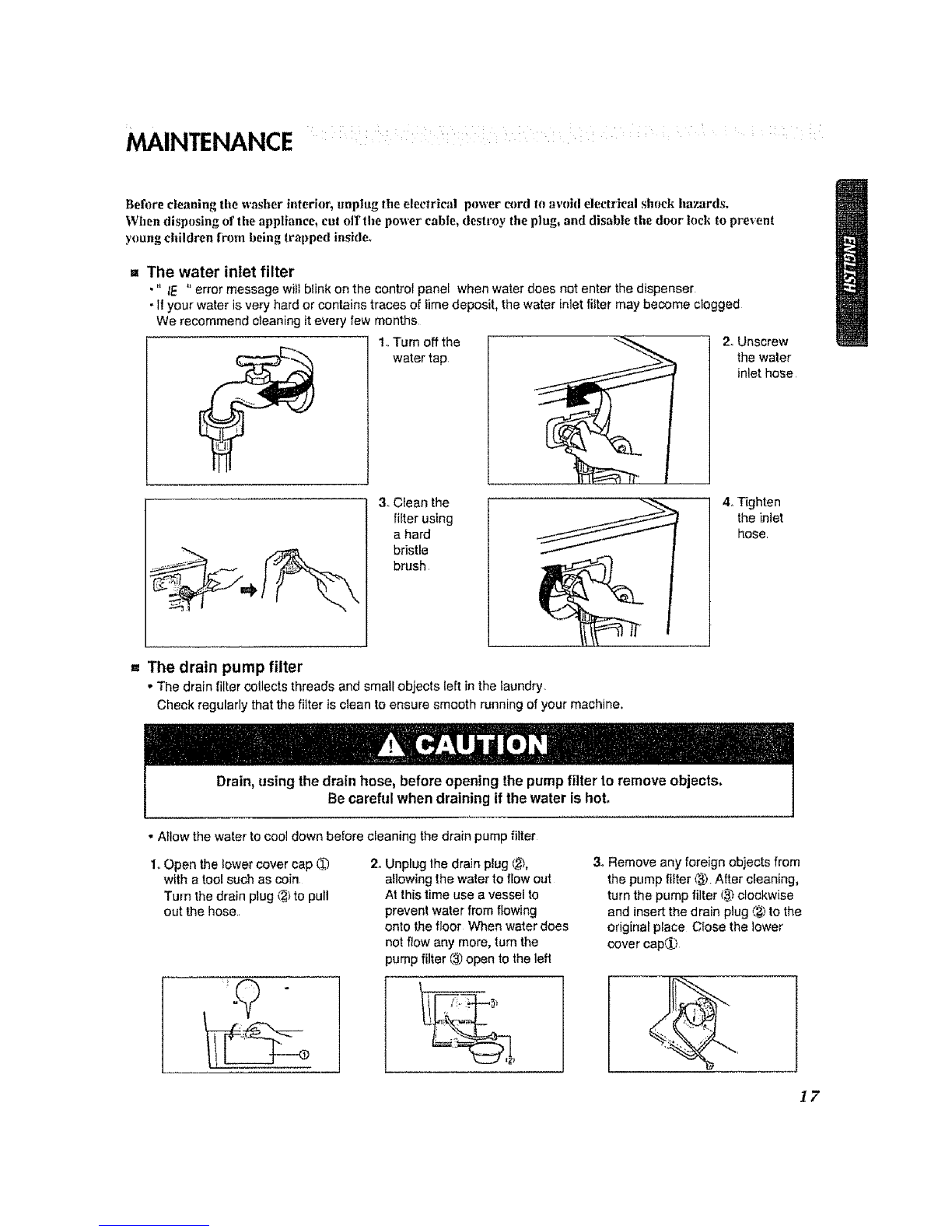

MAINTENANCE : :: :
Bel'ore cleaning the washer interior, unplug the electrical power cord to avoid electrical shock hazards.
When disposing ol'the appliance, cut offthe power cable, destroy the plug, and disable the door lock to prevent
young children from being trapped inside°
= The water inlet filter
•" IE "error message will blink on the controt panel when water does not enter the dispenser
-1!your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged
We recommend cleaning itevery few months
1..Turn off the 2. Unscrew
water tap the water
inlethose
3. Clean the
filter using
a hard
bristle
brush
-- 4_Tighten
the inlet
hose
= The drain pump filter
• Thedrain filtercollectsthreadsandsmallobjects leftinthe taundry.
Checkregularlythatthefilter iscleanto ensuresmoothrunningofyourmachine.
• Allow the water to coot down before cleaning the drain pump filter
1..Open the lower cover cap (#
with atoo! such as coin
Turn the drain plug @:,to pull
out the hose..
2. Unplug lhe drain plug _.%,
allowing the water to flow out
At thistime use a vessel to
prevent water from flowing
onto the floor When water does
not flow any more, turn the
pump filter (._)open tothe left
& Remove any foreign objects from
the pump filter _3.)After c_eaning,
turn the pump filter (_'_clockwise
and insertthe drain plug (_)to the
origina[ place Close the lower
cover cap,_'_
17

....... i
MAINTENANCE

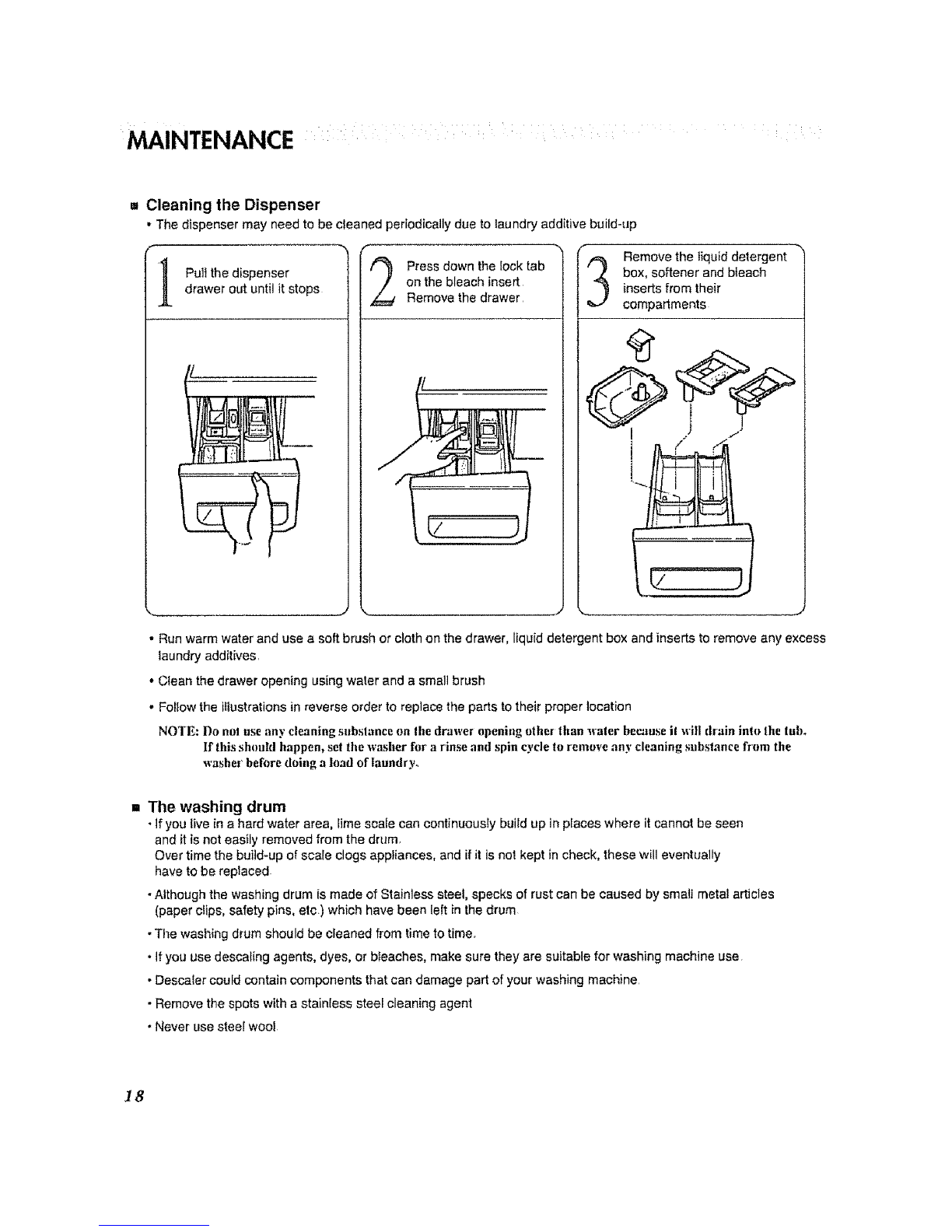

= Cleaning the Dispenser
• The dispenser may need to be cleaned periodically due to laundry additive build-up
Pult the dispenser
drawer out until it stops Press down the lock tab
on the bleach insert
Remove the drawer
/
Remove the liquid detergent
box, softener and bteach
inserts from their
compartments
• Run warm water and use a soft brush or cloth on the drawer, liquid detergent box and inserts to remove any excess
laundry additives,
• Clean the drawer opening using water and a small brush
• Follow the illustrations in reverse order to replace the parts to their proper location
NOTE: Do no! use any cleaning substance on lhe drawer opening other than waler because il will drain into tile tub_
If this shnuld happen, set tile washer for a rinse and spin cycle to remove any cleaning substance h'om the
washer before doing a hlad of laundry.
=The washing drum
. If you live in a hard water area, lime scale can continuously build up in places where it cannot be seen
and it is not easily removed from the drum,
Over time the build-up of scale clogs appfiances, and if it is not kept in check, these will eventually
have to be replaced
. Although the washing drum is made of Stainless steel, specks of rust can be caused by small metal articles
(paper clips, safety pins, etc.) which have been left in the drum
-The washing drum should be cleaned from time to time.
• If you use descating agents, dyes, or bleaches, make sure they are suitable for washing machine use
• Descaler could contain components that can damage part of your washing machine
•Remove the spots with a stainless steei cleaning agent
•Never use steel wool
]8

MAINTENANCE :
=The water circulation nozzle
•Cleanthewater circulationnozzle,if clogged
= Cleaning your washer
1. Exterior
Proper care of your washer can extend its life
The outside of the machine can be cleaned with warm water and aneutral, non-abrasive
household detergent,
Immediately wipe off any spills with a damp cloth
Try not to damage the surface with sharp objects
=_IMPORTANT: Do not use methylaled spirit, solvents or similar products
2, Interior
Dry around the washer door opening, flexible gasket and door glass These areas should always be clean to
ensure a water-tight sea!
Run washer through a complete cycte using hot water.
Repeat process if necessary.
NOTE: Remove hard _vater deposits _ing only cleaners labeled as safe for _wL_hing machines°
,, Winterizing instructions
ff the washer isstored inan area where freezing can occur or moved in freezing temperatures, follow these
winterizing instructions to prevent damage to the washer:
1. Turn off water suppty tap,
2_Disconnect hoses from water supply and drain water from hoses
3. Plug e{ectrical cord intoa properly grounded electrical outlet
4oAdd 1gallon (38_) nontoxic recreational vehicfe (RV) antifreeze to empty wash drum C_osedoor
5. Set spin cycle and iet washer spin for t minute to drain out aHthe water
Not all of the RV antifreeze will be expelled
6. Unplug electrical power cord, dry drum interior,and close door
7. Remove the two-compartment container from the Dispenser Drain any water in compartments and dry the
compartments
8. Store washer in an upright position
9, To remove antifreeze from washer after storage, run empty washer through a complete cycle using detergent
Do not add laundry
I9

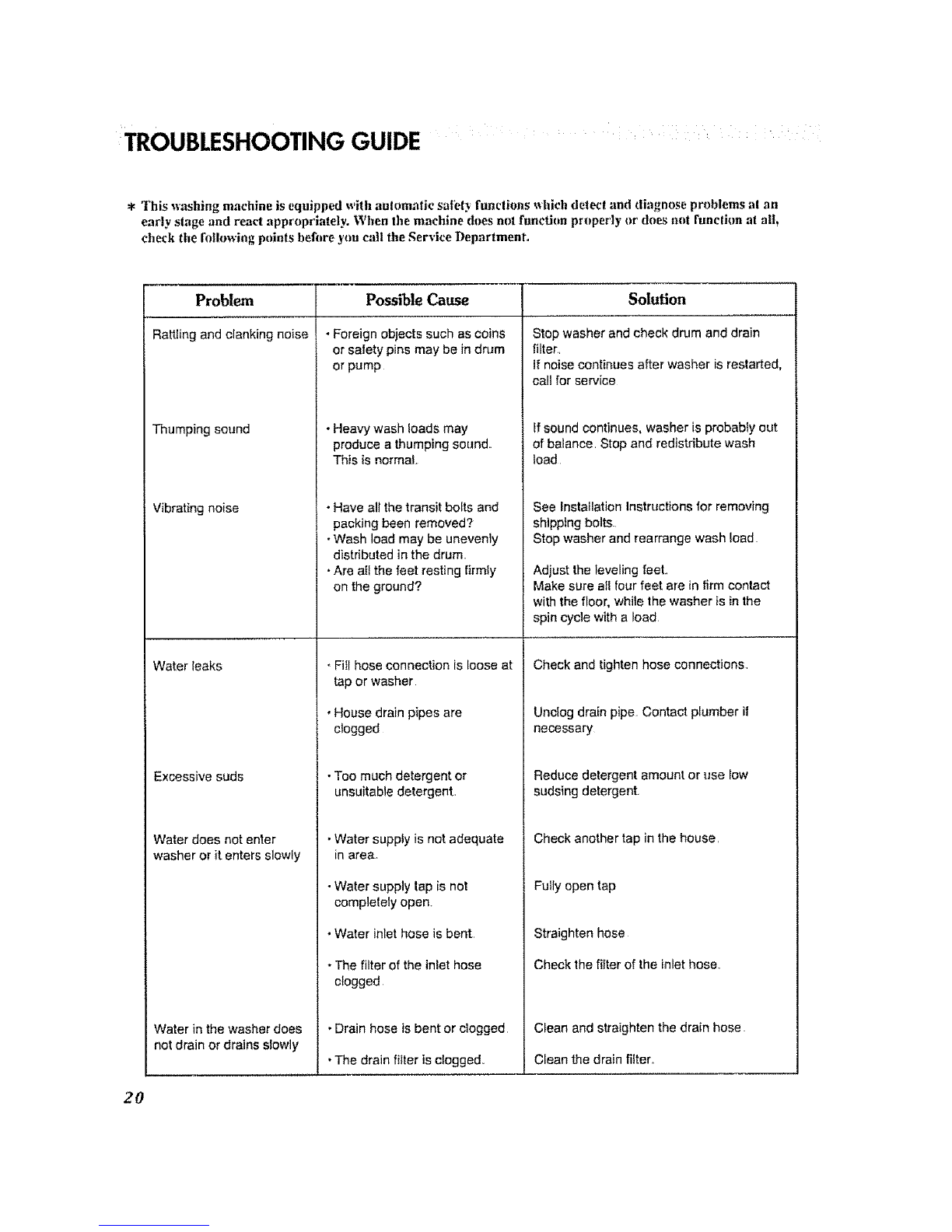

TROUBLESHOOTING GUIDE
* This washing machine is equipped with automatic safety fanctions tqliell delect and diagnose problems at an
early stage and react approprlately. When tile machine does not funcfiun properly or does n{)t funclion at all,
check tile folh)wing points befibre yon call the Service Department.
Problem Solution
Rattling and clanking noise
Thumping sound
Vibrating noise
Water leaks
Excessive suds
Water does not enter
washer or it enters slowly
Water in the washer does
not drain or drains slowly
Possible Cause
•Foreign objects such as coins
or safety pins may be in drum
or pump
• Heavy wash loads may
produce a thumping sound
This is normal
•Have all the transit bolts and
packing been removed?
•Wash load may be unevenly
distributed in the drum
• Are all the feet resting firmly
on the ground?
Fii[ hose connection [s loose at
Stop washer and check drum and drain
filter
If noise continues after washer is restarted,
call for service
ff sound continues, washer is probably out
of balance Stop and redistribute wash
load
See Insta[lafion Instructionsfor removing
shipping bolts
Stop washer and rearrange wash load
Adjust the leveling [eel
Make sure all four feet are in firm contact
with the floor, while the washer is in the
spin cycle with a load
Check and tighten hose connections
tap or washer
.House drain pipes are
clogged
• Too much detergent or
unsuitable detergent
Unclog drain pipe Contact plumber if
necessary
Reduce detergent amount or use low
sudsing detergent
. Water supply is not adequate
in area
• Water supply tap is not
complelely open,
• Water inlet hose is bent
- The filter of the inlet hose
clogged
•Drain hose is bent or clogged
•The drain _ter is clogged.
Check another tap in the house,
Fully open tap
Straighten hose
Check the filter of the inlet hose,
Clean and straighten the drain hose
Clean the drain filter
2O
