OWNER’S MANUAL
WASHING
MACHINE
Read this owner’s manual thoroughly before operating the appliance and
keep it handy for reference at all times
www.lg.com
WD100C*
WD200C*
MFL68267007
MFL68267007_E.indd 1 17. 1. 19. 오후 6:52

2TABLE OF CONTENTS
TABLE OF CONTENTS
3 IMPORTANT SAFETY INSTRUCTIONS
3 Basic Safety Precautions
4 Grounding Requirements
5 Safety Instructions for Installation
6 Safety Instructions for Use, Care, Cleaning and
Disposal
7FEATURES AND BENEFITS
7 Key Parts and Components
7 Included Accessories
7 Required Accessories
8INSTALLATION INSTRUCTIONS
8 Choose the Proper Location
8 Power Outlet
8 Flooring
9 Unpacking and Removing Shipping Material
10 Overview of Connections
11 Connecting the Water Lines
12 Connecting the Drain Hose
12 Using The Drain Connector
13 Leveling the Washing Machine
14 Connecting to the Power Supply
1 5 Sorting Wash Loads
16 Detergent and Dispenser Use
17 HOW TO USE
17 Control Panel Features
18 Time and Status Display
19 Operating the Washer
20 Cycle Guide
20 Wash Cycles
21 Options
21 Warm Water
21 Extra Rinse
21 Child Lock
22 CARE AND CLEANING
22 Regular Cleaning
22 Cleaning the Exterior
22 Care and Cleaning of the Interior
22 Tub Clean Cycle
22 Removing Mineral Buildup
22 Leave the Lid Open
23 Maintenance
24 SPECIFICATIONS
24 SMART DIAGNOSIS™ SYSTEM
25 TROUBLESHOOTING
25 Faqs: Frequently Asked Questions
26 Normal Sounds You May Hear
26 Before Calling for Service
30 Error Codes
32 WARRANTY
MFL68267007_E.indd 2 17. 1. 19. 오후 6:52

3
ENGLISH
SAFETY MESSAGES
For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, or
electric shock, or to prevent property damage, injury to persons, or death. Your safety and the safety of
others is very important. There are many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
This is the safety alert symbol. This symbol alerts you to potential hazards that can result in prop-
erty damage and/or serious bodily harm or death.
All safety messages will follow the safety alert symbol and either the word WARNING or
CAUTION. These words mean:
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury,
and tell you what can happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
You can be killed or seriously injured if you don’t follow instructions.
You may be slightly injured or cause damage to the product if you do not follow
instructions.
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic pre-
cautions, including the following.
yUse this appliance only for its intended purpose as described in this Owner's Manual.
yBefore use, the washer must be properly installed as described in this manual.
yDo not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gaso-
line, dry cleaning solvents, or other flammable or explosive substances, as they give off vapors that
could ignite or explode.
yDo not add gasoline, dry cleaning solvents, or other flammable or explosive substances to the wash
water. These substances give off vapors that could ignite or explode.
yUnder certain conditions, hydrogen gas may be produced in a hot water system that has not been used
for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for
such a period, before using the washer, turn on all hot water faucets and let the water flow from each
for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not
smoke or use an open flame during this time.
yDo not allow children to play on or in the washer. Close supervision of children is necessary when the
washer is used near children. A child might become trapped inside the washer and suffocate.
yBefore the washer is removed from service or discarded, remove the lid to prevent children from
climbing inside.
yDo not install or store the washer where it will be exposed to the weather or freezing temperatures.
yDo not tamper with controls.
yKeep the area underneath and around your appliances free of combustible materials (lint, paper, rags,
etc.), gasoline, chemicals and other flammable vapors and liquids.
yService must be performed by a qualified service technician. Do not disassemble the washer.
ySee Installation Instructions for grounding requirements.
yWARNING : This product contains chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm. Wash hands after handling.
yALWAYS follow the fabric care instructions supplied by the garment manufacturer.
yDo not place items exposed to cooking oil in your washer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a load to catch fire.
BASIC SAFETY PRECAUTIONS
WARNING
WARNING
CAUTION
MFL68267007_E.indd 3 17. 1. 19. 오후 6:52

4IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
For your safety, the information in this manual must be followed to minimize the risk of fire, explosion or
electric shock, or to prevent property damage, injury to persons, or death.
GROUNDING REQUIREMENTS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric current. This appliance is equipped with
a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
CERTAIN INTERNAL PARTS ARE INTENTIONALLY NOT GROUNDED AND MAY PRESENT A RISK
OF ELECTRIC SHOCK ONLY DURING SERVICING. SERVICE PERSONNEL - DO NOT CONTACT THE
FOLLOWING PARTS WHILE THE APPLIANCE IS ENERGIZED: PUMP, VALVE, MOTOR, CONTROL.
Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with
a qualified electrician or servicer if you are in doubt as to whether the appliance is properly grounded. Do
not modify the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed
by a qualified electrician. Failure to follow these warnings can cause serious injury, fire, electric shock, or
death.
yUse fabric softeners or products to eliminate static only as recommended by the manufacturer.
yThis washer is not designed for maritime use or for mobile installations such as in RVs, aircraft, etc.
yTurn off the water faucets and unplug the washer if the machine is to be left for an extended period of
time, such as during vacations.
yDo not use to dry articles containing foam rubber or similarly textured rubber-like materials.
yPackaging material can be dangerous for children. There is a risk of suffocation! Keep all packaging from
children.
yAlways check the inside of the washer for foreign objects before loading laundry. Keep the lid closed
when not in use.
yDo not reach into the appliance if the tub or agitator is moving.
yIn the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area immediately. Do not
turn any appliance or light on or off. Do not use a ventilating fan. A spark may result in an explosion or
fire.
yDo not repair or replace any part of the appliance or attempt any servicing unless specifically recom-
mended in the user-maintenance instructions or in published user-repair instructions that you under-
stand and have the skills to carry out.
WARNING
WARNING
MFL68267007_E.indd 4 17. 1. 19. 오후 6:52

5
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electric shock or injury to persons when using this appliance, follow basic precautions,
including the following:
yRefer to INSTALLATION INSTRUCTIONS for detailed grounding procedures. Installation instructions are
packed with the washer for installer’s reference. If the washer is moved to a new location, have it checked
and reinstalled by a qualified service technician. Failure to follow this warning can cause serious injury, fire,
electric shock, or death.
yThe power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard
3-prong (grounding) wall outlet to minimize the possibility of electric shock from this appliance.
yDo not, under any circumstances, cut or remove the third (ground) prong from the power cord. Failure to
follow this warning can cause serious injury, fire, electric shock, or death.
yFor personal safety, this appliance must be properly grounded. Failure to follow this warning can cause
serious injury, fire, electric shock, or death.
yThis washer must be plugged into a 120 VAC, 60 Hz grounded outlet. Failure to follow this warning can cause
serious injury, fire, electric shock, or death.
yHave the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
Failure to follow this warning can cause serious injury, fire, electric shock, or death.
yWhere a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have
it replaced with a properly grounded 3-prong wall outlet. Failure to follow this warning can cause serious
injury, fire, electric shock, or death.
yDo not install on carpet. Install washer on a solid floor. Failure to follow this warning can cause serious leak
damage.
yThe washer should always be plugged into its own individual electrical outlet which has a voltage rating that
matches the rating plate. This provedes the best performance and also prevents overloading house wiring
circuits which could cause a fire hazard from overheated wires.
yIf installing the pedestal washer with an LG front-loading washer and an LG gas dryer, and insufficient outlets
are available, an extension cord rated at no less than the branch circuit may be used.
yNever unplug your washer by pulling on the power cord. Always grip plug firmly and pull straight out from the
outlet. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
yRepair or immediately replace all power cords that have become frayed or otherwise damaged. Do not use
a cord that shows cracks or abrasion damage along its length or at either end. Failure to follow this warning
can cause serious injury, fire, electric shock, or death.
yWhen installing or moving the washer, be careful not to pinch, crush, or damage the power cord. Failure to
follow this warning can cause serious injury, fire, electric shock, or death.
yThe washer must be installed and electrically grounded by a qualified service person in accordance with local
codes to prevent shock hazard and assure stability during operation.
yThe washer is heavy. Two or more people may be needed to install and move the appliance. Failure to do so
can result in back or other injury.
yStore and install the washer where it will not be exposed to temperatures below freezing or exposed to
outdoor weather conditions. Failure to follow this warning can cause serious leak damage.
yTo reduce the risk of electric shock, do not install the washer in humid spaces. Failure to follow this warning
can cause serious injury, fire, electric shock, or death.
yTo reduce the risk of injury to persons, adhere to all industry recommended safety procedures including the
use of long sleeved gloves and safety glasses. Failure to follow all of the safety warnings in this manual could
result in property damage, injury to persons or death.
yNever attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has
missing or broken parts, including a damaged cord or plug.
yTo minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the
washer at the household distribution panel by removing the fuse or switching off the circuit breaker before
attempting any maintenance or cleaning.
yPlug the power plug into the wall socket in the right direction so that the cord runs towards the floor. If
you plug the power plug into the socket in the opposite direction, the electric wires within the cable may be
damaged and this may result in electric shock or fire.
For your safety, the information in this manual must be followed to minimize the risk of fire, explosion,
or electric shock, or to prevent property damage, injury to persons, or death.
SAFETY INSTRUCTIONS FOR INSTALLATION
WARNING
WARNING
MFL68267007_E.indd 5 17. 1. 19. 오후 6:52

6IMPORTANT SAFETY INSTRUCTIONS
For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, or
electric shock, or to prevent property damage, injury to persons, or death.
yThe pedestal washer is for installation and use only underneath an LG manufactured front-loading washer.
The pedestal washer is not designed to operate as a standalone unit, under an LG top-loading washer, under
a dryer, or under a non-LG manufactured washer.
yDo not tamper with the stacking switch. Doing so may cause machine malfunctions or serious injury.
yDo not operate the pedestal washer with two or more pedestal washers stacked. Doing so may cause
machine malfunctions or serious injury.
SAVE THESE INSTRUCTIONS
SAFETY INSTRUCTIONS FOR USE, CARE, CLEANING AND DISPOSAL
To reduce the risk of fire, electric shock or injury to persons when using this appliance, follow basic precautions,
including the following:
yUnplug the washer before cleaning to avoid the risk of electric shock.
yNever use harsh chemicals, abrasive cleaners, or solvents to clean the washer. They will damage the finish.
yDo not put oily or greasy rags or clothing on top of the washer. These substances give off vapors that could
ignite the materials.
yDo not wash items that are soiled with vegetable or cooking oil. These items may contain some oil after laun-
dering. Due to the remaining oil, the fabric may smoke or catch fire by itself.
yDisconnect this appliance from the power supply before attempting any user maintenance. Turning the
controls to the OFF position does not disconnect this appliance from the power supply. Failure to follow this
warning can cause serious injury, fire, electric shock, or death.
yDo not combine laundry products for use in one load unless specified on the label.
yDo not mix chlorine bleach with ammonia or acids such as vinegar. Follow package directions when using
laundry products. Incorrect usage can produce poisonous gas, resulting in serious injury or death.
yDo not reach into the washer while parts are moving. Before loading, unloading, or adding items, press the
START/PAUSE button and allow the drum to coast to a complete stop before reaching inside. Failure to follow
this warning can cause serious injury, fire, electric shock, or death.
yDo not allow children to play on or in the washer. Close supervision of children is necessary when the
washer is used near children. As children grow, teach them the proper, safe use of all appliances. Failure to
comply with these warnings could result in serious injury to persons or death.
yDestroy the carton, plastic bag, and other packing materials after the washer is unpacked. Children might
use them for play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight chambers.
Failure to comply with these warnings could result in serious injury to persons or death.
yKeep laundry products out of children’s reach. To prevent injury to persons, observe all warnings on product
labels. Failure to comply with these warnings could result in serious injury to persons or death.
yRemove the lid to the washing compartment before your washer is removed from service or discarded to
avoid the danger of children or small animals getting trapped inside. Failure to do so can result in serious
injury to persons or death.
yKeep hands and foreign objects clear of the lid and latch area when closing the lid. Failure to keep hands clear
can result in personal injury.
yDo not touch the power plug with wet hands. This may result in electric shock.
yDo not touch the water draining from the machine during a high-temperature wash or drying cycle. This
water is hot, and touching it may result in burns or injury.
yDo not stand on top of the appliance or place objects(such an laundry, lighted candles,lighted cigarettes,
dishes, chemicals, metal objects, etc.) on the appliance. This may result in electric shock, fire, problems with
the product, or injury.
yDo not install or store the washer where it will be exposed to freezing temperatures. Water may freeze in
the hoses and damage the washer. Winterize the washer before storing or moving it in freezing tempera-
tures. Refer to the Maintenance section for instructions.
yTo avoid breaking the lid glass, do not push too hard on the lid when closing.
yDo not step on the pedestal washer. Doing so may damage the washer or cause serious injury.
WARNING
WARNING
MFL68267007_E.indd 6 17. 1. 19. 오후 6:52

7
ENGLISH
FEATURES AND BENEFITS
FEATURES AND BENEFITS
KEY PARTS AND COMPONENTS
A INVERTER DIRECT DRIVE MOTOR
The inverter motor, which is directly connected to the tub, produces less noise and vibration while
offering outstanding durability and a long lifespan.
B COMPACT CAPACITY & NEVERUST™ STAINLESS STEEL TUB
The efficient design provides capacity in a compact space.
C FRONT TOUCH PANEL
The simple LED display shows cycle options, setting, cycle status and estimated time remaining.
The touch buttons offer more convenience and a premium design aesthetic.
D SMART DIAGNOSIS™
If you ever experience an issue with your LG washer, you don’t have to worry.
The SmartDiagnosis™ feature helps the service center diagnose problems over the phone, or with a
simple app on your smart phone, helping you minimize costly, inconvenient service calls.
E REMOTE CONTROL RCW1 (OPTIONAL)
Don't want to bend down to reach the controls? Set cycles with the touch of a button on the
optional remote control (available online or through an LG retailer).
NOTE: Contact LG Customer Service at 1-800-243-0000 (1-888-542-2623 in Canada) if any accessories are
missing or to purchase accessories. For a list of LG front-loading washers which are compatible with the
pedestal washer, visit the LG website at www.lg.com/us/twinwash
Drawer
Lid
Control panel
Leveling feet
Leg Support
Stacking Switch
Top Cover
INCLUDED ACCESSORY
2 Inlet
Hoses-Short 2 Inlet Hose Y-Connectors Drain Hose Y-Connector Drain Hose Non-Skid Pads
(18EA)
(5EA)
Max load
(2 tsp., 10 g)
Normal
(1 tsp., 5 g)
2 Inlet Hoses
Wrench 2 Tie Straps
3 Band clamp Screws Detergent Dispenser
MFL68267007_E.indd 7 17. 1. 19. 오후 6:52

8INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
CHOOSE THE PROPER LOCATION
yThis pedestal washer must be installed underneath
a matching front-loading LG washing machine manu-
factured after 2009. (The 29" wide machine must be
stacked under a 29" wide LG front-loading washer. The
27" wide machine must be stacked under a 27" wide
LG front-loading washer.)
yThe pedestal washer will not work as a standalone unit.
yThe pedestal washer must be stacked under an LG
brand appliance in order to operate properly.
CAUTION
POWER OUTLET
yThe power outlet must be within 60 in. (1.5 m) of
either side of the washer.
yThe appliance and outlet must be positioned so
that the plug is easily accessible.
yFor best performance, plug the washer into its own
individual outlet. If necessary, use a new, UL-listed
3-prong adapter or 3-wire extension cord with a 3-prong
(grounding) plug rated at no less than the branch circuit.
Do not use an extension cord longer than three feet.
Failure to follow these warnings can result in serious
injury, fire, electric shock, or death
yThe outlet must be grounded in accordance with current
wiring electric codes and regulations.
yTime-delay fuse or circuit breaker is recommended.
WARNING
NOTE: It is the personal responsibility and obligation
of the product owner to have a proper outlet installed
by a qualified service technician.
To ensure sufficient clearance for water lines and airflow, allow
minimum clearances of at least 1 in. (2.5 cm) at the sides and
4 in. (10 cm) behind the unit. Be sure to allow for wall, door, or
floor moldings that may increase the required clearances.
FLOORING
yTo minimize noise and vibration, the washer MUST be
installed on a solidly constructed floor.
yAllowable slope under the entire washer is a maximum 1
inch. difference from side to side or from front to back.
yInstalling on carpeting and soft tile surfaces is not
recommended.
yNever install the washer on a platform or weakly supported
structure.
NOTE: The washer must be installed on firm flooring to minimize
vibration during the spin cycle. Concrete flooring is best, but a
wood floor is sufficient, provided it is built to FHA standards. The
washer should not be installed on rugs or exposed to weather.
Do not use a drip pan as it can block the drawer. Using the drip
pan may result in increased vibration and noise during operation.
yTwo or more people are required when moving, unpack-
ing, and stacking the washer. Failure to follow this warning
may result in damage to property or serious bodily harm.
yStore and install the washer where it will not be exposed
to weather or to temperatures below freezing. Failure to
follow this warning can cause serious injury, fire, electric
shock, or death.
yProperly ground the washer to conform with all electric
governing codes and ordinances. Failure to follow this
warning can cause serious injury, fire, electric shock, or
death.
yTo reduce the risk of electric shock, do not install the wash-
er in humid spaces. Failure to follow this warning can cause
serious injury, fire, electric shock, or death.
yTo ensure proper air flow, do not block the large opening on
the bottom of the washer with carpeting or other materials.
yDo not remove the ground prong. Do not use a 2-prong
adapter or 2-wire extension cord. Failure to follow these
warnings can cause serious injury, fire, electric shock, or
death.
WARNING
50 1/2" (128.3 cm)
52 3/4" (134 cm)
(20 in. [50.8 cm] additional
needed for service)
29 3/4" (75.6 cm)
32" (82.1 cm)
1”
(2.5 cm)
1”
(2.5 cm)
52 5/16" (132.9 cm)
54 1/4" (137.8 cm)
27" (68.9 cm)
29" (73.7 cm)
MFL68267007_E.indd 8 17. 1. 19. 오후 6:52

9
ENGLISH
INSTALLATION INSTRUCTIONS
UNPACKING AND REMOVING
SHIPPING MATERIAL

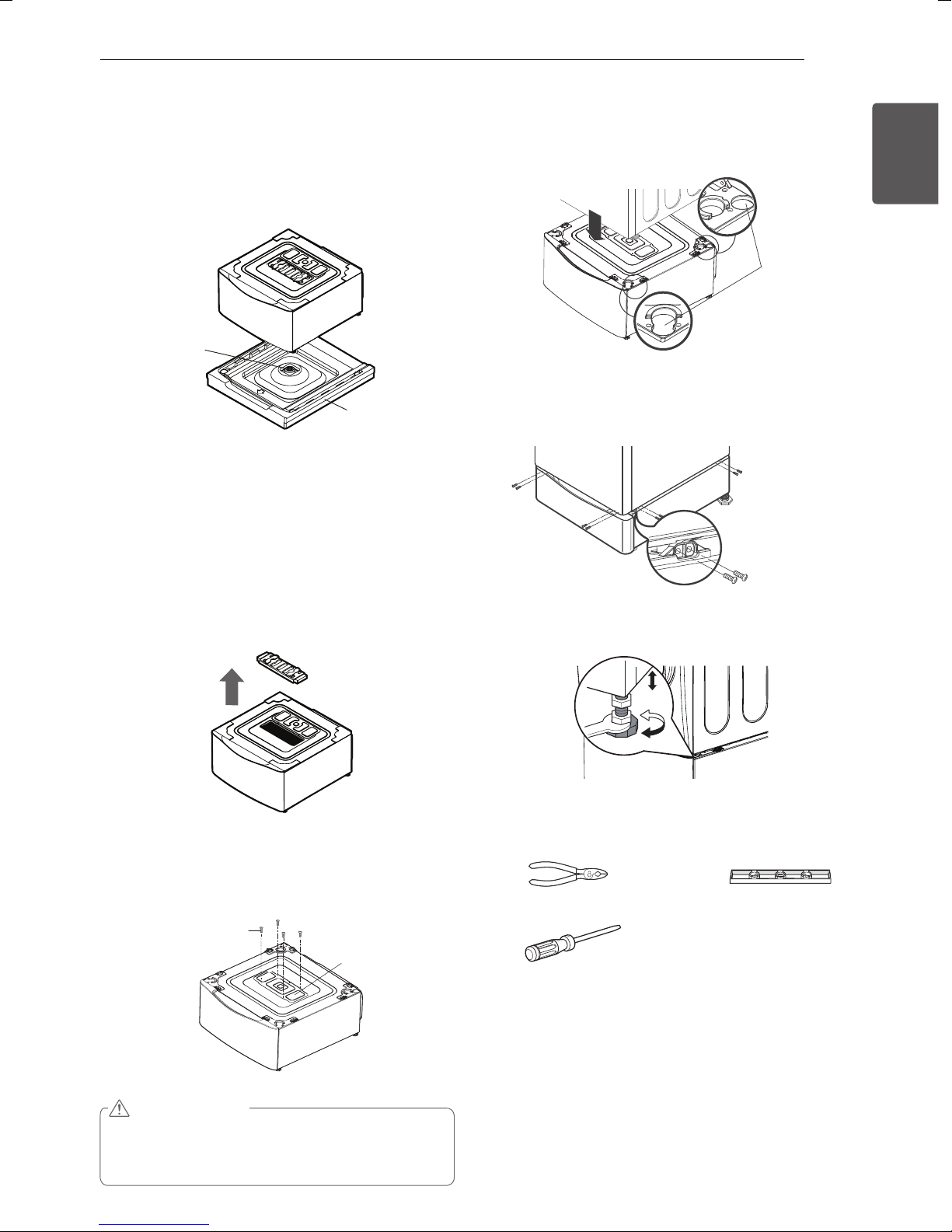

1. After removing the carton and shipping material,
lift the washer off the foam base. Make sure the
plastic tub support comes off with the base and
is not stuck to the bottom of the washer.
Plastic Tub
Support
Carton Base
If you must lay the washer down to remove the base
packaging materials, always protect the side of the
washer and lay it carefully on its side. DO NOT lay
the washer on its front or back.
2. Save the foam block for future use. If the washer
must be moved in the future, the foam block
will help prevent damage to the washer during
transportation.
NOTE: To prevent damage, do not remove
the foam block until the washer is at the final
location.
3. Turn the top cover about 180 degrees. Cover the
upper hole with the top cover and install 4 short
screws (included in packing box) to fix it in place.
Top cover
Short screws
yThe top cover must be installed to avoid the risk of
electric shock or short circuit. Failure to do so can
cause serious injury, fire, electric shock or death.
WARNING
4. Make sure the leveling legs on the front-loading
washer are fully retracted before stacking it
on top of the pedestal washer. Position the
appliance on top of the pedestal washer.
Washer legs
5. Make sure the holes on the pedestal washer
align with the holes in the front-loading washer,
then install 4 long screws (included in box) at
each corner to securely attach the front-loading
washer to the pedestal washer.
Long screws
6. Extend the legs of the front-loading washer
slightly until it is snugged up against the pedestal
washer.
TOOLS YOU WILL NEED
yAdjustable Pliers • Carpenter's Level
yScrewdriver
MFL68267007_E.indd 9 17. 1. 19. 오후 6:52

10 INSTALLATION INSTRUCTIONS
CONNECTING THE DRAIN HOSE WITH
FULL-SIzE WASHER
1. Front-loading washer and pedestal washer with
dryer.
Tie Strap
Band clamps
2. Front-loading washer and pedestal washer with
hybrid dryer
Tie Strap
Band clamps
DETAIL VIEW OF DRAIN CONNECTOR
CONNECTION
For narrow standpipes, insert hybrid dryer drain hose in
center of drain connector. DO NOT insert dryer drain hose
further than 1 inch (2.5 cm). Use tie straps to keep hoses
in place.
OVERVIEW OF CONNECTIONS
CONNECTING THE WATER LINES WITH
FULL-SIzE APPLIANCES
1. Front-loading washer and pedestal washer with
dryer.
Cold
Hot
Short inlet hose
2. Front-loading washer and pedestal washer with
Turbo Steam dryer
Cold
Hot
Short inlet hose
Required for water inlet
Item Qty
Y-Connector 2
Short inlet hose 2
Long inlet hose 4
long inlet hoses sold separately
Required for water inlet
Item Qty
Y-Connector 3
Short inlet hose 3
Long inlet hose 5
long inlet hoses sold separately
Drain hose
Band clamps
Drain
Y Connector
MFL68267007_E.indd 10 17. 1. 19. 오후 6:52
