2. INSTALLATION INSTRUCTIONS

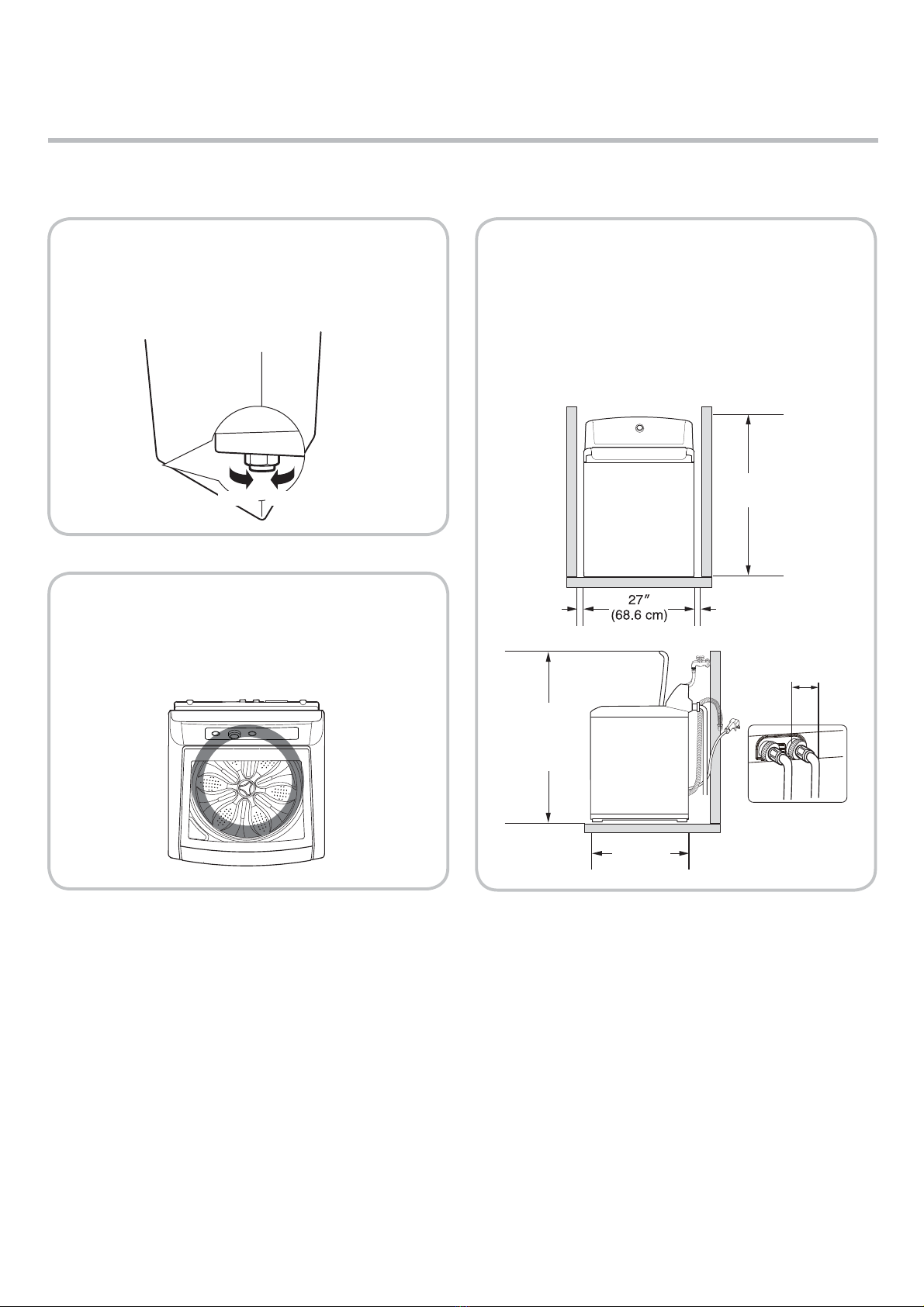

2-1. HOW TO ADJUST LEVEL
4
CAUTION
The ventilating openings in the base area must not be obstructed by carpeting.
Install the washing machine on a level and firm surface. There should be no more than 1° of variation.
Wooden floors may need reinforcing to prevent the normal vibration which occurs
with an unbalanced load.
Do not install the washer on an inclined floor.
Improper installation of the washer may cause noise and malfunctioning.
1Installation area
Install the washer on a firm, flat
surface.
If the washer is installed on an
unsuitable floor, it could make
considerable noise and vibrate.
2
3Checking level
Open the lid, check if the washer is
correctly leveled by looking down
from the top. If the tub is not
centered in the opening, then the
washer is not level.
WRONG RIGHT
No shims. It would be dangerous. If the
floor is that far from being level, it is a floor
problem and not a washer problem.
Set Leveling feet
Loosen the locknuts on 2 front leveling
feet until you can turn the feet with the
included wrench. Turn clockwise to
raise the washer or counterclockwise
to lower it.
Checking slope
If installation surface is tilted, the
washer will vibrate. Do not install
on a sloping floor.
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
5
26 3/4″
57 1/5″
(68 cm)
1″
(2.5 cm) 1″
(2.5 cm)
3 1/2″
(9 cm)
44 1/2″
(113cm)
(145.3 cm)
(with lid
open)
6
7
5
Lower Raise
Confirming level
t Place the washer in original position,
confirming the level.
Horizontal setting
t Lift the front of the washer and adjust
level by turnings the adjustable legs
clockwise or using the adjusting plate.
Distance between the drain hose
and the wall
t Distance between the drain hose and
the wall should be more than 4 inches
(10 cm,) and the distance between any
other part and the wall should be more
than 1 inches (2.5 cm.)
■ Do not install the washer in the following places.
t Where the washer is exposed to direct sunlight.
t Near a heater or heating appliance.
t Where the washer is exposed to freezing temperatures.
t In damp environments such as bathrooms or harmful environments.
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
1Attach the water supply hose to the tap.
Push the water supply hose up so that the rubber packing
within the hose can adhere completely to the tap.
2Connect the water supply hose to the tap.
Connect the water supply hose to the tap and then tighten it by
screwing it to the right.
3Check water leakage.
After connecting the hose, open the tap to check for
any water leakage.
Connecting Water Supply Hose to the Machine
the washing machine, and then lock it by turning
the hose connecting part.
connector.
new hoses. The old hoses should not be reused.
Screw Type
Water tap
Rubber Seal
Water Supply Hose
Cold water inlet
Hot water inlet
2-2. CONNECTING WATER SUPPLY HOSE
6
Before connecting the water supply hose to the water tap, check the hose type and then choose the
correct instruction here below.
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
7
2-3. CONNECT THE DRAIN HOSE
35"~47" (0.9~1.2m)
35"~47" (0.9~1.2m)
Insert the end of the drain hose into the drain.
inches into the drain.
NOTE :The drain hose should always be properly secured to the drain or standpipe. Failure to secure
the drain hose properly can result in flooding and property damage.
odor build-up.
Cable Tie Cable Tie
WARNING:
washer was exposed to freezing temperatures prior to installation, allow it to stand at room
temperature for several hours before use. Damage to the water lines and internal mechanisms of
the washer can result.
is more than 120 psi, a pressure reducing valve must be installed. If you have uncontrolled water
temperature and pressure you should fit a temperature and pressure relief valve to ensure that
water temperature and water pressure remain within the safe limits. Consult a plumber or electrician
if you are unable to adjust water temperature and or pressure. Failure to do so can result in damage
to the machine.
or serious injury.
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
8
3. OPERATING INSTRUCTION
3-1. IDENTIFICATION OF PARTS
Powder detergent
Box for delayed
washing/softener additves box
INLET HOLE FOR
BLEACH
Washing Wing
(unique with lnner Tub)
LEVELLING LEGS
Use to level the washing
machine for correct balance
spin operation.
TUB
COLD WATER SUPPLY
HOSE
HOT WATER SUPPLY
HOSE
Make sure the water
does not leak.
POWER PLUG
If the supply cord is
damaged, it must be
replaced by the
manufacturer
or its service agents
or similarly qualified
person in order to
avoid a hazard.
FUNCTION SELECTOR
BASE
DRAIN HOSE
Be sure the drain hose
is properly installed on
the drain before
operating the washer.
SMART RINSE WITH
JET SPRAY
This washer is designed
to save rinse water by
using a jet spray rinse
system in the Normal/
Casual and Heavy Duty
cycles.
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
9
3-2. BEFORE STARTING TO WASH
Care Labels
This will tell you about the fabric content of your garment and how it should be washed.
Sort clothes into loads that can be washed with the same wash cycle, water temperature,
and spin speed.
Sorting
To get the best results, different fabrics need to be washed in different ways.
SOIL (Heavy, Normal, Light) Separate clothes according to the type and amount of soil.
COLOR (Whites, Lights, Darks) Separate white fabrics from colored fabrics.
LINT (Lint producers, Collectors) Separate lint producers and lint collectors.
Lint Producers Terry cloth, Chenille, Towels, Diapers
Lint Collectors Synthetics, Corduroy, Permanent Press, Socks
Check before Loading
Check all pockets to make sure that they are empty. Things such as nails, hairclips, matches,
pens, coins, and keys can damage both your washer and your clothes.
Mend any torn garments or loose buttons. Tears or holes may become larger during washing.
Pretreat any dirt and stains.
Loading
Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.).
Load Size
The WATER LEVEL should just cover the clothes. Adjust the load size
accordingly. Loosely load clothes no higher than the top row of holes in the
washer tub. To add items after washer has started, press the Start button and
submerge additional items. Close the lid and press the Start button again to restart.
※ Do not wash waterproofed fabrics (such as skiing outfits, diapers, or nappy
auto seat covers.)
Light and Large-sized clothing
Clothes like downs and woolens are lightweight, large, and float easily. Use a nylon net and
wash them in a small amount of water. If the laundry floats during the wash cycle, it may
become damaged. Use dissolved detergent to prevent the detergent from clumping.
※ Do not wash water-proof textilles (Skling outfit, baby diaper, nappy automobile seat covers.)
Long laundry items
Use nylon bag nets for long, delicate items. For laundry with long strings or long length, a bag will prevent
tangling during washing. Fasten zippers, hooks, and strings to make sure that these items don't snag on
other clothes.
※ The nylon washing bag is not supplied by Kenmore.
Pretreatment on stains or heavy soil
Before washing treat special stains with bar soaps, liquid detergent, or a paste of water and powdered detergent.
Treat stains AS SOON AS POSSIBLE. The longer they are left, the harder they are to remove.
(For more detail refer to page 14-15)
WIRE
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
10
1) Using Water
Water Temperature
You can override the preset selection by pressing the water temperature icon. Touch the arrow buttons up or
down until your desired temperature setting is displayed.
- HOT 120°F (120-140°F) White items, diapers, underclothing and heavily soiled, colorfast items.
- WARM 90°F (85-105°F) Most items
- COLD 66°F (65-75°F) Only very bright colors with light soil.
- Adjust detergent amount and pre-dissolve detergent in WARM water
- Pretreat spots and stains
- Soak heavily soiled items
- Use appropriate bleach
* Temperature below 18°C (65°F) will not activate laundry additives and may cause lint, residue, poor cleaning, etc.
In addition, detergent manufactures and care labels define COLD water as 26~29°C (80-85°F).
If the temperature of the water in the tub is too cold for your hands, the detergent will not activate and clean
effectively.
Note
If iron is present in the water, the clothes may become an all-over yellow or they may be stained with brown or
orange spots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be
necessary for severe cases.
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
11
Using the Liquid Bleach Dispenser
The bleach dispenser automatically dilutes and dispenses
liquid chlorine bleach at the proper time in the wash cycle.
1. Check clothing care labels for special instructions.
2. Measure liquid bleach carefully, following instructions on the
bottle.
or into the wash basket.
dispenser. The maximum capacity of the bleach dispenser is
one cup of bleach per wash cycle. Overfilling could result in
premature dispensing of bleach.
Do NOT add more bleach than is required for your particular load.
3. Before starting the washer, pour measured amount of bleach
directly into bleach dispenser. If you prefer to use powdered
bleach, add it into the wash basket directly before adding clothes.
WARNING Do NOT mix chlorine bleach with ammonia or acids, such as vinegar or rust / scale remover.
Mixing chemicals like these can produce irritating and toxic fumes. Put the manufacturer’s recommended amount of
undiluted liquid chlorine bleach into the bleach dispenser. During the final portion of the wash cycle, two sequential flushes
of the dispenser put all the bleach into the wash load and completely flush the dispenser to eliminate the carryover of
bleach to a subsequent load. Any liquid remaining in the bleach dispenser at the end of the cycle is water, not bleach. To
prevent unintentional self-siphoning of the bleach, never fill the dispenser higher than the maximum fill level marked on
the dispenser. When adding bleach to the dispenser, be careful to avoid spilling it into the laundry load or leaving droplets
of bleach around the dispenser. These things will damage your laundry items.
2) Using Detergent
Detergent
Follow the detergent package directions. Using too little detergent is a common cause of laundry problems.
Use more detergent if you have hard water, large loads, greasy or oily soils or lower water temperature.
Choosing the Right Detergent
Your washing machine is designed for use with only High-Efficiency (HE) detergents. HE detergents are
formulated specifically for top-load washers and contain suds-reducing agents. Always look for the HE symbol
when purchasing detergent. HE detergents produce fewer suds, dissolve more efficiently to improve washing and
rinsing performance, and help to keep the interior of your washer clean. Using a regular detergent will cause
unsatisfactory performance, oversudsing, machine build-up, and could damage the machine.
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
12
Using the Dispenser Drawer
ABOUT THEDISPENSER

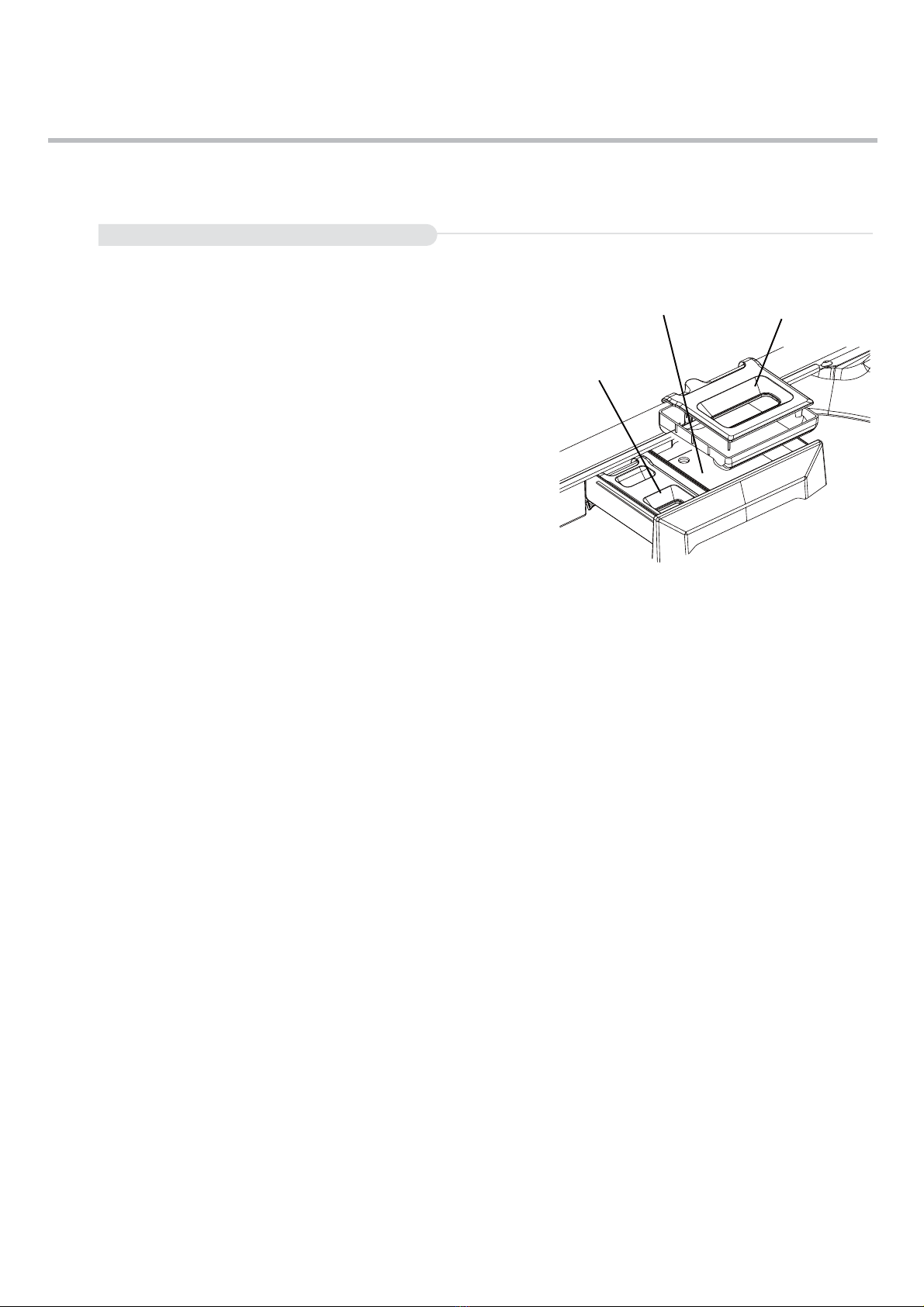

The automatic dispenser consists of two
compartments which hold:
All laundry products can be added at once in their respective
dispenser compartments. They will be dispensed at the
appropriate time for the most effective cleaning.
After adding the laundry products to the dispenser,
close the dispenser drawer.
Close the dispenser drawer gently to avoid spilling or starting the
siphoning action.
To add detergent, bleach, and fabric softener
to the automatic dispenser:
ᵉ Open the dispenser drawer.
ᵉ Load the laundry products into the appropriate compartments.
ᵉ Close the lid slowly and smoothly to avoid spilling, splashing, or
premature dispensing of the contents.
NOTE: It is normal for a small amount of water to remain in the
dispenser compartments at the end of the cycle.
NOTE: Do not use powdered or liquid bleach in the dispenser drawer.
Main Wash
Liquid Detergent
Compartment
Main Wash
Powder Detergent
Compartment
Liquid Fabric
Softener
Compartment
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
13

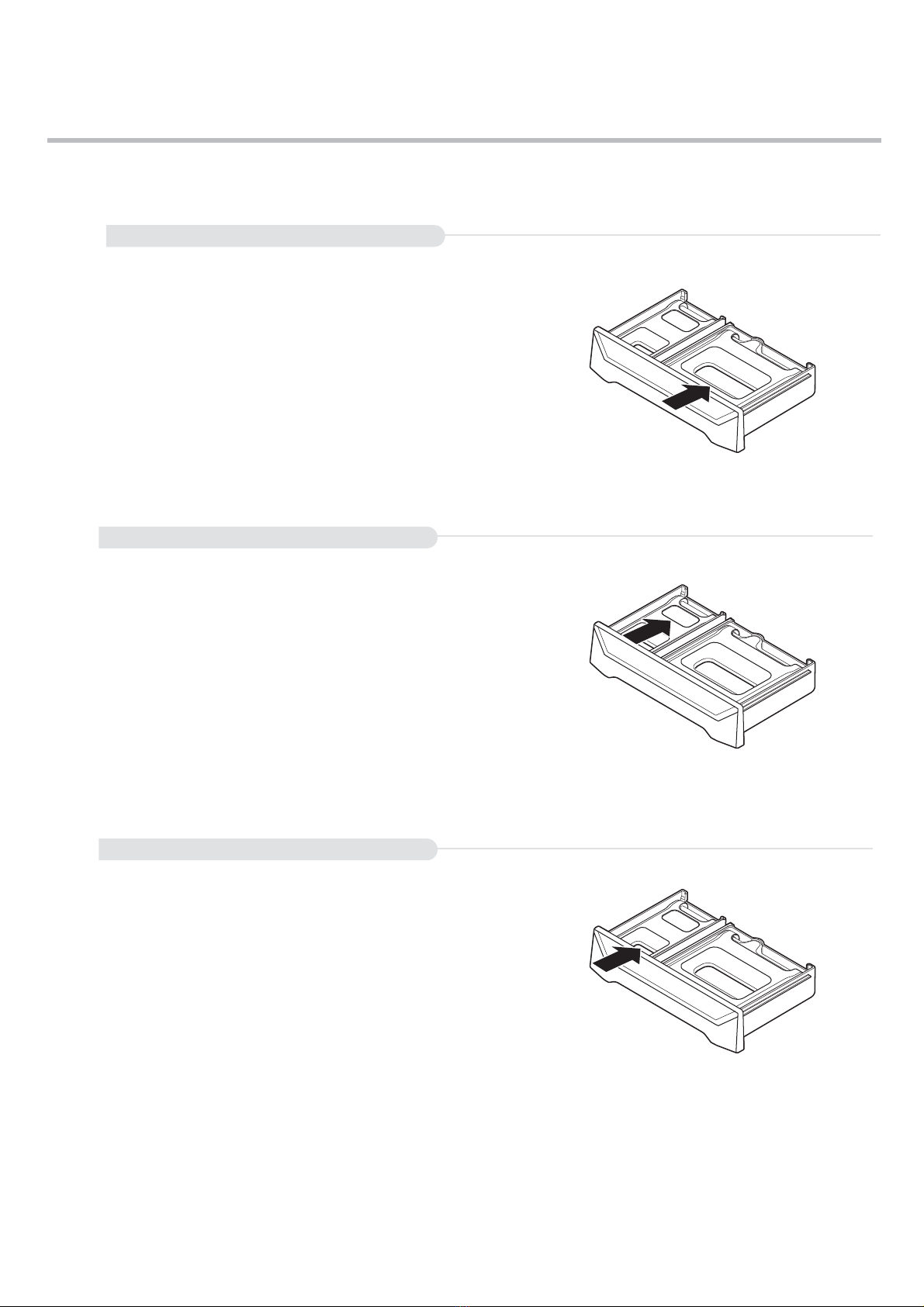

Adding Detergent
Add measured detergent to the detergent compartment of the
dispenser drawer.
Detergent is flushed through the dispenser at the beginning of
the wash cycle. Either powdered or liquid detergent can be
used, but the drawer insert must be removed to use powder.
Detergent usage may need to be adjusted for water
temperature, water hardness, size, and soil level of the load.
Avoid using too much detergent in your washer, as it can lead
to oversudsing and detergent residue being left on the clothes.
Adding Fabric Softener
Pour the recommended amount of liquid fabric
softener into the left-hand compartment. Use only liquid fabric
softener.
Dilute with water to the maximum fill line.
Overfilling can cause early dispensing of the fabric softener,
which could stain clothes.
NOTE: Do not pour fabric softener directly on the wash load.
It may stain the clothes.
Adding Wash Boost Additives
The wash boost dispenser may be used to clean heavily soiled
or stained garments more efficiently.
If desired, place the additives for the wash boost setting in the
right-hand compartment. Use only liquid additives.
In clothing and the washer
Overfilling can cause early dispensing of presoak additives,
which could result in damaged clothes.
NOTE :Do not pour additives directly on the wash load. It may stain the clothes.
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
14
3) Special Guide for Stain Removal
WARNING
ᵉ
Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid, or products
containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.
ᵉ
To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below:
Read and comply with all instructions on stain removal products.
Keep stain removal products in their original labeled containers and out of children's reach.
Thoroughly wash any utensil used.
Do not combine stain removal products, especially ammonia and chlorine bleach. Dangerous fumes may result.
Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry cleaning solvents, or
other flammable or explosive substances because they give off vapors that could ignite or explode.
Never use highly flammable solvents, such as gasoline, inside the home. Vapors can explode on contact with flames or sparks.
For successful stain removal:
chart below.
powdered detergent and water.
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
15
Adhesive tape, chewing
gum, rubber cement
Baby formula, dairy
products, egg
Beverages (coffee, tea, soda,
juice, alcoholic beverages)
Blood
Candle wax, crayon
Chocolate
Collar or cuff soil, cosmetics
Dye transfer on white fabric
Grass
Grease, oil, tar (butter, fats,
salad, dressing, cooking
oils, car grease, motor oils)
Ink
Mildew, scorch
Mud
Mustard, tomato
Nail polish
Paint, varnish
Rust, brown or yellow
discoloration
Shoe polish
Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with
prewash stain remover or nonflammable dry cleaning fluid.
Use product containing enzymes to pretreat or soak stains.
Pretreat stain. Wash using COLD water and bleach safe for fabric.
Soak the item in a bowl of COLD water for at least 30 minutes. Then launder as usual.
Remove all surface wax. Put the garment in the freezer for a couple of hours, then
remove and break away as much wax as possible. Try a commercial removal product
like Goo-Gone, Goop, or Go-Jo cleaner for the remaining wax stains. DO NOT
ATTEMPT TO REMOVE WITH HEAT!
Pretreat or soak in WARM water using product containing enzymes. Wash using bleach
safe for fabric.
Pretreat with prewash stain remover or rub with bar soap.
Use packaged color remover. Wash using bleach safe for fabric.
Pretreat or soak in WARM water using product containing enzymes. Wash using bleach
safe for fabric.
Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For
heavy stains and tar, apply nonflammable dry cleaning fluid to back of stain. Replace
towels under stain frequently. Rinse throughly. Wash using hottest water safe for fabric.
Some inks may be impossible to remove. Washing may set some inks. Use prewash
stain remover, denatured alcohol, or nonflammable dry cleaning fluid.
Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and HOT water
before washing. Badly mildewed fabrics may be permanently damaged.
Brush off dry mud. Pretreat or soak with product containing enzymes.
Pretreat with prewash stain remover. Wash using bleach safe for fabric.
May be impossible to remove. Place stain face down on paper towels. Apply nail polish
remover to back of stain.
Repeat, replacing paper towels frequently. Do not use on acetate fabrics.
WATER BASED Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it
cannot be removed,
OIL BASED AND VARNISH Use solvent recommended on can label. Rinse throughly
before washing.
For spots, use rust remover safe for fabric. For discoloration of an entire load, use
phosphate detergent and nonchlorine bleach. Do not use chlorine bleach because it
may intensify discoloration.
LIQUID Pretreat with a paste of powdered detergent and water. Apply paste and
scrape residue from fabric. Pretreat with prewash stain remover or nonflammable dry
cleaning fluid. Rub detergent into dampened area. Wash using bleach safe for fabric.
Stain Removal
STAIN TREATMENT
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
X]
ZTZUGm|uj{pvuGvmGlhjoGi|{{vu
t
G
This button
allows
you to store a
customized
wash
cycle for
future use .
tDelayed finishing time.
t
The time increases when the button
is pushed.
tGThe following settings are
indicated as the button is pushed 1
→2 →3 →4 →... 24→
→Reservation off 1 ...
tGTo cancel delay time, turn the
power switch off or push DELAY
WASH button until off.
klshG~hzoGOzP
i|{{vu
j Gw
i|{{vu
t
GSelect to select Water
(Wash/Rinse) Temperature.
t
GPressing the button allows
The selection of TAP COLD
→
COLD
→
SEMI WARM
→
WARM
→
HOT
respectively. Default setting
is Warm/Cold.
~hzoGVG{ltwU
u
The time shown on the display is the estimated cycle time. If the sensors and microprocessor elect to
make changes during the cycle, the display will be adjusted accordingly.
wv~ly
tPower on.
tPush again, power goes off
tGPower goes off automatically after the wash
is finished.
tAfter turning the power on, the unit will
automatically turn off if nothing is selected.
jjslGi|{GG{vu
tUse for selecting wash program.
tGThis button allows the selection of 8 different
programs for different kinds of laundry and
dirtiness.
tG
Program selections light up in sequence as
follows: Normal→Heavy Duty→→Bedding
→Pre Wash+ Normal
Waterproof
→→
Delicates
→
Select
Speed Wash
Downloaded
the desired program by ressing the button.
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
X^
l{yhGypuzlG
i|{{vu
·
This includes
an extra
rinse cycle
for a better
rinsing
action.
mhiypjG
zvm{luly
·
GCauses the
dispensing of
fabric softener
in the final
rinse cycle.
jopskGsvjrG
m|uj{pvu
·
GUse to lock or unlock the
control buttons to
prevent settings from
being changed.
·
To actuate or release the
CHILD LOCK, press and
hold the SIGNAL button
until the lock is turned
ON or OFF.
z{hy{VGwh|zlGi|{{vu
·GUse to start or pause the wash
cycle.
Changes while be made to the
wash settings while the machine
is paused.
·GRepeats start and pause by
pushing the button.
·GAllows a selection to be make for the
strength of the wash action.
·GPower option selections light up in
sequence as follows Normal →Heavy
→Light →Normal as the button is
pushed.
This can be selected for any program.
·
GAdjustment can be made while
washing.
·
Default SOIL LEVEL is Normal.
zwpuGzwllk
zvpsGsl}ls
·
GSpin speed
can be
selected from
No Spin to
Extra high.
Default is Low.
zpnuhs i|{{vu
·GThe beeper sounds at the end
of the cycle. The clothing should
be removed at that time to
prevent the setting of wrinkles.
·GTouch the SIGNAL button to
cycle through the volume
settings between OFF and
high.
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
X_
jjslGn|pkl
{GGGGGGGSGGG
GGGGGGUGhGGG
GGGGGGGGGU kGz
jGG mGGsG
{GG ~G{U zGz zGs z z
j˞
j
~˞
l
y
~
w
m
z
u jSGS
SGS
SGS
G
o lG o
~ o
zG~ t u
j
{G uG s
oGk oG
G
o lG o
~ o
zG~ t u
j s
{G uG s
i sGG
GG
o o
~
zG~ t u
j s
{G uG s
QG|GGiGGGGGGSGSGGGGGGG
G
GUGkvGuv{G~hzoGljlzzp}lsGshynlGp{ltzUGpGVGGG
GGGGSGG
GGGGGGGGGGUGrGG
bGGGGGGGG
GGUGmGGGG
GGGGGGGGGGU
~
~GG
GG
aGG
SGG
SGG
SGUGOG
GX[GUP
o
~
zG~ u
j s
{G uG s
wG~R
u
{SGS
SGS
G
o lG
~ o
zG~ t u
j s
{G uG s
k kGV
SGSG
GGG
GOGG
_GUP
o
~
zG~ u
j s
{G uG s
zG~ sG
GG
lG o
~ o
zG~ t u
j s
{G uG s
kG {GG
GOzGG
YXUPG
ZT[UG~hzopunGwyvnyhtz
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
ZT\UGjhylGhukGthpu{luhujl
X`
~G{GpG{GwGvGm¡G{
ˍGjGGGGGGGGGU
ˍGyGGGGGGGGU
ˍGsGGGGGGGGGGGGGGGGGGGUG
jG{GpGvGG~
pGGGGGGGGjvskGGSGGGGGG
GGGGGGGGGUG
ˍGmGGGGov{GU
ˍGhGXGGGUG
ˍGsGGGGGU
ˍGzGGSGGGSGGGGGGU
ˍGhGSGGGGGGGGGGU
wG{GtGkGG~Gt
ˍGGjGGGG¡GGGGGGGGGG
GU
ˍGGoGSGUUGSGSGGSGGGSGUGGGG
GGUG
OiGGGGGGGGGGGGSGkvGuv{GG
GGGGUP
ˍGGzGGGGGGGG˅GGU
ˍGG|GGGGGGGGGGGGUG{GGGGG
GGGGGGGGGGUG~GGGG
GGGGGGGU
ˍGGkGGGGGGGGGU
pGm¡
ˍGyGGGGGGGGGov{GUGO[W¶GjGGXW[¶GmPU
ˍGGwGGYGGOÃGGPGGov{GGO[W¶GjGGXW[¶GmPGGGGGGGGGG
GGXWGUG
ˍGGjGGGGGGGGGyGGlG~GGGGGGGSG
SGGGUG
~GpT{G sGGGGGGGGGGUGpG
G GGGGTGGGGGGGG
G SGGUGOkGGGGGGUP
pGoG oGGGGGGGGG\GU
l G pGGGGUG~GGGUGhGGGGG
U
sG} G iGGGGGGGGUGkGGGGGGGG
G G¡U
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.

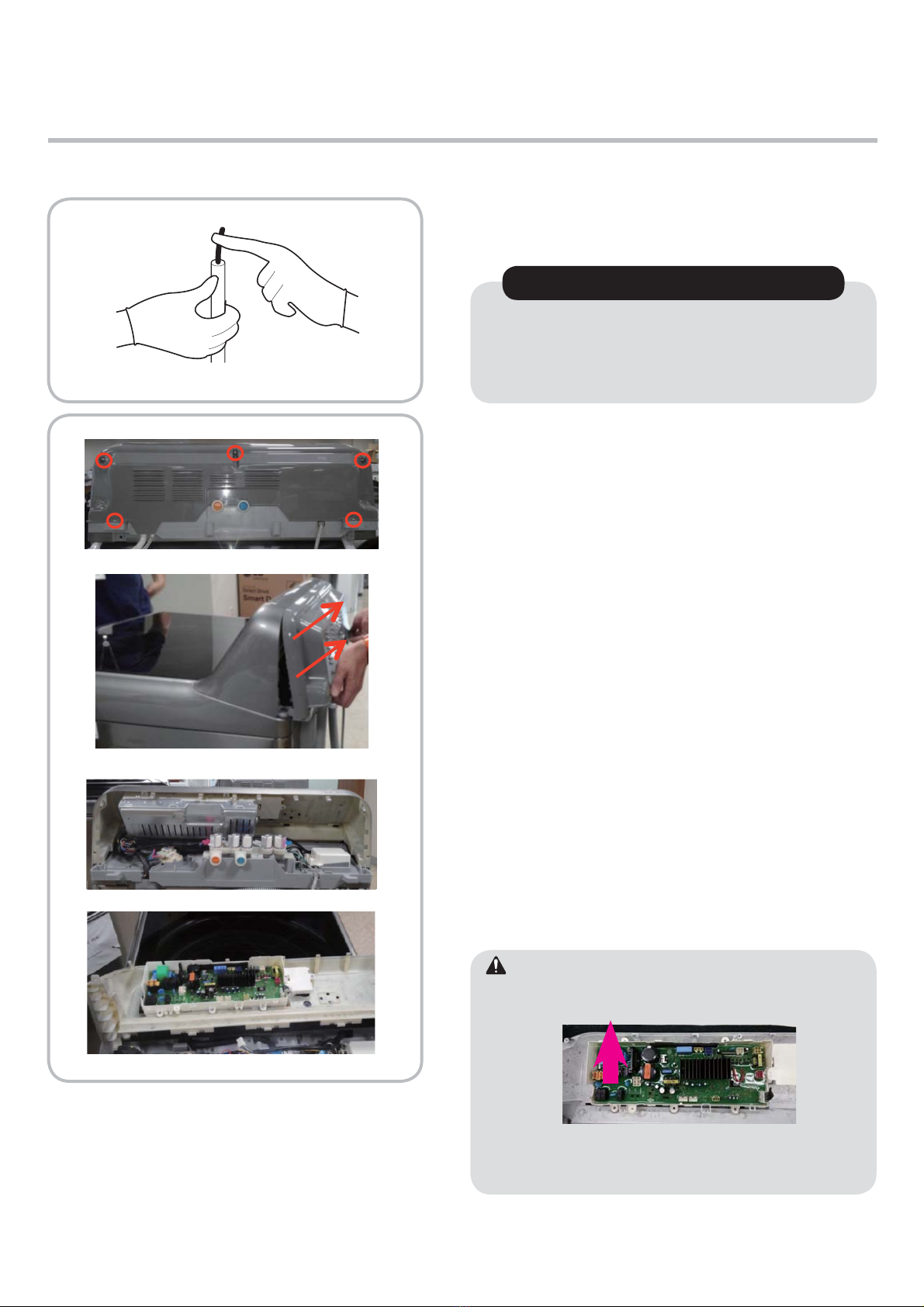

[TXUGkpzhzzltisGpuz{y|j{pvu
YW
ඖGGiGGGGGGGGGG
GU
lzkGOlzGkpPG~hyupun
iGGGGGlzkGGG
GGGGUGpGGGG
SGGGGGGGGGG
GGGGGGGGUG
GpGwjiGGmGGGGGSG
GGGGGU
~GGGwjiGGmGGGG
GwjiGGGGGGGzGU
hGGGGGU
XPGGyGGGGGwjiG
GG
ྙGGyG\GGGGGGGG
UG
ྚGkGGU
ྛGGwGGGGUG
yGXGGGGGU
ྜGkGGGU
ྜྷGkGGGGGU
ྞGyG^GGGGwjiGU
ྟGyGGwjiGU
[UGzly}pjlGpumvyth{pvu
Caution
Copyright © 2016 - 2017 LG Electronics Inc. All rights
reserved. Only training and service purposes.
Other manuals for WT7200C Series
4
Table of contents
Other LG Washer manuals
