LG WF-HXB110FS/01 User manual

WASHING MACHINESERVICE MANUAL
Before servicing the washer, Read the safety precautions in the manual.CAUTIONMODEL:WF-HXB110FS /01

2
SAFETY PRECAUTION!
IMPORTANT SAFETY NOTICE!
■ DISASSEMBLE POWER CORD BEFORE SERVING
■ RECONNECT ALL GROUNDING DEVICES
This service information is intended for individuals
possessing adequate backgrounds of electrical,
electronic and mechanical experience.
Any attempt to repair this appliance may result in
personal injury or property damage.
The manufacturer or seller can not be responsible
for the interpretation of this information, nor can it
assume any liability in connection with its use.
CONTENTS
1. Specifications .............................................................................................................................. 3
2. Installation Instructions ................................................................................................................ 4
3. Operating Instructions
3-1. Identification of Parts............................................................................................................... 10
3-2. Before Starting to Wash .......................................................................................................... 11
3-3. Function of Each Button.......................................................................................................... 16
3-4. Washing Programs.................................................................................................................. 20
3-5. Other Functions....................................................................................................................... 24
3-6. Care and Maintenance............................................................................................................ 32
4. Service Information
4-1. Wiring Diagram........................................................................................................................ 33
4-2. Disassembly Instruction .......................................................................................................... 35
4-3. Test Running without water .................................................................................................... 39
4-4. Trouble Shooting against Common Washing Problems.......................................................... 40
4-5. Trouble Shooting With Error Code .......................................................................................... 41
4-6. How to Diagnose and Repair by Symptom ............................................................................. 44
5. Exploded View............................................................................................................................ 53
6. Replacement Part List. ............................................................................................................... 58

31. SPECIFICATIONS
POWER SOURSERefer to rating label on the back of WasherINPUTRefer to rating label on the back of WasherCAPACITYRefer to rating label on the back of WasherINNER TUBStainlessINLET WATERPRESSURE0.3kgf/cm2 ~ 8.0kgf/cm2SPIN SPEED950 rpmDIM.Refer to rating label on the back of WasherWEIGHTRefer to rating label on the back of WasherPROGRAM
NORMAL, SMART RINSE,ECO WASH, QUICK WASH, DELICATE, TOWELS, DUVET,SILENT, TUB CLEAN, FAVORITE, SCHOOL CARE
WATER LEVEL10 StagesRESERVATIONAvailable for 3~18 HrUNBALANCESWITCHB.P SensorLID INTERLOCKSWITCHMagnet SensorCHILD LOCKAppliedSOFTENERDISPENSERAppliedDETERGENTDISPENSERAppliedBLEACH INILETAppliedAUTO POWER OFFAppliedSmart RinseTMwith Jet SprayAppliedHeaterNot Applied* Program can be different according to the model.

4
1
2
Adjustable leg
2-1. HOW TO ADJUST LEVEL
2. INSTALLATION INSTRUCTIONS
Installation area
• Install the washer on flat and firm
surface.
Checking level
• Open the lid, and check if the
washer is correctly leveled by
looking down from the top.
How to use the adjusting plates
• Use the adjusting plates to level the
washer when the adjustable legs cannot
cover the gap.
Turn the adjustable legs to set the
washer horizontal (2 EA).
Improper installation of the washer may cause noise and malfunctioning.
1. The ventilating openings in the base area must not be obstructed be
carpeting when the washing machine is installed on a carpeted floor.
2. Install the washing machine on a level and firm surface, any tilt should
be less than 1° .

5
More than 2cm
More than 10cm
More than 2cm

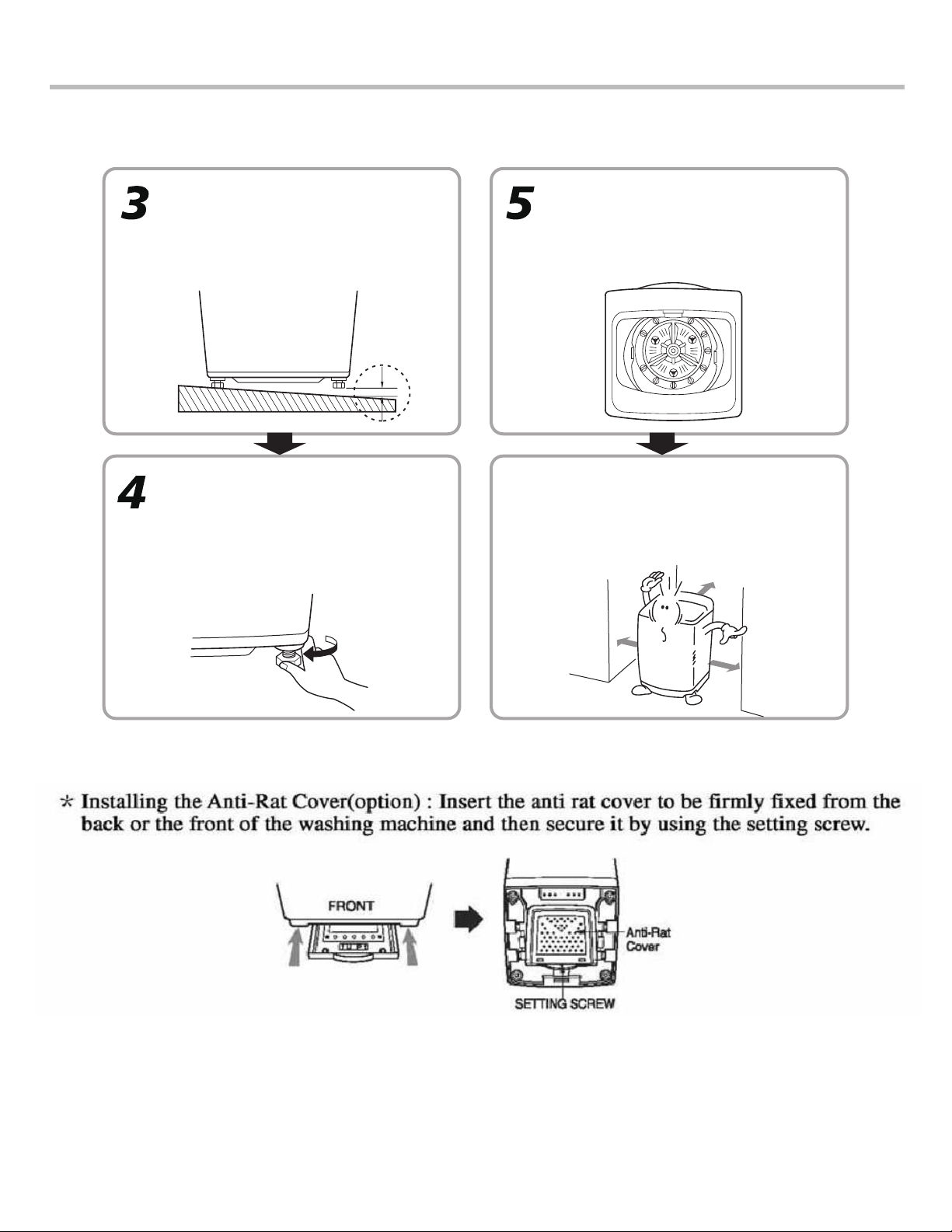

Checking slope
• If installation surface is tilted, the
washer will be shaken.
Confirming level
• Place the washer to original position
and confirm the level.
Horizontal setting
• Lift up the front of the washer and
adjust level by turning the
adjustable legs clockwise or using
the adjusting plate.
Distance between drain hose and the wall
• Distance between drain hose and the wall should
be more than 10 cm, and the distance between the
other part and the wall should be more than 2 cm.
Anti-Rat Cover is used for below Countries:
Tha iland,Ma la ysia,T ai Wan(China),Indone sia ,China ,Singa pore,Phliphine,V ie tna m,India.

6
2-2. CONNECTING WATER SUPPLY HOSE
Before connecting Water Supply Hose to water tap, check your hose type and choose correct
instruction. Water Supply Hose may vary according to the country.
Make sure connect blue inlet hose to COLD water tab, and orange inlet hose to HOT water tab.
Rubber packing
Connector
Water supply hose
Normal Type (Normal tab without thread & screw type inlet hose.)
Connecting Water Supply Hose to water tap
1
2
3
4
5
Untighten the screw
Untighten the screw of the connector so that the tap can be
placed in the middle.
Fixing the connector to the tap
Push the upper connector up till the rubber packing is in tight
contact with the tap. Then tighten the 4 screws.
Attach the water supply hose to the connector
Push the water supply hose vertically upwards so that the rubber
seal within the hose can adhere completely to the tap.
Fixing the connector of connector and water supply hose
Attach the water supply hose to the connector
and then tighten it by screwing it to the right.
Check the connection of water supply hose and the connector
After connecting the hose, open the tap to check for any water leakage.
In case of water leakage, close the tap and start again from step 1.

7
Conector
MedioEtiquetaFija
Manija de Presión
Barra de Presión
Manguera de Suministro de Agua
Empaquede Caucho
Tornillo
EtiquetaFija
Empaquede Caucho
Placa Guía
Conector
Conector
EtiquetaFijada
Conector
MedioConector
Medio
Conector
Manguera de Suministro de Agua
Barra de Presión Manijade Presión
Fixed Stiicker
Pressing Handle
Pressing Rod
Water Supply Hose
Middle connector
Rubber packing
Screw
Fixed sticker
Guide plate
Connector
Connector
Rubber packing
Connector
Middle
Connector
Pressing handle
Middle
Connector
Fixed sticker
Pressing rod
Water Supply Hose

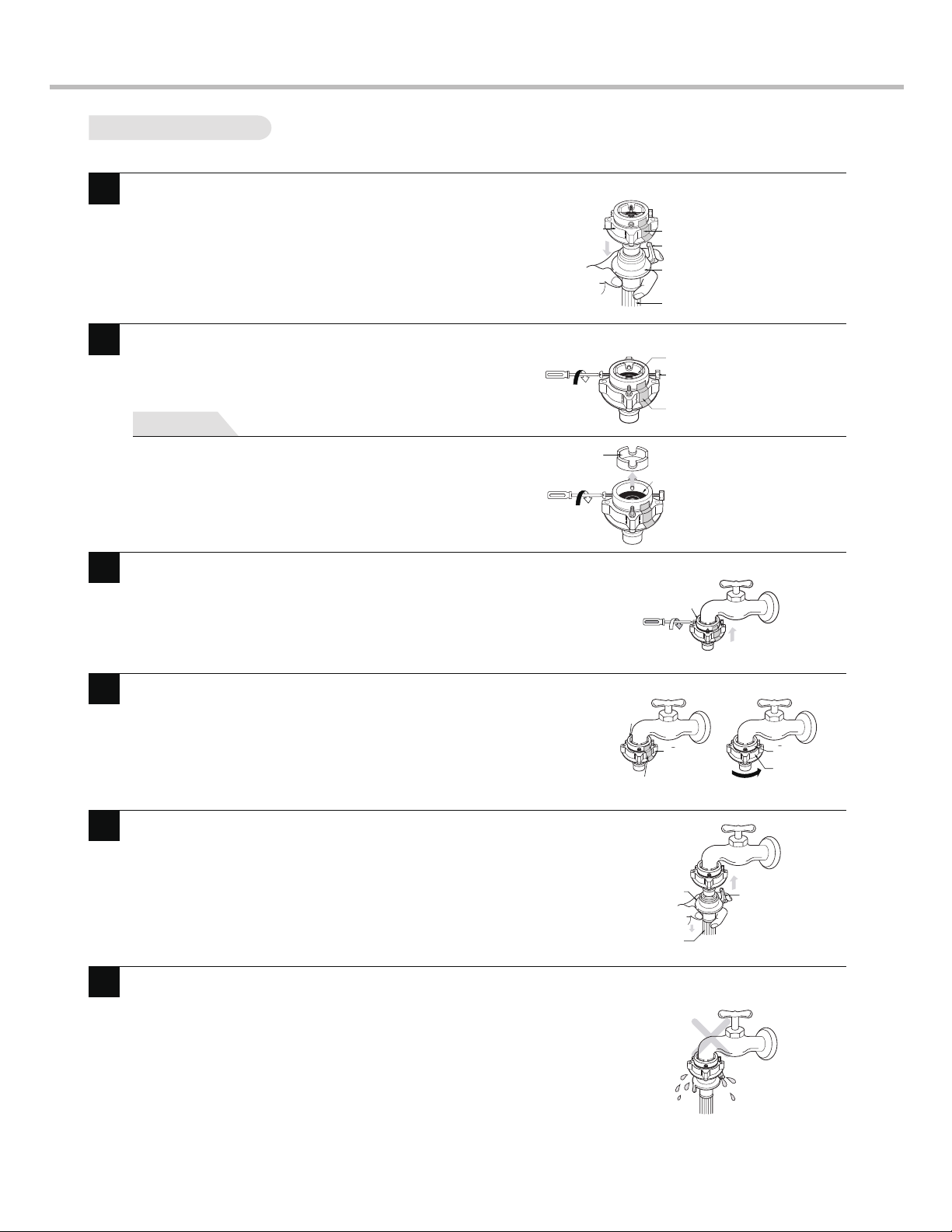

One Touch Type
Note
(NORMAL TAB WITHOUY THREAD & ONE TOUCH TYPE INLET HOSE.)
1
2
3
4
5
6
Separate Middle connector from Water Supply Hose
Separate Middle connector from the Water
Supply Hose by pulling the Pressing Rod and
the Pressing Handle that is attached to the
Water Supply Hose while pressing them.
Loosen the fixed nuts to connect the connector to the tap
Untighten the screw of the connector so that the tap can
be placed in the middle.
Fixing Connectors to the Tap
Push the upper connector up till the rubber packing is in tight
contact with the tap.
Then tighten the 4 screws.
Fixing Upper Connector and Middle Connector
Remove the fixed sticker in between the Upper
and Middle Connectors.
Tighten the connectors by holding one connector
and twist middle connector to the right.
Connecting Middle Connector and Water Supply Hose
Press down the pressing rod of the Water
Supply Hose which was separated from middle
connector(refer to Step1) and then join it to
the middle connector.
Checking the water leakage
After connecting the hose, open the tap to
check for any water leakage.
In case of water leakage, close the tap and start
again from step 1.
If you skip step1, it may cause water leakage.
In case the tap is large.
If the tap diameter is too large or is square,
open the 4 screw and take out the guide
plate and follow step 1.

8
Water Supply Hose
Rubber Packing
Water
tap
Hose connector
Rubber seal
Screw Type
1
2
3
Attach the water supply hose to the tap.
Push the water supply hose up so that the rubber
packing within the hose can adhere completely
to the tap.
Connect the water supply hose to the tap.
Connect the water supply hose to the tap and then tighten
it by screwing it to the right.
Check water leakage.
After connecting the hose, open the faucet to
check for any water leakage.
Connecting Water Supply Hose to the machine
Connect the water supply hose to inlet valve of
the washing machine, and then lock it by
turning the hose connecting part.
Check to see if there is a rubber seal inside the
connector.

9

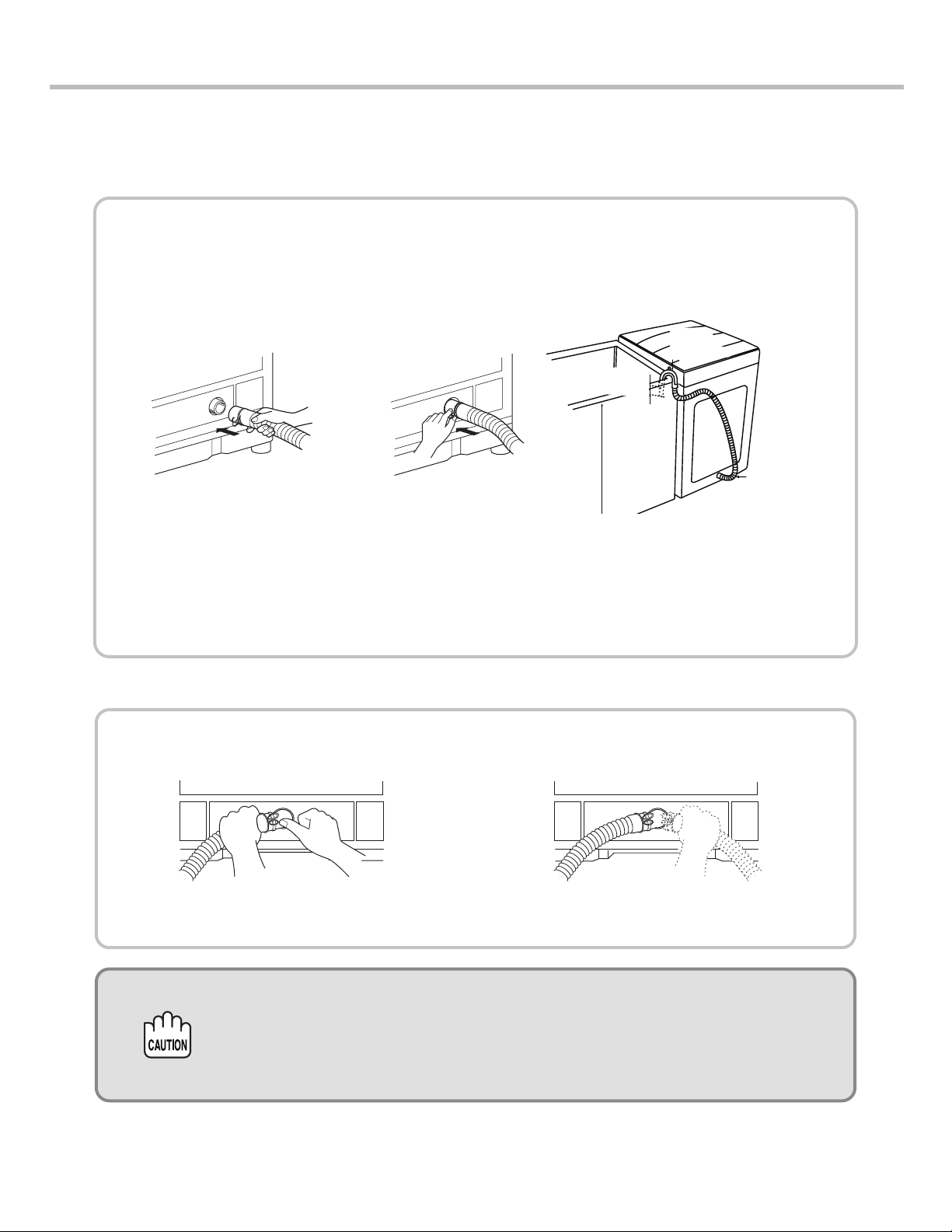

2-3. CONNECT THE DRAIN HOSE
Drain Hose
0.9~1.2m
Within 50mm
Hose
Guide
▒ For pump model
▒ For non - pump model
● NOTE : • Never lay down the drain hose, as water will be discharged.
• Be sure the drain hose is properly routed so it will not kink or lift from the sink.
• The discharge height should be approximately 0.9~1.2m from the floor.
• Connect the drain hose adjusting the length of it not to be dropped. If drain hose is dropped the
drainage could be poor because of blockage in the hose.
• Connect the drain hose to
the outlet of the drain pump
located at the rear of the
washing machine.
• Attach the clip to the drain
hose. And then push it
toward the body of the
washing machine as
indicated by the arrow.
• Check that the drain hose is
hung up over the edge of the
laundry tub.
• Do not use an extension hose.
• Connect the drain hose to the outlet of the drain
located at the back side of the washing machine.
• Fix the drain hose with the clip.
And then push it toward the body as in the figure.
• Keep it downward while the washing machine is working.
• Ensure the hose is free from kinking.
• Do not install the washer where it is directly exposed to sunlight,
wind, rain etc.
• Plug the power cord of this washer into a properly installed
standard electrical outlet that is switched & earthed.

10

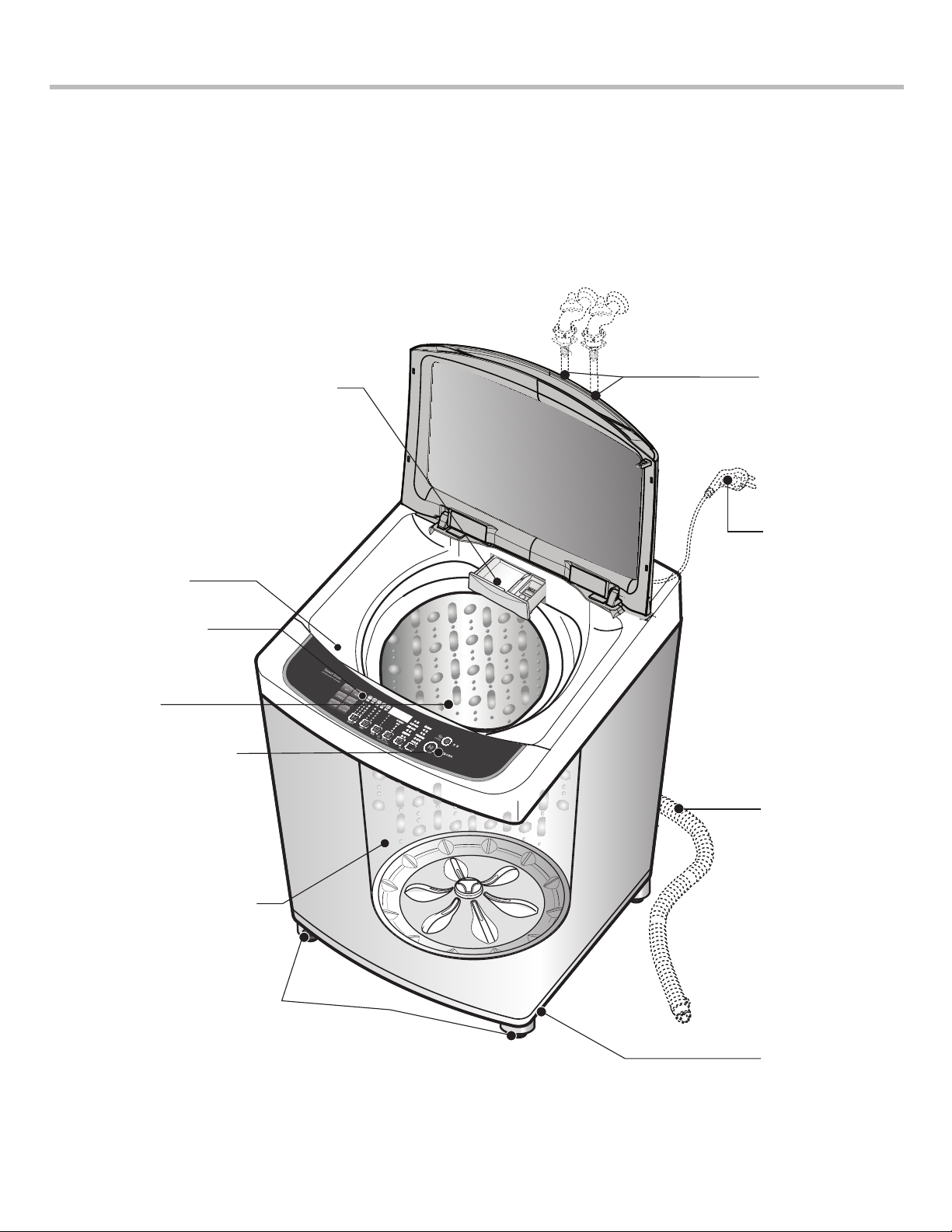

3-1. IDENTIFICATION OF PARTS
3. OPERATING INSTRUCTION
* WATER
SUPPLY HOSE
Make sure the
water does not
leak.
POWDER DETERGENT BOX
FOR DELAYED WASHING /
SOFTENER BOX
BLEACH
DISPENSER( )
FUNCTION
SELECTOR
TUB
BASE
Multi Clean Filter
START/PAUSE
BUTTON
Use to start or stop
the washing
machine
temporarily.
ADJUSTABLE LEGS
Use to level the washing
machine for correct
balance & spin operation.
* POWER PLUG
If the supply cord is
damaged, it must be
replaced by the
manufacturer or its
service agents or
similarly qualified
person in order to
avoid a hazard.
* DRAIN HOSE
for pump model
Check if the drain
hose is placed into
the laundry tub and
secured before
operating the
washing machine.
If the drain hose is
not elevated, the
water will syphon
out completely.

11
WIRE
3-2. BEFORE STARTING TO WASH
Care Labels
Sorting
Check before Loading
Pretreatment on stains or heavy soil
WARNING
Loading
* Look for a care label on your clothes. This will tell you about the fabric content of your garment
and how it should be washed.
Sort clothes into loads that can be washed with the same wash cycle, Water Temperature and spin speed.
• Check all pockets to make sure that they are empty. Things such as nails, hairclips, matches, pens, coins,
and keys can damage both your washer and your clothes.
• Mend any torn garments or loose buttons. Tears or holes may become larger during washing.
• Remove belts, underwires, etc. to prevent damage to the machine or your clothes.
• Pretreat any dirt and stains.
• Make sure the clothes are washable in water.
• Check the washing instructions.
• Remove tissue in pockets.
• Pretreat shirt collars and cuffs with a pre-wash product or liquid Detergent when placing them in the washer.
Before washing treat special stains with bar soaps, liquid Detergent or a paste of water and granular Detergent.
• Use a pretreat soil and stain remover.
Treat stains AS SOON AS POSSIBLE. The longer they are left the harder they are to remove.
Do not wash fabrics containing flammable materials
(waxes, cleaning fluids, etc.).
Load Size

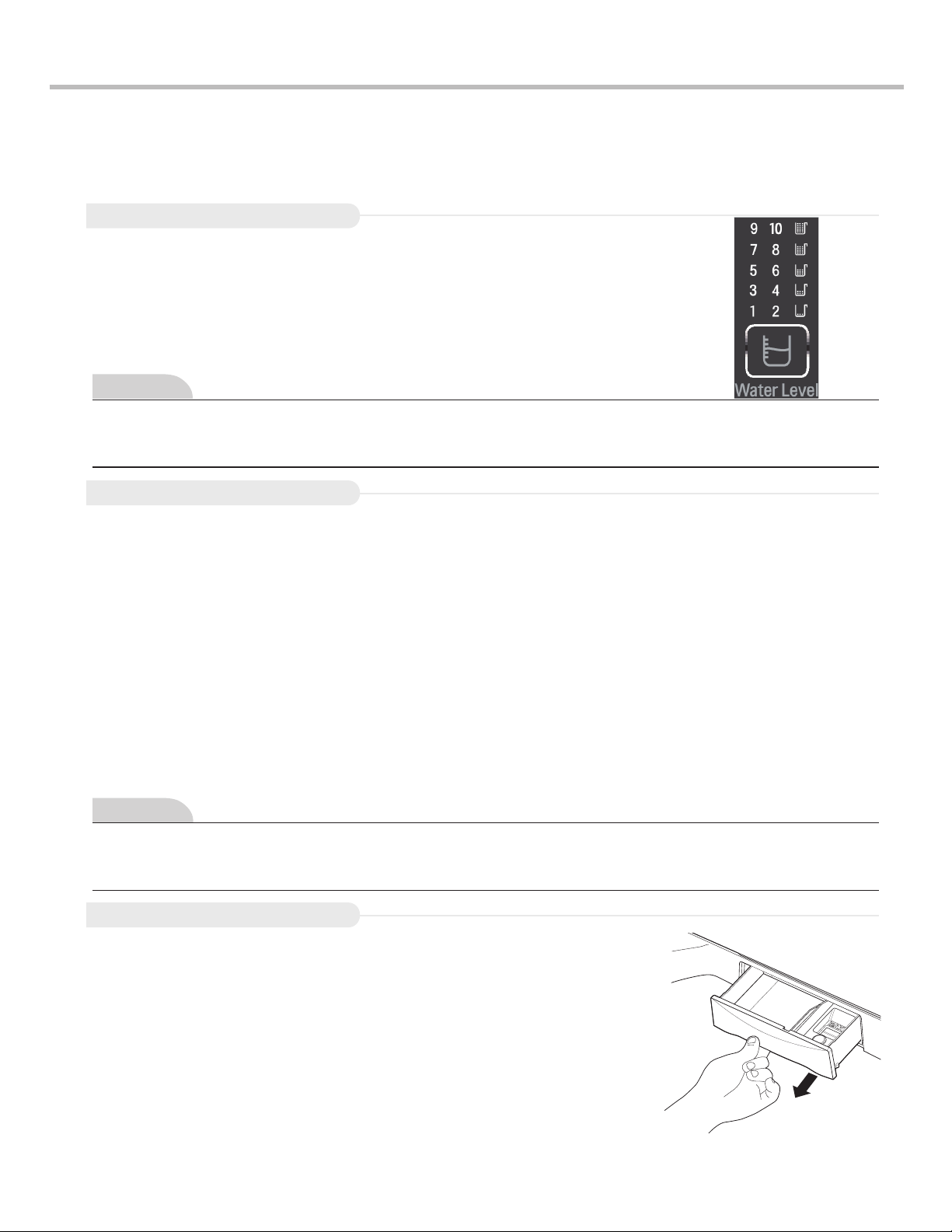

The WATER LEVEL should just cover the clothes. Adjust the load size
accordingly. Loosely load clothes no higher than the top row of holes in
the washer tub. To add items after washer has started, press START
button and submerge additional items. Close the lid and press START
button again to restart.
Light and Large-sized clothing
Clothes like downs and woollens are light weight, large and float easily.
Use a nylon net and wash them in a small amount of water. If the laundry floats during the wash cycle,
it may become damaged. Use dissolved Detergent to prevent the Detergent from clumping.
Long laundry items
Use nylon nets for long, DELICATE items. For laundry with long strings or long length , a net will
prevent tangling during washing. Fasten zippers, hook, and strings to make sure that these items
don't snag on other clothes.
※ Nylon net is not supplied by LG.
• SOIL (Heavy, Normal, Light) Separate clothes according to the type and amount of soil.
• COLOR (Whites, Lights, Darks) Separate white fabrics from colored fabrics.
• LINT (Lint producers, Collectors) Separate lint producers and lint collectors.
Lint Producers Terry cloth, Chenile, Towels, Nappies, Diapers
Lint Collectors Synthetics, Corduroy, Permanent Press, Socks
Fire Hazard
Never place items in the washer that are
dampened with gasoline or other flammable
fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any type
of oil on it (including cooking oils).
Doing so can result in death, explosion, or fire.

12Using WaterWater TemperatureUsing the Dispenser DrawerNOTENOTE[ Minimum water amount ]It depends on laundry load and washer model. If adding water manually at the beginning of a wash, the watersensor will then allow the machine to start washing when the minimum amount of water has been added.If iron is present in the water the clothes may become an all-over yellow or they may be stained with brown or orange spots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be necessary for severe cases.฀ The machine sets the appropriate temperature automatically according to the wash program.฀ You can change the Water Temperature by pressing the WATER TEMP. button. (refer to page 14)฀ The temperature of the water impacts the effectiveness of all laundry additives and therefore, the cleaning results. We recommend temperatures of: - HOT 49~55°C…(120-140 ) White items, diapers, underclothing and heavily soiled, colorfast items. - WARM 29~40°C…(85-105 ) Most items - COLD* 18~24°C…(65-75 ) Only very bright colors with light soil.฀ When washing in COLD water additional steps may be needed:- Adjust Detergent amount and pre-dissolve Detergent in WARM water and add to the machine by hand.- Pretreat spots and stains- Soak heavily soiled items- Use appropriate bleach* Temperature below 18°C…(65 ) will not activate laundry additives and may cause lint, residue, poor cleaning, etc. In addition, Detergent manufactures and care labels define COLD water as 26~29°C…(80-85 ). If the temperature of the water in the tub is too cold for your hands, the Detergent will not activate and clean effectively.The dispenser drawer contains 2 compartments:฀ Liquid Fabric Softener฀ Liquid or Powder Low-Sudsing, High-Efficiency DetergentThe dispenser automatically dispenses additives at the proper time in the wash cycle.1.Slowly open the dispenser drawer by pulling the drawer out until it stops.2. After adding laundry products, slowly close the dispenser drawer. Closing the drawer too quickly could result in early dispensing of additives.฀ Avoid overfilling or splashing when adding laundry products to the dispenser. Doing so could result in early dispensing of laundry products.At the end of the cycle, you may see water in the compartments. This is part of the normal operation of the washer.NOTE: Do not use bleach in the dispenser drawer.Amount of WATER LEVEL฀ This machine detects the quantity of laundry automatically, then sets the WATER LEVEL and displays the amount of detergent to be used.฀ When you select a wash program, the WATER LEVEL and amount of Detergent (to be used) will be shown on the control panel.฀ The following table shows the amount of water.฀ When the WATER LEVEL is automatically detected, it may differ depending on the quantity of laundry even though the same WATER LEVEL is indicated on the control panel.

13
Using Detergent
Using Detergent
Detergent
Choosing the right Detergent
How much Detergent
Adding Detergent
Follow the Detergent package directions. Using too little Detergent is a common cause of laundry problems as is if too
much detergent is used.
Only more Detergent if you have hard water, large loads, greasy or oily soils or lower Water Temperature.
We recommend the use of drum type, low sudsing high efficiency Detergent(powder,liquid or concentrated).
Soap flakes or granulated soap powders should not be used in your washing machine. When washing woolens
Remember to use Detergent suitable for washing woolens.
The correct amount of Detergent will vary depending on the amount of soil in your clothes (Jeans and work
cloches may need more Detergent, while bath towels usually need less.).
For liquid and concentrated Detergents, follow the recommendations of the Detergent manufacturer.
Note: To check you are using the correct amount of Detergent, lift the lid of your machine about halfway
through the wash. There should be a thin layer of foam over the surface of the water. Lots of foam
may look good, but it does not contribute to cleaning your clothes. No foam means not enough
Detergent has been used; soil and lint can settle back on the clothes or the washing machine.
If excess Detergent is used, the rinse will not be as clean and efficient. Also, it could cause
environmental pollution, and long term scrud build up.
Add measured detergent to the detergent compartment of the dispenser drawer.
Detergent is flushed through the dispenser at the beginning of the wash phase. Pre dissolved detergent can also
be added directly into the bowl by hand at this time.
Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load.
Avoid using too much detergent in your washer, as it can lead to oversudsing and detergent residue being left on
the clothes.

14
Using Liquid Bleach
Using Fabric Softener
Scrud(Waxy Build up)
• Check clothing care label for special instructions and separate the laundry to
be bleached
• Dilute liquid chlorine bleach.
• Measure the recommended amount of liquid bleach carefully following
instructions on the bottle.
• Before starting the washer, pour measured amount of bleach directly into
bleach dispenser. Avoid splashing or overfilling. Powdered bleach should be
mixed thoroughly with water before pouring.
NOTE
If you wish to use fabric softener we recommend
Attention
■ Never pour undiluted liquid bleach directly onto clothes or into the wash basket.
This may cause change of color or damage the laundry.
■Do not pour powdered bleach into bleach dispenser.
■ Do not mix with Detergent or bleach.
■ Never pour fabric softener directly on clothes. It may stain them.
■ Do not stop the washer during the first spin for timely dispensing.
■ Softener will not be dispensed if an Option Wash is selected.
If desired, pour the recommended amount of liquid fabric softener
into the right-hand compartment.
Use only liquid fabric softener.
Dilute with water if necessary before adding to the maximum fill
line.
• Do not exceed the maximum fill line.
Overfilling can cause early dispensing of the fabric softener,
which could stain clothes.
NOTE: Do not pour fabric softener directly on the wash load.
It may stain the clothes.
Scrud is the name given to the waxy build-up that can occur within any washer when the fabric softener comes
into contact with Detergent. This build-up is not brought about by a fault in the machine.
If scrud is allowed to build-up in the machine it can result in stains on your clothes or an unpleasant
smell in your washer.
• Using fabric softener sparingly.
• When filling the dispenser, do not splash or overfill.
• Clean dispenser as soon as the cycle is finished.
• Clean your machine regularly. (refer to page 21 or 33)
• Cold water washing increases the chance of this build-up occurring. We recommend a regular WARM or HOT
wash e.g. every 5th wash should be at least a warm one.
• Fabric softener of thinner consistency is less likely to leave residue on the dispenser and contribute to a build-up.

15
☞ SPECIAL GUIDE FOR STAIN REMOVAL
■ Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products
containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.
■To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below:
• Read and comply with all instructions on stain removal products.
• Keep stain removal products in their original labeled containers and out of children’s reach.
• Thoroughly wash any utensil used.
• Do not combine stain removal products, especially ammonia and chlorine bleach. Dangerous fumes may result.
• Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry cleaning solvents
or other flammable or explosive substances because they give off vapors that could ignite or explode.
• Never use highly flammable solvents, such as gasoline, inside the home. Vapors can explode on contact with flames or sparks.
WARNING
For successful stain removal:
• Remove stains promptly.
• Determine the kind of stain, then follow the recommended treatment in the stain removal
chart below.
• To pretreat stains, use a prewash product, liquid Detergent, or a paste made from granular
Detergent and water.
• Use COLD water on unknown stains because HOT water can set stains.
• Check care label instructions for treatments to avoid on specific fabrics.
• Check for colorfastness by testing stain remover on an inside seam.
• Rinse and wash items after stain removal.
Stain Removal
STAIN TREATMENT
Adhesive tape, chewing gum,
rubber cement
Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with prewash stain remover or
nonammable dry cleaning uid.
Baby formula, dairy products,
egg
Use product containing enzymes to pretreat or soak stains.
Beverages (coffee, tea, soda,
juice, alcoholic beverages)
Pretreat stain. Wash using COLD water and bleach safe for fabric.
Blood Rinse with COLD water. Rub with bar soap. Or pretreat or soak with product containing enzymes. Wash using
bleach safe for fabric.
Candle wax, crayon Scrape off surface wax. Place stain face down between paper towels. Press with warm iron until wax is
absorbed. Replace paper towels frequently. Treat remaining stain with prewash stain remover or
nonammable dry cleaning uid. Hand wash to remove solvent. Wash using bleach safe for fabric.
Chocolate Pretreat or soak in WARM water using product containing enzymes. Wash using bleach safe for fabric.
Collar or cuff soil, cosmetics Pretreat with prewash stain remover or rub with bar soap.
Dye transfer on white fabric Use packaged color remover. Wash using bleach safe for fabric.
Grass Pretreat or soak in WARM water using product containing enzymes. Wash using bleach safe for fabric.
Grease, oil, tar (butter, fats, salad
dressing, cooking oils, car grease,
motor oils)
Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy stains and tar, apply
nonammable dry cleaning uid to back of stain. Replace towels under stain frequently. Rinse throughly.
Wash using hottest water safe for fabric.
Ink Some inks may be impossible to remove. Washing may set some inks. Use prewash stain remover,
denatured alcohol or nonammable dry cleaning uid.
Mildew, scorch Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and HOT water before washing. Badly
mildewed fabrics may be permanently damaged.
Mud Brush off dry mud. Pretreat or soak with product containing enzymes.
Mustard, tomato Pretreat with prewash stain remover. Wash using bleach safe for fabric.
Nail polish May be impossible to remove. Place stain face down on paper towels. Apply nail polish remover to back of
stain. Repeat, replacing paper towels frequently. Do not use on acetate fabrics.
Paint, varnish WATER BASED : Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed,
OIL BASED AND VARNISH : Use solvent recommended on can label. Rinse throughly before washing.
Rust, brown or yellow
discoloration
For spots, use rust remover safe for fabric. For discoloration of an entire load, use phosphate Detergent and
nonchlorine bleach. Do not use chlorine bleach because it may intensify discoloration.
Shoe polish LIQUID : Pretreat with a paste of granular Detergent and water. PASTE : Scrape residue from fabric. Pretreat
with prewash stain remover or nonammable dry cleaning uid. Rub Detergent into dampened area, Wash
using bleach safe for fabric.
Follow fabric care label
instructions

16

17

18
3-4. WASHING PROGRAMS

19

20
