Owner's Manual
WM2101H*
Please read this manual carefully. It provides
instructions on safe installation, use, and maintenance.
Retain it for future reference.
Record the model and serial numbers of your machine
and report this information to your dealer if your machine
requires service.
Washing Machine
☎☎1-800-243-0000
24 HOURS A DAY, 7 DAYS A WEEK FOR LG CUSTOMER SERVICE
☎☎1-800-243-0000
para el Servicio LG (Atención al Cliente) 24 horas al día, 7 días a la semana
Designed specially to use only
HE (High Efficiency) detergent
Protocol P17
Sanitization Performance of Residential and
Commercial, Family Sized Clothes Washers
Protocolo P17
Ejecucion de Saneamiento en la zona
residencial y comercial, lavodoras del uso del hogar
Protocole P17
Performance en matière d'assainissement des laveuses
résidentielles et commerciales de grande taille
MANUAL DEL
PROPIETARIO
Lavadora
Lea este manual cuidadosamente. Le proveerá
instrucciones para una instalación, uso y mantenimiento
seguros. Consérvelo para futuras referencias. Cite esta
información a su proveedor si requiere de servicio.
Diseñada especialmente para utilizar
solamente detergente HE (Alta eficiencia)
Conçu exclusivement pour les
détersifs HE (haute efficacité)

PRODUCT FEATURES
2
CONTENTS
Important Safety Information ..........................................................................................................................3
Specifications..................................................................................................................................................4
Installation Instr ctions ...................................................................................................................................5
Preparation Before Washing.........................................................................................................................10
Using the Dispenser......................................................................................................................................11
Cycles...........................................................................................................................................................13
How to Use the Washer................................................................................................................................14
Maintenance .................................................................................................................................................17
Tro bleshooting G ide..................................................................................................................................20
Warranty ..................................................................................................................................................23-24
WASH
EST. TIME
SPIN
WASH
EST. TIME
SPIN
WASH
EST. TIME
SPIN
WASH
EST. TIME
SPIN
추가선택, 예약,
WASH
EST. TIME
SPIN
WASH
EST. TIME
SPIN
WASH
EST. TIME
SPIN
■Direct Drive System
The advanced Br shless DC motor directly drives the dr m witho t
belt and p lley.
■Tilted Drum and Extra Large Door Opening
Tilted dr m and extra large opening make it possible to load
and nload clothing more easily.
■RollerJets
Washing ball enhances the wash performance and red ces damage
to the clothing. The jets spray and help t mble clothes to enhance
washing performance while maintaining fabric care.
■Automatic Wash Load Detection
A tomatically detects the load and optimizes the washing time.
■Built-in Heater
Internal heater helps to maintain water temperat re at its optim m level for
selected cycles.
■Child Lock
The Child lock prevents children from pressing any b tton to change the
settings d ring operation.
■The LED Display
The LED display shows the settings, estimated time remaining, options,
and stat s messages for yo r washer. When the washer is t rned on, the
light in the display will ill minate.

IMPORTANT SAFETY INFORMATION
ENGLISH
3
READ ALL INSTRUCTIONS BEFORE USE
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire or
explosion, electric shock, or to prevent property damage, personal injury, or loss of life.
IIMMPPOORRTTAANNTT SSAAFFEETTYY IINNSSTTRRUUCCTTIIOONNSS
• Read all instructions before using the washer.
• Do not wash articles that have been previously
cleaned in, washed in, soaked in, or spotted with
gasoline, dry cleaning solvents, or other
flammable or explosive substances, as they give
off vapors that could ignite or explode.
• Do not add gasoline, dry cleaning solvents, or
other flammable or explosive substances to the
wash water. These substances give off vapors that
could ignite or explode.
• Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been
used for weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not been
used for such a period, before using the washing
machine, turn on all hot water faucets and let the
water flow from each for several minutes. This will
release any accumulated hydrogen gas. As the gas
is flammable, do not smoke or use an open flame
during this time.
• Do not allow children to play on or in the washer.
Close supervision of children is necessary when
the washer is used near children.
• Before the washer is removed from service or
discarded, remove the door to prevent children
from hiding inside.
• Do not install or store the washer where it will be
exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the washer or
attempt any servicing unless specifically
recommended in the user-maintenance
instructions or published user-repair instructions
that you understand and have the skills to carry
out.
• See Installation Instructions for grounding
requirements.
• ALWAYS follow the fabric care instructions
supplied by the garment manufacturer.
• Do not place items exposed to cooking oil in your
washer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause
a load to catch fire.
• Do not use fabric softeners or products to
eliminate static unless recommended by the
manufacturer of the fabric softener or product.
WARNING : To red ce the risk of fire, electric shock, or inj ry to persons when sing the washer, follow basic
preca tions, incl ding the following:
SSAAVVEE TTHHEESSEE IINNSSTTRRUUCCTTIIOONNSS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk
of electric shock by providing a path of least resistance for electric current. This appliance is equipped with
a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Do not use an adapter or extension cord.
• Do not remove ground prong.
• If you don’t have the proper outlet, consult an electrician.
GROUNDING INSTRUCTIONS
WARNING : Improper connection of the eq ipment-gro nding cond ctor can res lt in risk of electric shock.
Check with a q alified electrician or serviceman if yo are in do bt as to whether the appliance is
properly gro nded. Do not modify the pl g provided with the appliance - if it does not fit the o tlet,
have a proper o tlet installed by a q alified electrician.
!
!
!

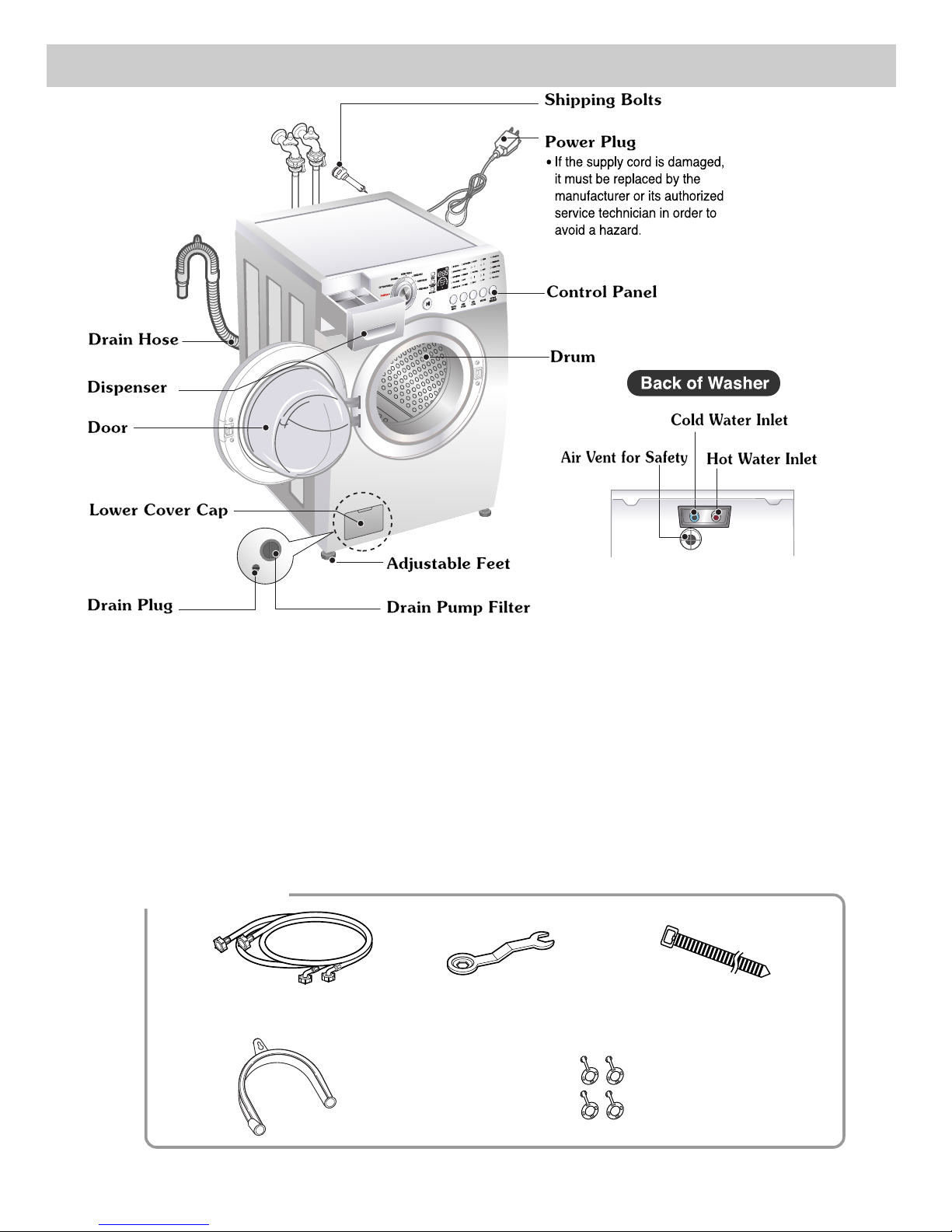

Hose retainer
Hot/Cold (1 each)
Hose
Wrench
Tide
for removing shipping bolts
and leveling the washer
Tie strap
to sec re drain hose to standpipe,
inlet hose, or la ndry t b
Cap (4 each)
to cover the holes created after
removing the shipping bolts
WASH WASH
EST. TIMEEST. TIME
SPINSPIN
울
란제리란제리
SPECIFICATIONS
4
■
Accessories
■Name: Front-loading Washing Machine
■Power s
s pply: 120V~ 60Hz
■Size: 68.6 cm (W) X 75.6 cm (D) X 98.3 cm (H), 129.1 cm (D, door open)
27”(W) X 293/4”(D) X 3811/16”(H), 5013/16”(D, door open)
■Weight: 190 lbs. (86 kg)
■Spin speed: 1100 rpm max.
■Permissible water press re: 14.5~116 psi(100~800kPa)
󳢬󳢬Specifications subject to change by manufacturer.

5
INSTALLATION INSTRUCTIONS
ENGLISH
1. To prevent internal damage d ring transport,
4 locking bolts are installed. Before operating
the washer, remove the bolts and braces.
• If they are not removed, it may ca se severe
vibration, noise, and malf nction.
3. Take o t the 4 bolts and braces by twisting
the braces slightly. Keep the 4 bolts, braces
and the wrench for f t re se.
• Whenever the appliance is transported, the
shipping bolts and braces m st be reinstalled.
2. Unscrew the 4 bolts with the wrench s pplied.
Do first lower side to remove easily. One of the
bolts retains the power cord of the washer to
prevent operating witho t removing bolts.
4. Close the holes with the caps s pplied.
The appliance is fitted with shipping bolts to prevent
internal damage d ring transportation.
Packing and all shipping bolts m st be removed
before sing the washer.
󳢹When npacking the base, be s re to remove
the additional packing s pport in the middle of
the base packing.
: Two or more people may be need to install and move the appliance.
■Shipping bolts
Install or store unit where it will not be exposed to temperatures below freezing or
exposed to outside weather conditions.
Properly ground washer to conform with all governing codes and ordinances.
To reduce the risk of electric shock, do not install the washer in humid spaces.
The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
In countries where there are areas which may be subject to infestation by cockroaches or other vermin, pay
particular attention to keeping the appliance and its surroundings in clean condition at all times.
amage caused by cockroaches or other vermin will not be covered by the appliance warranty.
■Removing shipping bolts
cap
!
WARNING

INSTALLATION INSTRUCTIONS
6
■Installation clearances
The location m st be large eno gh to f lly open
the washer door.
■Washer dimensions
• Most installations req ire a minim m 4 in.
(10 cm) clearance behind the washer.
■Minimum installation spacing for
recessed area installation.
The following dimensions shown are for the minim m
spacing allowed.
Additional spacing sho ld be considered for
installation and servicing.
• Additional clearances might be req ired for wall,
door and floor moldings.
• Additional spacing of 1 in. (2.5 cm) on all sides of
the washer is recommended to red ce noise
transfer.
Companion appliance spacing sho ld also be
considered.
■evel floor
• Allowable slope nder entire washer is 1°.
• To minimize noise and vibration, the washer
MUST be installed on a solidly constructed
floor.
• Carpeting and soft tile s rfaces are not
recommended.
• Never install the washer on a platform or weakly
s pported str ct re.
NOTE: A firm, solid floor is even more critical to a
front-loading washer than to a top-loader.
If your floor is wood and/or frame
construction, you may need to reinforce it.
Front-loaders use substantially faster spin
speeds than top-loaders, causing greater
vibration. If the floor is not solid, your washer
will vibrate. You will hear and feel the
vibration throughout your house.
■Power outlet
• M st be within 60 in. (1.5 m) of either side of the
washer. Do not overload the o tlet with more
than one appliance.
• Time-delay f se or circ it breaker is recommended.
NOTE: It is the personal responsibility and obligation
of the customer to have a proper outlet
installed by a qualified electrician.
[Front view]
[Side view]
27"
(68.6 cm)
29
3/4
"
(75.6 cm)
3811/16"
(98.3 cm)
50
13/16
"
(129.1 cm)
29
3
/4"
(75.6 cm)
4"
(10 cm)
WASH
EST. TIME
SPIN
27"
(68.6 cm)
1"
(2.5 cm)
1"
(2.5 cm)
WASHWASH
EST. TIMEEST. TIME
SPINSPIN

INSTALLATION INSTRUCTIONS
ENGLISH
7

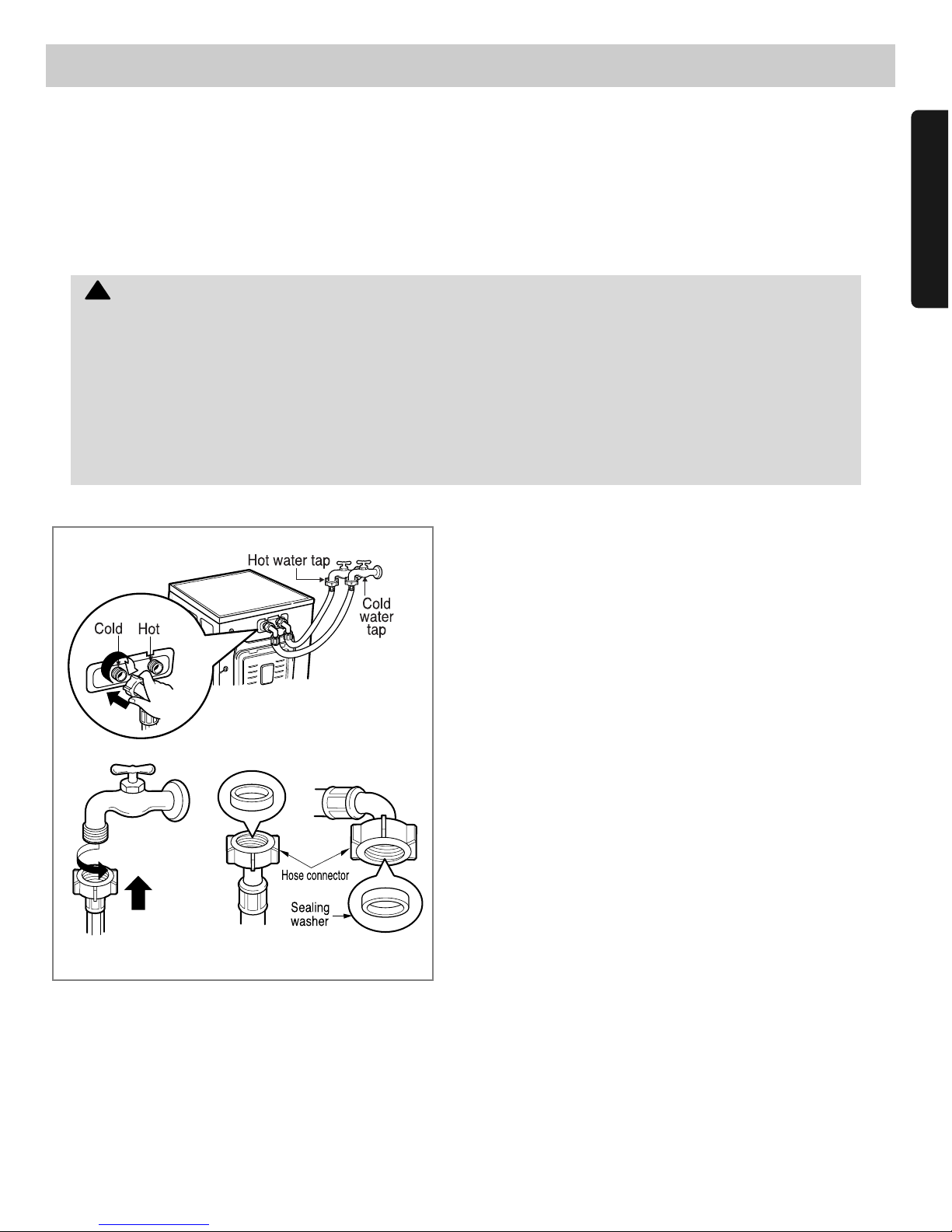

• Water s pply press re m st be between
14.5 and 116 psi(100~800 kPa).
• Do not crossthread when connecting inlet hose to the
valve.
• If the water s pply press re is more than 116 psi,
a press re red cing device sho ld be installed.
• Two Sealing washers are s pplied with the water inlet
hoses to prevent water leaks.
• Check for leakage of washing machine connections by
t rning the tap completely on.
• Periodically check the condition of the hose and replace
the hose if necessary.
• Make s re that there is no kink in the hose and that it is
not cr shed.
• Be s re that the two water inp t ports are connected to
the correct water fa cets. The connector for hot water is
colored red.
• Use ONLY the inlet hoses provided by LG with this
la ndry prod ct. Aftermarket hoses are not g aranteed to
fit or f nction correctly. Other hoses may not tighten
correctly and co ldca se leaks. S bseq ent damage to
prod ct or property will not be covered nder the terms of
LG's warranty.
■Connecting water supply hose
NOTE: Washing Machine is to be connected to the water mains using new hoses.
Old hoses should not be used.
■Electrical connection
• Do not se an extension cord or do ble adapter.
• If the s pply cord is damaged, it m st be replaced by a q alified person in order to avoid a hazard.
• If the machine will not be sed for an extended time, npl g it and sh t off the water s pply.
• Connect the machine to a gro nded o tlet in accordance with c rrent wiring reg lations.
• The appliance m st be positioned so that the pl g is easily accessible.
Repairs to the washing machine must only be carried out by qualified personnel. Repairs carried out by
inexperienced persons may cause injury or serious malfunctioning. Contact your local service center.
o not install your washing machine in a room where temperatures below freezing may occur.
Frozen hoses may burst under pressure. The reliability of the electronic control unit may be impaired
at temperatures below the freezing point.
If the appliance is delivered in the winter months and temperatures are below freezing,
store the washing machine at room temperature for a few hours before putting it into operation.
!
CAUTION! Concerning the Power Cord
Most appliances recommend they be placed pon a dedicated circ it; that is, a single o tlet circ it which powers only that
appliance and has no additional o tlets or branch circ its. Check the specification page of this owner's man al to be
certain.
Do not overload wall o tlets. Overloaded wall o tlets, loose or damaged wall o tlets, extension cords, frayed power cords,
or damaged or cracked wire ins lation are dangero s. Any of these conditions co ld res lt in electric shock or fire.
Periodically examine the cord of yo r appliance, and if its appearance indicates damage or deterioration, npl g it,
discontin e se of the appliance, and have the cord replaced with an exact replacement part by an a thorized servicer.
Protect the power cord from physical or mechanical ab se, s ch as being twisted, kinked, pinched, closed in a door, or
walked pon. Pay partic lar attention to pl gs, wall o tlets, and the point where the cord exits the appliance.

INSTALLATION INSTRUCTIONS
8
■Installation of drain hose
WASH
EST. TIME
SPIN
WASHWASH
EST. TIMEEST. TIME
SPINSPIN
WASH
WASH
EST. TIME
EST. TIME
SPIN
SPIN
WASH
EST. TIME
SPIN
WASH
WASH
EST. TIME
EST. TIME
SPIN
SPIN
min. 30" (76.2cm)
• The drain hose sho ld not be placed higher than
96 in. from the bottom of the washer.
• Properly sec ring the drain hose will protect the
floor from damage d e to water leakage.
• Place the end of the drain hose in the hole of the
floor drain system.
• When installing the drain hose at a sink, sec re it
so it cannot break away and ca se flooding and
damage.
• Properly sec ring the drain hose will protect the
floor from damage d e to water leakage.
This equipment is not designed for maritime use or for mobile installations such as in RV’s, aircraft, etc.
Turn off the faucet if the machine is to be left for an extended period of time (e.g. holiday).
When disposing of the appliance, cut off the power cable, and destroy the plug.
isable the door lock to prevent young children being trapped inside.
Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk of suffocation! Keep all
packaging from children.

INSTALLATION INSTRUCTIONS
ENGLISH
9
■evel adjustment
• Leveling the washing machine properly prevents
excessive noise and vibration.
Install the appliance on a solid and level floor s rface,
preferably in a corner of the room.
• If the floor is neven, adj st the adj stable feet as
req ired. (Do not insert pieces of wood, etc. nder the
feet.)
NOTE: Extend the feet no more than necessary to level
the washer. The more the feet are extended, the
more the washer will vibrate.
• Make s re that all fo r feet are stable and resting on
the floor and then check that the appliance is perfectly
level (Use a level).
• After the washer is level, tighten the lock n ts p
against of the base of the washer. All lock n ts m st
be tightened.
• It is critical to adj st the feet perfectly. This m st be
done while the washer is spinning with a load. Use the
wrench (s pplied) to adj st the feet ntil there is no
vibration. Then tighten the lock n ts to prevent f rther
adj stment.
NOTE: If there are vibration and noise during the spin
cycle, re-check the leveling of the washer, adjust
the feet as required, and tighten the lock nuts
securely to prevent changes in adjustment.
Run the washer with a test load to make certain
your washer is properly leveled. Put
approximately 6 pounds of laundry in the
machine. Then, press POWER, RINSE+SPIN, and
START/PAUSE, in that order. When the machine
spins at high speed, verify that it is stable. If not,
adjust the feet accordingly.
󳢬Diagonal Check
When pushing down the edges of the washing machine
top plate diagonally, the machine should not move up
and down at all. (Please, check both directions.)
f the machine rocks when pushing the machine top plate
diagonally, adjust the feet again.
WASH WASH,
EST. TIME
EST. TIME,
SPIN,
Adjustable feet Adjustable feet
Lock nut
Adjustable feet
WASH
WASH
,
EST. TIME
EST. TIME
,
SPIN
SPIN
,
WASH
WASH
,
EST. TIME
EST. TIME
,
SPIN
SPIN
,

PREPARATION BEFORE WASHING
10
1. Fabric Care abels
Look for a care label on yo r clothes. This will tell yo abo t the fabric content of yo r garment and how it sho ld
be washed.
2. Sorting
To get the best res lts, sort clothes into loads that can be washed with the same wash cycle.
Different fabrics need to be washed in different ways.
Always sort dark colors from pale colors and whites. Wash separately as dye and lint transfer can occ r ca sing
discoloration of white clothing. If possible, do not wash heavily soiled items with lightly soiled ones.
Soil (Heavy, Normal, Light) Separate clothes according to amount of soil.
Color (White, Lights, arks) Separate white fabrics from colored fabrics.
Lint (Lint Producers, Collectors) Wash lint producers and lint collectors separately.
3. Check before loading
Combine large and small items in a load. Load large items first.
Large items sho ld not be more than half the total wash load.
Do not wash single items. This may ca se an o t-of-balance load. Add one or two similar items.
• Check all the pockets to make s re that they are
empty. Things s ch as clip, matches, pens,
coins, and keys can damage both yo r washer
and yo r clothes.
• Close zippers, hooks, and strings to make s re
that these items do not snag on other clothes.
• Pretreat dirt and stains by br shing a little
detergent dissolved in water onto stains like
collars and c ffs to help lift dirt.
WARNING
To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY
INSTRUCTIONS before operating this appliance.
NOTE: o not wash or spin water-proof clothes.

USING THE DISPENSER
ENGLISH
11

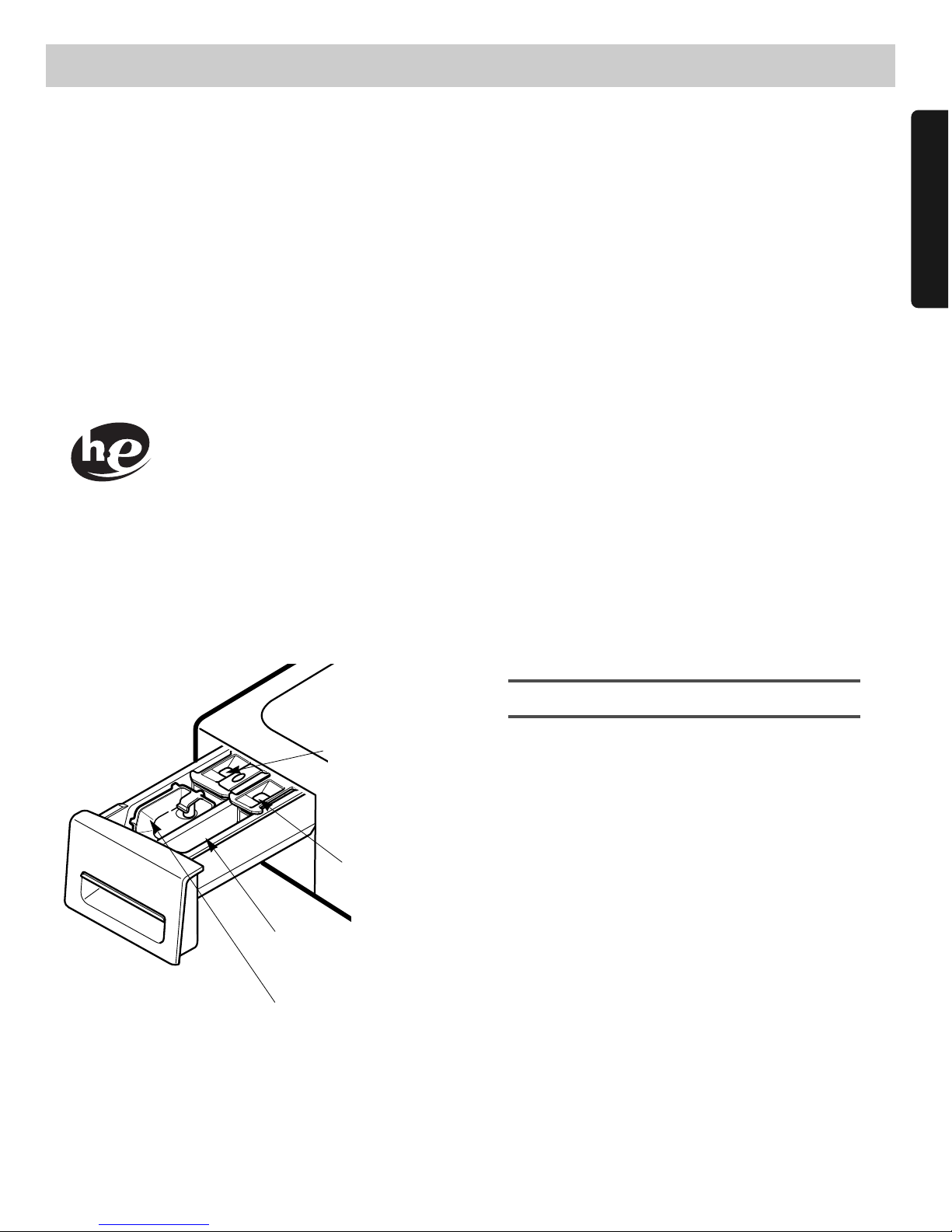

The automatic dispenser consists of four compartments which hold 1) liquid chlorine bleach, 2) liquid fabric
softener, 3) liquid or powdered detergent for prewash and 4) liquid or powdered detergent
and color safe bleach for main wash.
All laundry products can be added at once in their respective dispenser compartments.
They will be dispensed at the appropriate time for most effective cleaning. After loading the laundry
additives into the dispenser, close the dispenser drawer.
Add detergent, bleach and fabric softener to the automatic dispenser following these steps:
1. Open the dispenser drawer.
2. Load the la ndry prod cts into the appropriate compartments.
3. Close the dispenser drawer.
■About detergent
Yo r LG TROMM washer is designed to se only High Efficiency (HE) detergents.
HE detergents are form lated specifically for front load washers and contain s ds red cing components.
HE detergents make less s ds, improve washing and rinsing performance, and help to keep the interior
of yo r LG TROMM washer clean. Use the man fact re’s recommend amo nt.
If a reg lar detergent is sed, it may ca se overs dsing and nsatisfactory performance.
For the best washing and rinsing performance, low-s dsing HE detergents are strongly recommended.
Designed specially to use only
HE(High Efficiency) detergent
• Add detergent to this compartment when sing
the Prewash option. Liq id or powdered
detergent may be sed in this compartment. The
detergent will a tomatically be dispensed d ring
Prewash if the Prewash option is selected.
• Add 1/2 the recommended amo nt of detergent
to the Prewash compartment and the
recommended amo nt of detergent to the main
wash compartment.
NOTE : Liquid detergent will drain into the washer
drum as it is added.
1. Prewash Detergent Compartment
Liq id Chlorine
Bleach
Compartment
Liq id Fabric
Softener
Compartment
Prewash
Compartment
Main Wash
Compartment

USING THE DISPENSER
12
• Add meas red liq id chlorine bleach to this
compartment. The bleach will be a tomatically
dispensed at the proper time d ring the wash
cycle.
• Do not exceed the maxim m fill line. Overfilling can
ca se early dispensing of the bleach which co ld
res lt in damaged clothes.
• Do not po r ndil ted liq id chlorine bleach directly
onto the load or into the dr m. Fabric damage can
occ r.
• Do not se powdered bleach in this compartment.
3. iquid Bleach Compartment

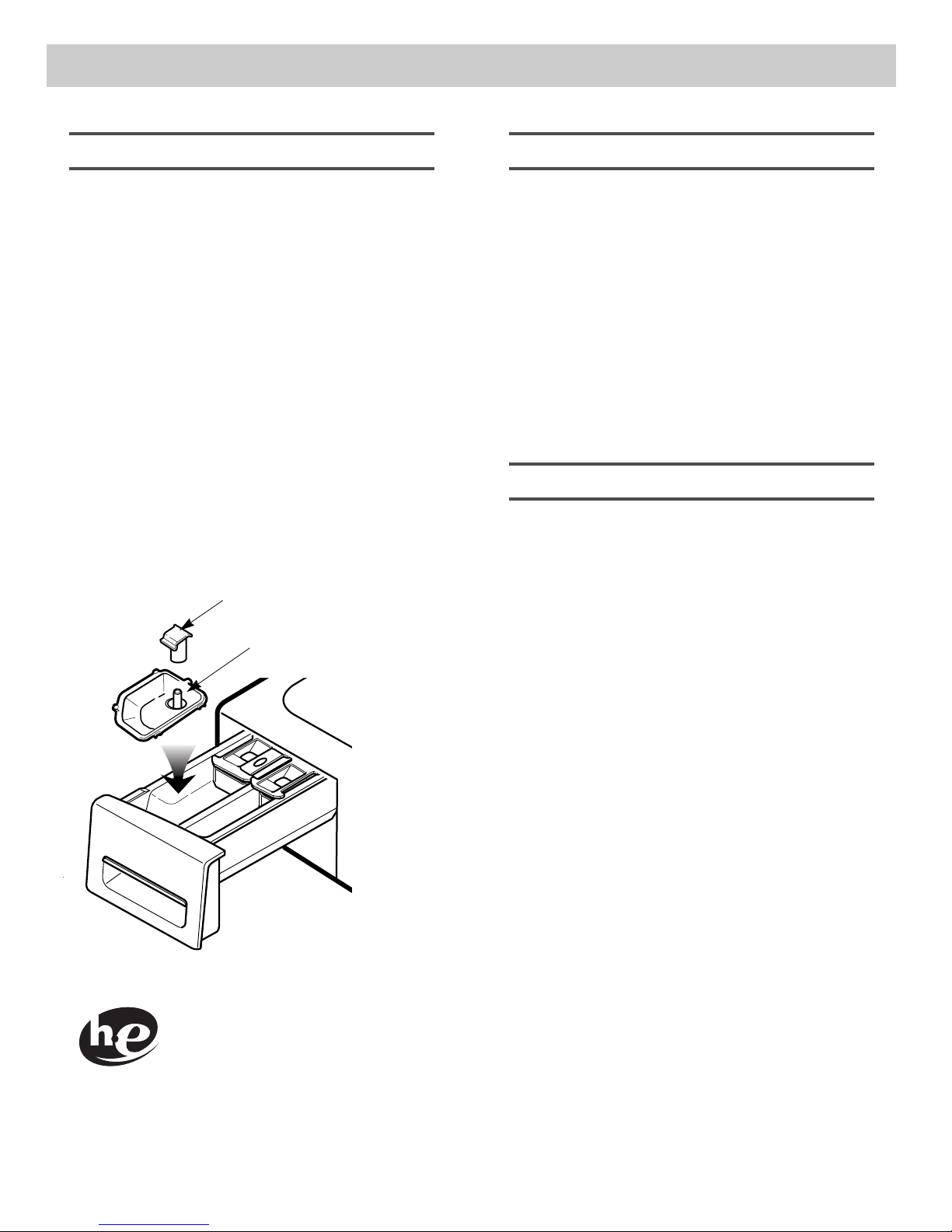

• Add recommended amo nt of fabric softener to
this compartment.
• Dil te concentrated softeners with warm water to
the fill line.
• Do not exceed the maxim m fill line. Overfilling can
ca se early dispensing of the fabric softener which
co ld res lt in stained clothes.
• Do not po r fabric softener directly on the wash
load.
• The fabric softener will be a tomatically dispensed
d ring the last rinse cycle.
NOTE: o not place, store, or spill laundry products
(soap, detergent, bleach, softener, etc.) on the
top of your washer or dryer. These products
can damage the finish or controls if left there
too long.
4. Fabric Softener Compartment
• Add meas red detergent to this compartment for
Main wash. Detergent is fl shed from the
dispenser at the beginning of the cycle. Either
powdered or liq id detergent can be sed.
• Liq id or powdered color-safe bleach may be
added to the main wash compartment along with
the same type of liq id or powdered detergent.
• When sing liq id detergent, make s re the liq id
detergent box and insert are in place. Do not
exceed the maxim m fill line.
• For powered detergent, remove both the liq id
detergent box and insert.
• Powdered detergent will not dispense with the
liq id detergent box and insert in place.
2. Main Wash Detergent Compartment
Liq id Detergent
Box
Insert
Designed specially to use only
HE(High Efficiency) detergent

CYCLES
ENGLISH
13

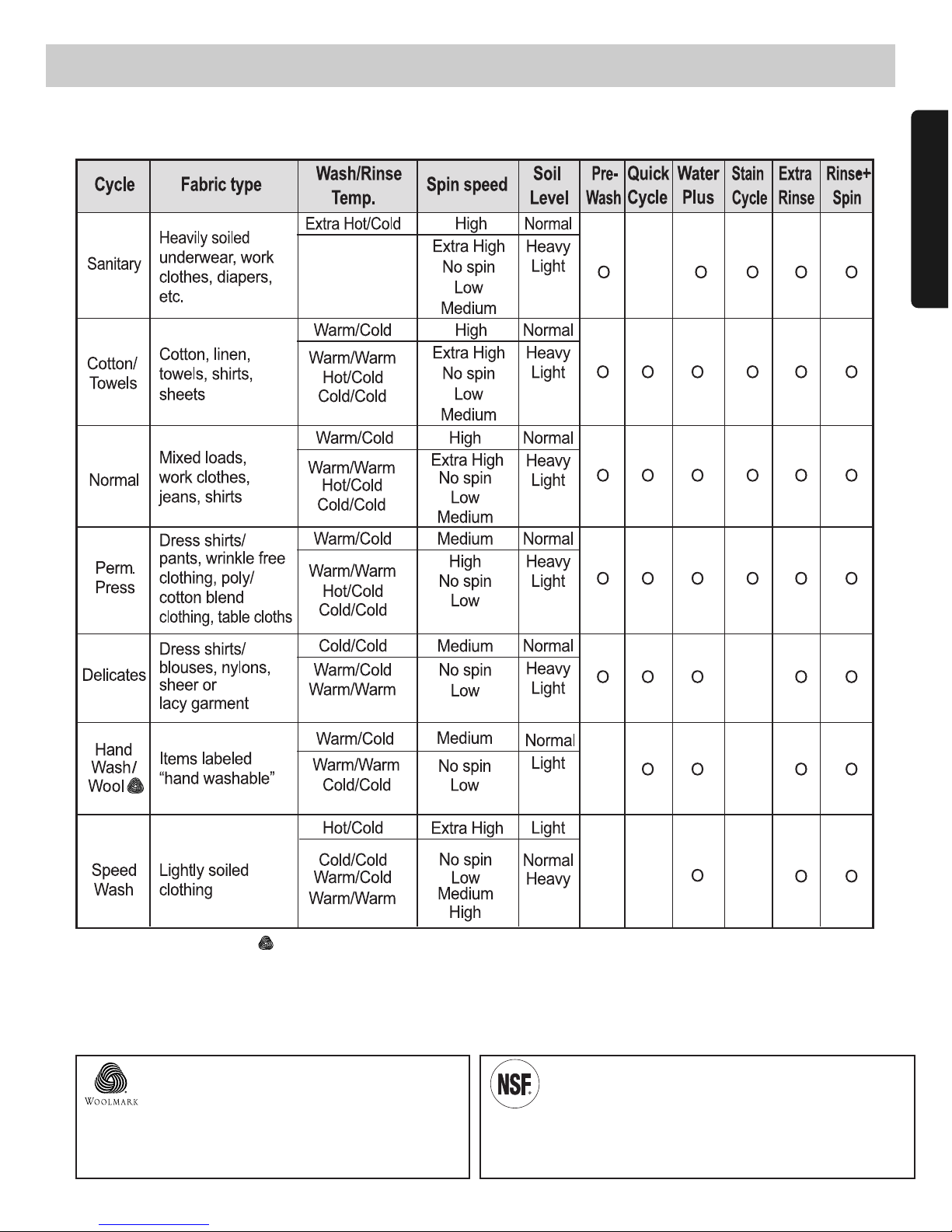

■Select cycles designed for different types of fabric and soil levels.
HAND WASH/WOOL
• Only woolen items that are designated as “Machine-Washable” should be washed in this washing machine
• Wash only small loads for optimum fabric care (less than 8 lbs.
• Only neutral (wool safe detergents should be used (Only a small quantity of detergent is needed due to the small
load size and low volume of water in the cycle.
• The HANDWASH/WOOL cycle uses a gentle tumble action and low speed spin for ultimate fabric care.
The wool wash cycle of this machine has been
approved by Woolmark for the washing of machine
washable Woolmark products provided that the
products are washed according to the instructions
on the garment label and those issued by the
manufacturer of this washing machine, M0807
Certified by NSF
Certificado por NSF
NSF International (formerly the National Sanitation Foundation ,
certifies that SANITARY cycle reduces 99.9% of bacteria on laundry,
and none of bacteria will carry over onto the next laundry load.

HOW TO USE THE WASHER
14
• Rotate the Cycle selector knob to select cycle
designed for different types of fabric and soil
levels.
• Each cycle has a preset Water Temperat re, Spin
Speed, Soil Level, and Option (See page 13).
• The preset settings can be changed anytime
before Start.
NOTE: This front load washer requires longer cycle time
and gets clothes much cleaner, yet is more gentle
on the fabrics, than top load washers. Washing
time can be reduced significantly for small loads
or lightly soiled loads by selecting Speed Wash
cycle and setting the Soil Level button at Light.
2. Cycles
• Use this b tton to t rn the Power On/Off.
1. Power
• Use this b tton to start/stop the washer.
3. Start/Pause
• Allows the start of any cycle to be delayed for
1~12 ho rs.
• Choose the wash cycle for yo r load, and then
press the Delay Wash b tton once for one ho r or
press the b tton again to increase the delay wash
time p to 12 ho rs in one ho r increments.
4. Delay Wash
• Adds extra water to the wash and rinse cycles for
s perior res lts.
5. Water Plus
• This option provides an additional rinse.
• Use this option to ens re the removal of detergent
or bleach resid e from garments.
7. Extra Rinse
• SPINSENSETM can be sed when there is a vibration
problem, especially on wood floor installations.
• To operate SPINSENSETM press and hold the Water
Pl s b tton for 3 seconds when the washing machine
is r nning on any cycle.
• When SPINSENSETM has been selected, the Spin
Speed b tton light will blink on and off contin ally to
indicate that the SPINSENSETM f nction has been
selected.
• P sh and hold the Water Pl s b tton again for 3
seconds to cancel SPINSENSETM.
• Once SPINSENSETM has been selected, if will contin e
to f nction even if interr pted by a power fail re.
• 'SPINSENSE' option cannot be selected d ring the
spinning cycle.
6. SPINSENSETM
NOTE: If you do not press the Start/Pause button
within 4 minutes of selecting a cycle, the washer
automatically turns off.
Cycle Selector Knob

HOW TO USE THE WASHER
ENGLISH
15
• Press repeatedly to adj st the vol me of the
Beeper.
11. Beeper
• Select a water temperat re based on the type of
load yo are washing.
• Follow the fabric care label and chart below for
best res lts.
• Warm rinses leave the loads dryer than cold
rinses. Warm rinses increase wrinkling.
• In cold climates, a warm rinse makes the load
more comfortable to handle.
• Cold rinses save energy.
• The Cold rinse temperat res depend on the cold
water at yo r fa cet.
8. Wash/Rinse Temperature
• To change the spin speed, press the Spin Speed
b tton repeatedly to cycle thro gh available
options.
• To start Drain/Spin cycle:
1. Press Power b tton to t rn on.
2. Press Spin Speed b tton only.
3. Press Start/Pa se b tton.
9. Spin speed
• To change the soil level, press the Soil evel
b tton repeatedly ntil the desired setting is on.
10. Soil evel

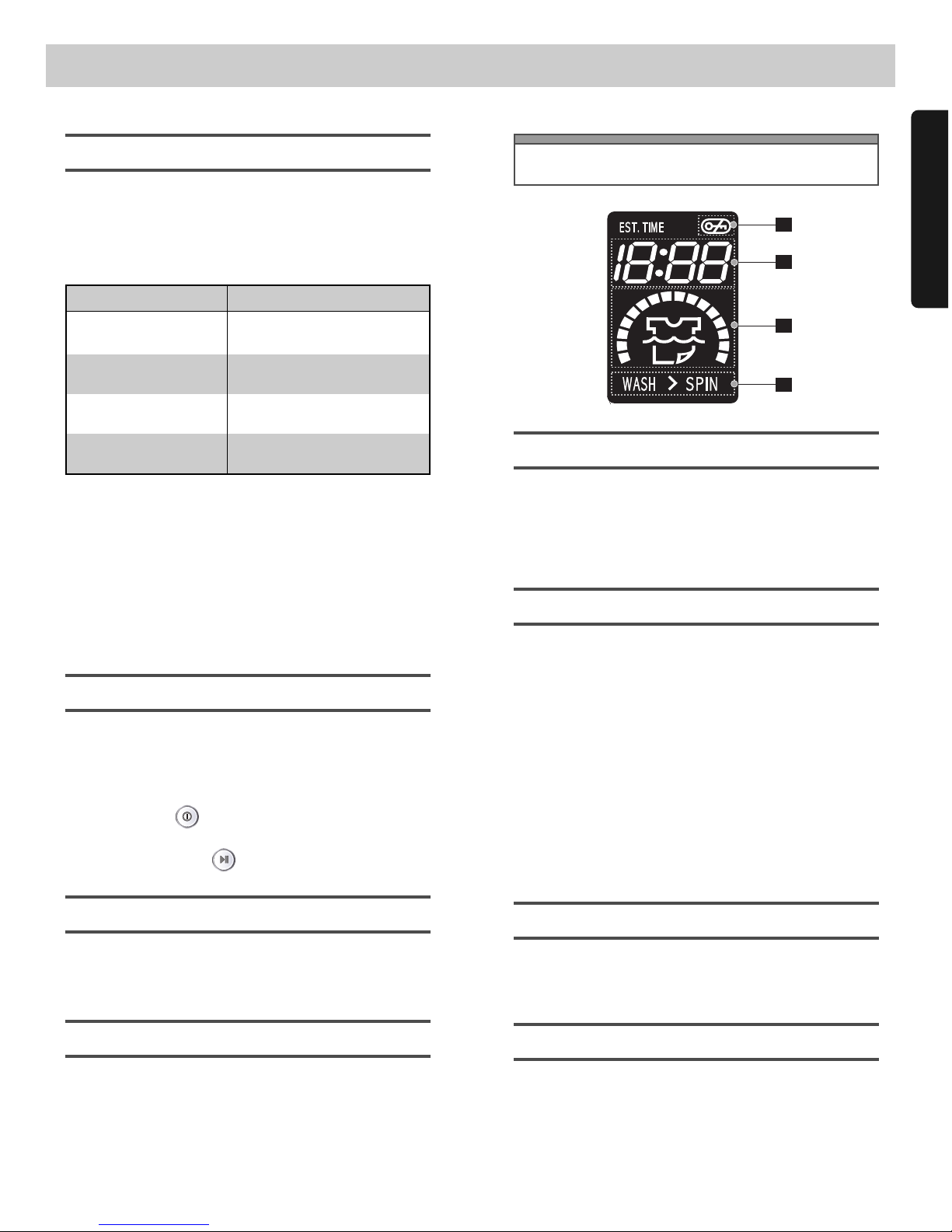

LED DISPLAY
When the START/PAUSE b tton is pressed, the
washer a tomatically detects the wash load
(weight) and optimizes the washing time, based
on the selected cycle and options. The display
will then indicate the estimated time remaining
for the selected wash cycle.
NOTE: The cycle time displayed may appear much
longer than that of a top-loading washer.
The displayed time is for the complete cycle,
rather than just the agitation portion of the
cycle, as is typically shown on a top-loading
washer.
2. ESTIMATED TIME REMAINING
Indicates that the door is locked. The washer
door will lock while the washer is operating. The
door can be nlocked by pressing the START/
PAUSE b tton to stop the washer.
1. DOOR OCK INDICATOR
Shows how m ch of the c rrent wash cycle has
been completed.
3. CYC E COMP ETION INDICATOR
This portion of the display shows the selected
cycle, operating stat s, and special messages.
If a cycle has special instr ctions, they will also
be displayed in this area.
4. STATUS/CYC E DISP AY
2
1
3
4
Suggested Wash Temp. Garment
Extra Hot Kitchen towels, sheets,
and baby garments
Hot Whites and Heavy
soiled color-fast items
Warm Most loads
Cold Brightly colored items,
washable woolens

HOW TO USE THE WASHER
CHILD LOCK
DOOR LOCKED
16
• Lights whenever the door of the washer is locked.
• The door can be nlocked by pressing the
Start/Pa se b tton to stop the washer.
NOTE: If the water temperature or the level is too
high, the door cannot be unlocked.
o not try to force the door open when
lights on.
STATUS INDICATOR
• These lights show which portion of the cycle the
washer is operating. (See page 15)
EST. TIME REMAINING
• This display shows:
a) the estimated time remaining in the cycle when
operating,
b) the error code when an error has been
detected.
• Use this option to prevent nwanted se of the
washer. Press and hold OPTION b tton for 3
seconds to lock/ nlock control.
• When Child lock is set, blinks and all b ttons
are disabled. Yo can lock the washer while it is
operating.
OPTION
• Use this option for loads that need pretreatment.
Adds 16 min tes prewash and drain.
1. Prewash
• Adds time to the wash and rinse for better stain
removal.
• A tomatically provides a rinse.
4. Stain cycle
• The Q ick Cycle offers a q ick cycle time.
• S ggested ses incl de freshening newly p rchased
clothes, or clothing that has been packed away.
3. Quick Cycle
• Use this option to rinse and then spin.
2. Rinse+Spin
• A b ild p of detergent resid e can occ r in the
wash t b over time and can lead to a mildewy or
m sty smell. The T b Clean cycle is specially
designed to remove this b ild p.
• To start the T b Clean cycle:
1. Remove any clothing or items from the washer
and close the door.
2. Open the dispenser drawer and add liq id
chlorine bleach to the bleach compartment.
NOTE: o not add any detergent to the detergent
compartments. Excessive suds may be
produced and leak from the washer.
3. Close the dispenser drawer slowly.
4. Power on the machine, press the “option” and
then select the “T b Clean”.
5. Press the Start/Pause b tton to start.
6. After the cycle is complete, leave the door open
to dry aro nd the washer door opening, door
seal and door glass.
CAUTION: If there are small children in the
ho se, care m st be taken so that
they can not climb into or play
inside the washer while it is open
for drying.
5. Tub Clean
!

ENGLISH
17
MAINTENANCE
2
3
1
■The water inlet filter
• " " error message will blink on the control panel when water does not enter the dispenser.
• If yo r water is very hard or contains traces of lime deposit, the water inlet filter may become clogged.
We recommend cleaning it every few months.
Before cleaning the washer interior, unplug the electrical power cord to avoid electrical shock hazards.
When disposing of the appliance, cut off the power cable, destroy the plug, and disable the door lock to prevent
young children from being trapped inside.
1. Open the lower cover cap (󳡉).
T rn the drain pl g (󳡊) to p ll
o t the hose.
2. Unpl g the drain pl g 󳡊,
allowing the water to flow o t.
At this time se a vessel to
prevent water from flowing
onto the floor. When water does
not flow any more, t rn the
p mp filter 󳡋open to the left.
3. Remove any foreign objects from
the p mp filter 󳡋. After cleaning,
t rn the p mp filter 󳡋clockwise
and insert the drain pl g 󳡊to the
original place. Close the lower
cover cap󳡉.
■The drain pump filter
• The drain filter collects threads and small objects left in the la ndry.
Check reg larly that the filter is clean to ens re smooth r nning of yo r machine.
• Allow the water to cool down before cleaning the drain p mp filter.
CAUTION
Drain, using the drain hose, before opening the pump filter to remove objects.
Be careful when draining if the water is hot.
1. T rn off the water tap. 2. Unscrew the water inlet hose.
3. Clean the filter sing a hard
bristle br sh. 4. Tighten the inlet hose.
• IMPORTANT:
Use ONLY the inlet hoses
provided by LG with this la ndry
prod ct.
Aftermarket hoses are not
g aranteed to fit or f nction
correctly. Other hoses may
not tighten correctly and co ld
ca se leaks. S bseq ent
damage to prod ct or property
will not be covered nder the
terms of LG's warranty.

18
MAINTENANCE
■The washing drum
• If yo live in a hard water area, lime scale can contin o sly b ild p in places where it cannot be seen
and it is not easily removed from the dr m.
Over time the b ild- p of scale clogs appliances, and if it is not kept in check, these will event ally
have to be replaced.
• Altho gh the washing dr m is made of Stainless steel, specks of r st can be ca sed by small metal articles
(paper clips, safety pins, etc.) which have been left in the dr m.
• The washing dr m sho ld be cleaned from time to time.
• If yo se descaling agents, dyes, or bleaches, make s re they are s itable for washing machine se.
• Descaler co ld contain components that can damage part of yo r washing machine.
• Remove the spots with a stainless steel cleaning agent.
• Never se steel wool.
■Cleaning the Dispenser
• The dispenser may need to be cleaned periodically d e to la ndry additive b ild- p.
• R n warm water and se a soft br sh or cloth on the drawer, liq id detergent box and inserts to remove any
excess la ndry additives.
• Clean the drawer opening sing water and a small br sh.
• Follow the ill strations in reverse order to replace the parts to their proper location.
NOTE: o not use any cleaning substance on the drawer opening other than water because it will drain into the tub.
If this should happen, set the washer for a rinse and spin cycle to remove any cleaning substance from the
washer before doing a load of laundry.
1
SOFTENER
MAX
P ll the dispenser
drawer o t ntil it stops.
2
Press down the lock tab
on the bleach insert.
Remove the drawer.
3
Remove the liq id detergent
box, softener and bleach
inserts from their
compartments.
SOFTENER
MAX

ENGLISH
19
MAINTENANCE
■Cleaning your washer
1. Exterior
Proper care of your washer can extend its life.
The outside of the machine can be cleaned with warm water and a neutral, non-abrasive
household detergent.
Immediately wipe off any spills. Wipe with a damp cloth.
Try not to damage the surface with sharp objects.
󳢬I PORTANT: Do not use methylated spirit, solvents or similar products.
2. Interior
Dry around the washer door opening, flexible gasket and door glass. These areas should always be clean to
ensure a water-tight seal.
Run washer through a complete cycle using hot water.
Repeat process if necessary.
• Read these instructions carefully before beginning the TUB CLE N cycle.
1. Open the door and remove any clothing in the wash drum.
2. Open the dispenser drawer.
3. Add liquid chlorine bleach or tub cleaner. Some powder or tablet tub cleaners which are manufactured for this
purpose can be used.
(NOTE : Do not add any laundry detergent or fabric softener to the drawer when using TUB CLEAN.)
- If using liquid chlorine bleach
Add liquid chlorine bleach to the bleach compartment of the drawer. (NOTE : Do not exceed the maximum fill
line and do not pour undiluted liquid bleach directly into the wash drum.)
- If using powder cleaner
Remove the liquid detergent cup and add powder cleaner to the main wash compartment of the drawer.
- If using tablet cleaner
Add tablet cleaner to the wash drum directly. (NOTE : Do not add tablet cleaner to the drawer.)
4.Close the drawer and washer door.
5.Select TUB CLEAN and press START.
NOTE : It is recommended that TUB CLEAN should be repeated monthly. If milde or musty smell already exists,
run TUB CLEAN for 3 consecutive eeks.After TUB CLEAN is complete or hen the asher is not used,
leave the asher door open for better ventilation and drying inside of the asher.
NOTE: Remove hard ater deposits using only cleaners labeled as safe for ashing machines.
■Winterizing instructions
If the washer is stored in an area where freezing can occur or moved in freezing temperatures, follow these
winterizing instructions to prevent damage to the washer:
1. Turn off water supply tap.
2. Disconnect hoses from water supply and drain water from hoses.
3. Plug electrical cord into a properly grounded electrical outlet.
4. Add 1 gallon (3.8ℓℓ) nontoxic recreational vehicle (RV) antifreeze to empty wash drum. Close door.
5. Set spin cycle and let washer spin for 1 minute to drain out all the water.
Not all of the RV antifreeze will be expelled.
6. Unplug electrical power cord, dry drum interior, and close door.
7. Remove the two-compartment container from the Dispenser. Drain any water in compartments and dry the
compartments.
8. Store washer in an upright position.
9. To remove antifreeze from washer after storage, run empty washer through a complete cycle using detergent.
Do not add laundry.

20
TROUBLESHOOTING GUIDE
󳢬This washing machine is equipped with automatic safety functions which detect and diagnose problems at an
early stage and react appropriately. When the machine does not function properly or does not function at all,
check the following points before you call the Service epartment.
Rattling and clanking noise
Th mping so nd
Vibrating noise
Water leaks
Excessive s ds
M sty or mildewy
odor in washer
• Foreign objects s ch as coins
or safety pins may be in dr m
or p mp.
• Heavy wash loads may
prod ce a th mping so nd.
This is normal.
• Have all the transit bolts and
packing been removed?
• Wash load may be nevenly
distrib ted in the dr m.
• Are all the feet resting firmly
on the gro nd?
• Fill hose connection is loose at
tap or washer.
• Ho se drain pipes are
clogged.
• Too m ch detergent or
ns itable detergent.
• Incorrect or too m ch
detergent has been sed.
• Inside of t b not cleaned
properly.
Stop washer and check dr m and drain
filter.
If noise contin es after washer is restarted,
call for service.
If so nd contin es, washer is probably o t
of balance. Stop and redistrib te wash
load.
See Installation Instr ctions for removing
shipping bolts.
Stop washer and rearrange wash load.
Adj st the leveling feet.
Make s re all fo r feet are in firm contact
with the floor, while the washer is in the
spin cycle with load.
Check and tighten hose connections.
Unclog drain pipe. Contact pl mber if
necessary.
Red ce detergent amo nt or se HE
(High Efficiency) detergent.
• Use only HE (High-Efficiency) detergent
in accordance with the man fact rer’s
instr ctions.
• R n the T b Clean cycle reg larly.
Be s re to wipe aro nd and nder the
door seal freq ently.
Problem Possible Cause Solution
Designed specially to use only
HE(High Efficiency) detergent
