LG WM3570H User manual
OWNER S MANUAL
WASHING MACHINE
WM3570H*A
P/No.: MFL67737668 www.lg.com
Before beginning installation,read these instructions carefully.This willsim plify
installation and ensure thatthe washerisinstalled correctlyand safely.
Leave these instructionsnearthe washerafterinstallation forfuture reference.
ENGLISH ESPA OL
2PRODUCT FEATURES
PRODUCT FEATURES
INVERTER DIRECT-DRIVE MOTOR
The inverter direct drive motor, which is directly attached to the drum, is capable of producing multiple
distinct different motions for optimal washing performance with very little noise and vibration. The motor
assembly also contains fewer moving parts, thus resulting in fewer repairs.
Sm art Diagnosis™
Should you experience any technical difficulty with your washing machine, it has the capability of transmit-
ting data by phone to the Customer Information Center. The call center agent records the data transmitted
from your machine and uses it to analyze the issue, providing a fast and effective diagnosis (Refer to page
45).
TUB CLEAN
Regular cleaning of the tub on a monthly basis using Tub Clean can help keep the tub clean and fresh.
MAGNETIC DOOR PLUNGER
Safely and conveniently secure the door slightly ajar with the magnetic door plunger. This will promote air
circulation and allow the interior of the machine to dry. To use this feature, after the load has been removed,
do not close the door completely.
When the magnetic door plunger comes into contact with the metal washer cabinet, it will secure the door
slightly open allowing the interior of the washer to dry.
LARGE CAPACITY STAINLESS STEEL DRUM
The large capacity stainless steel drum offers extreme durability and is tilted to improve efficiency and allow
easier access for large items.
CHILD LOCK
Use this option to disable the controls during a wash cycle. This option can prevent children from changing
cycles or operating the machine.
DETERGENT DISPENSER DRAWER
The four-compartment dispenser drawer makes it easy to separate the pre-wash detergent, the main laundry
detergent, liquid bleach, and fabric softener into different compartments.
HIGH TEMPERATURE STEAM CYCLES
During LG’s unique steam cycles, with high temperature steam cycle help to remove tough stains.
Tag On
The Tag On feature works on most NFC equipped smartphones by communicating with your Tag On
equipped LG appliance. Using the “LG Smart Laundry” application, the Tag On feature will allow you to
diagnose your appliance, download new cycles, and see the status of your appliance by simply touching the
smartphone to the Tag On logo of the appliance.
3
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
2 PRODUCT FEATURES
4
IMPORTANT SAFETY INSTRUCTIONS
4 B ASIC SAFE TY PRE CAUTIONS
5 GROUNDING INSTRUCTIONS
6 SAFE TY INSTRUCTIONS FOR INSTALLATION
7 SAFE TY INSTRUCTIONS FOR USE , CARE ,
CLE ANING, AND DISPOSAL
8
INTRODUCING YOUR W ASHING MACHINE
8 Partsand Accessories
9 Controlpanelfeatures
11 INSTALLATION INSTRUCTIONS

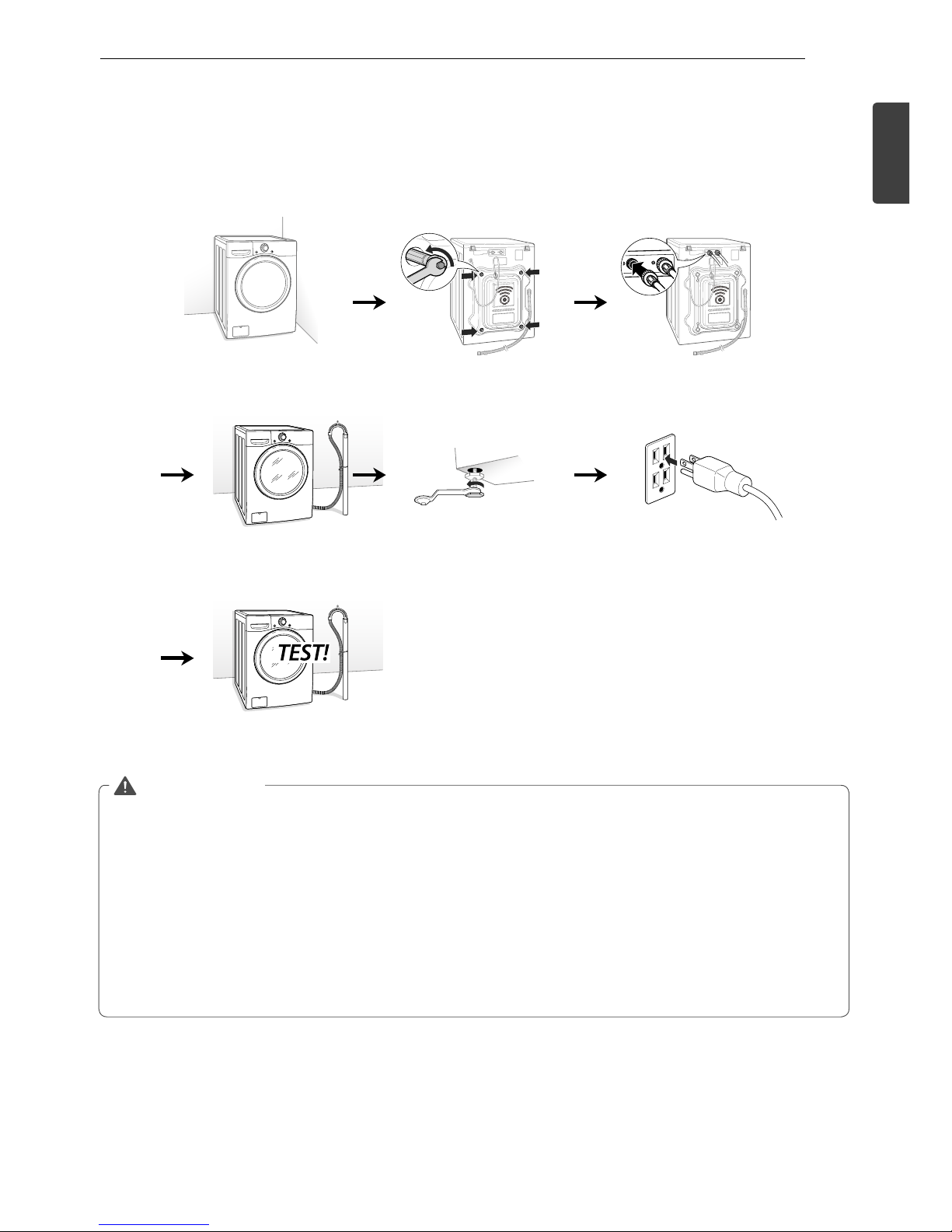

11 Preview installation order

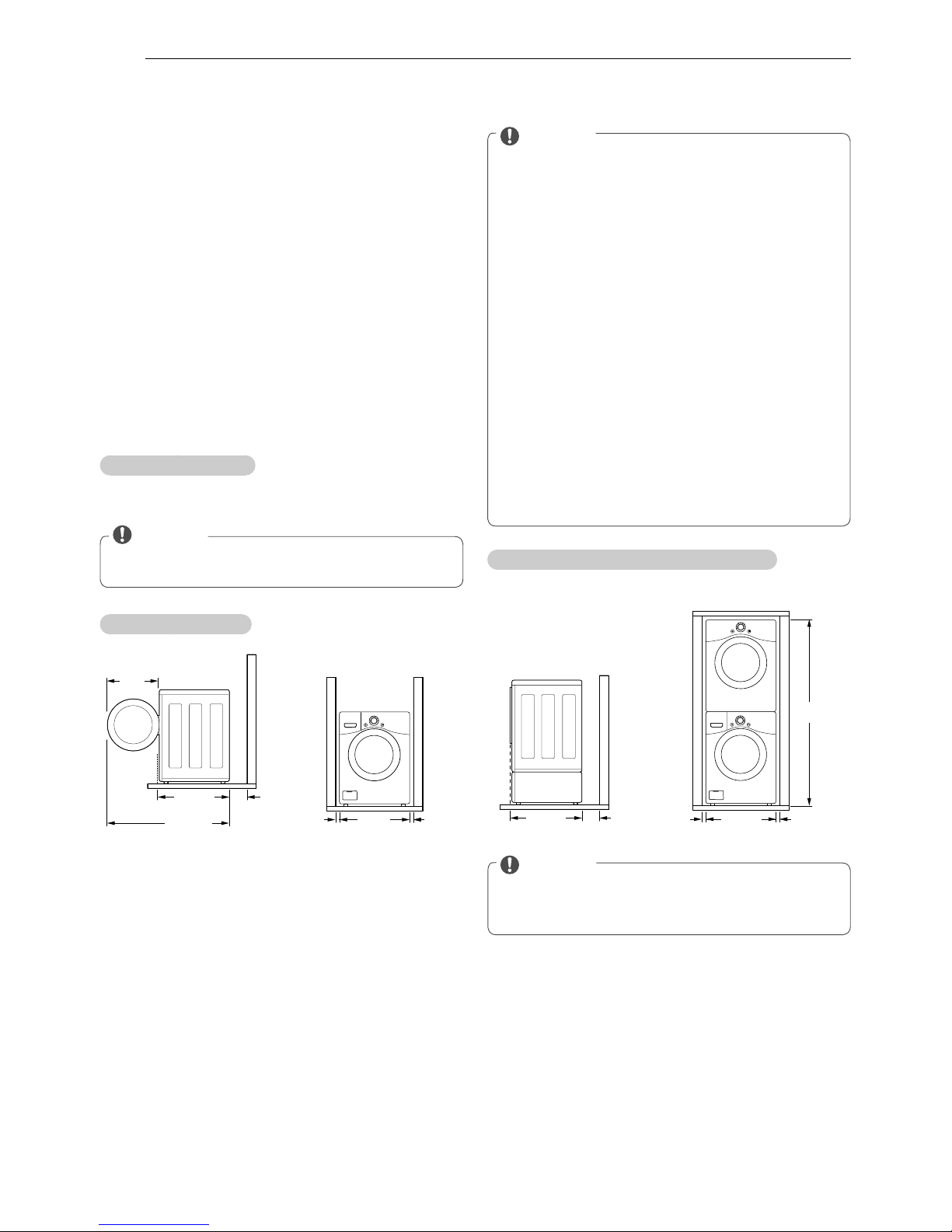

12 Checking and choosing the properlocation
13 Unpacking and rem oving shipping bolts
14 Connecting the waterlines

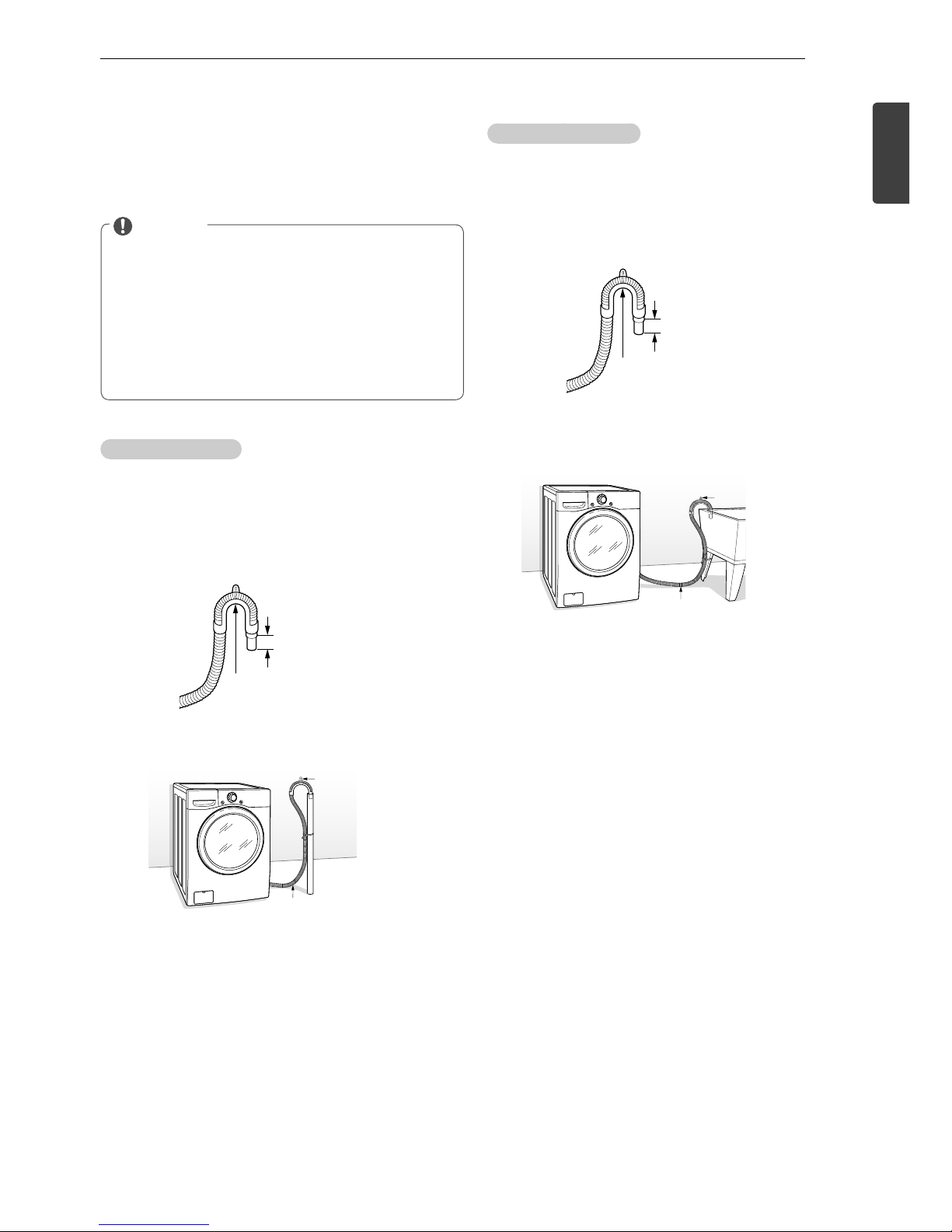

15 Connecting the drain line
16 Leveling the washing m achine
17 Plugging in the powercord and grounding
17 Testrun
18 PREPARATION
18 Sorting wash loads
18 - Precautionsforfabric care before wash cycle

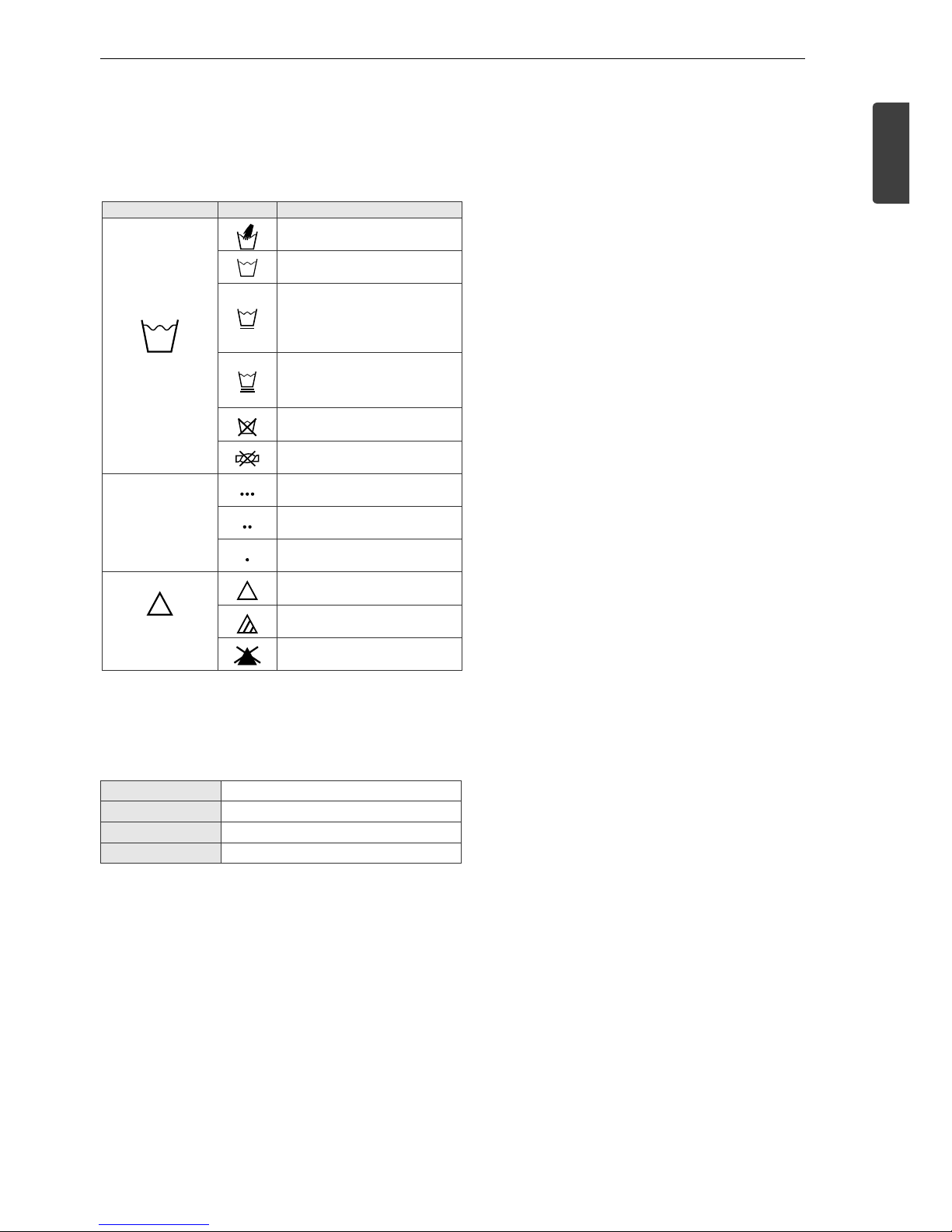

19 - Fabric care labels
19 - Sorting laundry
20 Using detergent/fabric softener
20 - Recom m ended detergent
20 - Loading the dispenser
22 USING YOUR W ASHING MACHINE
22 B asic operation
23 Cycle guide
24 M ain cycle
24 - Reduce laundryallergen,
Allergiene™
24 - Reduce laundrybacteria, Sanitary
24 - Forwhite fabrics, Bright Whites™
24 - Blanketsorbulkyitem s, Bulky/Large
24 - Norm alitem s, Cotton/Norm al
24 - Heavysoiled item s, Heavy Duty
24 - Wrinkle free item s, Perm .Press
24 - Sheeritem s, Delicates
24 - Fortowelitem s, Towels
24 - Quickwash, Speed Wash
25 Cycle setting buttons
25 Setting optionsbefore cycle
25 - Setting the watertem perature, Wash Tem p.
25 - Setting spin speed, Spin Speed
25 - Setting soilleveloflaundry, Soil Level
26 - Adjuststhe m elodyand button tones, Signal
26 - Prewashing, Pre Wash
26 - Rinse,drain and spin only, Rinse+Spin
26 - Adding extra rinse cycle, Extra Rinse
26 - Presetting the starttim e, Delay Wash
26 - Efficiencycleaning, Steam
27 - Saving energy, Cold Wash™
27 - Saving tim e, Turbo Wash™
27 Setting optionsduring cycle
27 - Button lockfeature, Child Lock
28 - Saving custom ized wash cycle, PGM Save
28 - Selecting yourcustom ized cycle, Custom PGM
28 -
Tum blesclothesto preventWrinkles, Fresh Care
29 Before using the Tag On function
29 - Turning on the NFC function ofthe sm artphone
29 - The Tag O n guide
30 Tag On
36 MAINTENANCE
36 Care
36 - Care afterwash
36 - Care in cold clim ates
37 Cleaning
37 - Clean yourthe drum , Tub Clean
38 - Cleaning the detergentdispenserdrawer
39 - Cleaning the waterinletfilters
40 - Cleaning the drain pum p filter
41 - Cleaning the doorseal
42 TROUBLESHOOTING
42 Checking errorm essages
43 Before calling forservice
44 SPECIFICATIONS
45 USING Sm art Diagnosis™
46 W ARRANTY
4IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric
shock, or to prevent property damage, injury to persons, or death.
Y our Safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey
all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGE R, WARNING or CAUTION.
These words mean:
DANGER
Y ou will be killed or seriously injured if you don’t immediately follow instructions.
WARNING
Y ou can be killed or seriously injured if you don’t follow instructions.
CAUTION
Y ou may be slightly injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell
you what can happen if the instructions are not followed.
B ASIC SAFE TY PRE CAUTIONS
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following.
UÊÊ1ÃiÊÌÃÊ>««>ViÊÞÊvÀÊÌÃÊÌi`i`Ê«ÕÀ«ÃiÊ>ÃÊ`iÃVÀLi`Êin this owner’s M anual.
UÊÊB efore use, the washer must be properly installed as
described in this manual.
UÊÊÊÌÊÜ>ÃÊ>ÀÌViÃÊÌ>ÌÊ>ÛiÊLiiÊ«ÀiÛÕÃÞÊVi>i`Ê]Êwashed in, soaked in, or spotted with gasoline, dry cleaning
solvents, or other flammable or explosive substances, as
they give off vapors that could ignite or explode.
UÊÊÊÌÊ>``Ê}>Ãi]Ê`ÀÞÊVi>}ÊÃÛiÌÃ]ÊÀÊÌiÀÊflammable or explosive substances to the wash water. These
substances give off vapors that could ignite or explode.
UÊÊ1`iÀÊViÀÌ>ÊV`ÌÃ]ÊÞ`À}iÊ}>ÃÊ>ÞÊLiÊ«À`ÕVi`ÊÊa hot water system that has not been used for 2 weeks or
more. H Y DROGE N GAS IS E X PLOSIV E . If the hot water
system has not been used for such a period, before using the
washer, turn on all hot water faucets and let the water flow
from each for several minutes. This will release any
accumulated hydrogen gas. As the gas is flammable, do not
smoke or use an open flame during this time.
UÊÊÊÌÊ>ÜÊV`ÀiÊÌÊ«>ÞÊÊÀÊÊÌiÊÜ>ÃiÀ°ÊÃiÊsupervision of children is necessary when the washer is used
near children.
UÊÊivÀiÊÌiÊÜ>ÃiÀÊÃÊÀiÛi`ÊvÀÊÃiÀÛViÊÀÊ`ÃV>À`i`]Êremove the lid to prevent children from climbing inside.
UÊÊÊÌÊÃÌ>ÊÀÊÃÌÀiÊÌiÊÜ>ÃiÀÊÜiÀiÊÌÊÜÊLiÊiÝ«Ãi`ÊÌÊthe weather or freezing temperatures.
UÊÊÊÌÊÌ>«iÀÊÜÌÊVÌÀðUÊÊii«ÊÌiÊ>Ài>ÊÕ`iÀi>ÌÊ>`Ê>ÀÕ`ÊÞÕÀÊ>««>ViÃÊvÀiiÊof combustible materials (lint, paper, rags, etc.), gasoline,
chemicals and other flammable vapors and liquids. UÊÊDo not repair or replace any part of the washer or attempt
any servicing other than as described in this manual. We
strongly recommend that any service be performed by a
qualified technician.
UÊÊ-iiÊÃÌ>>ÌÊÃÌÀÕVÌÃÊvÀÊ}ÀÕ`}ÊÀiµÕÀiiÌðUÊÊ79-ÊvÜÊÌiÊv>LÀVÊV>ÀiÊÃÌÀÕVÌÃÊÃÕ««i`ÊLÞÊÌiÊgarment manufacturer.
UÊÊÊÌÊ«>ViÊÌiÃÊiÝ«Ãi`ÊÌÊV}ÊÊÊÞÕÀÊÜ>ÃiÀ°ÊItems contaminated with cooking oils may contribute to a
chemical reaction that could cause a load to catch fire.
UÊÊ1ÃiÊv>LÀVÊÃvÌiiÀÃÊÀÊ«À`ÕVÌÃÊÌÊi>ÌiÊÃÌ>ÌVÊÞÊ>ÃÊrecommended by the manufacturer.
UÊÊ/ÃÊÜ>ÃiÀÊÃÊÌÊ`iÃ}i`ÊvÀÊ>ÀÌiÊÕÃiÊÀÊvÀÊLiÊinstallations such as in RV s, aircraft, etc.
UÊÊ/ÕÀÊvvÊÌiÊÜ>ÌiÀÊv>ÕViÌÃÊ>`ÊÕ«Õ}ÊÌiÊÜ>ÃiÀÊvÊÌiÊmachine is to be left for an extended period of time, such as
during vacations.
UÊÊ*>V>}}Ê>ÌiÀ>ÊV>ÊLiÊ`>}iÀÕÃÊvÀÊV`Ài°Ê/iÀiÊÃÊ>ÊÀÃÊvÊÃÕvvV>ÌtÊii«Ê>Ê«>V>}}ÊvÀÊV`Ài°UÊÊÜ>ÞÃÊViVÊÌiÊÃ`iÊvÊÌiÊÜ>ÃiÀÊvÀÊvÀi}ÊLiVÌÃÊLivÀiÊ>`}Ê>Õ`ÀÞ°Êii«ÊÌiÊ`ÊVÃi`ÊÜiÊÌÊÊÕÃi°UÊÊÊÌÊÀi>VÊÌÊÌiÊ>««>ViÊvÊÌiÊÌÕLÊÀÊ>}Ì>ÌÀÊÃÊmoving.
UÊÊ7, Ê\Ê/ÃÊ«À`ÕVÌÊVÌ>ÃÊViV>ÃÊÜÊÌÊÌiÊState of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.
5
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric
shock, or to prevent property damage, injury to persons, or death.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of
electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord
having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
WARNING
Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a
qualified electrician or servicer if you are in doubt as to whether the appliance is properly grounded. Do not modify
the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a qualified
electrician. Failure to follow these warnings can cause serious injury, fire, electric shock, or death.
6IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric
shock, or to prevent property damage, injury to persons, or death.
SAFE TY INSTRUCTIONS FOR INSTALLATION
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following.
UÊÊ,iviÀÊÌÊ -//" Ê -/,1/" -ÊvÀÊ`iÌ>i`Êgrounding procedures. Installation instructions are
packed with the washer for installer’s reference. If the
washer is moved to a new location, have it checked
and reinstalled by a qualified service technician.
Failure to follow this warning can cause serious injury,
fire, electric shock, or death.
UÊÊÊÌ]ÊÕ`iÀÊ>ÞÊVÀVÕÃÌ>ViÃ]ÊVÕÌÊÀÊÀiÛiÊÌiÊthird (ground) prong from the power cord. Failure to
follow this warning can cause serious injury, fire,
electric shock, or death.
UÊÊÀÊ«iÀÃ>ÊÃ>viÌÞ]ÊÌÃÊ>««>ViÊÕÃÌÊLiÊ«À«iÀÞÊgrounded. Failure to follow this warning can cause
serious injury, fire, electric shock, or death.
UÊÊ/iÊ«ÜiÀÊVÀ`ÊvÊÌÃÊ>««>ViÊÃÊiµÕ««i`ÊÜÌÊ>Ê3-prong (grounding) plug which mates with a standard
3-prong (grounding) wall outlet to minimize the
possibility of electric shock from this appliance.
UÊÊ/ÃÊÜ>ÃiÀÊÕÃÌÊLiÊ«Õ}}i`ÊÌÊ>Ê£ÓäÊ6H]ÈäâÊgrounded outlet. Failure to follow this warning can
cause serious injury, fire, electric shock, or death.
UÊÊ>ÛiÊÌiÊÜ>ÊÕÌiÌÊ>`ÊVÀVÕÌÊViVi`ÊLÞÊ>ʵÕ>vi`Êelectrician to make sure the outlet is properly
grounded. Failure to follow this warning can cause
serious injury, fire, electric shock, or death.
UÊÊ7iÀiÊ>ÊÃÌ>`>À`ÊÓ«À}ÊÜ>ÊÕÌiÌÊÃÊiVÕÌiÀi`]Êit is your personal responsibility and obligation to
have it replaced with a properly grounded 3-prong
wall outlet. Failure to follow this warning can cause
serious injury, fire, electric shock, or death.
UÊÊÊÌÊÃÌ>ÊÊV>À«iÌ°ÊÃÌ>ÊÜ>ÃiÀÊÊ>ÊÃ`ÊvÀ°ÊFailure to follow this warning can cause serious leak
damage.
UÊÊÊÌÊÀiÛiÊ}ÀÕ`Ê«À}°ÊÊÌÊÕÃiÊ>Ê>`>«ÌiÀÊor extension cord. Plug into a grounded 3-prong
outlet. Failure to follow these warnings can cause
serious injury, fire, electric shock, or death. UÊÊ/iÊÜ>ÃiÀÊÃÕ`Ê>Ü>ÞÃÊLiÊ«Õ}}i`ÊÌÊÌÃÊÜÊindividual electrical outlet which has a voltage rating
that matches the rating plate. This provides the best
performance and also prevents overloading house
wiring circuits which could cause a fire hazard from
overheated wires.
UÊÊ iÛiÀÊÕ«Õ}ÊÞÕÀÊÜ>ÃiÀÊLÞÊ«Õ}ÊÊÌiÊ«ÜiÀÊcord. Always grip plug firmly and pull straight out
from the outlet. Failure to follow this warning can
cause serious injury, fire, electric shock, or death.
UÊÊ,i«>ÀÊÀÊi`>ÌiÞÊÀi«>ViÊÊ>Ê«ÜiÀÊVÀ`ÃÊÌ>ÌÊhave become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage
along its length or at either end. Failure to follow this
warning can cause serious injury, fire, electric shock,
or death.
UÊÊ7iÊÃÌ>}ÊÀÊÛ}ÊÌiÊÜ>ÃiÀ]ÊLiÊV>ÀivÕÊÌÊto pinch, crush, or damage the power cord. Failure to
follow this warning can cause serious injury, fire,
electric shock, or death.
UÊÊ/iÊÜ>ÃiÀÊÕÃÌÊLiÊÃÌ>i`Ê>`ÊiiVÌÀV>ÞÊgrounded by a qualified service person in accordance
with local codes to prevent shock hazard and assure
stability during operation.
UÊÊ/iÊÜ>ÃiÀÊÃÊi>ÛÞ°Ê/ÜÊÀÊÀiÊ«i«iÊ>ÞÊLiÊneeded to install and move the appliance. Failure to
do so can result in back or other injury.
UÊÊ-ÌÀiÊ>`ÊÃÌ>ÊÌiÊÜ>ÃiÀÊÜiÀiÊÌÊÜÊÌÊLiÊexposed to temperatures below freezing or exposed to
outdoor weather conditions. Failure to follow this
warning can cause serious leak damage.
UÊÊÊÌÊÃÌ>ÊÌiÊÜ>ÃiÀÊÊÕ`Êë>ViÃÊÌÊÀi`ÕViÊthe risk of electric shock. Failure to follow this warning
can cause serious injury, fire, electric shock, or death.
UÊÊ/ÊÀi`ÕViÊÌiÊÀÃÊvÊÕÀÞÊÌÊ«iÀÃÃ]Ê>`iÀiÊÌÊ>Êindustry recommended safety procedures including
the use of long sleeved gloves and safety glasses.
Failure to follow all of the safety warnings in this
manual could result in property damage, injury to
persons or death.
7
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric
shock, or to prevent property damage, injury to persons, or death.
SAFE TY INSTRUCTIONS FOR USE , CARE , CLE ANING, AND DISPOSAL
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions,
including the following.
SAV E TH E SE INSTRUCTIONS
UÊÊ1«Õ}ÊÌiÊÜ>ÃiÀÊLivÀiÊVi>}ÊÌÊ>Û`ÊÌiÊÀÃÊvÊelectric shock.
UÊÊ iÛiÀÊÕÃiÊ>ÀÃÊViV>Ã]Ê>LÀ>ÃÛiÊVi>iÀÃ]ÊÀÊsolvents to clean the washer. They will damage the
finish.
UÊÊÊÌÊ«ÕÌÊÞÊÀÊ}Ài>ÃÞÊÀ>}ÃÊÀÊVÌ}ÊÊÌ«ÊvÊÌiÊwasher. These substances give off vapors that could
ignite the materials.
UÊÊÊÌÊÜ>ÃÊÌiÃÊÌ>ÌÊ>ÀiÊÃi`ÊÜÌÊÛi}iÌ>LiÊÀÊcooking oil. These items may contain some oil after
laundering. Due to the remaining oil, the fabric may
smoke or catch fire by itself.
UÊÊÃViVÌÊÌÃÊ>««>ViÊvÀÊÌiÊ«ÜiÀÊÃÕ««ÞÊbefore attempting any user maintenance. Turning the
controls to the OFF position does not disconnect this
appliance from the power supply. Failure to follow this
warning can cause serious injury, fire, electric shock,
or death.
UÊÊÊÌÊVLiÊ>Õ`ÀÞÊ«À`ÕVÌÃÊvÀÊÕÃiÊÊiÊ>`Êunless specified on the label.
UÊÊÊÌÊÝÊVÀiÊLi>VÊÜÌÊ>>ÊÀÊ>V`ÃÊsuch as vinegar. Follow package directions when using
laundry products. Incorrect usage can produce
poisonous gas, resulting in serious injury or death.
UÊÊÊÌÊÀi>VÊÌÊÌiÊÜ>ÃiÀÊÜiÊ«>ÀÌÃÊ>ÀiÊÛ}°ÊB efore loading, unloading, or adding items, press the
START/PAUSE button and allow the drum to coast to a
complete stop before reaching inside. Failure to follow
this warning can cause serious injury, fire, electric
shock, or death. UÊÊÊÌÊ>ÜÊV`ÀiÊÌÊ«>ÞÊÊÀÊÊÌiÊÜ>ÃiÀ°ÊClose supervision of children is necessary when the
washer is used near children. As children grow, teach
them the proper, safe use of all appliances. Failure to
comply with these warnings could result in serious
injury to persons or death.
UÊÊiÃÌÀÞÊÌiÊV>ÀÌ]Ê«>ÃÌVÊL>}]Ê>`ÊÌiÀÊ«>V}Êmaterials after the washer is unpacked. Children might
use them for play. Cartons covered with rugs,
bedspreads, or plastic sheets can become airtight
chambers. Failure to comply with these warnings
could result in serious injury to persons or death.
UÊÊii«Ê>Õ`ÀÞÊ«À`ÕVÌÃÊÕÌÊvÊV`Ài½ÃÊÀi>V°Ê/Êprevent injury to persons, observe all warnings on
product labels. Failure to comply with these warnings
could result in serious injury to persons or death..
UÊÊivÀiÊÞÕÀÊÜ>ÃiÀÊÃÊÀiÛi`ÊvÀÊÃiÀÛViÊÀÊdiscarded, remove the door to the washing
compartment to avoid the danger of children or small
animals getting trapped inside before your washer is
removed from service or discarded. Failure to do so
can result in serious injury to persons or death.
UÊÊ>iÊÃÕÀiÊÌiÊ`ëiÃiÀÊ`À>ÜiÀÊÃÊVÃi`Ê>ÌÊ>ÊÌiÃÊwhen not being filled with laundry products. Failure to
keep the drawer closed can result in personal injury or
flooding.
8INTRODUCING YOUR WASHING MACHINE
INTRODUCING YOUR W ASHING MACHINE
Parts and Accessories
Parts
Pedestal
(sold separately) -Ì>V}ÊÌ(sold separately)
Accessories
H ot/cold water hoses Non-skid pads Caps for covering
shipping bolt holes
Wrench Tie strap E lbow bracket
(for securing drain
hose)
Detergent
dispenser
drawer
(See page 20)
Door
Magnet Door
Plunger
(see page 2)
Control panel
(See page 9)
Door
seal
TurboWash™
Upper Nozzle
Tub
Leveling
feet
Drain pum p filter cover
Drain pum p filter
Drain hose
Water inlets
Shipping
bolts
Power cord
Drain hose
Included Accessories Optional Accessories
NOTE
!
Contact LG Customer Service at 1-80 0 -243-0 0 0 0 (1-888-542-2623 in Canada) if any accessories are missing.
!
For your safety and for extended product life, use only authorized components. The manufacturer is not
responsible for product malfunction or accidents caused by the use of separately purchased unauthorized
components or parts.
!
The images in this guide may be different from the actual components and accessories, and are subject to
change by the manufacturer without prior notice for product improvement purposes.
9
ENGLISH
INTRODUCING YOUR WASHING MACHINE
B utton Description
!Turns the washing machine on and off.
!(During the wash cycle) stops operation, and cancels the settings.
!Allergiene™
- For cotton, underwear (see page 24)
!Sanitary
- For underwear, diaper etc. (see page 24)
!H eavy Duty
- For heavy soiled cotton fabric (see page 24)
!B ulky/Large
- For blankets or large bulky items (see page 24)
!Cotton/Normal
- For general laundry, such as cotton T-shirts or towels (see page 24)
!B right Whites™
- For white fabrics (see page 24)
!Perm. Press
- For wrinkle-free fabrics (see page 24)
!Delicates
- For sheer and delicate fabrics (see page 24)
!Towels
- For towels (see page 24)
!Speed Wash
- For small quantities of lightly soiled items (see page 24)
!Download Cycle
- For downloadable cycles also the default cycle is Small Load. (see page 29)
!Tub Clean
- For tub clean (see page 37)
!Starts or pauses the washing machine cycle.
- If you do not press the Cbutton within 4 minutes of selecting a cycle, the washing
machine will turn off automatically And all settings will be lost.
!(Press repeatedly) Selects the water temperature for the wash cycle (see page 25).
- Select water temperature from 5 settings.
!(Press repeatedly) Selects the spin speed in the desired level (see page 25).
- Selects spin speed from 5 settings.
!(Press repeatedly) Selects a wash cycle by soil level (see page 25).
- Selects soil level from 5 settings.
!(Press repeatedly) Selects the volume of the button tones and the end of cycle melody.
(see page 26)
Control panel features
Operation
Operation Display
Cycle selector
Soil
Level
Selection
Button
Signal
Sound
Selection
Button
Spin
Speed
Selection
Button
Water
Tem perature
Selection
Button
Start/
Pause
Button
Power
Button
10 INTRODUCING YOUR WASHING MACHINE
Display
Operation (continued)
B utton Description
!(Press before wash cycle) Pre-wash heavily soiled laundry (See page 26).
!(Press and hold during wash cycle) Activates or cancels Child Lock feature. (See page 27).
!Use this option to save time (See page 27).
!Add an extra rinse to the selected cycle (See page 26).
!Use this option to rinse detergent from load (See page 26)
!Set delay time of starting cycle (See page 26).
!(Press before starting wash cycle) Use this option to add steam for extra cleaning
power (See page 26)
!(Press and hold before starting wash cycle) Tumbles clothes after cycle finishes to
prevent wrinkles (See page 28)
!Use this option to help reduce energy consumption (See page. 27).
!(Press and hold) Saves the current cycle and settings for use at a later time.
!*ÀiÃÃÊVi®Ê,iÃÌÀiÃÊÌiÊ«ÀiÛÕÃÞÊÃ>Ûi`ÊÃiÌÌ}ðÊ-iiÊ«>}iÊÓÇHÓn®
Display Icon Description
!This portion of the display shows which stage of the wash cycle is currently underway
(Load Sensing, Wash, Rinse or Spin).
!Indicates that the door is locked. The washer door will lock while the washer is operating.
The door can be unlocked by pressing the Start/ Pause button to stop the washer.
!This indicator shows that the washer has been set for Delay Wash. The washer will
start automatically after the set delay time has passed.
!When the Start/ Pause button is pressed, the washer automatically detects the wash
load (weight) and optimizes the washing time, based on the selected cycle and options.
The display will then indicate the estimated time remaining for the selected wash cycle.
Door lock
indicator
Estim ated tim e rem aining/
error m essage display
(See page 42)
Cycle
process
indicator
Delay
wash
indicator
11
ENGLISH
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
Preview installation order
WARNING
!Washer is heavy! Two or more people are required when moving and unpacking the washer. Failure to
do so can result in back or other injury.
!Store and install the washer where it will not be exposed to temperatures below freezing or exposed to
outdoor weather conditions. Failure to follow this warning can cause serious injury, fire, electric shock,
or death.
!Properly ground washer to conform with all governing codes and ordinances. Failure to follow this
warning can cause serious injury, fire, electric shock, or death.
!To reduce the risk of electric shock, do not install the washer in humid spaces. Failure to follow this
warning can cause serious injury, fire, electric shock, or death.
!The base opening must not be obstructed by carpeting when the washer is installed on a carpeted floor.
!Do not remove ground prong. Do not use an adapter or extension cord. Plug into a grounded 3-prong
outlet. Failure to follow this warning can cause serious injury, fire, electric shock, or death.
Checking and choosing the
proper location
Unpacking and rem oving
shipping bolts
Connecting the water line
Connecting the drain line Leveling the washing
m achine
Plugging in the power cord
and grounding
Test run
12 INSTALLATION INSTRUCTIONS
Checking and choosing the proper location
Install the washing machine on a solid floor that is
strong and rigid enough to support the weight of the
washing machine, even when fully loaded, without
flexing or bouncing. If the floor has too much flex, you
may need to reinforce it to make it more rigid. If the
floor is not solid, it may cause severe vibration and
noise.
1Clean the floor before installation.
- M ake sure to select solid and smooth ground.
2Two or more people are needed for moving and
unpacking the washing machine.
3Allow for sufficient space between the walls and the
washing machine for installation.
Space requirem ents
Y ou must allow sufficient space for water lines, the
drain line, and airflow.
NOTE
!
B e sure to allow for wall, door, or floor moldings
that may increase the required clearances.
Installing on a floor
293/4"
(75.6 cm)
4"
(10 cm)
51"
(129.5 cm)
221/4"
(57 cm)
27"
68.6 cm
1"
(2.5 cm) 1"
(2.5 cm)
NOTE
!The floor must be strong and rigid enough to support
the weight of the washer, when fully loaded, without
flexing or bouncing. If your floor has too much flex,
you may need to reinforce it to make it more rigid.
A floor that is adequate for a top-loading washer may
not be rigid enough for a front loading washer, due
to the difference in the spin speed and direction. If
the floor is not solid, your washer may vibrate and
you may hear and feel the vibration throughout your
house.
!B efore installing the washer, make sure the floor is
clean, dry and free of dust, dirt, water and oils so the
washer feet can not slide easily. Leveling feet that can
move or slide on the floor can contribute to excess
vibration and noise due to poor contact with the floor.
!If a drip pan must be used, take extra care to follow
the instructions provided with the drip pan and make
sure the leveling feet are adjusted for firm and even
contact with the pan. Use of drip pans and failure to
properly level the machine may result in increased
vibration and noise during operation.
Installing on a pedestal or stacking kit
29 3/4"
(75.6 cm)
4"
(10 cm)
27"
(68.6 cm)
1"
(2.5cm)
1"
(2.5cm)
771/2"
(196.8 cm)
NOTE
!
Refer to the instructions packaged with the
«Ì>Ê*-/ÊÀÊ-/ Ê/ÊLivÀiÊÃÌ>}ÊÜÌÊ>Ê*-/ÊÀÊ>Ê-/ Ê/°
13
ENGLISH
INSTALLATION INSTRUCTIONS
Unpacking and rem oving shipping bolts
When removing the washer from the carton base, be
sure to remove the foam drum support in the middle of
the carton base.
If you must lay the washer down to remove the base
packaging materials, always lay it carefully on its side.
Do NOT lay the washer on its front or back.
1Remove the bottom two shipping bolts with the
wrench (included) to fully loosen all four shipping
bolts by turning them counterclockwise and then
pulling them out.
Shipping
bolt
Retainer
2Locate the four hole caps included in the accessory
pack and install them in the shipping bolt holes.
Cap
NOTE
!
Save the bolt assemblies for future use. To prevent
damage to internal components, DO NOT transport
the washer without reinstalling the shipping bolts.
!
Failure to remove shipping bolts and retainers
may cause severe vibration and noise, which can
lead to permanent damage to the washer. The
cord is secured to the back of the washer with
a shipping bolt to help prevent operation with
shipping bolts in place.
14 INSTALLATION INSTRUCTIONS
Connecting the water lines
1
Check the rubber seals on both sides of the hose.
- Insert a rubber seal into the threaded fittings on
each hose to prevent leaking.
Rubber seal
Water hose
(To water inlet on the
washing m achine)
Rubber seal
Water hose
(To faucet)
2
Connect the water supply hoses to the H OT and
COLD water faucets tightly by hand and then tighten
another 2/3 turn with pliers.
- Connect the blue hose to a cold water faucet
and the red hose to a hot water faucet.
WARNING
!Do not overtighten. Damage to the coupling can
result.
3
After connecting inlet hose to water faucets, turn
on the water faucets to flush out foreign substances
(dirt, sand or sawdust) in the water lines. Let water
drain into a bucket, and check the water temperature.
4
Connect the hoses to the water inlets tightly by hand
and then tighten another 2/3 turn with pliers.
- Connect the blue hose to the cold water inlet and
the red hose to the hot water inlet.
Cold
water
inlet
Hot water
inlet
WARNING
!Do not overtighten the hoses. Overtightening
can damage the valves resulting in leaking and
property damage.
5
Check for leaks by turning on the faucets.
- If water leaks, check steps 1 to 4 again.
NOTE
!
For your safety, and for extended product life, use
only authorized components. The manufacturer
is not responsible for product malfunction
or accidents caused by the use of separately
purchased unauthorized parts.
!
Use new hoses when you install the washing
machine. Do not reuse old hoses. Use only the
inlet hoses provided with the washer. LG does not
recommend the use of aftermarket hoses.
!
Periodically check the hoses for cracks, leaks and
wear, and replace the hoses every 5 years.
!
Do not stretch the water hoses intentionally, and
make sure that they are not crushed by other
objects.
!
Water supply pressure must be between 14.5 PSI
>`Ê££ÈÊ*-Ê£ääHnääÊ*>®°ÊvÊÌiÊÜ>ÌiÀÊÃÕ««ÞÊpressure is more than 116 PSI, a pressure reducing
valve must be installed.
!
To provide optimum washing performance the hot
water temperature should be set at 120 -135° F (48-
57° C) and the cold at 60 ° F (15° C).
15
ENGLISH
INSTALLATION INSTRUCTIONS
Connecting the drain line
Secure the drain hose in place to prevent moving and
leaking.
NOTE
!
The drain hose should be properly secured. Failure
to properly secure the drain hose can result in
flooding and malfunction.
!
Total height of the house end should not exceed 96
inches (244.8 cm) from the bottom of the washer.
!
The drain must be installed in accordance with any
applicable local codes and regulations.
!
M ake sure that the water lines are not stretched,
pinched, crushed, or kinked.
Using a standpipe
1
Clip the end of the hose into the elbow bracket.
- Connect the elbow bracket within 4 inches (10 cm)
from the end of the drain hose. If the drain hose is
extended more than 4 inches (10 cm) beyond the
end of the elbow bracket, mold or microorganisms
could spread to the inside of the washer.
No m ore than
4 inches (10 cm )
Elbow bracket
2
Insert the end of the drain hose into the standpipe.
Drain Hose
Elbow Bracket
3
Use a tie strap to secure the drain hose in place.
Using a laundry tub
1
Clip the end of the hose into the elbow bracket.
- Connect the elbow bracket within 4 inches (10 cm)
from the end of the drain hose. If the drain hose is
extended more than 4 inches (10 cm) beyond the
end of the elbow bracket, mold, or microorganisms
could spread to the inside of the washer.
No m ore than
4 inches (10 cm )
Elbow bracket
2
H ang the end of the drain hose over the side of the
laundry tub.
Elbow Bracket
Drain Hose
3
Use a tie strap to secure the drain hose in place.
16 INSTALLATION INSTRUCTIONS
Leveling the washing m achine
The washer tub of your new washing machine spins
at very high speeds. To minimize vibration, noise, and
unwanted movement, the floor must be perfectly level
and solid.
1
Check the washing machine’s level.
- Check the precise level by rocking the top edges
of the washing machine or placing a level on the
washing machine. The slope beneath the washing
machine must not exceed 1° , and all four leveling
feet must rest firmly on the floor.
Level
1°
2
Turn the lower leveling feet clockwise to level the
washing machine.
- Turning the lower leveling feet clockwise raises the
washing machine.
Raise
3
Turn the locknuts counterclockwise and tighten them
when the washing machine is level.
Tighten all 4 lock
nuts securely using
the wrench.
4
Check the washing machine’s level again.
- Push or rock the top edges of the washing machine
gently to make sure that the washing machine does
not rock.
- If the washing machine rocks, repeat steps 1 to 3.
WARNING
!
Using the washing machine without leveling,
it may result in malfunction caused by the
production of excess vibration and noise.
!
If you are installing the washing machine on the
optional pedestal, you must adjust the leveling
feet on the pedestal to level the washing machine.
The washing machine´s leveling feet should be
minimized and turn the locknuts counterclockwise
to secure.
!
Use the leveling feet only when you level the
washing machine. If you raise the leveling feet
unnecessarily, it may cause abnormal vibration of
the washing machine.
Using non-skid pads (optional)
If you install the washing machine on a slippery
surface, it may move because of excessive vibration.
Incorrect leveling may cause malfunction through noise
and vibration. In the event of this, lay the non-skid pads
under the leveling feet and adjust the level.
1
Clean the floor to attach the non-skid pads.
- Use a dry rag to remove and clean foreign objects
or moisture. If moisture remains, the non-skid pads
may slip.
2
Adjust the level after placing the washing machine
in the installation area.
3
Place the adhesive side of the non-skid pad on the
floor.
- It is most effective to install the non-skid pads
under the front legs. If it is hard to place the pads
under the front legs, place them under the back
legs.
Rem ove
backing
This side up
Adhesive
side
4
Check the washing machine’s level again.
- Push or rock the top edges of the washing machine
gently to make sure that the washing machine does
not rock. If the washing machine rocks, level the
washing machine again.
17
ENGLISH
INSTALLATION INSTRUCTIONS
Plugging in the power cord and
grounding
M ake sure to ground the washing machine to prevent a
short circuit or an electric shock when plugging in.
Using a 3-prong outlet
Plug in the electrical outlet without additional
grounding.
WARNING
!The power outlet must be within 60 inches (1.5 m) of
either side of the washer.
!The appliance and outlet must be positioned so that
the plug is easily accessible.
!Do not overload the outlet with more than one
appliance.
!The outlet must be grounded in accordance with
current wiring codes and regulations.
!Time-delay fuse or circuit breaker is recommended.
!It is the personal responsibility and obligation of the
product owner to have a proper outlet installed by a
qualified electrician.
!Do not use a worn or damaged power cord or power
plug. Replace or repair it immediately. Failure to
do so may result in death, fire, electric shock, or
malfunction.
!Do not modify the power cord and take care not to
damage it when installing or moving the washing
machine. Failure to do so may result in death, fire,
electric shock, or malfunction.
!M ake sure that the washing machine is grounded.
!Connect this washing machine to a grounded outlet
conforming to the rating prior to use. Failure to do so
may result in fire, electric shock, or malfunction.
!Do not use adaptors or extension cords. The washing
machine should always be plugged into its own
individual electrical outlet which has a voltage rating
that matches the rating plate. Failure to do so may
result in fire, electric shock or disorder.
!Do not damage or cut off the ground prong of the
power cord. Doing so may cause death, fire, electric
shock, or product malfunction.
Test run
Check if the washing machine is properly installed and
run a test cycle.
1
Load the washing machine with 6 pounds of laundry.
2Press Aand turn Bon the right
3Press to Rinse + Spin.
4Press C.
- The wash cycle starts.
5
Check if water is supplied, that the washing machine
does not rock or vibrates excessively, and that it
drains well during the spin cycle.
- If water leaks during water supply, see page
14, Connecting the water lines to connect them
properly.
- If the washing machine rocks and vibrates
excessively, see page 16, Leveling the washing
machine to level it again.
- If the drain does not work, see page 15, Connecting
the drain line to install it properly.
18 PREPARATION
!Check all pockets to make sure that they are
empty.
- Items such as clips, matches, pens, coins, and
keys can damage both your washer and your
clothes.
!Close zippers, hooks, and drawstrings to prevent
these items from snagging or tangling on other
clothes.
!Pretreat heavily stained areas before washing.
- Doing so will produce clean, stain-free results.
!Combine large and small items in a load. Load
large items first.
!Large items should not be more than half of the
total washload.
!The washer can be fully loaded, but the drum
should not be tightly packed with items.
-The door of the washer should close easily.
!Do not wash single items, except for bulky items
such as blankets. M ake sure to wash laundry in
similar types of loads.
- Washing a single small item may result in the tub
becoming unbalanced, vibrating and making a
noise.
!Do not wash waterproof clothes.
- This may cause abnormal vibration, or may
cause the load to bounce, which could damage
the tub.
!Check if there are any other foreign objects in the
door seal and take extra care that clothes do not
get caught there.
- Foreign objects in the door seal may stain
clothes, and water may leak if clothes get caught
in the door seal.
!Wash underwear or small, light items in a laundry
net.
- Small, light items may get caught in the door
seal, and a brassiere hook may damage other
items or the tub.
!B rush heavy soil, dust, or hair off fabrics before
washing.
- Laundry may not wash clean if there is dirt or
sand on the fabrics, or they may damage due to
particles rubbing against sheer fabrics.
!Wash blankets individually.
- Washing more than one blanket together may
produce unclean results due to tangling or an
unbalanced load.
!Always separate fabrics according to their colors
and wash them separately to prevent colors from
running.
- Fabrics may damage or become stained due to
fabric dyes running, or due to foreign objects
transferring from one fabric to another.
PREPARATION
Sorting wash loads
Precautions for fabric care before wash cycle
Read and observe the following to prevent shrinkage or damage to clothes.
19
ENGLISH
PREPARATION
Category Label Directions
Washing
H and Wash
M achine Wash, Normal Cycle
Use Permanent Press/Wrinkle
Resistant washing machine
setting (which has a cool
down or cold spray before the
reduced spin)
Use Gentle/Delicate washing
machine setting (slow
agitation and/ or reduced
wash time).
Do Not Wash
Do Not Wring
Water
Temperature
H ot
Warm
Cold/Cool
B leach symbols
Any B leach (When Needed)
Only Non-Chlorine B leach
(When Needed)
Do Not B leach
Colors Whites / Lights / Darks
Soil H eavy / Normal / Light
Fabric Delicates / E asy Care / Sturdy Cottons
Lint Lint Producers / Lint Collectors
Fabric care labels
M ost articles of clothing feature fabric care labels
that include instructions for proper care.
Sorting laundry
It is recommended that you sort laundry into similar
loads that are washable in the same cycle.
Refer to the following chart for sorting clothes
20 PREPARATION
Loading the Dispenser
The detergent dispenser drawer of the washing
machine has a dispenser compartment for each
detergent type. Add each detergent to its appropriate
compartment.
1Pull out the detergent dispenser drawer.
2Add each detergent to its appropriate
compartment.
- If you use a liquid detergent, check if the liquid
detergent cup is in place.
- If you use a powdered detergent, remove the
liquid detergent cup and put the powder in the
main wash detergent compartment.
Liquid chlorine
bleach
com partm ent
Liquid
detergent
cup
Main wash
detergent
com partm ent
Pre-wash
detergent
com partm ent
Liquid fabric
softener
com partm ent
3Close the detergent dispenser drawer slowly.
- Slamming the detergent dispenser drawer may
result in the detergent overflowing into another
compartment or pouring into the tub earlier than
programmed.
NOTE
!It is normal for a small amount of water to
remain in the dispenser compartments at the
end of the cycle.
Using Detergent/Fabric Softener
Recom m ended Detergent
M ake sure to use H E (H igh-E fficiency) detergent
for frontloading washing machines. H E detergents
dissolve more efficiently and produce fewer suds to
ensure efficient
washing and rinsing. Use the correct amount of
detergent as indicated on the detergent packaging.
Specially designed to use only
H E (H igh-E fficiency) detergent
NOTE
!Only use H E detergents, because using a regular
detergent may produce excessive suds.
!H E detergents produce fewer suds, dissolve
more efficiently to improve washing and rinsing
performance, and help to keep the interior of
your washer clean.
!Use less detergent for soft water.
!Wipe up any spills immediately, as liquids could
damage the finish and the control panel of the
washing machine.
!Using too much detergent can cause a build-
up in the tub resulting in unsatisfactory
performance and machine malfunction.
!If you use a detergent that does not dissolve
easily or a detergent with high viscosity, it will
leave a residue on the tub, which may not rinse
properly.
Other manuals for WM3570H
4
This manual suits for next models
1
Table of contents
Other LG Washer manuals
