WASHING MACHINE
SERVICE MANUAL
Before servicing the washer, Read the safety precautions in the manual.
MODELS : WT-H800 / WT-H950
CAUTION

APRIL. 2005 PRINTED IN KOREA P/No.: MFL40322113

2
SAFETY PRECAUTION!
DISASSEMBLE POWER CORD BEFORE SERVING
RECONNECT ALL GROUNDING DEVICES
IMPORTANT SAFETY NOTICE !
This service information is intended for individuals
possessing adequate backgrounds of electrical,
electronic and mechanical experience.
Any attempt to repair this appliance may result in
personal injury or property damage.
The manufacturer or seller can not be responsible
for the interpretation of this information, nor can it
assume any liability in connection with its use.
CONTENTS
1. Specifications..................................................................................................................................................3
2. Installation Instructions....................................................................................................................................4
3. Operating Instructions
3-1. Identification of Parts .............................................................................................................................10
3-2. Before Starting to Wash.........................................................................................................................11
3-3. Function of Each Button.........................................................................................................................16
3-4. Washing Programs ................................................................................................................................18
3-5. Other Functions .....................................................................................................................................20
3-6. Care and Maintenance...........................................................................................................................28
4. Service Information
4-1. Schematic Diagram................................................................................................................................29
4-2. Wiring Diagram ......................................................................................................................................30
4-3. Program Time Chart ..............................................................................................................................31
4-4. Adjustmen..............................................................................................................................................32
4-5. Disassembly Instruction.........................................................................................................................33
4-6. Test Running without water ...................................................................................................................36
4-7. Trouble Shooting against Common Washing Problems ........................................................................37
4-8. Trouble Shooting According to Error Message......................................................................................38
4-9. How to Diagnose and Repair by Symptom............................................................................................40
5. Exploded View ..............................................................................................................................................55
6. Replacement Part List...................................................................................................................................59

1. SPECIFICATIONS
3
Refer to rating label on the back of Washer
Refer to rating label on the back of Washer
Refer to rating label on the back of Washer
Plastic / Stainless
0.5kgf/cm2~ 6kgf/cm2
Refer to rating label on the back of Washer
Refer to rating label on the back of Washer
10 Stages
Available for 3~ 48 Hr
B.P Sensor
Magnet Sensor
Applied
Single / Double
Applied
Applied
Applied
Applied
Applied
FUZZY, WOOL, QUICK WASH, JEANS, ECO COTTON, SOAK,
FAVORITE, SILENT
50Hz : 680 50 rpm
60Hz : 730 50 rpm
POWER SOURSE
INPUT
CAPACITY
INNER TUB
INLET WATER
PRESSURE
SPIN SPEED
DIM.
WEIGHT
PROGRAM
WATER LEVEL
RESERVATION
UNBALANCE
SWITCH
LID INTERLOCK
SWITCH
CHILD LOCK
LINT FILTER
SOFTENER
DISPENSER
DETERGENT
DISPENSER
BLEACH INILET
AUTO POWER OFF
SENSOR

4
2-1. HOW TO ADJUST LEVEL
2. INSTALLATION INSTRUCTIONS
1
2
Improper installation of the washer may cause noise and malfunctioning.
1. The ventilating openings in the base area must not be obstructed be
carpeting when the washing machine is installed on a carpeted floor.
2. Install the washing machine on a level and firm surface, any tilt should
be less than 1° .
Installation area
• Install the washer on flat and firm
surface.
Checking level
• Open the lid, and check if the
washer is correctly leveled by
looking down from the top.
How to use the adjusting plates
• Use the adjusting plates to level the washer
when the adjustable legs cannot cover the gap.
Turn the adjustable legs to set the
washer horizontal (2 EA).
Adjustable leg

5
Confirming level
•Place the washer to original position
and confirm the level.
Checking slope
•If installation surface is tilted, the
washer will be shaken.
Horizontal setting
•Lift up the front of the washer and
adjust level by turning the
adjustable legs clockwise or using
the adjusting plate.
Distance between drain hose and the wall
•Distance between drain hose and the wall should
be more than 10 cm, and the distance between the
other part and the wall should be more than 2 cm.
More than 2cm
More than 10cm
More than 2cm

6
2-2. CONNECTING WATER SUPPLY HOSE
Before connecting Water Supply Hose to water tap, check your hose type and choose correct
instruction. Water Supply Hose may vary according to the country.
Make sure connect blue inlet hose to COLD water tab, and orange inlet hose to HOT water tab.
Connecting Water Supply Hose to water tap
Untighten the screw
Untighten the screw of the connector so that the tap can be
placed in the middle.
{Normal tab without thread & screw type inlet hose.)
1
Normal Type
Fixing the connector to the tap
Push the upper connector up till the rubber packing is in tight
contact with the tap. Then tighten the 4 screws.
2
Attach the water supply hose to the connector
Push the water supply hose vertically upwards so that the rubber
seal within the hose can adhere completely to the tap.
3
Fixing the connector of connector and water supply hose
Attach the water supply hose to the connector
and then tighten it by screwing it to the right.
4
Check the connection of water supply hose and the connector
After connecting the hose, open the tap to check for any water leakage.
In case of water leakage, close the tap and start again from step 1.
5
Rubber packing
Connector
Water supply hose

Note
7
(NORMAL TAB WITHOUY THREAD & ONE TOUCH TYPE INLET HOSE.)
One Touch Type
Separate Middle connector from Water Supply Hose
Separate Middle connector from the Water
Supply Hose by pulling the Pressing Rod and
the Pressing Handle that is attached to the
Water Supply Hose while pressing them.
1
Fixing Connectors to the Tap
Push the upper connector up till the rubber packing is in tight
contact with the tap.
Then tighten the 4 screws.
3
Fixing Upper Connector and Middle Connector
Remove the fixed sticker in between the Upper
and Middle Connectors.
Tighten the connectors by holding one connector
and twist middle connector to the right.
4
Connecting Middle Connector and Water Supply Hose
Press down the pressing rod of the Water
Supply Hose which was separated from middle
connector(refer to Step1) and then join it to
the middle connector.
5
Checking the water leakage
After connecting the hose, open the tap to
check for any water leakage.
In case of water leakage, close the tap and start
again from step 1.
If you skip step1, it may cause water leakage.
6
Conector
Medio Etiqueta Fija
Manija de Presión
Barra de Presión
Manguera de Suministro de Agua
Empaque de Caucho
Tornillo
Etiqueta Fija
Empaque de Caucho
Placa Guía
Conector
Conector
Etiqueta Fijada
Conector
Medio Conector
Medio
Conector
Manguera de Suministro de Agua
Barra de PresiónManijade Presión
Loosen the fixed nuts to connect the connector to the tap
Untighten the screw of the connector so that the tap can
be placed in the middle.
In case the tap is large.
If the tap diameter is too large or is square,
open the 4 screw and take out the guide
plate and follow step 1.
2
Fixed Stiicker
Pressing Handle
Pressing Rod
Water Supply Hose
Middle connector
Rubber packing
Screw
Fixed sticker
Guide plate
Connector
Connector
Rubber packing
Connector
Middle
Connector
Pressing handle
Middle
Connector
Fixed sticker
Pressing rod
Water Supply Hose

8
Screw Type
Attach the water supply hose to the tap.
Push the water supply hose up so that the rubber
packing within the hose can adhere completely
to the tap.
1
Connect the water supply hose to the tap.
Connect the water supply hose to the tap and then tighten
it by screwing it to the right.
2
Check water leakage.
After connecting the hose, open the faucet to
check for any water leakage.
Connect the water supply hose to inlet valve of
the washing machine, and then lock it by
turning the hose connecting part.
Check to see if there is a rubber seal inside the
connector.
3
Connecting Water Supply Hose to the machine
Water Supply Hose
Rubber Packing
Water
tap
Hose connector
Rubber seal

9
2-3. CONNECT THE DRAIN HOSE
For pump model
• Do not install the washer where it is directly exposed to sunlight,
wind, rain etc.
• Plug the power cord of this washer into a properly installed
standard electrical outlet that is switched & earthed.
•Connect the drain hose to the
outlet of the drain pump located
at the rear of the washing
machine.
•Attach the clip to the drain hose.
And then push it toward the body
of the washing machine as
indicated by the arrow.
•Check that the drain hose is
hung up over the edge of the
laundry tub.
•Do not use an extension hose.
NOTE : •Never lay down the drain hose, as water will be discharged.
•Be sure the drain hose is properly routed so it will not kink or lift from the sink.
•The discharge height should be approximately 0.9~1.2m from the floor.
•Connect the drain hose adjusting the length of it not to be dropped. If drain hose is dropped the
drainage could be poor because of blockage in the hose.
For non - pump model
•Connect the drain hose to the outlet of the drain
located at the back side of the washing machine. •Fix the drain hose with the clip. And then push it toward the body as in the figure.
•Keep it downward while the washing machine is working.
•Ensure the hose is free from kinking.
Drain Hose
0.9~1.2m
Within 50mm
Hose
Guide

10
3. OPERATING INSTRUCTION
3-1. IDENTIFICATION OF PARTS

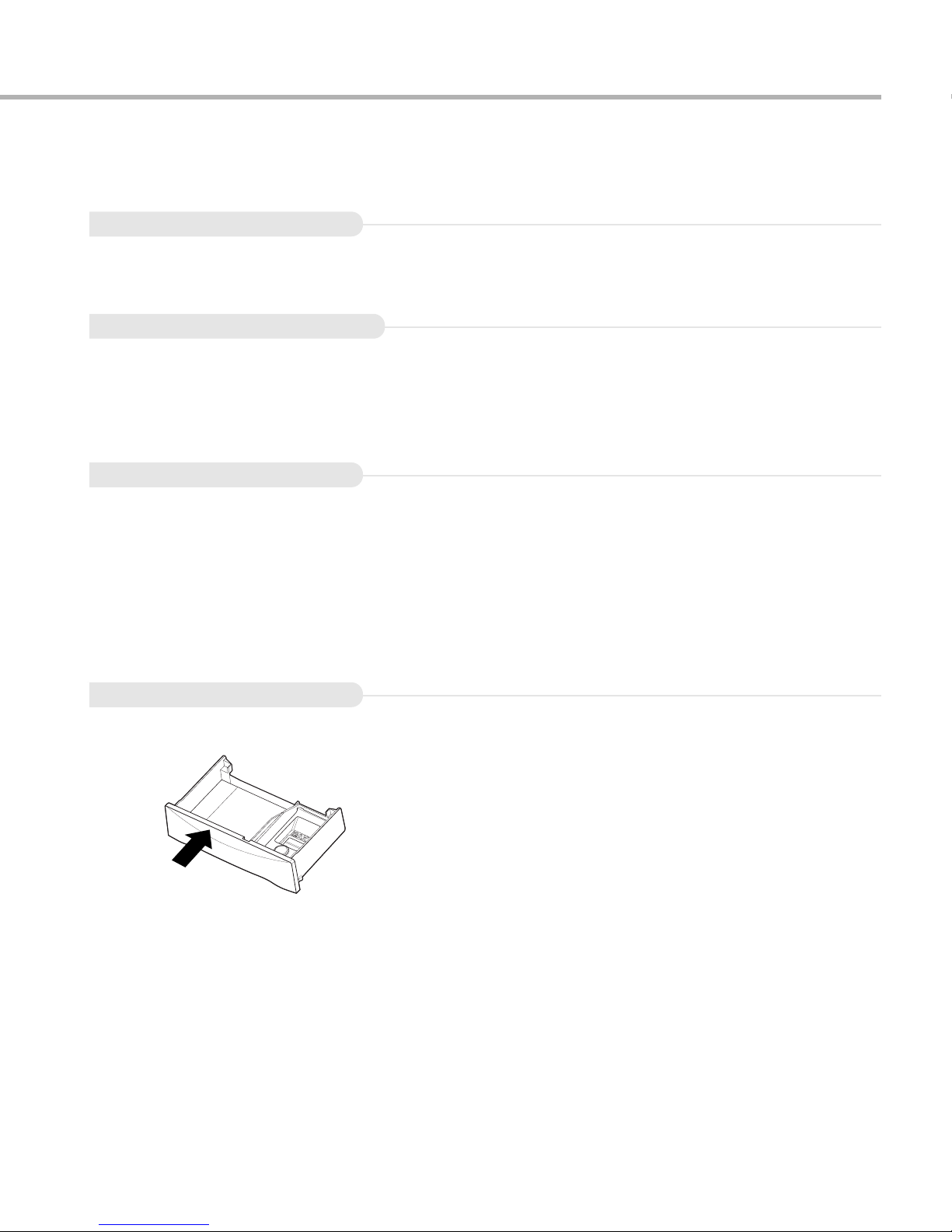

POWDER DETERGENT BOX
FOR DELAYED WASHING /
SOFTENER BOX
WATER
SUPPLY HOSE
Make sure the
water does not
leak.
POWER PLUG
If the supply cord is
damaged, it must be
replaced by the
manufacturer or its
service agents or
similarly qualified
person in order to
avoid a hazard.
DRAIN HOSE
for pump model
Check if the drain
hose is placed into
the laundry tub and
secured before
operating the
washing machine.
If the drain hose is
not elevated, the
water will syphon
out completely.
BASE
BLEACH
DISPENSER( )
FUNCTION
SELECTOR
TUB
Multi Clean Filter
START/PAUSE
BUTTON
Use to start or
stop the washing
machine
temporarily.
ADJUSTABLE LEGS
Use to level the washing
machine for correct
balance & spin operation.

Do not wash fabrics containing flammable materials
(waxes, cleaning fluids, etc.).
Load Size
The WATER LEVEL should just cover the clothes. Adjust the load size
accordingly. Loosely load clothes no higher than the top row of holes in
the washer tub. To add items after washer has started, press START
button and submerge additional items. Close the lid and press START
button again to restart.
Light and Large-sized clothing
Clothes like downs and woollens are light weight, large and float easily.
Use a nylon net and wash them in a small amount of water. If the laundry floats during the wash cycle,
it may become damaged. Use dissolved Detergent to prevent the Detergent from clumping.
Long laundry items
Use nylon nets for long, DELICATE items. For laundry with long strings or long length , a net will
prevent tangling during washing. Fasten zippers, hook, and strings to make sure that these items
don't snag on other clothes.
Nylon net is not supplied by LG.
11
3-2. BEFORE STARTING TO WASH
Care Labels
Sorting
Pretreatment on stains or heavy soil
Check before Loading
Loading
* Look for a care label on your clothes. This will tell you about the fabric content of your garment
and how it should be washed.
Sort clothes into loads that can be washed with the same wash cycle, Water Temperature and spin speed.
To get the best results, different fabrics need to be washed in different ways.
•SOIL (Heavy, Normal, Light) Separate clothes according to the type and amount of soil.
•COLOR (Whites, Lights, Darks) Separate white fabrics from colored fabrics.
•LINT (Lint producers, Collectors) Separate lint producers and lint collectors.
Lint Producers Terry cloth, Chenile, Towels, Nappies, Diapers
Lint Collectors Synthetics, Corduroy, Permanent Press, Socks
•Check all pockets to make sure that they are empty. Things such as nails, hairclips, matches, pens, coins,
and keys can damage both your washer and your clothes.
•Mend any torn garments or loose buttons. Tears or holes may become larger during washing.
•Remove belts, underwires, etc. to prevent damage to the machine or your clothes.
•Pretreat any dirt and stains.
•Make sure the clothes are washable in water.
•Check the washing instructions.
•Remove tissue in pockets.
•Pretreat shirt collars and cuffs with a pre-wash product or liquid Detergent when placing them in the washer.
Before washing treat special stains with bar soaps, liquid Detergent or a paste of water and granular Detergent.
•Use a pretreat soil and stain remover.
Treat stains AS SOON AS POSSIBLE. The longer they are left the harder they are to remove.
Fire Hazard
Never place items in the washer that are
dampened with gasoline or other flammable
fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any type
of oil on it (including cooking oils).
Doing so can result in death, explosion, or fire.
WARNING
WIRE

12
Using Water
Amount of WATER LEVEL
Water Temperature
•This machine detects the quantity of laundry automatically, then sets the WATER
LEVEL and displays the amount of detergent to be used.
•When you select a wash program, the WATER LEVEL and amount of Detergent (to be
used) will be shown on the control panel.
•The following table shows the amount of water.
• When the WATER LEVEL is automatically detected, it may differ depending on the quantity
of laundry even though the same WATER LEVEL is indicated on the control panel.
[ Minimum water amount ]
It depends on laundry load and washer model. If adding water manually at the beginning of a wash, the water
sensor will then allow the machine to start washing when the minimum amount of water has been added.
•The machine sets the appropriate temperature automatically according to the wash program.
•You can change the Water Temperature by pressing the WATER TEMP. button. (refer to page 14)
•
The temperature of the water impacts the effectiveness of all laundry additives and therefore, the cleaning results.
We recommend temperatures of:
- HOT 49~55°C…(120-140 )White items, diapers, underclothing and heavily soiled, colorfast items.
- WARM 29~40°C…(85-105 )Most items
- COLD* 18~24°C…(65-75 )Only very bright colors with light soil.
•When washing in COLD water additional steps may be needed:
- Adjust Detergent amount and pre-dissolve Detergent in WARM water and add to the machine by hand.
- Pretreat spots and stains
- Soak heavily soiled items
- Use appropriate bleach
* Temperature below 18°C…(65 ) will not activate laundry additives and may cause lint, residue, poor cleaning,
etc. In addition, Detergent manufactures and care labels define COLD water as 26~29°C…(80-85 ).
If the temperature of the water in the tub is too cold for your hands, the Detergent will not activate and clean effectively.
Using the Dispenser Drawer
The dispenser drawer contains 2 compartments:
•Liquid Fabric Softener
• Liquid or Powder Low-Sudsing, High-Efficiency Detergent
The dispenser automatically dispenses additives at the proper time in the wash cycle.
1.Slowly open the dispenser drawer by pulling the drawer out until it stops.
2.After adding laundry products, slowly close the dispenser drawer. Closing the drawer
too quickly could result in early dispensing of additives.
•Avoid overfilling or splashing when adding laundry products to the dispenser.
Doing so could result in early dispensing of laundry products.
At the end of the cycle, you may see water in the compartments. This is part of the
normal operation of the washer.
NOTE: Do not use bleach in the dispenser drawer.
NOTE
If iron is present in the water the clothes may become an all-over yellow or they may be stained with brown or
orange spots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be necessary
for severe cases.
NOTE

13
Using Detergent
Detergent
Choosing the right Detergent
Follow the Detergent package directions. Using too little Detergent is a common cause of laundry problems as is if
too much detergent is used.
Only more Detergent if you have hard water, large loads, greasy or oily soils or lower Water Temperature.
Using Detergent
How much Detergent
The correct amount of Detergent will vary depending on the amount of soil in your clothes (Jeans and work
cloches may need more Detergent, while bath towels usually need less.).
For liquid and concentrated Detergents, follow the recommendations of the Detergent manufacturer.
Note: To check you are using the correct amount of Detergent, lift the lid of your machine about half-
way through the wash. There should be a thin layer of foam over the surface of the water. Lots of foam
may look good, but it does not contribute to cleaning your clothes. No foam means not enough
Detergent has been used; soil and lint can settle back on the clothes or the washing machine.
If excess Detergent is used, the rinse will not be as clean and efficient. Also, it could cause
environmental pollution, and long term scrud build up.
Adding Detergent
Add measured detergent to the detergent compartment of the dispenser drawer.
Detergent is flushed through the dispenser at the beginning of the wash phase. Pre dissolved detergent can also
be added directly into the bowl by hand at this time.
Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load.
Avoid using too much detergent in your washer, as it can lead to oversudsing and detergent residue being left on
the clothes.
We recommend the use of drum type, low sudsing high efficiency Detergent(powder,liquid or concentrated).
Soap flakes or granulated soap powders should not be used in your washing machine. When washing woolens
Remember to use Detergent suitable for washing woolens.

14
Using Liquid Bleach
•Check clothing care label for special instructions and separate the
laundry to be bleached
•Dilute liquid chlorine bleach.
•Measure the recommended amount of liquid bleach carefully following
instructions on the bottle.
•Before starting the washer, pour measured amount of bleach directly into
bleach dispenser. Avoid splashing or overfilling. Powdered bleach
should be mixed thoroughly with water before pouring.
Using Fabric Softener
If desired, pour the recommended amount of liquid fabric softener
into the right-hand compartment.
Use only liquid fabric softener.
Dilute with water if necessary before adding to the maximum fill
line.
•Do not exceed the maximum fill line.
Overfilling can cause early dispensing of the fabric softener,
which could stain clothes.
NOTE: Do not pour fabric softener directly on the wash load.
It may stain the clothes.
Scrud(Waxy Build up)
Scrud is the name given to the waxy build-up that can occur within any washer when the fabric softener comes
into contact with Detergent. This build-up is not brought about by a fault in the machine.
If scrud is allowed to build-up in the machine it can result in stains on your clothes or an unpleasant
smell in your washer.
Never pour undiluted liquid bleach directly onto clothes or into the wash basket.
This may cause change of color or damage the laundry.
Do not pour powdered bleach into bleach dispenser.
If you wish to use fabric softener we recommend
•Using fabric softener sparingly.
•When filling the dispenser, do not splash or overfill.
•Clean dispenser as soon as the cycle is finished.
•Clean your machine regularly. (refer to page 21 or 33)
•Cold water washing increases the chance of this build-up occurring. We recommend a regular WARM or HOT
wash e.g. every 5th wash should be at least a warm one.
• Fabric softener of thinner consistency is less likely to leave residue on the dispenser and contribute to a build-up.
NOTE
Do not mix with Detergent or bleach.
Never pour fabric softener directly on clothes. It may stain them.
Do not stop the washer during the first spin for timely dispensing.
Softener will not be dispensed if an Option Wash is selected.
Attention

Follow fabric care label
instructions
15
SPECIAL GUIDE FOR STAIN REMOVAL
For successful stain removal:
•Remove stains promptly.
•Determine the kind of stain, then follow the recommended treatment in the stain removal
chart below.
•To pretreat stains, use a prewash product, liquid Detergent, or a paste made from
granular Detergent and water.
•Use COLD water on unknown stains because HOT water can set stains.
•Check care label instructions for treatments to avoid on specific fabrics.
•Check for colorfastness by testing stain remover on an inside seam.
•Rinse and wash items after stain removal.
Stain Removal
STAIN
Adhesive tape, chewing gum,
rubber cement
Baby formula, dairy products, egg
Beverages (coffee, tea, soda,
juice, alcoholic beverages)
Blood
Candle wax, crayon
Chocolate
Collar or cuff soil, cosmetics
Dye transfer on white fabric
Grass
Grease, oil, tar (butter, fats, salad
dressing, cooking oils, car grease,
motor oils)
Ink
Mildew, scorch
Mud
Mustard, tomato
Nail polish
Paint, varnish
Rust, brown or yellow
discoloration
Shoe polish
Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with prewash stain remover or
nonflammable dry cleaning fluid.
Use product containing enzymes to pretreat or soak stains.
Pretreat stain. Wash using COLD water and bleach safe for fabric.
Rinse with COLD water. Rub with bar soap. Or pretreat or soak with product containing enzymes. Wash using
bleach safe for fabric.
Scrape off surface wax. Place stain face down between paper towels. Press with warm iron until wax is
absorbed. Replace paper towels frequently. Treat remaining stain with prewash stain remover or
nonflammable dry cleaning fluid. Hand wash to remove solvent. Wash using bleach safe for fabric.
Pretreat or soak in WARM water using product containing enzymes. Wash using bleach safe for fabric.
Pretreat with prewash stain remover or rub with bar soap.
Use packaged color remover. Wash using bleach safe for fabric.
Pretreat or soak in WARM water using product containing enzymes. Wash using bleach safe for fabric.
Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy stains and tar, apply
nonflammable dry cleaning fluid to back of stain. Replace towels under stain frequently. Rinse throughly.
Wash using hottest water safe for fabric.
Some inks may be impossible to remove. Washing may set some inks. Use prewash stain remover,
denatured alcohol or nonflammable dry cleaning fluid.
Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and HOT water before washing. Badly
mildewed fabrics may be permanently damaged.
Brush off dry mud. Pretreat or soak with product containing enzymes.
Pretreat with prewash stain remover. Wash using bleach safe for fabric.
May be impossible to remove. Place stain face down on paper towels. Apply nail polish remover to back of
stain. Repeat, replacing paper towels frequently. Do not use on acetate fabrics.
WATER BASED : Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed,
OIL BASED AND VARNISH : Use solvent recommended on can label. Rinse throughly before washing.
For spots, use rust remover safe for fabric. For discoloration of an entire load, use phosphate Detergent and
nonchlorine bleach. Do not use chlorine bleach because it may intensify discoloration.
LIQUID : Pretreat with a paste of granular Detergent and water. PASTE : Scrape residue from fabric. Pretreat
with prewash stain remover or nonflammable dry cleaning fluid. Rub Detergent into dampened area, Wash
using bleach safe for fabric.
TREATMENT
Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products
containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.
To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below:
•Read and comply with all instructions on stain removal products.
•Keep stain removal products in their original labeled containers and out of children’s reach.
•Thoroughly wash any utensil used.
•Do not combine stain removal products, especially ammonia and chlorine bleach. Dangerous fumes may result.
•Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry cleaning solvents
or other flammable or explosive substances because they give off vapors that could ignite or explode.
•Never use highly flammable solvents, such as gasoline, inside the home. Vapors can explode on contact with flames or sparks.
WARNING

16
3-3. FUNCTION OF EACH BUTTON
WATER TEMPERATURE
BUTTON (OPTION)
• Use to select Water
Temperature.
Pressing the button allows
you to select COLD
WARM (HOT&COLD)
HOT COLD
respectively.
AIR DRY
• This button is used for air-
drying of your laundry.
•Air dry selections light up in
sequence as follows.
60 90 120 60 as the
button is pushed.
• Press the button for 3 seconds
to select and press the Power
botton to cancel the operation.
(refer to page 22)
SOIL LEVEL BUTTON
• This button allows you
to select the strength of
the wash action.
• Power option selections
light up in sequence as
follows Normal Heavy
Light Normal as the
button is pushed.
This can be selected for
any program.
•Adjustment can be made
while washing.
TUB DRY
• Use this when
you want to dry
Tub.
•This can be
set/canceled by
pressing the Wash
button and Rinse
button
simultaneously.
(refer to page 22)
WASH. RINSE. SPIN BUTTON
• Use when wash, rinse, spin
time need to be adjusted.
• The time increases when the
button is pressed.
• If adjustments are needed
during the wash, press the
[start/pause] button before
making any changes.
•When the button is pressed
during washing, the
remaining time is displayed.
CHILD LOCK FUNCTION
• Use to lock or unlock the
control buttons to prevent
settings from being
changed by a child.
To lock, push the RINSE
and SPIN buttons
simultaneously and to
unlock push them one
more time during the
washing process.
(refer to page 25)
WATER LEVEL BUTTON
• Use to select the proper amount of water in
relation to the weight and type of laundry.
• Automatically controlled, but can be selected
manually by pressing the WATER LEVEL
Button.
• WATER LEVEL is automatically selected for
FUZZY program.
The following settings are indicated as the
button is pushed
7 8 9 10 1 2 3 4 5 6 7
TIME LEFT, DELAY START
(RESERVATION), ALARM INDICATION
• Time left - During operation, the remaining
time is indicated.
•DELAY START INDICATION
(RESERVATION) - When DELAY START
(RESERVATION) program is selected, it
indicates the finishing time. (RES.=DELAY)
•Alarm indication - When an error occurs, an
error message appears to indicate the
abnormality. For example, indicates that
the lid is open.
* For optimizing the washing algorithm, the displaying time may be changed during washing-increased by 8minutes at
maximum and decreased by 4 minutes at maximum.
* If the Detergent quantity is excessive,the machine will automatically add one or two rinses in order to improve the
rinse performance.
* The Detergent sensor will make algorithm changes to compensate for detergent quantity, only if the detergent powder
is synthetic based, If a liquid or organic based detergent is used, or too much bleaching agent, the detecting ability of
the sensor may be decreased.
NOTE

17
DELAY START (RESERVATION) BUTTON
•Use to set a delayed finishing
time.
• The time increases when the
button is pushed.
• The following settings are
indicated as the button is pushed
3 4 5 ...11 12 14 16
...46 48 3 HOUR.
• To cancel delay time, turn the
power switch off.
(refer to page 24)
PROGRAM BUTTON
• Use for selecting wash program.
• This button allows you to select 8
different programs for different kinds of
laundry and soil condition.
• program selections light up in sequence
as follows: FUZZY WOOL QUICK
WASH JEANS ECO COTTON
SILENT FAVORITE TUB CLEAN
FUZZY etc. Select the desired
program by pressing the button.
START/PAUSE BUTTON
• Use to start or pause the
washing process.
• Repeats start and pause by
pushing the button.
WASHING CONDITION INDICATOR (OPTION)
• It only operates in FUZZY Program.
• During sensor detection, the LED flashes green, orange and red in turn. And, after detecting, the LED lights a
specific color according to the detecting condition as follows:
If the current washing condition (Detergent quantity, Water Temperature, water quality, etc.) is determined
as better than the standard one, it optimizes the algorithm to save the energy by decreasing washing
time/strength, and the LED automatically turns to red.
If the current washing condition is determined as worse than the standard one, it optimizes the algorithm by
increasing washing time/strength, and the LED automatically turns to orange.
If the current washing condition is determined as equal to the standard one, the algorithm has no change
and the LED turns to green.
POWER(AUTO OFF)
BUTTON
• Use to turn the power on or off.
• Push again and power goes on or off
• The power goes off automatically
about 10 seconds after the wash is
finished.
* As the detecting ability of the sensor may be decreased over time, a tub clean cycle periodically is recommended.
(refer to page 21)
* Even if the water level or the water temperature are changed by the user in FUZZY Program, the sensor will still
work. The sensor algorithm may differ according to models.
* The control panel may differ according to different models.

18
3-4. WASHING PROGRAMS
12
3 2 5
4
1
Add
the
laundry
Add
the Detergent
Washing
Programs
This program is for mixed fabrics
as normal operation. It is
automatically selects the most
appropriate wash conditions such
as wash action and cycle times by
utilizing the built-in load sensor.
• Add the appropriate
quantity of Detergent as
indicated by the
WATER LEVEL next to
WATER DETERGENT.
Or follow the Detergent
manufacturer’s
instructions
•
Use neutral Detergent
appropriate for the
laundry.
•
When washing woolens
use a mild Detergent
recommended for
washing wool.
•Select the
WOOL
program on
the Control
panel.
3 2 51
• Add the appropriate
quantity of Detergent as
indicated by the
WATER LEVEL next to
WATER DETERGENT.
Or follow the Detergent
manufacturer’s
instructions
•Select the
QUICK
WASH
program on
the Control
panel.
3 2 51
•
Select the
JEANS
program on
the Control
panel.
3 2 51
•
Select the
ECO COTTON
program on the
Control panel.
• Spread
the jean
evenly in
the tub
Use this program for washing
delicate fabrics such as lingerie and
woolens. (wash only “water
washable” clothes) Before washing
your woolens check the care label
for the washing instructions.
(wash only water washable clothes)
Use this mode when washing
lightly soiled clothes for a short
time. The highly recommended
laundry amount is under 2.0kg.
Use Jean program when washing
Jeans of different sizes
Eco Cotton is the program for
normally soiled cotton material
and designed to minimize water
consumption.

19
56 3
6 74
6 7
4 6 7
46 7
4
Close the lid Finish Caution & Note
• The pulsator rotates for
8 seconds to detect the
laundry load.
• Then the WATER
LEVEL and the amount
of Detergent to be
used will be shown and
water will be supplied.
• Water will be let in
again 2 minutes
after the wash has
started to
supplement the
water the laundry
has absorbed.
• When the wash
program ends, the
chime will sound
for 10 seconds
before the Power
goes off goes off
automatically.
•If water is already in the tub, or putting
wet laundry into the tub before starting will
increase the WATER LEVEL.
•With lightweight bulky loads, WATER
LEVEL can be set low.
•Changes to Water Temperature
(HOT/COLD) and wash level are possible
during operation.
(refer to page 14)
•
When setting the WATER LEVEL manually,
do not set below level number 6 in order to
prevent damage to the woollen clothes.
• Washing with HOT water may damage the
laundry (Water is set to cold automatically).
Ensure that the load is under 2kg.
• In order to avoid damage to laundry, the
spin cycle may appear slow.
This also avoids wrinkles and clothing may
still contain some water. This is normal.
•When static pressure of water is more
than 2kg/cm2, the QUICK WASH course
will be within 19min.
