LG WT4801CW User manual

WASHING MACHINE
SERVICE MANUAL
Read the safety precautions in the manual before servicing the washer.
CAUTION
MODEL WT4801CW

SAFETY PRECAUTION!
IMPORTANT SAFETY NOTICE!
2
This service information is intended for individuals possessing adequate backgrounds of
electrical, electronic, and mechanical experience. Any attempt to repair this appliance may result
in personal injury or property damage. The manufacturer or seller can not be responsible for the
interpretation of this information, nor can it assume any liability in connection with its use.
WARNING: To reduce the risk of fire, electric shock, or personal injury when using this
appliance, follow basic precautions, including the following:
󳢯󳢯Wear gloves when working.
Failure to do this can result in serious injury.
󳢯󳢯The appliance is heavy. Two or more people is
required when moving the appliance.
There is a risk of serious back injury or other injuries.
󳢯󳢯Certain internal parts are intentionally not
grounded and may present a risk of electric
shock only during servicing. Service personnel -
Do not contact the following parts while the
appliance is energized.
: Pump bracket, rotor and heater
To reduce the risk of fire, electric shock, or personal injury when using this appliance, follow basic precautions,
including the following.
󳢯󳢯Disconnect this appliance from the power
supply before servicing. Turning the controls to
the off position does not disconnect this
appliance from the power supply.
Failure to do this can result in shock.
󳢯󳢯Reconnect all grounded devices after servicing.
Failure to do this can result in shock.
CONTENTS
1. Specifications ............................................................................................................................. 3
2. Installation Instructions
2-1. How to Adjust Level .............................................................................................................4
2-2. Connerting Water Supply Hose .......................................................................................... 6
2-3. Connert the Drain Hose ...................................................................................................... 7
3. Operating Instructions
3-1. Identification of Parts .......................................................................................................... 8
3-2. Before Starting to Wash ...................................................................................................... 9
3-3. Function of Each Button ...................................................................................................14
3-4. Washing Programs ........................................................................................................... 16
3-5. Care and Maintenance ..................................................................................................... 17
4. Service Information

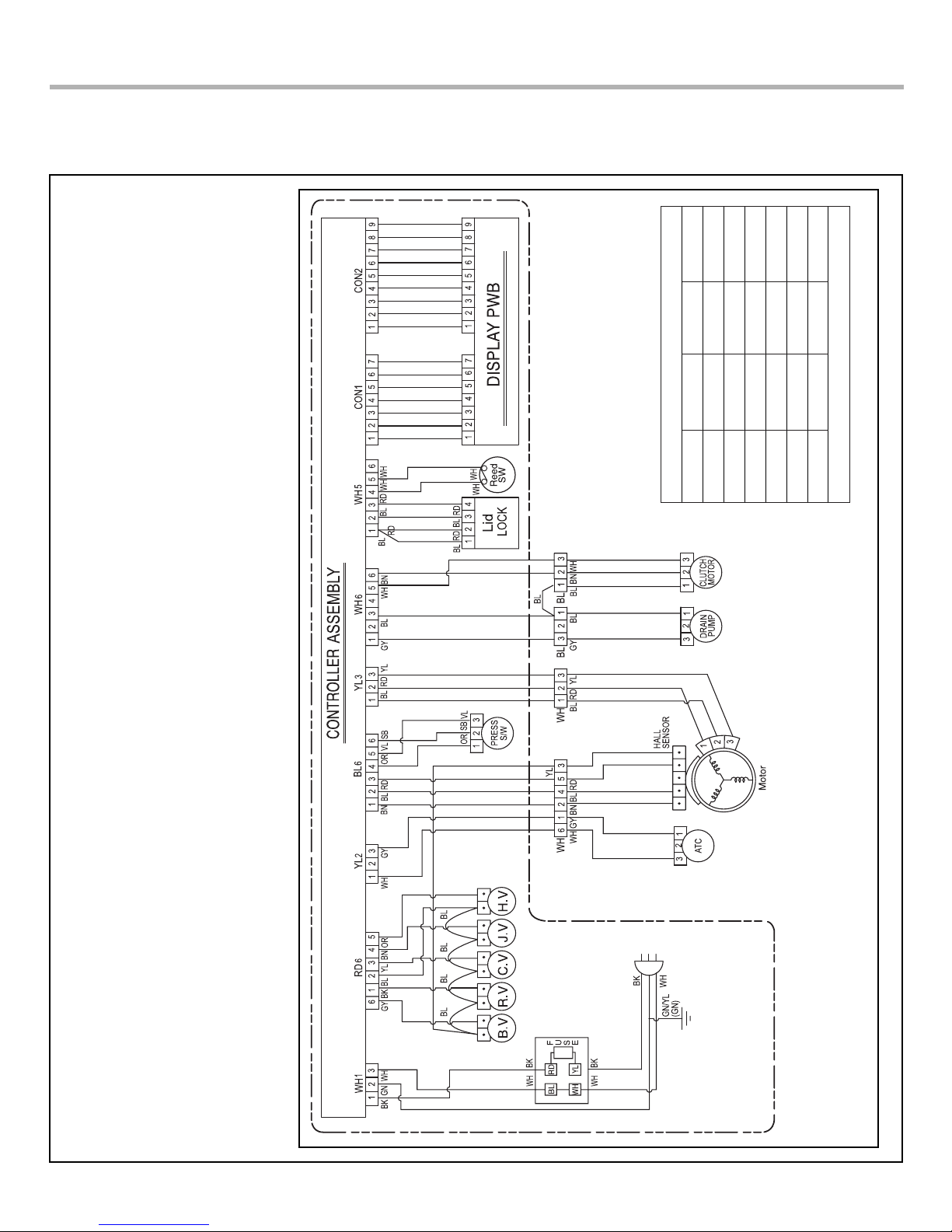

4-1. Wiring Diagram ................................................................................................................. 18
4-2. Disassembly Instrucion ..................................................................................................... 19
4-3. Test Operation Without Water ........................................................................................... 24
4-4. Troubleshooting Methods for Common Washing Problems ............................................. 25
4-5. Troubleshooting Methods According to Error Message ................................................... 26
4-6. How to Diagnosse and Repair by Symptom.......................................................................28
5. Exploded View ......................................................................................................................... 38
6. Replacement Part List .............................................................................................................. 42

1. SPECIFICATIONS
3
Model
Electrical
Inner Tub
Inlet Water Pressure
Rating of Fuse
Spin Speed
Weight
Cycles
Time Delay
Lid Interlock Switch
Child Lock
Softener Dispenser
Detergent Dispenser
Bleach Inlet
Auto Power Off
Smart Rinse™ with Jet Spray
WT4801CW
120VAC@60Hz.
Stainless
14.5 ~ 116 PSI (100 ~ 800 kPa)
125V, 12A for 100~127V/60Hz
Max. spin speed 1,000
145.5 lbs (58kg)
Cotton/Normal, Heavy Duty, Bulky/Bedding, Tub Clean, Perm Press
Casual, Delicates, Speed Wash, Rinse+Spin
1-24Hr
Magnet Sensor
Yes
Yes
Yes
Yes
Yes
Yes

4
2. INSTALLATION INSTRUCTIONS

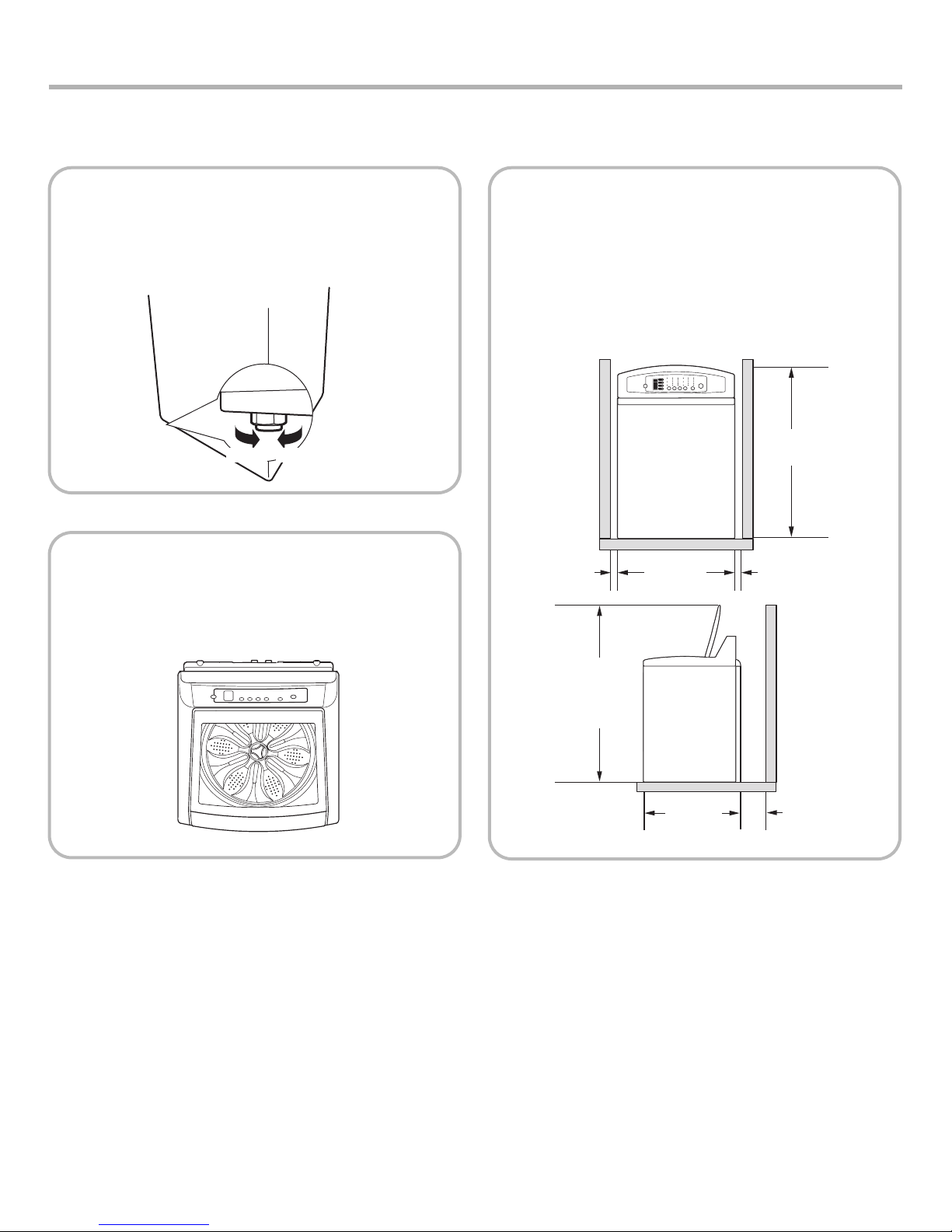

2-1. HOW TO ADJUST LEVEL
4
Raise Lower
CAUTION
• The ventilating openings in the base area must not be obstructed by carpeting.
• Install the washing machine on a level and firm surface, and tilt should be less than 1˚
• Wooden floors may need reinforcing to prevent the normal vibration which occurs with an
unbalanced load.
• Do not install the washer on an inclined floor.
Improper installation of the washer may cause noise and malfunctioning.
1Installation area
• Install the washer on a firm, flat
surface.
• If the washer is installed on an
unsuitable floor, it could make
considerable noise and vibrate.
2
3Checking level
• Open the lid, check if the washer is
correctly leveled by looking down
from the top. If a gap is seen
between the tub and drum, the
washer is not level.
No shims. It would be dangerous. If the
floor is that far from being level, it is a floor
problem and not a washer problem.
Set Leveling feet
• Loosen the locknuts on 2 front leveling
feet until you can turn the feet with the
included wrench. Turn clockwise to
raise the washer or counterclockwise
to lower it.
Checking slope
• If installation surface is tilted, the
washer will vibrate. Do not install
on a sloping floor.

5
28 1/4″
(71.6 cm) 4″
(10 cm)
52 3/4″
(133.7 cm)
(with lid
open)
27″
(68.6 cm)
1″
(2.5 cm)
1″
(2.5 cm)
43 7/8″
(111.4 cm)
6
7
5
Lower Raise
Confirming level
• Place the washer in original position,
confirming the level.
Horizontal setting
• Lift the front of the washer and adjust
level by turnings the adjustable legs
clockwise or using the adjusting plate.
Distance between the drain hose
and the wall
• Distance between the drain hose and
the wall should be more than 4 inches
(10 cm), and the distance between any
other part and the wall should be more
than 1 inches (2.5 cm)
󳥎󳥎Do not install the washer in the following places.
• Where the washer is exposed to direct sunlight.
• Near a heater or heating appliance.
• Where the washer is exposed to freezing temperatures.
• In damp environments such as bathrooms or harmful environments.

1Attach the water supply hose to the tap.
Push the water supply hose up so that the rubber packing
within the hose can adhere completely to the tap.
2Connect the water supply hose to the tap.
Connect the water supply hose to the tap and then tighten it by
screwing it to the right.
3Check water leakage.
After connecting the hose, open the tap to check for
any water leakage.
Check water leakage.
After connecting the hose, open the tap to check for
any water leakage.
Connecting Water Supply Hose to the machine
• Connect the water supply hose to inlet valve of
the washing machine, and then lock it by turning
the hose connecting part.
• Check to see if there is a rubber seal inside the
connector.
• A nwe washing machine should be instailed with new
hoses. The old hoses shuld not be reused.
Screw Type
Hot
Cold
Water tap
Rubber Seal
Water Supply Hose
Water Hose
(to water inlet
on washer)
Rubber Seal Water Hose
(to tap)
Rubber Seal

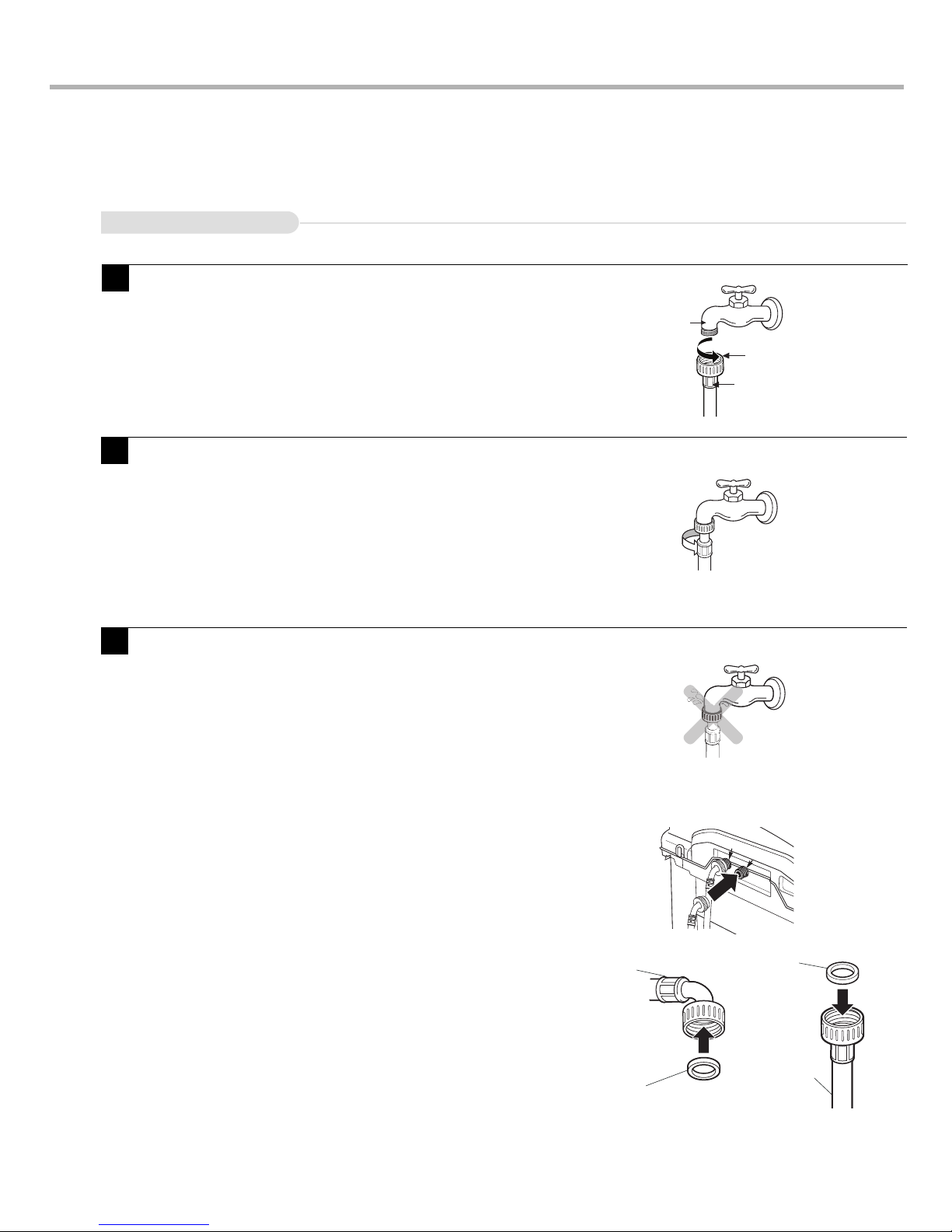

2-2. CONNECTING WATER SUPPLY HOSE
6
Before connecting the Water Supply Hose to the water tap, check the hose type and then choose the
correct instruction here under.

7

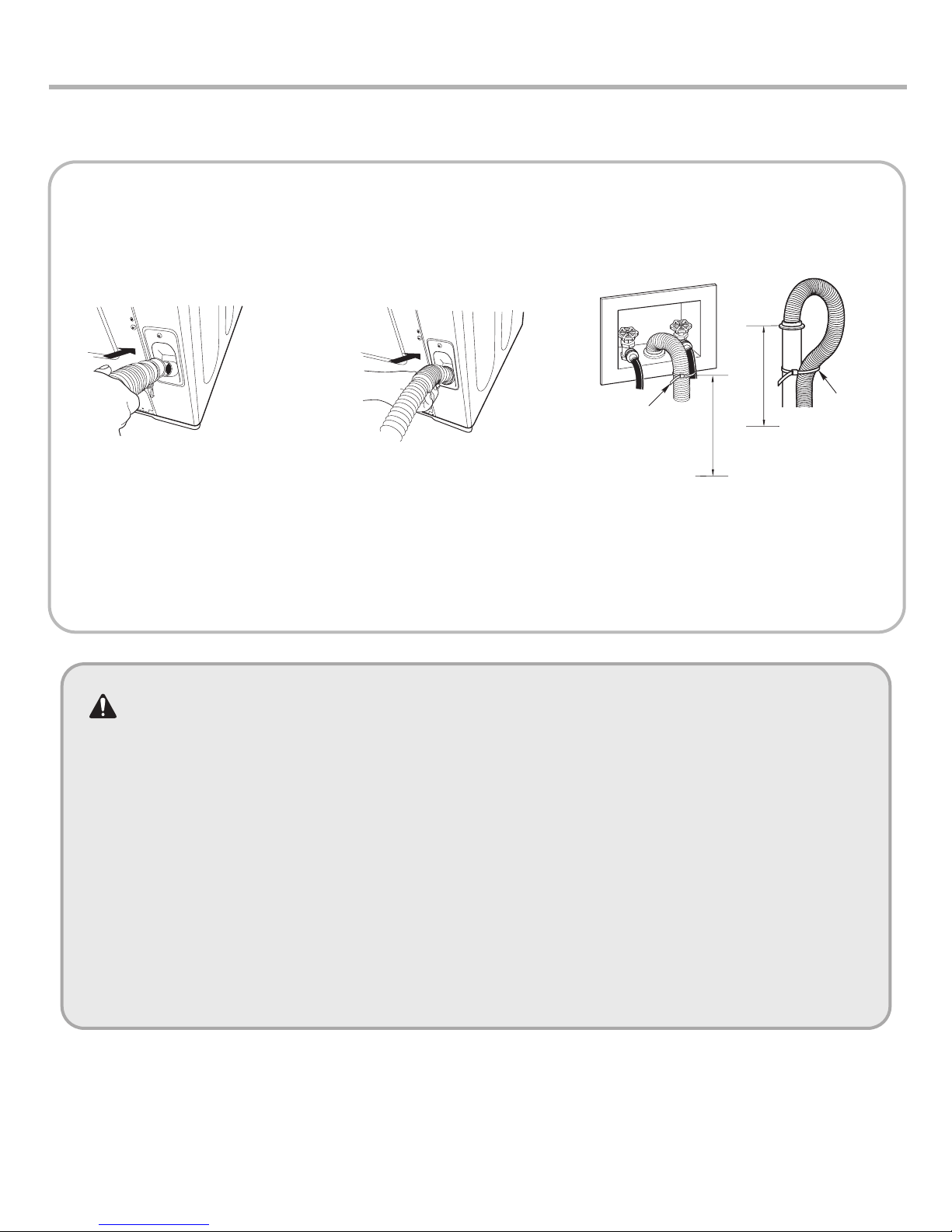

2-3. CONNECT THE DRAIN HOSE
39" (99 cm)
39" (99 cm)
• Connect the drain hose to the
outlet of the drain pump located at
the rear of the washing machine.
• Attach the clip to the drain hose.
And then push it toward the body of
the washing machine as indicated
by the arrow.
• Check that the drain hose is hung
up over the edge of the laundry tub.
• Do not use an extension hose.
NOTE : • The drain hose should always be properly secured. Failure to properly secure the drain hose
can result in flooding and property damage.
• The end of the drain hose should be placed 39" (99 cm) from the floor.
• The drain must be installed in accordance with any applicable local codes and regulations.
• Make sure that the water lines are not stretched, pinched, crushed, or kinked.
• Do not insert the drain hose more than 12” (30 cm) into the drain pipe to avoid siphoning and
odor build-up.
Cable Tie Cable Tie
WARNING:
• The washer should never be installed or stored in a location subject to freezing temperatures. If the
washer was exposed to freezing temperatures prior to installation, allow it to stand at room
temperature for several hours before use Damage to the water lines and internal mechanisms of
the washer can result.
• Water supply pressure must be between 14.5 psi and 116 psi (100 ~ 800kPa) If the water supply
pressure is more than 116 psi, a pressure reducing valve must be installed. If you have
uncontrolled water temperature and pressure you should fit a temperature and pressure relief valve
to ensure that wate temperature and water pressure remain within the safe limits. Consult a
plumber or electrician if you are unable to adjust water temperature and or pressure. Failure to do
so can result in damage to the machine.
• Plug the power cord of washer into a properly grounded outlet. Failure to do this can result in shock
or serious injury.

8
3. OPERATING INSTRUCTION
3-1. IDENTIFICATION OF PARTS

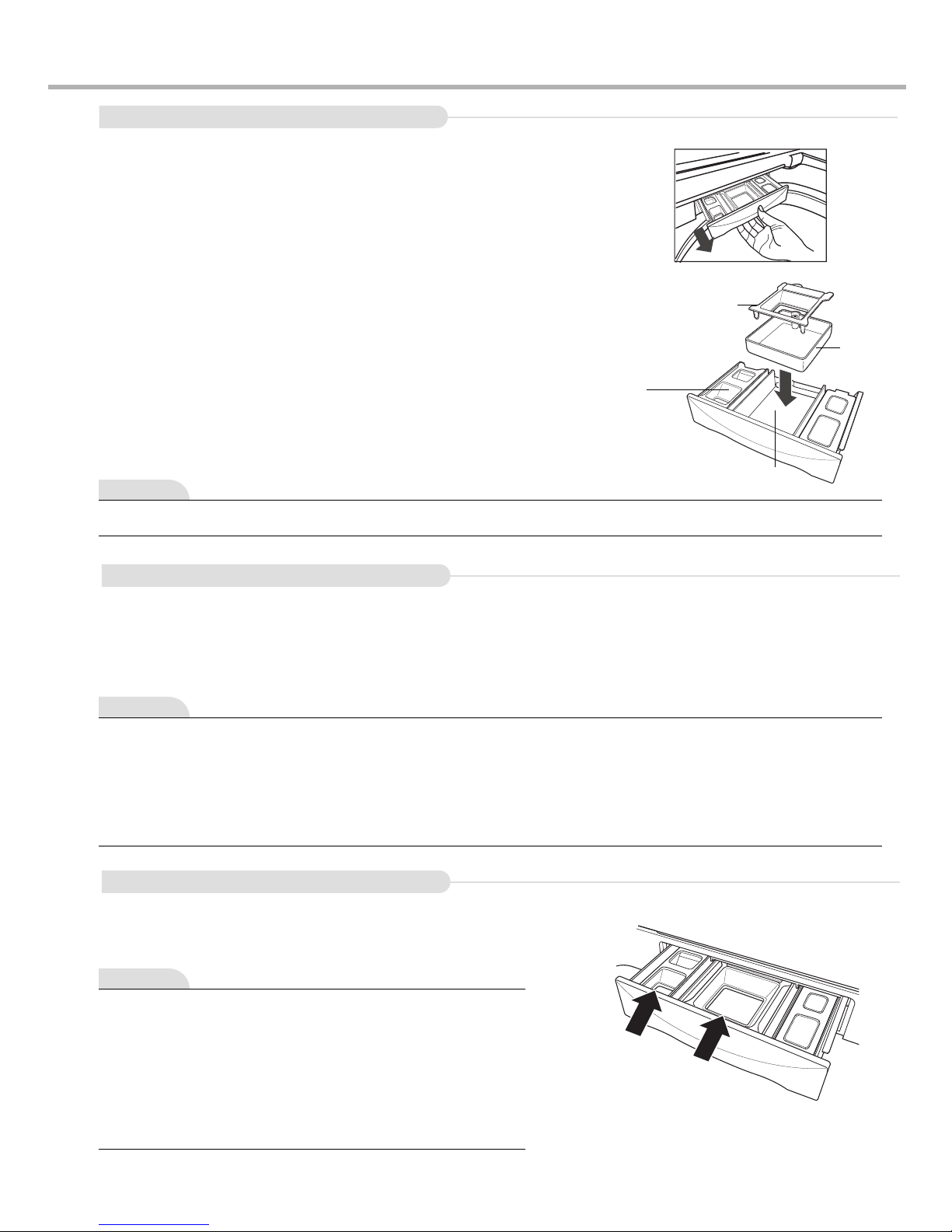

Powder detergent
Box for delayed
washing/softener additves box
INLET HOLE FOR
BLEACH
Washing Wing
(unique with lnner Tub)
LEVELLING LEGS
Use to level the washing
machine for correct balance
spin operation.
TUB
HOT WATER SUPPLY
HOSE
COLD WATER SUPPLY
HOSE
Make sure the water
does not leak.
POWER PLUG
If the supply cord is
damaged, it must be
replaced by the
manufacturer
or its service agents
or similarly qualified
person in order to
avoid a hazard.

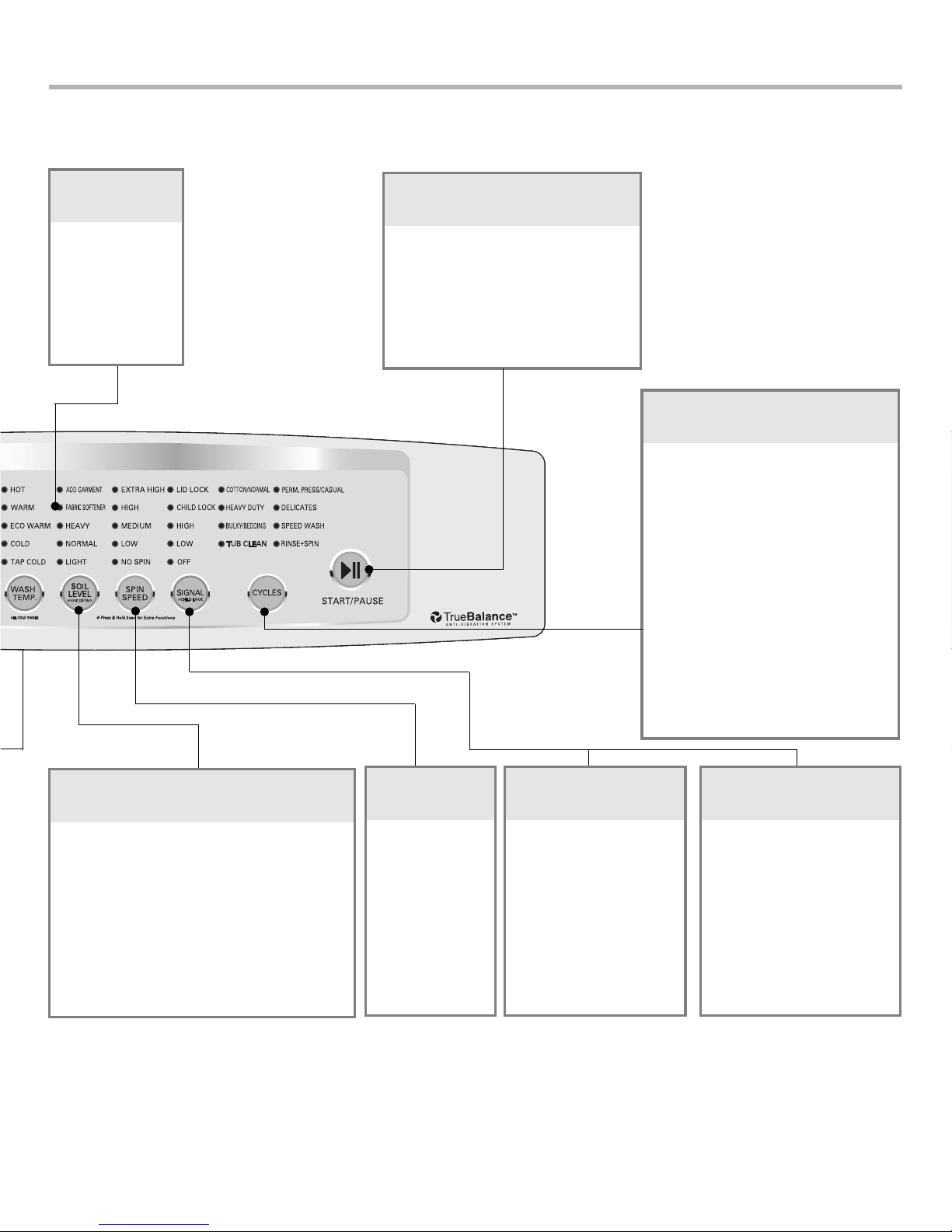

FUNCTION SELECTOR
BASE
DRAIN HOSE
Be sure the drain hose
is properly installed on
the drain before
operating the washer.

9
3-2. BEFORE STARTING TO WASH
Care Labels
• Look for a care label on your clothes.
This will tell you about the fabric content of your garment and how it should be washed.
Sort clothes into loads that can be washed with the same wash cycle, water temperature,
and spin speed.
Sorting
To get the best results, different fabrics need to be washed in different ways.
• SOIL (Heavy, Normal, Light) Separate clothes according to the type and amount of soil.
• COLOR (Whites, Lights, Darks) Separate white fabrics from colored fabrics.
• LINT (Lint producers, Collectors) Separate lint producers and lint collectors.
Lint Producers Terry cloth, Chenille, Towels, Diapers
Lint Collectors Synthetics, Corduroy, Permanent Press, Socks
Check before Loading
• Check all pockets to make sure that they are empty. Things such as nails, hairclips, matches,
pens, coins, and keys can damage both your washer and your clothes.
• Mend any torn garments or loose buttons. Tears or holes may become larger during washing.
• Remove belts, underwires, etc. to prevent damage to the machine or your clothes.
• Pretreat any dirt and stains.
• Make sure the clothes are washable in water.
• Check the washing instructions.
• Remove any paper or tissue in the pockets.
• WIRE
Loading
Do not wash fabrics containing flammable materials(waxes, cleaning fluids, etc.).
Load Size
The WATER LEVEL should just cover the clothes. Adjust the load size
accordingly. Loosely load clothes no higher than the top row of holes in the
washer tub. To add items after washer has started, press the Start button and
submerge additional items. Close the lid and press the Start button again to restart.
※Do not wash waterproofed fabrics (such as skiing outfits, diapers, or nappy
auto seat covers.)
Light and Large-sized clothing
Clothes like downs and woollens are light weight, large and float easily. Use a nylon net and
wash them in a small amount of water. If the laundry floats during the wash cycle, it may
become damaged. Use dissolved detergent to prevent the detergent from clumping.
※Do not wash water-proof textilles (Skling outfit, baby diaper, nappy automobile seat covers.)
Long laundry items
Use nylon bag nets for long, DELICATES items. For laundry with long strings or long length, a bag will prevent
tangling during washing. Fasten zippers, hooks, and strings to make sure that these items don't snag on
other clothes.
※The nylon washing bag is not supplied by LG.
Pretreatment on stains or heavy soil
• Pretreat shirt collars and cuffs with a pre-wash product or liquid Detergent when placing them in the washer.
Before washing treat special stains with bar soaps, liquid detergent or a paste of water and granular detergent.
• Use a pretreat soil and stain remover.
Treat stains AS SOON AS POSSIBLE. The longer they are left, the harder they are to remove.
(For more detail refer to page 13)
WIRE
WARNING
Fire Hazard
Never place items in the washer that are
dampened with gasoline or other flammable
fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any type
of oil on it (including cooking oils).
Doing so can result in death, explosion, or fire.

10
Using Water
Using detergent/fabric softener
Recommended detergent
Make sure to use HE (High-Efficiency) detergent for Top loading washing machines. HE detergents dissolve
more efficiently and produce fewer suds to ensure efficient washing and rinsing. Use the correct amount of
detergent as indicated on the label of the detergent packaging.
Designed specially to use only
HE (High-Efficiency) detergent
Water Temperature
• The machine sets the appropriate temperature automatically according to the wash program .
You can override the preset selection by pressing the WASH/RINSE temperature. button.
• The temperature of the water impacts the effectiveness of all laundry additives and therefore, the cleaning results.
• We recommend temperatures of:
- HOT 120°F (120-140°F) White items, diapers, underclothing and heavily soiled, colorfast items.
- WARM 90°F (85-105°F) Most items
- COLD 66°F (65-75°F) Only very bright colors with light soil.
• When washing in COLD water additional steps may be needed:
- Adjust Detergent amount and pre-dissolve Detergent in WARM water
- Pretreat spots and stains
- Soak heavily soiled items
- Use appropriate bleach
* Temperature below 18°C (65°F) will not activate laundry additives and may cause lint, residue, poor cleaning, etc.
In addition, detergent manufactures and care labels define COLD water as 26~29°C...(80-85°F).
If the temperature of the water in the tub is too cold for your hands, the detergent will not activate and clean
effectively.
Note
If iron is present in the water the clothes may become an all-over yellow or they may be stained with brown or
orange spots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be
necessary for severe cases.
Note
• Only use HE detergents, since using a regular detergent may produce excessive suds.
• HE detergents produce fewer suds, dissolve more efficiently to improve washing and rinsing performance, and
help to keep the interior of your washer clean.
• Use less detergent for soft water.
• Wipe up any spills immediately, as liquids could damage the finish and the control panel of the washing
machine.
• Using too much detergent can cause a build-up in the tub resulting in unsatisfactory performance and machine
malfunction.
• If you use a detergent that does not dissolve easily or a detergent with high viscosity, it will leave a residue on
the tub, which may not rinse properly.

11
Loading the dispenser
The detergent dispenser drawer of the washing machine has a
dispenser compartment for each detergent type. Add the
appropriate detergents into its respective compartments.
1 Pull out the detergent dispenser drawer.
2 Add the appropriate detergent to its allocated compartment.
- If you use a liquid detergent, check if the liquid detergent cup is in
place.
- If you use a powdered detergent, remove the liquid detergent cup
and put the powder in the main wash detergent compartment.
3 Close the detergent dispenser drawer slowly.
- Slamming the detergent dispenser drawer may result in the
detergent overflowing into another compartment or pouring into
the tub earlier than programmed.
Note
• It is normal for a small amount of water to remain in the dispenser compartments at the end of the cycle
Insert
Main Wash Powder
Detergent Compartment
Liquid Fabric
Softener
Compartment
Main Wash
Liquid Detergent
Compartment
Main Wash Detergent Compartment
This compartment holds laundry detergent for the main wash cycle, which is added to the load at the beginning of
the cycle. Always use HE (High-Efficiency) detergent with your washing machine.
Never exceed the manufacturer’s recommendations when adding detergent. Using too much detergent can result
in detergent buildup in clothing and the washer. Either powdered or liquid detergent may be used.
Main Wash
Detergent
Fabric
Softener
Note
• Liquid or powdered color-safe bleach may be added to the main wash compartment with detergent of the
same type.
• When using liquid detergent, make sure the liquid detergent cup and insert are in place. Do not exceed the
maximum fill line.
• When using powdered detergent, remove the insert and liquid detergent cup from the compartment. Powdered
detergent will not dispense with the liquid detergent cup and insert in place.
Fabric Softener Compartment
This compartment holds liquid fabric softener, which will be
automatically dispensed during the final rinse cycle.
Note
• Always follow the manufacturer’s recommendations when
adding fabric softener. Do not exceed the maximum fill
line. Using too much fabric softener may result in stained
clothes.
• Dilute concentrated fabric softeners with warm water.
Do not exceed the maximum fill line.
• Never pour fabric softener directly onto the load or into the
drum.

Special Guide for Stain Removal
WARNING
󳥎 Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid,or products
containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.
󳥎 To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below:
•
Read and comply with all instructions on stain removal products.
•
Keep stain removal products in their original labeled containers and out of children's reach.
•
Thoroughly wash any utensil used.
•
Do not combine stain removal products, especially ammonia and chlorine bleach. Dangerous fumes may result.
• Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry cleaning solvents, or
other flammable or explosive substances because they give off vapors that could ignite or explode.
•
Never use highly flammable solvents, such as gasoline, inside the home. Vapors can explode on contact with flames or sparks.
For successful stain removal:
• Remove stains promptly.
• Determine the kind of stain, then follow the recommended treatment in the stain removal
chart below.
• To pretreat stains, use a prewash product, liquid detergent, or a paste made from
granular detergent and water.
• Use COLD water on unknown stains because HOT water can set stains.
• Check care label instructions for treatments to avoid on specific fabrics.
• Check for colorfastness by testing stain remover on an inside seam.
• Rinse and wash items after stain removal.
12
Liquid Bleach Compartment
This compartment holds liquid chlorine bleach, which will be
dispensed automatically at the proper time during the wash
cycle. Avoid overfilling or splashing when adding bleach
to the dispenser. The maximum capacity of the bleach
dispenser is one cup of bleach per wash cycle. Overfilling
could result in premature dispensing of bleach, which will
result in fabric damage.
Note
• Do not add powdered or liquid color-safe bleach to this
compartment.
• Always follow the manufacturer’s recommendations when
adding bleach. Do not exceed the maximum fill line. Using
too much bleach can damage fabrics.
• Never pour undiluted liquid chlorine bleach directly onto
the load or into the drum. Fabric damage can occur.

13
Adhesive tape, chewing
gum, rubber cement
Baby formula, dairy
products, egg
Beverages (coffee, tea, soda,
juice,alcoholic beverages)
Blood
Candle wax, crayon
Chocolate
Collar or cuff soil, cosmetics
Dye transfer on white fabric
Grass
Grease, oil, tar (butter, fats,
salad, dressing, cooking oils,
car grease, motor oils)
Ink
Mildew, scorch
Mud
Mustard, tomato
Nail polish
Paint, varnish
Rust, brown or yellow
discoloration
Shoe polish
Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with
prewash stain remover or nonflammable dry cleaning fluid.
Use product containing enzymes to pretreat or soak stains.
Pretreat stain. Wash using COLD water and bleach safe for fabric.
Soak the item in a bowl of COLD water for at least 30 minutes. Then launder as usual.
Remove all surface wax. Put the garment in the freezer for a couple of hours, then
remove and break away as much wax as possible. Try a commercial removal product
like Goo-Gone, Goop, or Go-Jo cleaner for the remaining wax stains. DO NOT
ATTEMPT TO REMOVE WITH HEAT!
Pretreat or soak in WARM water using product containing enzymes. Wash using bleach
safe for fabric.
Pretreat with prewash stain remover or rub with bar soap.
Use packaged color remover. Wash using bleach safe for fabric.
Pretreat or soak in WARM water using product containing enzymes. Wash using bleach
safe for fabric.
Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy
stains and tar, apply nonflammable dry cleaning fluid to back of stain. Replace towels
under stain frequently. Rinse throughly. Wash using hottest water safe for fabric.
Some inks may be impossible to remove. Washing may set some inks. Use prewash
stain remover, denatured alcohol, or nonflammable dry cleaning fluid.
Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and HOT water
before washing. Badly mildewed fabrics may be permanently damaged.
Brush off dry mud. Pretreat or soak with product containing enzymes.
Pretreat with prewash stain remover. Wash using bleach safe for fabric.
May be impossible to remove. Place stain face down on paper towels. Apply nail polish
remover to back of stain.
Repeat, replacing paper towels frequently. Do not use on acetate fabrics.
WATER BASED Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it
cannot be removed,
OIL BASED AND VARNISH Use solvent recommended on can label. Rinse throughly
before washing.
For spots, use rust remover safe for fabric. For discoloration of an entire load, use
phosphate Detergent and nonchlorine bleach. Do not use chlorine bleach because it
may intensify discoloration.
LIQUID Pretreat with a paste of granular detergent and water. Paste scrape residue
from fabric. Pretreat with prewash stain remover or nonflammable dry cleaning fluid.
Rub detergent into dampened area. Wash using bleach safe for fabric.
Stain Removal
STAIN TREATMENT

3-3. FUNCTION OF EACH BUTTON
14
󳢯󳢯
This button
allows
you to store a
customized
wash
cycle for
future use .
󳢯󳢯Delayed finishing time.
󳢯󳢯The time increases when the button is pushed.
󳢯󳢯The following settings are indicated as the button is
pushed 1 ▶2 ▶3 ▶4 ▶... 24▶
▶Reservation off ▶1 ...
󳢯󳢯To cancel delay time, turn the power switch off or
push DELAY WASH button until off.
DELAY WASH (Selection)
BUTTON
Custom Program
BUTTON
󳢯󳢯
Select to select Water
(Wash/Rinse) Temperature.
󳢯󳢯
Pressing the button allows The
selection of COLD/COLD ▶
WARM/COLD ▶
WARM/WARM ▶ HOT/COLD
▶ EXTRA HOT/COLD
respectively. Default setting is
Warm/Cold.
WASH / TEMP.
Note
The time shown on the display is the estimated cycle time. If the sensors and microprocessor elect to
make changes during the cycle, the display will be adjusted accordingly.
EXTRA RINSE
BUTTON
󳢯󳢯
This includes
an extra rinse
cycle for a
better rinsing
action.
SOAK
󳢯󳢯Gives additional soak time.
POWER
󳢯󳢯Power on.
󳢯󳢯Push again, power goes off
󳢯󳢯Power goes off automatically after the wash is
finished.
󳢯󳢯After turning the power on, the unit will
automatically turn off if nothing is selected.
LOAD SENSING
󳢯󳢯
It operates in all program.
󳢯󳢯
During being detected by the sensor, the LOAD
SENSING LED flashes.
󳢯󳢯
It automatically sensing the quantity of laundries.
󳢯󳢯
During this step, the washing machine select optimized
washing algorithm.

15
󳢯󳢯
Causes the
dispensing of
fabric softener in
the final rinse
cycle.
FABRIC
SOFTENER
CHILD LOCK
FUNCTION
󳢯󳢯Use to lock or unlock the
control buttons to prevent
settings from being
changed by a child.
󳢯󳢯To actuate or release the
CHILD LOCK, press and
hold the SIGNAL button
until the lock is turned ON or
OFF.
SIGNAL
BUTTON
󳢯󳢯The beeper sounds at
the end of the cycle. The
clothing should be
removed at that time to
prevent the setting of
wrinkles.
󳢯󳢯
Touch the SIGNAL button
to cycle through the
volume settings between
OFF and high.
START/ PAUSE BUTTON
󳢯󳢯Use to start or pause the wash cycle.
Changes while be made to the wash
settings while the machine is
paused.
󳢯󳢯Repeats start and pause by pushing
the button.
CYCLE BUTTON
󳢯󳢯
Use for selecting wash program.
󳢯󳢯
This button allows the selection of 10
different programs for different kinds of
laundry and dirtiness.
󳢯󳢯
Program selections light up in
sequence as follows:
Cotton/Normal ▶ Heavy Duty ▶
Bulky/Bedding ▶ Tub Clean ▶ Perm
PressCasual ▶ Delicates ▶ Speed
Wash ▶ Rinse+Spin Select the
desired program by ressing the button.
SOIL LEVEL
󳢯󳢯
Allows a selection to be make for the strength
of the wash action.
󳢯󳢯
Power option selections light up in
sequence as follows Normal ▶ Heavy ▶
Light ▶ Normal as the button is pushed.
This can be selected for any program.
󳢯󳢯
Adjustment can be made while washing.
󳢯󳢯
Default SOIL LEVEL is Normal.
SPIN SPEED
󳢯󳢯Spin speed
can be
selected from
No Spin to
Extra high.
Default is
Low.

3-4. WASHING PROGRAMS
16

3-5. CARE AND MAINTENANCE
17
When there is the possibility of freezing temperatures
• Close the water taps and remove the water supply hoses.
• Remove the water which remains in the water supply.
• Lower the drain hose and drain the water in the sump and the drain hose by running a spin cycle.
Cleaning the inside of your washer
If you use fabric softener or do regular COLD water washing, it is very important that you
clean the inside of your washer occasionally as described below.
• Fill your washer with HOT water.
• Add 1 cup of bleach.
• Let it operate for several minutes.
• Stop the washer, open the lid, and leave it to soak overnight.
• After soaking, drain the washer and run it through a normal cycle.
Products that might damage your washing machine
• Concentrated bleaches and diaper sanitizer will cause damage to the paintwork and components of
your washer.
• Hydrocarbon solvents, i.e. petrol, paint thinners and lacquer thinners, etc. can dissolve plastic and
blister paint.
(Be careful when washing garments stained with these solvents as they are flammable, DO NOT put
them in washer or dryer.)
• Some pretreatment sprays or liquids can damage your washer’s control panel.
• Use of dyes in your washer may cause staining of the plastic components. The dye will not damage
the machine but we suggest you thoroughly clean your washer afterwards. We do not recommend
the use of dye strippers in your washer.
• Do not use your washer lid as a work surface.
If frozen
• Remove the water supply hose and immerse it in HOT water. (40° C or 104° F).
• Pour approximately 2 liters (4½pounds ) of HOT water (40° C or 104° F) into the sump and allow it ti stand for
at least 10 minutes.
• Connect the water supply hose to the water tap run a SPEED WASH cycle to confirm that the machine fills,
drains, and operates properly.
Wash Inner-Tub Leave the lid open after washing to allow moisture to evaporate. If you
want to clean the inner-tub use a clean soft cloth dampened with liquid
detergent, then rinse. (Do not use harsh or gritty cleaners.)
Inlet Hoses Hoses connecting washer to faucet should be replaced every 5 years.
Exterior Immediately wipe off any spills. Wipe with damp cloth. Avoid hitting surface with sharp objects.
Long Vacations Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be
below freezing.

WIRING DIAGRAM
COLOR CODE
LETTERS COLOR LETTERS COLOR
WH WHITE RD RED
BK BLACK GY GYAY
BN BROWN GN GREEN
OR ORANGE VL VIOLET
PK PINK YL YELLOW
BL BLUE SKY SKY BLUE
※WT5001CW dosen’t have 󳟆part.
4. SERVICE INFORMATION
4-1. WIRING DIAGRAM
18

4-2. DISASSEMBLY INSTRUCION
19
▶ Be sure to unplug the power to repair and replace
electric parts.
CAUTION FOR ELECTROSATICS
Be sure to make earth connection for trouble
diagnosis and parts replacement. If impossible,
touch earth wire on the body to remove electric
deviation between the body and product before
work.

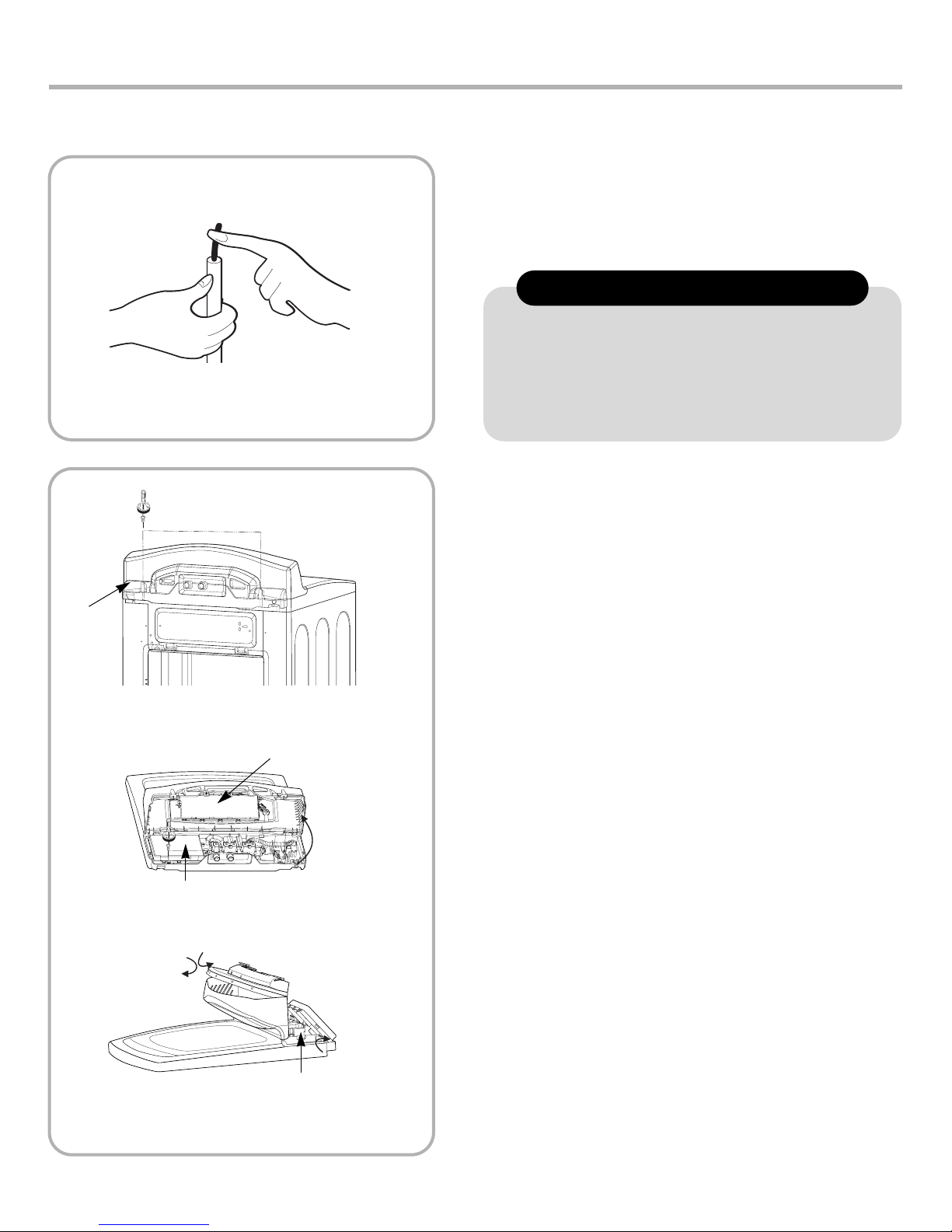

1) Disassembly of Front Panel & PCB
(Main+Display) Assembly
① Remove two Panel fixing screws on the back side.
② Pull the control panel forward.
③ Remove two screws on Main PCB.
④ Disassemble the protect cover.
⑤ Disconnect the leads from the controller.
⑥ Disassemble the rear Frame.
⑦ Unscrew 6 screws on the PCB Display.
Rear Panel
Main PCB
PROTECT COVER
PCB Display

2) Disassembly of Power Cord, Inlet
Valve ASM, D.T Housing ASM and
Pressure Switch.
①Disassemble back panel.
②Disconnect three connectors ans disassemble the
power cord.
③Remove two pipe fixing screws and three inlet valve
screws.
④Disconnect the leads from the inlet valve.
⑤Separate the pipe and the connector hose from the inlet
valve.
⑥Remove the inlet Valve.
⑦Disconnect the leads & pressure tube from the BP
sensor.
3)
Disassembly of Lid Assembly, Top
Cover, Tub Cover, Pulsator & Inner Tub
①Remove three lid fixing screws.
②Disassemble the Lid Assembly in arrow direction.
③Remove two top cover fixig screws in the rear then
disassemble the top cover.
④Remove the tub cover fixing screws then disassemble
tub cover.
⑤Remove the pulsator fixing screws then disassemble
the pulsator.
⑥Remove the hub fixing nut by a special tool.
⑦Disassemble the inner tub.
Inlet Valve
ASM
Pipe
Connector
Hose
Pressure
Pipe
Hub Fixing Nut
Inner Tub Cap
Out Tub
Inner Tub
Rotor
Stator
Rotor Nut
Shaft
Bearing Housing ASM
Hub fixing nut
20
Tub Cover
Inner Tub Cap
