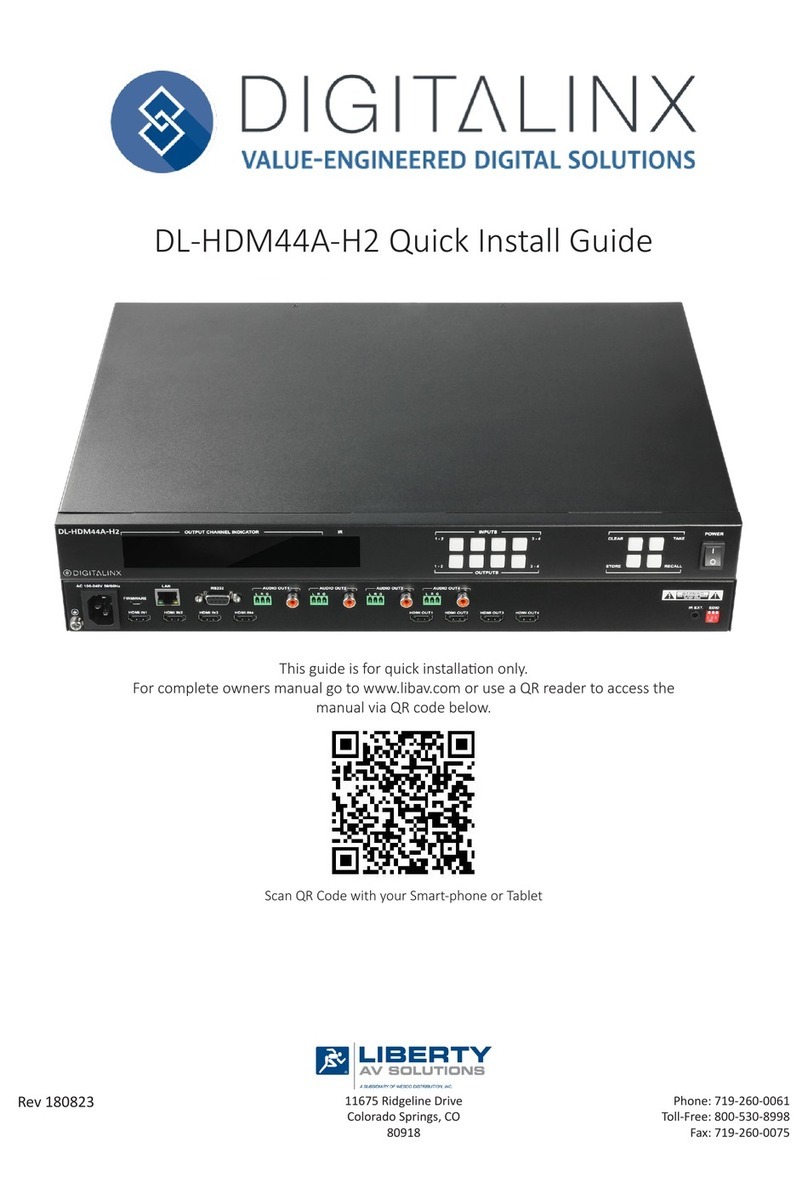

Liberty av solutions Digitalinx dl-hdm44a-h2 User manual

Rev 190419 Phone: 719-260-0061

Toll-Free: 800-530-8998

Fax: 719-260-0075

DL-HDM44A-H2 Owners Manual

11675 Ridgeline Drive

Colorado Springs, CO

80921

DL-HDM44A-H2 Installaon Guide

2

Important Safety Instrucons

»Please completely read and verify you understand all instrucons in this manual before operang this equipment.

»Keep these instrucons in a safe, accessible place for future reference.

»Heed all warnings.

»Follow all instrucons.

»Do not use this apparatus near water.

»Clean only with a dry cloth.

»Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers)

that produce heat.

»Use only accessories specied or recommended by Intelix.

»Explanaon of graphical symbols:

◊ Lightning bolt/ash symbol: the lightning bolt/ash and arrowhead within an equilateral triangle

symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the

product enclosure which may be of sucient magnitude to constute a risk of shock to a person or

persons.

◊ Exclamaon point symbol: the exclamaon point within an equilateral triangle symbol is intended

to alert the user to the presence of important operang and maintenance (servicing) instrucons

in the literature accompanying the product.

»WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR

MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS.

»Use the mains plug to disconnect the apparatus from the mains.

»THE MAINS PLUG OF THE POWER CORD MUST REMAIN READILY ACCESSIBLE.

»Do not defeat the safety purpose polarized or grounding-type plug. A polarized plug has two blades with one wider

than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong

is provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of

your obsolete outlet. Cauon! To reduce the risk of electrical shock, grounding of the center pin of this plug must be

maintained.

»Protect the power cord from being walked on or pinched parcularly at the plugs, convenience receptacles, and the

point where they exit from the apparatus.

»Do not block the air venlaon openings. Only mount the equipment per Intelix’s instrucons.

»Use only with the cart, stand, table, or rack specied by Intelix or sold with the equipment. When/if a

cart is used, use cauon when moving the cart/equipment combinaon to avoid injury from p-over.

»Unplug this apparatus during lightning storms or when unused for long periods of me.

»Cauon! Shock Hazard. Do not open the unit.

»Refer to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as

power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

DL-HDM44A-H2 Installaon Guide

3

Table of Contents

Product Overview�� 4

Front and Rear Panels�� 5

Front Panel�� 5

Rear Panel�� 6

Installaon Instrucons�� 7

Mount the Matrix �� 7

Rack Mounng Instrucons....................................................................................................................7

Connect Sources�� 7

Connect Displays�� 7

Applying Power �� 8

Switching Capabilies �� 8

Connect External IR Control �� 8

Connect RS232 Control�� 9

Connect Ethernet (Web Browser) Control �� 9

Router Connecon ...............................................................................................................................10

Crossover Cable Connecon .................................................................................................................10

Web Browser Control ...........................................................................................................................10

Web Browser Control / System Sengs �� 11

Matrix Control��11

Connecng to Web Control Interface ...................................................................................................11

Audio / Video Switching .......................................................................................................................12

Saving and Loading Presets ..................................................................................................................13

Changing System Status........................................................................................................................13

API Log ..................................................................................................................................................13

Admin Sengs ��14

Adjusng EDID Sengs ........................................................................................................................14

Adjusng HDCP Support .......................................................................................................................18

Viewing HDCP Input and Output Status ...............................................................................................18

Changing the Audio and Video Alias Names ........................................................................................19

Changing Preset Names ........................................................................................................................20

Changing Network Address Sengs .....................................................................................................20

Changing Password for Matrix Control and Admin Seng ..................................................................20

Updang Web Interface .......................................................................................................................21

Uploading a Custom Web Logo ............................................................................................................21

Factory Default and Reboot ..................................................................................................................21

API Log Show / Hide .............................................................................................................................21

EDID Management �� 22

IR Remote Control �� 23

RS232 and TCP/IP Control �� 24

HDCP Management Commands ��24

Matrix Roung Commands ��25

Audio Roung Commands��26

System Commands��27

Technical Specicaons �� 28

DL-HDM44A-H2 Installaon Guide

4

The DigitaLinx DL-HDM44A-H2 is a four input by four output HDMI 2.0 matrix switcher with HDCP 2.2

support and capable of handling resoluons up 4K@60Hz 4:4:4 / 8 bit color with stac and dynamic

HDR output support for each channel. The matrix features advanced independent EDID management

control for each HDMI input as well as an Easy EDID analyzer. The analog and digital audio outputs

on the DL-HDM44A-H2 can be set to follow the HDMI video route or can be independently routed

either by API or web control interface. Built in re-clocking circuitry ensures the switcher is backwards

compable with sources with older HDMI version chip sets.

The DL-HDM44A-H2 can be controlled via front panel buons, front panel IR, external IR, remote IR,

RS232, and Ethernet. The matrix includes a simple IR remote control to allow IR switching. The matrix

also features a full command set for RS232 and Ethernet control with third party control systems, plus

control via web user interface.

Product Overview

• DL-HDM44A-H2 Matrix Switcher

• Quick Install Guide

• (1) Matrix IR Remote

• (1) IR Receiver (38KHz)

• (1) AC power adapter with US, UK, EU and AU power plugs

• (4) Phoenix Male Connector (3.5mm, 3 Pins)

• (2) Rack mounng clips with mounng screws

DL-HDM44A-H2 Installaon Guide

5

Front and Rear Panels

Front Panel

1. OUTPUT CHANNEL INDICATOR - Indicates input for output port 1-4

2. IR - Receives signals from IR remote

3. INPUT 1-4 - Input 1-4 selecon buons

4. OUTPUT 1-4 - Output 1-8 selecon buons

5. CLEAR - Clear buon, clears the selecon operaon

6. TAKE - Take buon, implements input selecon

7. STORE - Store buon, stores the matrix routes to preset

8. RECALL - Recall buon, loads the matrix routes from preset

9. POWER SWITCH - Power switch for on/o control of matrix

DL-HDM44A-H2 Installaon Guide

6

Rear Panel

1. AC - AC power cord input

2. HDMI IN (1-4) - HDMI input ports for connecons to HDMI video sources

3. HDMI IN (1-4) - HDMI output ports for connecons to displays

4. IR EXT. - 3.5mm IR input port for connecon to IR extension cable

5. EDID - EDID switch for EDID management

6. FIRMWARE - USB port rmware updates

7. LAN - RJ45 port for LAN connecon to network or control system for telnet control

8. RS232 - DB9 port for connecon to control system for serial control

9. AUDIO OUT - Audio de-embedded outputs for 1-4; phoenix for analog 2 channel audio

and RCA for digital S/PDIF mulchannel

DL-HDM44A-H2 Installaon Guide

7

Installaon Instrucons

Mount the Matrix

Rack Mounng Instrucons

At least 2 inches of free air space is required on both sides of the DL-HDM44A-H2 for proper side venlaon.

Avoid mounng the DL-HDM44A-H2 near a power amplier or any other source of signicant heat.

Remove the rubber feet from the boom of the matrix. Remove the larger two screws on both sides of the DL-

HDM44A-H2.

Aach the supplied rack ears to the sides of the DL-HDM44A-H2 matrix. The matrix requires one rack unit (1

RU) of space. It is recommended that you leave an empty rack space above and below the DL-HDM44A-H2 for

addional cooling.

Connect Sources

Connect Displays

Connect the source devices to HDMI inputs using HDMI cables that are less than or equal to 1.5 meters in length

for 4k60 signals. For source devices that are further away, it is highly recommended to install a Digitalinx DL-

HD70, DL-HDE100, DL-HDE100-H2 or the DL-HD2100.

Connect the display devices to HDMI outputs using HDMI cables that are less than or equal to 1.5 meters in

length for 4k60 signals.. For display devices that are further away, it is highly recommended to install a Digitalinx

DL-HD70, DL-HDE100, DL-HDE100-H2 or the DL-HD2100.

DL-HDM44A-H2 Installaon Guide

8

Connect External IR Control

If IR extension is required, connect the TRS 3.5 mm plug IR RX to the matrix IR EXT port, ensuring the IR receiver

eye is placed in clear view of the handset used to control.

Insert the matrix power supply included and switch on power located on the front panel. Check that the front

panel LED screen is on to indicate the matrix is ready for use.

Applying Power

Switching Capabilies

Switch between sources and displays using the matrix front panel buons, IR remote control, serial RS232, or

LAN. To set a route using the front panel of the DL-HDM44A-H2, press the desired Input buon (Source) and

desired Output buon (Display), then press Take.

DL-HDM44A-H2 Installaon Guide

9

The RS232 connecon on the matrix is female DB9. User can use a USB to UART cable or a direct serial cable for

matrix control. See below for control system conguraon.

• 9600 baud

• 8 Data Bits

• 1 Stop Bit

• Parity = none

Connect RS232 Control

Connect Ethernet (Web Browser) Control

The DL-HDM44A-H2 may be controlled via Ethernet through a web browser interface.

The TCP/IP port requires a standard straight-through Category 5

or greater cable with the TIA/EIA-568B crimp paern for opmal

operaon.

The default sengs for the TCP/IP port are:

IP address: 192.168.0.178

TIA/EIA-568B

Orange/White

Orange

Green/White

Blue

Blue/White

Green

Brown/White

Brown

Pin 1

Pin 2

Pin 3

Pin 4

Pin 5

Pin 6

Pin 7

Pin 8

1 8

Connect the Ethernet cable between to the matrix and a router

with a straight-through cable or between the matrix and a

computer with a crossover cable.

Pinout:

Pin 2 - TRANSMIT

Pin 3 - RECEIVE

Pin 5 - GROUND

DL-HDM44A-H2 Installaon Guide

10

Router Connecon

1. Congure the router to use the same IP range as the matrix, such as 192.168.0.1.

2. Connect the computer to the router.

3. Connect the DL-HDM44A-H2 to the router

Crossover Cable Connecon

1. Congure the computer to use the same network prex as the IP address assigned to the matrix. For

example, the IP address of the matrix is 192.168.0.178. Set the computer to use a stac IP address within

the same network range, such as 192.168.0.42.

2. Connect the network crossover cable to the computer and to the TCP/IP port on the DL-HDM44A-H2

Web Browser Control

The DL-HDM44A-H2 includes a web portal to allow control of the matrix via a standard web browser. The IP

address is the same address that is used for TCP/IP control.

TIA/EIA-568A

Green/White

Green

Orange/White

Blue

Blue/White

Orange

Brown/White

Brown

Pin 1

Pin 2

Pin 3

Pin 4

Pin 5

Pin 6

Pin 7

Pin 8

1 8 TIA/EIA-568B

Orange/White

Orange

Green/White

Blue

Blue/White

Green

Brown/White

Brown

Pin 1

Pin 2

Pin 3

Pin 4

Pin 5

Pin 6

Pin 7

Pin 8

1 8

Crossover Cable Pinout

DL-HDM44A-H2 Installaon Guide

11

Web Browser Control / System Sengs

Open a web browser and type in IP address of the DL-HDM44A-H2. The default IP address is 192.168.0.178. Be

sure the computer you are using to connect to the DL-HDM44A-H2 is in the same IP range.

The matrix login screen will appear. The default password is admin

Matrix Control

Connecng to Web Control Interface

DL-HDM44A-H2 Installaon Guide

12

Aer logging in, the main screen appears. It contains two sub-menus; Matrix Control and Admin Seng and

defaults to Matrix Control.

The Matrix Control menu allows you to control video routes and audio routes that can either follow the video

routes or can be routed independently.

To switch the video route, check the desired output buon corresponding to the desired input.

All: Checking the ALL buon corresponding to the input will route the input signal to ALL outputs

By default the audio switching routes follows video, in order to change this opon in the matrix control so audio

can be routed independently, change the Independent switch mode underneath the audio switch matrix to

Independent. Roung audio in the matrix control will funcon the same as the video control above.

Audio / Video Switching

DL-HDM44A-H2 Installaon Guide

13

In the Matrix Control secon audio and video routes can be saved and recalled in presets.

To save the current roung scheme into a predened preset to be recalled at a later me, click the SAVE buon

in the Presets secon into preset locaon 1, 2 or 3. To recall the preset check the LOAD buon.

In the Matrix Control secon the switchers on and o state can be controlled. Check the STANDBY buon to put

the device in a OFF state, check the WAKE buon to put the switcher into an ON state.

The Matrix Control secon features an API log that shows system commands and responses

Changing System Status

API Log

Saving and Loading Presets

DL-HDM44A-H2 Installaon Guide

14

Admin Sengs

Adjusng EDID Sengs

To adjust the admin sengs for the DL-HDM44A-H2, click on ADMIN SETTING on the upper right hand corner

of the Matrix Control page.

You will be prompted for a password which is by default 123456. This can be changed in the admin sengs page

if desired

EDID sengs for inputs can be adjusted in the web GUI control interface. Click on the ENTER buon in the EDID

Seng menu to access the sengs

Note: In the EDID Sengs menu, the EDID sengs for each HDMI input will not be able to be adjusted if the

EDID dip switches are set to a predened EDID seng. In order to change the EDID sengs for the inputs in the

web GUI control interface, all three EDID dipswitches on the back of the DL-HDM44A-H2 must be changed to

the UP posion. If these switches are not in the UP posion, change the dipswitches and do a power cycle for

the sengs to take aect. For more into on the EDID Management sengs via dipswitch see page 18

DL-HDM44A-H2 Installaon Guide

15

Once the EDID sengs menu has been opened users are given the ability to adjust the EDID for each individual

HDMI input as well as reading the nave EDID table from an display connected to an HDMI output that can be

saved as a custom EDID seng.

To read an EDID table from a display connected to an output, select the desired HDMI output in the OUTPUT

drop down menu, then click READ.

It is important to be sure that the display you are reading EDID from is connected to the selected output. If this

is the case an error message will occur leng the user know the device is not connected

Once a display has been connected to the desired output, click TRY AGAIN to read EDID

A progress window will appear leng you know that the EDID sengs are being read

DL-HDM44A-H2 Installaon Guide

16

The following window will appear once EDID read funcon is successful

Users now have the opon to view the EDID table or to save the custom EDID table onto their computer.

To display the EDID table, click on DISPLAY in the EDID READ window. The EDID table will be displayed as followed:

To save the custom EDID table le onto your computer, click the SAVE AS buon in the EDID READ window, this

will prompt you to save the EDID le (.bin) onto a local storage drive on your computer to be used in the EDID

Write opon in the EDID Sengs menu.

See pg 17 for EDID Write instrucons

DL-HDM44A-H2 Installaon Guide

17

To adjust EDID sengs for each HDMI input in the EDID Seng menu, choose an opon from the drop down

menu for the desired HDMI input and click APPLY

Below is a brief explanaon for each drop down menu opon:

Copy from Output (1-4) - Choosing this opon will copy the EDID from a display connected to the corresponding

output

Fix 4K@60Hz 2.0ch audio WITH HDR - Choosing this opon gives you up to 4K@60Hz video with 2.0 channel

audio with HDR capability

Fix 4K@30Hz 7.1ch audio WITH HDR - Choosing this opon gives you up to 4K@30Hz video with 8 channel audio

with HDR capability

Fix 4K@30Hz 5.1ch audio WITH HDR - Choosing this opon gives you up to 4K@30Hz video with 6 channel audio

with HDR capability

Fix 4K@30Hz 2ch audio WITH HDR - Choosing this opon gives you up to 4K@30Hz video with 2 channel audio

with HDR capability

Fix 4K@30Hz/8Bit Only 2CH Audio without HDR - Choosing this opon gives you up to 4K@30Hz video / 8 bit

deep color only with 2 channel audio, this does not support HDR

1080p@60Hz 2.0ch audio - Choosing this opon gives you up to 1080p 60Hz with 2 channel audio

Easy Edid - Choosing this opon will select lowest common denominator resoluon and EDID sengs from all

collecve outputs. See page 22 for Easy EDID explanaon

EDID Write - Allows you to write a custom EDID le for the designated input

Note: Choosing this opon will prompt you to browse an EDID le (.bin) from the local storage on the

computer to write into the selected input. See page 16 on creang a custom EDID le from an output to

use with this funcon

DL-HDM44A-H2 Installaon Guide

18

Adjusng HDCP Support

Viewing HDCP Input and Output Status

To adjust HDCP support for an input in the Admin Sengs, check either the ON or OFF buon under the desired

HDMI input in the HDCP Support menu. To update the current support sengs click REFRESH

NOTE: Encrypted video content will NOT pass on an input where the HDCP support has been turned o

To view the current HDCP version status on each input and output, click the REFRESH buon in the HDCP Input

Status and HDCP Output Status menus

In the example below, HDCP 2.2 encrypted content is being transmied from HDMI input 1 to all outputs. The

status for all ports shows the encrypon version status.

DL-HDM44A-H2 Installaon Guide

19

Changing the Audio and Video Alias Names

To adjust the alias names for the audio and video inputs and outputs in the matrix control, enter the desired

alias name for each in the Video Alias Name and Audio Alias Name menus, then click SAVE to apply the changes

or RESET to reset he elds to factory default.

Note: The character length for each alias is limited to 15 characters; only leers, numbers and spaces are

allowed. No punctuaon supported.

DL-HDM44A-H2 Installaon Guide

20

Changing Preset Names

Changing Network Address Sengs

Changing Password for Matrix Control and Admin Seng

To adjust the preset names for the three given roung presets, enter a desired name into either Preset 1, 2 or 3

in the Preset Name menu then click SAVE. Click RESET to reset the names to factory default

The IP address of the DL-HDM44A-H2 can be predened by a stac address or can be given automacally by

a DHCP server. By default the stac IP address is 192.168.0.178 and the subnet mask is 255.255.0.0 and the

default gateway is 192.168.0.1. To change the stac address informaon, enter the desired IP address, Subnet

Mask and Default Gateway address in the NETWORK menu and click APPLY

To change the stac IP address to a DHCP given address, check the DHCP box and click APPLY

The password for the web Matrix Control and the Admin Sengs page can be changed.

In the Change Password menu, type in the old password, desired new password for each login type and click

SAVE.

Note: passwords must be 4-16 characters in length and only support alpha numeric

LIBERTY AV SOLUTIONS DIGITALINX DL-HDM44A-H2 User manual

Popular Matrix Switcher manuals by other brands
