Liberty Pumps LEP-Link RTU-200 User manual

7000 Apple Tree Avenue
Bergen, NY 14416
ph: 800-543-2550
fax: [phone]
www.LibertyPumps.com/LEP
www.LEP-Link.com
Copyright © Liberty Pumps, Inc. 2019 All rights reserved. 2554000B
User Manual
-

– 2 – Copyright © Liberty Pumps, Inc. 2019 All rights reserved. 2554000B
Contents
Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
RTU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
RTU Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
LLink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Activation and Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Mounting the RTU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Sensor Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mounting the LLINK Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
LLINK Panel Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Activating the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
System View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
RTU Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Logging In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Access Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Viewing/Searching For Your Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Placing an RTU on the Map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
User Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

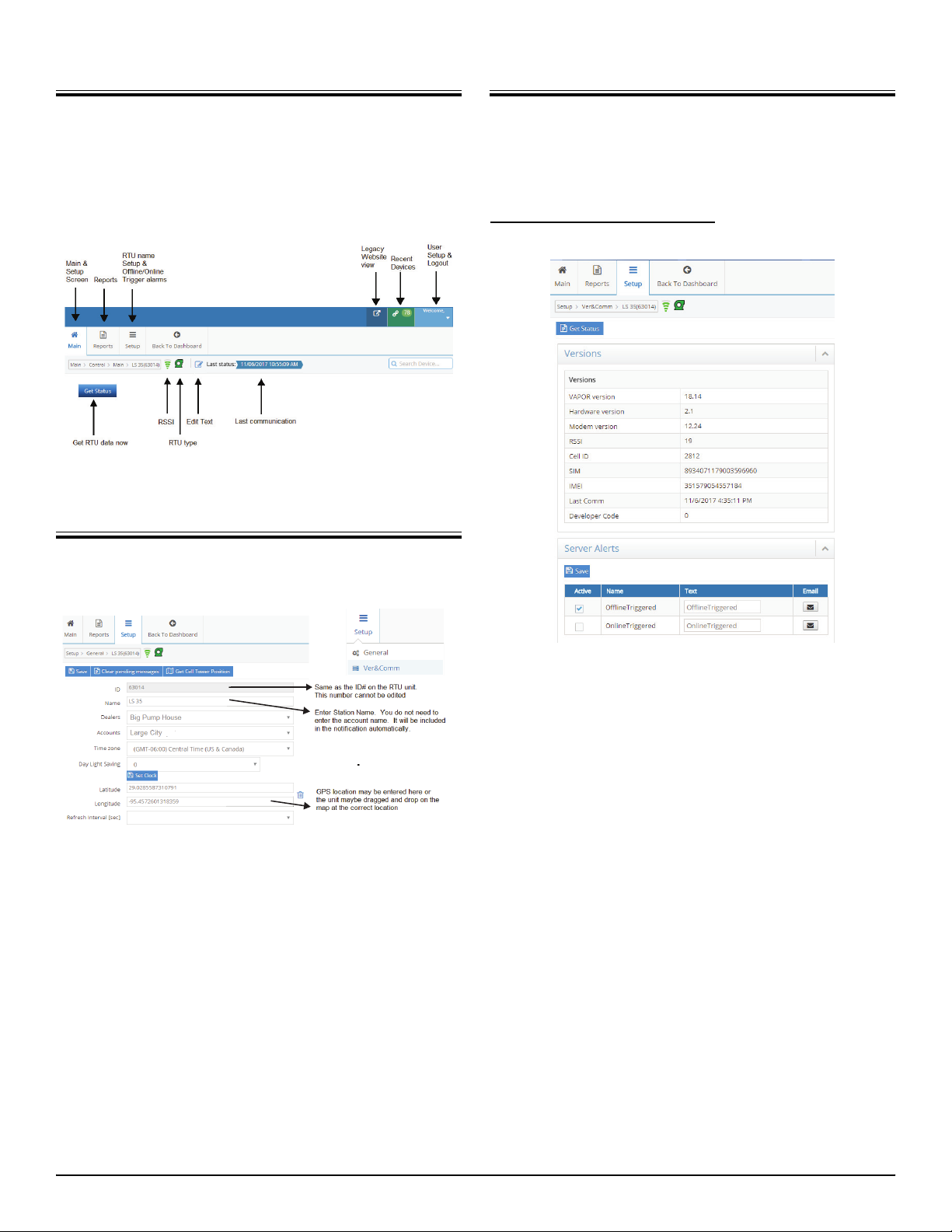

RTU Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Online/Offline Trigger Alert Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
RTU Visualization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Main Screen Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Station Parameter Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Alarm Notification Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Connecting Alerts to User . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Escalation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Reports and Trending . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Customer Service Agreement and Terms of Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2554000B Copyright © Liberty Pumps, Inc. 2019 All rights reserved. – 3 –
Safety Guidelines
Failure to read and understand the information provided in this
manual may result in death or serious injury or damage to the
product or product failure. Please read each section in its entirety
and be sure the information provided is understood before
attempting any of the procedures or operations.
This product must be installed in accordance with National
Electrical Code, ANSI/NFPA 70 so as to prevent moisture from
entering or accumulating within the controller housing.
Disconnect power prior to servicing.
More than one disconnect switch may be required to
de-energize the equipment before servicing.
A qualified service person must install and service this
product according to applicable codes and electrical
schematics.
Do not connect power to this equipment if it has been
damaged or has any missing parts.
Do not install in areas with: excessive or conductive dust,
corrosive or flammable gas, moisture or rain, excessive heat,
regular impact shocks, or excessive vibration.
Do not use this product with flammable liquids. Do not install
in hazardous locations as defined by National Electrical Code,
ANSI/NFPA 70.
This safety alert symbol is used in the manual and on the device to alert of potential risk for serious
injury or death.
This safety alert symbol identifies risk of electric shock.
This safety alert symbol identifies risk of fire.
This safety alert symbol identifies risk of serious injury or death.
Warns of hazards that, if not avoided, will result in serious injury or death.
Warns of hazards that, if not avoided, could result in serious injury or death.
Warns of hazards that, if not avoided, could result in minor or moderate injury.
Signals an important instruction related to the system. Failure to follow these instructions could result in
pump system failure or property damage.
RISK OF ELECTRIC SHOCK
RISK OF FIRE
Read every supplied manual before using this device and the pump system. Follow all the safety
instructions in manual(s), on the pump and the device. Failure to do so could result in serious
injury or death.
Installer: manual must remain with owner or system operator/maintainer.
Record information below:
LEP-Link ID#:
Keep this manual handy for future reference. Pump Model #:
For replacement manual, visit LibertyPumps.com/LEP,
or contact Liberty Pumps at 1-800-543-2550. Pump Serial #:
Control Model #:
Dealer: Purchase Date:
Dealer Ph: Install Date:

– 4 – Copyright © Liberty Pumps, Inc. 2019 All rights reserved. 2554000B
Introduction
Designed for municipal wastewater lift stations and similar
applications, the LEP-Link™ is a simple and effective RTU (Remote
Telemetry Unit) for management of a wastewater collection system
via a cellular network. Alarms are monitored and service personnel
notified in the event of a failure.
Data logging and trending of critical information enables the User
to visually track system performance and recognize impending
problems. The station data can be visualized in a simple and
intuitive way from a web browser on a PC, tablet, or smartphone.
The LEP-Link remote pump monitoring system is designed to be
connected to most simplex or duplex lift station type control
panels. The LEP-Link RTU monitors various pump data and relays
this data to the cloud, via a cellular network, then to a secure
website where it can be accessed and monitored from virtually
anywhere in the world.
Product Information
Two LEP-Link versions are available:
•RTU-100 (Digital I/O only)
•RTU-200 (Analog & Digital I/O)
The RTU module can be ordered for direct panel mounting, or
pre-assembled in a NEMA 4X enclosure for outdoor mounting near
an existing panel, suitable for installation in a fiberglass or
thermoplastic enclosure. An antenna is included with each RTU
unit.
Note: RTU-100 includes one year of cellular service, antenna, and
User Manual; the RTU-200 includes one year of cellular
service, antenna, current transducer, and User Manual.
RTU
RTU-100 and 200 are available for installation inside a control panel.
RTU-100
Figure 1. RTU-100
RTU-200
An RTU-200 includes a separate current transducer.
Figure 2. RTU-200
Figure 3. RTU-200 Current Transducer
Antenna
An antenna is supplied with each RTU-100 and RTU-200 unit and
is suitable for installation of the unit in a fiberglass or thermoplastic
enclosure.
Consult Liberty Pumps for installation in a metal enclosure.
Figure 4. RTU Antenna
ID: 64XXXL
ID: 69XXXP
-
-

2554000B Copyright © Liberty Pumps, Inc. 2019 All rights reserved. – 5 –
RTU Features
The LEP-Link RTU monitors pump run, run time, cycles, amps1, and
flow. It can also monitor system in-flow1, power failure, level, and
level alarms1. This data is then accessible via a secure website
where it can be accessed and monitored from virtually anywhere in
the world.
•Li-ion backup battery for power loss detection and
notification
•SMS, email, and web portal alarm notifications
•Graphical HMI with simple and clear station status
display
•View all pumping stations on an interactive map
•Data logging and historical trending
•First year of service included
Figure 5. RTU Features
LLink
LLINK is available for installation outside a control panel or for
retrofit applications. Included in the LLink-100 is an RTU-100, and
an LLink-200 with an RTU-200.
LLink Details
•Can monitor lift stations with up to two pumps
•10 x 8 x 6 NEMA 4X thermoplastic enclosure
•Requires 120/240 VAC supply power
•DC power supply and battery backup (Digital I/O only)
•100/150/200 A to 4-20 mA current transducer (RTU-200 only)
Figure 6. LLink Exterior
Figure 7. LLink Interior (RTU-200 shown)
1. Available with the RTU-200
-
POWER
0V
432112
Battery
Switch
Factory Use Only
Function LEDs
Pump 2 Run Indication
Device ID 2 Analog Inputs (RTU-200 only)
Relay ON
ID: 69XXXP
BATT
ON OFF
JP4
ID: 64XXXL

– 6 – Copyright © Liberty Pumps, Inc. 2019 All rights reserved. 2554000B
Activation and Service
LEP-Link Account Setup and Activation Form
Data management for LEP-Link remote cellular devices is hosted by AMI Global, 6280 S. Valley View Blvd. Suite 212, Las Vegas, NV 89118.
Both LEP-Link RTUs are provided with one year of pre-paid cellular service. Activation of the device is required for operation. An account
needs to be set up if this is the initial RTU device. Fill in the following form for New or Existing account information. Device ID is located
on the lower front left of the device. After completion of the first year, AMI Global will contact the User on the account directly to extend
the service (in two additional year increments).
Who Should Use this Form?
End Users who wish to create an account for monitoring LEP-Link devices. End Users will be responsible for the service fee after the initial
period is complete.
Example of End Users: A City, Municipality, Water district, Utility Service Company, etc…
Why Create an Account?
This form provides contact and billing information to AMI (Service Company). This will allow them to contact the End User directly with
service renewal options after the initial period is complete.
A login and password will be set up to grant access to the LEP-Link web portal.
Where to Send this Form?
Complete this form and send to your LEP-Link contact person:
Peiter Poulton <[email protected]> 800-543-2550
Administrator <[email protected]> 800-543-2550
When to Create a New Account?
This form must be submitted at least 24 hours prior to the LEP-Link activation.
What Happens Next?
Once the form is submitted, the End User will receive an e-mail (sent to the email address entered in the form) from AMI with a link and
instructions for login and account verification. Click on the link or cut and paste it into your browser. Once the account is verified, power
up the device for final activation and setup. The device is then ready for use.
For security reasons, this must be done within 48 hours or the link will deactivate.
For Activation of Future LEP-Link RTUs
Once the account is setup, the End User can activate additional LEP-Link RTUs in the future by filling in the Account Name and the
Device ID of the LEP-Link RTU that needs to be activated.
Account Name: Example: City of Fargo
First Name: Example: John
Last Name: Example: Smith
Email Address: Example: [email protected]
Phone: Example: [phone]
Billing Address: Example: 1234 Elm St
Billing City, State Zip: Example: Fargo, MN 58102
Billing First Last Name: Example: Judy Miller
Login User Name: Example: Fargo123
RTU Unit ID: Example: 68023

2554000B Copyright © Liberty Pumps, Inc. 2019 All rights reserved. – 7 –
Mounting the RTU
Unit dimensions are 5.5” W x 4.5” H x 3.5” D (with antenna at 90°).
RTU can be DIN rail mounted (Figure 8) or panel mounted
(Figure 9) with four screws.
Figure 8. DIN Rail Mounted RTU Figure 9. Panel Mounted RTU
Wiring
Figure 10. RTU-100 Schematics
24 VDC
Supply
Power
REMOTE
ACTIVATION
CONTACTS
(NON-POWERED)
TORQUE TO: 4.4-7.1 IN-LBS
BATTERY BACKUP CONNECTION
ATTENTION:
Connect contact closure inputs to non-powered contacts only
PUMP 1 RUNNING
PUMP 2 RUNNING
ALARM 1
ALARM 2
ALARM 3
ALARM 4
COM COM P1 P2 A1 A2 A3 A4 NC C NO 0V +24
NO CONNECTION
Branch circuit protection must be provided by the installer.
An inverse time circuit breaker not to exceed 20 amps is required.
Temperature rating of field-installed conductors must be at least 140°F (60°C).
Terminal strips and ground lugs use copper conductors only.
FIELD WIRING SECTION
(WITHIN DASHED LINES)
RTU-100
POWER SUPPLY
TORQUE TO: 7.1 IN-LBS
100–240 VAC
INCOMING POWER
RTU-100
G
GND L2/NL1
LN

– 8 – Copyright © Liberty Pumps, Inc. 2019 All rights reserved. 2554000B
Wiring
Figure 11. RTU-200 Schematics with Transducer
RTU-200
RTU-200
ATTENTION:
Connect contact closure inputs to non-powered
contacts only.
Branch circuit protection must be provided by the
installer. An inverse time circuit breaker not to exceed
20 amps is required.
Temperature rating of field-installed conductors must
be at least 140°F (60°C). Terminal strips and ground
lugs use copper conductors only.
FIELD WIRING SECTION
(WITHIN DASHED LINES)
PUMP 1 RUNNING
PUMP 2 RUNNING
ALARM 1
ALARM 2
ALARM 3
ALARM 4
TORQUE TO: 4.4-7.1 IN-LBS
REMOTE
ACTIVATION
CONTACTS
(NON-POWERED)
NO FIELD
CONNECTION
BATTERY BACKUP CONNECTION
G
GND L2/NL1
LN
COM COM
P1 P2 A1 A2 A3 A4 IN2 IN1— + NC C NO 0V +24
POWER SUPPLY
TORQUE TO: 7.1 IN-LBS
100–240 VAC
INCOMING POWER
CURRENT
XDCR
LEVEL
XDCR
CONNECTION FOR
EXTERNALLY POWERED
LEVEL TRANSMITTER
CURRENT
TRANSMITTER
LEVEL
TRANSMITTER
IN1
IN2
+-

2554000B Copyright © Liberty Pumps, Inc. 2019 All rights reserved. – 9 –
Sensor Wiring
Connect the RTU-200 current transducer as per the schematics on
page 8. Open the core of the current transducer by pressing on the
lever. Ensure that one incoming power conductor passes through
the center of the current transducer.
Figure 12. Current Transducer Wiring
Wire the pump run inputs to a non-powered auxiliary contact in
the control panel, which closes when the pump is called to run.
These must be wired for each pump.
Motor contactor auxiliary contacts for reference only. Actual
contactor configuration may differ.
Figure 13. Aux Contact Example
Mounting the LLINK Panel
Mount the LLINK panel using a solid base such as treated posts
with a treated plywood overlay. Mounting on Unistrut® or other
metal structure is also common. Use the appropriate hardware for
securely anchoring the LLINK panel to the metal structure.
Figure 14. LLINK Mounting Example
LLINK Panel Wiring
When wiring the LLINK panel, be sure to use liquid-tight conduit or
strain relief fittings. Refer to Figure 10 / Figure 11 (as applicable)
for wiring schematic.
Figure 15. LLINK Panel Interior View
8.5” Enclosure Width
5.625” Mounting Screws
11.125” Mounting Screws
10.5” Enclosure Height
6.3” Depth
ID: 64XXXL

– 10 – Copyright © Liberty Pumps, Inc. 2019 All rights reserved. 2554000B
Conduit Options
Use liquid-tight conduit or strain relief fittings to run cables
between the LLINK and the lift station control panel. Do not run
conduit from the LLINK to the wet well.
Figure 16. Conduit Options
Activating the Battery
Battery Connection
The RTU units are equipped with an internal Li-ion battery. This
battery will enable operation during power loss (24 Vdc) and send
out alert notifications for power loss and any digital input alerts.
Note: The battery is not able to power the current transducer. The
battery is shipped disconnected and must be switched on before
startup.
Figure 17. Battery Switch
System View
Figure 18. LLINK Installation Example
Liquid-tight
conduit fittings
Liquid-tight
conduit Conduit
OR
3.7 V Li ion battery
-
POWER
0V
BATTERY ON/OFF
Battery must be connected at startup
JUMPER
SWITCH
BATT
ON OFF
BATT
ON OFF
BATT
ON OFF
JP4

2554000B Copyright © Liberty Pumps, Inc. 2019 All rights reserved. – 11 –
RTU Troubleshooting
Troubleshooting LEDs
Each input has a corresponding LED indicator above the input
terminal. The relay output also has an LED indication.
RTU Communication
The RTU signal strength can be checked on the web portal. Go to
Setup/Ver & Comm to see the RSSI value.
RSSI Thresholds
RSSI is a measurement of the power present in a
received radio signal (Received Signal Strength
Indicator). The larger the number, the better the
reception.
Below is a guideline to appropriate strength
thresholds:
1-5 = very poor (no communication)
6-8 = poor (inconsistent communication)
9-11 = good (little to no communication issues)
>12 = best
Logging In
Click on the following link or type the following URL in a browser
to open the login screen: http://www.lep-link.com.
Google Chrome or Mozilla Firefox are the recommended web
browsers.
Figure 19. Login Screens - Register Device
Figure 20. Login Screens
Customer Service Agreement and Terms of Use
This agreement outlines the agreement between AMI and the End
User and must be agreed to before access to the cloud interface is
allowed.
An automatic email is generated and sent to the email address
entered. Follow the link in the email to verify and activate the
account.
After activation, the User must agree to the Terms of Use. These
steps only need to be completed during the initial setup and
activation of an initial account.
Note: The End User should activate this product. When the initial
one year of cellular service comes to an end, AMI will contact the
End User directly to review renewal options. The primary User
(Account Admin) will be able to add additional Users for login and
alarm notification. The cellular service plan provided with the
RTU-100 only covers text (SMS), and additionally data for the
RTU-200 unit. It does not cover SMS and data service charges
incurred for the use of a personal cell phone or tablet.
Table 1. Troubleshooting LEDs
LED Number LED Color Function
Function LEDs at top of RTU
4Yellow
Heartbeat Flash = ONLINE Fast
Flash = OFFLINE
3 Red Alarm/Fault present
2Blue
Connecting to Cellular network
(on power up)
1 Green Cellular Modem Power
12 Green External power (24 Vdc)
Status LEDs at bottom of RTU
n/a n/a I/O Status
432112
Input Status LEDs

– 12 – Copyright © Liberty Pumps, Inc. 2019 All rights reserved. 2554000B
Access Levels
The portal has three access levels:
•Liberty Pumps
•Account Admin
•User
Note: There may be multiple Account Admins and Users per
account, but each Account Admin or User can only be assigned to
one account.
Figure 21. Access Level Example
Viewing/Searching For Your Device
After completing the registration procedure,
access is provided to all of the RTUs contained
within. There are multiple ways to search for/
find/select a controller:
•From Map (Satellite or road view available)
•From List
•From Tree View
•Search by RTU Name or ID
•Sort by RTU Name or ID
From Map
Once logged in, the interactive map appears on the main screen. If
RTUs have already been located on the map, they will appear here.
The next section explains how to place the RTU on the map.
Right-click on a controller to see the device ID and other pertinent
information. To select an RTU, click on the RTU icon.
Figure 22. Search for Device from Map
From List
Select an RTU by Device ID.
Figure 23. Search for Device from List
From Tree View
On the left side of the window, all RTUs in the account are
permanently displayed and can be clicked at any time to move
from one RTU to another.
To select an RTU from the Tree View, click on the RTU icon.
Table 2. User Privileges
Create
Accounts
Create
Account
Admins
Create
Users
Run
Reports
Dealer (LP) XXXX
Account Admin1
1 Account Admin and User can work within assigned account only
XX
User X
Liberty Pumps
Account A
Account
Admin A
Account
Admin B
Account
Admin C1
Account
Admin C2
User A1
User A2
User B1 User C1
User C2
User C3
User C4
Account B Account C
Icon Status Color
RTU-100 (offline) gray
RTU-100 (online) green
RTU-200 (offline) gray
RTU-200 (online) green
ID: 65030
OEM: LIBERTY PUMPS
Dealers: Liberty Pumps
Accounts: Montgomery
Parks
Last comm: 10/31/2017
11:52:58 AM
RSSI: 18
Liberty Pumps
RTU-100
Liberty Pumps
RTU-100
Liberty Pumps
RTU-200
60013 LEP-L 3G
60014 LEP-L 3G
60016 LEP-L 3G
60018 LEP-L 3G
60019 LEP-L 3G
60025 LEP-L 3G
63064 LEP-L 3G
63225 LEP-L 3G

2554000B Copyright © Liberty Pumps, Inc. 2019 All rights reserved. – 13 –
Searching and Sorting by RTU ID or Name
Select the “List” view from the Dashboard to search devices based
on any of the top row items: Device ID, Device Name, Account
Name, etc.
Figure 24. Search for Device by ID or Name
Placing an RTU on the Map
Account Admins can place individual controllers on the map
interface powered by Google Imagery.
Figure 25. Placing an RTU
Placing a Controller on the Map
(Dashboard - Map View)
Click and release the unallocated device, then click on the map to
drop. Drag and drop to the desired location, then save.
Figure 26. Placing a Controller
User Setup
Account Admins have the ability to create/edit/delete Users, but
not other Account Admins. To set up additional Account Admins,
contact Liberty Pumps.
New User Setup
Click WELCOME at the top right of the page, then select Users.
Figure 27. Add New User
Figure 28. New User Setup
Set up new account as desired.
Once a new User account is created, an email will be sent to the
new User’s email address. The User will have 48 hours to use the
link on the email to verify the information listed above. This
verification process is in place to ensure that new Users are aware
and willing to receive future alarm notifications. If the User account
is not verified, the account is not activated.
Liberty Pumps
Liberty Pumps
Liberty Pumps
Liberty Pumps
Liberty Pumps
RTU-200
RTU-200
RTU-200
RTU-200
RTU-200
6510
65001
65003
4” rental pump
lift station 01
Sander
City of Poteau
20
16
11/02/2017 10:24:27 AM
11/02/2017 09:24:16 AM
Active
Active
65000
65002
65004
65000 Liftstation #2
Oceanview P.S.
RockCreek BH#2
Ape
City of Gibbon
Stantec - GSP
Montgomery Parks
9
14
22
11/02/2017 09:24:39 AM
11/02/2017 10:25:11 AM
11/02/2017 10:25:07 AM
Active
Active
Active
Liberty Pumps West Lab

– 14 – Copyright © Liberty Pumps, Inc. 2019 All rights reserved. 2554000B
Dashboard
Ensure that the RTU has been properly configured. The
functionality of this system is dependent on the setup of the
RTU(s).
The data on the screen may not display the latest RTU values. Use
the GET STATUS button to update to the most current values.
Figure 29. Dashboard Use
RTU Setup
Click on the SETUP button on the top row of the Main Screen to
enter the RTU edit screen.
Figure 30. RTU Setup
Click SAVE to store changes. It may take a few seconds to take
effect.
Online/Offline Trigger Alert Setup
The RTU has the ability to alert a User when the RTU transitions
from online to offline and vice versa.
Click on the VER&COMM tab on the setup screen to set up the
online and offline triggers.
Ver & Comm Setup
Figure 31. Notification Setup
See Alarm Notification Setup on page 18 for more information.
The Online Triggered notification will alert the selected User when
the RTU is connected to the cellular network and transmitting to
the server.
The Offline Triggered notification will alert the selected User if the
RTU is no longer online (not connected to the server). This can be
as a result of power loss for a prolonged time, or a drop in cellular
service. It can take the server up to 20 minutes to detect this
condition.

2554000B Copyright © Liberty Pumps, Inc. 2019 All rights reserved. – 15 –
RTU Visualization
Several templates are available to visualize your remote controller. There is a unique template for the RTU-100 and RTU-200. The template
shown below is for the RTU-200.
Figure 32. RTU Visualization
Alarms
RTU-100 and RTU-200:
Alarm 1-4: These alarms become active upon a contact closure (see
Wiring on page 7). The label “Alarm 1” can be changed to describe
the actual alarm condition. Example: “P1 Fail”. See Main Screen
Configuration on page 16 for instructions on how to edit text on
the Main Screen.
LED Indication: The LED indication on the screen will turn red when
the alarm is active. Configure the alert notification by clicking on
the indicator.
Power: If 24 Vdc power is lost for more than the set time (see
Configuration screen). The 3.7 Vdc battery must be connected.
P1-2 Runtime Alarm: The pump ran continuously for longer than
the set time (see Configuration screen). This condition may indicate
a pump clog, a high in-flow event, or sensor fault.
RTU-200 Additional Alarms:
Xdcr High: Level transducer High Level alarm. This alarm set point
and timer value are set in the configuration screen. The tank level
value will change to zero if 24 Vdc power is lost and the RTU is
running on the 3.7 V Li-ion battery. The High Level alarm will no
longer be active during this condition.
It is recommended to have a 24 Vdc battery backup system to
ensure alarm notification during power loss. Alternately, a high
level float switch may be connected to any of the four digital
alarms and activate during power loss.
Xdcr Low: Level transducer Low Level alarm. This alarm set point
and timer value are set in the configuration screen. This alarm will
not be active on power loss (24 Vdc), and running on the 3.7 V
Li-ion battery.
P1-2 High Amps: The pump running amps are higher than set
point for longer than the set timer (see Configuration screen).
P1-2 Dry Run Alarm: The pump running amps are lower than set
point for longer than the set timer (see Configuration screen).
Relay Button
Machine may start unexpectedly and cause serious injury or
death. User must have confirmation that all personnel are free
and clear from moving parts and the electrical panel before
activating the relay remotely.
Only allow qualified operators to remotely activate the relay.
The relay remote operation must be part of a fail safe
electrical circuit that would shutdown the equipment before
failing or cause damage/injury.
Local and National safety codes must be followed.
Pressing the RELAY icon on the screen will remotely energize the
relay in the RTU. The relay will only stay ON for two seconds, then
it will turn OFF automatically.
The label text below the relay button can be edited to describe the
function of the relay. Example: “Silence Horn”.
Pump Data
Pump Run Indication
Station In-Flow¹
Alarm 1-4
Programmable Alarms
High Level Transducer¹
Low Level Transducer¹
Power Loss Alarm
Ack. Fault Button
Starts today
Pump Amps (30 sec after start)
Pump Runtime Alarm
Fault Acknowledged Indicator
Runtime today
Relay Button (relay will activate for 2 sec)
Pump Dry Run Alarm (Low Amps)¹
Pump High Amps Alarm¹
Wet Well Level
¹
P1 & P2 GPM
¹
¹
Available on RTU-200 only
RISK OF SERIOUS INJURY OR DEATH

– 16 – Copyright © Liberty Pumps, Inc. 2019 All rights reserved. 2554000B
Ack Fault Button and Indication
The ACK FAULT button must be pressed after an alarm within the set
time (See Setup screen). If an alarm becomes active, the timer starts
and the operator must acknowledge the alarm on the screen
before the timer times out (default value is 20 min). If not
acknowledged, the OK indicator turns red and can be used to
notify other Users of the failure to acknowledge. This function is
useful if only one User is on standby, and may not be able to
respond in a timely manner.
Click on OK to set the Alert notification. Leave it blank if not using
this function.
Station Data (trending available - see Reports
and Trending section)
Wet Well Level: Level of the wet well as measured by the
transducer.
P1-2 Amps: Pump Current snapshot captured 30 sec after motor
start by the current transducer.
P1-2 Cycles: The number of start cycles occurred since midnight.
P1-2 Runtime Minutes: Accumulated motor run since midnight.
View reports (accumulation for full run analysis day/week/month).
Station In-Flow (GPM): The measurements are calculated using
the wet well level, the tank diameter, and the fill time. It is a very
useful data point to track peak flow hours and to detect storm
water infiltration issues.
P1-2 GPM: The measurements are calculated using the wet well
level, the tank diameter, the fill time, and discharge time. It is a very
useful data point in tracing the performance on each pump, and to
understand the effect of changing head conditions.
Pump Data: These values are not measured. They are used as
reference and for recordkeeping. It is valuable to compare the
pump FLA to the actual Amps on the screen for setting High Amp
and Dry Run Alarms. It is also a quick way to check the pump data
before making a service call to the station.
Main Screen Configuration
Main Screen - Editing Text Labels
Figure 33. Text Labels
The Edit Text function enables the User to change the text on the
screen to match the function of the alarm assigned in the field.
Figure 34. Edit Text Labels
Edit text labels as desired.
To save changes, press . To cancel edits, press .
Station Parameter Configuration
Figure 35. Station Parameter Setup
Click on SETUP to navigate to the parameter Setup screen. Edit
values are required. Press SAVE after edits to store values to the
RTU.
Figure 36. Edit Station Parameters

2554000B Copyright © Liberty Pumps, Inc. 2019 All rights reserved. – 17 –
Level Sensor Setup (sold separately for RTU-200)
Current Sensor Setup (supplied with RTU-200)
Alarm Setup
Set values to “0” in the alarm setup to disable the alarm function.
Table 3. Station Parameter Details
Parameter Purpose Default
Value
Alarm 1-4
delay
Delay timer used to confirm the
presence of a closed contact. 2sec
Power loss
Alarm delay
Delay timer used to confirm the loss
of the 24 Vdc power supply. 30 sec
High Tank
Level Alarm
delay
Delay timer used to confirm the
presence of a high level measurement
from the transducer. This alarm is
triggered by the High Tank Level
value.
5sec
Low Tank
Level Alarm
delay
Delay timer used to confirm the
presence of a low level measurement
from the transducer. This alarm is
triggered by the Low Tank Level value.
5sec
Acknowledge
Alarm delay
If an alarm becomes active, the timer
starts, and the operator must click the
ACK FAULT button on the screen
before the timer times out.
If not acknowledged, the OK indicator
turns red and can be used to notify
other Users of the failure to
acknowledge. This function is useful if
only one User is on standby, and may
not be able to respond in a timely
manner.
20 min
Table 4. Level Sensor Details
Parameter Definition Default
Value
Range
(20 mA)
Level transducer
measurement range.
Value in ft for 20 mA output.
15 ft
Offset
Level transducer distance
above the bottom of the tank.
This value is added to the
measurement.
1ft
Table 5. Current Sensor Details
Parameter Definition Default
Value
Range
(20 mA)
Current transducer
measurement range.
Value in A for 20 mA output
100 A
Table 6. Alarm Details
Parameter Definition Default
Value
High Tank
Level
High level set point for transducer
high level alarm 12 ft
Low Tank
Level
Low level set point for transducer low
level alarm 0ft
P1-P2 Max
Runtime
Max timer value for pump runtime
during a single cycle. The RTU is
equipped with a maximum run time
indicator. The unit can be configured
to activate a message if a
pre-determined maximum run time,
per pump cycle, has been exceeded.
This alarm requires the User to click on
ACK FAULT to clear.
30 min
P1-P2 High
Amp
Max timer value for pump runtime
during a single cycle. The RTU is
equipped with a high amp indicator.
The unit can be configured to activate
a message if a pre-determined
maximum value has been exceeded.
This alarm requires the User to click on
ACK FAULT to clear.
80 A
P1-P2 Dry
Run
Dry Run indication uses the motor
current measurement to determine
whether a pump is running dry (no
load). For a submersible pump, the
current draw will typically drop 30%
from normal when running dry.
Consult the Liberty Pumps for this
value and test this fault, if possible.
The amp set value corresponds to the
minimum amp value that the pump
should draw during normal operation.
If the current drops below this value
for longer than the Dry Run Delay, the
RTU will display a “Dry Run” fault. The
“Trip Delay” time is used to avoid
nuisance tripping. This alarm requires
the User to click on ACK FAULT to clear.
0A

– 18 – Copyright © Liberty Pumps, Inc. 2019 All rights reserved. 2554000B
Flow Monitoring Setup (RTU-200)
Volumetric flow measurement is available when a level transducer
is used in a cylindrical tank. The RTU-200 unit calculates the volume
of liquid based on the level. The flow is calculated by using the
volume and the fill/discharge times. The in-flow and the discharge
flow is measured. The Flow Calc. Level set points are not used for
controlling the pump. They are used for volumetric flow
calculation. The flow calculation is based on the diameter of the
tank, the Start Flow Calc. and Stop Flow Calc. level set points, and
the fill and discharge times. Both In-Flow and Discharge flow are
calculated during every cycle.
Tank Diameter: Enter the tank diameter in ft
Flow Calc. Start Level: See below (in ft)
Flow Calc. Stop Level: See below (in ft)
Important notes on flow setup:
Set Flow Calc. Start Level at least 4” below the pump start level. Set
Flow Calc. Stop Level at least 4” above the pump stop level.
The flow accuracy is better with longer cycle times (2 min or more).
Note: When using a rectangular tank, the equivalent diameter
would be: d .
Example: A 10 x 10 tank would equate to a diameter of 11.28.
Enter this value and get the flow calculations as if it was a
cylindrical tank.
Figure 37. Flow Monitoring Example
Pump Data
The Pump Data screen is for information only. It is a record of the
pump HP, Volts, and FLA.
Pump HP: Enter pump horsepower.
Pump Voltage: Enter pump rated voltage.
Pump FLA: Enter pump FLA as shown on the nameplate.
Alarm Notification Setup
There are three options to receive alerts:
•Email
•Email to text
•SMS
The User phone number needs to be setup on the Users tab (see
User Setup on page 13). Under Mobile Phone, make sure to put a
“1” (US/CANADA) before the phone number.
Figure 38. Alarm Notification Setup
Connecting Alerts to User
Email/SMS Alarm Notifications
Click on the alarm indicator to launch the “Bit Alerts” dialog box.
Figure 39. Alarm Notification
Click on Select Users to select which User will be notified when the
alarm goes ON (Condition set alert), and when the alarm goes OFF
(Condition reset alert). Multiple Users may be selected for
notification. See New User Setup on page 13 to create additional
Users.
Type in the Alert text message that will be delivered. The name of
the station is not necessary in the text as it is always sent as part of
the notification.
2L W=
Flow Calc: Start Level
Flow Calc: Stop Level
Pump Stop
Level Sensor
Offset
Tank Diameter
Discharge
Pump Start
In-Flow
Liberty Pumps LEP
SPECS_XR
7/7/2015
None
Account-Admin

2554000B Copyright © Liberty Pumps, Inc. 2019 All rights reserved. – 19 –
Figure 40. Alarm Escalation Setup
Escalation
In addition to the original SMS message, you can assign escalated
Users. The escalation can happen two ways: forced or timed. The
forced way is initiated by the User(s) that receive the initial SMS
when they text a code that will escalate to the assigned User.
SMS Notification
The timed escalation will happen when the initial User does not
acknowledge the message. The escalation time is fixed at 30 min.
Example of SMS sent:
Figure 41. SMS Example
Email Notification Example
Figure 42. Email Example
Email to Text
It is possible to convert an email into an SMS (text). This function is
made available by some cellular carriers. Check with the specific
carrier for more information. Below are some examples:
AT&T - [email protected]
Verizon - [email protected]
T-Mobile - [email protected]t
Sprint PCS - [e-mail]
Virgin Mobile - [email protected]
US Cellular - [e-mail]
Nextel - [e-mail]
Boost - [email protected]
Alltel - [email protected]lltel.com
Example: Phone number is 444-333-2222 with Verizon, the email
address for notification is [email protected].
The SMS report can be found in the Reports tab.
Figure 43. Escalation Report Example
All notifications sent are logged and can be viewed in a tabular
format. The table can be exported to an Excel spreadsheet
(example shown).
Reports and Trending
Five types of reports are available:
1. Graph: provides the ability to view historical trends of various
data point.
2. Tabular : ability to view and export data in a .cvs or Excel file.
3. Message: reports (notifications) generated from the server.
4. Email: list all notifications sent to a valid email address.
5. SMS: lists all notifications sent via SMS to a smart device.
Reports are very useful for evaluating the health of the pumping
station and for detecting abnormal operation.
Example: High inflow from water infiltration from a storm or other
event. This data can be downloaded in various formats and shared.
1. Click on the REPORT icon on top of the screen
2. Click on GRAPH
3. Select IN-FLOW GPM to view chart
Device RTU-200
(63012) sent alert:
Generator fault If
you will handle this
alert please reply
1851 if you want to
escalate please
reply E1851
Device ID
Fault Description
Escalation Instructions
Device Name
[email protected]
Fri 11/2/2018 4:28 PM
To: Robert
#3 XDCR High
Alert Controller # [60003] PWE Modbus
A
Message
Time
Delivered
Time ToA ddre ss Su b j ect Tex t Par t
8/10/
2018 8:57
8/10/2018
8:57 [email protected]
Alert Controller # [7160] LS #10 St
Pete Beach
#8 High Level Float -
Reset
8/10/
2018 8:52
8/10/2018
8:50 [email protected]
Alert Controller # [7160] LS #10 St
Pete Beach #4 Power Fail - Rest
8/10/
2018 8:50
8/10/2018
8:50 [email protected]
Alert Controller # [7160] LS #10 St
Pete Beach #8 High Level Float
8/10/
2018 8:36
8/10/2018
8:26 [email protected]
Alert Controller # [7160] LS #10 St
Pete Beach #1 Fault Acknowledged
8/10/
2018 8:29
8/10/2018
8:29 [email protected]
Alert Controller # [7160] LS #10 St
Pete Beach #3 Power Fail

– 20 – Copyright © Liberty Pumps, Inc. 2019 All rights reserved. 2554000B
Figure 44. Reports Example
Figure 45. Reports Results
Click on Start Date and End Date to select a data time range. Large
ranges will take longer to download.
Figure 46. Set Report Dates
Click on GENERATE to create the graph.
Zoom by clicking and dragging the mouse on a particular area on
the graph. Click on RESET ZOOM to go back to the previous view.
Figure 47. Zoom Reports
All graphs can be viewed at the same time. Click on the data labels
below the graph to turn OFF the pens to not display. This enables
comparison data. Click on a label to turn OFF pens.
Figure 48. Example P1 and P2 Amps
Click on to view export options.
To view accumulation data, select
ACCUMULATION. This function is used to
view Run Times and Cycles on select
versions.
Figure 49. Accumulation Data
When finished with the session, logout of
the system.
1
2
3
RESULTS
Click on label to turn OFF pen
