Liberty Systems CCR Liberty User manual

MANUAL
Liberty
LIBERTY USER MANUAL
Date of issue: 14 March 2019; rev. 2.11
CU HW rev.1.4, HS HW rev. 3.0, FW 2.11
Authors: Adam Procháska, Jakub Šimánek, Aleš Procháska
Published by Liberty systems s.r.o., CCRLiberty.com
LIBERTY MANUAL

1
Content
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Use of this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Responsibility of the CCR Liberty user . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
System of documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
User support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Depth limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Water temperature limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
CO2scrubber duration limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1. Technical design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

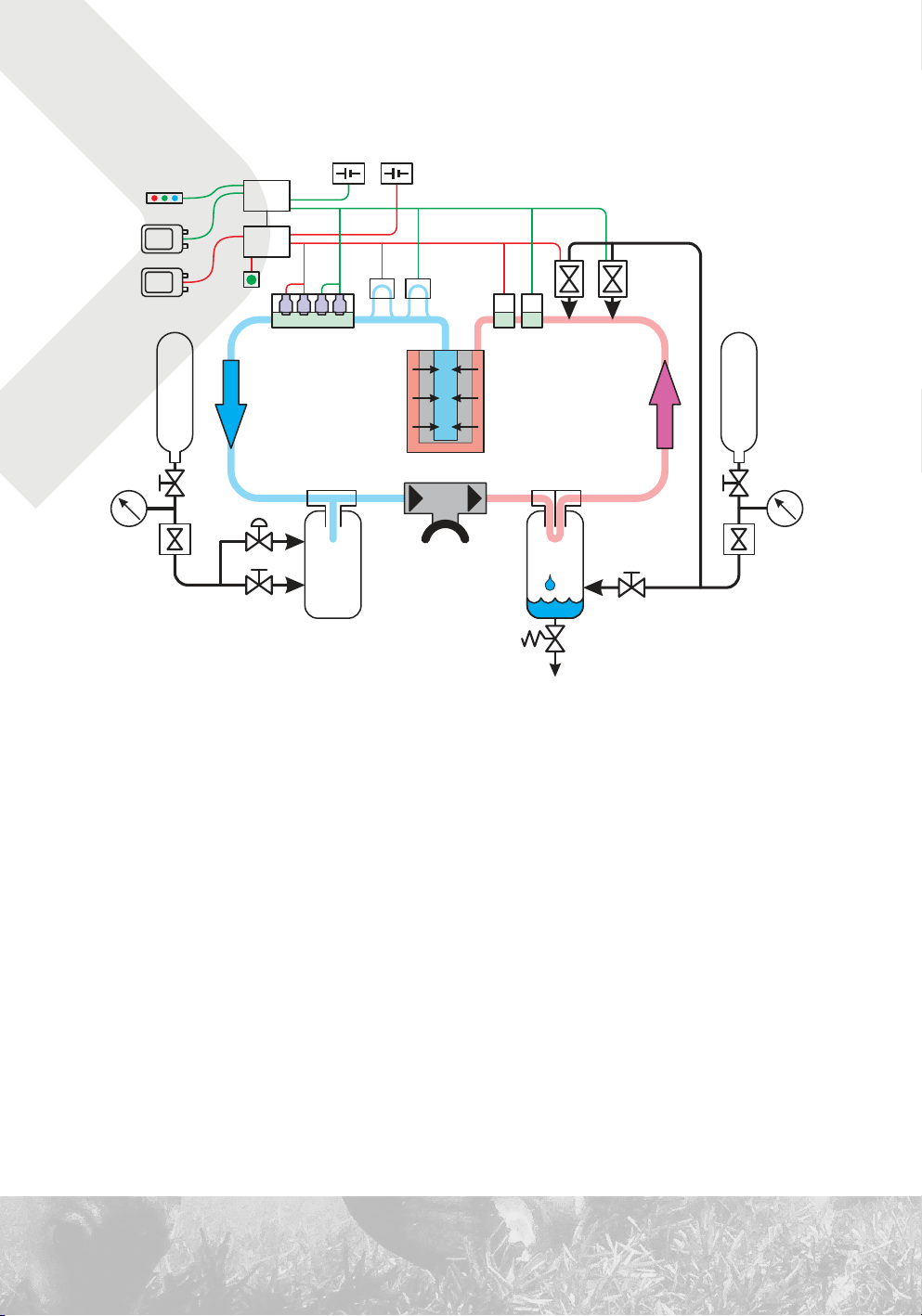

1.1 Basic schematic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

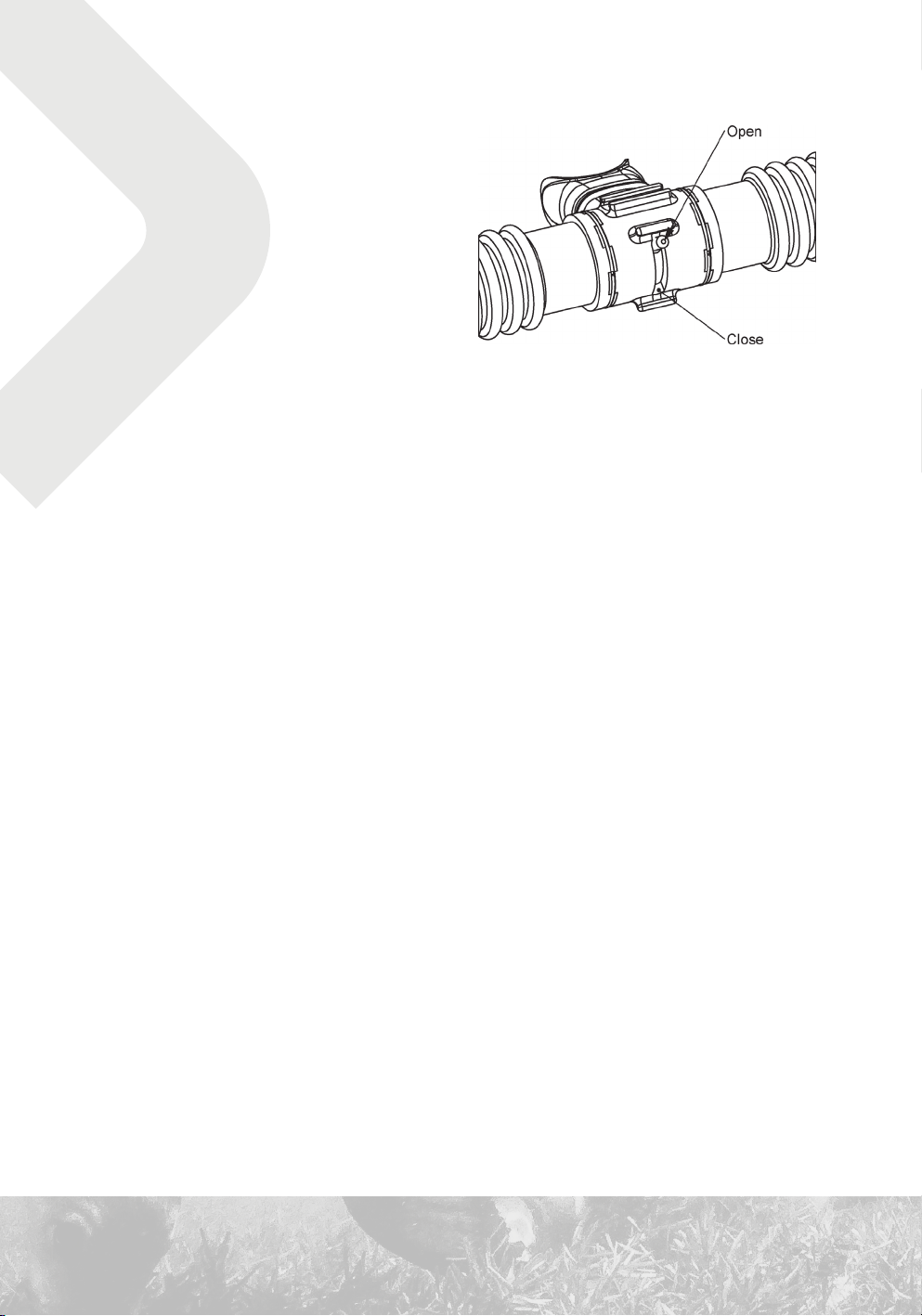

1.2 Dive/surface valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.2.1 Inhalation valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.2.2 Exhalation valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.2.3 Mouthpiece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
1.2.4 Usage with a full face mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

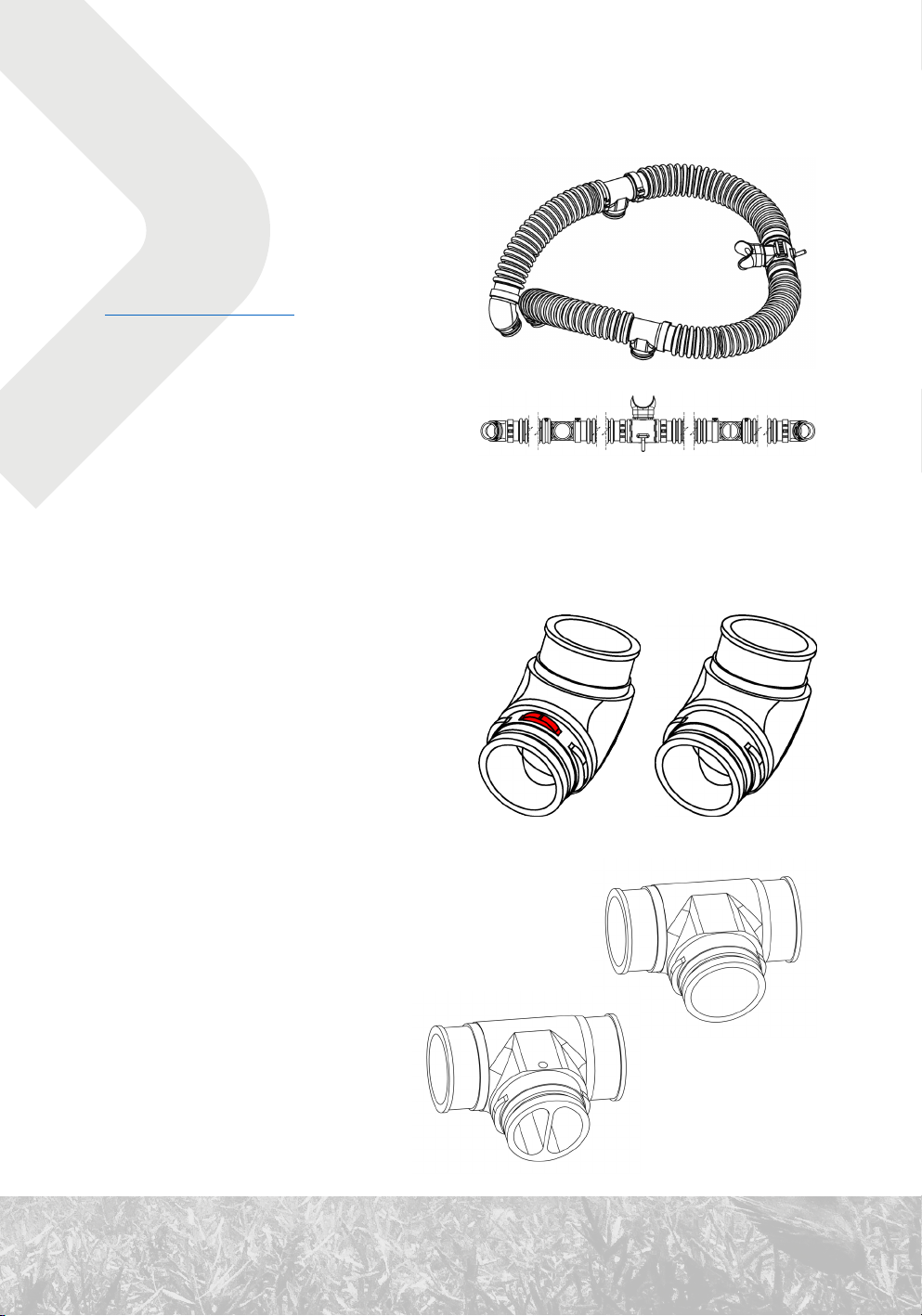

1.3 Corrugated hoses and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.3.1 Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.3.2 Attachment to the head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.3.3 Connection to the breathing bags . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.3.4 Attachment of the DSV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.4 Inhalation bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.4.1 Automatic diluent valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.4.2 Manual diluent bypass valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1.5 Exhalation bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

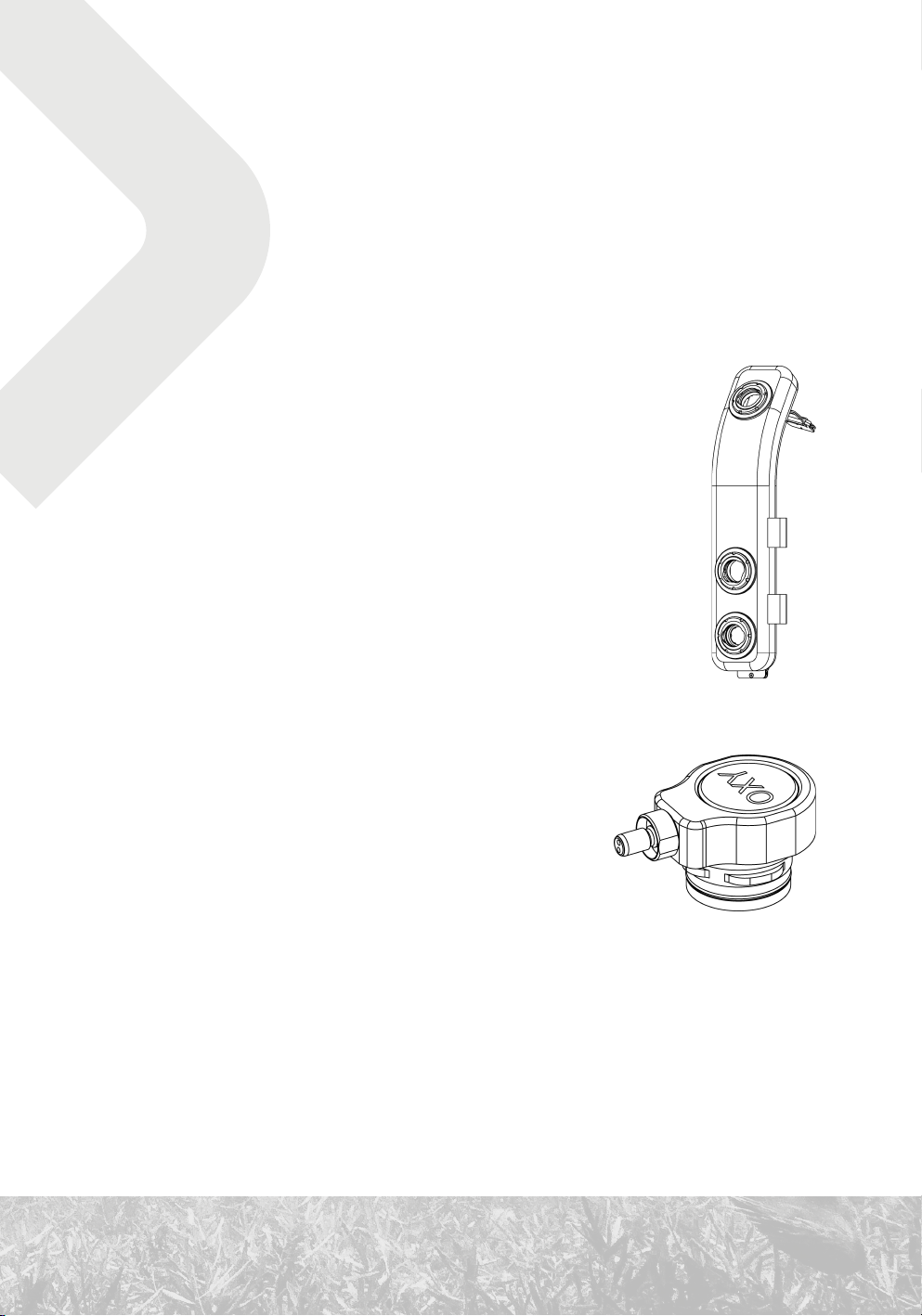

1.5.1 Manual oxygen bypass valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
1.5.2 Overpressure valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1.6 Oxygen tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1.6.1 Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1.6.2 Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.6.3 Reduction valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.6.4 Pressure reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.7 Diluent tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2
1.7.1 Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.7.2 Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1.7.3 Reduction valve and pressure reading . . . . . . . . . . . . . . . . . . . . . . . 20
1.7.4 Backup regulator (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1.8 CO2scrubber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1.9 Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
1.9.1 Control units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
1.9.2 Direct measurement of ppO2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
1.9.3 Measurement of He content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
1.9.4 Pressure and depth measurement . . . . . . . . . . . . . . . . . . . . . . . . . 24
1.9.5 Temperature measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
1.9.6 Solenoids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
1.9.7 Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
1.10 Visual display units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
1.10.1 Handsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
1.10.2 Head-up display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
1.10.3 Buddy display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
1.11 Backplate and mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
1.12 Harness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
1.13 Buoyancy compensator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
1.14 Ballast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
1.15 Weights of individual parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2. Control-unit operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
2.1 Control elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
2.1.1 Meanings of inputs in surface modes . . . . . . . . . . . . . . . . . . . . . . . 31
2.1.2 Meanings of inputs in dive modes . . . . . . . . . . . . . . . . . . . . . . . . . 32
2.1.3 Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2.2 Switching on the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2.2.1 Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2.3 Surface mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2.3.1 Entering surface mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2.3.2 Surface mode primary screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
2.3.3 Surface mode O2sensors screen . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2.3.4 Switching to other modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2.3.5 ppO2control in surface mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.4 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.4.1 Editor use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2.4.2 Setpoints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2.4.3 Mixtures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

3
2.4.4 Decompression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
2.4.5 Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
2.4.6 Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
2.4.7 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
2.4.8 Faulty sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
2.4.9 Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
2.5 Dive mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
2.5.1 Detailed screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
2.5.2 Synoptic screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
2.5.3 Big Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
2.5.4 Dive profile screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
2.5.5 Sensors screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
2.5.6 TTS Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
2.6 CCR mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
2.6.1 Entering CCR mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
2.6.2 Switching to other modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
2.6.3 ppO2regulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
2.6.4 Decompression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
2.6.5 Specific handset control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
2.7 Manual CCR mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
2.7.1 Entering manual CCR mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
2.7.2 Switching to other modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
2.7.3 ppO2regulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
2.7.4 Decompression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
2.8 Bailout OC mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
2.8.1 Entering bailout OC mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
2.8.2 Switching to other modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
2.8.3 Mixture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
2.8.4 Decompression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
2.8.5 Specific handset control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
2.9 Ascent plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
2.10 Setup in Dive mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
2.11 Games . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
2.11.1 Sokoban . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
2.11.2 Snake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
3. Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
3.1 Dive plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
3.1.1 Planner settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
3.1.2 Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

4
3.2 Dive preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
3.2.1 Replacement of CO2sorbent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
3.2.2 Assembling the rebreather body . . . . . . . . . . . . . . . . . . . . . . . . . . 70
3.2.3 Mounting the rebreather body . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
3.2.4 Attaching the counterlungs and hoses . . . . . . . . . . . . . . . . . . . . . . 71
3.2.5 Tank filling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
3.2.6 Battery charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
3.2.7 Helium sensor calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
3.2.8 Calibration of the oxygen sensors . . . . . . . . . . . . . . . . . . . . . . . . . 75
3.2.9 Preparing the bailout apparatus . . . . . . . . . . . . . . . . . . . . . . . . . . 76
3.2.10 Setting parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
3.2.11 Directional valve check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
3.2.12 Physical inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
3.3 Pre-dive inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
3.3.1 Internal testing of the control units . . . . . . . . . . . . . . . . . . . . . . . . 78
3.3.2 Pressure sensor test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
3.3.3 Comparison of oxygen sensors and their calibration . . . . . . . . . . . . . . 79
3.3.4 Helium-sensor test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
3.3.5 Battery testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
3.3.6 Solenoid testing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
3.3.7 HUD inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
3.3.8 BD inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
3.3.9 Negative pressure test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
3.3.10 Positive pressure test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
3.3.11 Predive checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
3.3.12 Prebreathe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
3.4 Diving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
3.4.1 Breathing high oxygen content gases . . . . . . . . . . . . . . . . . . . . . . . 85
3.4.2 Putting on the apparatus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
3.4.3 Using the DSV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
3.4.4 Monitoring of devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
3.4.5 Switching to CCR mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
3.4.6 Water entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
3.4.7 Submersion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
3.4.8 In-water check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
3.4.9 Descent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
3.4.10 Controlling buoyancy and trim . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
3.4.11 Mask clearing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
3.4.12 Increased physical exertion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
3.4.13 Ascent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

5
3.5 Post-dive procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
3.5.1 Immediately after surfacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
3.5.2 CO2scrubber maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
3.5.3 Cleaning and disinfection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
3.5.4 Battery care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
3.5.5 Dive log download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
3.5.6 Long-term storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
3.6 Emergency procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
3.6.1 Emergency ascent (bailout) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
3.6.2 Oxygen-source malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
3.6.3 Diluent-source malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
3.6.4 Scrubber malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
3.6.5 Inadvertent release of the mouthpiece . . . . . . . . . . . . . . . . . . . . . 100
3.6.6 Flooding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
3.6.7 Loss of buoyancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
3.6.8 Rescue on the surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
3.6.9 Malfunction of oxygen-concentration measuring . . . . . . . . . . . . . . . 102
3.7 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
3.7.1 Tools and replacement parts . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
3.7.2 Detection of leaks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
3.7.3 Regular service inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
3.7.4 Long-term maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
3.7.5 Firmware update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
3.8 Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
3.8.1 By car . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
3.8.2 By boat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
3.8.3 By plane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

6
Introduction
Use of this manual
This user manual is part of the CCR Liberty documentation.
The CCR Liberty is intended to be used exclusively by a trained person who is capable of fully
understanding the instructions contained in this manual or is in the process of training with
the CCR Liberty in a course accredited by the manufacturer. The initial requirements of such
a training course include qualification for diving with trimix recognized by a training agency
and sufficient experience with technical diving.
Responsibility of the CCR Liberty user
Strong emphasis was placed on reliability during the development of the CCR Liberty. Individual
internal parts are separated in order to minimize the impact that failure of any given part
may have on the rebreather’s basic functionality. A number of systems have multiple backups.
The logic of the CCR Liberty’s control never prohibits the start of a dive even in the event that
malfunctions are detected; it only indicates the status if able to do so in light of the damage.
When cave diving, the inability to submerge can mean not being able to return from a dive;
therefore, the CCR Liberty does not impede submersion.
The user must always decide responsibly whether he/she switches to a backup apparatus or
even starts a dive with a partially malfunctioning rebreather.
A CCR Liberty user must accept the fact that diving involves risk. Following everything that
the user has learned in the CCR Liberty’s technical documentation and in training on diving
with this rebreather can reduce the risk but cannot eliminate it. Safety when diving is further
improved by regular training, methodical education and following good diving practices. Diving
with a rebreather requires a far higher degree of carefulness and discipline than diving with an
open-circuit apparatus.
If you do not accept the risk and you are not a trained, careful and disciplined diver, do not dive
with the CCR Liberty.
The manufacturer does not bear any responsibility for use of the CCR Liberty if the apparatus
has been modified in any way that is not stated in this manual or in the technical guidelines
issued by the manufacturer.

7
System of documentation
Version
The technical documentation is subjected to a process of continual development and
improvement. Therefore, please regularly check the website at www.CCRLiberty.com for
updates.
This manual provides operating instructions for the hardware and software (firmware) version
of the CCR Liberty written on the tittle page.
Technical guidelines
The manufacturer can issue technical guidelines. It is strongly recommended that the user
regularly checks www.CCRLiberty.com for new guidelines. Registered users will receive
notifications by e-mail.
Update of printed documentation
The electronic form of the manual is always available in its complete, updated form.
The electronic and printed forms of the manual may not be completely identical. In case of
insignificant changes (correction of minor typing errors, for example), only the electronic
version is updated.
User support
Registered users are entitled to technical support. The extent of free support can be limited.
The technical support department at Liberty systems s.r.o. will provide limited support for
potential and unregistered users. Prior to submitting a question, please familiarize yourself
with the general principles of rebreather diving with trimix and the freely available CCR Liberty
technical documentation.

8
Technical data
Depth limits
The maximum depth for which The CCR Liberty meets the requirements of the Harmonized
Standard EN 14143:2013 is 100 m.
Diluent Max. depth
Air 40 m
tmx 21/35 66 m
tmx 18/45 78 m
tmx (heliox) 10/90 > 78 m
Additional limitation of depth depends on the used diluent, see 72 Tank filling – Diluent.
The CCR Liberty currently is configured with Apeks Environmentally sealed DST4 1st stages,
the Maximum Operational Depth of the unit with this 1st stage configuration is 170 m. Beyond
170 meters the gas reduction valves ie. 1st stage regulators MUST be replaced with the Apeks
UST4 Environmentally unsealed 1st stage kit.
All components are tested in overpressure 6 MPa (depth 600 m). The depth gauge is checked
and calibrated in overpressure 3.5 MPa (depth 350 m). EC Type-examination was performed to
a 100 m simulated depth.
Water temperature limits
The CCR Liberty is intended for use in water temperatures above 4 °C and below 34 °C
according to the requirements of EN 14143:2013 (Article 5.1).
The minimal temperature is determined through CO2scrubber duration tests, which are done
at 4 °C.
CO2scrubber duration limit
The maximum safe operating period of the sorbent is 168 min, determined by a test in
accordance to EN 14143:2013 (Article 6.6.2). During the test 1.6 l/min of CO2were added to the

9
Date of issue: 29. June 2018
CU HW rev. 1.4, HS HW rev. 3.0, FW 2.11
Authors: Adam Procháska, Jakub Šimánek, Aleš Procháska
Published by Liberty systems s.r.o., CCRLiberty.com
breathing loop with ventilation of 40 l/min in water with temperature 4 °C, exhaled gas with
temperature 32±4 °C, 40 m depth and limit at ppCO25 mBar.
The sorbent’s actual maximum operating period can differ depending on the sorbent,
temperature, depth and the diver’s physical effort.
In normal conditions scrubber duration is considered to range from 4 h in deep cold water with
moderate work to 6 hours for an easy dive. For details see 66 Sorbent service life.
Weight
The total weight of The CCR Liberty, readied for a dive, including fillings, is approx. 37 kg.
For details see 30 Weights of individual parts.
The recommended service intervals are at 1 year, 3 years and 5 years.
The servicing of the unit can only be performed by authorised service technician or technical
centre.
Not performing services at regular intervals may result in voiding your warranty.

10
1. Technical design

11

12
1.1 Basic schematic
OXYGEN
DILUENT
CU
CU
HS
HS
Exhalation
bag
Inhalation
bag
Watertrap
CO absorbent
2
ppO sensors
2
Solenoid
valves
Overpressure
valve
Manualoxygenvalve
ADV
Manualdiluentvalve
Pressure
&temperature
sensors
He%
sensors
Dive/surface
valve
Oxygen
reduction
valve
Diluent
reduction
valve
Controlunits
HUD
Buddy
display
Rechargeablebatteries
Displayunits
The principle of the rebreather consists in recycling the breathing mixture. Carbon dioxide
is removed from the exhaled mixture and is again prepared for the next inhalation after
replenishment with oxygen. The composition of the breathing mixture changes continuously.

13
1.2 Dive/surface valve
The breathing mixture is delivered to the
dive/surface valve (DSV) through the
corrugated hose from the left. When inhaling,
the mixture passes through the inhalation
valve to the mouthpiece and then into the
diver’s respiratory tract. When exhaling, it
passes through the exhalation valve into the
corrugated hose on the right.
The direction of the mixture’s flow is indicated
on the DSV.
1.2.1 Inhalation valve
The inhalation valve ensures that the
exhaled mixture cannot directly return to the
inhalation bag and is not repeatedly inhaled
by the diver without the removal of carbon
dioxide and the addition of oxygen.
The inhalation valve is situated within the
connection of the left corrugated hose.
A similar mushroom valve can be found in, for example, the exhalation valve of the second
stage of the regulator of an open-circuit apparatus.
This is one of the most critical parts of the rebreather. It is difficult to detect a malfunction in
this part during a dive, and such a malfunction can lead to loss of consciousness.
1.2.2 Exhalation valve
The exhalation valve directs the exhaled mixture via the corrugated hose to the exhalation bag.
It ensures that the diver does not directly re-inhale the exhaled mixture.
The exhalation valve is situated within the connection of the right corrugated hose.

14
Closing the dive/surface valve
If the diver is in the water and not using the
DSV, the DSV must be closed. Otherwise, the
circuit will be flooded with water.
Closing the DSV is done by using the gate
handle in the front part of the DSV. In the open
position, the handle is put up; in the closed
position, it is down.
1.2.3 Mouthpiece
Tightly sealed mouthpiece in the diver’s mouth prevents water from entering into the circuit.
The DSV and corrugated hoses function with greater force than the regulator of an open-circuit
apparatus. Therefore, an anatomically suitable shape of the rebreather’s mouthpiece and
proper clenching in the mouth are very important.
We do not recommend using a mouthpiece that can be shaped to the diver’s bite after heating.
This kind of mouthpiece restricts the movement of the lower jaw, which leads to unilateral
stress and will rapidly exhaust the mastication muscles.
1.2.4 Usage with a full face mask
Even though the mechanical dimensions would allow the connection of the DSV to a full face
mask, in a full face mask it is not possible to switch the mixture inlet from an open circuit with
an inlet from a rebreather. One of the reasons for this is the necessity of defogging the visor.
Consult with the manufacturer regarding possibilities of connecting the rebreather to a full
face mask. Use of such an apparatus will require procedures that deviate from this manual and
from standard procedures taught in a course accredited by the rebreather’s manufacturer.

15
1.3 Corrugated hoses and accessories
1.3.1 Hoses
The corrugated hoses are made of EPDM
rubber. Compatible chemical agents must
be used for cleaning and disinfection (see 92
Cleaning and disinfection).
The corrugated hoses can be damaged if
subjected to excessive stress. In particular, it
is necessary to avoid perforation, cutting and
excessive wear. Avoid long-term deformation
of the hose, for example when storing the unit.
Do not use the hoses as a handle.
The corrugated hoses are one of the least durable mechanical parts of the CCR Liberty. Pay
appropriate attention to protecting them.
1.3.2 Attachment to the head
Unlike almost all other bayonet connectors
on the CCR Liberty, the bayonet connector on
the exhalation side has three protrusions. This
prevents incorrect attachment of the hoses.
Elbow on the exhalation side (left) and
inhalation side (right).
1.3.3 Connection to the breathing bags
The T-pieces have standard bayonet connections. On the
exhalation side, the T-piece has a partition that directs any
water that has entered the DSV to the exhalation bag and
improves the blending of the
mixture with oxygen added using
the manual bypass valve.

16
1.3.4 Attachment of the DSV
Attachment to the corrugated hoses is done
with axial teeth that fit together and are
secured with a wire retaining ring.
The baskets of the mushroom valves are
inserted into the connector. When handling
the baskets, pay attention to their correct
orientation.
1.4 Inhalation bag
The inhalation bag is mounted on the left part of the harness (from the
diver’s perspective when wearing the CCR Liberty).
The external cover is made from a resilient textile, ensuring mechanical
protection. The internal bag is made from polyurethane. It is connected to
the breathing circuit with a T-piece via the upper bulkhead with a bayonet
connector.
The inhalation bag is affixed to the harness with two stainless-steel
buckles and with Velcro flaps. It can be easily removed for cleaning,
disinfection and other handling.
See also 92 Cleaning and disinfection.
1.4.1 Automatic diluent valve
The automatic diluent valve (ADV) is mounted in the middle bulkhead with a bayonet connector.
When the volume of the inhalation bag decreases, the ADV is pressed. The ADV then
automatically adds diluent to the breathing circuit.
The ADV can be closed by sliding the collar.
The sensitivity of the ADV can be decreased with an additional spring, which is included as
a spare part.

17
1.4.2 Manual diluent bypass valve
The manual diluent bypass valve is situated in the lower bulkhead of the inhalation bag and is
equipped with a bayonet connector.
It is attached to the low pressure (LP) hose with a seatec-style quick-release connector.
It is operated by pressing the center button.
The safety lock prevents diluent valve from accidentally falling out. Follow
these steps to remove.
1.5 Exhalation bag
The exhalation bag is situated on the right side of the harness It’s design and
the way it is connected to the harness and the breathing loop are similar to
those of the inhalation bag.
1.5.1 Manual oxygen bypass valve
The manual oxygen bypass valve is situated in the middle
bulkhead of the exhalation bag and is equipped with a bayonet
connector.
It is attached to the intermediate pressure hose with an oxygen
quick-release connector. This connector is like a standard
seatec-style quick-release connector with a collar. A standard
connector cannot be connected to the oxygen quick-release
connector. Though it is possible to connect the oxygen hose to the normal connector. Do not
remove the collar from the oxygen connector as connecting the wrong gas to the wrong valve
could potentially be dangerous. This is a requirement of the EN 14141 norm.
The bayonet connector on the oxygen bypass valve has three protrusions.
Use oxygen-compatible lubricant for maintenance of the oxygen bypass valve (We recommend
DuPont Krytox GPL-226).

18
1.5.2 Overpressure valve
The overpressure valve (OPV) is mounted in the lower bulkhead of
the exhalation bag and is equipped with a bayonet connector.
The required overpressure is regulated via rotation. When set to
minimal overpressure (by turning counterclockwise), the valve is
opened; only a mushroom valve ensures minimal overpressure.
A safety lock prevents the OPV from accidentally falling out. To remove the valve push it in to
unlock it and rotate in the direction of the arrows.
1.6 Oxygen tank
1.6.1 Tank
The CCR Liberty uses a three-liter steel tank with 100 mm diameter and 200 bar filling
pressure. The original 300 bar filling pressure of the bare tank was changed according to valid
technical standards.
The tank is labeled OXYGEN.
The tank is situated on the right from the diver’s perspective when wearing the CCR Liberty.

19
When connecting the oxygen tank to the unit screw in the hand wheel only when the tank is
upright. If you straighten the bottle when it is screwed in you will tighten the threads to the
point when it will be hard to remove without the usage of tools
For more information on filling, see 73 Oxygen.
1.6.2 Valve
The valve has a M26×2 200 bar outlet connection. The valve is not compatible with standard
DIN valves to eliminate possible mix-up between oxygen and diluent bottles, this is
a requirement of the EN 14141 norm.
1.6.3 Reduction valve
The CCR Liberty uses an Apeks DST4 first-stage regulator with a specially made low-pressure
turret, which is mounted on the backplate. This serves as the lower tank-mounting point; in the
middle part, the tank is attached with a Velcro strap.
The Apeks DST4 first-stage regulator comes with an environmentally sealed first-stage kit.
This seal causes an operational limitation at a depth of 170 meters. It is recommended that in
order to conduct dives beyond 170 meters the diver must replace the first-stage regulator with
the Apeks UST4 environmentally unsealed kit.
The reduction valve is equipped with an intermediate-pressure safety overpressure valve.
1.6.4 Pressure reading
The oxygen pressure gauge is situated on the right side; the HP hose runs through an opening in
the backplate.
1.7 Diluent tank
1.7.1 Tank
The CCR Liberty uses a three-liter steel tank with 100 mm diameter and 230 bar filling
pressure. The original 300 bar filling pressure of the bare tank was changed because a 230 bar
valve is used.
The tank is labeled DILUENT.
