Liebert UPStation GXT 2U User manual

AC Power Systems
For Business-Critical Continuity™
Liebert®GXT2U™
User Manual - 208V, 2700VA
DISCONTINUED
PRODUCT

DISCONTINUED
PRO DU C T

i
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . 1
GLOSSARY OF SYMBOLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
MAJOR COMPONENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Transient Voltage Surge Suppression and EMI/RFI Filters . . . 5
Rectifier/Power Factor Correction (PFC) Circuit . . . . . . . . . . . . 5
Inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Battery Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
DC-to-DC Converter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Dynamic Bypass. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Liebert GXT2U—Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Tower UPS Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

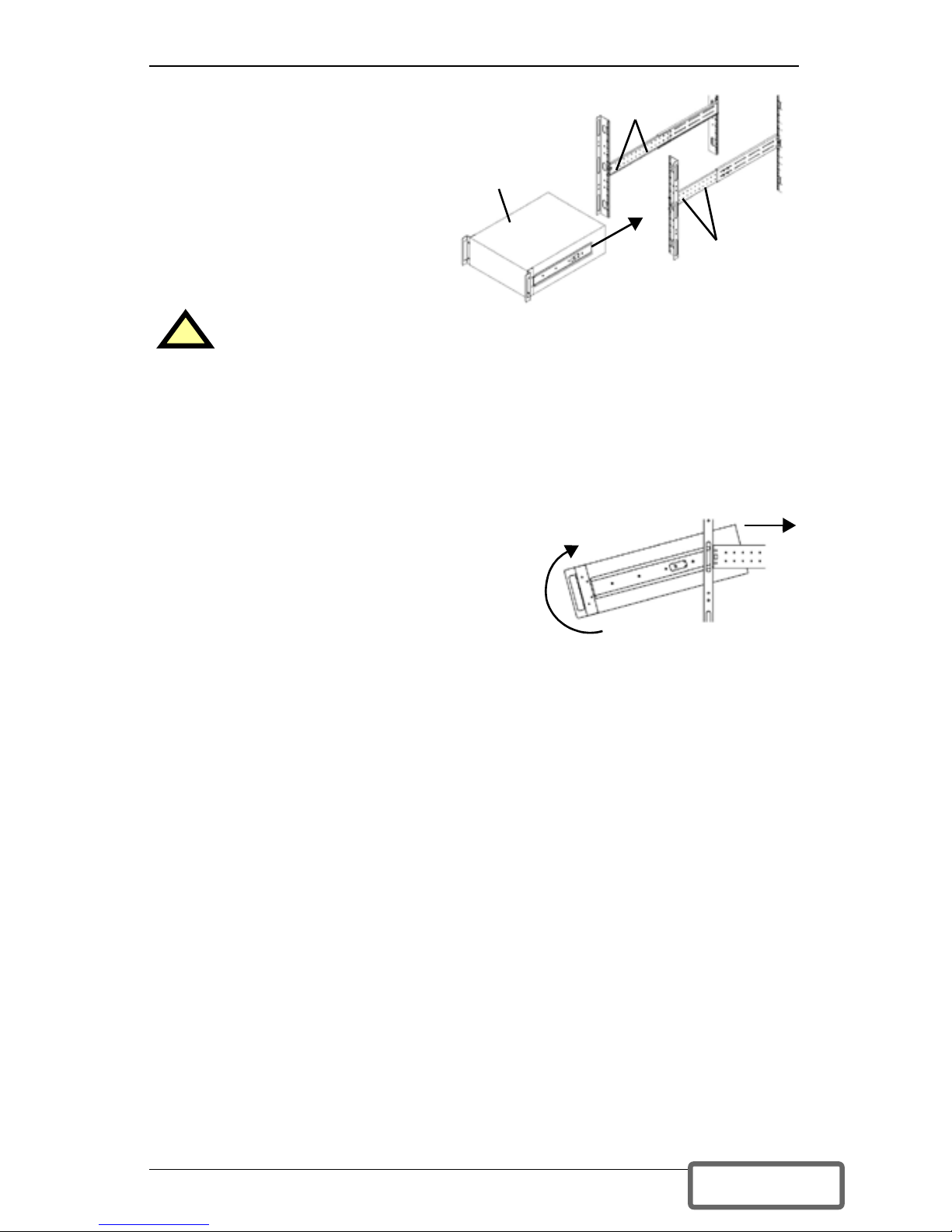

Rack-Mount UPS Conversion and Installation . . . . . . . . . . . . . 9

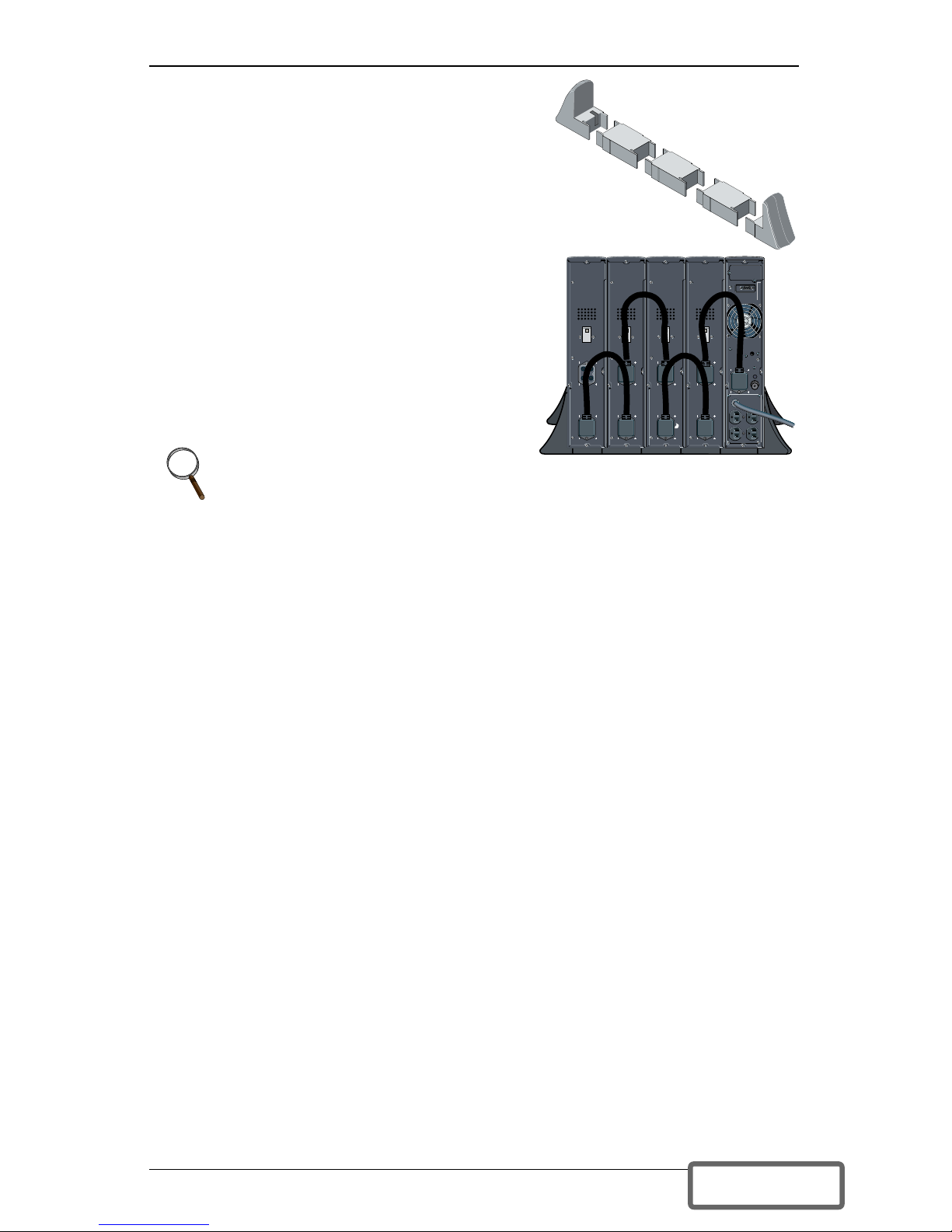

External Battery Cabinet Installation . . . . . . . . . . . . . . . . . . . 12

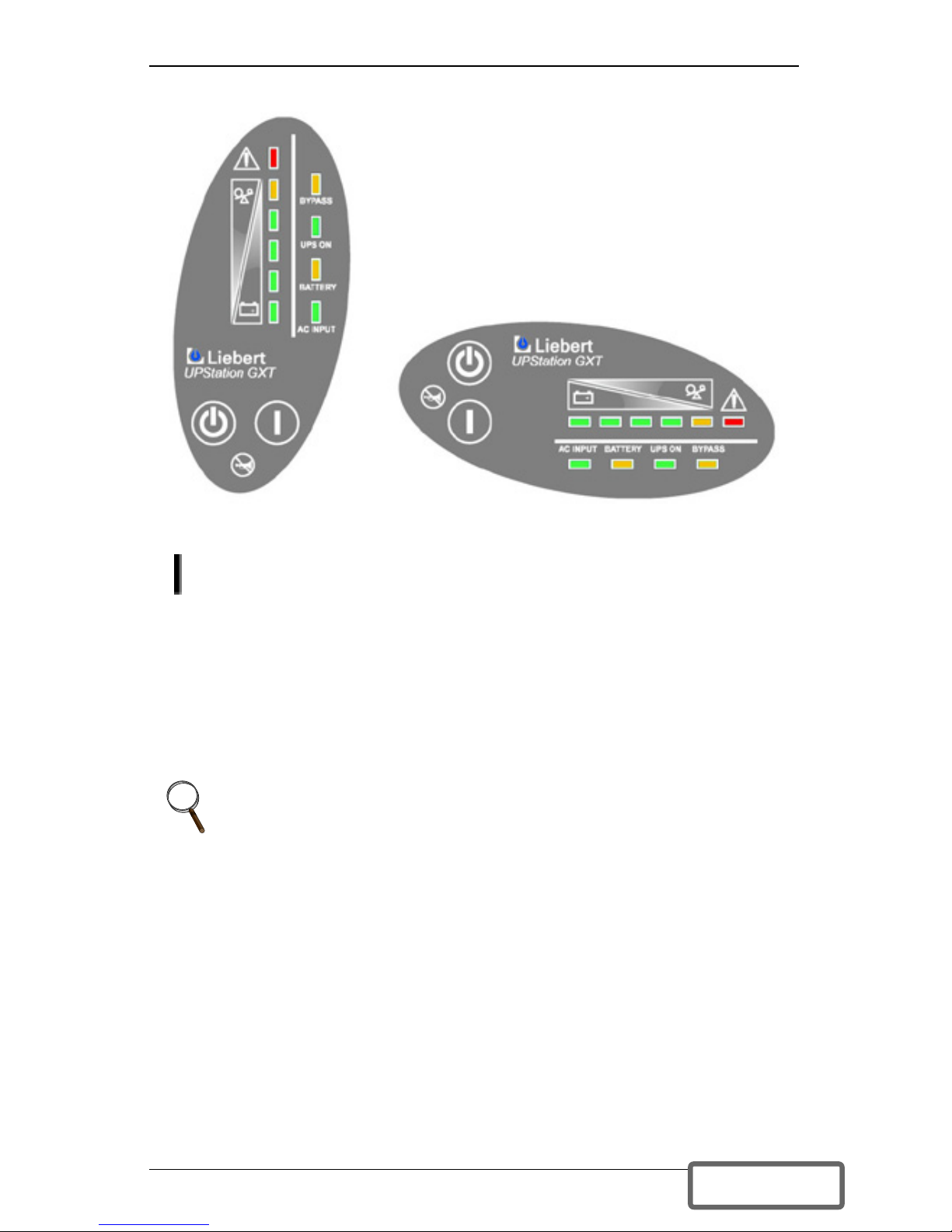

CONTROLS AND INDICATORS. . . . . . . . . . . . . . . . . . . . . . . . . 14
ON/Alarm Silence/Manual Battery Test Button . . . . . . . . . . . 14
Standby/Manual Bypass Button. . . . . . . . . . . . . . . . . . . . . . . . 15
Load/Battery Level Indicators (4 Green, 1 Amber) . . . . . . . . . 15
Fault Indicator LED (Red). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Bypass Indicator LED (Amber) . . . . . . . . . . . . . . . . . . . . . . . . . 15
UPS ON Indicator LED (Green) . . . . . . . . . . . . . . . . . . . . . . . . 15
Battery Indicator LED (Amber) . . . . . . . . . . . . . . . . . . . . . . . . 15
AC Input Indicator LED (Green). . . . . . . . . . . . . . . . . . . . . . . . 15
Output Voltage Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
DISCONTINUED
PRO DU C T

ii
OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Normal Mode Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Bypass Mode Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Battery Mode Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Battery Recharge Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
COMMUNICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Communications Interface Port . . . . . . . . . . . . . . . . . . . . . . . . 19
Pins 4 & 5 - Remote Shutdown on Battery. . . . . . . . . . . . . . . . 19
Pins 5 & 6 - Any-Mode Shutdown . . . . . . . . . . . . . . . . . . . . . . . 20
Auto-Enable Output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Pin 6 Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
UPS Intelligent Communications . . . . . . . . . . . . . . . . . . . . . . . 21
CONFIGURATION PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . 22
Liebert GXT2U Configuration Program Abilities . . . . . . . . . . 22
What You Will Need . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Internal Battery Replacement Procedures . . . . . . . . . . . . . . . 24
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Battery Cabinet Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 30
Battery Run Times. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Product Warranty Registration. . . . . . . . . . . . . . . . . . . . . . . . . 32
DISCONTINUED
PRO DU C T

1
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important safety instructions. Read all safety,
installation, and operating instructions before operating the Uninterruptible
Power System (UPS). Adhere to all warnings on the unit and in this manual.
Follow all operating and user instructions. Individuals without previous
training can install and operate this equipment.
It is not intended for use with life support and other designated “critical”
devices. Maximum load must not exceed that shown on the UPS rating label.
The UPS is designed for data processing equipment. If uncertain, consult your
local dealer or Liebert representative.
This UPS is designed for use on a properly grounded (earthed), 50Hz or 60Hz,
208V supply (programmable for 200, 208, 220, 230, and 240VAC output).
Installation instructions and warning notices are located in this manual.
ELECTROMAGNETIC COMPATIBILITY—The Liebert GXT2U™ Series
complies with the limits for a CLASS A DIGITAL DEVICE, PURSUANT TO
Part 15 of FCC rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation. Operating this device in a residential area is likely to
cause harmful interference that users must correct at their own expense.
Operate the UPS in an indoor environment only in an ambient temperature
range of 32°F to +104°F (0°C to +40°C). Install it in a clean environment, free
from moisture, flammable liquids, gases and corrosive substances.
This UPS contains no user serviceable parts except the internal battery pack.
The UPS ON/Standby push buttons do not electrically isolate internal parts.
Under no circumstances attempt to gain access internally other than to
replace the batteries due to risk of electric shock or burn. Do not continue to
use the UPS if the front panel indications are not in accordance with these
operating instructions or if the UPS performance alters in use. Refer all faults
to your local dealer, Liebert representative or the Liebert Worldwide Support
Group.
Servicing of batteries should be performed or supervised by personnel
knowledgeable of batteries and the required precautions. Keep unauthorized
personnel away from the batteries. PROPER DISPOSAL OF BATTERIES IS
REQUIRED. REFER TO YOUR LOCAL LAWS AND REGULATIONS FOR
BATTERY DISPOSAL REQUIREMENTS.
Never block or insert any object into the ventilation holes or other openings of
the UPS.
!WARNING
Opening or removing the cover may expose you to lethal voltages
within this unit even when it is apparently not operating and the
input wiring is disconnected from the electrical source. Observe all
cautions and warnings in this manual. Failure to do so MAY result
in serious injury or death. Refer all UPS and battery service to
qualified service personnel. Do not attempt to service this product
yourself. Never work alone.
DISCONTINUED
PRO DU C T

2
DO NOT CONNECT equipment that could overload the UPS or demand half-
wave rectification from the UPS, for example: electric drills, vacuum cleaners,
laser printers or hairdryers.
Storing magnetic media on top of the UPS may result in data loss or
corruption.
Turn the UPS off and isolate the UPS before cleaning; use only a soft cloth,
never liquid or aerosol cleaners. Keep the front and rear vents free of dust
accumulation that could restrict airflow.
When replacing batteries, replace with the same Liebert authorized
replacement battery kits.
!CAUTION
Do not dispose of battery or batteries in a fire. The battery may
explode.
Do not open or mutilate the battery or batteries. Released
electrolyte is harmful to skin and eyes. It may be toxic.
!CAUTION
A battery can present a risk of electrical shock and high short
circuit current. The following precautions should be observed when
working on batteries:
• Remove watches, rings, and other metal objects.
• Use tools with insulated handles.
DISCONTINUED
PRO DU C T

3

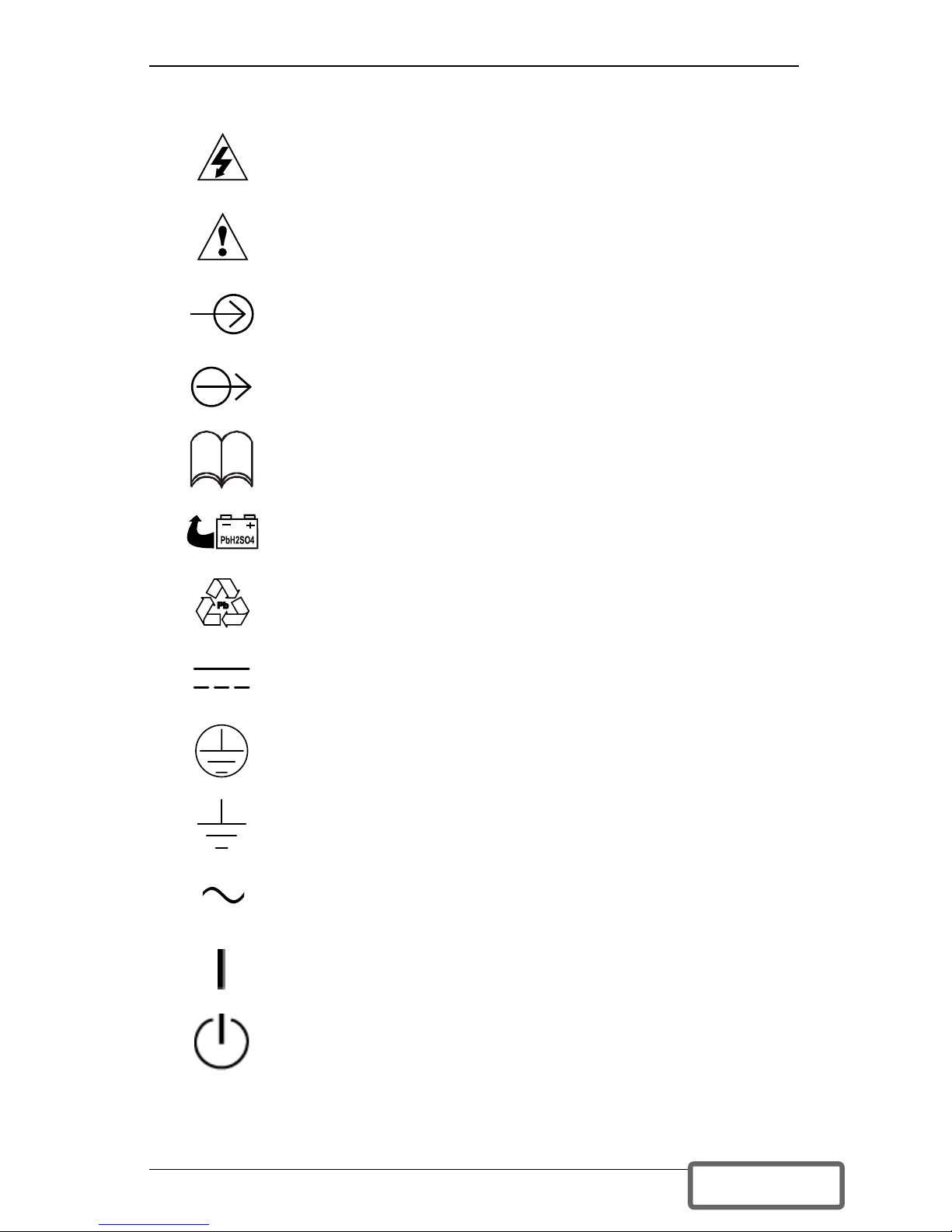

GLOSSARY OF SYMBOLS
Risk of electrical shock
Indicates caution followed by important instructions
AC input
AC output
Requests the user to consult the manual
Indicates the unit contains a valve-regulated lead acid battery
Recycle
DC voltage
Equipment grounding conductor
Bonded to ground
AC voltage
ON
Standby
i
DISCONTINUED
PRO DU C T

4
INTRODUCTION
Congratulations on your choice of the Liebert GXT2U™ Uninterruptible
Power System (UPS). It provides conditioned power to microcomputers and
other sensitive electronic equipment.
Upon generation, AC power is clean and stable. However, during transmission
and distribution it may be subject to voltage sags, spikes, or complete power
failure that may interrupt computer operations, cause data loss, or even
damage equipment. The Liebert GXT2U protects equipment from these
disturbances.
The Liebert GXT2U is rated for 2700 VA, 1890 watts. Complete model
specifications appear at the end of this manual.
The Liebert GXT2U is a compact, “on-line” UPS. An on-line UPS continuously
conditions and regulates its output voltage, whether utility power is present
or not. It supplies connected equipment with clean sine wave power. Sensitive
electronic equipment operates best from sinewave power.
For ease of use, the Liebert GXT2U features a light-emitting diode (LED)
display to indicate either load percentage or battery capacity depending upon
the mode of operation. It also provides self-diagnostic tests, a combination ON/
Alarm Silence/Manual Battery Test button, a Standby button, user
configurable program, and two levels of alarms when the unit is operating on
battery.
The Liebert GXT2U has an interface port for communication between the UPS
and a network server or other computer systems. This port provides detailed
operating information including voltages, currents, and alarm status to the
host system when used in conjunction with Liebert MultiLink™ software.
Liebert MultiLink software can also remotely control UPS operation.
DISCONTINUED
PRO DU C T

5
MAJOR COMPONENTS
Transient Voltage Surge Suppression and EMI/RFI Filters
These UPS components provide surge protection and filter both
electromagnetic interference (EMI) and radio frequency interference (RFI).
They minimize any surges or interference present in the utility line and keep
the sensitive equipment protected.
Rectifier/Power Factor Correction (PFC) Circuit
In normal operation, the rectifier/power factor correction (PFC) circuit
converts utility AC power to regulated DC power for use by the inverter while
ensuring that the waveshape of the input current used by the UPS is near
ideal. Extracting this sinewave input current achieves two objectives:
• The utility power is used as efficiently as possible by the UPS.
• The amount of distortion reflected on the utility is reduced.
This results in cleaner power being available to other devices in the building
not being protected by the Liebert GXT2U.
Inverter
In normal operation, the inverter utilizes the DC output of the power factor
correction circuit and inverts it into precise, regulated sinewave AC power.
Upon a utility power failure, the inverter receives its required energy from the
battery through the DC to DC converter. In both modes of operation, the UPS
inverter is on-line and continuously generating clean, precise, regulated AC
output power.
Battery Charger
The battery charger utilizes energy from the utility power and precisely
regulates it to continuously “float charge” the batteries. The batteries are
being charged whenever the Liebert GXT2U is plugged in, even when the UPS
is not turned on.
Input Output
Inverter
Battery
Battery
Charger
DC to DC
Converter
Rectifier
/PFC
TVSS &
EMI/RFI
Filters
L1
L2
G
L1
L2
G
Dynamic
Bypass
DISCONTINUED
PRO DU C T

6
DC-to-DC Converter
The DC-to-DC converter utilizes energy from the battery system and raises
the DC voltage to the optimum operating voltage for the inverter. This allows
the inverter to operate continuously at its optimum efficiency and voltage,
thus increasing reliability.
Battery
The Liebert GXT2U utilizes valve-regulated, nonspillable lead acid batteries.
To maintain battery design life, operate the UPS in an ambient temperature
of 68°F to 77°F (20°C to 25°C). Optional external battery cabinets are
available to extend battery run times.
Dynamic Bypass
The Liebert GXT2U provides an alternate path for utility power to the
connected load in the unlikely event of a UPS malfunction. Should the UPS
have an overload, overtemperature, or UPS failure condition, the UPS
automatically transfers the connected load to bypass. Bypass operation is
indicated by an audible alarm and illuminated amber Bypass LED (other
LEDs may be illuminated to indicate the diagnosed problem). To manually
transfer the connected load from the inverter to bypass, press the Standby
button once.
NOTE
The bypass power path does NOT protect the connected equipment
from disturbances on the utility supply.
DISCONTINUED
PRO DU C T

7
Liebert GXT2U—Rear View
Input Circuit
Breaker
(20 amp)
AC Input
(L6-20)
Output
Receptacles
(L6-15R)
External
Battery
Connector
Cooling
Fans
Liebert
IntelliSlot®
Port
DB-9
Communications Port
Output
Receptacle
(L6-20R)
Support
Base
DISCONTINUED
PRO DU C T

8
INSTALLATION
Preparation
1. Visually inspect the UPS for freight damage. Report damage to the carrier
and your local dealer or Liebert representative.
2. Decide where to place the Liebert GXT2U. Install the UPS indoors in a con-
trolled environment, where it cannot be accidentally turned off. Place it in
an area of unrestricted airflow around the unit, away from water, flamma-
ble liquids, gases, corrosives, and conductive contaminants. Maintain a
minimum clearance of 4 inches (100mm) in the front and rear of the UPS.
Maintain an ambient temperature range of 32°F to 104°F (0°C to 40°C).
3. The Liebert GXT2U may be installed in either a tower configuration or in a
rack, depending on available space and use considerations. Determine the
type of installation and follow the appropriate instructions in either Tower
UPS Installation or Rack-Mount UPS Conversion and Installation.
Tower UPS Installation
When using the Liebert GXT2U in a tower configuration, use the included
support base (shown below, left) to stabilize the UPS.
If any battery cabinets are added, they will include spacers to accommodate
the additional cabinets (shown below, right).
!CAUTION
The UPS is heavy (see Specifications section). Take proper
precautions when lifting or moving it.
NOTE
UPS operation in temperatures above 77°F (25°C) reduces battery
life.
Support base Spacers added to support
base to accommodate
additional battery cabinets
DISCONTINUED
PRO DU C T

9
Rack-Mount UPS Conversion and Installation
1. For slide rail installations, first remove the top/side fin. Slide the
top/side fin forward, then lift it up to remove. If desired, install the optional
rack mount handles that were shipped with the UPS.
Securing hardware and slide rails are sold separately. Contact your local
dealer or Liebert representative for these additional options and any assis-
tance needed.
2. Unpack the two (2) rack-mount-
ing bracket assemblies and
mounting hardware from the
rack-mounting kit
(P/N: RMKIT18-32). Bracket
assemblies are interchangeable
between left-hand or right-hand.
Remove inner member of each
bracket assembly as shown at
right by extending it to its outer-
most position, depressing the
retaining latch and then pulling
inner member from bracket
assembly.
3. Determine the height position
inside the rack enclosure where you want to mount the UPS or battery cab-
inet.
NOTE
When rack mounted, the UPS must be supported by a shelf, brackets
or slide rails on each side. The rack mount handles WILL NOT
support the weight of the UPS. They are used to move the UPS into
and out of the rack.
!CAUTION
Reduce risk of tipping the rack enclosure by placing UPS or
battery cabinet in the lowest possible rack position.
+
–
AC INPUT BATTERY UPS ON BYPASS
UPStation GXT
Optional rack mount handles
Return
flanges
Inner
members
Retaining
latches
Front
members
Rear
members
DISCONTINUED
PRO DU C T

10
Install rear member of each
bracket assembly into rack enclo-
sure with two (2) M5 screws pro-
vided in this kit. (See figure at
right.) Return flanges on bracket
assembly fit to the inside of rack
mounting rails. Insert screws
loosely (finger-tight) into top and
bottom holes of return flange on
rear member. Extend bracket
assembly by sliding front mem-
ber forward until it touches the
front rack mounting rail. Insert
two (2) M5 screws loosely (finger-
tight) into top and bottom holes
of return flange on each front member. Make sure bracket assemblies are at
the same mounting height on all four (4) rack mounting rails.
4. Locate eight (8) M4 screws and
eight (8) M4 nuts from hardware
pack in this kit. Each nut has a
locking, nylon insert that begins
gripping the screw when it is
halfway tight. Make sure to
tighten nut and screw completely
to assure locking action. Fasten
rear member and front member
together using four (4) screws
and four (4) nuts per bracket
assembly as shown in the figures
at right. For maximum support,
locate fasteners for each bracket
assembly as far apart as possible,
depending on rack depth, while
still joining both members (See
figures at right). Check align-
ment of bracket assemblies and
TIGHTEN ALL SCREWS FROM
STEPS 3 and 4.
5. Prepare the UPS or battery cabi-
net (the “equipment”) for rack
mounting by following instructions
in the equipment’s user manual.
The equipment may require addi-
tional parts to be added or parts to
be removed for rack mounting.
After it is prepared, lay equipment
in rack-mounting position. Fasten
inner members from Step 2 to the
equipment on both sides as shown
in the figure at right with (8) M4
screws provided in this kit. Make
sure retaining latch is near the rear
of the equipment as shown in the
figure at right.
M5 screws
M5 screws
Front rack
mounting rails
Rear rack
mounting
rails
32" rack
depth
M4 nuts
M4 nuts
M4
screws
18" rack
depth
M4 nuts
M4 nuts
M4
screws
UPS or battery
cabinet
Front
M4 screws
M4 screws
Retaining
latch
DISCONTINUED
PRO DU C T

11
6. Open grease packet provided
in this kit. Apply a 1" long
bead of grease four (4) places
inside the bottom, curved
tracks of front members as
shown at right. The grease
will allow the equipment to
slide into the bracket assem-
blies more easily.
7. Insert the equipment, with inner members attached from Step 5, into
bracket assemblies by inserting top and bottom edges of inner members
into the top and bottom, curved tracks of front members and sliding the
equipment into rack (see figure in Step 6). Ends of inner members are
tapered to allow rear of the equipment to be angled upward before inser-
tion, if space allows.
Then the rear, bottom edges of inner mem-
bers can be placed into front edge of bottom
tracks, and the front of the equipment can
be tipped up into horizontal position to
insert the top edges of inner members
before sliding the equipment into rack (see
figure at right). The equipment should
move smoothly into bracket assemblies. If not, recheck alignment of front
and rear members from Steps 3 and 4.
8. Secure front of the equipment to rack mounting rails to prevent the equip-
ment from sliding out of position. If securing holes are provided on front of
the equipment that align with the center holes on return flange of front
members, you can use the four (4) extra M5 screws provided in this kit to
secure the equipment. Otherwise, the equipment should be secured to front
of rack mounting rails with four (4) customer-supplied fasteners.
!CAUTION
Lifting equipment into rack may be a two-person job, depending
on weight of equipment. See equipment’s user manual.
UPS or
battery
cabinet
Apply
grease
(inside)
Apply
grease
DISCONTINUED
PRO DU C T

12
9. To orient the display for horizontal
viewing, remove the front plastic
bezel by pulling forward evenly on
both sides. The unit has two front
panel overlays. Remove the outer
overlay (used for tower installation).
This reveals a horizontally oriented
front panel overlay for rack mount-
ing. Snap the front bezel back into
place.
10.Once the UPS is installed in the
rack, the load may be connected.
Ensure the load equipment is
turned off; plug all loads into the
output receptacles on the rear of the
UPS.
11.Plug the UPS into a dedicated wall
receptacle properly protected by a
circuit breaker or fuse in accordance
with national and local electrical
codes. Use a 20 amp rated device for
the 2700VA, 208V unit. The wall
receptacle must be grounded.
12.Turn ON the UPS by pressing the
ON button; then turn on the con-
nected load equipment. The UPS is now providing conditioned power to
your equipment.
External Battery Cabinet Installation
Optional Liebert external battery cabinets may be connected to the UPS to
provide additional battery run time. External battery cabinets are designed to
be placed all on one side of the UPS or stacked beneath the UPS. There is no
limit to the number of external battery cabinets that can be used but each
cabinet will increase the battery recharge time.
1. Visually inspect the external battery cabinet for freight damage. Report
damage to the carrier and your local dealer or Liebert representative.
2. For slide rail installations, first remove the top/side fin. Top/side fin slides
forward and then lift up to remove. Optional rack-mount handles are
shipped with the external battery cabinet and may be installed at this time
if desired.
3. Securing hardware and slide rails are sold separately. Please contact your
local dealer or Liebert representative for these additional options and any
assistance needed. Fasten the slides into position with the screws per the
instructions included with the slide rails.
!CAUTION
The external battery cabinet(s) are heavy (see Specifications
section). External battery cabinets can be used in rack-mount or
tower configuration. Take proper precautions when lifting them.
+
–
UPStation GXT
AC INPUT BATTERY UPS ON BYPASS
+
–
UPStation GXT
AC INPUT BATTERY UPS ON BYPASS
Vertical
overlay
for
tower
UPS
Horizontal
overlay
DISCONTINUED
PRO DU C T

13
4. Use the enclosed support bases for the tower
option to prevent tip-over. One additional set
of support base extensions ships with each
external battery cabinet.
5. Connect the supplied external battery cabi-
net cable to the rear of the external battery
cabinet, then to the rear of the UPS.
6. Turn ON the battery breaker on the rear of
the external battery cabinet.
7. The UPS is now equipped with additional
backup battery run time. For approximate
battery run times, refer to the Battery
Run Times charts in this manual.
NOTE
You must use the included Configuration Program to specify the
number of external battery cabinets connected to the UPS. For more
information, see Configuration Program on page 22.
DISCONTINUED
PRO DU C T

14
CONTROLS AND INDICATORS
ON/Alarm Silence/Manual Battery Test Button
This button controls output power to connected load(s) and has three
functions:
• ON
• Alarm Silence
• Manual Battery Test
ON - Pressing this button will start up the UPS in order to provide
conditioned and protected power.
Alarm Silence - To silence alarms, press this button for at least one second.
After the alarm is silenced, the Liebert GXT2U will reactivate the alarm
system to alert of additional problems.
Manual Battery Test - To initiate a manual battery test, press the ON
button for at least one second while operating from utility power with no
alarm conditions present.
• If only three of the five Battery LEDs illuminate, allow the UPS to recharge
the batteries for 24 hours.
• After 24 hours, retest the batteries.
• After the batteries have been retested, if only three of the five Battery
LEDs illuminate, contact your local dealer, Liebert representative or Lie-
bert Worldwide Support Group.
NOTE
The LOW BATTERY and BYPASS reminder alarms CANNOT be
silenced.
All LEDs illuminated
for illustrative purposes only.
DISCONTINUED
PRO DU C T

15
Standby/Manual Bypass Button
This button controls output power to connected load(s) and has dual
functions: Standby and Manual Bypass.
Load/Battery Level Indicators (4 Green, 1 Amber)
The load/battery level indicators have dual functions. During normal mode
operation LED indicators display the approximate electrical load placed upon
the UPS; and during battery mode operation LED indicators display
approximate battery capacity.
The Liebert GXT2U is equipped with automatic and remote battery test
features. The automatic test occurs every 14 days (this option is user
configurable) if utility has not been interrupted. Should the battery fail this
test, the red Fault indicator LED along with the A and C diagnostic LEDs will
illuminate and an alarm will sound (refer to Troubleshooting section). The
remote test feature functions with Liebert MultiLink 3 software and can
remotely initiate the battery test.
Fault Indicator LED (Red)
The Fault indicator LED is illuminated if the UPS has detected a problem.
Also, one or more of the load/battery level indicators may be illuminated (refer
to Troubleshooting section).
Bypass Indicator LED (Amber)
The Bypass indicator LED is illuminated when the UPS is operating from
bypass power. An alarm will sound indicating the UPS detected a problem, or
the manual bypass function has been activated.
UPS ON Indicator LED (Green)
The UPS ON indicator LED is illuminated when the UPS inverter is operating
and supplying power to your connected loads.
Battery Indicator LED (Amber)
The Battery indicator LED is illuminated when the UPS is operating on
battery.
AC Input Indicator LED (Green)
The AC Input indicator LED is illuminated when utility power is available
and within the input specifications.
!CAUTION
While the UPS is in Normal Mode operation, pressing the Standby/
Manual Bypass button once will put the UPS into Bypass Mode.
Once the UPS is in Bypass Mode operation, press the Standby/
Manual Bypass button two distinct times (for about one second each
time) to turn off the UPS. Perform all necessary shutdown
procedures on connected loads before turning off the UPS.
DISCONTINUED
PRO DU C T

16
Output Voltage Selection
The Output Voltage is user configurable and is designed to allow selecting or
changing the desired output voltage to match the utility via the Liebert
GXT2U Configuration Program provided with the UPS. The settings to choose
from are 200, 208, 220, 230, and 240 VAC output. The factory default setting
is 208 VAC.
!CAUTION
Never change the voltage settings while the UPS is ON and
powering connected loads.
NOTE
Setting output voltage to 200 VAC will cause the UPS unit to be
derated to 2400 VA, 1680 watts.
DISCONTINUED
PRO DU C T
