Life Smart 2 Plus LS-946C User manual
Owner’s Manual
Multi-Functional Monitoring System
LS-946C
3
Dear LifeSmart 2 Plus LS-946C System
Owner:
Thank you for purchasing the LS-946C Multi-Functional Monitoring
System. This manual provides important information to help you to
use the system properly. Before using this product, please read the
following contents thoroughly and carefully.
If you have other questions regarding this product, please contact the
local customer service or place of purchase.
Intended Use
This system is intended for use outside the body (in vitro diagnostic
total cholesterol in whole blood. It is for home use or for healthcare
professional use. It should not be used for diagnosis or screening of
diseases.
The test for hematocrit (HCT) as part of the system, is intended for
use in the in vitro quantification of packed red blood cell volume
fraction in capillary whole blood as an aid in monitoring the status of
total volume of red blood cells. The test reading of hematocrit (HCT)
is used only to determine whether the blood test sample is within the
acceptable range of the Multi-Functional monitoring system. It should
not be used for the diagnosis of anaemia or erythrocytosis.
The blood glucose test strip uses fresh capillary whole blood samples
from fingertips, and from venous, arterial and neonatal whole blood.
the fingertips, and from venous whole blood.
The total cholesterol test strip uses fresh capillary whole blood
samples from the fingertips.
Version 1.0 2019/09 311-4279300-XXX
4
Professionals may use the test strips to test capillary, venous, arterial
and neonatal blood sample for blood glucose test or to test capillary
capillary whole blood testing.
Test Principle
testing is based on the measurement of electrical current generated
of the strip. The meter measures the current, calculates the glucose/
of the current produced by the reaction depends on the amount of
5
IMPORTANT SAFETY INSTRUCTIONS
READ BEFORE USE
1. Use this device ONLY for the intended use described in this manual.
2. Do NOT
3. Do NOT use the device if it is not working properly or if it is damaged.
4. This device does NOT serve as a cure for any symptoms or diseases.
The data measured is for reference only. Always consult your doctor to
have the results interpreted.
not be used for the
testing of newborns.
instructions thoroughly and practice the test. Carry out all the quality
control checks as directed.
7. Keep the device and testing equipment away from young children.
Small items such as the battery cover, batteries, test strips, lancets
and vial caps are choking hazards.
8. Use of this instrument in a dry environment, especially if synthetic
materials are present (synthetic clothing, or carpets etc.) may cause
damaging static discharges that may cause erroneous results.
9. Do NOT use this instrument in close proximity to sources of strong
electromagnetic radiation, as these may interfere with accurate
operation.
10. Proper maintenance and periodic control solution testing are essential
to the longevity of your device. If you are concerned about your
accuracy of measurement, please contact the local customer service
or place of purchase for help.
KEEP THESE INSTRUCTIONS IN A SAFE PLACE.
6
BEFORE YOU BEGIN 09
Important Information 09
Meter Overview 10
Display Screen 11
Test Strip 11
SETTING THE METER 12
THE THREE MEASURING MODES 13
For Blood Glucose Testing 13
For Total Cholesterol Testing 13
QUALITY CONTROL TESTING 14
When Should the Control Solution Test Be Performed? 14
Performing a Control Solution Test 14
TESTING WITH BLOOD SAMPLE 16
Preparing the Lancing Device for Blood Testing 16
Preparing the Puncture Site 16
Performing a Blood Test 17
METER MEMORY 19
Reviewing Test Results 19
Reviewing Blood Glucose Day Average Results 19
DOWNLOADING RESULTS ONTO A COMPUTER 20
MAINTENANCE 21
Caring for Your Meter 22
Caring for Your Test Strips 22
Important Control Solution Information 23
TABLE OF CONTENTS
7
SYSTEM TROUBLESHOOTING 24
Result Readings 24
Error Messages 26
Troubleshooting 27
DETAILED INFORMATION 28
SYMBOL INFORMATION 29
SPECIFICATIONS 30
8
(g)
(a)
SET
(f)
(l)
(c) (d) (e)(b)
(j) (k)
(h) (i)
9
BEFORE YOU BEGIN
Important Information
from severe dehydration, consult a healthcare professional immediately.
higher than usual, and you do not have any symptoms of illness,
which are higher or lower than usual, follow the treatment advice of
your healthcare professional.
incorrect results.
have followed all the instructions given in this owner’s manual,
contact your healthcare professional.
individuals or patients in shock. Please consult your healthcare
professional before use.
blood or plasma glucose will have molarity (mmol/L). The
approximate calculation rule for conversion of mmol/L in mg/dL is:
For example:
1) 120 mg/dL ÷ 18 = 6.6 mmol/L
2) 7.2 mmol/L x 18 = 129 mg/dL approximately.
sample.
(Note: Haematocrit =HCT)
mg/dL
mmol/L
Divided by 18
Times 18
= mmol/L
= mg/dL
10
SET
Meter Overview
Front
Top
Right SideLeft Side Back
1
2
5
6
4
3
Test Strip Slot / Strip Port Communication
Insert test strip here to turn the meter on for testing.
Download test results with a strip port connection cable.
Display Screen
Main Button (M)
Enter the meter memory and silence a reminder alarm.
Test Strip Ejector
Eject the used strip by pushing up this button.
SET Button (S) (inside the battery compartment)
Battery Compartment
1
2
3
5
4
6
11
Display Screen
Ketone Symbol
Test Result
Error Warning
Low Battery Symbol
Day Average
Memory Symbol
Time / Date
HCT Level
Measurement Unit
Auto QC Mode / QC Mode
Measurement Modes
Gen – any time of day
AC – before meal
PC – after meal
Test Strip Symbol
1
2
3
4
5
6
7
9
8
10
11
Blood Drop Symbol
Code
Glucose Symbol
Alarm Reminder
Cholesterol Symbol
15
14
16
17
13
12
14 13 12 11
1
15
3
7
2
4
5
6
10
ATTENTION:
The front side of test strip should
face up when inserting test strip.
Test results may be wrong if the contact
bar is not fully inserted into the test slot.
NOTE:
The LS-946C monitor should only be used with LS-946 Blood Glucose,
meter can produce inaccurate results.
Test Strip
Absorbent Hole
Conrmation Window
1
2
Test Strip Handle
Contact Bars
3
4
8
16
17
9
1
3
4
2
12
SETTING THE METER
Before using your meter for the first time, you should check and
update these settings.
Entering the Setting Mode (a)
Start with the meter off (no test strip inserted). Press the S button
(inside the battery compartment).
1. Setting the date
the YEAR / MONTH / DAY flashing in sequence, press the Mbutton
(the orange button on the front of the device) until the correct year/
month/day appears. Press S.
2. Setting the time format
Press M to select the desired time format --- 12h or 24h. Press S.
3. Setting the time
With the HOUR / MINUTE flashing in sequence, press M until the
correct hour/minute appears. Press S.
4. Setting the buzzer
With the buzzer displays, press M to switch between “On” and “OFF”.
Press S.
5. Deleting the memory
With “dEL” and a “ ” on the display, press Mand select “no” to
keep the results in memory then press Sto skip. To delete all the
results, press Mand select “yes” to delete all the memory records.
6. Setting the reminder alarm
Your meter has four reminder alarms. The meter will display “OFF”
and “AL1 ”. If you don’t want to set an alarm, press S
Or press Mto select “On”, then press S.
With the hour/minute flashing in sequence, press Mto select the
13
THE THREE MEASURING MODES
For Blood Glucose Testing
AC, and PC. You can switch between each mode by:
1. Start with the meter switched off. Insert a test strip to turn on the
meter. The screen will display a flashing “ ”, “Gen” and “GLU”.
2. Press M to switch between General, AC, and PC modes.
For β-Ketone Testing
The meter provides you with one mode for measuring, General. You
can start with the meter switched off. Insert a test strip to turn on the
meter. The screen will display a flashing “ ”, “Gen” and “KETONE”.
For Total Cholesterol Testing
The meter provides you with two modes for measuring, General and
QC. You can switch between each mode by:
Congratulations! You have completed all settings!
NOTE:
• These parameters can ONLY be changed in the setting mode.
• If the meter is idle for 3 minutes during the setting mode, it will switch
off automatically.
correct hour/minute. Press Sand go to the next alarm setting.
NOTICE:
When the alarm beeps, press M to switch it off. Otherwise, it will
beep for 2 minutes then switch off.
7. Setting the backlight
The default setting for meter backlight ("BL") is set to ON. Press Mto
switch between “On” and “OFF”.Press S.
14
QUALITY CONTROL TESTING
When Should the Control Solution Test be
Performed?
how you feel, or if you think the results are not accurate,

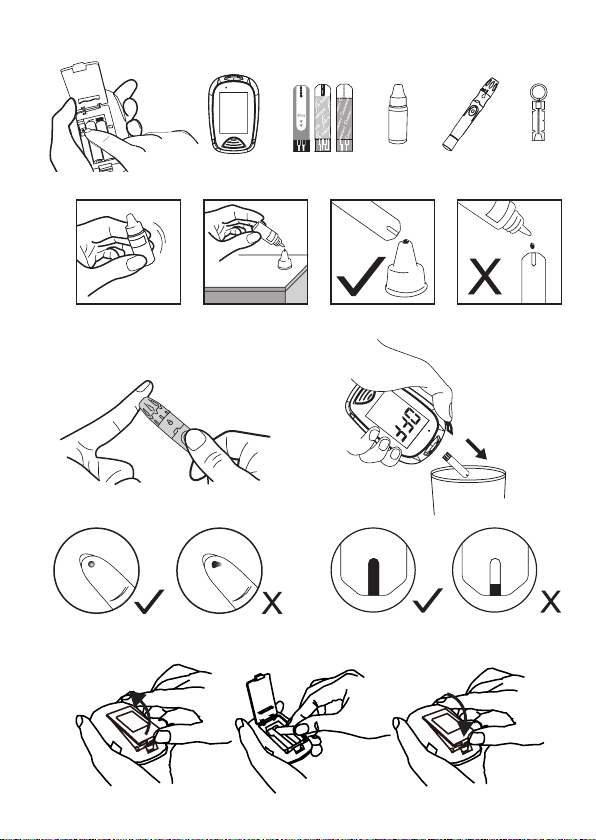

Test strips (c), control solutions (d), lancing device (e) or sterile
lancets (f) may not be included in the kit (please check the contents
on your product box). They can be purchased separately. Please
make sure you have those items needed for a test beforehand.
Performing a Control Solution Test
To perform a control solution test, you will need: (b), (c) and (d).
1. Insert the test strip to turn on your meter
Wait for the meter to display “ ”, “ ”, and “GLU”, “KETONE” or
“CHOL”.
2. Press M to mark this test as a control solution test (for the
total cholesterol test)
With “QC” displayed, the meter will store your test result in memory
under “QC”. If you press Magain, the “QC” will disappear and this test
1. Start with the meter switched off. Insert a test strip to turn on the
meter. The screen will display “ ”, a flashing “ ”, "Gen" and
“CHOL”.
2. Press Mto switch between General and QC mode.
15
is no longer a control solution test.
WARNING:
When doing the control solution test, you have to mark it so that
the test result will NOT mix with the TEST RESULTS stored in the
memory. Failure to do so will mix up the test results with the control
solution test results in memory.
3. Apply control solution (g)
Shake the control solution vial thoroughly before use. Squeeze out
the first drop and wipe it off, then squeeze out another drop and place
it on the tip of the vial cap. Hold the meter to move the absorbent hole
of the test strip to touch the drop. Once the confirmation window fills
completely, the meter will begin counting down.
NOTICE:
• Make sure to perform the control solution test in QC mode.
• To avoid contaminating the control solution, do not directly apply
control solution onto a strip.
4. Read and compare the result
After counting down to 0, the control solution test result will appear
on the display. Compare this result with the range printed on your test
strip vial and it should fall within this range. If not, please read the
instructions again and repeat the control solution test.
With “QC” displayed, the meter will store your test result in memory
under “QC”.
NOTE:
• There is no HCT display function while the meter is in QC mode.
• The control solution range printed on the test strip vial is for control solution
use only. It is not a recommended range for your blood glucose or ketone
level.
• See the MAINTENANCE section for important information about your
control solution.
16
WARNING:
To reduce the chance of infection:
• Never share a lancet of the lancing device.
• Always use a new, sterile lancet. Lancets are for single use only.
• Avoid getting hand lotion, oils, dirt, or debris in or on the lancets and the
lancing device.
Preparing the Lancing Device for Blood Testing
Please follow the instructions in the lancing device insert for collecting
a blood sample.
Preparing the Puncture Site
Stimulating blood perfusion by rubbing the puncture site before blood
extraction has a significant influence on the accuracy of the blood
site that has not been rubbed exhibits a measurably different glucose,
If the puncture site was rubbed prior to blood extraction, the difference
is significantly reduced.
Please follow the suggestions below before obtaining a drop of
blood:
Wash and dry your hands before starting.
and let it air dry.
TESTING WITH BLOOD SAMPLE
17
NOTE:
Choose a different spot each time you test. Repeated punctures at the same
spot may cause soreness and calluses.
Performing a Blood Test
(b), (c), (e) and (f).
1. Insert the test strip to turn on the meter
Wait for the meter to display “ ”, “ ”, and “GLU”, “KETONE”or
“CHOL”.
2. Select the appropriate measuring mode by pressing M
3. Obtaining a blood sample (j)
Use your pre-set lancing device to puncture the desired site. The
size of the drop should be at least as big as (actual size), which is
1.0
squeeze the punctured area to obtain another drop of blood. Be
careful NOT to smear the blood sample.
4. Apply the sample (k)
Gently apply the drop of blood to the absorbent hole of the test strip
at a tilted angle. Confirmation window should be completely filled if
enough blood sample has been applied. Do NOT remove your finger
until you hear a beep sound. (Ensure the meter’s speaker is on)
Fingertip testing (h)
Press the lancing device’s tip firmly against the lower side of your
indicates that the puncture is complete.
18
NOTE:
• Do not press the punctured site against your test strip or try to smear the
blood.
• If you do not apply a blood sample to the test strip within 3 minutes, the
meter will automatically turn off. You must remove and reinsert the test strip
to start a new test.
• The confirmation window should be filled with blood before the meter
begins to count down. NEVER try to add more blood to the test strip after
the drop of blood has moved away. Discard the used test strip and retest
with a new one.
• If you have trouble filling the confirmation window, please contact your
health care professional or the local customer service for assistance.
5. Read your result
The result of your blood glucose test with HCT levels or the result of
total cholesterol result will be stored in your memory automatically.
6. Eject the used test strip (i)
Eject your test strip by pushing the eject button on the side. Use a
sharps bin to dispose of used test strips. The meter will switch itself
off automatically.
Always follow the instructions in the lancing device insert when
removing the lancet.
WARNING:
The used lancet and test strip may be biohazardous. Please discard them
carefully according to your local regulations.
19
METER MEMORY
This meter stores the 1000 most recent blood glucose test results
cholesterol test results along with respective dates and times in its
memory. To enter the meter memory, start with the meter switched
off.
Reviewing Test Results
1. Press and release M.
“ ” will appear on the display. Press M again, and the first reading
you see is the last blood glucose result along with HCT value, or the
,date, time and the measuring mode.
2. Press M to recall the test results stored in the meter. After the last
test result, press M again and the meter will switch off.
Reviewing Blood Glucose Day Average Results
1. Press and release M. When “ ” appears on the display, keep
pressing M for 3 seconds until the flashing “ ” appears. Release
M and then your 7-day average result measured in general mode will
appear on the display.
2. Press M to review 14-, 21-, 28-, 60- and 90- day average results
stored in each measuring mode in the order of General, AC, and then
PC.
3. Exit the meter memory. Keep pressing the M and the meter will
switch off after displaying the last test result.
NOTE:
• Any time you wish to exit the memory, keep pressing Mfor 5 seconds or
leave it without any action for 3 minutes. The meter will switch off
automatically.
• Control solution results are NOT included in the day average.
20
DOWNLOADING RESULTS ONTO
A COMPUTER
Data Transmission Via Cable
You can use your meter with a strip port cable and the Healthcare
Software System to view test results with HCT levels on your personal
computer. To learn more about the Healthcare Software System or to
obtain a strip port cable separately, please contact the local customer
services or place of purchase for assistance.
1. Obtaining the required cable and installing the software
To download Healthcare Software System, please visit LifeSmart’s
website: mylifesmart.net.au.
2. Connecting to a personal computer
Connect the strip port cable to a cable port on your computer. With
the meter switched off, connect the other end of the strip port cable to
the meter data port. “PC” will appear on the meter display, indicating
that the meter is in communication mode.
3. Data transmission
To transmit data, follow the instructions provided with the software.
Results will be transmitted with the date and time. Remove the cable
and the meter will automatically switch off.
WARNING:
While the meter is connecting to PC, it will be unable to perform a blood
Table of contents
Other Life Smart Blood Glucose Meter manuals
Popular Blood Glucose Meter manuals by other brands
Bayer HealthCare
Bayer HealthCare Ascensia Contour Quick reference guide
AgaMatrix
AgaMatrix WaveSense Keynote owner's guide
SD
SD CofeFree User instruction guide
TESTAMED
TESTAMED GlucoCheck Advance owner's manual
EPS Bio Technology
EPS Bio Technology EasyMax EM44 user manual
GlucoRx
GlucoRx TD-4230 owner's manual
