Life Smart Willow User manual

Check out the LifeSmart Spas channel on YouTube
for helpful videos on spa ownership.
OWNER’S MANUAL 60Hz

LIFESMART OWNER'S MANUAL
115/230V Systems
Locating the Spa Serial Number:
The spa serial number label is located inside the equipment compartment. Equipment
compartment access panel is below the spas topside control panel. Write your spa information in
the space provided.
DATE PURCHASED:
PURCHASED FROM:
SPA MODEL:
SERIAL NUMBER:
Please read this Owner’s Manual carefully, as it is designed to provide you with the information
you will need to ensure the safe, secure use of your spa.
IMPORTANT: LIFESMART reserves the right to change specifications and/or design without
notification and without any obligation.
SPA SPECIFICATIONS
Model Spa
Seating
Length Width Height Dry Weight Water
Capacity
Electrical
60Hz
Willow
LSA-510L 3 person 66" (168 cm) 84" (213 cm) 34" (86 cm) lbs/kg gal ( l) 115 or
230V
Acacia L
LSA-620L 5 person 78" (198 cm) 78" (198 cm) 34" (86 cm) lbs/kg 272 gal (1,030 l) 230V
Acacia NL
LSA-620 7 person 78" (198 cm) 78" (198 cm) 34" (86 cm) lbs/kg gal ( l) 230V
Palmetto L
LSA-720L 6 person 84" (213 cm) 84" (213 cm) 34" (86 cm) 892 lbs / 405 kg 322 gal (1,219 l) 230V
Palmetto NL
LSA-720 7 person 84" (213 cm) 84" (213 cm) 34" (86 cm) 857 lbs / 389 kg 346 gal ( 1,310 l) 230V
CAUTION
DO NOT OPERATE SPA BEFORE READING THIS MANUAL
Failure to read this manual and follow its instructions may result in unsafe operation and or
permanent damage to your portable spa.
Most cities, counties, states, and countries require permits for exterior construction and electrical
circuits. In addition, some communities have codes requiring residential barriers such as fencing
and/or self-closing gates on the property to prevent unsupervised access to a pool or spa by
children. Be sure to check with your local agencies for specific requirements.
If you need additional information and/or assistance, please contact Customer Service at
888-961-7727 Ext. 8440 or at [email protected].
Owner's Record
See Page 7

CONTENTS CONTENTS
TABLE OF CONTENTS
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS 1
IMPORTANT SPA INSTRUCTIONS 4
INSTALLATION
PLANNING A LOCATION FOR YOUR SPA 5
PLACING THE SPA 6

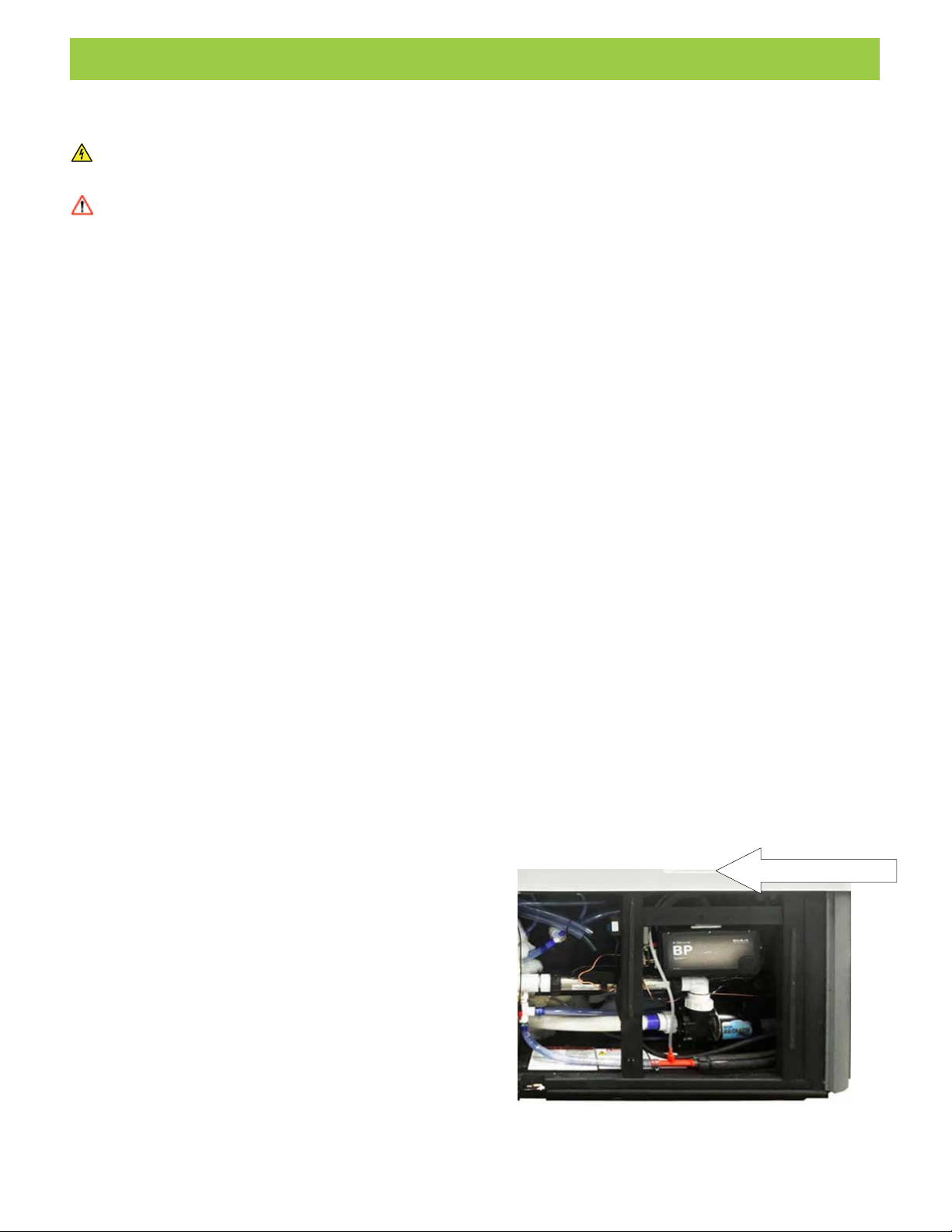

EQUIPMENT ACCESS
EQUIPMENT ACCESS PANEL 7
ELECTRICAL REQUIREMENTS
ELECTRICAL REQUIREMENT 8

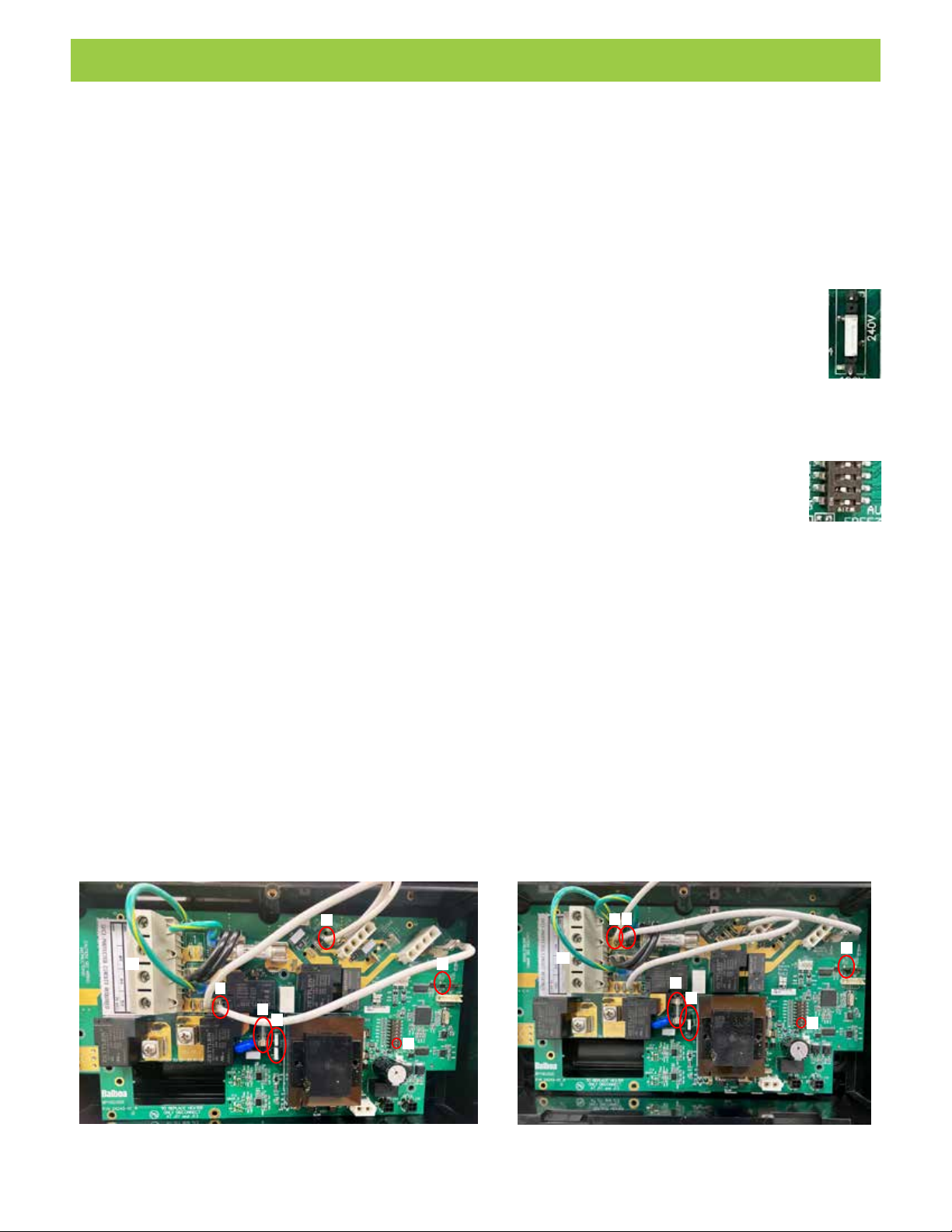

ELECTRICAL WIRING 115V-230V CONVERSION 9
ELECTRICAL WIRING DIAGRAM 230V 10
CONTROL PANEL OPERATION
DISPLAY OVERVIEW 11
JETS OPERATION 11
MULTI COLOR LED LIGHT 11

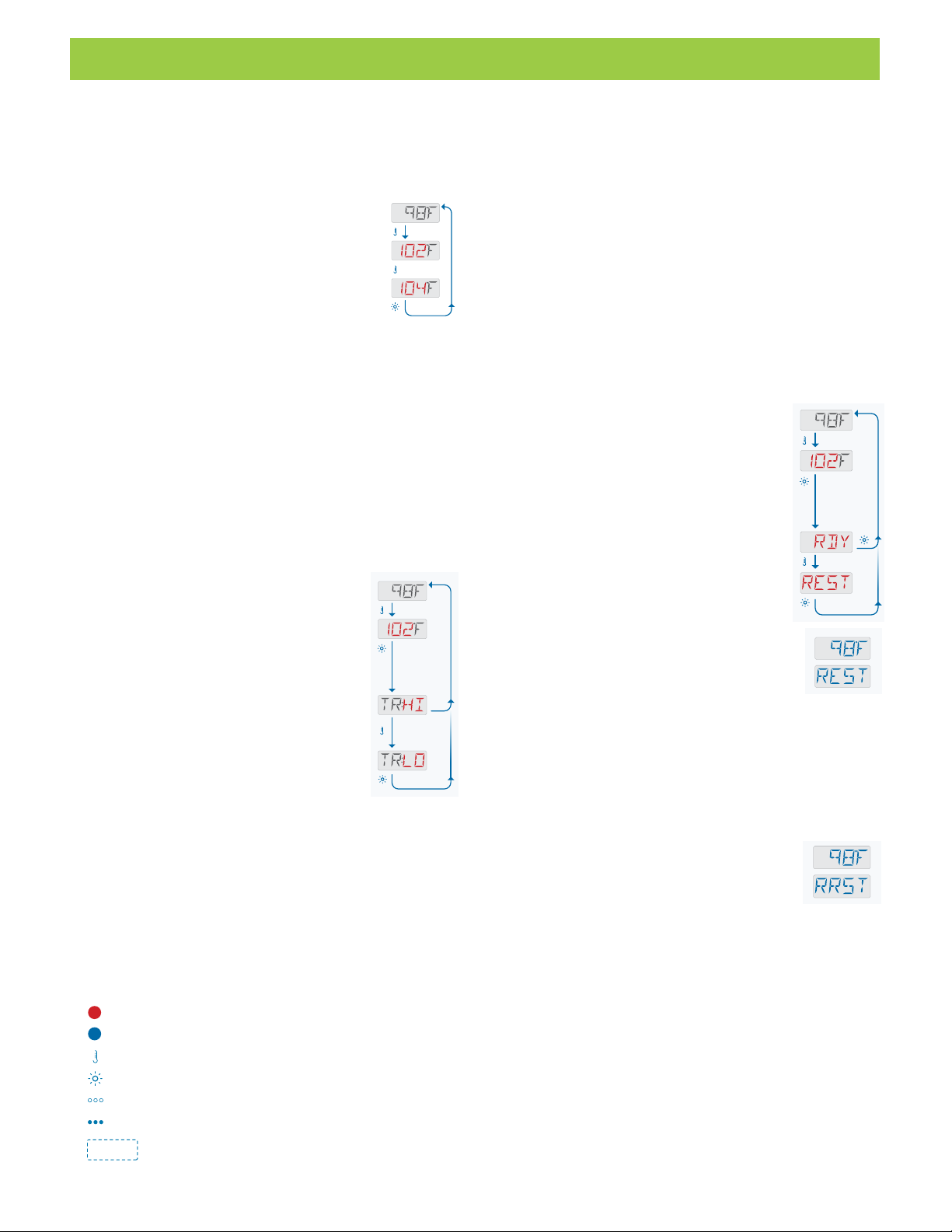

TEMPERATURE ADJUSTMENT 12
FILTER CYCLES 13

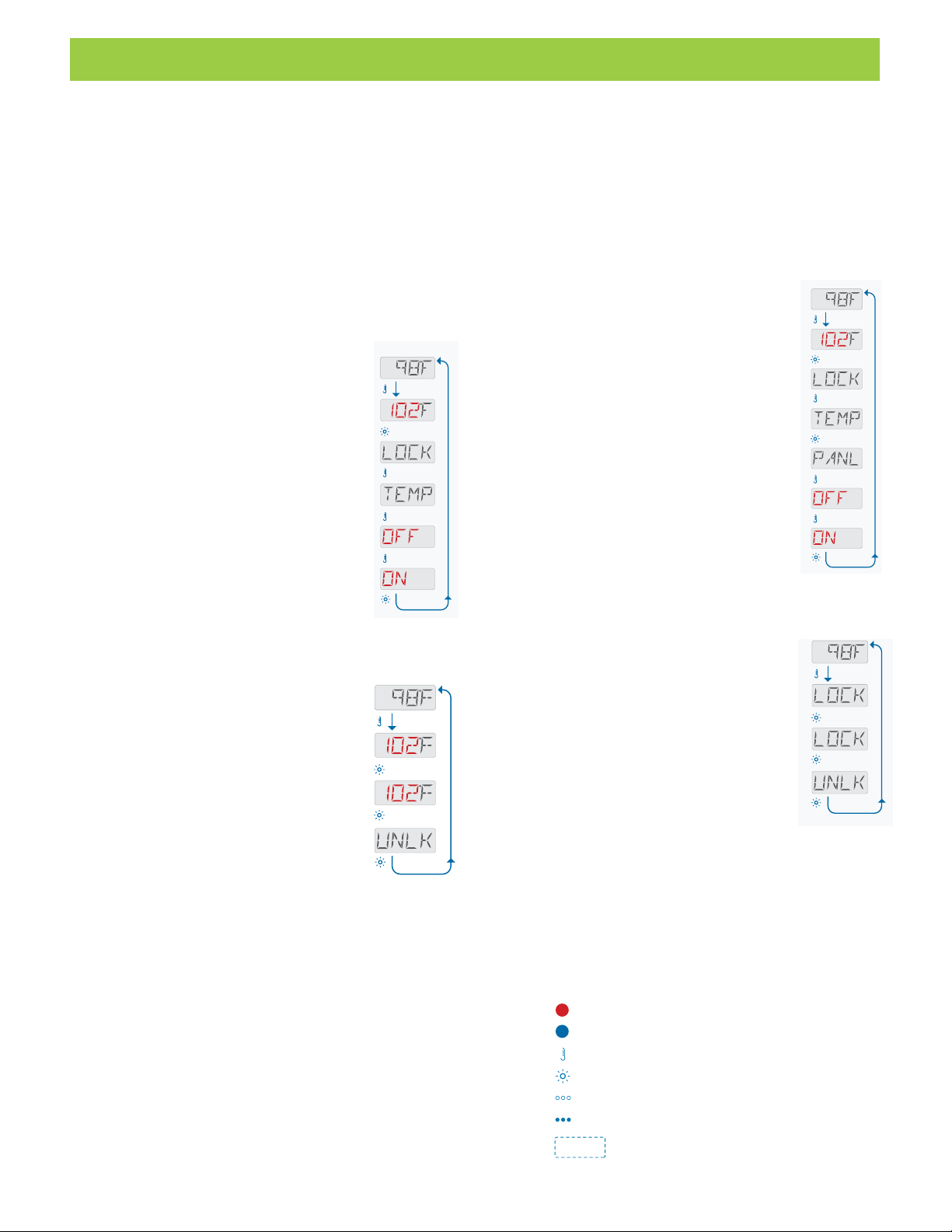

RESTRICTING OPERATION 14

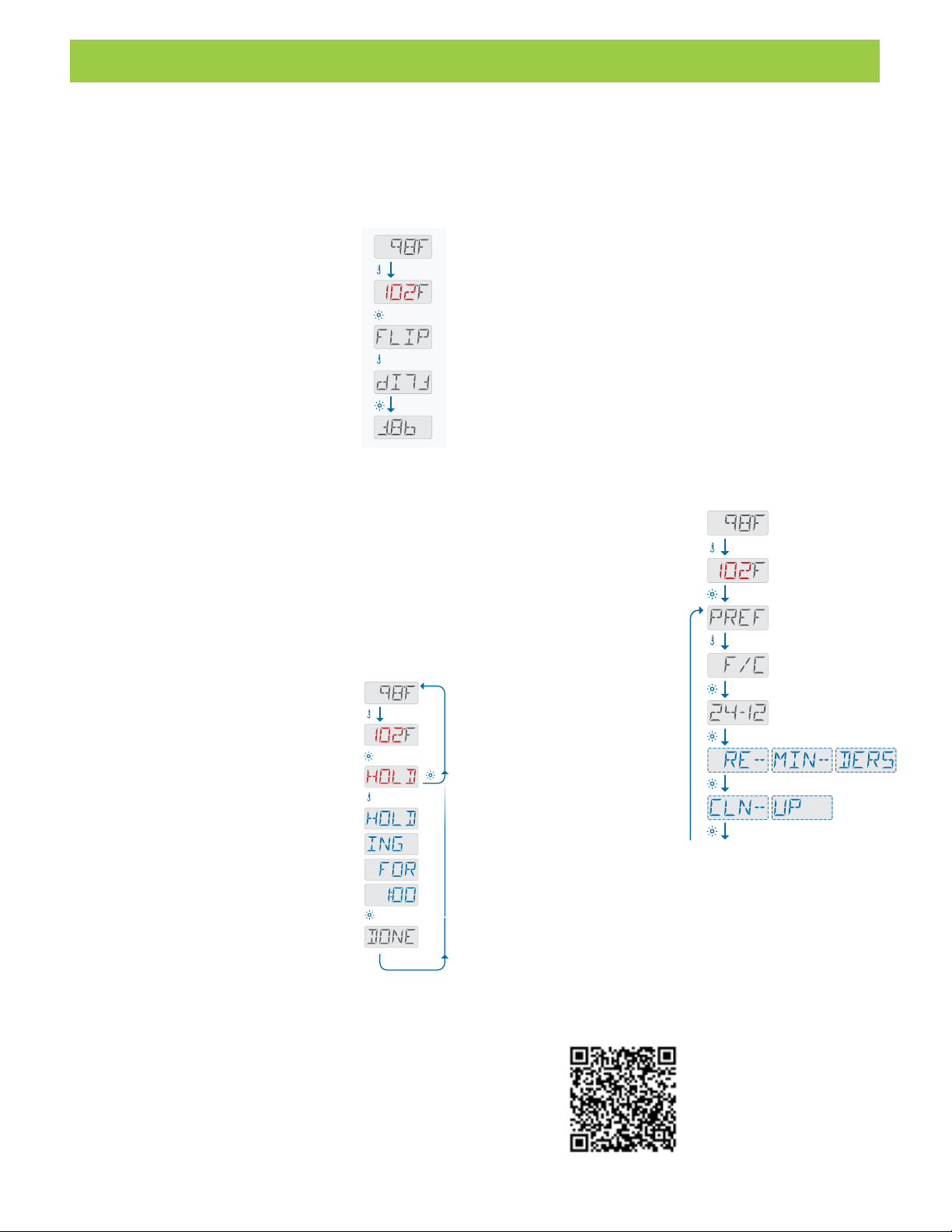

OTHER FUNCTION 15
COMPONENT OPERATION

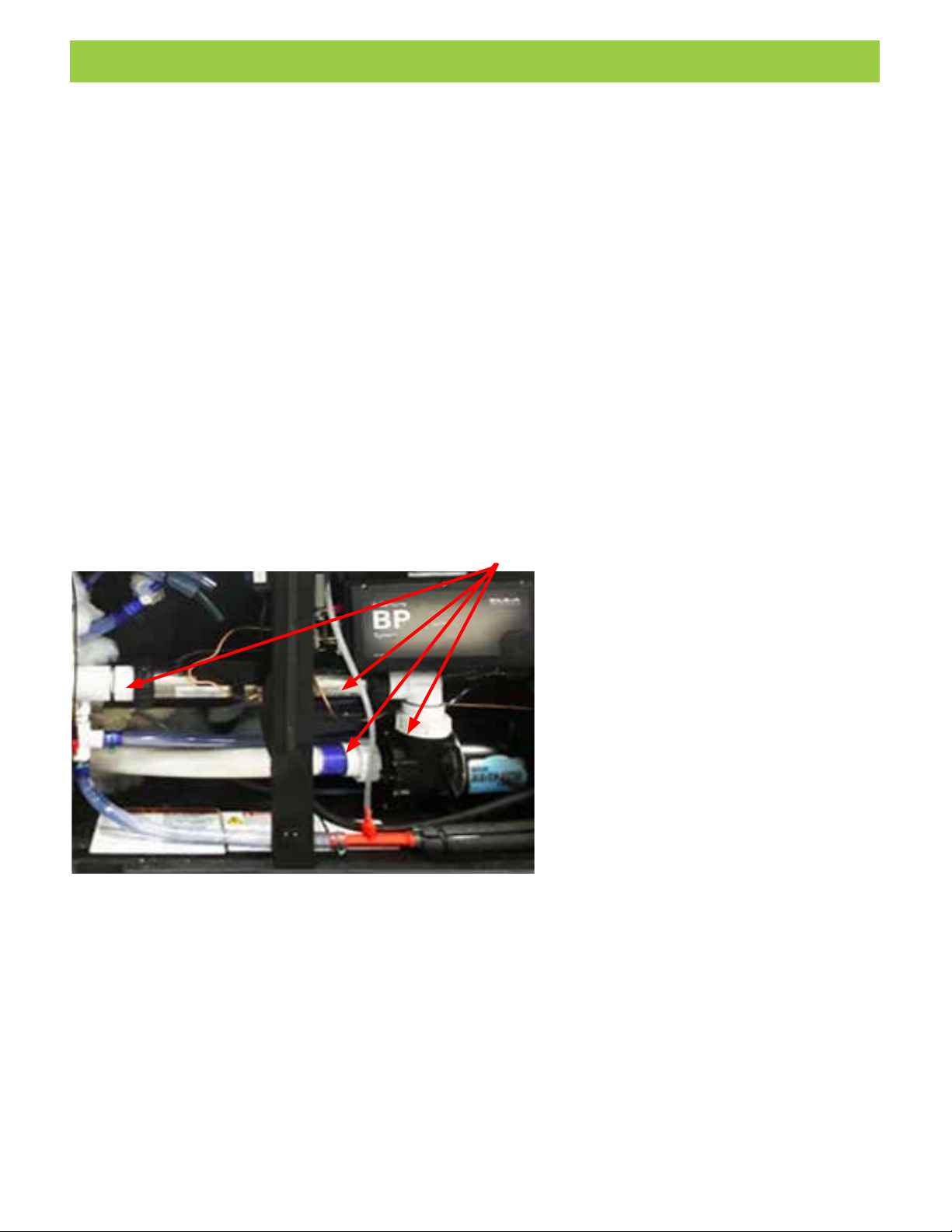

SPA COMPONENT OPERATION 16
FILL-UP AND START-UP
INSTRUCTIONS
FILLING THE SPA WITH WATER 17
APPLYING POWER 17
ADDING START-UP CHEMICALS
WATER CHEMISTRY GUIDELINES 18
SPA MAINTENANCE
FILTER CARTRIDGE MAINTENANCE 19
SURFACE CARE 20
COVER CARE 20
CABINET CARE 20
REPLACEMENT PARTS 20
DRAINING OR WINTERIZING
DRAINING YOUR SPA 21
WINTERIZING YOUR SPA 21
TROUBLESHOOTING PROCEDURES
NO COMPONENT OPERATION 22
PUMP DOES NOT OPERATE, BUT THE
LIGHT DOES 22
POOR JET ACTION 22
WATER IS TOO HOT 22
TROUBLESHOOTING
TROUBLESHOOTING 23
REPLACEMENT PARTS
REPLACEMENT SPA PARTS 24

1
SAFETY INFORMATION
IMPORTANT SAFETY
INSTRUCTIONS
READ AND FOLLOW ALL
INSTRUCTIONS
AVOIDING THE RISK TO CHILDREN
DANGER:
• RISK OF CHILD DROWNING: Extreme
caution must be exercised to prevent
unauthorized access by children. To avoid
accidents, ensure that children cannot use
a spa unless they are supervised at all
times. Children should be supervised to
not use the spa as a toy.
WARNING:
• To reduce the risk of injury, do not permit
children to use this product unless they
are closely supervised at all times.
• To reduce the risk of injury, lower water
temperatures are recommended for young
children. Children are especially sensitive
to hot water.
DO:
• Make sure you always lock the child
resistant locks after using the spa for your
children’s safety. Every spa is equipped
with a locking cover that meets the ASTM
F1346-91 Standard for Safety Covers.
• Test the water temperature with your hand
before allowing your child to enter the spa
to be sure that it’s comfortable. Children
are especially sensitive to hot water.
• Remind children that wet surfaces can be
very slippery. Make sure that the children
are careful when entering or exiting the
spa.
DON’T:
• Allow children to climb onto the spa cover.
• Allow children to have unsupervised
access to the spa.
AVOIDING THE RISK OF
ELECTROCUTION
RISK OF ELECTROCUTION:
• Connect only to a grounded source.
• Do not bury the power cord. A buried
power cord may result in death or serious
personal injury due to electrocution if direct
burial-type cable is not used, or if improper
digging occurs.
• A ground terminal (pressure wire
connector) is provided on the control
box inside the unit to permit connection
of a minimum No. 10 AWG solid copper
bonding conductor between this point and
any metal equipment, metal water pipe,
metal enclosures of electrical equipment,
or conduit within 5 feet (1.5 m) of the
unit as needed to comply with local
requirements.
WARNING:
• Your spa must use a Ground Fault
Circuit Interrupter for user and equipment
protection. To ensure proper operation of
this important safety device, test according
to the following instructions per electrical
configuration.
115 VOLT, CORD-CONNECTED
MODELS:
• The GFCI is located at the end of the
power cord. Before each use, with the
unit operating, push the TEST button.
The unit should stop operating and the
GFCI power indicator will go out. Wait
30 seconds and then reset the GFCI by
pushing the RESET button. The GFCI
power indicator will turn on, restoring
power to the spa. If the interrupter does
not perform in this manner, there may
be an electrical malfunction and with
it, the possibility of an electric shock.
Disconnect the power until the problem
has been corrected.
NOTE: This will reset the filter cycle.

SAFETY INFORMATION
2
230 VOLTS:
• A ground terminal is provided on the
control box. To reduce the risk of electric
shock, connect this terminal to the
grounding terminal of your electrical
service or subpanel with a continuous
green, insulated copper wire. The wire
must be equivalent in size to the circuit
conductors supplying the equipment. In
addition, a bonding terminal (pressure wire
connector) is provided on the outside of
the control box for bonding to local ground
points. To reduce the risk of electric shock,
this connector should be bonded with
a No. 8 AWG solid copper wire to any
metal ladders, water pipes, or other metal
within 5 feet (1.5 m) of the spa to comply
with local requirements. The means of
disconnection must be readily accessible,
but must be installed at least 5 feet (1.5 m)
from the spa.
• Your spa requires a suitably rated circuit
breaker to open all ungrounded supply
conductors.
• Your spa must have a ground fault circuit
interrupter in an electrical subpanel.
Before each use of the spa and with the
unit operating, push the TEST button on
the breaker. The switch should click over
to the “Trip” position. Wait 30 seconds
and reset the GFCI breaker by switching
it completely off and then completely
on. The switch should then stay on. If
the interrupter does not perform in this
manner, it is an indication of an electrical
malfunction and the possibility of an
electric shock. Disconnect the power until
the fault has been identified and corrected.
IMPORTANT: Failure to wait 30 seconds
before resetting the GFCI may cause
the spa’s Power Indicator (on the control
panel) to blink. If this occurs, repeat the
GFCI test procedure.
DANGER: RISK OF
ELECTRICAL SHOCK
• Install spa at least 5 feet (1.5 m) from all
metal surfaces. A spa may be installed
within 5 feet (1.5 m) of a metal surface
if each metal surface is permanently
connected by a minimum No. 10 AWG
solid copper conductor attached to the
wire ground connector on the terminal
box that is provided for this purpose if in
accordance with National Electrical Code.
• Do not permit any electrical appliances,
such as a light, telephone, radio, or
television within 5 feet (1.5 m) of a spa.
Failure to maintain a safe distance may
result in death or serious personal injury
due to electrocution if the appliance should
fall into the spa.
• Install your spa in such a way that
drainage is away from the electrical
compartment and from all electrical
components.
DO:
• Be sure your spa is connected to the
power supply correctly - use a licensed
electrical contractor.
• Disconnect the spa from the power supply
before draining the spa or servicing the
electrical components.
• Test the Ground Fault Circuit Interrupter
before each use.
DON’T:
• Use the spa with the equipment
compartment door removed.
• Place electrical appliances within 5 feet
(1.5m) of the spa.
• Attempt to open the electrical control box.
There are no user serviceable parts inside.

SAFETY INFORMATION
3
RISKS TO AVOID
DANGER: RISK OF INJURY
• DO NOT sit in the filter compartment area.
Sitting in this area can cause:
a) Restriction of Filter Pump suction/
vacuum b) Damage to components
• Both can result in bodily harm. Should
damage occur to components in this area,
replace immediately!
To reduce the risk of injury to persons, DO NOT
remove floating weir, basket, and filter located in
the filter compartment while the spa is running.
• The suction fittings in the spa are sized to
match the specific water flow created by
the pump. Never replace a suction fitting
with one rated less than the flow rate
marked on the original suction fitting.
• There is a danger of slipping and falling.
Remember that wet surfaces can be
very slippery. Take care when entering or
exiting the spa.
• Never operate spa if the suction fittings are
broken or missing.
• The device should not be used by persons
(including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they
receive supervision or training.
• People with infectious diseases should not
use the spa.
• Keep any loose articles of clothing or
hanging jewelry away from rotating jets or
other moving components.
Increased side effects of medication
• The use of drugs, alcohol or medication
before or during spa use may lead to
unconsciousness with the possibility of
drowning.
• Persons using medications should consult
a physician before using a spa; some
medication may cause a user to become
drowsy, while other medication may affect
heart rate, blood pressure, and circulation.
• Persons taking medications which
induce drowsiness, such as tranquilizers,
antihistamines or anticoagulants should
not use the spa.
Health problems affected by spa use
• Pregnant women should consult a
physician before using spa.
• Persons suffering from obesity or with a
medical history of heart disease, low or
high blood pressure, circulatory system
problems, or diabetes should consult a
physician before using spa.
Unclean water
• Keep the water clean and sanitized with
correct chemical care. The recommended
levels for your spa are: Free Available
Chlorine (FAC): 3.0-5.0 ppm
Total Alkalinity: 40 - 120 ppm
Water pH: 7.2 - 7.8
Calcium Hardness: 75 - 150 ppm
IMPORTANT: Turn jet pump on for at least
ten minutes after adding ANY spa water
chemicals into the filter compartment.
• Clean the filter cartridge monthly to
remove debris and mineral buildup
which may affect the performance of the
hydromassage jets, limit the flow, or trip
the high-limit thermostat which will turn off
the entire spa.
AVOIDING THE RISK OF
HYPERTHERMIA
Prolonged immersion in hot water can result in
HYPERTHERMIA, a dangerous condition which
occurs when the internal temperature of the body
reaches a level above normal 98.6°F (37ºC). The
symptoms of hyperthermia include unawareness
of impending hazard, failure to perceive heat,
failure to recognize the need to exit the spa,
physical inability to exit the spa, fetal damage in
pregnant women, and unconsciousness resulting
in a danger of drowning.
WARNING:
The use of alcohol, drugs, or medication can
greatly increase the risk of fatal hyperthermia in
hot tubs and spas.

SAFETY INFORMATION
4
TO REDUCE THE RISK OF INJURY:
• The water in the spa should never exceed
104°F (40°C). Water temperatures
between 100°F (38°C) and 104°F
(40°C) are considered safe for a healthy
adult. Lower water temperatures
are recommended for extended use
(exceeding 10 minutes) and for young
children. Extended use can cause
hyperthermia.
• Pregnant or possibly pregnant women
should limit spa water temperatures to
100°F (38°C). Failure to do so may result
in permanent injury to your baby.
• Do not use spa immediately following
strenuous exercise.
AVOIDING THE RISK OF SKIN
BURNS:
• To reduce the risk of injury, before entering
a spa the user should measure the water
temperature with an accurate thermometer.
• Test the water with your hand before
entering the spa to be sure it’s
comfortable.
SAFETY SIGN:
A SAFETY SIGN is included in the owner’s
package. The sign, which is required as
a condition of Product Listing, should be
permanently installed where it is visible to the
users of the spa.
IMPORTANT SPA
INSTRUCTIONS
The following contains important spa information,
and we strongly encourage you to read and apply
them.
DO:
• Use and lock the vinyl cover when the spa
is not in use, whether it is empty or full.
• Follow the Spa Care and Maintenance
recommendations stated in this manual.
• Use only approved accessories and
recommended spa chemicals and
cleaners.
DON’T:
• Leave the spa exposed to the sun without
water or the vinyl cover in place. Exposure
to direct sunlight can cause solar distress
of the shell material.
• Roll or slide the spa on its side. This will
damage the siding.
• Lift or drag the cover by using the cover
lock straps; always lift or carry the cover by
using the handles.
• Attempt to open the electrical control
box. There are no user serviceable parts
inside. Opening of the control box by the
spa owner will void the warranty. If you
have an operational problem, carefully
go through the steps outlined in the
Troubleshooting section. If you are not
able to resolve the problem, contact
Customer Service [phone]
Ext. 8440
. Many problems can easily be
diagnosed over the telephone.

INSTALLATION
5
PLANNING A LOCATION
FOR YOUR SPA
Consider these things when determining
where to place your spa.
SAFETY FIRST:
Make sure your spa is positioned so access
to the equipment compartment and side
panels will not be blocked. Be certain your
installation will meet all city and local safety
codes and requirements.
PLANNED USE OF SPA:
How you intend to use your spa will help you
determine where you should position the spa.
For example, will you use it more for recrea-
tional or therapeutic purposes? If your spa
is mainly for family recreation, leave plenty
of room around it for activity and lawn furni-
ture. If you will use it more for relaxation and
therapy, you’ll probably want to create privacy
around the spa.
PRIVACY:
Think of your surroundings during all seasons
to determine your best privacy options. Con-
sider the view of your neighbors when you
plan the location of your spa.
VIEWS:
Think about the direction you will be facing
when sitting in your spa. Do you have a
special landscape you will find enjoyable?
Perhaps there is an area that has a soothing
breeze during the day or a lovely sunset in
the evening.
ENVIRONMENT:
If you live in a climate with a snowy winter
and hot summer, a place to change clothes
or a house entry near the spa is convenient.
A warmer climate may require shade from the
hot sun. Consider placement of trees, shrubs,
patio cover or perhaps a gazebo structure
to provide what you will need. Indoor
installations require adequate ventilation.
When the spa is in use, considerable
amounts of moisture are produced. This
moisture can damage walls and ceiling
surfaces over time. Special paint is available
to resist moisture damage. Remember that
spas periodically require drainage, so plan
your environment accordingly.
KEEP CLEAN:
Prevent dirt and foliage from being tracked
into your spa by utilizing concrete for paths
and access areas. Check the location of spill
paths from gutters, trees, and shrubs.
SERVICE ACCESS:
Many people choose to install tile or custom
wood around their spas. If you are installing
your tub with custom decorative trimming,
remember to allow for access to it for ser-
vice. Should you need service, a technician
may need to remove the tub’s door panel, or
access it from beneath. It is always best to
design special installations so the spa can
still be moved, or lifted from the ground.
A GOOD FOUNDATION:
Your new spa needs a good solid foundation.
The area your spa sits on must be able to
support the spa, the water in it and those who
use it. If the foundation is inadequate, it may
shift or settle after the spa is in place, causing
stress to the shell or components. NOTE:
Do not shim your spa in any manner, as this
could cause the cabinet to crack, thereby
voiding the warranty.
BE AWARE:
Damage caused by inadequate or improper
foundation support is not covered by the spa
warranty. It is the sole responsibility of the
spa owner to provide a proper foundation for
the spa.
Make sure the foundation where the spa
is placed drains water away from the spa.
Proper drainage will keep components dry
from rain and wet weather.
Your spa weight must always be considered
when installing your spa. If you are installing

INSTALLATION
6
it on an elevated wood deck or other struc-
ture, it is advisable to consult a structural
engineer or contractor to ensure the structure
will support the weight.
IT IS STRONGLY RECOMMENDED THAT
A QUALIFIED, LICENSED CONTRACTOR
PREPARE THE FOUNDATION FOR YOUR
SPA.
A reinforced concrete pad at least four inches
thick is recommended for your spa. The
reinforcing rod or mesh in the pad should be
attached to a bond wire.
INDOOR INSTALLATION:
Be aware of some special requirements
if you place your spa indoors. Water will
accumulate around the spa, so flooring
materials must provide a good grip when
wet. Proper drainage is essential to prevent
a build-up of water around the spa. When
building a new room for the spa, it is
recommended that a floor drain be installed.
The humidity will naturally increase with the
spa installed. Water may get into woodwork
and produce dry rot, mildew, or other
problems. Check for airborne moisture’s
effects on exposed wood, paper, etc. in the
room. To minimize these effects, it is best to
provide plenty of ventilation to the spa area.
An architect can help to determine if more
ventilation must be installed.
PLACING THE SPA
CHECK THE DIMENSIONS OF YOUR
SPA:
Compare the spa dimensions to the width of
gates, sidewalks, and doorways along the
delivery route used to bring the spa into your
yard. It may be necessary for you to remove
a gate or partially remove a fence in order to
provide an unobstructed passageway to the
installation location. Also, keep in mind—if
you are using special equipment to place
your spa into an area it will be necessary to
include those measurements and weights.
PLANNING A DELIVERY ROUTE:
Check the width of gates, doors and
sidewalks to make sure your spa will pass
through unobstructed. You may have to
remove a gate or part of a fence to allow for
adequate width clearance. If the delivery
route will require a 90-degree turn, check
the measurements at the turn to ensure the
spa will fit. Check for protruding gas meters,
water meters, A/C units, etc., on your home
which will cause obstructions along the
delivery path to your yard. Check for low roof
eaves, over hanging branches or rain gutters
that could be an obstruction to overhead
clearances.
SPECIAL CIRCUMSTANCES:
The use of a crane for delivery and
installation is primarily to avoid injury to your
spa, your property or to delivery personnel.
Cranes are not considered “normal delivery”.

EQUIPMENT ACCESS
7
Topside Control Panel
Door Panel
To access the equipment compartment:
Remove the 3 screws (circled above) on each side near corner holding Z part and remove
Z part. Raise door panel slightly from bottom center, pull bottom of door away from spa
then lower and remove.
Reverse order to attach door panel.
EQUIPMENT ACCESS PANEL
Drain
Equipment Compartment
Electrical
Access
Serial No.
1 Pump Models
Willow, Acacia L & Acacia NL
Electrical
Access
Electrical
Access
Equipment Compartment
Serial No.
2 Pump Models
Palmetto L & Palmetto NL
Electrical
Access
Drain

8
ELECTRICAL REQUIREMENT
DO NOT POWER THE SPA WITHOUT
FIRST FILLING WITH WATER!
DANGER – RISK OF ELECTRIC SHOCK
Installations that do not conform to the
following procedures and requirements
may expose users to electric shock.
Non-conforming installations will not be
covered under warranty.
If installed in the United States, the electrical
wiring of this spa must meet the requirements
of the National Electric Code (NEC) and any
applicable state or local codes. The electrical
circuit must be installed by an electrical
contractor and approved by a local building
electrical inspection authority.
1. Installations within 5 feet (1.5 m) of any
metal surfaces must ground the metal sur-
faces to the hot tub. Use an 8 AWG solid
copper wire and attach it to the ground-
ing lug on the control box, located in the
equipment compartment.
2. Only a licensed electrician may install
power to the spa.
3. Power supply installation must include
a suitably rated ground fault circuit
interrupter (GFCI) as required by NEC.
The circuit breaker must be dedicated
and should not be shared with any other
appliances. It must be labelled and easily
accessible to users.
4. The electrical supply for the spa must
include a suitable rated switch or circuit
breaker to open all ungrounded supply
conductors to comply with the National
Electric Code. The disconnecting means
must be readily accessible to the spa’s
occupant but installed at least 5 feet (1.5
m) from the spa water.
5. 230V Power supply lines must be hard
wired into the control box. DO NOT use
extension or plug-type cords of any kind.
The use of a shut-off box near the hot tub
is also recommended. This box provides
a quick and convenient method to shut off
power to the hot tub for emergencies and
maintenance.
6. Supply lines must be properly sized
as per the NEC. A ground line must be
provided that is as large as the largest
current carrying conductor, but no less
than 8 AWG. Use copper wiring only.
7. Please open the front cover of the control
box, and follow the instructions and wiring
diagram printed on the backside.
8. All 115 V powered models must use the
provided 15 foot (4.5 m) GFCI cord and be
pluged directly into a dedicated grounded wall
outlet between 6' (1.8 m) and 10' (3 m) from
the spa.
9. CAUTION, 230V POWERED SPA – This
spa must be hard wired to your household
electrical service box only. Do not use an
extension cord or any other disconnect-
able power cord. The use of an extension
cord or a disconnect-able power cord
is highly dangerous and will void all
warranties!
• Wire size must be appropriate per NEC
and/or local codes.
• Wire size is determined by length of run
from breaker box to spa and maximum
current draw.
• THHN copper core wire is recommended.
All wiring must be copper to ensure adequate
connections. Do not use aluminum wire.
ELECTRICAL REQUIREMENTS
Equipment access is below
the topside control panel.
Topside Control Panel

9
F
ELECTRICAL REQUIREMENTS
CONFIGURING SYSTEM
SELECTING THE VOLTAGE FOR
YOUR
WILLOW SPA ONLY
Your Willow/LSA-510L spa is designed to operate
at either 115V 15 amp, or a 230V 50 amp circuit.
• When the spa is setup for 115V, the heater will
provide approximately 1000 watts of heat only
when the pump is operating o n LOW speed
and the thermostat is calling for heat (NOTE:
The heater does not operate when the pump is
on high speed).
• When the spa is connected to 230 volts, the
heater will provide approximately 4000 watts of
heat when the pump is operating in LOW or HIGH
speed and the thermostat is calling for heat.
All electrical connections must be made in
accordance with the wiring information contained
on the electrical control box cover and the NEC.
115 VOLT (CORD CONNECTED)
Spas come with a factory-installed GFCI cord
and are to be plugged into a grounded type 115
volt, 15 amp receptacle which must be no closer
than 6'/1.8m and no further than 10'/3m. No other
electrical appliance or fixture can be used on this
circuit.
IMPORTANT: Under NO circumstances should
an extension cord be used. Use of an extension
cord will seriously degrade the performance of the
equipment and can create an electrical hazard.
230 VOLT 50 AMP (CONVERSION)
A 115V to 230V conversion requires the following
steps:
NOTE: A 50 amp GFCI Subpanel is not included.
This installation requires a licensed electrician
to complete the following work (use Illustrations
below).
A. Unpark J31.
B. Remove the two Jumpers found on J24.
Using one of the jumpers connect the
middle two pins.
C. Replace F3 Fuse 1.6 with the fuse
found attached to the back of the
control box .1.
D. Move Dip Switch 2 to ON for Heater
to go on when the two speed pump
is on and system is calling for heat.
E. Move Jet Pump 1 White wire from
J32 to J4
F. Move White neutral wire from J88 and attach
to J8.
G. Remove the GFCI cord wires attached to the
terminal block.
Using the instructions on the following page, a 50
amp service from the House Breaker and wires
need to run to a 50 amp GFCI sub panel and then
to the spa.
A
A
B
B
C
C
D
D
EE
F
F
GG
115 Volt Connected 230 Volt Connected (Conversion)

10
ELECTRICAL REQUIREMENTS
ELECTRICAL WIRING
DIAGRAM 230V USE
It is recommended that a licensed electrician
install the power to your spa in accordance
with the National Electric Code and/or any
local electrical codes in effect at the time of
installation.
Power supply installation must include a
properly rated GFCI circuit breaker. The
circuit must be dedicated and should not be
shared with any other appliances. The power
supply must be hard wired into the power
pack.
230V Wiring Instructions:
4 wires/50 amp GFCI Breaker #8 AWG 75°C
Copper Wire Minimum (less than 100’ (30
m) length)
Special Note:
If the GFCI breaker trips immediately
after attempting to turn on, please check the
White Neutral Wire that is connected to the
spa.
From the House
Breaker Box
White Neutral Wire that is connected
to Spa Neutral goes HERE.
To the Spa

11
CONTROL PANEL OPERATION
INITIAL START-UP - When the spa
is first powered up the spa panel display
(view right) will go through a specific
sequence. This sequence is normal
and will display a variety of information
regarding the configuration of the control
system. After the sequence ends, the
control system will start Priming Mode
which will last for 4-5 minutes.
During Priming Mode this panel message
(view right) indicates that
the spa is in Priming Mode,
the heater is disabled to
allow the priming process
to be completed without the
possibility of energizing the
heater under low-water-ow
or no-water-ow conditions.
When Priming Mode ends
the panel will display dashes. Once the
control system cycles water through the
heater for one minute, the dashes will be
replaced by the water temperature.
Your spa has been designed so that it will
automatically heat the water to the factory
set temperature of 100°F (38°C) unless you
set the spa to a different temperature. If
power is disconnected from the spa, it will
automatically revert back to the last saved
set temperature when power is reapplied.
NOTE: The Palmetto LSA-720 & LSA-720L
have two pumps using the 2 pump Control
Panel.
JETS OPERATION
Jet Pump 1 button:
• Press Jets 1 button once to turn Jet Pump
1 on low speed.
• Press Jets 1 button a second time to turn
Jet pump1 on high speed.
• Press Jets 1 button a third time to shut Jet
Pump1 off.
NOTE: When the low-speed turns on
automatically due to spa temperature
detection (polling) and then to heat to the set
temperature if needed, it cannot be turned off
from the panel, however the high speed may
be started.
Jet Pump 2 button:
(Available on Palmetto NL LSA-720 &
Palmetto L LSA-720L models only)
• Press Jets 2 button once to turn Jet Pump
2 On.
• Press Jets 2 button a second time to shut
Jet Pump 2 Off.
MULTI COLOR LED LIGHT
Press the Light button once to turn on the
lights, press the button again to turn the
lights off, when turning back on after several
seconds the same light mode will appear.
Every time the light is quickly turned off
and on a new light mode will appear. The
sequence is as follows:
White, Aqua, Magenta, Azure, Amber,
Emerald, Ruby, Color wheel with abrupt color
changes, Slow full color wheel and Fast full
color wheel.
NOTE: If left on, the light will automatically
turn off after 4 hours of operation.
 
  
 
I Pump Control Panel

  
 


2 Pump Control Panel
Spa Panel Display

12
CONTROL PANEL OPERATION
TEMP ADJUSTMENTS
The current water temperature will constantly
display on LCD.
Press the Warm/Temp ʌ or Cool/
Temp V buttons to display the set
temperature (desired temperature).
Each time either button is pressed
again, the set temperature will
increase or decrease depending on
which button is pressed.
After five seconds, the LCD will automatically
display the current spa temperature.
TEMPERATURE RANGE
The temperature can function between
80°F - 104°F (26.6°C - 40°C) High Range
(TR:HI) or 50°F - 99°F (10°C - 37.2°C)
Low Range (TR:LO).
To change the Temperature Range between
Hi and Low do the following:
• Press the TEMP button.
• While set TEMP is Flashing,
press LIGHT button until
TR:HI or TR:LO appears. The
first one to appear is the current
range.
• To change, press the TEMP
button followed by the LIGHT
button to save new setting.
IMPORTANT: IF YOUR SPA SET RANGE
WILL NOT GO HIGHER THAN 99°F (37.2°C)
YOU ARE IN THE TR:LO MODE! CHANGE TO
TR:HI MODE FOR A HIGHER TEMPERATURE
HEAT MODES
There are two heat modes you can select
from, the Ready Mode (RDY) and Rest Mode
(REST).
• Ready Mode keeps the water temperature
close to the Set Temperature 24 hours a
day. Use this mode for everyday usage.
• Rest Mode only heats water during filter
cycles. Use this mode if spa is not used
for extended periods of time.
To change the Heat Modes do the following:
• Press the TEMP button.
• While set TEMP is Flashing,
press LIGHT button two times
until RDY or REST appears.
The first one to appear is the
current Heat Mode.
• To change to the other mode
press the TEMP button
followed by the LIGHT button.
When in the Rest Mode the main
screen will alternate between water
temperature and REST.
NOTE: A third mode will activate
and display (RRST) whenever the JETS
button is pressed while in the REST mode
this is called Ready-in-Rest mode and will
run for 1 hour. This subfeature mode will
turn the heater on and attempt to keep the
water temperature close to the
set temperature. The main screen
will alternate between water
temperature and RRST for the hour.
Flashing characters
Progressive message
Press TEMP button for “action”
Press LIGHT button to “select”
Pause / back to Main Screen / setting not saved
Pause / back to Main Screen / setting saved
Menu Items may or may not appear
SEQUENCE KEY

13
CONTROL PANEL OPERATION
FILTER CYCLES
There are two filter cycles: the first cycle (F1)
starts after spa is powered up (if the Time-of-
Day) is Not set. A second cycle (F2) is OFF by
default. The default duration for the first filter
cycle is 1.5 hours. Filter cycles are set using a
start time and a duration. Hours are adjusted
in 1-hour increments, and minutes are
adjusted in 15-minute increments. The end
time is calculated and displayed automatically.
SET TIME-OF-DAY
Setting the Time-of-Day is important for
determining water ltration times.
NOTE: If Time-of-Day has not yet been set,
SET TIME will ash on the display in the
TIME menu.
To set or change the Time-Of-Day do the
following:
• Press the TEMP button.
• While set TEMP is Flashing,
press LIGHT button three times
until SET TIME or TIME appears.
• Press TEMP, and the hour will
flash, continue pressing TEMP to
change to the current hour.
• Press LIGHT to select the
minutes, press TEMP to change
the minutes to the current time.
• Press LIGHT to save your
settings.
NOTE: The system does NOT keep
track of Time-of-Day when powered
down and clock will revert back to
12:00PM when powered is back up.
SET FILTER CYCLES
To program the cycle times:
1. Press the TEMP
button.
2. While set TEMP is
Flashing, press LIGHT
button several times
until F1 appears.
3. Press TEMP to view
BEGN F1 message.
4. Press TEMP again to
view current start time.
5. Press TEMP button a
third time to change
the starting hour.
Continue pressing
TEMP until the desired
hour is reached.
6. Press LIGHT to switch
from hour to minutes.
7. Press TEMP to change
the minutes.
8. Press LIGHT to save
the F1 filter start time.
9. Press TEMP as many times as necessary
to view and change the duration of the
filter cycle hours.
10.Press LIGHT to switch to duration
minutes. Use TEMP to change minutes
duration.
11. Press LIGHT to save the duration time.
After duration is saved a message will
display showing the time when your filter
cycle will end.
NOTE: Should you choose to run a second
filter cycle (F2) repeat the previous process
except press the TEMP button an extra time
in step 2 allowing (F2) to appear.
Flashing characters
Progressive message
Press TEMP button for “action”
Press LIGHT button to “select”
Pause / back to Main Screen / setting not saved
Pause / back to Main Screen / setting saved
Menu Items may or may not appear
SEQUENCE KEY

14
CONTROL PANEL OPERATION
RESTRICTING OPERATION
TEMPERATURE LOCK/UNLOCK
Locking the Temperature allows Jets and
other features to be used, but the Set
Temperature and other programmed settings
cannot be adjusted.
Temperature Lock allows access to a
reduced selection of menu items.
To program the Temp Lock:
• Press the TEMP button.
• While set TEMP is Flashing,
press LIGHT button several
times until LOCK appears.
• Press TEMP button and TEMP
will appear, press the TEMP
button a second time and OFF
will appear. By pressing TEMP a
third time the ON will appear.
• Press LIGHT button to lock the
temperature and settings.
To unlock the temperature LOCK feature do
the following:
• Press the TEMP button.
• While set TEMP is Flashing,
hold down the TEMP button,
then press the LIGHT button two
times slowly.
UNLK indicates that it has been
unlocked.
• Press the LIGHT button and the
Main Screen will appear, or by
pausing a moment it will automatically go
back to the Main Screen.
CONTROL PANEL LOCK/UNLOCK
Locking the panel Prevents the panel and
its functions from being used. All automatic
functions are still active.
To program the Panel Lock:
• Press the TEMP button.
• While set TEMP is Flashing,
press LIGHT button several
times until LOCK appears.
• Press TEMP button and TEMP
will appear
• Pre ss LIGHT button and PANL
will appear.
• Press TEMP button two times
for the ON to appear.
• Press LIGHT button to set Lock.
To unlock the temperature LOCK feature do
the following:
• Press the TEMP button. LOCK
will appear.
• While holding down the TEMP
button press the LIGHT button
two times slowly.
UNLK indicates that it has been
unlocked.
• Press the LIGHT button and the
Main Screen will appear, or by
pausing a moment it will automatically go
back to the Main Screen.
Flashing characters
Progressive message
Press TEMP button for “action”
Press LIGHT button to “select”
Pause / back to Main Screen / setting not saved
Pause / back to Main Screen / setting saved
Menu Items may or may not appear
SEQUENCE KEY

15
CONTROL PANEL OPERATION
OTHER FUNCTIONS
INVERT DISPLAY
Follow this sequence to invert the display.
• Press the TEMP button.
• While set TEMP is Flashing,
press LIGHT button several
times until FLIP appears.
• Press the TEMP button to flip
the display.
• Press the LIGHT button to save
this setting.
HOLD MODE
Hold Mode is used to disable the pumps
during service functions like cleaning or
replacing the lter. This mode will last for 1
hour unless it is exited manually by pressing
the LIGHT button.
Follow this sequence to invert the display.
• Press the TEMP button.
• While set TEMP is Flashing,
press LIGHT button several
times until HOLD appears.
• Press the TEMP button to
place the pump(s) on Hold for
on hour.
• HOLDING FOR 1:00 Message
will appear for the entire hour
• You can exit Hold at any time
by pressing the LIGHT button.
DONE will appear after a
moment before going back to
water temperature.
PREFERENCES MENU
The PREF menu allows some other options
such as:
• F or C for your temperature setting.
• Having 24 hour clock (military time) or 12
hour clock (am/pm).
• Turning On or Off any reminders that may
show up.
• Setting the amount of time for a Clean-Up
cycle if the default of 30 minutes needs to
be changed.
Follow this sequence to use PREF menu.
• Press the TEMP button.
• While set TEMP
is Flashing, press
LIGHT button
several times until
PREF appears.
• Press the TEMP
button to enter the
PREF mode
• Press the Light to
scroll to the desire
function then
press TEMP to
access and modify
the function.
For more detailed
information of
your control system an Owner's Manual
Supplement is available online. Go to:
https://cdn.shopify.com/s/
files/1/0449/3839/5807/files/304573.24SUP_
Rev_A_DPS_Lifesmart.pdf?v=1689980209
Or scan the QR code below:

16
COMPONENT OPERATION
SPA COMPONENT
OPERATION
AIR CONTROL VALVE
The air control valves (smaller valves) serve
to regulate the amount of air mixed with the
water when the jets are operational. Turn
the air control valves in one direction to
increased jet action. Rotating the air control
in the opposite direction to turn air off and
allow the jets to work with water only. Turn
the air controls off when the spa is not in use,
this will prevent cold air from entering the spa
and will keep heating cost to a minimum. The
ozone jet, will always produce air bubbles
when pump is on.
DIVERTER VALVE
(Willow/LSA-510L model only)
The diverter valves (larger valves) on your
spa allows you to direct the flow of water to
one of the jet flow combinations. Your spa
has two pumps and two diverter valve, each
diverter valve works with one pump. The
function of the diverter valves can best be
learned by experimentation. Turn the large
valve completely to one side to see which jets
are on, then turn completely to the other to
see which jets are affected if nothing seems
to happen than try the other diverter valve.
(You can adjust the diverter value to any
position between the two possible extremes
to achieve the jet pressure that feels best to
you.)
IMPORTANT: Your spa is not designed to
provide full power to all jets when the diverter
valves are in the “mid” position. However with
the diverter valve in this position, you may
increase the power to selected jets by rotating
the faces of the hydrotherapy jets to close the
ones that are not in use.
HYDROTHERAPY JETS
The hydrotherapy jets are recessed in the
wall of the spa. Rotate the large or medium
jet faces to turn the jets on or off. Turning a
jet on or off will increase or decrease the ef-
fects of any jets not in the closed position.
OZONE GENERATOR
The ozone system enhances the quality of
the spa water when used to supplement
the spa owner’s regular water maintenance
program. Contrary to some information
circulated throughout the pool and spa
industry regarding ozone systems, ozone
CAN'T be used as a single-source sanitizer,
water clarifier, anti-foamer, and mineral
chelating agent. A secondary source sanitizer
must be used to maintain
3.0 - 5.0 ppm of Free Available Chlorine
(FAC). LIFESMART recommends that a
chemical maintenance program based
on recognized and documented industry
standards still be followed when using an
ozone purification system to assure water
sanitation and the highest quality purified
water.
WATERFALL
(When Equipped)
Your spa has a control valve to operate the
amount of flow through the waterfall from no
flow to a steady stream. This valve is near the
waterfall. The waterfall will only work when
Jet Pump 1 is on. Rotate the valve to turn on
or off.

The following procedures should be followed
on initial startup and whenever the spa is
drained for routine maintenance.
FILLING THE SPA WITH
WATER
1. Clear all the debris from your spa.
2. Be sure to open all jets to allow as much
air as possible to escape from the plumb-
ing during the filling process.
3. Insert a garden hose into filter
compartment to fill your spa.
NOTE: Do not use hot or softened water.
4. As the water level rises, check inside the
equipment compartment for water leaks. It
may be necessary to tighten unions
and/or fittings that may have loosened
during delivery. There is no need to call
for service; this can easily be done.
If assistance is required, contact a
Customer Service representative at (888)
961-7727 Ext. 8440.
5. Under normal circumstances keep the
water level half way between the top of
the spa and the top of the filter ring or
just above the highest jets (whichever is
higher).
Failure to keep enough water in your spa
may result in damage to your system and
invalidate your warranty. If your spa filter is
sucking in air causing the pump to cavitate,
you need to add water!
6. Check the filter installation and make sure
the filter is not loose.
APPLYING POWER
1. Turn power to spa "ON" (after filling spa)
from the main panel at the house and the
subpanel.
2. Press Jets button on the topside control
panel to activate the spa. Rotate all the
air control valves clockwise and observe
the increased jet action (air mixed with
water). After several minutes.
3. While the pump is running
check again for water leaks at the
drain spigot, unions, or fittings in
the equipment compartment (leaks
may have occurred during transit).
If water is leaking from one of these
areas, there is no need to call for
service. Simply tighten the fitting.
If assistance is required, call a
Customer Service representative at
[phone] Ext. 8440.
4. After checking your spa for
leaks it is now time to adjust your
spa settings. Press the Plus or
Minus button on your topside
control panel until the display
indicates your desired temperature is
set, after 5 seconds of non activity the
control panel will display the actual water
temperature.
17
FILL-UP AND START-UP INSTRUCTIONS
UNIONS
EQUIPMENT COMPARTMENT
