Life Smart LS-TCED-IC2 User manual

INFRARED SAUNA SYSTEM
MODELS:LS-TCED-IC2,IC3,ICC3

Welcome
Thank you for purchasing our sauna products, we congratulate
you on your new path to better health. We at Lifesmart are
striving to become the best infrared sauna supplier in the
country; our list of consumers increase daily and we believe
your success is our success. We attribute this growth and
success entirely to our customer satisfaction, the recognized
health benefits, and the quality of our workmanship. At our
factory, we use only the finest materials coupled with
state-of-art construction and the highest safety standard in the
industry.

1
Introduction
We congratulate you on your new path to better health!
Thousands of users enjoy the benefits of an infrared sauna every
day. Now you can enjoy the great benefits of far-infrared heat
within the privacy of your own home.
Please read this manual carefully and thoroughly before using
an Infrared Sauna for the first time. We recommend for you to
keep this manual for future reference.
Benefits:
●Superior Detoxification: Removes Heavy Metals & Fat-stored Toxins
●Increased Cardiovascular Conditioning
●Stimulated Immune System
●Improved Circulation
●Pain Relief
●Weight Loss and Cellulite Reduction
●Beautiful Skin
●Stress Reduction
Features:
●High quality wood craftsmanship
●High quality electronic control system & digital control panel
●High quality MP3-Player
●Pre-assembled board and build-in electrical elements makes the
installation easy
●Accurate temperature sensor
●Energy efficient
●Comfortable backrest
●Considerate detailed designs

2
Model List
LS-TCED-IC2 LS-TCED-IC3
LS-TCED-ICC3

3
Packing List for LS-TCED-IC2
For any missing parts please contact your local distributor.
Item Number:
1. Front Panel 2. Back Panel 3. Side Panel (L) 4.Side Panel (R)
5.Bottom Panel 6. Top Panel 7.Roof Cover 8.Bench Panel 9.Sitting
Baffle 10.MP3 Connector 11.LED Color Light 12.LED White Light
13.Screws list
1. Front Panel 2. Back Panel 3. Side Panel (L) 4. Side Panel (R)
5. Bottom Panel 6. Top Panel 7. Roof cover
8.Bench Panel 9.Sitting baffle
11. LED color light 12.LED white light 13.Screws list
(1)For installing inside door handle(2pics)…..
(2)For installing roof cover(4 pics).....................
(3)For installing outside door handle(2 pics)
4

Packing List for LS-TECD-IC3
For any missing parts please contact your local distributor.
Item Number:
1. Front Panel 2. Back Panel 3. Side Panel (L) 4.Side Panel (R) 5.Bottom
Panel 6. Top Panel 7.Roof Cover 8.Bench Panel 9.Sitting Baffle
10.MP3 Connector 11.LED Color Light 12.LED White Light
13.Screws list
1.Front Panel 2. Back Panel 3. Side Panel (L) 4. Side Panel (R)
5. Bottom Panel 6. Top Panel 7. Roof cover
8.Bench Panel 9.Sitting baffle
11. LED color light 12.LED white light 13.Screws list
(1)For installing inside door handle(2pics)
(2)For installing roof cover(4pics).......
(3)For installing outside door handle(2pics)

5 P
Packing List for LS-TECD-ICC3
For any missing parts please contact your local distributor.
Item Number:
1.Front Panel 2. Back Panel(R) 3. Back Panel (L) 4.Bottom Panel 5.Front
Panel(R) 6.Front Panel(L) 7.Roof Panel 8.Roof Cover 9.Bench Panel
(Long) 10.Bench Panel(Short) 11.Sitting Baffle(Long) 12.Sitting
Baffle(Short) 13. MP3 Connector 14.LED color light 15.LED white light
16.Screws list
1. Front Panel 2.Back Panel(R) 3.Back Panel(L) 4. Bottom Panel
5.Front Panel(R) 6.Front Panel(L) 7. Roof Panel 8.Roof Cover
9.Bench Panel(Long) 10.Bench Panel(Short) 11.Sitting Baffle(Long)
12.Sitting Baffle(Short) 14.LED color light
16.Screws list
15.LED white light 16.Screws list
(1)For installing inside door handle(2pics)
(2)For installing roof cover(5 pics)
(3)For installing outside door handle(2pics)
6

Installation Requirements
1.Do not plug any other appliances into the outlet with your infrared
sauna.
2.Only 110/120V outlet is required for those three models.
3.Install the sauna on a completely level floor.
4.Do not spray the exterior with water. If the floor is damp, install a floor
separator to keep the sauna high & dry.
5.Do not store flammable objects or chemical substances near the sauna.
6.The sauna must be placed indoors and in a dry area. Moisture will cause
damage to the interior and exterior of the sauna.

7
Assembly Instructions for LS-TCED-IC2 ,IC3
Assembly of the sauna requires at least 2 adults to complete. Please read
the instructions thoroughly before and during assembly to ensure proper
installation of the sauna.
<1> LOCATION OF SAUNA
When you find a good location for your sauna, please notice the
following.
1. The main power cord on the sauna must be easily accessible.
2. The location must be dry and leveled.
3. Please take out the backrest if it is behind the bottom panel.

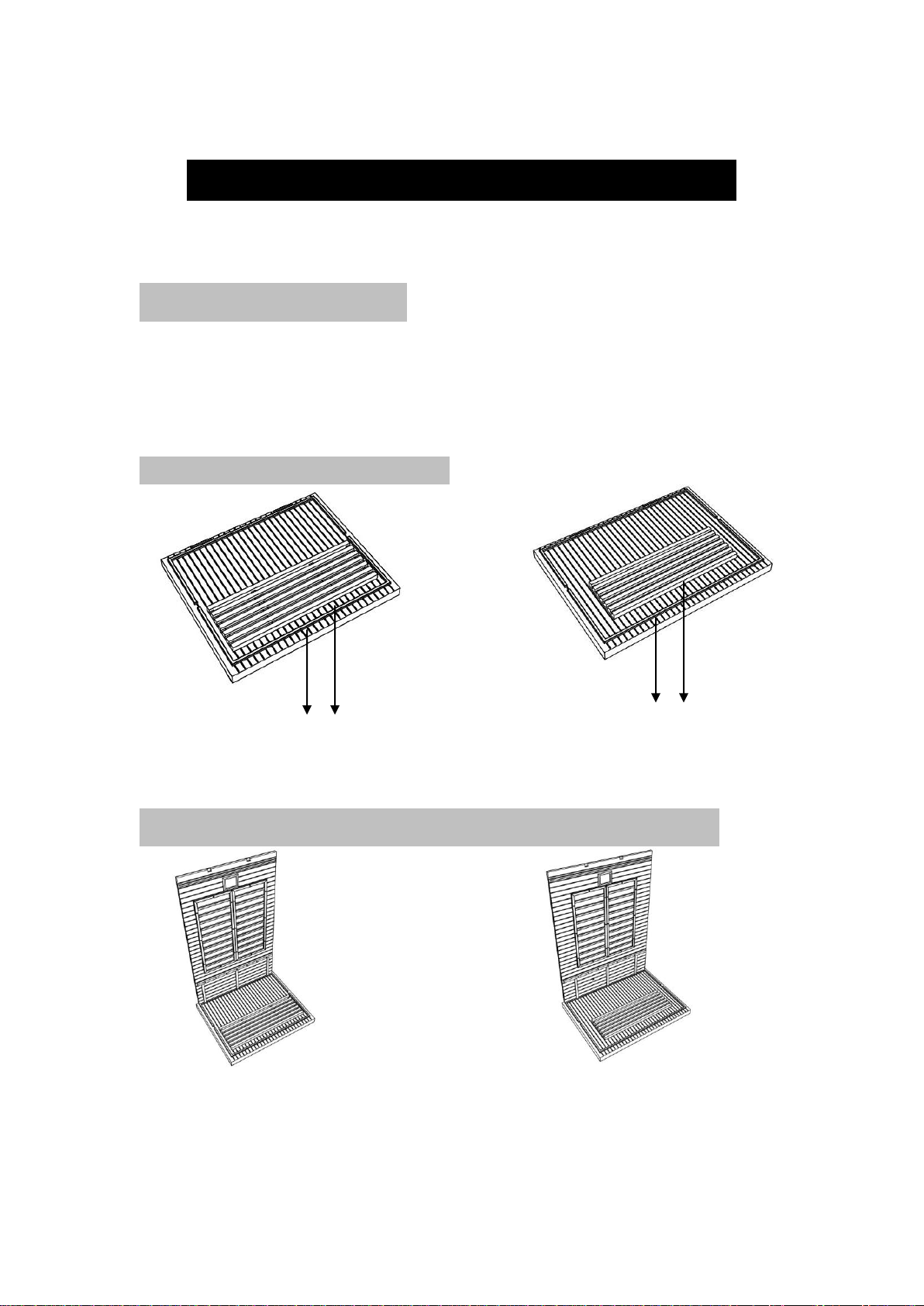

<2> PLACING BOTTOM PANEL
Font Front
For Model-LS-TCED-IC2 For Model-LS-TCED-IC3
Place the bottom panel on the floor. Make sure that the FRONT direction
of your sauna room.
<3> CONNECTING THE BACK PANEL TO BOTTOM PANEL
LS-TCED-IC2 LS-TCED-IC3
Put the back panel onto the bottom panel and make sure its inner side
stands against the wooden beam on the bottom panel.

8
Align the back panel with side panes's corresponding outside-buckles

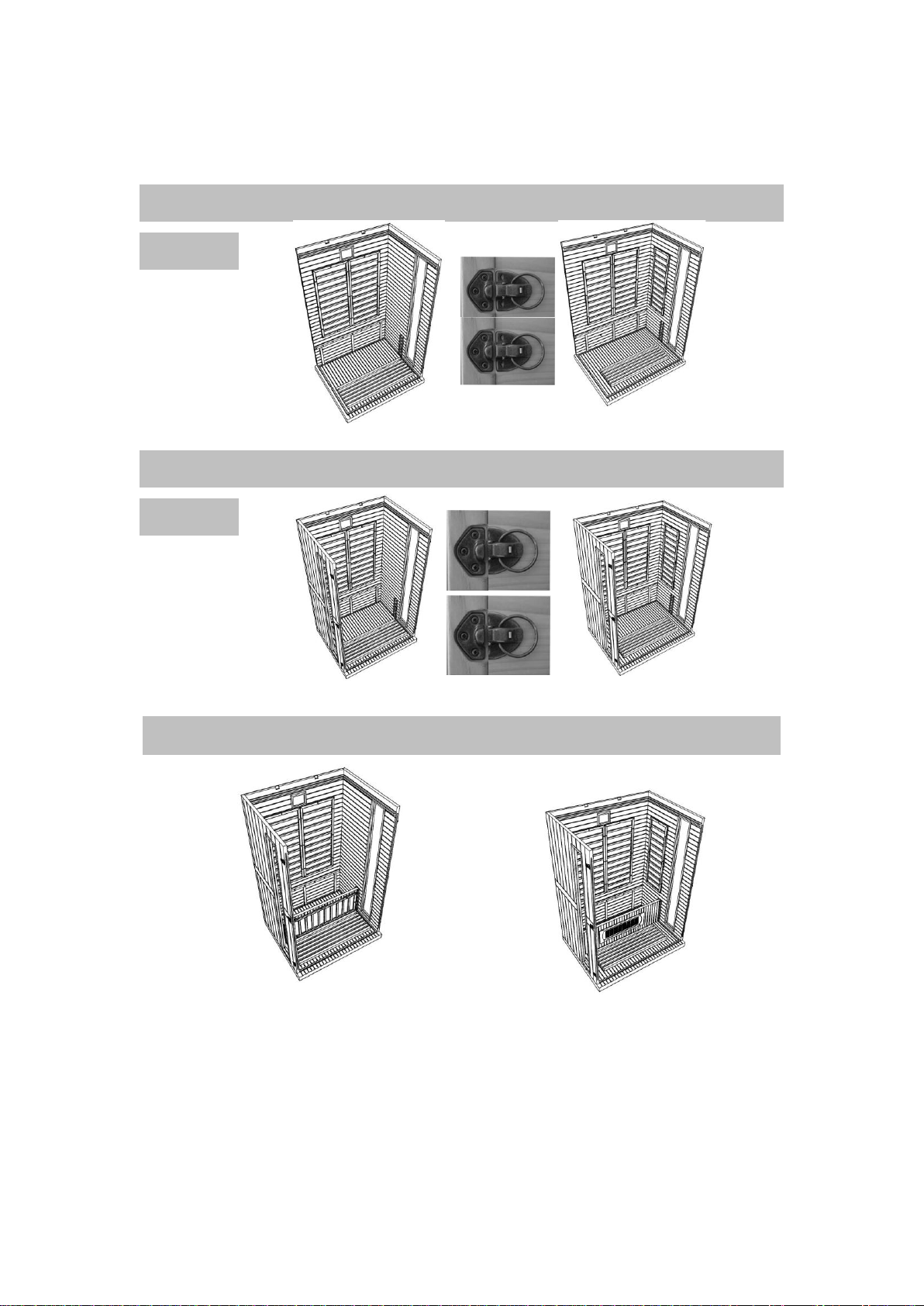

<4> INSTALLING RIGHT PANEL AND BACK PANEL WITH
BUCKLES
LS-TCED-IC2 LS-TCED-IC3
<5> INSTALLING LEFT PANEL AND BACK PANEL WITH
BUCKLES
LS-TCED-IC2 LS-TCED-IC3
<6>INSTALLING BENCH HEATER PANEL & PLUGIN THE CABLE
LS-TCED-IC2 LS-TCED-IC3
Slide down the bench heater panel by lining up its sides with the vertical
guides on left side panel .
1. The heater grills is facing outward (toward the front of the sauna)
2. Push the bench heater panel all the way down until it is touching the
bottom panel and securely in place.

9
NO.1 : Connect the plug of the bench heater to
connector A and make sure they are tightly
connected.
NO.2 : Connect the plug of the floor heater to
connector B and make sure they are tightly
connected.
<7>INSTALLING THE BENCH
LS-TCED-IC2 LS-TCED-IC3
1. Install the bench by sliding it over the horizontal bench guides on the
side panels.
2. Push the bench all the way in until it can touch the back panel and is
securely in place.
3. Make sure of the bench position so that the smooth and finished side of
the bench are facing up and forward.
<8> PLACE THE FRONT PANEL AND CONNECT IT TO THE SIDE
PANELS WITH BUCKLES
LS-TCED-IC2 LS-TCED-IC3

10
<8> PLACING TOP PANEL
Lower the top panel onto the assembled panels.
1. Gently place the top panel onto the rest of the assembled panels. When
four corners are in place, gently push down the top panel from the outside
corners until it is snugly fit over the rest of panels.
2. Make sure the cable do not get pinched between the panels.
LS-TCED-IC2 LS-TCED-IC3
3. Please screw the ceiling with the side panels with the provided screws
so that the ceiling and the side panels
can connect closely.

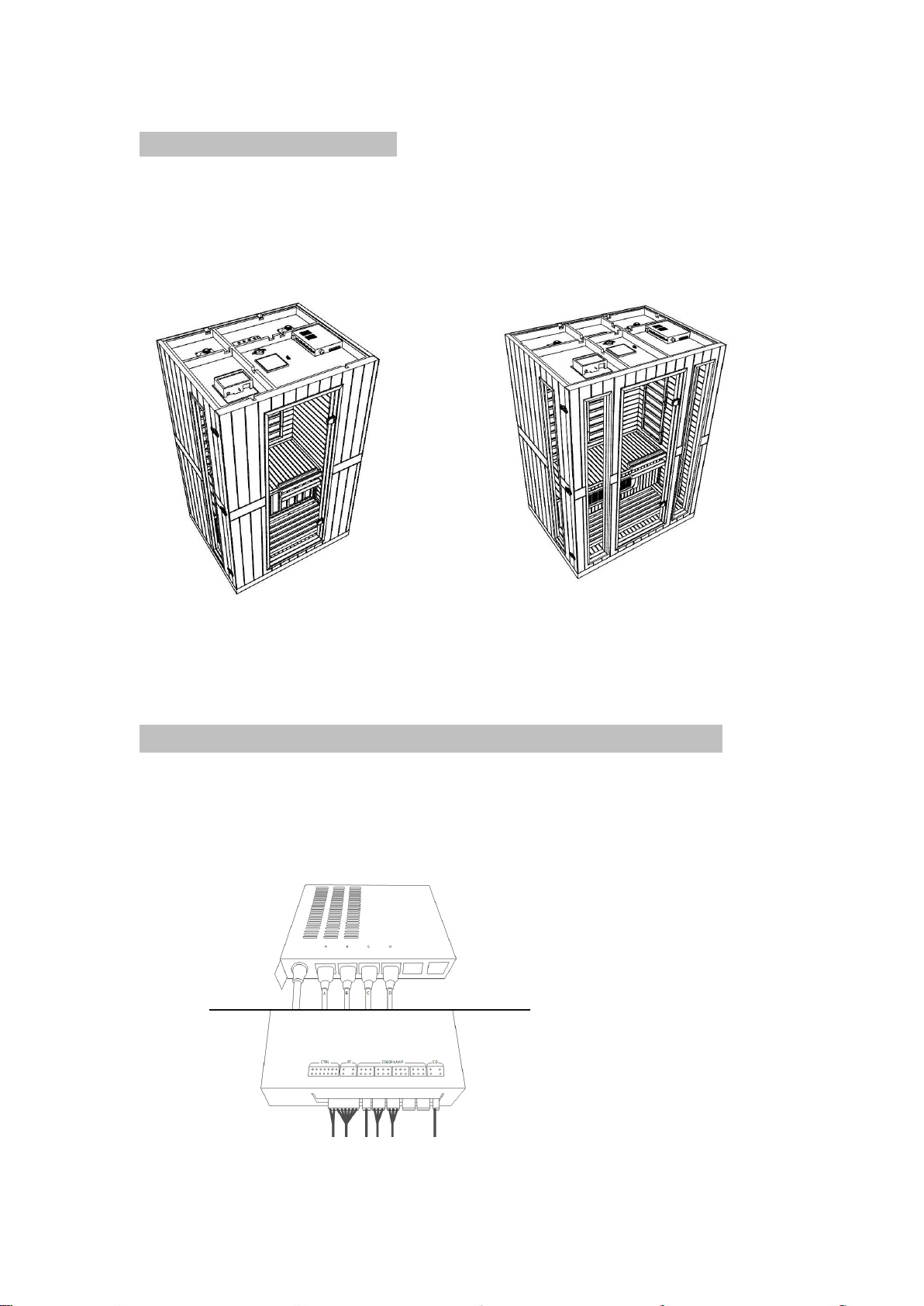

<9> THE MAIN POWER CONNECTION ON THE TOP PANEL
1. Connect the heater wires
2. Connect the control panel wires.
3. Check to be sure that all connections to the control box are secure.
11

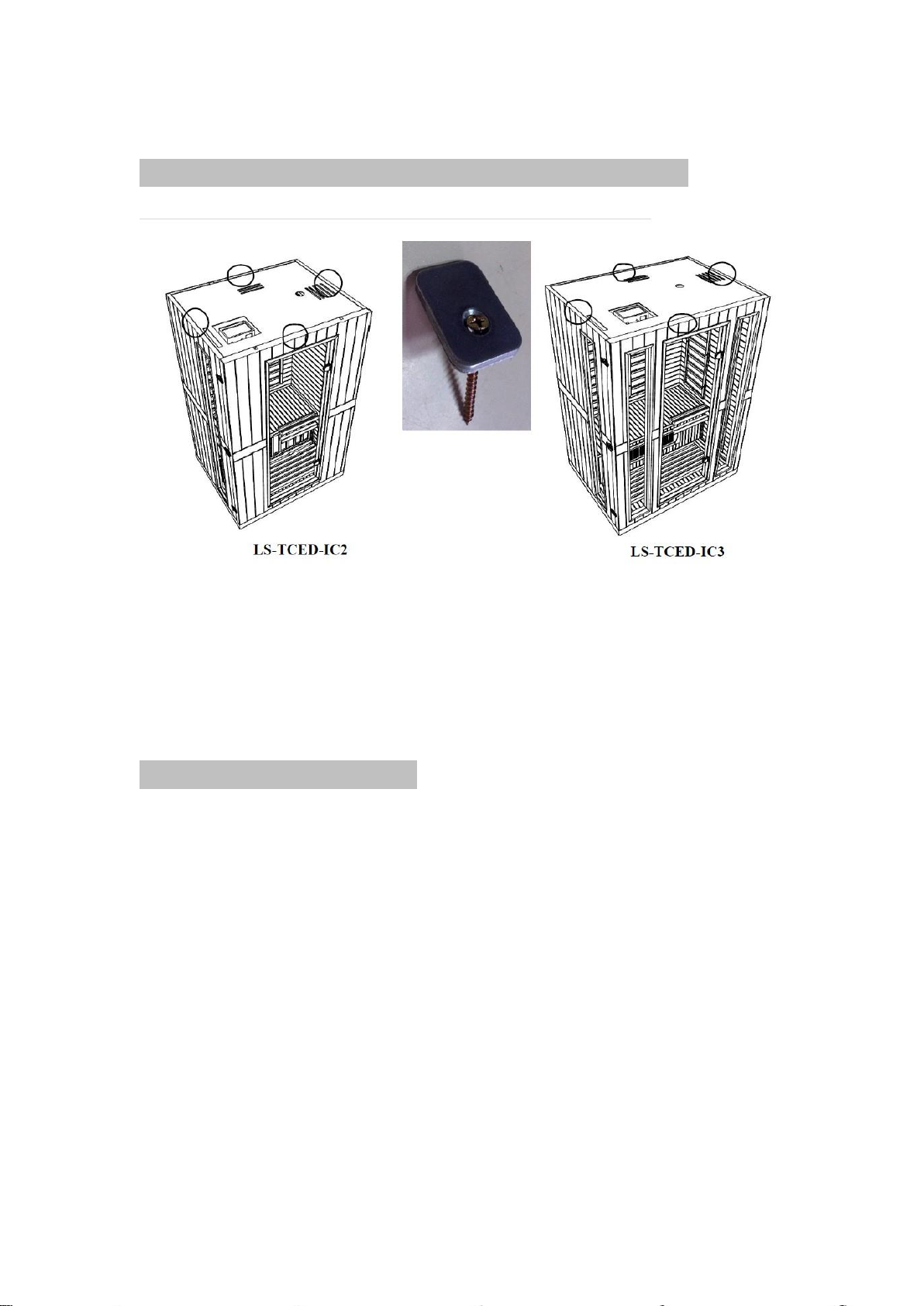

<10 PLACE THE FOOR COVER ONTO THE ROOF PANEL
Place the roof cover onto the roof panel. Screw down the 4 pieces metal
parts in the middle of each panel so
that the metal parts can be put tightly against the roof to avoid distorting.
<11> ENJOY YOUR SAUNA!
Plug in the main power cord into the wall outlet and power up your sauna.
Plug your MP 3 Player into the connector with the wire provided. Your
MP3 Player controls the Volume thru the included speakers.
Grab some towels, a glass of water and step into your sauna and enjoy the
benefits of your sauna!!

12
Assembly Instructions for LS-TCED-ICC3
Assembly of the sauna requires at least 2 adults to complete. Please read
the instructions thoroughly before and during assembly to ensure proper
installation of the sauna.
<1> LOCATION OF SAUNA
When you find a good location for your sauna, please notice the
following.
1. The main power cord on the sauna must be easily accessible.
2. The location must be dry and leveled.
3. Please take out the backrest if it is behind the bottom panel.

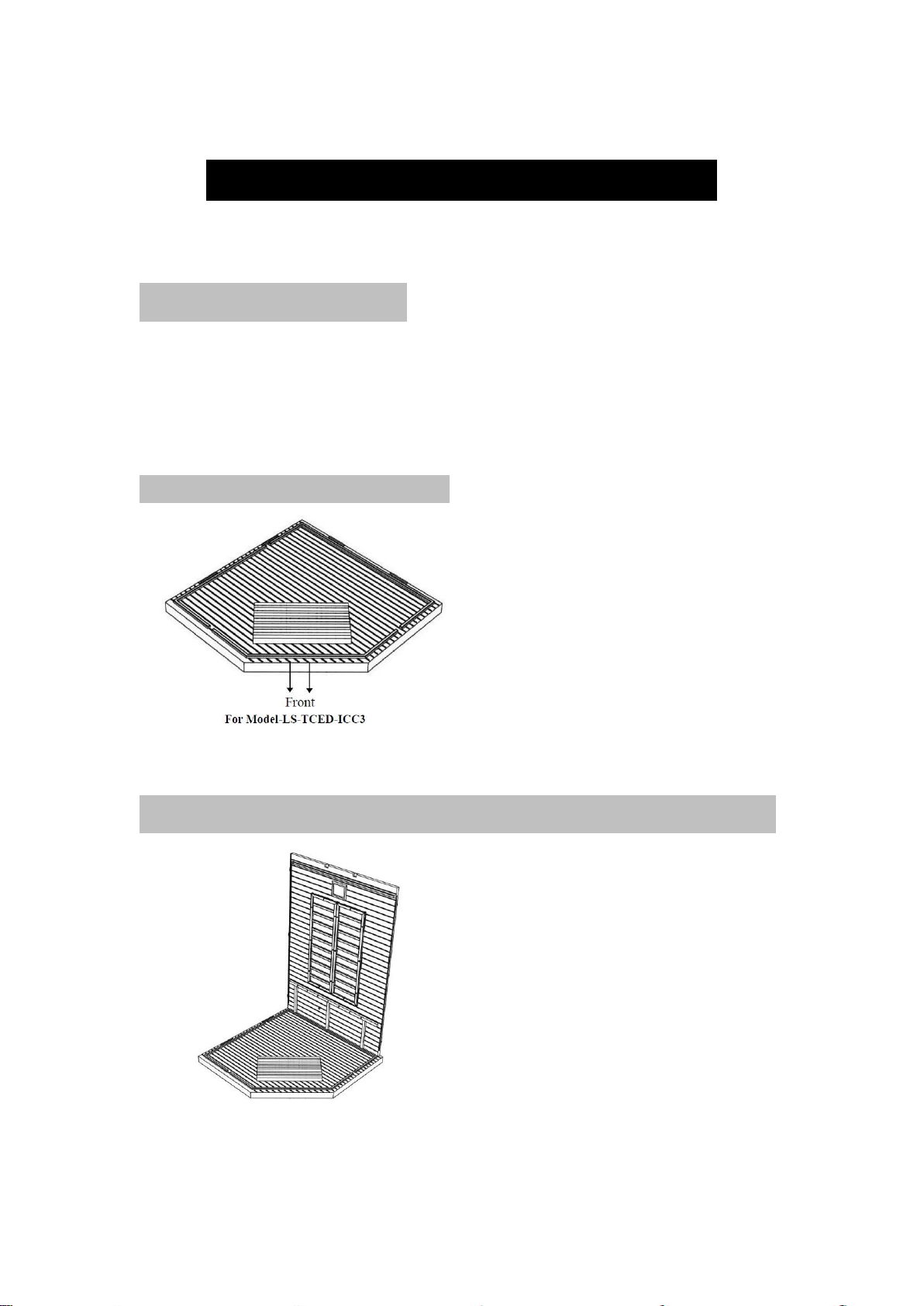

<2> PLACING BOTTOM PANEL
Place the bottom panel on the floor. Make sure that the FRONT direction
of your sauna room.
<3> PLACING THE RIGHT BACK PANEL ONTO BOTTOM PANEL
Put the right back panel onto the bottom panel and make sure its inner
side stands agaist the wooden beam on the
bottom panel.

13
<4>PLACING THE LEFT BACK PANEL ONTO BOTTOM PANEL
Put the right back panel onto the bottom panel and make sure its inner
side stands against the wooden beam on the bottom panel. Meanwhile
connect it to the right back panel with buckles.
<5> INSTALLING RIGHT SIDE PANEL AND RIGHT BACK PANEL
WITH BUCKLES
<6>INSTALLING LEFT SIDE PANEL AND LEFT BACK PANEL
WITH BUCKLES

14
<7>INSTALLING BENCH HEATER PANEL & PLUGIN THE CABLE
Slide down the bench heater panel by lining up its sides with the vertical
guides on left side panel .
NO.1 : The heater grill is facing outwards (towards the front of the sauna)
NO.2 : Push the bench heater panel all the way down until it is touching
the bottom panel and securely in place.
NO.1 : Connect the plug of the bench heater to
connector A and make sure they are tightly
connected.
NO.2 : Connect the plug of the floor heater to
connector B and make sure they are tightly
connected.
<8>INSTALLING THE BENCH
1. Install the bench by sliding it over the horizontal bench guides on the
side panels.
2. Push the bench all the way in until it can touch the back panel and is
securely in place.
3. Make sure of the bench position so that the smooth and finished side of

the bench are facing up and forward.
15
<9> PLACE THE FRONT PANEL AND CONNECT IT TO THE SIDE
PANELS WITH INSIDE BUCKLES
<10> PLACE THE TOP PANEL
Lower the top panel onto the assembled panels.
1. Gently place the top panel onto the rest of the assembled panels. When
four corners are in place,
gently push down the top panel from the outside corners until it is snugly
fit over the rest of panels.
2. Make sure the cable do not get pinched between the panels.
3. Please screw the ceiling with the side panels with the provided screws
so that the ceiling and the side panels can connect closely.
<11> THE MAIN POWER CONNECTION ON THE TOP PANEL
1. Connect the heater wires
2. Connect the control panel wires.
3. Check to be sure that all connections to the control box are secure.

16
<10 PLACE THE FOOR COVER ONTO THE ROOF PANEL
Place the roof cover onto the roof panel , screw down the 5 pieces metal
parts in the middle of each panel so that the metal parts can be put tightly
against the roof to avoid distorting.
<11> ENJOY YOUR SAUNA!
Plug in the main power cord into the wall outlet and power up your sauna.
Plug your MP 3 Player into the connector with the wire provided. Your
MP3 Player controls the Volume thru the included speakers.
Grab some towels, a glass of water and step into your sauna and enjoy the
benefits of your sauna!!

17
Digital Control Panel Operating Instructions
1. Power on
Plug the main power cord into the wall outlet.
Press the “On/Off” button one time, the cont rol panel is now operable,
but the heaters are not on. You
can now use the radio and lights.
2. Warming
Press “On/Off” button again, then the “Warming” light is on, which
indicates the heaters are working. To
turn off the sauna, press the ON/OFF button.
3. Lighting
The reading light can be turned on or off by pressing button at any
time, the color lights can be turned on/off by the small switch on the roof
or the remote control.
4. Pre-setting
“AUTO” button is for pre-setting the time you want your sauna to turn on.
Press “AUTO” button once. Pre-set the time you want your sauna to turn
on with the UP/DOWN ARROWS. TEMP UP/DOWN ARROWS are for
hour setting and TIME UP/DOWN ARROWS are for minute setting. The
setting range is 00:00-23:59.

18
5. How to use MP3 connector
Plug your MP3 Player into the mini input jack. The controls on your
player will operate the volume thru the speakers
6. Sauna Time Adjustment
Session time can be set between 0 and 90 minutes.
a) Press TIME UP/DOWN ARROWS to adjust time, time value will
increase or decrease by 1 minute at a time.
b) By holding down the UP/DOWN ARROWS you can speed up the rate
of change.
c) Time light will be lit to indicate changes being made to time setting.
d) If you don’t input anything during 5 seconds, the TIME DISPLAY will
stop flashing, the value will be stored in memory as preset value. Then
the TIME DISPLAY value will show how much time is left in your sauna
session decreasing 1 minute at a time.
7. Sauna Temperature Adjustment
Session temperature can be set between 77°-158° (25°-70°) (Recommend
environment temperature is 68° (20°) and Recommend temperature
settings are between 100°-130° (38°-54°)
a) Press TEMP UP/DOWN ARROWS to adjust temperature, temperature
value will increase or decrease by 1 degree at a time.
b) By holding down the UP/DOWN ARROWS, you can speed up the rate
of change.
c) 0F(or 0 C) will be lit to indicate changes being made to temperature
setting. If you don’t input anything during 5 seconds, TEMPERATURE
DISPLAY will stop; present value will be stored in memory as preset
value and will be displayed at next start up. And the TEMPERATURE
DISPLAY value shows the sauna room inside current temperature.
d) During session time, when the temperature reaches the setting level on
the control panel, “Warming” indicator light will be off, micro-control
will force the heaters to stop heating and keep a constant-temperature
status. The heaters will turn off and on periodically in order to maintain
the desired temperature inside the sauna.
8.Switch between 0F and 0 C
You can alternate between Fahrenheit and Celsius while in setting mode
by pressing 0F / 0 C buttons.
