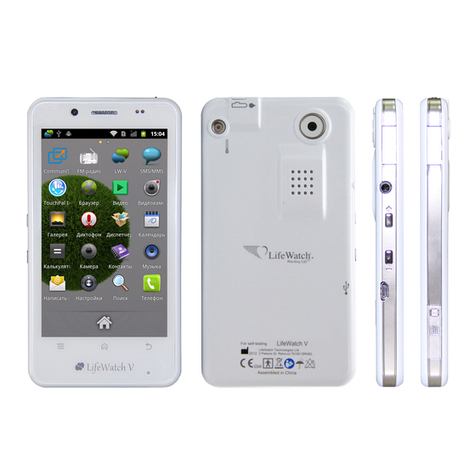

LifeWatch V User manual

Dear LifeWatch V owner:
Thank you for selecting the LifeWatch V mobile medical phone.
This user manual includes information and instructions for using your new LifeWatch V device and should be
read carefully before starting to use the device.
If you have any questions about your LifeWatch V, please contact your representative:
Illustrations included in this manual are general representations only and are not meant to
comply with specific regulatory requirements.
By default, your device is provided with pre-set applications.
Installation of new applications may affect the performance of your device and is the sole
responsibility of the user.
Before using the LifeWatch V, medical functions please read the Warnings and
Precautions, Appendix A, thoroughly.
This User Guide is for the enhanced LifeWatch V mobile medical device, also known as the LifeWatch V+
device. For the sake of brevity, we will refer to the device as the LifeWatch V device due to the five main
medical functions included in the device:
♦ECG
♦Heart Rate ♦Temperature ♦Pulse oximeter (SpO2) ♦Blood glucose
1

Copyright Declaration Copyright ©2013 LifeWatch Technologies Ltd.® All rights reserved.
LifeWatch Technologies Ltd., LifeWatch Inc., LifeWatch Inc. logo, and LifeWatch V are trademarks or registered trademarks
of LifeWatch AG®.
All other brand names and product names used in this document are trade names, service marks, trademarks, or registered
trademarks of their respective owners.
The information and screens provided in this manual are subject to change without notice.
Android™ is a trademark of Google Inc.
LIFEWATCH TECHNOLOGIES LTD. SHALL NOT BE LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR
OMISSIONS CONTAINED HEREIN; NOR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE
FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL.
Authorized representatives:
Europe
Obelis s.a
Boulevard Général
Wahis 53
1030 Brussels, BELGIUM
Tel: + (32) 2. 732.59.54
Fax: + (32) 2.732.60.03
E-mail: [e-mail]
USA
Lifewatch, Inc.
O’Hare International Center
10255West Higgins Road
Suite 120
Rosemont, IL 60018
Tel: [phone]
Fax: [phone]
Toll Free: 800-633-3361
Fax: [phone]
Email: [e-mail]
Israel
LifeWatch
Technologies Ltd. ®
2 Pekeris St.
Rehovot 7670202
Israel
Tel: [phone]
Fax: [phone]
Email: [e-mail]
2

LifeWatch V Packaging Contents
♦LifeWatch V
♦Charger
♦Earphones
♦User manual
♦Quick user guide
♦USB cable
Optional – LifeWatch V Gluco Accessories Kit Contents
♦Lancing device
♦10 lancets
♦Gluco strip vial
♦Control solution
♦10 Alcohol pads
♦Gluco strip Quick user guide
♦Lancer Quick user guide
Indications for Use
The LifeWatch V is a mobile health and wellness device designed for self-testing in order to measure and
display blood saturation, blood glucose, ECG (1 lead), heart rate and body temperature. The LifeWatch V is
able to transmit the test results by wireless communication to a remote server for storage.
The LifeWatch V blood glucose monitoring system is intended to be used by a single person and should not
be shared.
The blood glucose monitoring system is intended for use in the quantitative measurement of glucose in fresh
capillary whole blood from the finger and the following alternative sites: the palm, the forearm, and the upper-
arm. The blood glucose monitoring system is intended for use by people with diabetes mellitus at home as
an aid in monitoring the effectiveness of diabetes control program.
3

Contraindications for Use:
•The LifeWatch V is not intended for use by persons with external defibrillators.
•The LifeWatch V is not intended for the treatment or alleviation of disease.
•The LifeWatch V is not to be used in a magnetic resonance imaging (MRI) environment.
•The blood glucose monitoring system is not intended for the diagnosis of, or screening for, diabetes
mellitus.
•Do not place the thermometer probe on scarred tissue or tissue compromised by skin disorders;
patients in trauma; patients treated with certain drug therapies.
•Do not place the thermometer probe on skin exposed to direct sunlight, fireplace heat, cold compress
therapies, air conditioner flow, and other similar scenarios that may interfere with IR skin Body
temperature determinations.
Warnings:
•Do not expose the unit to rain or immerse in water.
•Servicing of the device shall be done by qualified personnel only.
•The user of the LifeWatch V should not take any actions of a medical or clinical nature based on his/her
understanding or interpretation of test results without consulting a healthcare professional.
•Classifications of test results obtained for medical applications into categories such as “Low”, “Normal”,
“Average”, etc. are based on well-established and widely accepted clinical references; as other
classifications may exist, the test results should not constitute the sole basis for diagnosis or for
deciding on the appropriate course of medical treatment or therapy.
•The Blood Glucose monitoring system is not for use on patients who are dehydrated, hypotensive, in
4

shock, or for individuals in hyperglycemic-hyperosmolar state, with or without ketosis.
•Not for use by critically ill patients.
•Users whose vision is impaired to the extent that their sight does not enable them to operate the device
should not use the Blood Glucose monitoring system.
•The blood glucose monitoring system and lancing device are for single patient use. Do not share them
with anyone including other family members! Do not use on multiple patients!
•All parts of the glucose kit are considered biohazardous and can potentially transmit infectious
diseases, even after you have performed cleaning and disinfection.
Important Symbols
A number of symbols are used throughout this manual in order to draw attention to safety items and other
important information.
Symbols on Equipment and Labeling
The following section contains a description of symbols that may be located either on the LifeWatch V device
or in documentation accompanying the device in order to draw attention to safety items and other important
information.
Label Description
5

Label Description
Warning, consult the accompanying text or documents
Precaution; consult the accompanying text or documents
Warning, potential biohazard
Notes, indicates important general information for using the system
successfully.
Consult instructions for use
XXXX Manufacturer and date of Manufacture
Type BF Applied Part
6

Label Description
In vitro device
Store at specified temperatures; location of thermometer
WEEE Directive for disposal of Electrical and Electronic Equipment
Symbol for no alarms
Symbol indicating a USB connector
Symbol indicating location of glucose meter
7

Table of Contents
LifeWatch V Basic Operation...........................................................19
For Your General Safety (Precautions) ....................................19
Getting Started...............................................................................21
Overview...................................................................................21
Starting up.................................................................................24
Charging the Battery.................................................................25
Getting Around Your Device..........................................................27
Touch Control ...........................................................................27
Home Screen............................................................................28
LifeWatch V Health and Medical Functions ...................................30
Getting Started with the LifeWatch V Medical
and Wellness Applications.............................................................30
License Agreement........................................................................30
8

First Time Launch..........................................................................31
Login Screen..................................................................................32
Guest Login ..............................................................................32
Test Application................................................................................34
Test General Description...............................................................34
Test Screens Description...............................................................35
History............................................................................................40
Performing Medical Tests..............................................................42
Blood Glucose Monitoring System ...........................................42
Glucose Test Troubleshooting..................................................48
Alternative Site Testing (AST) ..................................................49
Control Solution Test................................................................51
Control Solution Troubleshooting .............................................55
9

ECG/HR/BFA/Sp02/Stress Level Analyzer Tests .....................56
Body Temperature Test............................................................60
Blood Pressure Test .................................................................62
LifeWatch V Application Settings...................................................64
My Profile..................................................................................65
Sharing Permissions.................................................................66
Test Settings.............................................................................66
Measurement Units...................................................................66
Sounds......................................................................................66
Calendar Application........................................................................67
Drug Reminder..................................................................................68
How to login..............................................................................71
Heart Rate Calculation Method........................................................71
Introduction ...............................................................................71
10

Method of Calculation...............................................................71
Maintenance ......................................................................................72
Conditions of Use...........................................................................72
Caring for your LifeWatch V...........................................................72
Cleaning and Disinfecting..............................................................73
Environment..............................................................................74
Preventive Maintenance...................................................................75
Troubleshooting................................................................................76
Specifications....................................................................................79
Basic Parameters .....................................................................79
Declaration of RoHS Compliance.............................................85
Disposal of Your Device ...........................................................85
Appendix A Warnings and Precautions .........................................86
11

Warnings...................................................................................89
Radio Frequency (RF) Exposure (Precautions).............................93
General Statement on RF Energy ............................................93
EMI Considerations...................................................................93
Body Worn Operation ...............................................................94
Limiting Exposure to Radio Frequency (RF)
Fields (Precautions).......................................................................94
Distraction......................................................................................95
Driving (Precautions) ................................................................95
Operating Machinery (Precautions)..........................................95
Product Handling (Precautions).....................................................95
General Statement on Handling and Use.................................95
Children.....................................................................................96
Demagnetization.......................................................................96
12

Electrostatic Discharge (ESD)..................................................96
Antenna.....................................................................................96
Normal Use Position.................................................................96
Air Bags ....................................................................................96
Seizures/Blackouts...................................................................96
Repetitive Strain Injuries...........................................................96
Emergency Calls.......................................................................97
Loud Noise................................................................................97
Phone Heating..........................................................................97
Electrical Safety (Precautions).......................................................97
Accessories ..............................................................................97
Connection to a Car..................................................................97
Faulty and Damaged Products.................................................97
General Statement on Interference..........................................98
Pacemakers..............................................................................98
13

Hearing Aids .............................................................................98
Use of LifeWatch V with other Medical Devices.......................98
Hospitals ...................................................................................98
Aircraft.......................................................................................98
Interference in Cars ..................................................................98
Explosive Environments (Precautions)..........................................99
Petrol Stations and Explosive Atmospheres.............................99
Blasting Caps and Areas ..........................................................99
Index.................................................................................................100
14

WARNINGS
•Use the device only for the purposes described in the Instructions for Use.
•To prevent fire, do not expose the device to moisture or excessive heat. Refer servicing to
qualified personnel only.
•Do not use this device if it is not working properly, or if it has suffered any damage.
WARNING The device is not suitable for use in the presence of a flammable anesthetic mixture with air or
with Oxygen or Nitrous Oxide.
WARNING
•For optimal use of the LifeWatch V, it should be connected to the Internet.
•By default, your device is provided with pre-set applications.
•Installation of new applications may affect the performance of your device and is the sole
responsibility of the user.
WARNING
The user of the LifeWatch V should not take any actions of a medical or clinical nature based on his/her
diagnosis or interpretation of the test results, without consulting a healthcare professional.
15

Intended Use
The LifeWatch V is a mobile health and communication device designed for self-testing in order to measure
and display blood oxygen saturation (SpO2), blood glucose levels, ECG (1 lead), heart rate and body
temperature. The LifeWatch V is intended for use by or on the following population groups:
•Adults
•Pediatrics as defined below
The following applications of the LifeWatch V as described in this User Manual and as intended for use by
the manufacturer, are not within the scope of the Medical Device Directive 93/42/EEC and are therefore not
considered as medical devices, nor are they covered by the this Directive:
•Stress Level Analyzer
•Diet Management (if subscribed)
•Drug Management •Body Fat Analysis
16

Test Age Group
Blood Oxygen
Saturation Adults, 21 years and older
Blood Glucose
Monitoring System
By adults and on pediatrics aged 12 years and above.
Pediatrics below the age of 12 years: under adult supervision only
Excluding neonates and infants less than one year
1 Lead ECG Adults and pediatrics above 12 years of age
Heart Rate Adults and pediatrics above 12 years of age
Stress Level Analyzer Adults, 21 years and older
Body Fat Analyzer Adults, 21 years and older
Thermometer Adults and pediatrics above 12 years Pediatrics below the age of 12 years: under adult supervision only
Excluding neonates and infants less than one year
17

Device Definition
The LifeWatch V is a state-of-the-art mobile device (smartphone) with medical and non-medical capabilities
designed for the maximum convenience of its users. The LifeWatch V includes the following modules and
applications:
•Pulse oximeter/SpO2 (oxygen saturation)
•Blood Glucose Monitoring System (glucose accessories to be purchased separately)
•1 Lead ECG (ECG results for subscription users only)
•Heart Rate
•Thermometer
•Body Fat Analyzer
•Stress Level Analyzer
•Blood Pressure (w/external device)
•Diet Management (for subscribed users only)
•Drug Management
NOTE: The LifeWatch V can be used as a stand-alone device or via a subscription plan which offers different
levels of functionality to service plan subscribers (see section “Offered Service Plans”).
18

LifeWatch V Basic Operation
For Your General Safety (Precautions)
As the LifeWatch V device is a medical device that can be used both as a regular cell phone and as a
medical device, this manual includes both warnings and precautions relating to the use of the LifeWatch V as
a cell phone, AND warnings and precautions concerning the use of the LifeWatch V as a medical device.
Do not make or receive handheld calls while
driving; do not text while driving.
Keep the device away from pacemakers, ICDs
and other electronic medical devices (at least 6
inches/15 cm).
Do not use the device at gas/petrol stations. Do not expose the device to extreme
temperatures.
Keep your phone at least 15 mm away from your
ear or body while making calls. Switch the device off when asked to in hospitals and medical facilities.
Your phone may produce a bright or flashing light. Avoid contact with liquids. Keep your phone dry.
Small parts may cause choking. Switch the device off when told to in aircrafts
and airports.
19

Don’t dispose of your device in fire. Don’t take your device apart.
Your device can produce a loud sound. Switch your device off when near explosive
materials or liquids.
Avoid contact with anything magnetic. Only use approved accessories.
Don’t rely on your device for emergency
communications.
Before using the LifeWatch V medical functions please read Appendix A Warnings and
Precautions thoroughly.
20
