Lift Tech Marine DC AUTO STOP GEN2 User manual

Auto Stop:
To set or to change the Auto Stop positions please refer to the inlcuded Auto Stop
instructional manual.
Control Panel:
The control panel works the same as the remote controls. Press UP to go up and DN to
go down. Press the light button to turn the canopy light on or off. Press the lock/unlock
button for 5-10 seconds to lock the control panel. Press it again for 5-10 seconds to unlock
the control panel. When the control panel is locked the lights will blink for a set amount
of time and then stop. The Bluetooth App will still work when the control panel is locked.
When plugged into power the READY light will be a solid green and the Bluetooth symbol
will blink blue. When you pair a phone through bluetooth the light will be a solid blue and
no longer ash. The STATUS light will turn solid red when any button is pushed. If the
remotes work and the control panel doesnt or vise versa, unplug the unit from power for 2
minutes. If the control panel is locked the lights will ash when you press any button.
Remote Controls:
If the remote controls stopped working but your control panel still works, simply unplug
the motor from the battery. After one-minute plug the motor back into the battery and the
remote controls should work. If they do it means the remotes were put into a safety mode
because your batteries are over charge. Along with the two remote controls that came with
your motor you can also download the phone app and control your motor with your phone. See
the included Bluetooth instructions.
Off-Season Storage:
Do not cover your winch with a plastic bag and seal it. This will create condensation during
off season months.
Power Outage:
In case of a power outage, use the provided back up bit (inside white oatie) on the end of
the shaft with your drill. Visit our website to watch a video on how to use the back up bit.
Power Requirements:
Our DC Motors can be 12 volts or 24 volts.

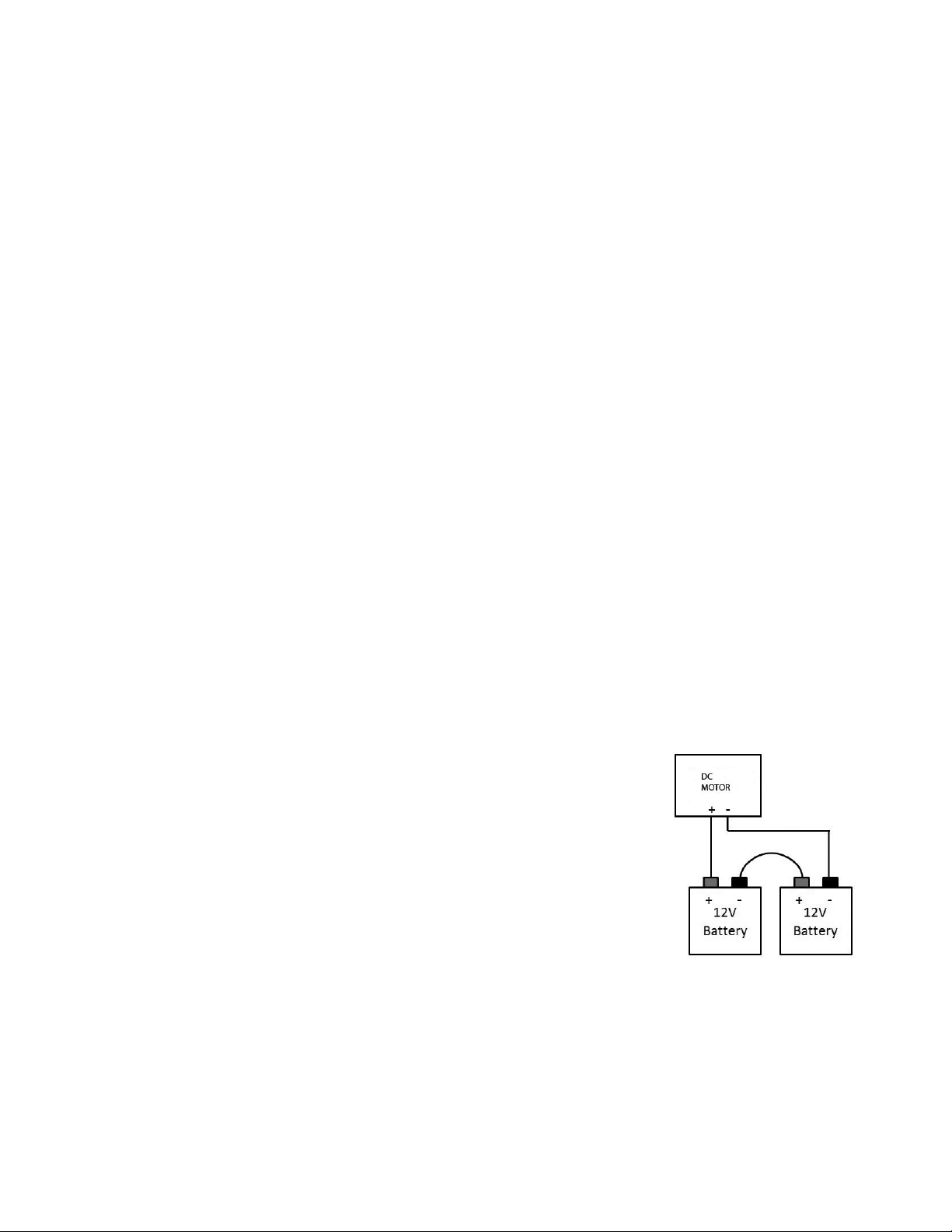

If running 24 volts make sure to hook your
batteries up in a series. (See image on right)
We recommend 24 or 27 series deep cycle batteries.
Maintenance:
Our motors are self-lubricating and do not need any maintenance.
Solar Panels will evaporate water so make sure to check water
levels in the battery to prevent battery damage and possible battery explosion.
We recommend all solar panels use a charge control to prevent over charging. They can
be purchased separate.
Website:
Go to www.lifttechmarine.com for more information, troubleshooting and how to videos.
We would like to take this opportunity to say thank you. We value you as a customer.
Should you ever have an issue please give us a call at 866-319-8877 or send us an email at
[email protected]

GEN- 2 DC AUTOSTOP
SETUP INSTRUCTIONS
The Lift Tech Auto Stop unit is designed to automatically stop
the lift at user dened upper and lower limits, preventing
accidental over travel and any potential damage. When the
lift is commanded to go up and the lift reaches the upper limit,
the lift will stop and will not allow any further upward travel.
Likewise, when the lift is going down and the lower limit is hit,
the lift will stop and not allow any further downward travel to
occur.
If power is removed, the Auto Stop unit will remember the
position limits, so there is no need to reprogram them. If you
use the back up bit to move the motor you will need to clear
the limit positions as they will now be in different spots.
GREEN LED LIGHT:
When no limits are set the Green LED light will blink fast. When one limit is set the green
led light will change to a brighter fuller blink. When both limits are set the Green LED light
will stay solid. After you press the lock button to set one of the limits watch the Green
LED light to make sure it changed. If it changed this means it has accepted the limit.
CONTROL PANEL:
You can use the control panel or the remote controls to set or clear the autostop limits.
TO SET THE TOP TRAVEL LIMIT POSITION:
Press the UP button on the remote until the lift moves to the desired upper limit.
Press the LOCK button on the remote to dene the upper position.
When one position is set, the Green LED will blink Brighter.
TO SET THE BOTTOM TRAVEL LIMIT POSITION:
Press the DOWN button on remote until the lift moves to the desired lower limit.
Press the LOCK button on the remote to dene the lower position.
When both position are set, the Green LED will always be on.
TO RESET POSITION LIMITS:
To clear position limits press the following key sequence on the remote or control panel:
LOCK, LOCK, LIGHT. Make sure to press the buttons rmly for 1-2 seconds. If it doesn’t
work, try it again this time slower. Once the sequence is accepted, the Green LED light
will change from always on to a quick blink.
TROUBLESHOOTING TIPS:
If your lift will not operate or go past a certain position try reseting the limits. We also
have how to videos on our website. www.lifttechmarine.com

IOS Guide For
Control Panel
3. After you have activated the bluetooth sequence
look at your phone and Tap the button in
the upper right hand corner of app. (See pic 2)
LiftTech should now appear like in (pic 3). Tap on
the Lift Tech Signal Strength and the screen should
now look like (pic 4). Now tap on the pair option.
4. Once paired and connected to a Lift Tech
receiver, the screen similar to (pic 5) will show the
remote control options.
5. To rename your lift tap on Rename in the top
right corner of the phone app.
6. UP..... Pressing and holding this button will raise the lift.
DOWN.... Pressing and holding this button will lower the lift.
LIGHT..... Pressing this button will turn your canopy light on or off.
LOCK..... Hold for 5 seconds to lock or unlock the control panel.
NOTE: When done operating the lift, for security and IOS battery purposes, it
is advised to disconnect from the Lift Tech receiver. To do this tap <disconnect
in the upper left corner to be returned to the screen shown in pic 3.
*If your neighbors have a Lift Tech Marine unit
make sure they are not using their lift while you are
programming.*
1. Go to the App store and search for Lift Tech and
download the app. Once the app is downloaded on
your phone, open the app and continue.
2. To activate the Bluetooth pairing sequence
press the UP and DN buttons on the control panel
at the same time then release. (picture below).

ANDROID Guide For
Control Panel
5. Press on the Lift - Signal Strength that comes up
on the phone to pair it.
6. Once the phone is paired it will look like PIC 3.
You are now done pairing your phone with the
control panel.If you want to rename your lift simply
press the rename tab on the top right of the app
and a box will come up like in PIC 4. Rename it to
what you want and hit Rename to save it.
7. UP..... Pressing and holding this button will raise the lift.
DOWN....Pressing and holding this button will lower the lift.
LIGHT..... Pressing this button will turn your canopy light on or off.
LOCK..... Hold for 5 seconds to lock or unlock the control panel.
*If your neighbors have a Lift Tech Marine unit make sure they are not using
their lift while you are programming.*
1. Go to Google Play and search for Lift Tech Marine and download the app.
Once installed open the app.

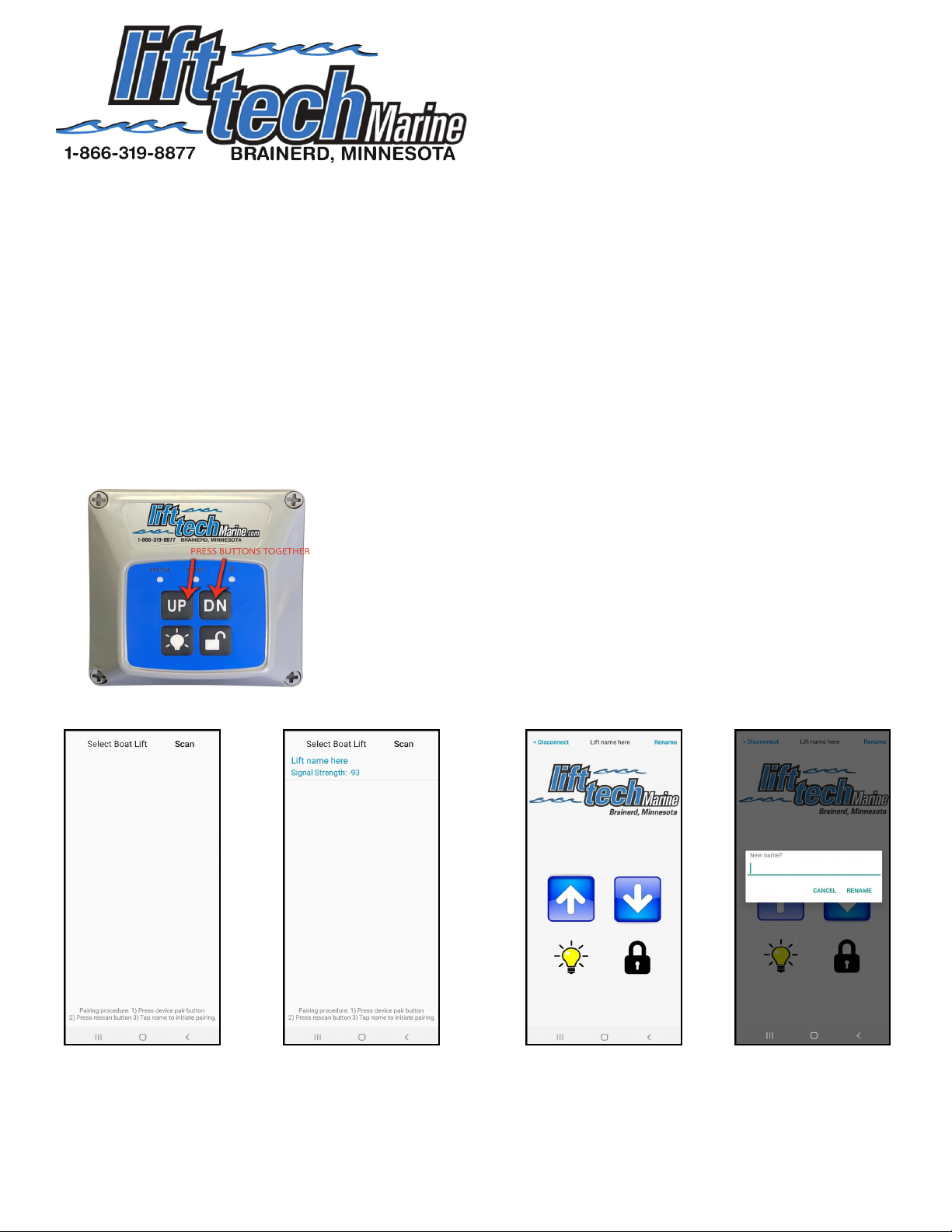

2. To activate the Bluetooth pairing sequence press the UP and DN buttons
on the control panel at the same time then release. (See picture below).
3. Press the scan button on the top right of your phone. (See PIC 1)
4. When the phone nds the motor it will look like PIC 2.
PIC 1 PIC 2 PIC 3 PIC 4

Optional Pendant for AC and DC Manual Motors Only:
Comes with 15 feet of wire and plugs directly into the
control box. The control box is already wired for it. Just
remove the small black nipple cap. Key is not required
when using pendant. Retail $110 plus shipping.
Optional Canopy Light for AC/DC Remote and
Autostop Motors Only:
Five feet of Super Bright White LED Lights. Can turn
on and off with control panel or remote controlls. Will
automatically shut off at 7 minutes. Retail $75 plus
shipping.
Plastic Battery Boxes for DC Units.
Plastic battery box that will t Group 24 and 27 series deep
cycle batteries. If your battery leaks for any reason, it will
help protect the boat from getting battery acid on it. Retail
at $39 plus shipping.
Charge Control Regulators For DC Units.
Perfect to keep your batteries from being over charged.
Over charged batteries can lead to problems and possible
battery explosion. Retail at $75 plus shipping.
To purchase any of these items you can visit a local dealer or give us a call.
866-319-8877
More infomation can be found at www.lifttechmarine.com
