LIFUBIDE Y1000 User manual

LíFubíd∈
Air Purifier
USERMANUAL
Suitable for Y1000
LiFubíde

Important
Thank you for choosing lifubide brand high-end air purifier Y1000,hope you enjoy using it.
We hope you will take a few minutes to read this user manual to understand the safety information and use it correctly.
Please keep this user manual in a safe place so that you can find solutions to your problems in the future use of the machine.
For questions,please contact us at [e-mail].

Catlog
03 Safety Instructions
04 Important Notes
05 Product Profile
06 Packing List
07 Control Panel Introduction
08 Starting Using
09 App Connection Guide
10 Network Operation Diagram
12 App Connection Failure,Quick Solutior
13 About Placement
14 Purification Principle
15 Filter Replacement
16 Machine Maintenance
17 Specificatior
18
The Name And Content Of Harmful Substances In
The Product
19
Professional Institutions Full Range Of Certification
Testing
21
Ask&Answer
22
FCC Caution
23
IC Caution

Safety Instructions
READ AND SAVE THESE INSTRUCTIONS
Notice:
The following content is related to safety;users must abide by the
following instructions in order to properly use this product.
Warning:
To reduce the risk of fire or electric shock,do not use this unit with
any solid-state speed control device.
Please read the following carefully to avoid dangerous operating behavior.
Machine Placement
Before using the unit,it must be placed on a dry,flat and stable ground,
with a space of at least 30 cm around the product.
Do not place it in direct sunlight.
Do not use the unit in humid or high temperature environments
(such as bathrooms,toilets,and kitchens).
Do not immerse the unit in water.
To prevent interference,keep as far as possible between the unit and
electrical appliances such as TV,radio,microwave oven,etc.
Power Related
The unit is limited to AC 120V~60Hz power only.
Do not use damaged or aged power cords.
lf the power cord is damaged,please do not replace it yourself,please
contact the customer service center.
Do not move the unit by pulling the power cord.
Do not touch the power plug with wet hands.
03
If there is dust or water stains on the power plug,wipe it with a
dry towel.
Please unplug the power plug when not in use for a long time.
Use Related
Do not spray flammable substances near the unit.
Do not place objects on top of the product,and do not sit or stand on the unit.
Do not place water containers,medicines or flammable materials on the unit.
Do not spray water directly on the unit or use chemical cleaning agents such
as alcohol or hydrochloric acid to clean the product.
When the product has abnormal sound,burnt smell or smoke,please unplug
the power plug immediately and contact the maintenance center in time.
Do not block the air inlet and outlet of this unit with any objects.
Do not put your fingers or other objects into the air inlet or outlet.
The LCD screen is made of glass,which is fragile,please do not squeeze it
forcefully
Please take good care of children and ensure that they do not play with this
product to avoid accidents.
The mist of the ultrasonic humidifier may have a certain impact on the PM2.5
detections of this unit,and should be avoided as much as possible.
This unit cannot replace natural ventilation,nor can it replace other electrical
appliances such as vacuum cleaners and range hoods.

Important Notes
1、Before using the unit,please read the relevant matters in the product manual carefully to learn about product precautions and
usage;
2、Open the package,take out the power cord and other accessories,take out the machine,open the side panel to take out the
match filter and tear off the flter bag,then install the filter in place according to the direction indicated;
3、After the filter is installed in place,snap the side panel of the machine and connect the power cord at the bottom of the machine;
4、Plug in the power cord,you will hear a"beep "sound,indicating the successful power-on,at this time the"ON/OFF"button indicator
light;
5、Display panel has a warning sticker,please read the warning notes;
6、Press the"ON/OFF "button to turn on the machine,then the display screen will be on,and the air purifier can be used normally at
this time;
7、If the machine can not start,please focus on checking whether the power cordisconnected,whether the machine side panel
and top cover are in place;
8、If you find that the "flter reading abnormal icon"flashes on the purifier display after power on,you only need to open the side
panel and reinstall the corresponding filter once.Each of our machine has been judged by filter reading before leaving the field,
so if there is abnormal filter reading,it is usually caused by some installation deviation when disassembling and installing the filter;
9、If the filter still cannot be read after repeated installation,please contact the service staff in time;
04

Product Profile
1、Efficiently remove indoor odors and allergens,and intimately protect the
"susceptible"people;
2、3D intelligent disinfection and sterllization technology,rapid capture and
removal of 13 kinds of bacteria,efficient disinfection and sterilization,
comprehensive sterilization rate of 99.9%;
3、Customized scientific air duct,high air intake,large purification,can quickly
circulate indoor air 360 degrees;
4、Automatic monitoring of indoor air quality,real-time accurate display of
particle concentration values,and a three-color air quality indicator to
remind the overall quality of indoor air;
5、Shibaura brushless DC motor,powerful heart,surging power;
6、The life of the filter element is one year,long-lasting,saving money;
7、App remote control,smarter and more convenient;
8、PM2.5 CADR 580 CFM,HCHO CADR 76.5 CFM.
9、Pet odors,such as NHgand H₂S,can be removed at a rate of 95%.
05

Packing List
AIR PURIFIER MAIN EQUIPMENT
--o Outlet grid
·Laser PM2.5 sensor
要里
③uFubide
Casters
Power connection port
oControl panel
Display screen
至三
Front
Use Manual x 1
Filter x 2
Power Cord x1
06
Back

Control Panel Introduction
ow/oFCI SPEED……AUTO②1 SLEEPC I UGHTD I LockGI
oN/oFF G Power Mode Button:Turn on/off
SPEED
Auto Mode Button:The device automatically adjusts the corresponding wind speed
according to the air quality detected by the sensor
stP (Sleep Mode Button:The device runs at the lowest wind speed and turns off the lights
uchr O Light Mode Button:Turn the light and display screen on/off
lock Child Lock Button:Keep press for 3 seconds to activate/deactivate the child lock function
07
CFilter life reminder icon
Wi-Fi connection instruction
PM2.5 numerical display
Air quality indicator
Volumn Mode Button:Click to manually adjust the wind speed
AUTO 三

Starting Using

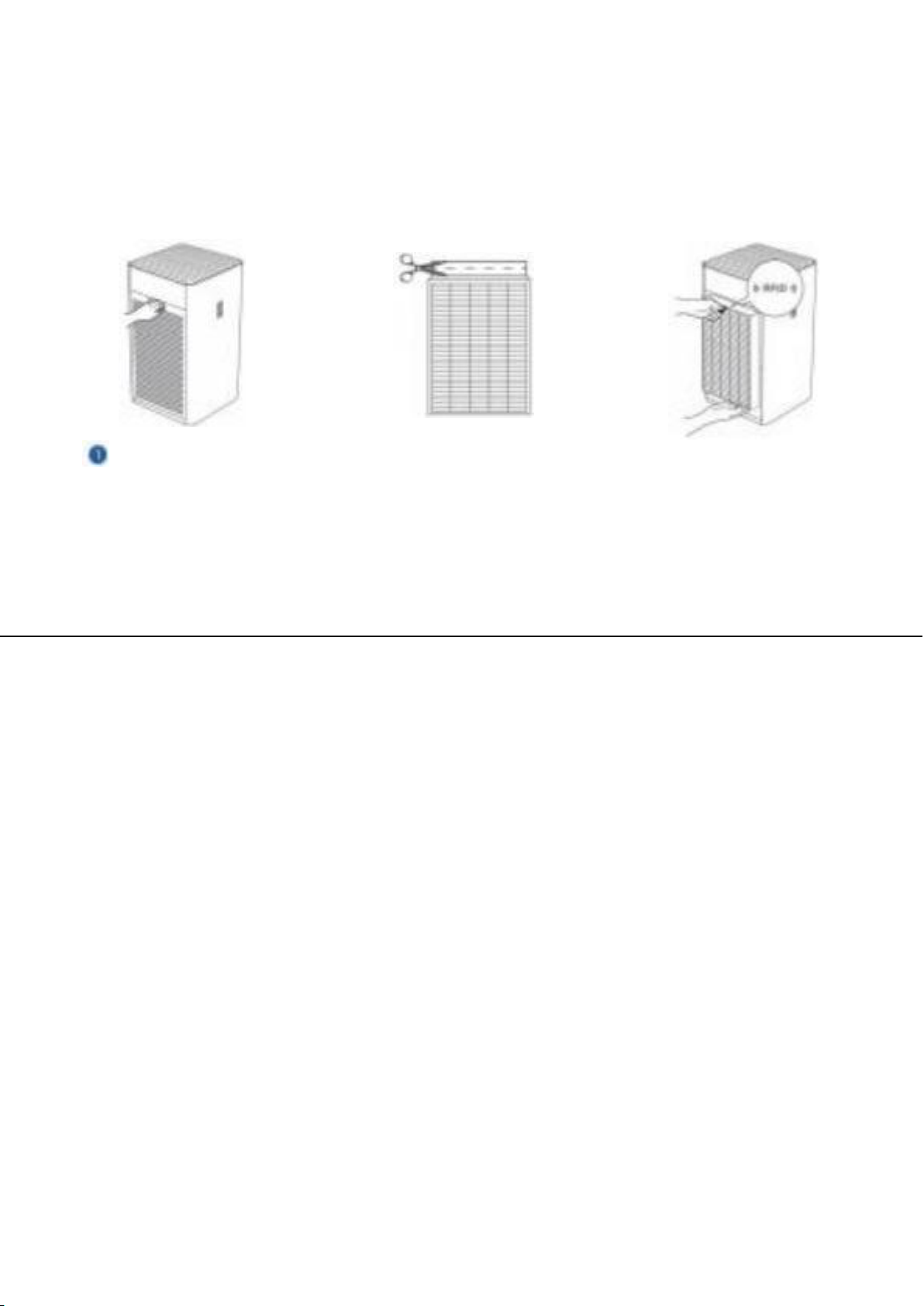

Step One:
Open the side cover,take out the flter,and tear off the filter
sealing bag,and then install it back intothemachineseparately;
Step Two:
Take out the power cord,plug the power cord into the connector
at the bottom of the machine,after the power is on,the power
button indicator will light up;
Step Three:
Press the button to turn on the machine,the PM2.5 laser sensor enters
the warm-up state,when the air quality indicator shows yellow by default.
When the PM2.5 laser sensor has finished warming up,the air quality
indicator will show the corresponding color according to the current air
quality.
AIR QUALITY INDICATOR DESCRIPTION
Red:Poor air quality
Orange:Acceptable air quality
Green:Good air quality
Note:
The indicator light only corresponds to changes in the concentration
of particulate matter in the air,and cannot reflect the concentration
of gaseous pollutants.
08

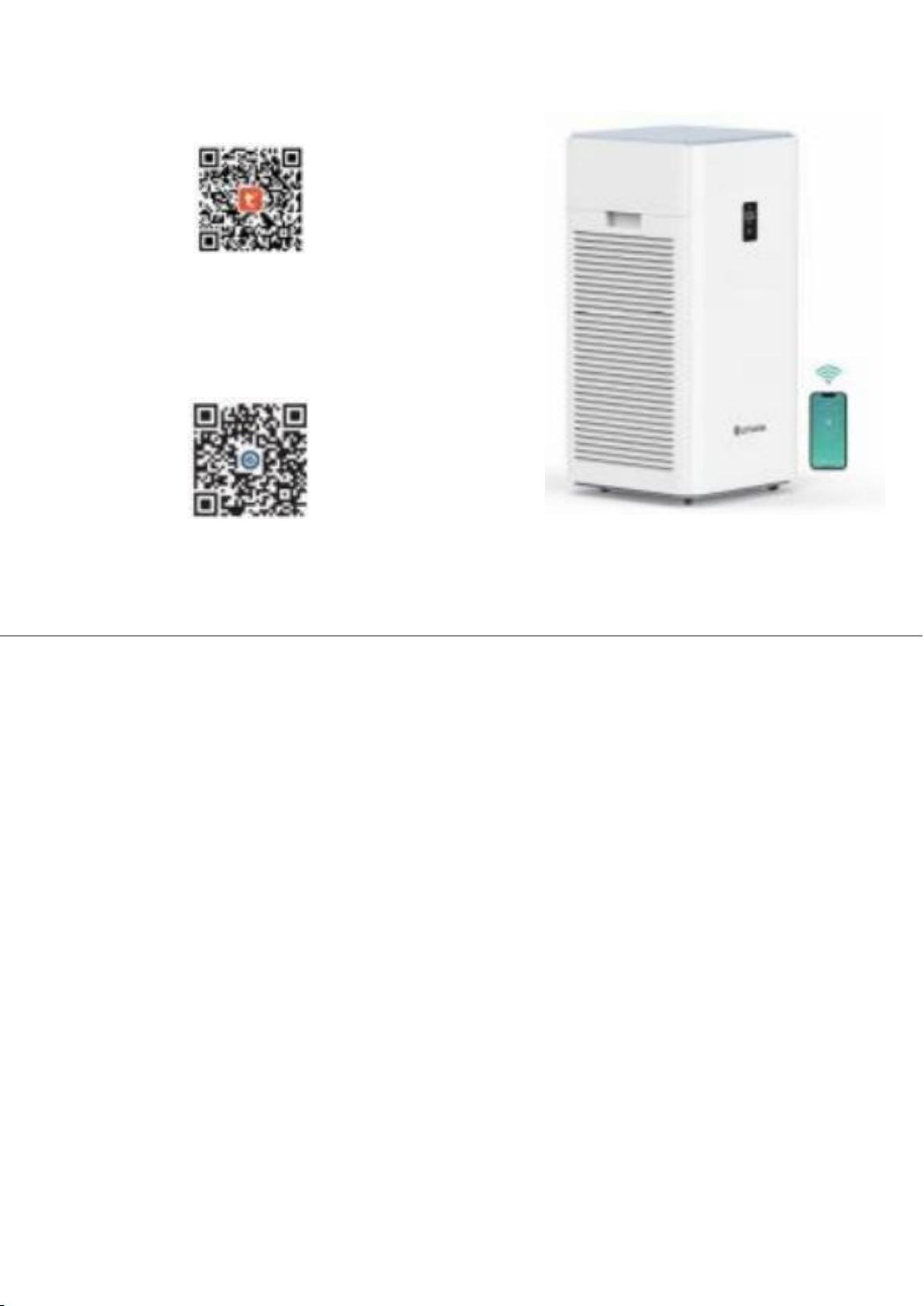

App Connection Guide
Step One:
Scan the QR code or search for "Tuya Smart"in the app store to download;
Step Two:
Make sure that the machine is turned on,open the app,and then connect;
Step Three:Scan the QR code
Open the"Tuya Smart "APP,Add Device,scan the QR code in the figure below,Keep
press the"AUTO "button on the control panel.the logo will blink,and add the machine
to use.
Note:
The air purifier uses Wi-Fi 2.4GHz and Bluetooth network.
09

Network Operation Diagram
①
23
14:23
Add Device
Sew chieatgm
Add
Add Manually
Lifubide Y1000
Tuya Smart
Add
Upduted t:2023IA IZ
mHn
l the downlbad fals dick here to ssarch.
回
14:33
×
Tuya Smart
All Devices
②
!#!!
LE
Step One:
Scan the Tuya QR code to enter the
Tuya Smart App download page
Step Two:
On the home page of Tuya Smart
App,click Add
Step Three:
Scan the Link QR code,to enter the
unit online page
10

Network Operation Diagram
4
14:19
×
Resetthedevice
15°℃LosAngeles/SunnyGood
PM2.5
Tum on the device and press "Auto*button for 3s,the
wif indkeater wll mpldy blrk
Note:This product anly upparts 2.4GWFinetwark.
01:58
Confrm the wif indicater is binking quickty
Next
Reset Devce Step by Step
Ufubise Y1000 ∠
Auto
ConnectingDevice
Power on the device,
!
Buetooth 与
Wind Speed teests
5
14:19
×
Step Four:
Press "Auto"button for 3s,WI-Fi indicator
will rapidly blink,then click Add
Step Five:
Waiting for 2 minutes
Step Six:
Enter the unit WI-Fi control
page
11

App Connection Failure,Quick Solution
Step One:
Please check if the account password is entered incorrectly;
Step Two:
Please check if the air purifier uses Wi-Fi 2.4GHz and Bluetooth network;
Network
Lifubide
令 i
Lifubide_5G
& (i
Step Three:
You can try to set the phone network as the router name and password
to try to reconnect to the network;
Step Four:
Please check whether the router is set up with certain features that make it
impossible to connect to the Internet;
△we also recommend that the router name be set to a name without special symbols,etc.
Step Five:
If you stil can't solve the connectivity problem,please contact us at [e-mail].
12

About Placement
When the air purifier is on,the main air purification is done in the room
where the air purifier is used,and usually the adjacent rooms can also get
a better purification effect.In order to get better purification effect,
please close the doors and windows tightly when the air purifier is on,and
try to place it in the center of the room.
SUGGESTIONS FOR IMPROVING INDOOR AIR
THE FOLLOWING POINTS NEED TO BE KEPT IN MIND WHEN YOU ARE USING
AN AIR PURIFIER:
1、It is equally important to reduce the entry of outdoor polluted air and speed
up the purification of indoor polluted air.When outdoor pollution such as
PM2.5 concentration exceeds the standard,tightly closing windows and
doors will greatly improve the speed of air purification.Similarly,when the
concentration of volatile substances in indoor air is high,opening windows
to ventilate is the best purification method;
2、The use of air purifiers is not a substitute for opening windows to ventilate.
CO2 produced by breathing or combustion is not turned into O2 by an air
purifier;
3、The applicable area'of an air purifier needs to consider the specific usage
environment.With normal ventilation,air purifiers with high CADR values can
significantly reduce the concentration of indoor PM2.5 and other pollutants
compared to air purifiers with low CADR values.
PLACED AT LEAST 30CM AWAY FROM THE WALL
Placedatleast 30cm
awayfromthewall
uRbin
Placedat least30cm
away from the wall
13

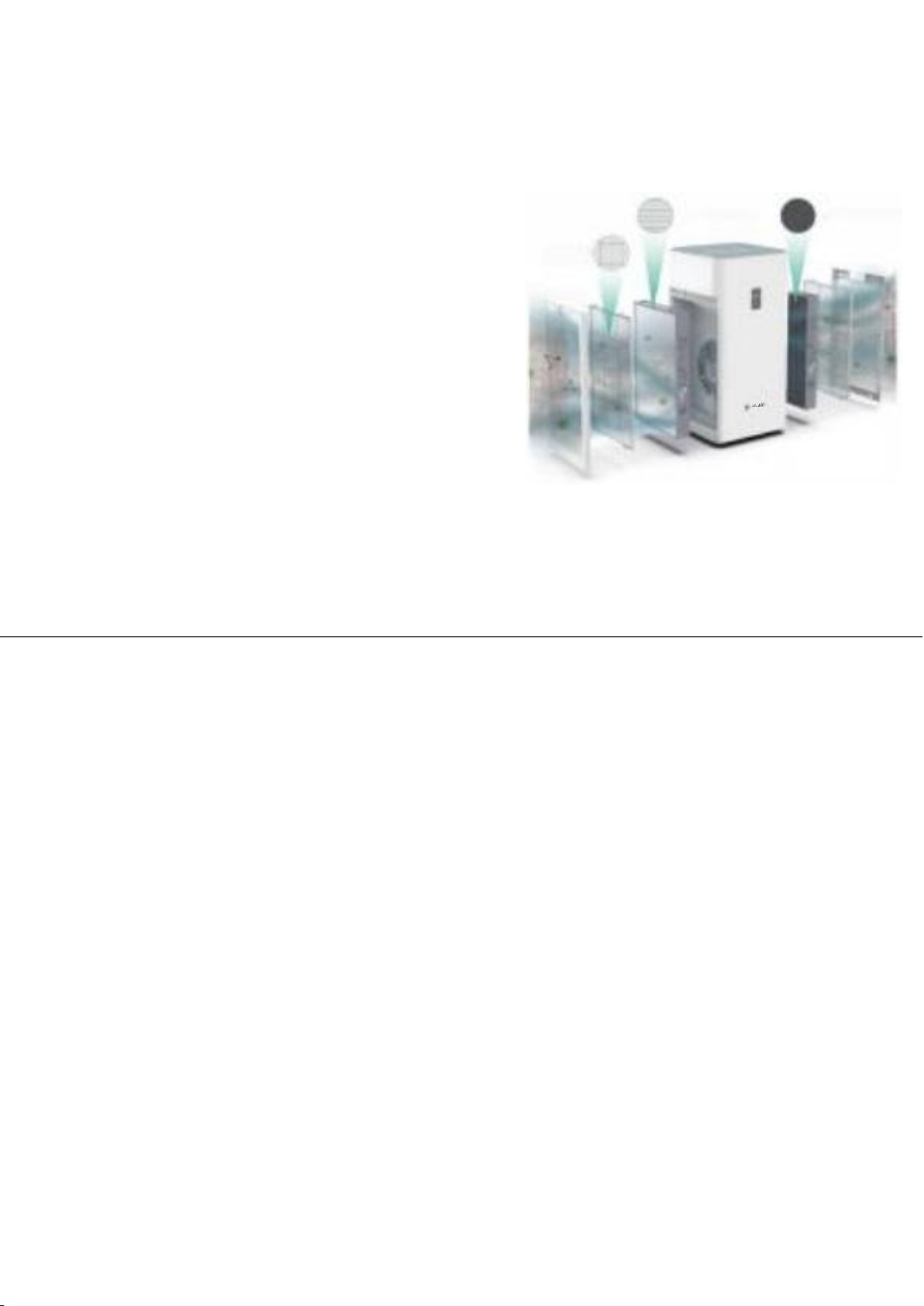

Purification Principle
1、Indoor air is sucked into the air inlet by the strong suction force generated by the
centrifugal fan.
2、Hair and some visible contaminants are captured by the primary air filter.
3、By the professional design and authoritative experimental institutions testing and
certification of the composite filter,which is composed of H13 true Hepa Filter and
high-quality activated carbon,coupled with the pet odor formula,It can effectively
remove PM10,PM2.5,PM0.3 type of haze,pollen,allergens,bacteria,viruses and other
visible and invisible harmful substances,and also decompose and remove ammonia,
toluene,acetaldehyde,alkanes and other harmful gases;
4、The classic structure design of double-sided air inlet and top air outlet,both sides
are equipped with plate composite filter,this structure can make the purification
efficiency double.
FILTER USE RECOMMENDATIONS
1、If the air humidity is high in your area or the air humidity is high in the season when
the air purifier is used,and the air purifier is not kept on continuously,then the
activated carbon in the filter will be damp and produce sour smell.In order to avoid
acidity,it is recommended to keep the air purifier on continuously for 24 hours in
areas with high humidity or in seasons with high humidity,so that the air purifier can
not only output clean air continuously and effectively to maintain a clean indoor
environment,but also can effectively avoid the odor caused by microbial metabolism
by keeping the air purifier on continuously.
Two-Way Air Intake,2 PCS,3 In 1 Filters
True HEPA Filter
Washable(
Pre-Filter
湘
H13Grate Hepa ActivatedCarbon
2、In order to guarantee the effective service life of the air purifier filter,it is recommended
to clean the primary filter once a month or so.
14

Filter Replacement
FILTER LIFE
Please remind to replace the flter according to the flter lfe Creminder icon.When the flter lfe is between 5%and 15%,the corresponding
icon displays yellow;when the filter life is less than 5%,the corresponding icon displays red.In order to ensure the effectiveness of the air purifier,
please change the filter as soon as possible after the flter indicator icon turns yellow.
△Please unplug the power plug before performing the following operations
Open the filter compartment
door and remove the used filter
Remove the package of new filter
Load the new filter and close
the filter compartment door
Important Tips:
1.Considering the complexity of various use environments,it is recommended that the air purifier beturned on continuously for 24 hours to avoid
theodor caused by bacteria breeding in the filter due to longtime shutdown.
2.If the machine has not been used for a long time,there may be some"smell"when it is opened for the first time,it is recommended to put the air
purifier in a ventilated environment and run continuously to disperse the smell.If there is no relief,it is recommended to replace it.
15

Machine Maintenance
△Before performing the following operations,please pull out the
power plug
①CLEAN THE MACHINE SHELL
Use a soft dry cotton cloth to gently wipe the dust on the surface
of the product,especially at the air inlet and outlet.
Do not use corrosive or volatile or flammable chemicals for cleaning.
The product shell cannot be cleaned with water.
②LASER SENSOR MAINTENANCE
(It is recommended to clean every three months)
1、Open the sensor cover.
2、Clean the dust and other contaminants on the sensor and outer cover.
3、After cleaning,replace the sensor cover.
Note:
The laser sensor is a key component,please do not disassemble it at
will;using cotton swabs or dry cotton balls as cleaning tools are both
available.
16
CLEAN THE PRELIMINARY FILTER
After adsorbing large particles such as pet hair and lint etc.,the
primary filter will cause its resistance to rise and affect the airflow
of the machine.It is recommended to clean the primary filter once
every month.
Cleaning method:Remove the primary filter from the machine
compartment door,then rinse it with water,air dried and put it
into the machine again.
Except for the primary filter,water washing is prohibited for
other filters.

Specification
Product
Air Purifier
Model
Y1000
Fliter Level
H13 Hepa Filter
Product Dimensions
W365×D365×H746mm
Package Dimensions
W435×D435×H855mm
Net Weight
13.5kg
Gross Weight
16.5kg
Voltage
120V 60Hz
Power
105W
Noise level(SPL)
20～56dB(A)
CADR(Smoke】
580 CFM
CADR(HCHO)
76.5 CFM
CADR(Sleep Mode)
130 CFM
Sleep Power
6.8W
Product Certification
htep
02127
CARB
17
