Lightcloud LCLC User manual

Welcome
Luminaire Controller
LCLC
WE’RE HERE TO HELP:
®
1 (844) LIGHTCLOUD
1 [phone]
[email protected]

Hello
Lightcloud is a wireless lighting control
system. The Lightcloud Luminaire
Controller is a remotely controlled
switching and dimming device that
can be installed into luminaires.
Product Features
Wireless Control & Configuration
Switching up to 3A
0-10V Dimming
Power Monitoring
Patent Pending

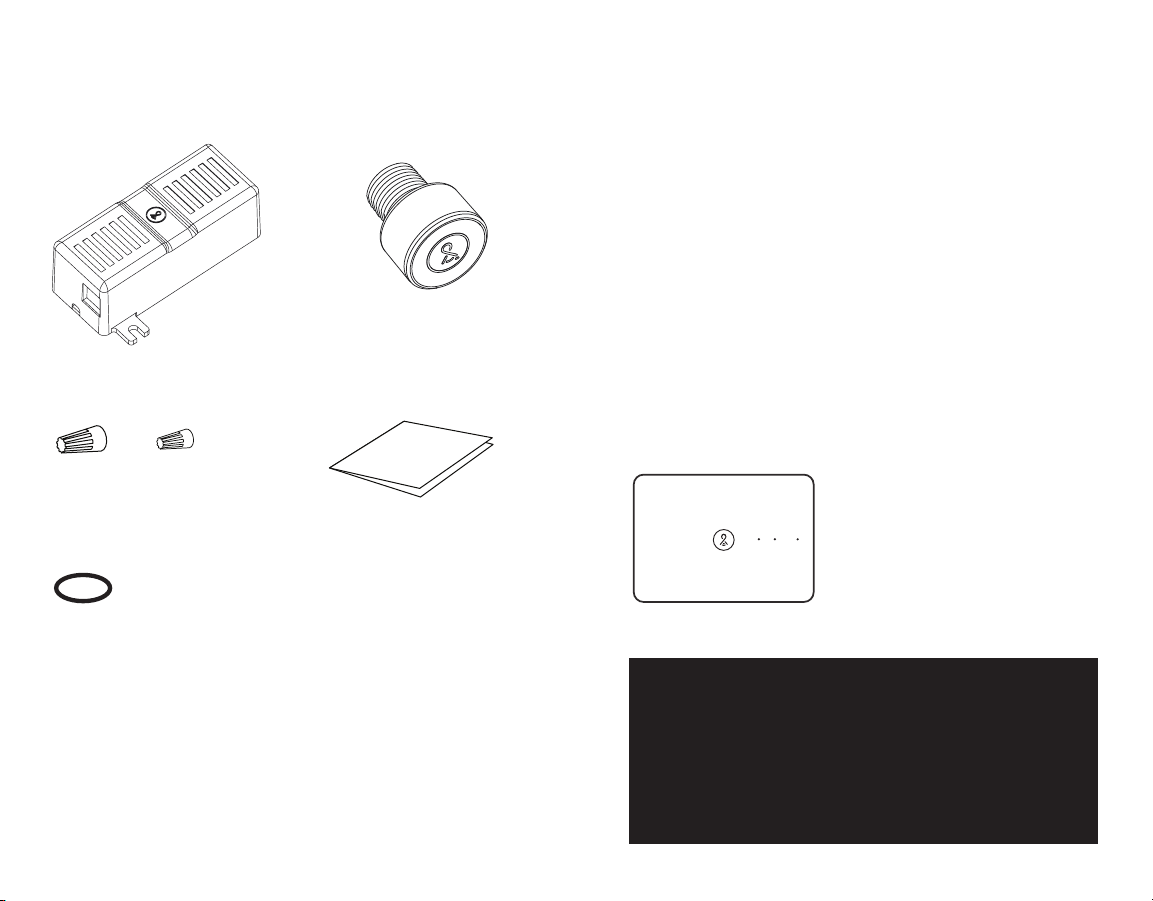

Contents
Actuator Module Radio Module
Wire Nuts
x 4 x 2
Instruction Manual
O-ring
What you need
Lightcloud Gateway
A Lightcloud installation requires
at least one Lightcloud Gateway
to manage your devices.
WE’RE HERE TO HELP:
Specifications & Ratings
PART NUMBER
LCLC
INPUT
120/277VAC, 50/60Hz
CURRENT DRAW
<0.6W (Standby) – 1W (Active)
LOAD SWITCHING CAPACITY
LED, CFL, Tungsten 120/277VAC 500W;
Magnetic 120VAC 264VA, 277VAC 500VA;
Resistive/Inductive 120VAC 500W
OPERATING TEMPERATURE:
-40°C to +50°C max temp
ACTUATOR MODULE
OVERALL DIMENSIONS:
3.7” x 1.5” x 1.3”
RADIO DIMENSIONS:
1.3” x .8”
WIRELESS RANGE
Line of Sight: 700 feet
Obstructions: 70 feet
RATINGS:
Radio is IP66 rated and suited for
outdoor or wet locations
1 (844) LIGHTCLOUD
1 [phone]
[e-mail]

Setup & Installation
Turn off power
OFF
OFF
Find a suitable location
Use these guidelines when installing devices:
• If there is a clear line of sight between a Luminaire
Controller and another Lightcloud device they can be
placed up to 700 feet apart.
• If a Luminaire Controller and another Lightcloud
device are separated by ordinary drywall construction,
try to keep them within 70 ft. of each other.
• Brick, concrete and steel construction may require
additional Lightcloud devices to go around the
obstruction.
Lightcloud
<=
DRYWALL
OR SIMILAR
GATEWAY
Add an additional
Lightcloud Device to
extend network range
around corners
BRICK,
CONCRETE, OR
METAL WALL
70 ft.
Install the Luminaire Controller
For luminaires pre-installed with the Luminaire Controller, skip to Step 3.
Fixture installation with
actuator module inside
If the interior of your luminaire can accommodate the
dimensions of the actuator module, install the actuator
module inside the housing, and attach the radio module
to the outside of the housing via a knockout.
WARNING
12
1a
2a
PINK
PINK
RED
PURPLE
PURPLE
WHITE
INSIDE JUNCTION BOX
Load or
Fixture BLACK
LONG, BLACK
MODULAR CABLE
WHITE
/ RED
WHITE
BLACK
120-277 VAC
ACTUATOR
RADIO
SHORT, GREY
MODULAR CABLE
LOAD
INSIDE LUMINAIRE

Install Luminaire
Install the fixture with integrated Luminaire Controller to a
constant power source.
Do not place Lightcloud-controlled fixtures down circuit from any
other switching devices such as switches, sensors, or time clocks.
Installation with junction box
If the interior of your luminaire cannot accommodate the
actuator module, the Luminaire Controller can be mount-
ed into a junction box, with the radio module always
outside any metal enclosure. If no sensor is used then the
second modular cable can be tied off and placed inside
the fixture or box.
2b
PINK
PINK
RED
PURPLE
PURPLE
WHITE
INSIDE JUNCTION BOX
Load or
Fixture BLACK
LONG, BLACK
MODULAR CABLE
WHITE
/ RED
WHITE
BLACK
120-277 VAC
ACTUATOR
RADIO
SHORT, GREY
MODULAR CABLE
Setup & Installation (cont’d)
Labeling your device
When installing devices, it’s important to keep track of their
Device IDs, installation locations, panel/circuit #s, dimming
function, and any additional notes. To organize this information,
use the Lightcloud Installer Application (A) or Device Table (B).
Install the LC Installer Application:
LC Installer is available for iOS and Android.
Scan & Install Lightcloud Devices:
Scan each device and assign to a room. It’s recommended
that each device is scanned just before or just after being
wired so no devices are missed. The more notes that are
given, the easier it is to commission the system.
Send to RAB:
Once all of the devices have been added and organized,
submit the information for commissioning.
4a Lightcloud installer application
Device Scanner
Enter Manually
PLACE RECTANGLE TO FIT CODE ON LABEL
Scan Device Code
Device Info
SaveCancel
Device ID 0013A20040B62A4A
Location Office
Zone Name Office Lights
Dimmable
Power Monitoring
Enter Device Information Repeat for Additional Devices
Devices
Add DeviceSend to RAB
Office Light - ID 0013A20040B62A4A
Controller
Office Light - ID 0013A20040B62A4B
Sensor
Office Light - ID 0013A20040B62A4C
Dimmer
Office Light - ID 0013A20040B62A4D
Daylight
Office Light - ID 0013A20040B62A4E
Touch
Send to RAB
Device Scanner
Enter Manually
PLACE RECTANGLE TO FIT CODE ON LABEL
DE V I C E I D s
DEVICE 1D ZONE NAME
PANEL/
CIRCUIT # DIMMING
3
4

Setup & Installation (cont’d)

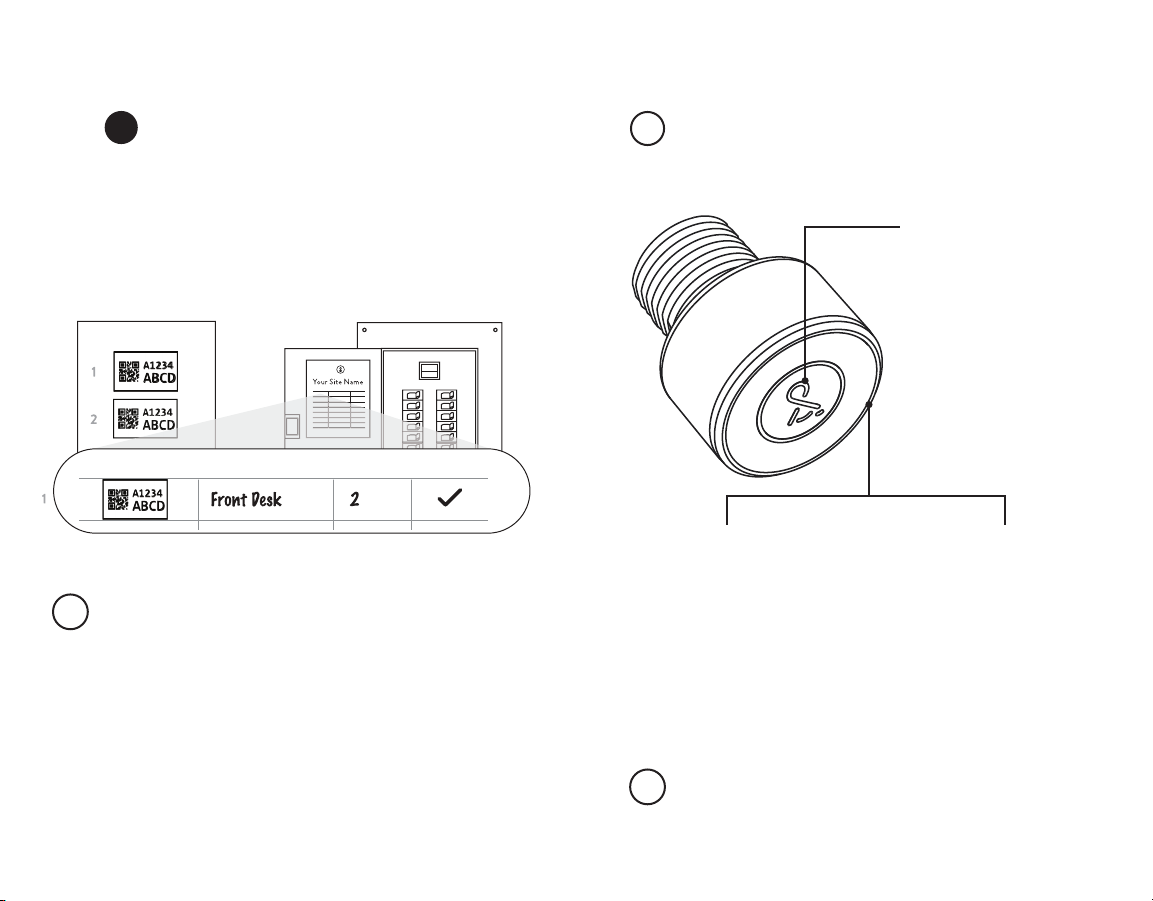

Two Lightcloud Device Tables are provided with each
Gateway: one that you can attach to your panel and one
to hand off to a building manager. Attach the Device
Identification stickers included with each device to a row,
then write in additional information, such as Zone name,
Panel/Circuit Number, and whether or not a Zone uses
dimming.
Power up
To add devices to your Lightcloud network, call RAB at
1 (844) LIGHTCLOUD, or email us at [email protected]
Device Scanner
Enter Manually
PLACE RECTANGLE TO FIT CODE ON LABEL
Scan Device Code
Device Info
SaveCancel
Device ID 0013A20040B62A4A
Location Office
Zone Name Office Lights
Dimmable
Power Monitoring
Enter Device Information Repeat for Additional Devices
Devices
Add DeviceSend to RAB
Office Light - ID 0013A20040B62A4A
Controller
Office Light - ID 0013A20040B62A4B
Sensor
Office Light - ID 0013A20040B62A4C
Dimmer
Office Light - ID 0013A20040B62A4D
Daylight
Office Light - ID 0013A20040B62A4E
Touch
Send to RAB
Device Scanner
Enter Manually
PLACE RECTANGLE TO FIT CODE ON LABEL
D E V I CE I D s
DEVICE 1D ZONE NAME
PANEL/
CIRCUIT # DIMMING
4b Device table Verify power and local control
Confirm Status Indicator is blinking red. Confirm local
control using the Device Indentification Button.
DEVICE IDENTIFICATION
BUTTON
• Press once to highlight this
device in the Lightcloud App
• Press twice to toggle circuit on
and off
• Press twice and hold to set
dim level
• Press and hold for 10 seconds
to remove this device from a
Lightcloud network
SIGNAL INDICATOR
Solid GREEN when con-
nected to your Lightcloud
network. Blinking RED when
not connected. The device
will automatically continue
trying to connect to a
network in Setup Mode.
STATUS INDICATOR
To check the signal strength,
press the device button once.
Also Illuminates when the device
receives a message and indicates
the strength of the signal by
number of blue blinks:
3 - Best signal
2- Acceptable signal
1- Unacceptable signal
Consult the “Finding a Location”
section for more information
Commission your devices
Log on to www.lightcloud.com or call 1 (844) LIGHTCLOUD
7
5
6

Functionality
Configuration
All configuration of Lightcloud products may be performed
using the Lightcloud web Application, or by calling RAB.
Power measurement
The Lightcloud Luminaire Controller is capable of measuring the
power usage of the attached luminaire. In order to utilize this
function, the neutral wire of the load must be connected to the
white-red neutral wire. If the white-red neutral line cannot be
used, it should be tied to the regular neutral wires (i.e. all
neutral wires joined).
Power loss detection
If mains power to the Controller is lost, the device will
detect this and alert the Lightcloud Application.
Emergency default
If communication is lost, the Controller may optionally fall back
to a specific state, such as turning the attached luminaire on.
(Warning: Any wires not in use must be capped off or otherwise
insulated.)
WE’RE HERE TO HELP:
1 (844) LIGHTCLOUD
1 [phone]
[e-mail]
FCC Information:
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: 1. This device may not
cause harmful interference, and 2. This device must accept any
interference received, including interference that may cause unde-
sired operation.
Note: This device has been tested and found to comply with the
limits for Class B digital devices pursuant to Part 15 Subpart B,
of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential environ-
ment. This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment of and on, the user
is encouraged to try and correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
To comply with the FCC’s RF exposure limits for general population
/ uncontrolled exposure, this transmitter must be installed to pro-
vide a separation distance of at least 20 cm from all persons and
must not be co-located or operating in conjunction with any other
antenna or transmitter.
CAUTION: Changes or modifications to this equipment not ex-
pressly approved by RAB Lighting may void the user’s authority
to operate this equipment.

Lightcloud is a commercial
wireless lighting control system.
It’s powerful and flexible
yet easy to use and install.
Learn more at lightcloud.com
1(844) LIGHTCLOUD
1(844) 544-4825
[e-mail]
© 2022 RAB Lighting, Inc
