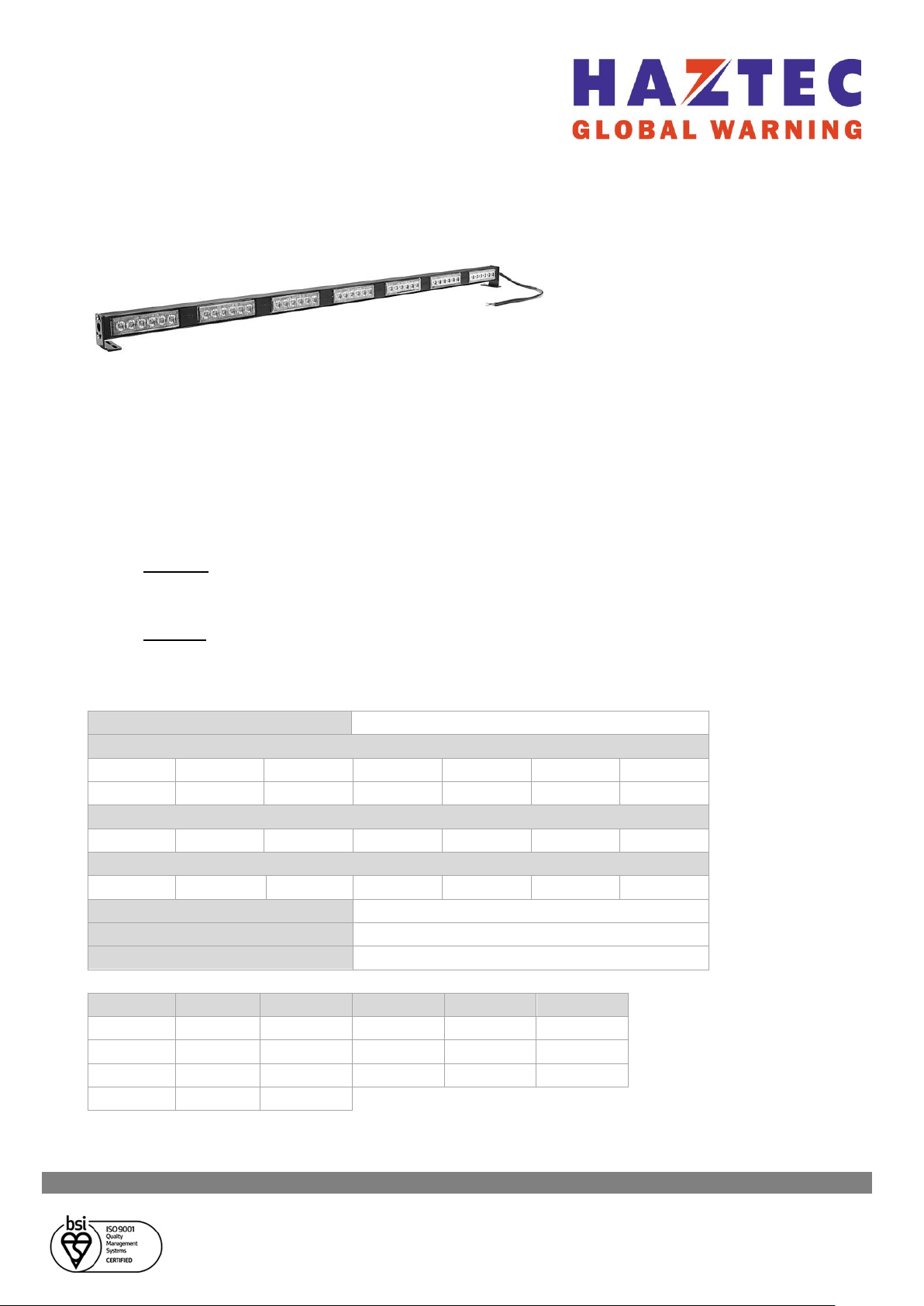

Haztec 5-355X-3560 User manual

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 1 - March 2021
Thank you for purchasing this Haztec product. Before proceeding with installation, it is essential
to read and understand this instruction booklet.
Warning!
▪This product must be installed by persons competent in vehicle electrical installations
▪Care should be taken to ensure that water ingress cannot occur through mounting or
wiring holes
▪Regularly inspect the product to confirm correct operation
▪DO NOT stare directly into the light it produces as permanent damage to the eyes may
result
▪Use only a mixture of soap and water to clean this product
▪DO NOT allow solvents, fuels or acetone-based cleaners etc. to contact this product
Basic Operating Specifications:
Supply voltage range:
10-40VDC
Maximum current draw @ 12Vrms:
5-3554
5-3555
5-3556
5-3557
5-3558
5-3559
5-3560
3.0A
3.7A
4.7A
4.9A
5.3A
5.5A
5.7A
Maximum current draw @ 24Vrms:
1.7A
2.0A
2.9A
3.4A
3.8A
4.2A
4.4A
Fuse rating:
5A
6A
8A
10A
10A
15A
15A
LED power:
3W per LED
Operating temperature range:
-30 to +55OC
Cable length:
5m
Part No.
Length
Modules
Part No.
Length
Modules
5-3554
558mm
4
5-3558
1107mm
8
5-3555
697mm
5
5-3559
1246mm
9
5-3556
829mm
6
5-3560
1385mm
10
5-3557
968mm
7
▪Slimline warning bar
▪12/24VDC
▪4-10 LED modules
▪3W GEN3 LEDs
▪User selectable flash patterns
▪DIM function
▪Horizontal or vertical mount
▪Adjustable bracket
▪5-year warranty

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 2 - March 2021
Connection Instructions:
Wire
Connect to
Function
Red
Positive [+] via switch & fuse
Main feed 1
Black
Permanent negative [-]
Earth / Ground
Blue
Positive [+] via switch
Pattern Select / DIM Mode (50% intensity)2
White
Positive [+]
Flash Pattern 1 (FP1)
Yellow
Positive [+]
Flash Pattern 2 (FP2)
Green
Positive [+]
Flash Pattern 3 (FP3)
Orange
Positive [+]
Flash Pattern 4 (FP4)
1Arrowbar will activate when the red wire and one of the pattern wires are connected to
positive [+] at the same time
2See ‘Setting Pattern Select / DIM Mode’
Setting Pattern Select / DIM Mode:
▪Connect the red and black wires as per connection instructions
▪Connect the yellow and orange wires together and then tap to positive [+] 3 times within
3 seconds
▪All lamps will flash 5 times in 2 seconds then turn off. The function of the blue wire has
now changed to Pattern Select
▪To change to function of the blue wire back to DIM Mode complete steps 1 & 2 above
then;
▪All lamps will light for 2 seconds then turn off. The function of the blue wire has now
changed to DIM Mode
Selecting Flash Pattern:
▪Connect the red and black wires as per connection instructions
▪Connect either the white, green, yellow, or orange wires to positive [+]
▪Briefly tap the blue wire to positive [+]
➢<1 second to advance to the next flash pattern
➢1-3 seconds to return to the previous flash pattern
➢3 seconds to reset to the first flash pattern of each FP wire

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 3 - March 2021

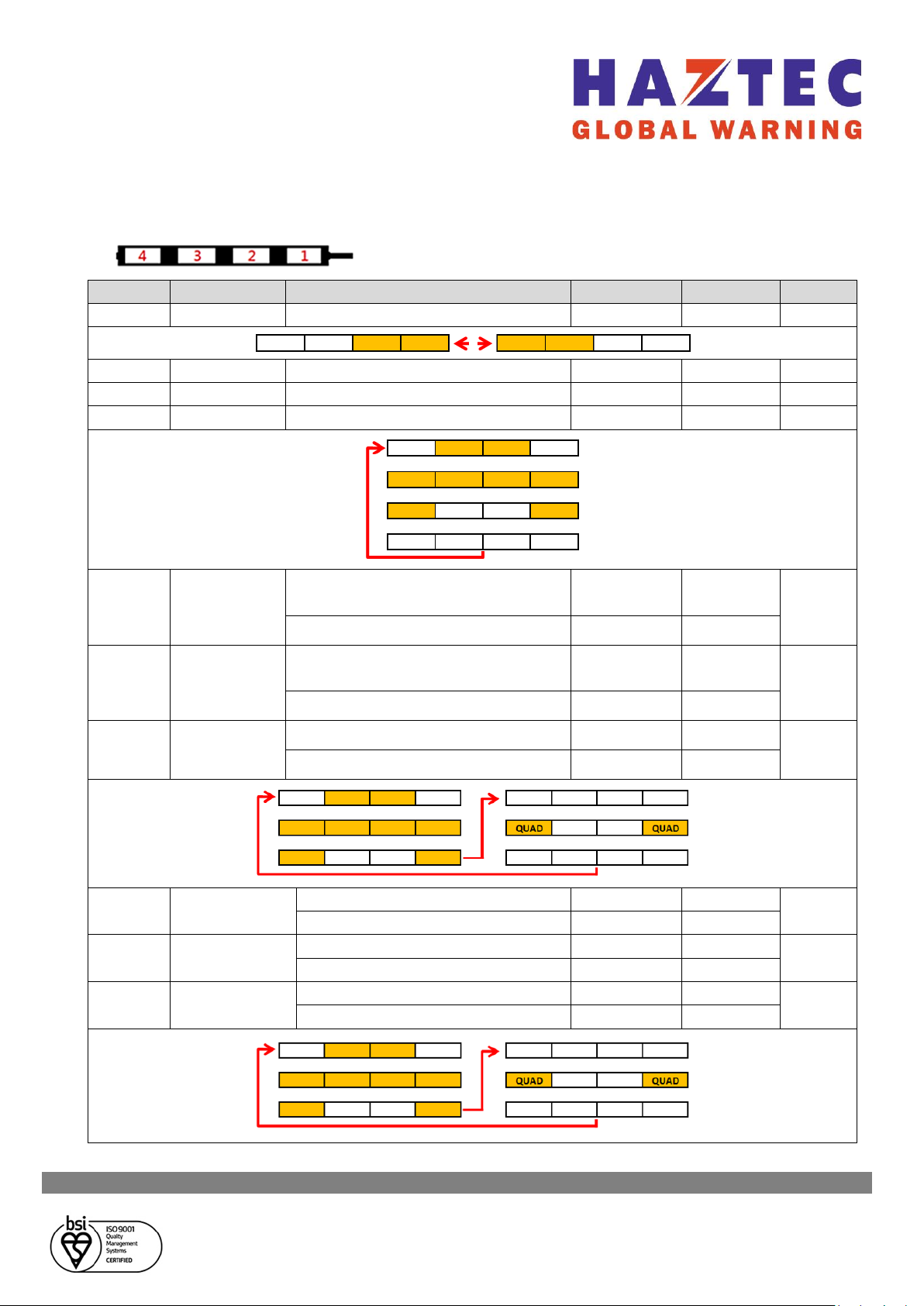

Flash Patterns:
▪5-3554 (4 modules)

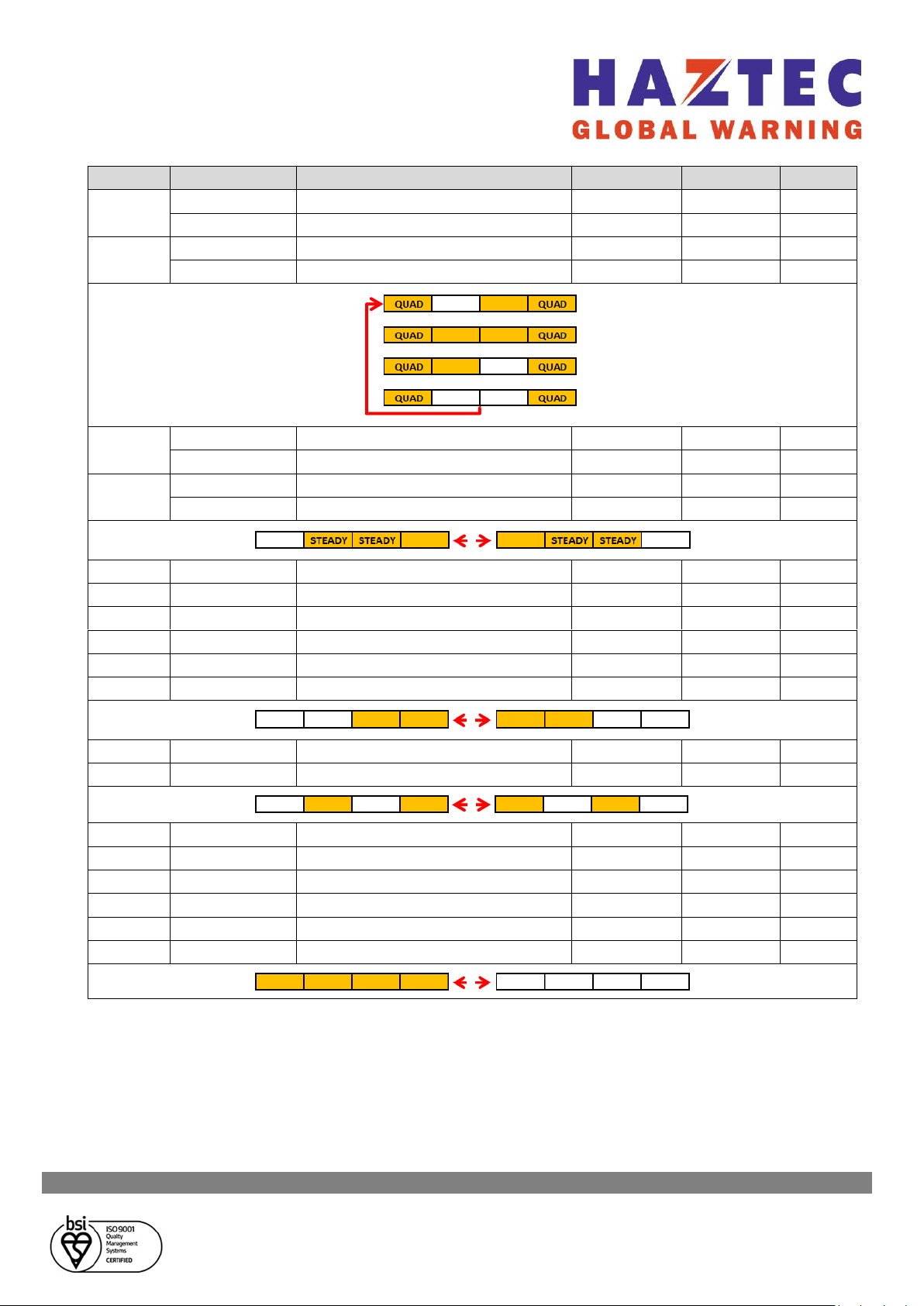

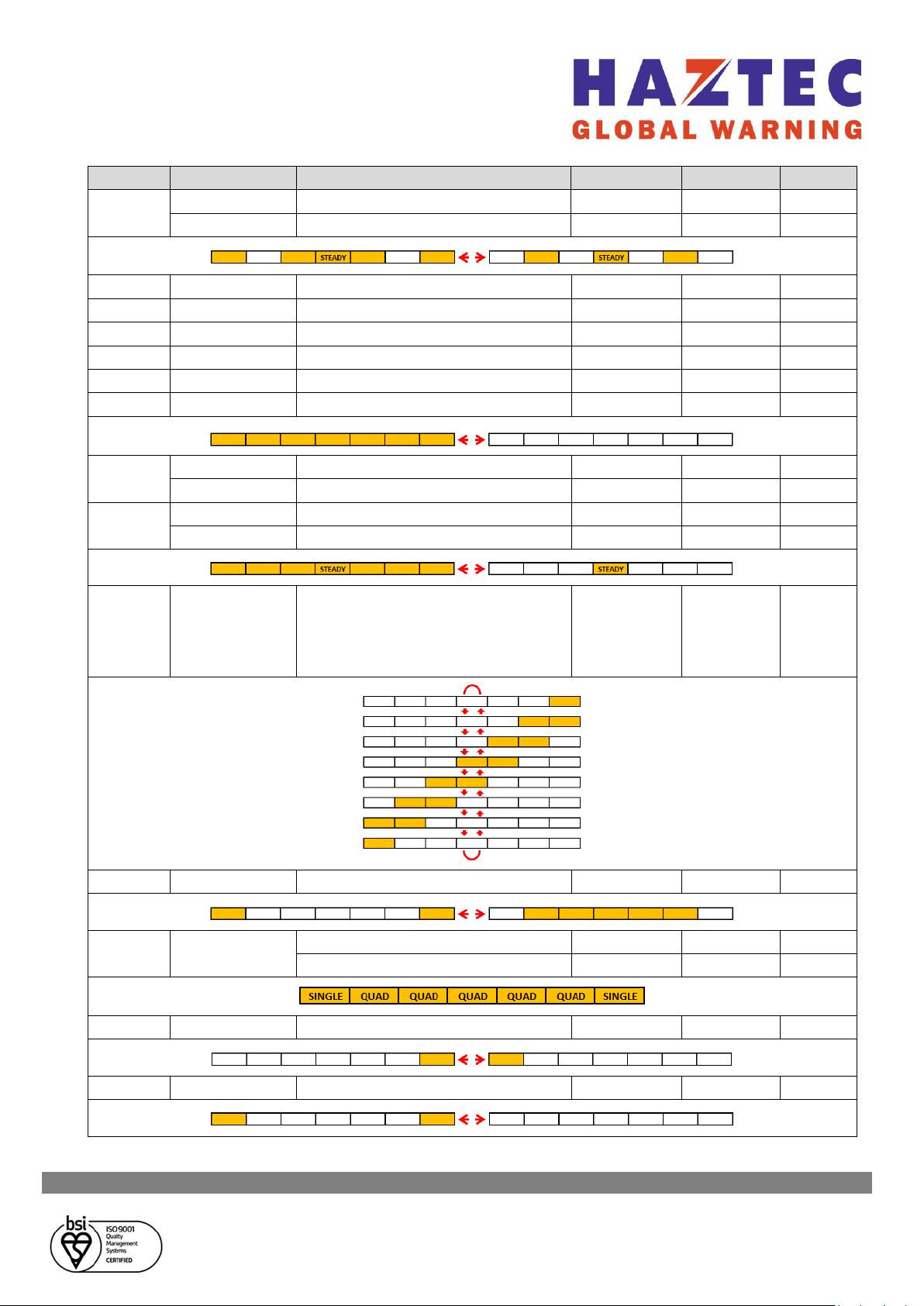

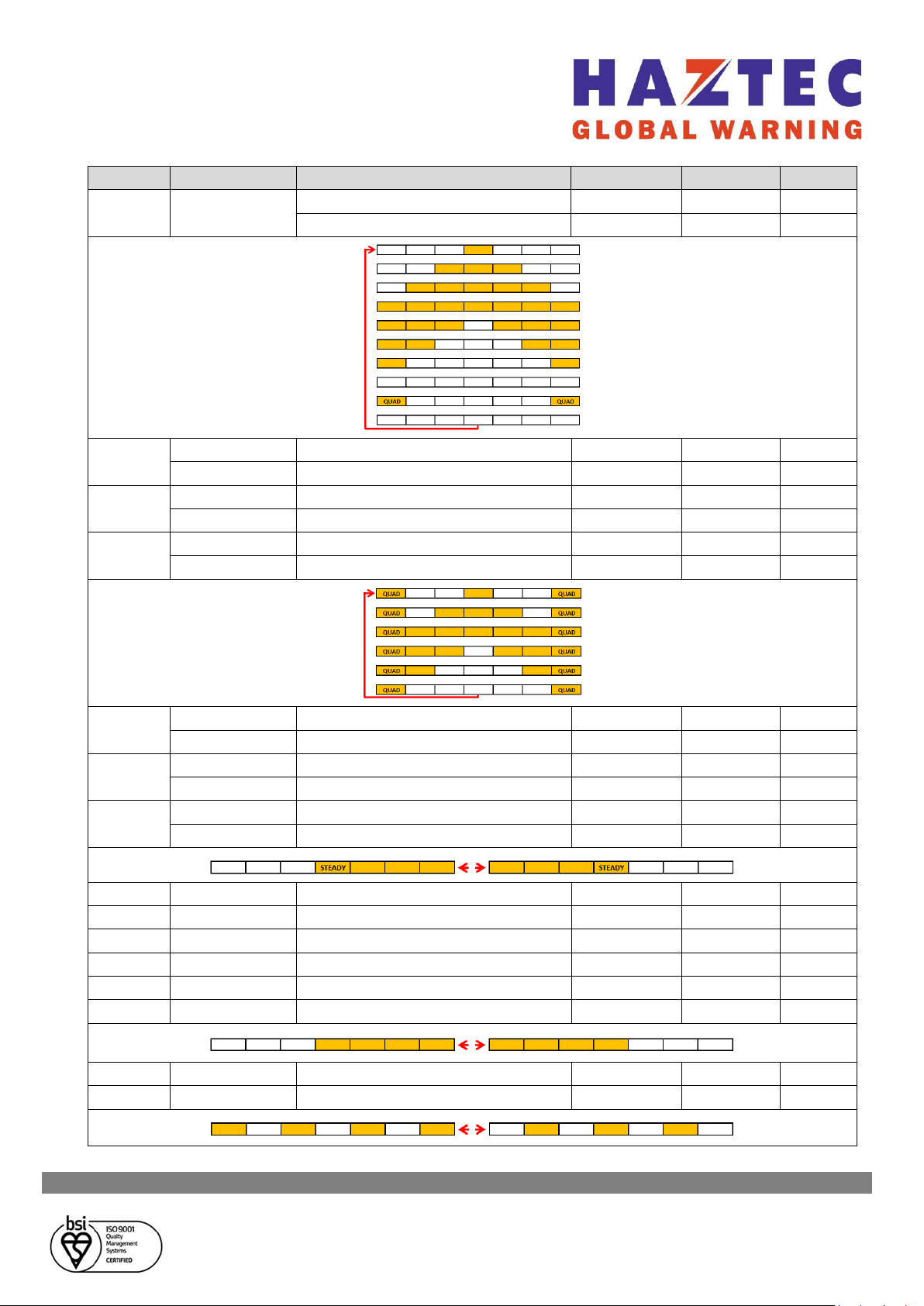

Program
Sequence
Modules
Pattern
Frequency
Default
1
Alternating
[1~2] [3~4]
Quad
1.5Hz
FP1
2
Direct
[4] to [1]
To Right
-
FP2
3
Direct
[1] to [4]
To Left
-
FP3
4
Direct
[2] [3] to [1] [4]
Centre Out
-
FP4
5
Swing 
Flashing
[4] [4,3] [3,2] [2,1] [1] 
off 
To Right
-
[1,4]
Quad
1.25Hz
6
Swing 
Flashing
[1] [1,2] [2,3] [3,4] [4] 
off 
To Left
-
[1,4]
Quad
1.25Hz
7
Swing 
Flashing
[2,3] [1~4] [1,4] off 
Centre Out
-
[1,4]
Quad
1.25Hz
8
Direct 
Flashing
[4] to [1] off 
To Right
-
[1,4]
Quad
1.25Hz
9
Direct 
Flashing
[1] to [4] off 
To Left
-
[1,4]
Quad
1.25Hz
10
Direct 
Flashing
[2] [3] to [1] [4] off 
Centre Out
-
[1,4]
Quad
1.25Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 4 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
11
Direct
[3] to [2]
To Right
-
Simultaneous
[1] [4]
Quad
2Hz
12
Direct
[2] to [3]
To Left
-
Simultaneous
[1] [4]
Quad
2Hz
13
Alternating
[1] [4]
Quad
1.25Hz
Steady
[2,3]
-
-
14
Alternating
[1] [4]
Quad
2Hz
Steady
[2,3]
-
-
15
Alternating
[1~2] [3~4]
Quad
1.25Hz
16
Alternating
[1~2] [3~4]
Double
1.25Hz
17
Alternating
[1~2] [3~4]
Single
1.25Hz
18
Alternating
[1~2] [3~4]
Quad
2Hz
19
Alternating
[1~2] [3~4]
Double
2Hz
20
Alternating
[1~2] [3~4]
Single
2Hz
21
Alternating
[1,3] [2,4]
Quad
1.25Hz
22
Alternating
[1,3] [2,4]
Quad
2Hz
23
Simultaneous
[1~4]
Quad
1.25hz
24
Simultaneous
[1~4]
Double
1.25Hz
25
Simultaneous
[1~4]
Single
1.25Hz
26
Simultaneous
[1~4]
Quad
2Hz
27
Simultaneous
[1~4]
Double
2Hz
28
Simultaneous
[1~4]
Single
2Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 5 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
29
Simultaneous
[1,4]
Double
2Hz
Steady
[2,3]
-
-
30
Simultaneous
[1,4]
Quad
2Hz
Steady
[2,3]
-
-
31
Swing
[1] [1,2] [2,3] [3,4] [4]
[4,3] [3,2] [2,1]
Single
1.5Hz
32
Alternating
[1,4] [2,3]
Quad
1.5Hz
33
Simultaneous
[1,4]
Single
6Hz
[2,3]
Quad
1.5Hz
34
Alternating
[1] [4]
Double
2Hz
35
Simultaneous
[1,4]
Double
2Hz
36
Alternating
[1] [4]
Quad
1.25Hz
37
Simultaneous
[1,4]
Quad
1.25Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 6 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
38
Swing
[4] [4,3] [3,2] [2,1] [1]
off
To Right
-
-
39
Swing
[1] [1,2] [2,3] [3,4] [4]
off
To Left
-
-
40
Swing
[2,3] [1~4] [1,4] off
Centre Out
-
-

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 7 - March 2021
▪5-3555 (5 modules)
Program
Sequence
Modules
Pattern
Frequency
Default
1
Alternating
[1~3] [3~5]
Quad
1.5Hz
FP1
2
Direct
[5] to [1]
To Right
-
FP2
3
Direct
[1] to [5]
To Left
-
FP3
4
Direct
[3] to [1] [5]
Centre Out
-
FP4
5
Swing 
Flashing
[5] [5,4] [4,3] [3,2] [2,1]
[1] off 
To Right
-
[1,5]
Quad
1.25Hz
6
Swing 
Flashing
[1] [1,2] [2,3] [3,4] [4,5]
[5] off 
To Left
-
[1,5]
Quad
1.25Hz
7
Swing 
Flashing
[3] [2,3,4] [1,2,4,5] [1,5] 
off 
Centre Out
-
[1,5]
Quad
1.25Hz
8
Direct 
Flashing
[5] to [1] off 
To Right
-
[1,5]
Quad
1.25Hz
9
Direct 
Flashing
[1] to [5] off 
To Left
-
[1,5]
Quad
1.25Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 8 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
10
Direct 
Flashing
[3] to [1] [5] off 
Centre Out
-
[1,5]
Quad
1.25Hz
11
Direct
[4] to [2]
To Right
-
Simultaneous
[1,5]
Quad
2Hz
12
Direct
[2] to [4]
To Left
-
Simultaneous
[1,5]
Quad
2Hz
13
Direct
[1] to [2,4]
Centre Out
-
Simultaneous
[1,5]
Quad
2Hz
14
Alternating
[1,2] [4,5]
Quad
1.25Hz
Steady
[3]
-
-
15
Alternating
[1,2] [4,5]
Quad
2Hz
Steady
[3]
-
-
16
Alternating
[1,2] [4,5]
Double
2Hz
Steady
[3]
-
-
17
Alternating
[1~3] [3~5]
Quad
1.25Hz
18
Alternating
[1~3] [3~5]
Double
1.25Hz
19
Alternating
[1~3] [3~5]
Single
1.25Hz
20
Alternating
[1~3] [3~5]
Quad
2Hz
21
Alternating
[1~3] [3~5]
Double
2Hz
22
Alternating
[1~3] [3~5]
Single
2Hz
23
Alternating
[1,3,5] [2,4]
Quad
1.25Hz
24
Alternating
[1,3,5] [2,4]
Quad
2Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 9 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
25
Alternating
[1,5] [2,4]
Quad
2Hz
Steady
[3]
-
-
26
Simultaneous
[1~5]
Quad
1.25Hz
27
Simultaneous
[1~5]
Double
1.25Hz
28
Simultaneous
[1~5]
Single
1.25Hz
29
Simultaneous
[1~5]
Quad
2Hz
30
Simultaneous
[1~5]
Double
2Hz
31
Simultaneous
[1~5]
Single
2Hz
32
Simultaneous
[1,2,4,5]
Double
2Hz
Steady
[3]
-
-
33
Simultaneous
[1,2,4,5]
Quad
2Hz
Steady
[3]
-
-
34
Swing
[1] [1,2] [2,3] [3,4] 
[4,5] [5] [5,4] [4,3] 
[3,2] [2,1]
Single
1.5Hz
35
Alternating
[1,5] [2~4]
Quad
1.5Hz
36
Simultaneous
[1,5]
Single
6Hz
[2~4]
Quad
1.5Hz
37
Alternating
[1] [5]
Double
2Hz
38
Simultaneous
[1,5]
Double
2Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 10 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
39
Alternating
[1] [5]
Quad
1.25Hz
40
Simultaneous
[1,5]
Quad
1.25Hz
41
Swing
[4] [4,3] [3,2] [2] off
To Right
-
Simultaneous
[1,5]
Quad
2Hz
42
Swing
[2] [2,3] [3,4] [4] off
To Left
-
Simultaneous
[1,5]
Quad
2Hz
43
Swing
[3] [2~4] [2,4] off
Centre Out
-
Simultaneous
[1,5]
Quad
2Hz
44
Swing
[5] [5,4] [4,3] [3,2] 
[2,1] [1] off
To Right
-
45
Swing
[1] [1,2] [2,3] [3,4] 
[4,5] [5] off
To Left
-
46
Swing
[3] [2~4] [1,2,4,5] [1,5] 
off
Centre Out
-

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 11 - March 2021

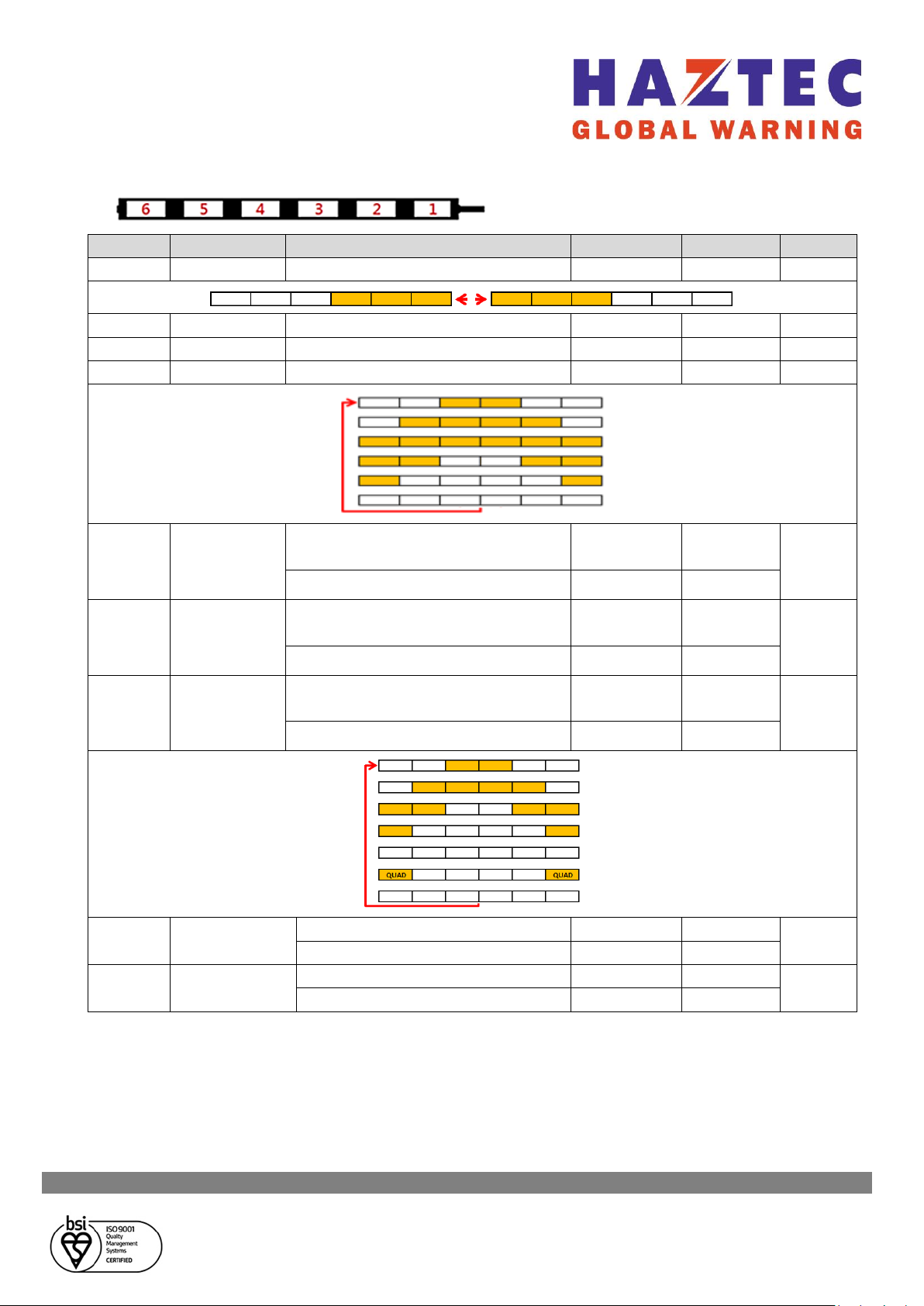

▪5-3556 (6 modules)
Program
Sequence
Modules
Pattern
Frequency
Default
1
Alternating
[1~3] [4~6]
Quad
1.5Hz
FP1
2
Direct
[6] to [1]
To Right
-
FP2
3
Direct
[1] to [6]
To Left
-
FP3
4
Direct
[3,4] to [1] [6]
Centre Out
-
FP4
5
Swing 
Flashing
[6] [6,5] [5,4] [4,3] [3,2]
[2,1] [1] off 
To Right
-
[1,6]
Quad
1.25Hz
6
Swing 
Flashing
[1] [1,2] [2,3] [3,4] [4,5]
[5,6] [6] off 
To Left
-
[1,6]
Quad
1.25Hz
7
Swing 
Flashing
[3,4] [2~5] [1,2,5,6] [1,6] 
off 
Centre Out
-
[1,6]
Quad
1.25Hz
8
Direct 
Flashing
[6] to [1] off 
To Right
-
[1,6]
Quad
1.25Hz
9
Direct 
Flashing
[1] to [6] off 
To Left
-
[1,6]
Quad
1.25Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 12 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
10
Direct 
Flashing
[3,4] to [1] [6] off 
Centre Out
-
[1,6]
Quad
1.25Hz
11
Direct
[5] to [2]
To Right
-
Simultaneous
[1,6]
Quad
2Hz
12
Direct
[2] to [5]
To Left
-
Simultaneous
[1,6]
Quad
2Hz
13
Direct
[3,4] to [2, 5]
Centre Out
-
Simultaneous
[1,6]
Quad
2Hz
14
Alternating
[1,2] [5,6]
Quad
1.25Hz
Steady
[3,4]
-
-
15
Alternating
[1,2] [5,6]
Quad
2Hz
Steady
[3,4]
-
-
16
Alternating
[1,2] [5,6]
Double
2Hz
Steady
[3,4]
-
-
17
Alternating
[1~3] [4~6]
Quad
1.25Hz
18
Alternating
[1~3] [4~6]
Double
1.25Hz
19
Alternating
[1~3] [4~6]
Single
1.25Hz
20
Alternating
[1~3] [4~6]
Quad
2Hz
21
Alternating
[1~3] [4~6]
Double
2Hz
22
Alternating
[1~3] [4~6]
Single
2Hz
23
Alternating
[1,3,5] [2,4,6]
Quad
1.25Hz
24
Alternating
[1,3,5] [2,4,6]
Quad
2Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 13 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
25
Alternating
[1,6] [2,5]
Quad
2Hz
Steady
[3,4]
-
-
26
Simultaneous
[1~6]
Quad
1.25Hz
27
Simultaneous
[1~6]
Double
1.25Hz
28
Simultaneous
[1~6]
Single
1.25Hz
29
Simultaneous
[1~6]
Quad
2Hz
30
Simultaneous
[1~6]
Double
2Hz
31
Simultaneous
[1~6]
Single
2Hz
32
Simultaneous
[1,2,5,6]
Double
2Hz
Steady
[3,4]
-
-
33
Simultaneous
[1,2,5,6]
Quad
2Hz
Steady
[3,4]
-
-
34
Swing
[1] [1,2] [2,3] [3,4] 
[4,5] [5,6] [6] [6,5] 
[5,4] [4,3] [3,2] [2,1]
Single
1.5Hz
35
Alternating
[1,6] [2~5]
Quad
1.5Hz
36
Simultaneous
[1,6]
Single
6Hz
[2~5]
Quad
1.5Hz
37
Alternating
[1] [6]
Double
2Hz
38
Simultaneous
[1,6]
Double
2Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 14 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
39
Alternating
[1] [6]
Quad
1.25Hz
40
Simultaneous
[1,6]
Quad
1.25Hz
41
Swing
[5] [5,4] [4,3] [3,2] [2]
off
To Right
-
Simultaneous
[1,6]
Quad
2Hz
42
Swing
[2] [2,3] [3,4] [4,5] [5]
off
To Left
-
Simultaneous
[1,6]
Quad
2Hz
43
Swing
[3,4] [2~5] [2,5] off
Centre Out
-
Simultaneous
[1,6]
Quad
2Hz
44
Swing
[6] [6,5] [5,4] [4,3] 
[3,2] [2,1] [1] off
To Right
-
45
Swing
[1] [1,2] [2,3] [3,4] 
[4,5] [5,6] [6] off
To Left
-
46
Swing
[3,4] [2~5] [1,2,5,6] [1,6]
off
Centre Out
-

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 15 - March 2021

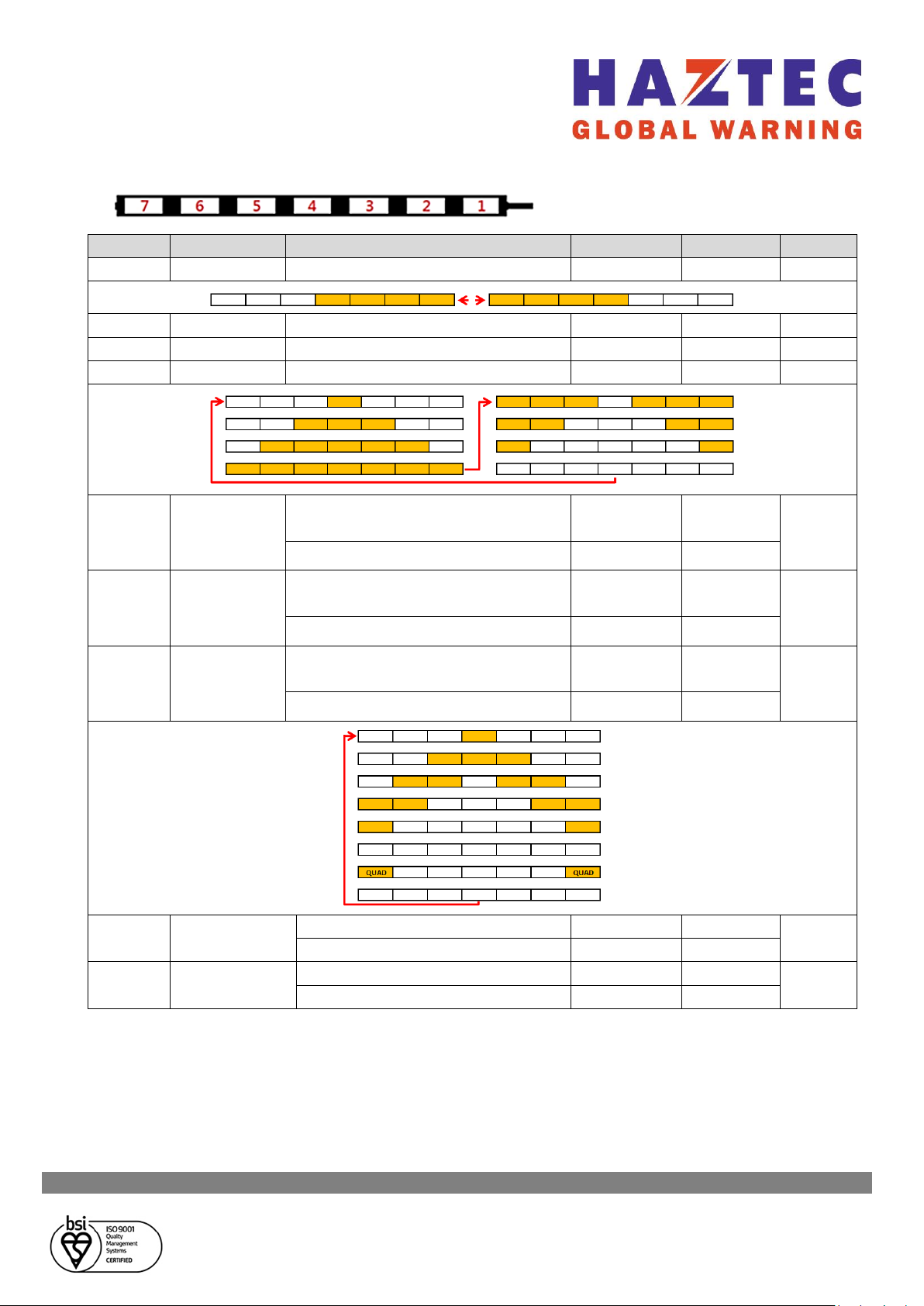

▪5-3557 (7 modules)
Program
Sequence
Modules
Pattern
Frequency
Default
1
Alternating
[1~4] [4~7]
Quad
1.5Hz
FP1
2
Direct
[7] to [1]
To Right
-
FP2
3
Direct
[1] to [7]
To Left
-
FP3
4
Direct
[4] to [1] [7]
Centre Out
-
FP4
5
Swing 
Flashing
[7] [7,6] [6,5] [5,4] [4,3]
[3,2] [2,1] [1] off 
To Right
-
[1,7]
Quad
1.25Hz
6
Swing 
Flashing
[1] [1,2] [2,3] [3,4] [4,5]
[5,6] [6,7] [7] off 
To Left
-
[1,7]
Quad
1.25Hz
7
Swing 
Flashing
[4] [3~5] [2,3,5,6] [1,2,6,7]
[1,7] off 
Centre Out
-
[1,7]
Quad
1.25Hz
8
Direct 
Flashing
[7] to [1] off 
To Right
-
[1,7]
Quad
1.25Hz
9
Direct 
Flashing
[1] to [7] off 
To Left
-
[1,7]
Quad
1.25Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 16 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
10
Direct 
Flashing
[4] to [1] [7] off 
Centre Out
-
[1,7]
Quad
1.25Hz
11
Direct
[6] to [2]
To Right
-
Simultaneous
[1,7]
Quad
2Hz
12
Direct
[2] to [6]
To Left
-
Simultaneous
[1,7]
Quad
2Hz
13
Direct
[4] to [2,6]
Centre Out
-
Simultaneous
[1,7]
Quad
2Hz
14
Alternating
[1~3] [5~7]
Quad
1.25Hz
Steady
[4]
-
-
15
Alternating
[1~3] [5~7]
Quad
2Hz
Steady
[4]
-
-
16
Alternating
[1~3] [5~7]
Double
2Hz
Steady
[4]
-
-
17
Alternating
[1~4] [4~7]
Quad
1.25Hz
18
Alternating
[1~4] [4~7]
Double
1.25Hz
19
Alternating
[1~4] [4~7]
Single
1.25Hz
20
Alternating
[1~4] [4~7]
Quad
2Hz
21
Alternating
[1~4] [4~7]
Double
2Hz
22
Alternating
[1~4] [4~7]
Single
2Hz
23
Alternating
[1,3,5,7] [2,4,6]
Quad
1.25Hz
24
Alternating
[1,3,5,7] [2,4,6]
Quad
2Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 17 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
25
Alternating
[1,3,5,7] [2,6]
Quad
2Hz
Steady
[4]
-
-
26
Simultaneous
[1~7]
Quad
1.25Hz
27
Simultaneous
[1~7]
Double
1.25Hz
28
Simultaneous
[1~7]
Single
1.25Hz
29
Simultaneous
[1~7]
Quad
2Hz
30
Simultaneous
[1~7]
Double
2Hz
31
Simultaneous
[1~7]
Single
2Hz
32
Simultaneous
[1~3,5~7]
Double
2Hz
Steady
[4]
-
-
33
Simultaneous
[1~3,5~7]
Quad
2Hz
Steady
[4]
-
-
34
Swing
[1] [1,2] [2,3] [3,4] 
[4,5] [5,6] [6,7] [7] 
[7,6] [6,5] [5,4] [4,3] 
[3,2] [2,1]
Single
1.5Hz
35
Alternating
[1,7] [2~6]
Quad
1.5Hz
36
Simultaneous
[1,7]
Single
6Hz
[2~6]
Quad
1.5Hz
37
Alternating
[1] [7]
Double
2Hz
38
Simultaneous
[1,7]
Double
2Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 18 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
39
Alternating
[1] [7]
Quad
1.25Hz
40
Simultaneous
[1,7]
Quad
1.25Hz
41
Swing
[6] [6,5] [5,4] [4,3] 
[3,2] [2] off
To Right
-
Simultaneous
[1,7]
Quad
2Hz
42
Swing
[2] [2,3] [3,4] [4,5] 
[5,6] [6] off
To Left
-
Simultaneous
[1,7]
Quad
2Hz
43
Swing
[4] [3~5] [2,3,5,6] [2,6] 
off
Centre Out
-
Simultaneous
[1,7]
Quad
2Hz
44
Swing
[7] [7,6] [6,5] [5,4] 
[4,3] [3,2] [2,1] [1] off
To Right
-
45
Swing
[1] [1,2] [2,3] [3,4] 
[4,5] [5,6] [6,7] [7] off
To Left
-
46
Swing
[4] [3~5] [2,3,5,6] 
[1,2,6,7] [1,7] off
Centre Out
-

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 19 - March 2021
▪5-3558 (8 modules)
Program
Sequence
Modules
Pattern
Frequency
Default
1
Alternating
[1~4] [5~8]
Quad
1.5Hz
FP1
2
Direct
[8] to [1]
To Right
-
FP2
3
Direct
[1] to [8]
To Left
-
FP3
4
Direct
[4,5] to [1] [8]
Centre Out
-
FP4
5
Swing 
Flashing
[8] [8,7] [7,6] [6,5] [5,4]
[4,3] [3,2] [2,1] [1]
off 
To Right
-
[1,8]
Quad
1.25Hz
6
Swing 
Flashing
[1] [1,2] [2,3] [3,4] [4,5]
[5,6] [6,7] [7,8] [8]
off 
To Left
-
[1,8]
Quad
1.25Hz
7
Swing 
Flashing
[4,5] [3~6] [2,3,6,7] 
[1,2,7,8] [1,8] off 
Centre Out
-
[1,8]
Quad
1.25Hz
8
Direct 
Flashing
[8] to [1] off 
To Right
-
[1,8]
Quad
1.25Hz
9
Direct 
Flashing
[1] to [8] off 
To Left
-
[1,8]
Quad
1.25Hz

Haztec International Ltd ∙ Moorfield Road ∙ Leeds ∙ LS19 7BN ∙ UK
T: [phone] ∙ inf[email protected] ∙ www.haztec.uk
5-355X-3560
Single Colour LED Arrowbar
M110.1.3 - 20 - March 2021
Program
Sequence
Modules
Pattern
Frequency
Default
10
Direct 
Flashing
[4,5] to [1] [8] off 
Centre Out
-
[1,8]
Quad
1.25Hz
11
Direct
[7] to [2]
To Right
-
Simultaneous
[1,8]
Quad
2Hz
12
Direct
[2] to [7]
To Left
-
Simultaneous
[1,8]
Quad
2Hz
13
Direct
[4,5] to [2,7]
Centre Out
-
Simultaneous
[1,8]
Quad
2Hz
14
Alternating
[1~3] [6~8]
Quad
1.25Hz
Steady
[4,5]
-
-
15
Alternating
[1~3] [6~8]
Quad
2Hz
Steady
[4,5]
-
-
16
Alternating
[1~3] [6~8]
Double
2Hz
Steady
[4,5]
-
-
17
Alternating
[1~4] [5~8]
Quad
1.25Hz
18
Alternating
[1~4] [5~8]
Double
1.25Hz
19
Alternating
[1~4] [5~8]
Single
1.25Hz
20
Alternating
[1~4] [5~8]
Quad
2Hz
21
Alternating
[1~4] [5~8]
Double
2Hz
22
Alternating
[1~4] [5~8]
Single
2Hz
23
Alternating
[1,3,5,7] [2,4,6,8]
Quad
1.25Hz
24
Alternating
[1,3,5,7] [2,4,6,8]
Quad
2Hz
