Lightful Moving Head Beam Bar User manual

1
USER MANUAL
Moving Head Beam Bar
Professional Stage Lighting Laser show

2
Introduction
Thank you for purchasing this Lightful product.
To ensure proper operation, please read this manual carefully before
using the product.
After reading it, keep it in a safe place for future reference.
This product has been tested at our factory before shipping to you,
there is no assembly required.
Once after receiving this product , please take and put carefully. And
check cautiously that whether the product was damaged or not
during the transportation.
Checking Parts
Please check if the following parts are included:
1 x Laser
1 x Power cable
1 x User manual
Danger Laser Radiation!
Avoid direct eye exposure!
Laser radiation can cause eye damage or skin damage
All protective measures for a safe operation of this laser must
be applied.

3
Installation
1. Please check the voltage whether is the same with the one
showed on the equipment or not.
2. It must ask for the technical person and set the light safety when
installation. And let the light beam at the suitable angle.
3. When install this equipment please make sure there's no
flammable surfaces (decorated things, etc) within at least 2.5M and
maintain minimum distance of 0.5M from the equipment to the walls.
4. Please make sure that there's no other equipment or decorating
materials obstructed the exhaust fan and the vent-pipe.
5. Products should be install immobility.
6. In case of safety, it's very important that to connect the earth with
line.
Attention
1. Please do not open the bottom cover yourself without permission.
Operate it accord the user manual. Call the technician when the
machine breaks down.
2. Please do not see the laser beam directly to avoid any damage.
3. Before connect or disconnect the power, please adjust the
luminance of the laser diode to the least to avoid any damage to the
laser diode.
4. This unit should be keep dry, do not use in the rain and dusty
environment. It can be use in the outdoor with the water-proof cover
protector.
5. Set the light immobility and try to avoid strong shake or hit.

4
6. Prevent dust into the equipment to avoid problems.
7. Please keep that there's no other equipment or decorating
materials obstructed the exhaust fan and the vent-pipe when the
equipment was working.
8. Before connect power, check the plug is immobility or not, power
line should be connect well.
9. Please do not open or close the equipment frequently that's to
avoid any affect to the life span of the laser diode, and try the best to
avoid the long time working.
10. Due to the characteristic of the laser diode, after four hours
working, it should be close at least 25 minutes until the laser diode
cooling then work again.
11. Don't touch the light or draw the power line when your hand was
wet. And do not pull the electronic power line.
12. Maintain the distance at least 3M above from the equipment to
the object.
13. This equipment does not have any parts can repair for the users,
please do not open the equipment.
14. When the laser diode became dim or damaged please contact
the dealer timely.
15. When you want to re-transfer the product, you'd better use the
original package to shockproof.

5
LCD Function Menu
Menu
Secondary menu
DMX address
DMX address 001-512
Channel mode
11CH/23CH/30CH
Mode select
DMX512
Master
Slave 1
Slave2
Auto Run mode
Auto 0-16
Speed 0-9
Sound mode
Show 0-16
Sound sense
0-100
Back lights
On/Off
Pan Inverse
Yes/No
Tilt Inverse
Yes/No
Auto Test
Test
Fixture
Fixture T
Firmware Version
V1.0
Motor Reset
Reset
Default
Yes/No

6
DMX Setting

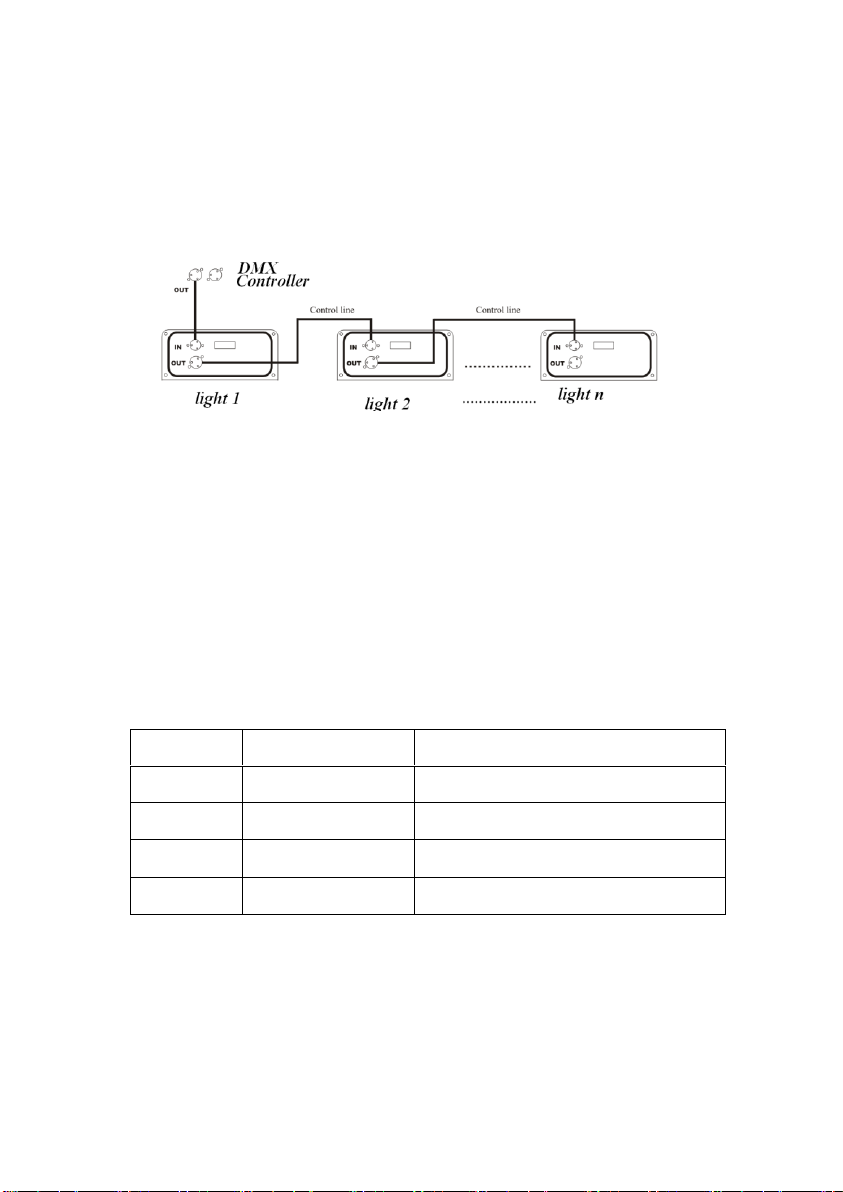

Input DMX signal, and the link the DMX controller and the lights by
the control line as the following picture, you can control the lights by
the controller.
When using any controller, each one must be have its own address.
The fist light address is set to 1, the second light address code is set
to 12 or 24 (the first light address code 1 plus 11 or 23 channel), the
third set of lights on the 23 or 47 position. So on (This setting also
need to be based on different console to set, now only by general
practice)
DMX - 512 control mode as following :
Number
Address
LCD display(No.)
1
1
001
2
12 or 24 or 31
012 or 024 or 031
3
23 or 47 or 61
023 or 047 or 061
┇
┇
┇

7
Master-slave Setting
Link the lights as the following picture (the light which does not
receive signal, only output signal, will be the master light)，
LCD display panel, as following：
Operation: Press “MENU” will cycle fourteen different effect..
Press”UP”,”DOWN”key to modify values. Press”ENTER” key to
confirm.
Using before please must be check power supply link with
earth wire correctly or not.
The specification of the front and rear panel:
1. Input rated voltage
2. Fuse

8
3. Power switch button
4. Ground marking
5. DMX IN/ DMX OUT: DMX signal output and input
Technical Specifications
1. Power Supply: AC100~240V 50/60Hz
2. Rated Power: 180W
3. Laser color:
Red-500mW*2+ Green-100mW*2+ Blue-500mW*2
Green-100mW*6
Red-500mW*6
Blue-500mW*6
4. Y axis rotation angle: 0-240°
5. Z axis rotation angle: 0-140°
6. Scanner system: Stepper motor
7. Working Mode: Sound/Automatic/DMX512/Master-Slave
8. Auto mode: 16 kinds of automatic dynamic effect/ 16 kinds of
sound trigger dynamic effect
9. DMX Control Channel: 11CH/23CH/30CH
10. Cool system: forced air cooling system
11. Working temperature: 0℃- 35℃

9
12. N.W./G.W.: 19kg/25kg (2pcs)
13. Package size: 100.5*46.5*32.5cm
DMX-512 Channel Introduction
Channe
l
Value
Function
CH1
000-007
CH2-CH23 off（laser off, motor control)
008-255
CH2-CH23 on (laser on)
CH2
001-255
Strobe speed from slow to fast
CH3
000-007
Invalid
008-022
Y, Z axis action 01
023-037
Y, Z axis action 02
038-052
Y, Z axis action 03
053-067
Y, Z axis action 04
068-082
Y, Z axis action 05
083-097
Y, Z axis action 06
098-112
Y, Z axis action 07
113-127
Y, Z axis action 08
128-142
Y, Z axis action 09
143-157
Y, Z axis action 10
158-172
Y, Z axis action 11
173-187
Y, Z axis action 12
188-202
Y, Z axis action 13
203-217
Y, Z axis action 14
218-232
Y, Z axis action 15

10
233-247
Y, Z axis action 16
248-255
Sound trigger
CH4
001-255
Y, Z axis action speed from slow to fast（only valid
for CH3 008-247）
CH5
000-014
Invalid
015-035
Color chase 1
036-056
Color chase 2
057-076
Color chase 3
077-097
Color chase 4
098-117
Color chase 5
118-255
Full brightness
CH6
001-255
Y, Z axis action speed from slow to fast（only valid
for CH5 015-117）
CH3 008-247）
CH7
001-255
Y axis rotating angle 0 -230°
CH8
001-255
Y axis fine tuning
CH9
001-255
Z axis rotating angle 0 -140°
CH10
001-255
Z axis fine tuning
CH11
001-255
Y, Z axis rotating speed (only valid for
CH7/CH8/CH9/CH10)
CH12
001-255
Z1 rotating angle 0-140°
CH13
001-255
Z1 axis fine tuning
CH14
001-255
Z1 on/off
CH15
001-255
Z2 rotating angle 0-140°
CH16
001-255
Z2 axis fine tuning
CH17
001-255
Z2 on/off
CH18
001-255
Z3 rotating angle 0-140°
CH19
001-255
Z3 axis fine tuning

11
CH20
001-255
Z3 on/off
CH21
001-255
Z4 rotating angle 0-140°
CH22
001-255
Z4 axis fine tuning
CH23
001-255
Z4 on/off
CH24
001-255
Z5 rotating angle 0-140°
CH25
001-255
Z5 axis fine tuning
CH26
001-255
Z5 on/off
CH27
001-255
Z6 rotating angle 0-140°
CH28
001-255
Z6 axis fine tuning
CH29
001-255
Z6 on/off
CH30
000-128
No function
128-255
Motor reset after 5s
1. 23CH mode as following:
Channel
Value
Function
CH1
000-007
CH2-CH23 off（laser off, motor control)
008-255
CH2-CH23 on (laser on)
CH2
001-255
Strobe speed from slow to fast
CH3
000-007
Invalid
008-022
Y, Z axis action 01
023-037
Y, Z axis action 02
038-052
Y, Z axis action 03
053-067
Y, Z axis action 04
068-082
Y, Z axis action 05
083-097
Y, Z axis action 06
098-112
Y, Z axis action 07
113-127
Y, Z axis action 08

12
128-142
Y, Z axis action 09
143-157
Y, Z axis action10
158-172
Y, Z axis action 11
173-187
Y, Z axis action12
188-202
Y, Z axis action 13
203-217
Y, Z axis action 14
218-232
Y, Z axis action 15
233-247
Y, Z axis action 16
248-255
Sound trigger
CH4
000-255
Y, Z axis action speed from slow to fast（only
valid for CH3 008-247）
CH5
000-014
Invalid
015-035
Color chase 1
036-056
Color chase 2
057-076
Color chase 3
077-097
Color chase 4
098-117
Color chase 5
118-255
Full brightness
CH6
001 - 255
Color chase speed from slow to fast（only
valid for CH5 015-117）
CH7
001 - 255
Y axis rotating angle 0 -230°
CH8
001 - 255
Y axis fine tuning
CH9
001 - 255
Z axis rotating angle 0 -140°，Only when the
CH9 value is =0,
11CH/13CH/15CH/17CH/19CH/21CH alone
is effective

13
CH10
001 - 255
Y, Z axis rotating speed (only valid for
CH7/CH9)
CH11
001 - 255
Z1 rotating angle 0-140°
CH12
001 - 255
Z1 on/off
CH13
001 - 255
Z2 rotating angle 0-140°
CH14
001 - 255
Z2 on/off
CH15
001 - 255
Z3 rotating angle 0-140°
CH16
001 - 255
Z3 on/off
CH17
001 - 255
Z4 rotating angle 0-140°
CH18
001 - 255
Z4 on/off
CH19
001 - 255
Z5 rotating angle 0-140°
CH20
001 - 255
Z5 on/off
CH21
001 - 255
Z6 rotating angle 0-140°
CH22
001 - 255
Z6 on/off
CH23
0-128
No function
128-255
Motor reset after 5s
2. 11CH mode as following:
Channel
Value
Function
CH1
000 -007
CH2-CH11 off（laser off, motor control)
008-255
CH2-CH11 on (laser on)
CH2
001-255
Strobe speed from slow to fast
CH3
000-007
Invalid
008-022
Y, Z axis action 01
023-037
Y, Z axis action 02
038-052
Y, Z axis action 03

14
053-067
Y, Z axis action 04
068-082
Y, Z axis action 05
083-097
Y, Z axis action 06
098-112
Y, Z axis action 07
113-127
Y, Z axis action 08
128-142
Y, Z axis action 09
143-157
Y, Z axis action 10
158-172
Y, Z axis action 11
173-187
Y, Z axis action 12
188-202
Y,Z axis action 13
203-217
Y, Z axis action 14
218-232
Y, Z axis action 15
233-247
Y, Z axis action 16
248-255
Sound trigger
CH4
001-255
Y, Z axis action speed from slow to fast（only
valid for CH3 008-247）
CH5
000-014
Invalid
015 - 035
Color chase 1
036 - 056
Color chase 2
057 - 076
Color chase 3
077 - 097
Color chase 4
098-117
Color chase 5
118-255
Full brightness
CH6
001-255
Color chase speed from slow to fast（only
valid for CH5 015-117）
CH7
001 - 255
Y axis rotating angle 0-230°

15
CH8
001 - 255
Y axis fine tuning
CH9
001 -255
Z axis rotating angle 0 -140°, Only when the
CH9 value is =0,
11CH/13CH/15CH/17CH/19CH/21CH alone
is effective
CH10
001 -255
Y, Z axis rotating speed (only valid for
CH7/CH9)
CH11
000-127
No function
128-255
Motor reset after 5s
Maintenance
Maintenance should be performed every 15-day period, by using a
sponge which is dipped with alcohol, rather than wet cloth or other
chemical liquid, to clean the mirror.
Always disconnect from the power when the device is not in use or
before cleaning it.
Warning
Power must be disconnected before maintenance or repair. Do not
look at the light source directly
Declaration

16
This device has left our premises in absolutely perfect condition. In
order to maintain this condition and to ensure a safe operation, it is
absolutely necessary for the user to follow the safety instructions and
warning notes written in this user manual.
We cannot be made liable for damages caused by incorrect
installations and unskilled operation!
Product common breakdown comparative chart
Breakdown cause
Major breakdown analysis and solution
The fixture no work
1. Check the power cable ensure the fixture
connect the power correctly and the fuse is ok.
2. Check the input voltage whether to assign the
voltage match with the fixture.
No sound control
1. Check the address or the display whether
establishes according to the instruction booklet is
the sound trigger mode.
The fixture can bright
normally, but it not
controlled by controller
1. Please check the fixture DMX address setting
correctly or not.
2. Please check the XLR signal cable whether be
damage.

17
Master-slave mode,
The master mode is
normal, but slave mode
is not normal
1. Please ensure fixture 1 for the master and the
master without DMX be connected, and to set
master as sound control or auto pattern.
2. Master-slave set as DMX mode
The button malfunction
does not work
1. Check the buttons whether to have some button
not to have the normal reset.
The fixtures' brightness
obvious dim
1. Check the internal and external optical system
whether to be clean.
