LIGHTINC MH-200 LED HYBRID User manual

MH-200 LED HYBRID
USER MANUAL

Operational Manual
Thank you for purchasing this product. To take full advantage of all possibilities and
for your own safety, please read this operating instructions very carefully before you
start using this fixture.
BEFORE USE
Before you start using this unit, please check if there is no transportation damage.
Should there be any, do not use the device and consult your dealer first.
The manufacturer will not accept liability for any resulting damages caused by the
non-observance of this manual or any unauthorized modification to the device.
Please consider that damages caused by manual modifications to the device are not
subject to warranty.
SAFETY INSTRUCTIONS
Caution: To reduce the risk of electric shock, do not remove the top cover. There are
no user-serviceable parts inside. Refer servicing to qualified service personnel only.
Risk of electric shock!
Keep this device away from rain and moisture!
Read the manual
Unplug the mains power before remove the housing
Indoor use ONLY

To protect the environment, please try to recycle the packing material as much as
possible.
To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
This unit is for indoor use only.
Don’t place metal objects or spill liquid inside the unit. Electric shock or
malfunction may result. If a foreign object enters the unit, immediately disconnect
the mains power.
Locate the fixture in a well ventilated environment, away from any flammable
materials and/or liquids.
Don’t cover any ventilation openings as this may result in overheating.
Prevent use in dusty environments and clean the unit regularly.
Keep the unit away from children.
Inexperienced persons should not operate this device.
Maximum safe ambient temperature is 40℃.Don’t use this unit at higher ambient
temperatures.
Allow the device about 10 minutes to cool down before servicing.
The electrical installation should be carried out by qualified person only, according
to the regulations for electric and mechanical safety in your country.
Check that the available voltage is not higher than the one stated in the unit.
The power cord should always be in perfect condition. Switch the unit immediately
off when the power cord is squashed or damaged. It must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to avoid a
hazard.
Don’t connect the unit to any dimmer pack.
In order to prevent electric shock, do not open the cover. There are no user
serviceable parts inside.
The housing and lenses must be replaced if they are invisibly damaged.
Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with
a fuse of the same type and electrical specifications!
Due to safety reasons, it is prohibited to make unauthorized modifications to the
unit.
For installation, the fixture must be always secured with a safety wire that can bear
at least 10 times the weight of the fixture.

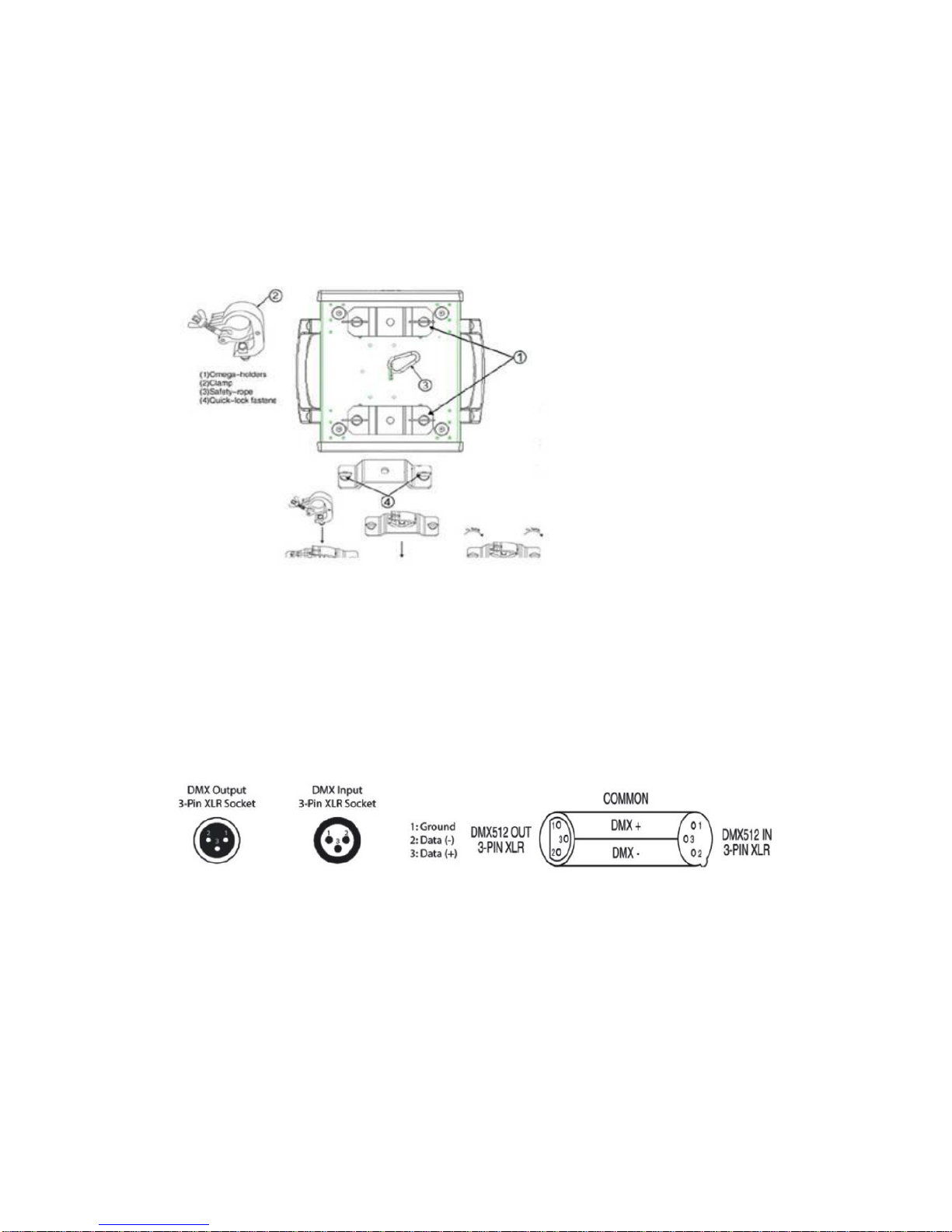

Clamp Mounting
The fixture can be mounted with the included omega bracket and safety cable. When
mounting this fixture to truss, be sure to secure an appropriately rated clamp to the
omega bracket using a M10 screw fitted through the center hole of the bracket. As an
added safety, attach at least one properly rated safety cable to the fixture.
DMX-512 Control Connection
Connect the provided XLR cable to the female 3-pin XLR output of your controller
and the other side to the male 3-pin XLR input of the moving head. You can daisy
chain multiple fixtures together through serial linking. The cable should be DMX
cable with XLR in- and output connectors. Please refer to the diagram below.

DMX-512 Connection with DMX Terminator
For installations where the DMX cable has to run a long distance or is in an
electrically noisy environment, it is recommended to use a DMX terminator. This
helps in preventing corruption of the digital signal by electrical noise. The DMX
terminator is simply an XLR plug with a 120 resistor connected between pins 2 and 3,
which is then plugged into the output XLR socket of the last fixture in the chain.
Please see illustrations below.
Technical Specifications
Input power: AC100-240V 50/60 Hz
Power consumption: 240W
LED: 200W high power LED
DMX channel: 6/18 channels
Pan scan：540° (16 bit)
Tilt scan：270° (16 bit)
Color wheel: one color wheel, 7 kinds of color chips in one color wheel
Static Gobo wheel: 8 gobo + open
Rotating Gobo Wheel: 6 gobo + open
Effect Wheel: Rotating 3 facet prism
Motorized focus
Beam angle: 5°/13° degrees
Control mode: DMX512/Master-Slave/Auto run
Display: LCD display
WEIGHT&SIZE
Net weight: 11.25 KG
Gross weight: 13.25 KG
Packing size: 47.5*35.5*38cm

Dimensions
Lumen Chart

Menu Function
MENU
DMX Address
001~512
Operating Mode
DMX 6 Ch
DMX 18 Ch
Auto
Perform Mode 1
Perform Mode 2
Perform Mode 3
Perform Mode 4
Perform Mode 5
Perform Mode 6
Perform Mode 7
Perform Mode 8
Sound
Master Auto
Perform Mode 1
Perform Mode 2
Perform Mode 3
Perform Mode 4
Perform Mode 5
Perform Mode 6
Perform Mode 7
Perform Mode 8
Master Sound
Slave
Language Setting
简体中文
English
Advanced Setting
Pan Reverse
Tilt Reverse
Display Reverse
Mic Sensitive
= 000
Reset Motor
Factory Reset
Home Position
Password
Code
=018
PAN
. =000
TILT
. =000
Dimmer
. =255
Color
. =000

fixed Gobo
. =000
Rotation Gobo
. =000
Focus
. =000
Zoom
. =000
Pan/Tilt Speed
. =000
System Info
Current Time
Total Time
Current Mode
Temperature
Software Version
Manual Control
Pan
. =000
Pan-Fine
. =000
Tilt
. =000
Tilt-Fine
. =000
Pan/Tilt Speed
. =000
Dimmer
. =000
Strobe
. =000
Color
. =000
Fixed Gobo
. =000
Rotation Gobo
. =000
Rotation Gobo
Wheel
. =000
Focus
. =000
Prism
. =000
Prism Wheel
. =000
Zoom
. =000
DMX-Configuration
6 Channel Mode:
Channel
DMX Value
Function
1
000 - 255
X
2
000 - 255
Y
3
000-255
Dimmer (0-100%)
4
000-004
Shutter closed
005-250
Strobe effect slow to fast
251-255
Shutter open
5
000-007
Empty

008-047
Auto Play 1
048-087
Auto Play 2
088-127
Auto Play 3
128-167
Auto Play 4
168-207
Auto Play 5
208-247
Auto Play 6
248-255
Color Gobo Sound Control
6
000-007
Empty
008-032
X/Y auto run 1
033-058
X/Y auto run 2
059-084
X/Y auto run 3
085-110
X/Y auto run 4
111-136
X/Y auto run 5
137-162
X/Y auto run 6
163-188
X/Y auto run 7
189-214
X/Y auto run 8
215-240
X/Y auto run 9
241-255
X/Y Sound Control
18 Channel Mode:
Channel
DMX Value
Function
1
000 - 255
X
2
000-255
X-Fine
3
000 - 255
Y
4
000-255
Y-Fine
5
000 - 255
XY SPEED
6
000-255
Dimmer (0-100%)
7
000-004
Shutter closed
005-250
Strobe effect slow to fast
251-255
Shutter open
8
000-004
Open(White)
005-013
White/Color1
014-022
Color1
023-031
Color1/Color2
032-040
Color2
041-049
Color2/Color3
050-058
Color3
059-067
Color3/Color4
068-076
Color4

077-085
Color4/Color5
086-094
Color5
095-103
Color5/Color6
104-112
Color6
113-121
Color6/Color7
122-130
Color7
131-139
Open(White)
140-195
Forward rainbow effect from fast to slow
196-199
Rotation stop
200-255
Backward rainbow effect from slow to fast
9
000-005
Open(White)
006-014
Gobo1
015-023
Gobo2
024-032
Gobo3
033-041
Gobo4
042-050
Gobo5
051-059
Gobo6
060-068
Gobo7
069-077
Gobo8
078-084
Gobo1 Shake
085-091
Gobo2 Shake
092-098
Gobo3 Shake
099-105
Gobo4 Shake
106-112
Gobo5 Shake
113-119
Gobo6 Shake
120-126
Gobo7 Shake
127-133
Gobo8 Shake
134-194
Forward rainbow effect from fast to slow
195-255
Backward rainbow effect from slow to fast
10
000-007
Open(White)
008-019
Gobo1
020-031
Gobo2
032-043
Gobo3
044-055
Gobo4
056-067
Gobo5
068-079
Gobo6
080-088
Gobo1 Shake
089-097
Gobo2 Shake
098-106
Gobo3 Shake

107-115
Gobo4 Shake
116-124
Gobo5 Shake
125-133
Gobo6 Shake
134-194
Forward rainbow effect from fast to slow
195-255
Backward rainbow effect from slow to fast
11
000-009
Stop
010-129
Forward Gobo2 Rotation from fast to slow
130-134
Stop
135-255
Backward Gobo2 Rotation from slow to fast
12
000-255
Focus
13
000-015
Open(White)
016-255
Prism
14
000-005
Stop
006-129
Forward Prism Rotation from fast to slow
130-134
Stop
135-255
Backward Prism Rotation from slow to fast
15
000-127
Open
128-255
Zoom
16
000-007
Empty
008-047
Auto Play 1
048-087
Auto Play 2
088-127
Auto Play 3
128-167
Auto Play 4
168-207
Auto Play 5
208-247
Auto Play 6
248-255
Color Gobo Sound Control
17
000-007
Empty
008-032
X/Y auto run 1
033-058
X/Y auto run 2
059-084
X/Y auto run 3
085-110
X/Y auto run 4
111-136
X/Y auto run 5
137-162
X/Y auto run 6
163-188
X/Y auto run 7
189-214
X/Y auto run 8
215-240
X/Y auto run 9
241-255
X/Y Sound Control
18
250-255
RESET(10S)

Maintenance
DANGER!
Disconnect from the mains before starting any maintenance work.
Switch off the unit, unplug the mains cable and wait until the unit is cool down.
During inspection the following points should be checked:
All screws used for installing the device and any of its parts should be tightly
fastened and may not be corroded.
Housing, fixations and installations spots (ceiling, truss, suspensions) should be
totally free from any deformation.
When an optical lens is visibly damaged due to cracks or deep scratches, it must be
replaced.
The mains cables must be in impeccable condition and should be replaced when
even a small problem is detected.
In order to protect the device from overheat the cooling fans and ventilation
opening should be cleaned monthly.
The interior of the device should be cleaned annually using compressed air.
The cleaning of in internal and external optical lenses and/or mirrors must be
carried out periodically to optimize light output. Cleaning frequency depends on
the environment which the fixture operates: damp, smoke or particularly dirty
surroundings can cause greater accumulation of dirt on the unit’s optics.
Clean with a soft cloth using normal glass cleaning products.
Always dry the parts carefully.
Clean the external optics at least every 30 days.
Clean the internal optics at least every 90 days.
Important: we strongly recommend internal cleaning to be carried out by
qualified personnel!
