Operation, installation and service instructions
Lucid nova eos / Lucid nova eos LWS
LED luminaire
Please read these instructions before installing the luminaires,
using them for the first time, storage or handling.
These installation and service instructions, edition 15.09.2016 apply to the
Lucid nova eos / Lucid nova eos LWS LED luminaire

2
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [e-mail]
IG_Lucid_nova_eos_DE_15.09.2016_V1.0 - Products may differ from those illustrated, subject to technical changes
Introduction
Dear customer,
Many thanks for buying this product from us, and for the trust you have placed in us.
Please read these operating, installation and service instructions carefully before using the product.
These instructions are aimed at suitable qualified persons (e.g. electricians, installers or engineers) tasked
with installation and maintenance of this product. It applies for all versions of the Lucid nova eos LED
luminaire. LED luminaire in the Lucid nova eos range are intended for professional use indoors and outdoors.
Technical personnel must be familiar with all technical electrical directives and safety precautions, and apply
these appropriately in each case.
These instructions are not suitable or intended for users and consumers without specialist technical
knowledge.
For questions concerning handling the luminaire which are not answered in these instructions, please
contact:
LIGHTS 4 Europe GmbH & Co. KG
Gaildorfer Str. 6
71522 Backnang
Germany
Telephone[phone]
Telefax+497191323029
Email: [email protected]
We wish your every success with our product and hope you enjoy saving energy

3
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [e-mail]
IG_Lucid_nova_eos_DE_15.09.2016_V1.0 - Products may differ from those illustrated, subject to technical changes
Product description & applications
The LED luminaire in the Luci nova eos range come complete with an integrated power supply / driver for
operating the luminaire.
The Lucid nova eos is suitable for professional use in industrial, production and warehouse buildings, for
illuminating working areas and walkways, as well as illuminating buildings outdoors.
The Lucid nova eos has been developed and manufactured in Germany and is subject to quality checks in
accordance with German standards. The luminaire stand out not only because of their modern design, but
above all a number of special technical features, which guarantee the best possible technical performance.
These include highly-efficient lens optics, high-quality housing materials, constant current control,
temperature monitoring, as well as lifelong regulation of luminous flux. The working temperature of -30 to 75
°C facilitates a wide range of applications.
Labels
To help precise identification of the product, you will find information about the model and item number on the
type plate. We recommend you make a note of this information so it is available if you have any questions
later. This will help us handle your query more quickly.

4
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [e-mail]
IG_Lucid_nova_eos_DE_15.09.2016_V1.0 - Products may differ from those illustrated, subject to technical changes
What’s included
LED lamp
Lucid nova eos
Control cable
DALI | 1 - 10 V
Bracket top
Bracket bottom
Hook
Fitting kit
Instruction manual
Light with Lucid wireless solution (additional delivery)
LED lamp with
Lucid controller
Lucid gateway
Instruction manual
Lucid wireless solution
On request:
Lucid light & motion
sensor

5
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [e-mail]
IG_Lucid_nova_eos_DE_15.09.2016_V1.0 - Products may differ from those illustrated, subject to technical changes
Symbols
By using the CE mark, the manufacturer confirms that the product conforms to
the applicable, product specific European directives.
None of the components in this product exceeds the permissible thresholds for
use of hazardous materials in accordance with the RoHS directive 2011/65/EU
All electrically conductive housing components in the equipment are connected
to the protective conductor system of the fixed electrical installation, which is at
earth potential.
An electrical product marked with this symbol may not be disposed of in
domestic waste.
The IP protection classification system categories the level of protection which
a housing for electrical devices offers against solids (e.g. dust) and liquids
(water, oil etc.). IP65 means 6 = dust-proof and 5 = protection from water spray
from any angle.
cycLED projects are supported by the European Commission. cycLED includes
the following subjects: recyclable LED luminaire, long working life and
ecological innovation
This symbol describes the wireless function.

6
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [e-mail]
IG_Lucid_nova_eos_DE_15.09.2016_V1.0 - Products may differ from those illustrated, subject to technical changes
Installation - general safety instructions
CAUTION - DANGER OF ELECTROCUTION
Only appropriate technical personnel may work on electrical systems. There is a risk of fatal electrocution.
Before working on electrical systems and switching units, they should be removed from the power supply and
secured against accidental re-connection. Before touching conductive components and cables, use
appropriate equipment to confirm they are actually isolated from the power supply.
First read the operating instructions through completely, as they contain important information for correct
fitting and operation.
Any damage caused by non-compliance with these operating instructions invalidates the
warranty/guarantee! We do not accept any liability for direct or consequential damages!
We do not accept any liability for personal or property damage caused by improper use or non-compliance
with the safety instructions! In these cases the warranty/guarantee is invalidated!
The product may not be opened (please also read the instructions in the chapter MAINTENANCE).
The light source in these luminaires is not replaceable. When the light source has reached the end of its
life, the whole light must be replaced
Do not install the product on a damp or conductive surface.
To avoid any hazard, a damaged outer flexible lead on this light may only be replaced by the
manufacturer, their representative or a comparable qualified person.
Only install the product in switched-off mode.
Only install the product in intended electrical systems and voltage ranges. Check and compare the
information on this on the product’s type plate.
If a fault occurs, disconnect the product from the mains power supply and any other connected devices.
Then ensure neither can be switched on again accidentally.
If you cannot guarantee that the product can be operated without any danger, disconnect the product
immediately from the mains power supply and any other connected devices. Once more, ensure neither
can be switched on again accidentally. It is not possible to guarantee that the product can be operated
without any danger when, for example, the housing or power cable is damaged, or if any foreign objects
have penetrated it.
Use suitable, approved power cables and cable connectors / clips of an adequate size. Make sure the
cables sit firmly in the connectors. Any loose or exposed cables represent an extremely high risk of
electric shock and fire.
When working under roofs, on masts or any other high fitting sites, ensure you are on a solid base by
using approved, certified ladders, or risers, as well as fall protection for personnel, tools and the product to
be installed. Cordon off the area under the installation area adequately.

7
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [e-mail]
IG_Lucid_nova_eos_DE_15.09.2016_V1.0 - Products may differ from those illustrated, subject to technical changes
Preparation for fitting
Only fit the light to a solid surface, e.g. masonry. Depending on the surface, use suitable screws and wall
plugs.
The light may only be fitted when disconnected from the mains power supply. It is not enough to switch
off the light switch!
Switch off all elements of the mains electrical power supply by removing the associated circuit fuse
or switching off the circuit breaker. Ensure these cannot be switched on again without
authorisation, e.g. with a warning sign. Also switch off the associated residual current circuit
breaker. Check the mains cable to ensure it is not live, e.g. with a suitable measuring device.
Fitting
Lucid nova eos LWS –Version –Accessory
3 wire mains cable
DALI |1-10 V
Blind plugs
Fitting bracket
Ventilation opening
Fixing screws
Lucid controller

8
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [e-mail]
IG_Lucid_nova_eos_DE_15.09.2016_V1.0 - Products may differ from those illustrated, subject to technical changes
There are 2 possible types of fitting for these luminaires
Ceiling fitting
Attach the Top bracket using 2 suitable screws, at
least M5, and wall plugs to the ceiling. The drilling
distance between the 2 holes is 120 mm. Use
stainless steel screws to avoid rusting! When drilling
in walls or ceilings, please be aware there may be
cables of pipework there which you might hit with the
drill.
Attach the Bottom bracket using the 4 M5 stainless
steel screws provided, as well as 4 of the washers
supplied, in order to ensure a permanent connection.
You will find these in the fitting kit!
Then connect the Top bracket and the Bottom
bracket with the 2 M8 stainless steel screws and the
2 M8 stainless steel self-locking hex nuts. You will
find these in the fitting kit!

9
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [e-mail]
IG_Lucid_nova_eos_DE_15.09.2016_V1.0 - Products may differ from those illustrated, subject to technical changes
Then connect the existing, flexible connection cable
for mains supply on the product to the existing power
supply on site, protected in an external power
distribution box (not included), with at least the same
protection type IP65 as the product, in accordance
with the following illustration. Cable end sleeves
should be used with multicore flexible cables.
Wiring diagram
Live [L]
(brown or black)
Earth [PE]
(yellow/green)
Neutral [N] (blue)
For the connection terminal, we recommend using a
3 pole, insulated WAGO 294 connector for a nominal
cross section of 2.5 mm² and a nominal voltage of at
least 500 V, meeting the VDE directives 0700 (EN 60
335-1),VDE 0613 (EN 60 998) and VDE 0711 (EN 60
598-1) for use in devices and luminaires up to 24 A.
Adjust the product as you wish, and then tighten all
screws with an appropriate tool. When adjusting the
product, ensure you do not crush or damage any
power cables. Check that the screws are tightly in
place once a year.

10
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [e-mail]
IG_Lucid_nova_eos_DE_15.09.2016_V1.0 - Products may differ from those illustrated, subject to technical changes

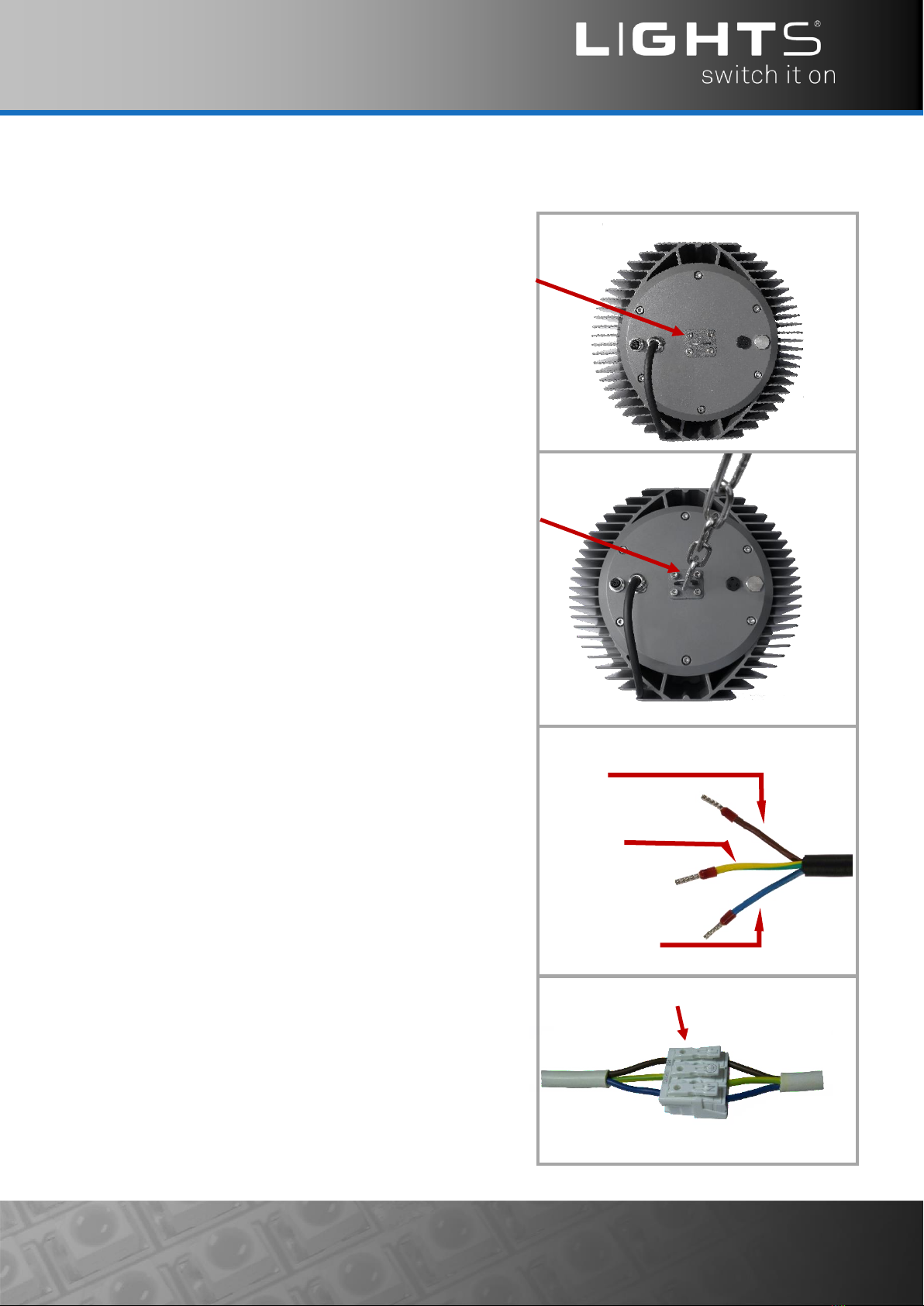

Fitting with cord suspension
Attach the hook using the 4 M5 stainless steel screws
provided, as well as 4 of the washers supplied, in order
to ensure a permanent connection. You will find these in
the fitting kit!
Ensure that the cord or chain used, and all connectors
linking the cord or chain to the light, have a capacity or at
least four times the weight of the light. Only use stainless
steel components to prevent corrosion!
Then connect the existing, flexible connection cable for
mains supply on the product to the existing power
supply on site, protected in an external power
distribution box (not included), with at least the same
protection type IP65 as the product, in accordance with
the following illustration. Cable end sleeves should be
used with multicore flexible cables.
Wiring diagram
Live [L]
(brown or black)
Earth [PE]
(yellow/green)
Neutral [N] (blue)
For the connection terminal, we recommend using a 3
pole, insulated WAGO 294 connector for a nominal
cross section of 2.5 mm² and a nominal voltage of at
least 500 V, meeting the VDE directives 0700 (EN 60
335-1),VDE 0613 (EN 60 998) and VDE 0711 (EN 60
598-1) for use in devices and luminaires up to 24 A
nominal current. Please observe the required distance
of 8 mm on-site.

11
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [e-mail]
IG_Lucid_nova_eos_DE_15.09.2016_V1.0 - Products may differ from those illustrated, subject to technical changes
DALI or. 1-10 V connection & Lucid wireless solution
The Lucid nova eos comes as standard with a DALI and a 1-10 V connection (see picture). The connection
is protected by an end cap. Remove the end cap from the connector socket. Both functions may be used
as an alternative, using the 4-pole control cable provided.
Please note:
Only one control may be used at any one time. The connection cable for DALI and 1-10 V is included in
delivery. On request, the Lucid nova eos is also available with the Lucid wireless solution (Lucid nova eos
LWS).
Without control with DALI / 1-10 V control
With wireless control
End cap (without control)
Cable for DALI / 1-10 V
Antenna for Lucid wireless solution

12
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [e-mail]
IG_Lucid_nova_eos_DE_15.09.2016_V1.0 - Products may differ from those illustrated, subject to technical changes

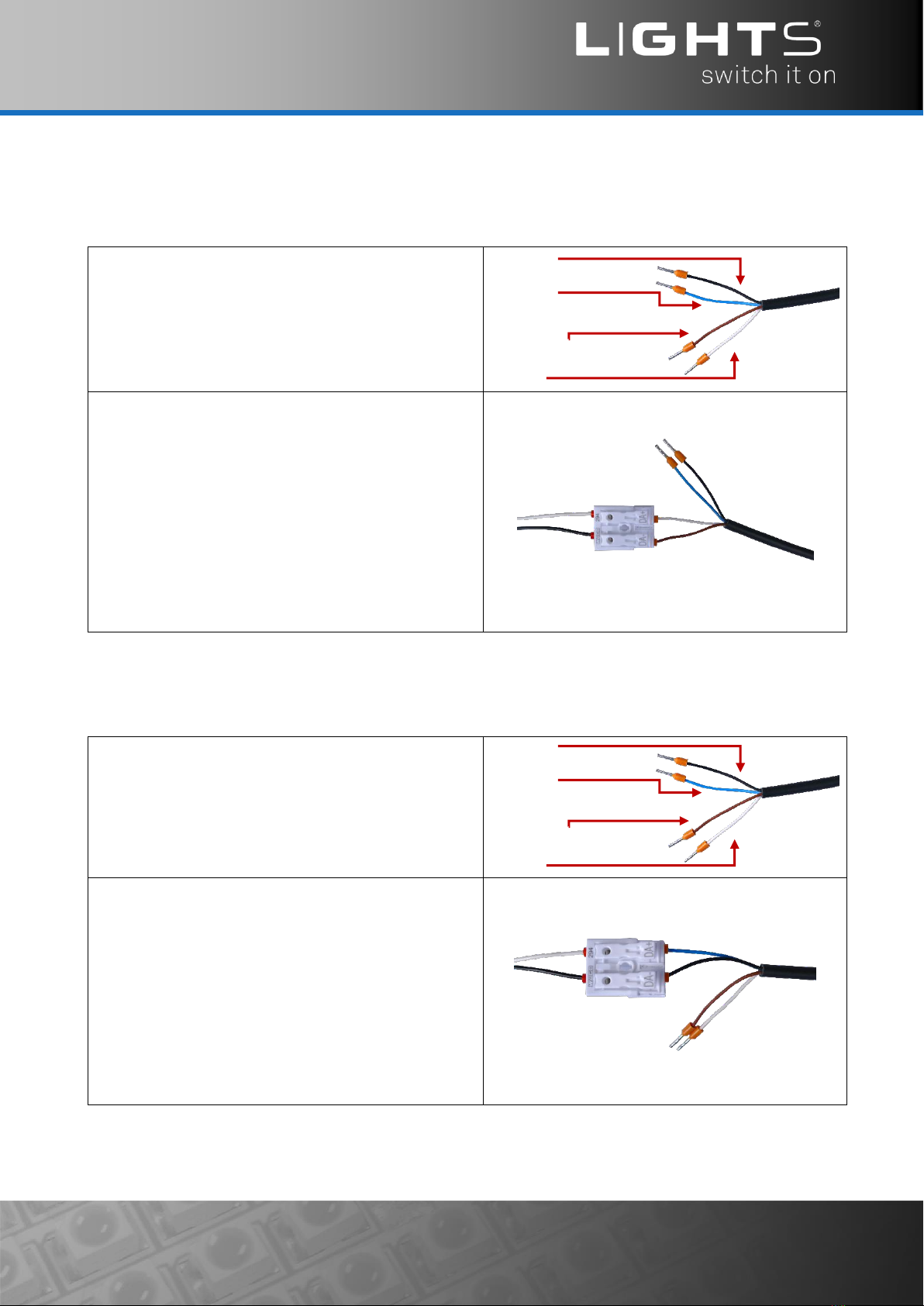

DALI connector
Wiring diagram
The white and brown cables on the light are used for
the DALI connection. These should be connected as
recommended in the next step. You do not have to
consider the polarity (+/-) of the DALI control cable.
For the connection terminal, we recommend using a 2
pole, insulated WAGO 294 connector for a nominal
cross section of 2.5 mm² and a nominal voltage of at
least 500 V, meeting the VDE directives 0700 (EN 60
335-1), VDE 0613 (EN 60 998) and VDE 0711 (EN 60
598-1 and VDE 24 (EN 2 598-1) for use in devices and
luminaires up to 24 A nominal current.
Please note: Any cable ends not used must be
insulated.
1-10 V connector
Wiring diagram
The black and blue cables on the light are used for
the 1-10 V connection. These should be connected
as recommended in the next step.
For the connection terminal, we recommend using a
2- pole, insulated WAGO 294 connector for a
nominal cross section of 2.5 mm² and a nominal
voltage of at least 500 V, meeting the VDE directives
0700 (EN 60 335-1), VDE 0613 (EN 60 998) and
VDE 0711 (EN 60 598-1) for use in devices and
luminaires up to 24 A nominal current.
Please note: Any cable ends not used must be
insulated.
black 1-10 V (-1)
blue 1-10 V (+)
brown DALI
white DALI
black 1-10 V (-1)
blue 1-10 V (+)
brown DALI (-)
white DALI (+)

13
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [e-mail]
IG_Lucid_nova_eos_DE_15.09.2016_V1.0 - Products may differ from those illustrated, subject to technical changes
Lucid nova eos LWS - Lucid wireless solution
To use the Lucid wireless solution, you need to order the
Lucid nova eos with integrated Luci controller (Lucid
nova eos LWS version). You will find the required
information for the software in the installation and
operating instructions for Lucid wireless solution.
Alternatively, you can contact the manufacturer.
Please note that these luminaires operate at 50% of
their power for 5 seconds after switching on, only
reaching 100% full power after this time.
Standard luminaires in the Lucid nova eos range can be
retro-fitted by the manufacturer with a Lucid wireless
solution connector.
Maintenance, care and cleaning
This product requires no maintenance and so does not contain any components which can be checked or
replaced by the user. The light source in the luminaires cannot be replaced. In the event of damage, the
complete light unit must be replaced. The product is fitted with appropriate safety precautions, which show
unauthorised opening (safety screws). In the event of unauthorised opening of the device or removal of the
type plate, any guarantee rights will be invalidated.
We recommend carrying out regular checks of the screws and the cabling, as well as a visual inspection of the
housing and the diffuser for penetration by foreign bodies or superficial damage. During maintenance, the
product should be disconnected from the power supply and steps take to ensure it cannot be switched on
again accidentally. We recommend cleaning with a damp, soft, lint-free cloth. Do not use abrasive sponges or
aggressive cleaners. During cleaning, the product should be disconnected from the power supply and steps
take to ensure it cannot be switched on again accidentally.
Pleas note the general safety instructions in the chapter INSTALLATION.
Disposal
The Lucid nova eos has been developed and manufactured using high-quality materials and components. The
symbol means that this product falls under the European directive 2002/96/EG gilt. Please familiarise
yourself with the relevant directives relating to the separate collection of old electric and electronic equipment
in your country. Please observe the applicable regulations in your country, and do not dispose of disused
equipment in domestic waste. Proper disposal of your old devices protects the environment and people from
potential negative consequences and contributes towards conserving valuable resources.

14
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [e-mail]
IG_Lucid_nova_eos_DE_15.09.2016_V1.0 - Products may differ from those illustrated, subject to technical changes
Technical data
Lucid nova eos / Lucid nova eos LWS
Product data
General information
Product family
Lucid nova eos
Protection class:
I
Protection type
IP 65
Operational / Ambient temperature:
-30 °C to + 75 °C*
Cooling body:
powder-coated aluminium
Stainless steel screws (rust-free)
Certification:
CE
LED life:
> 70,000 hours
Technical light properties
Lens:
Non-breakable polycarbonate
Colour temperatures:
3,000 K / 4,000 K / 5,000 K / 6,500 K
Colour reproduction:
Ra > 80
Electrical data
System power
135 W
Mains voltage:
220-240 V ~
Nominal current
0.6 A
Mains frequency:
50 Hz ± 5%
Driver efficiency:
90% eff.
Power factor:
> 0.9
Dimmability:
DALI, 1-10 V and Lucid wireless solution
Frequency (LWS-Version):
868 MHz
Material
Housing:
powder-coated aluminium
Lens:
Polycarbonate (PC)
Dimensions:
with eyelet: ø 285 x 160 mm
with bracket: ø 285 x 297 mm
Net weight:
approx 8,500 g
*from 50 °C power is reduced by 1.5 per 1 K
Item No:
Beam
angle
Diffuser
Housing colour
Colour
temperature
CCT
Luminous flux /
power
Lucid nova eos | 135 W standard design
60611
60°
Lens optic
grey
daylight white
5,000 K
16,300 lm/135 W
Other designs (longer lead times, higher minimum order quantities)
60610
60°
Lens optic
grey
cold white
6,500 K
16,300 lm/135 W
60612
60°
Lens optic
grey
normal white
4,000 K
16,300 lm/135 W
60613
60°
Lens optic
grey
warm white
3,000 K
14,600 lm/135 W
Lucid nova eos LWS | on request available with Lucid wireless solution
60811
60°
Lens optic
grey
daylight white
5,000 K
16,300 lm/135 W
Other designs (longer lead times, higher minimum order quantities)
60810
60°
Lens optic
grey
cold white
6,500 K
16,300 lm/135 W
60812
60°
Lens optic
grey
normal white
4,000 K
16,300 lm/135 W
60813
60°
Lens optic
grey
warm white
3,000 K
14,600 lm/135 W
Dimension sketch
Cord hanging
Ceiling fitting

15
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [e-mail]
IG_Lucid_nova_eos_DE_15.09.2016_V1.0 - Products may differ from those illustrated, subject to technical changes
Guarantee period
1. The guarantee period is 2 years, where an extension to the guarantee was not agreed for an extra fee at
the time of purchase. This starts when the product is delivered to the end user. Anyclaims under
guarantee must be made in writing.
2. To validate a guarantee claim, the receipt must be presented, on which the delivery or purchase data is
clearly visible. In the event of a claim under guarantee, the device should be sent to your specialist retailer
or to the following address:
LIGHTS 4 Europe GmbH & Co. KG (in the following “LIGHTS”)
Gaildorfer Str. 6
D-71522 Backnang
Email: [e-mail]
All design, material and manufacturing faults are covered by the guarantee.
3. The guarantee excludes any faults or deficiencies relating to the following points:
a) Failure to follow the operating and safety instructions.
b) Natural wear and tear.
c) External factors such as transport damage, damage caused by impact, shock or over heating, as
well as chemical or electro-chemical factors such as those caused by water, acids or improper
use.
d) Repairs or alterations carried our bynon-authorised third parties.
e) Use of unsuitable accessories.
f) Unauthorised opening of the housing
g) Removal of the type plate
4. The following are also excluded: Damage caused by improper handling, fitting or maintenance of the
luminaires (see fitting instructions), damage caused by excessive force,fire, vandalism or accidental
damage.
5. LIGHTS will resolve any faults within the guarantee period in consultation with the specialist retailer. This
will take the form either of a repair of replacement of the component in question. Parts removed become
the property of LIGHTS. Any further claims, of any kind, in particular claims for damages are excluded.
6. The following are excluded from the guarantee:
a) Costs for removal / fitting of the faulty or repaired luminaires
b) Costs for sending back the faulty luminaires
7. LED luminaire from LIGHTS are subject to ongoing development with regard to technical progress. For
this reason, in the event of a repair or a replacement, the design of the repaired or replaced light maynot
correspond to the original design of the light subject to the claim, but it may be of equal or higher quality in
terms of its properties and features. LIGHTS reserves the right to change guarantee periods, fixed price
arrangements and conditions without prior notice. However, guarantees with a valid registration before the
time of the change remain unaffected by this. LIGHTS reserves the right to make the final decision with
regard to the validity of a guarantee claim.

16
www.lights.de
LIGHTS 4 Europe GmbH & Co. KG ∙ Gaildorfer Str. 6 ∙ D-71522 Backnang
Tel. [phone] ∙ Fax [phone] ∙ [e-mail]
IG_Lucid_nova_eos_DE_15.09.2016_V1.0 - Products may differ from those illustrated, subject to technical changes
Legal notices
These operating instructions contain the information required for appropriate use.
Knowledge and observance contained in these operating instructions are a condition of safe use and for safety
in operation. These operating instructions cannot take every possible application into consideration. The LED
light is intended for use indoors, in covered outdoor areas and outdoor areas.
In addition, we would like to point out that the contents of these operating instructions are not part of, or represent
a change to, a prior or existing agreement, consent or legal relationship. The operating instructions contain
information which is copyright protected. Production of photocopies, or translations into another language, are
not allowed without prior written permission from LIGHTS 4 Europe GmbH & Co. KG - Germany.
LED-Luminaire and light sources from LIGHTS 4 Europe GmbH & Co. KG are subject to ongoing development
with regard to technical progress.
