Lilliput Owon XSA1000 Series User manual

XSA1000 Series Spectrum Analyzer
User Manual
 XSA1015
 XSA1015-TG
 XSA1036
 XSA1036-TG
Notice: -TG models are with tacking generator
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
TestEquipmentDepot.com

Mar. 2018 edition V1.0.2
Copyright © LILLIPUT Company. All rights reserved.
The LILLIPUT's products are under the protection of the patent rights, including ones
which have already obtained the patent rights and those which are applied for. The
information in this manual will replace all materials published.
The information in this manual was correct at the time of printing. However, LILLIPUT will
continue to improve products and reserves the rights to change specification at any time
without notice.
is the registered trademark of the LILLIPUT Company.
Fujian LILLIPUT Optoelectronics Technology Co., Ltd.
No. 19, Heming Road
Lantian Industrial Zone, Zhangzhou 363005 P.R. China
Tel: [phone] Fax: [phone]
Web: www.owon.com.cn E-mail: inf[email protected]

General Warranty
OWON warrants that the product will be free from defects in materials and
workmanship for a period of 3 years from the date of purchase of the
product by the original purchaser from the OWON Company. The warranty
period for accessories is 12 months. This warranty only applies to the
original purchaser and is not transferable to a third party.
If the product proves defective during the warranty period, OWON will either
repair the defective product without charge for parts and labour, or will
provide a replacement in exchange for the defective product. Parts,
modules and replacement products used by OWON for warranty work may
be new or reconditioned like new. All replaced parts, modules and products
become the property of OWON.
To obtain service under this warranty, the customer must notify OWON of
the defect before the expiration of the warranty period. Customer shall be
responsible for packaging and shipping the defective product to OWON's
designated service centre, a copy of the customer's proof of purchase is
also required.
This warranty shall not apply to any defect, failure or damage caused by
improper use or improper or inadequate maintenance and care. OWON
shall not be obligated to furnish service under this warranty a) to repair
damage resulting from attempts by personnel other than OWON
representatives to install, repair or service the product; b) to repair damage
resulting from improper use or connection to incompatible equipment; c) to
repair any damage or malfunction caused by the use of non-OWON
supplies; or d) to service a product that has been modified or integrated
with other products when the effect of such modification or integration
increases the time or difficulty of servicing the product.
Please contact the nearest OWON's Sales and Service Offices for services
or a complete copy of the warranty statement.
For better after-sales service, please visit www.owon.com.cn and register
the purchased product online.
Excepting the after-sales services provided in this summary or the
applicable warranty statements, OWON will not offer any guarantee
for maintenance definitely declared or hinted, including but not
limited to the implied guarantee for marketability and special-purpose
acceptability. OWON should not take any responsibilities for any
indirect, special or consequent damages.

i
Table of contents
List of figures........................................................................iii
List of tables..........................................................................iii
1. General Safety Requirements ..........................................1
2. Safety Terms and Symbols............................................... 4
3. Document Overview .......................................................... 5
4. Quick Start.......................................................................... 6
4.1 General Inspection .......................................................... 6
4.2 Safety Precaution before Operation............................. 6
4.3 First Time to Power on.................................................... 8
4.4 Front Panel....................................................................... 9
4.5 Rear Panel...................................................................... 15
4.6 User Interface ................................................................ 17
4.7 Build-in Help................................................................... 18
4.8 Basic Measurement ...................................................... 19
5. Menu Interpretation .........................................................23
5.1 【FREQ】Frequency................................................... 23
5.2 【SPAN】...................................................................... 25
5.3 【AMPTD】Amplitude ................................................. 27
5.4 【Auto】Auto Tune ...................................................... 30
5.5 【BW】Bandwidth........................................................ 30
5.6 【Trace】....................................................................... 32
5.7 【Detector】.................................................................. 34
5.8 【Display】.................................................................... 35
5.9 【Sweep】.................................................................... 36
5.10 【Trig】........................................................................ 37
5.11 【Source】.................................................................. 38
5.12 【Demod】Demodulation ......................................... 40
5.13 【Peak】..................................................................... 41
5.14 【Marker】.................................................................. 42
5.15 【Marker→】 .............................................................. 45
5.16 【Marker Fctn】Marker Function ............................ 47
5.17 【Meas】Measurement ............................................ 48
5.18 【Meas Setup】......................................................... 52
5.19 【System】................................................................. 52

ii
5.20 【File】........................................................................ 57
5.21 【Print】...................................................................... 58
5.22 【Save】..................................................................... 59
6. Specification ....................................................................60
6.1 Frequency....................................................................... 60
6.2 Amplitude ........................................................................ 61
6.3 Sweep ............................................................................. 63
6.4 Tracking Generator (Only apply to –TG model)........ 63
6.5 Demodulation................................................................. 64
6.6 Frequency Counter ....................................................... 65
6.7 Inputs and Outputs........................................................ 65
6.8 General Specification.................................................... 66
7. Warranty ...........................................................................67
7.1 Troubleshooting ............................................................. 67
7.2 Spectrum Analyzer Repair ........................................... 68
8. Appendix...........................................................................69
Appendix A: Enclosure ........................................................ 69
Appendix B: General Care and Cleaning ......................... 69
Appendix C: USB Disk Requirements .............................. 70

iii
List of figures
Figure 4-1 Front panel................................................................ 9
Figure 4-2 Function Keys......................................................... 10
Figure 4-3 Numeric Keypad..................................................... 13

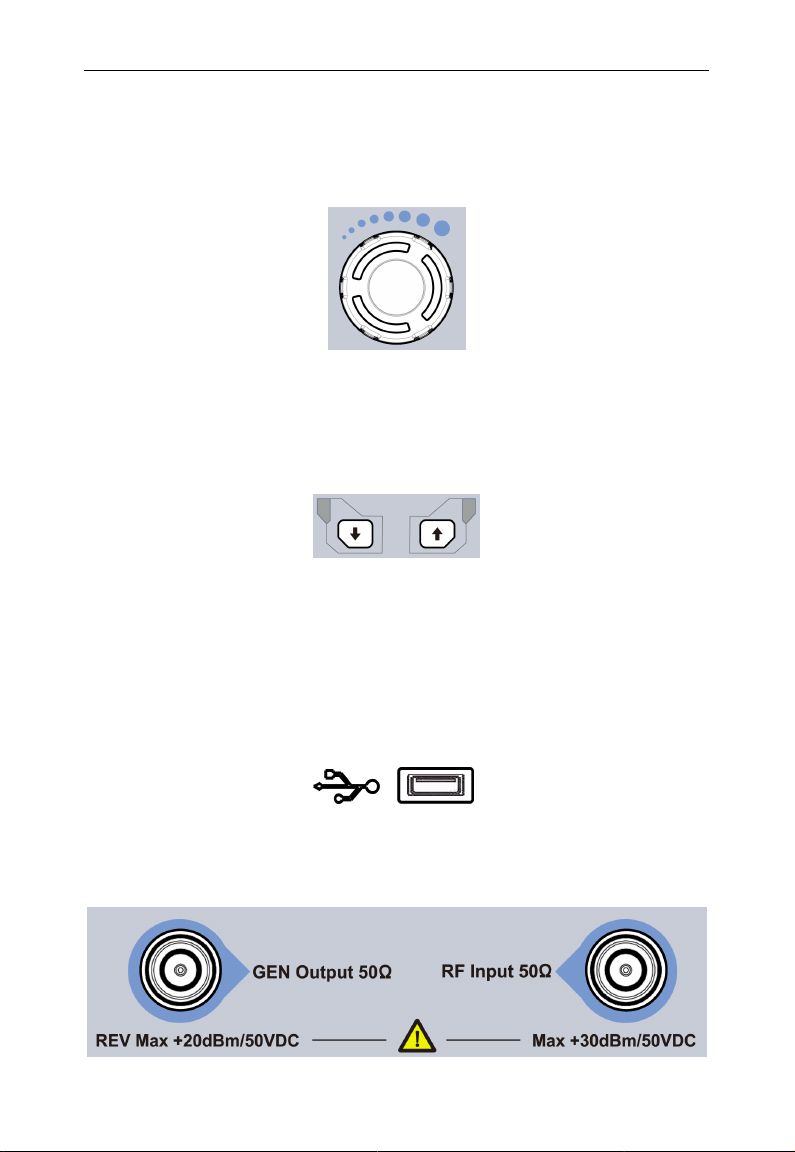

Figure 4-4 The knob ................................................................. 14
Figure 4-5 Direction keys......................................................... 14
Figure 4-6 Rear Panel .............................................................. 15
Figure 4-7 User interface ......................................................... 17
Figure 4-8 Full Span ................................................................. 20
Figure 4-9 Set frequency span................................................ 21
Figure 4-10 Set reference level ................................................. 22
List of tables
Table 4-1 Working Power Variation Range ............................. 7
Table 4-2 Front Panel Description ............................................ 9
Table 4-3 Function Key Description ....................................... 10
Table 4-4 Rear Panel Description........................................... 15
Table 4-5 User interface Description...................................... 17
Table 5-1 Detector type comparison ...................................... 34
Table 5-2 [Factory] Settings..................................................... 54

1.General Safety Requirements
1
1. General Safety Requirements
Before use, please read the following safety precautions to
avoid any possible bodily injury and to prevent this product or
any other connected products from damage. To avoid any
contingent danger, ensure this product is only used within the
ranges specified.
Use Proper Power Cord. Use only the power cord supplied
with the product and certified to use in your country.
Product Grounded. This instrument is grounded through the
power cord grounding conductor. To avoid electric shock, the
grounding conductor must be grounded. The product must be
grounded properly before any connection with its input or
output terminals.
Check all Terminal Ratings. To avoid fire or shock hazard,
check all ratings and markings on this product. Refer to the
user manual for more information about ratings before
connecting to the instrument.
Use Proper Overvoltage Protection. Make sure that no
overvoltage (such as that caused by a thunderstorm) can
reach the product, or else the operator might expose to danger
of electrical shock.
Do not operate without covers. Do not operate the
instrument with covers or panels removed.
Avoid exposed circuit. Be careful when working on exposed
circuitry to avoid risk of electric shock or other injury.
Do not operate if any damage. If you suspect damage to
the instrument, have it inspected by qualified service
personnel before further use. Any maintenance, adjustment or
replacement especially to circuits or accessories must be
performed by qualified service personnel.
Use your Oscilloscope in a well-ventilated area. Make sure
the instrument installed with proper ventilation.
Do not operate in damp conditions. In order to avoid short

1.General Safety Requirements
2
circuiting to the interior of the device or electric shock, please
do not operate in a humid environment.
Do not operate in an explosive atmosphere. In order to
avoid damages to the device or personal injuries, it is
important to operate the device away from an explosive
atmosphere.
Keep product surfaces clean and dry. To avoid the influence
of dust or moisture in air, please keep the surface of device
clean and dry.
Electrostatic Prevention. Operate the instrument in an
electrostatic discharge protective environment to avoid
damage induced by static discharges. Always ground both the
internal and external conductors of cables to release static
before making connections.
Protect the Input Terminals of Instrument. Do not bend or
hit the input terminals and the connected devices, (such as
filter, attenuator, etc.) as such stress may cause damages to
devices and the instrument. Do not mix the use of 50Ω and
75Ω connectors and/or cables.
Do Not Overload the Input. To avoid damaging the
instrument, the signals at input terminal must be less than 50V
DC voltage components and 30 dBm (1 W) AC (RF)
components.
Appropriate Use of Power Meter. If you are not sure of the
characteristics of signal under measure, follow these
recommendations to ensure safe operations: if a RF power
meter is available, use it to measure the power level of this
signal first; or add a rated external attenuator between signal
cable and input terminal of the instrument. Maximum
attenuation, reference level and maximum span frequency
should be selected, so as to make the signals displayed within
the screen.
Know About the Specification Conditions of the
Instrument. For maximum performance of the instrument, use
the analyzer under specified conditions.

1.General Safety Requirements
3
Handling Safety. Please handle with care during
transportation to avoid damages to buttons, knob, interfaces
and other parts on the panels.

2.Safety Terms and Symbols
4
2. Safety Terms and Symbols
Safety Terms
Terms in this manual (The following terms may appear in this
manual):
!
WARNING
Warning indicates conditions or practices that could result
in injury or loss of life.
Terms on the product (The following terms may appear on this
product):
DANGER
Indicates an immediate hazard or injury possibility.
WARNING
Indicates a possible hazard or injury.
CAUTION
Indicates potential damage to the instrument or other
property.
Safety Symbols
Symbols on the product (The following symbols may appear on
the product):

!
Hazardous
Voltage
Chassis
Ground
Refer to
Manual
!
CAUTION
Caution indicates the conditions or practices that could
result in damage to this product or other property.
