Introduction
Dear reader,
This operating manual provides all information for safe
operation of the Weed Brush Turbo.
The Weed Brush Turbo has been designed and built in
accordance with the state of the art and recognised safety rules
and regulations. Nevertheless dangers for personnel or objects
can occur, because not all danger zones can be avoided if the
functionality is to remain intact. However you can prevent
accidents due to these dangers by complying with the
instructions in this operating manual. Moreover you will then be
able to use the machine to its full capacity and avoid
unnecessary disturbances.
CAUTION!
There is danger of injury and danger of material damage when
assembling, operating, and maintaining the weed brush.
Therefore:
•First read this operating manual carefully, prior to assembly
and operation of the weed brush. Always comply with the
instructions and information contained herein, particularly the
safety instructions.
• If the operating manual is lost or in poor condition, request a
new copy from the manufacturer (the same applies for parts of
the operating manual).
This operating manual only applies for the weed brush specified
on the cover sheet and at the end of every page. Compare this
information with the information on the type plate of the weed
brush.
After you have read the entire operating manual thoroughly for
the first time, take good care of the operating manual over the
entire service life of the weed brush, so that you can look up
something later.
If you sell the weed brush, give this operating manual to the
new owner.
All information, illustrations and dimensions in this operating
manual are non-binding. No claims whatsoever can be derived
from this information, illustrations or dimensions.
Introduction

Weed Brush Turbo 19/02/2015 Page 3 of 33
Reprinting or duplication of any type, including excerpts,
requires the written permission of the manufacturer.
Conversion of, or changes to the weed brush are only permitted
with the manufacturer's written consent. Unauthorised
conversion voids any liability on the part of the manufacturer, as
well as the guarantee.
Only use original spare parts and accessories that are approved
by the manufacturer. Otherwise the design-specified
characteristics of the weed brush, the functionality or the safety
can be impaired. Consequently the use of other parts voids the
liability for the ensuing consequences.
Contact your specialist dealer to order spare parts or
accessories.
In addition comply with the instructions in the operating manual
of the motor manufacturer. This is included in the sub-package
for the weed brush.
4F Maschinentechnik GmbH assumes no liability for the content
of the operating manual provided by the motor manufacturer.
Explanation of symbols, signs and direction indications
For better understanding, the following conventions are used for
this operating manual:
1.
To emphasise important information, the following types of
special notices are used:
DANGER!
•There is an imminent dangerous situation that results in death
or serious injury if it is not avoided.
WARNING!
•There is a possible dangerous situation that can result in
death or serious injury if it is not avoided.
Introduction

Page 4 of 33 19/02/2015 Weed Brush Turbo
CAUTION!
•
There is a possible dangerous situation that can result in
minor injury or material damage, if it is not avoided.
ATTENTION!
...indicates a possible dangerous situation that can result in
material damage, if it is not avoided.
NOTE
...indicates useful tips and recommendations, as well as
information for efficient and trouble-free operation.
...refers to important information in other sections and
documents.
2.
Many texts serve a particular purpose. These texts are marked
as follows:
•Listings.
Instructing text, e.g. a sequence of activities.
3.
In the text the sides of the weed brush are cited (left, right, front,
rear). Left or right refers to the side that the operator of the
machine sees viewed from the direction of travel. The brush of
the machine is mounted in front, the steering arm is mounted in
the rear.
Introduction

Weed Brush Turbo 19/02/2015 Page 5 of 33
Table of contents
Introduction ............................................................................2
Table of contents....................................................................5
1 Safety..................................................................................7
1.1 Intended use...............................................................7
1.2 Non-intended use........................................................8
1.3 Product observation....................................................8
1.4 Requirement imposed on personnel............................9
1.5 Danger zone...............................................................9
1.6 Work clothing............................................................11
1.7 Safety devices and protective devices ......................11
1.7.1 Safety switch...................................................11
1.7.2 Splash guard...................................................11
1.7.3 Protective cover ..............................................11
1.8 Safety regulations and accident prevention
regulations................................................................12
1.9 Disposal....................................................................13
1.10 Safety signs on the weed brush..............................14
2 Description.......................................................................15
2.1 Rating plate...............................................................15
2.2 Overview...................................................................16
2.3 Technical data...........................................................17
3 Commissioning................................................................18
3.1 Unpacking.................................................................18
3.2 Adjusting the steering arm ........................................18
3.3 Mounting the splash guard........................................19
4 Operation..........................................................................20
4.1 Preparatory activities ................................................22
4.1.1 Adjusting the steering arm...............................22
4.1.2 Checking the status of the wire bristles...........22
4.1.3 Checking the motor oil level ............................22
4.1.4 Fuelling...........................................................22
Table of contents

Page 6 of 33 19/02/2015 Weed Brush Turbo
4.2 Sweep operation.......................................................23
4.2.1 Starting the motor............................................23
4.2.2 Stopping the motor..........................................24
4.2.3 Lateral adjustment of the weed brush..............24
5 Maintenance and repair...................................................25
5.1 Safety guidelines for maintenance and repair ...........25
5.2 Regular maintenance tasks.......................................26
5.2.1 Maintenance schedule ...................................26
5.2.2 Maintenance records ......................................27
5.2.3 Checking the Bowden cables for ease of
movement.......................................................27
5.2.4 Cleaning the weed brush ................................28
5.2.5 Checking and cleaning the air filter .................28
5.2.6 Replacing the braided wire elements...............29
5.3 Maintenance and repair verifications.........................31
6 Decommissioning and preservation .............................32
7 Faults and fault correction .............................................32
8 Specialist dealer ..............................................................32
9 Declaration of Conformity...............................................33
Table of contents

Weed Brush Turbo 19/02/2015 Page 7 of 33
1 Safety
The basic prerequisite for safe and trouble-free operation of the
weed brush is knowledge of the safety instructions and safety
regulations.
Consequently read this section carefully all the way through
before operating the machine, and comply with the specified
instructions and warnings. The safety instructions and warnings
that you find at the appropriate point in the text of the following
sections must be complied with. The manufacturer cannot be
made liable if the instructions and warnings are not complied
with.
In addition to the instructions contained in this operating
manual, the statutory regulations, particularly the safety and
accident prevention regulations, must also be complied with.
1.1 Intended use
The Weed Brush Turbo must only be used to remove and set
down weed growth on paved, concrete, and/or asphalt surfaces
outside of enclosed spaces.
Intended use also includes compliance with all the instructions
in the operating manual.
DANGER!
If the weed brush is used for a use other than the use described
above, dangerous situations can occur for people or material
damage can occur.
Therefore:
•Only use the machine for its intended purpose.
•Always comply with all the instructions in this operating
manual.
•Particularly refrain from the uses of the weed brush listed in
section 1.2. They are considered non-intended use.
Safety

Page 8 of 33 19/02/2015 Weed Brush Turbo
1.2 Non-intended use
Any use that deviates from that described in section 1.1, is
considered non-intended use.
For example, non-intended use of the weed brush occurs when
•it is used to clean unpaved surfaces e.g. gravel paths,
•It is used with non-approved braided brushes
•it is used in enclosed spaces, e.g. halls, or barns,
•It is manoeuvred or transported with the combustion motor
switched on or with the brushes rotating
•it is operated in faulty condition or with safety-relevant
faults,
•it is used without the safety cladding elements that are
installed as standard equipment,
•unsuitable personnel are assigned to operate the weed
brush.
•It is made heavier to increase the braided brush pressure
1.3 Product observation
Notify us without delay if faults or problems occur when
operating your weed brush, or if accidents occur or nearly
occur.
Together with you we will find a solution to the problem and
allow the knowledge gained to flow into our subsequent work.
Safety

Weed Brush Turbo 19/02/2015 Page 9 of 33
1.4 Requirements for personnel
Handling the weed brush is only permitted for persons,
•who are at least 16 years old,
•who are physically and mentally suited to do so,
•who have read and understood this operating manual, and
•from whom it is expected that they responsibly perform the
tasks assigned to them.
Commissioning, maintenance, repair and disposal of the weed
brush may only be executed in a specialist workshop or by
persons with appropriate technical training and experience.

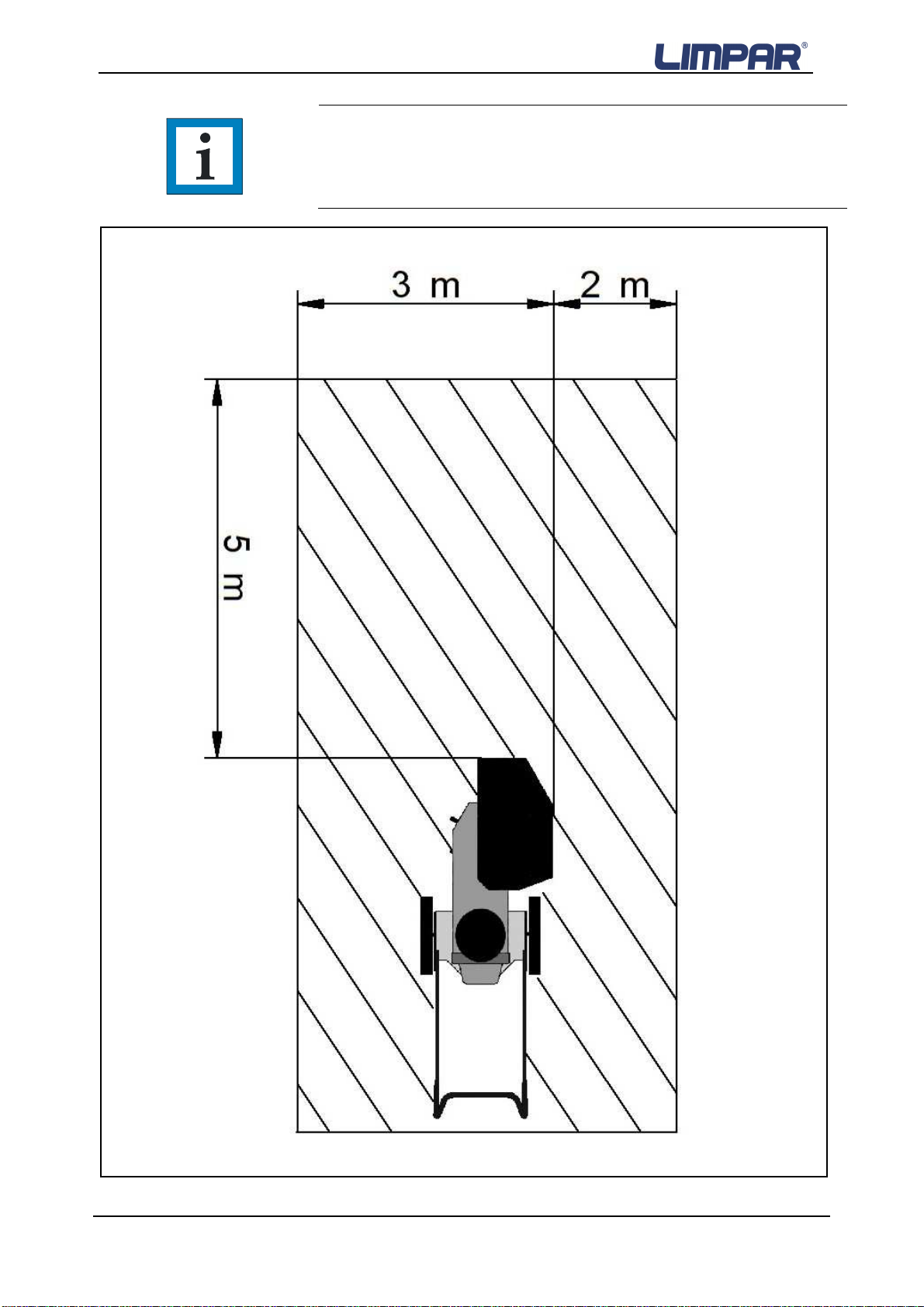

1.5 Danger zone
The danger zone is the area in which the safety or the health of
persons is jeopardised. Consequently no one should be in this
area when the weed brush is in operation.
WARNING!
For persons in the danger zone there is danger of injury due to
rocks or other foreign objects, or parts of the brush that are
thrown upwards by the machine
Therefore:
•Only operate the weed brush if no one is in the danger zone.
• Carefully observe the danger zone and stop the weed brush if
persons enter the danger zone.
• Before starting to work with the machine, foreign objects must
be removed from the area that will be processed. When
working with the machine, look for other foreign objects and
remove them in good time.
The danger zone is shown in the sketch (see Fig. 1, on the next
page):
A top view of the weed brush is shown. The shaded area is the
danger zone.
Safety

Page 10 of 33 19/02/2015 Weed Brush Turbo
NOTE
When swinging the weed brush to the right or left this change in
direction also applies for the danger zone.
Safety
Fig. 1:
Danger zone

Weed Brush Turbo 19/02/2015 Page 11 of 33
1.6 Work clothing
WARNING!
Unsuitable, loose work clothing, bandannas, ties, and scarves
can be caught by the weed brush and pulled in.
Severe injuries are the result.
Therefore:
• When operating the weed brush, and for maintenance and
repair tasks, always wear suitable tight-fitting work clothing.
• Because the possibility of rocks, or other objects, or parts of
the brush being thrown as far as the operator station or even
further cannot be completely excluded, it is necessary to wear
protective equipment: Long, sturdy trousers, safety footwear,
protective goggles and protective gloves.
1.7 Safety devices and protective devices
1.7.1 Safety switch
The switch bracket for brush rotation is designed as a dead
man's switch. Pull the switch bracket against the steering bar to
switch on brush rotation.
To bring the weed brush to a standstill, simply release the
switch bracket.
1.7.2 Splash guard
The splash guard reduces the danger zone. It must only be
used for maintenance or repair tasks.
1.7.3 Protective cover
The V-belt drives in the interior of the weed brush are
considered danger zones and are protected against access by
the front protective cover and the housing.
Safety

Page 12 of 33 19/02/2015 Weed Brush Turbo
1.8 Safety regulations and accident prevention
regulations
Comply with the following instructions to avoid injury and material
damage. In addition, for commercial use comply with the safety
and accident prevention regulations issued by the Employers
Liability Insurance Associations.
•Only operate the weed brush with properly mounted safety
devices and protective devices (see section 1.7, page 11).
These devices may only be dismounted for maintenance and
repair tasks. After concluding these tasks the safety devices
and protective devices must be immediately remounted.
Otherwise there is significant danger of injury.
•Only use the weed brush for its intended use, otherwise
dangerous situations can occur with serious or fatal injuries
as the result (intended use: see section 1.1, page 7).
•Due to poor lighting conditions during operation a number of
dangers can occur. Only operate the weed brush if there is
adequate lighting.
•Only guide the weed brush at walking speed.
•The motor must be switched off before you refuel the
machine of leave the machine.
•For tasks along walls there is danger of hand scrape injuries.
Avoid touching the walls with your hands and wear protective
gloves.
•Maintenance and repair tasks may only be executed by the
specialist dealer or by specialised personnel.
•High voltage on the ignition cable and spark plug connector!
Always switch the weed brush off with the fuel control lever,
before performing tasks on the ignition cable or spark plug
connector.
Safety

Weed Brush Turbo 19/02/2015 Page 13 of 33
•Comply with the instructions on the safety stickers that are
located on the weed brush. Safety stickers must not be
removed. If they have become illegible or have been lost,
they must be replaced (meaning of the stickers: see section
1.10, page 14). Contact your specialist dealer to order new
stickers.
•Wear tight-fitting clothing. Long hair must be tied back.
•Do not operate the weed brush in faulty condition; significant
injury hazards can occur. If faults occur switch off the weed
brush and initiate the repair.
•Switch off the weed brush prior to performing repair tasks,
including cleaning tasks. Ensure that no other person can
restart the weed brush (e.g. pull off the spark plug
connector). Otherwise there is danger of injury.
•Only use original spare parts and accessories that are
approved by the manufacturer. The use of other parts voids
the liability for the ensuing consequences.
•Execution of the specified maintenance and repair tasks is
part of intended use of the weed brush; intended use
particularly includes compliance with the maintenance
intervals. If you do not execute these tasks, faultless function
cannot be ensured. Dangers for personnel and objects can
occur. We recommend that you keep maintenance logs.
1.9 Disposal
After its service life, only have qualified specialists dispose of
the weed brush. The manufacturer assumes no liability for
damage that occurs due to improper disposal.
Safety

Page 14 of 33 19/02/2015 Weed Brush Turbo
1.10 Safety signs on the weed brush
Warning!
Danger of injury due to ignorance of the danger zones.
The stickers attached on the weed brush contain warnings of
specific dangers as well as instructions for correct operation. The
stickers supplement the instructions specified in this manual.
Therefore:
•Always comply with the warnings affixed on the weed brush.
•Do not remove any warning stickers
•Replace warning stickers that come off of the machine or that
have already been lost.

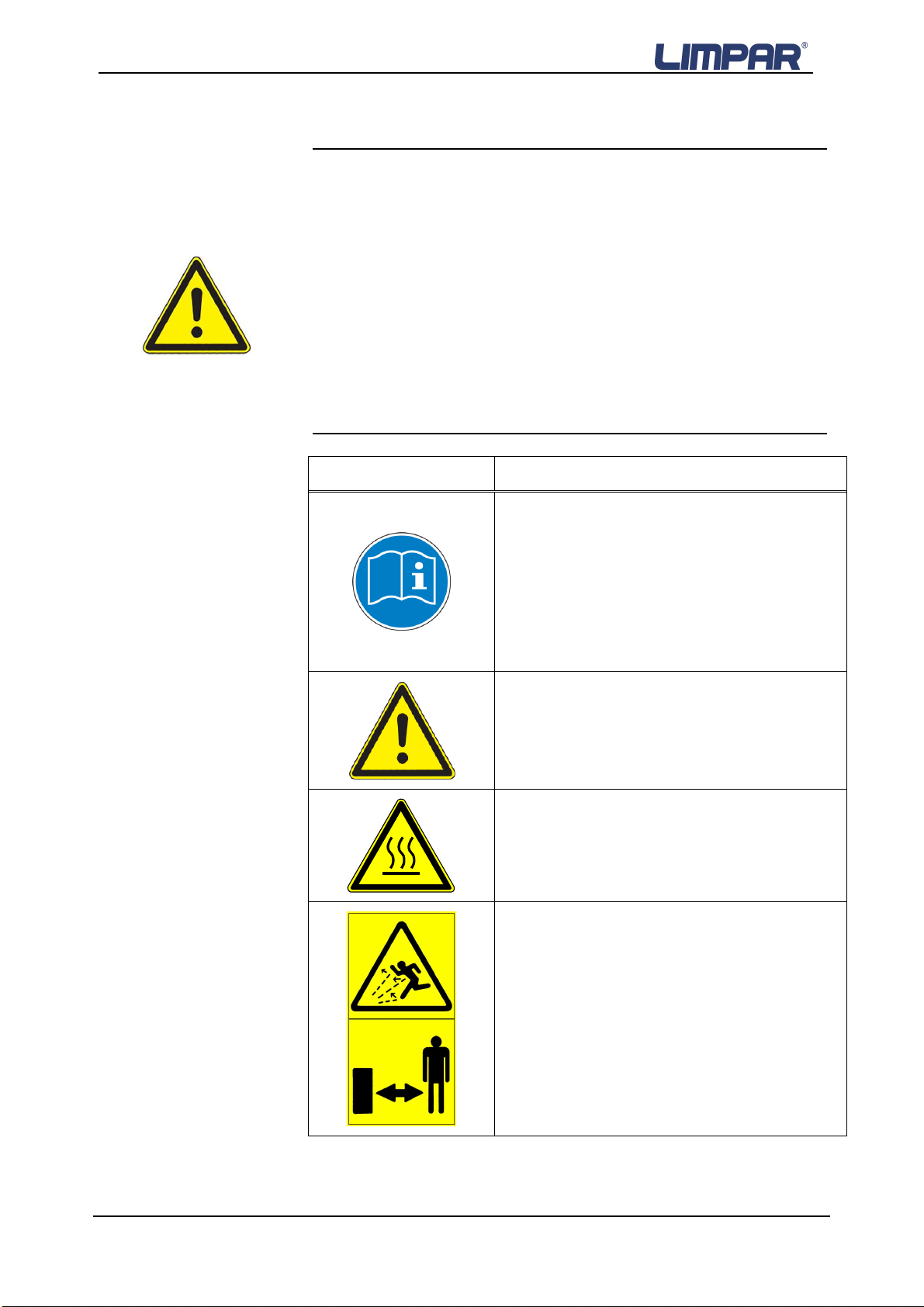

Stickers Meaning
Before using the weed brush, the operating
manual must be read. All information
contained in the operating manual must
always be complied with.
Position: On the rear of the machine in the
operator’s field of vision.
Warning – general dangers.
Position: On the rear of the machine in the
operator’s field of vision.
Warning – hot surface.
Position: On the motor.
Warning – tossed-up sweepings.
Maintain distance.
Position: On the left side of the brush deck
Safety

Weed Brush Turbo 19/02/2015 Page 15 of 33
2 Description
With the Weed Brush Turbo, weeds are removed with motor
power from paved surfaces outside of enclosed spaces.
The weed brush consists of a sheet steel housing, on which a
petrol motor is mounted. The motor drives the 6 replaceable
braided wire elements.
The weed brush has a steering arm with which it is guided by a
pedestrian, and from which all operating elements can be
reached.
2.1 Rating plate
A rating plate is attached on the machine, it contains the basic
data for the machine (see Fig. 2). The rating plate is on the left
side of the weed brush below the motor.
Description
Fig. 2: Rating plate

Page 16 of 33 19/02/2015 Weed Brush Turbo
2.2 Overview
Description
Fig. 3: Components and operating elements
Switch bracket
brush drive
Splash guard
Brush deck
Brush head
Fuel control lever
and motor stop
Braided wire
elements
Lateral adjustment
Protective cover

Weed Brush Turbo 19/02/2015 Page 17 of 33
2.3 Technical data
Dimensions, weight, motors
Work width 37 cm
Weight 48 kg
Motor Honda GCV 160
Hand/arm vibrations on the weed brush
Vibration total value
(Honda motors) a
hwd
= 6.8 m
-2
Noise emission value of the weed brush
Sound power level
(Honda motor) L
WAd
= 95 dB(A)/1pW
Sound pressure level
on the operator’s ear
(Honda motor) L
pAd
= 85 dB(A)/20µPa
Description

Page 18 of 33 19/02/2015 Weed Brush Turbo
3 Commissioning
CAUTION!
Danger of injury and danger of material damage due to
improper assembly of the weed brush.
Therefore:
•The completion and all necessary adjustments, incl. trial
run, are included in the scope of delivery and must be
executed by the specialist dealer prior to transfer to the
customer!
We recommend that two people assemble the weed brush.
3.1 Unpacking
Place the packed weed brush on level ground
Open the box on the top
Cut open the corners of the box to the floor.
Set up the steering arm in accordance with section 3.2 and
roll the weed brush away from the packaging.
Dispose of the packaging in accordance with the waste
disposal regulations issued by your municipal
administration.
3.2 Adjusting the steering arm
See Fig. 3, page 16 for adjustment of the steering arm.
CAUTION!
Danger of injury and danger of material damage when raising the
steering arm.
When lifting up the steering arm there is a crush hazard between
steering arm and motor.
Bowden cables can be pinched and damaged when lifting up the
steering arm.
Therefore:
•Carefully lift up the steering arm.
•
When lifting up the steering arm pay attention to the Bowden
cables.
Commissioning

Weed Brush Turbo 19/02/2015 Page 19 of 33
3.3 Mounting the splash guard
See Fig. 3, page 16 for installation of the splash guard.
CAUTION!
Danger of injury and danger of material damage when mounting
the splash guard, or if the weed brush is used without splash
guard.
Therefore:
• Only mount the splash guard when the motor is switched
off!
• Only dismount the splash guard for maintenance tasks or
repairs.
• Never operate the weed brush without splash guard!
The splash guard has two round tubes that you insert in the
two squared tubes attached on the weed brush.
Guide both round tubes into the squared tubes to the stop,
so that the splash guard completely covers.
Screw the provided screw (Allen screw M5x25) through the
bore into the round tube and secure it with the nut (stop
nut M5).
Commissioning

Page 20 of 33 19/02/2015 Weed Brush Turbo
4 Operation
Prior to operation always read the instructions in the Safety
section (see section 1, page 7)!
WARNING!
Danger of injury when operating the weed brush.
Tossed-up objects can hit and injure persons who are in the
danger zone.
Therefore:
•Ensure that no one is in the danger zone (see Fig. 1,
page 10).
•Only switch on brush rotation after this has been done.
•Always observe the danger zone during operation.
•Stop the traction drive and brush rotation if people enter the
danger zone during operation.
•The user is responsible relative to third persons who are in
the work area (entire area that will be processed).
DANGER!
Life-threatening danger due to movements of the weed brush.
When operating the weed brush on slopes, the weed brush can
start moving without control, due to gravity.
Therefore:
•For tasks on sloping terrain always bear in mind that there is a
possibility of the machine rolling off.
• If possible, guide the weed brush on slopes transverse to the
direction of the slope.
• Do not use the weed brush on terrain with a slope of more than
37% (20 degrees).
Operation
