Preface
Dear User,
We are delighted that you have chosen a product from LINAK®.
LINAK systems are high-tech products based on many years of experience in the manufacture and development
of actuators, electric control boxes, controls and chargers.
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer
of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It
is the responsibility of the manufacturer of the end-use product to provide a User Manual where relevant safety
information from this manual is passed on to the end-user.
We are sure that your LINAK product/system will give you many years of problem-free operation.
Before our products leave the factory they undergo full function and quality testing. Should you nevertheless
experience problems with your LINAK product/system, you are always welcome to contact your local dealer.
LINAK subsidiaries and some distributors situated all over the world have authorised service centres, which are
always ready to help you.
LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance
with the specifications, maintenance being done correctly and any repairs being carried out at a service centre,
which is authorised to repair LINAK products.
Changes in installation and use of LINAK products/systems can affect their operation and durability. The
products are not to be opened by unauthorised personnel.
The User Manual has been written based on our present technical knowledge. We are constantly working on
updating the information and we therefore reserve the right to carry out technical modifications.
LINAK A/S

Page 4 of 20
Valid for:
This User Manual is valid for the following products:
(See the first 3 - 5 characters on the label)
Actuators: LA27, KA20
Control box: CBH1200B
Power supply: SMPS001 or SMPS002
Controls: HB10, HBBRIO02

Page 5 of 20
Safety instruction
General
Important information
Important information on LINAK®products can be found under the following
headings:
Warning!
Failure to comply with these instructions may result in accidents involving
serious personal injury.
Failing to follow these instructions can result in the product being damaged
or being destroyed.
Safe use of the system is possible only when the operating instructions are read
completely and the instructions contained are strictly observed.
Failure to comply with instructions marked with the ”NOTE” symbol may result in
serious damage to the system or one of its components.
It is important for everyone who is to connect, install, or use the systems to
have the necessary information and access to this User Manual. Follow the
instructions for mounting – risk of injury if these instructions are not followed.
The appliance is not intended for use by young children or infirm persons
without supervision.
If there is visible damage on the product it must not be installed.
Note that during construction of applications, in which the actuator is to
be fitted, there must be no possibility of personal injury, for example the
squeezing of fingers or arms.
Only the power supply type SMPS001 or SMPS002, shall be used with the
system (CBH basic System).
The power supply shall not be covered while operating to allow sufficient
cooling of this appliance.
...to be continued

Page 6 of 20
The appliance is only to be used with the power supply unit provided with the
appliance.
Furthermore take care about the connecting wires from the power supply to
the CBH Basic System, don’t damage this by overrun.
Assure free space for movement of application in both directions to avoid
blockade.
Safety issues
The builder of the equipment shall ensure that the use of the component
complies with relevant standards – like the Machine Directive. Care must be
taken to avoid squeezing of cables as it can cause movement of the system!
The SMPS001/002 must not be packed in heat insulating material, but must
be placed so that it can emit waste heat to the surroundings. There are no
ventilation holes to consider, the SMPS emits heat through its surface.
Only the power supply type SMPS001 or SMPS002, or similar suited products
meeting the requirements EN 60335-1, shall be used with the system (CBH
basic System).
Please observe that the actuators LA27 used for CBH Basic systems are with
signal end-stop switches and are not compatible with CBH Advanced systems
The SMPS006 is not compatible with the CBH Basic system. The system is only
released to 24V DC (SMPS006 = 29V DC)
It is possible only to use 1 power supply (SMPS001 or SMPS002) for 2 CBH
systems. Remember speed may decrease when running 2 systems at the same
time.

Page 7 of 20
Before installation, re-installation, or troubleshooting:
• Stop the actuators
• Pull out the mains plug.
• Relieve the actuators of any loads, which may be released during the work.
Before start-up:
• Make sure that the system has been installed as instructed in this User Manual.
• Make sure that the voltage of the control box/SMPS is correct before the system
is connected to the mains.
• System connection. The individual parts must be connected before the control box
/SMPS is connected to the mains. See the User Manual for LINAK actuators, if
necessary.
During operation
• If the control box makes unusual noise or smells, switch off the mains voltage
immediately.
• Take care that the cables are not damaged.
• The products must only be used in an environment, that corresponds to their IP
protection.
Misc.
The actuator system has a sound level below 70dB(A) in typical applications.
Updated manuals and declarations can always be found here:
www.linak.com/homeline

Page 8 of 20
Only for EU markets
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Only for Non EU markets
Persons who do not have the necessary experience or knowledge of the
product/products must not use the product/products. Besides, persons with
reduced physical, sensory or mental abilities must not use the product/
products, unless they are under surveillance or they have been thoroughly
instructed in the use of the apparatus by a person who is responsible for the
safety of these persons.
Moreover, children must be under surveillance to ensure that they do not play
with the product.
Misuse
Do not overload the actuators – this can cause danger of personal injury and
damage to the system.
Do not use the actuator system for lifting persons. Do not sit or stand on a
table while operating – risk of personal injury.
Do not use the system in environments other than the intended indoor use

Page 9 of 20
Repairs
In order to avoid the risk of malfunction, all HOMELINE®repairs must only be carried out by authorised LINAK®workshops or
repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned
to authorised LINAK workshops.
Warning!
If any of the HOMELINE®products are opened, there will be a risk of subsequent malfunction.

Page 10 of 20
Misc. on the HOMELINE®system
Warranty
There is a 36 months’ warranty on the HOMELINE products CBH Basic Systems against manufacturing faults from the produc-
tion date of the individual products (see label). LINAK A/S’ warranty is only valid in so far as the equipment has been used and
maintained correctly and has not been tampered with. Furthermore, the system must not be exposed to violent treatment. In
the event of this, the warranty will be ineffective/invalid. For further details, please see LINAK A/S’ ordinary conditions of sale.
Maintenance
Clean dust and dirt on the outside of the system at appropriate intervals and inspect for damage and breaks.
Inspect the connections, cables, and plugs and check for correct functioning as well as fixing points.
The cleaners and disinfectants must not be highly alkaline or acidic (pH value 6-8).
ETL-marking
Due to space limitations, the complete ETL-marking demands are not represented on the marking plates.
The full ETL Recognized Component markings are shown here.
C/N 4008003
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United States
C/N 4008005
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United States
C/N 4008671
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United States
C/N 120690
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United
States
C/N 9901916
Conforms to UL962
Cert. to CSA Std. C22.2 No. 68-09
ETL Recognized Component mark for Canada and United
States

Page 11 of 20
Description of the HOMELINE®CBH Basic system
A CBH Basic system consists of:
• CBH Basic control box
• SMPS001 or SMPS002 power supply
• LA27 linear actuator
• HB10 handset
Mounting guidelines for the CBH

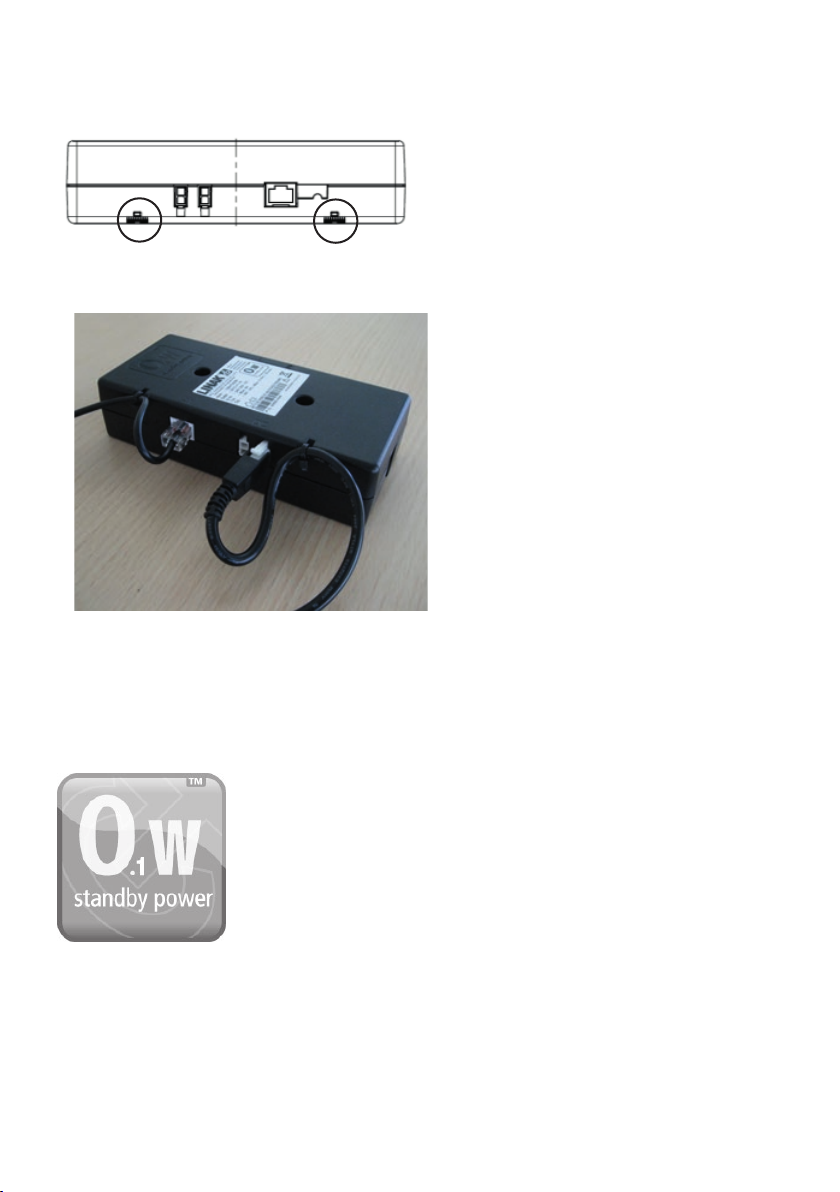

The control box is to be fastened with 2 screws with a head diameter between ø 8 and ø 10 mm. With regard to the surface
pressure, ø 10 mm is preferable. See drawing for placing of mounting holes and the space the CBH takes up.
The mounting surface to which the control box is attached should have a surface evenness better than ± 0.5 mm.
The mounting screws on the control box must be fastened with a max. torque of 1 Nm.
The CBH must not be packed in heat insulating material, but in a way that allows it to emit waste heat to the surroundings.
There are no ventilation holes to consider, the CBH emits heat through its surface.
The electric connection:
The system is to be connected as follows:
• Each linear actuator must be connected to the socket on the control box by means of the motor cable, which has a 6-pin
plug in each end.
• The control is to be connected on the opposite same side of the control box as the actuators.
• Finally, connect the SMPS unit to the CBH via a DC port.
Please note that the control box/SMPS must only be connected to the voltage stated on the labels.
The LA27 actuator is a powerful actuator designed for applications such as leisure beds.
Mechanical spline:
The splines function so that the actuator can only push, not pull. During pull in the actuator, the inner tube is lifted off the
thread bush, and the actuator can therefore never pull a load, only push.
Functional test of mechanical splines:
When the piston rod is at the innermost position, it must be possible to pull it out manually to its full travel length and to press
it in again without much resistance and without using the motor. If this is not possible, contact your nearest LINAK dealer.
Usage:
• Duty cycle: 2/18; 2 minutes continuous use followed by 18 minutes not in use
• Ambient temperature: +5oC to +40oC (the actuator must also be at this temp.)
Warning!
• If the actuator does not work as described above, the risk of injury due to squeezing can arise.
The actuator must therefore immediately be sent for service at the nearest, authorised LINAK workshop.
• Do only use the actuator within specified working limits.
• Do not sideload the actuator.

Page 12 of 20
Cable relief:
The CBH features a cable relief option. By using these small holes on the CBH, you can tie the DC cables from the SMPS unit to
the control box by use of standard cable ties.
The circles illustrate the small holes on the control box
where a standard cable tie can be mounted and the DC
cable from the SMPS/Handset cable can be fixed.
The extra cable tie length is just cut off when the cables
have been fixed.
The CBH is a ZERO™ control box
A hallmark of the CBH ZERO platform is the very low power consumption in standby mode, saving energy and money.
The low standby consumption is standard.

Page 13 of 20
How to mount the locking device (0705889)
To ensure optimal cable relief on the SMPS001/002 a locking device (0705889) should be used. Follow the guide below on
how to fix the locking device on the SMPS.

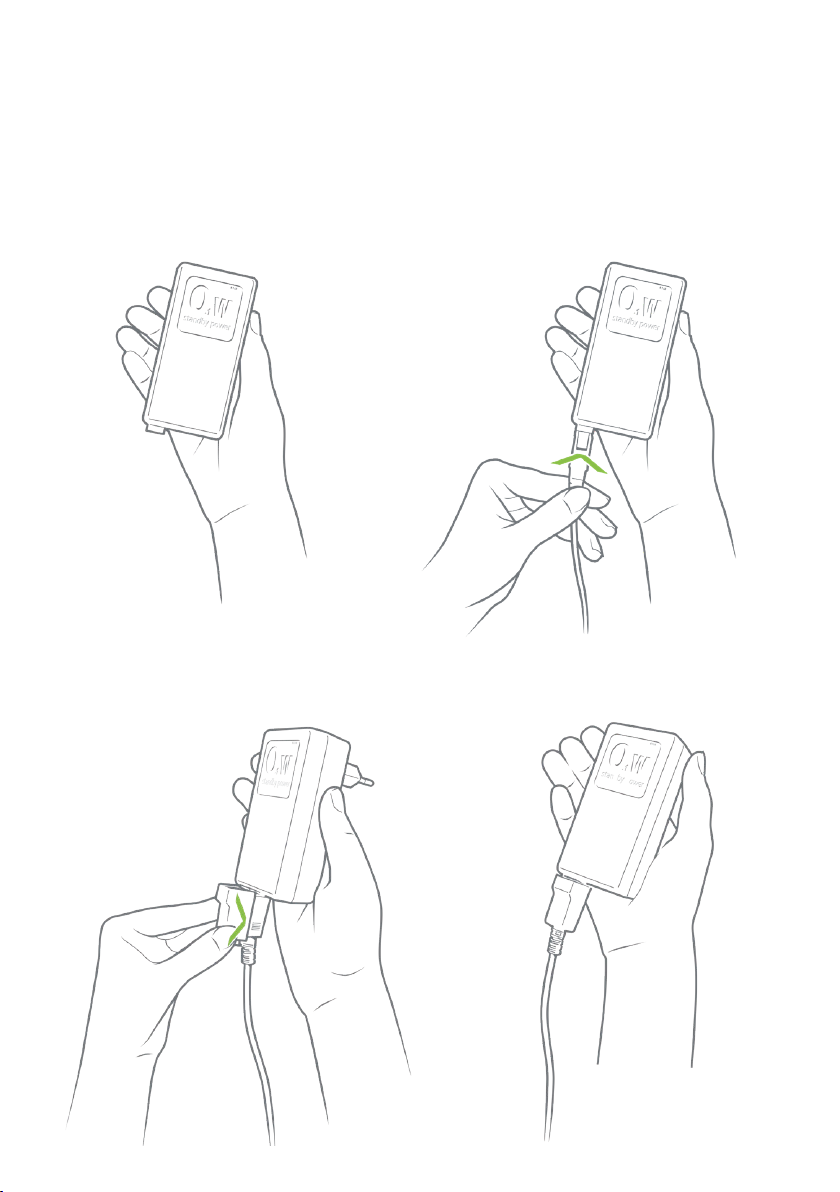

1.Take the SMPS 2. Plug the 2-poled DC cable in the SMPS
3. Slide the locking device on 4. The cable is now fully secured.

Page 14 of 20
Disposal of LINAK’s products
As LINAK’s customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that
enables a classification to different waste fractions for recycling or combustion.
Guidance
We recommend that our products be disassembled as much as possible and divided into different waste groups for recycling or
combustion.
For example, waste can be sorted into metals, plastics, cable scrap, combustible material and recoverable resources.
Some of these main groups can be further divided into subgroups; e.g. metal can be divided into steel/aluminium/copper and
plastic can be divided into ABS/PA/PE/PP.
As an example, the table below breaks down the different components in LINAK products to various recycling groups:
Product Components Recycling group
Column/ Actuator : Spindle and motor
Plastic housing
Cable
PC boards
Metal scrap
Plastic recycling or combustion
Cable scrap or combustion
Electronics scrap
Control Box : PC boards
Plastic housing
Cable
Transformer
Electronics scrap
Plastic recycling or combustion
Cable scrap or combustion
Metal scrap
Handset/Control : Plastic housing
Cable
PC boards
Plastic recycling or combustion
Cable scrap or combustion
Electronics scrap
By now, almost all our casted plastic parts are supplied with an interior code for plastic types and fibre contents, if any.
Main groups of disposal
Product main groups Metal scrap Cable scrap Electronics scrap Plastic recycling or
combustin
Comments
LA27, KA20 X X X X
CBH1200B X X
SMPS001, SMPS002 X X
HB10, HBBRIO02 X X X
Disposal of batteries
Details regarding safe disposal of used and leaking batteries:
Batteries should be disposed in accordance with appropriate federal, state and local regulations. LINAK recommends that used
or leaking batteries are disposed through local recycling systems. Please do not throw used or leaking batteries in normal
household waste or in nature. This will cause damage to the enviroment.
How to deal with leaking batteries
Leaking batteries should be disposed as described above.
If leaking batteries are discovered in the product, the batteries must be removed at once to minimise damage to the product. If
leaking batteries are left in the product, it might become defective.
It is recommended to use plastic gloves when handling leaking batteries. The contents of leaking batteries can cause chemical
burns and respiratory irritation.
If exposed to the contents of a leaking battery, please wash with soap and water. If irritation persists, please seek medical
attention. In case of eye contact, please flush eyes thoroughly with water for 15 minutes and seek medical attention.

Page 15 of 20
Labels
Label for CBH Basic Label for LA27
Label for the Handset HB12
Label for SMPS001 Label for SMPS002

Page 16 of 20
CBH Basic
DRAWING APPENDIX

Page 17 of 20
SMPS001

Page 18 of 20

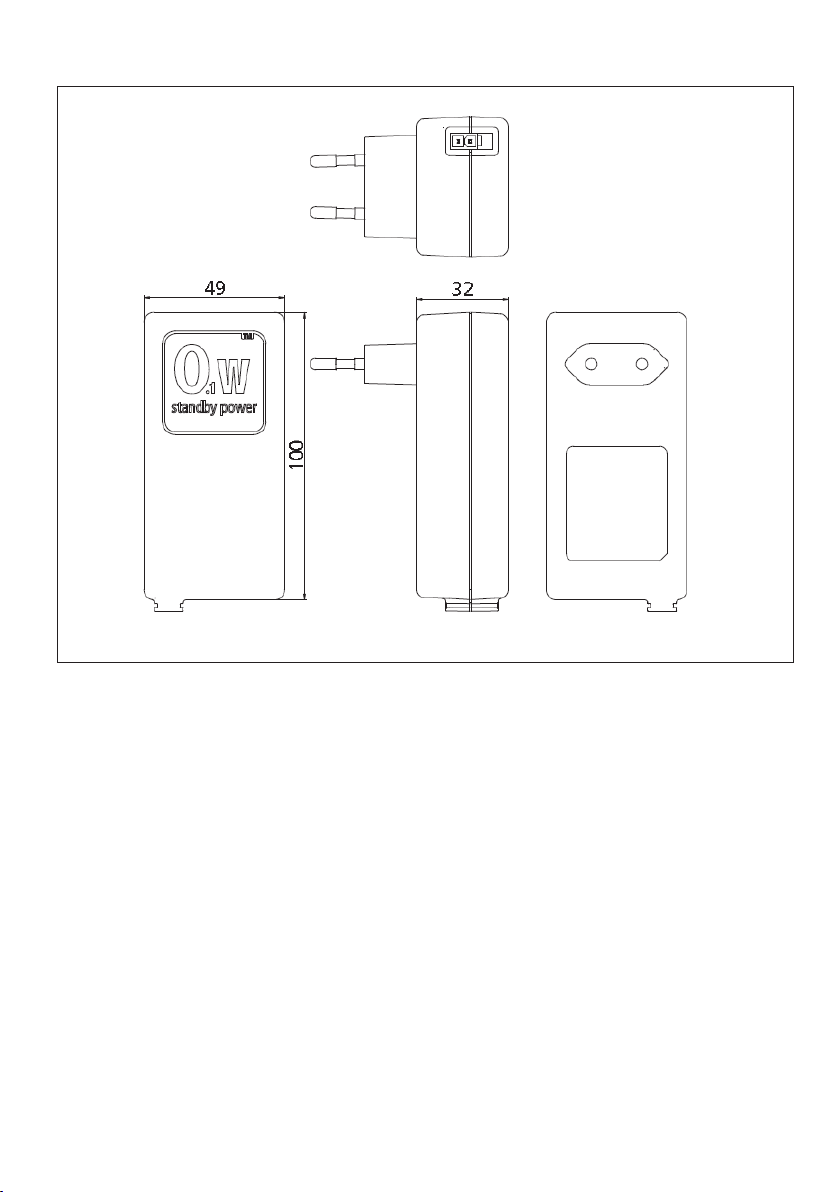

SMPS002
HB 10 with cable

Page 19 of 20
LINAK APPLICATION POLICY
The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product defined as
hardware, software, technical advice, etc. related to an existing or new customer application.
LINAK products as defined above are applicable for a wide range of applications within the Medical, Furniture, Desk and
Industry areas. Yet, LINAK cannot know all the conditions under which LINAK products will be installed, used, and operated, as
each individual application is unique.
The suitability and functionality of the LINAK product and its performance under varying conditions (application, vibration,
load, humidity, temperature, frequency, etc.) can only be verified by testing, and shall ultimately be the responsibility of the
LINAK customer using any LINAK product.
LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the
responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
LA27
Drawing no.:LA27001B
Drawing no.: CB6_LA27001B

Page 20 of 20
Copyright ©LINAK 2017.08 MA-M9-02-528-D
FACTORIES
• Denmark
LINAK A/S
Group Headquarters
Tel: [phone]
Fax: [phone]
Fax (Sales): [phone]
www.linak.com
• Denmark
LINAK Profiles
Tel: [phone]
www.linak-profiles.com
• China
LINAK (Shenzhen) Actuator Systems, Ltd.
Tel: [phone]
Fax: [phone]
www.linak.cn
• Slovakia
LINAK Slovakia s.r.o.
Tel: [phone]
Fax: [phone]
www.linak.sk
• Thailand
LINAK APAC Ltd.
Tel: [phone]
www.linak.com
• USA
LINAK U.S. Inc.
Americas Headquarters
Tel: [phone]
Fax: [phone]
www.linak-us.com
SUBSIDIARIES
• Australia
LINAK Australia Pty. Ltd
Tel: [phone]
Fax: [phone]
www.linak.com.au
• Austria
LINAK Repräsentanz
Österreich (Wien)
Tel: [phone]
Fax: [phone]
www.linak.at - www.linak.hu
• Belgium
LINAK Benelux
(Belgium & Luxembourg)
Tel: [phone]
www.linak.be - www.fr.linak.be
• Brazil
LINAK Do Brasil Comércio De Atuadores Ltda.
Tel: [phone]
Fax: [phone]
www.linak.com.br
• Canada
LINAK Canada Inc.
Tel: [phone]
Fax: [phone]
www.linak-us.com
• China
LINAK (Shenzhen) Actuator Systems, Ltd.
Tel: [phone]
Fax: [phone]
www.linak.cn
• Czech Republic
LINAK C&S s.r.o.
Tel: [phone]
Fax: [phone]
www.linak.cz - www.linak.sk
• Denmark - Headquarters
LINAK A/S - Group Headquarters
Tel: [phone]
Fax: [phone]
Fax (Sales): [phone]
www.linak.com
• Denmark - International
LINAK International
Tel: [phone]
www.linak.com
• Denmark - Sales
LINAK DANMARK A/S
Tel: [phone]
Fax: [phone]
www.linak.dk
• Finland
LINAK OY
Tel: [phone]
www.linak.fi
• France
LINAK FRANCE E.U.R.L
Tel: [phone]
Fax: [phone]
www.linak.fr
• Germany
LINAK GmbH
Tel: [phone]
Fax: [phone]
www.linak.de
• India
LINAK A/S India Liaison Office
Tel: [phone]
Fax: [phone]
www.linak.in
• Ireland
LINAK UK Limited (Ireland)
Tel: [phone]
Fax: [phone]
[phone] (UK Mobile)
[phone] (Republic of Ireland
Mobile)
www.linak.co.uk
• Italy
LINAK ITALIA S.r.l.
Tel: [phone]
Fax: [phone]
www.linak.it
• Japan
LINAK K.K.
Tel: [phone]
Fax: [phone]
www.linak.jp
• Malaysia
LINAK Actuators Sdn. Bhd.
Tel: [phone]
Fax: [phone]
www.linak.my
• Netherlands
LINAK Benelux
Tel: [phone]
www.linak.nl
• New Zealand
LINAK New Zealand Ltd
Tel: [phone]
Fax: [phone]
www.linak.com.au
• Norway
LINAK Norge AS
Tel: [phone]
www.linak.no
DISTRIBUTORS
• Argentina
NOVOTEC ARGENTINA SRL
Tel: [phone]
Fax: [phone]
www.novotecargentina.com
• Colombia
MEM Ltda
Tel: +[57] (1) 334-7666
Fax: +[57] (1) 282-1684
www.mem.net.co
• India
Mechatronics Control Equipments India Pvt Ltd
Tel: [phone], 85
www.mechatronicscontrol.com
• Indonesia
PT. HIMALAYA EVEREST JAYA
Tel: [phone] 544 8965
Fax: [phone]
Fax (Sales): [phone]
www.hej.co.id
• Iraq
Scan Medical Tech
Tel: [phone]
• Israel
NetivTech LTD
Tel: [phone]
Fax: [phone]
www.netivtech.com
• Kingdom of Bahrain
Mechatronics Industrial Equipments
Tel: [phone]
Fax: [phone]
www.mechatronicsbh.com
• Qatar
Mechatronics Industrial Equipments
Tel: [phone]
Fax: [phone]
www.mechatronicsqatar.com
• Russia
OOO FAM
Tel: [phone]
Fax: [phone]
www.fam-drive.ru
• Singapore
Servo Dynamics Pte Ltd
Tel: [phone]
Fax (Sales): [phone]
• South Africa
Industrial Specialised Applications CC
Tel: [phone]
www.isaza.co.za
• United Arab Emirates
Mechatronics Industrial Equipments LLC
Tel: [phone]
Fax: [phone]
www.mechatronics.ae
• Poland
LINAK Polska
LINAK Danmark A/S (Spólka Akcyjna)
Tel: [phone] 295 09 71
www.linak.pl
• Republic of Korea
LINAK Korea Ltd.
Tel: [phone]
Fax: [phone]
www.linak.kr
• Russia
LINAK LLC
Tel: [phone]
Fax: [phone]
www.linak.ru
• Slovakia
LINAK Slovakia s.r.o.
Tel: [phone]
www.linak.sk
• Spain
LINAK Actuadores, S.L.u
Tel: [phone]
Fax: [phone]
www.linak.es
• Sweden
LINAK Scandinavia AB
Tel: [phone]
Fax: [phone]
www.linak.se
• Switzerland
LINAK AG
Tel: [phone]
Fax: [phone]
www.linak.ch - www.fr.linak.ch
www.it.linak.ch
• Taiwan
LINAK (Shenzhen) Actuator systems Ltd.
Taiwan Representative office
Tel: [phone]
Fax: [phone]
www.linak.tw
• Thailand
LINAK APAC Ltd.
Tel: [phone]
• Turkey
LINAK İth. İhr. San. ve Tic. A.Ş.
Tel: + 90 312 4726338
Fax: + 90 312 4726635
www.linak.com.tr
• United Kingdom
LINAK UK Limited
Tel: [phone]
Fax: [phone]
www.linak.co.uk
• USA
LINAK U.S. Inc.
North and South American Headquarters
Tel: [phone]
Fax: [phone]
www.linak-us.com
www.linak-latinamerica.com
LINAK®accepts no responsibility for possible errors
or inaccuracies in catalogues, brochures, and other
material. LINAK reserves the right to change its
products without prior notice. LINAK cannot guar-
antee product availability and reserves the right to
discontinue the sale of any product.
The user is responsible for determining the suitabil-
ity of LINAK products for a specific application. All
sales are subject to the ‘Standard Terms of Sale and
Delivery’, available on LINAK websites.
LINAK and the LINAK logotype are registered trade-
marks of LINAK A/S. All rights reserved.
