Rothenberger Industrial ROTURBO 12000 User manual

INDUSTRIAL
Gebrauchsanweisung
Instructions for use
Mode d’emploi
Návod na použití
Manual de instrucciones
Használati utasítás
Istruzioni per l’uso
Navodila za uporabo
Návod na použitie
Art.-Nr.
1500000050, 1500000051
1500000164, 1500000165
1500000166, 1500000167
1500000363, 1500000364
Universalanleitung_Gasheizkanonen_D,GB,F,CZ_ES,H,I,SLO,SK:PRINT 20.01.2016 8:36 Uhr Seite 1

10
FEATURES
Introduction
Important: Read these instructions carefully so as to familiarise yourself with the
appliance before connecting it to its gas container. Keep these instructions for future
reference. Give these instructions to any third person using the appliance.
SYMBOLS USED IN THIS MANUAL
= Read the operating
instructions
= may only be used
outside or in well
ventilated rooms
= Caution,
hot parts
1
2
5
4
6
7
10
11
12
13
14
13a
14a
9
3
12a
86
5

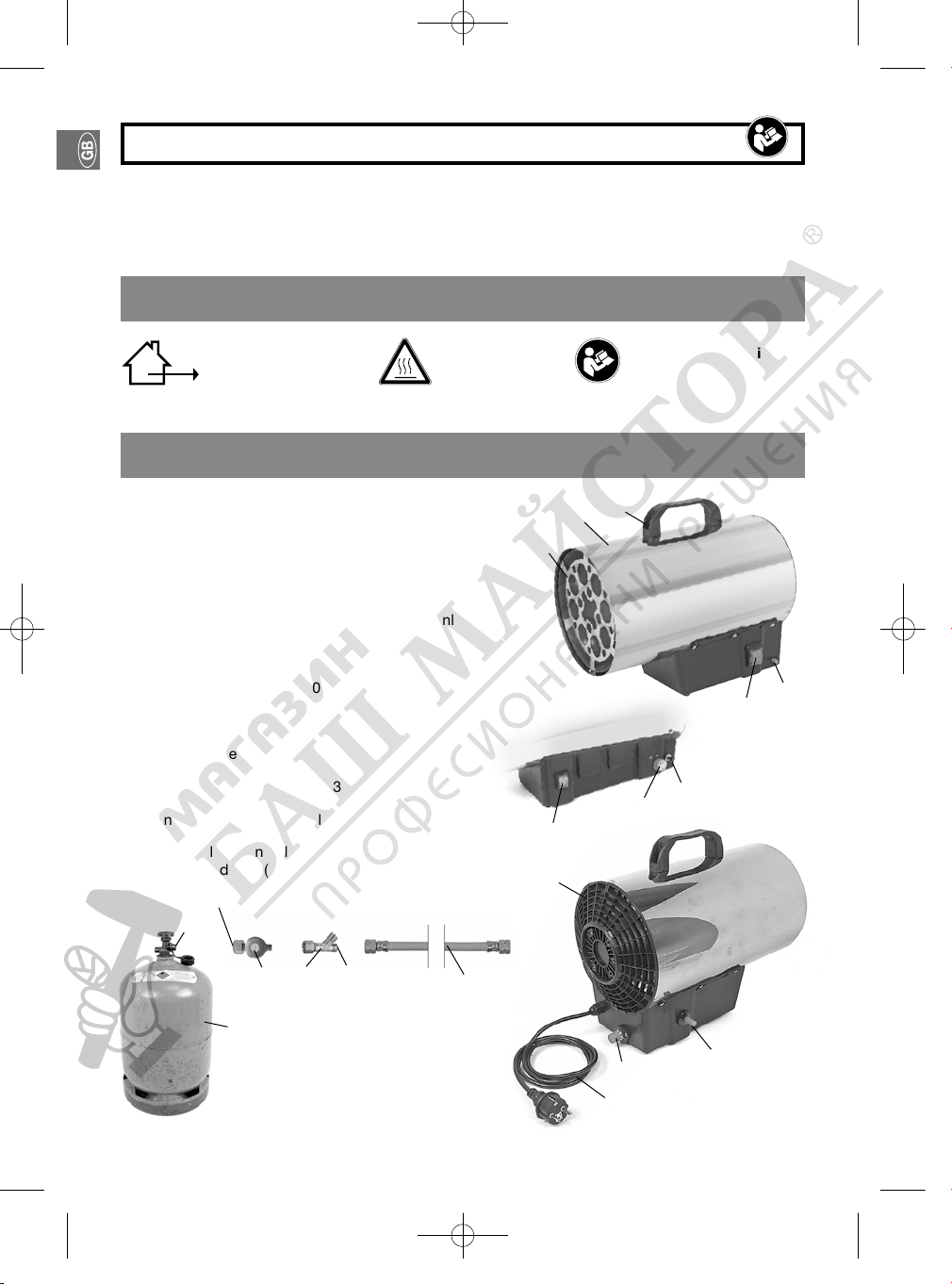

1 Housing
2. Motor vent
3. Air vent
4. Handle incl. 2 screws size PH2
5. On- / Off switch
6. Gas feed button
7. Piezo ignition
8. Gas regulating valve (Roturbo 35000 SA only)
9. Gas connection
10. Mains cable
11. Hose (Roturbo 12000 & 19000: G 1/4’’ left winding;
Roturbo 35000 & 35000 SA: G 3/8’’ left winding)
12. Hose failure safety device
(Special accessories,
included in Roturbo 35000 & 35000 SA)
12a. Pressure release button
13. Pressure regulator
(Roturbo 12000 & 19000: 300 mbar;
Roturbo 35000 & 35000 SA: 1500 mbar)
13a. Integrated seal (not in all versions / countries)
14. LPG refillable cylinder
(not included in delivery scope)
14a. Integrated seal (not in all versions / countries)
Universalanleitung_Gasheizkanonen_D,GB,F,CZ_ES,H,I,SLO,SK:PRINT 20.01.2016 8:36 Uhr Seite 1
0

11
SAFETY INSTRUCTIONS
1) Electricity
- Ensure that the rated power indicated on the machine
label corresponds with your mains.
- The appliance may only be connected to a correctly
installed socket.
- Do not mount the appliance close to water (e.g.
swimming pools, garden ponds...).
- Ensure that the cable does not come into contact with
sharp objects or hot surfaces.
- If the supply cord is damaged, it must be replaced
by manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
- In case of damage, the appliance should immediately
be disconnected from the gas supply and the mains
and may not be used.
2) Gas and Air
- CAUTION: RISK OF SUFFOCATION AND / OR
CARBON MONOXIDE POISONING. This appliance
shall be installed in accordance with the national
ventilation regulations in force. It may only be used
outside or in well ventilated rooms, and never in a
room smaller than 200 m3 (Roturbo 35000 & 35000
SA: 300 m3). A minimum ventilation of 500 cm2
(Roturbo 35000 & 35000 SA: 750 cm2) shall be
provided.
- THIS APPLIANCE IS NOT TO BE USED FOR THE
HEATING OF HABITABLE AREAS OF DOMESTIC
PREMISES; FOR USE IN PUBLIC BUILDINGS,
REFER TO NATIONAL REGULATIONS.
- The device may not be used underground.
- If the burner is not to be used over longer periods,
disconnect it from the gas bottle and keep it in a safe,
cool, dry and well-ventilated place out of the reach
of children.
- In case of a leak (gas smell), close the cylinder valve
immediately and keep the appliance away from
sources of ignition. The appliance may not be used
until the leak is found and repaired. Never check for
leaks using a flame; always use a soapy solution!
- Isolate the appliance from the cylinder by closing the
cylinder valve when the appliance is not in use.
- To prevent the risk of damage avoid twisting or
tortioning the flexible tubes and hoses. The hose may
not be twisted when connected.
- The appliance may only be used with the hose and
regulator supplied. Max. allowed hose length = 2
meters. Replacement hoses and regulators can be
purchased from the manufacturer. The use of non-
certified or altered parts is dangerous and may result
in serious injuries.
- Check the gas hose regularly for signs of damage.
Damaged gas hoses must be replaced. In case of
doubt please contact the manufacturer’s customer
service.
- Never connect a gas cylinder to the device without
first reading the instructions printed on the cylinder.
- Is is prohibited to smoke while connecting the gas
cylinder.
- Check that seal between the regulator and the gas
container are in place and in good condition before
connecting to the gas container.
- Never use the device if the seal is is damaged or
worn. Never use the device if it is not airtight,
damaged or does not function properly.
- To prevent the risk of liquefied gas escaping, the gas
cylinder may only be used when it is standing
upwards.
- Always close the cylinder valve when you leave the
appliance unattended and make sure that it cannot
be operated by unqualified persons.
- In case of damage, the appliance should immediately
be disconnected from the gas supply and the mains
and may not be used.
- This turbo fan gas heater is only intended for private
use. For industrial use, a hose failure safety device
has to be fitted to the appliance. This valve can be
purchased from the manufacturer.
3) Heat
- Position the appliance well away from walls,
inflammable materials and sources of ignition. Keep
at least 2 meters of distance to the front and sides
of the appliance. The appliance may not be covered
under any circumstances.
- Since the air blown out is extremely hot, persons and
animals should not stay directly in front of the
appliance. Danger of burns!
- Ensure that no flammable items can come into
contact with the appliance, mainly with its openings,
e.g. from wind or other natural causes.
- Do not store flammable liquids, paint, gas cylinders
etc. near the heater.
- Do not use the appliance in a flammable athmosphere
(e.g. close to gas or pressurised containers).
- This appliance becomes very hot when in use. Do
not touch any part of the appliance that is hot.
- Allow the appliance to cool down completely before
transport, disassembly, cleaning or storage.
- Beware of burning of hoses or mains cables.
- The gas cylinder may not be heated and should
never be positioned in front of the heater.
- To prevent the risk of burns, do not touch the
appliance after use, even if it has only been in use
for a short while. Caution: Accessible parts can be
very hot. Keep children away from the device.
4) Further instructions
- Do not leave the appliance unattended.
- Never remove the satety vents or dismantle and / or
modify the appliance in any way.
- Always keep all openings (motor vent, air vent, part
2 & 3) free and clear.
- Never try to repair the appliance by yourself. If a repair
is necessary, contact the manufacturer’s customer
service or a similarily qualified person.
- Before cleaning, disconnect the machine from the
mains and gas supply and allow it to cool down
sufficiently.
- This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge.
- Keep the device out of the reach of children. Keep
children well away from the appliance when in use.
Since this appliance uses both gas and electricity, it is extremely important to pay close
attention to the following safety instructions. Failure to do so can increase the risk of burning,
electric shock, fire, suffocation or explosion.
Universalanleitung_Gasheizkanonen_D,GB,F,CZ_ES,H,I,SLO,SK:PRINT 20.01.2016 8:36 Uhr Seite 1

12
Roturbo 12000 Roturbo 19000 Roturbo 35000 Roturbo 35000 SA
Gas category - gas type I3B/P - propane / butane, I3P - propane
Countries of destination AL, AT, BE, BG, CH, CY, CZ, DE, DK, EE, ES,
(I3B/P or I3P): FI, FR, GB, GR, HU, HR, IE, IT, IS, LV, LT, LU,
MK, MT, NL, NO, PL, PT, RO, SE, SI, SK, TR
Operating pressure 300 mbar 1500 mbar
Injector diametre 1.0 mm 1.18 mm 1.15 mm
Heat input (I3B/P) 13.3 kW 18.2 kW 34.0 kW 19.0 – 34.0 kW
Heat input (I3P) 11.9 kW 16.0 kW 29.0 kW 17.0 – 29.0 kW
Gas consumption 970 g/h 1325 g/h 2460 g/h 1375 – 2460 g/h
Flame temperature: 930 °C 980 °C 1000 °C
Air output 500 m3/ h 800 m3/h
Air delivery temperature
classification 32 K 48 K 53 K
Mains Voltage 230 V~ / 50 Hz
Rated power 39 W 65 W
Protection category IPX4; motor IP44
Insulation class I
Safety features Overheat protection, Overheat protection,
safety cut-out safety cut-out,
hose failure safety device
The burner may not be used without a constant pressure regulator fitted.
This appliance shall only be used with LPG refillable cylinders and only in the
open or in well-ventilated rooms. Keep children away from the device!
TECHNICAL SPECIFICATIONS
SCOPE OF USE
This appliance is designed for quick heating in large areas, marquees etc. It is not intended
for domestic use and it may only be used outside or in well ventilated rooms. Use of the product
for any other purpose and / or modification of the product count as misuse and can be highly
dangerous and is forbidden.
For industrial use, a hose failure safety device has to be fitted to the appliance. For Roturbo
35000 and 35000 SA, this valve is pre-assembled with the gas pressure regulator. For the
other items, it can be purchased from the manufacturer.
This appliance may only be used with propane or with propane-butane mixtures and with a
regulator with a constant output pressure of 300 mbar (Roturbo 12000, 19000) respectively
1500 mbar (Roturbo 35000, 35000 SA). This appliance shall only be used with LPG refillable
cylinders (different sizes in different countries, e.g. Germany 5 kg, 11 kg or 33 kg). It can be
dangerous to connect the burner to other types of gas containers.
Always make sure that the regulator and the hose used for this appliance are certified.
Insulation class I
Universalanleitung_Gasheizkanonen_D,GB,F,CZ_ES,H,I,SLO,SK:PRINT 20.01.2016 8:36 Uhr Seite 1
2

13
MOUNTING THE HANDLE
Mount the handle onto the gas heater using the screws provided. Use a PH2 phillips
screwdriver.
INSTALLATION / PREPARING FOR USE
CONNECTING TO A GAS CYLINDER
- Ensure that all valves are closed.
- Check that the seal between the regulator and the gas container are in place and in good
condition before connecting to the gas container. Depending on the version / country, the
seal may be located in the pressure regulator connection, in the gas cylinder connection
or in both connections. In case of doubt, please contact your local gas dealer.
- Check the condition of the hose and regulator each time before using the burner. Do not
use a hose or regulator that is damaged or worn.
- Connect the pressure regulator to the gas cylinder. Ensure that the direction of rotation of
the thread is correct (there may be differences according to country).
- Install the hose failure safety device, if available.
- Connect the gas hose to the pressure regulator and to the appliance. The hose end
connector and the appliance connector have left-handed threads.
- Tighten the connections and the pressure regulator with a suitably sized open-ended
wrench (there may be differences according to version / country). Do not exert excessive
force to prevent over-tightening or damaging the threads.
- Open the cylinder valve. Ensure that all the connections are tight. Use a leakage detection
spray or soapy water for this purpose. The connections may have to be re-tightened.
- Do not use the device if there is a leak in the system.
- Close the cylinder valve after performing the leakage test.
CONNECTING TO THE MAINS
- Ensure that the rated power indicated on the machine label corresponds with your mains
before using the machine.
- Connect the appliance to a correctly earthed socket.
CAUTION. The appliance may only be used with the hose and regulator supplied.
Universalanleitung_Gasheizkanonen_D,GB,F,CZ_ES,H,I,SLO,SK:PRINT 20.01.2016 8:36 Uhr Seite 1
3

FUNCTION OF THE SAFETY DEVICES
When the appliance is too hot, it will automatilally turn itself off. Before trying to use the
appliance again, locate and remove the cause of the overheating.
OVERHEAT PROTECTION
- Place the appliance and gas cylinder assembly outdoors on a level and stable surface, well
away from any inflammable materials. Pay special attention to the safety instructions above
in relation to the scope of use, installation site, risk of fire, using gas appliances etc.
- The gas cylinder may not be heated and should never be positioned in front of the heater.
- Ensure that the appliance is connected to the mains.
- Roturbo 35000 SA: turn the gas regulating valve (8) anti-clockwise to max. position.
- Open the gas cylinder valve by turning the knob anti-clockwise.
- Press the pressure release button of the hose failure safety device (12a), if available.
- Put the On -/ Off-switch (5) into position “I” Ensure that the ventilator is now running. If not,
the appliance may not be operated until this fault has been corrected.
- Press and hold the gas feed button (6). At the same time, press the Piezo ignition (7) as
often as necessary until the heater is lit. If the heater can’t be ignited, wait approx. one minute
and repeat the procedure as described above.
- Keep the gas feed button pressed for another 10 seconds.
- Roturbo 35000 SA: Once the flame is established, it can be adjusted as required by turning
the gas regulating valve (8).
- Turning off the appliance: close the gas cylinder valve first, allow the appliance to cool down
and then turn the ventilator off and disconnect the plug from the mains.
OPERATION / USE
14
Caution hot! Both the housing and front of the appliance become very hot
during use. Avoid contact with these parts when the machine is in use.
Caution! Risk of burning.
- Since the air blown out is extremely hot, persons and animals should not
stay directly in front of the appliance.
- As the appliance remains hot for a period of time after use, let it cool down
completely before moving or touching it.
- Always disconnect the appliance from the gas and mains when it is not in
use.
Universalanleitung_Gasheizkanonen_D,GB,F,CZ_ES,H,I,SLO,SK:PRINT 20.01.2016 8:36 Uhr Seite 1
4

15
Allow the appliance to cool down completely, close the gas valve and
disconnect the machine from the mains and gas supply before cleaning,
maintenance or storage.
If the flame extinguishes during use, the gas supply is automatically cut off. Normally, this
only happens in starting the appliance as it is still cold. Repeat the ignition procedure and
keep the gas feed button pressed for a longer time.
CHANGING THE GAS CYLINDER
SAFETY CUT-OUT
If the gas hose bursts, the gas flow is interrupted. The safety device can be reset by
pressing the pressure release button.
HOSE FAILURE SAFETY DEVICE
(SPECIAL ACCESSORIES, INCLUDED IN ROTURBO 35000 & 35000 SA)
- The gas cylinder may be changed only in the open, well away from sources of ignition and
other persons.
- Shut the cylinder valve, switch it off and disconnect it from the mains.
- If the appliance was in use, ensure that the flame has completely extinguished and let the
appliance cool down completely.
- Unscrew the gas regulator and remove it.
- Proceed as described in the section ‘Connecting to a gas cylinder’.
CLEANING
Clean the machine regularly with a dry cloth. Do not use aggressive cleaning agents, solvents
or petroleum spirit. Do not dip or spray the appliance in / with water or other liquids. The
appliance and mainly its openings should be kept free of dust.
MAINTENANCE, STORAGE AND CLEANING
GENERAL MAINTENANCE
- The machine requires very little maintenance.
- Regularly check the seals, hose and mains cable since these can perish and break or obtain
other damage.
- Do not modify the appliance in any way.
- If the appliance develops a fault have it repaired by a competent person or contact the
manufacturer. See the address at the back of the manual.
Universalanleitung_Gasheizkanonen_D,GB,F,CZ_ES,H,I,SLO,SK:PRINT 20.01.2016 8:37 Uhr Seite 1
5

16
STORAGE AND TRANSPORT
- If the burner is not to be used keep it at a safe, cool, dry and well-ventilated place out of
the reach of children.
- Protect the gas cylinder from sunlight and never expose it to temperatures above 50°C.
- The gas tank must be detached if the burner is not to be used over longer periods, or if it
is to be transported.
- Reusable tanks must always be refilled at authorised companies. Improper refilling can lead
to serious accidents.
- In general, all national regulations regarding operation, transportation and storage have to
be respected.
TROUBLESHOOTING
Problem Possible cause Troubleshooting
Appliance cannot be
switched on On/off switch defective Obtain a replacement switch from our service
centre and have these fitted
by an authorised person.
No power supply. Check the plug and the
mains socket
Gas valve closed Open the cylinder valve
Gas cylinder empty Replace the gas cylinder
Pressure regulator defective Purchase a replacement
pressure regulator from our
service center and mount it
as described above
Roturbo 35000 SA:
Gas regulating valve not on
max. position
Turn the valve anti-
clockwise to max. position.
Hose failure safety device
blocks the gas flow Press the pressure release button of the hose failure
safety device
Flame very weak, unsteady,
yellow... Gas cylinder almost empty Replace the gas cylinder
Pressure regulator defective Purchase a replacement
pressure regulator from our
service center and mount it
as described above
Flame extinguished as soon
as the gas feed button is
released
Safety cut out has cut off
the gas supply Repeat the ignition procedure and keep the gas feed button
pressed for a longer time
Universalanleitung_Gasheizkanonen_D,GB,F,CZ_ES,H,I,SLO,SK:PRINT 20.01.2016 8:37 Uhr Seite 1
6

17
Flame extinguishes during
use, ventilator keeps on
running
Gas cylinder empty Replace the gas cylinder
Pressure regulator
defective Purchase a replacement pressure regulator from our
service center and mount it
as described above
The appliance turns itself
off during use Overheat protection device turned off the appliance Allow the appliance to cool down and identify the
cause of the overheating
This symbol indicates that this product may not be disposed of together with domestic
waste in compliance with the (2002/96/EC) Regulation pertaining to waste electrical and
electronic devices (WEEE). This product must be handed in at an designated collection
point. This can occur, for example, by returning it when a similar product is purchased
or by handing it in at an authorised collecting point for the recycling of waste electrical
and electronic equipment. Owing to potentially hazardous substances that are frequently
contained in waste electronic equipment, incorrect handling of waste equipment may
have a negative impact on the environment and on the health of human beings. By
disposing of this product correctly, you are also contributing towards an efficient use
of natural resources. Information on collecting points for waste equipment can be
obtained from your local authority, the public waste disposal authority, an authorised
institution for the disposal of waste electrical and electronic equipment or the waste
collection services.
RECYCLING
Universalanleitung_Gasheizkanonen_D,GB,F,CZ_ES,H,I,SLO,SK:PRINT 20.01.2016 8:37 Uhr Seite 1
7
