Electric Pasta Cooker
Silverlink 600 Range

IS 402 ECN 3607 Page 1 of 9
Installation, Operating and Servicing
Instructions
Silverlink 600 Electric Pasta Boilers
PB33, PB66
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________

IS 402 ECN 3607 Page 2 of 9
CONTENTS
Important Information
2
Warnings and Precautions
3
Technical Data
3
Checklist of Enclosures
3
Installation and Commissioning
3-5
Operating Instructions
5-7
Cleaning
7
Servicing, Maintenance and Component Replacement
7
Fault Finding
7
Spare Parts List
8
Accessories
8
Service Information and Guarantee
9
IMPORTANT INFORMATION
Read these instructions carefully before using this product, paying particular
attention to all sections that carry warning symbols, caution symbols and notices.
Ensure that these are understood at all times.
WARNING!
This symbol is used whenever there is a risk of personal injury.
CAUTION!
This symbol is used whenever there is a risk of damaging your Lincat product.
NOTE:
This symbol is used to provide additional information, hints and tips.
KEEP THIS MANUAL FOR FUTURE REFERENCE

IS 402 ECN 3607 Page 3 of 9
WARNINGS AND PRECAUTIONS
This appliance must be installed, commissioned and serviced by a qualified person
in accordance with national and local regulations in force in the country of
installation.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified person.
Ensure that the plug/socket is accessible at all times.
Strip plastic coating and clean the appliance before use.
During operation parts may become hot - avoid accidental contact.
Disconnect this appliance before servicing, maintenance or cleaning.
Do not move this appliance when the tank is full of hot water.
TECHNICAL DATA
Model
Height (mm)
Width (mm)
Depth (mm)
Weight (kg)
PB33
335
300
600
13.0
PB66
600
24.0
CHECK LIST OF ENCLOSURES
Warranty card
Instructions manual
Drain tube
Lid
Lid knob
Element lifting hook
INSTALLATION AND COMMISSIONING
This appliance must be earthed.
An equipotential bonding terminal is provided to allow cross bonding with other
equipment.

IS 402 ECN 3607 Page 4 of 9
If replacing the plug connect the terminals as follows:
Green and Yellow wire Earth E
Blue wire Neutral N
Brown wire Live L
Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary
polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57)
Fit lid knob to lid.

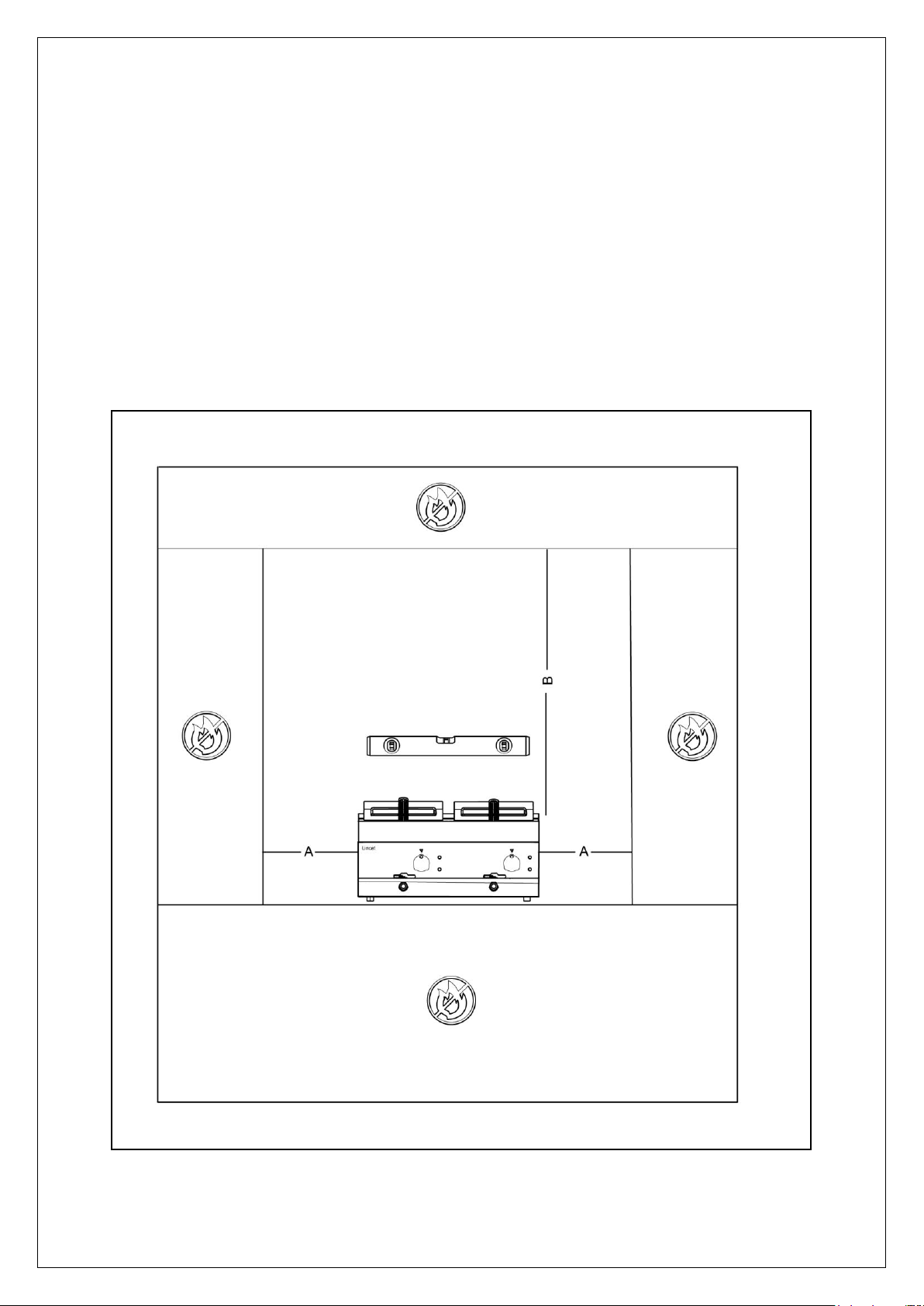

Install this appliance on a level surface ensuring all vents are unobstructed. Any
partitions, walls or furniture must be of non-combustible material. Minimum
distances A 100mm B 1000mm –see Fig 1.
Fig 1

IS 402 ECN 3607 Page 5 of 9
Power Ratings
Model
kW
Amps
PB33
3.0
13.0
PB66
2 x 3.0
2 x 13.0
OPERATING INSTRUCTIONS
Only qualified or trained personnel should use this appliance.
Before first use, clean the tank. Remove the batter plate from the tank by swivelling
up from the front until the plate can be disengaged at the back and lifted clear.
(Fig 2).
Fig 2

IS 402 ECN 3607 Page 6 of 9

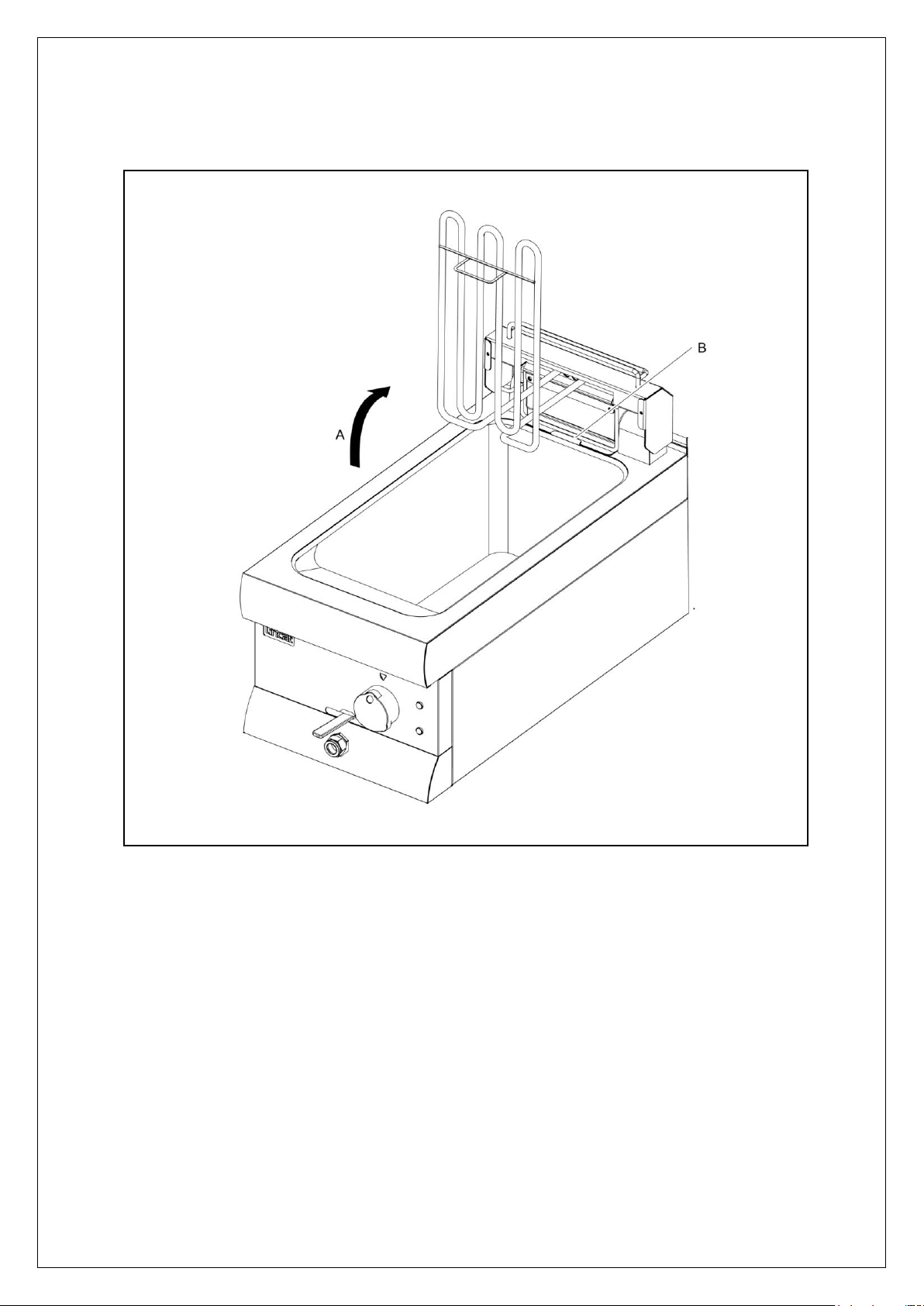

Lift the elements up and back Fig 3 (A) until the stay engages behind the bracket
(B).
Fig 3
Clean the tank with warm water and mild detergent. Dry thoroughly.
Re-position the element by gently pushing it back and disengaging the stay until the
element can be lowered back into place. Replace the batter plate, ensuring the tab
locates behind lifting box cover.
Check the drain valve is closed (lever fully left) before adding fresh water to the
level on the batter plate.
Connect the appliance to an electricity supply –the green neon illuminates to
indicate power to the pasta boiler.
Turn the control knob to the desired setting. The amber neon illuminates.

IS 402 ECN 3607 Page 7 of 9
The amber neon will extinguish when the set temperature is reached, and then
operate with the cycling of the element.
Always keep the water level topped up with hot water. Do not overfill or allow to boil
dry.
After use, allow the water to cool before fitting the drain pipe to the valve and
draining the tank.
CLEANING
Do not use a water jet or steam cleaner, and do not immerse this appliance.
To avoid a build up of starch from the pasta, this appliance must be cleaned daily.
Clean all panels with warm water and mild detergent, do not use abrasive
materials. Dry with a soft cloth.
SERVICING, MAINTENANCE AND
COMPONENT REPLACEMENT
All servicing, maintenance and component replacement on this appliance should be
carried out by one of our recommended service engineers.
Please refer to the Service Help Desk number on the final page of this manual.
FAULT FINDING

IS 402 ECN 3607 Page 8 of 9
Part Number
Description
Used on
EL269
Element
PB33, PB66
FA36
Thermostat clip
FE37
Foot
HO114
Element lifting hook
KN10
Lid knob
KN182
Control knob
NE42
Amber neon
NE43
Green neon
PL202
Mains cable
SG02
Sleeved grommet
SW64
Microswitch
TH70
Thermostat
Part Number
Description
Size H x W x D
PB33
PB66
BA112
Basket
99.5x202x310
1 off
2 off
BA114
99.5x101x310
2 off
4 off
BA115 (RH) & BA116 (LH)
99.5x101x155
2 of each
4 of each
SPARE PARTS LIST
ACCESSORIES

IS 402 ECN 3607 Page 9 of 9
For help with the installation, maintenance and use of your Lincat equipment,
please contact our service department:
UK: 01522 875520
For non-UK customers, please contact your local Lincat dealer
All service work, other than routine cleaning should be carried out by one of our
authorised service agents. We cannot accept responsibility for work carried out by
other persons.
To ensure your service enquiry is handled as efficiently as possible, please tell us:
Brief details of the problem
Product code
All available on serial plate
Type number
Serial number
Lincat reserve the right to carry out any work under warranty, given reasonable
access to the appliance, during normal working hours, Monday to Friday, 08:30 to
17:00.
GUARANTEE
This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is
in addition to, and does not diminish your statutory or legal rights.
The guarantee does not cover:
Accidental damage, misuse or use not in accordance with the manufacturer’s
instructions
Consumable items (such as filters, glass, bulbs, slot toaster elements and door
seals.)
Damage due to incorrect installation, modification, unauthorised service work or
damage due to scale, food debris build-up, etc.
The manufacturer disclaims any liability for incidental, or consequential damages.
Attendance is based on reasonable access to the appliance to allow the authorised
technician to carry out the warranty work.
Service calls to equipment under warranty will be carried out in accordance with the
conditions of sale. Unless otherwise specified, a maximum of 15 minutes of
administrative time, not spent directly carrying out servicing work, is provided for
within the warranty. Any requirement for staff attending the call to spend greater time
than 15 minutes due to administrative requirements, such as on health and safety risk
assessments, will be chargeable at the prevailing rate.
SERVICE INFORMATION
